Article

Assessing the Impact of Canopy Structure Simplification in Common Multilayer Models on Irradiance Absorption Estimates of Measured and Virtually Created Fagus sylvatica (L.) Stands

1
Department of Biosystems, Katholieke Universiteit Leuven, M3-BIORES, Willem de Croylaan 34, BE-3001 Leuven, Belgium
2
Department of Earth and Environmental Sciences, Katholieke Universiteit Leuven, Celestijnenlaan 200 E, BE-3001 Leuven, Belgium
*
Author to whom correspondence should be addressed.
Remote Sens. 2009, 1(4), 1009-1027; https://doi.org/10.3390/rs1041009
Submission received: 16 September 2009 / Revised: 7 November 2009 / Accepted: 9 November 2009 / Published: 16 November 2009

Abstract

:
Multilayer canopy representations are the most common structural stand representations due to their simplicity. Implementation of recent advances in technology has allowed scientists to simulate geometrically explicit forest canopies. The effect of simplified representations of tree architecture (i.e., multilayer representations) of four Fagus sylvatica (L.) stands, each with different LAI, on the light absorption estimates was assessed in comparison with explicit 3D geometrical stands. The absorbed photosynthetic radiation at stand level was calculated. Subsequently, each geometrically explicit 3D stand was compared with three multilayer models representing horizontal, uniform, and planophile leaf angle distributions. The 3D stands were created either by in situ measured trees or by modelled trees generated with the AMAP plant growth software. The Physically Based Ray Tracer (PBRT) algorithm was used to simulate the irradiance absorbance of the detailed 3D architecture stands, while for the three multilayer representations, the probability of light interception was simulated by applying the Beer-Lambert’s law. The irradiance inside the canopies was characterized as direct, diffuse and scattered irradiance. The irradiance absorbance of the stands was computed during eight angular sun configurations ranging from 10° (near nadir) up to 80° sun zenith angles. Furthermore, a leaf stratification (the number and angular distribution of leaves per LAI layer inside a canopy) analysis between the 3D stands and the multilayer representations was performed, indicating the amount of irradiance each leaf is absorbing along with the percentage of sunny and shadow leaves inside the canopy. The results reveal that a multilayer representation of a stand, using a multilayer modelling approach, greatly overestimated the absorbed irradiance in an open canopy, while it provided a better approximation in the case of a closed canopy. Moreover, the actual stratification of leaves differed significantly between a multilayer representation and a 3D architecture canopy of the same LAI. The deviations in irradiance absorbance were caused by canopy structure, clumping and positioning of leaves. Although it was found that the use of canopy simplifications for modelling purposes in closed canopies is demonstrated as a valid option, special care should be taken when considering forest stands irradiance simulation for sparse canopies and particularly on higher sun zenith angles where the surrounding trees strongly affect the absorbed irradiance and results can highly deviate from the multilayer assumptions.

1. Introduction

The light environment inside a forest canopy is a major factor influencing the surface energy balance, the canopy microclimate, as well as photosynthesis, and plant growth [1]. Studying the light distribution within a forest canopy is possible using radiation transfer models, provided that the stand architecture and leaf optical properties are adequately described [2]. These radiation transfer models simulate the effect of canopy geometry and structure on light interception and can link individual leaf light capture to gross photosynthetic assimilations [3,4,5,6,7]. However, because of the difficulties in acquiring detailed stand structure information, most of these models simplify the canopy structure, by using either big-leaf models [8,9,10] (single leaf assumption), or multi-layer models [11,12,13,14] (homogeneous horizontal and vertical layers containing the same amount of leaf area). These simplifications may lead to inaccurate simulations of light interception at the canopy and subsequently at the leaf level [15]. Multilayer canopy models require estimation of the reflection, transmittance, and scattering of radiation within each canopy layer, which requires certain assumptions regarding leaf orientation [16].
Canopy structural simplifications can be nullified by taking a more thorough approach which explicitly considers light interception by individual leaves. For example, using in situ data of tree architecture [17,18] or virtual environment plant growth algorithms that respect the plant’s genetic code and reconstitutes tree morphology [19] such as the Atelier de Modelisation et d’Architecture des Plantes (AMAP) model [20]. These geometric explicit canopy architecture models are capable of describing the radiation regime within canopies using current advances in computer power and path tracing algorithms such as tRAYci [1] and the PBRT path tracer [21]. As a result they provide a more accurate calculation of light intercepted by particular elements of the canopy [22].
Considerable research has been carried out investigating big-leaf model behaviour, especially in simulating daily photosynthetic variations, in comparison with multilayer canopy representations [14,23,24]. Furthermore, multilayer models have been assessed in terms of different leaf angular assumptions and its affects on the simulation of the absorbed irradiance [25,26].
At the same time, scientists have incorporated three dimensional canopy elements [27,28] to assess light interception inside a canopy either by using cubic units that were either filled or empty with leaf area [5], or by using field measurements and Monte Carlo simulations of canopy gap fraction and LAI to examine the interaction of beam radiation with clumped forest canopies [25]. However, the contribution of explicit geometric canopy models compared to different multilayer canopy simplifications in calculating irradiance absorption and therefore surface radiation balance has not yet been thoroughly assessed and quantified.
The main objective of this paper is to determine the magnitude of difference on irradiance absorbance estimates between multilayer modelling approaches and 3D geometrically explicit canopy representations for stands with open and closed canopies, throughout the time span of an individual day. The procedure involves the development of an explicit 3D structure model that incorporates both leaf level detailed canopy description and leaf optical properties of four Fagus sylvatica (L.) stands with variable Leaf Area Index (LAI) values. Two stands were created using in situ tree architecture measurements while the other two were generated by the AMAP model. The detailed structure of the four stands was imported in the PBRT ray tracing software in order to compute light interception and absorbance at leaf level. Three concurrent multilayer representations with the same LAI as the 3D stands were constructed, each with different Leaf Angle Distributions (LAD), and their absorbed irradiance was compared with the 3D stands used as reference. Furthermore, the stratification of leaves was assessed in terms of Percentage of the Above Canopy Light (PACL) and percentage of sunny and shadow leaves among the 3D canopies and the multilayer models.

2. Materials and Methods

2.1. Study Area

Measurements were conducted in August and September 2004 in an even-aged nine year old Fagus sylvatica (L.) stand on a sand-loamy soil in Meerdaal forest, south of Leuven, Belgium (50°48’ N, 4°20’ E). Trees were planted in a 2 × 1.80 m spacing pattern and had an average height of 2.50 m. Nine trees were manually measured in detail up to the leaf level. The surrounding stands were separated from the study area, so no significant limitation of irradiance due to shadow casting appeared, with the exception of early and late hours of the day, before 07:00 am and after 7:00 pm Central European Summer Time, respectively.

2.2. In-Situ Measurement of Tree Architecture

To obtain the fundamental description of canopy geometry based on inclination, azimuth, surface area and location of the individual plant parts a specific measurement strategy was followed [29]. Tree architecture was determined manually in three steps: (i) measurement of the stem, (ii) branches, and (iii) leaves. For each of these steps the ‘depth first order’ strategy [30] was applied to make sure that none of the plant parts were omitted. Length, diameter, azimuth, and zenith values per node were measured, while the azimuth and zenith of the main nerve of each leaf was recorded. All leaves were measured in terms of azimuth and zenith of the main nerve with a compass and a protractor, while a tape and a calliper were used to measure the length and diameter of branches and stems, respectively. For each tree, 16 leaves were scanned from four branches evenly spaced between the top and the bottom of the trees. All the leaves were placed on millimetre graph paper and scanned using Corel scan software. For each leaf the surface area of the leaf blade, length of the major axis of the leaf blade (main nerve), length of the minor axis of the leaf blade (longest length perpendicular to major axis) and length of the petiole were extracted.

2.3. Geometrically Explicit Stand Architecture Model

2.3.1. Stand architecture model based on in-situ measured trees

Two virtual stands were created, with the same row orientation (facing 30ºNW) as in the field, from the measured data of the nine measured trees using the Matlab software (Figure 1a). To account for any possible edge effects, the nine measured trees were positioned in the centre of the stand, while 72 clones of those trees in eight blocks of the same grid dimensions are surrounding the central individuals. Shading from neighbour trees in a forest stand is a major constrain on the available light and this was incorporated as realistically as possible.
The trees were placed in a regular grid of 2.00 m × 1.80 m covering an area of 32.87 m2 and comprised a total of 86,211 leaves and a LAI of 0.58. A second simulation with an LAI of 1.29 was obtained by reducing the spacing, between the same measured trees used above, down to 1.00 m × 1.00 m grid and a corresponding stand area of 13.94 m2 (Figures 2a,b).

2.3.2. Stand architecture model based on AMAP modelled trees

To guarantee the availability of geometric grown forest stands with higher density and LAI and thus closed canopies, the AMAP plant growth model was used to generate nine 15 year old trees (Figure 1b).
These trees were used to simulate two stands of 81 trees each with LAI of 2.76 and 3.65 respectively (Figure 2c,d). The trees were placed in a regular grid of 4.00 m × 4.00 m, with the same row orientation as the field ones, while the higher LAI value of 3.65 was achieved by using an additional 25% number of leaves per tree for the second stand. The age of the AMAP trees was selected to mimic LAI values as encountered in natural conditions [31,32]. The AMAP model was successfully applied in different applications such as light penetration through tree crown [33], forest landscape visualization [34], and canopy parameters derivation from SAR data [35] and provides a quantitative approach of simulating plant architecture [20,36]. Information about the measured and simulated trees and stands are presented in Table 1.
Figure 1. Trees used for explicit simulation of the Fagus sylvatica (L.) canopy. Left (A), a 9 year old in situ measured tree; right (B) a 15 year old AMAP simulated tree.
Figure 1. Trees used for explicit simulation of the Fagus sylvatica (L.) canopy. Left (A), a 9 year old in situ measured tree; right (B) a 15 year old AMAP simulated tree.
Remotesensing 01 01009 g001
Table 1. Stand geometric information of the geometrically explicit 3D canopies.
Table 1. Stand geometric information of the geometrically explicit 3D canopies.
LAIMean Leaf Zenith Angle (°)Stand Area (m2)Mean Crown Diameter (m)Mean Leaf Size (m2)Mean Tree Height (m)
Stand A0.5811.5332.871.220.00182.50
Stand B1.2911.5313.941.220.00182.50
Stand C2.7618.24152.414.540.00139.75
Stand D3.6518.92152.644.630.001310.13

2.3.3. Rendering of radiation transfer for simulated canopies

For each 3D stand, the Absorbed Photosynthetically Active Radiation (APAR) was computed by rendering the forest scene with a path tracing algorithm using a modified version of the PBRT path ray tracer [21]. In principle PBRT generates paths that begin at the source and propagate into the scene, eventually ending at the camera. At each vertex along a path there is a scattering event, based on the Bidirectional Scattering Distribution Function (BSDF) of the surface, from which a new path is propagated [21]. Direct and scattered irradiance assimilation was simulated by assigning a light source for each angular sun position during the period of the day of June 15th 2004. Diffuse irradiance absorbance was simulated by using a homogeneous skymap (i.e., constant illumination from each spherical direction) of which the horizontal irradiance equals the mean of all recorded diffuse irradiances during the period of one day. Light interception was calculated by placing a virtual camera on the surface of each leaf. Each camera recorded the intercepted irradiance onto the leaf surface as the sum of direct, diffuse, and first order scattering irradiance from neighbour leaves. To exclude edge effects, light interception computations were limited to the nine central trees of each canopy stand. Leaves were assigned a constant reflectance and transmittance of 6.5% respectively in thePAR (400–700 nm) based on measurements with an ASD spectroradiometer and a leaf probe. These assigned values are in agreement with the results obtained by [22]. Leaves were assumed to be Lambertian scatterers. The forest scene illumination input data were obtained from Meteosat data (www.satel-light.com) for a partly cloudy day (June 15th 2004) with hourly values and sun positions for Brussels, Belgium (latitude 50.85°, longitude 4.37°). The rendering mechanism creates the possibility to study the impact of actual crown geometry, leaf distributions, leaf angle distributions, etc. on the canopy’s light environment.

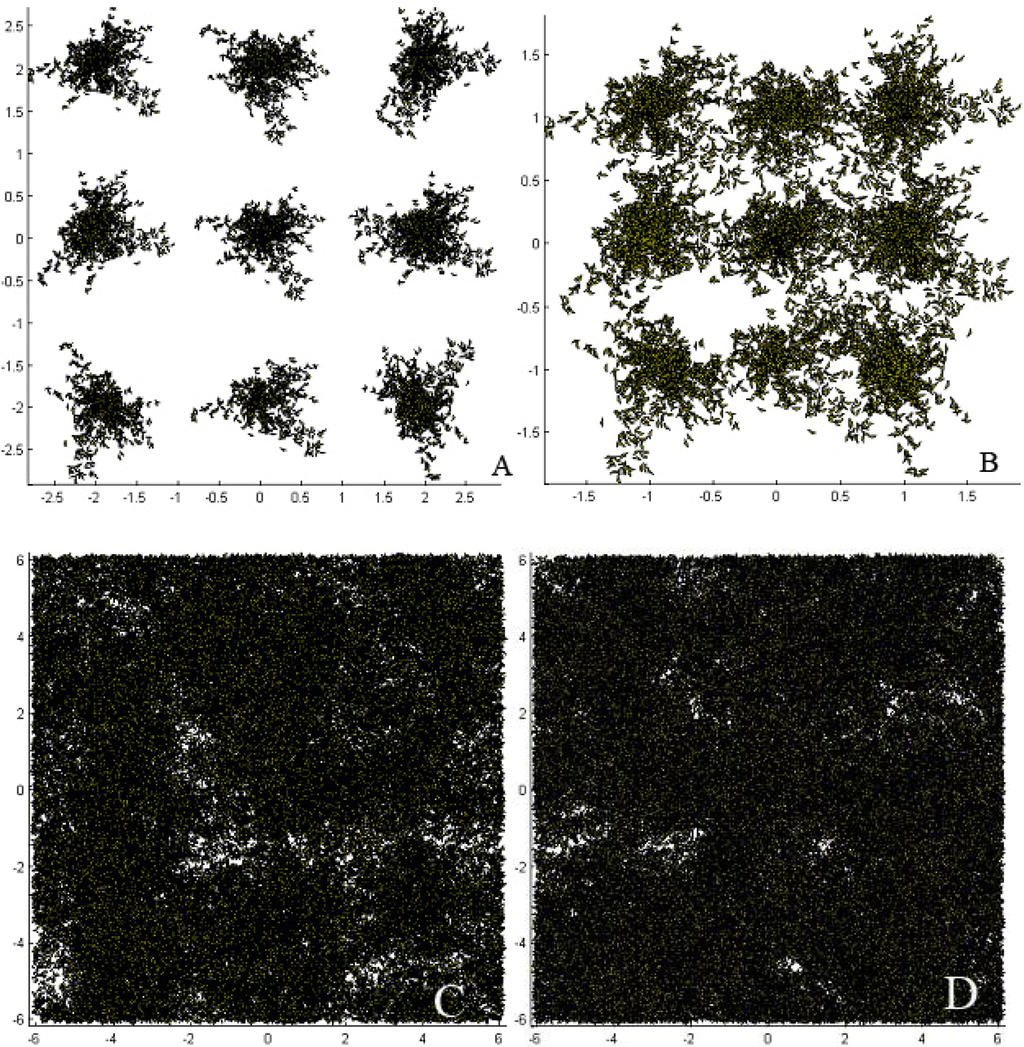

Figure 2. Simulated Fagus sylvatica (L.) stand comprised of 9 trees. Four LAI scenarios are presented. Upper stands (9 years old Fagus) are derived from in situ measured trees; (A) with the observed plantation distance of 1.8 m × 2.0 m (LAI = 0.58), and (B) with a changed plantation distance of 1.0 m × 1.0 m (LAI = 1.29). Bottom stands (15 years old Fagus) are derived from AMAP library and have an LAI of 2.76 (C) and 3.65 (D) respectively. The axes of the figures indicate the stand dimensions in meters.
Figure 2. Simulated Fagus sylvatica (L.) stand comprised of 9 trees. Four LAI scenarios are presented. Upper stands (9 years old Fagus) are derived from in situ measured trees; (A) with the observed plantation distance of 1.8 m × 2.0 m (LAI = 0.58), and (B) with a changed plantation distance of 1.0 m × 1.0 m (LAI = 1.29). Bottom stands (15 years old Fagus) are derived from AMAP library and have an LAI of 2.76 (C) and 3.65 (D) respectively. The axes of the figures indicate the stand dimensions in meters.
Remotesensing 01 01009 g002

2.4. Multilayer Canopy Models

Three multilayer representations were created with different Leaf Normal Distribution Function (LNDF) to compare the irradiance absorbance with that of the geometrically explicit stands. The two LNDF representations (horizontal and uniform) were chosen since they are widely used to model and represent canopy architecture [24,38,39]. The first representation has a horizontal LAD, and the second a uniform LAD with all leaf inclinations ranging from 0° to 90° equally present. Furthermore, since we had the input values of the measured LAD of leaves a third representation (planophile) was created. Each multilayer representation comprised of 6 LAI layers equal to one sixth of the total canopy LAI while reflectance and transmittance values were the same as in the values used in the PBRT ray tracing algorithm.
The distribution of light intensity intercepted by the canopy is a function of each leaf area illuminated by direct, scattered, and diffuse irradiance, the incidence angle of incoming radiation, and the solar radiation values. APAR is calculated as the sum of absorbed direct, scattered and diffuse components by the leaves. In order to calculate direct, diffuse and scattered absorbed irradiance for the multilayer models the following equations were used [24].
Irradiance absorbed by a canopy, Il, per unit ground area, is determined by integrating equation 1 over the entire canopy leaf area [40]:
I l = I l b ( L ) + I l d ( L )
The direct beam irradiance, Ilb(L) with scattering equals to:
I l b ( L ) = ( 1 ρ c b ) k b I b ( 0 ) exp ( k b L )
The diffuse irradiance, Ild(L), is:
I l d ( L ) = ( 1 ρ c d ) k d I d ( 0 ) exp ( k d L )
The scattered direct beam irradiance, Ilbs(L), is given by:
I l b s ( L ) = I b ( 0 ) [ ( 1 ρ c b ) k b exp ( k b L ) ( 1 σ ) k b exp ( k b L ) ]
where L is LAI, ρcb and ρcd are canopy reflection coefficients for beam and diffuse PAR respectively. kb, kb and kd are the beam, beam and scattered, and diffuse and scattered PAR extinction coefficients respectively while σ is the leaf scattering coefficient. This methodology to calculate absorbed irradiance is described analytically in [24] and involves separating the canopy in sunlit and shaded leaf fractions.
The direct beam irradiance absorbed by the sunlit leaves is unidirectional and the angle of incidence on leaves has to be considered. The absorbed direct beam irradiance is the product of the beam irradiance perpendicular to the beam and the mean cosine of the mean leaf angle (for each different multilayer representation). As a result, the irradiance absorbed by the sunlit fraction of the canopy is equal to the sum of direct-beam, diffuse and scattered-beam components. Since the shaded part of the canopy is not receiving any direct beam irradiance only the diffuse and the scattered beam are considered. The diffuse extinction coefficient, kd, for a uniform multilayer representation is 0.719 [24]. The horizontal LAD has an extinction coefficient equal to 1 for all sun zenith angles as well as for direct and diffuse irradiance [24]. Canopy reflection coefficients were calculated using the equations from [40] and for a horizontal distribution we have:
ρ h = 1 ( 1 σ ) 1 / 2 1 + ( 1 σ ) 1 / 2
While for a uniform LAD the reflection coefficient is:
ρ c b ( θ ) = 1 exp [ 2 ρ h k b / ( 1 + k b ) ]
Here θ is the solar zenith angle expressed in radians.
As far as diffuse irradiance is concerned, we substitute kb (θ) with kd in equation 6.
The extinction and reflectance coefficients for the planophile representation as well as the variables and values used for the multilayer models are presented in the appendix.

2.5. Leaf Stratification of Modelled and Multilayer Canopies

It is well known that in a forest stand the foliage is not distributed evenly inside the canopy. Foliage is concentrated in tree crowns and specifically around shoots [32]. To estimate this leaf distribution and compare it with the multilayer representations the number of leaves per LAI increment was calculated for the 3D stands. Furthermore, the Percentage of Above Canopy Light (PACL) per cumulative LAI was computed. PACL is the percentage of available light above any certain position inside the canopy. At the same time, the distribution of sunlit and shaded leaves was assessed for the 3D canopies based on the leaf level intercepted radiation and compared to the multilayer representations in which this distribution is given by the sunfleck penetration equation:
f S u n ( L ) = exp ( k b L )

3. Results

3.1. Absorbed Irradiance of Geometrically Explicit Canopies

The diurnal path of the sun determined a continuous movement of sun flecks through the canopy. With the sun at higher zenith angles, direct irradiance was mostly intercepted by leaves at the top of the canopy, while at near nadir angles, sun flecks penetrated deeper into the stands. Furthermore, the surrounding trees intercepted larger amounts of incoming irradiance at higher sun zenith angles, than in nadir. The absorbed irradiance derived from the geometrically explicit model and the PBRT ray tracing algorithm is presented, as seen from nadir, in Figure 3 for all the stands, while the side view of the stand with LAI 1.29 and 2.76 is presented in Figure 4. Absorbed irradiance of the stands was positively correlated with LAI values for all canopy representations.
It was observed that the top layer of the leaves were mostly sunny leaves incorporating 80–100% of the available light, while the value of intercepted radiation progressively became smaller for the leaves at the bottom of the canopy (e.g., the case of the young stands) and in the middle-bottom for the older stands driven by canopy gaps.

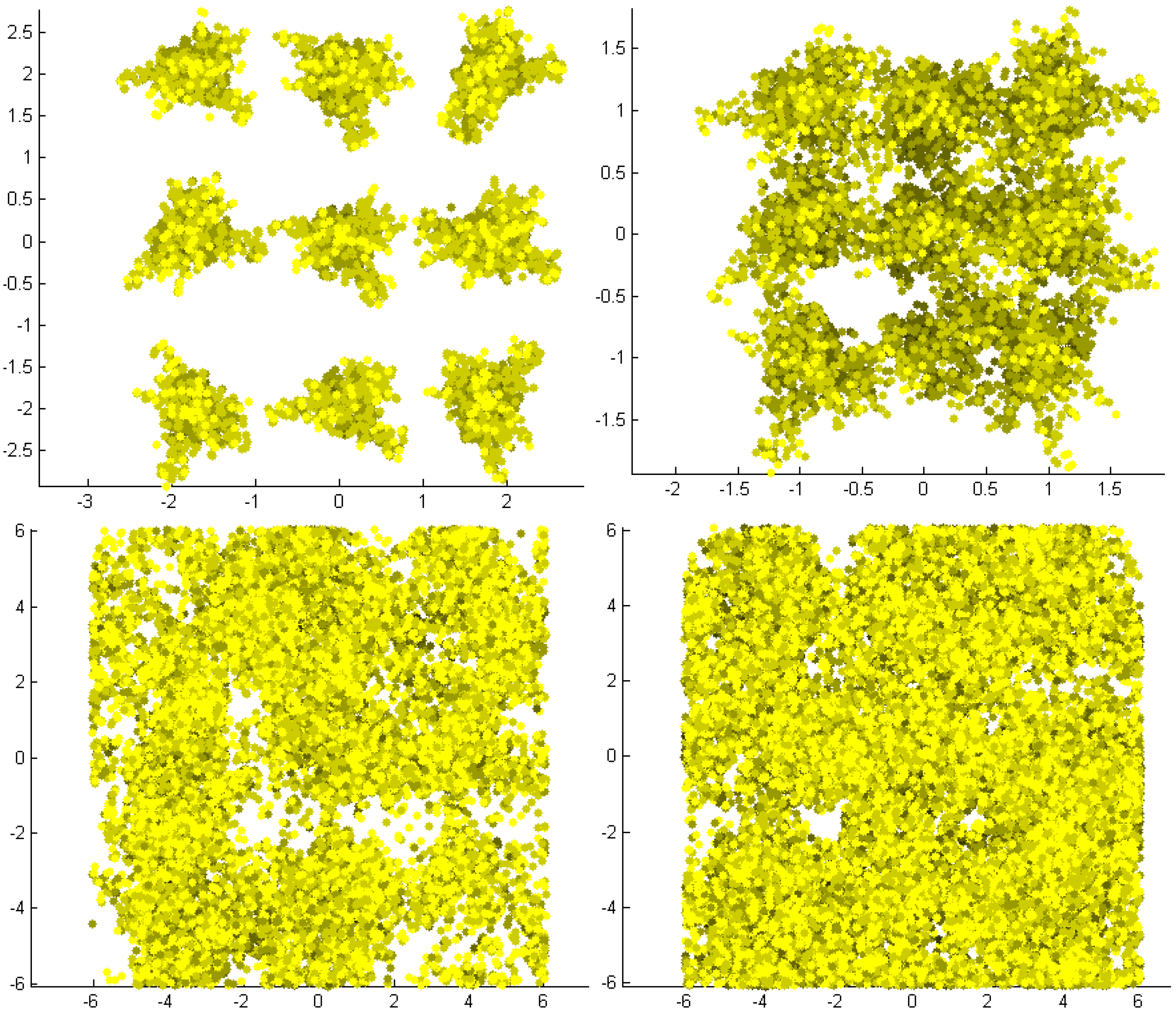

Figure 3. PBRT generated APAR per leaf for all 3D simulated stands. The four figures present the nadir view of the stands with LAI 0.58, 1.29, 2.76, and 3.65, respectively. The leaves are separated in percentage classes of absorbed light ranging from yellow (80%–100% absorbed light) to black (0%–5% absorbed light). Sun is at 10° from nadir. The axes of the figures indicate the stand dimensions in meters.
Figure 3. PBRT generated APAR per leaf for all 3D simulated stands. The four figures present the nadir view of the stands with LAI 0.58, 1.29, 2.76, and 3.65, respectively. The leaves are separated in percentage classes of absorbed light ranging from yellow (80%–100% absorbed light) to black (0%–5% absorbed light). Sun is at 10° from nadir. The axes of the figures indicate the stand dimensions in meters.
Remotesensing 01 01009 g003

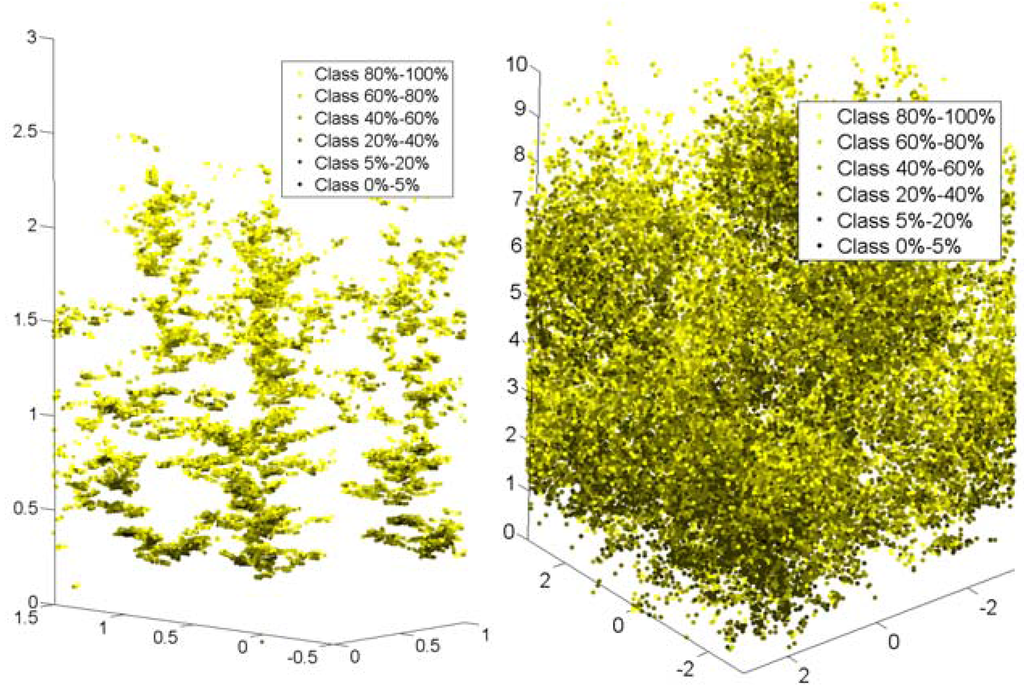

Figure 4. The two figures present the side view for the stands of LAI of 1.29, and 2.76 left and right respectively. The leaves are separated in percentage classes of absorbed light ranging from yellow (80%–100% absorbed light) to black (0%–5% absorbed light). Sun is at 10° from nadir. The axes of the figures indicate the stand dimensions in meters.
Figure 4. The two figures present the side view for the stands of LAI of 1.29, and 2.76 left and right respectively. The leaves are separated in percentage classes of absorbed light ranging from yellow (80%–100% absorbed light) to black (0%–5% absorbed light). Sun is at 10° from nadir. The axes of the figures indicate the stand dimensions in meters.
Remotesensing 01 01009 g004

3.2. Absorbed Irradiance of Multilayer Models

Using the parameters for the simulated canopies and the multilayer representations set previously, the instantaneous distribution of absorbed irradiance was calculated for each sun angular position and is shown in comparison with the APAR of the 3D canopies in Figure 5 for all LAI and canopy representations. Moreover, the diurnal variation of Absorbed Photosynthetically Active Radiation irradiance is presented in Figure 6.

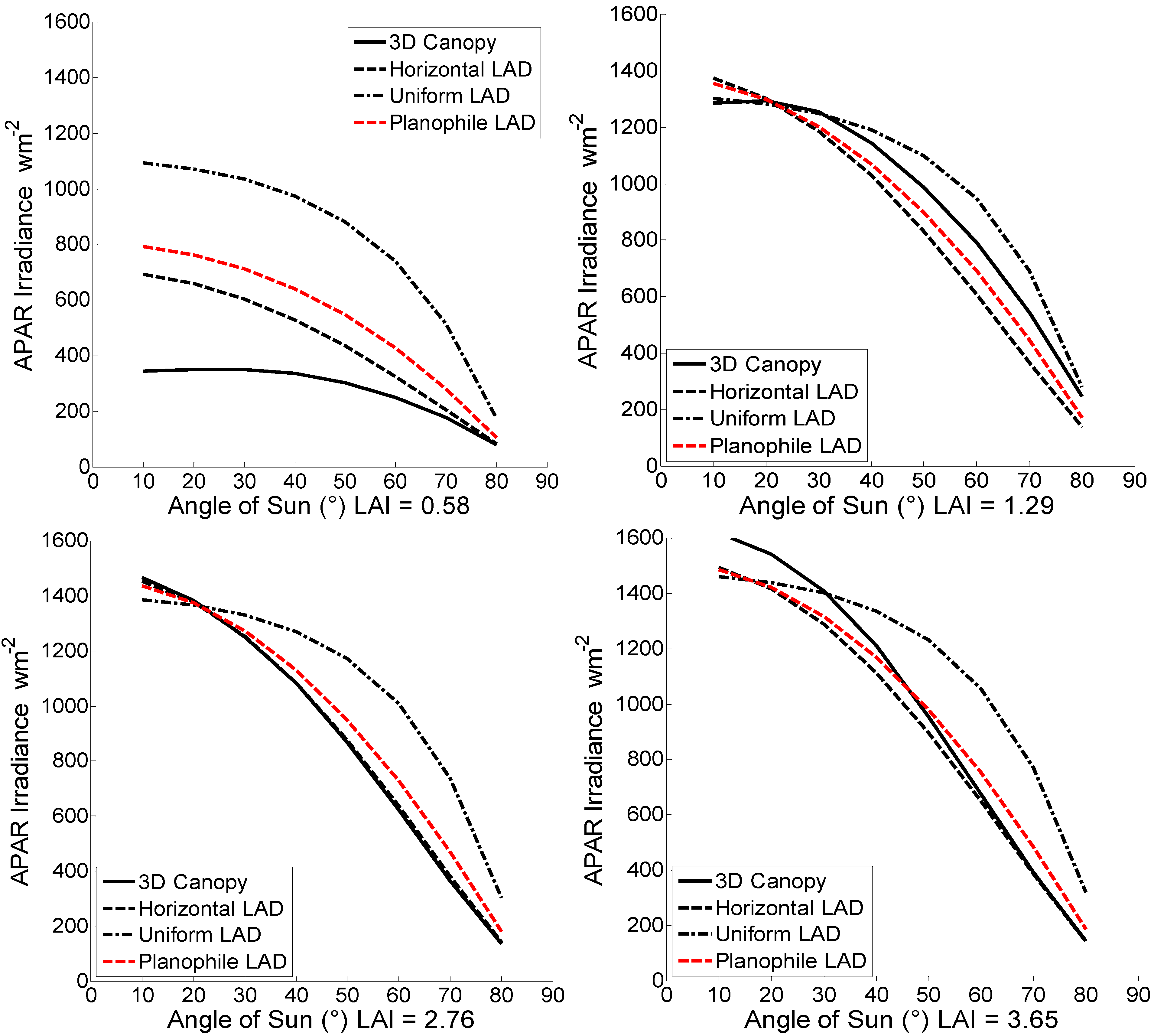

Figure 5. Diurnal sun angular variation of canopy APAR (w m−2). The four different graphs show absorbed irradiance from all canopy representations and LAIs.
Figure 5. Diurnal sun angular variation of canopy APAR (w m−2). The four different graphs show absorbed irradiance from all canopy representations and LAIs.
Remotesensing 01 01009 g005

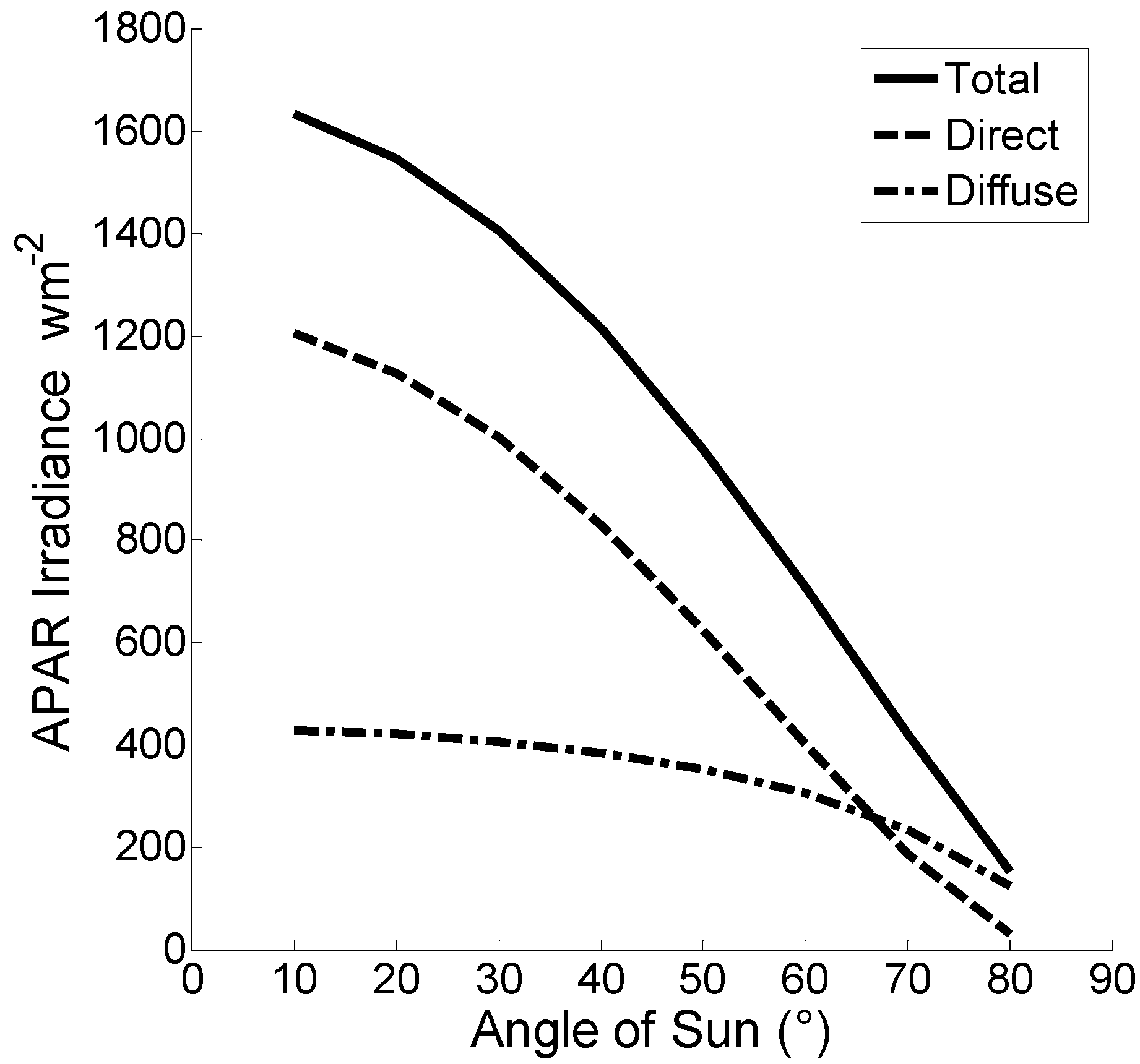

Figure 6. Diurnal variation of Absorbed Photosynthetically Active Radiation irradiance (APAR) (w m−2). Data were collected for a single day during June 2004 depicting direct, diffuse, and total irradiance for a partly cloudy sky.
Figure 6. Diurnal variation of Absorbed Photosynthetically Active Radiation irradiance (APAR) (w m−2). Data were collected for a single day during June 2004 depicting direct, diffuse, and total irradiance for a partly cloudy sky.
Remotesensing 01 01009 g006
APAR values of the multilayer representations demonstrated a significant overestimation compared to the architecture measured canopy for the stand with LAI of 0.58. For the denser LAI scenario of 1.29, it was observed that the multilayer with horizontal and planophile LAD underestimated APAR while the uniform overestimated it. Compared to the geometrically explicit canopy simulated with AMAP software, it was observed that for LAI of 2.76 the horizontal and planophile LAD closely matched APAR while slightly underestimated for an increased LAI of 3.65. The uniform LAD representation in both cases overestimated the absorbed photosynthetically active radiation. The mean, maximum, and minimum APAR percentage differences between the multilayer representations and the geometrically explicit 3D canopies are presented in Table 2.
Table 2. Mean, maximum, and minimum APAR percentage differences of multilayer representations versus geometrically explicit 3D canopies.
Table 2. Mean, maximum, and minimum APAR percentage differences of multilayer representations versus geometrically explicit 3D canopies.
StandLAIHorizontal

Max –Mean – Min Values (%)PlanophileMax –Mean – Min Values (%)UniformMax –Mean – Min Values (%)
A0.58Overest.101 – 51.77 – 3.76Overest.130 – 86 – 32.8Overest.208 – 188.70 – 120
B1.29Underest.44.4 – 17.45–6.8Underest.30.13 – 10.77 – 0.30Overest.12.9 – 9.70 – 1.23
C2.76Underest.3.9 –1.65 – 0.83Overest.33.8 – 12.32 – 0.58Overest.123 – 44.32 – 5.5
D3.65Underest.7.6 – 5.56 –1.5Underest.29.1 – 11.59 – 2.4Overest.121 – 41.45 – 9.8
For the sparse canopy scenario of LAI 0.58, the representation with horizontal LAD reached differences of 101% for near nadir sun position while the lowest differences were at high sun zenith angles with values of 3.76%. Similarly, the uniform LAD presented the higher differences near nadir sun angles. Regarding the denser measured canopy, the horizontal LAD adequately matched the absorbed irradiance with differences of 6.80% in near nadir sun angles. These differences, however, were magnified at the highest sun zenith angles reaching 44.40%. At the same time the multilayer representation with uniform LAD produced differences of 1.23% near nadir and 12.90% in higher sun angles.
Compared to the AMAP simulated canopies, the multilayer model with horizontal LAD slightly underestimated APAR in the order of 0.83% for near nadir sun angles increasing up to 3.90% absolute difference for higher sun zenith values for the case of LAI of 2.76. The uniform LAD representation overestimated APAR with differences of 5.50% in the near nadir sun angles while for higher zenith angles these differences raised up to 123.00%. Similarly for LAI 3.65 the horizontal LAD multilayer model underestimated the absorbed irradiance in the near nadir angles with values of 7.60% while at higher sun angles this value dropped to 1.50%. At the same time the uniform LAD representation presented higher differences for higher sun zenith angles of the order of 121.00% while for near nadir these were 9.80%. As far as the planophile representation was concerned, it was observed that it followed similar patterns and values as the horizontal representation for all LAI scenarios, providing the closest APAR estimates in the LAI of 1.29 with maximum and minimum percentage differences of 30.13% and 0.30% respectively.

3.3. Leaf Stratification inside Geometrically Explicit Stands

A detailed analysis of the leaf distribution and its effect on APAR was performed in order to further investigate the APAR results obtained by the multilayer representations and the geometrically explicit canopies. Canopies were stratified in increments of LAI (increments of 1/6) and the number of leaves per LAI increment was calculated together with the PACL per cumulative LAI (Figure 7). This analysis was performed to compare the differences in leaf quantity, position, and irradiance absorption inside a 3D canopy to a multilayer representation.
It was observed that the multilayer representations following Beer-Lambert’s law presented a smooth transition in absorbed irradiance and from their top layer had already absorbed more than 20% of the available light for the LAI case of 0.58 while the geometrically explicit canopy had absorbed merely 10%. As the LAI increased to 1.29, multilayer model with horizontal LAD absorbed almost 40% of the available light from its top layer. The same pattern was visible for the AMAP generated canopies. Similarly, the planophile and the uniform representation presented the same trend for all LAI scenarios. On the contrary, the PACL for a 3D geometrical canopy was regulated from the amount of leaves present in the various height positions.
Apparently, the distribution of an architecturally explicit canopy in terms of leaves distribution did not follow the one of the multilayer representations. The majority of the leaves were placed in the middle upper part of the trees. For example, the stand of 3.65 LAI had a vertical profile that produced LAI increments of 0.005, 0.62, 1.66, 1.06, 0.28, and 0.007 per two meters increment respectively, while the multilayer LAI increments were fixed at 0.60. At the same time the distribution of sunlit and shaded leaves of multilayer representation was not consistent with the ones of explicit architecture canopies. Analytically, the percentage of shadow leaves was 0% above the top layer, 36% on the first increment 60% on the second, 74% on the third reaching 93% at the bottom layer of the horizontal multilayer representation for an LAI of 3.65. The explicit architecture canopy of the same LAI on the other hand presented 0% of shadow leaves on the top layer, 1.8% on the first layer, 19% on the second layer, 59% on the third, and reaching 98% on the bottom layer.

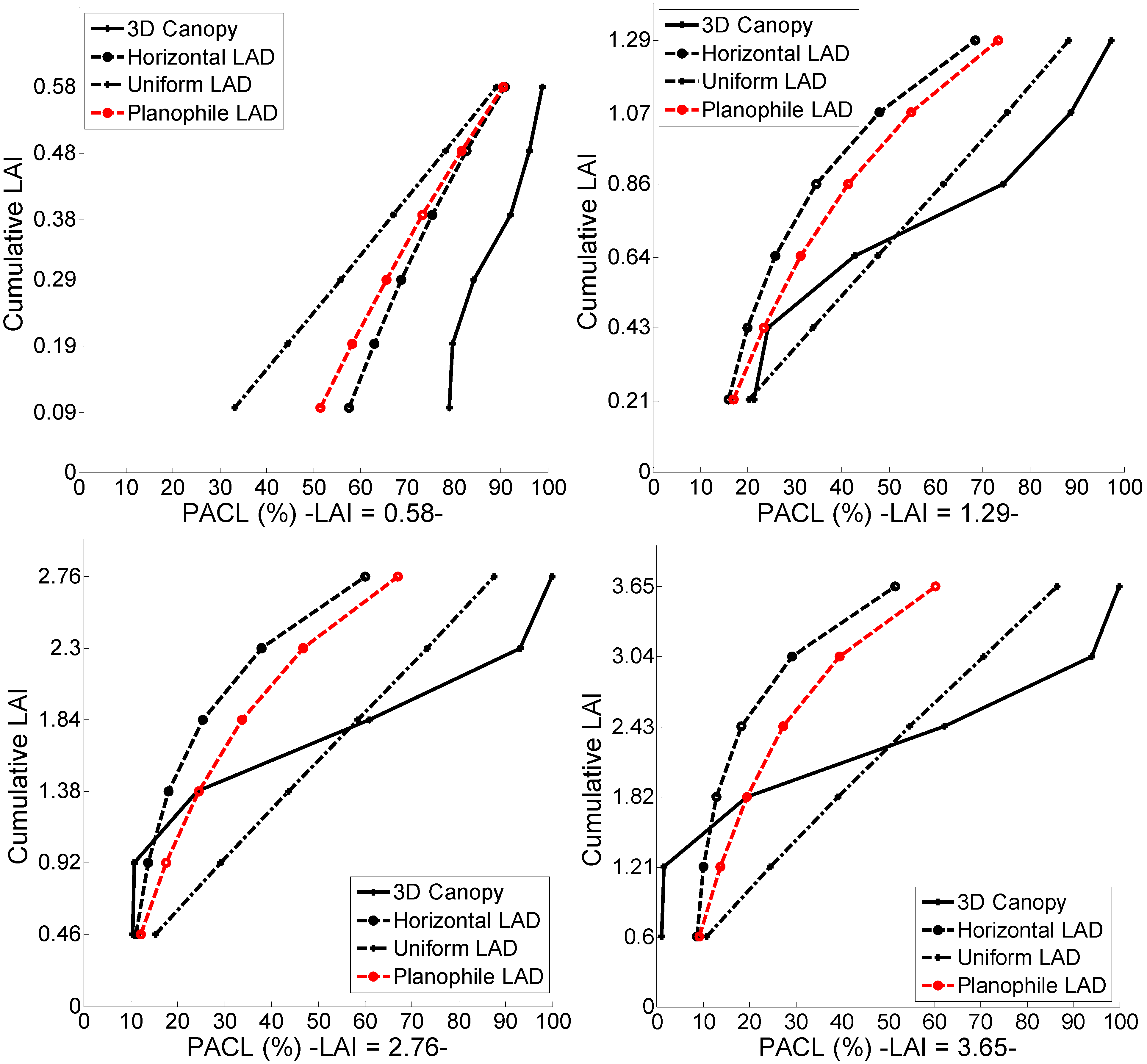

Figure 7. The PACL per cumulative LAI (increments in steps of one sixth of total LAI) is presented for the 3D architecture stands. At the same time the absorbed irradiance of the multilayer representations are depicted for the equivalent LAI increments.
Figure 7. The PACL per cumulative LAI (increments in steps of one sixth of total LAI) is presented for the 3D architecture stands. At the same time the absorbed irradiance of the multilayer representations are depicted for the equivalent LAI increments.
Remotesensing 01 01009 g007

4. Discussion

Based on the presented results, a number of factors are identified that affect the irradiance absorbance differences between the two studied approaches. The differences on irradiance absorbance estimates among multilayer models and geometrically explicit 3D canopies for high sun zenith angles was attributed to the fact that in a dense canopy scenario the absorbed irradiance from the canopy is highly influenced by the surrounding trees. Furthermore, the clumping of the leaves near the stem and branches, a factor that is not integrated into the multilayer representation, highly influences APAR [32]. By comparing simulated transmissions with field measurements, [32] showed that in a homogeneous closed canopy tree leaf area is a strong indicator of irradiance absorbance, while in an open canopy location of trees and crown dimension strongly affect APAR. Moreover, [42] suggested that in a low density stand as the one of LAI of 0.58, grouping of foliage results in a considerable decrease of APAR per unit leaf area as compared to horizontal homogeneous stands.
As far as the AMAP canopies were concerned the multilayer models exhibited significantly closer APAR values compared to the geometrically explicit canopies, a fact that was expected since they exhibit a more homogeneous and closed canopy pattern having higher LAI values. When the sun is at near nadir positions, the amount of intercepted radiation for the sum of all leaves, in the case of a dense and tall canopy, is higher than a multilayer representation due to the specific canopy leaf angle distribution and the scattering of light among the leaves themselves [42].
It was obvious that the influence of the surrounding trees regarding irradiance absorbance was higher for the AMAP simulated stand than the stand comprised from measured trees due to the difference of tree height and leaf density. As a result, higher sun zenith angles increased the percentage differences in these stands of tree height of 11 meters (LAI 2.76 and 3.65) especially for the uniform representations. These irradiance differences among the four LAI scenarios were attributed to the fact that sparse canopies have larger gaps. This fact is not considered in multilayer models. In addition, differences in tree height among the trees inside a canopy further influences irradiance absorption [43]. These observations verify that light modelling using multilayer representations of canopies are applicable for forest stands that satisfy the assumption of horizontal homogeneity, e.g., very dense stands with a closed canopy composed of only one species [38,39]. The leaf stratification results further verify these findings. Although the distribution of leaves was significantly different between the 3D canopies and multilayer models, the actual irradiance absorbance was in close agreement. Moreover, in agreement with [32,44], open stand spatial information of tree position and crown dimensions strongly affect absorption by individual leaves.
Driven by the differences observed in the high sun zenith angles, we reran the PBRT simulation of the 3D stands using solely the nine central trees (without the edge effects). It was found that for these solar angles multilayer representations provided lower maximum differences of the order of 82% for the horizontal LAD and 164% for the uniform LAD compared to the 3D canopy of LAI 0.58. In a real case scenario for a canopy forest stand, however, the edge effect of surrounding trees is present and thus must be considered.

5. Conclusions

The results indicated that a multilayer representation of a stand, using a horizontal, a planophile, or a uniform modelling approach, overestimated the absorbed irradiance in a sparse canopy, while approximated the absorbed irradiance better in a closed canopy. Diurnal variation of the computed absorbed irradiance was attributed to the incidence angle of the light upon the leaves, driven by the combined effects of height and angular displacement of leaves and sun position. According to the plant density scenario and the irradiance values, the multilayer representation with horizontal and planophile LAD better fitted the 3D canopy absorbed irradiance capacity but that could be mainly attributed to the fact that the 3D canopy presented a planophile (closer to horizontal) distribution. It was interested though that although we simulated multilayer representations with planophile LAD based on measured values they did not provided the best fit for all the LAI cases. This fact further emphasizes the important of the role of canopy architecture in irradiance absorbance. Additionally, it was shown that the LAI distribution inside a canopy was different than the one in a multilayer representation. In the simulated canopies leaves were concentrated in the middle upper part of the trees which is not the case for the equally LAI distributed multilayer representations. Moreover, the percentage of the sunny and shadow leaves is vividly affected by the canopy distribution and does not explicitly follow Beer-Lambert’s extinction law.
Several scientists developed models to investigate photon leaf absorption and photosynthetic capacity, using simulated canopies that include features such as spatial distribution of leaf area density, leaf age, and leaf inclination angles [45,46], and especially on Fagus sylvatica (L.) [4,7,43]. All the above researchers used a multilayer representation for their canopy introducing inevitably some level of structural simplification. Therefore, we wanted to present the possible deviations of these representations from a 3D case scenario. The results provide reference knowledge in the use of multilayer canopy representations, thereby acknowledging the difficulty in obtaining real tree architecture data and the necessity of simplified canopy approximations. Observation of stand characteristics under investigation in terms of LAI and plantation scheme, as well as sky irradiance characteristics, would allow scientists to fine-tune, adjust relevant parameters and incorporate bias into their multilayer representation results.

Acknowledgments

This work was funded by the OT/01/34 project of the Katholieke Universiteit Leuven. We also acknowledge the help of Jan Stuckens, from the Department of Biosystems, M3-BIORES of the Katholieke Universiteit Leuven, who assisted in the use of the PBRT ray tracing software.

Appendix

It is known that in nature leaves are almost never oriented entirely horizontally, and that they present a distribution of orientations. In order to calculate the irradiance absorbance of canopies with varying LADs, the canopy extinction coefficient should be calculated. Our measured leaves had a mean inclination angle value of 11.53°, while the AMAP generated trees had a mean inclination angle value of 18.24°. In their book [47] Campbell et al. provide an equation to calculate extinction coefficient (k) for any possible LAD:
k = ( x 2 + tan 2 θ ) 1 / 2 x + 1.744 ( x + 1.182 ) 0.773
Where θ is the sun zenith angle and (x = 7.90 for 11.53° and x = 4.80 for 18.24°) is the leaf angle distribution parameter (mean ratio of horizontal to vertical projections of leaves). The leaf angle distribution parameter, x, can be estimated as a function of the canopy mean leaf inclination angle (Θ) following [48] equation:
x = { 151.515 1 0.0107 Θ Θ i f   Θ 54.4 ° 97.087 1 0.0053 Θ Θ f   Θ 54.4 °
The parameter x equals to 1 for a uniform distribution, zero for a vertical distribution and for a horizontal leaf canopy, x approaches infinity.
The diffuse transmission coefficient (τdiff) is calculated as:
τ d i f f = 2 0 p i / 2 τ d i r ( θ ) sin θ cos θ d θ
And τdir(β) is the direct light transmission coefficient:
τ d i r ( θ ) = exp [ k ( θ ) L ]
The above equations (8 to 11) along with the equations (1 to 6) were used as a reference case to create a multilayer representation with LAD similar to the measured and generated canopies [40,41,47,48]. The constants, variables, and the values used for the multilayer representation in Section 2.4 analysis are presented analytically in Table 3.
Table 3. Constants, variables and values used in multilayer models.
Table 3. Constants, variables and values used in multilayer models.
LLeaf Area Index in m2 m-2
ρcbcanopy reflection coefficient for beam PAR
ρcdcanopy reflection coefficient for diffuse PAR (0.036)
ρhcanopy reflection coefficient of canopy with horizontal leaves (0.0348)
k b beam radiation extinction coefficient of the canopy (1 for horizontal, and 0.5/sinθ for uniform distribution)
k b beam and scattered beam PAR extinction coefficient k b = k b ( 1 σ ) 1 / 2
k d diffuse PAR extinction coefficient (1 for horizontal and 0.78 for uniform )
k d diffuse and scattered diffuse PAR extinction coefficient k d = k d ( 1 σ ) 1 / 2
θsolar elevation angle in radians
σleaf scattering coefficient (reflection and transmittance) (0.13)
