Article

Paddy Field Expansion and Aggregation Since the Mid-1950s in a Cold Region and Its Possible Causes

Northeast Institute of Geography and Agroecology, Chinese Academy of Sciences, Changchun, Jilin 130102, China
*
Author to whom correspondence should be addressed.
Remote Sens. 2018, 10(3), 384; https://doi.org/10.3390/rs10030384
Submission received: 20 December 2017 / Revised: 26 February 2018 / Accepted: 27 February 2018 / Published: 1 March 2018

Abstract

:
Over the last six decades, paddy fields on the Sanjiang Plain have experienced rapid expansion and aggregation. In our study, land use and land cover changes related to paddy fields were studied based on information acquired from topographic maps and remote-sensing images. Paddy field expansion and aggregation were investigated through landscape indices and trajectory codes. Furthermore, the possible causes of paddy field expansion and aggregation were explored. Results indicated that such fields have increased by approximately 42,704 ha·y−1 over the past six decades. Approximately 98% of paddy fields in 2015 were converted from other land use types. In general, the gravity center moved 254.51 km toward the northeast, at a rate of approximately 4.17 km·y−1. The cohesion index increased from 96.8208 in 1954 to 99.5656 in 2015, and the aggregation index grew from 91.3533 in 1954 to 93.4448 in 2015, indicating the apparent aggregation of paddy fields on the Sanjiang Plain. Trajectory analyses showed that the transformations from marsh as well as from grassland to dry farmland and then into paddy fields were predominant. Climate warming provided a favorable environment for rice planting. Meanwhile, population growth, technological progress, and government policies drove paddy field expansion and aggregation during the study period.

Graphical Abstract

1. Introduction

Accounting for approximately 15% of the world’s cultivated land, paddy fields serve more than 50% of the population of the world [1]. Simultaneously, paddy fields are a type of man-made wetland [2,3]. Sharing both characteristics of wetlands and cultivated land, paddy fields influence food security, greenhouse gas (GHG) emissions, water scarcity, and virus transmission [4,5,6]. Growing on flooded soil, rice is the most water-consuming crop. Its water-use efficiency has a great influence on water scarcity [7,8]. Accounting for over one-tenth of the entire methane emission into the atmosphere, rice planting is an important source of methane flux that cannot be ignored [9,10]. In addition, methane emission caused by paddy planting is one of the dominant sources of anthropogenic GHG emissions [6]. As an important habitat for waterfowl, paddy fields have a relationship with the transmission of diseases such as avian influenza virus [11]. Therefore, it is vital to monitor paddy field distribution information. Accompanying global warming, a large number of newly reclaimed paddy fields have emerged in middle-high latitudes [11,12]. However, paddy field distribution maps are lacking in these regions, especially on a long-time scale.
As a critical driving force of global ecological and environmental changes, land use and land cover change (LULCC) is still a key environmental challenge of global concern [7,13,14,15,16]. LULCC manifests in atmospheric interactions, hydrological changes, and biodiversity losses [8,17,18,19]. Approximately 39–50% of terrestrial ecosystems have been affected by anthropogenic activities [20]. Population growth, agricultural activities, government policies, and economic development all influence LULCC [12,15,21]. Many efforts have been made to monitor the spatiotemporal patterns of LULCC, but these studies have mostly adopted a bitemporal detection method [21,22,23]. Trajectory analysis seeks the idealized signatures of LULCC [24,25]. Trajectory analysis can recover the history of LULCC as well as discover trends in LULCC at multiple times [24,25,26]. Some studies have attempted to analyze LULCC using trajectory analysis [25,27,28]. In our study, bitemporal detection and trajectory analysis are combined to trace the LULCC patterns related to paddy field expansion for each location.
The Sanjiang Plain is a floodplain that includes the largest marshlands in China. It is located in Northeastern China. However, due to the large-scale reclamation of marshlands, the Sanjiang Plain has been converted from a “great northern wilderness” to a “great northern granary” [28,29]. Much attention has been paid to marshland loss and its effect in this area or part of this area [2,29,30,31,32,33,34,35], but studies regarding landscape change and paddy fields are lacking. Song et al. analyzed the dynamic changes of cultivated land in this area, but they did not separate paddy fields from cultivated land [33]. Considering the rapid increase in paddy field area in Northeastern China [36], it is necessary to monitor the spatial-temporal extent of paddy fields in detail in order to trace greenhouse gas (GHG) emissions and analyze food security as well as water security. Based on topographic maps and remote-sensing images, this study analyzed the expansion and aggregation characteristics of paddy fields on the Sanjiang Plain over the last six decades. Additionally, possible causes of paddy field expansion were analyzed.
In this study, our objectives were to (1) characterize landscape changes of paddy fields during the study period by related landscape indices in the study area and (2) explore the LULCC related to paddy fields using transition probabilities index and trajectory analysis from 1954 to 2015.

2. Materials and Methods

2.1. Study Area

This study focuses on the Sanjiang Plain (Figure 1), an alluvial plain formed by the Heilongjiang, Ussuri, and Songhua rivers. Covering an area of approximately 10.89 million ha, the elevation of the Sanjiang Plain ranges from 27 to 968 m, with an average value less than 200 m. The Sanjiang Plain has a temperate continental monsoon climate with four seasons. The frost-free days range from 120 to 140 days. The annual accumulated air temperature above 10 °C is approximately 2300–2500 °C. The average annual temperature varies between −21 and −18 °C in January, the coldest month, while the maximum average temperature ranges from 21 to 22 °C in July. The mean yearly rainfall varies from 500 to 650 mm, mainly concentrated in June and October [34,35]. Rich water resources of the Sanjiang Plain include the Heilongjiang River, the Ussuri River, the Songhua River, the Naoli River, and the Xingkai Lake, providing facilities for agricultural development, especially paddy rice planting.

2.2. Data Preprocessing

Based on our previous studies [12,23,28,36,37,38,39,40], we developed land-use–land-cover (LULC) maps for four different years: 1954, 1976, 1986, and 2000. Topographic maps with a scale of 1:100,000, Landsat Multispectral Scanner (MSS) images with a spatial resolution of 80 m, and Landsat Thematic Mapper (TM) images with a spatial resolution of 30 m were applied to map LULC patterns in 1954, 1976, and 1986, and 2000. Meanwhile, using 14 Landsat-8 Operational Land Imager (OLI) images with a spatial resolution of 30 m, we updated the LULC map in 2000 to 2015. Considering the coarse spatial resolution of MSS images (80 m), all the calculations were done at the resolution of 80 m.
The detailed methods to map LULC distribution for different years have been introduced in our previous articles [12,28,36,37,38,39,40]. The standard methods are visual interpretation and digitization of remote-sensing images after these images are geo-referenced and ortho-rectified. Ground control points were used to do geometric rectification of remote sensing (RS) images and the root mean squared (RMS) error of geometric rectification was no more than 1.5 pixels (120 m). In our study, the minimum mapping unit is larger than 23.04 ha, and the smallest edge is no less than 320 m. Additionally, we outlined the LULC by comparing images of different periods to assess the real LULCC. Uniform coordinates and projection, the Beijing 1954 Krasovsky Albers projection, was used to integrate satellite images in different periods. The interpretation accuracy was verified using a large number of photos by field survey, historical data such as aerial photos, and interviews with local people [36,41,42]. In 2015, we also applied unmanned aerial vehicle (UAV) images to correct and check the interpretation of paddy fields (Figure 2). The battery-powered quadrocopter of our UAV can fly for 23 min at a time. We usually flew the UAV to an altitude of 200 m and obtained images with a resolution of 5–6 cm [43,44]. The first level of classification is the same as Liu et al. [37], which includes cultivated land, forest land, grassland, water body, settlement, and unused land. We separated paddy fields from cultivated land and marsh from unused land to analyze paddy field changes and the related LULCC. The overall accuracy of the first level of classification was no less than 94.3%, and that of the 25 LULC subclasses was no less than 91.2%. Additionally, the LULCC accuracies were also checked between two periods. For example, the mean interpretation accuracy of LULCC from 1995 to 2000 was 97.6% [36].

2.3. Data Analyses

2.3.1. Annual Change Rate

The annual change area (CA, ha·y−1) and change rate (CR, %·y−1) was calculated using the following equations [21]:
CA = (AbAa)/T × 100%
CR = (AbAa)/Aa/T × 100%
where Aa and Ab represent the area of the paddy fields at Times A and B, respectively, and T is the interval years.

2.3.2. Gravity Center

The land resource centroid index (Equations (3) and (4)) can reflect the spatial changes of land use [2]:
X = i = 1 n ( C t i × X i ) / i = 1 n C t i
Y = i = 1 n ( C t i × Y i ) / i = 1 n C t i
where X and Y represent the gravity center coordinate for paddy fields in the entire study area; C t i and n are the area of the ith patch and the number of patches of paddy fields, respectively; X and Y represent the ith patch’s gravity center coordinates.

2.3.3. Trajectory Codes

Trajectory code Yi (Equation (5)) was calculated as follows [43]:
Y i = ( G 1 ) i × 10 n 1 + ( G 2 ) i × 10 n 2 + ( G n ) i × 10 n n
where n represents the number of time periods and n equals 5 in this study. (G1)i, (G2)i, and (Gn)i are the codes for different LULC categories in polygon i at different times. In our study, Codes 1 through 8 represent paddy, dry farmland, forest, grassland, water, settlement, marsh, and other unused land, respectively. Thus, for example, Code 44211 represents grassland→grassland→dry farmland→paddy→paddy.

2.3.4. Cumulative Transition Probabilities

A cumulative transition probabilities index was applied to compare the land use intensities of different LULCC types:
P i j = i = 1 n ( S i j t / S T ) × 100 %
where P i j is the cumulative transition probabilities index; i and j represent LULC types; S i j t is the area converted from category i to category j between time t and t + 1; ST represents the entire area.

2.3.5. Spatial aggregation Analysis

Global Moran’s I index [45,46,47] was used to analyze the aggregation characteristic of the entire Sanjiang Plain. It is calculated by the following formula:
I = n i = 1 n j = 1 n W i j × i = 1 n j = 1 n W i j ( x i x ¯ ) ( x j x ¯ ) i = 1 n ( x i x ¯ ) 2
where xi and xj are the values of x in adjacent paring spatial units; x ¯ stands for the mean value of variable x; Wij stands for the adjacent weight; n is the number of space units. Global Moran’s I coefficients are between −1 and 1. A positive value implies that the spatial distribution tends to aggregation status, while a negative value indicates a fragmentation trend.
Local Moran’s I index [47,48,49] was adopted to illustrate the aggregation of various spatial unites (Equation (8)):
I = ( x i x ¯ ) s 2 j = 1 , j 1 n W i j ( x j x ¯ )
where s2 represents the variance of x. A high positive I′ means that the locations have values similar to those of their surrounding locations. High–high clusters (H-H) mean high values in high neighbors while low–low clusters (L-L) are the opposite. High negative I′ values imply that values of these locations are quite different from values of their neighbors. High negative I′ values contain a high–low outlier (H-L, a high value surrounded by low values) and a low–high outlier (L-H, a low value surrounded by high values).
Due to the complexity of the landscape pattern of patches, we also chose more than one index including mean area (MA), largest patch index (LPI), patch density (PD), edge density (ED), patch cohesion (COHESION), division (DIVISION), splitting (SPLIT), and aggregation (AI) index to qualify the spatial expansion and aggregation features of paddy fields by Fragstats 4.2 software [50,51,52,53,54,55]. More detailed descriptions of related indices can be found in the Fragstats 4.2 help documentation [56]. In our study, MA, LPI, PD, and ED were chosen to illustrate the expansion characteristics, while the other four indices were applied to analyze the aggregation features (Supplementary Materials, Equations (1)–(8)).

3. Results

3.1. Expansion and Aggregation Analysis of Paddy Fields

3.1.1. Percentages of Paddy Fields

The area percentage of paddy fields during the 1954–2015 period on the Sanjiang Plain is illustrated in Figure 3. Paddy fields have expanded from 59,325 ha in 1954 to 2,604,946 ha in 2015, increasing by 43 times (approximately 2.5 million ha). The area percentage of paddy fields dramatically increased from 0.54 in 1954 to 23.92% in 2015. As is shown in Figure 3, the area of paddy fields has continued to grow since the mid-1950s, especially after 1986.
Figure 4 demonstrates the spatial distribution of paddy fields in 1954, 1986, and 2015 on the Sanjiang Plain, showing an obvious trend of area expansion. In 1954, paddy fields were mainly distributed in the southern part of the Sanjiang Plain and were of small area. In 1986, paddy fields were cultivated northward, with large-scale paddy fields on the central plain. Paddy planting continued to move northward, with a large distribution on the northern part of the Sanjiang Plain in 2015.

3.1.2. Change Rate

The annual change area/rate of paddy fields during the 1954–2015 period is shown in Table 1. The paddy field area increased by 15,808.86 ha·y−1 with an annual change rate of 26.65%·y−1, from 1954 to 1976. Since 1976, the annual change area of paddy fields has continued to increase, reaching a maximum of 78,945.39 ha·y−1 in the 2000–2015 period. The great growth in the annual change area in the 1986–2000 period, a number approximately 3.5 times that of the period from 1976 to 1986, is notable. This was in relation to the adoption of modern machine agriculture in the 1978–1985 period that was promoted by “Agricultural Modernization” activities.

3.1.3. Landscape Changes

The spatial configuration changes in paddy fields are illustrated using four landscape indices for the study period (Figure 5). In general, all four indices showed an increasing trend over the last 60 years, indicating an expansion trend of paddy fields during the study period. The LPI and ED showed a continued increasing trend, while PD and MA increased initially and then decreased. The PD increased in the 1954–2000 period, with a rapid increase in the 1986–2000 period, and then showed a decreased trend from 2000 to 2015. During the 1986–2000 period, the PD increased quickly, while MA showed a declining trend, which meant that more patches of paddy fields were cultivated but their size was not as large as before. During the 2000–2015 period, the PD showed a declining trend, while the other three indices of LPI, ED, and MA showed an increasing trend, indicating that paddy fields were forming on a large scale.
The remaining four indices (COHESION, DIVISION, SPLIT, and AI in Table 2) were chosen to illustrate the aggregation characteristics during the study period. A greater value of COHESION means more aggregation, while a greater value of DIVISION means less aggregation. In our study, the COHESION increased from 96.8208 in 1954 to 99.5656 in 2015, while the DIVISION decreased from 1 to 0.9986 during the study period. A greater SPLIT can be considered less aggregated, a greater AI (%) considered more aggregated. On the Sanjiang Plain, the SPLIT showed a continuous decreasing trend from 1954 to 2015, with a rapid decrease from 1954 to 1976. Including several fluctuations, the AI showed an increasing trend, with a peak in 1986. These changes indicated that paddy fields on the Sanjiang Plain have become increasingly aggregated over the past 60 years.

3.1.4. Gravity Center

The gravity centers of the paddy fields at different times were calculated using ArcGIS software (Figure 6). The gravity center of the paddy fields on the Sanjiang Plain transformed from (45.88°N,130.83°E) in 1954 to (47.48°N,133.2°E) in 2015. As is clearly shown in Figure 6, the spatial pattern of paddy fields in the study area has moved northeastward since the mid-1950s.
In general, the gravity center moved 254.51 km toward the northeast at a rate of approximately 4.17 km·y−1 over the last six decades (Table 3). The gravity centers of paddy fields migrated 31.38 km northwestward and 75.43 km northeastward from 1954 to 1976 and from 1976 to 1986, respectively. The migration rate was 1.43 km·y−1 from 1954 to 1986, while it increased to 7.54 km·y−1 during the period of 1976–1986. From 1986 to 2000, it migrated 33.07 km northeastward at a rate of 2.36 km·y−1, then again 146.19 km northeastward at a rate of 9.75 km·y−1 during the 2000–2015 period.

3.1.5. Spatial Aggregation

Global Moran’s I coefficients for paddy fields in the Sanjiang Plain from 1954 to 2015 are shown in Table 4. In general, Global Moran’s I coefficients increased from 0.0583 in 1954 to 0.1833 in 2015, indicating that paddy fields have become more aggregated over the past 60 years. Specifically, Global Moran’s I displayed a slight downward trend during the 1954–1976 and 1976–1986 periods, while it showed an upward tendency during the 1986–2000 and 2000–2015 periods. From 1954 to 1986, more patches were reclaimed as paddy fields, but their distribution was less aggregated than before, leading to the decline in Global Moran’s I. The increase in Global Moran’s I from 1986 to 2015 was caused by large-scale planting of paddy rice.
Local Moran’s I coefficients are used to illustrate the spatial aggregation characteristics of paddy fields on the Sanjiang Plain from 1954 to 2015 (Figure 7). There were only two types of aggregation (H-H and H-L) from 1954 to 1986, which had a strong relationship with the relatively small paddy field area during this period. As paddy fields became more widely distributed, the other two types of aggregation (L-H and L-L) occurred in 2000. H-H accounted for the largest area and has shown a significant upward trend in the past six decades. H-H was only distributed in the south of the Sanjiang Plain in 1954, while it was widely distributed in the entire study area, especially the north of the Sanjiang Plain, in 2015, indicating that paddy field aggregation was enhanced especially in the north of the study area. L-L, which means their surrounding locations have low values, indicates that there are few paddy fields. By combining this information with LULC data, we found that the L-L area was mainly forestland. H-L and L-H have high negative local Moran’s I values. Both H-L and L-H implies that the locations have values that are different from their neighbors. H-L indicates a low value in high-value surroundings, while L-H is the opposite. The H-L area increased from 1954 to 1976, which was mainly caused by small-scale and decentralized rice cultivation in this period. The H-L area moved northward from 1976 to 2000, and it mostly located in the south of the Sanjiang Plain in 2015. These changes indicated that paddy planting moved northward and the small-scale planting became aggregated in the northern part. The L-H area was relatively small and only showed an increasing trend from 2000 to 2015.

3.2. Conversion of Paddy Fields and Other Land Use Types

3.2.1. Trajectory Computing

To better illustrate the trajectories of paddy field changes, the initials of different LULC types were used to represent numeric codes. For example, “P” and “D” were used to replace “1” and “2”, respectively. Figure 8 illustrates the trajectories of paddy field changes. Over the past 60 years, the unchanged paddy field, namely paddy field→paddy field→paddy field→paddy field→paddy field (PPPPP), occupied just 1.39% of the paddy field area in 2015, while the percentage of two-step changes was 53.07% and was the largest. Both one-step and three-step occupied approximately 20% of the paddy field area in 2015, while the percentage of four-step changes was 4.63% (Table 5).
Seventeen categories were included in the one-step changes (Supplementary Materials, Table S1), which mostly included conversion from marsh to paddy field (such as marsh→paddy field→paddy field→paddy field→paddy field(MPPPP), marsh→marsh→marsh→paddy field→paddy field, (MMMPP), and marsh→marsh→paddy field→paddy field→paddy field (MMPPP)) and that from dry farmland to paddy (such as dry farmland→paddy field→paddy field→paddy field→paddy field (DPPPP) and dry farmland→dry farmland→paddy field→paddy field→paddy field (DDPPP)). In addition, MPPPP (marsh→paddy field) accounted for the largest proportion of these one-step changes, followed by MMMFF (marsh→forest, 2.11%), DPPPP (dry farmland→paddy field), and DDDDP (dry farmland→paddy field).
Two-step changes (84 types, Table S2 in Supplementary Materials) during the study period mainly included MDDPP (10.16%), MDDDP (8.7%), MMDDP (6.36%), MMDPP (6.05%), GDDPP (3.13%), and GDDDP (3.03%), indicating that the main two-step changes of paddy fields were marsh→dry farmland→paddy field and grassland→dry farmland→paddy field. There were numerous categories of three-step as well as four-step changes, all accounting for only a small proportion (Tables S3 and S4 in Supplementary Materials). The conversion from dry farmland reclaimed from marsh and grassland to paddy occupied a larger proportion of these trajectories. Furthermore, MPDPP (marsh→paddy field→dry farmland→paddy field→paddy field) and MDPDP (marsh→dry farmland→paddy field→dry farmland→paddy field) occupied the greatest percentage of three-step and four-step changes, respectively. These three-step and four-step trajectories illustrated that conversions between paddy field and dry farmland took place relatively frequently, particularly the transformation from dry farmland to paddy field. The conversion from rice planting to dry farmland was mostly a result of limited water resources, while the conversion from dry farmland to rice planting was due to the promotion of related polices and higher economic benefits of rice. For example, “promoting the conversion from dry farmland to paddy” policy and “controlling flooding by rice planting” policy in the northeastern study area greatly promoted the expansion of paddy fields.

3.2.2. Cumulative Transition Probability (Pij)

LULCC is a mutual transformation process. Results indicated that the values of Pij between paddy field and other LULC types were 9.1% (from paddy field to other LULC types) and 32.6% (from other LULC types to paddy field) of the total area, respectively. The transformations between paddy field and other LULC types are demonstrated in Figure 9. The dominant contributor to paddy field expansion was dry farmland (69.7% of the conversion from other LULC types to paddy field), followed by marsh (18.5%), grassland (8.5%), and forest (1.9%). Dry farmland (82.3%), marsh (7.9%), grassland (3.5%), and built-up land (2.3) made the greatest contributions to paddy field decrease. The mutual transformation between paddy field and dry farmland was the main LULCC type of paddy field conversions. The transformation from dry farmland to paddy field was mostly promoted by the exploitation of groundwater for irrigation, with some policies including promoting the conversion from dry farmland to paddy field and controlling flooding by rice planting, while the conversion from paddy field to dry farmland was mostly due to limited water resources.

4. Discussion

4.1. Uncertainty Analysis

Integrating remote-sensing images and historical data is one of the most economically feasible methods to obtain long time series of LULC maps. One question that needs attention when illustrating LULCC is the interpretation accuracy for LULC categories and accuracy for change detection. To validate the accuracies of our LULC data, a large amount of photos that is taken by camera, UAV images, historical data such as Statistical Yearbook, and field site data, as well as interviews with local residents were used to check interpretation accuracy. Visual interpretation is the main method of obtaining LULCC data in our study, which may be labor-intensive and time-consuming, but it guarantees relatively high accuracy. One problem that we should pay attention to is the amplification of individual classification errors in the change detection process. To reduce these errors, we outline LULC by comparing images of different periods to assess the real LULCC. Additionally, the accuracy for change detection was also validated by historical data and a field survey. In general, our LULCC maps can meet the requirement of user accuracy despite some uncertainties.

4.2. Climatic Warming Favorable for Paddy Field Expansion

Continuously rising temperatures over the past few decades in Northeastern China have been reported in previous studies [34,57]. In our study, we calculated the average temperature change over the past six decades on the Sanjiang Plain (Figure 9). The annual temperature data was produced by data from seven meteorological stations (China Meteorological Administration, CMA) across the study area since the 1950s.

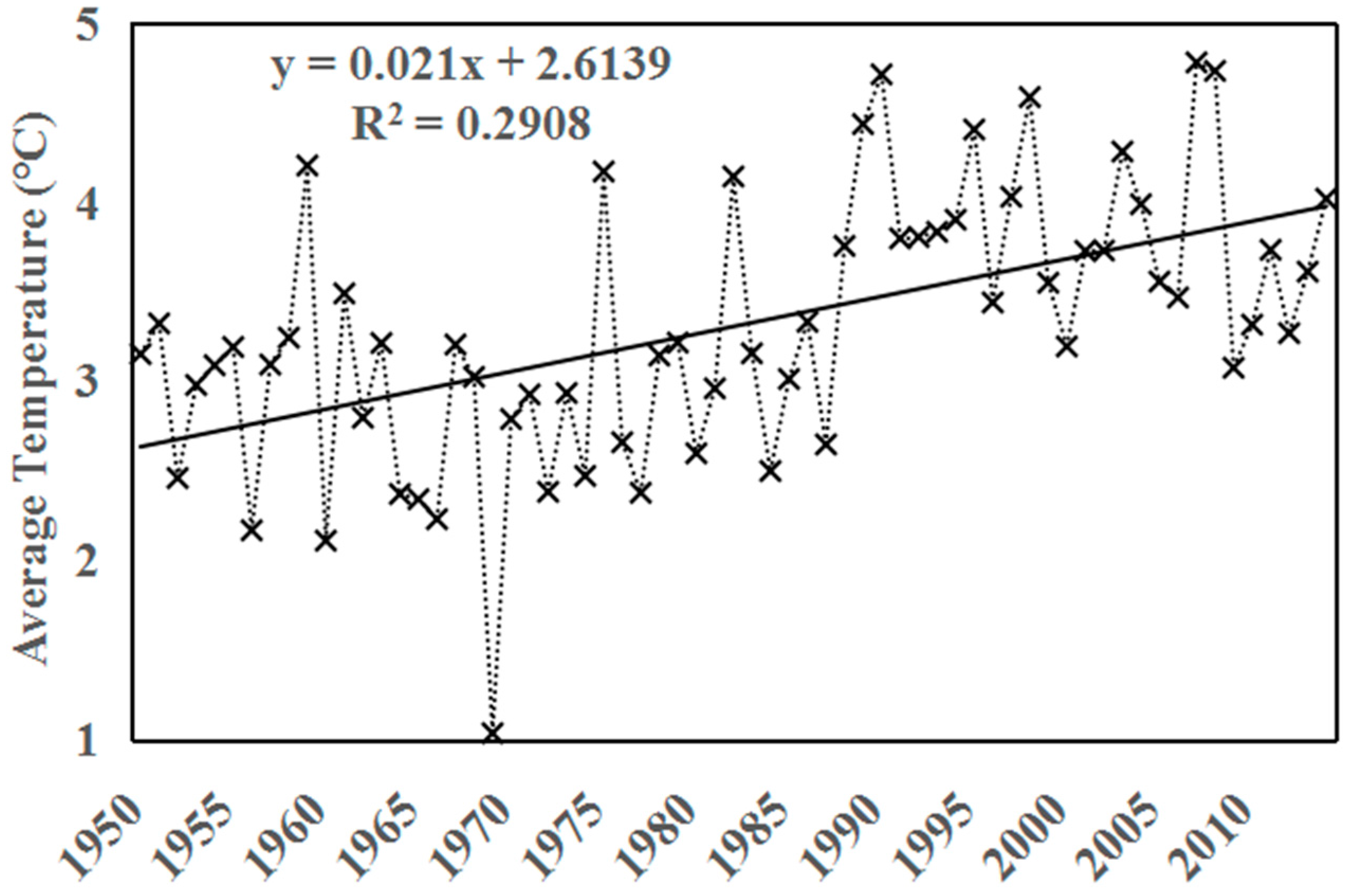

Results (Figure 10) indicated that yearly average temperature showed an increasing trend despite several fluctuations. The regression relationship between yearly average temperature and year can be described by the following formula:
y = 0.021x + 2.6139
where y represents the annual average temperature, and x represents a year.
The annual average temperature has increased at a rate of 0.21 °C/10 y on the Sanjiang Plain. By the Kriging interpolation method, we obtained the spatial pattern of average temperature in two periods (Figure 11). Figure 11 indicated that the average temperature showed an obvious upward trend in the past six decades. For example, the orange color, which means the average temperature from 3.1 to 3.7 °C, moved northward obviously. In cold regions, agricultural activities can be limited by low temperatures. For example, rice cannot be grown in regions with lower yearly average temperature [2]. On the one hand, climatic warming has promoted the conversion of marsh into cropland (paddy field and dry farmland), leading to paddy field expansion to some extent. On the other hand, climatic warming has provided a favorable environment for large-scale paddy planting in the northern part of the Sanjiang Plain, leading to the aggregation of paddy fields. Strong wind is also one of the limiting factors affecting agricultural production. Wind speed has shown an obvious decline trend in the past several decades in Northeastern China [58], which has benefited paddy growth. Rising temperature and declining wind speed have contributed to the conversion from wetland and grassland to cultivated land.

4.3. Population Growth and Technological Progress

Previous studies have indicated that LULCC has a close relationship with human activities [14,18,24,59,60] including population growth and intensive reclamation. Population growth and technological progress have provided convenience for paddy field expansion. From 1956 to 1960, approximately 8.2 × 104 veterans migrated to the Sanjiang Plain to reclaim marsh as cultivated land [61]. Then approximately 4.5 × 104 educated young people moved into the study area to work in agriculture from 1970 to 1972 in response to the call for educated youth to live in the countryside to accept poor farmers’ re-education [62]. This population growth led to large-scale reclamation as well as an increase in paddy field area.
During the early 1980s, “agricultural modernization” activities in China brought advanced agricultural machinery, leading to large-scale planting of crops including rice. Water resources were also an important limiting factor for rice planting. Rice needs abundant water to grow [2]. Some water conservancy projects on the Sanjiang Plain provide convenient conditions for rice planting [30]. As shown in Figure 12 (the photographs were taken during our field survey), a dam was built to irrigate paddy fields. Additionally, technological innovations such as the seeding of cold-tolerant rice, the use of fertilizer, and advances in irrigation have provided convenient conditions for paddy field expansion. Modern machine and advances in irrigation also provided convenient conditions for large-scale planting, leading to paddy field aggregation. Figure 10 shows the irrigation project and advanced germination and soaking facilities of the Suibin state-farm, located in the north of the Sanjiang Plain. The irrigation project introduced water from the Amur River for irrigation.

4.4. Role of Government Policies

On the Sanjiang Plain, government policy shifts have also played an essential role in the progress of paddy field expansion and aggregation. The First Five-Year Plan emphasized “food first” in agricultural production, promoting an increase in cultivated land from 1953 to 1957. In 1964, the government encouraged educated youth to participate in rural socialist construction, causing the large-scale movement of educated young people to the Sanjiang Plain for agricultural work [61,62]. During this period, marsh was converted into farmland on a large-scale, promoting paddy field expansion. The introduction of modern machinery by the “Agricultural Modernization” [2,43] policy from 1978 to 1985 promoted large-scale reclamation as well as paddy field aggregation in the Sanjiang Plain.
In 1992, the planned economy was replaced by a market economy in China [60]. As a result of the higher income of rice planting, as compared to that of dry farmland crops, farmers paid more attention to the conversion of dry farmland to paddy fields, leading to paddy field expansion in the Sanjiang Plain. In addition, large-scale dry farmland was converted to paddy fields as a result of the “promoting the conversion from dry farmland to paddy field” policy from 1992 to 1995, especially in the state farms of the Sanjiang Plain, which promoted paddy field expansion and aggregation. As an important commodity grain base, the implementation of the “Layout Planning for the Advantageous Regions of Rice (2008–2015)” policy issued by the Ministry of Agriculture in 2009 also greatly promoted the expansion of paddy field area on the Sanjiang Plain. The “Building High-Standard Basic Farmland” policy in the Twelfth Five-Year Plan (2011–2015) promoted agricultural modernization on a large scale, leading to paddy field aggregation in the study area.

4.5. Future Study

The planting of paddy fields on the Sanjiang Plain plays an important role in the development of a regional agricultural economy. However, the expansion of paddy rice fields will inevitably influence biogeochemical processes, water resources utilization, and grain yield. The rapid expansion and aggregation of paddy fields can lead to serious over-exploitation of groundwater, increasing the contradiction between supply and demand of water resources as well as the danger of groundwater depletion to some extent. Therefore, during paddy field development, based on a comprehensive evaluation of regional water resources carrying capacity, one should heed an early scientific warning regarding the utilization of water and soil resources and their coupling and coordinating relations. One should scientifically and reasonably implement a matching of water and land resources as well as healthy and sustainable development of the social economy and ecological environment. Paddy fields are also an important source of methane emissions. Zhang et al. found that methane emissions from paddy fields on a global scale in the 2000s ranged from 18.3 ± 0.1 Tg under intermittent irrigation to 38.8 ± 1.0 Tg under continuous flooding [6]. Therefore, the effect of paddy field expansion on the water cycle and the regional agricultural climate should receive substantial attention.

5. Conclusions

Data analyses of topographic and remote-sensing images over the last 60 years have indicated that paddy field area has increased from 59,325 ha in 1954 to 2,604,946 ha in 2015. The increased areas were mainly converted from dry farmland (69.7%), marsh (18.5%), and grassland (8.5%). Trajectory analyses showed that the transformations from marsh and grassland into dry farmland, and subsequently into paddy fields, were the main categories to be considered. The lost paddy field areas were notably smaller than those of increased area, and the lost paddy field areas were mostly transformed to dry farmland. Paddy field expansion and aggregation has been driven by population growth, technological progress, climate change, and governmental policies. Paddy field expansion will affect food security, GHG emissions, and water security, among others. Future studies should pay increasing attention to these issues.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/2072-4292/10/3/384/s1. Equations (1)–(8): Formulas of related landscape indices. Tables S1–S4: Codes and percentages of land use and land cover changes with different steps.

Acknowledgments

This work was supported by the Technological Basic Research Program of China (No. 2017FY101301 and No. 2013FY111806) and the National Postdoctoral Program for Innovative Talents (BX201700241).

Author Contributions

Fengqin Yan and Shuwen Zhang conceived and designed the experiments; Fengqin Yan analyzed the data and wrote the paper. Lingxue Yu contributed to spatial aggregation analysis in the revision. Chaobin Yang contributed to the modification of language and figures.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Xiao, X.; Boles, S.; Frolking, S.; Li, C.; Babu, J.Y.; Salas, W.; Moore, B. Mapping paddy rice agriculture in south and southeast asia using multi-temporal modis images. Remote Sens. Environ. 2006, 100, 95–113. [Google Scholar] [CrossRef]
  2. Liu, X.; Dong, G.; Wang, X.; Xue, Z.; Jiang, M.; Lu, X.; Zhang, Y. Characterizing the spatial pattern of marshlands in the sanjiang plain, northeast china. Ecol. Eng. 2013, 53, 335–342. [Google Scholar] [CrossRef]
  3. Yan, F.Q.; Liu, X.T.; Chen, J.; Yu, L.X.; Yang, C.B.; Chang, L.P.; Yang, J.C.; Zhang, S.W. China’s wetland databases based on remote sensing technology. Chin. Geogr. Sci. 2017, 27, 374–388. [Google Scholar] [CrossRef]
  4. Dong, J.; Xiao, X.; Kou, W.; Qin, Y.; Zhang, G.; Li, L.; Jin, C.; Zhou, Y.; Wang, J.; Biradar, C.; et al. Tracking the dynamics of paddy rice planting area in 1986–2010 through time series landsat images and phenology-based algorithms. Remote Sens. Environ. 2015, 160, 99–113. [Google Scholar] [CrossRef]
  5. Xiao, X.; Boles, S.; Liu, J.; Zhuang, D.; Frolking, S.; Li, C.; Salas, W.; Moore, B. Mapping paddy rice agriculture in southern china using multi-temporal modis images. Remote Sens. Environ. 2005, 95, 480–492. [Google Scholar] [CrossRef]
  6. Zhang, B.; Tian, H.; Ren, W.; Tao, B.; Lu, C.; Yang, J.; Banger, K.; Pan, S. Methane emissions from global rice fields: Magnitude, spatiotemporal patterns, and environmental controls. Glob. Biogeochem. Cycles 2016, 30, 1246–1263. [Google Scholar] [CrossRef]
  7. Gashaw, T.; Tulu, T.; Argaw, M.; Worqlul, A.W. Modeling the hydrological impacts of land use/land cover changes in the andassa watershed, blue nile basin, ethiopia. Sci. Total Environ. 2018, 619–620, 1394–1408. [Google Scholar] [CrossRef]
  8. Schilling, K.E.; Jha, M.K.; Zhang, Y.K.; Gassman, P.W.; Wolter, C.F. Impact of land use and land cover change on the water balance of a large agricultural watershed: Historical effects and future directions. Water Resour. Res. 2008, 44. [Google Scholar] [CrossRef]
  9. Win, K.T.; Nonaka, R.; Toyota, K.; Motobayashi, T.; Hosomi, M. Effects of option mitigating ammonia volatilization on ch4 and n2o emissions from a paddy field fertilized with anaerobically digested cattle slurry. Biol. Fertil. Soils 2010, 46, 589–595. [Google Scholar] [CrossRef]
  10. Zhang, A.F.; Cui, L.Q.; Pan, G.X.; Li, L.Q.; Hussain, Q.; Zhang, X.H.; Zheng, J.W.; Crowley, D. Effect of biochar amendment on yield and methane and nitrous oxide emissions from a rice paddy from tai lake plain, china. Agric. Ecosyst. Environ. 2010, 139, 469–475. [Google Scholar] [CrossRef]
  11. Dong, G.T.; Bai, J.; Yang, S.T.; Wu, L.N.; Cai, M.Y.; Zhang, Y.C.; Luo, Y.; Wang, Z.W. The impact of land use and land cover change on net primary productivity on china’s sanjiang plain. Environ. Earth Sci. 2015, 74, 2907–2917. [Google Scholar] [CrossRef]
  12. Liu, J.; Kuang, W.; Zhang, Z.; Xu, X.; Qin, Y.; Ning, J.; Zhou, W.; Zhang, S.; Li, R.; Yan, C.; et al. Spatiotemporal characteristics, patterns, and causes of land-use changes in china since the late 1980s. J. Geogr. Sci. 2014, 24, 195–210. [Google Scholar] [CrossRef]
  13. Brown, D.G.; Goovaerts, P.; Burnicki, A.; Li, M.Y. Stochastic simulation of land-cover change using geostatistics and generalized additive models. Photogr. Eng. Remote Sens. 2002, 68, 1051–1061. [Google Scholar]
  14. Kiruki, H.M.; van der Zanden, E.H.; Malek, Z.; Verburg, P.H. Land cover change and woodland degradation in a charcoal producing semi-arid area in kenya. Land Degr. Dev. 2017, 28, 472–481. [Google Scholar] [CrossRef]
  15. Lambin, E.F.; Geist, H.J.; Lepers, E. Dynamics of land-use and land-cover change in tropical regions. Annu. Rev. Environ. Resour. 2003, 28, 205–241. [Google Scholar] [CrossRef]
  16. Mack, B.; Leinenkugel, P.; Kuenzer, C.; Dech, S. A semi-automated approach for the generation of a new land use and land cover product for germany based on landsat time-series and lucas in-situ data. Remote Sens. Lett. 2017, 8, 244–253. [Google Scholar] [CrossRef]
  17. Guzha, A.C.; Rufino, M.C.; Okoth, S.; Jacobs, S.; Nóbrega, R.L.B. Impacts of land use and land cover change on surface runoff, discharge and low flows: Evidence from east africa. Hydrol. Reg. Stud. 2018, 15, 49–67. [Google Scholar] [CrossRef]
  18. Pauleit, S.; Ennos, R.; Golding, Y. Modeling the environmental impacts of urban land use and land cover change—A study in merseyside, UK. Landsc. Urban Plan. 2005, 71, 295–310. [Google Scholar] [CrossRef]
  19. Yang, C.B.; He, X.Y.; Yan, F.Q.; Yu, L.X.; Bu, K.; Yang, J.C.; Chang, L.P.; Zhang, S.W. Mapping the influence of land use/land cover changes on the urban heat island effect-a case study of changchun, china. Sustainability 2017, 9, 312. [Google Scholar] [CrossRef]
  20. Vitousek, P.M.; Mooney, H.A.; Lubchenco, J.; Melillo, J.M. Human domination of earth’s ecosystems. Science 1997, 277, 494–499. [Google Scholar] [CrossRef]
  21. Song, K.; Wang, Z.; Li, L.; Tedesco, L.; Li, F.; Jin, C.; Du, J. Wetlands shrinkage, fragmentation and their links to agriculture in the muleng-xingkai plain, china. J Environ. Manage 2012, 111, 120–132. [Google Scholar] [CrossRef] [PubMed]
  22. Lu, D.; Mausel, P.; Batistella, M.; Moran, E. Land-cover binary change detection methods for use in the moist tropical region of the amazon: A comparative study. Int. J. Remote Sens. 2005, 26, 101–114. [Google Scholar] [CrossRef]
  23. Liu, J.Y.; Zhang, Z.X.; Xu, X.L.; Kuang, W.H.; Zhou, W.C.; Zhang, S.W.; Li, R.D.; Yan, C.Z.; Yu, D.S.; Wu, S.X.; et al. Spatial patterns and driving forces of land use change in china during the early 21st century. J. Geogr. Sci. 2010, 20, 483–494. [Google Scholar] [CrossRef]
  24. Frondoni, R.; Mollo, B.; Capotorti, G. A landscape analysis of land cover change in the municipality of Rome (Italy): Spatio-temporal characteristics and ecological implications of land cover transitions from 1954 to 2001. Landsc. Urban Plan. 2011, 100, 117–128. [Google Scholar] [CrossRef]
  25. Zhou, Q.; Li, B.; Kurban, A. Trajectory analysis of land cover change in arid environment of china. Interna. J. Remote Sens. 2008, 29, 1093–1107. [Google Scholar] [CrossRef]
  26. Zomlot, Z.; Verbeiren, B.; Huysmans, M.; Batelaan, O. Trajectory analysis of land use and land cover maps to improve spatial–temporal patterns, and impact assessment on groundwater recharge. J. Hydrol. 2017, 554, 558–569. [Google Scholar] [CrossRef]
  27. Zhou, Q.M.; Li, B.L.; Kurban, A. Spatial pattern analysis of land cover change trajectories in tarim basin, northwest china. Int. J. Remote Sens. 2008, 29, 5495–5509. [Google Scholar] [CrossRef]
  28. Yan, F.Q.; Zhang, S.W.; Liu, X.T.; Chen, D.; Chen, J.; Bu, K.; Yang, J.C.; Chang, L.P. The effects of spatiotemporal changes in land degradation on ecosystem services values in sanjiang plain, china. Remote Sens. 2016, 8, 917. [Google Scholar] [CrossRef]
  29. Song, K.; Wang, Z.; Du, J.; Liu, L.; Zeng, L.; Ren, C. Wetland degradation: Its driving forces and environmental impacts in the sanjiang plain, china. Environ. Manag. 2014, 54, 255–271. [Google Scholar] [CrossRef] [PubMed]
  30. Zhou, D.; Gong, H.; Wang, Y.; Khan, S.; Zhao, K. Driving forces for the marsh wetland degradation in the honghe national nature reserve in sanjiang plain, northeast china. Environ. Model. Assess. 2009, 14, 101–111. [Google Scholar] [CrossRef]
  31. Wang, Z.; Zhang, B.; Zhang, S.; Li, X.; Liu, D.; Song, K.; Li, J.; Li, F.; Duan, H. Changes of land use and of ecosystem service values in sanjiang plain, northeast china. Environ. Monit. Assess. 2006, 112, 69–91. [Google Scholar] [CrossRef] [PubMed]
  32. Li, Y.; Zhang, Y.-Z.; Zhang, S.-W. The landscape pattern and ecologic effect of the marsh changes in the sanjiang plain. Sci. Geogr. Sinica 2002, 6, 677–682. [Google Scholar]
  33. Song, K.; Liu, D.; Wand, Z.; Zhang, B.; Jin, C.; Li, F.; Liu, H. Analysis of cultivated land dynamics in the last 50 years in sanjiang plain and its driving forces. J. Soil Water Conserv. 2008, 22, 75–81. (In Chinese) [Google Scholar]
  34. Wang, Z.; Huang, N.; Luo, L.; Li, X.; Ren, C.; Song, K.; Chen, J.M. Shrinkage and fragmentation of marshes in the west songnen plain, china, from 1954 to 2008 and its possible causes. Int. J. Appl. Earth Obs. Geoinf. 2011, 13, 477–486. [Google Scholar] [CrossRef]
  35. Zhang, B.; Chang, L.; Nia, Z.; Callaham, M.A.; Sun, X.; Wu, D.H. Effects of land use changes on winter-active collembola in sanjiang plain of china. Appl. Soil Ecol. 2014, 83, 51–58. [Google Scholar] [CrossRef]
  36. Liu, J.; Liu, M.; Tian, H.; Zhuang, D.; Zhang, Z.; Zhang, W.; Tang, X.; Deng, X. Spatial and temporal patterns of china’s cropland during 1990–2000: An analysis based on landsat tm data. Remote Sens. Environ. 2005, 98, 442–456. [Google Scholar] [CrossRef]
  37. Liu, J.Y.; Deng, X.Z. Progress of the research methodologies on the temporal and spatial process of lucc. Chin. Sci. Bull. 2010, 55, 1354–1362. [Google Scholar] [CrossRef]
  38. Liu, J.Y.; Tian, H.Q.; Liu, M.L.; Zhuang, D.F.; Melillo, J.M.; Zhang, Z.X. China’s changing landscape during the 1990s: Large-scale land transformations estimated with satellite data. Geophys. Res. Lett. 2005, 32. [Google Scholar] [CrossRef]
  39. Liu, J.Y.; Zhan, J.Y.; Deng, X.Z. Spatio-temporal patterns and driving forces of urban land expansion in china during the economic reform era. Ambio 2005, 34, 450–455. [Google Scholar] [CrossRef] [PubMed]
  40. Yan, F.Q.; Zhang, S.W.; Kuang, W.H.; Du, G.M.; Chen, J.; Liu, X.T.; Yu, L.X.; Yang, C.B. Comparison of cultivated landscape changes under different management modes: A case study in sanjiang plain. Sustainability 2016, 8, 1071. [Google Scholar] [CrossRef]
  41. Liu, J.; Liu, M.; Zhuang, D.; Zhang, Z.; Deng, X. Study on spatial pattern of land-use change in china during 1995–2000. Sci. China Ser. D Earth Sci. 2003, 46, 373–384. [Google Scholar]
  42. Liu, J.; Zhang, Z.; Xu, X.; Kuang, W.; Zhou, W.; Zhang, S.; Li, R.; Yan, C.; Yu, D.; Wu, S. Spatial patterns and driving forces of land use change in china during the early 21st century. J. Geogr. Sci. 2010, 20, 483–494. [Google Scholar] [CrossRef]
  43. Yan, F.Q.; Zhang, S.W.; Liu, X.T.; Yu, L.X.; Chen, D.; Yang, J.C.; Yang, C.B.; Bu, K.; Chang, L.P. Monitoring spatiotemporal changes of marshes in the sanjiang plain, china. Ecol. Eng. 2017, 104, 184–194. [Google Scholar] [CrossRef]
  44. Wang, R.H.; Zhang, S.W.; Pu, L.M.; Yang, J.C.; Yang, C.B.; Chen, J.; Guan, C.; Wang, Q.; Chen, D.; Fu, B.L.; et al. Gully erosion mapping and monitoring at multiple scales based on multi-source remote sensing data of the Sancha River Catchment, Northeast China. ISPRS Int. J. Geo-Inf. 2016, 5, 200. [Google Scholar] [CrossRef]
  45. Uthman, O.A. Spatial and temporal variations in incidence of tuberculosis in Africa, 1991 to 2005. World Health Popul. 2008, 10, 5–15. [Google Scholar] [CrossRef] [PubMed]
  46. Boots, B.; Tiefelsdorf, M. Global and local spatial autocorrelation in bounded regular tessellations. J. Geogr. Syst. 2000, 2, 319–348. [Google Scholar] [CrossRef]
  47. Lian, M.; Struthers, J.; Schootman, M. Comparing GIS-Based Measures in Access to Mammography and Their Validity in Predicting Neighborhood Risk of Late-Stage Breast Cancer. PLoS ONE 2012, 7. [Google Scholar] [CrossRef] [PubMed]
  48. Tiefelsdorf, M. The Saddlepoint Approximation of Moran’s I’s and Local Moran’s Ii’s Reference Distributions and Their Numerical Evaluation. Geogr. Anal. 2002, 34, 187–206. [Google Scholar] [CrossRef]
  49. Zhang, C.; Luo, L.; Xu, W.; Ledwith, V. Use of local Moran’s I and GIS to identify pollution hotspots of Pb in urban soils of Galway, Ireland. Sci. Total Environ. 2008, 398, 212–221. [Google Scholar] [CrossRef] [PubMed]
  50. Lausch, A.; Herzog, F. Applicability of landscape metrics for the monitoring of landscape change: Issues of scale, resolution and interpretability. Ecol. Indic. 2002, 2, 3–15. [Google Scholar] [CrossRef]
  51. Ruiz, J.; Domon, G. Analysis of landscape pattern change trajectories within areas of intensive agricultural use: Case study in a watershed of Southern Québec. Canada. Landsc. Ecol. 2009, 24, 419–432. [Google Scholar] [CrossRef]
  52. Schroeder, R.; Rawlins, M.; McDonald, K.; Podest, E.; Zimmermann, R.; Kueppers, M. Satellite microwave remote sensing of North Eurasian inundation dynamics: Development of coarse-resolution products and comparison with high-resolution synthetic aperture radar data. Environ. Res. Lett. 2010, 5. [Google Scholar] [CrossRef]
  53. Geri, F.; Amici, V.; Rocchini, D. Human activity impact on the heterogeneity of a Mediterranean landscape. Appl. Geogr. 2010, 30, 370–379. [Google Scholar] [CrossRef]
  54. Kupfer, J.A. Landscape ecology and biogeography: Rethinking landscape metrics in a post-fragstats landscape. Prog. Phys. Geogr. 2012, 36, 400–420. [Google Scholar] [CrossRef]
  55. Plexida, S.G.; Sfougaris, A.I.; Ispikoudis, I.P.; Papanastasis, V.P. Selecting landscape metrics as indicators of spatial heterogeneity—A comparison among Greek landscapes. Int. J. Appl. Earth Observ. Geoinf. 2014, 26, 26–35. [Google Scholar] [CrossRef]
  56. McGarigal, K. Fragstats Help. 2015. Available online: http://www.umass.edu/landeco/research/fragstats/documents/fragstats.help.4.2.pdf (accessed on 20 October 2016).
  57. Qian, W.H.; Zhu, Y.F. Climate change in china from 1880 to 1998 and its impact on the environmental condition. Clim. Change 2001, 50, 419–444. [Google Scholar] [CrossRef]
  58. Jin, W.; Ren, G.Y.; Qu, Y.; Liu, X.L. Change in Surface Mean Wind Speed of Northeast China during the Period of 1971–2010. Arid Zone Res. 2012, 29, 648–653. (In Chinese) [Google Scholar]
  59. Chen, J.; Sun, B.M.; Chen, D.; Wu, X.; Guo, L.Z.; Wang, G. Land use changes and their effects on the value of ecosystem services in the small sanjiang plain in china. Sci. World J. 2014, 2014. [Google Scholar] [CrossRef] [PubMed]
  60. Dan, W.; Wei, H.; Zhang, S.W.; Kun, B.; Bao, X.; Yi, W.; Yue, L. Processes and prediction of land use/land cover changes (lucc) driven by farm construction: The case of naoli river basin in sanjiang plain. Environ. Earth Sci. 2015, 73, 4841–4851. [Google Scholar] [CrossRef]
  61. Wang, Z.M.; Song, K.S.; Ma, W.H.; Ren, C.Y.; Zhang, B.; Liu, D.W.; Chen, J.M.; Song, C.C. Loss and fragmentation of marshes in the sanjiang plain, northeast china, 1954–2005. Wetlands 2011, 31, 945–954. [Google Scholar] [CrossRef]
  62. Liu, H.Y.; Zhang, S.K.; Li, Z.F.; Lu, X.G.; Yang, Q. Impacts on wetlands of large-scale land-use changes by agricultural development: The small sanjiang plain, china. Ambio 2004, 33, 306–310. [Google Scholar] [CrossRef] [PubMed]

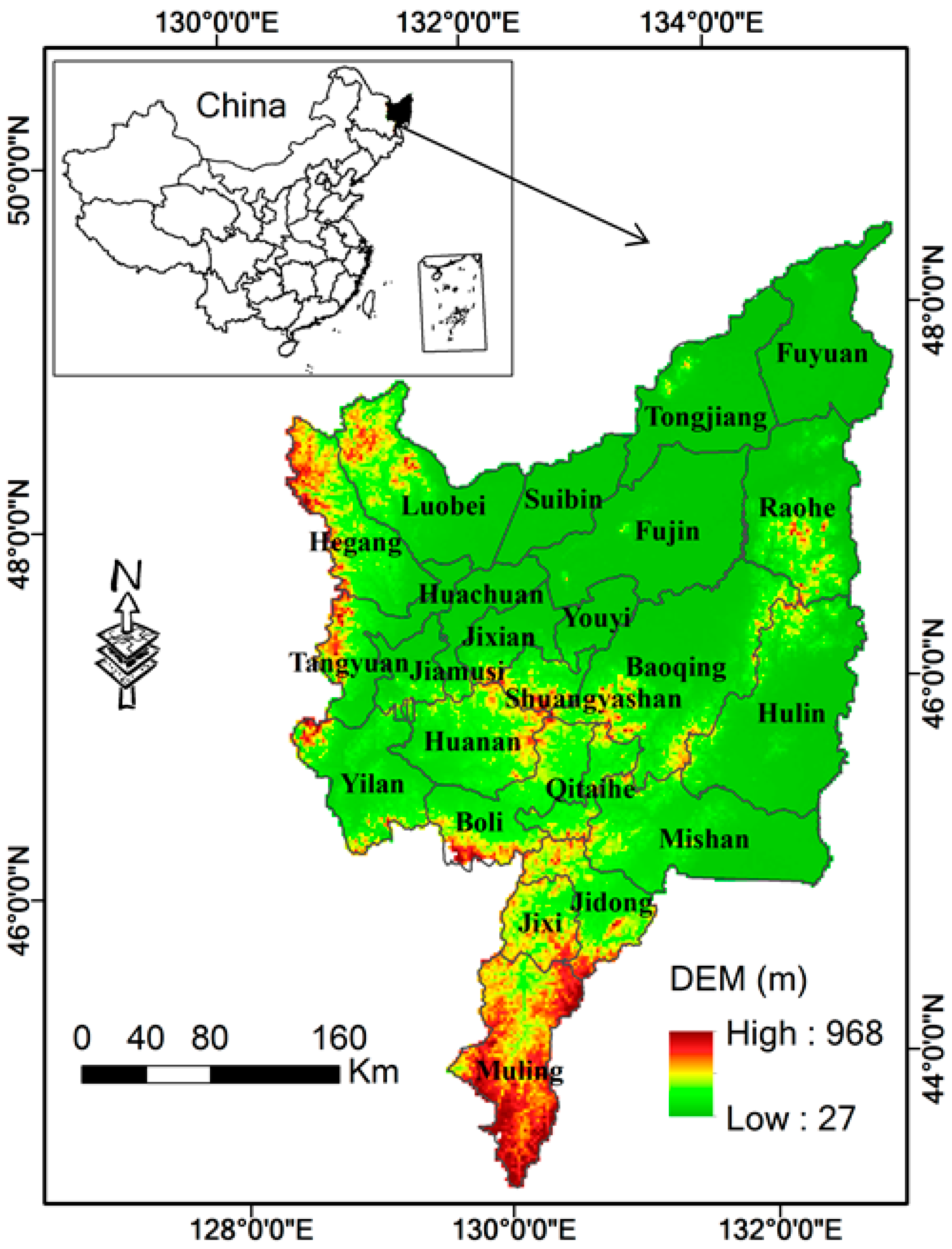

Figure 1. Study area location and elevation.
Figure 1. Study area location and elevation.
Remotesensing 10 00384 g001

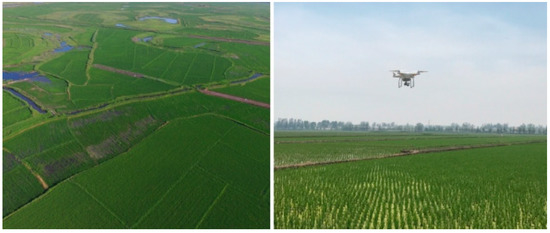

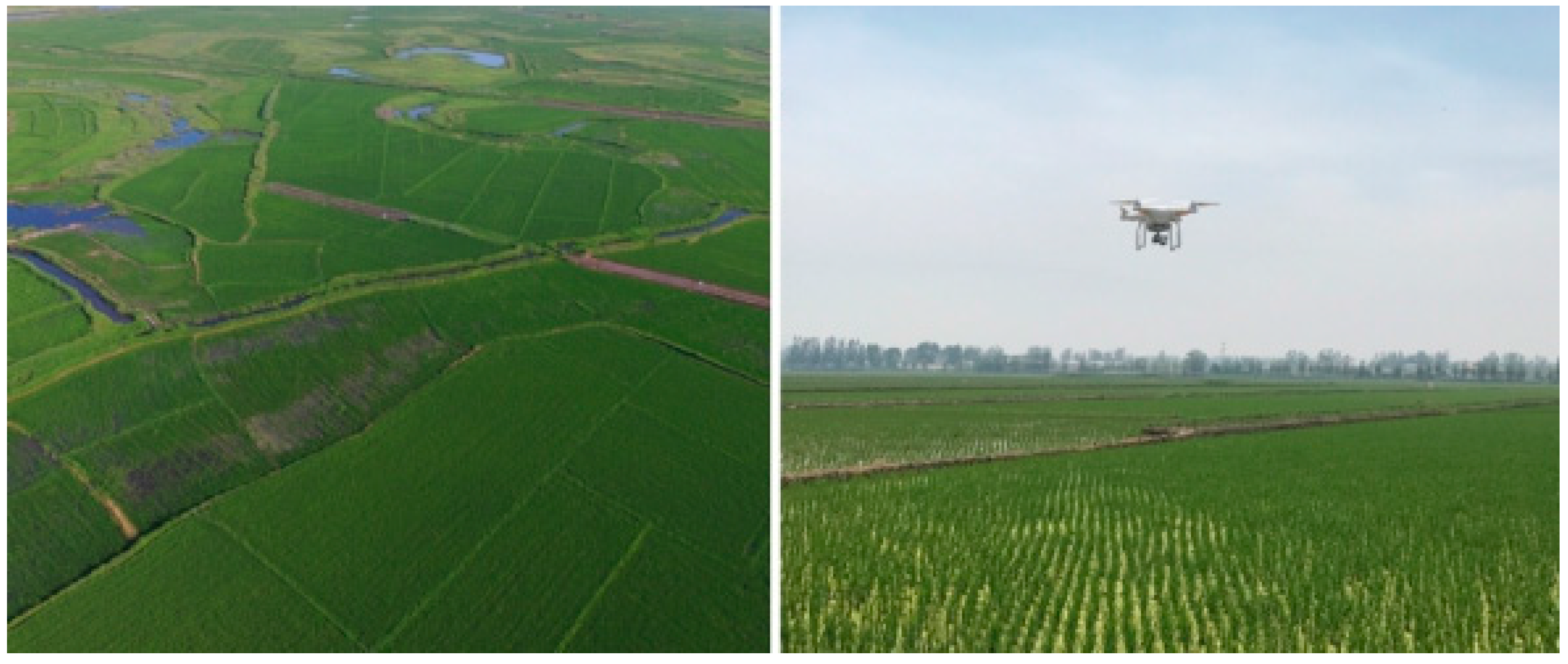

Figure 2. Field survey by unmanned aerial vehicles (UAVs). (left) UAV images; (right) the UAV that used in our field survey.
Figure 2. Field survey by unmanned aerial vehicles (UAVs). (left) UAV images; (right) the UAV that used in our field survey.
Remotesensing 10 00384 g002

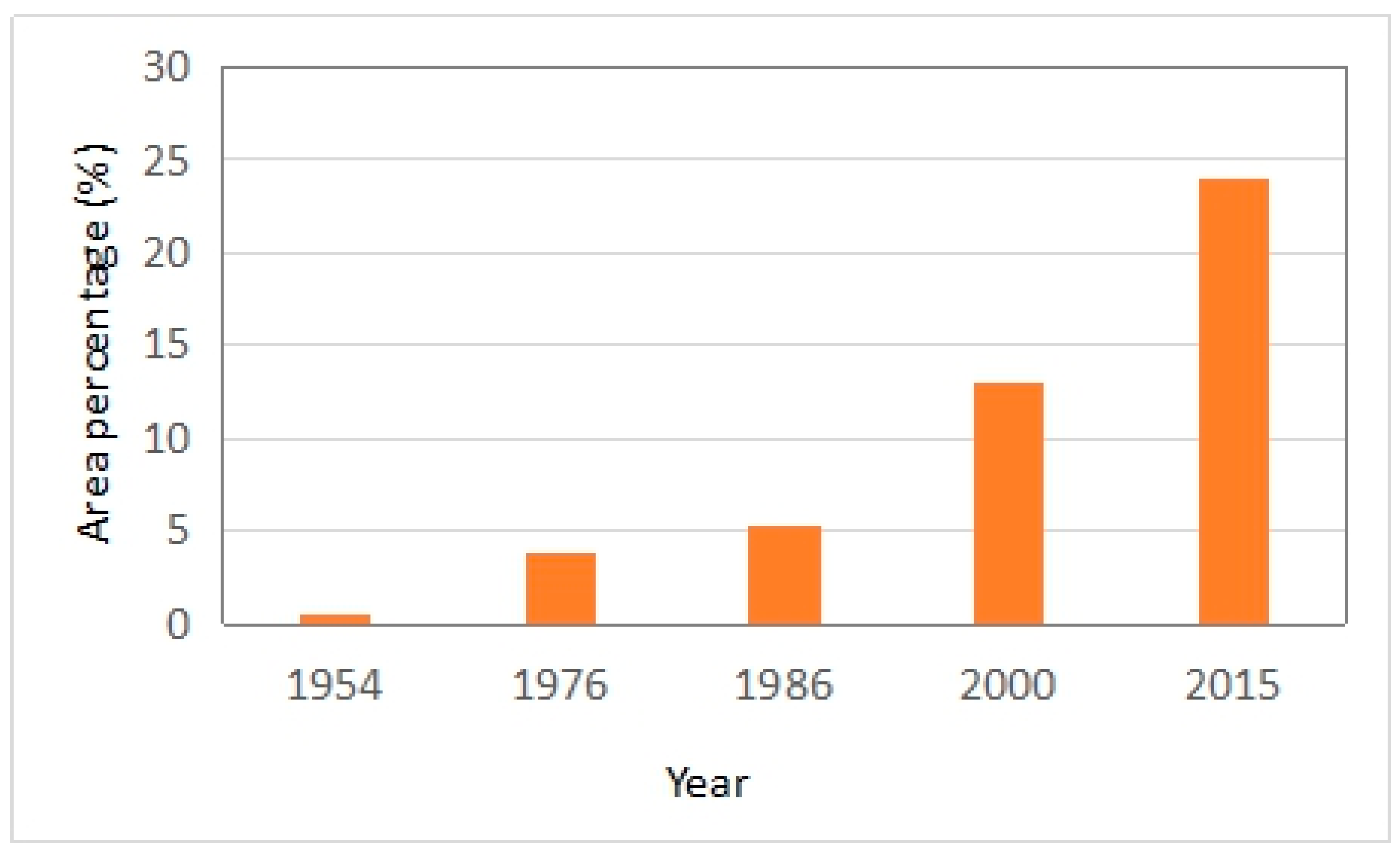

Figure 3. The percentages of paddy from 1954 to 2015.
Figure 3. The percentages of paddy from 1954 to 2015.
Remotesensing 10 00384 g003

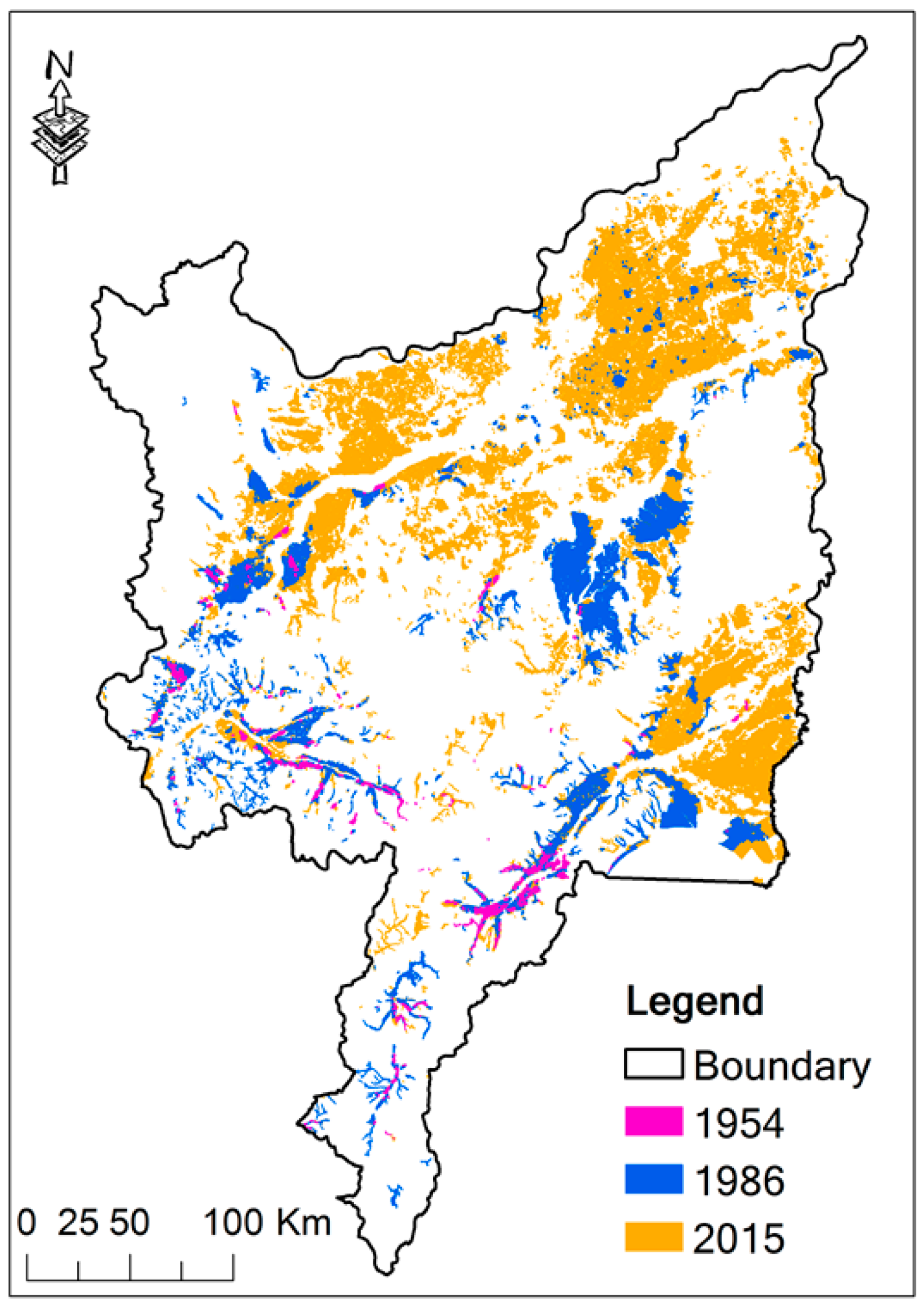

Figure 4. Spatial distribution of paddy fields in different years.
Figure 4. Spatial distribution of paddy fields in different years.
Remotesensing 10 00384 g004

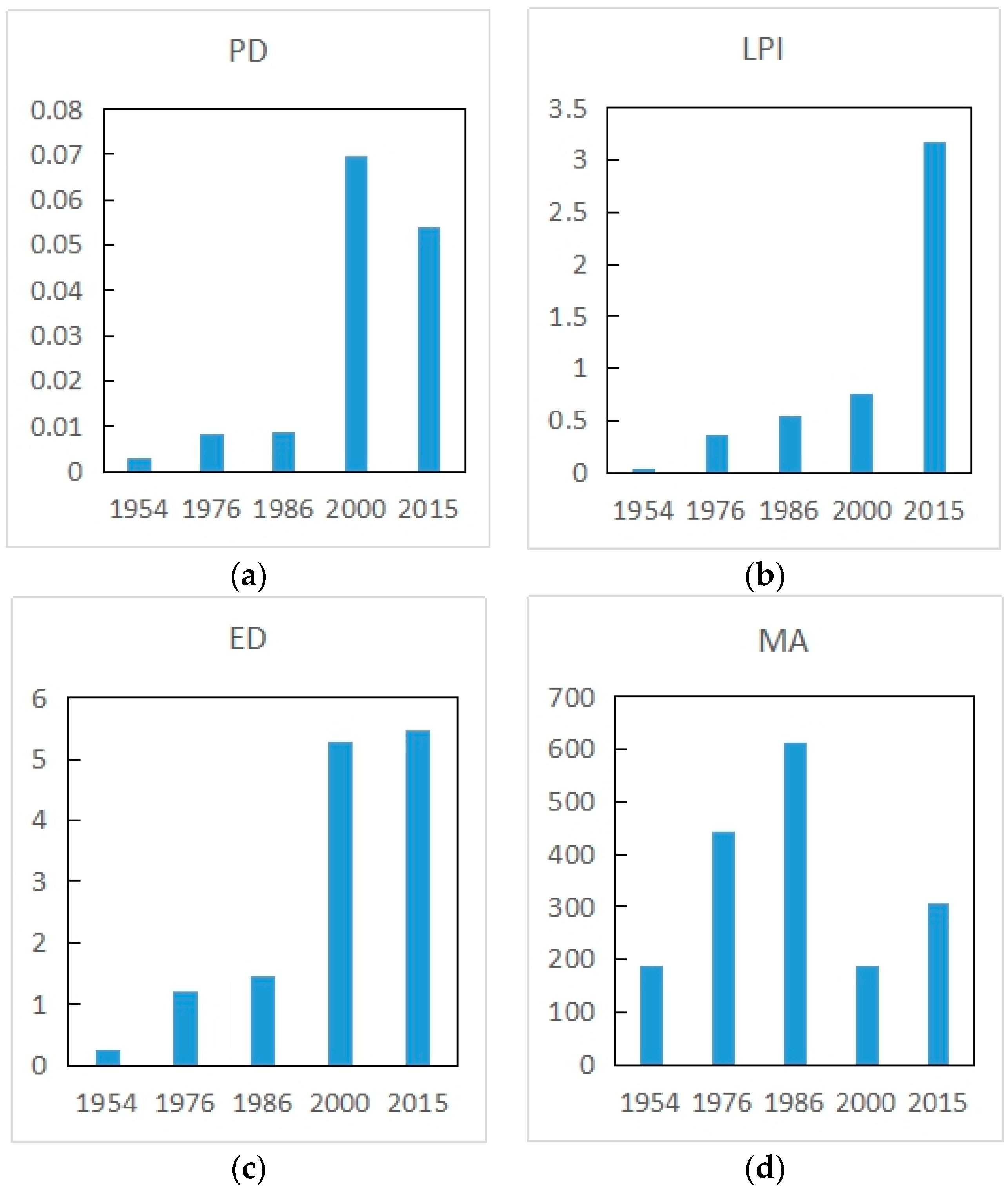

Figure 5. Spatial configuration in different time intervals. (a) PD index; (b) LPI index; (c) ED index and (d) MA index.
Figure 5. Spatial configuration in different time intervals. (a) PD index; (b) LPI index; (c) ED index and (d) MA index.
Remotesensing 10 00384 g005

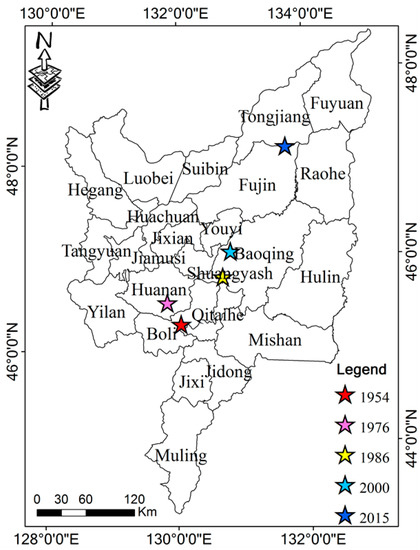

Figure 6. The gravity centers of paddy fields during different times.
Figure 6. The gravity centers of paddy fields during different times.
Remotesensing 10 00384 g006

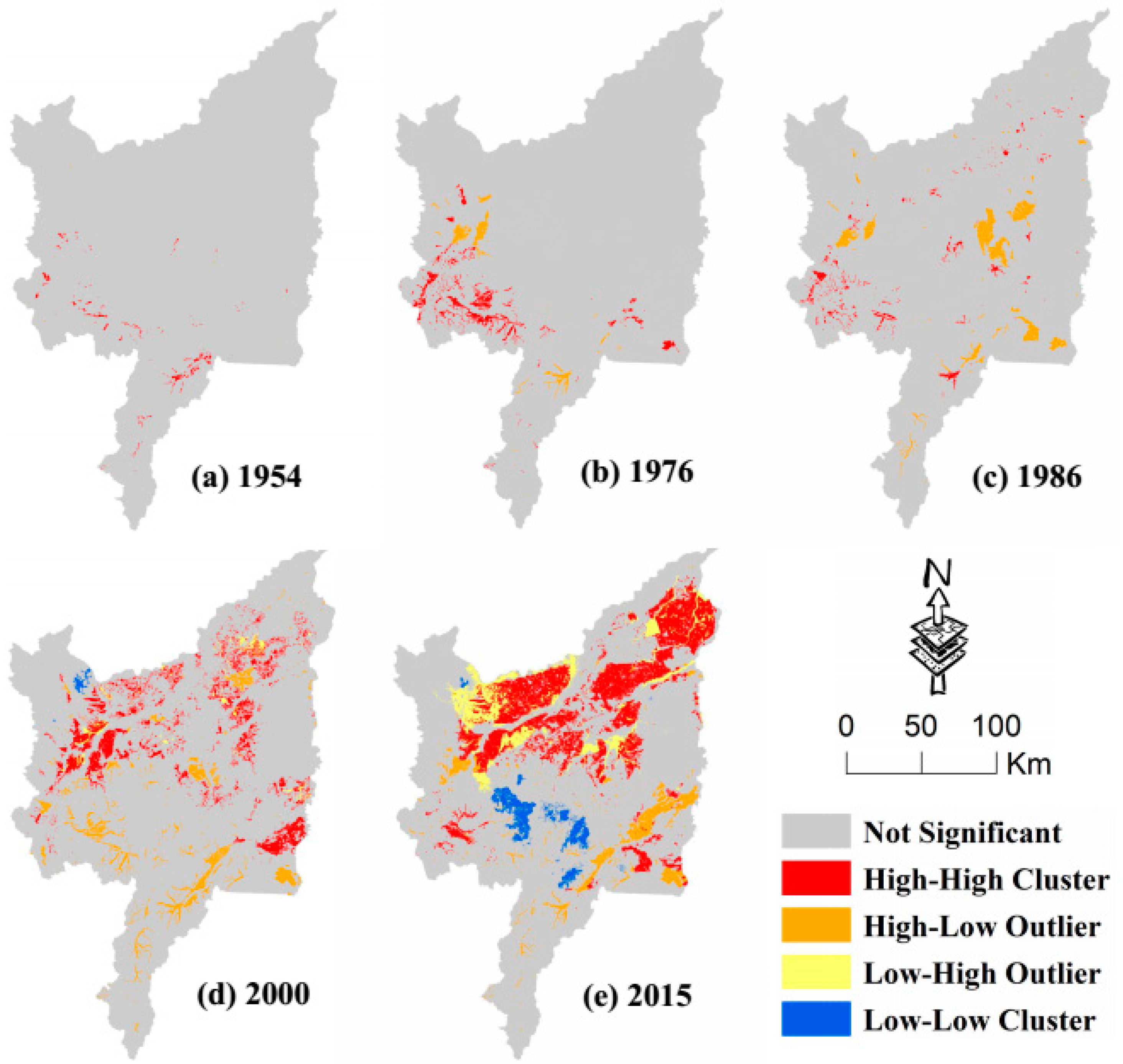

Figure 7. Spatial aggregation of paddy fields from 1954 to 2015. (a) 1954; (b) 1976; (c) 1986; (d) 2000 and (e) 2015.
Figure 7. Spatial aggregation of paddy fields from 1954 to 2015. (a) 1954; (b) 1976; (c) 1986; (d) 2000 and (e) 2015.
Remotesensing 10 00384 g007

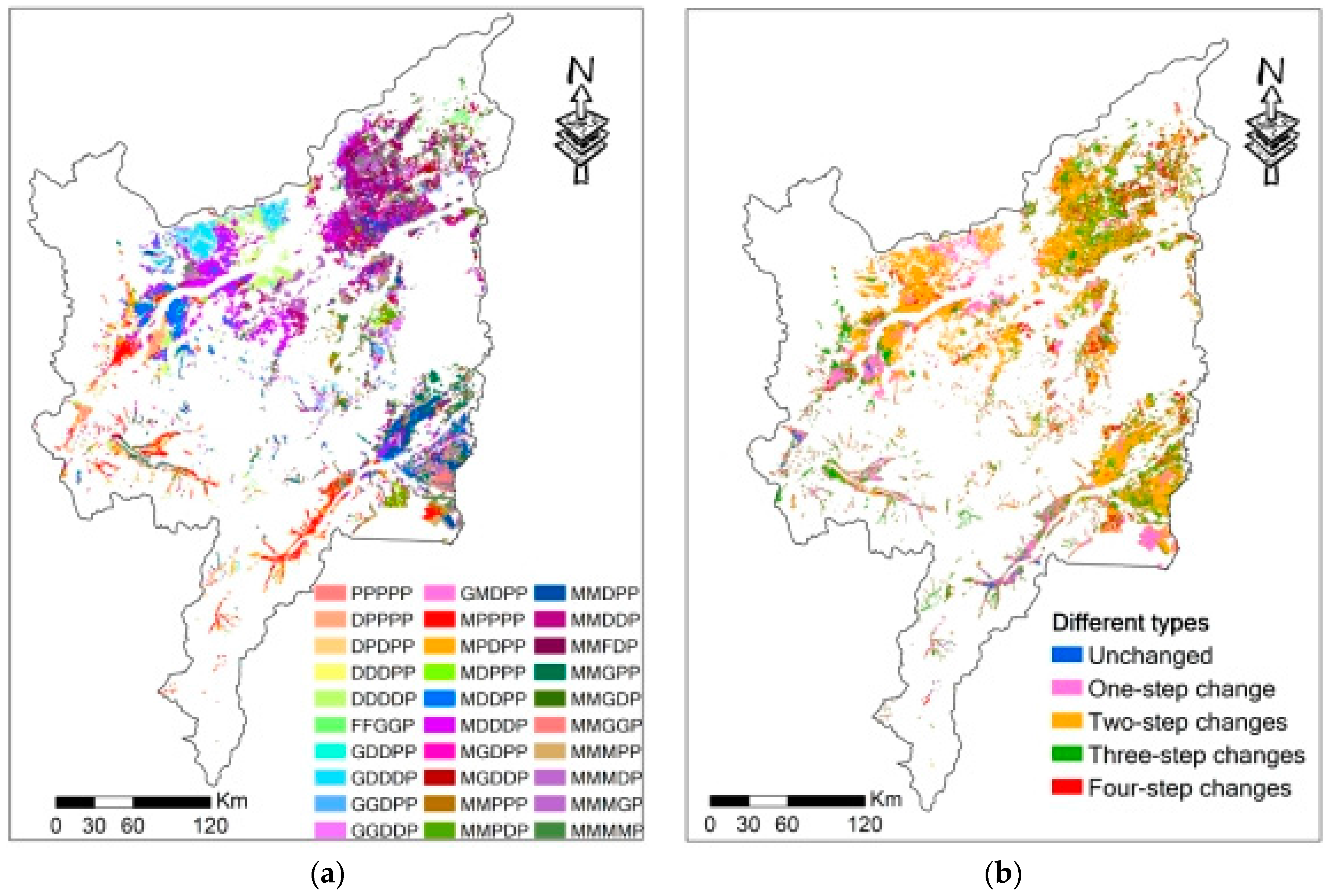

Figure 8. (a) Trajectories with different steps and (b) main trajectories of paddy field changes. P represents paddy field, D represents dry farmland, F represents forest, G represents grassland, and M represents marsh, respectively.
Figure 8. (a) Trajectories with different steps and (b) main trajectories of paddy field changes. P represents paddy field, D represents dry farmland, F represents forest, G represents grassland, and M represents marsh, respectively.
Remotesensing 10 00384 g008

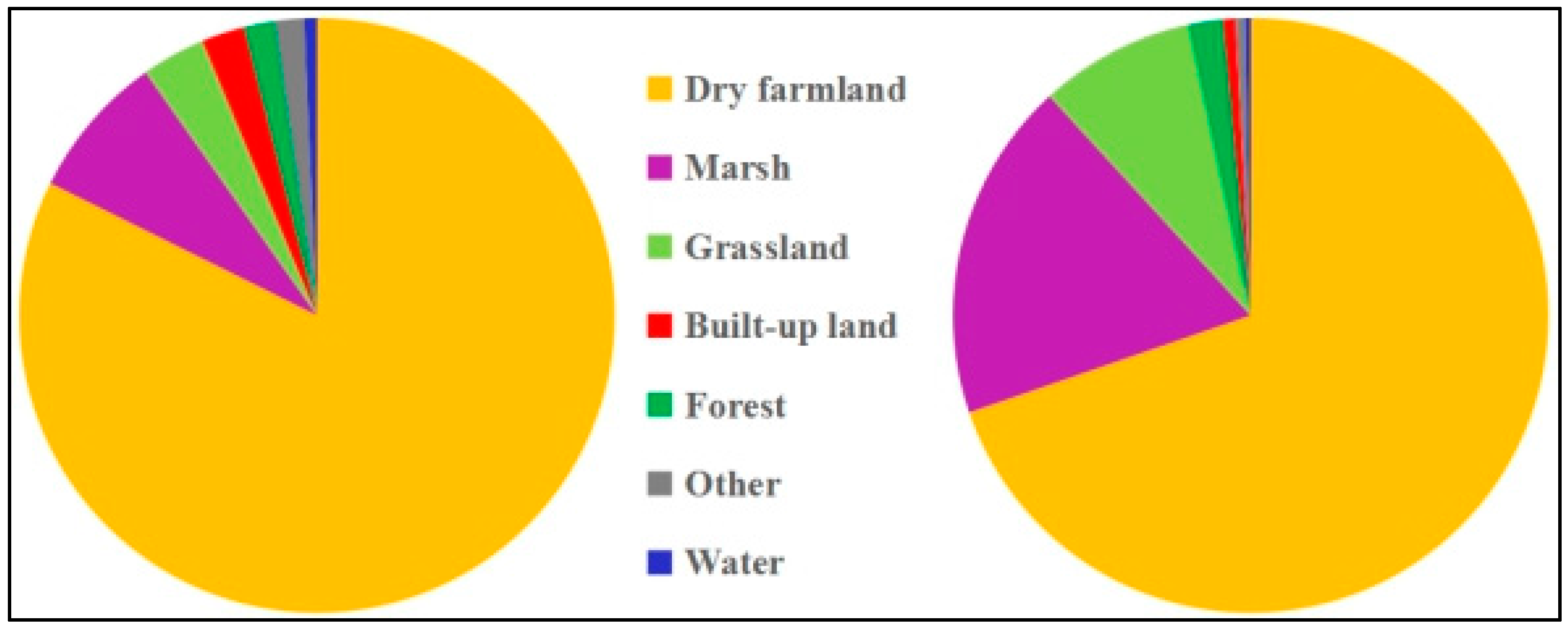

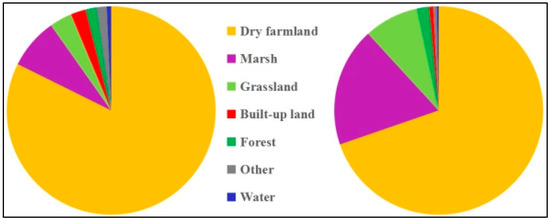

Figure 9. Area contribution of transformation between paddy field and other LULC types from 1954 to 2015. (Left) Transformation from paddy field to other LULC types; (right) transformation from other LULC types to paddy field.
Figure 9. Area contribution of transformation between paddy field and other LULC types from 1954 to 2015. (Left) Transformation from paddy field to other LULC types; (right) transformation from other LULC types to paddy field.
Remotesensing 10 00384 g009
Figure 10. Average yearly temperature changes from 1954 to 2015.
Figure 10. Average yearly temperature changes from 1954 to 2015.
Remotesensing 10 00384 g010
Figure 11. (a) Average temperature from 1954 to 1964 and (b) average temperature from 2004 to 2014.
Figure 11. (a) Average temperature from 1954 to 1964 and (b) average temperature from 2004 to 2014.
Remotesensing 10 00384 g011

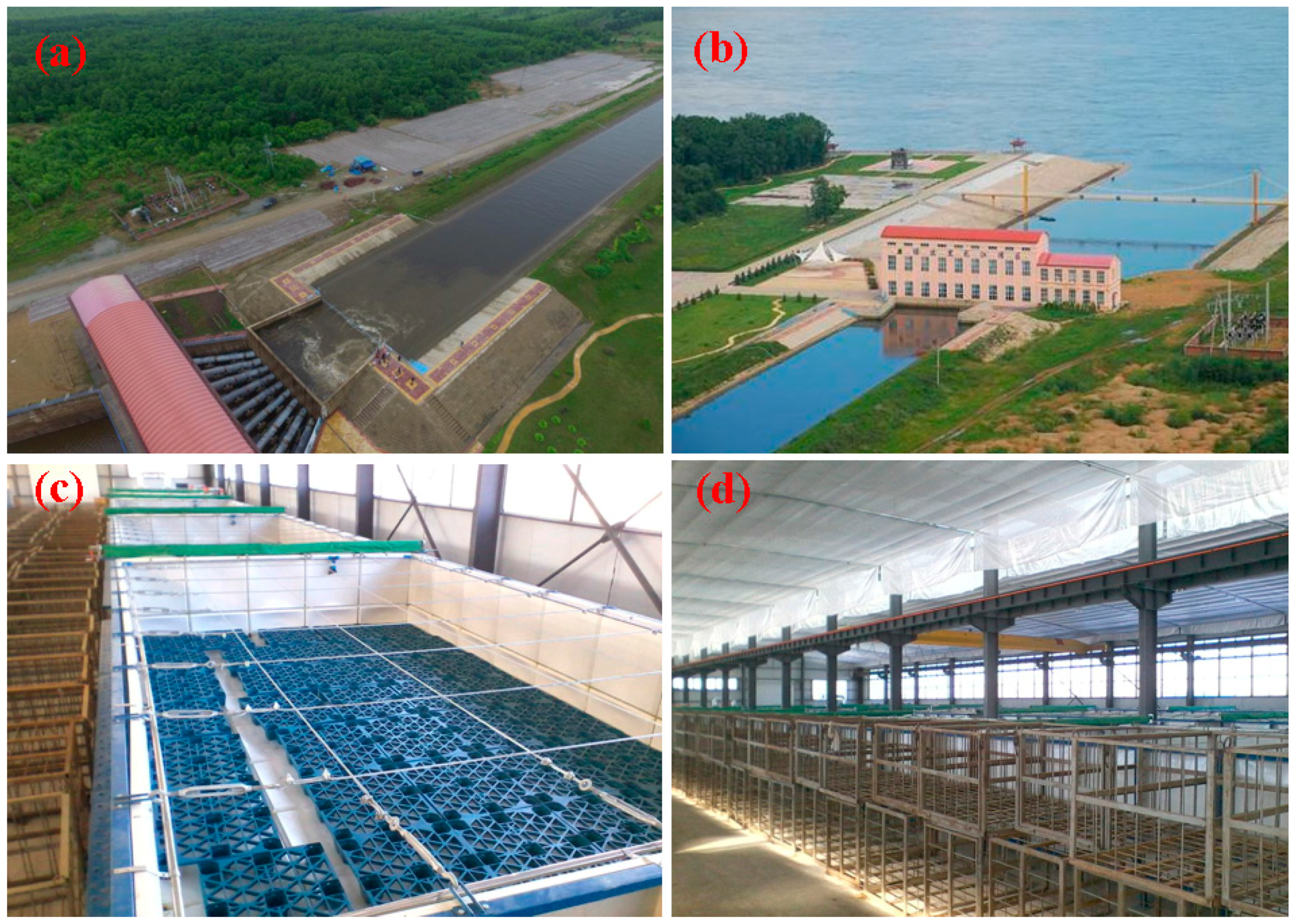

Figure 12. (a,b) Irrigation project; (c,d) advanced germination and soaking facilities.
Figure 12. (a,b) Irrigation project; (c,d) advanced germination and soaking facilities.
Remotesensing 10 00384 g012
Table 1. Rate of change of paddy fields during different time periods.
Table 1. Rate of change of paddy fields during different time periods.
Time PeriodsAnnual Change Area (ha·y−1)Annual Change Rate (%·y−1)
1954–197615,808.8626.65
1976–198617,339.51.94
1986–200060,017.926.58
2000–201578,945.393.79
Table 2. Aggregation from 1954 to 2015.
Table 2. Aggregation from 1954 to 2015.
TimeCOHESIONDIVISIONSPLITAI
195496.820811,591,377.315591.3533
197698.9621120,952.237293.6127
198698.85780.999911,431.937194.587
200098.81620.99973829.638791.9602
201599.56560.9986716.920593.4448
Table 3. The migration of the gravity center of paddy fields in different time periods.
Table 3. The migration of the gravity center of paddy fields in different time periods.
Time PeriodsDistance (km)Speed (km·y−1)
1954–197631.381.43
1976–198675.437.54
1986–200033.072.36
2000–2015146.199.75
1954–2015254.514.17
Table 4. Global Moran’s I for paddy fields at different times.
Table 4. Global Moran’s I for paddy fields at different times.
TimeMoran Indexp Value
19540.0583<0.01
19760.0548<0.01
19860.0467<0.01
20000.0985<0.01
20150.1833<0.01
Table 5. The percentage of paddy field change trajectories with different steps.
Table 5. The percentage of paddy field change trajectories with different steps.
CategoriesUnchanged TypesOne-Step ChangesTwo-Step ChangesThree-Step ChangesFour-Step Changes
Proportion1.39%20.8%53.07%20.11%4.63%

Share and Cite

MDPI and ACS Style

Yan, F.; Yu, L.; Yang, C.; Zhang, S. Paddy Field Expansion and Aggregation Since the Mid-1950s in a Cold Region and Its Possible Causes. Remote Sens. 2018, 10, 384. https://doi.org/10.3390/rs10030384

AMA Style

Yan F, Yu L, Yang C, Zhang S. Paddy Field Expansion and Aggregation Since the Mid-1950s in a Cold Region and Its Possible Causes. Remote Sensing. 2018; 10(3):384. https://doi.org/10.3390/rs10030384

Chicago/Turabian Style

Yan, Fengqin, Lingxue Yu, Chaobin Yang, and Shuwen Zhang. 2018. "Paddy Field Expansion and Aggregation Since the Mid-1950s in a Cold Region and Its Possible Causes" Remote Sensing 10, no. 3: 384. https://doi.org/10.3390/rs10030384

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
