Article

Snow Disaster Early Warning in Pastoral Areas of Qinghai Province, China

1
State Key Laboratory of Grassland Agro-Ecosystems, College of Pastoral Agriculture Science and Technology, Lanzhou University, Lanzhou 730020, China
2
Laboratory for Remote Sensing and Geoinformatics, University of Texas at San Antonio, San Antonio, TX 78249, USA
*
Author to whom correspondence should be addressed.
Remote Sens. 2017, 9(5), 475; https://doi.org/10.3390/rs9050475
Submission received: 15 March 2017 / Revised: 4 May 2017 / Accepted: 9 May 2017 / Published: 12 May 2017
(This article belongs to the Special Issue Snow Remote Sensing)

Abstract

:
It is important to predict snow disasters to prevent and reduce hazards in pastoral areas. In this study, we build a potential risk assessment model based on a logistic regression of 33 snow disaster events that occurred in Qinghai Province. A simulation model of the snow disaster early warning is established using a back propagation artificial neural network (BP-ANN) method and is then validated. The results show: (1) the potential risk of a snow disaster in the Qinghai Province is mainly determined by five factors. Three factors are positively associated, the maximum snow depth, snow-covered days (SCDs), and slope, and two are negative factors, annual mean temperature and per capita gross domestic product (GDP); (2) the key factors that contribute to the prediction of a snow disaster are (from the largest to smallest contribution): the mean temperature, probability of a spring snow disaster, potential risk of a snow disaster, continual days of a mean daily temperature below −5 °C, and fractional snow-covered area; and (3) the BP-ANN model for an early warning of snow disaster is a practicable predictive method with an overall accuracy of 80%. This model has quite a few advantages over previously published models, such as it is raster-based, has a high resolution, and has an ideal capacity of generalization and prediction. The model output not only tells which county has a disaster (published models can) but also tells where and the degree of damage at a 500 m pixel scale resolution (published models cannot).

Graphical Abstract

1. Introduction

Snow disasters in pastoral regions are meteorological disasters that affect animal husbandry because of heavy snow, sustained low temperatures, and prolonged snow cover. These disasters are serious threats to animal production and lives in pastoral regions because pastures are covered by snow, which makes livestock foraging difficult and can result in livestock deaths [1,2,3]. Snow disasters generally begin in October and end in April of the following year in the Tibetan Plateau [4]. Spatially, snow disasters mainly occur in high-elevation and high-latitude areas, as well as in rich natural grasslands, especially in Inner Mongolia, Xinjiang, Qinghai, Tibet, and other places [5]. Qinghai Province is located on the northeastern part of the Tibetan Plateau and often receives heavy snowfall in the winter and spring because of the influence of the plateau’s specific geographic environment and climatic conditions. These conditions threaten the personal safety of herdsmen and their personal properties. In addition, heavy snow restricts the normal process of animal husbandry [2,5,6,7]. Therefore, it is important to construct accurate risk assessments of snow-caused disasters and pre-disaster early warning systems to prevent and reduce these disasters.
In recent years, many experts and scholars have examined various aspects of snow disaster prediction (by calculating the probability of a snow disaster occurrence during a certain time and in a specific area according to the existing data) and potential risk assessment (by simulating the geographic position, spatial distribution, and hazard degree of a snow disaster that has not yet occurred according to the simulation data) using remote sensing (RS) and geographic information system (GIS) technologies. The studies mainly focused on snow disaster monitoring methods [8,9,10], spatiotemporal analyses of the disaster-causing factors [7,11,12], snow disaster risk zoning and evaluation [12,13,14,15,16,17,18], and snow disaster early warning modeling and hazard assessment [1,3,18,19,20,21,22]. Many of these studies are both qualitative and quantitative and span from hazard evaluations of snow disasters to spatiotemporal early warning systems for snow disasters, as well as from single-factor models to multi-factor models. These various methods provide a theoretical basis for snow disaster early warning and hazard evaluation. Snow disaster early warning includes the probabilistic prediction of the hazard area and intensity of a snow disaster that is most likely to occur in the near future. Some studies only focused on assessing prior snow-caused disasters for the factors that caused the disasters and the associated damages [2,7,18,23], the vulnerability and resilience of a hazard-bearing body [17,24] and multi-factor, comprehensive early warning models [3,21,25]. However, only a few studies intended to combine potential risk assessments of a certain area into an early warning model for snow-caused disasters. The existing results of modeling a snow disaster for early warning purposes have some inherent weaknesses. For instance, some models do not consider the effects of factors outside the grassland animal husbandry system on snow disasters [26] and the effects of human intervention on the degree of damage of snow disasters [21]. They also ignored the effects of herding, meteorological factors, and other factors on snow disaster hazards [3]. The previous results of the simulation did not agree with the actual situation [19] and did not evaluate deviations in estimated snow disaster levels [25]. In summary, the existing models of snow disaster are generally associated with certain limitations, and no study has provided raster-based temporal-spatial predictions of snow disasters using machine learning methods.
Therefore, a study is presented in this paper using RS and GIS technologies combined with the statistic and climatic data of the Qinghai pastoral area with the following objectives: (1) to construct a logistic regression model of the potential risk for snow disasters; (2) to establish a back propagation artificial neural network (BP-ANN) early warning model for snow disasters; and (3) to assess the accuracy of the snow disaster early warning results using known snow disaster cases. Through this study, we hope to provide theoretical support for scientific early warning of snow disasters, disaster prevention and reduction schemes, post-disaster rescue strategies, and post-disaster recovery plans.

2. Study Area and Data

2.1. Study Area

Qinghai Province (31°09′ N–39°19′ N, 89°35′ E–103°04′ E) is located on the northeastern edge of the Qinghai-Tibet Plateau. The province has an average elevation of above 3500 m and an area of 721,200 km2. The topography and landforms in the area are complex. Notably, many mountainous and low-lying terrain areas are located in the eastern part of the study area, and numerous plateaus and basins exist in the northwest (Figure 1). Qinghai is characterized as a typical plateau continental climate with low temperatures, large temperature variations between day and night, low and concentrated rainfall, long hours of sunshine, and high solar radiation with large regional differences and significant vertical variations. The grassland types are mainly alpine meadow and alpine steppe and account for 81% of the total pasture area in the study area [27]. Grassland utilization is mainly dominated by fenced grazing and four-season rotational grazing.

2.2. Data

2.2.1. Remote Sensing Data

This study uses Moderate Resolution Imaging Spectroradiometer (MODIS) daily snow cover products (MOD10A1 and MYD10A1) (500 m resolution) from the Terra and Aqua satellites between 2001 and 2015 and the Advanced Microwave Scanning Radiometer-Earth Observing System (AMSR-E) daily snow water equivalent (SWE) products (25 km resolution) and snow depth data (25 km resolution), which are derived from the long-term snow depth dataset of China developed by Dr. Che Tao [28] from 1979 to 2014 (Heihe Planning Data Management Center) [29].

2.2.2. Meteorological Observation Data

Daily temperature, precipitation, snow depth, and wind speed data were collected at meteorological stations and were obtained from the Chinese Meteorological Data Sharing Service System (CMDS) [30] between 2000 and 2015. This study uses the widely applied ANUSPLIN 4.3 software [31,32], which was developed by Hutchinson (2004) [33] based on the thin plate spline theory for climate data surface fitting to spatially interpret the observation data from meteorological stations to obtain five indexes (continual days of mean daily temperature below 0 °C, continual days of mean daily temperature below −5 °C, continual days of mean daily temperature below −10 °C, mean temperature, and total precipitation) of weather conditions during a disaster with a spatial resolution of 500 m.

2.2.3. Statistical Data

Statistical population and livestock data (i.e., quantity of livestock at the beginning of the year and end of the year), socioeconomic data (i.e., per capita gross domestic product (GDP) and per livestock GDP), and other data from each county-level administrative district in the Qinghai Province from 2000 to 2015 were obtained. The data were collected by the Statistics Bureau of Qinghai Province and were interpolated into raster data (500 m resolution) using spatialization methods.
Data from 33 typical cases (from China’s Meteorological Disaster Volume (Qinghai)) [34] were selected from the snow disaster records in Qinghai Province from 2001 to 2007 as a sample set to train the BP-ANN model. Accuracy evaluations of the early warning model were conducted based on two additional snow disaster cases in 2008 and 2015 (Table 1). According to the statistics on meteorological disasters, a spatial database was established containing the probability of a winter snow disaster (from October to January of the next year), the probability of a spring snow disaster (from February to May), and the mean annual probability of a snow disaster over 50 years (from 1961 to 2010).

2.2.4. Others

Digital elevation model (DEM) data with 90 m spatial resolution were obtained from the U.S. Geological Survey (USGS) [35], and the slope data were extracted to analyze the effects of topographic factors in the grazing region. Administrative division, grassland type, and seasonal grassland utilization data in the study area were analyzed to remove the impacts of non-grassland and summer pasture areas from the early warning results of snow disasters.

3. Methodology

3.1. Process of a Snow Disaster Early Warning Model

A flow chart of a snow disaster early warning model is shown in Figure 2. We first construct a logistic regression model to evaluate the potential risk associated with a snow disaster and calculate the potential snow disaster risk using a correlation analysis, principal component analysis (PCA), and other methods based on 33 typical snow disaster cases from 2001 to 2007 in Qinghai Province. Then, based on a number of historical statistical factors, pre-disaster snow condition factors, and meteorological factors during the disasters, key early warning factors of the snow disasters are selected as network input parameters using the mean impact value (MIV) variable selection method. Finally, livestock mortality is set as a network output parameter to train the BP-ANN early warning model of snow disasters. Furthermore, we use the two verified snow disaster cases in mid-February 2008 and late February 2015, to evaluate the early warning model. In each county-level administrative district, livestock mortality (M) can be represented as follows:
M = Q d / Q r
where Qd is the quantity of dead livestock in each snow-caused disaster and Qr is the quantity of livestock at the beginning of the year.

3.2. Integrated Snow Cover Products

Based on snow cover products and SWE products as well as various composite rules and algorithm models [36,37,38], we produce the composite MOD10A1 and MYD10A1 obtained at different times to reduce some cloud cover based on characteristic cloud movement. Then, we mask the cloud pixel through an adjacent temporal composite (i.e., if the pixel for a given day is classified as a cloud but in the previous and following days, it is snow, then, the pixel is classified as snow; if the cloud pixel in the previous and following days is land, the pixel is classified as land). Then, we use the snow line approach (SNOWL), which is a method based on the aforementioned theory to assign and reclassify the cloud pixel based on its elevation compared with snow and land in a given elevation zone [37]. Finally, a daily cloud-free snow cover product (500 m resolution) in Qinghai Province (2001 to 2015) is produced by taking advantage of both the MODIS high spatial resolution and cloud transparency of the downscaling AMSR-E SWE product (500 m resolution). For example, the cloud-free snow cover product on 15 February 2008 and on 25 February 2015 in Qinghai Province is shown in Figure 3. We re-sample the original SWE data using the neighbor interpolation method in the ArcGIS 10.2. In addition, the fractional snow-covered area, snow-covered area, snow-covered days, and other factors are calculated. The snow depth is one of the snow disaster early warning factors; we use a resampling method to interpret it and obtain downscaling snow depth data with a 500 m spatial resolution.

3.3. Potential Risk Assessment

This study collects 19 factors (average value of the 7 years (2001–2007)) about socioeconomic factors, meteorological factors, remote sensing monitoring factors, and pastoral factors that influence a snow disaster that occurs in Qinghai Province based on available research experience [12,13,15,17,39]. Then, the study determines the representation and operability (i.e., spatialization) of each factor and constructs an indicator system of the snow disaster potential risk assessment (Table 2).
In this study, a logistic regression model is used to evaluate the potential risk of snow disasters in pastoral regions of Qinghai Province based on existing studies [12,40]. The logistic regression model was used to avoid subjectivity when the weight of each index was determined. Another advantage of a logistic model is that independent variables can be either continuous, discrete, or non-normally distributed [41,42].
If P is the probability of a snow disaster occurrence ranging from 0 to 1, then 1 − P is the probability of a snow disaster not occurring. The natural logarithm of P/(1 − P) ( ln ( p / ( 1 p ) ) ) and the associated linear regression equation are as follows:
L o g i t ( P ) = ln ( p / ( 1 p ) ) = α + β 1 χ 1 + β 2 χ 2 + ...... + β n χ n
or
p = exp ( α + β 1 χ 1 + β 2 χ 2 + ...... + β n χ n ) 1 + exp ( α + β 1 χ 1 + β 2 χ 2 + ...... + β n χ n )
where P is the probability of a snow disaster occurrence; α is a constant; β 1 , β 2 , …, β n are logistic regression coefficients; and χ 1 , χ 2 , …, χ n are key factors of the snow disaster risk.

3.4. Snow Disaster Early Warning

Based on the 33 typical snow disaster cases from 2001 to 2007 in Qinghai Province, 13 snow disaster early warning factors (Table 3) are chosen based on previous studies, data availability, and the results of risk evaluation in the study area. They include three historical statistical factors (V2–V4), four snow condition factors (V5–V8) before snow disasters occur, and five meteorological factors (V9–V13) during snow disasters. The snow disaster risk factor (V1) is the P value (Equation (3)), the probability of a snow disaster occurrence, obtained based on the logistic regression model in Section 3.3. V1 is also one of the five key factors used for the BP-ANN model for a snow disaster early warning (Section 3.4).
BP-ANNs are multilayer, feed forward networks trained by back propagation error algorithms. The first BP-ANN was originally proposed by Werbos in 1974 [43], and BP-ANNs were popularized by Rumelhart in 1986 [44]. Currently, it is one of the most widely used neural network models in the medical, environmental, and technological fields, among others [45,46,47,48,49,50,51,52]. The method uses gradient descent to continuously adjust the network’s weight and threshold value through back propagation, which minimizes the network error. The topological structure of a BP-ANN model includes an input layer, hidden layer, and output layer. Additionally, a network can contain multiple hidden layers capable of dealing with the problem of linear inseparability [53]. In this paper, the BP neural (Back-propagation neural network) program for computing was Matlab 6.5 software.
The MIV method is used to select variables in this study and to determine the input terms that have significant impacts on the results. Dombi et al. (1995) [54] and others suggested using the MIV method to reflect the change in the weight matrix of a neural network. Additionally, the MIV method is considered one of the best indexes for evaluating the variable correlation in a neural network [55], and it has been used to determine the effects of the input neuron on the output neuron. The sign of the output neuron represents the relevant direction, and the absolute value represents the relative importance. The calculation process is as follows:
(1)
Train the model. After training is finished, every input variable Pj (j = 1, 2, 3, …, n) from the training samples P would increase or decrease by 10% *P to obtain two new training samples Pj1 and Pj2.
(2)
Use the two new cases as the simulation samples in the well-trained model. This yields two new middle-stage variables Aj1 and Aj2. Then, calculate the difference between Aj1 and Aj2 to account for the impact value of the input variables.
(3)
Next, the MIVs are obtained using the impact values divided by the number of samples n.
(4)
Finally, sort the input variables from large to small according to the sizes of their absolute values and choose the first m independent variables as input feature variables according to Equations (4) and (5) for usage in the BP-ANN (in the next step).
η m = i = 1 m | M I V | / i = 1 n | M I V |
η m > 85 %
where ηm is the cumulative contribution rate of each independent variable; m is the number of variables selected; and n is the total number of variables.

3.5. Hazard Evaluation Standard for Snow Disasters

Based on Guo et al. (2012) [56], we classify snow disasters into four levels: light, moderate, severe, and extremely severe disasters (Table 4).

4. Results

4.1. Potential Snow Disaster Risk in Qinghai Province

After principal component analysis of the 19 parameters (Table 2), five key factors (maximum snow depth, slope, SCDs, annual mean temperature, and per capita GDP) that influence snow disasters are selected. A logistic regression model is ultimately obtained to comprehensively evaluate the potential risk of snow disasters in Qinghai and the parameters of the model (Equation (3)) are shown in Table 5.
Figure 4 shows the spatial distribution of various risk factors related to snow disasters in the study area. As shown in Figure 4A, large slope areas are mainly concentrated around mountains in Qilian, Kunlun, Tanggula, Bayan Har, and Amnye Machen of Qinghai Province. Figure 4B shows that the annual mean SCDs is generally low in the study area and high in some localized areas (especially Delingha and Tianjun). As shown in Figure 4C, eastern Qinghai Province, the Qaidam Basin and its surrounding area have high annual mean temperatures between 0 °C and 9.27 °C. Other areas have low annual mean temperatures between −13.97 °C and 0 °C. Figure 4D shows that the areas with deeper snow cover (between 10 mm and 26 mm) in Qinghai are mainly distributed in Tianjun, Qilian, Yushu, Nangqian, Zaduo, Gande, and Dulan counties, while the snow depths in Haixi Prefecture, Golmud City, and the eastern agricultural regions are shallow (between 0 mm and 10 mm). Additionally, Figure 4E shows that the per capita GDP levels in the southern and southeastern parts of Qinghai Province are low, while the GDP levels in Haixi Prefecture are high.
The probability of a snow disaster in the study area is calculated according to Equation (3) and Table 5 and classified using the natural breaks (Jenks) method. Because of the very low probability of snow disasters occurring in non-grassland areas and areas with slopes greater than 50°, these areas are removed from the final results of the snow disaster risk (Figure 5). Overall, the comprehensive results of snow disaster risk in Qinghai suggest that the risk is higher in the south and lower in the north. High-risk areas (P > 0.17) are mainly concentrated in southern Qinghai, especially in the southeastern Yushu Prefecture and the central Guoluo Prefecture. At the county scale, the snow disaster risk is high in Golmud and Delingha cities and Chenduo, Yushu, Nangqian, Dari, Gande, Maqin, Dulan, and Menyuan counties. Based on the topographic and geomorphic conditions, the snow disaster risk in the Qaidam Basin in northwestern Qinghai and the agricultural areas in eastern Qinghai are low (0.03 < P < 0.08), while the risks in the Qilian Mountains, Kunlun Mountains, Tanggula Mountains, Bayan Har Mountains, Amnye Machen, and other high mountain areas are high. The risk in other areas are intermediate (0.08 < P < 0.17).

4.2. Snow Disaster Early Warning Model Based on the BP-ANN

This study uses the MIV method (Section 3.4) to calculate the MIVs (Table 6) of 13 independent variables (Table 3) by using the livestock mortality as the dependent variable. The first five independent variables (V12, V3, V1, V10, and V5) whose cumulative contribution to absolute values of MIVs are greater than 85% are used as input factors for the BP-ANN training, testing, and validation. Livestock mortality is used as the only network output. The model also includes ten hidden layers based on empirical equations [57]. The most suitable structure of the BP-ANN model for predicting livestock mortality was believed to be the 5-10-1 structure. The transfer function of the hidden layer is a log-sigmoid function and the function of the output layer is a purelin function. The adopted network training algorithm is the Levenberg-Marquardt algorithm (trainlm).
BP-ANN modeling results (simulated livestock mortality) are compared with the actual livestock mortality in three different datasets: training (23 samples), testing (5 samples), and validation (5 samples), as shown in Figure 6a–c, respectively. It is found that the actual livestock mortality and simulated livestock mortality exhibit high determination coefficients (0.90, 0.64, 0.45, respectively) and small root mean square error (RMSE) values (0.0269, 0.0238, 0.0877, respectively). If all samples are used to build the BP-ANN model, a similar good result can be achieved (R2 of 0.66 and RMSE of 0.0419, Figure 6d). In BP-ANN, the validation dataset is a set of examples used to determine the network structure or control the complexity degree of the model, and the fitting capability of the validation dataset (Figure 6c) did not influence the performance capability of the BP-ANN model. The training dataset is a set of examples used for learning and the testing dataset is a set of examples used only to assess the generalization performance of a model. Based on an evaluation of R2 and RMSE of the training dataset and testing dataset, the BP-ANN model is a good predictor of the livestock mortality with ideal certainty, as expected. Overall, the five key variables are used to build a reasonable and effective BP-ANN model for the study area.

4.3. Accuracy Assessment of the Snow Disaster Early Warning Simulation

To assess the accuracy of the established BP-ANN early warning model, two additional snow disaster cases in 2008 and 2015 are used (i.e., the five key factors V12, V3, V1, V10, and V5 of each case) to obtain corresponding network outputs (livestock mortality values). These outputs are the predicted values and are compared with the corresponding actual livestock mortality of each case. Figure 7 and Figure 8 are the model outputs of the livestock mortality (at 500 m pixel size) of the 2008 and 2015 cases, respectively, according to the standard levels of snow disaster classification given in Table 3.
The levels of snow disaster simulation results in the 2008 (Figure 7) case suggest that the severe disaster area was relatively small (5294 km2) and concentrated locally in Zeku and Dari counties. This area accounted for 2.48% of the total pasture area in the winter and spring in the study area. The moderate disaster level was mainly distributed in the Three Rivers Headwater Region (especially in southeastern Yushu Prefecture, northwestern Guoluo Prefecture, and northwestern Huangnan Prefecture), with a hazard area of 42,390 km2, accounting for 19.84% of the total pasture area in the winter and spring of the study area. The area of light snow disaster was 165,985 km2 and was mainly concentrated in southwestern Yushu Prefecture, eastern Haixi Prefecture, and eastern Qinghai Province. This area accounted for 77.67% of the pasture area in the winter and spring of the study area.
Overall, moderate and light snow disasters areas were prevalent in the Three Rivers Headwater Region, and the simulated results agreed well with the reported actual hazard scenario. According to the disaster volume records and the relevant literature data, during this 2008 snow disaster event, heavy snowfall mainly affected the three Prefectures of Yushu, Guoluo, and Huangnan, and killed 181,500, 116,700, and 40,600 domestic animals, respectively, in each prefecture [58]. In addition, according to the Landsat 7 TM false color image (Figure 9A) of a snow disaster in mid-February 2008, most areas in southern Guoluo Prefecture were covered by snow; this could verify the simulated results of the snow disaster on a small scale as well.
Based on the simulation results in 2015 (Figure 8), the area of severe snow disasters was small and mainly concentrated in northern Dulan County and some areas of Wulan County, encompassing a hazard area of 9124 km2, which accounted for 5.04% of the total pasture area in the winter and spring in the study area. Moderate snow disasters mainly occurred in central Hainan Prefecture and eastern Haixi Prefecture, with a hazard area proportion of 8.96%. The area of light snow disasters was the largest with an area of 155,556 km2, and accounted for 85.99% of the total pasture area in the winter and spring. This level was mainly distributed in southeastern Yushu Prefecture, northeastern Guoluo Prefecture and most areas of Huangnan Prefecture. Based on the overall analysis of the study area, the damage caused by the snow disaster was still mainly classified in the light disaster level with some moderate and severe snow disasters mainly distributed in Dulan and Wulan counties.
Overall, the simulation results agreed well with the actual snow disaster scenario. According to a government report, the 2015 heavy snowfall occurred in the eastern region of Haixi Prefecture and caused severe snow disasters in the local areas of Wulan County and Dulan County. These disasters affected more than 8000 herdsmen in the six villages and towns of Dulan County and killed more than 20,000 domestic animals [59]. In addition, according to the Landsat 8 OLI false color image (Figure 8B) of a snow disaster in late February 2015, partial areas in Dulan County were covered by snow, and this could verify the simulated results of the snow disaster on a small scale as well.
To further validate the accuracy of the simulation results, actual livestock mortality reported in the three Prefectures (Guolu, Yushu, and Huangnan) of the 2008 case and the two counties (Dulan and Wulan) of the 2015 case are compared with the simulated livestock mortality in the corresponding prefecture or county (Table 7). For the 2008 and 2015 cases, the model accuracy was 76% and 85%, respectively, with an overall accuracy of 80%.

5. Discussion

An early warning of snow disaster plays an important supporting role in disaster prevention and reduction in pastoral areas. With the development of high-resolution earth observation systems, simulations of snow disasters for early warning has improved from analysis of a single hazard event to comprehensive evaluations of various concurrent or connected disasters. This study analyzes the key factors that affect the risk assessment of snow disasters in Qinghai Province. A logistic regression method is used to construct a regression model of risk evaluation of snow disasters. The BP-ANN network, which is based on historical statistics, grassland husbandry information, snow remote sensing, and meteorological observations of 33 typical snow disaster cases, was trained to establish a snow disaster early warning model. The network has ideal predictive capability and generalization capacity to meet the requirements of snow disaster simulation for early warning.
The results (Figure 5) show that the high-risk areas of a snow disaster in Qinghai are mainly concentrated in the southern part of the region (Chenduo, Yushu, Nangqian, Dari, Gande, Maqin counties, and other places). Additionally, the Kunlun Mountains, Bayan Har Mountains, and Amnye Machen area are prone to snow disasters (especially on both sides of the Bayan Har Mountains). These results agree with the results of Hao et al. (2006) [5]. The northwest Qaidam Basin and eastern agricultural regions are low-risk areas, and this finding agrees with previous results [12,13,17]. According to geographic and climate conditions, socioeconomic conditions, and snow monitoring in the study area, this study focused on 19 factors (Table 2) that affect snow disaster risk assessment to construct a logistic model for evaluating the snow disaster risk based on a raster (a 500 m cell size). The model can reflect the distribution of the potential risk of a snow disaster. This study uses the natural breaks (Jenks) grading method to determine levels of the snow disaster risk [12,13], and the method produces satisfactory results. Although the approach is based on inherent natural grouping in the data, it can appropriately group similar values, maximize the difference between categories, and accurately reflect the links between data. However, the method lacks general applicability; thus, the scientific grading method is suitable for snow disaster risk evaluation, but other applications must be explored in later studies.
In summary, existing models of a snow disaster generally have certain limitations [3,19,21,25,26]. The BP-ANN method is widely used in many fields and can approximate any nonlinear function while providing clear physical and conceptual results based on a flexible and changeable topological structure [44,46]. Additionally, the method is widely applicable and effective, and it provides a strong nonlinear mapping capacity. Thus, it is ideal for studies in the field of natural disasters [18,60,61,62,63,64,65,66]. The overall accuracy of the snow disaster early warning model based on the BP-ANN method in this study reached 80%. Compared to the multivariate model of nonlinear regression (accuracy of 86%) for snow disaster early warning in the pastoral areas on the Qinghai-Tibet Plateau [21] and the snow disaster multi-index evaluation model (accuracy of 76%) under natural conditions [26], the BP-ANN early warning model has a similar high accuracy, but the accuracies of these two studies [21,26] only considered two states: disaster or no disaster. Therefore, their accuracies are very qualitative, unlike this study, in which we use the livestock mortality, a quantitative assessment. In addition, in our model, the risk assessment factor (i.e., probability of a snow disaster occurrence) is one of the five key factors used for the simulation for an early warning. This, however, was not considered in these previous studies. The third improvement of our modeling is that our model is built totally on a grid (500 m in this case), unlike the previous studies that were only based on resolution at the county level. This greatly improves the resolution and accuracy of a snow disaster warning. In previous studies, one can only predict whether a county has a disaster or not, while in this study, we not only know which county has a disaster, but also know where it occurs and the degree of damage at the 500 m pixel scale.
All the advantages mentioned above do not mean that our model has no limitations and deficiencies. Notably, the approximation and generalization ability of the network model is closely related to the learning samples, which are particularly reflected in the neural network. If the set of samples is poorly representative with conflicting and redundant samples, the network may not perform adequately [52]. Furthermore, although detailed information from 71 cases of snow disasters from 1951 to 2008 were considered in the disaster level standards in Guo et al. (2012) [56], the degree of reduction in snow disasters was not considered. The overall degree of reduction in snow disasters in recent years was due to many factors such as policy support, technical development, increasing herdsman knowledge regarding disaster prevention, and improved infrastructure. Hence, the snow hazard rating standards (Table 3) used in this study must be further revised and improved. Due to current limitations on obtaining snow hazard information (i.e., where, when, and how many livestock died), the accuracy of our model is satisfactory for local areas, but assigning warning levels for the entire study area (such as at the Qinghai Province level) is still associated with a certain degree of uncertainty.

6. Conclusions

In this study, with the MODIS daily snow cover products (MOD10A1 and MYD10A1), the AMSR-E daily SWE products, and the long-term snow depth dataset, we first constructed 19 indicators of potential snow disaster risk and 13 indicators of snow disaster early warning by effectively integrating the correlative statistical data. Furthermore, based on a risk analysis and the factors that influence snow disasters in pastoral areas of the Qinghai Province, a snow disaster model for early warning based on the BP-ANN machine learning method at a 500 m spatial resolution is developed and validated. The main conclusions are as follows:
(1)
The potential risk of snow disasters in Qinghai Province is overall high in the south and low in the north, with some exceptions. The crucial factors that affect the spatial distribution and the risk of a snow disaster are maximum snow depth, slope, SCDs, annual mean temperature and per capita GDP. Among these key factors, maximum snow depth, slope, and SCDs show similar spatial distribution as the potential risk map, while annual mean temperature and per capita GDP show the opposite distribution compared with the potential risk map of snow disasters.
(2)
The key factors that influence the simulation of a snow disaster for early warning in the study area are the five factors listed in order: mean temperature (V12), probability of a spring snow disaster (V3), potential snow disaster risk (V1), continual days with the mean daily temperature below −5 °C (V10), and fractional snow-covered area (V5). Of these, the potential snow disaster risk (V1) is the output of the logistic regression modeling result. This is the first time that V1 is included in the simulation of snow disasters for early warning.
(3)
Validation results suggest that the BP-ANN approach is an ideal method for simulating a snow disaster for early warning. Although the approach is better and more advanced than the previous approaches, this method has limitations and deserves further attention and improvements.

Acknowledgments

This study was supported by the National Natural Science Foundation of China (31372367, 31672484, 41671330) and part of the Program for Changjiang Scholars and Innovative Research Team in the University (IRT13019).

Author Contributions

All authors contributed significantly to this manuscript. Jinlong Gao and Xiaodong Huang designed this study. Jinlong Gao, Xiaofang Ma, Qisheng Feng, and Tiangang Liang were responsible for the data processing, analysis, and paper writing. Hongjie Xie made valuable revisions and editing of the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liang, T.G.; Liu, X.Y.; Wu, C.X.; Guo, Z.G.; Huang, X.D. An evaluation approach for snow disasters in the pastoral areas of northern Xinjiang, PR China. N. Z. J. Agric. Res. 2007, 50, 369–380. [Google Scholar]
  2. Guo, X.N. Study on Characteristics of the Snow Disaster in Qinghai Plateau during Recent 50 Years. Master's Thesis, Lanzhou University, Lanzhou, China, 2010. [Google Scholar]
  3. Huang, H. Study on risk warning model of snow disaster in pastoral area of northern China. In Proceedings of the Eighth International Symposium on Multispectral Image Processing and Pattern Recognition, Wuhan, China, 26–27 October 2013. [Google Scholar]
  4. Wen, K.G. Meteorological Disaster Chinese Ceremony: Qinghai; China Meteorological Press: Beijing, China, 2007. [Google Scholar]
  5. Hao, L.; Gao, J.M.; Yang, C.Y. Snow disaster system of grassland animal husbandry and control countermeasures. Pratacult. Sci. 2006, 23, 48–54. (In Chinese) [Google Scholar]
  6. Liang, T.G.; Meng, Y.S.; Wu, C.X. Progress in monitoring and estimate of snow disaster in grazing areas. J. Lanzhou Univ. 2002, 38, 39–44. (In Chinese) [Google Scholar]
  7. Su, W.; Zhang, X.D.; Wang, Z.; Su, X.H.; Huang, J.X.; Yang, S.Q.; Liu, S.C. Analyzing disaster-forming environments and the spatial distribution of flood disasters and snow disasters that occurred in China from 1949 to 2000. Math. Comput. Model. 2011, 54, 1069–1078. [Google Scholar] [CrossRef]
  8. Shi, P.J.; Chen, J. Study on monitoring snow disaster in large areas supported by GIS and RS. Acta Geogr. Sin. 1996, 24, 296–305. (In Chinese) [Google Scholar]
  9. Huang, X.D.; Liang, T.G. Study on the remotely sensed monitoring method of snow disaster in pastoral area. Pratacult. Sci. 2005, 22, 10–16. (In Chinese) [Google Scholar]
  10. Nakai, S.; Sato, T.; Sato, A.; Hirashima, H.; Nemoto, M.; Motoyoshi, H.; Lwamoto, K. A Snow Disaster Forecasting System (SDFS) constructed from field observations and laboratory experiments. Cold Reg. Sci. Technol. 2012, 70, 53–61. [Google Scholar] [CrossRef]
  11. Lu, A.X.; Feng, X.Z.; Zeng, Q.Z.; Wang, L.H. Principal Component Analysis of the Snow Disaster Factors in the Pastoral Nagqu Prefecture, Tibet Region. J. Glaciol. Geocryol. 1997, 19, 180–185. (In Chinese) [Google Scholar]
  12. Wang, S.J.; Wei, Y.Q.; Fang, M. Integrated risk assessment of snow disaster in the Three Rivers Source Region, China. Acta Pratacult. Sin. 2014, 23, 108–116. (In Chinese) [Google Scholar]
  13. He, Y.Q.; Zhou, B.R.; Zhang, H.J.; Xiao, J.S. Assessment model on risk degree of snow disaster and its risk division in Qinghai Plateau. Pratacult. Sci. 2010, 27, 37–42. (In Chinese) [Google Scholar]
  14. Wang, B. Study on Risk Assessment Model of Snow Disaster in the Central Parts of Inner Mongolia Pastoral Areas Based on GIS. J. Anhui Agric. Sci. 2011, 39, 1984–1987. (In Chinese) [Google Scholar]
  15. Zhang, G.S.; Yang, F.U.; Yan, L.D.; Liu, B.K.; Shi, D.J.; Yang, L.J. Study on warning indicator system of snow disaster and risk management in headwaters region. Pratacult. Sci. 2009, 26, 144–150. (In Chinese) [Google Scholar]
  16. Liu, F.G.; Mao, X.F.; Zhang, Y.L.; Chen, Q.; Liu, P.; Zhao, Z.L. Risk analysis of snow disaster in the pastoral areas of the Qinghai-Tibet Plateau. Acta Geogr. Sin. 2014, 24, 411–426. [Google Scholar] [CrossRef]
  17. Bai, Y.; Zhang, X.M.; Xu, P.H. The Snow Disaster Risk Assessment of Animal Husbandry in Qinghai Province. J. Qinghai Norm. Univ. 2011, 1, 71–77. (In Chinese) [Google Scholar]
  18. Wu, J.D.; Li, N.; Yang, H.J.; Li, C.H. Risk evaluation of heavy snow disasters using BP artificial neural network: The case of Xilingol in Inner Mongolia. Stoch. Environ. Res. Risk Assess. 2008, 22, 719–725. [Google Scholar] [CrossRef]
  19. Zhou, B.; Shen, A.; Li, F.X. A Synthetical Forcasting Model of Snow Disaster in Qinghai-Tibet Plateau. Meteorol. Month. 2006, 32, 106–110. (In Chinese) [Google Scholar]
  20. Hirashima, H.; Nishimura, K.; Yamaguchi, S.; Sato, A.; Lehning, M. Avalanche forecasting in a heavy snowfall area using the snowpack model. Cold Reg. Sci. Technol. 2008, 51, 191–203. [Google Scholar] [CrossRef]
  21. Wang, W.; Liang, T.G.; Huang, X.D.; Feng, Q.S.; Xie, H.J.; Liu, X.Y.; Wang, X.L. Early warning of snow-caused disasters in pastoral areas on the Tibetan Plateau. Nat. Hazard Earth Syst. 2013, 13, 1411–1425. [Google Scholar] [CrossRef]
  22. Tachiiri, K.; Shinoda, M.; Klinkenberg, B.; Morinaga, Y. Assessing Mongolian snow disaster risk using livestock and satellite data. J. Arid Environ. 2009, 72, 2251–2263. [Google Scholar] [CrossRef]
  23. Du, H.M.; Yan, J.P.; Yang, R.; Yang, D.X. Temporal and spatial distribution of snow disaster and risk evaluation in western Sichuan Plateau. Bull. Soil Water Conserv. 2015, 35, 261–266. (In Chinese) [Google Scholar]
  24. Hao, L.J.; Wang, A.; Shi, P.J.; Fan, Y.D. Vulnerability assessment of regional snow disaster of animal husbandry: Taking pasture of Inner Mongolia as an example. J. Nat. Disaster 2003, 12, 51–57. (In Chinese) [Google Scholar]
  25. Li, X.H.; Chao, L.M.; Liu, X.R.; Li, Y.W. Early Warning of Snow Disaster in Pasturing Areas of Inner Mongolia. Anim. Husb. Feed Sci. 2015, 7, 70–73. [Google Scholar]
  26. Zhang, X.T. Snow Monitoring and Early Warning of Snow Disaster in Pastoral Area of Qinghai Province. Ph.D. Dissertation, Lanzhou University, Lanzhou, China, 2010. [Google Scholar]
  27. Shang, B. A profile of grassland resources in Qinghai province. Anim. Breed. Feed 2010, 11, 93–95. (In Chinese) [Google Scholar]
  28. Che, T.; Xin, L.; Jin, R.; Armstrong, R.; Zhang, T. Snow depth derived from passive microwave remote-sensing data in China. Ann. Glaciol. 2008, 49, 145–154. [Google Scholar] [CrossRef]
  29. Cold and Arid Regions Science Data Center at Lanzhou. Available online: http://westdc.westgis.ac.cn (accessed on 1 April 2016).
  30. China Meteorological Data Service Center. Available online: http://data.cma.cn/en (accessed on 10 May 2016).
  31. Price, D.T.; McKenney, D.W.; Papadopal, P. High resolution future scenario climate data for North America. In Proceedings of the American Meteorological Society Annual Meetings, Edmonton, AB, Canada, 22 August 2004. [Google Scholar]
  32. Hijmans, R.J.; Cameron, S.E.; Parra, J.L.; Jones, P.G.; Jarvis, A. Very high resolution interpolated climate surfaces for global land areas. Int. J. Climatol. 2005, 25, 1965–1978. [Google Scholar] [CrossRef]
  33. Hutchinson, M.F. ANUSPLIN Version 4.3 User Guide; The Australian National University, Centre for Resource and Environmental Studies: Canberra, Australian, 2004. [Google Scholar]
  34. Administration, C.M. China Meteorological Yearbook 2010, Disaster; China Meteorological Press: Beijing, China, 2011. [Google Scholar]
  35. U.S. Geological Survey. Available online: https://www.usgs.gov (accessed on 10 May 2016).
  36. Huang, X.D.; Hao, X.H.; Feng, Q.S.; Wang, W.; Liang, T.G. A new MODIS daily cloud free snow cover mapping algorithm on the Tibetan Plateau. Sci. Cold Arid Reg. 2014, 6, 116–123. [Google Scholar]
  37. Parajka, J.; Pepe, M.; Rampini, A.; Rossi, S.; BlÖschl, G. A regional snow-line method for estimating snow cover from MODIS during cloud cover. J. Hydrol. 2010, 381, 3–4. [Google Scholar] [CrossRef]
  38. Deng, J.; Huang, X.D.; Feng, Q.S.; Ma, X.F.; Liang, T.G. Toward Improved Daily Cloud-Free Fractional Snow Cover Mapping with Multi-Source Remote Sensing Data in China. Remote Sens. 2015, 7, 6986–7006. [Google Scholar] [CrossRef]
  39. Liu, X.Y.; Liang, T.G.; Guo, Z.G.; Zhang, X.T. Early warning and risk assessment of snow disaster in pastoral area of northern Xinjiang. Chin. J. Appl. Ecol. 2008, 19, 133–138. (In Chinese) [Google Scholar]
  40. Bai, S.B.; Wang, J.; Lü, G.N.; Zhou, P.G.; Hou, S.S.; Xu, S.N. GIS-based logistic regression for landslide susceptibility mapping of the Zhongxian segment in the Three Gorges area, China. Geomorphology 2010, 115, 23–31. [Google Scholar] [CrossRef]
  41. Gregory, C.O.; John, C.D. Using multiple logistic regression and GIS technology to predict landslide hazard in northeast Kansas, USA. Eng. Geol. 2003, 69, 331–343. [Google Scholar]
  42. Wang, J.C.; Guo, Z.G. Logistic Regression Model-Method and Application; High Education Press: Beijing, China, 2001. [Google Scholar]
  43. Werbos, P.J. Beyond Regression: New Tools for Prediction and Analysis in the Behavioural Sciences. Ph.D. Dissertation, Harvard University, Boston, MA, USA, 1974. [Google Scholar]
  44. Rumelhart, D.E.; Hinton, G.E.; Williams, R.J. Learning Internal Representations by Error Propagation; MIT Press: Cambridge, MA, USA, 1986; pp. 318–362. [Google Scholar]
  45. Dayhoff, J.E.; Deleo, J.M. Artificial neural networks: Opening the black box. Cancer 2001, 91, 1615–1635. [Google Scholar] [CrossRef]
  46. Park, D.C.; Elsharkawi, M.A.; Marks, R.J.I.; Atlas, L.E.; Damborg, M.J. Electric load forecasting using an artificial neural network. IEEE Trans. Power Syst. 1991, 6, 442–449. [Google Scholar] [CrossRef]
  47. Hsu, K.-L.; Gupta, H.V.; Sorooshian, S. Artificial Neural Network Modeling of the Rainfall-Runoff Process. Water Resour. Res. 2010, 31, 2517–2530. [Google Scholar] [CrossRef]
  48. Lees, B.G. Neural network applications in the geosciences: An introduction. Comput. Geosci. UK 1996, 22, 955–957. [Google Scholar] [CrossRef]
  49. Basheer, I.A.; Hajmeer, M. Artificial neural networks: Fundamentals, computing, design, and application. J. Microbiol. Meth. 2000, 43, 3–31. [Google Scholar] [CrossRef]
  50. Ramadan, Z.; Hopke, P.K.; Johnson, M.J.; Scow, K.M. Application of PLS and Back-Propagation Neural Networks for the estimation of soil properties. Chemometr. Intell. Lab. 2005, 75, 23–30. [Google Scholar] [CrossRef]
  51. Wang, H.B.; Sassa, K. Rainfall-induced landslide hazard assessment using artificial neural networks. Earth Surf. Process. Land. 2006, 31, 235–247. [Google Scholar] [CrossRef]
  52. Ung, S.T.; Williams, V.; Bonsall, S.; Wang, J. Test case based risk predictions using artificial neural network. J. Saf. Res. 2006, 37, 245–260. [Google Scholar] [CrossRef] [PubMed]
  53. Chen, M. MATLAB Neural Network Theory and Example Extract Solution; Tsinghua University Press: Beijing, China, 2013. [Google Scholar]
  54. Dombi, G.W.; Nandi, P.; Saxe, J.M.; Ledgerwood, A.M.; Lucas, C.E. Prediction of rib fracture injury outcome by an artificial neural network. J. Trauma 1995, 39, 915–921. [Google Scholar] [CrossRef] [PubMed]
  55. Fu, Z.G.; Qi, M.F.; Jing, Y. Regression forecast of main steam flow based on mean impact value and support vector regression. In Proceedings of the 2012 IEEE Conference on Power and Energy Engineering, Kota Kinabalu, Malaysia, 2–5 December 2012. [Google Scholar]
  56. Guo, X.N.; Li, L.; Wang, J.; Li, B.; Li, H.F. Indexes for assessing snow disasters over Qinghai Plateau based in actual snow disaster. Meteorol. Sci. Technol. 2012, 40, 676–679. (In Chinese) [Google Scholar]
  57. Zhang, D.F. MATLAB Neural Network Application Design; China Machine Press: Beijing, China, 2009. [Google Scholar]
  58. Available online: http://www.qh.xinhuanet.com/2008-03/07/content_12632964.htm (accessed on 10 May 2016).
  59. Available online: http://www.chinanews.com/gn/2015/02-28/7089127.shtml (accessed on 10 May 2016).
  60. Jin, Q.; Chen, J.; Wang, H.; Zhao, S. Research on Regional Flood Disaster Risk Assessment Based on PCA and BP Neural Network. In Proceedings of the 2010 International Conference on E-Product E-Service and E-Entertainment, Henan, China, 7–9 November 2010. [Google Scholar]
  61. Yang, X.L.; Zhao, J.Z.; Ding, J.H.; Zhang, Y.C. Flood Disaster Evaluation Based on Improved BP Neural Network Model. Appl. Mech. Mater. 2012, 220–223, 2462–2465. [Google Scholar] [CrossRef]
  62. Zhou, F.; Zhu, X. Earthquake Prediction Based on LM-BP Neural Network. In Proceedings of the 9th International Symposium on Linear Drives for Industry Applications, Hangzhou, China, 7–10 July 2013; Volume 270, pp. 13–20. [Google Scholar]
  63. Liu, Y. Earthquake Prediction Based on Improved BP Neural Network. J. Inf. Comput. Sci. 2014, 11, 1491–1499. [Google Scholar] [CrossRef]
  64. Jia, H.; Pan, D.; Yuan, Y.; Zhang, W. Using a BP Neural Network for Rapid Assessment of Populations with Difficulties Accessing Drinking Water Because of Drought. Hum. Ecol. Risk Assess. 2015, 21, 100–116. [Google Scholar] [CrossRef]
  65. Liu, H.L.; Zhang, Q.; Zhang, J.G.; Wang, H.B.; Wen, X.Y. Application of the BP Neural Network Model in Summer Drought Prediction: A case in the Hexi Corridor. J. Desert Res. 2015, 35, 474–478. [Google Scholar]
  66. Narayanakumar, S.; Raja, K. A BP Artificial Neural Network Model for Earthquake Magnitude Prediction in Himalayas, India. Circuits Syst. 2016, 7, 3456–3468. [Google Scholar] [CrossRef]

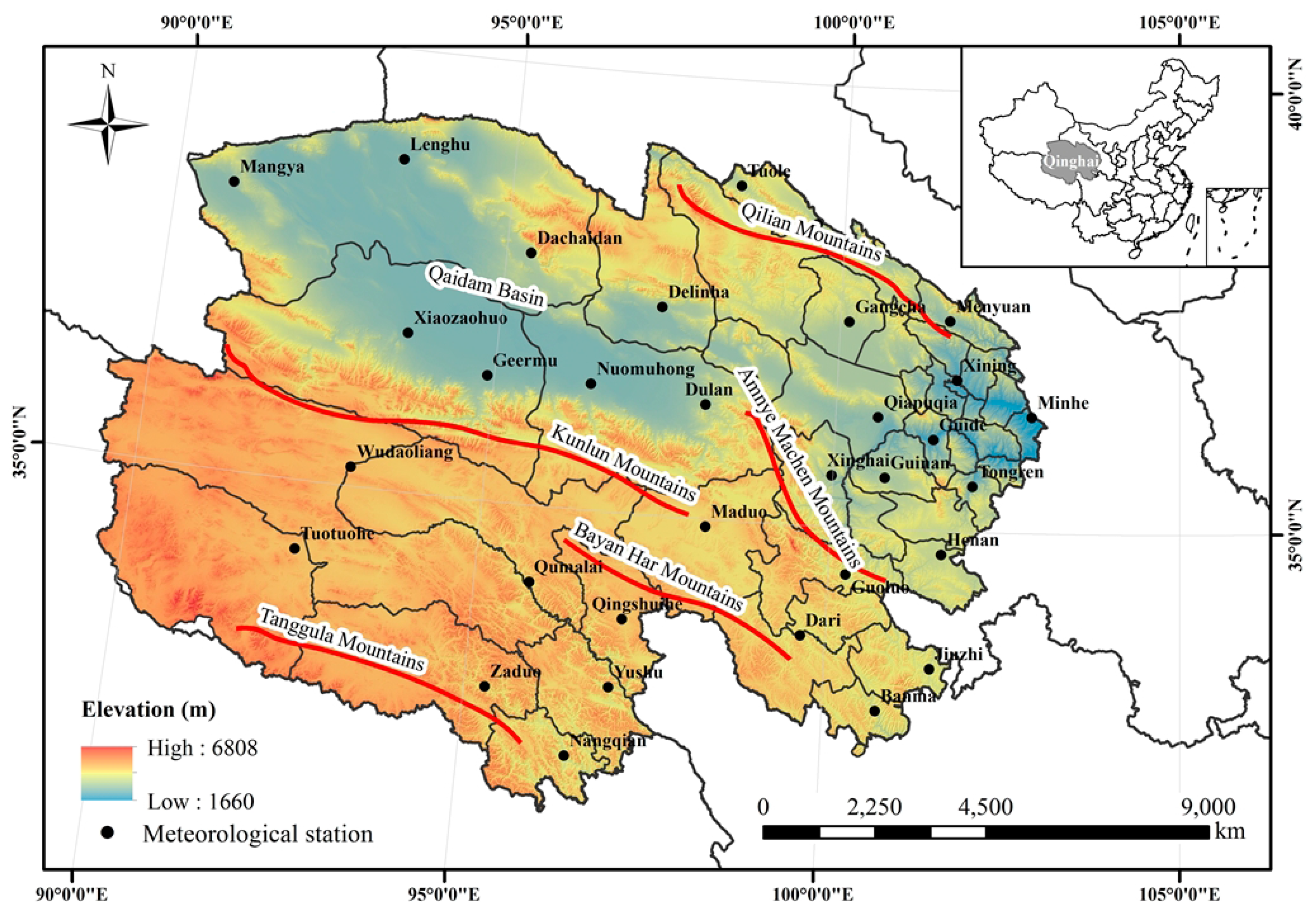

Figure 1. The topography of the Qinghai Province and locations of meteorological stations.
Figure 1. The topography of the Qinghai Province and locations of meteorological stations.
Remotesensing 09 00475 g001

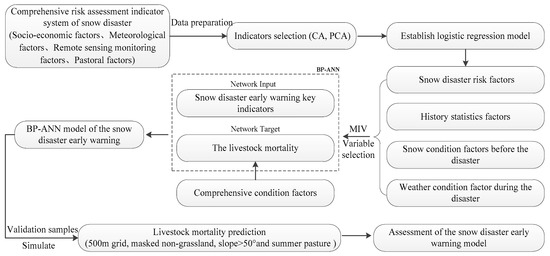

Figure 2. Flow chart of the snow disaster early warning model.
Figure 2. Flow chart of the snow disaster early warning model.
Remotesensing 09 00475 g002

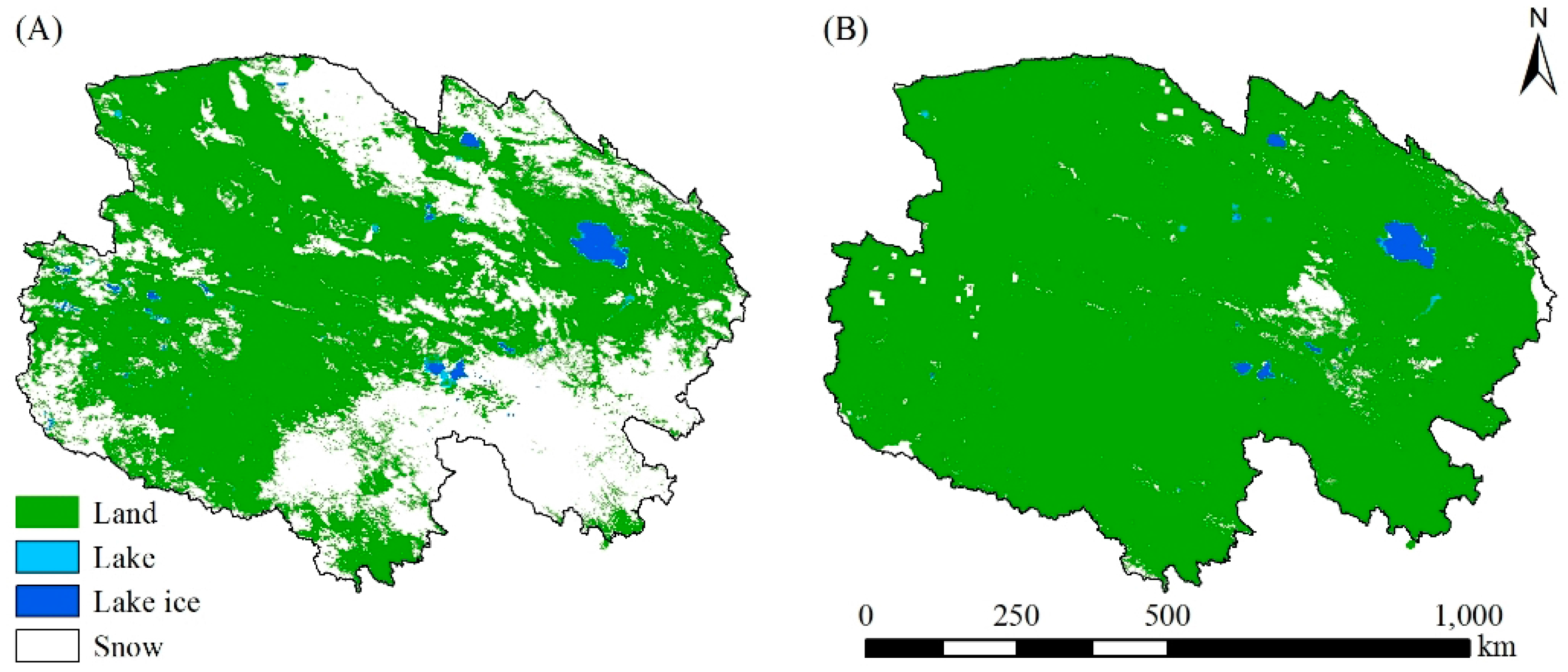

Figure 3. The cloud-free snow cover product on 15 February 2008 (A) and on 25 February 2015 (B) in Qinghai Province.
Figure 3. The cloud-free snow cover product on 15 February 2008 (A) and on 25 February 2015 (B) in Qinghai Province.
Remotesensing 09 00475 g003

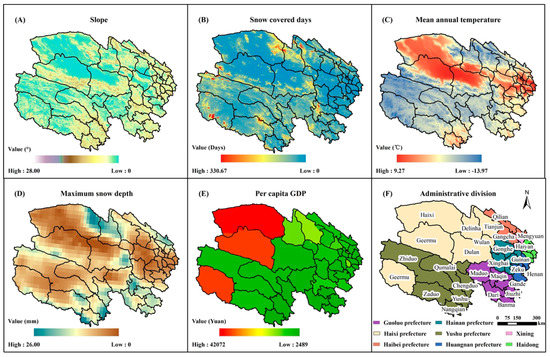

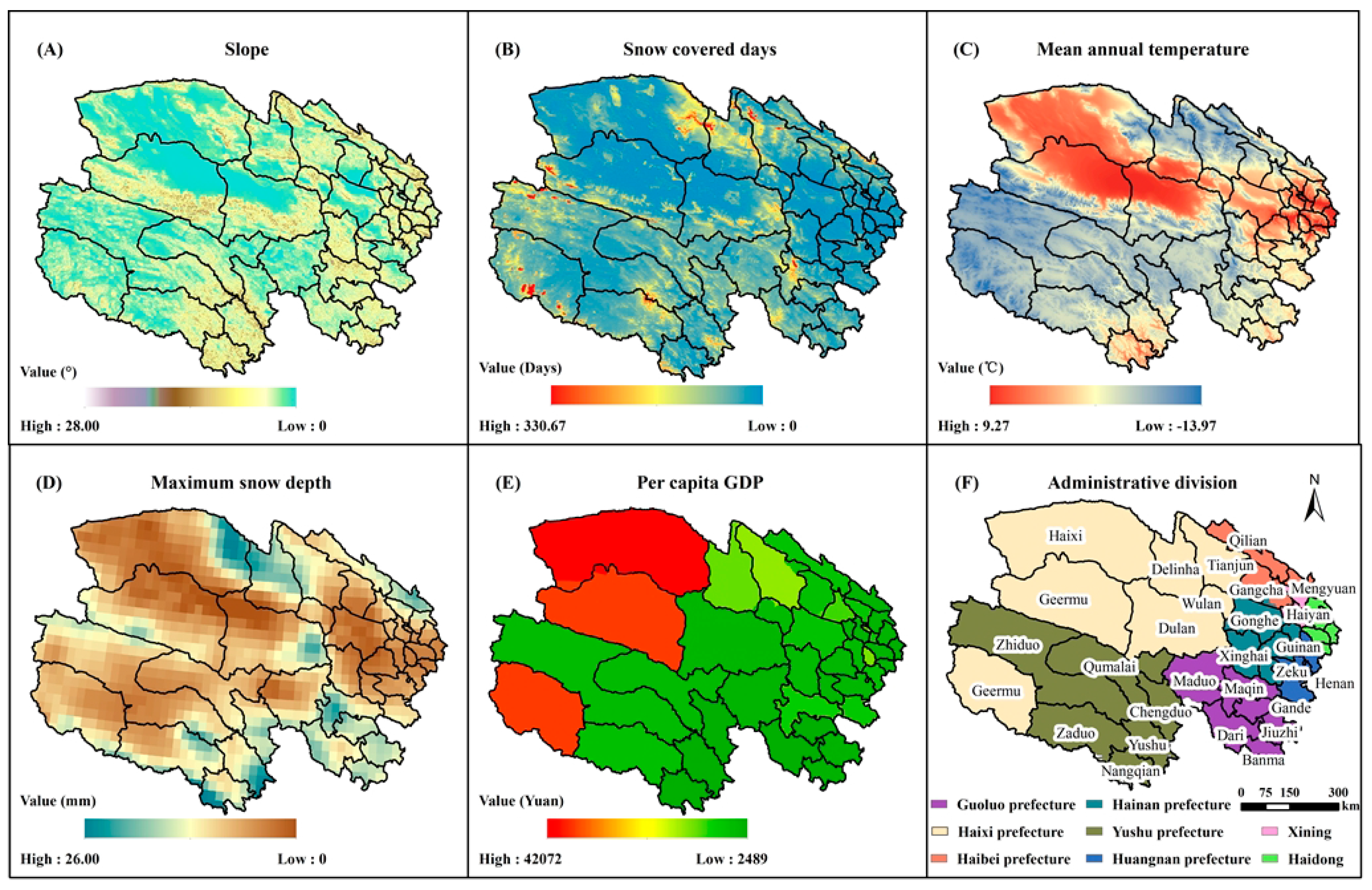

Figure 4. The spatial distributions of risk factors: slope (A); snow-covered days (B); mean annual temperature (C); maximum snow depth (D); and per capita GDP (E); as well as the administrative divisions in Qinghai Province (F).
Figure 4. The spatial distributions of risk factors: slope (A); snow-covered days (B); mean annual temperature (C); maximum snow depth (D); and per capita GDP (E); as well as the administrative divisions in Qinghai Province (F).
Remotesensing 09 00475 g004

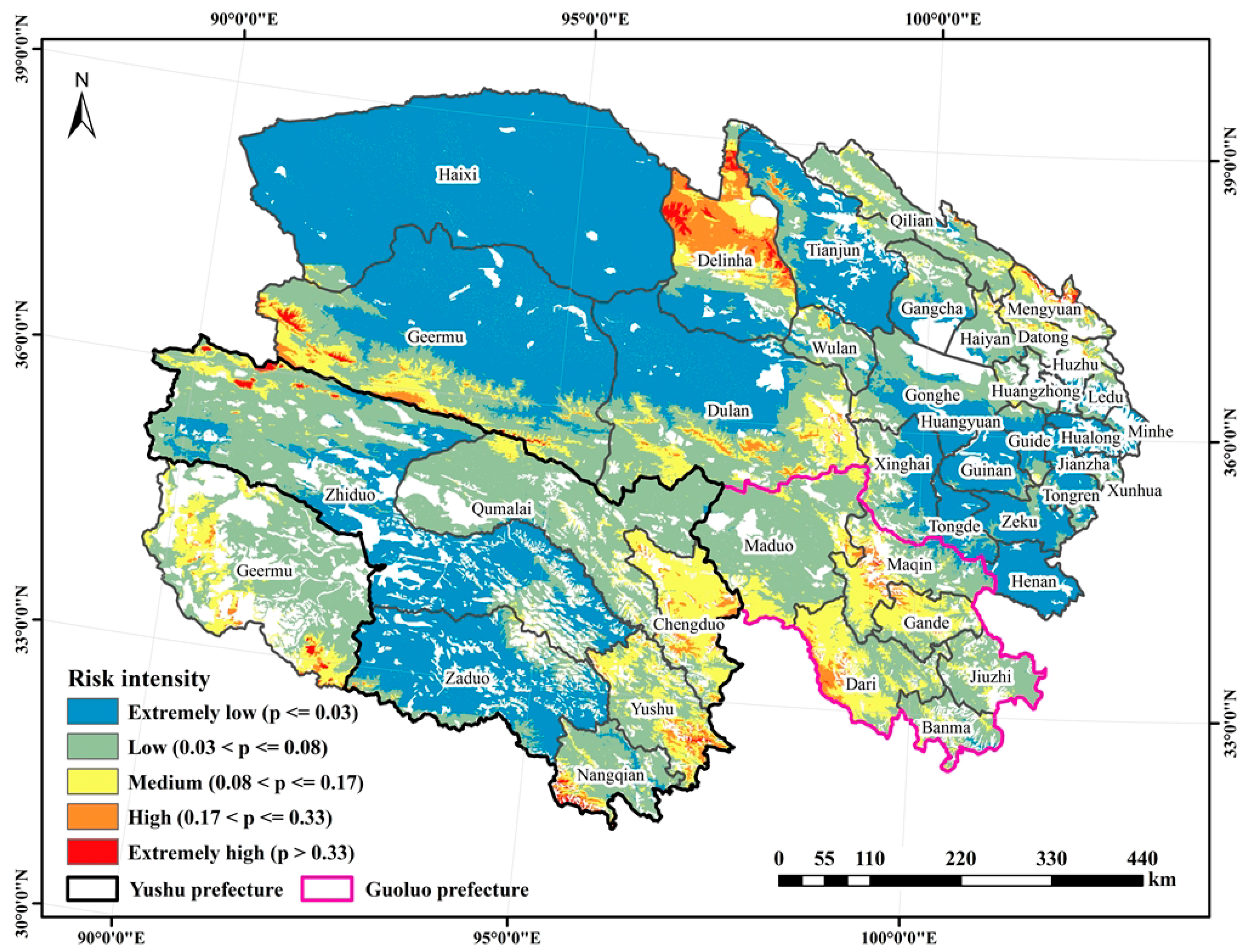

Figure 5. Potential snow disaster risk at 500 m pixel scale resolution in Qinghai (white spaces are non-grassland areas and slopes >50°).
Figure 5. Potential snow disaster risk at 500 m pixel scale resolution in Qinghai (white spaces are non-grassland areas and slopes >50°).
Remotesensing 09 00475 g005

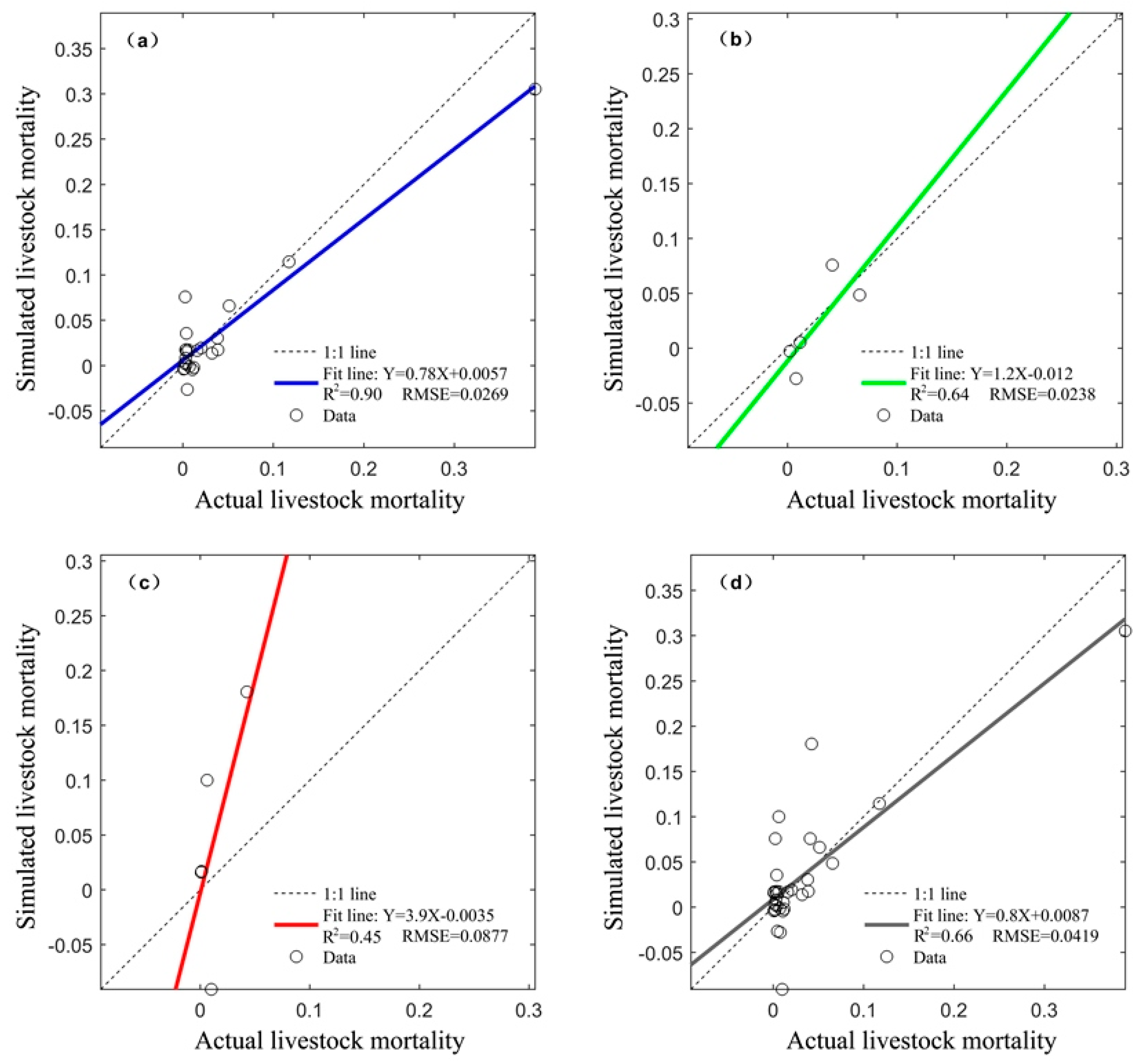

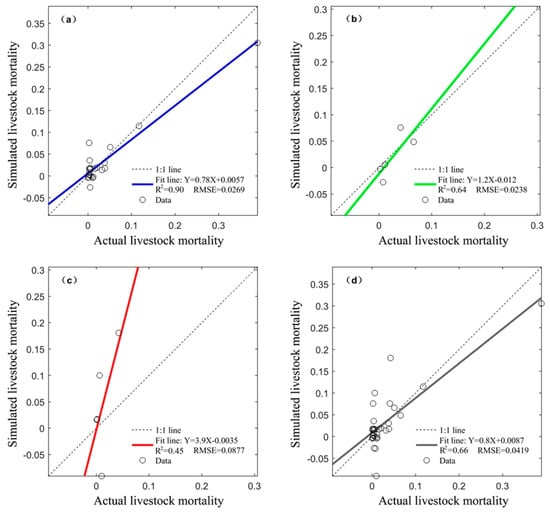

Figure 6. Back propagation artificial neural network (BP-ANN) simulated versus actual livestock mortalities: (a) simulation based on the 23 training samples; (b) test simulation of the established model using the five testing samples; (c) validation simulation of the established model using the five validation samples and (d) simulation based on all 33 samples.
Figure 6. Back propagation artificial neural network (BP-ANN) simulated versus actual livestock mortalities: (a) simulation based on the 23 training samples; (b) test simulation of the established model using the five testing samples; (c) validation simulation of the established model using the five validation samples and (d) simulation based on all 33 samples.
Remotesensing 09 00475 g006

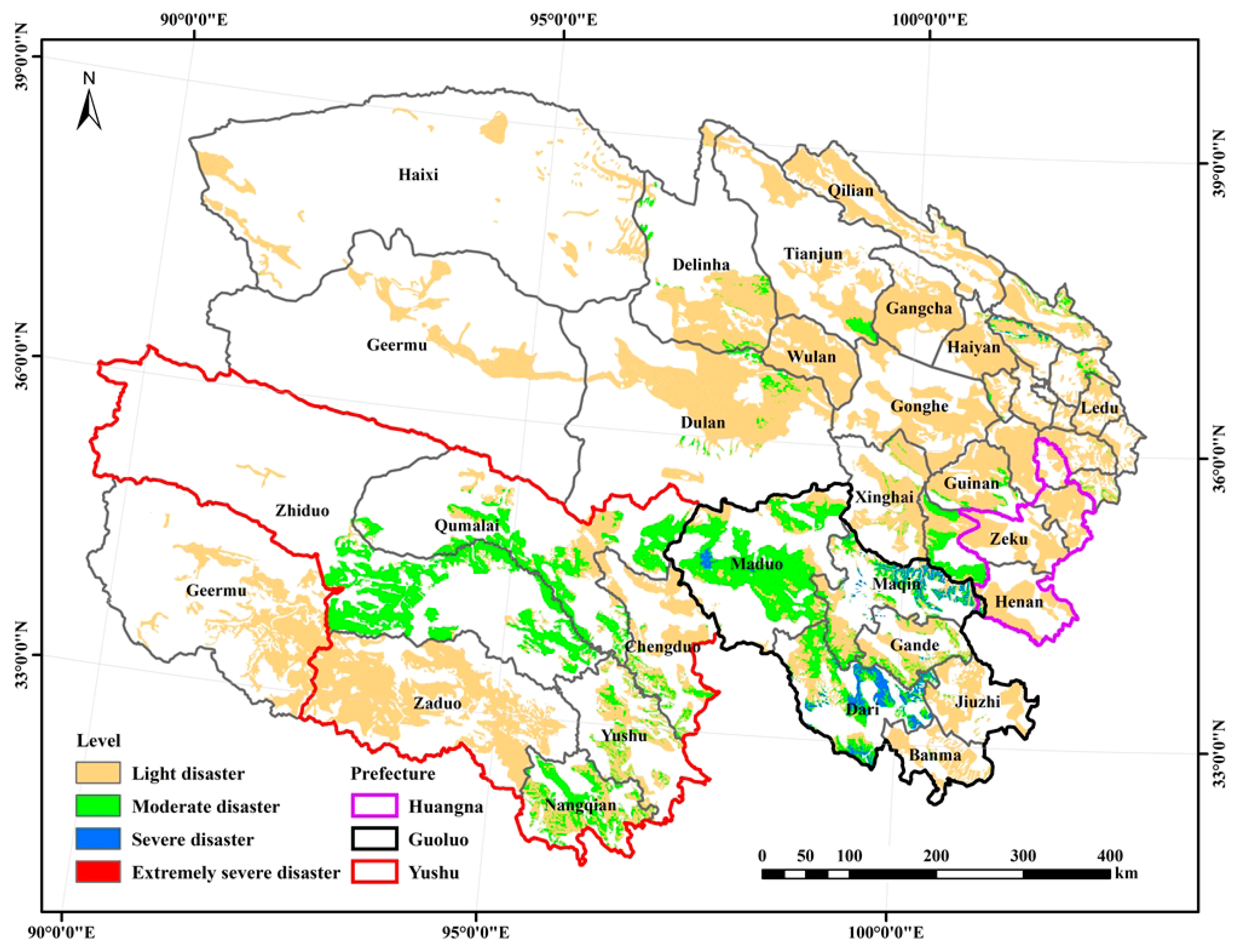

Figure 7. The simulation results of a snow disaster in mid-February 2008 in the winter and spring pastures in Qinghai Province (white spaces are non-grassland ages, slope >50°, and summer grazing grassland).
Figure 7. The simulation results of a snow disaster in mid-February 2008 in the winter and spring pastures in Qinghai Province (white spaces are non-grassland ages, slope >50°, and summer grazing grassland).
Remotesensing 09 00475 g007

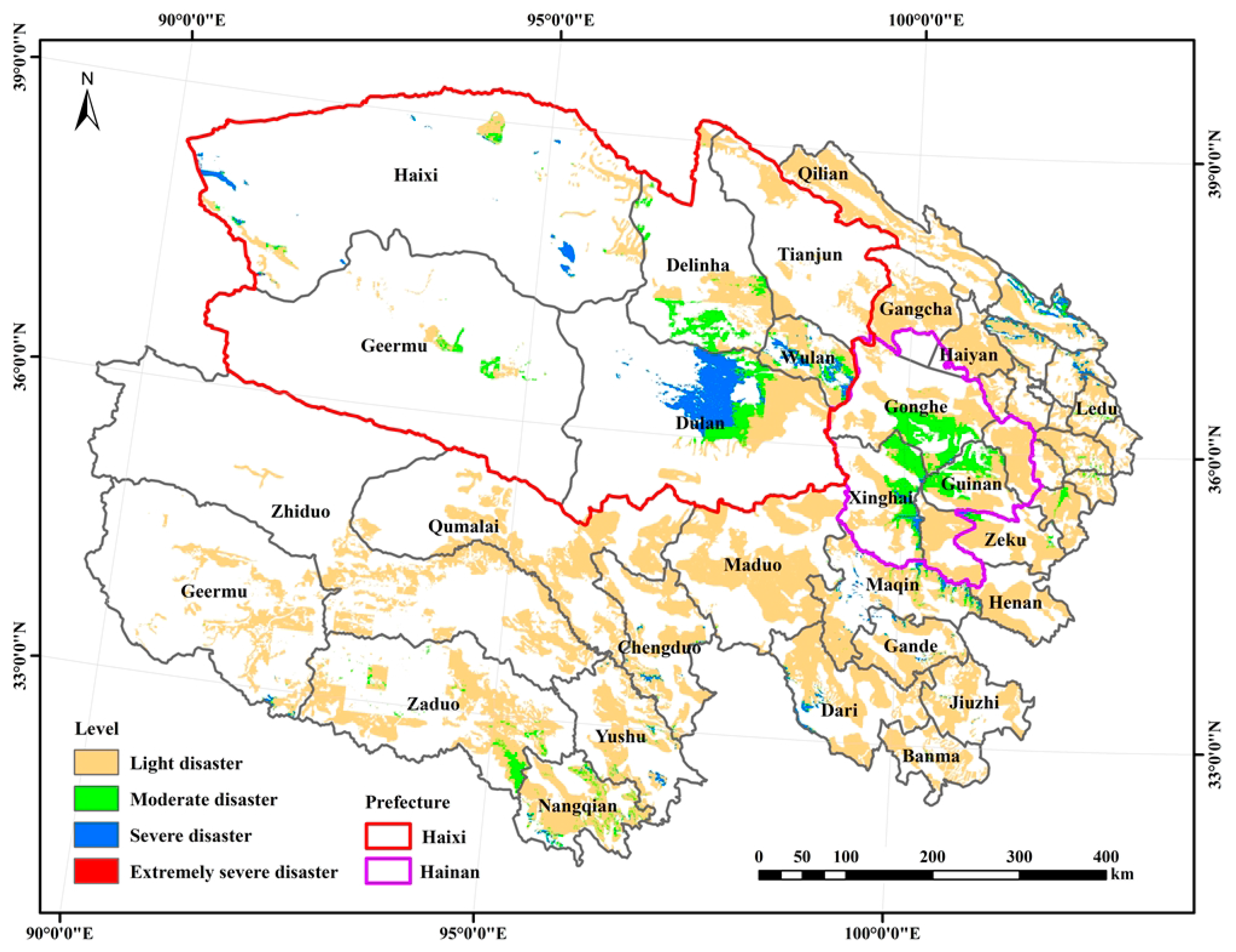

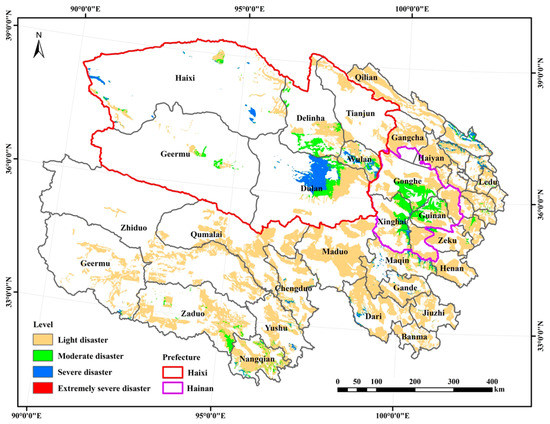

Figure 8. The simulation results of a snow disaster in late February 2015 in the winter and spring pastures in Qinghai Province (white spaces are non-grassland areas, slope >50°, and summer grazing grassland).
Figure 8. The simulation results of a snow disaster in late February 2015 in the winter and spring pastures in Qinghai Province (white spaces are non-grassland areas, slope >50°, and summer grazing grassland).
Remotesensing 09 00475 g008
Figure 9. The Landsat 7 TM false color image of a snow disaster in mid-February 2008 (A) and the Landsat 8 OLI false color image of a snow disaster in late February 2015 (B), and the administrative divisions in Qinghai Province (C).
Figure 9. The Landsat 7 TM false color image of a snow disaster in mid-February 2008 (A) and the Landsat 8 OLI false color image of a snow disaster in late February 2015 (B), and the administrative divisions in Qinghai Province (C).
Remotesensing 09 00475 g009
Table 1. Typical cases of snow disasters in Qinghai.
Table 1. Typical cases of snow disasters in Qinghai.
Case CategoryYearLocationNumber of Events
Machine Learning cases2001Tongde county1
2002Tongde county1
2004Delinha, Henan, Tianjun, Wulan, Xunhua, Zeku, Dulan, and Tongde counties10
2005Banma, Chindu, Dari, Datong, Gangcha, Gonghe, Huangyuan, Qumalai, Tianjun, Tongde, Tongren, Xinghai, Yushu, and Zeku counties16
2006Tongren and Dulan counties3
2007Delinha and Xunhua counties2
Validation cases2008Three Rivers Headwater Region1
2015Dulan and Wulan counties1
Table 2. The indicator system of the potential risk assessment of a snow disaster.
Table 2. The indicator system of the potential risk assessment of a snow disaster.
Variable TypeCodeVariable NameUnit
A. Socioeconomic factorsA1Per capita gross domestic productYuan
A2Gross regional domestic productYuan
A3Net income of farmers and herdsmenYuan
A4Density of populationNo./km2
A5Highway densitykm/km2
B. Meteorological factorsB1Precipitationmm
B2Average wind speedm/s
B3Annual mean temperature°C
B4Slope°
B5Probability of anterior winter snow disaster%
C. Remote Sensing Monitoring factorsC1Maximum depthcm
C2Mean snow depthcm
C3Number of snow-covered daysd
C4Percentage of snow-covered grassland%
C5Percentage of snow-covered area%
D. Pastoral factorsD1Livestock stocking rateSu/ha
D2Inventories at the beginning of the yearNo.
D3Inventories at the end of the yearNo.
D4Area ratio of farmland%
Table 3. Factors of a snow disaster early warning.
Table 3. Factors of a snow disaster early warning.
Variable TypeVariable CodeVariable NameNotice
Snow disaster risk factorV1Potential snow disaster riskSpatial resolution of 500 m
Historical statistical factorsV2Probability of a winter snow disasterThese factors were calculated according to the yearly records of meteorological disasters from 1951 to 2000
V3Probability of a spring snow disaster
V4Mean annual probability of a snow disaster
Snow condition factors before a disasterV5Fractional snow-covered areaThese factors were calculated from 15 days before the disaster to the day of the disaster
V6Snow-covered days (SCDs)
V7Snow depth
V8Snow-covered area
Weather condition factors during a disasterV9Continual days with the mean daily temperature below 0 °CThese factors were calculated from the day of the disaster until 15 days after the disaster
V10Continual days with the mean daily temperature below −5 °C
V11Continual days with the mean daily temperature below −10 °C
V12Mean temperature
V13Total precipitation
Table 4. Standards of snow disaster levels (Guo et al., 2012).
Table 4. Standards of snow disaster levels (Guo et al., 2012).
LevelSnow Disaster LevelLivestock Mortality (%)
1Light disaster<5
2Moderate disaster5–20
3Severe disaster20–30
4Extremely severe disaster>30
Table 5. The parameters of a logistic regression model (Equation (3)).
Table 5. The parameters of a logistic regression model (Equation (3)).
Model ParametersValueFactorsFactor Name
α −12.60 χ 1 slope
β 1 0.60 χ 2 Snow-covered days (SCDs)
β 2 2.54 χ 3 annual mean temperature
β 3 3.07 χ 4 maximum snow depth
β 1 1.72 χ 5 per capita GDP
β 1 7.84
Table 6. Selection of the back propagation neural network variables.
Table 6. Selection of the back propagation neural network variables.
VariableMean impact values(MIVs)Abs (MIVs)Cumulative Contribution Rate (%)VariableMIVsAbs (MIVs)Cumulative Contribution Rate (%)
V12−0.01890.018920.4V4−0.00200.002094.9
V3−0.01660.016638.3V9−0.00120.001296.2
V10.01600.016055.6V80.00110.001197.4
V100.01480.014871.6V110.00100.001098.5
V5−0.01230.012785.4V20.00100.001099.5
V7−0.00450.004590.2V6−0.00080.0008100
V130.00230.002392.7
Table 7. Accuracy assessment of the simulated livestock mortality from the snow disaster early warning model.
Table 7. Accuracy assessment of the simulated livestock mortality from the snow disaster early warning model.
CasesIn Mid-February 2008In Late February 2015
Disaster areasGuoluo PrefectureYushu PrefectureHuangnan PrefectureDulan CountyWulan County
Quantity of livestock at the beginning of the year (104)200.6270.3212.523.6144.3
Number of livestock deaths (104)116.7181.540.61.40.6
Actual livestock mortality (%)0.05820.06710.01910.05930.0416
Simulated livestock mortality (%)0.0510.04140.01480.07090.0462
Average accuracy (%)7685
Overall accuracy (%)80

Share and Cite

MDPI and ACS Style

Gao, J.; Huang, X.; Ma, X.; Feng, Q.; Liang, T.; Xie, H. Snow Disaster Early Warning in Pastoral Areas of Qinghai Province, China. Remote Sens. 2017, 9, 475. https://doi.org/10.3390/rs9050475

AMA Style

Gao J, Huang X, Ma X, Feng Q, Liang T, Xie H. Snow Disaster Early Warning in Pastoral Areas of Qinghai Province, China. Remote Sensing. 2017; 9(5):475. https://doi.org/10.3390/rs9050475

Chicago/Turabian Style

Gao, Jinlong, Xiaodong Huang, Xiaofang Ma, Qisheng Feng, Tiangang Liang, and Hongjie Xie. 2017. "Snow Disaster Early Warning in Pastoral Areas of Qinghai Province, China" Remote Sensing 9, no. 5: 475. https://doi.org/10.3390/rs9050475

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
