Article

Impact of Virtual Touch Quantification in Acoustic Radiation Force Impulse for Skeletal Muscle Mass Loss in Chronic Liver Diseases

Division of Hepatobiliary and Pancreatic disease, Department of Internal Medicine, Hyogo College of Medicine, Hyogo 6638501, Japan
*
Author to whom correspondence should be addressed.
Nutrients 2017, 9(6), 620; https://doi.org/10.3390/nu9060620
Submission received: 2 June 2017 / Revised: 13 June 2017 / Accepted: 14 June 2017 / Published: 16 June 2017
(This article belongs to the Special Issue Nutrition and Liver Disease)

Abstract

:
Background and aims: We sought to clarify the relationship between virtual touch quantification (VTQ) in acoustic radiation force impulse and skeletal muscle mass as assessed by bio-electronic impedance analysis in patients with chronic liver diseases (CLDs, n = 468, 222 males and 246 females, median age = 62 years). Patients and methods: Decreased skeletal muscle index (D-SMI) was defined as skeletal muscle index (SMI) <7.0 kg/m2 for males and as SMI <5.7 kg/m2 for females, according to the recommendations in current Japanese guidelines. We examined the correlation between SMI and VTQ levels and investigated factors linked to D-SMI in the univariate and multivariate analyses. The area under the receiver operating curve (AUROC) for the presence of D-SMI was also calculated. Results: In patients with D-SMI, the median VTQ level was 1.64 meters/second (m/s) (range, 0.93–4.32 m/s), while in patients without D-SMI, the median VTQ level was 1.11 m/s (range, 0.67–4.09 m/s) (p < 0.0001). In the multivariate analysis, higher VTQ was found to be an independent predictor linked to the presence of D-SMI (p < 0.0001). In receiver operating characteristic analysis, body mass index had the highest AUROC (0.805), followed by age (0.721) and VTQ (0.706). Conclusion: VTQ levels can be useful for predicting D-SMI in patients with CLDs.

1. Introduction

The severity of liver fibrosis in patients with chronic liver diseases (CLDs) is the major determinant of long-term clinical outcomes, driving both the development of liver-related complications and mortality [1,2,3,4]. Thus, evaluating the degree of liver fibrosis correctly plays a pivotal role for the control of disease progression and for creating treatment strategies and evaluating the prognosis for CLD patients [5,6]. High diagnostic accuracy, easy accessibility, and the possibility for follow-up examinations can lead to the implementation of non-invasive diagnostic methods into daily clinical practice.
Acoustic radiation force impulse (ARFI), which is a technology designed to measure shear wave-front at multiple sites to estimate tissue stiffness, is a novel ultrasound-based radiological technique for non-invasively assessing the degree of tissue stiffness [7,8,9,10]. This modality can evaluate the degree of liver fibrosis easily and accurately in the clinical settings [10,11]. ARFI elastography has two modes which involve qualitative response and quantitative response for virtual touch quantification (VTQ), and it measures transverse shear wave velocity values in meters/second (m/s). The shear wave velocity reflects tissue stiffness through a simple method: the stiffer the tissue, the higher shear wave velocity [7,8,9,10,11]. A recent meta-analysis demonstrated that ARFI elastography was a good method for evaluating the degree of liver fibrosis and had similar predictive value to transient elastography for significant fibrosis and liver cirrhosis (LC) [12]. Another recent study reported that spleen stiffness measured by ARFI imaging can predict clinical outcomes for LC patients with high accuracy [13]. On the other hand, several serum liver fibrosis markers for predicting the degree of liver fibrosis have been proposed and validated as well as radiological modalities for assessing liver fibrosis [12,14,15,16]. Of these, FIB-4 index and aspartate aminotransferase (AST) to platelet ratio index (APRI) have been the most widely utilized liver fibrosis markers in CLD patients [16,17,18,19,20,21].
On the other hand, skeletal muscle is regarded as having a role in maintaining energy metabolism and nutritional status, and the depletion of skeletal muscle mass may be a considerable impairment circumstance [22,23,24,25]. Skeletal muscle mass loss can be affected by aging, while LC is occasionally associated with this muscular disorder [22,23]. In our previous investigation, the percentage of skeletal muscle mass loss as determined by bio-electronic impedance analysis (BIA) in LC subjects was significantly higher than that in subjects with chronic hepatitis without LC [26]. Other studies have claimed the significant role of muscle mass assessment in LC patients as a helpful marker for reflecting malnutrition and liver function and for predicting clinical outcomes [26,27,28,29,30]. Recently, sarcopenic obesity, which is the coexistence of sarcopenia as defined by low muscle mass and muscle strength and obesity, has been treated with much caution due to its close linkage to clinical outcomes in CLD patients [31,32].
Considering these reports, the speculation that liver fibrosis marker level is associated with the development of skeletal muscle loss in patients with CLDs may be true. Several reports showing that the proportion of decreased skeletal muscle mass (D-SMI) demonstrated a linear increment with liver fibrosis progression in non-alcoholic fatty liver disease (NAFLD) or non-alcoholic steatohepatitis (NASH) patients support our hypothesis [33,34,35]. However, an extensive literature search has not shown the relationship between skeletal muscle mass and the liver fibrosis markers in CLD patients, and these clinical questions should be fully addressed. In this study, we sought to clarify the relationship between radiological or serum liver fibrosis markers (VTQ, FIB-4 index, APRI, and platelet count) and skeletal muscle mass, as well as to investigate factors linked to the decrease in skeletal muscle mass in CLD patients.

2. Patients and Methods

2.1. Patients

In this retrospective study, we analyzed 549 patients with CLD who were admitted to the Division of Hepatobiliary and Pancreatic disease, Department of Internal Medicine, Hyogo College of Medicine, Hyogo, Japan between October 2008 and May 2014, and were assessed using BIA to diagnose decreased skeletal muscle mass. All CLD patients who agreed to nutritional evaluation were included. Next, patients without data for VTQ (n = 48), those with advanced malignancies which potentially affect the development of muscle mass loss (n = 16), and those with severe ascites (n = 17) were excluded. Patients with severe ascites were excluded because body weight and body mass index (BMI) may be overestimated in these patients, and skeletal muscle index (SMI) may also be overestimated by BIA [26]. Several edematous patients with advanced cirrhosis (Child-Pugh B or C), hypoalbuminemia, and severe ascites were thus excluded from the current analysis. A total of 468 CLD patients were therefore analyzed. In this study, 447 patients underwent liver biopsy. For patients without liver biopsy data (n = 21), LC was determined by radiological findings such as deformity of the liver surface and presence of varices. We assessed skeletal muscle mass by employing SMI using BIA at baseline. SMI indicates appendicular skeletal muscle mass divided by height squared (cm2/m2). D-SMI was defined as SMI <7.0 kg/m2 for males and as SMI <5.7 kg/m2 for females, according to the recommendations in current Japanese guidelines [26]. We examined the correlation between SMI and liver fibrosis markers (VTQ, FIB-4 index, APRI, and platelet count) and investigated factors linked to D-SMI in the univariate and multivariate analyses.
APRI score was calculated as reported elsewhere: AST level/upper limit of normal level for AST/platelet count (×109/L) × 100 [17,18,19,20]. The FIB-4 index was calculated as reported elsewhere: age (years) × AST (IU/L) /platelet count (×109/L) ×√alanine aminotransferase (ALT) (IU/L) [19,20,21]. Our protocols for liver biopsy were detailed in our previous study, and the degrees of liver fibrosis and inflammation were determined as reported elsewhere [36]. The ethics committee meeting of Hyogo college of medicine acknowledged this study protocol (approval number: 2117, approval date: 1 March 2016). And our study protocol conformed to all of the regulations of the Declaration of Helsinki.

2.2. Measurement for VTQ

We have routinely used a Siemens ACUSON S2000/3000 (Mochida Siemens Medical Systems, Tokyo, Japan) for VTQ measurement. The method for VTQ measurement by ARFI was conducted as reported elsewhere [10]. Briefly, using intercostal approach by one experienced sonologist, the examination for VTQ measurement was performed on the right lobe of the liver with a measurement depth of 2–3 cm below the liver surface. When successful acquisitions for VTQ data six times at different sites in the liver were obtained on each subject, the median value of these was calculated and data were presented in m/s [10].

2.3. Statistical Analysis

For quantitative parameters, the statistical analysis between groups was performed using Student’s t test, Mann-Whitney U-test, Kruskal-Wallis test, Fisher’s exact test, or Spearman’s rank correlation coefficient rs as appropriate. Parameters with p value < 0.05 in the univariate analysis were entered into the multivariate analysis utilizing the logistic regression analysis. In the multivariate analyses, significant variables in the univariate analyses were changed to dichotomous covariates using each median value. Receiver operating characteristic curve (ROC) analysis for the presence of D-SMI was performed for calculating the area under the ROC (AUROC) in baseline quantitative variables. p values of less than 0.05 were considered to suggest significance. Data are presented as median values (range) unless otherwise mentioned. Statistical analysis was performed with the JMP 11 (SAS Institute Inc., Cary, NC, USA).

3. Results

3.1. Baseline Characteristics

The baseline characteristics of the analyzed subjects (n = 468) are shown in Table 1. There are 222 males and 246 females with the median (range) age of 62 (18–90) years. In terms of liver fibrosis stages, F4 was observed in 178 patients, F3 in 73, F2 in 73, F1 in 114, F0 in 9, and not tested in 21. Patients predominantly presented with hepatitis C virus (HCV) infection (57.1%, 267/468). The median (range) SMI for males and females were 7.35 (4.66–11.05) cm2/m2 and 5.86 (3.50–8.10) cm2/m2, respectively. In this analysis, there were 76 male patients with D-SMI (33.3%) and 99 female patients with D-SMI (40.2%) (p = 0.1823). VTQ ranged from 0.67 m/s to 4.32 m/s (median, 1.34 m/s). FIB-4 index ranged from 0.12 to 2.61 (median, 1.03). APRI ranged from 0.09 to 7.58 (median, 0.83). In males, a significant inverse correlation between VTQ and SMI was found (rs = −0.4276, p < 0.0001). Similarly, in females, a significant inverse correlation between VTQ and SMI was found (rs = −0.2384, p = 0.0002) (Figure 1A,B).

3.2. VTQ Level according to The Degree of Liver Fibrosis

For the entire cohort (excluding 21 patients with missing data for liver histology, n = 447), the stepwise increase of VTQ level was found according to the severity of liver fibrosis (overall significance, p < 0.0001). (Figure 2A) Similarly, for patients with HCV (excluding patients with missing data for liver histology, n = 246), the stepwise increase of VTQ level was also found according to the severity of liver fibrosis (overall significance, p < 0.0001) (Figure 2B).

3.3. VTQ Level in Patients with and without D-SMI

In patients with D-SMI, the median VTQ level was 1.64 m/s (range, 0.93–4.32 m/s), while in patients without D-SMI, the median VTQ level was 1.11 m/s (range, 0.67–4.09 m/s) (p < 0.0001) (Figure 3A).

3.4. VTQ Level according to LC Status

In patients with LC, the median VTQ level was 2.18 m/s (range, 0.73–4.32 m/s), while in patients without LC, the median VTQ level was 1.11 m/s (range, 0.67–3.67 m/s) (p < 0.0001) (Figure 3B).

3.5. ROC Analysis for the Presence of D-SMI

Results for ROC analyses (AUROC, optimal cutoff point, sensitivity, and specificity) for the presence of D-SMI are presented in Table 2. BMI had the highest AUROC (0.805), followed by age (AUROC = 0.721), VTQ (AUROC = 0.706), and serum albumin (AUROC = 0.698).

3.6. Relationship between VTQ and Baseline Variables

Age (rs = 0.4418, p < 0.0001), AST (rs = 0.3315, p < 0.0001), total bilirubin (rs = 0.1994, p < 0.0001), serum ammonia (rs = 0.3191, P < 0.0001), FIB-4 index (rs = 0.2122, p = 0.0001), and APRI (rs = 0.6011, p < 0.0001) had significantly positive correlations with VTQ level. SMI in males (rs = −0.4276, p < 0.0001), SMI in females (rs = −0.2384, p = 0.0002), serum albumin (rs = −0.5538, p < 0.0001), prothrombin time (rs = −0.5504, p < 0.0001), platelet count (rs = −0.6152, p < 0.0001), total cholesterol (rs = −0.3941, p < 0.0001), triglyceride (rs = −0.2075, p < 0.0001), and branched-chain amino acid to tyrosine ratio (BTR) (rs = −0.6061, p < 0.0001) had significant inverse correlations with VTQ level (Table 3).

3.7. Univariate and Multivariate Analyses of Factors Contributing to The Presence of D-SMI

Significant variables linked to the presence of D-SMI in the univariate analyses are: age (p < 0.0001); BMI (p < 0.0001); serum albumin (p < 0.0001); platelet count (p = 0.0044); BTR (p = 0.0219); VTQ (p < 0.0001); FIB-4 index (p < 0.0001); and APRI (p = 0.0204) (Table 4). The odds ratios (ORs) and 95% confidence intervals calculated by using multivariate analysis for the eight significant parameters (p < 0.05) in the univariate analysis are presented in Table 5. BMI (p < 0.0001), age (p < 0.0001), serum albumin (p < 0.0001), BTR (p = 0.0031), VTQ (p < 0.0001), and FIB-4 index (p = 0.0425) were found to be independent predictors associated with the presence of D-SMI (Table 5).

4. Discussion and Conclusions

Radiological and serum liver fibrosis markers are useful markers and have been preferably used in the clinical settings for their non-invasiveness and easy availability [7,8,9,10,11,13]. Indeed, the stepwise increase of VTQ level according to the severity of liver fibrosis was found in our data. However, there have been no available data for the relationship between skeletal muscle mass and VTQ level in CLD patients. Because skeletal muscle mass in CLDs has been drawing much caution due to its prognostic significance, addressing this problem may be clinically essential [23,26,28,29,30]. We therefore conducted the current analysis. To the best of our knowledge, this is the first report linking skeletal muscle loss with liver damage in CLDs in a Japanese population using data for VTQ.
In our results, a significant inverse correlation between SMI and VTQ level in both males and females, and a significant difference of VTQ level between patients with and without D-SMI were found. Additionally, AUROC of VTQ for D-SMI was 0.706, and higher VTQ levels were revealed to be significantly associated with the development of D-SMI in the multivariate analysis (p < 0.0001). These results denote that VTQ level can be helpful for not only assessing the degree of liver fibrosis, but also for predicting D-SMI. A recent Korean study (n = 309) demonstrated that significant stratification was found in terms of the proportion of sarcopenia as evaluated by the appendicular skeletal muscle mass divided by body weight among subjects with normal livers, those with NAFLD, and those with NASH, which were in line with our current data [35].
Although LC-related muscle mass loss is defined as secondary sarcopenia as well as chronic inflammatory diseases and advanced malignancies, aging can cause D-SMI in CLDs at least in part [24,26]. The significant positive correlation between age and VTQ level (rs = 0.4418, p < 0.0001) may be associated with our current results. The fact that FIB-4 index includes age may also well explain the statistical significance of FIB-4 index for predicting D-SMI in the multivariate analysis. As a greater number of Japanese CLD patients have been aging in recent years, this is a critical problem.
BTR had the second strongest correlation with VTQ level (rs = −0.6061) and was revealed to be an independent predictor for the development of D-SMI (p = 0.0031). The liver is a central organ for the metabolism of three major classes of molecules: fats, proteins, and carbohydrates [37,38]. Deterioration in liver functional reserve can be accompanied by numerous nutritional disorders, and BTR reflects the nutritional state [39,40]. Poor nutritional status can cause muscle mass depletion. Branched-chain amino acid granules are promising for ameliorating muscle mass depletion [28]. In a sense, VTQ level may be helpful for assessing nutritional state in CLD patients. It is also of note that VTQ level had significant positive correlation with serum ammonia level (rs = 0.3191, p < 0.0001). Elevated serum ammonia levels lead to the suppression of protein synthesis in the muscle [6,23,26].
In our results, lower BMI had strong impact on D-SMI, while in the Korean national study with large NAFLD cohort (n = 2761), the proportion of sarcopenia using dual-energy X-ray absorptiometry was prominent in obese patients [34]. The average BMIs in our study and their study were 22.8 kg/m2 and 25.8 kg/m2, respectively. In our cohort, 109 patients (23.3%) had BMI >25 kg/m2 and only five patients (1.1%) had BMI >35 kg/m2. The distribution of BMI in baseline characteristics between these studies may lead to such different results. The incidence of sarcopenic obesity has been increasing and the relation between muscle mass and BMI should be further examined in future studies [31,32].
We acknowledge several weak points to our study. First, this is a retrospective single center Japanese study. Thus, whether our data can be applied to other ethnic backgrounds remains unclear. Second, in this cross-sectional study, we are unable to interpret any causal relationship; in other words, an in-depth mechanism for the independent association between D-SMI and liver fibrosis was not clarified in our study. Third, liver biopsy has a significant limitation for sampling errors in evaluating the severity of liver fibrosis. Finally, patients with severe ascites who are expected to have D-SMI with higher rates were excluded from our analysis, potentially leading to bias. Caution should therefore be exercised when interpreting our results. However, our current results presented that VTQ can be useful for predicting D-SMI in CLD patients. In our previous investigation, we reported that a predictive model involving VTQ level is promising for assessing the risk of liver carcinogenesis [10]. Thus, we anticipate that VTQ involves various clinical significances for CLD patients.
In conclusion, VTQ level can provide useful insights for predicting D-SMI in patients with CLDs.

Acknowledgement

The authors would like to thank all medical staff in our nutritional guidance room and ultrasound center for data collection.

Author Contributions

Hiroki Nishikawa, Takashi Nishimura and Hirayuki Enomoto analyzed data and wrote the paper. Hiroko Iijima supervised this study. Other remaining authors collected data.

Conflict of interest

The authors declare no conflict of interest.

Abbreviations

CLDs: chronic liver diseases; ARFI: acoustic radiation force impulse; VTQ: virtual touch quantification; m/s: meters/second; LC: liver cirrhosis; AST: aspartate aminotransferase; BIA: bio-electronic impedance analysis; APRI: AST to platelet ratio index; NAFLD: non-alcoholic fatty liver disease; NASH: non-alcoholic steatohepatitis; BMI: body mass index; SMI: skeletal muscle mass; D-SMI: decreased skeletal muscle mass; ALT: alanine aminotransferase; ROC: receiver operating characteristic curve; AUROC: area under the ROC; HCV: hepatitis C virus; BTR: branched-chain amino acid to tyrosine ratio; ORs: odds ratios.

References

  1. Van der Meer, A.J.; Berenguer, M. Reversion of disease manifestations after HCV eradication. J. Hepatol. 2016, 65, 95–108. [Google Scholar] [CrossRef] [PubMed]
  2. Karanjia, R.N.; Crossey, M.M.; Cox, I.J.; Fye, H.K.; Njie, R.; Goldin, R.D.; Taylor-Robinson, S.D. Hepatic steatosis and fibrosis: Non-invasive assessment. World J. Gastroenterol. 2016, 22, 9880–9897. [Google Scholar] [CrossRef] [PubMed]
  3. Friedrich-Rust, M.; Poynard, T.; Castera, L. Critical comparison of elastography methods to assess chronic liver disease. Nat. Rev. Gastroenterol. Hepatol. 2016, 13, 402–411. [Google Scholar] [CrossRef] [PubMed]
  4. Westbrook, R.H.; Dusheiko, G. Natural history of hepatitis C. J. Hepatol. 2014, 61, 58–68. [Google Scholar] [CrossRef] [PubMed]
  5. Yu, M.L. Hepatitis C Treatment from “Response-guided” to “Resource-guided” therapy in the transition era from IFN-containing to IFN-free regimens. J. Gastroenterol. Hepatol. 2017. [Google Scholar] [CrossRef] [PubMed]
  6. Majumdar, A.; Kitson, M.T.; Roberts, S.K. Systematic review: Current concepts and challenges for the direct-acting antiviral era in hepatitis C cirrhosis. Aliment. Pharmacol. Ther. 2016, 43, 1276–1292. [Google Scholar] [CrossRef] [PubMed]
  7. Lupsor, M.; Badea, R.; Stefanescu, H.; Sparchez, Z.; Branda, H.; Serban, A.; Maniu, A. Performance of a new elastographic method (ARFI technology) compared to unidimensional transient elastography in the noninvasive assessment of chronic hepatitis C. Preliminary results. J. Gastrointestin. Liver Dis. 2009, 18, 303–310. [Google Scholar] [PubMed]
  8. Takahashi, H.; Ono, N.; Eguchi, Y.; Eguchi, T.; Kitajima, Y.; Kawaguchi, Y.; Nakashita, S.; Ozaki, I.; Mizuta, T.; Toda, S.; et al. Evaluation of acoustic radiation force impulse elastography for fibrosis staging of chronic liver disease: A pilot study. Liver Int. 2010, 30, 538–545. [Google Scholar] [CrossRef] [PubMed]
  9. Friedrich-Rust, M.; Wunder, K.; Kriener, S.; Sotoudeh, F.; Richter, S.; Bojunga, J.; Herrmann, E.; Poynard, T.; Dietrich, C.F.; Vermehren, J.; et al. Liver fibrosis in viral hepatitis: Noninvasive assessment with acoustic radiation force impulse imaging versus transient elastography. Radiology 2009, 252, 595–604. [Google Scholar] [CrossRef] [PubMed]
  10. Aoki, T.; Iijima, H.; Tada, T.; Kumada, T.; Nishimura, T.; Nakano, C.; Kishino, K.; Shimono, Y; Yoh, K.; Takata, R.; et al. Prediction of development of hepatocellular carcinoma using a new scoring system involving virtual touch quantification in patients with chronic liver diseases. J. Gastroenterol. 2017, 52, 104–112. [Google Scholar] [CrossRef] [PubMed]
  11. Friedrich-Rust, M.; Nierhoff, J.; Lupsor, M.; Sporea, I.; Fierbinteanu-Braticevici, C.; Strobel, D.; Takahashi, H.; Yoneda, M.; Suda, T.; Zeuzem, S.; et al. Performance of acoustic radiation force impulse imaging for the staging of liver fibrosis: A pooled meta-analysis. J. Viral Hepat. 2012, 19, 212–219. [Google Scholar] [CrossRef] [PubMed]
  12. Bota, S.; Herkner, H.; Sporea, I.; Salzl, P.; Sirli, R.; Neghina, A.M.; Peck-Radosavljevic, M. Meta-analysis: ARFI elastography versus transient elastography for the evaluation of liver fibrosis. Liver Int. 2013, 33, 1138–1147. [Google Scholar] [CrossRef] [PubMed]
  13. Takuma, Y.; Morimoto, Y.; Takabatake, H.; Toshikuni, N.; Tomokuni, J.; Sahara, A.; Matsueda, K.; Yamamoto, H. Measurement of spleen stiffness with acoustic radiation force impulse imaging predicts mortality and hepatic decompensation in patients with liver cirrhosis. Clin. Gastroenterol. Hepatol. 2016. [Google Scholar] [CrossRef] [PubMed]
  14. Lurie, Y.; Webb, M.; Cytter-Kuint, R.; Shteingart, S.; Lederkremer, G.Z. Non-invasive diagnosis of liver fibrosis and cirrhosis. World J. Gastroenterol. 2015, 21, 11567–11583. [Google Scholar] [CrossRef] [PubMed]
  15. De Lucca Schiavon, L.; Narciso-Schiavon, J.L.; de Carvalho-Filho, R.J. Non-invasive diagnosis of liver fibrosis in chronic hepatitis C. World J. Gastroenterol. 2014, 20, 2854–2866. [Google Scholar] [CrossRef] [PubMed]
  16. Castera, L.; Forns, X.; Alberti, A. Non-invasive evaluation of liver fibrosis using transient elastography. J. Hepatol. 2008, 48, 835–847. [Google Scholar] [CrossRef] [PubMed]
  17. Lin, Z.H.; Xin, Y.N.; Dong, Q.J.; Wang, Q.; Jiang, X.J.; Zhan, S.H.; Sun, Y.; Xuan, S.Y. Performance of the aspartate aminotransferase-to-platelet ratio index for the staging of hepatitis C-related fibrosis: An updated meta-analysis. Hepatology 2011, 53, 726–736. [Google Scholar] [CrossRef] [PubMed]
  18. Nishikawa, H.; Nishijima, N.; Enomoto, H.; Sakamoto, A.; Nasu, A.; Komekado, H.; Nishimura, T.; Kita, R.; Kimura, T.; Iijima, H.; et al. Comparison of FIB-4 index and aspartate aminotransferase to platelet ratio index on carcinogenesis in chronic hepatitis B treated with entecavir. J. Cancer 2017, 8, 152–161. [Google Scholar] [CrossRef] [PubMed]
  19. Xiao, G.; Yang, J.; Yan, L. Comparison of diagnostic accuracy of aspartate aminotransferase to platelet ratio index and fibrosis-4 index for detecting liver fibrosis in adult patients with chronic hepatitis B virus infection: A systemic review and meta-analysis. Hepatology 2015, 61, 292–302. [Google Scholar] [CrossRef] [PubMed]
  20. Kim, W.R.; Berg, T.; Asselah, T.; Flisiak, R.; Fung, S.; Gordon, S.C.; Janssen, H.L.A.; Lampertico, P.; Lau, D.; Bornstein, J.D.; et al. Evaluation of APRI and FIB-4 scoring systems for non-invasive assessment of hepatic fibrosis in chronic hepatitis B patients. J. Hepatol. 2016, 64, 773–780. [Google Scholar] [CrossRef] [PubMed]
  21. Houot, M.; Ngo, Y.; Munteanu, M.; Marque, S.; Poynard, T. Systematic review with meta-analysis: Direct comparisons of biomarkers for the diagnosis of fibrosis in chronic hepatitis C and B. Aliment. Pharmacol. Ther. 2016, 43, 16–29. [Google Scholar] [CrossRef] [PubMed]
  22. Cruz-Jentoft, A.J.; Baeyens, J.P.; Bauer, J.M.; Boirie, Y.; Cederholm, T.; Landi, F.; Martin, F.C.; Michel, J.P.; Rolland, Y.; Schneider, S.M.; et al. Sarcopenia: European consensus on definition and diagnosis: Report of the European Working Group on Sarcopenia in older people. Age Ageing 2010, 39, 412–423. [Google Scholar] [CrossRef] [PubMed]
  23. Dasarathy, S. Consilience in sarcopenia of cirrhosis. J. Cachexia Sarcopenia Muscle 2012, 3, 225–237. [Google Scholar] [CrossRef] [PubMed]
  24. Dasarathy, S.; Merli, M. Sarcopenia from mechanism to diagnosis and treatment in liver disease. J. Hepatol. 2016, 65, 1232–1244. [Google Scholar] [CrossRef] [PubMed]
  25. Sinclair, M.; Gow, P.J.; Grossmann, M.; Angus, P.W. Review article: Sarcopenia in cirrhosis-aetiology, implications and potential therapeutic interventions. Aliment. Pharmacol. Ther. 2016, 43, 765–777. [Google Scholar] [CrossRef] [PubMed]
  26. Nishikawa, H.; Shiraki, M.; Hiramatsu, A.; Moriya, K.; Hino, K.; Nishiguchi, S. Japan Society of Hepatology guidelines for sarcopenia in liver disease: Recommendation from the working group for creation of sarcopenia assessment criteria. Hepatol. Res. 2016, 46, 951–963. [Google Scholar] [CrossRef] [PubMed]
  27. Carey, E.J.; Lai, J.C.; Wang, C.W.; Dasarathy, S.; Lobach, I.; Montano-Loza, A.J.; Dunn, M.A. A multi-center study to define sarcopenia in patients with end-stage liver disease. Liver Transpl. 2017. [Google Scholar] [CrossRef] [PubMed]
  28. Hanai, T.; Shiraki, M.; Nishimura, K.; Ohnishi, S.; Imai, K.; Suetsugu, A.; Takai, K.; Shimizu, M.; Moriwaki, H. Sarcopenia impairs prognosis of patients with liver cirrhosis. Nutrition 2015, 31, 193–199. [Google Scholar] [CrossRef] [PubMed]
  29. Durand, F.; Buyse, S.; Francoz, C.; Laouénan, C.; Bruno, O.; Belghiti, J.; Moreau, R.; Vilgrain, V.; Valla, D. Prognostic value of muscle atrophy in cirrhosis using psoas muscle thickness on computed tomography. J. Hepatol. 2014, 60, 1151–1157. [Google Scholar] [CrossRef] [PubMed]
  30. Hanai, T.; Shiraki, M.; Watanabe, S.; Kochi, T.; Imai, K.; Suetsugu, A.; Takai, K.; Moriwaki, H.; Shimizu, M. Sarcopenia predicts minimal hepatic encephalopathy in patients with liver cirrhosis. Hepatol. Res. 2017. [Google Scholar] [CrossRef] [PubMed]
  31. Itoh, S.; Yoshizumi, T.; Kimura, K.; Okabe, H.; Harimoto, N.; Ikegami, T.; Uchiyama, H.; Shirabe, K.; Nishie, A.; Maehara, Y. Effect of sarcopenic obesity on outcomes of living-donor liver transplantation for hepatocellular carcinoma. Anticancer Res. 2016, 36, 3029–3034. [Google Scholar] [PubMed]
  32. Hara, N.; Iwasa, M.; Sugimoto, R.; Mifuji-Moroka, R.; Yoshikawa, K.; Terasaka, E.; Hattori, A.; Ishidome, M.; Kobayashi, Y.; Hasegawa, H.; et al. Sarcopenia and sarcopenic obesity are prognostic factors for overall survival in patients with cirrhosis. Intern. Med. 2016, 55, 863–870. [Google Scholar] [CrossRef] [PubMed]
  33. Petta, S.; Ciminnisi, S.; Di Marco, V.; Cabibi, D.; Cammà, C.; Licata, A.; Marchesini, G.; Craxì, A. Sarcopenia is associated with severe liver fibrosis in patients with non-alcoholic fatty liver disease. Aliment. Pharmacol. Ther. 2017, 45, 510–518. [Google Scholar] [CrossRef] [PubMed]
  34. Lee, Y.H.; Kim, S.U.; Song, K.; Park, J.Y.; Kim, D.Y.; Ahn, S.H.; Lee, B.W.; Kang, E.S.; Cha, B.S.; Han, K.H. Sarcopenia is associated with significant liver fibrosis independently of obesity and insulin resistance in nonalcoholic fatty liver disease: Nationwide surveys (KNHANES 2008–2011). Hepatology 2016, 63, 776–786. [Google Scholar] [CrossRef] [PubMed]
  35. Koo, B.K.; Kim, D.; Joo, S.K.; Kim, J.H.; Chang, M.S.; Kim, B.G.; Lee, K.L.; Kim, W. Sarcopenia is an independent risk factor for non-alcoholic steatohepatitis and significant fibrosis. J. Hepatol. 2017, 66, 123–131. [Google Scholar] [CrossRef] [PubMed]
  36. Bedossa, P. Intraobserver and interobserver variations in liver biopsy interpretation in patients with chronic hepatitis C. Hepatology 1994, 20, 15–20. [Google Scholar]
  37. Charlton, M.R. Branched-chain amino acid enriched supplements as therapy for liver disease. J. Nutr. 2006, 136, 295–298. [Google Scholar] [CrossRef]
  38. Kawaguchi, T.; Izumi, N.; Charlton, M.R.; Sata, M. Branched-chain amino acids as pharmacological nutrients in chronic liver disease. Hepatology 2011, 54, 1063–1070. [Google Scholar] [CrossRef] [PubMed]
  39. Alberino, F.; Gatta, A.; Amodio, P.; Merkel, C.; Di Pascoli, L.; Boffo, G.; Caregaro, L. Nutrition and survival in patients with liver cirrhosis. Nutrition 2001, 17, 445–450. [Google Scholar] [CrossRef]
  40. Suzuki, K.; Suzuki, K.; Koizumi, K.; Ichimura, H.; Oka, S.; Takada, H.; Kuwayama, H. Measurement of serum branched-chain amino acids to tyrosine ratio level is useful in a prediction of a change of serum albumin level in chronic liver disease. Hepatol. Res. 2008, 38, 267–272. [Google Scholar] [CrossRef] [PubMed]

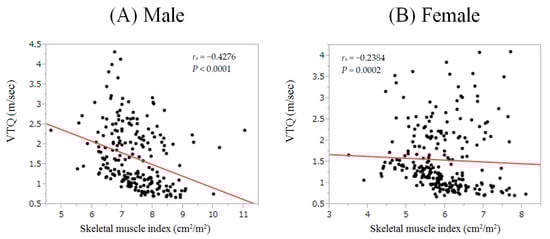

Figure 1. (A) Correlation between virtual touch quantification (VTQ) and skeletal muscle index (SMI) in males. Significant inverse correlation between VTQ and SMI was found (rs = −0.4276, p < 0.0001); (B) Correlation between VTQ and SMI in females. Significant inverse correlation between VTQ and SMI was found (rs = −0.2384, p = 0.0002).
Figure 1. (A) Correlation between virtual touch quantification (VTQ) and skeletal muscle index (SMI) in males. Significant inverse correlation between VTQ and SMI was found (rs = −0.4276, p < 0.0001); (B) Correlation between VTQ and SMI in females. Significant inverse correlation between VTQ and SMI was found (rs = −0.2384, p = 0.0002).
Nutrients 09 00620 g001

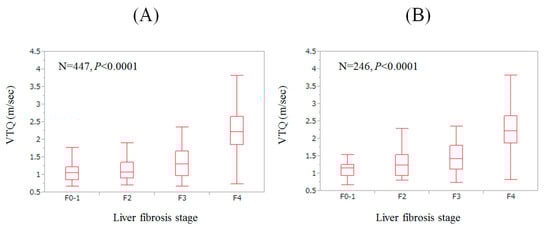

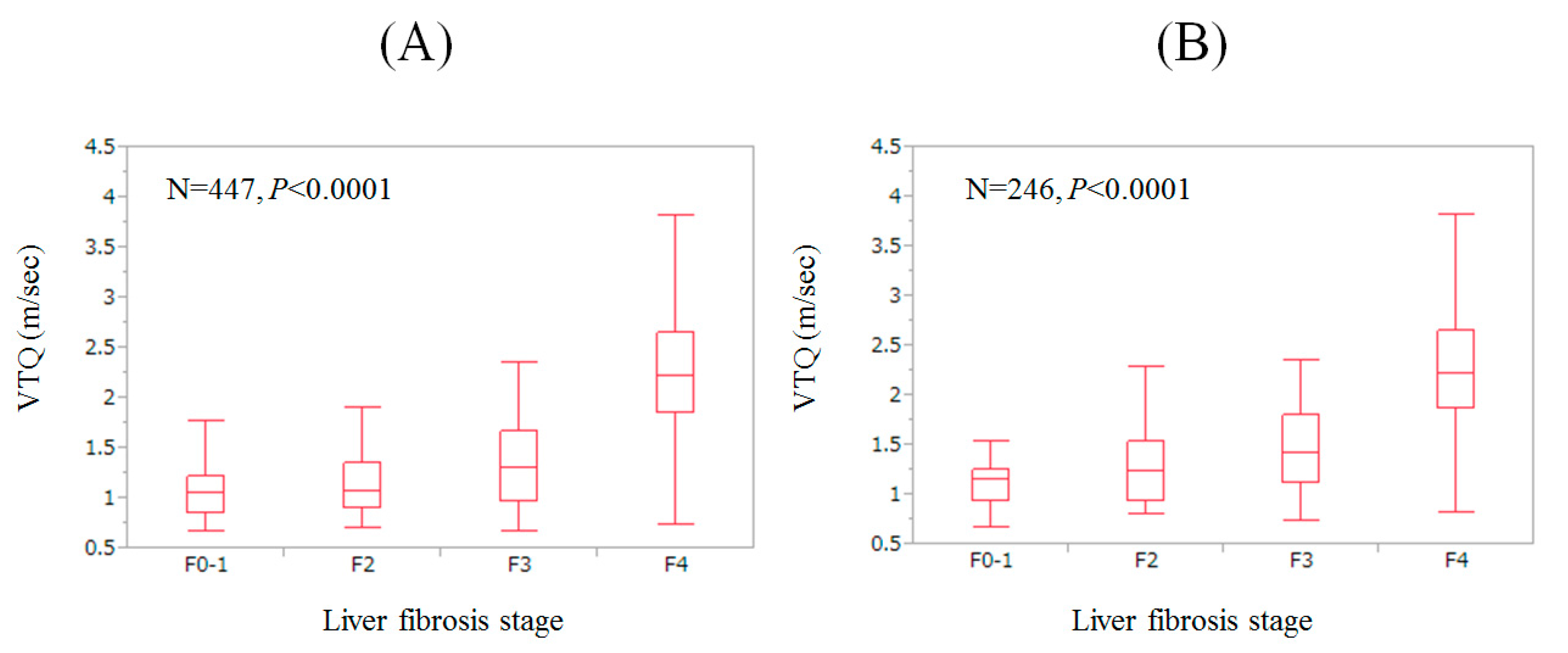

Figure 2. (A) VTQ level according to liver fibrosis stage for the entire cohort (excluding 21 patients with missing data for liver histology, n = 447). The stepwise increase of VTQ level was found according to the severity of liver fibrosis (overall significance, p < 0.0001); (B) VTQ level according to liver fibrosis stage for patients with hepatitis C virus (HCV) (excluding patients with missing data for liver histology, n = 246). The stepwise increase of VTQ level was found according to the severity of liver fibrosis (overall significance, p < 0.0001).
Figure 2. (A) VTQ level according to liver fibrosis stage for the entire cohort (excluding 21 patients with missing data for liver histology, n = 447). The stepwise increase of VTQ level was found according to the severity of liver fibrosis (overall significance, p < 0.0001); (B) VTQ level according to liver fibrosis stage for patients with hepatitis C virus (HCV) (excluding patients with missing data for liver histology, n = 246). The stepwise increase of VTQ level was found according to the severity of liver fibrosis (overall significance, p < 0.0001).
Nutrients 09 00620 g002

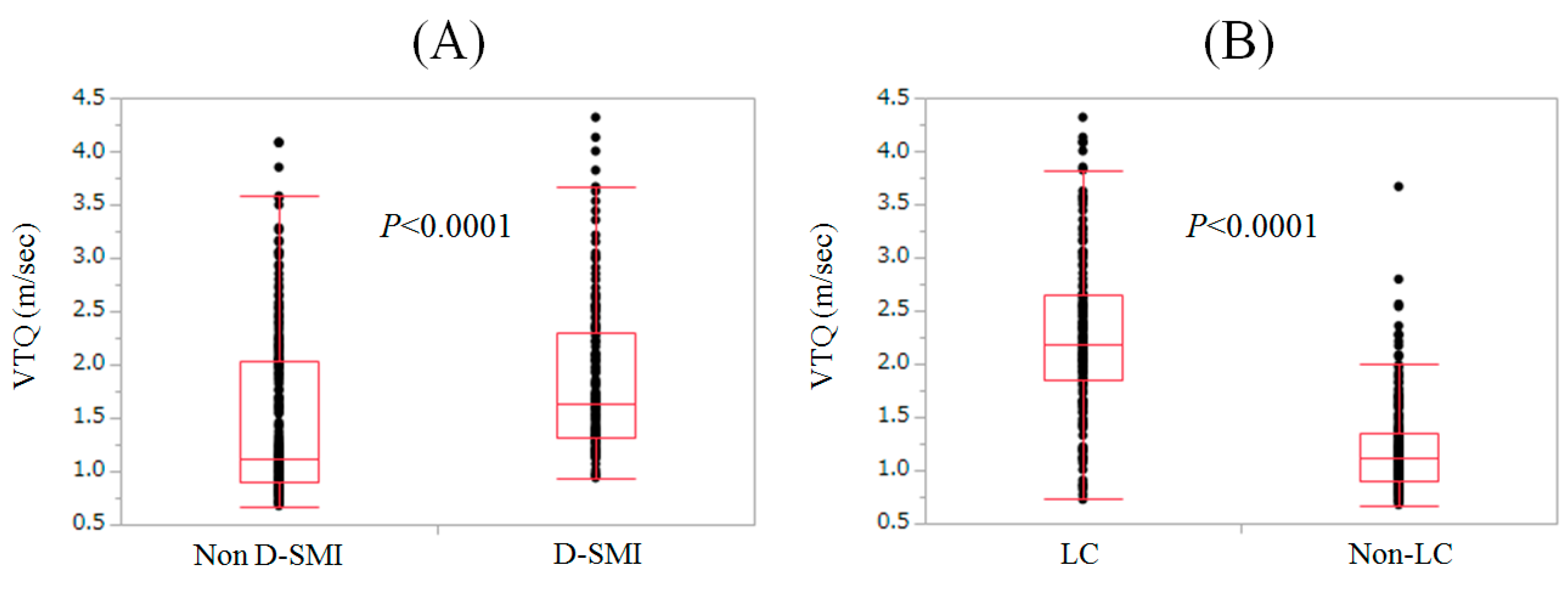

Figure 3. (A) VTQ level in patients with and without decreased skeletal muscle mass (D-SMI). In patients with D-SMI, the median VTQ level was 1.64 m/s (range, 0.93–4.32 m/s), while in patients without D-SMI, the median VTQ level was 1.11 m/s (range, 0.67–4.09 m/s) (p < 0.0001); (B) VTQ level according to liver cirrhosis (LC) status. In patients with LC, the median VTQ level was 2.18 m/s (range, 0.73–4.32 m/s), while in patients without LC, the median VTQ level was 1.11 m/s (range, 0.67–3.67 m/s) (p < 0.0001).
Figure 3. (A) VTQ level in patients with and without decreased skeletal muscle mass (D-SMI). In patients with D-SMI, the median VTQ level was 1.64 m/s (range, 0.93–4.32 m/s), while in patients without D-SMI, the median VTQ level was 1.11 m/s (range, 0.67–4.09 m/s) (p < 0.0001); (B) VTQ level according to liver cirrhosis (LC) status. In patients with LC, the median VTQ level was 2.18 m/s (range, 0.73–4.32 m/s), while in patients without LC, the median VTQ level was 1.11 m/s (range, 0.67–3.67 m/s) (p < 0.0001).
Nutrients 09 00620 g003
Table 1. Baseline characteristics (n = 468).
Table 1. Baseline characteristics (n = 468).
VariablesNumber or Median (Range)
Age (years)62 (18–90)
Gender, male/female222/246
SMI (cm2/m2), male7.35 (4.66–11.05)
SMI (cm2/m2), female5.86 (3.50–8.10)
BMI (kg/m2)22.26 (13.05–41.94)
Cause of liver disease, B/C/B and C/alcoholic/others47/267/4/17/133
AST (IU/L)36 (12–182)
ALT (IU/L)35 (7–268)
Serum albumin (g/dL)3.9 (2.6–5.1)
Total bilirubin (mg/dL)0.9 (0.2–5.1)
Prothrombin time (%)89.8 (43.3–133.6)
Platelet count (×104/mm3)14.9 (2.1–50.4)
Total cholesterol (mg/dL)167 (82–448)
Triglyceride (mg/dL)91 (27–572)
Fasting blood glucose (mg/dL)99 (70–298)
Serum creatinine (mg/dL)0.67 (0.32–7.69)
BTR5.58 (1.63–11.86)
Serum ammonia (µg/dL)31 (5–137)
C reactive protein (mg/dL)0.1 (0–2.4)
VTQ (m/s)1.34 (0.67–4.32)
FIB-4 index1.03 (0.12–2.61)
APRI0.83 (0.09–7.58)
F stage, 0/1/2/3/4/NT9/114/73/73/178/21
SMI: skeletal muscle index; BMI: body mass index; AST: aspartate aminotransferase; ALT: alanine aminotransferase; BTR: branched-chain amino acid to tyrosine ratio; VTQ: virtual touch quantification; APRI: AST to platelet ratio index; NT: not tested.
Table 2. ROC analysis for decreased skeletal muscle index.
Table 2. ROC analysis for decreased skeletal muscle index.
AUROCCutoff ValueSensitivity (%)Specificity (%)
Age 0.7216272.5762.80
Body mass index 0.80522.7885.1461.77
AST 0.46957.078.8724.91
ALT 0.53272.089.1418.77
Serum albumin 0.6984.085.1454.27
Total bilirubin 0.5350.8053.454.95
Prothrombin time 0.50485.768.5738.91
Platelet count 0.57917.876.0041.64
Total cholesterol 0.52119276.5731.06
Triglyceride 0.57610272.5746.42
Fasting blood glucose 0.46612712.091.13
Serum creatinine 0.4760.8918.2988.05
BTR0.5635.9368.5747.78
Serum ammonia0.4786494.5112.0
C reactive protein 0.548053.7157.68
VTQ0.7061.1294.8650.51
FIB-4 index0.6350.77284.5737.2
APRI0.5640.71664.5751.54
AUROC: area under the receiver operating curve; AST: aspartate aminotransferase; ALT: alanine aminotransferase; BTR: branched-chain amino acid to tyrosine ratio; VTQ: virtual touch quantification; APRI: AST to platelet ratio index.
Table 3. Relationship between VTQ level and baseline data.
Table 3. Relationship between VTQ level and baseline data.
rsp Value
Age0.4418<0.0001
SMI, male−0.4276<0.0001
SMI, female−0.23840.0002
Body mass index−0.07460.1071
AST 0.3315<0.0001
ALT 0.01210.7947
Serum albumin −0.5538<0.0001
Total bilirubin 0.1994<0.0001
Prothrombin time−0.5504<0.0001
Platelet count −0.6152<0.0001
Total cholesterol −0.3941<0.0001
Triglyceride −0.2075<0.0001
Fasting blood glucose 0.07310.1140
Serum creatinine 0.06790.1427
BTR−0.6061<0.0001
Serum ammonia0.3191<0.0001
C reactive protein 0.05590.2277
FIB-4 index0.2122<0.0001
APRI0.6011<0.0001
VTQ: virtual touch quantification; SMI: skeletal muscle index; AST: aspartate aminotransferase; ALT: alanine aminotransferase; BTR: branched-chain amino acid to tyrosine ratio; APRI: AST to platelet ratio index.
Table 4. Comparison of baseline characteristics between patients with D-SMI (n = 185) and those without D-SMI (n = 304).
Table 4. Comparison of baseline characteristics between patients with D-SMI (n = 185) and those without D-SMI (n = 304).
Decreased Skeletal Muscle Mass (D-SMI) (n = 175)Non D-SMI (n = 293)p Value
Age (years)67 (25–90)58 (18–81)<0.0001
Gender, male/female76/99146/1470.1823
Cause of liver disease15/113/2/6/3932/154/2/11/940.0988
B/C/B and C/Alcohol/Others
BMI (kg/m2)20.28 (13.05–31.14)23.78 (17.21–41.94)<0.0001
Serum albumin (g/dL)3.7 (2.6–4.9)4.1 (2.7–5.1)<0.0001
Total bilirubin (mg/dL)0.8 (0.3–5.1)0.9 (0.2–4.7)0.2045
Prothrombin time (%)89.4 (55.5–123)90.0 (43.3–133.6)0.8143
Platelet count (×104/mm3)13.7 (3.3–40.8)15.7 (2.1–50.4)0.0044
AST (IU/L)38 (13–125)35 (12–182)0.2571
ALT (IU/L)34 (7–268)36 (8–247)0.2449
Total cholesterol (mg/dL)166 (85–292)167 (82–448)0.3264
Triglyceride85 (27–554)97 (29–572)0.1026
Fasting blood glucose96 (70–298)101 (73–249)0.2169
BTR5.33 (1.63–11.86)5.83 (1.79–10.46)0.0219
Serum creatinine (mg/dL)0.65 (0.32–7.67)0.68 (0.35–6.5)0.3808
Serum ammonia31 (10–105)30 (5–137)0.4519
C reactive protein0 (0–2.3)0.1 (0–2.4)0.5844
VTQ1.64 (0.93–4.32)1.11 (0.67–4.09)<0.0001
FIB-4 index1.15 (0.36–2.61)0.96 (0.12–2.60)<0.0001
APRI0.97 (0.20–4.23)0.70 (0.09–7.58)0.0204
SMI: skeletal muscle index; BMI: body mass index; AST: aspartate aminotransferase; ALT: alanine aminotransferase; BTR: branched-chain amino acid to tyrosine ratio; VTQ: virtual touch quantification; APRI: AST to platelet ratio index.
Table 5. Multivariate analyses of factors linked to the presence of D-SMI.
Table 5. Multivariate analyses of factors linked to the presence of D-SMI.
VariablesMultivariate Analysis
OR95% CIp Value
BMI (per one kg/m2)1.7121.523–1.925<0.0001
Age (per one year)0.9220.895–0.953<0.0001
Platelet count (per one ×104/mm3)1.0170.969–1.0680.5003
Serum albumin (per one g/dL)4.8322.148–10.872<0.0001
BTR (per one)1.3741.107–1.7040.0031
VTQ (per one m/s)0.2780.167–0.462<0.0001
FIB-4 index (per one)0.6250.384–0.9550.0425
APRI (per one)0.4550.189–1.0950.0735
OR: Odds ratio; CI: confidence interval; BMI: body mass index; BTR: branched-chain amino acid to tyrosine ratio; VTQ: virtual touch quantification; APRI: AST to platelet ratio index.

Share and Cite

MDPI and ACS Style

Nishikawa, H.; Nishimura, T.; Enomoto, H.; Iwata, Y.; Ishii, A.; Miyamoto, Y.; Ishii, N.; Yuri, Y.; Takata, R.; Hasegawa, K.; et al. Impact of Virtual Touch Quantification in Acoustic Radiation Force Impulse for Skeletal Muscle Mass Loss in Chronic Liver Diseases. Nutrients 2017, 9, 620. https://doi.org/10.3390/nu9060620

AMA Style

Nishikawa H, Nishimura T, Enomoto H, Iwata Y, Ishii A, Miyamoto Y, Ishii N, Yuri Y, Takata R, Hasegawa K, et al. Impact of Virtual Touch Quantification in Acoustic Radiation Force Impulse for Skeletal Muscle Mass Loss in Chronic Liver Diseases. Nutrients. 2017; 9(6):620. https://doi.org/10.3390/nu9060620

Chicago/Turabian Style

Nishikawa, Hiroki, Takashi Nishimura, Hirayuki Enomoto, Yoshinori Iwata, Akio Ishii, Yuho Miyamoto, Noriko Ishii, Yukihisa Yuri, Ryo Takata, Kunihiro Hasegawa, and et al. 2017. "Impact of Virtual Touch Quantification in Acoustic Radiation Force Impulse for Skeletal Muscle Mass Loss in Chronic Liver Diseases" Nutrients 9, no. 6: 620. https://doi.org/10.3390/nu9060620

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
