Review

Genetics, Genomics and Evolution of Ergot Alkaloid Diversity

1
Forage Improvement Division, The Samuel Roberts Noble Foundation, Ardmore, OK 73401, USA
2
Department of Plant Pathology, University of Kentucky, Lexington, KY 40546, USA
3
Division of Plant and Soil Sciences, West Virginia University, Morgantown, WV 26506, USA
4
Computer Science Department, University of Kentucky, Lexington, KY 40546, USA
5
Advanced Genetic Technologies Center, University of Kentucky, Lexington, KY 40546, USA
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Toxins 2015, 7(4), 1273-1302; https://doi.org/10.3390/toxins7041273
Submission received: 6 March 2015 / Revised: 2 April 2015 / Accepted: 8 April 2015 / Published: 14 April 2015
(This article belongs to the Special Issue Ergot Alkaloids: Chemistry, Biology and Toxicology)

Abstract

:
The ergot alkaloid biosynthesis system has become an excellent model to study evolutionary diversification of specialized (secondary) metabolites. This is a very diverse class of alkaloids with various neurotropic activities, produced by fungi in several orders of the phylum Ascomycota, including plant pathogens and protective plant symbionts in the family Clavicipitaceae. Results of comparative genomics and phylogenomic analyses reveal multiple examples of three evolutionary processes that have generated ergot-alkaloid diversity: gene gains, gene losses, and gene sequence changes that have led to altered substrates or product specificities of the enzymes that they encode (neofunctionalization). The chromosome ends appear to be particularly effective engines for gene gains, losses and rearrangements, but not necessarily for neofunctionalization. Changes in gene expression could lead to accumulation of various pathway intermediates and affect levels of different ergot alkaloids. Genetic alterations associated with interspecific hybrids of Epichloë species suggest that such variation is also selectively favored. The huge structural diversity of ergot alkaloids probably represents adaptations to a wide variety of ecological situations by affecting the biological spectra and mechanisms of defense against herbivores, as evidenced by the diverse pharmacological effects of ergot alkaloids used in medicine.

1. Importance of Ergot Alkaloids

Ergot alkaloids are well known mycotoxins that can contaminate food and feed but also can serve as starting materials for important pharmaceuticals. The ergot fungi, for which these alkaloids are named, have been responsible for historic episodes of mass poisoning. In Middle-Age Europe, ingestion of rye grain or flour that was contaminated with ergots—the resting stage (sclerotia) of Claviceps purpurea—led to multiple episodes of disfiguring and deadly poisoning of local populations. Historic events associated with ergot poisoning include the first Crusade [1], the Salem witch trials (and others) [2,3,4], and the interrupted 1722 Russian campaign (under Peter the Great) against the Ottoman empire [5]. In modern times, ergot-alkaloid poisoning occasionally occurs through their medicinal use [6], but mass ergot poisonings of humans are rare, having last been reported in the 1970s [7,8]. Ergot alkaloid toxicity is still a significant problem with livestock, both due to ergot contaminated feed and naturally infested forage or rangeland grasses—such as tall fescue (Lolium arundinaceum), sleepygrass (Achnatherum robustum) and drunken horse grass (Achnatherum inebrians)—which can be symbiotic with seed-transmissible Epichloë species that are capable of producing ergot alkaloids [9,10,11].
Over the past two decades, ergot alkaloids have been tapped for increasingly diverse medical uses. The ergopeptine ergotamine is used to treat migraines [12], and other natural and semisynthetic ergopeptines and dihydroergopeptines have been used for diseases of the brain. For example, bromocriptine (2-bromo-ergocryptine) is used as a component in treatment of Parkinsonism [13] and bromocriptine, or the extensively substituted dihydrolysergic acid amide, cabergoline, is used in treatment of prolactinoma, a benign adenoma of the pituitary gland [14,15]. Ergot alkaloids are also of social relevance because a semisynthetic alkaloid, lysergic acid diethylamide (LSD), is an illicit drug that is by far the most potent hallucinogen known. LSD had a major impact on the countercultural and hippie movements of the 1960s, since Albert Hofmann first produced it and noted its properties [16].

2. Structural Content of Ergot Alkaloid Biosynthesis (EAS) Loci Define Alkaloid Potential

The ergot alkaloids represent a diverse class of natural products that are generally divided into three subclasses: the simpler clavines, lysergic acid and its simple amides, and the highly complex ergopeptines. Figure 1 shows the simpler clavines in blue, green, and purple, and the lysergic acid and simple amides and ergopeptines both in red, reflective of the orders of biosynthetic steps: blue for early, green for middle, and purple and red for late steps in different fungal families. Clavines are tricyclic or tetracyclic compounds known from the fungal families Clavicipitaceae (order Hypocreales) and Trichocomaceae (Eurotiales), with the latter showing more variation due to hydroxylation, prenylation and acetylation (reviewed in [17]). The presence of EAS clusters in the Arthrodermataceae (Onygenales) suggests that they also may produce clavines, a possibility that is supported by the demonstration of chanoclavine I dehydrogenase activity of the Arthroderma benhamiae EasD ortholog (GenBank accession EFE37118.1) [18]. Lysergic acid and the lysergic acid amides are tetracyclic compounds with a common ergolene core, whereas ergopeptines are lysergic acid-tripeptide derivatives. These more complex ergot alkaloids are almost exclusively known from Clavicipitaceae, although an ergopeptine has also been reported from a Dicyma sp. (Xylariaceae, Xylariales) [19].
All known ergot alkaloid biosynthesis genes are present in the genomes of ascomycetous fungi grouped either in a single ergot alkaloid synthesis (EAS) cluster or divided into two EAS clusters (Figure 2). The particular forms and overall profile of ergot alkaloids produced by a fungus are determined by the presence or absence of pathway genes and, for several EAS genes, the particular enzyme isoforms they encode. The basic functions have been determined for all known EAS genes in the Clavicipitaceae, and most in the Trichocomaceae (reviewed in [20]), so that detecting gene presence or absence provides considerable power to predict alkaloid profiles, but there is also important variation in substrate and product specificities of some EAS gene-encoded enzymes, which we are not yet able to infer from the gene sequences [17].

2.1. Genes Encoding the Early Pathway Steps

The four conserved early pathway steps for all natural ergot alkaloids produce chanoclavine I (CC) (recently reviewed [20]), and are catalyzed by enzymes encoded in the four genes: dmaW, encoding dimethylallyltryptophan synthase, easF, encoding dimethylallyltryptophan N-methyltransferase, easC, encoding a catalase, and easE, encoding chanoclavine-I synthase. Some strains, such as E. elymi E56, produce CC as the pathway end-product because they contain functional copies only of these four genes in an EAS cluster, which we designate as EASCC (Figure 2; Table 1). Based on similar complements in their genomes, we would predict that E. brachyelytri E4804 and Atkinsonella hypoxylon B4728 are also CC producers, though CC has not been detected in plants infected with B4728. Strains capable of making complex ergot alkaloids also can generate substantial levels of CC and other intermediates and spur products as a result of inherent pathway inefficiency, a property suggested to have selective advantage [21,22].
Figure 1. The ergot alkaloid pathway showing steps that result in diversification of compounds. Pathway steps are color-coded based on the position or diversification within the pathway, Blue = early steps to the intermediate chanoclavine, Green = mid steps leading to the tetracyclic clavines, Red = late steps represented by the lysergic acid amides and the complex ergopeptines, Purple = steps to fumigaclavines produced by Trichocomaceae.
Figure 1. The ergot alkaloid pathway showing steps that result in diversification of compounds. Pathway steps are color-coded based on the position or diversification within the pathway, Blue = early steps to the intermediate chanoclavine, Green = mid steps leading to the tetracyclic clavines, Red = late steps represented by the lysergic acid amides and the complex ergopeptines, Purple = steps to fumigaclavines produced by Trichocomaceae.
Toxins 07 01273 g001

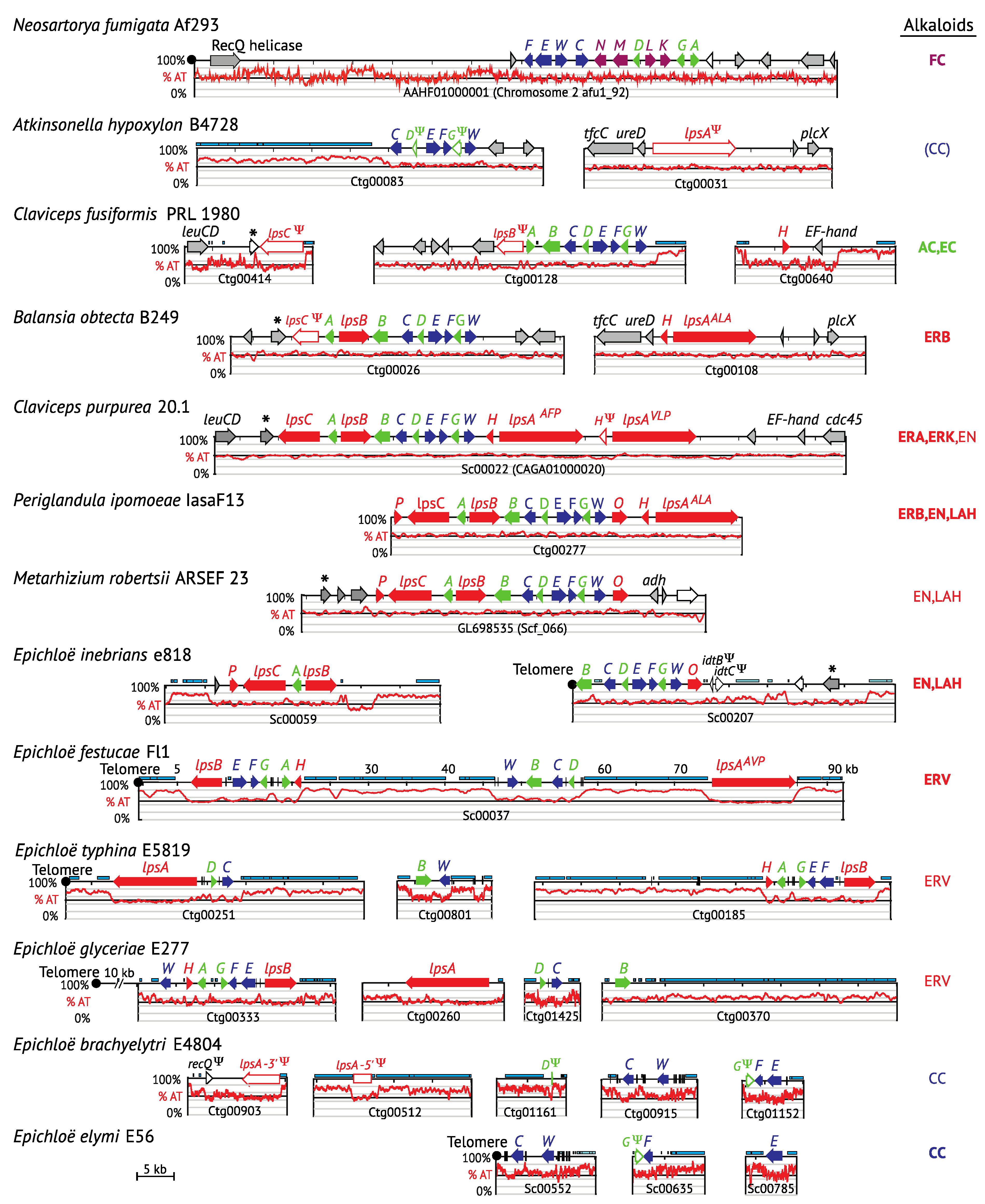

Figure 2. Relative adenine and thymine (%AT) DNA content of ergot alkaloid synthesis (EAS) loci. Gene name abbreviations are as follow: all eas genes = last letter, cloA = B and dmaW = W. Gene names are colored to represent the stage of the pathway for the encoded product (see Figure 1). Pseudogenes are represented by Ψ and white-filled arrows. The major pathway end product of each strain is indicated on the right in bold face (product produced) or regular type (product predicted but not yet tested), or in parentheses (product predicted but undetected). Arrows marked with * represent orthologues of C. purpurea AET79176 (GenBank). Cyan bars indicate repeats, and vertical black bars indicate miniature inverted-repeat transposable elements (MITEs). Where present, telomeres are positioned at left.
Figure 2. Relative adenine and thymine (%AT) DNA content of ergot alkaloid synthesis (EAS) loci. Gene name abbreviations are as follow: all eas genes = last letter, cloA = B and dmaW = W. Gene names are colored to represent the stage of the pathway for the encoded product (see Figure 1). Pseudogenes are represented by Ψ and white-filled arrows. The major pathway end product of each strain is indicated on the right in bold face (product produced) or regular type (product predicted but not yet tested), or in parentheses (product predicted but undetected). Arrows marked with * represent orthologues of C. purpurea AET79176 (GenBank). Cyan bars indicate repeats, and vertical black bars indicate miniature inverted-repeat transposable elements (MITEs). Where present, telomeres are positioned at left.
Toxins 07 01273 g002
Table 1. Ergot alkaloid synthesis (EAS) gene names and encoded functions.
Table 1. Ergot alkaloid synthesis (EAS) gene names and encoded functions.
Gene name aEnzymeEASCCEASECEASERPEASLAHEASEN/ERPEASLAH/ERPEASFC
dmaWDimethylallyltryptophan synthase+++++++
easFDimethylallyltryptophanN-methylase+++++++
easCCatalase+++++++
easEChanoclavine-I synthase+++++++
easDChanoclavine-I dehydrogenase++++++
easAbChanoclavine-1 aldehyde oxidoreductase+ iso+ iso+ iso+ iso+ iso+ red
easGagroclavine, festuclavine or pyroclavine dehydrogenase++++++
cloAbagroclavine, festuclavine, or elymoclavine monooxygenase+++++
lpsBlysergyl peptide synthetase subunit 2++++
lpsAblysergyl peptide synthetase subunit 1+++
easHergopeptide lactam hydroxylase+++
lpsClysergyl peptide synthetase and reductase subunit+++
easOcputative ergonovine oxygenase++
easPcputative LAH synthase++
easMcpossible festuclavine 9-monooxygenase+
easKcpossible festuclavine 9-monooxygenase+
easNfumigaclavine acetylase+
easLfumigaclavine reverse prenyltransferase+
Fungal speciesExamples of ergot alkaloid-producing fungiEpichloë elymiClaviceps fusiformisEpichloë festucae,Balansia obtectaEpichloë inebriansClaviceps purpureaPeriglandula ipomoeaeNeosartorya fumigata
a Pathway steps are color-coded based on the positions within the pathway as shown in Figure 1; b Specificity of encoded gene can vary. EasA functions as either an isomerase “+ iso” or reductase “+ red”; c Actual role not confirmed.

2.2. Diversification of the EAS Pathways

Beyond the production of CC, multiple biosynthetic pathways begin to branch and diverge (Figure 1), and the chemotypic variation between and even within species is reflected in the gene content of each EAS locus known or predicted to direct biosynthesis of such pathway end-products as elymoclavine (EC), lysergic acid α-hydroxyethylamide (LAH), ergonovine (EN), and ergopeptines such as ergovaline (ERV), ergotamine (ERA), ergocryptine (ERK) or ergobalansine (ERB). Where clarification is needed, we will designate the various EAS clusters with superscripts reflecting end products, as EASEC, EASLAH or EASEN, as well as EASERP for ergopeptine producers, EASEN/ERP for producers of EN and ergopeptines, and EASLAH/ERP for producers of LAH and ergopeptines. Compared to EASEN, EASLAH has two additional genes, easO and easP, suggesting that EN may be the LAH precursor. Fungi with EASLAH clusters also tend to accumulate substantial levels of ergine, probably by spontaneous hydrolysis of LAH [23]. The EASEN/ERP cluster in the most infamous ergot fungus, Claviceps purpurea, and the EASLAH/ERP cluster in the morning-glory symbiont, Periglandula ipomoeae, are the only ones identified to date that determine synthesis of three different ergot alkaloid subclasses [24].

2.2.1. Completion of the Tetracyclic Ergolene Common Core

The EAS pathway diversifies at multiple steps depending, not only on presence or absence of genes, but also on the substrate- and product-specificities of several of the encoded enzymes [17,20] (Figure 1). Once CC is oxidized by the action of the EasD enzyme to form chanoclavine aldehyde, EasA then catalyzes a reduction step that allows rotation around the C8-C9 bond so that an iminium ion (i.e., Schiff base) can form as the first step in the synthesis of the D-ring of the ergolene core common to most ergot alkaloids. Surprisingly, this is one of the steps at which different pathways can diverge to give either ergot alkaloids or dihydroergot alkaloids [17,25]. EasA proteins that follow the reduction step with reoxidation are effectively isomerases, typically found in Claviceps purpurea and many species of Balansia, Epichloë and Periglandula. In contrast, EasA isoforms that only reduce the C8-C9 bond direct the pathway toward dihydroergot alkaloids, such as those found in Claviceps africana and Claviceps gigantea as well as in the fumigaclavine producer, Neosartorya fumigata.
The ergolene D-ring is completed by a reduction catalyzed by EasG, to yield agroclavine (for ergot alkaloids) or festuclavine (for dihydroergot alkaloids) [20] (Figure 1). After the D-ring is closed, the C8-linked methyl group can be oxidized by the action of a cytochrome P450 monooxygenase. This enzyme, designated CloA, apparently represents another point in the pathway where variation in an enzyme can affect the alkaloid profile [17]. It appears likely that different isoforms of CloA determine the level of oxidation, such that CloA of C. fusiformis catalyzes the 2-electron oxidation of agroclavine (AC) to EC, whereas CloA of C. purpurea and many other Clavicipitaceae catalyzes a 6-electron oxidation of agroclavine to paspalic acid or lysergic acid (LA). Whether LA is generated spontaneously or enzymatically from paspalic acid remains unclear.

2.2.2. Formation of Lysergic Acid, Lysergic Acid Amides and Complex Ergopeptines

Despite its fame as a starting material for laboratory synthesis of LSD, LA does not generally occur in appreciable concentrations in natural systems [22]. This is because fungi that make LA are usually capable of converting it to any of a multitude of lysergic acid amides, ranging from the simplest (ergine = lysergic acid amide) to complex ergopeptines in which LA has an amide linkage with a tricyclic moiety derived from three additional amino acids (Figure 1) (reviewed in [17]). This divergence point involves a remarkable system that centers on the enzyme subunit LpsB (=LPS2) plus one or both of its partner subunits LpsA (=LPS1) or LpsC (=LPS3) depending on whether functional lpsA or lpsC genes are present [26]. Each of the Lps subunits contains modules that contribute specific catalytic activities and, in combination with other Lps subunits, comprise multi-enzyme complexes called nonribosomal peptide synthetases (NRPSs). Each module AMPylates and thio-esterifies an amino acid, and then condenses it with the similarly processed amino acid on the adjacent module. LpsB specifies LA, whereas LpsC specifies l-alanine (Ala). LpsC also has a C-terminal “R*” domain (cd05235: SDR_e1) that catalyzes reductive release of the LA-Ala conjugate as EN. Alternatively, if LpsB partners with LpsA they form the enzyme complex required for formation of ergopeptide lactams, which are then oxidatively cyclized by the action of EasH [27] to form ergopeptines or their 8(R) isomers, the ergopeptinines. The particular composition of each ergopeptine is determined by specificity of each of the three modules in LpsA for its cognate amino acid [28], so far giving 21 different combinations (Table 2) [19,29,30]. For example, Epichloë strains that produce ergovaline (ERV) have LpsAAVP (where the superscripts are single-letter codes for the amino acids specified, in order, by the first, second and third modules of LpsA). In contrast, C. purpurea strain 20.1 has genes for the LpsA isoforms LpsAAFP and LpsAVLP, which determine production of ergotamine (ERA) and ergocryptine (ERK), respectively. There are 19 ergopeptines known, most with corresponding ergopeptinines, which are their 8(S) stereoisomers. Two additional ergopeptinines have no known 8(R) isomers (reviewed in [30]). Additionally, Claviceps africana produces dihydroergosine, which is similar to ergosine except that it has a saturated D-ring, presumably because it is derived from festuclavine rather than agroclavine (reviewed in [17]).

2.2.3. Fumigaclavine Production by the Trichocomaceae

The Trichocomaceae produce various clavines derived from festuclavine (reviewed in [17]) (Figure 1). They lack agroclavine or its derivatives because they have a reducing rather than isomerizing EasA isoform. They may also produce pyroclavine, the 8(S) stereoisomer of festuclavine, due to functional differences in EasG [31]. Further modifications are catalyzed by enzymes encoded in the EAS cluster of N. fumigata, for which orthologs are not found in other fungi, giving rise to the fumigaclavines. The 9-hydroxylation is probably catalyzed by either EasM or EasK, both predicted to be cytochrome P450. Then O-acetylation is catalyzed by EasN, and the “reverse” prenylation step is catalyzed by EasL.
Table 2. Lysergic acid-linked substituents of natural ergopeptines a.
Table 2. Lysergic acid-linked substituents of natural ergopeptines a.
ErgopeptineAA1R1AA2R2AA3R3
Ergotamine (ERA)AlaMePheCH2PhProprolyl (CH2)3
Ergovaline (ERV)AlaMeVali-PrProprolyl (CH2)3
ErgosineAlaMeLeui-BuProprolyl (CH2)3
Dihydroergosine bAlaMeLeui-BuProprolyl (CH2)3
β-ErgosineAlaMeIlesec-BuProprolyl (CH2)3
ErgosedmineIlesec-BuLeui-BuProProlyl (CH2)3
ErgobineAlaMeABAEtProprolyl (CH2)3
ErgocristineVali-PrPheCH2PhProprolyl (CH2)3
ErgocornineVali-PrVali-PrProprolyl (CH2)3
Ergocryptine c,d (ERK)Vali-PrLeui-BuProprolyl (CH2)3
β-Ergocryptine dVali-PrIlesec-BuProprolyl (CH2)3
γ-Ergocryptinine c,eVali-PrnorLeun-BuProprolyl (CH2)3
ErgobutyrineVali-PrABAEtProprolyl (CH2)3
Ergoladinine eVali-PrMetEtSCH3Proprolyl (CH2)3
ErgogalineVali-PrhomoIle2-Me- n-BuProprolyl (CH2)3
ErgostineABAEtPheCH2PhProprolyl (CH2)3
ErgonineABAEtVali-PrProprolyl (CH2)3
Ergoptine cABAEtLeui-BuProprolyl (CH2)3
β-ergoptineABAEtIlesec-BuProprolyl (CH2)3
ErgobutineABAEtABAEtProprolyl (CH2)3
Ergobalansine (ERB)AlaMeLeui-BuAlaMe
Unnamed, from Dicyma sp.AlaMeLeui-BuPheCH2Ph
a Abbreviations: AA= amino acid position; ABA = 2-aminobutyric acid, norLeu = l-norleucine; homoIle = l-homoisoleucine. Other l-amino acids and R-groups are abbreviated as standard; b Dihydroergosine has a saturated D-ring, whereas others listed here have a 9-10 double bond; c Synonyms: ergosine = α-ergosine, ergocryptine = α-ergocryptine, ergoptine = α-ergoptine; d Synonyms: α-, β-, or γ-ergocryptine = α-, β-, or γ-ergokryptine, respectively; e Only the 8(R) (=isolysergyl) isomers—namely, ergoladinine and γ-ergocryptinine—have been reported to date.

2.3. Contents of the EAS Loci

The EAS pathway specificity mentioned above is reflected in the structural content of EAS loci across the Clavicipitaceae, which varies based on presence or absence of genes that correspond to ergot alkaloid biosynthetic capability within a given strain. The most EAS genes (14) are present in P. ipomoeae, which produces ergobalansine (ERB), EN and LAH, whereas only four EAS genes are common to all strains that are capable or predicted to produce CC [24]. Interestingly, those four early-pathway genes are grouped together in the N. fumigata cluster, whereas the mid-pathway genes for festuclavine biosynthesis are interspersed with late-pathway genes for fumigaclavine [32,33] (Figure 2). The gene arrangements differ between N. fumigata and the Clavicipitaceae, and also differ considerably between Epichloë spp. and other Clavicipitaceae. In At. hypoxylon, Balansia obtecta, the Claviceps spp., Epichloë inebrians (formerly Epichloë gansuensis var. inebrians; [34]) and P. ipomoeae,early and mid-pathway genes (except for easA) are interspersed, whereas the late genes (lps genes, easH, easO and easP) are at the EAS-cluster periphery, separated from the main EAS cluster, fatally mutated or missing. The easA gene is the exception among mid-pathway genes, being located between late-pathway genes lpsB and lpsC in these species. In the other Epichloë species, there is similar variation in gene content and functionality, but greater variation in gene arrangement even for early- and late-pathway genes. Clearly, strains that produce only CC are derived by losses of mid-and late-pathway genes, because remnants and pseudogenes often remain in their genomes.
Putative EAS genes can be identified in fungal genome sequences using bioinformatics pipelines developed to identify core secondary metabolite genes encoding NRPSs, polyketide synthases (PKS), prenyltransferases (dmaW homologues) or terpene cyclases and mixed or hybrid versions [35,36,37]. The EAS gene clusters such as EASCC can sometimes be identified within the prenyltransferase or terpene cyclase group, whereas a more complex EAS cluster, such as EASERP, will fall into a hybrid or mixed category since they contain sequences for both prenyltransferases and NRPSs [38]. In genomes of several Trichophyton and Arthroderma species (Arthrodermataceae), apparent orthologues of dmaW, easF, easC, easE and easD are identifiable in a cluster [18]. Genes flanking this cluster match signatures of various biosynthetic functions, so it may well be that Arthrodermataceae produce one or more alkaloid subclasses yet to be identified. The EAS gene complements and structural arrangements identified in Metarhizium robertsii [39] are very similar to E. inebrians and, as such, we would predict that M. robertsii strain ARSEF 23 could be capable of producing EN and LAH, assuming there is similar specificity of LpsB with LA and LpsC with alanine.

3. Phylogenetic Relationships of EAS Genes

3.1. Comparison of EAS Gene Phylogenies

We have inferred phylogenetic trees for EAS genes of known and suspected ergot alkaloid-producing Clavicipitaceae, plus N. fumigata, which we presumed to be an outgroup in keeping with housekeeping gene relationships. Phylogenies of the core genes for the first four steps in ergot alkaloid biosynthesis—namely, dmaW, easF, easC and easE—were congruent, so a concatenated data set (WFCE) was constructed, from which a maximum likelihood (ML) tree was inferred with PhyML at phylogeny.fr [40] (Figure 3). The lpsB tree (Figure 4) was also congruent with the corresponding WFCE subtree (i.e., the tree pruned of taxa lacking lpsB). The WFCE and lpsB phylogenies were significantly supported at all nodes. The WFCE phylogeny grouped sequences from seven out of eight Epichloë species in a clade that was basal in the Clavicipitaceae, whereas the sequences from the eighth representative, E. inebrians, appeared as the sister to the Claviceps clade. Comparing this phylogeny to that of the housekeeping gene, tefA (Figure 5), the only significant disparity was the basal placement of the main clade of Epichloë EAS genes, which contrasted with the tefA phylogeny that placed all of the Epichloë species together in a clade with a sister relationship to the Claviceps clade. There was also a possible disparity in placement of P. ipomoeae, but this cannot be considered significant because the relevant branch in the tefA tree lacked statistical support. Therefore, with the glaring exception of the main Epichloë EAS clade, evolution of EAS genes in the Clavicipitaceae appears to have been by direct decent without duplication (paralogy) or horizontal gene transfer.
Figure 3. Phylogeny of concatenated dmaW-easF-easC-easE genes. The phylogenetic tree is based on a nucleotide alignment of coding sequences of the core genes for the first four steps in ergot alkaloid biosynthesis available from sequenced genomes. Sequences were aligned with MUSCLE [41], and trees were inferred by maximum likelihood with PhyML implemented by Phylogeny.fr [40]. Node support was determined by the approximate likelihood ratio test [42]. Gene gains and loses are indicated by + and –, respectively, and asterisks (*) indicate that remnants or pseudogenes can be found in one or more members of the clade. Genes are color-coded based on position of the encoded step within the pathway. The major pathway end product of each strain is indicated on the right in bold face (product produced) or regular type (product predicted but not yet tested), or in parentheses (product predicted but undetected).
Figure 3. Phylogeny of concatenated dmaW-easF-easC-easE genes. The phylogenetic tree is based on a nucleotide alignment of coding sequences of the core genes for the first four steps in ergot alkaloid biosynthesis available from sequenced genomes. Sequences were aligned with MUSCLE [41], and trees were inferred by maximum likelihood with PhyML implemented by Phylogeny.fr [40]. Node support was determined by the approximate likelihood ratio test [42]. Gene gains and loses are indicated by + and –, respectively, and asterisks (*) indicate that remnants or pseudogenes can be found in one or more members of the clade. Genes are color-coded based on position of the encoded step within the pathway. The major pathway end product of each strain is indicated on the right in bold face (product produced) or regular type (product predicted but not yet tested), or in parentheses (product predicted but undetected).
Toxins 07 01273 g003

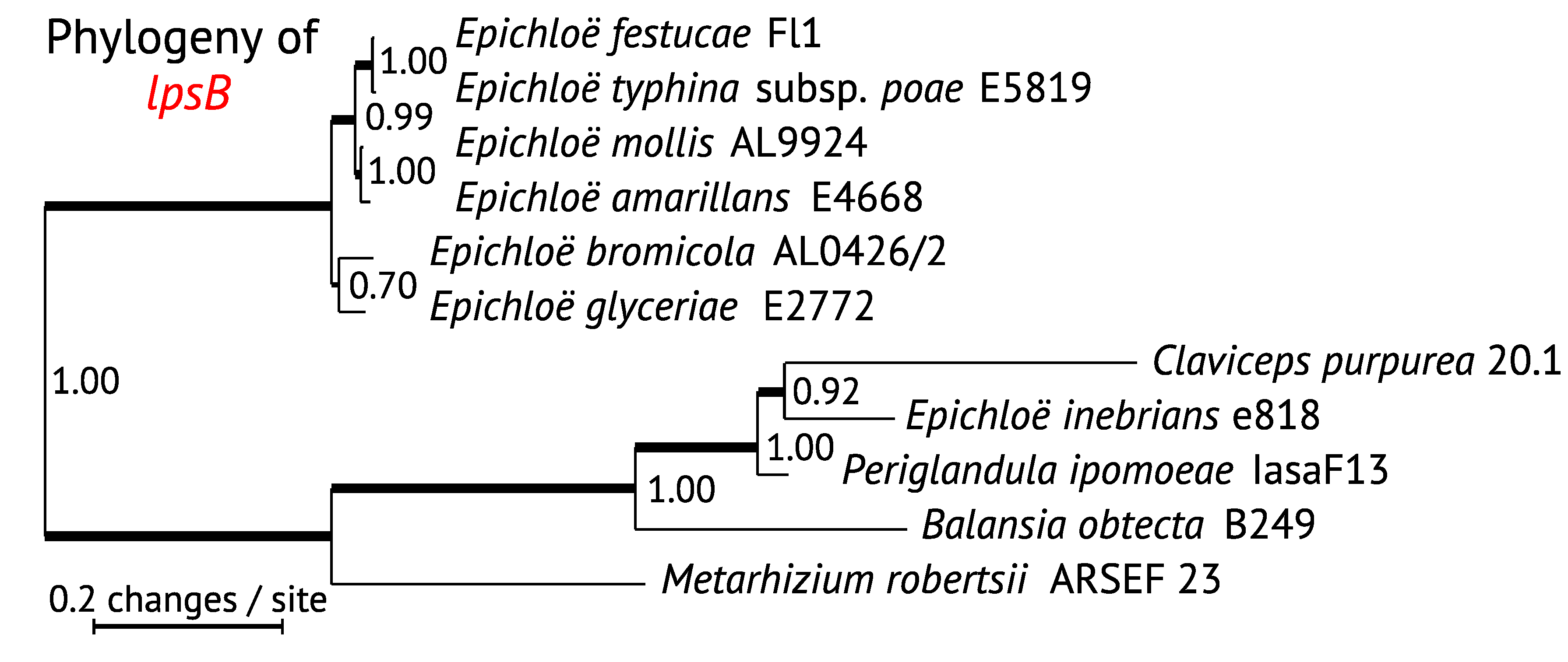

Figure 4. Phylogeny of lysergyl peptide synthetase subunit 2 (lpsB). The phylogenetic tree was inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3. The left edge is placed to correspond to the root inferred in Figure 3 with Neosartorya fumigata EAS genes as the outgroup; N. fumigata lacks lpsB.
Figure 4. Phylogeny of lysergyl peptide synthetase subunit 2 (lpsB). The phylogenetic tree was inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3. The left edge is placed to correspond to the root inferred in Figure 3 with Neosartorya fumigata EAS genes as the outgroup; N. fumigata lacks lpsB.
Toxins 07 01273 g004
Figure 5. Phylogeny of tefA, encoding translation elongation factor 1-α. The phylogenetic tree inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3.
Figure 5. Phylogeny of tefA, encoding translation elongation factor 1-α. The phylogenetic tree inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3.
Toxins 07 01273 g005
The well-supported position of EAS genes from most Epichloë species, being basal among the Clavicipitaceae (Figure 3 and Figure 4) indicates a deviation from strict orthology because it differs dramatically from housekeeping gene phylogenies (Figure 5). Possible causes of this deviation are trans-species polymorphism, paralogy or horizontal gene transfer. In a BLASTp search of dmaW against available sequences at GenBank, no homologues were closely related to this clade except those of other Epichloë species, so there was no obvious source for a horizontal gene transfer event. Comparing the genomic context, sequences nearest the EAS clusters differed between E. festucae and E. inebrians (assemblies of other Epichloë species did not link EAS clusters with other genes), so trans-species polymorphism also was unsupported. This leaves, as our favored possibility, that the E. inebrians and other Epichloë EAS clusters were derived from paralogous copies that arose from duplication of the EAS cluster in an ancestor to most or all of the Clavicipitaceae. In this regard, the tefA phylogeny (Figure 5) placed E. inebrians basal in genus Epichloë, supporting the possibility that the cluster common to most Epichloë species was lost on that basal branch to E. inebrians. However, a puzzle remains in that no genus other than Epichloë showed indications of paralogous EAS clusters. This may be just a matter of limited sampling, and we predict that a wider and deeper survey of the Clavicipitaceae will reveal paralogs related to the basal group of Epichloë EAS sequences.
Paralogous dmaW genes are in fact evident in some of the Clavicipitaceae. Specifically, C. purpurea 20.1 has two dmaW copies flanking a paralogous easF and located 94 kb and 98 kb from the EAS-cluster dmaW. Epichloë mollis also has a paralogous dmaW, which appears to be a pseudogene. However, these paralogues are due to relatively recent duplications and group with the respective Claviceps and Epichloë dmaW genes in phylogenetic analysis [43].

3.2. Mapping EAS Gene Gains and Losses

Mapping genomic alternations onto the WFCE phylogeny (Figure 3) revealed repeated instances in which multiple EAS genes have been lost. The most extensive losses were eight genes in two separate instances resulting in gene sets for CC production: The branch to E. elymi and E. brachyelytri, and the branch to At. hypoxylon. The identification of remnant or pseudogene copies of other EAS genes supported the scenario of extensive gene loss, as inferred from the phylogeny. Losses of multiple EAS genes on numerous lineages have given rise to at least four distinct chemotypes in addition to the variations in ergopeptines. These gene losses add to the potential for ergot alkaloid diversification, together with neofunctionalization of lpsA (Table 2), and with easA variations to give agroclavine or festuclavine as precursors of ergot alkaloids and dihydroergot alkaloids, respectively, and easG variations to yield 8(S)-dihydroergot alkaloids (Figure 1) [17].
Interestingly, in almost all cases of EAS gene loss (Figure 3), all genes were lost or inactivated for a branch of the pathway, leaving only those EAS genes required for biosynthesis of the observed metabolites. In two instances, this process has given CC as the end product (or presumed end product), in one instance it has given EN rather than LAH, and in three instances it has eliminated the ergopeptine pathway. The only exception to this pattern is in C. fusiformis, which has apparently retained easH despite losing all other genes for late pathway steps both to ergopeptines and to EN and LAH. However, whether easH is transcribed or gives an active (but presumably useless) product in C. fusiformis is unknown. Among many natural strains, gene losses are similarly evident in indole-diterpene (IDT) and loline alkaloid (LOL) gene clusters with loss or inactivation of all other genes for downstream steps of the affected pathway branch [24,44,45]. Such common patterns suggest that there is selection against expression of enzymes in strains that lack their normal substrate. We speculate that expression of such enzymes may be directly harmful because the enzymes may catalyze reactions with substrates other than the missing natural substrate, thereby generating toxic products.

3.3. Positional Changes of Clusters with Respect to Telomeres

Also mapped to the WFCE phylogeny (Figure 3) are three changes in the EAS cluster positions relative to telomeres. Considering that the N. fumigata and basal Epichloë EAS genes are near telomeres (“subterminal”), it is parsimonious to propose this as the ancestral state. If so, internalization would have occurred on the branch that separates most of the Clavicipitaceae from the basal Epichloë EAS genes. An interesting translocation event is evident on the branch to E. inebrians, whereby the EAS cluster was divided and at least one of the two resulting portions returned to a subterminal position. Interestingly, the cloA gene (designated B on the map in Figure 2) is situated such that its stop codon is a single base away from the telomere repeat array, implying that the telomere serves as a transcription terminator for that gene. The translocation event on the E. inebrians branch nicely illustrates the dynamics of subterminal regions of the chromosomes. Recalling that the IDT cluster—directing biosynthesis of the indole-diterpene, paxilline—is subterminal in the closely related E. gansuensis strain E7080 [24], it is particularly interesting to find two remnant IDT genes flanking the centromeric side of the subterminal EAS cluster in E. inebrians. It appears likely that the EAS cluster displaced most of the IDT cluster as it moved into the subterminal position. This supports an important role of subterminal regions in arrangements and rearrangements of secondary metabolism gene clusters. With that in mind, we would predict that most EAS cluster rearrangements occur in association with subterminal clusters, whereas internal EAS clusters are more stable. Evidence pertinent to that prediction is discussed later, in Section 5.

3.4. Evolution of LpsC

Assuming that the common ancestor of Clavicipitaceae and Trichocomaceae possessed the seven genes for early and intermediate biosynthetic steps, a parsimonious scenario would identify three branches for gene gains: one to N. fumigata, one to all Clavicipitaceae, and the third to Clavicipitaceae after splitting from the basal Epichloë EAS clade (Figure 3). In the context of our proposed paralogy, the last of these would have involved acquisition of the new genes, lpsC, easO and easP, on one of the branches after that split in the Clavicipitaceae. Interestingly, LpsC serves as an alternative to the LpsA subunit in interacting with LpsB as a component of a lysergyl peptide synthetase complex (Figure 1). A phylogenetic analysis of Lps subunit A domains (Figure 6) indicates that lpsC may be derived from a copy of the first module of lpsA fused to an R* (reductase) coding sequence. Thus, biosynthesis of EN and LAH seems to have evolved later than biosynthesis of the much more complex ergopeptines.

3.5. Evolution of Module Specificity in LpsA

The evolution of module specificity in LpsA subunits can also be mapped onto the WFCE (Figure 3) and lpsA A-domain (Figure 6) phylogenies. However, a crucial difference between WFCE and lpsA phylogenies is that lpsA A-domains consistently group P. ipomoeae and B. obtecta in a terminal clade, whereas WFCE groups P. ipomoeae with Claviceps spp. and places B. obtecta in a relatively basal position. This may be the result of lpsA paralogy due to duplications and losses (a scenario reminiscent of the tandemly duplicated lpsA genes in C. purpurea), or may simply be due to lineage sorting effects in the evolution of these lineages (as suggested by the short and poorly supported branch in the tefA phylogeny). To discuss LpsA module evolution, we now use single-letter abbreviations for the three specified amino acids in order of the modules 1, 2 and 3. The ancestral state could have been ALP or AVP, with module A2 changing specificity either on the basal Epichloë branch or on the lineage leading to the Claviceps/Periglandula/Balansia clade, respectively. During evolution of the Periglandula/Balansia clade, specificity of module 3 switched from P to A. What is especially interesting is that, within Claviceps, there is an accelerated diversification of modules 1 and 2, such that the variant LpsA subunits specify the substrate combinations for at least 19 different ergopept(in)ines (Table 2).
Figure 6. Phylogeny of the Lps subunit AMPylation domains. The phylogenetic tree was inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3. The specified substrates are given in parentheses as LA = lysergic acid, dihyroLA = dihydrolysergic acid, and standard abbreviations for common l-amino acids. The LpsA superscripts indicate single-letter codes for the amino acids specified by AMPylation domains of module 1, 2 and 3 (A1, A2 and A3), respectively. Functionality and specificity of M. robertsii LpsB and LpsC are unknown. The P. ipomoeae EAS cluster is shown at right with Lps genes and modules color-coded.
Figure 6. Phylogeny of the Lps subunit AMPylation domains. The phylogenetic tree was inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3. The specified substrates are given in parentheses as LA = lysergic acid, dihyroLA = dihydrolysergic acid, and standard abbreviations for common l-amino acids. The LpsA superscripts indicate single-letter codes for the amino acids specified by AMPylation domains of module 1, 2 and 3 (A1, A2 and A3), respectively. Functionality and specificity of M. robertsii LpsB and LpsC are unknown. The P. ipomoeae EAS cluster is shown at right with Lps genes and modules color-coded.
Toxins 07 01273 g006

4. Ergot Alkaloid Diversity within Epichloë Species

4.1. Distribution of EAS Genes across Epichloë Species

The distribution of the EAS locus is well understood within Epichloë species due to the availability of genomic and genotyping data (www.endophyte.uky.edu). Genome sequences (including draft genomes) for 54 isolates representing 10 described Epichloë species, two varieties, and five undescribed species have enabled comparisons of the EAS locus across a diverse collection of isolates with varying capabilities to produce ergot alkaloids [24,34,38,43,45,46]. Moreover, in recent studies, markers developed from the genome sequences have been used for PCR-based genotyping of endophyte-infected grass collections for the presence of genes encoding key alkaloid biosynthesis pathway steps [10,47,48,49,50,51,52]. Compared to genome sequencing, PCR-based genotyping is less reliable in determining if a gene is functional, but the presence of full-length genes typically associated with EAS clusters for the metabolites CC, ERV or EN usually corresponds well to the production of the corresponding metabolite. The predictive power of this method is helped by the tendency for complete losses or large deletions in the nonfunctional alkaloid biosynthesis genes, and for the downstream genes to be partly or completely deleted as well [24].
The presence of EAS genes within Epichloë species has been observed in strains of at least 19 (9 nonhybrid and 10 hybrid species) of the 35 taxa tested (including varieties and undescribed species) (Table 3). The EAS locus has a discontinuous distribution within Epichloë species. For example, not all E. festucae isolates are capable of producing ergovaline, since some isolates (e.g., E. festucae E434) lack the EAS locus. However, in addition to their discontinuous distribution, the EAS loci can differ in structural content. Strains capable of producing CC (e.g., E. elymi E56) only contain functional genes encoding the first four EAS pathway steps (DmaW, EasF, EasC and EasE) (Figure 1; Table 1), whereas ergovaline producers (e.g., E. festucae Fl1) have more complex EAS loci (EASERP) with at least 11 functional genes present (Table 1).
Many of the chemotype differences identified within the Epichloë species can be attributed to the presence or absence of genes encoding the key pathway steps, but there are some anomalies. Isolates, such as E. festucae strains E2368 and E189, E. amarillans E4668 and E. glyceriae E2772 appear to have complete EASERP clusters with no obvious deleterious mutations, yet ergot alkaloids have not been detected in host plants symbiotic with these isolates. Transcriptome (RNA-seq) analysis of E2368-infected meadow fescue (Lolium pratense) and tall fescue show that the EAS genes are not expressed in this strain, thus providing a clue to why the predicted alkaloid, ERV, is not produced [24].
Many endophytes can readily produce ergot alkaloids in planta but have a more limited and unreliable production in non-symbiotic culture conditions [53,54]. Histone methylation apparently helps repress expression of EAS and other alkaloid gene clusters when Epichloë species are grown in culture, since the EAS and LTM genes of E. festucae strain Fl1 were de-repressed under non-symbiotic culture conditions when two genes that encode histone H3 methylases were deleted [55].
Table 3. EAS gene distribution within and between Epichloë species.
Table 3. EAS gene distribution within and between Epichloë species.
Epichloë species aHost speciesDetection method bEAS gene variations (strains observed) cReference
Epichloë amarillansAgrostis hyemalisGT, DG, G0* (4), (ERV) (1)[24]
E. aotearoaeEchinopogon ovatusG0 (1)[24,43]
E. baconiiAgrostis tenuis,Calamagrostis villosaGT, G0* (3)[43]
E. brachyelytriBrachyelytrum erectumGT, G0 (1), CC (3)[24]
E. bromicolaBromus erectus,Bromus benekenii,Bromus tomentellus,Agropyron hispidusGT, DG, G0* (5)[43]
E. cabralii (H)Phleum alpinum Bromus laevipesG, GT0 (1), (ERV) (2)[50]
E. canadensis (H)Elymus canadensisGT, DGCC (1), ERV (1)[43,47]
E. chisosa (H)Achnatherum eminensDG0 (1)[43]
E. coenophiala (H)Lolium arundinaceumGT, DG0* (11), ERV (12), ERV (39)[43,49,51]
E. elymiElymus virginicusGT, G0 (1), CC (1)[24]
E. festucaeFestuca trachyphylla,Festuca rubra subsp.rubra,Lolium giganteumGT, G0 (1), ERV (1), (ERV) (2)[24]
E. festucae var. loliiLolium perenneGT, GERV (2), (ERV) (1)[56,57]
E. festucae var. lolii x E. typhina (H)Lolium perenneDGERV (1)[43,58]
E. funkii (H)Achnatherum robustumGT, DGCC (1)[43]
E. gansuensisAchnatherum inebriansG0 (1)[24]
E. inebriansAchnatherum inebriansGEN, LAH (1)[24]
E. glyceriaeGlyceria striataGT(ERV) (2)[24]
E. mollisHolcus mollisGERV (1)[43]
E. occultans (H)Lolium sp. (2x)GT0 (3)[43]
E. schardlii (H)Cinna arundinaceaGT0 (1)[59]
E. siegelii (H)Lolium pratenseDG0 (1)[43]
E. sylvaticaBrachypodium sylvaticumGT0 (2)[34]
E. typhinaLolium perenne,Dactylis glomerataG, GT0 (3)[24,43]
E. typhina ssp. clarkiiHolcus lanatusGTERV (1)unpublished
E. typhina ssp. poaePoa nemoralis,Bromus laevipesGT, G0 (3), ERV (1)[24,50]
E. uncinata (H)Lolium pratenseDG0 (1)[43]
E. sp. AroTG-2(H)Achnatherum robustumGTEN (1)[10]
E. sp. BlaTG-3(H)Bromus laevipesGT0* (1), CC (2)[50]
E. sp. FaTG-2(H)Lolium sp. (6x)GT, DGERV (10), ERV (33)[43,49,51,60]
E. sp. FaTG-3(H)Lolium sp. (6x), (8X)GT, DG0 (11)[43,51,60]
E. sp. FaTG-4(H)Lolium sp. (10x)GT, DGERV (1), ERV (11)[43,51]
E. sp. FcaTG-1(H)Festuca campestrisGT0 (3)unpublished
E. sp. FveTG-1(H)Festuca versutaGT0 (2)unpublished
E. sp. PalTG-1(H)Poa alsodesGT0* (1)unpublished
E. sp. PauTG-1(H)Poa autumnalisGT0 (1)unpublished
a Endophytes that are known hybrids = (H); b Detection methods for the EAS genes DG = draft genome, G = genome, GT = PCR-based genotyping; c Number of independent strains evaluated. Alkaloids are abbreviated CC = chanoclavine I, ERV = ergovaline, EN = ergonovine, LAH = lysergic acid α-hydroxyethylamide, and are in bold face (product produced) or regular type (product predicted but not yet tested), or in parentheses (product predicted but undetected). 0 = No EAS genes identified, 0* = contains only remnants of EAS clusters; 0 and 0* are unable to produce ergot alkaloids.

4.2. Pseudogenes and Gene Remnants within the EAS Locus

Pseudogenes and gene remnants have been identified within or adjacent to many of the described EAS clusters within the Clavicipitaceae. Most Epichloë species that are unable to produce ergot alkaloids lack functional EAS genes or only retain remnants of some EAS genes. For example, a remnant lpsA sequence is present in the genome sequences of E. amarillans strain E57, E. bromicola strain AL0434, and Epichloë coenophiala strains e4509, AR542 and AR584. Typically these lpsA remnants have multiple frameshifts, stop codons or both, and are flanked or even disrupted by AT-rich repeat sequences; or, in the case of E57, the gene is truncated at the telomere [24]. In comparison to E. bromicola strain AL0434, which has only an lpsA remnant, strain AL0426/2 has retained a greater number of EAS genes (Figure 7). The E. bromicola AL0426/2 genome assembly (www.endophyte.uky.edu) contains lpsB, easE, easF and easG (contig 634), but easE is a pseudogene in which part of the coding sequence is missing. Since dmaW and easC are also missing, the AL0426/2 isolate is not expected to produce ergot alkaloids. The identification of two independent EAS gene loss events in E. bromicola (strains AL0434 and AL0426/2) suggests that this species may have greater EAS diversity than is currently recognized, but E. bromicola strains capable of producing ergot alkaloids have not yet been identified [61].

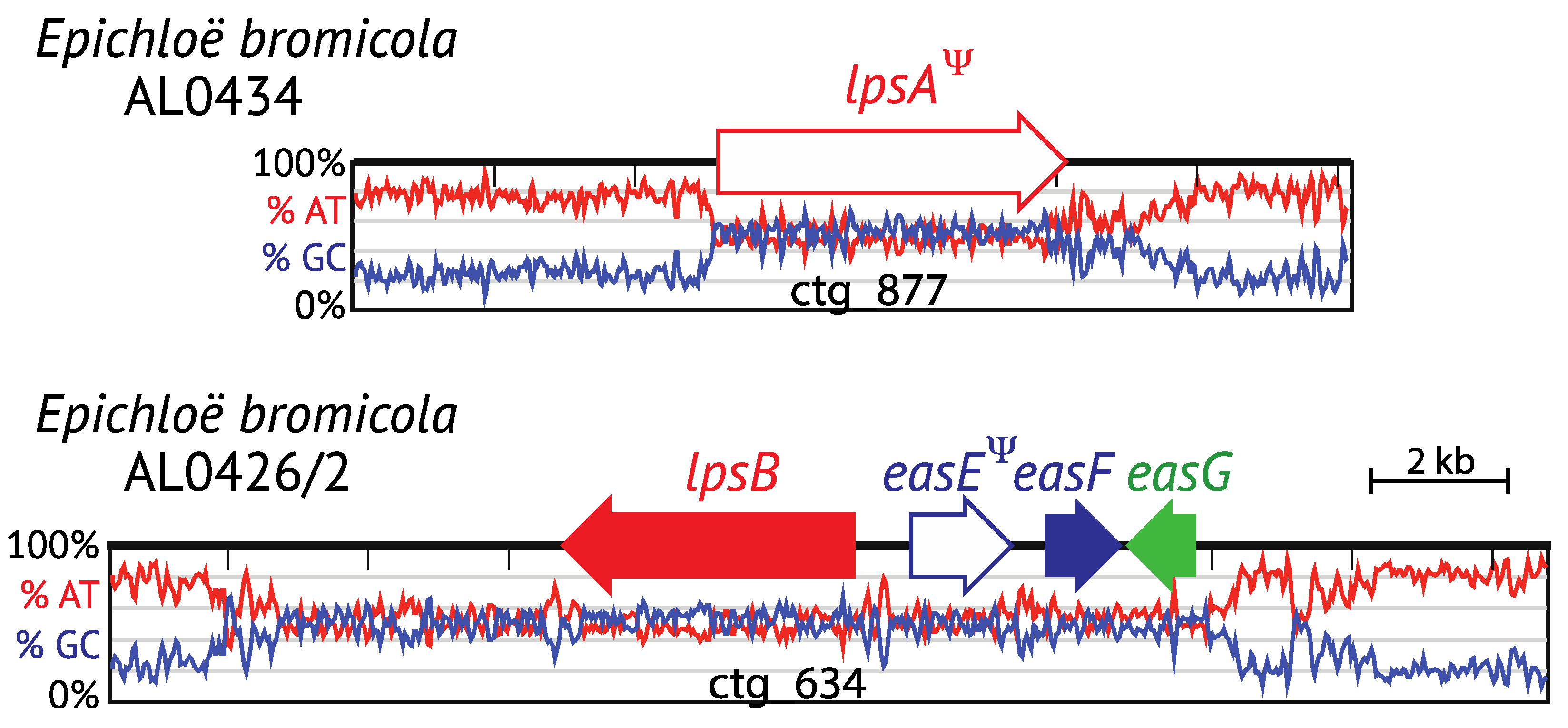

Figure 7. Remaining EAS genes and pseudogenes after independent losses in two E. bromicola isolates, AL0434 and AL0426/2. The AT-GC DNA contents are shown under the maps. Pseudogenes are represented by Ψ.
Figure 7. Remaining EAS genes and pseudogenes after independent losses in two E. bromicola isolates, AL0434 and AL0426/2. The AT-GC DNA contents are shown under the maps. Pseudogenes are represented by Ψ.
Toxins 07 01273 g007

4.3. Hybrids: EAS Gene Cluster Variations

Compared to sexual strains or other haploids, the hybrid Epichloë species have a greater potential to contain EAS genes because each of the ancestors contributes genetic information. In addition, variations of the EAS locus within a hybrid can be due to copy number or differences within the inherited EAS cluster (EASCC vs EASERP clusters). Some, but not all isolates from the hybrid species, Epichloë canadensis, E. coenophiala, and E. sp. FaTG-2, contain two EAS copies (Figure 8). The E. canadensis isolate e4815 contains two EAS clusters—EASERP for ERV and EASCC—that are representative of the two contributing ancestors, E. amarillans and E. elymi, respectively. In contrast, E. canadensis isolate CWR34 contains a single EASCC cluster, contributed by its E. elymi ancestor. Mating-type gene differences between E. canadensis isolates e4815 and CWR34 clearly indicate that they are the result of independent hybridizations, but it is unclear if CWR34 subsequently lost the E. amarillans EAS cluster, or if its particular ancestral strain of E. amarillans lacked EAS genes.

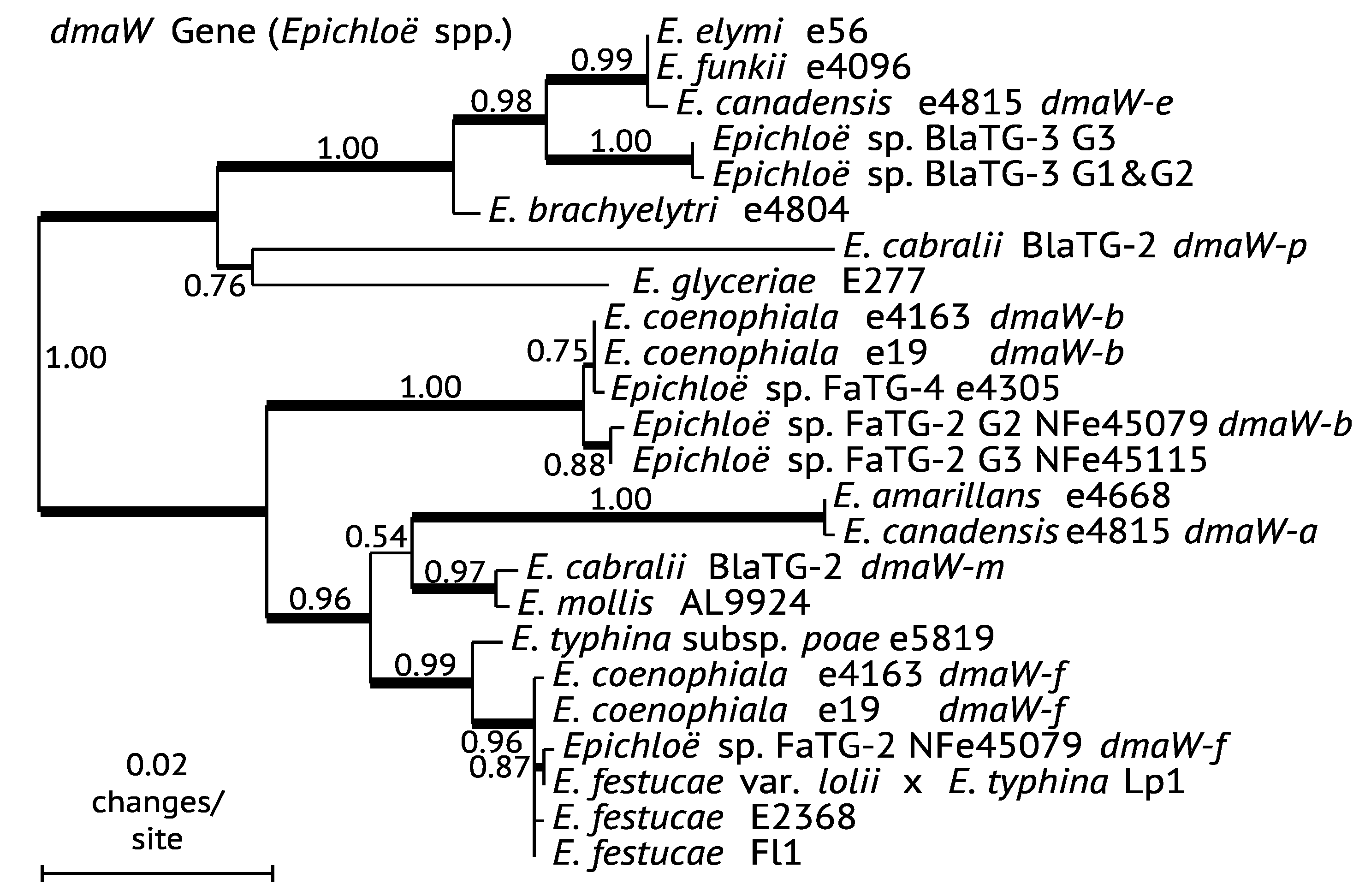

Figure 8. Phylogeny of dmaW genes of Epichloë strains. The phylogenetic tree was inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3. The dmaW alleles are distinguished in hybrids that possess more than one copy with a letter that refers to the ancestral progenitor (a = E. amarillans, b = E. baconii-related Lolium associated Epichloë subclade, e = E. elymi, f = E. festucae, m = E. mollis-related and p = E. typhina subsp. poae. The dmaW gene of E. inebrians has been omitted in this analysis because the gene and EAS locus is more similar to that of P. ipomoeae than to those of other Epichloë species (see Figure 3).
Figure 8. Phylogeny of dmaW genes of Epichloë strains. The phylogenetic tree was inferred by maximum likelihood on a nucleotide alignment of coding sequences. Methods are as in Figure 3. The dmaW alleles are distinguished in hybrids that possess more than one copy with a letter that refers to the ancestral progenitor (a = E. amarillans, b = E. baconii-related Lolium associated Epichloë subclade, e = E. elymi, f = E. festucae, m = E. mollis-related and p = E. typhina subsp. poae. The dmaW gene of E. inebrians has been omitted in this analysis because the gene and EAS locus is more similar to that of P. ipomoeae than to those of other Epichloë species (see Figure 3).
Toxins 07 01273 g008

4.4. Gene Losses in Hybrids with Multiple Copies

Some isolates of E. coenophiala are unable to produce ergot alkaloids because they only contain a remnant EAS locus (e.g., e4309, AR542 and AR584; Table 3) [51]. The E. coenophiala isolates known to produce ERV, such as isolates e19 and e4163, have two copies of the EAS clusters from two of the three contributing ancestors: E. festucae and the Lolium-associated Epichloë (LAE) subclade. Interestingly, the EAS clusters of both E. coenophiala isolates e19 and e4163 are structurally very similar with respect to AT content and repeat sequences, though they differ in which EAS genes are absent or inactive pseudogenes in each EAS cluster (Figure 9). The lpsB2 gene in e19 (from the E. festucae ancestor) is nonfunctional due to a frame shift within the coding region. The situation in e4163 is more complex in that neither EAS cluster is complete; EAS1 (from LAE) lacks lpsB1 and easE1, and EAS2 (from E. festucae) includes a nonfunctional easG2. Therefore, since e4163 is able to produce ERV, each EAS cluster must functionally complement the genetic deficiencies of the other cluster. Epichloë sp. FaTG-2 isolates NFe45115 and NFe45079 are both capable of producing ERV, but EAS copy numbers differ; NFe45115 has one copy, whereas NFe45079 has two copies [49]. Recent genome sequence data have also revealed that NFe45079 contains only a single copy of lpsA, but all other genes are present in two copies.

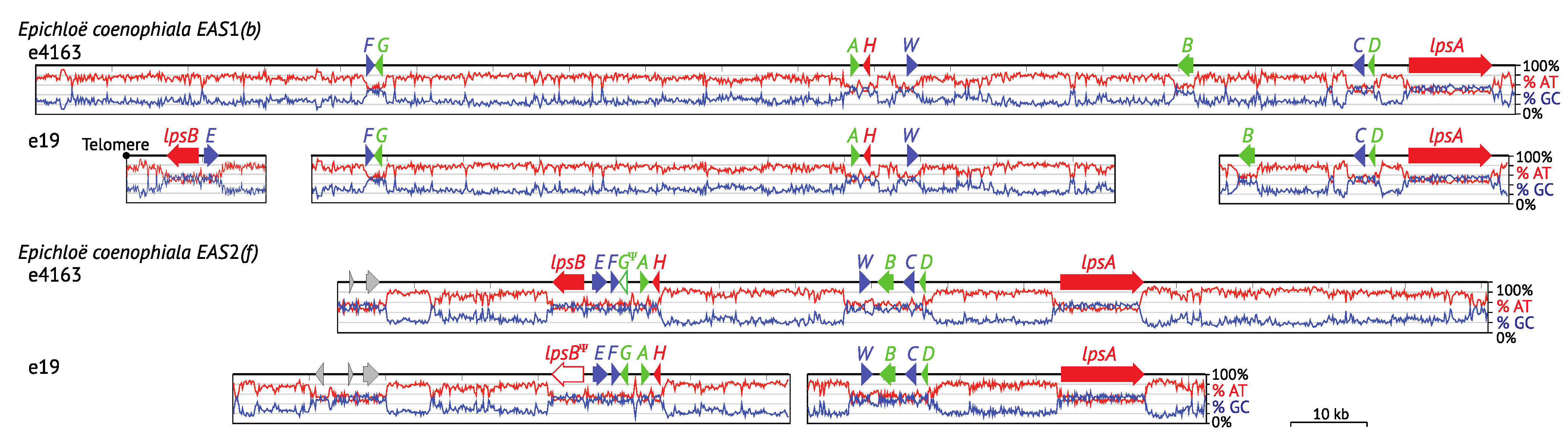

Figure 9. Structures of the EAS clusters from two E. coenophiala strains, e19 and e4163. The AT-GC contents are shown under the maps. Gene names are abbreviated as in Figure 2.
Figure 9. Structures of the EAS clusters from two E. coenophiala strains, e19 and e4163. The AT-GC contents are shown under the maps. Gene names are abbreviated as in Figure 2.
Toxins 07 01273 g009

4.5. Endophyte Genetic Variation within a Single Host Species

The associations of endophytes and hosts represent co-evolving associations as evidenced by the tendency for evolution of the Epichloë spp. to track evolution of their hosts [62]. It is interesting to note that sometimes a single host species has symbiotic associations with more than one endophyte species, but each individual plant will only host one endophyte genet. Tall fescue can be symbiotic with E. coenophiala, Epichloë sp. FaTG-2, FaTG-3 and FaTG-4, and strains representing each of these endophytes have different alkaloid profiles [43,51,60]. Elymus canadensis can be symbiotic with E. elymi and E. canadensis, and each of these endophytes also exhibits chemotype variation [47]. As we develop and refine high throughput methods to explore large host collections more thoroughly, more endophyte variation may be identified within a single host species.
Recently Bromus laevipes, a bunchgrass native to California, was found to have independently formed symbiotic associations with three Epichloë species, the nonhybrid E. typhina subsp. poae (designated Bromus laevipes Taxonomic Group 1; BlaTG-1), a hybrid designated BlaTG-2, which appears to be phylogenetically similar to E. cabralii from Phleum alpinum, and another hybrid designated BlaTG-3 [50]. Endophyte diversity within this host collection was identified by PCR-based genotyping of the EAS, LOL, indole-diterpene/lolitrem (IDT/LTM) and peramine (PER) loci. The BlaTG-3 isolates could be separated into three genotypes (G1, G2, and G3) based on the EAS and mating type complement. Isolates considered BlaTG-3 G1 only contained dmaW, whereas BlaTG-3, G2, and G3, had different mating-type genes, but shared the same EAS gene complement (EASCC) in keeping with its ability to produce CC. In contrast, the complete EAS gene complement required for ERV production (EASERP) was identified within BlaTG-2, yet ergot alkaloids were not detected in plants with BlaTG-2. RT-PCR expression analyses of the EAS genes from BlaTG-2-infected plants indicated they were not expressed. Interestingly, although BlaTG-2 and E. cabralii from Phleum alpinum are hybrids with the same two ancestral Epichloë species, no EAS genes are present in characterized E. cabralii strains.
Sleepygrass plants growing in the vicinity of Cloudcroft, New Mexico, U.S.A., are renowned for their narcotic effects on livestock because they can have high levels of the ergot alkaloids ergine and EN [63]. It is now clear that two endophyte species can be symbiotic with sleepygrass, E. funkii [64] and a so-far undescribed hybrid Epichloë species designated AroTG-2 [10]. Each of these endophytes has the EAS complement and ability to produce different ergot alkaloids, either CC (EASCC) or ergine and EN (EASEN), respectively [10]. Phylogenetic analysis of dmaW groups the E. funkii gene in a clade with dmaW of the E. festucae clade (Figure 8). In contrast, AroTG-2 has a dmaW sequence more similar to that of E. inebrians from drunken horse grass than to that of other Epichloë species (data not shown), which is in keeping with the similarity of the alkaloids produced by these two endophyte species and their strong stupor-inducing effects on grazing livestock [11,63].

5. Synteny and Rearrangements in the EAS Loci

5.1. Syntenic Regions of the EAS Loci

Although functional EAS genes are always clustered, they are not always in a single cluster, arrangements of the genes are not highly conserved, and locations of the clusters can vary, some being subterminal (near chromosome ends), and others being internal and flanked on both sides by long regions rich in housekeeping genes (Figure 10). With the exception of the Epichloë species (discussed below), the degree of divergence in EAS gene arrangements, gene contents, and the pathway end-products generally relates to the degree of divergence between species. Thus, it is unsurprising that the EAS cluster arrangements and gene contents differ greatly in comparison of N. fumigata to the Clavicipitaceae. A surprisingly consistent feature is the arrangement and close linkage of easE and easF in all except E. elymi E56; even their Ar. benhamiae orthologues, respectively designated ARB_4648 and ARB_4647, are adjacent but arranged tail to tail [18]. However, EAS gene arrangements and orientations are very similar in what we will call the “crown EAS clade” (Figure 3): Metarhizium spp. (including Metarhizium acridum, which is not shown), P. ipomoeae, B. obtecta, At. hypoxylon, Claviceps spp. and E. inebrians. Differences within the crown EAS clade were as follows: (1) an inversion of lpsB-easA segment in C. fusiformis relative to the others; (2) separation of the easH-lpsA segment from others in B. obtecta, due to an event that (based on remnant genes) occurred in a common ancestor of B. obtecta and At. hypoxylon; (3) breakage of the cluster in E. inebrians by a telomere introduced immediately downstream of cloA; and (4) several gene losses or inactivations that have resulted in changes in ergot alkaloid profiles, as discussed above.
Despite the conserved arrangement of EAS genes in the aforementioned crown EAS clade, there is very limited synteny of flanking genes (Figure 2), except within the Claviceps subclade and, separately, within the B. obtecta/At. hypoxylon subclade. The only group of orthologous genes that flanks most members of the crown EAS clade is represented in C. purpurea 20.1 by AET79176 (GenBank accession number; labeled with asterisks in Figure 2) and is similarly positioned in all except E. inebrians, which has its AET79176 orthologue at the opposite end of the cluster. With the possible exceptions of At. hypoxylon B4728 and E. festucae E2368, the AET79176 orthologue was linked to EAS in every strain that had one. In B4728, it is also possible that the gene is linked to the EAS cluster, but at >75 kb from easC (the AET79176 orthologue being near the middle of the 123,479-bp contig00086, which is otherwise very AT-rich and lacks other identifiable genes). So far, there is no putative function or conserved signature domain for AET79176, but it might warrant future investigation for a possible role in the regulation of EAS genes or in a biosynthetic role yet to be identified.

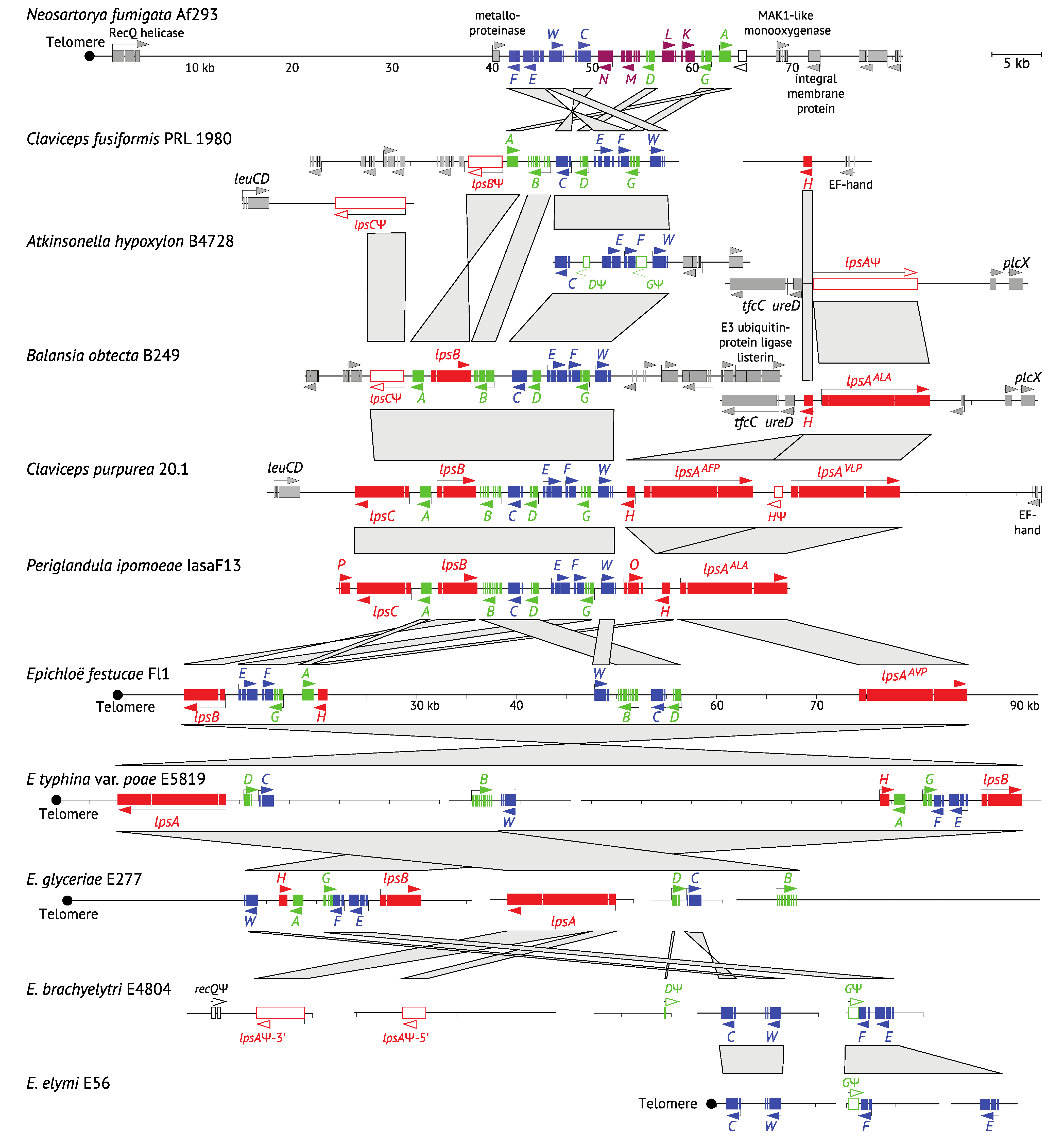

Figure 10. Structures of representative EAS loci showing synteny of EAS genes between species. Genes are colored to represent the stage of the pathway for the encoded product (see Figure 1 and Figure 2). Pseudogenes are represented by Ψ and white-filled arrows. Gray polygons link orthologous genes and gene blocks but are not meant to imply particular phylogenetic relationships. The EAS crown clade includes clusters from At. hypoxylon, B. obtecta, C. purpurea, C. fusiformis and P. ipomoeae.
Figure 10. Structures of representative EAS loci showing synteny of EAS genes between species. Genes are colored to represent the stage of the pathway for the encoded product (see Figure 1 and Figure 2). Pseudogenes are represented by Ψ and white-filled arrows. Gray polygons link orthologous genes and gene blocks but are not meant to imply particular phylogenetic relationships. The EAS crown clade includes clusters from At. hypoxylon, B. obtecta, C. purpurea, C. fusiformis and P. ipomoeae.
Toxins 07 01273 g010

5.2. Epichloë Species Have More EAS Loci Rearrangements

The Epichloë species show the greatest variation in cluster organization (Figure 10). Even EASERP clusters, which possess apparently functional forms of 11 EAS genes, show extreme rearrangements of gene positions relative to each other and to the telomeres. (The actual linkage and order of the contigs containing EAS genes was established for E. festucae strains E2368 and Fl1 [24] but could not be determined for other genome sequences when not assembled into scaffolds.) Also highly variable among Epichloë EAS clusters was the organization of their extensive, AT-rich, repetitive sequences, which may directly facilitate cluster instability and rearrangements, and in some cases cause partial or entire deletion of genes giving, for example, EASCC clusters (Figure 2 and Figure 9) [24]. In addition, within the Epichloë species, there is a strong tendency for the EAS locus to be retained at the subterminal region, even though the order of genes relative to the telomere (chromosome end) can differ.
Miniature inverted-repeat transposable elements (MITEs) are prevalent in Epichloë species [57], and have been identified in the promoters of some EAS genes with expansion in the EASCC clusters associated with dmaW and easC. The repetitive AT-rich sequences and prevalence of MITEs are also associated with the gene clusters for biosynthesis of other alkaloid classes; namely, IDT/LTM (indole-diterpenes) and LOL (lolines) [24]. The presence of long transposon-derived repeat blocks seems consistent with the subterminal location of telomere-linked clusters like EAS and IDT/LTM, but the fact that they also feature prominently in the Epichloë LOL clusters, which are typically internal with extensive genic regions flanking both ends, suggests that this is a more general feature of alkaloid clusters [24].

5.3. The Complex History of EAS Loci

Although not by any means restricted to subtelomeric and subterminal regions, blocks of transposon-derived repeats are features of these genomic regions in fungi [65,66], and such regions are prone to considerable instability and gene duplication events [67,68]. A subterminal location appears to be the ancestral state of the EAS cluster, considering that it is a shared feature of N. fumigata and the basal EAS clade in Clavicipitaceae; namely, the clade comprised of the majority of Epichloë EAS clusters (Figure 3). Thus, increased stability, particularly of the EAS core containing early- and mid-pathway genes, seems to be in keeping with the shift from subterminal to internal location in the common ancestor of the crown EAS clade. Nevertheless, the differences in flanking housekeeping genes between the Claviceps subclade and the B. obtecta/At. hypoxylon subclade, plus indications of gene duplication in C. purpurea, indicate additional complexity in the history of the EAS clusters. In C. purpurea, the duplication of lpsA has enabled its neofunctionalization to greatly enhance the diversity of ergopeptine products (Figure 10). Interestingly, 55-73 kb downstream of lpsC in the C. purpurea genome are two additional copies of dmaW and easF (Figure 11), suggesting that gene duplication has been a particularly dynamic evolutionary process in C. purpurea in addition to providing an attractive explanation for the fact that most of the known ergopeptin(in)es are reported from this species. Furthermore, the dmaW and easF duplications are close to a recQ helicase pseudogene, and reflecting their typical locations, recQ helicase genes are also called telomere-linked helicase genes (TLH). (For example, a recQ helicase gene is located near the EAS-linked telomere of N. fumigata, as shown in Figure 2 and Figure 9). In C. purpurea, the association of a recQ helicase pseudogene with duplicated EAS genes and in the vicinity of the EAS cluster suggests more recent evolutionary history associated with a chromosome end than implied in our phylogenetic inferences (Figure 3). Thus, repeated shifts between subterminal and internal locations may have characterized EAS clusters in the Clavicipitaceae, and perhaps especially in C. purpurea as a driver of ergopeptine diversification.

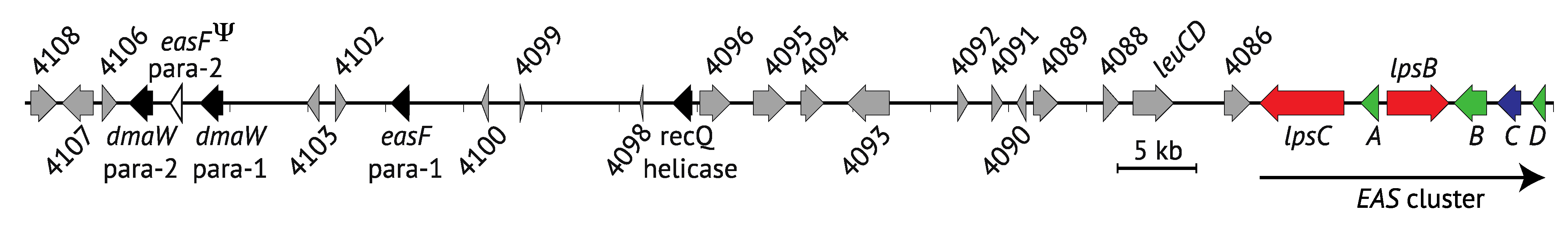

Figure 11. Gene map showing dmaW and easF paralogues in the region flanking the EAS locus from C. purpurea strain 20.1. The genes for recQ helicase and paralogues of dmaW and easF are shown in black, and the genes pertaining to the EAS cluster are color-coded based on position of the encoded step within the pathway. For other genes, the locus_tag names (GenBank) are CPUR_04108, CPUR_04107, etc., where only the last four digits are shown. Names of EAS genes are abbreviated as in Figure 2.
Figure 11. Gene map showing dmaW and easF paralogues in the region flanking the EAS locus from C. purpurea strain 20.1. The genes for recQ helicase and paralogues of dmaW and easF are shown in black, and the genes pertaining to the EAS cluster are color-coded based on position of the encoded step within the pathway. For other genes, the locus_tag names (GenBank) are CPUR_04108, CPUR_04107, etc., where only the last four digits are shown. Names of EAS genes are abbreviated as in Figure 2.
Toxins 07 01273 g011

6. Conclusions

Our understanding of ergot alkaloid biosynthesis has greatly increased through genomics and dissection and manipulation of the biochemical pathway. The genetic basis for ergot alkaloid chemotype diversification can be equated to the presence or absence of genes within the EAS loci that result in the EAS gene complements for, e.g., EASCC, EASEC, EASFC, EASERP, EASEN/ERP and EASLAH/ERP. Neofunctionalizing changes affecting substrate or product specificity of key enzymes, such as EasA (isomerase versus reductase isoforms), CloA and LpsA, also increase pathway diversification.
Phylogenetic analysis of the genes dmaW, easF, easC and easE, which are common to all ergot alkaloid producers, has provided insight into the gene gains and losses that drive chemotypic diversification. In addition, phylogenetic relationships of the EAS genes are not congruent with those of housekeeping gene (e.g., tefA) phylogeny, as the majority of the Epichloë EAS genes (excluding those from E. inebrians) do not subtend the Claviceps clade and may represent paralogous EAS clusters. What also stands out among the sequenced Epichloë strains is the large amount of EAS-associated AT-rich repetitive sequences, in comparison to the EAS loci from the other Clavicipitaceae and N. fumigata. These repetitive sequences, as well as subterminal locations, have likely impacted the Epichloë EAS gene content and organization. We have also presented evidence above (Section 5) that subterminal locations are associated with gene duplication and neofunctionalization even in the evolution of the currently internal EAS cluster of C. purpurea.
Unique to the Epichloë species is the tendency for hybrid formation, and in this process one or more of the ancestors may contribute EAS clusters. For some hybrid strains, the individual EAS contribution is incomplete, yet if two copies are present, each EAS cluster can functionally complement the genetic deficiencies of the other clusters.
Genome sequence comparisons between species and strains show that the EAS loci can vary considerably based on distribution, gene content, gene order, and associated repeat content. Variations identified across multiple EAS loci are all in keeping with the overall natural chemotype diversity that has been identified within the Clavicipitaceae and the Trichocomaceae, and likely provides important selective advantages for many of the species in these families.

Acknowledgments

We thank Ginger A. Swoboda (Noble Foundation), Juan Pan (UKY) and Li Chen (UKY) for genotyping of Epichloë species. We thank Jennifer A. Rudgers for plant material, Leopoldo J. Iannone for E. cabralii and Martina Oberhofer and Stanley H. Faeth for the sleepygrass endophyte. This work was supported by USDA-CSREES grant 2009-34457-20125, USDA-CSREES Grant 2010-34457-21269, USDA-NIFA grant 2012-67013-19384, NSF grant EPS-0814194, National Institutes of Health grants R01GM086888 and 2 P20 RR-16481, and the Samuel Roberts Noble Foundation. Genome sequence analysis was conducted in the University of Kentucky Advanced Genetic Technologies Center. This is publication number 15-12-037 of the Kentucky Agricultural Experiment Station, published with approval of the director.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Billings, M. The Crusades: Five Centuries of Holy Wars; Sterling Publishing Company: New York, NY, USA, 1996. [Google Scholar]
  2. Alm, T. The witch trials of Finnmark, northern Norway, during the 17th century: Evidence for ergotism as a contributing factor. Econ. Bot. 2003, 57, 403–416. [Google Scholar] [CrossRef]
  3. Caporael, L.R. Ergotism: the Satan loosed in Salem? Science 1976, 192, 21–26. [Google Scholar] [CrossRef] [PubMed]
  4. Woolf, A. Witchcraft or mycotoxin? The Salem witch trials. J. Toxicol.: Clin. Toxicol. 2000, 38, 457–460. [Google Scholar] [CrossRef]
  5. Zadoks, J.C. On the Political Economy of Plant Disease Epidemics: Capita Selecta in Historical Epidemiology; Wageningen Academic Publishers: Wageningen, The Netherlands, 2008. [Google Scholar]
  6. Tribble, M.A.; Gregg, C.R.; Margolis, D.M.; Amirkhan, R.; Smith, J.W. Fatal ergotism induced by an HIV protease inhibitor. Headache 2002, 42, 694–695. [Google Scholar] [CrossRef] [PubMed]
  7. Urga, K.; Debella, A.; W’Medihn, Y.; Bayu, A.; Zewdie, W. Laboratory studies on the outbreak of gangrenous ergotism associated with consumption of contaminated barley in Arsi, Ethiopia. Ethiop. J. Health Dev. 2002, 16, 317–323. [Google Scholar]
  8. Scott, P. Ergot alkaloids: Extent of human and animal exposure. World Mycotoxin J. 2009, 2, 141–149. [Google Scholar] [CrossRef]
  9. Lyons, P.C.; Plattner, R.D.; Bacon, C.W. Occurrence of peptide and clavine ergot alkaloids in tall fescue grass. Science 1986, 232, 487–489. [Google Scholar] [CrossRef] [PubMed]
  10. Shymanovich, T.; Saari, S.; Lovin, M.; Jarmusch, A.; Jarmusch, S.; Musso, A.; Charlton, N.; Young, C.; Cech, N.; Faeth, S. Alkaloid variation among epichloid endophytes of sleepygrass (Achnatherum robustum) and consequences for resistance to insect herbivores. J. Chem. Ecol. 2015, 41, 93–104. [Google Scholar] [CrossRef] [PubMed]
  11. Miles, C.O.; Lane, G.A.; di Menna, M.E.; Garthwaite, I.; Piper, E.L.; Ball, O.J.P.; Latch, G.C.M.; Allen, J.M.; Hunt, M.B.; Bush, L.P.; et al. High levels of ergonovine and lysergic acid amide in toxic Achnatherum inebrians accompany infection by an Acremonium-like endophytic fungus. J. Agric. Food Chem. 1996, 44, 1285–1290. [Google Scholar] [CrossRef]
  12. De Groot, A.N.; van Dongen, P.W.; Vree, T.B.; Hekster, Y.A.; van Roosmalen, J. Ergot alkaloids. Current status and review of clinical pharmacology and therapeutic use compared with other oxytocics in obstetrics and gynaecology. Drugs 1998, 56, 523–535. [Google Scholar] [CrossRef] [PubMed]
  13. Burn, D. Neurology (2) Parkinson’s disease: Treatment. Pharm. J. 2000, 264, 476–479. [Google Scholar]
  14. Crosignani, P.G. Current treatment issues in female hyperprolactinaemia. Eur. J. Obstet. Gynecol. Reprod. Biol. 2006, 125, 152–164. [Google Scholar] [CrossRef] [PubMed]
  15. Micale, V.; Incognito, T.; Ignoto, A.; Rampello, L.; Sparta, M.; Drago, F. Dopaminergic drugs may counteract behavioral and biochemical changes induced by models of brain injury. Eur. Neuropsychopharmacol. 2006, 16, 195–203. [Google Scholar] [CrossRef] [PubMed]
  16. Hofmann, A. LSD: Mein Sorgenkind. Die Entdeckung einer “Wunderdroge”; Deutscher Taschenbuch Verlag: München, Germany, 2006. [Google Scholar]
  17. Robinson, S.L.; Panaccione, D.G. Diversification of ergot alkaloids in natural and modified fungi. Toxins 2015, 7, 201–218. [Google Scholar] [CrossRef] [PubMed]
  18. Wallwey, C.; Heddergott, C.; Xie, X.; Brakhage, A.A.; Li, S.-M. Genome mining reveals the presence of a conserved biosynthetic gene cluster for the biosynthesis of ergot alkaloid precursors in the fungal family Arthrodermataceae. Microbiology 2012, 158, 1634–1644. [Google Scholar] [CrossRef] [PubMed]
  19. Vazquez, M.J.; Roa, A.M.; Reyes, F.; Vega, A.; Rivera-Sagredo, A.; Thomas, D.R.; Diez, E.; Hueso-Rodriguez, J.A. A novel ergot alkaloid as a 5-HT(1A) inhibitor produced by Dicyma sp. J. Med. Chem. 2003, 46, 5117–5120. [Google Scholar] [CrossRef] [PubMed]
  20. Gerhards, N.; Neubauer, L.; Tudzynski, P.; Li, S.-M. Biosynthetic pathways of ergot alkaloids. Toxins 2014, 6, 3281–3295. [Google Scholar] [CrossRef] [PubMed]
  21. Panaccione, D.G. Origins and significance of ergot alkaloid diversity in fungi. FEMS Microbiol. Lett. 2005, 251, 9–17. [Google Scholar] [CrossRef] [PubMed]
  22. Panaccione, D.G.; Schardl, C.L.; Coyle, C.M. Pathways to diverse ergot alkaloid profiles in fungi. In Recent Advances in Phytochemistry; Romeo, J.T., Ed.; Elsevier: Amsterdam, The Netherlands, 2006; Volume 40, pp. 23–52. [Google Scholar]
  23. Flieger, M.; Sedmera, P.; Vokoun, J.; R̆ic̄icovā, A.; R̆ehác̆ek, Z. Separation of four isomers of lysergic acid α-hydroxyethylamide by liquid chromatography and their spectroscopic identification. J. Chromatogr. A 1982, 236, 441–452. [Google Scholar] [CrossRef]
  24. Schardl, C.L.; Young, C.A.; Hesse, U.; Amyotte, S.G.; Andreeva, K.; Calie, P.J.; Fleetwood, D.J.; Haws, D.C.; Moore, N.; Oeser, B.; et al. Plant-symbiotic fungi as chemical engineers: Multi-genome analysis of the Clavicipitaceae reveals dynamics of alkaloid loci. PLoS Genet. 2013, 9, e1003323. [Google Scholar] [CrossRef] [PubMed]
  25. Coyle, C.M.; Cheng, J.Z.; O’Connor, S.E.; Panaccione, D.G. An old yellow enzyme gene controls the branch point between Aspergillus fumigatus and Claviceps purpurea ergot alkaloid pathways. Appl. Environ. Microbiol. 2010, 76, 3898–3903. [Google Scholar] [CrossRef] [PubMed]
  26. Ortel, I.; Keller, U. Combinatorial assembly of simple and complex d-lysergic acid alkaloid peptide classes in the ergot fungus Claviceps purpurea. J. Biol. Chem. 2009, 284, 6650–6660. [Google Scholar] [CrossRef] [PubMed]
  27. Havemann, J.; Vogel, D.; Loll, B.; Keller, U. Cyclolization of D-lysergic acid alkaloid peptides. Chem. Biol. 2014, 21, 146–155. [Google Scholar] [CrossRef] [PubMed]
  28. Haarmann, T.; Lorenz, N.; Tudzynski, P. Use of a nonhomologous end joining deficient strain (∆ku70) of the ergot fungus Claviceps purpurea for identification of a nonribosomal peptide synthetase gene involved in ergotamine biosynthesis. Fungal Genet. Biol. 2008, 45, 35–44. [Google Scholar] [CrossRef] [PubMed]
  29. Uhlig, S.; Petersen, D.; Rolèn, E.; Egge-Jacobsen, W.; Vrålstad, T. Ergosedmine, a new peptide ergot alkaloid (ergopeptine) from the ergot fungus, Claviceps purpurea parasitizing Calamagrostis arundinacea. Phytochem. Lett. 2011, 4, 79–85. [Google Scholar] [CrossRef]
  30. Schardl, C.L.; Panaccione, D.G.; Tudzynski, P. Ergot alkaloids—Biology and molecular biology. Alkaloids 2006, 63, 45–86. [Google Scholar] [PubMed]
  31. Matuschek, M.; Wallwey, C.; Wollinsky, B.; Xie, X.; Li, S.-M. In vitro conversion of chanoclavine-I aldehyde to the stereoisomers festuclavine and pyroclavine controlled by the second reduction step. RSC Adv. 2012, 2, 3662. [Google Scholar] [CrossRef]
  32. Unsöld, I.A.; Li, S.M. Overproduction, purification and characterization of FgaPT2, a dimethylallyltryptophan synthase from Aspergillus fumigatus. Microbiol. SGM 2005, 151, 1499–1505. [Google Scholar] [CrossRef]
  33. Coyle, C.M.; Panaccione, D.G. An ergot alkaloid biosynthesis gene and clustered hypothetical genes from Aspergillus fumigatus. Appl. Environ. Microbiol. 2005, 71, 3112–3118. [Google Scholar] [CrossRef] [PubMed]
  34. Chen, L.; Li, X.Z.; Li, C.J.; Swoboda, G.A.; Young, C.A.; Sugawara, K.; Leuchtmann, A.; Schardl, C.L. Two distinct Epichloë species symbiotic with Achnatherum inebrians, drunken horse grass. Mycologia 2015, in press. [Google Scholar]
  35. Blin, K.; Medema, M.H.; Kazempour, D.; Fischbach, M.A.; Breitling, R.; Takano, E.; Weber, T. antiSMASH 2.0—A versatile platform for genome mining of secondary metabolite producers. Nucl. Acids Res. 2013, 41, W204–W212. [Google Scholar] [CrossRef] [PubMed]
  36. Khaldi, N.; Seifuddin, F.T.; Turner, G.; Haft, D.; Nierman, W.C.; Wolfe, K.H.; Fedorova, N.D. SMURF: Genomic mapping of fungal secondary metabolite clusters. Fungal Genet. Biol. 2010, 47, 736–741. [Google Scholar] [CrossRef] [PubMed]
  37. Keller, N.P.; Turner, G.; Bennett, J.W. Fungal secondary metabolism—From biochemistry to genomics. Nat. Rev. Microbiol. 2005, 3, 937–947. [Google Scholar] [CrossRef] [PubMed]
  38. Schardl, C.L.; Young, C.A.; Moore, N.; Krom, N.; Dupont, P.-Y.; Pan, J.; Florea, S.; Webb, J.S.; Jaromczyk, J.; Jaromczyk, J.W.; et al. Genomes of plant-associated Clavicipitaceae. Adv. Bot. Res. 2014, 70, 291–327. [Google Scholar]
  39. Gao, Q.; Jin, K.; Ying, S.-H.; Zhang, Y.; Xiao, G.; Shang, Y.; Duan, Z.; Hu, X.; Xie, X.-Q.; Zhou, G.; et al. Genome sequencing and comparative transcriptomics of the model entomopathogenic fungi Metarhizium anisopliae and M. acridum. PLoS Genet. 2011, 7, e1001264. [Google Scholar] [CrossRef] [PubMed]
  40. Dereeper, A.; Guignon, V.; Blanc, G.; Audic, S.; Buffet, S.; Chevenet, F.; Dufayard, J.-F.; Guindon, S.; Lefort, V.; Lescot, M.; et al. Phylogeny.fr: Robust phylogenetic analysis for the non-specialist. Nucl. Acids Res. 2008, 36, W465–W469. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Edgar, R.C. MUSCLE: multiple sequence alignment with high accuracy and high throughput. Nucl. Acids Res. 2004, 32, 1792–1797. [Google Scholar] [CrossRef] [PubMed]
  42. Anisimova, M.; Gascuel, O. Approximate likelihood-ratio test for branches: a fast, accurate, and powerful alternative. Syst. Biol. 2006, 55, 539–552. [Google Scholar] [CrossRef] [PubMed]
  43. Schardl, C.L.; Young, C.A.; Pan, J.; Florea, S.; Takach, J.E.; Panaccione, D.G.; Farman, M.L.; Webb, J.S.; Jaromczyk, J.; Charlton, N.D.; et al. Currencies of mutualisms: Sources of alkaloid genes in vertically transmitted epichloae. Toxins 2013, 5, 1064–1088. [Google Scholar] [CrossRef] [PubMed]
  44. Pan, J.; Bhardwaj, M.; Faulkner, J.R.; Nagabhyru, P.; Charlton, N.D.; Higashi, R.M.; Miller, A.-F.; Young, C.A.; Grossman, R.B.; Schardl, C.L. Ether bridge formation in loline alkaloid biosynthesis. Phytochemistry 2014, 98, 60–68. [Google Scholar] [CrossRef] [PubMed]
  45. Pan, J.; Bhardwaj, M.; Nagabhyru, P.; Grossman, R.B.; Schardl, C.L. Enzymes from fungal and plant origin required for chemical diversification of insecticidal loline alkaloids in grass-Epichloë symbiota. PLoS One 2014, 9, e115590. [Google Scholar] [CrossRef] [PubMed]
  46. Schardl, C.L.; Farman, M.L.; Jaromczyk, J.W.; Young, C.A.; Webb, J.S.; Jaromczyk, J.; Moore, N.; Bec, S.; Calie, P.J.; Charlton, N.; et al. Genome sequences of 56 plant-associated Clavicipitaceae. 2015, unpublished. [Google Scholar]
  47. Charlton, N.D.; Craven, K.D.; Mittal, S.; Hopkins, A.A.; Young, C.A. Epichloë canadensis, a new interspecific epichloid hybrid symbiotic with Canada wildrye (Elymus canadensis). Mycologia 2012, 104, 1187–1199. [Google Scholar] [CrossRef] [PubMed]
  48. Schardl, C.L.; Young, C.A.; Faulkner, J.R.; Florea, S.; Pan, J. Chemotypic diversity of epichloae, fungal symbionts of grasses. Fungal Ecol. 2012, 5, 331–344. [Google Scholar] [CrossRef]
  49. Takach, J.E.; Mittal, S.; Swoboda, G.A.; Bright, S.K.; Trammell, M.A.; Hopkins, A.A.; Young, C.A. Genotypic and chemotypic diversity of Neotyphodium endophytes in tall fescue from Greece. Appl. Environ. Microbiol. 2012, 78, 5501–5510. [Google Scholar] [CrossRef] [PubMed]
  50. Charlton, N.D.; Craven, K.D.; Afkhami, M.E.; Hall, B.A.; Ghimire, S.R.; Young, C.A. Interspecific hybridization and bioactive alkaloid variation increases diversity in endophytic Epichloë species of Bromus laevipes. FEMS Microbiol. Ecol. 2014, 90, 276–289. [Google Scholar] [CrossRef] [PubMed]
  51. Takach, J.E.; Young, C.A. Alkaloid genotype diversity of tall fescue endophytes. Crop. Sci. 2014, 54, 667–678. [Google Scholar] [CrossRef]
  52. Young, C.A.; Charlton, N.D.; Takach, J.E.; Swoboda, G.A.; Trammell, M.A.; Huhman, D.V.; Hopkins, A.A. Characterization of Epichloë coenophiala within the US: Are all tall fescue endophytes created equal? Front. Chem. 2014, 2, 95. [Google Scholar] [CrossRef] [PubMed]
  53. Bacon, C.W. Procedure for isolating the endophyte from tall fescue and screening isolates for ergot alkaloids. Appl. Env. Microbiol. 1988, 54, 2615–2618. [Google Scholar]
  54. Blankenship, J.D.; Spiering, M.J.; Wilkinson, H.H.; Fannin, F.F.; Bush, L.P.; Schardl, C.L. Production of loline alkaloids by the grass endophyte, Neotyphodium uncinatum, in defined media. Phytochemistry 2001, 58, 395–401. [Google Scholar] [CrossRef] [PubMed]
  55. Chujo, T.; Scott, B. Histone H3K9 and H3K27 methylation regulates fungal alkaloid biosynthesis in a fungal endophyte–plant symbiosis. Mol. Microbiol. 2014, 92, 413–434. [Google Scholar] [CrossRef] [PubMed]
  56. Fleetwood, D.J.; Scott, B.; Lane, G.A.; Tanaka, A.; Johnson, R.D. A complex ergovaline gene cluster in epichloë endophytes of grasses. Appl. Environ. Microbiol. 2007, 73, 2571–2579. [Google Scholar] [CrossRef] [PubMed]
  57. Fleetwood, D.J.; Khan, A.K.; Johnson, R.D.; Young, C.A.; Mittal, S.; Wrenn, R.E.; Hesse, U.; Foster, S.J.; Schardl, C.L.; Scott, B. Abundant degenerate miniature inverted-repeat transposable elements in genomes of epichloid fungal endophytes of grasses. Genome Biol. Evol. 2011, 3, 1253–1264. [Google Scholar] [CrossRef] [PubMed]
  58. Panaccione, D.G.; Johnson, R.D.; Wang, J.H.; Young, C.A.; Damrongkool, P.; Scott, B.; Schardl, C.L. Elimination of ergovaline from a grass-Neotyphodium endophyte symbiosis by genetic modification of the endophyte. Proc. Natl. Acad. Sci. USA 2001, 98, 12820–12825. [Google Scholar] [CrossRef] [PubMed]
  59. Ghimire, S.R.; Rudgers, J.A.; Charlton, N.D.; Young, C.; Craven, K.D. Prevalence of an intraspecific Neotyphodium hybrid in natural populations of stout wood reed (Cinna arundinacea L.) from eastern North America. Mycologia 2011, 103, 75–84. [Google Scholar] [CrossRef] [PubMed]
  60. Christensen, M.J.; Leuchtmann, A.; Rowan, D.D.; Tapper, B.A. Taxonomy of Acremonium endophytes of tall fescue (Festuca arundinacea), meadow fescue (F. pratensis), and perennial rye-grass (Lolium perenne). Mycol. Res. 1993, 97, 1083–1092. [Google Scholar] [CrossRef]
  61. Leuchtmann, A.; Schmidt, D.; Bush, L.P. Different levels of protective alkaloids in grasses with stroma-forming and seed-transmitted Epichloë/Neotyphodium endophytes. J. Chem. Ecol. 2000, 26, 1025–1036. [Google Scholar] [CrossRef]
  62. Schardl, C.L.; Craven, K.D.; Speakman, S.; Stromberg, A.; Lindstrom, A.; Yoshida, R. A novel test for host-symbiont codivergence indicates ancient origin of fungal endophytes in grasses. Syst. Biol. 2008, 57, 483–498. [Google Scholar] [CrossRef] [PubMed]
  63. Petroski, R.; Powell, R.G.; Clay, K. Alkaloids of Stipa robusta (sleepygrass) infected with an Acremonium endophyte. Nat. Toxins 1992, 1, 84–88. [Google Scholar] [CrossRef] [PubMed]
  64. Moon, C.D.; Guillaumin, J.-J.; Ravel, C.; Li, C.; Craven, K.D.; Schardl, C.L. New Neotyphodium endophyte species from the grass tribes Stipeae and Meliceae. Mycologia 2007, 99, 895–905. [Google Scholar] [CrossRef] [PubMed]
  65. Farman, M.L. Telomeres in the rice blast fungus Magnaporthe oryzae: The world of the end as we know it. FEMS Microbiol. Lett. 2007, 273, 125–132. [Google Scholar] [CrossRef] [PubMed]
  66. Starnes, J.H.; Thornbury, D.W.; Novikova, O.S.; Rehmeyer, C.J.; Farman, M.L. Telomere-targeted retrotransposons in the rice blast fungus Magnaporthe oryzae: Agents of telomere instability. Genetics 2012, 191, 389–406. [Google Scholar] [CrossRef] [PubMed]
  67. Wu, C.; Kim, Y.-S.; Smith, K.M.; Li, W.; Hood, H.M.; Staben, C.; Selker, E.U.; Sachs, M.S.; Farman, M.L. Characterization of chromosome ends in the filamentous fungus Neurospora crassa. Genetics 2009, 181, 1129–1145. [Google Scholar] [CrossRef] [PubMed]
  68. Stajich, J.E.; Wilke, S.K.; Ahren, D.; Au, C.H.; Birren, B.W.; Borodovsky, M.; Burns, C.; Canback, B.; Casselton, L.A.; Cheng, C.K.; et al. Insights into evolution of multicellular fungi from the assembled chromosomes of the mushroom Coprinopsis cinerea (Coprinus cinereus). Proc. Natl. Acad. Sci. USA 2010, 107, 11889–11894. [Google Scholar] [CrossRef] [PubMed]

Share and Cite

MDPI and ACS Style

Young, C.A.; Schardl, C.L.; Panaccione, D.G.; Florea, S.; Takach, J.E.; Charlton, N.D.; Moore, N.; Webb, J.S.; Jaromczyk, J. Genetics, Genomics and Evolution of Ergot Alkaloid Diversity. Toxins 2015, 7, 1273-1302. https://doi.org/10.3390/toxins7041273

AMA Style

Young CA, Schardl CL, Panaccione DG, Florea S, Takach JE, Charlton ND, Moore N, Webb JS, Jaromczyk J. Genetics, Genomics and Evolution of Ergot Alkaloid Diversity. Toxins. 2015; 7(4):1273-1302. https://doi.org/10.3390/toxins7041273

Chicago/Turabian Style

Young, Carolyn A., Christopher L. Schardl, Daniel G. Panaccione, Simona Florea, Johanna E. Takach, Nikki D. Charlton, Neil Moore, Jennifer S. Webb, and Jolanta Jaromczyk. 2015. "Genetics, Genomics and Evolution of Ergot Alkaloid Diversity" Toxins 7, no. 4: 1273-1302. https://doi.org/10.3390/toxins7041273

Article Metrics

Back to TopTop
