Article

Silencing of VEGFR2 by RGD-Modified Lipid Nanoparticles Enhanced the Efficacy of Anti-PD-1 Antibody by Accelerating Vascular Normalization and Infiltration of T Cells in Tumors

by
Riki Cho
1,†,
Yu Sakurai
2,†,
Haleigh Sakura Jones
1,
Hidetaka Akita
2,
Akihiro Hisaka
1 and
Hiroto Hatakeyama
1,*
1
Laboratory of Clinical Pharmacology and Pharmacometrics, Graduate School of Pharmaceutical Sciences, Chiba University, 1-8-1 Inohana, Chuo-ku, Chiba, Chiba 260-8675, Japan
2
Laboratory of Pharmacology and Toxicology, Graduate School of Pharmaceutical Sciences, Chiba University, 1-8-1 Inohana, Chuo-ku, Chiba, Chiba 260-8675, Japan
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Cancers 2020, 12(12), 3630; https://doi.org/10.3390/cancers12123630
Submission received: 30 September 2020 / Revised: 18 November 2020 / Accepted: 2 December 2020 / Published: 4 December 2020
(This article belongs to the Special Issue The Portrait of Cancer Immunotherapy: Tumor Microenvironment, Biomarkers and Immune Resistance)
Browse Figures
Versions Notes

Abstract

:

Simple Summary

siRNA delivery to tumor endothelial cells was achieved using arginyl-glycyl-aspartic acid (RGD)-modified lipid nanoparticles containing a novel pH-sensitive and biodegradable lipid. The anti-tumor efficacy of an immune checkpoint inhibitor was improved by the silencing of VEGFR2 using the delivery system, because the combination therapy induced vascular normalization and increased CD8+ T cell infiltration into tumors. The efficient delivery of nucleic acids is a promising strategy to improve therapeutic outcomes in immune checkpoint inhibitor-resistant cancers.

Abstract

Despite the promising anticancer effects of immune checkpoint inhibitors, their low objective response rate remains to be resolved; thus, combination therapies have been investigated. We investigated the combination of an anti-programmed cell death 1 (aPD-1) monoclonal antibody with the knockdown of vascular endothelial factor receptor 2 (VEGFR2) on tumor endothelial cells to overcome resistance to immune checkpoint inhibitors and improve the objective response rate. The successful delivery of small interfering RNA to tumor endothelial cells was achieved by RGD peptide-modified lipid nanoparticles composed of a novel, pH-sensitive, and biodegradable ssPalmO-Phe. RGD-modified lipid nanoparticles efficiently induced the knockdown of VEGFR2 in tumor endothelial cells (TECs), which induced vascular normalization. The combination of a PD-1 monoclonal antibody with Vegfr2 knockdown enhanced CD8+ T cell infiltration into tumors and successfully suppressed tumor growth and improved response rate compared with monotherapy. Our combination approach provides a promising strategy to improve therapeutic outcomes in immune checkpoint inhibitor-resistant cancers.

Graphical Abstract

1. Introduction

Immune checkpoint inhibitors (ICIs) that target programmed cell death-1 (PD-1) or programmed cell death-ligand 1 (PD-L1) proteins are being used extensively, for the treatment of many types of cancers. Anti-PD-1/PD-L1 monoclonal antibodies (mAbs) have been used as monotherapies and are associated with low objective response rates (ORRs) and acquired tumor resistance [1,2]. Thus, there is a need for combination therapies. Clinical trials have been conducted to investigate the synergistic effect of ICIs and anti-angiogenesis in patients [3,4].
Angiogenesis, the generation of new blood vessels from preexisting vessels, occurs in many physiological processes, including tumorigenesis by pro-angiogenic factors [5]. The vessel maturation process is impeded because of the persistent hypersecretion of pro-angiogenic factors in the tumor microenvironment [6]. Abnormal angiogenesis leads to a lack of pericyte coverage and leaky blood vessels, resulting in increased vascular permeability and higher interstitial fluid pressure, which inhibits the infiltration of cytotoxic lymphocytes into tumors [7,8]. Immature blood vessels cannot supply enough oxygen to compensate for consumption, thus resulting in hypoxia, which directly impairs the functions of tumor infiltrating lymphocytes (TILs).
Vascular endothelial growth factor (VEGF) plays a pivotal role in angiogenesis in tumor microenvironments [9,10]. Bevacizumab, an anti-VEGF mAb, is the first anti-angiogenic agent approved for multiple cancers [11]. However, the neutralization of VEGF results in systemic side effects, including hemorrhage, hypertension, proteinuria, impaired wound healing, and thrombosis [12]. Therefore, angiogenesis factors must be selectively targeted in the tumor microenvironment. The angiogenic signal of VEGF is mainly transmitted by its receptor, VEGFR2, which is expressed on tumor endothelial cells (TECs) [10]. We previously developed arginyl-glycyl-aspartic acid (RGD)-modified liposomal delivery systems targeting TECs [13,14,15,16,17]. RGD-modified liposomes were used to deliver doxorubicin to TECs, killing these cells and destroying the tumor vessel structure in doxorubicin-resistant renal cell carcinoma, while the blood vessels in normal organs such as the liver and spleen were not affected by this drug delivery system [13]. This research showed that RGD-modified liposomes selectively deliver doxorubicin to TECs. We also demonstrated that small interfering RNAs (siRNA) against Vegfr2 delivered to TECs in murine tumors by RGD-modified lipid nanoparticles (LNPs) resulted in vascular normalization [15,17].
We reported the development of a series of ionizable lipids, an SS-cleavable and pH-activated lipid-like material (ssPalm), as a material for use as a nucleic acid carrier [18,19,20]. Recently, we synthesized a novel ssPalmO-Phenyl-P4C2 (ssPalmO-Phe) that was characterized by self-degradability driven by redox-responsive concentrations of the thiol group and subsequent nucleophilic attacks of thiol groups against phenyl esters [21]. This spontaneous degradation inside the cells allows its cargo to be effectively released into the cytosol, thus achieving efficient delivery of mRNA. In the study reported here, we demonstrated the improved effect of an anti-programmed cell death 1 (aPD-1) mAb with vascular normalization caused by the knockdown of Vegfr2, by delivering siRNA using RGD-modified LNP composed of ssPalmO-Phe.

2. Results

2.1. Characterization of LNPs

LNPs were prepared using ethanol dilution, and the PEG-lipid or RGD-PEG-lipid was modified using the post-insertion method, as described in the Materials and Methods section. The average diameters of the prepared PEG-LNP and RGD-LNP comprising ssPalmO-Phe were approximately 160 nm, and they possessed a slightly negative charge (Table 1); this indicates that RGD modification did not affect the physicochemical characteristics of LNPs. The polydispersity index (PDI) of the two LNPs, as an indicator of homogeneity of particle diameter distribution, was approximately 0.2. The value meant that PEG-LNP and RGD-LNP were homogeneous nanoparticles. siRNA in LNPs had an encapsulation efficiency of more than 90%, comparable to that of LNPs composed of other types of ssPalm [18]. The recovery rate of each LNP suggests that approximately half of the starting amount of siRNA was encapsulated in LNP, which is also consistent with our previous data [18]. The siRNAs were successfully encapsulated in LNPs prepared with ssPalmO-Phe.

2.2. In Vitro Cellular Uptake and Knockdown by LNPs in Endothelial Cells

To evaluate the expression of the integrin receptors on the cell surface, lymphatic endothelial cells (LEC) and Human umbilical vein endothelial cells (HUVEC) were analyzed using flow cytometry. HUVEC cells expressed substantial levels of integrin; however, no expression of integrin was detected in the LEC cells (Figure 1A). We next examined the cellular uptake of PEG-LNP and RGD-LNP by LEC and HUVEC cells. Although no difference in uptake of LNPs was detected in LEC cells, a significant increase in cellular uptake was observed for RGD-LNP in HUVEC cells (Figure 1B,C). These results demonstrated that RGD modification selectively enhanced the cellular uptake of LNPs in integrin-positive cells such as HUVEC cells. The knockdown efficacy of RGD-LNP and RGD-LNP in HUVEC cells was examined using RT-PCR, which revealed that PEG-LNP showed negligible knockdown of PLK1 in HUVEC cells at a dose of 100 nM of siRNA, compared with untreated HUVEC. However, RGD-LNP decreased the expression of PLK1 in a dose-dependent manner (Figure 1D). This finding clearly demonstrated that RGD-LNP could induce the knockdown of target genes by delivering siRNA selectively to integrin-positive endothelial cells.

2.3. In Vivo Knockdown of VEGFR2 on TECs and Vascular Normalization

To evaluate whether RGD-LNP could induce the knockdown of a target gene in murine TECs, RGD-LNP encapsulating siVegfr2 was intravenously administered to MC38 tumor-bearing mice. To distinguish endothelial cells from other cells, CD31, a marker of endothelial cells, was also stained as described in the Materials and Methods section. VEGFR2 expression on CD31-positive cells was significantly decreased after treatment with RGD-LNP encapsulating siVegfr2 (Figure 2). Vascular normalization was initiated in tumors treated with RGD-LNP encapsulating siVegfr2. The marge ratio of αSMA, a marker of pericytes, in positive TECs with CD31 in tumors treated with control siRNA was comparable to that in untreated tumors (Figure 3). An increase in the ratio of αSMA to CD31 was, however, observed in tumors treated with siVegfr2. The results clearly showed that knockdown of Vegfr2 promoted coverage of tumor vasculature with pericytes, i.e., vascular normalization. When used in combination, RGD-LNP successfully delivered siVegfr2 to TECs in MC38 tumors.

2.4. In Vivo Anti-Tumor Efficacy

We examined the anti-tumor efficacy of aPD-1 mAb combined with Vegfr2 knockdown (Figure 4A). Monotherapy with either aPD-1 mAb or RGD-LNP had a minor effect on MC38 tumor growth (Figure 4B). Combination therapy significantly suppressed tumor growth compared with controls and monotherapies by day 12. We also assessed the interaction index of the combination therapy versus monotherapy [22]. The interaction indexes of the combination therapy at days 12 and 15 were −0.90 (95% confidence interval (CI), −1.55 to −0.26) and −0.64 (95% CI, −1.56 to 0.29), respectively, which indicates that the combination of aPD-1 and siVegfr2 was additive to supra-additive as compared with the monotherapies. The combination therapy also induced strong responses in seven of ten tumor-bearing mice (Figure 4C). Significant differences were observed in the response rate of the combination therapy compared with those of other groups. Anti-angiogenesis caused by the silencing of Vegfr2 improved the response to an immune checkpoint inhibitor. Thereafter, we investigated the mechanisms by which the combination successfully suppressed tumor growth by analyzing CD8+ T cells that infiltrated the tumors. When compared with control IgG treatment, aPD-1 mAb or siVegfr2 treatment resulted in a 2.7- and 1.9-fold increase in infiltrated CD8+ T cells in tumors (Figure 5A,B). The infiltration of CD8+ T cells increased 5.5-fold after the combination therapy. We further analyzed the exhausted markers such as PD-1 and T-cell immunoglobulin mucin-3 (Tim-3) on CD8+ T cells by isolating CD8+ T cells from tumors. No changes in the expression of these markers were found due to the treatments (Figure 5C,D), which suggested that the unresponsiveness of CD8+ T cells to aPD-1 mAb in MC38 was not caused by the exhaustion state. The improved anti-tumor efficacy of aPD-1 mAb combined with the knockdown of Vegfr2 resulted from the increase in infiltration of CD8+ T cells in tumors, but not from the prevention of CD8+ T cell exhaustion.

3. Discussion

The objective response rate (ORR) to aPD-1 mAbs such as nivolumab and pembrolizumab has been reported to be limited to around 20% [2]. Cytotoxic T-lymphocyte-associated protein 4 (CTLA-4) and PD-1 blockade have proven successful in improving survival rates, resulting in the approval of the ipilimumab and nivolumab combination for the treatment of metastatic melanoma and renal cell carcinoma [23]. However, severe side effects have been observed with combination therapy. The development of safer alternative means is necessary.
Tumors with high levels of TIL respond better to ICIs than tumors with low TIL [1]. Therefore, strategies that can convert “cold” tumors into “hot” tumors have attracted attention, as they improve the ORR of ICIs. One promising approach involves combining ICIs with anti-angiogenic agents, because pro-angiogenic factors can play both direct and indirect roles in the immunosuppressive tumor microenvironment [4]. Several studies have shown that treatment of xenograft cancer models with inhibitors of VEGF or VEGFR2, such as anti-VEGFR2 receptor antibodies and apatinib, can exert a synergistic effect with aPD-1 or aPD-L1 mAbs [24,25,26,27,28,29,30]. Anti-PD-L1 atezolizumab in combination with bevacizumab has been shown to enhance the migration of TILs in patients with metastatic renal cell carcinoma [31]. Clinical trials combining immunotherapy and anti-angiogenic factors such as apatinib, lenvatinib, and ramucirumab are currently in progress for several types of cancer, suggesting that combining a strategy with anti-angiogenesis is beneficial for immunotherapy [32,33,34,35].
We found that the knockdown of Vegfr2 in TECs enhanced the anti-tumor efficacy of aPD-1 mAb. Selective targeting of TECs was achieved by RGD-modified LNP, because RGD modification alters the biodistribution of nanocarrier systems, facilitating their delivery to integrin αvβ3-expresisng TECs [36,37,38]. The size of LNPs which target cancer cells in tumors is generally less than 100 nm in diameter, because LNPs have to pass through the gap between the TECs of the neovasculature, based on the enhanced permeability and retention (EPR) effect [39]. In this study, the diameter of the prepared LNPs was 160 nm, which is appropriate for targeting TECs of the neovasculature due to a reduction in the EPR effect [13,40]. LNPs composed of ssPalmO-Phe showed lower toxicity because of their biodegradability [21]. Biodegradable LNPs deliver nucleic acids in vivo without any apparent toxicity. In a preclinical safety study, no significant changes in the biochemical parameters of blood, such as the number of red blood cells, hematocrit, mean corpuscular volume, number of platelets, or the number of white blood cells, was observed, even when LNPs composed of ssPalmO-Phe were administered to rats at a dose of 175 mg nucleic acids/kg body weight [21]. This delivery system can be used for delivering not only siRNA but also other nucleic acids such as mRNA to TECs, to efficiently manipulate undruggable angiogenesis factors that cannot be inhibited by small compounds or antibodies.
It was demonstrated that the efficacy of ICIs could be improved in combination with the knockdown of Vegfr2 in TECs. Although treatment with either aPD-1 mAb or siVegfr2 enhanced tumor infiltrating CD8+ T cells in tumors by two to three-fold compared with control treatment, the combination further increased the infiltration of CD8+ T cells into tumors by 5.5-fold. Type 1 T helper (Th1) cells, such as CD8+ T cells in tumors, promote vascular normalization by secreting interferon-γ (IFN-γ) [41]. T cells that infiltrate tumors after vascular normalization were activated by aPD-1 mAbs and could secrete IFN-γ to promote further vascular normalization, which could explain the increase in CD8+ T cells after the combination treatment. Vascular normalization in tumors also enhanced the delivery of antibody and protein therapeutics to tumors [42,43]. Therefore, vascular normalization induced by the knockdown of Vegfr2 could contribute to an increase in the amount of aPD-1 mAb delivered in tumors. When used in combination, a blockade of both pathways efficiently converts the cold tumor microenvironment into a hot microenvironment. As previously reported, the enhanced anti-tumor effect of ICIs combined with anti-angiogenesis was observed in subcutaneous xenograft models [24,25,28]. However, subcutaneous xenograft tumors do not necessarily reflect the actual tumor microenvironment. The synergistic effect between ICIs and anti-angiogenesis has been also observed in orthotopic models [26,29,30]. Even though further study is required to evaluate the delivery of LNPs in orthotopic models of colon cancer in terms of the delivery mechanisms of LNPs in the peritoneal compartment and the efficacy of their cargos, the combination of PD-1/PD-L1 blockade with siVegfr2 delivery by the LNP system could be applicable for the treatment of peritoneal disseminations.
In some cases, T cells are ineffective against cancer because the T cells enter exhaustion, a state of T cell dysfunction [44]. It was reported that anti-PD-1/PD-L1 upregulates the Ras-Raf-MEK-ERK and PI3K-AKT signaling pathways in immune cells by blocking the PD-1/PD-L1 axis [45]. Anti-PD-1/PD-L1 therapy therefore restores T cells from an exhausted state and enhances their tumor-killing activity [3]. In the present study, a reduction in the expression of the markers of exhaustion, PD-1 and Tim-3, was not observed, even after the combination therapy. Even though further studies are required to elucidate the precise mechanisms of action, T cell exhaustion in tumors is not a dominant factor for the immune surveillance of MC38 tumors.

4. Materials and Methods

4.1. Materials

Murine colon adenocarcinoma MC38 cells were purchased from Kerafast (Boston, MA, USA). Human umbilical vein endothelial cells (HUVEC) and lymphatic endothelial cells (LEC) were obtained from LONZA (Basel, Switzerland). Anti-PD-1 mAb (RMP1-14) and IgG2a isotype control mAb (2A3) were purchased from Bioxcell (West Lebanon, NH, USA). Anti-mouse Vegfr2 siRNA (sense: 5′-cAA ccA GAG Acc cuc Guu udTsdT-3′, antisense: 5′-AAA CGA GGG UCU CUG GUU GdTsdT-3′) as previously reported [46], and anti-human PLK1 siRNA (sense: 5′-AGA uCA CCC uCC UuA AAu AUU-3′, antisense: 5′-UAU UUA AgG AGG GUG AuC UUU-3′) were obtained from Hokkaido System Science. In these sequences, 2′-OMe-modified nucleotides are in lowercase, and “s” means phosphorothioate. Cholesterol was obtained from Sigma-Aldrich (St. Louis, MO, USA). Poly (ethylene glycol) (PEG; average molecular weight 2000)-dimyrystoylglycerol, N-hydroxysuccinimide-PEG-dystearoyl-sn-glycerophosphoethanolamine (NHS-PEG-DSPE), and methoxy-PEG-DSPE (MeO-PEG-DSPE) were obtained from NOF Corporation (Kanagawa, Japan). Phosphate-buffered saline (PBS) was obtained from Nacalai Tesque. ssPalmO-Phe (Product# COATSOME® SS-OP) [21] was obtained from the NOF Corporation. The cRGD peptide (RGDfK: lower case means D-body amino acid) was purchased from ChemScene (Monmouth Junction, NJ, USA).

4.2. Cell Culture

MC38 cells were cultured in DMEM with 10% fetal bovine serum (FBS), 10 mM HEPES, 1% non-essential amino acids, 1 mM sodium pyruvate L-glutamine, and 1% penicillin and streptomycin (P/S). HUVEC and LEC cells were cultured in EGM-2 medium supplemented with 2% FBS, P/S, and attached growth factors.

4.3. Preparation and Characterization of LNPs

cRGD was conjugated to NHS-PEG-DSPE (RGD-PEG-lipid) via amide bonds by incubation in dimethylformamide with 1.2 equivalent of triethylamine as previously described [16,47]. siRNA-loaded LNPs were prepared by the alcohol dilution method [16,17]. ssPalmO-Phe and cholesterol in ethanol were mixed at a molar ratio of 50/50 (molar ratio) at 1500 nmol total lipid. PEG-DMG was added to the solution at 3.0 mol% to control the particle size distribution. To the lipid solution, 20 μg of siRNA in 124 μL of 20 mM malic buffer (pH 3.0) was gradually added under vigorous mixing. The mixture was sequentially diluted with 1 mL of malic buffer and then 3 mL of PBS. The resulting mixture was subjected to ultrafiltration with Amicon Ultra-14 (MWCO 100,000) twice. To modify LNP with RGD-PEG-lipid, LNP was incubated with 3.0 mol% of RGD-PEG-lipid in 10% ethanol/20 mM malic buffer solution at 45 °C for 45 min. Ethanol was removed by ultrafiltration. As a control, MeO-PEG-DSPE was incorporated into LNP instead of RGD-PEG-DSPE. The mean size and zeta potential of the prepared LNPs were determined using a Zetasizer Nano ZS ZEN3600 instrument (Malvern Instruments, Westborough, MA, USA). The encapsulation efficiency and recovery ratio of siRNA were measured by RiboGreen assay as previously described [48].

4.4. Flow Cytometry

LEC and HUVEC cells were washed with PBS and detached using Accutase (Innovative Cell Technologies, San Diego, CA, USA). Detached cells were incubated with anti-PE-conjugated human integrin αvβ3 antibody (Table S1) for 30 min at 4 °C. Cells were then washed with 0.5% BSA/0.1% sodium azide in PBS (FACS buffer). Ten thousand cells per sample were analyzed using a Novocyte flow cytometer (ACEA Biosciences, San Diego, CA, USA). Tumors were dissociated into single cells using mouse Tumor Dissociation Kits, and a gentleMACS™ Octo Dissociator (Miltenyi Biotec, Bergisch Gladbach, Germany). Single cells were incubated with 10 μg/mL of anti-mouse CD16/32 antibody (clone 93, Biolegend, San Diego, CA, USA) in FACS buffer for 10 min at 4 °C to block Fc receptors. After washing the cells with FACS buffer, cells were stained with fluorophore-labeled antibodies (listed in Table S1) for 30 min at 4 °C. After washing, cells were stained with 7-AAD (5 μg/mL, Biolegend, #42040) for 5 min at 25 °C to determine cell viability. Cells were analyzed using a Novocyte flow cytometer. CD8+ T cells were further isolated from single cell suspension using mouse CD8a+ T Cell Isolation Kits (Miltenyi Biotec). Isolated CD8+ T cells were stained and analyzed as described above.

4.5. Cellular Uptake of PEG-LNP and RGD-LNP

To investigate the cellular uptake of LNPs, HUVEC and LEC cells (1.5 × 105 cells/well) were seeded on a six-well plate 24 h before LNP was added. Cells were incubated with DiO-labeled PEG-LNP or RGD-LNP at 20 μM of lipid for 2 h and then washed twice with PBS. Cells were trypsinized and centrifuged at 4 °C at 500× g for 5 min. The supernatant was removed with an aspirator, and FACS buffer was added to the cell pellet. The cell suspension was then analyzed on a Novocyte flow cytometer.

4.6. In Vitro Knockdown Studies

HUVEC cells (1.5 × 105 cells/well) were seeded in 24-well plates 24 h before LNP addition. Cells were incubated with PEG-LNP at 100 nM of siPLK1 or RGD-LNPs at indicated concentrations of siPLK1 for 24 h. Anti-human PLK1 siRNA is used as negative control siRNA because this sequence does not have any effect on mouse Plk1 and physiology or on immune system via RNA sensors [49]. To isolate RNA from the cells, 250 μL of TRIreagent (Molecular Research Center, Cincinnati, OH, USA) was added after washing with PBS. Total RNA was purified according to the manufacturer’s protocol. Complementary DNA was synthesized using High Capacity RNA-to-cDNA kit (ThermoFisher, Wilmington, DE, USA) at 0.5 μg RNA. The obtained cDNA was diluted 10-fold and then evaluated by quantitative PCR with THUNDERBIRD Master Mix (TOYOBO, Osaka, Japan). The expression of PLK1 mRNA was calculated by the ΔΔCt-value method. GAPDH was regarded as an internal control. The primers used were PLK1 forward; CTCCTTGATGAAGAAGATCACC, reverse; GAAGAAGTTGATCTGCACGC, GAPDH forward; CCTCTGACTTCAACAGCGAC, reverse; CGTTGTCATACCAGGAAATGAG as previously reported [47,50].

4.7. Tumor Inoculation

C57BL/6JJ mice (six weeks old, female) were purchased from Japan SLC (Shizuoka, Japan). Cancer cells were subcutaneously (s.c.) transplanted into syngeneic mice using 1 × 106 cells in 100 μL Hanks’ balanced salt solution. All animal procedures were approved by the Chiba University Institutional Animal Care and Use Committee (A1-219).

4.8. Immunofluorescence Analysis for In Vivo Knockdown of Vegfr2

When tumor volumes reached 100–200 mm3, tumor-bearing mice were intravenously (i.v.) treated with RGD-LNP encapsulating either siPLK1 as a control or siVegfr2, at a dose of 40 μg siRNA/100 μL PBS/mouse. At 24 h after the administration, tumors were harvested to examine the knockdown of Vegfr2 in MC38 tumors. The RGD-LNPs at a dose of 40 μg siRNA/100 μL PBS/mouse were i.v. administrated twice, three days apart, to tumor-bearing mice. At 24 h after the final administration, tumors were harvested to examine vascular coverage. Tumors were fixed with 4% PFA in PBS and embedded in OCT compound (Sakura Finetek, Tokyo, Japan). Tissues were sectioned (10 μm) onto glass slides (MAS coated glass, Matsunami, Osaka, Japan). The slices were then immersed in 100-fold diluted anti-mouse VEGFR2, anti-mouse CD31, and anti-mouse actin, α-Smooth muscle (αSMA) antibodies (Table S1) at room temperature for 30 min. The secondary antibodies used were goat anti-Rat IgG (H + L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 647 and Goat anti-Hamster IgG (H + L) Cross-Adsorbed Secondary Antibody, Alexa Fluor 488, respectively. Images were taken using an LSM780 system (Carl Zeiss, Oberkochen, Germany). Images were then quantified using Image J software [51].

4.9. Tumor Inoculation

Tumor-bearing mice were randomized and treated i.p. with control IgG or aPD-1 mAb at 200 μg/mouse in 100 μL PBS and treated intravenously with RGD-LNP encapsulating siPLK1 or siVegfr2 at 40 μg siRNA/mouse in 100 μL PBS on days 5, 8, and 12 (post-tumor inoculation). Tumor volume was calculated using the formula 1/2 × a × b2, where a and b represent the largest and smallest tumor diameters, respectively. Tumor volumes of 30% or less than that of tumors treated with control IgG were regarded as efficiently suppressed.

4.10. Statistical Analysis

All data are presented as the mean value ± S.E. Pair-wise comparisons of subgroups were made using Student’s t-tests with Welch’s correction. Comparisons between multiple treatments were made using one-way analysis of variance (ANOVA), followed by an appropriate post-hoc test, and chi-squared tests followed by adjusted standardized residual analysis. P values (both sides) were considered significant if p was less than 0.05. Statistical analyses were performed using GraphPad Prism 5.0 (GraphPad Software, San Diego, CA, USA). An interaction index of combination therapy versus monotherapy of the fixed-dose drug combination was assessed according to the methods described in a previous report [22]. If the 95% CI was less than zero, the drug combination was considered to be supra-additive; if it contained zero, the drug combination was considered to be additive; otherwise, the drug combination was considered to be sub-additive.

5. Conclusions

In this study, we demonstrated successful siRNA delivery to TECs in xenograft tumors using RGD-modified LNP composed of ssPalmO-Phe. The combination of aPD-1 mAb and VEGFR2 knockdown decreased the number of TILs in tumors via vascular normalization and suppressed tumor growth. Further studies are required to test whether this combination strategy could be applied to other types of cancer therapies, but these results indicate that this delivery system implements a combination strategy which can improve the therapeutic outcome of ICIs.

Supplementary Materials

The following are available online at https://www.mdpi.com/2072-6694/12/12/3630/s1, Table S1: List of antibodies used in the study.

Author Contributions

Y.S., H.A., A.H., and H.H. conceived and designed the experiments; R.C., Y.S., H.S.J., and H.H. performed the experiments and data analyses; and Y.S., A.H., H.A., and H.H. drafted the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

H.H. was supported by the Program for Dissemination of the Tenure-Track system in Japan funded by the Ministry of Education, Culture, Sports, Science, and Technology (MEXT) of Japan, JSPS KAKENHI (grant numbers 16H06671 and 19H03387), Takeda Science Foundation, the Mochida Memorial Foundation for Medical and Pharmaceutical Research, and the Research Foundation for Pharmaceutical Sciences. Y.S. was supported by JSPS KAKENHI (grant number 18K18351), Ichiro-Kanehara Foundation, Takeda Science Foundation, and Institute for Global Prominent Research, Chiba University. H.A. was supported by the JST CREST grant (grant number JPMJCR17H1), JSPS KAKENHI (grant number 20H00657), and the Takeda Science Foundation.

Conflicts of Interest

R.C., Y.S., H.S.J., A.H., and H.H. declare no conflict of interest in this research. Chiba University and NOF CORPORATION hold a patent pending on the ssPalm chemicals. In addition, H.A. received research funding from NOF CORPORATION.

References

  1. Galon, J.; Bruni, D. Approaches to treat immune hot, altered and cold tumours with combination immunotherapies. Nat. Rev. Drug Discov. 2019, 18, 197–218. [Google Scholar] [CrossRef]
  2. Yarchoan, M.; Hopkins, A.; Jaffee, E.M. Tumor Mutational Burden and Response Rate to PD-1 Inhibition. N. Engl. J. Med. 2017, 377, 2500–2501. [Google Scholar] [CrossRef]
  3. Yi, M.; Qin, S.; Zhao, W.; Yu, S.; Chu, Q.; Wu, K. The role of neoantigen in immune checkpoint blockade therapy. Exp. Hematol. Oncol. 2018, 7, 28. [Google Scholar] [CrossRef]
  4. Fukumura, D.; Kloepper, J.; Amoozgar, Z.; Duda, D.G.; Jain, R.K. Enhancing cancer immunotherapy using antiangiogenics: Opportunities and challenges. Nat. Rev. Clin. Oncol. 2018, 15, 325–340. [Google Scholar] [CrossRef] [PubMed]
  5. Ramjiawan, R.R.; Griffioen, A.W.; Duda, D.G. Anti-angiogenesis for cancer revisited: Is there a role for combinations with immunotherapy? Angiogenesis 2017, 20, 185–204. [Google Scholar] [CrossRef] [PubMed]
  6. Jain, R.K. Molecular regulation of vessel maturation. Nat. Med. 2003, 9, 685–693. [Google Scholar] [CrossRef]
  7. Cooke, V.G.; LeBleu, V.S.; Keskin, D.; Khan, Z.; O’Connell, J.T.; Teng, Y.; Duncan, M.B.; Xie, L.; Maeda, G.; Vong, S.; et al. Pericyte depletion results in hypoxia-associated epithelial-to-mesenchymal transition and metastasis mediated by met signaling pathway. Cancer Cell 2012, 21, 66–81. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Teng, M.W.; Ngiow, S.F.; Ribas, A.; Smyth, M.J. Classifying Cancers Based on T-cell Infiltration and PD-L1. Cancer Res. 2015, 75, 2139–2145. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Falcon, B.L.; O’Clair, B.; McClure, D.; Evans, G.F.; Stewart, J.; Swearingen, M.L.; Chen, Y.; Allard, K.; Lee, L.N.; Neote, K.; et al. Development and characterization of a high-throughput in vitro cord formation model insensitive to VEGF inhibition. J. Hematol. Oncol. 2013, 6, 31. [Google Scholar] [CrossRef] [Green Version]
  10. Basagiannis, D.; Zografou, S.; Murphy, C.; Fotsis, T.; Morbidelli, L.; Ziche, M.; Bleck, C.; Mercer, J.; Christoforidis, S. VEGF induces signalling and angiogenesis by directing VEGFR2 internalisation through macropinocytosis. J. Cell Sci. 2016, 129, 4091–4104. [Google Scholar] [CrossRef] [Green Version]
  11. Keating, G.M. Bevacizumab: A review of its use in advanced cancer. Drugs 2014, 74, 1891–1925. [Google Scholar] [CrossRef]
  12. Vasudev, N.S.; Reynolds, A.R. Anti-angiogenic therapy for cancer: Current progress, unresolved questions and future directions. Angiogenesis 2014, 17, 471–494. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Kibria, G.; Hatakeyama, H.; Ohga, N.; Hida, K.; Harashima, H. The effect of liposomal size on the targeted delivery of doxorubicin to Integrin alphavbeta3-expressing tumor endothelial cells. Biomaterials 2013, 34, 5617–5627. [Google Scholar] [CrossRef] [PubMed]
  14. Sakurai, Y.; Hatakeyama, H.; Sato, Y.; Hyodo, M.; Akita, H.; Ohga, N.; Hida, K.; Harashima, H. RNAi-mediated gene knockdown and anti-angiogenic therapy of RCCs using a cyclic RGD-modified liposomal-siRNA system. J. Control. Release 2014, 173, 110–118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Yamamoto, S.; Kato, A.; Sakurai, Y.; Hada, T.; Harashima, H. Modality of tumor endothelial VEGFR2 silencing-mediated improvement in intratumoral distribution of lipid nanoparticles. J. Control. Release 2017, 251, 1–10. [Google Scholar] [CrossRef] [Green Version]
  16. Sakurai, Y.; Hada, T.; Kato, A.; Hagino, Y.; Mizumura, W.; Harashima, H. Effective Therapy Using a Liposomal siRNA that Targets the Tumor Vasculature in a Model Murine Breast Cancer with Lung Metastasis. Mol. Ther. Oncolytics 2018, 11, 102–108. [Google Scholar] [CrossRef] [Green Version]
  17. Sakurai, Y.; Mizumura, W.; Ito, K.; Iwasaki, K.; Katoh, T.; Goto, Y.; Suga, H.; Harashima, H. Improved Stability of siRNA-Loaded Lipid Nanoparticles Prepared with a PEG-Monoacyl Fatty Acid Facilitates Ligand-Mediated siRNA Delivery. Mol. Pharm. 2020, 17, 1397–1404. [Google Scholar] [CrossRef]
  18. Akita, H.; Ishiba, R.; Hatakeyama, H.; Tanaka, H.; Sato, Y.; Tange, K.; Arai, M.; Kubo, K.; Harashima, H. A neutral envelope-type nanoparticle containing pH-responsive and SS-cleavable lipid-like material as a carrier for plasmid DNA. Adv. Healthc. Mater. 2013, 2, 1120–1125. [Google Scholar] [CrossRef]
  19. Tanaka, H.; Nakatani, T.; Furihata, T.; Tange, K.; Nakai, Y.; Yoshioka, H.; Harashima, H.; Akita, H. In Vivo Introduction of mRNA Encapsulated in Lipid Nanoparticles to Brain Neuronal Cells and Astrocytes via Intracerebroventricular Administration. Mol. Pharm. 2018, 15, 2060–2067. [Google Scholar] [CrossRef]
  20. Tanaka, H.; Watanabe, A.; Konishi, M.; Nakai, Y.; Yoshioka, H.; Ohkawara, T.; Takeda, H.; Harashima, H.; Akita, H. The delivery of mRNA to colon inflammatory lesions by lipid-nano-particles containing environmentally-sensitive lipid-like materials with oleic acid scaffolds. Heliyon 2018, 4, e00959. [Google Scholar] [CrossRef] [Green Version]
  21. Tanaka, H.; Takahashi, T.; Konishi, M.; Takata, N.; Gomi, M.; Shirane, D.; Miyama, R.; Hagiwara, S.; Yamasaki, Y.; Sakurai, Y.; et al. Self-degradable Lipid-like Materials based on “Hydrolysis accelerated by the intra-Particle Enrichment of Reactant (HyPER)” for Messenger RNA Delivery. Adv. Funct. Mater. 2020, 30, 1910575. [Google Scholar] [CrossRef]
  22. Wu, J.; Tracey, L.; Davidoff, A.M. Assessing interactions for fixed-dose drug combinations in tumor xenograft studies. J. Biopharm. Stat. 2012, 22, 535–543. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Rotte, A. Combination of CTLA-4 and PD-1 blockers for treatment of cancer. J. Exp. Clin. Cancer Res. 2019, 38, 255. [Google Scholar] [CrossRef] [PubMed]
  24. Yasuda, S.; Sho, M.; Yamato, I.; Yoshiji, H.; Wakatsuki, K.; Nishiwada, S.; Yagita, H.; Nakajima, Y. Simultaneous blockade of programmed death 1 and vascular endothelial growth factor receptor 2 (VEGFR2) induces synergistic anti-tumour effect in vivo. Clin. Exp. Immunol. 2013, 172, 500–506. [Google Scholar] [CrossRef] [PubMed]
  25. Voron, T.; Colussi, O.; Marcheteau, E.; Pernot, S.; Nizard, M.; Pointet, A.L.; Latreche, S.; Bergaya, S.; Benhamouda, N.; Tanchot, C.; et al. VEGF-A modulates expression of inhibitory checkpoints on CD8+ T cells in tumors. J. Exp. Med. 2015, 212, 139–148. [Google Scholar] [CrossRef] [PubMed]
  26. Wu, F.T.H.; Xu, P.; Chow, A.; Man, S.; Kruger, J.; Khan, K.A.; Paez-Ribes, M.; Pham, E.; Kerbel, R.S. Pre- and post-operative anti-PD-L1 plus anti-angiogenic therapies in mouse breast or renal cancer models of micro- or macro-metastatic disease. Br. J. Cancer 2019, 120, 196–206. [Google Scholar] [CrossRef] [Green Version]
  27. Allen, E.; Jabouille, A.; Rivera, L.B.; Lodewijckx, I.; Missiaen, R.; Steri, V.; Feyen, K.; Tawney, J.; Hanahan, D.; Michael, I.P.; et al. Combined antiangiogenic and anti-PD-L1 therapy stimulates tumor immunity through HEV formation. Sci. Transl. Med. 2017, 9, eaak9679. [Google Scholar] [CrossRef] [Green Version]
  28. Zhao, S.; Ren, S.; Jiang, T.; Zhu, B.; Li, X.; Zhao, C.; Jia, Y.; Shi, J.; Zhang, L.; Liu, X.; et al. Low-Dose Apatinib Optimizes Tumor Microenvironment and Potentiates Antitumor Effect of PD-1/PD-L1 Blockade in Lung Cancer. Cancer Immunol. Res. 2019, 7, 630–643. [Google Scholar] [CrossRef]
  29. Li, Q.; Wang, Y.; Jia, W.; Deng, H.; Li, G.; Deng, W.; Chen, J.; Kim, B.Y.S.; Jiang, W.; Liu, Q.; et al. Low-Dose Anti-Angiogenic Therapy Sensitizes Breast Cancer to PD-1 Blockade. Clin. Cancer Res. 2020, 26, 1712–1724. [Google Scholar] [CrossRef] [Green Version]
  30. Shigeta, K.; Datta, M.; Hato, T.; Kitahara, S.; Chen, I.X.; Matsui, A.; Kikuchi, H.; Mamessier, E.; Aoki, S.; Ramijiawan, R.R.; et al. Dual Programmed Death Receptor-1 and Vascular Endothelial Growth Factor Receptor-2 Blockade Promotes Vascular Normalization and Enhances Antitumor Immune Responses in Hepatocellular Carcinoma. Hepatology 2020, 71, 1247–1261. [Google Scholar] [CrossRef] [PubMed]
  31. Wallin, J.J.; Bendell, J.C.; Funke, R.; Sznol, M.; Korski, K.; Jones, S.; Hernandez, G.; Mier, J.; He, X.; Hodi, F.S.; et al. Atezolizumab in combination with bevacizumab enhances antigen-specific T-cell migration in metastatic renal cell carcinoma. Nat. Commun. 2016, 7, 12624. [Google Scholar] [CrossRef] [PubMed]
  32. Ciciola, P.; Cascetta, P.; Bianco, C.; Formisano, L.; Bianco, R. Combining immune checkpoint inhibitors with anti-angiogenic agents. J. Clin. Med. 2020, 9, 675. [Google Scholar] [CrossRef] [PubMed]
  33. Xu, J.; Zhang, Y.; Jia, R.; Yue, C.; Chang, L.; Liu, R.; Zhang, G.; Zhao, C.; Zhang, Y.; Chen, C.; et al. Anti-PD-1 Antibody SHR-1210 Combined with Apatinib for Advanced Hepatocellular Carcinoma, Gastric, or Esophagogastric Junction Cancer: An Open-label, Dose Escalation and Expansion Study. Clin. Cancer Res. 2019, 25, 515–523. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Herbst, R.S.; Arkenau, H.T.; Santana-Davila, R.; Calvo, E.; Paz-Ares, L.; Cassier, P.A.; Bendell, J.; Penel, N.; Krebs, M.G.; Martin-Liberal, J.; et al. Ramucirumab plus pembrolizumab in patients with previously treated advanced non-small-cell lung cancer, gastro-oesophageal cancer, or urothelial carcinomas (JVDF): A multicohort, non-randomised, open-label, phase 1a/b trial. Lancet Oncol. 2019, 20, 1109–1123. [Google Scholar] [CrossRef]
  35. Makker, V.; Rasco, D.; Vogelzang, N.J.; Brose, M.S.; Cohn, A.L.; Mier, J.; Simone, C.D.; Hyman, D.M.; Stepan, D.E.; Dutcus, C.E.; et al. Lenvatinib plus pembrolizumab in patients with advanced endometrial cancer: An interim analysis of a multicentre, open-label, single-arm, phase 2 trial. Lancet Oncol. 2019, 20, 711–718. [Google Scholar] [CrossRef]
  36. Sakurai, Y.; Akita, H.; Harashima, H. Targeting tumor endothelial cells with nanoparticles. Int. J. Mol. Sci. 2019, 20, 5819. [Google Scholar] [CrossRef] [Green Version]
  37. Danhier, F.; Le Breton, A.; Preat, V. RGD-based strategies to target alpha(v) beta(3) integrin in cancer therapy and diagnosis. Mol. Pharm. 2012, 9, 2961–2973. [Google Scholar] [CrossRef]
  38. Schiffelers, R.M.; Ansari, A.; Xu, J.; Zhou, Q.; Tang, Q.; Storm, G.; Molema, G.; Lu, P.Y.; Scaria, P.V.; Woodle, M.C. Cancer siRNA therapy by tumor selective delivery with ligand-targeted sterically stabilized nanoparticle. Nucleic Acids Res. 2004, 32, e149. [Google Scholar] [CrossRef]
  39. Hatakeyama, H.; Akita, H.; Harashima, H. A multifunctional envelope type nano device (MEND) for gene delivery to tumours based on the EPR effect: A strategy for overcoming the PEG dilemma. Adv. Drug Deliv. Rev. 2011, 63, 152–160. [Google Scholar] [CrossRef]
  40. Takara, K.; Hatakeyama, H.; Kibria, G.; Ohga, N.; Hida, K.; Harashima, H. Size-controlled, dual-ligand modified liposomes that target the tumor vasculature show promise for use in drug-resistant cancer therapy. J. Control. Release 2012, 162, 225–232. [Google Scholar] [CrossRef] [Green Version]
  41. Tian, L.; Goldstein, A.; Wang, H.; Ching Lo, H.; Sun Kim, I.; Welte, T.; Sheng, K.; Dobrolecki, L.E.; Zhang, X.; Putluri, N.; et al. Mutual regulation of tumour vessel normalization and immunostimulatory reprogramming. Nature 2017, 544, 250–254. [Google Scholar] [CrossRef] [PubMed]
  42. Sweeny, L.; Prince, A.; Patel, N.; Moore, L.S.; Rosenthal, E.L.; Hughley, B.B.; Warram, J.M. Antiangiogenic antibody improves melanoma detection by fluorescently labeled therapeutic antibodies. Laryngoscope 2016, 126, e387–e395. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Tong, R.T.; Boucher, Y.; Kozin, S.V.; Winkler, F.; Hicklin, D.J.; Jain, R.K. Vascular normalization by vascular endothelial growth factor receptor 2 blockade induces a pressure gradient across the vasculature and improves drug penetration in tumors. Cancer Res. 2004, 64, 3731–3736. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Wherry, E.J.; Kurachi, M. Molecular and cellular insights into T cell exhaustion. Nat. Rev. Immunol. 2015, 15, 486–499. [Google Scholar] [CrossRef] [PubMed]
  45. Patsoukis, N.; Brown, J.; Petkova, V.; Liu, F.; Li, L.; Boussiotis, V.A. Selective effects of PD-1 on Akt and Ras pathways regulate molecular components of the cell cycle and inhibit T cell proliferation. Sci. Signal. 2012, 5, ra46. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Dahlman, J.E.; Barnes, C.; Khan, O.; Thiriot, A.; Jhunjunwala, S.; Shaw, T.E.; Xing, Y.; Sager, H.B.; Sahay, G.; Speciner, L.; et al. In vivo endothelial siRNA delivery using polymeric nanoparticles with low molecular weight. Nat. Nanotechnol. 2014, 9, 648–655. [Google Scholar] [CrossRef]
  47. Sakurai, Y.; Hatakeyama, H.; Akita, H.; Harashima, H. Improvement of doxorubicin efficacy using liposomal anti-polo-like kinase 1 siRNA in human renal cell carcinomas. Mol. Pharm. 2014, 11, 2713–2719. [Google Scholar] [CrossRef]
  48. Sato, Y.; Hatakeyama, H.; Sakurai, Y.; Hyodo, M.; Akita, H.; Harashima, H. A pH-sensitive cationic lipid facilitates the delivery of liposomal siRNA and gene silencing activity in vitro and in vivo. J. Control. Release 2012, 163, 267–276. [Google Scholar] [CrossRef] [Green Version]
  49. Judge, A.D.; Robbins, M.; Tavakoli, I.; Levi, J.; Hu, L.; Fronda, A.; Ambegia, E.; McClintock, K.; MacLachlan, I. Confirming the RNAi-mediated mechanism of action of siRNA-based cancer therapeutics in mice. J. Clin. Investig. 2009, 119, 661–673. [Google Scholar] [CrossRef] [Green Version]
  50. Sakurai, Y.; Hatakeyama, H.; Sato, Y.; Hyodo, M.; Akita, H.; Harashima, H. Gene silencing via RNAi and siRNA quantification in tumor tissue using MEND, a liposomal siRNA delivery system. Mol. Ther. 2013, 21, 1195–1203. [Google Scholar] [CrossRef] [Green Version]
  51. Schneider, C.A.; Rasband, W.S.; Eliceiri, K.W. NIH Image to ImageJ: 25 years of image analysis. Nat. Methods 2012, 9, 671–675. [Google Scholar] [CrossRef] [PubMed]
Cancers 12 03630 g001 550

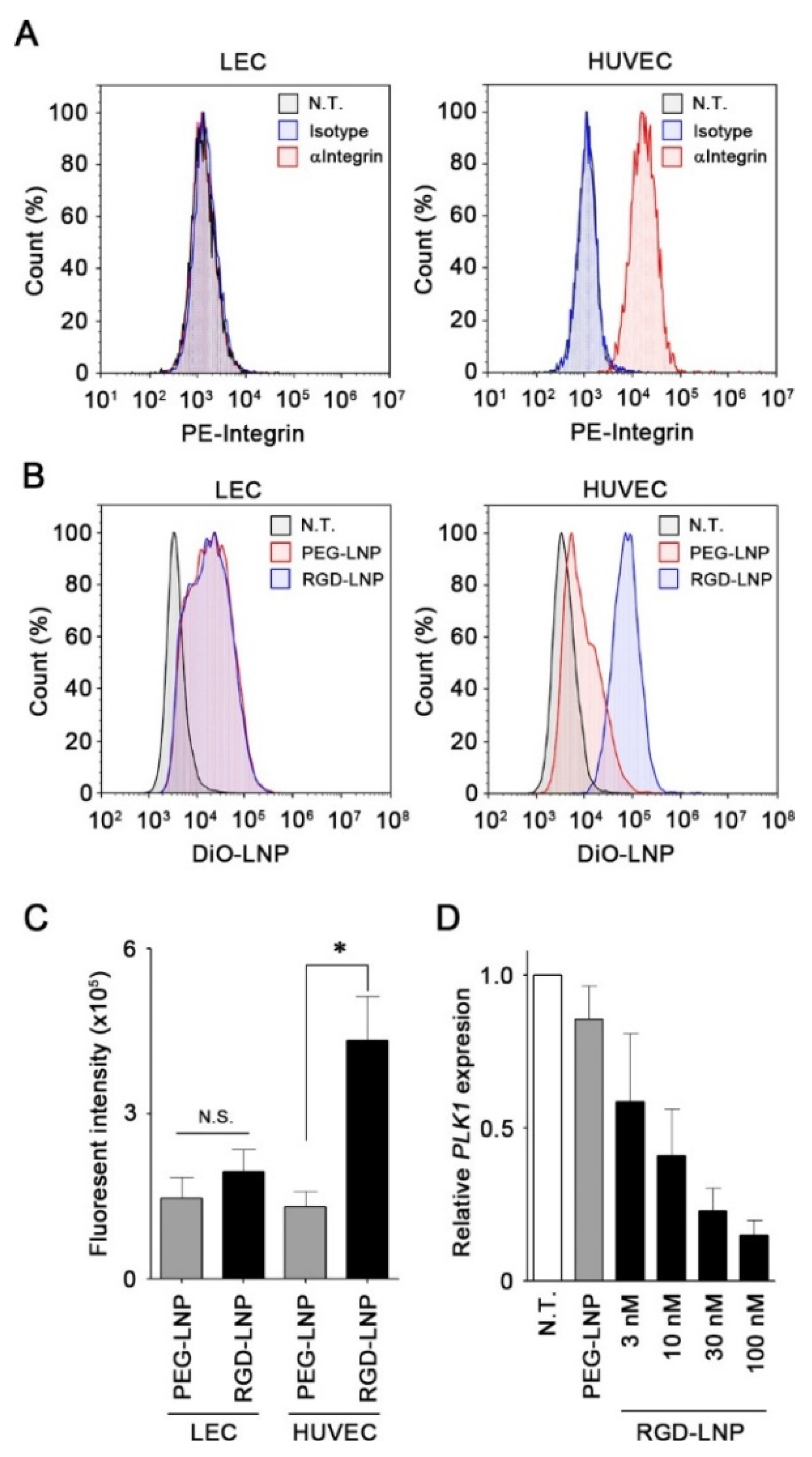

Figure 1. In vitro PLK1 knockdown by RGD-LNP in human endothelial cells expressing integrin. (A) Representative histograms based on flow cytometric analysis for LEC and HUVEC stained with the control antibody or anti-integrin antibody. (B) Representative histograms based on flow cytometric analysis of the uptake of PEG-LNP or RGD-LNP labeled with DiO in LEC or HUVEC. (C) Cellular uptake of PEG-LNP or RGD-LNP labeled with DiO in LEC or HUVEC measured using flow cytometric analysis. Data are shown as the mean ± S.E. (n = 3). * p < 0.05. (D) Expression of PKL1 in HUVEC after treatment with PEG-LNP at 100 nM or RGD-LNP at indicated concentrations of siPLK1 for 24 h. Data are shown as the mean ± S.E. (n = 3). N.T.: No treatment.
Figure 1. In vitro PLK1 knockdown by RGD-LNP in human endothelial cells expressing integrin. (A) Representative histograms based on flow cytometric analysis for LEC and HUVEC stained with the control antibody or anti-integrin antibody. (B) Representative histograms based on flow cytometric analysis of the uptake of PEG-LNP or RGD-LNP labeled with DiO in LEC or HUVEC. (C) Cellular uptake of PEG-LNP or RGD-LNP labeled with DiO in LEC or HUVEC measured using flow cytometric analysis. Data are shown as the mean ± S.E. (n = 3). * p < 0.05. (D) Expression of PKL1 in HUVEC after treatment with PEG-LNP at 100 nM or RGD-LNP at indicated concentrations of siPLK1 for 24 h. Data are shown as the mean ± S.E. (n = 3). N.T.: No treatment.
Cancers 12 03630 g001
Cancers 12 03630 g002 550

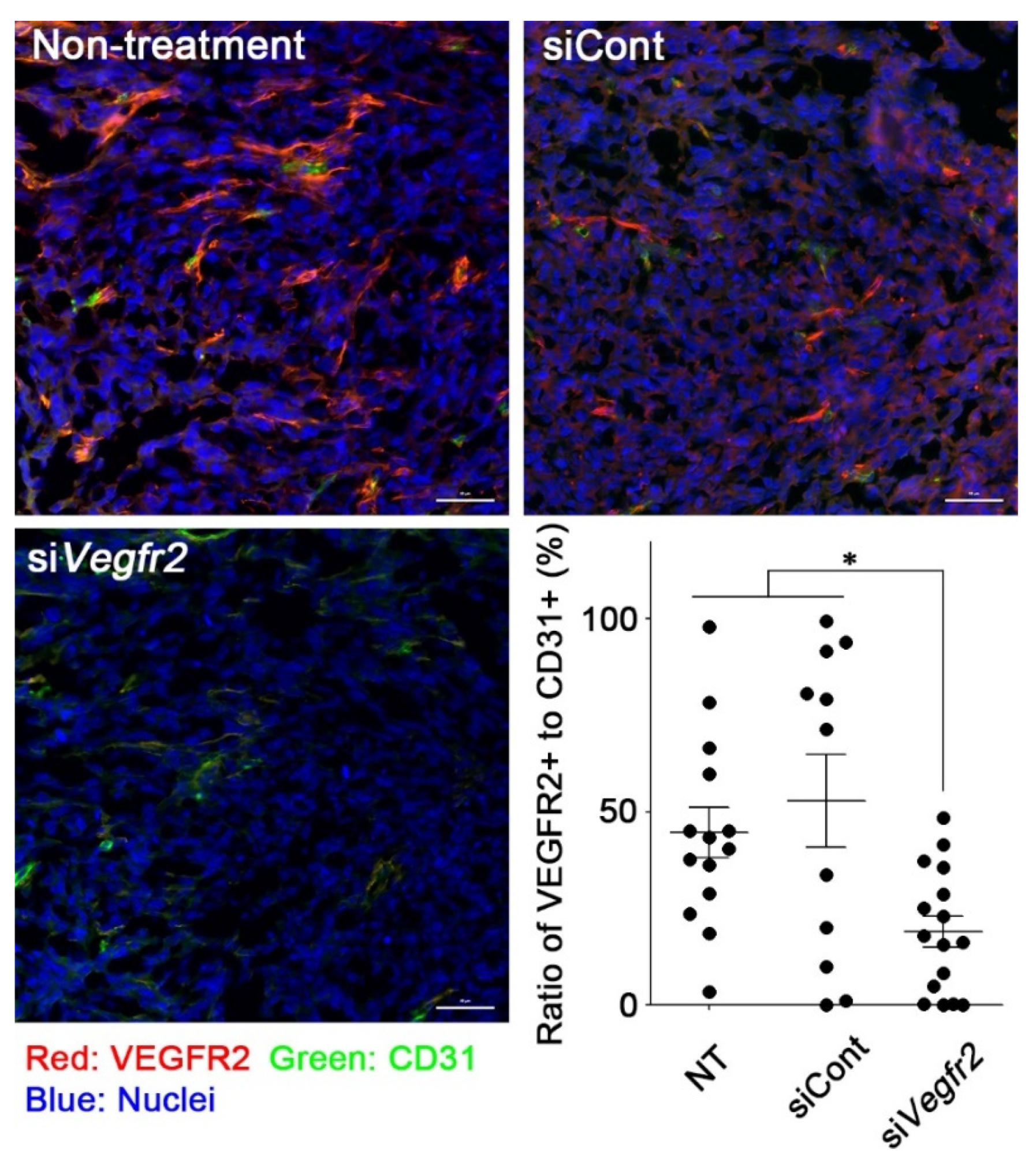

Figure 2. In vivo Vegfr2 knockdown in MC38 tumors by delivery of siVegfr2 using RGD-LNP. MC38 tumor-bearing mice were administered with RGD-LNP encapsulating either siPLK1 as a control, or siVegfr2, at a dose of 40 μg siRNA. Tumors were harvested 24 h after administration, sectioned, and stained as described in the Materials and Methods section. Four tumors from each group were imaged, and CD31-positive cells stained with VEGFR2 or not stained were quantified in each image. Red: VEGFR2, green: CD31 (marker of endothelial cells), blue: nuclei. * p < 0.05 determined using one-way ANOVA followed by Tukey’s test. Bars: 50 μm.
