Ni-Based Catalysts for Low Temperature Methane Steam Reforming: Recent Results on Ni-Au and Comparison with Other Bi-Metallic Systems

1
Institute for The Study of Nanostructured Materials (ISMN)-CNR, Via Ugo La Malfa 153, 90146 Palermo, Italy
2
Department of Applied Physics, Northwestern Polytechnical University (NPU), 127 Youyi Xilu, 710072 Xi'an, China
3
Department of Physics and Chemistry, University of Palermo, Viale delle Scienze Ed.17, 90128 Palermo, Italy
*
Author to whom correspondence should be addressed.
Catalysts 2013, 3(2), 563-583; https://doi.org/10.3390/catal3020563
Submission received: 9 April 2013 / Revised: 22 May 2013 / Accepted: 30 May 2013 / Published: 5 June 2013
(This article belongs to the Special Issue New Trends in Gold Catalysts)

Abstract

:
Steam reforming of light hydrocarbons provides a promising method for hydrogen production. Ni-based catalysts are so far the best and the most commonly used catalysts for steam reforming because of their acceptably high activity and significantly lower cost in comparison with alternative precious metal-based catalysts. However, nickel catalysts are susceptible to deactivation from the deposition of carbon, even when operating at steam-to-carbon ratios predicted to be thermodynamically outside of the carbon-forming regime. Reactivity and deactivation by carbon formation can be tuned by modifying Ni surfaces with a second metal, such as Au through alloy formation. In the present review, we summarize the very recent progress in the design, synthesis, and characterization of supported bimetallic Ni-based catalysts for steam reforming. The progress in the modification of Ni with noble metals (such as Au and Ag) is discussed in terms of preparation, characterization and pretreatment methods. Moreover, the comparison with the effects of other metals (such as Sn, Cu, Co, Mo, Fe, Gd and B) is addressed. The differences of catalytic activity, thermal stability and carbon species between bimetallic and monometallic Ni-based catalysts are also briefly shown.

1. Introduction

Production of synthesis gas from natural gas and Fisher-Tropsch synthesis from the synthesis gas have become very important in the chemical industry for reasons related to the soaring petroleum price, depletion of oil reserves, and environmental problems with exhaust gases [1,2,3]. Steam reforming of methane and other hydrocarbons has been an extremely important process for the production of synthesis gas [4,5,6]. Steam reforming is the conventional method to produce synthesis gas from natural gas and is utilized on the industrial scale, which is highly endothermic reaction as indicated below (Equation (1)).
Catalysts 03 00563 i001
In industry, hydrogen is practically produced from natural gas and mainly used for the ammonia synthesis [7,8,9]. Recently, much attention has been paid to the hydrogen production relating to the fuel cell technology [10,11,12]. Moreover, many efforts have been made in developing dry (CO2) reforming of methane as a practical way to utilize CO2 as a building block in organic syntheses (Equation (2)) [13,14].
Catalysts 03 00563 i002
It has been pointed out that one problem in methane reforming is carbon deposition on the catalyst surface, which causes the catalyst deactivation. There are two principal carbon deposition pathways for steam reforming of methane: the methane decomposition (Equation (3)) and the CO disproportion (Equation (4)).
Catalysts 03 00563 i003
Catalysts 03 00563 i004
Catalysts 03 00563 i005
The tendency to carbon deposition may depend on the atomic ratio O/C and H/C in the feed gas. Lower H2O/CH4 and H2/CO ratios correspond to higher tendency toward coke formation [15]. This means that the tendency of carbon deposition in the dry reforming of methane is much higher than that in the steam reforming of methane. Coke formation is relatively severe over the catalysts used for CO2 reforming at high temperatures (> 1073 K).
For steam and dry reforming of methane, the catalyst bed has to be heated from the outside of the reactor by the combustion of methane (Equation (5)). Therefore, the reaction rate is limited by the heat transfer and the scale merit of the syngas production by this method is low. Other combined technologies such as autothermal reforming, oxidative reforming, and so on, are used to realize the large-scale synthesis gas production. For example, oxidative steam reforming of methane, in which O2 is introduced to the catalyst bed together with methane and steam, is a promising method for syngas production because the reaction conditions can be adjusted by balancing exothermic combustion and endothermic reforming to an autothermal system.
Reforming of methane with steam and CO2 is catalyzed by various transition and noble metals such as Ni, Co, Ru, Rh, Pd, Pt, etc. The catalytic activity of metal catalysts supported on Al2O3-MgO was reported to follow the order: Ru > Rh > Ir > Ni > Pt [16]. Ni has a comparable activity to noble-metal catalysts, and that higher loading amount of Ni is feasible in terms of the catalyst cost in order to increase the activity per catalyst volume. Although Ni is inferior to noble metals regarding the resistance to carbon deposition and catalyst oxidation, the high resistance to coke formation and catalyst oxidation can be realized by the addition of very small amounts of noble metals. The modification of Ni catalysts with small amounts of noble metals such as Pd, Pt, Ru, Rh and Ir has been well reviewed [1,2,3] and it has been demonstrated as a promising approach to design catalysts with excellent performances for methane reforming.
The present review article is related to the effects of modification of Ni catalysts by other metals (such as Au, Ag, Sn, Cu, Co, Mo, Fe, Gd and B), with particular attention being devoted to bimetallic Ni-Au catalysts. It is well known that the preparation method strongly influences the structure of bimetallic systems. The first part of this work is, therefore, devoted to the structural differences of catalysts prepared by different methods. In the second part, the resistance to coke formation in the steam reforming of methane, as well as the relationship between the catalytic performance and the structure of bimetallic catalysts, are discussed.

2. Preparation and Structure of Ni Catalysts Modified with a Small Amount of Second Metals

Table 1 lists the chemical composition of the main Ni-M catalysts (M = Au, Ag, Sn, Cu, Co, Mo, Fe, Gd and B) for hydrocarbon reforming [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50,51,52,53,54,55,56,57] recently reported in the literature. Some typical examples are discussed in detail in the present review.
Table 1. List of Ni catalysts modified with a second metal reported in this review: chemical composition and catalytic reactions.
Table 1. List of Ni catalysts modified with a second metal reported in this review: chemical composition and catalytic reactions.
CatalystsSecond metalNi content (wt%)Molar ratio (M/Ni)ReactionsSecond metal effects Refs.
Au/Ni/MgAl2O4Au16.50.0054SR of n-butaneC[17,18,19]
Au/Ni/MgAl2O4Au8.80.0034–0.034SR of methaneC[20]
Au/Ni/MgAl2O4Au80.019SR of methaneC,A[21]
Au-Ni/Al2O3Au80.038SR of methaneC,A[22,23,24]
Au-Ni/Al2O3Au80.075PO of methaneC,A[25]
Au-Ni/CrAl3O6Au50.0060–0.12PO of methaneC,A[26,27]
Au-Ni/MgO-Al2O3Au50.12PO of methaneC[28]
AuNiAl LDHs(Cp)Au79.50.011SR of methanol-[29]
Au/Ni/GDC(Dp)Au650.01–0.04SR of methaneC[30]
AuNi/YSZ(Cs)Au500.01–0.05SR of methaneC[31]
Ag-Ni/Al2O3Ag80.038SR of methaneC[22,23,24]
Ag-Ni/Al2O3Ag150.0036–0.022SR of methaneC[32]
Ag-Ni/Al2O3Ag150.011SR of methaneC[33]
AgNi/YSZ(Cs)Ag500.01–0.05SR of methaneC[34]
Ag/Ni/MgAl2O4Ag7.930.5SR of butaneC,S[35]
Ag/Ni alloyAg--SRC[36]
Sn-Ni/Al2O3Sn7.0–71.80.014–0.17SRC[37]
Sn/Ni/Al2O3Sn350.0049SR of methaneC[38]
SnNi/YSZ(Cp)Sn150.0049SRC[39,40,41]
Sn-Ni/MgO-Al2O3Sn11.250.16SR of methanolC[42]
SnNi3 alloySn-0.33SRC[43]
Cu-Ni/Al2O3Cu8.720.0092SR of methaneA,S[44]
Cu-Ni/Al2O3Cu3–70.40–2.16SR of methanolS,C[45]
Cu-Ni/Al2O3Cu50.92SR of methaneC[46]
Cu-Ni/SiO2Cu1.25–3.750.33–3SR of ethanolA,C,S[47]
Cu-Ni/Al2O3Cu-1SR of methaneC[48]
Cu-Ni-Mg-Al(Cp)Cu--DR of methaneC[49]
Cu/Ni(111) alloyCu--SR of methaneC[50]
Co-Ni-Mg-Al(Cp)Co-1.36DR of methaneA,C[49]
Co-Ni/YSZCo25,340.44,0.92SR of ethanolS[51]
Co-Ni/ZrO2Co13,8.71.00,0.500DR of methaneA,C,S[52]
MoO3/Ni/Al2O3Mo--SR of n-butaneC[53]
MoO3/Ni/Al2O3Mo170.00048–0.048SR of n-butaneA,C[54]
Mo/Ni/Al2O3Mo600.00050–0.0020SR of methaneA[55]
Fe-Ni(Cp)Fe-0.33–1SR of ethanolA,C[56]
GdNi/Al2O3(Cs)Gd70.12PO,SR,DRC[57]
B/Ni/Al2O3B150.18,0.36SR of methaneC[58]
M/Ni, sequential impregnation; M-Ni, co-impregnation; Cp, co-precipitation; Dp, deposition-precipitation; Cs, combustion synthesis; SR, steam reforming; PO, partial oxidation; DR, dry reforming; ATR, autothermal reforming; A, activity; C, coke resistant; S, selectivity.

2.1. Ni Metal Particles Modified with Au

Nørskov and co-workers [17,18,19] have reported that Au/Ni surface alloy on the Ni particles (on SiO2 and MgAl2O4) was active for steam reforming and more resistant towards carbon formation than the pure Ni catalysts. The Ni/SiO2 and Ni/MgAl2O4 with high surface area were prepared by precipitation-deposition and pore filling of the spinel support with Ni-nitrate, respectively. The bimetallic Au/Ni catalysts were prepared by carefully impregnating the reduced monometallic Ni catalysts with an aqueous solution containing Au(NH3)4(NO3)3. After filtering, the products were dried in air at 383 K. They described in details how Monte Carlo simulations and various physicochemical characterization tools such as transmission electron microscopy (TEM), in situ extended X-ray absorption fine structure measurements (EXAFS), and X-ray powder diffraction (XRD) were used to get information on the existence of the Au/Ni surface alloy in the small particle system encountered in the supported catalysts [18]. By fitting the back-transformed Au L3 spectrum of silica supported Au/Ni catalyst, the nonzero value of the Au-Ni coordination number was observed and gave evidence for the presence of Ni in the nearest neighbor environment of Au. However, the Au-Au coordination number was larger than what could be expected for an Au surface alloy. Therefore, they took into account that XAFS probed all Au present in the catalyst; also Au presented as large Au particle as evidenced by TEM and XRD results. Linear combinations of calculated Au L3 XAFS functions of bulk Au and Au/Ni surface alloys were compared to the experimental data by varying the amount of Au on Ni in the particles as well as the relative amount of bulk Au. The best fit results in 73% of the Au presented as bulk Au and the remainder of the Au presented as a surface alloy (molar ratio Au/Ni = 0.10) on a Ni particle with a diameter of 1.8 nm. No significant differences were observed between the EXAFS spectra and the Fourier transformed data of the freshly reduced catalyst and the catalyst after steam reforming in diluted n-butane.
King and co-workers [20] have reported that the addition of small quantities of gold to the surface of supported nickel catalysts has been proved to retard carbon formation during hydrocarbon steam reforming. After Ni/MgAl2O4being impregnated with Au, the sample was dried in ambient air, heated in flowing He at a rate of 1 K/min to 473 K, than held isothermally at 473 K for at least 8 h. Table 2 shows the results of fitting the back-transformed Au L3-edge data with both the Au-Ni and Au-Au first coordination shells. Increasing Au loadings resulted in increased Au-Au interaction and a parallel decrease in Au-Ni interaction. For the 0.1 wt% Au/8.8 wt% Ni sample, an average coordination number was 5.3, with a negligible coordination number of Au-Au interaction. This means that at the lowest Au loading (0.1 wt%), only Au-Ni bonds are detected. Furthermore, the XANES analysis of the Au-Ni/MgAl2O4 catalysts revealed changes in both the Ni K-edge and Au L3-edge white line intensities, indicative of transfer of electronic charge from Au to Ni as a result of surface alloy formation.
Table 2. Structural parameters derived from fitting Au L3-edge EXAFS data for Au-8.8% Ni/MgAl2O4 after reduction at 500 °C [20].
Table 2. Structural parameters derived from fitting Au L3-edge EXAFS data for Au-8.8% Ni/MgAl2O4 after reduction at 500 °C [20].
Au concentrationAu L3-edge fitting Au-NiAu L3-edge fitting Au-AuR factor
(%)C.N.R (Å)Δσ2 × 103ΔE0C.N.R (Å)Δσ2 × 103ΔE0(%)
0.15.3 ± 1.12.58 ± 0.016.5 ± 1.60.2----4.7
0.24.9 ± 1.12.59 ± 0.027.4 ± 1.64.24.0 ± 1.32.97 ± 0.048.3 ± 4.35.44.9
0.43.7 ± 0.72.58 ± 0.015.5 ± 0.12.86.0 ± 1.52.82 ± 0.017.7 ± 1.84.92.1
1.02.8 ± 0.32.57 ± 0.014.3 ± 0.74.17.6 ± 1.02.84 ± 0.016.5 ± 0.66.34.7
Besides, the pretreatment also will influence the Au-Ni surface alloy formation. Table 3 shows a significant Au-Ni nearest-neighbor interaction when the Ni component is in the reduced state, but there appears to be no interaction between Au and oxidized Ni atoms.
Recently, Lazar et al. [22,23,24] have synthesized the 1.0 wt% Au-7.0 wt% Ni/γ-Al2O3 catalyst by co-impregnation method and found that the addition of Au improved the methane conversion, CO2 selectivity and H2 production at low temperatures (T < 600 °C). The impregnated catalysts were dried at room temperature overnight, calcined in Ar at 823 K and then, reduced in H2 at 823 K. Taking all characterization results (XRD, H2 chemisorption and TEM) into account, they concluded that in the Ni-Au/γ-Al2O3 catalysts prepared by co-impregnation and reduced at 823 K, no significant interaction of Au with Ni has been proved to appear and no formation of a superficial Au-Ni surface alloy was observed [24]. Maniecki et al. [25] have also prepared 2.0 wt% Au-10.0 wt% Ni/Al2O3 catalysts by co-impregnation method and found that the addition of gold improved catalyst stability and activity in POM reaction. After drying they were calcined for 4 h in air at 673 K. The temperature programmed in situ XRD patterns for NiO-Au mechanical mixture in (5% H2 + 95% Ar) gas mixture is presented in Figure 1a. It can be observed that the reduction of free NiO takes place above 473 K and at the temperature of 563 K only metallic Ni and Au phases are detectable. Further increase of temperature up to 1153K leads to gradual shifts of 2θ values that characterize the Au-Ni alloy formation. Finally, at 1153 K only XRD lines assigned to Au-Ni alloy phase are visible. Figure 1b shows that Au-Ni alloy formation occurs in the mixture of 80 wt% NiO-20 wt% Au after partial oxidation of methane at 1153 K, after reduction in (5% H2 + 95% Ar) stream, at 1153 K, and for 8 wt% Ni-2 wt% Au/Al2O3 catalyst after partial methane oxidation (POM) reaction at 1153 K. One can see that the Au-Ni alloy is formed in the reductive gas atmosphere and after reaction. The formation of Au-Ni alloy during high temperature POM reaction is experimentally proved on 8 wt% Ni-2 wt% Au/Al2O3 catalyst surface. The mechanism of the formation of the bimetallic particles mentioned above is described in Figure 2 on the basis of the above in situ XRD characterization results.
Table 3. Structural parameters derived from fitting Au L3-edge EXAFS data for Au/MgAl2O4 following either oxidation or reduction, and for Au/Ni/MgAl2O4 after oxidation, all at 500 °C [20].
Table 3. Structural parameters derived from fitting Au L3-edge EXAFS data for Au/MgAl2O4 following either oxidation or reduction, and for Au/Ni/MgAl2O4 after oxidation, all at 500 °C [20].
CatalystsPretreatmentC.N.R (Å)Δσ2 × 103ΔE0R factor (%)
0.2% Au/MgO-Al2O3Reduced at 500 °C11.3 ± 0.62.86 ± 0.0022.4 ± 0.35.620.4
0.2% Au/MgO-Al2O3Oxidized at 500 °C11.0 ± 0.62.86 ± 0.0021.9 ± 0.35.620.4
0.2% Au-8.8% Ni/MgO-Al2O3Oxidized at 500 °C11.9 ± 0.92.87 ± 0.0032.0 ± 0.44.891.0

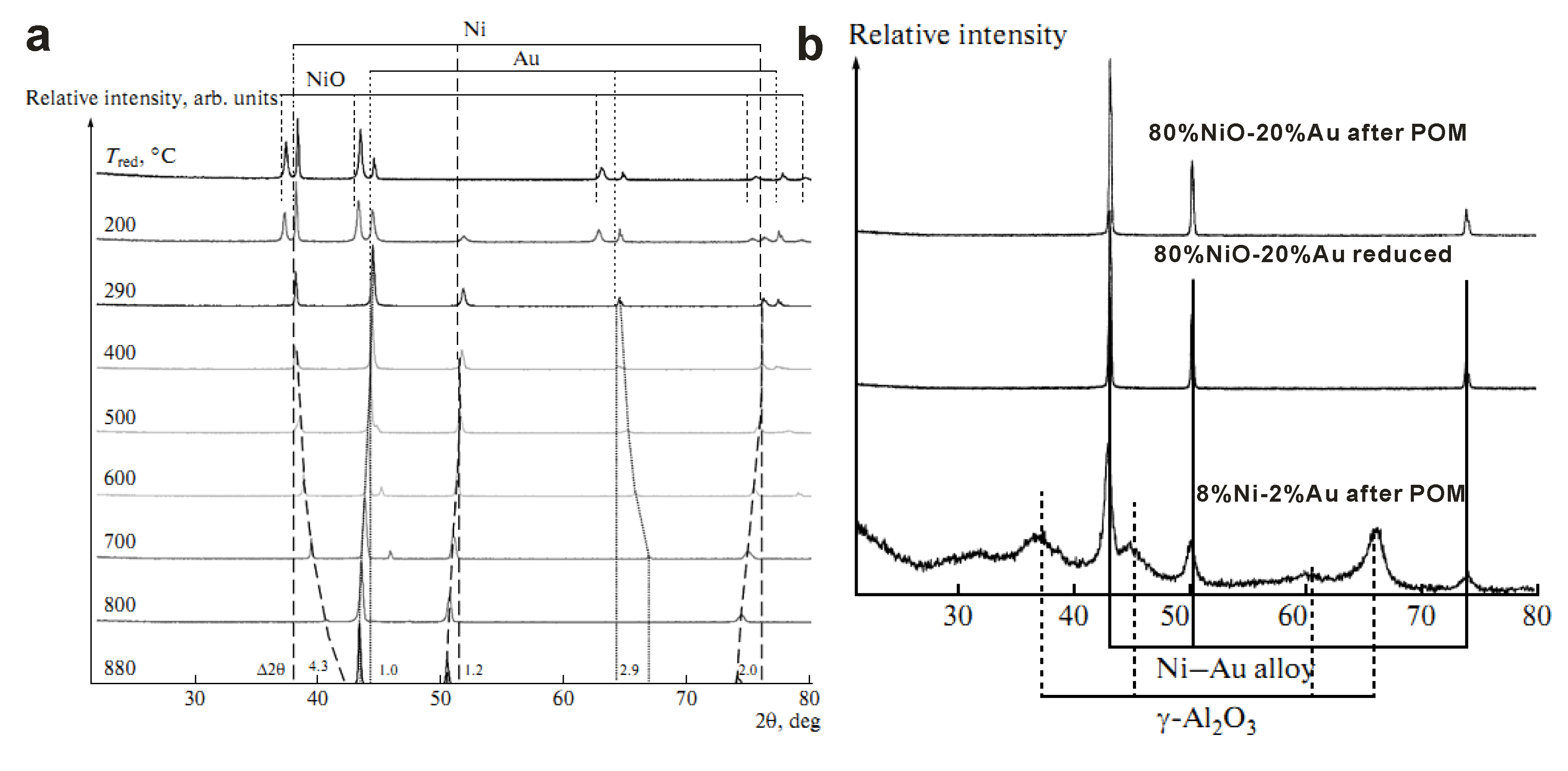

Figure 1. XRD patterns for (a) nickel oxide (80%)-gold (20%) mechanical mixture reduced in situ in (5% H2 + 95% Ar) gas mixture at different temperatures, and (b) (80% NiO-20% Au) mixture after partial oxidation of methane at 1153 K, after reduction in (5% H2 + 95% Ar) at 1153 K and for 8%Ni-2% Au/Al2O3 catalyst after reaction at 1153 K [25].
Figure 1. XRD patterns for (a) nickel oxide (80%)-gold (20%) mechanical mixture reduced in situ in (5% H2 + 95% Ar) gas mixture at different temperatures, and (b) (80% NiO-20% Au) mixture after partial oxidation of methane at 1153 K, after reduction in (5% H2 + 95% Ar) at 1153 K and for 8%Ni-2% Au/Al2O3 catalyst after reaction at 1153 K [25].
Catalysts 03 00563 g001

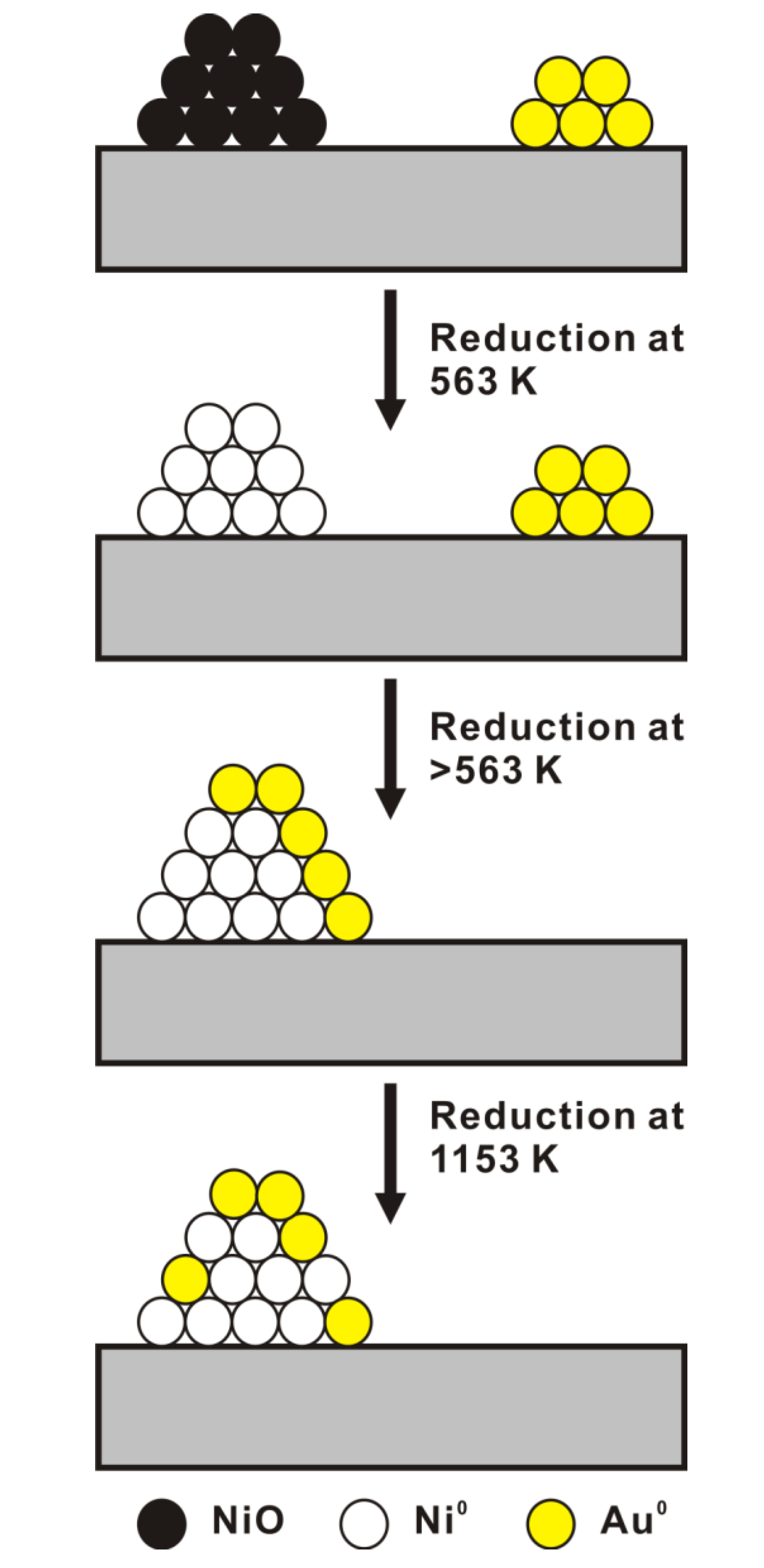

Figure 2. Model of the formation mechanism of Ni-Au bimetallic particles during the reduction pretreatment Al2O3 supported catalyst.
Figure 2. Model of the formation mechanism of Ni-Au bimetallic particles during the reduction pretreatment Al2O3 supported catalyst.
Catalysts 03 00563 g002

2.2. Ni Metal Particles Modified with Ag

Bueno and co-workers have prepared Ni/γ-Al2O3 modified with Ag by co-impregnation method [32,33]. The impregnated samples were dried at 353 K overnight and calcined under flowing air at 723 K for 2 h. Finally, the samples were reduced in H2 flow, heated at 10 K/min and held at 1073 K for 2 h. Figure 3 shows the in situ Ni K-edge XANES-TPR-H2 spectra of the oxidized 5 wt% Ni/γ-Al2O3 and that doped by 0.6 wt% Ag at different temperatures. The results indicate that two different species of Ni (II) are reduced in AgNi/γ-Al2O3. There is no obviously shift in the threshold for reduced catalysts with higher Ag loading, with low contribution of Ag-Ni bonds relative to that of bulk Ni-Ni bonds. However, the presence of Ag changes the surface structure of the Ni sites that may be related to the nucleation and growth of graphitic structure. The catalysts with Ag loading >0.3 wt% submitted to stability tests showed high resistance to coke deposition.

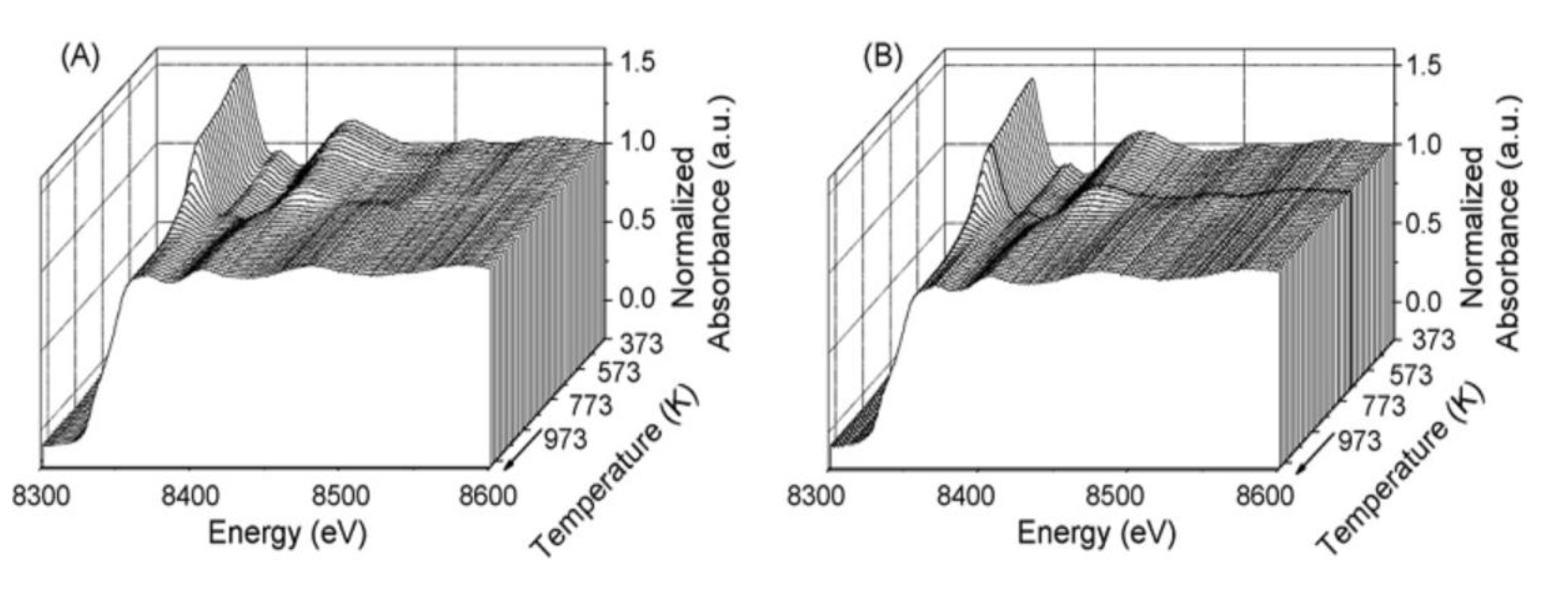

Figure 3. In situ XANES spectra of 0.6Ag5NiAl (A) and 5NiAl (B) samples under reduction conditions from 323 to 973 K [32].
Figure 3. In situ XANES spectra of 0.6Ag5NiAl (A) and 5NiAl (B) samples under reduction conditions from 323 to 973 K [32].
Catalysts 03 00563 g003
Recently, Kang et al. [35] have prepared 15 mol% Ag/15 mol% Ni/MgAl2O4 and 15 mol% Ni/15 mol% Ag/MgAl2O4 catalysts by the sequential wetness impregnation method. After being impregnated with Ag or Ni, the sample was dried in ambient air, heated in flowing air at a rate of 10 K/min to 773 K, and then held isothermally at the final temperature for at least 1 h. The reduction of the catalysts were performed in H2 at 973 K for 2 h, followed by cooling to room temperature under Ar. Figure 4 shows the catalytic phase change and n-butane reforming mechanism. The catalytic performances differ according to the order in which the metal precursors are added. Ag is added between Ni and Al in an attempt to decrease the catalytic deactivation induced by the strong sintering between them during n-butane steam reforming, while simultaneously improving the catalytic activity. Consequently, their synergistic effect is different from that between Au and Ni nanoparticles as mentioned above. It gives a new interpretation about the effect of Ag in the bimetallic catalysts.

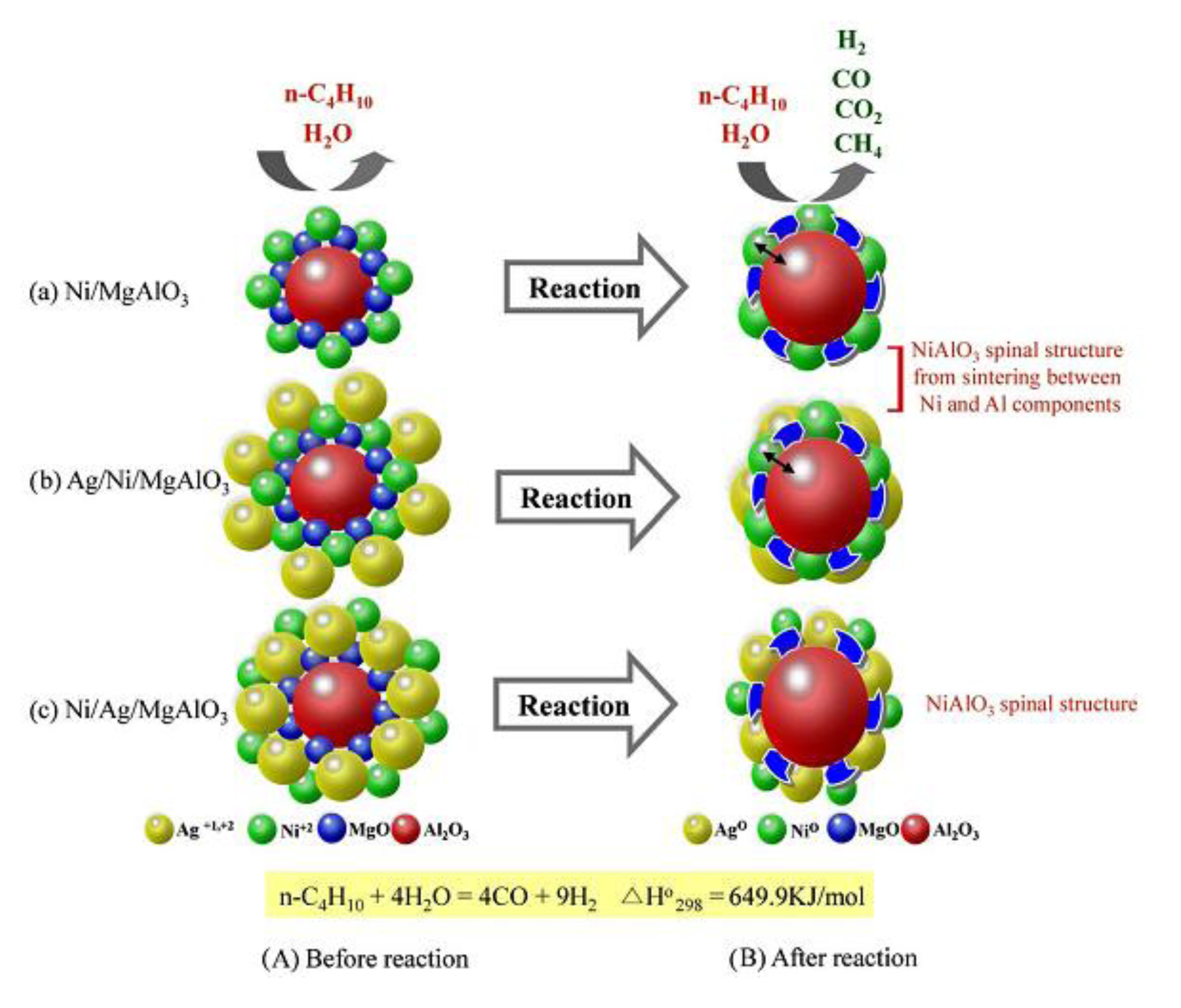

Figure 4. Expected phase transformation in the butane reforming before and after butane reforming reaction [35].
Figure 4. Expected phase transformation in the butane reforming before and after butane reforming reaction [35].
Catalysts 03 00563 g004
More recently, a density functional theory study of the effect Ag on the control of Ni-catalyzed carbon formation has been reported [36]. The calculated results indicated that the activation energy for methane dissociation was increased with the Ag coverage on Ni(211) surface than that on pure Ni(111), the active center was transferred from the stepped surface to the close-packed surface. The middle-step sites acted as the nucleation center for the growth of filamentous carbon and therefore had the potential to prevent catalyst nanoparticles from being destroyed. These findings provided a rational interpretation of the experimental observations that Ag/Ni surface alloy exhibited lower catalytic activity towards steam reforming of methane but high resistance to coke formation.

2.3. Ni Metal Particles Modified with Other Metals (Sn, Cu, Co, Mo, Fe, Gd and B)

Linic and co-workers have extensively investigated Ni and Sn-Ni alloy catalysts for hydrocarbons (methane, propane and isooctane) steam reforming [38,39,40,41]. By employing the Density Functional Theory (DFT), calculations on Ni and Sn/Ni catalysts supported over 8 mol% yttria-stabilized zirconia (YSZ) showed they identified Sn-Ni alloy as a potential carbon-tolerant reforming catalyst. Their DFT calculations showed that the formation energy of Sn/Ni surface alloy was lower than the formation energy of Sn bulk alloys or than the formation energy corresponding to pure Sn and Ni phases, therefore, suggesting that the formation of Sn/Ni surface alloy was thermodynamic favorable. It was deduced that Sn could displace Ni atoms from the step-edge sites, which effectively repelled C atoms from the low-coordinated step sites. This result indicated that Sn atoms lower the tendency of the surface alloy to form coke as confirmed in Figure 5b,c. Figure 5d shows the post-reaction STEM micrograph of Ni and Sn/Ni. Ni particles are completely covered with carbon deposits while Sn/Ni is carbon-free. Furthermore, elemental mapping of Sn/Ni particles via line scan (STEM/EDS) suggests surface alloying. Lower panel (Figure 5d) shows that Sn/Ni ratio diminishes as the probe moves from the particle bottom edge upward, indicating the Sn surface enrichment.

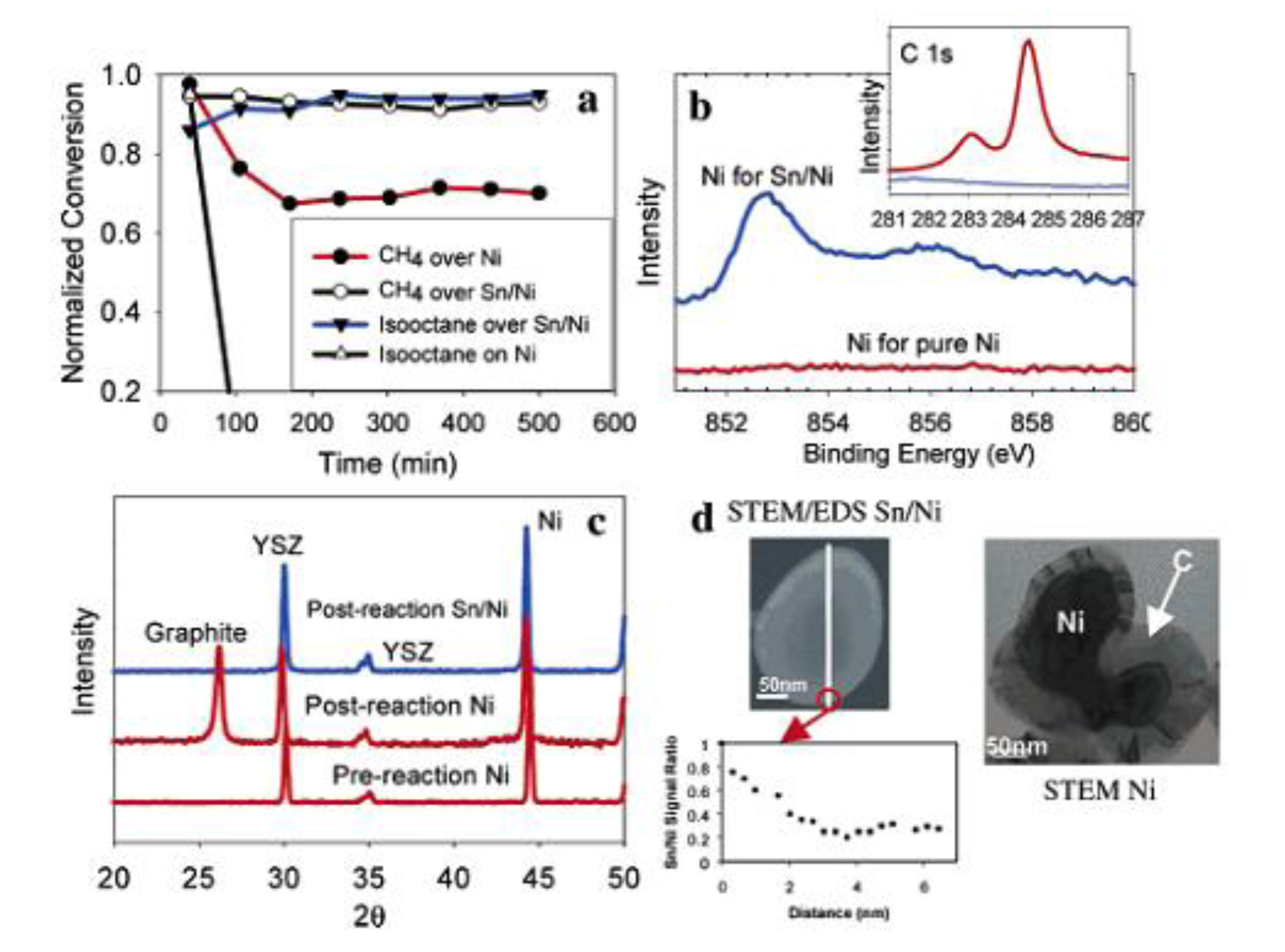

Figure 5. (a) normalized conversion; (b) Ni 2p XPS spectra after isooctane reforming on Ni (red) and on Sn/Ni (blue); (c) XRD spectra for post-isooctane Ni and Sn/Ni, and for fresh Ni catalysts, and (d) post-reaction STEM micrograph of Ni and Sn/Ni [38].
Figure 5. (a) normalized conversion; (b) Ni 2p XPS spectra after isooctane reforming on Ni (red) and on Sn/Ni (blue); (c) XRD spectra for post-isooctane Ni and Sn/Ni, and for fresh Ni catalysts, and (d) post-reaction STEM micrograph of Ni and Sn/Ni [38].
Catalysts 03 00563 g005
It has been reported that the introduction of Cu in the catalyst formulation suppresses coke deposition and the sintering of the active phase, in steam/dry reforming of hydrocarbons [44,45,46,47,48,49,50]. Fornasiero et al. [45] have comprehensively studied the methanol and ethanol steam reforming activity of a series of NixCuy/Al2O3 catalysts prepared by wet-impregnation method. Figure 6a shows a progressive shift of the metallic phase peaks. The XRD pattern shows diffraction peaks in an intermediate position, indicating the formation of a Ni-Cu surface alloy. The composition and the number of alloys depend on the Ni:Cu ratio. Figure 6b shows the comparison between the experimental cell parameter a of the metallic phases and the theoretical value calculated by Vegard’s law for intermediate composition. The cell parameter of Ni3Cu7 and Ni5Cu5 is appreciably different with respect to the theoretical values. When the Ni:Cu ratio decreases the lattice parameter increases. There may be two metal phases: a Cu rich alloy and a Ni-rich alloy, existed in the Ni3Cu7. Whereas, only one cubic structure alloy is detectable for the metal phase in the Ni5Cu5. The discrepancy between the observed and theoretical cell parameters suggests that, also in this case, two metal phase alloys could be present.

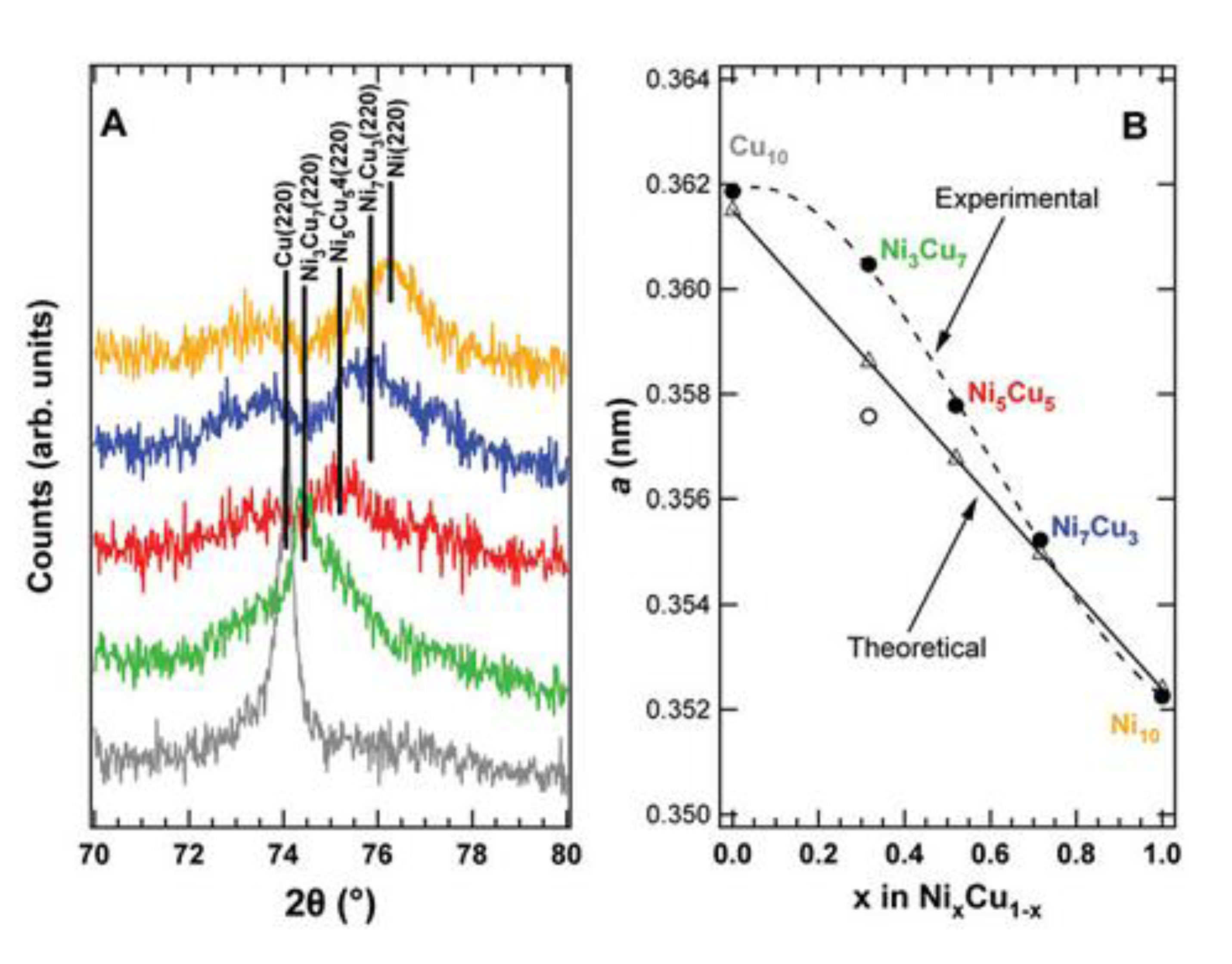

Figure 6. (A) Detail of the range 2θ = 70-80° of the XRD patterns of the reduced Cu, Ni and NixCu1−x samples, shows the shift of the (220) reflection with the composition, and (B) trend of the experimental cell parameter a with the composition of the metal phase, in comparison with the theoretical values [45].
Figure 6. (A) Detail of the range 2θ = 70-80° of the XRD patterns of the reduced Cu, Ni and NixCu1−x samples, shows the shift of the (220) reflection with the composition, and (B) trend of the experimental cell parameter a with the composition of the metal phase, in comparison with the theoretical values [45].
Catalysts 03 00563 g006
The effect of the addition of Co on Ni-based systems was also studied [51,52]. Ni-Co catalysts with different composition Ni(1−x)Cox (x = 0, 0.32, 0.5) were prepared on yttria-stabilised zirconia (YSZ) as catalysts for ethanol steam reforming. TEM micrographs of the catalysts, 50 wt%Ni/YSZ and Ni(25 wt%)-Co(25 wt%)/YSZ (labeled as Ni25Co25/YSZ) are shown in Figure 7a–c, respectively. The materials are composed of a powder which is heterogeneous in size. As detected by EDS analysis, 50 wt%Ni/YSZ is composed by relatively large Ni clusters (whose crystal size is tens of nm) deposited over small particles of YSZ support, better shown in Figure 7b (crystal size = 5nm). The TEM micrograph of Ni25Co25/YSZ catalyst is shown in Figure 7c. Isolated crystals of Ni-Co alloy, with particle size of 50–100 nm, were detected along with smaller particles mainly constituted by the YSZ support. XRD analysis of the Ni-Co catalysts confirmed the alloy formation, showing a progressive increase of the lattice parameter from 3.524 Å (for pure Ni) up to 3.529 Å determined for Ni1−xCox alloys in agreement with Vegard’s law (Figure 7d). Moreover, Gonzalez-delaCruz et al. [52] reported that bimetallic Co-Ni catalysts showed a better activity and stability than the nickel monometallic system. They proposed the formation in the bimetallic systems of a more reducible nickel-cobalt alloy phase, which remains completely metallic in contact with the CO2/CH4 reactants at any temperature. The strong synergic effect between Ni and Co sites accounts for the better performance of the bimetallic catalysts.
Figure 7. TEM micrographs of fresh catalysts: (a and b) 50 wt% Ni/YSZ sample; (c) Ni(25wt%)-Co(25wt%)/YSZ sample; (d) lattice parameter a (Å) vs. XCo, Co loading, for Ni-Co alloys [51].
Figure 7. TEM micrographs of fresh catalysts: (a and b) 50 wt% Ni/YSZ sample; (c) Ni(25wt%)-Co(25wt%)/YSZ sample; (d) lattice parameter a (Å) vs. XCo, Co loading, for Ni-Co alloys [51].
Catalysts 03 00563 g007
The promoting effect of small amounts of molybdenum oxide (0.1 wt%) on the resistance to coking of Ni/Al2O3 catalysts for methane and n-butane steam reforming were investigated by Borowiecki and Golebiowski [53,54]. The properties of Ni-Mo catalysts depend on the hydrogen-steam ratio in the reaction mixture which affects the mean degree of oxidation states of MoOx. The addition of Mo to Ni/Al2O3 catalysts for methane steam reforming was recently investigated also by Maluf and Assaf [55], who found evidence of the transfer of electrons form MoOx species to Ni, leading to an increase in the electron density of metallic Ni, and hence, the catalytic activity.
Interestingly, for the first time, a variety of Ni-Fe mixed oxides derived from Ni-Fe hydrotalcite has been reported by Abelló et al., for ethanol steam reforming [56]. They observed a positive role of iron in nickel-based catalysts in terms of enhanced catalytic activity, improved dispersion of nickel and lower carbon deposition.

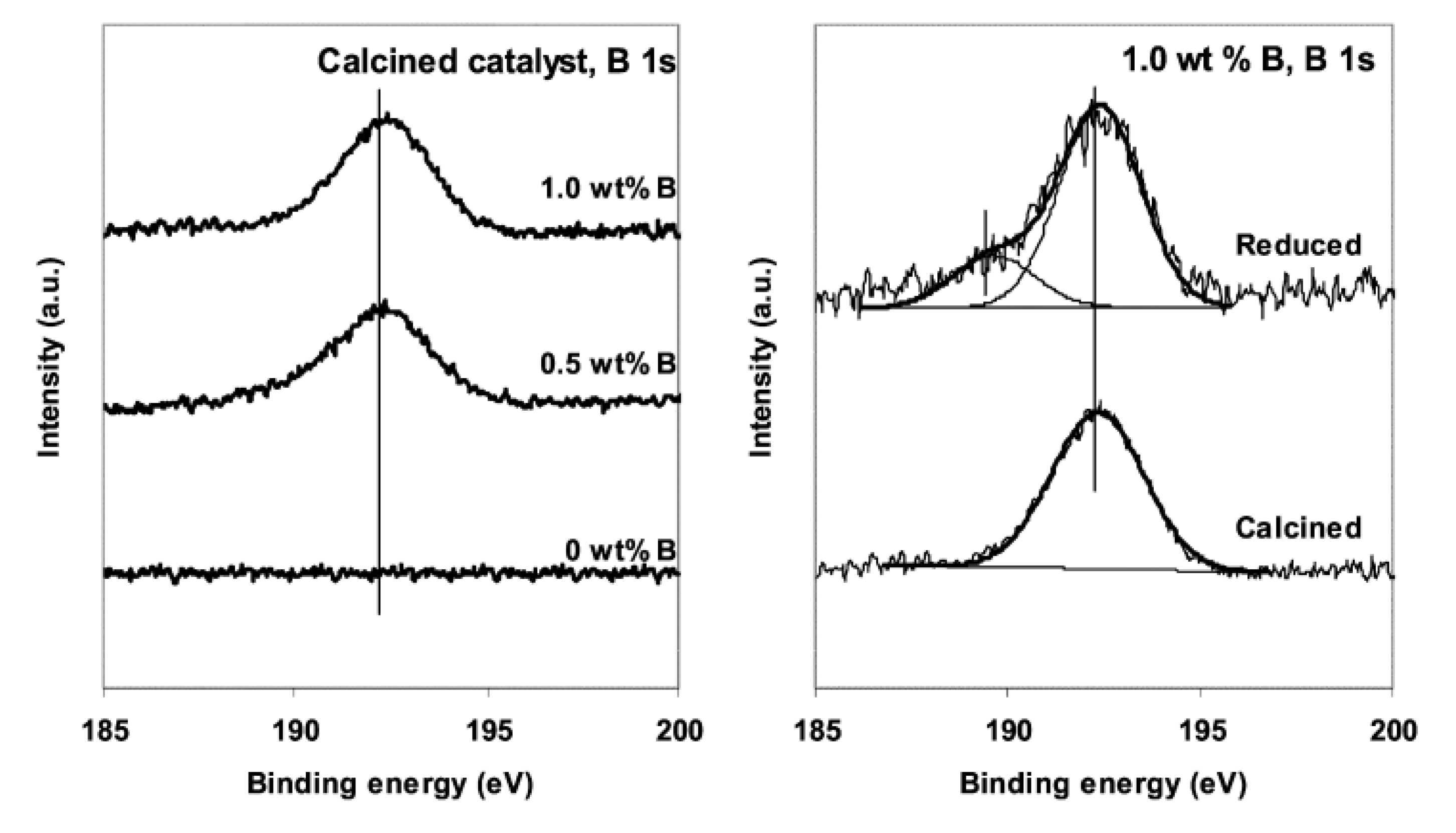

Figure 8. B 1s XPS spectra for calcined and reduced 15 wt% Ni/γ-Al2O3 catalysts with various B contents [58].
Figure 8. B 1s XPS spectra for calcined and reduced 15 wt% Ni/γ-Al2O3 catalysts with various B contents [58].
Catalysts 03 00563 g008
The effects of lanthanide promoters (La2O3, CeO2, Pr2O3, Sm2O3 and Gd2O3) on a Ni/Al2O3 catalyst for methane partial oxidation, steam and CO2 reforming were recently addressed by Shao and co-workers [57]. Raman spectroscopy indicated that the addition of lanthanide promoters can reduce the degree of graphitization of carbon deposited over nickel. Moreover, O2-TPO results evidenced that among the investigated systems, GdNi-Al2O3 posses the best coke resistance.
Based on first principle calculations, Saeys and Borgna [58] proposed that a small amount of boron could possibly enhance the stability of Ni catalysts. Since B and C exhibit similar chemisorptions preferences on Ni catalysts, a small amount of B might selectively block the most stable binding sites. Blocking most active sites first by B, therefore, potentially reduces coke deposition. Supported Ni catalysts were prepared by aqueous slurry impregnation with a nickel nitrate solution to produce Ni content of 15 wt% on a commercial γ-Al2O3 support (BET area: 380 m2/g). After drying at 353 K overnight and calcination at 673 K for 2 h, boric acid was sequentially introduced following the same preparation procedure to produce B content of 0.5 or 1.0 wt%. The XPS spectra (Figure 8) suggest that only B atoms interacting with Ni particles can be reduced, while a significant amount of boron oxide, probably interacting with the γ-Al2O3 support, cannot be reduced. Because γ-Al2O3 without Ni impregnated with 1 wt% B and subjected to the reduction procedure, no shift in the B 1s XPS peak could be found (not shown). The characterization studies indicate that boron might adsorb on both the Ni particles and the γ-Al2O3 support, and that 1 wt% B is sufficient to block the step and subsurface sites.

3. Catalytic Activity of Ni-Au Catalysts and Comparison with Other Ni-Based Bimetallic Systems

Among the above mentioned bimetallic Ni-M systems, some examples have been selected for comments on catalytic activity.
Nørskov and co-workers have proved that Au-Ni surface alloy catalyst is a less reactive but more robust steam reforming catalyst than pure Ni catalyst by experimental tests and theoretical calculations by using CH4 and n-butane as probe molecules [17,18,19]. The Au/Ni catalyst hardly deactivates, whereas the pure Ni catalyst rapidly forms carbon and deactivates. Thus, the Au/Ni catalyst exhibiting the surface alloy is more resistant towards carbon formation than the pure Ni catalyst. King and co-workers then have comprehensively studied the loss of activity as a result of Au promotion, as well as the effect of Au addition on methane steam reforming under typical conditions of industrial reformer operation [20]. They found that carbon formation was not totally suppressed, and with increasing temperature, the effect of Au addition decreased. Addition of 0.4 wt% Au to 8.8 wt% Ni/MgAl2O4 showed a small decrease in catalyst activity and a small increase in catalyst stability for methane steam reforming at 823 K. However, Guczi and co-workers [21] have recently reported that the addition of 0.5 wt% Au to NiMgAl2O4, although retards the methane dry reforming activity measured in temperature programmed reaction (Figure 9), the activity of the bimetallic Ni-Au system is improved during long time runs. In Figure 10 the concentration and conversion of CO, CO2 and CH4 during overnight reaction at 948 K are displayed for Ni/MgAl2O4 and NiAu/MgAl2O4 catalysts, respectively. Moreover, on the Au containing bimetallic catalyst the formation of carbon nanotubes was retarded or vanished, in the experimental conditions investigated.

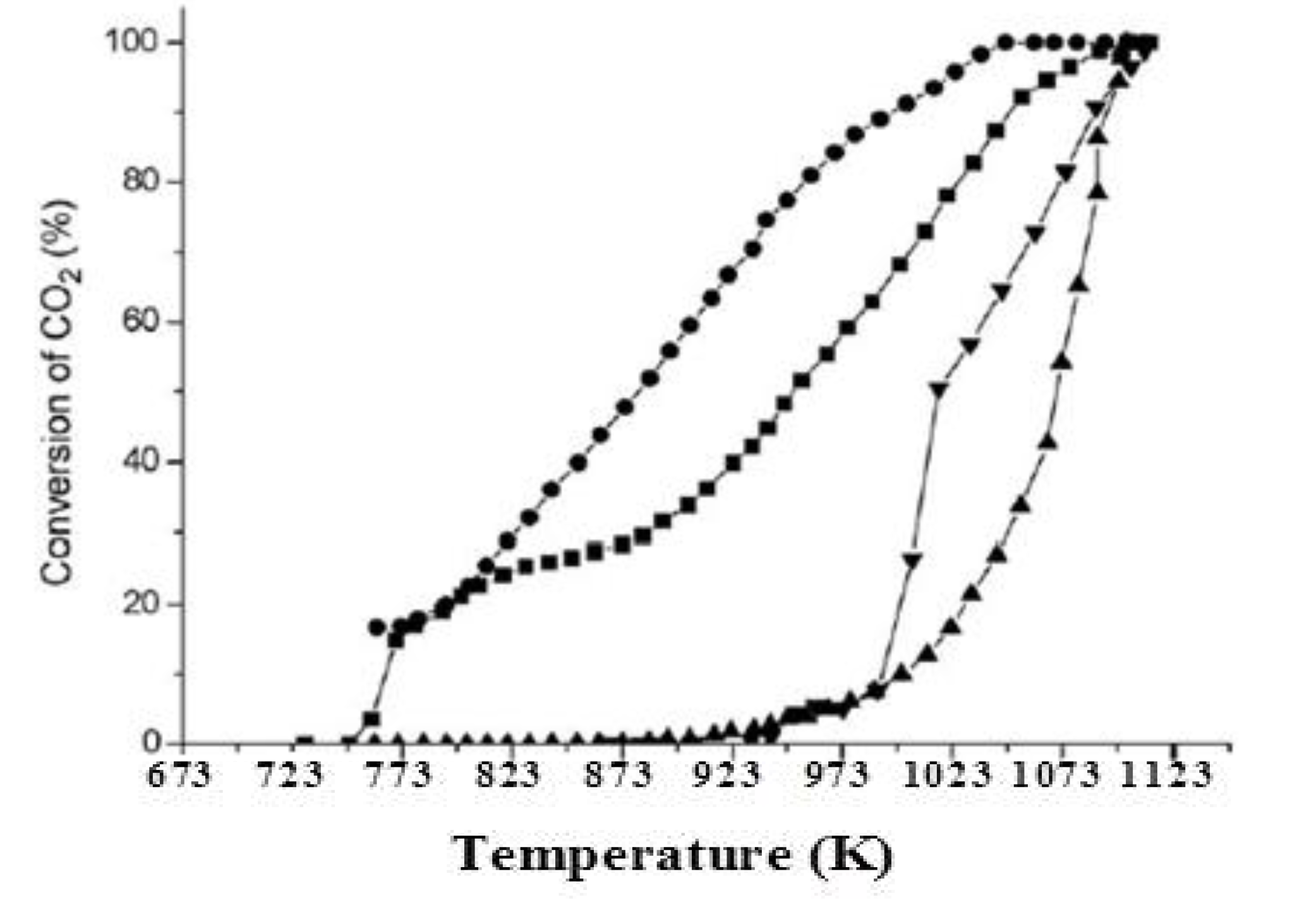

Figure 9. Comparison of Ni/MgAl2O4 and NiAu/MgAl2O4 catalysts in CO2 + CH4 in first reaction (● and ■, respectively) and after TPO (▼ and ▲, respectively) [21].
Figure 9. Comparison of Ni/MgAl2O4 and NiAu/MgAl2O4 catalysts in CO2 + CH4 in first reaction (● and ■, respectively) and after TPO (▼ and ▲, respectively) [21].
Catalysts 03 00563 g009

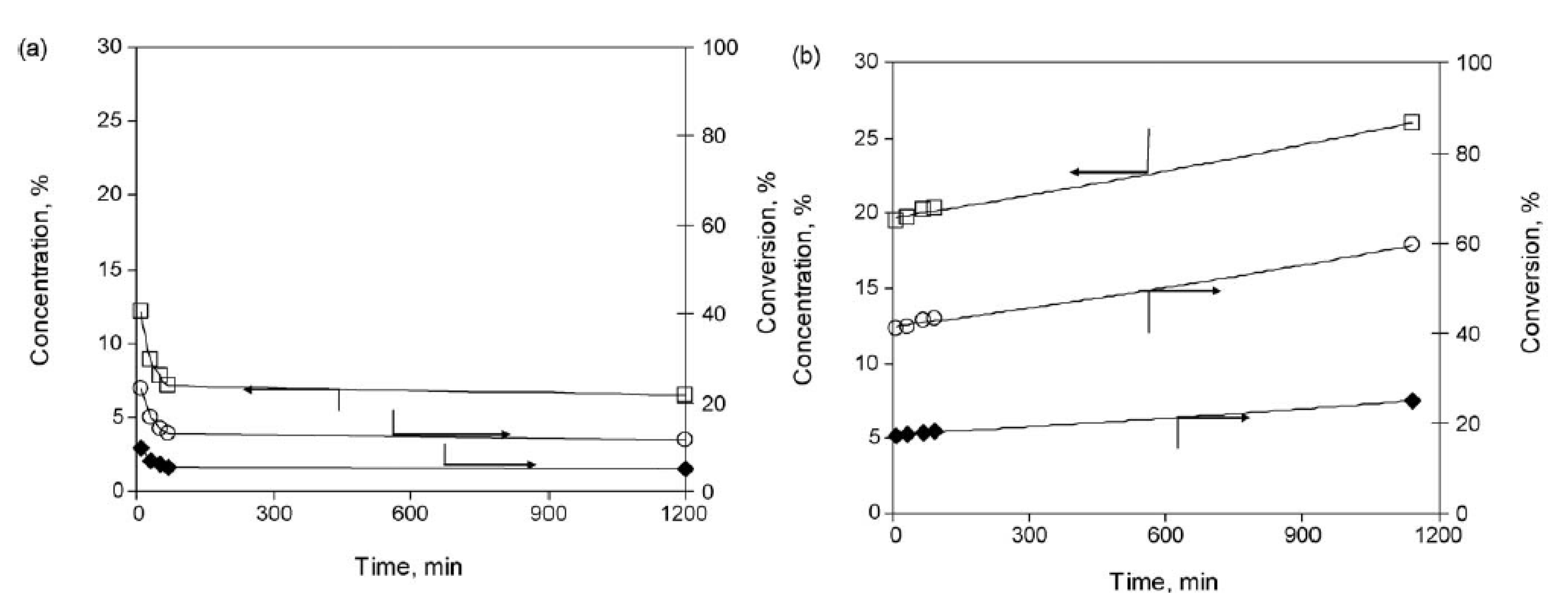

Figure 10. Concentration and conversion of CO (□), CO2 (○) and (◆) in overnight reaction at 948 K: (a) on Ni/MgAl2O4; (b) on NiAu/MgAl2O4 [21].
Figure 10. Concentration and conversion of CO (□), CO2 (○) and (◆) in overnight reaction at 948 K: (a) on Ni/MgAl2O4; (b) on NiAu/MgAl2O4 [21].
Catalysts 03 00563 g010
Furthermore, Lazar et al. [22,23,24] have found that the addition of Au to the nickel catalyst improved the methane conversion, CO2 selectivity and hydrogen production at low reaction temperatures (T < 873 K). At 973 K under their working conditions, the additives had no important effect in hydrogen production by methane steam reforming, and the catalysts deactivated. Therefore, the result is very consistent with the report by King et al [20]. On the other hand, Maniecki et al. have reported that the addition of Au to Ni/Al2O3 system improved catalyst stability and activity in partial oxidation of methane to synthesis gas [25,26,27,28]. Based on the results above mentioned, it can be found that there is discrepancy between results reported by different authors with respect to the effect of the addition of gold on catalytic activity of Ni-based catalysts. However, it seems to be confirmed that the addition of gold could improve the resistance of the Ni catalysts towards deactivation due to coke deposition.
Lazar et al. [22,23,24] have reported that the addition of Ag decreased the catalytic properties of Ni catalyst. The catalysts with Ag loading of 0.3 or 0.6 wt% submitted to stability tests showed high resistance to coke deposition reported by Bueno et al. [32]. They further found that at more oxidant conditions (autothermal reforming of methane, ATRM and POM) the redox process led to NiO formation and catalyst deactivation by NiAl2O4 formation [33]. At higher temperatures most probably due to Ag evaporation from Ag doped Ni/YSZ surface, severe anode catalytic and electro-catalytic activity degradation was observed by Neophytides et al. [34]. However, the addition of Ag could reduce the degree of carbon deposition and improve the H2 product selectivity by eliminating the formation of C2 hydrocarbons at temperature less than 1023 K in the butane steam reforming [35].
Catalytic steam reforming of methane and isooctane over pure Ni and 1% Sn:Ni catalysts are also shown in Figure 5a. The steam to carbon ratios are 0.5 and 1.5 for methane and isooctane, respectively. At 1073 K, the monometallic Ni catalyst rapidly deactivates. Unlike Ni, the Sn-Ni catalyst is active and stable for as long as it is kept on stream, approximately 12 h [38].
Nikolla et al. have shown that Sn/Ni alloy deposited over YSZ is much more carbon-tolerant than monometallic Ni in the steam reforming of methane, propane and isooctane at moderate steam to carbon ratios [39]. Figure 11 shows the normalized conversion of methane over the 1 wt% and 5 wt% Sn/Ni/YSZ and Ni/YSZ catalysts at a steam-to-carbon ratio of 0.5 and operating temperature of 1073 K. It is evident that Ni/YSZ lost about 45% of its activity after 2h of reaction, whereas the 1wt% Sn/Ni/YSZ was stable for the entire long-run time (15 h). By increasing the Sn loading from 1 to 5 wt%, methane conversion was reduced by ~ 25%, suggesting a negative effect on C-H bond activation.
The introduction of Cu in the Ni catalysts was also investigated for methanol and ethanol steam reforming [45]. The addition of Cu showed a positive effect inhibiting the formation of methane, an undesirable by-product. Although in the ethanol steam reforming the promoter effect of Cu was lesspromising, enhanced stability was observed in the two experiments, indicating a positive role was played by the Cu-Ni bimetallic catalysts.

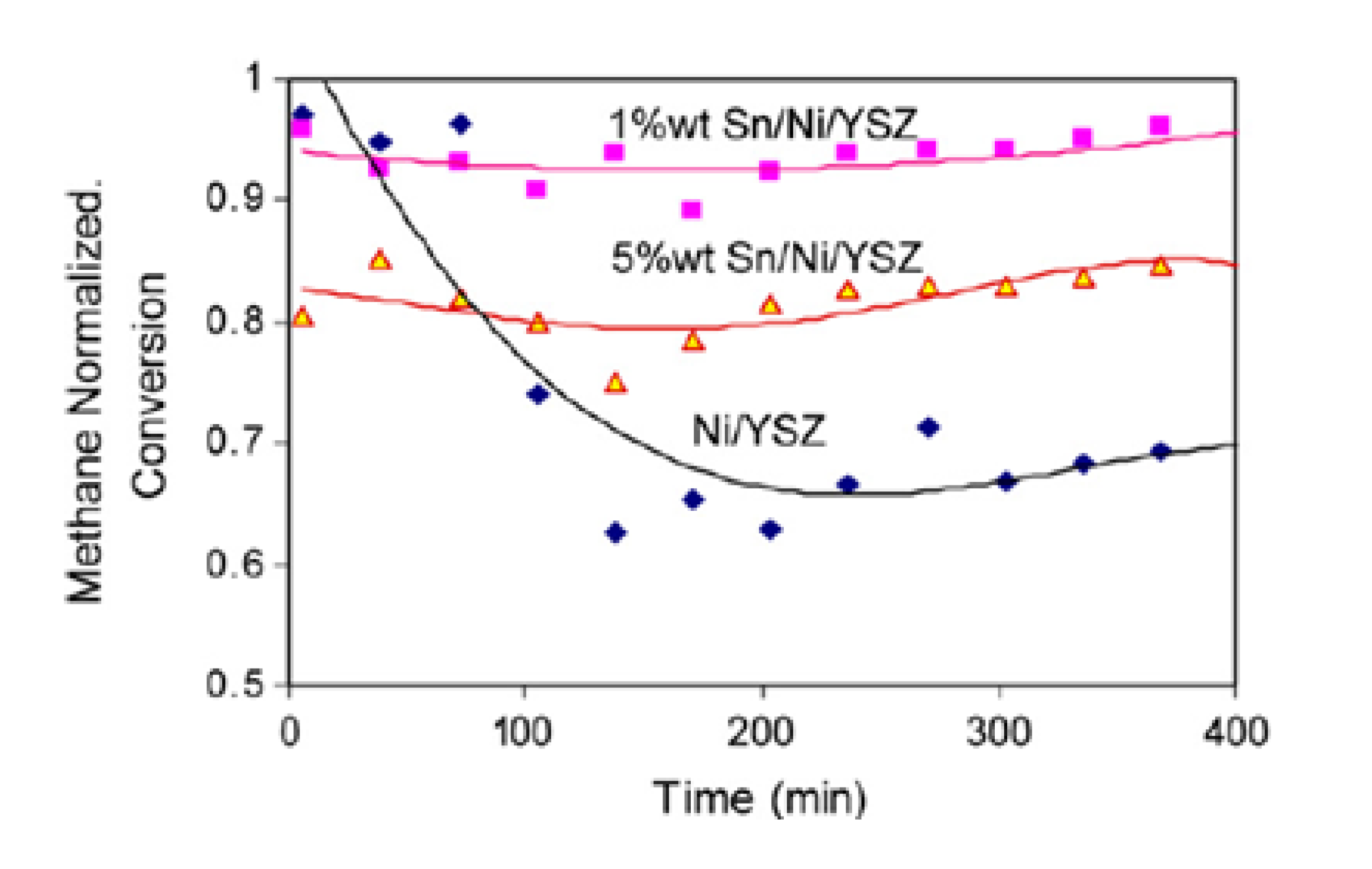

Figure 11. Normalized methane conversion (methane conversion divided by the highest obtained conversion) as a function of the time on stream for 1 wt% Sn/Ni/YSZ, 5 wt% Sn/Ni/YSZ and Ni/YSZ catalysts measured at the steam-to carbon ratio of 0.5 and 1073 K [39].
Figure 11. Normalized methane conversion (methane conversion divided by the highest obtained conversion) as a function of the time on stream for 1 wt% Sn/Ni/YSZ, 5 wt% Sn/Ni/YSZ and Ni/YSZ catalysts measured at the steam-to carbon ratio of 0.5 and 1073 K [39].
Catalysts 03 00563 g011
The effect of the addition of Co on the catalytic activity of Ni/YSZ catalyst for the ethanol steam reforming reaction was also studied by Resini et al. [51]. The addition of Co resulted in the inhibition of the dehydration reaction, as well as of methane production. Furthermore, Co also had an effect on the hydrogen production by increasing it, and thus, apparently favoring methane steam reforming.
Borowiecki et al. have reported that small amounts of MoO3 (up to 0.1 wt%) caused an increase in activity of doped Ni catalysts [54]. By further increasing the amount of promoter (about 0.5 wt%), a drop occurs (Figure 12a). The catalytic properties of Ni-Mo catalysts depend also on the H2 vol% concentration in the reaction stream. Figure 12b shows the dependence of the methane steam reforming rate on the hydrogen concentration at 873 K for Ni and different Ni-Mo catalysts. The activity of monometallic Ni gradually decreased by increasing hydrogen, while for Ni-Mo catalysts activity maxima were observed as a function of hydrogen content.
Shao and coworkers have, recently, compared the catalytic properties of lanthanide promoters Ni-Al2O3 catalysts, highlighting for GdNi-Al2O3 the best coke resistance and the good stability for methane partial oxidation at 1123 K for 300 h (Figure 13) [57].

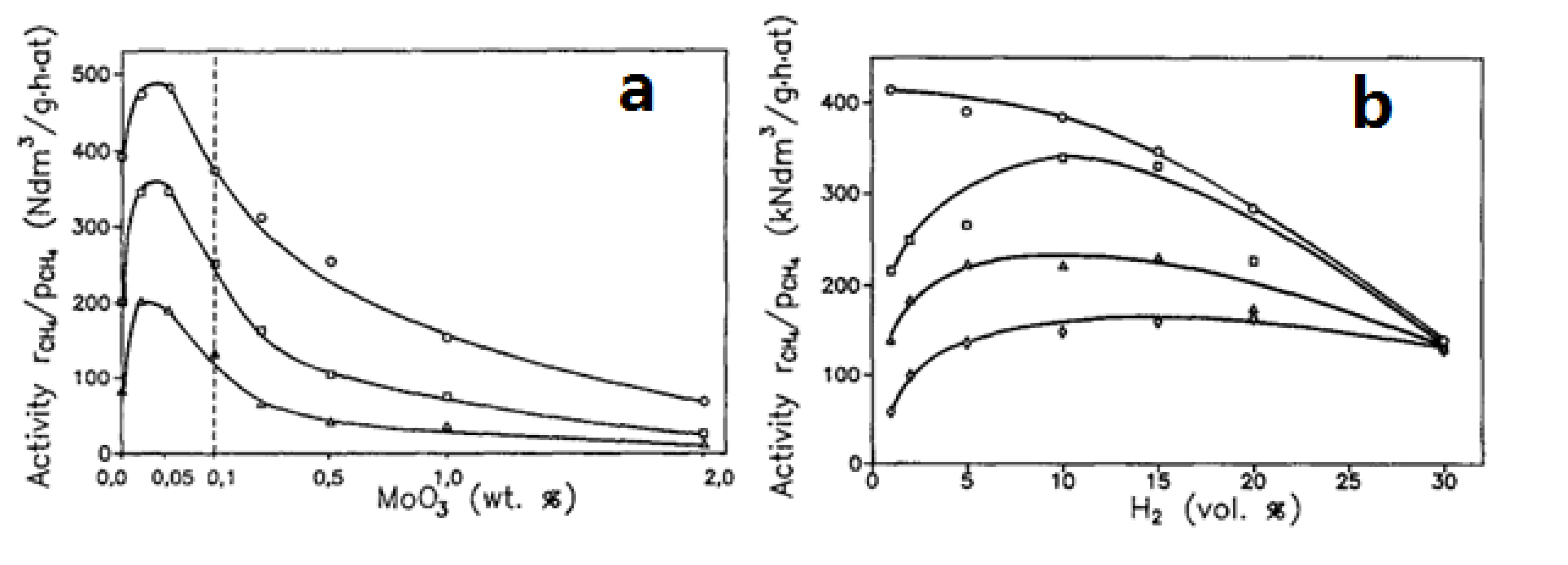

Figure 12. (a)Dependence of catalysts activity in steam reforming of methane at different temperatures as a function of the promoter amount (○ 873 K, □ 823 K, ∆ 773 K); (b) Influence of hydrogen on the activity of catalysts in steam reforming of methane (○ Ni, □ Ni-Mo (0.5), ∆ Ni-Mo (1.0), ◆ Ni-Mo (2.0)) [54].
Figure 12. (a)Dependence of catalysts activity in steam reforming of methane at different temperatures as a function of the promoter amount (○ 873 K, □ 823 K, ∆ 773 K); (b) Influence of hydrogen on the activity of catalysts in steam reforming of methane (○ Ni, □ Ni-Mo (0.5), ∆ Ni-Mo (1.0), ◆ Ni-Mo (2.0)) [54].
Catalysts 03 00563 g012

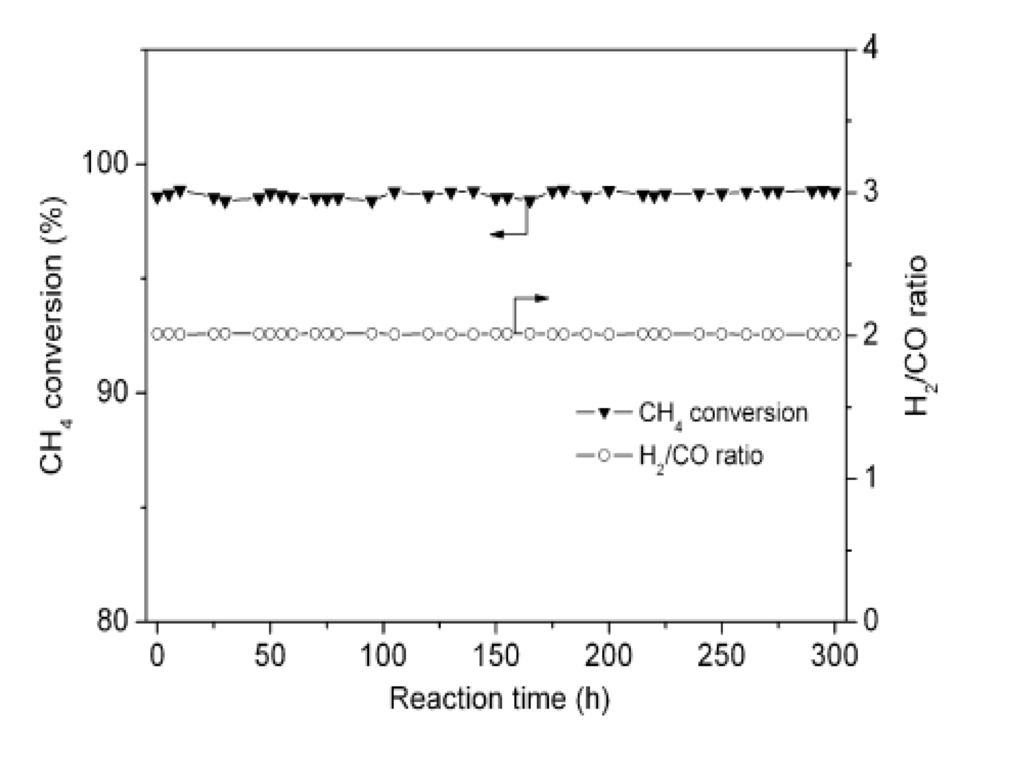

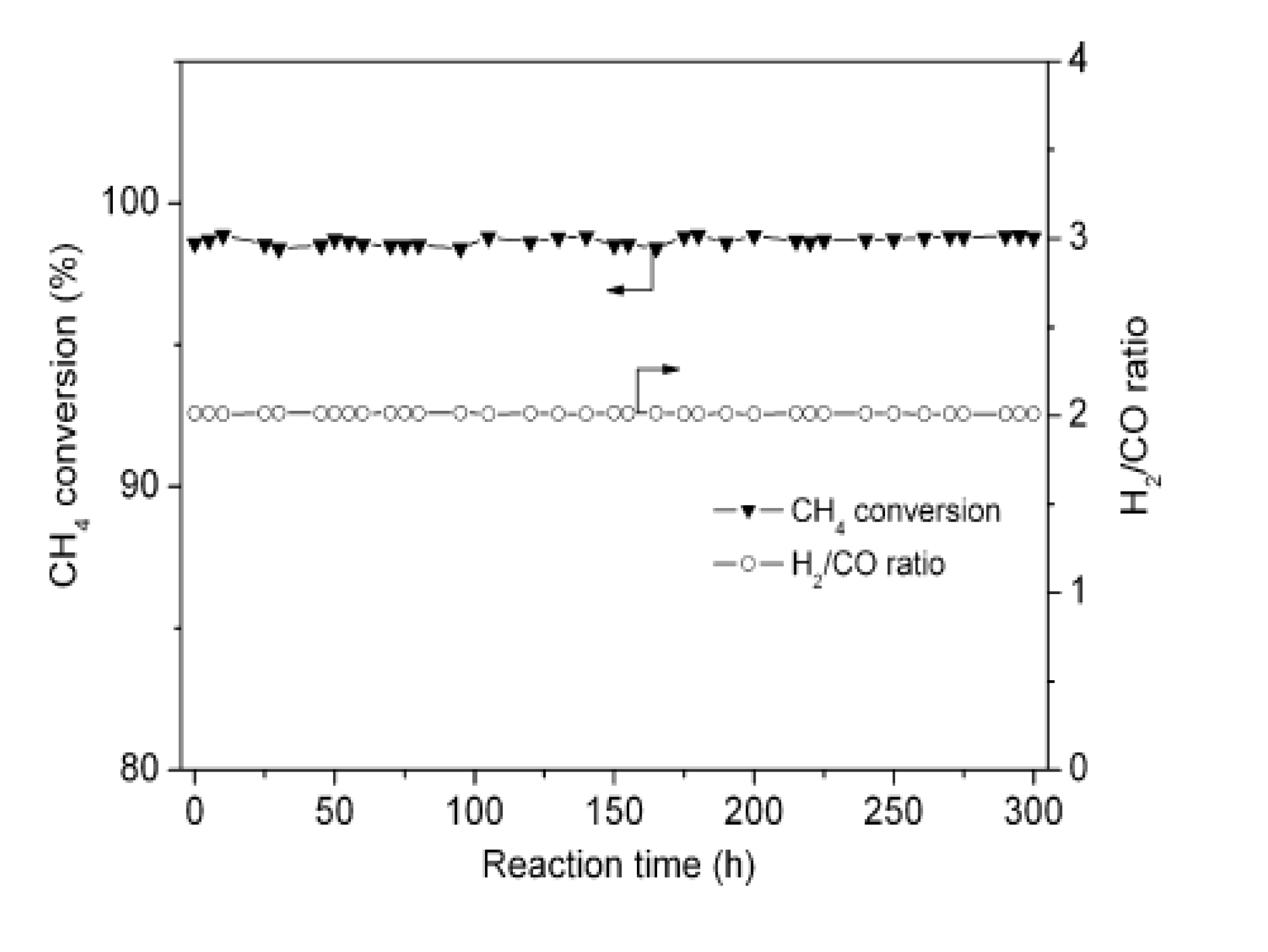

Figure 13. Time dependence of methane conversion and H2 to CO ratio under CH4:O2 = 2:1 conditions at 850 °C for GdNi-Al2O3 catalyst [57].
Figure 13. Time dependence of methane conversion and H2 to CO ratio under CH4:O2 = 2:1 conditions at 850 °C for GdNi-Al2O3 catalyst [57].
Catalysts 03 00563 g013
Interestingly, Borgna and Saeys [58] found that a small amount of boron could enhance the stability without compromising the catalytic activity. Catalytic tests showed that promotion with 1.0 wt% boron reduced the rate of deactivation by a factor of 3 and increased the initial methane conversion from 56% to 61%.

5. Conclusions

The addition of a small amount of second metals such as Au, Ag, Sn, Cu, Co, et al. to Ni catalysts significantly modifies the properties of metallic Ni particles by the formation of Ni-M bimetallic surface alloys. The structure of bimetallic surface alloys could be changed by choosing different preparation methods or pretreatments.
In particular, the addition of a small amount of Au to MgAl2O4-supported Ni catalysts by the sequential impregnation method leads to the formation of Au atoms, which segregated on the surface of the bimetallic particles when the Au loading is high, while well-mixed Au-Ni surface alloys are formed when the Au loading is low (0.1 wt%). The co-impregnation method results in different structures of Au-Ni bimetallic catalysts according to the different authors’ reports. Some authors reported that Au-Ni surface alloys could be also formed on the Ni/Al2O3 catalysts prepared by co-impregnation method. While, some other authors found that no formation of a superficial Au-Ni surface alloy was observed.
Compared to monometallic Ni catalysts, Ni-M bimetallic catalysts exhibit superior catalytic performance in the methane steam reforming, i.e., high activity, high resistance to carbon formation and sintering of metal particles, and high selectivity to H2 product. The improved catalytic performance of Ni catalysts modified with a small amount of second metals has been attributed to the synergic effect between a second metal and Ni by the formation of a superficial bimetallic alloy (such as Ni-Au, Ni-Ag, Ni-Sn, Ni-Cu, Ni-Co, etc.).
As a result, we expect that the following mentioned studies would lead to a further progress in the development of coke resistant bimetallic Ni-based catalysts for steam/dry reforming of methane:
  • The DFT studies of Ni containing bi/trimetallic alloys or Ni catalysts modified with a second inorganic element would lead to design and preparation of novel Ni-based catalysts;
  • The comprehensive understanding of the formation mechanisms of bimetallic surface alloys and their effects on catalytic performance and carbon formation would lead to design and preparation of new Ni-based catalysts with improved activity, stability and selectivity;
  • We feel that the development of novel Ni catalysts modified with a second inorganic element (such as Mo, Fe, Gd and B) should deserve further research studies for steam/dry reforming of methane;
  • The design of Ni catalysts with selected crystal planes of Ni and Ni-M alloyed particles could find applications in steam/dry reforming of methane.

Acknowledgments

The authors acknowledge the financial support provided by EFOR-CNR Project (Energies by Renewable sources). The China Scholarship Council is sincerely acknowledged for supporting Wu’s scholarship. Hongjing Wu thanks the Excellent Doctorate Foundation, Doctorate Foundation of Northwestern Polytechnical University, and the Scholarship Award for Excellent Doctoral Student granted by Ministry of Education.

References

  1. Tomishige, K. Oxidative steam reforming of methane over Ni catalysts modified with noble metals. J. Jpn. Pet. Inst. 2007, 50, 287–298. [Google Scholar] [CrossRef]
  2. Liu, C.J.; Ye, J.Y.; Jiang, J.J.; Pan, Y.X. Progresses in the preparation of coke resistant Ni-based catalyst for steam and CO2 reforming of methane. Chemcatchem 2011, 3, 529–541. [Google Scholar] [CrossRef]
  3. Li, D.L.; Nakagawa, Y.; Tomishige, K. Methane reforming to synthesis gas over Ni catalysts modified with noble metals. Appl. Catal. A 2011, 408, 1–24. [Google Scholar] [CrossRef]
  4. Trimm, D.L. Coke formation and minimisation during steam reforming reactions. Catal. Today 1997, 37, 233–238. [Google Scholar] [CrossRef]
  5. Rafiqul, L.; Weber, C.; Lehmann, B.; Voss, A. Energy efficiency improvements in ammonia production-presperctives and uncertainties. Energy 2005, 30, 2487–2504. [Google Scholar] [CrossRef]
  6. Rostrup-Nielsen, J.; Trimm, D.L. Mechanisms of carbon formation on nickel-containing catalysts. J. Catal. 1977, 48, 155–165. [Google Scholar] [CrossRef]
  7. Pená, M.A.; Gómez, J.P.; Fierro, J.L.G. New catalytic routes for syngas and hydrogen production. Appl. Catal. A 1996, 144, 7–57. [Google Scholar] [CrossRef]
  8. Armor, J.N. The multiple roles for catalysis in the production of H2. Appl. Catal. A 1999, 176, 159–176. [Google Scholar] [CrossRef]
  9. Rostrup-Nielsen, J.R.; Rostrup-Nielsen, T. Large-scale hydrogen production. Cattech 2002, 6, 150–159. [Google Scholar] [CrossRef]
  10. Silva, L.C.; Murata, V.V.; Hori, C.E.; Assis, A.J. Hydrogen production from methane steam reforming: Parametric and gradient based optimization of a Pd-based membrane reactor. Optim. Eng. 2010, 11, 441–458. [Google Scholar] [CrossRef]
  11. Roh, H.S.; Jung, Y.; Koo, K.Y.; Jung, U.H.; Seo, Y.S.; Yoon, W.L. H2 production over Ni/γ-Al2O3 catalyst prepared by a homogeneous precipitation method using urea for direct internal reforming (DIR) in a molten carbonate fuel cell (MCFC). Chem. Lett. 2009, 38, 1162–1163. [Google Scholar]
  12. Rameshan, C.; Stadlmayr, W.; Weilach, C.; Penner, S.; Lorenz, H.; Havecker, M.; Blume, R.; Rocha, T.; Teschner, D.; Knop-Gericke, A.; et al. Subsurface-controlled CO2 selectivity of PdZn near-surface alloys in H2 generation by methanol steam reforming. Angew. Chem. Int. Ed. 2010, 49, 3224–3227. [Google Scholar] [CrossRef]
  13. Centi, G.; Perathoner, S. Opportunities and prospects in the chemical recycling of carbon dioxide to fuels. Catal. Today 2009, 148, 191–205. [Google Scholar] [CrossRef]
  14. Schaefer, M.; Behrendt, F.; Hammer, T. Evaluation of strategies for the subsequent use of CO2. Front. Chem. Eng. China 2010, 4, 172–183. [Google Scholar] [CrossRef]
  15. Edwards, J.H.; Maitra, A.M. The chemistry of methane reforming with carbon dioxide and its current and potential applications. Fuel Process. Technol. 1995, 42, 269–289. [Google Scholar] [CrossRef]
  16. Rostrup-Nielsen, J.R.; Hansen, J.H.B. CO2-reforming of methane over transition metals. J. Catal. 1993, 144, 38–49. [Google Scholar] [CrossRef]
  17. Besenbacher, F.; Chorkendorff, I.; Clausen, B.S.; Hammer, B.; Molenbroek, A.M.; Nørskov, J.K.; Stensgaard, I. Design of a surface alloy catalyst for steam reforming. Science 1998, 279, 1913–1915. [Google Scholar] [CrossRef]
  18. Molenbroek, A.M.; Nørskov, J.K.; Clausen, B.S. Structure and reactivity of Ni-Au nanoparticles catalysts. J. Phys. Chem. B 2001, 105, 5450–5458. [Google Scholar] [CrossRef]
  19. Holmblad, P.M.; Larsen, J.H.; Chorkendorff, I.; Nielsen, L.P.; Besenbacher, F.; Stensgaard, I.; Lægsgaard, E.; Kratzer, P.; Hammer, B.; Nørskov, J.K. Designing surface alloys with specific active sites. Catal. Lett. 1996, 40, 131–135. [Google Scholar] [CrossRef]
  20. Chin, Y.H.; King, D.L.; Roh, H.S.; Wang, Y.; Heald, S.M. Structure and reactivity investigations on supported bimetallic Au-Ni catalysts used for hydrocarbon steam reforming. J. Catal. 2006, 244, 153–162. [Google Scholar]
  21. Guczi, L.; Stefler, G.; Geszti, O.; Sajó, I.; Pászti, Z.; Tompos, A.; Schay, Z. Methane dry reforming with CO2: A study on surface carbon species. Appl. Catal. A 2010, 375, 236–246. [Google Scholar] [CrossRef]
  22. Lazar, M.D.; Dan, M.; Mihet, M.; Almasan, V.; Rednic, V.; Borodi, G. Hydrogen production by low temperature methane steam reforming using Ag and Au modified alumina supported nickel catalysts. Rev. Roum. Chim. 2011, 56, 637–642. [Google Scholar]
  23. Lazar, M.D.; Mihet, M.; Dan, M.; Almasan, V.; Marginean, P. Preparation and characterization of nickel based multicomponent catalysts. J. Phys. Conf. Ser. 2009, 182. [Google Scholar] [CrossRef]
  24. Dan, M.; Mihet, M.; Biris, A.R.; Marginean, P.; Almasan, V.; Borodi, G.; Watanabe, F.; Biris, A.S.; Lazar, M.D. Supported nickel catalysts for low temperature methane steam reforming: comparison between metal additives and support modification. React. Kinet. Mech. Catal. 2012, 105, 173–193. [Google Scholar] [CrossRef]
  25. Maniecki, T.P.; Stadnicheno, A.I.; Maniukiewicz, W.; Bawolak, K.; Mierczynski, P.; Boronin, A.I.; Jozwiak, W.K. An active phase transformation on surface of Ni-Au/Al2O3 catalyst during partial oxidation of methane to synthesis gas. Kinet. Catal. 2010, 51, 573–578. [Google Scholar] [CrossRef]
  26. Maniecki, T.P.; Bawolak, K.; Gebauer, D.; Mierczynski, P.; Jozwiak, W.K. Catalytic activity and physicochemical properties of Ni-Au/Al3CrO6 system for partial oxidation of methane to synthesis gas. Kinet. Catal. 2009, 50, 138–144. [Google Scholar] [CrossRef]
  27. Maniecki, T.P.; Bawolak, K.; Mierczynski, P.; Jozwiak, W.K. Development of stable and highly active bimetallic Ni-Au catalysts supported on binary oxides CrAl3O6 for POM reaction. Catal. Lett. 2009, 128, 401–404. [Google Scholar] [CrossRef]
  28. Maniecki, T.P.; Bawolak-Olczak, K.; Mierczynski, P.; Maniukiewicz, W.; Jozwiak, W.K. Effect of the chemical composition of (MgO)x(Al2O3)y support on the catalytic performance of Ni and Ni-Au catalysts for the partial oxidation of methane. Chem. Eng. J. 2009, 154, 142–148. [Google Scholar] [CrossRef]
  29. Qi, C.X.; Amphlett, J.C.; Peppley, B.A. Methanol steam reforming over NiAl and Ni (M) Al layered double hydroxides (M = Au, Rh, Ir) derived catalysts. Catal. Lett. 2005, 104, 57–62. [Google Scholar] [CrossRef]
  30. Niakolas, D.K.; Ouweltjes, J.P.; Rietveld, G.; Dracopoulos, V.; Neophytides, S.G. Au-doped Ni/GDC as a new anode for SOFCs operating under rich CH4 internal steam reforming. Int. J. Hydrogen Energy 2010, 35, 7898–7904. [Google Scholar]
  31. Gavrielatos, I.; Drakopoulos, V.; Neophytides, S.G. Carbon tolerant Ni-Au SOFC electrodes operating under internal steam reforming conditions. J. Catal. 2008, 259, 75–84. [Google Scholar] [CrossRef]
  32. Parizotto, N.V.; Rocha, K.O.; Damyanova, S.; Passos, F.B.; Zanchet, D.; Marques, C.M.P.; Bueno, J.M.C. Alumina-supported Ni catalysts modified with silver for the steam reforming of methane: Effect of Ag on the control of coke formation. Appl. Catal. A 2007, 330, 12–22. [Google Scholar] [CrossRef]
  33. Parizotto, N.V.; Fernandez, R.F.; Marques, C.M.P.; Bueno, J.M.C. Promoter effect of Ag and La on stability of Ni/Al2O3 catalysts in reforming of methane processes. Stud. Surf. Sci. Catal. 2007, 167, 421–426. [Google Scholar] [CrossRef]
  34. Gavrielatos, I.; Montinaro, D.; Orfanidi, A.; Neophytides, S.G. Study of carbon deposition of Ag-doped Ni/YSZ electrodes under internal CH4 steam reforming conditions. Fuel Cell 2009, 9, 883–890. [Google Scholar] [CrossRef]
  35. Jeong, H.; Kang, M. Hydrogen production from butane steam reforming over Ni/Ag loaded MgAl2O4 catalyst. Appl. Catal. B 2010, 95, 446–455. [Google Scholar] [CrossRef]
  36. Xu, Y.; Fan, C.; Zhu, Y.A.; Li, P.; Zhou, X.G.; Chen, D.; Yuan, W.K. Effect of Ag on the control of Ni-catalyzed carbon formation: A density functional theory study. Catal. Today 2012, 186, 54–62. [Google Scholar]
  37. Padeste, C.; Trimm, D.L.; Lamb, R.N. Characterization of Sn doped Ni/Al2O3 steam reforming catalysts by XPS. Catal. Lett. 1993, 17, 333–339. [Google Scholar] [CrossRef]
  38. Nikolla, E.; Holewinski, A.; Schwank, J.; Linic, S. Controlling carbon surface chemistry by alloying: Carbon tolerant reforming catalyst. J. Am. Chem. Soc. 2006, 128, 11354–11355. [Google Scholar] [CrossRef]
  39. Nikolla, E.; Schwank, J.; Linic, S. Promotion of the long-term stability of reforming Ni catalysts by surface alloying. J. Catal. 2007, 250, 85–93. [Google Scholar] [CrossRef]
  40. Nikolla, E.; Schwank, J.; Linic, S. Comparative study of the kinetics of methane steam reforming on supported Ni and Sn/Ni alloy catalysts: The impact of the formation of Ni alloy on chemistry. J. Catal. 2009, 263, 220–227. [Google Scholar] [CrossRef]
  41. Nikolla, E.; Schwank, J.; Linic, S. Hydrocarbon steam reforming on Ni alloys at solid oxide fuel cell operating conditions. Catal. Today 2008, 136, 243–248. [Google Scholar] [CrossRef]
  42. Penkova, A.; Bobadilla, L.; Ivanova, S.; Dominguez, M.I.; Romero-Sarria, F.; Roger, A.C.; Centeno, M.A.; Odriozola, J.A. Hydrogen production by methanol steam reforming on NiSn/MgO-Al2O3 catalysts: The role of MgO addition. Appl. Catal. A 2011, 392, 184–191. [Google Scholar] [CrossRef]
  43. Saadi, S.; Hinnemann, B.; Helveg, S.; Appel, C.C.; Abild-Pedersen, F.; Nørskov, J.K. First-principles investigations of the Ni3Sn alloy at steam reforming conditions. Surf. Sci. 2009, 603, 762–770. [Google Scholar] [CrossRef]
  44. Barcicki, J.; Denis, A.; Grzegorczyk, W.; Nazimek, D.; Borowiecki, T. Promotion of nickel catalysts for the steam reforming of methane. React. Kinet. Catal. Lett. 1976, 5, 471–478. [Google Scholar] [CrossRef]
  45. Rogatis, L.D.; Montini, T.; Lorenzut, B.; Fornasiero, P. NixCuy/Al2O3 based catalysts for hydrogen production. Energy Environ. Sci. 2008, 1, 501–509. [Google Scholar]
  46. Khzouz, M.; Wood, J.; Pollet, B.; Bujalski, W. Characterization and activity test of commercial Ni/Al2O3, Cu/ZnO/Al2O3 and prepared Ni-Cu/Al2O3 catalysts for hydrogen production from methane and methanol fuels. Int. J. Hydrogen Energy 2013, 38, 1664–1675. [Google Scholar] [CrossRef]
  47. Chen, L.C.; Lin, S.D. The ethanol steam reforming over Cu-Ni/SiO2 catalysts: Effect of Cu/Ni ratio. Appl. Catal. B 2011, 106, 639–649. [Google Scholar] [CrossRef]
  48. Djaidja, A.; Kiennemann, A.; Barama, A. Effect of Fe or Cu addition on Ni/Mg-Al and Ni/MgO catalysts in the steam-reforming of methane. Stud. Surf. Sci. Catal. 2006, 162, 945–952. [Google Scholar] [CrossRef]
  49. Zhang, J.G.; Wang, H.; Dalai, A.K. Development of stable bimetallic catalysts for carbon dioxide reforming of methane. J. Catal. 2007, 249, 300–310. [Google Scholar] [CrossRef]
  50. An, W.; Zeng, X.C.; Turner, C.H. First-principles study of methane dehydrogenation on a bimetallic Cu/Ni(111) surface. J. Chem. Phys. 2009, 131, 174702:1–174702:11. [Google Scholar]
  51. Resini, C.; Concepción, M.; Delgado, H.; Presto, S.; Alemany, L.J.; Riani, P.; Marazza, R.; Ramis, G.; Busca, G. Yttria-stabilized zirconia (YSZ) supported Ni-Co alloys (precursor of SOFC anodes) as catalysts for the steam reforming of ethanol. Int. J. Hydrogen Energy 2008, 33, 3728–3735. [Google Scholar] [CrossRef]
  52. Gonzalez-delaCruz, V.M.; Pereñiguez, R.; Ternero, F.; Holgado, J.P.; Caballero, A. In situ XAS study of synergic effects on Ni-Co/ZrO2 methane reforming catalysts. J. Phys. Chem. C 2012, 116, 2919–2926. [Google Scholar]
  53. Borowiecki, T.; Golebiowski, A. Influence of molybdenum and tungsten additives on the properties of nickel steam reforming catalysts. Catal. Lett. 1994, 25, 309–313. [Google Scholar] [CrossRef]
  54. Borowiecki, T.; Golebiowski, A.; Stasińska, B. Effects of small MoO3 additions on the properties of nickel catalysts for the steam reforming of hydrocarbons. Appl. Catal. A 1997, 153, 141–156. [Google Scholar] [CrossRef]
  55. Maluf, S.S.; Assaf, E.M. Ni catalysts with Mo promoter for methane steam reforming. Fuel 2009, 88, 1547–1553. [Google Scholar] [CrossRef]
  56. Abelló, S.; Bolshak, E.; Montané, D. Ni-Fe catalysts derived from hydrotalcite-like precursors for hydrogen production by ethanol steam reforming. Appl. Catal. A 2013, 450, 261–274. [Google Scholar] [CrossRef]
  57. Wang, W.; Su, C.; Ran, R.; Shao, Z.P. A new Gd-promoted nickel catalyst for methane conversion to syngas and as an anode functional layer in a solid oxide fuel cell. J. Power Sour. 2011, 196, 3855–3862. [Google Scholar] [CrossRef]
  58. Xu, J.; Chen, L.W.; Tan, K.F.; Borgna, A.; Saeys, M. Effect of boron on the stability of Ni catalysts during steam methane reforming. J. Catal. 2009, 261, 158–165. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Wu, H.; La Parola, V.; Pantaleo, G.; Puleo, F.; Venezia, A.M.; Liotta, L.F. Ni-Based Catalysts for Low Temperature Methane Steam Reforming: Recent Results on Ni-Au and Comparison with Other Bi-Metallic Systems. Catalysts 2013, 3, 563-583. https://doi.org/10.3390/catal3020563

AMA Style

Wu H, La Parola V, Pantaleo G, Puleo F, Venezia AM, Liotta LF. Ni-Based Catalysts for Low Temperature Methane Steam Reforming: Recent Results on Ni-Au and Comparison with Other Bi-Metallic Systems. Catalysts. 2013; 3(2):563-583. https://doi.org/10.3390/catal3020563

Chicago/Turabian Style

Wu, Hongjing, Valeria La Parola, Giuseppe Pantaleo, Fabrizio Puleo, Anna M. Venezia, and Leonarda F. Liotta. 2013. "Ni-Based Catalysts for Low Temperature Methane Steam Reforming: Recent Results on Ni-Au and Comparison with Other Bi-Metallic Systems" Catalysts 3, no. 2: 563-583. https://doi.org/10.3390/catal3020563

Article Metrics

Back to TopTop
