Review

Ionic Liquid Immobilized Organocatalysts for Asymmetric Reactions in Aqueous Media

by
Yupu Qiao
and
Allan D. Headley
*
Department of Chemistry, Texas A&M University-Commerce, Commerce, TX 75429-3011, USA
*
Author to whom correspondence should be addressed.
Catalysts 2013, 3(3), 709-725; https://doi.org/10.3390/catal3030709
Submission received: 1 July 2013 / Revised: 6 August 2013 / Accepted: 23 August 2013 / Published: 11 September 2013
(This article belongs to the Special Issue Ionic Liquids in Catalysis)
Browse Figures
Versions Notes

Abstract

:
Ionic liquids are organic salts with melting points typically below ambient or reaction temperature. The unique combination of physical properties of ionic liquids, such as lack of measurable vapor pressure, high thermal and chemical stability, make them ideal to be used as reusable homogenous support for catalysts. In addition, the solubility of ionic liquids in various reaction media can be controlled and easily fine-tuned by modification of the structures of their cations and anions. As a result, ionic liquid immobilized organocatalysts are very effective in aqueous media and can be separated easily from organic solvents, as well as aqueous phases by simply adjusting the polarity of the media. Ionic liquid immobilized organocatalysts are not only very versatile compounds that are effective catalysts for a wide spectrum of reactions, but are also environmentally friendly and recyclable organocatalysts. Herein, we provide a summary of the past decade in the area of asymmetric catalysis in aqueous media for a wide variety of reactions in which ionic liquid and related ammonium salt immobilized organocatalysts are used.

1. Introduction and Background

Recently, organocatalysis has emerged as the third pillar of asymmetric catalysis together with transition-metal and biocatalysis [1,2,3,4,5,6,7,8]. Compared with transition-metal catalysts, the cost and toxicity of organocatalysts are low, thus making organocatalysts beneficial for the production of pharmaceutical intermediates. Moreover, organocatalysts are tolerant of water and air, and are usually easy to use. These properties have propelled the explosive development of various organocatalysts for a wide variety of fundamental transformations [9,10]. Nevertheless, a major challenge faced in the use of organocatalysts is low efficiency as a result of high catalyst loading; usually 10–20 mol% is required in order to complete transformations in reasonable timescales. More important, for organocatalyzed processes typically carried out in organic solvents, it is difficult to separate the catalyst for recycling. In order to address these limitations, the design and synthesis of efficient, easily recoverable and reusable catalysts are active research areas.
Over the past decades, research in the field of ionic liquid (IL) chemistry has grown phenomenally with the promise of green chemistry, environmental and technological benefits [11,12,13,14,15,16], examples of the main types of ionic liquids are shown in Figure 1. In 1914, Paul Walden reported the first synthesis of room-temperature ionic liquid ethylammonium nitrate [17]. It took over 60 years for the field of ionic liquid to bloom to where it is today. Interest in ionic liquids started with the discovery of a new class of ionic liquids based on alkyl-substituted imidazolium and pyridinium cations, with halide or tetrahalogenoaluminate anions. Since then, there have been numerous applications of ionic liquids, especially as the electrolytes for batteries [18,19]. Ionic liquids are most simply defined as organic salts with melting points below some arbitrary temperature, such as 100 °C, and are thermally stable over a wide temperature range. In particular, some ionic liquids can maintain their liquid state at temperatures as high as 200 °C [20,21]. As a result, ionic liquids have been employed in a wide variety of reactions as environmentally benign solvents, suitable for a range of organic reactions [11,12,22,23,24,25,26]. Besides, ionic liquids are non-flammable, lack measurable vapor pressure, and have high thermal and chemical stabilities; hence they are perfect solvents for polar compounds [27,28,29,30]. Another attractive property of ILs is their enormous diversity. By modifying the structures of their cations or anions, the properties of ionic liquids can be fine-tuned readily so that they can easily be separated from an organic phase, as well as aqueous media.
One of the recent prominent achievements in this field is the use of ionic liquids as homogeneous immobilization of organocatalysts in organic synthesis [31,32]. When ionic liquid immobilized catalysts are used to induce organic reactions, such reactions are usually carried out in polar solvents, which can form a homogeneous system. After the reaction is complete, a less polar solvent, such as diethyl ether, is added and the IL immobilized catalyst can be easily separated from the organic phase due to solubility differences. As a result, the IL immobilized catalyst is regenerated and can be used for further reactions.
Catalysts 03 00709 g001 1024

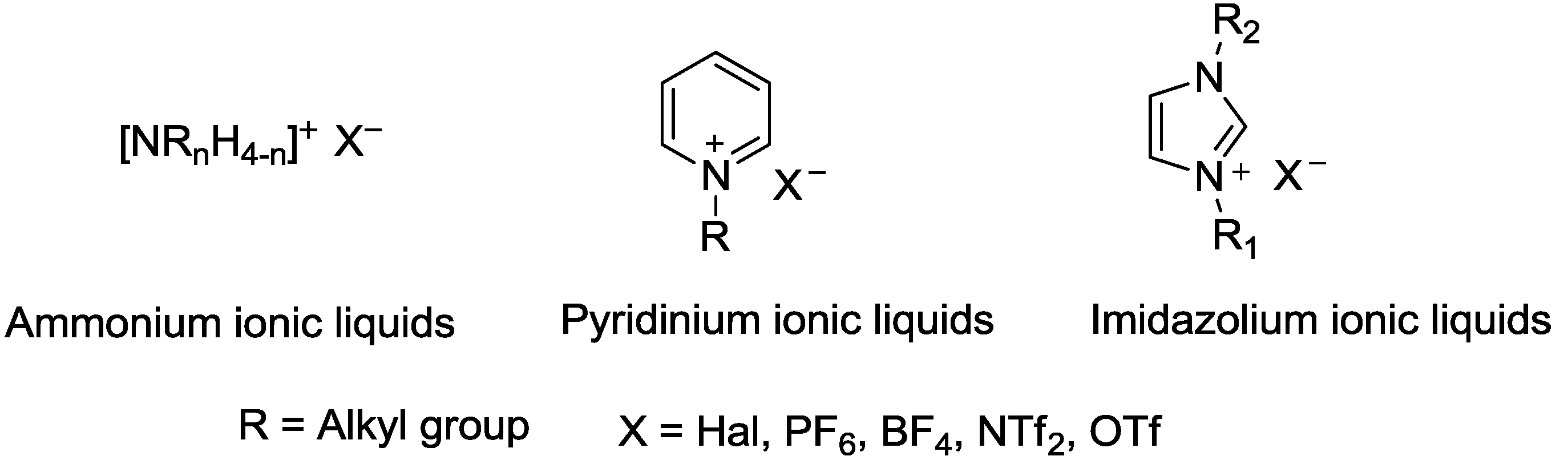

Figure 1. The three main types of ionic liquids (IL).
Figure 1. The three main types of ionic liquids (IL).
Catalysts 03 00709 g001
Water is known to be the cheapest, environmentally benign, safe and most abundant compound on the earth’s surface; and it has attracted a great deal of attention from a green chemistry perspective [33,34,35,36,37,38,39,40,41,42,43]. In addition, water also holds some unique physical and chemical properties, such as high surface tension, hydrogen bonding capability, high dielectric constant and high cohesive energy density [44,45,46]. In nature, both type I and type II aldolases catalyze the direct aldol reaction in an aqueous environment [47]. From the mechanism of enzyme catalysis, type I aldolases utilizes a lysine residue to form an iminium ion with a carbonyl group of the substrate, followed by enamine formation to realize the stereocontrol. Type II aldolases are metal ion dependent enzymes in which Zn2 + ions are used as essential cofactors to achieve stereocontrol. As a result, a mimic of class I aldolase catalysis in aqueous environment will give new inspiration to organic chemists. Water, however, is not typically recognized as a suitable solvent for organic reactions, because it has the potential to deteriorate catalytic activity and stereocontrol since it has the ability to disrupt hydrogen bonds and other polar interactions among catalysts and substrate molecules [45]. Hence, unique opportunities and challenges exist for the design and development of novel catalytic systems for asymmetric reactions in aqueous environments. Meanwhile, from a green chemistry and sustainable development perspective, it would be advantageous if high enantiocontrol is achieved by using recyclable organocatalysts in water. In this review, we present recent exciting progress in ionic liquid and related ammonium salt immobilized organocatalysis in aqueous media.

2. Ionic Liquids Immobilized Asymmetric Organocatalysis in Aqueous Media

2.1. Imidazolium Immobilized Organocatalysts

In 2006, Luo and Cheng group reported the design and synthesis of a series of the pyrrolidine-type ILs 1a–5 from the “chiral pool” using l-proline as a starting material [48]. The direct aldol reactions of acylic and cylic ketones with aromatic aldehydes were examined using IL 1a (Figure 2), high yields (up to 99%) with poor diastereoselectivities and modest enantioselectivities were obtained using this catalyst, with acetic acid and water as additives [49]. Due to the lack of directing hydrogen bonds and electrostatic interactions between the participating aldehyde and the enamine intermediate, the selectivities were very poor. The hydrogen bonding with proline is believed to stabilize the transition state [50,51,52]. The recyclability of IL immobilized catalyst 1a was also examined by using cyclopentenone as donor for the aldol reaction; the catalyst could be easily recovered and reused up to six times with only a slight decrease in activity. Nevertheless, the syn/anti selectivity was observed to decrease from 4.8:1 to 2.1:1 and the enantioselectivity of the major diastereomer was found to be lower (5–11% ee) than the minor diastereomer (26–37% ee). Shown in Scheme 1 are other immobilized pyrrolidine catalysts.
In 2007, the same group reported the surfactant-type IL immobilized organocatalyzed asymmetric Michael reactions of nitrostyrene in pure water [53]. These catalysts 3–8 can be easily synthesized by exchange of the anion with a surfactant sulfonate anion by anion metathesis or neutralization. Catalyst 7b was found to be the optimal catalyst, affording the desired product in 93% yield, 97:3 syn/anti and 97% ee. Under aqueous conditions, catalyst 3, 6c and 8 with long alkyl chains on the imidazolium cations gave poor yields owing to the polymerization of nitrostyrene (Scheme 1).
Catalysts 03 00709 g002 1024

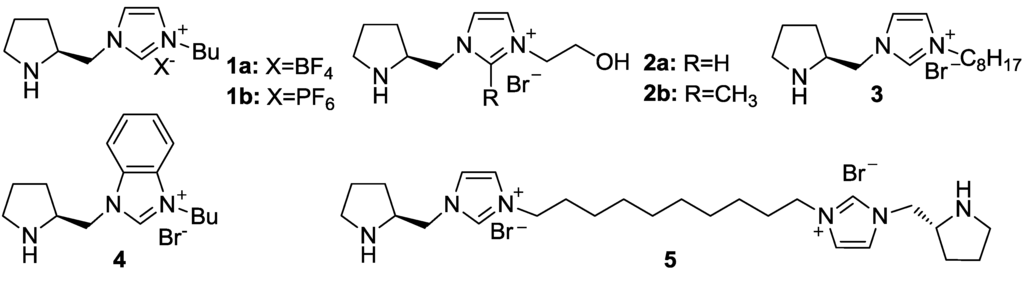

Figure 2. Ionic liquid (IL) immobilized pyrroline-type catalysts.
Figure 2. Ionic liquid (IL) immobilized pyrroline-type catalysts.
Catalysts 03 00709 g002
Catalysts 03 00709 g005 1024

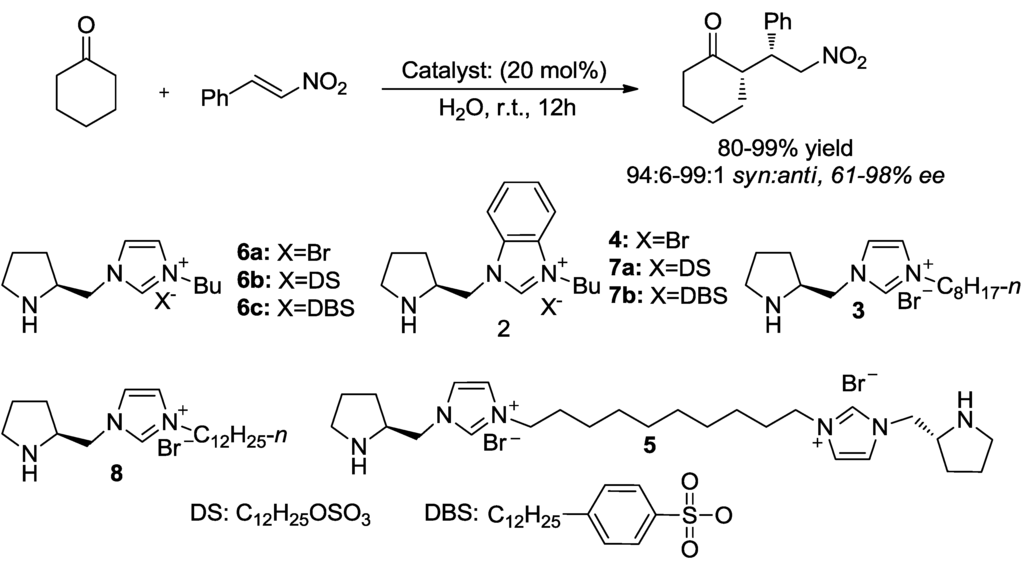

Scheme 1. Surfactant-type IL immobilized organocatalysts for asymmetric Michael reaction.
Scheme 1. Surfactant-type IL immobilized organocatalysts for asymmetric Michael reaction.
Catalysts 03 00709 g005
Catalysts 03 00709 g006 1024

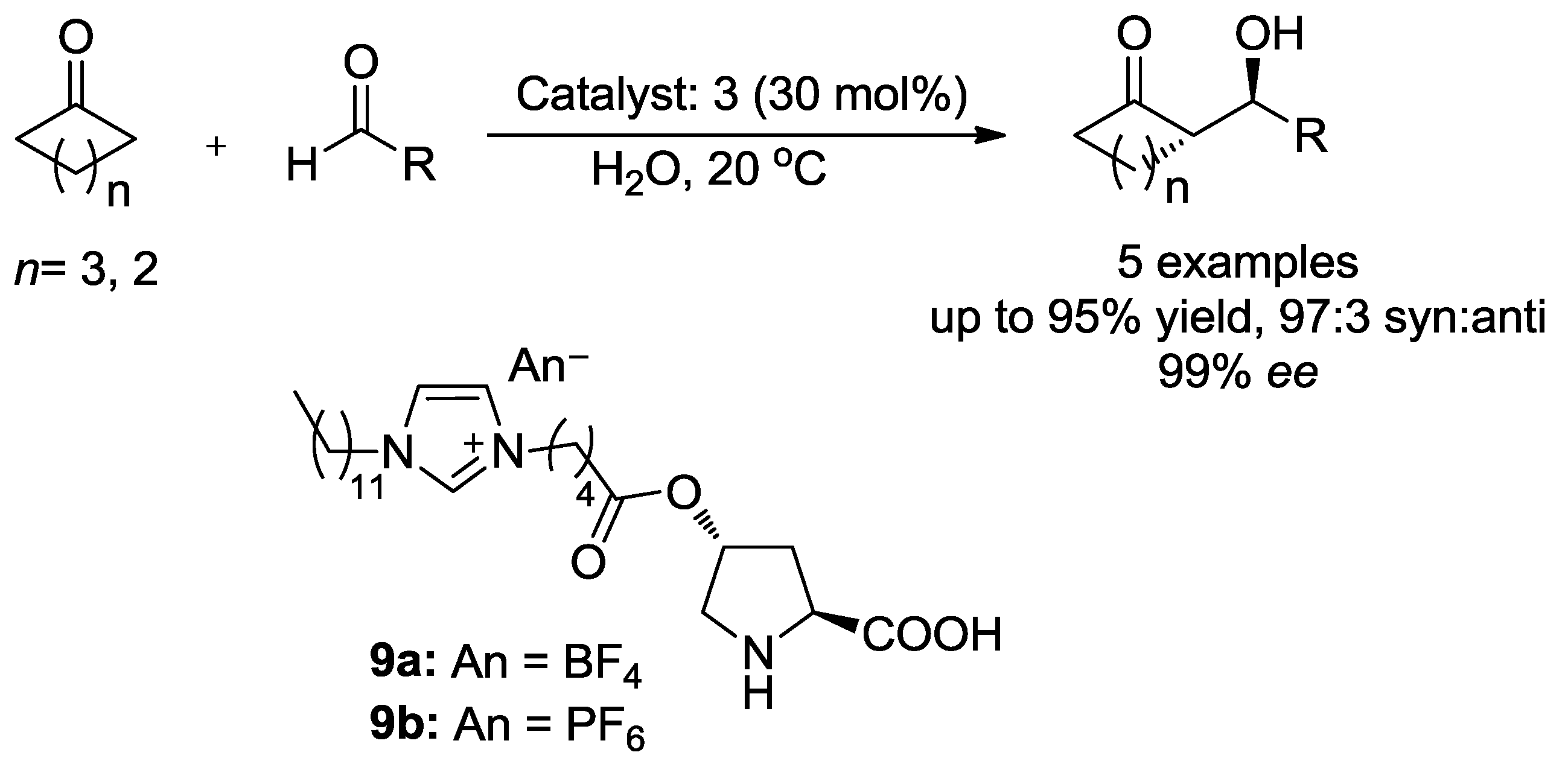

Scheme 2. Asymmetric aldol reaction catalyzed by IL immobilized proline catalyst 9.
Scheme 2. Asymmetric aldol reaction catalyzed by IL immobilized proline catalyst 9.
Catalysts 03 00709 g006
In 2008, Zlotin et al. [54] designed and synthesized a new type of IL immobilized proline catalysts, 9a and 9b, which contain a long-chain hydrocarbon group (Scheme 2). Owing to the amphiphilic character of the two catalysts, excellent diastereoselectivities (anti/syn ratio up to 97:3) and enantioselectivities (up to 99% ee) of the aldol reaction between cyclic ketones and aromatic aldehydes in water were obtained. Furthermore, replacement of the long-chain hydrocarbon group with a shorter chain resulted in the catalyst being inactive in an aqueous environment, highlighting the importance of the long-chain hydrocarbon group in the catalyst to the catalytic system. Moreover, the catalyst can be recycled at least five times in water without significant loss of activities and selectivities.
In 2009, Zlotin et al. [55] reported the introduction of proline, serine, or threonine units to new chiral ionic liquids, which were investigated as recyclable organocatalysts for aldol reactions of various ketone donors with aromatic aldehydes. The authors found that catalyst 10 and 13 (Figure 3) could effectively catalyze the aldol reaction in the presence of water with high distereo- (up to 98:2) and enantioselectivity (up to >99% ee). The authors further discovered that catalyst 11b (Figure 3), in which 4-hydroxyproline was successfully tethered to the 4-(5-n-nonyl)-pyridinium hexafluorophosphate ionic-liquid moieties, could be reused eight times without significant loss of its catalytic activity and enantioselectivity.
Catalysts 03 00709 g003 1024

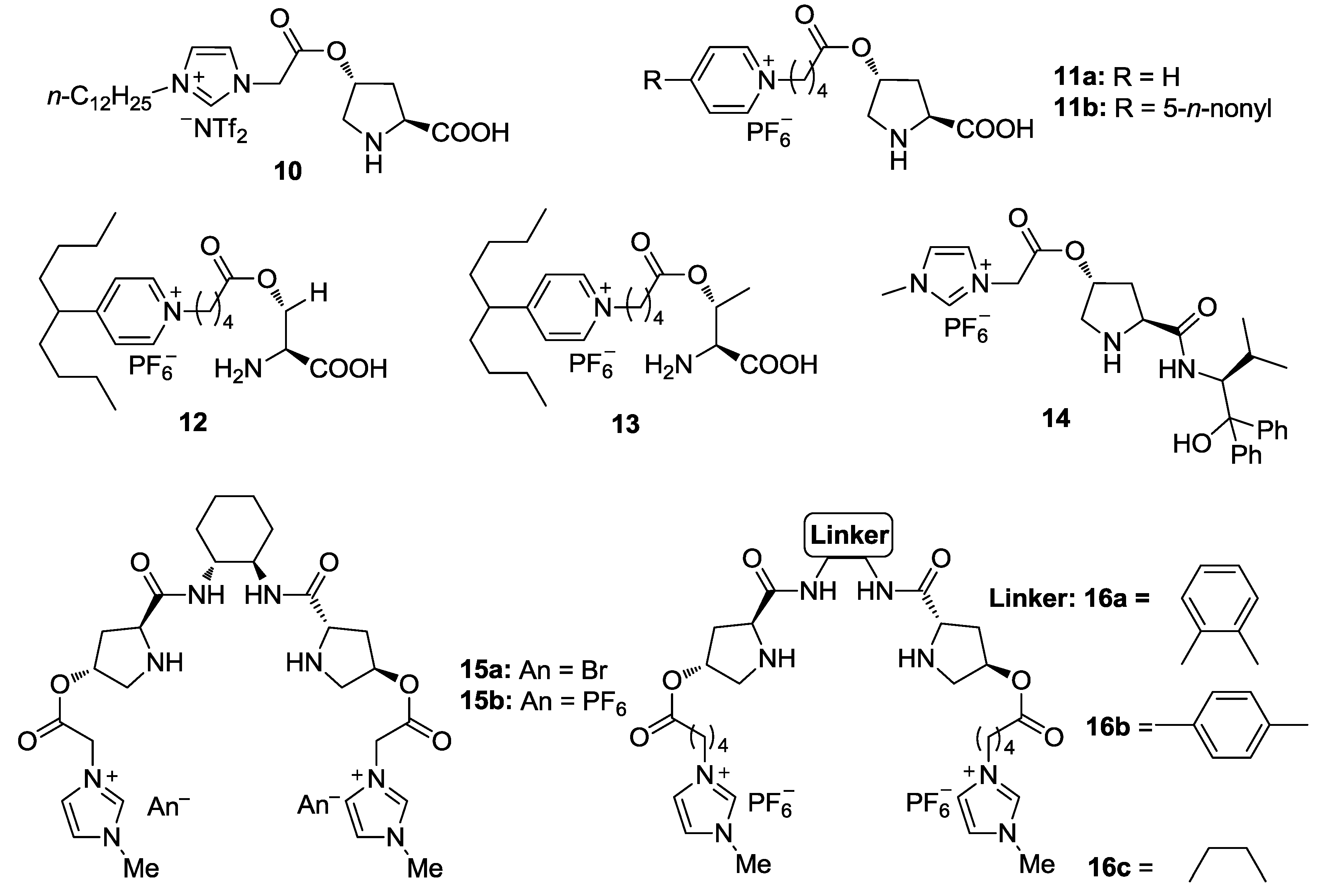

Figure 3. Different types of ionic liquid immobilized organocatalysts.
Figure 3. Different types of ionic liquid immobilized organocatalysts.
Catalysts 03 00709 g003
Later, the same research group described that IL immobilized prolinamide 14 (Figure 3) was shown to be highly effective when used for enantioselective aldol reactions of unmodified ketones with aldehydes [56]. Compared to catalysts that have a free carboxylic group, this catalyst demonstrated even higher yields, better regio-, diastereo- and enantioselectivities in an aqueous environment. Another advantage is that the catalyst can be readily recovered and reused four times and displayed the same selectivity and slightly lowered activity.
In 2011, the group of Zlotin reported a C2-symmetric immobilized organocatalyst 15 (Figure 3) containing a (1R,2R)-bis[(S)-prolinamido]cyclohexane unit bearing two imidazolium+/PF6− ion pairs for carrying out asymmetric aldol reactions [57]. High diastereo- (dr anti/syn up to 99:1) and enantioselectivities (up to 99% ee) were observed for a broad range of substrates of linear or cyclic ketones to aromatic aldehydes in aqueous media. Remarkably, the catalyst could be reused up to 10 reaction cycles without reactivation.
Later, the same research group designed and synthesized a series of ionic liquid immobilized C2-symmetric amides of (S)-proline bearing achiral diamine units 16 (Figure 3) to carry out asymmetric aldol reactions in water [58]. High enantioselectivities and yields were observed for a large variety of cyclic and acyclic ketones as donors and aromatic (heteroaromatic) aldehydes as acceptors. Compared to the previous catalysts, these catalysts demonstrated the same activity and enantioselectivity, but were more readily available and less expensive. Moreover, the authors found that catalyst 16b (Figure 3) showed excellent recoverability, and the catalyst could be reused 15 times with a gradual reduction in yield, while still retaining its high dr and ee values which were similar to those obtained for the reaction performed in the presence of freshly prepared catalyst.
In 2008, Lombardo et al. [59] utilized the ionic tag concept and attached the imidazolium ionic liquid moiety into trans-4-hydroxy-l-proline to prepare the IL immobilized organocatalyst 17(Scheme 3), which was applied to the enantioselective aldol reactions with high enantioselectivity and diastereoselectivity under aqueous biphasic conditions.
Catalysts 03 00709 g007 1024

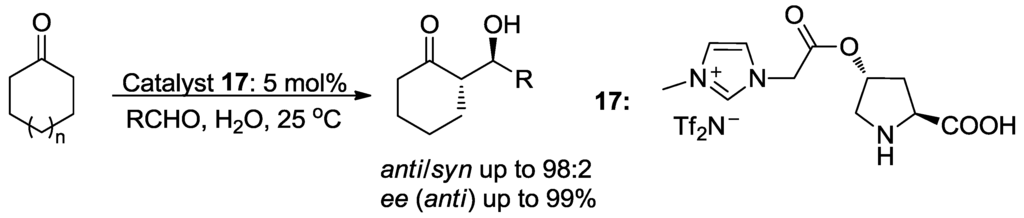

Scheme 3. Aldol reaction catalyzed by an imidazolium-tagged trans-4-hydroxy-l-proline 17.
Scheme 3. Aldol reaction catalyzed by an imidazolium-tagged trans-4-hydroxy-l-proline 17.
Catalysts 03 00709 g007
Later, using the same strategy, the authors synthesized ionic-tagged cis-4-hydroxy-l-proline 18 (Figure 4). They found that catalyst loading could be reduced to 0.1 mol% in the case of electron-poor aromatic aldehydes with ee up to 99%. Under the same reaction conditions, many substrates afforded “enzymatic-like” levels of ees [60]. The recyclability of the catalyst was examined and shown that the product could be readily isolated by extraction using diethyl ether after the excess ketone was removed by vacuum. The catalyst could be recycled four times and showed identical catalytic properties in all reaction cycles in terms of catalytic activity and selectivity.
Lombardo et al. [61] prepared a novel water-soluble organocatalyst 19 (Figure 4) and used it as a catalyst for the aldol reactions of cyclic ketones and aromatic aldehydes. It was found that the three hydrophilic portions that are a part of the catalyst made it soluble in water, and the highly hydrophobic anion allowed the catalyst to be transported into the organic phase of the biphasic ketone–water system where the aldol reaction took place. As a result, high enantioselectivities and anti-diastereoselectivities (up to ≤99%) were obtained.
In 2009, Lombardo et al. [62] reported an ion-tagged diphenylprolinol silyl ether 20 (Figure 4) catalyzed Michael addition of aliphatic aldehydes to nitroalkenes. The authors observed that catalyst loading can be decreased to 0.25–5 mol% in the presence of only a slight excess of aldehyde (1.2–2 equiv.) to achieve a high 99.5% ee. Both CH2Cl2 and water could be used as the solvent for the reaction, and CH2Cl2 was a much better solvent compared to water for the reactions of propanal with aromatic nitroalkenes. However, water was a better reaction medium when less reactive aliphatic nitroalkenes or longer chain aldehydes were used. This phenomenon can be ascribed to poor solubility in water when the molecular weight of aldehyde increases. When sterically hindered nitroalkenes or aldehydes were used, an acid as additive was necessary to ensure high conversions.
Catalysts 03 00709 g004 1024

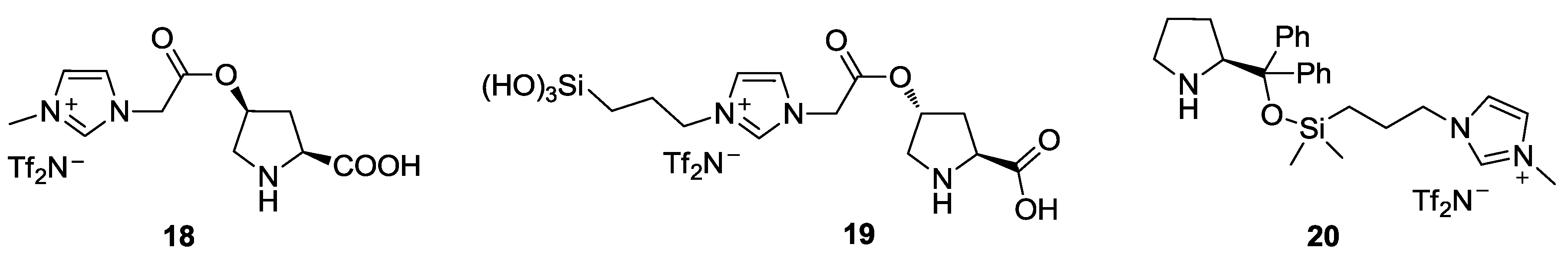

Figure 4. Different kinds of ionic liquid immobilized organocatalysts.
Figure 4. Different kinds of ionic liquid immobilized organocatalysts.
Catalysts 03 00709 g004
Catalysts 03 00709 g008 1024

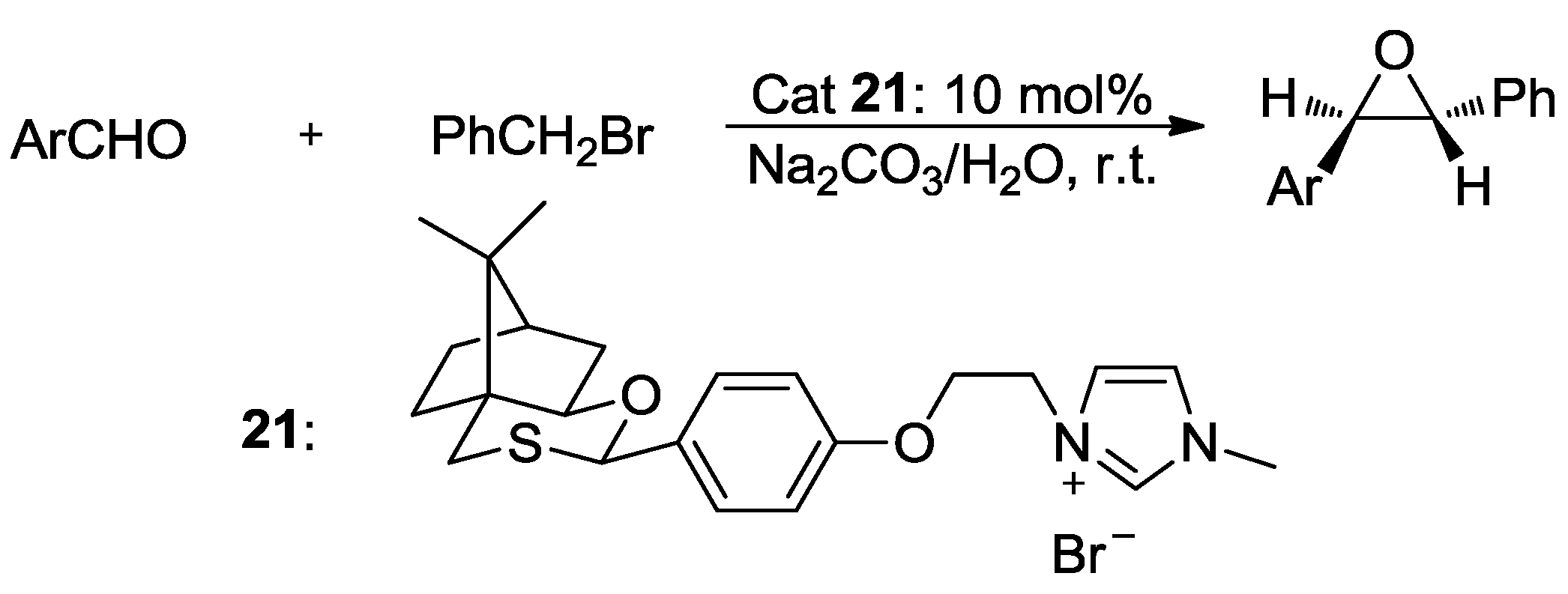

Scheme 4. Ionic liquid immobilized organocatalyst 21 catalyzed epoxidation reaction.
Scheme 4. Ionic liquid immobilized organocatalyst 21 catalyzed epoxidation reaction.
Catalysts 03 00709 g008
In 2009, Huang et al. [63] reported a new ionic liquid immobilized organocatalyst 21 (Scheme 4) as an organocatalyst for the epoxidation reaction of aromatic aldehydes and benzyl bromide in water with reasonable yields (41–67%), excellent diastereoselectivities (dr = 95:5–100:0), and moderate enantioselectivities ranging from 42% to 72% ee were obtained. Moreover, the organocatalyst 21 (Scheme 4) could be easily reused five times without a remarkable decrease in yields or enantioselectivities. Especially noteworthy is the fact that this was the first asymmetric epoxidation via ylide route in pure water.
In 2012, Loh and co-workers [64] described the use of ionic liquid-immobilized imidazolidinone 22 (Scheme 5) as an organocatalyst to catalyze enantioselective Diels–Alder reaction. They discovered that when the reactions were carried out in CH3CN-H2O, comparatively high yields were achieved, and a slightly higher ee for both the exo and endo isomers was obtained. In addition, to address the poor solubility of α, β-unsaturated aldehydes in CH3CN-H2O, a more polar solvent system of CH3NO2-H2O instead of CH3CN-H2O was employed, leading to good to excellent yields of the desired products while maintaining their excellent enantioselectivities. Furthermore, due to the ionic liquid unit that is contained in the catalyst, catalyst 22 can be readily recovered and recycled up to five times while still retaining its high catalytic activity which is in accordance with the goals of green chemistry.
Catalysts 03 00709 g009 1024

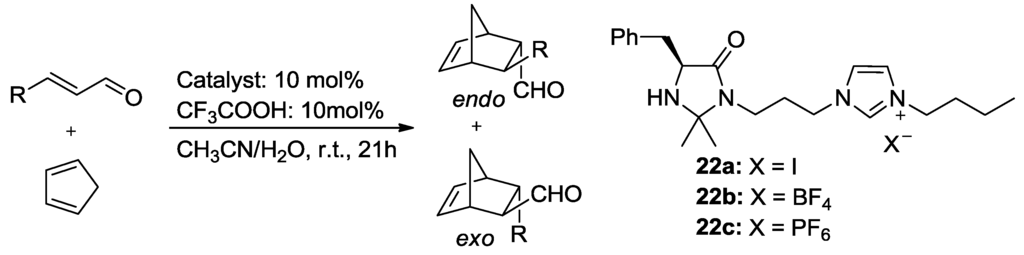

Scheme 5. Enantioselective Diels–Alder reaction catalyzed by ionic liquid-immobilized imidazolidinone 22.
Scheme 5. Enantioselective Diels–Alder reaction catalyzed by ionic liquid-immobilized imidazolidinone 22.
Catalysts 03 00709 g009

2.2. Ammonium Salt Immobilized Organocatalysts

In 2009, Bukuo Ni and co-workers [65] designed and synthesized a series of interesting, novel diarylprolinol silyl ether salt catalysts, which were used as efficient, water-soluble, and recyclable organocatalysts to induce Michael addition of aldehydes and nitroalkenes. The authors found that catalyst 24 (Scheme 6) in combination with benzoic acid as additive can form ammonium salts, which not only enhanced the aqueous solubility of the catalyst but also provided easily recyclable catalysts by capitalizing on their solubility characteristics. In addition, the loading of catalyst and aldehydes could be reduced to 3 mol% and two equivalents, respectively, without any deleterious effect on the yields and enantioselectivities. Moreover, after the reaction was completed, the product could be easily extracted by the mixture of Et2O-hexane, and the aqueous phase was used directly in the next cycle by adding another batch of reagents and benzoic acid. The catalyst can be recycled easily and retained its activity and selectivity over six reaction cycles. This new approach represents a rare successful example that combines the high efficiency and selectivity of homogeneous catalysis with the ease of separation and recyclability of heterogeneous catalysis.
Catalysts 03 00709 g010 1024

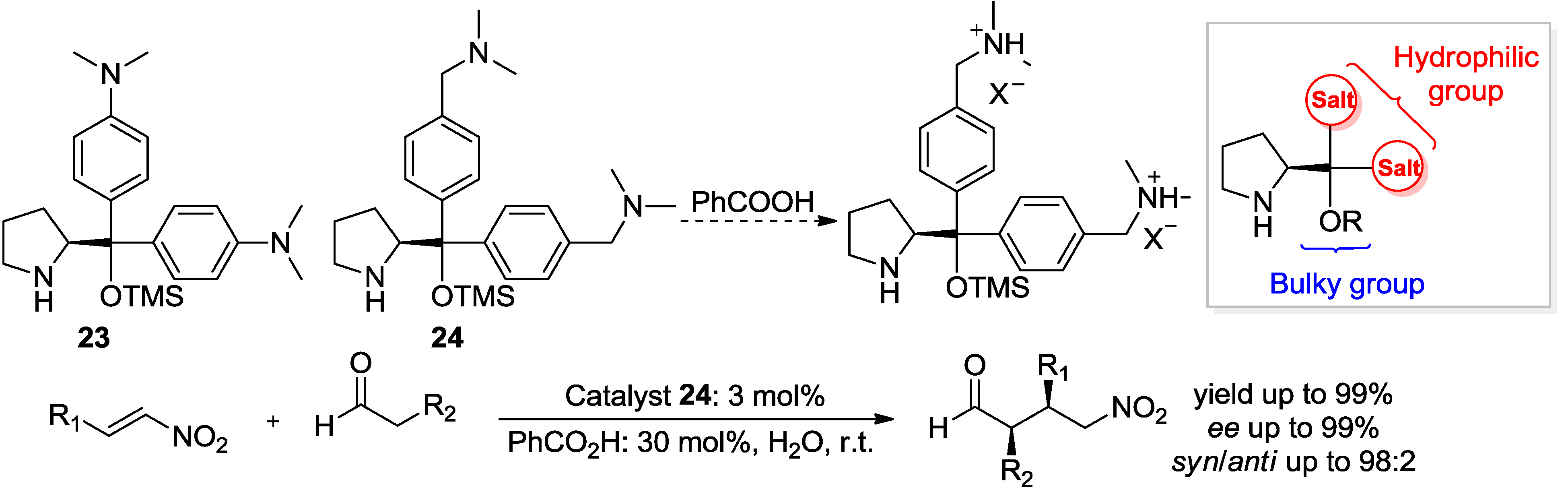

Scheme 6. Organocatalytic asymmetric Michael reaction using novel water-soluble organocatalyst.
Scheme 6. Organocatalytic asymmetric Michael reaction using novel water-soluble organocatalyst.
Catalysts 03 00709 g010
In 2010, the same research group reported that diarylprolinol silyl ether 24 was shown to be highly effective when used in combination with benzoic acid as additive for the catalytic asymmetric conjugate addition of nitroalkanes to α,β-unsaturated aldehydes in aqueous media [66]. A major advantage of the catalytic system is the low donor nitroalkane loading of two equivalents. Furthermore, the advantages associated with this catalyst were the ease for recyclability and reusability with relatively little loss in activity (Scheme 7).
Catalysts 03 00709 g011 1024

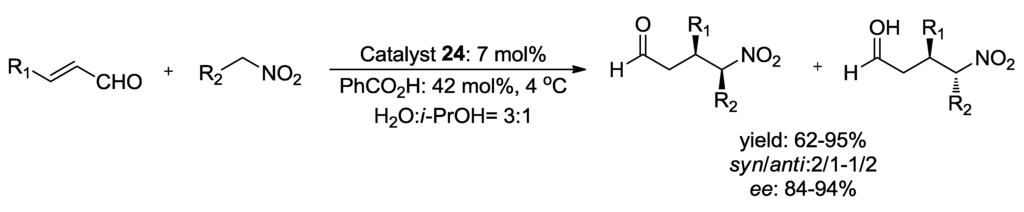

Scheme 7. Reaction of nitroalkanes to α,β-unsaturated aldehydes catalyzed by 24.
Scheme 7. Reaction of nitroalkanes to α,β-unsaturated aldehydes catalyzed by 24.
Catalysts 03 00709 g011
Catalysts 03 00709 g012 1024
Scheme 8. Michael addition of aldehydes to nitroolefins catalyzed by 24 and 25.
Scheme 8. Michael addition of aldehydes to nitroolefins catalyzed by 24 and 25.
Catalysts 03 00709 g012
In 2011, the research group of Headley [67] reported a novel strategy for the asymmetric Michael addition of aldehydes to nitroolefins, using ionic liquid-supported benzoic acid 25 (Scheme 8) instead of benzoic acid in combination with organocatalyst 24 gave the desired Michael adducts with excellent diastereo- and enantioselectivities in water. Compared to earlier publications, the notable features of this organocatalytic system are that the catalytic system could be reused directly without adding new acid and the catalyst could be recycled more than 12 times without significant loss of enantioselectivity.
The domino reaction is an efficient and elegant strategy that constructs complex molecules from simple precursors in a single process [68,69,70,71,72]. These reactions avoid time-consuming and costly protection/deprotection processes as well as the purification of intermediates, and represent a flourishing area in organic chemistry. In 2011, Headley and co-workers [73] described the use of the same catalytic system for the domino Michael/Henry reaction of pentane-1,5-dial with various nitroolefins in an aqueous media affording the desired products in good yields (65–85%) and excellent enantioselectivities (99%) (Scheme 9). More importantly, the catalyst could be recycled up to four times resulting in good yield and up to seven times with good enantioselectivity.
Catalysts 03 00709 g013 1024

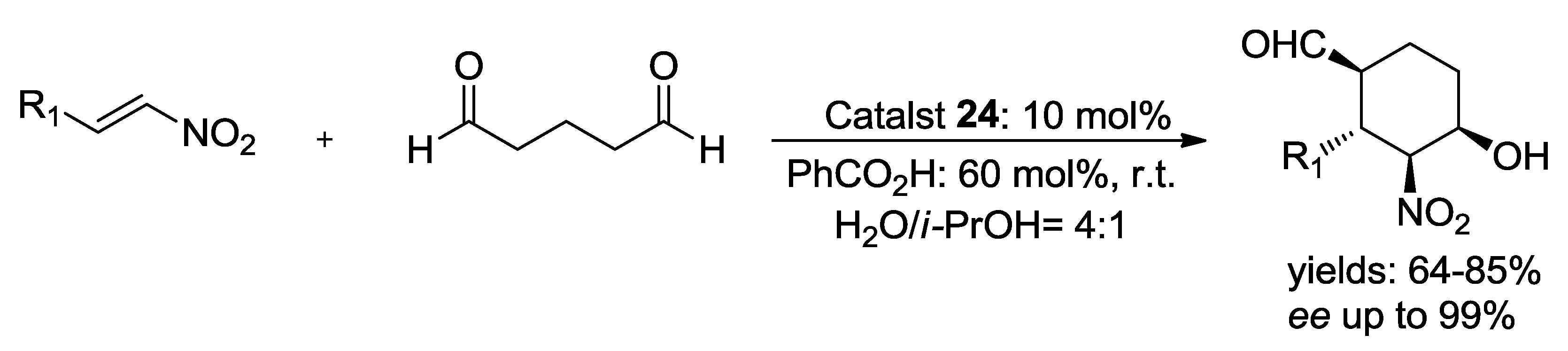

Scheme 9. Reaction of pentane-1,5-dial with nitroolefines catalyzed by 24.
Scheme 9. Reaction of pentane-1,5-dial with nitroolefines catalyzed by 24.
Catalysts 03 00709 g013
Catalysts 03 00709 g014 1024

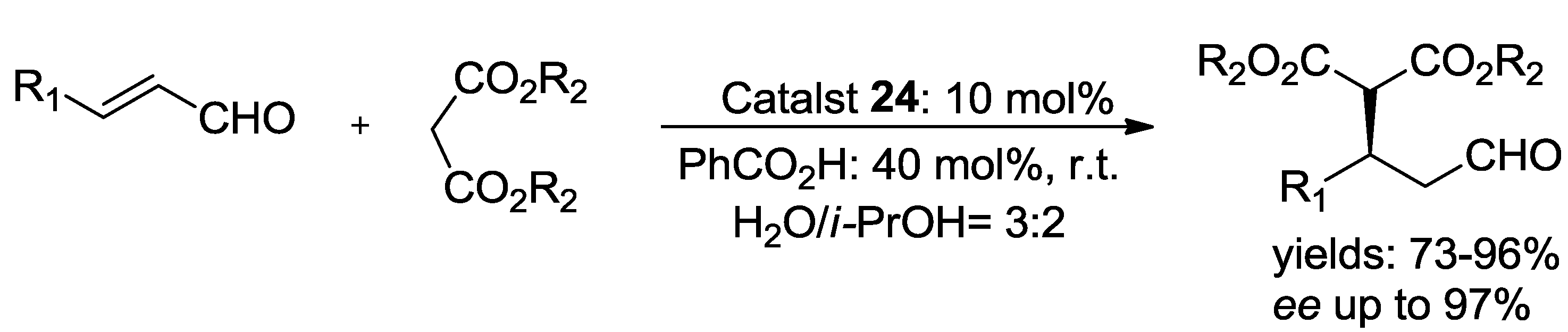

Scheme 10. Michael reaction of malonate to α,β-unsaturated aldehydes.
Scheme 10. Michael reaction of malonate to α,β-unsaturated aldehydes.
Catalysts 03 00709 g014
In 2012, Headley [74] found that pyrrolidine-based organocatalyst such as 24 was very effective for the Michael reaction of malonate to α, β-unsaturated aldehydes in the presence of a mixed solvent system i.e., H2O/i-PrOH (Scheme 10). Different catalysts and different equivalents of acid were evaluated for this reaction. The best result was achieved by the addition of 40 mol% benzoic acid to 10 mol% of the catalyst, good to excellent yields (73%–96%) and high to excellent enantioselectivities (up to 97%) were obtained. The recyclability of the catalyst 24 was also tested and the catalyst could be recycled up to four times with gradual reductions in yields and enantioselectivity observed after the second cycle.
The direct crossed-aldol reaction is considered to be one of the key transformations for carbon-carbon bond formation [47,75,76,77,78]. However, acetaldehyde, which is considered the simplest of the enolizable carbonyls, is known to be very reactive due to the fact that various undesired side products of poly-aldolization, dehydration, Tishchenko-type processes and oligomerization are formed [79]. In 2013, Headley et al. [80] developed a new type of diarylprolinol-based catalysts and studied the efficiency of these catalysts on the asymmetric direct crossed-aldol reaction of acetaldehyde in aqueous media (Scheme 11). The best result in terms of yields and enantioselectivities was observed with catalyst 29a in combination with a newly developed ionic liquid immobilized benzoic acid 25 as co-catalyst. In particular, the catalyst loading could be reduced to 5 mol%, high yields (up to 97%) and high enantioselectivities (up to 92% ee) were also achieved for a wide variety of aromatic aldehydes.
Catalysts 03 00709 g015 1024

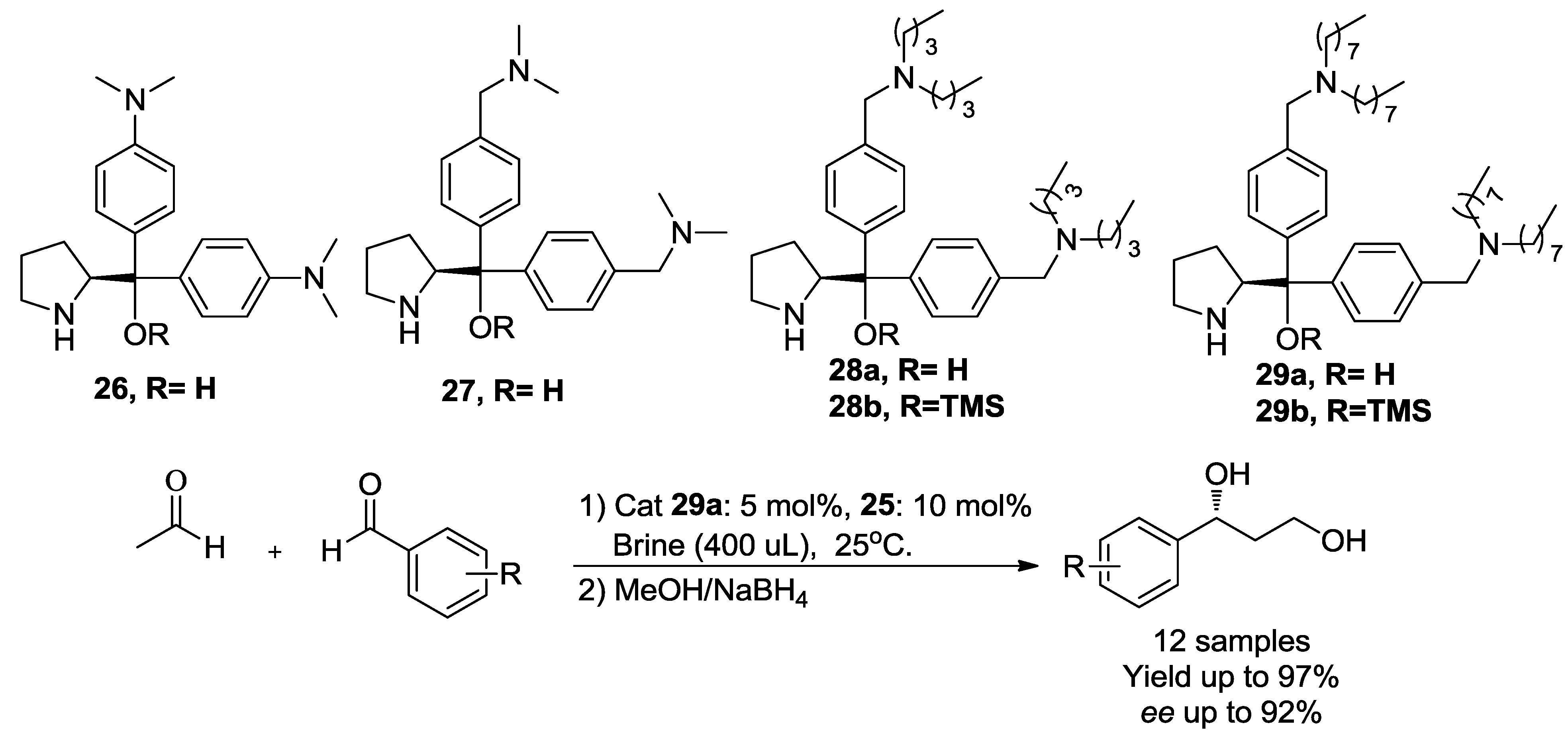

Scheme 11. Organocatalytic direct crossed-aldol reactions of acetaldehyde.
Scheme 11. Organocatalytic direct crossed-aldol reactions of acetaldehyde.
Catalysts 03 00709 g015
The Michael reaction of acetaldehyde with nitroolefins in aqueous media was also investigated by the same group using the same catalytic system [81]. Catalyst 24 (Scheme 12) in combination with benzoic acid as co-catalyst was found to be highly effective, relatively good yields (30–61%) and high enantioselectivities (80–97% ee) were observed for a broad variety of nitrostryenes, including the electron-deficient and electron-rich nitrostyrenes, heteroatom containing aryl-substituted nitroalkene and alkyl-substituted nitroalkenes.
Catalysts 03 00709 g016 1024
Scheme 12. Asymmetric Michael reaction involving acetaldehyde and various nitroalkenes.
Scheme 12. Asymmetric Michael reaction involving acetaldehyde and various nitroalkenes.
Catalysts 03 00709 g016
In 2013, an interesting ionic liquid immobilization technique was exploited by the Headley group in the synthesis of pyrrolidine-based organocatalyst 30 (Scheme 13). They discovered that catalyst 30 in the presence of a newly developed ionic liquid-supported benzoic acid as co-catalyst was shown to be highly effective in the asymmetric Michael reaction in water [82]. For the reactions studied, excellent diastereo- and enantioselectivities were obtained with only 5 mol% of catalyst loading. Another advantage of the system was that after extraction of the product, the catalyst remained in the aqueous layer and could be reused in subsequent reactions for ten times without significant loss of enantioselectivity.
Catalysts 03 00709 g017 1024

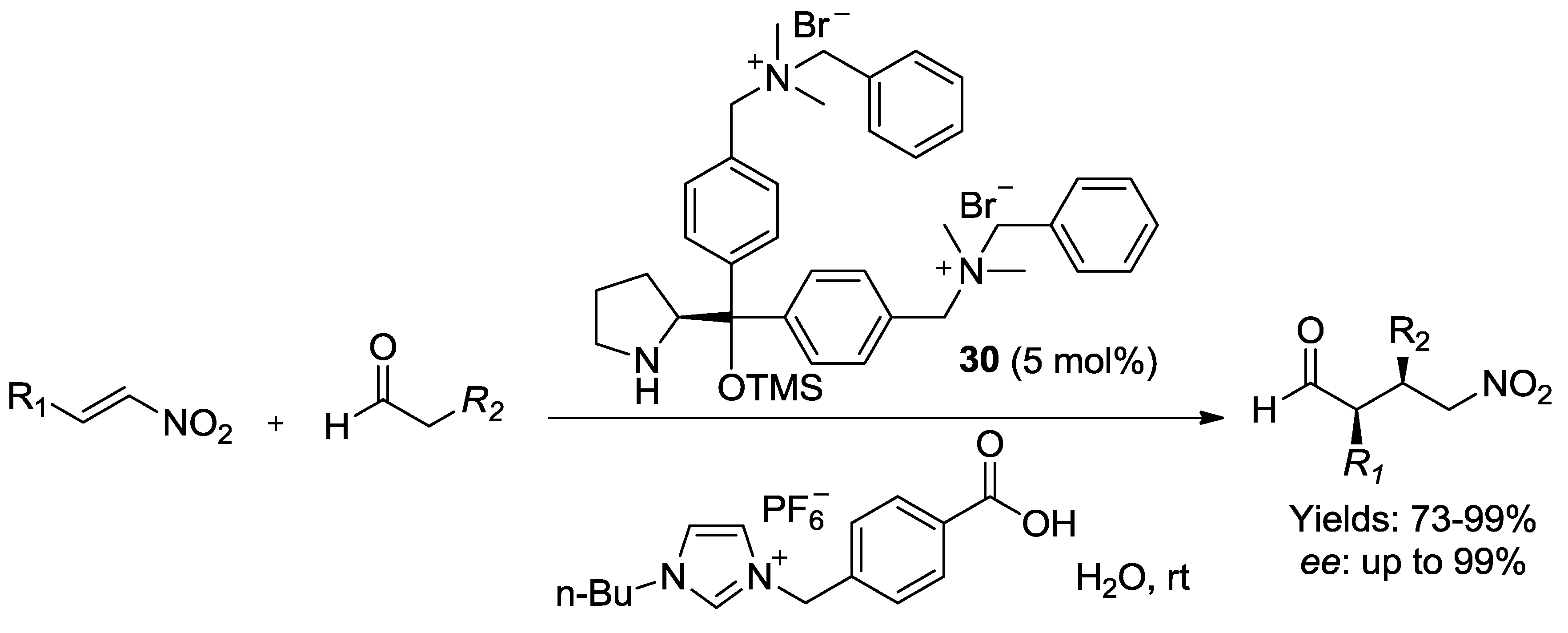

Scheme 13. Organocatalytic asymmetric Michael reaction using aldehydes and nitroalkenes.
Scheme 13. Organocatalytic asymmetric Michael reaction using aldehydes and nitroalkenes.
Catalysts 03 00709 g017
A novel idea of using biorenewable nontoxic raw materials through a simple and green route to synthesize IL [Choline][Pro] 31 (Scheme 14) was led by Hu and co-workers [83]. They found that this catalyst could be used to catalyze direct aldol reactions between ketones and aromatic aldehydes efficiently in water in a very short time with good yields. In addition, the authors observed that the reaction mixtures separated into an aqueous phase and an organic phase after the reaction was completed, and the catalyst was dissolved in aqueous phase, which means that the IL could be easily recycled. It was important to note that the aqueous phase could be recycled three times without obvious decrease in yields.
Catalysts 03 00709 g018 1024

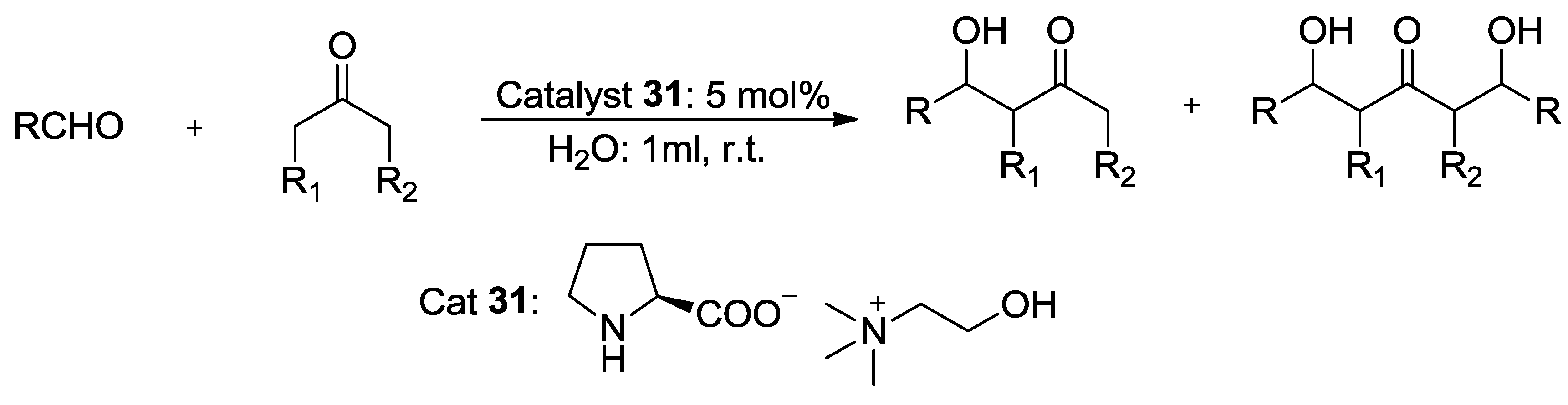

Scheme 14. Direct aldol reaction of aromatic aldehydes and ketones.
Scheme 14. Direct aldol reaction of aromatic aldehydes and ketones.
Catalysts 03 00709 g018

2.3. Other Heterocyclic Immobilized Organocatalysts

In 2012, the Cui group [84] developed a series of polyvinylidene chloride (PVDC)-immobilized ionic liquids (Scheme 15) which were derived from 4-dimethylaminopyridine. The authors observed that these catalysts were used together with l-proline as efficient asymmetric organocatalysts for asymmetric aldol reactions between cyclohexanone and aromatic aldehydes in the presence of water. High yields of up to 99%, as well as diastereoselectivities of up to 6:94, and excellent enantioselectivities of up to 98% were obtained. Another advantage of the catalytic system is the ease in recyclability and reusability; the results showed that the yield remained the same and only a slight reduction in selectivity after seven recycles.
Catalysts 03 00709 g019 1024

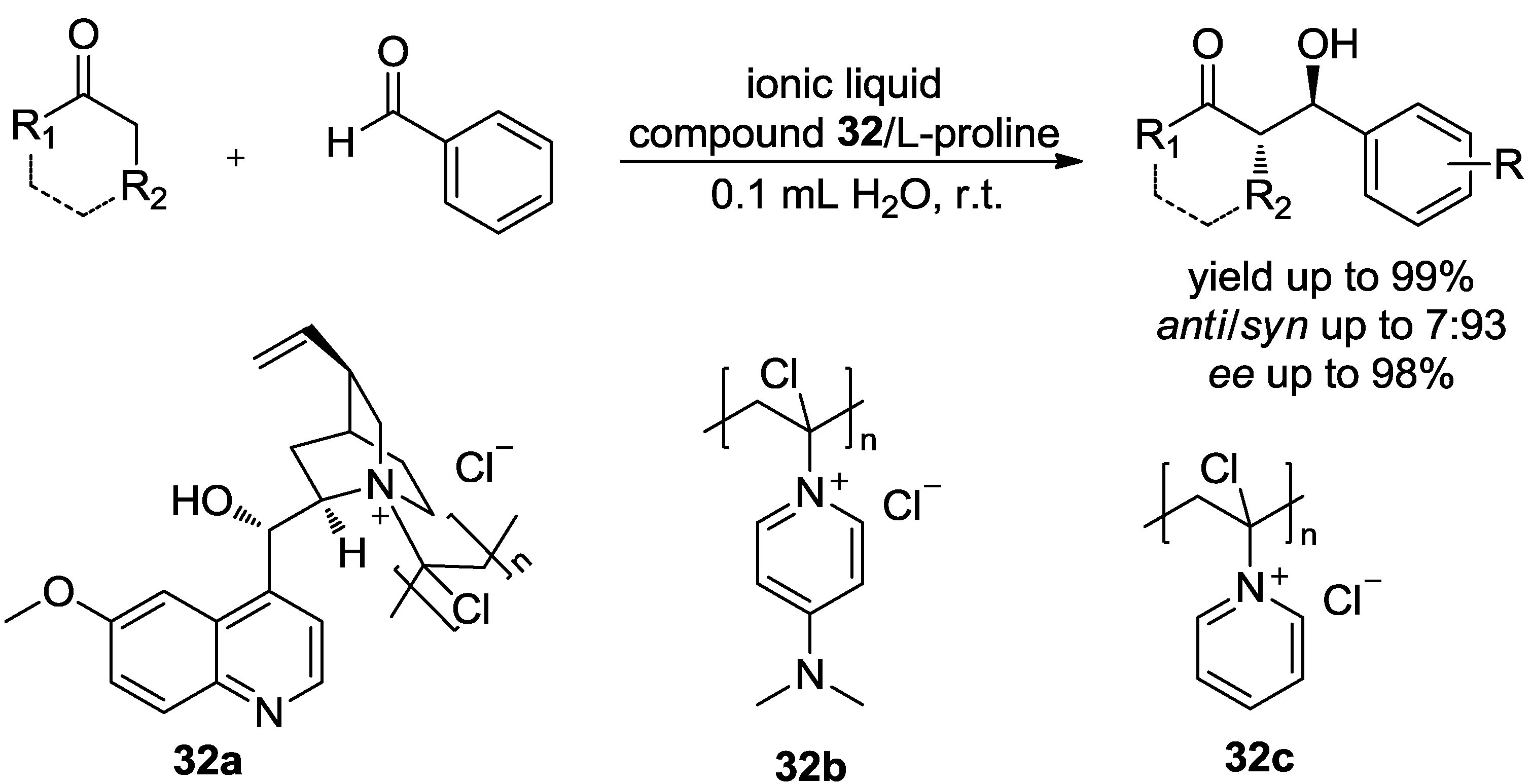

Scheme 15. Asymmetric aldol reactions catalyzed by compound 32/l-proline.
Scheme 15. Asymmetric aldol reactions catalyzed by compound 32/l-proline.
Catalysts 03 00709 g019

3. Conclusions and Outlook

This short review focuses on the application and recyclability of recently developed ionic liquid and related ammonium salt immobilized organocatalysts in asymmetric reactions. The main advantages of these types of catalysts are that they are environmentally benign and eco-friendly, and they can be easily recovered and reused many times without loss of activity and selectivity. In addition, these catalysts also present a new approach to meet the environmental challenges faced by industry. Large amounts of conventional catalysts are presently being used to ensure high yields in the synthesis of specific compounds, including pharmaceutical compounds. Since ionic liquid and related ammonium salt immobilized catalysts are typically recyclable, large amounts are typically not required. Moreover, water as the solvent in organic transformations provides an important avenue to expand the study of green chemistry and the field of sustainable catalysis in this media. Although this field is still in its infancy, the future is very promising. The development of organic reactions in aqueous media should benefit academia and industry. In nature, virtually all biological processes take place in an aqueous environment, and as a result, gaining a deeper understanding of reactions in aqueous medium will also contribute to our understanding of the detailed mechanisms in the chemistry of life. There is a bright future for further design of more efficient and practical, novel, ionic liquid immobilized organocatalysts that are functional under mild catalytic conditions.

Acknowledgments

We are grateful to the National Science Foundation for financial support of this research (CHE-1213287).

Conflicts of Interest

The authors declare no conflict of interest.
