Polycyclic Ketone Monooxygenase (PockeMO): A Robust Biocatalyst for the Synthesis of Optically Active Sulfoxides

by
Gonzalo De Gonzalo
1,*,
Maximilian J. L. J. Fürst
2 and
Marco W. Fraaije
2
1
Departamento de Química Orgánica, Universidad de Sevilla, c/Profesor García González 1, 41012 Sevilla, Spain
2
Molecular Enzymology Group, University of Groningen, Nijenborgh 4, 9747 AG Groningen, The Netherlands
*
Author to whom correspondence should be addressed.
Catalysts 2017, 7(10), 288; https://doi.org/10.3390/catal7100288
Submission received: 12 August 2017 / Revised: 16 September 2017 / Accepted: 21 September 2017 / Published: 27 September 2017
(This article belongs to the Special Issue Biocatalysis and Biotransformations)
Browse Figures
Versions Notes

Abstract

:
A recently discovered, moderately thermostable Baeyer-Villiger monooxygenase, polycyclic ketone monooxygenase (PockeMO), from Thermothelomyces thermophila has been employed as a biocatalyst in a set of asymmetric sulfoxidations. The enzyme was able to catalyze the oxidation of various alkyl aryl sulfides with good selectivities and moderate to high activities. The biocatalytic performance was able to be further increased by optimizing some reaction parameters, such as the addition of 10% v v−1 of water miscible solvents or toluene, or by performing the conversion at a relatively high temperature (45 °C). PockeMO was found to display an optimum activity at sulfide concentrations of 50 mM, while it can also function at 200 mM. Taken together, the data show that PockeMO can be used as robust biocatalyst for the synthesis of optically active sulfoxides.

Graphical Abstract

1. Introduction

Polycyclic ketone monooxygenase (PockeMO) from the thermophilic fungus Thermothelomyces thermophila has recently been identified, overexpressed and characterized [1]. This newly discovered Baeyer-Villiger monooxygenase (BVMO) was found to be moderately thermostable, and tolerates several organic cosolvents. Its substrate acceptance profile is somewhat unusual, as it is able to act on relatively bulky and polycyclic ketones. Elucidation of the crystal structure of PockeMO and comparison with other BVMO structures revealed that PockeMO harbors an additional subdomain that enables it to convert bulky substrates. The first characterization study on PockeMO focused on its ability as BVMO to convert ketones. Here, we explored the potential of PockeMO as biocatalyst for the asymmetric oxidation of sulfides.
Optically active sulfoxides are very valuable building blocks in organic synthesis, as well as chiral auxiliaries in asymmetric catalysis and compounds with interesting biological properties [2,3,4]. Several methodologies, employing different catalysts, have been described for their preparation [5,6]. Biocatalytic procedures present some advantages, such as the use of mild and environmentally friendly reaction conditions and oxidants [7,8]. Several types of oxidative enzymes can be used for the synthesis of chiral sulfoxides, which include peroxidases [9,10,11], dioxygenases [12,13] and different types of monooxygenases [14,15]. BVMOs represent a class of flavin-containing monooxygenases that catalyze the Baeyer-Villiger oxidation of aldehydes and ketones, but they are also able to perform epoxidations and the oxygenation of sulfides and other heteroatom-containing compounds, often with high chemo-, regio- and/or enantioselectivity [16,17,18,19]. For these reasons, BVMOs have been intensely studied for their use in the synthesis of valuable compounds in organic and pharmaceutical chemistry.
The most extensively studied BVMO, cyclohexanone monooxygenase (CHMO) from Acinetobacter calcoaceticus NCIB 9871, is able to perform the oxidation of numerous alky aryl sulfides, dialkyl sulfides and disulfides, but this catalyst lacks stability in non-conventional reaction media and at high temperatures, and often suffers from substrate inhibition [20,21,22,23]. Other recently discovered BVMOs have also been employed in the synthesis of optically active sulfoxides, including 4-hydroxyacetophenone monooxygenases (HAPMO) from Pseudomonas fluorescens ACB [24,25], or from Pseudomonas putida JD1 [26], ethionamide monooxygenase (EtaA) from Mycobacterium tuberculosis [27,28], as well as some BVMOs obtained from Rhodococcus jostii RHA1 [29]. Yet, all these BVMOs suffer from low operational stability. Phenylacetone monooxygenase (PAMO) from Thermobifida fusca is one of the few known BVMOs that is stable at elevated temperatures [25,30,31,32,33], and it tolerates, to some extent, the use of cosolvent; in fact, some cosolvents even improve its performance [28]. Nevertheless, all of the above-mentioned BVMOs have the drawback that their substrate profile is restricted to relatively small substrates. In view of the observation that PockeMO accepts rather bulky ketones, we set out to explore its use as a biocatalyst for the preparation of various optically active sulfoxides.

2. Results and Discussion

2.1. PockeMO-Catalyzed Sulfoxidations

PockeMO was overexpressed and purified as a single fusion protein containing His-tagged phosphite dehydrogenase (PTDH) from Pseudomonas stutzeri as N-terminal fusion partner [34], which simplifies the protein purification. This bifunctional redox biocatalyst can be used as a so-called self-sufficient BVMO: the BVMO domain utilizes nicotine adenine dinucleotide phosphate (NADPH) for performing the oxygenation reaction, while the PTDH domain regenerates NADPH at the expense of phosphite, as shown in Scheme 1 [35,36]. As control, the reactions were also performed in the absence of catalyst, but in that case, no significant oxidation was observed. Our first efforts were devoted to establishing the substrate scope of PockeMO in the enzymatic synthesis of optically active sulfoxides. For this reason, we performed the enzymatic oxidation of structurally different sulfides at 25 °C in 50 mM Tris/HCl, pH 8.0. As shown in Table 1, PockeMO readily converts thioanisole (1a) into (R)-methyl phenyl sulfoxide with complete conversion and an excellent selectivity. By employing other alkyl phenyl sulfides, a decrease in both enzyme activity and selectivity was observed. Ethyl phenyl sulfide (2a) was oxidized into ethyl phenyl sulfoxide (R)-2b with a 76% conversion after 24 h and a moderate optical purity, while the presence of a chlorine atom in the alkyl chain led to a similar selectivity (entry 3 in Table 1), but an even lower conversion (27%). For both compounds, some overoxidation from sulfoxide to sulfone was observed. This is most prominent in the oxidation of 2-chloroethyl phenyl sulfide 3a, where 81% of the product represented the sulfoxide while also 19% of sulfone was formed.
PockeMO efficiently oxidizes a range of para-substituted phenyl methyl sulfides. It seems that the electronic nature of the substituent has no effect in terms of selectivity, as chiral sulfoxides (R)-4b, (R)-5b and (R)-6b are obtained with optical purities around 90%. The methyl phenyl sulfide containing a strong electron-withdrawing group, such as p-cyano, led to lower conversions after 24 h (43% after 22 h), while a 78% of (R)-methyl p-chlorophenyl sulfoxide 6b (88% ee) was obtained after 22 h. The p-methoxy derivative 5b was achieved with complete conversion at 24 h. For methyl p-cyano and p-methoxyphenyl sulfides 4a and 5a respectively, minor amounts of sulfones 4c and 5c were obtained, while no significant overoxidation was observed with methyl p-chlorophenyl sulfide 6a.
The effect of the chlorine atom position in the aromatic ring was analyzed by performing the oxidation of the prochiral methyl m-chloro and o-chlorophenyl sulfides 7a and 8a. Complete conversion was achieved for (R)-methyl m-chlorophenyl sulfoxide (7b) after 20 h, while the ortho-derivative was converted slower, with 85% of sulfide 8a consumed in 20 h. In contrast, (R)-methyl o-chlorophenyl sulfoxide (8b) was obtained with a very good optical purity (93% ee), higher than that achieved for (R)-7b (79% ee).
(R)-Benzyl methyl sulfide (9a) was also accepted by PockeMO. The enzyme displayed a moderate selectivity (68% ee) and 70% conversion after 16 h. The oxidized product mixture contained 85% of (R)-benzyl methyl sulfoxide (9b), while 15% of sulfone 9c was formed. The biocatalyst was also able to convert some bulky sulfides, as shown in Table 1 for the oxidation of methyl naphtyl sulfide (10a) or benzyl phenyl sulfide (11a). Chiral sulfoxide (R)-methyl naphthyl sulfoxide 10b was obtained with 16% conversion after 24 h, while the bulkier sulfide 11a required 56 h to achieve a similar conversion. For both substrates, the enzyme showed good selectivities (83% ee).
Finally, a dialkyl sulfide, cyclohexyl methyl derivative (12a), was also tested. The biocatalyst was able to convert all the starting substrate within 24 h, yielding to 82% of (R)-cyclohexyl methyl vv sulfoxide with a low optical purity (31% ee) and 18% of cyclohexyl methyl sulfone 12c.
After having established the ability of PockeMO to selectively oxidize various sulfides, we analyzed the effect of different reaction parameters (pH, temperature, sulfide concentration and organic cosolvents) on the activity and selectivity of PockeMO in order to improve its biocatalytic performance.

2.2. Effect of pH and Temperature on PockeMO-Catalyzed Sulfoxidations

The sulfoxidation of 1a was carried out at 25 °C in Tris/HCl 50 mM buffer at varying pH values ranging from pH 6.5 to 9.0. As can be seen in Figure 1, there is no significant effect of the pH on the optical purity of (R)-1b (ee values around 88–91% for all the pH range), while the enzyme seems to have an optimal activity at pH 8.0 (complete conversion after 16 h), which is in accordance with the initial enzyme characterization study. pH values below 7.5 led to significant loss in activity.
As PockeMO exhibits a considerable degree of thermostability, with the highest activity at 50 °C, those sulfides which were converted poorly (<80%) at 25 °C were also tested at 45 °C. As shown in Table 2, significantly improved conversions were observed, whereas the enantioselectivity remained similar. For example, it was possible to fully oxidize sulfide 2a in 20 h while at 25 °C the conversion was only 76% after 24 h. The oxidation of bulky sulfides was also significantly accelerated at 45 °C, as shown in entries 5 and 6. This is probably due to the higher enzyme activity at elevated temperatures, while an effect on the solubility may also contribute to higher conversions. For most of the substrates, a higher amount of sulfone was achieved with respect to the oxidations carried out at 25 °C. For instance, a significant amount of sulfones 2c and 10c (33% and 50%, respectively), was obtained in the oxidation of sulfides 2a, and 10a (entries 1 and 5).

2.3. Sulfide Concentration Effect

The influence of the substrate concentration (1a) on the activity and selectivity of PockeMO was studied for the sulfoxidation reaction carried out at pH 8.0 and 25 °C (Figure 2). In order to compare the results obtained at different concentrations and times, the space time yield (expressed as mmoles of thioanisole consumed L−1·h−1) has been determined. This parameter increased from 10 mM (61.9 mmol L−1·h−1) to 50 mM (140.6 mmol L−1·h−1). Higher thioanisole concentrations led to significant lower activities, but it is worth to mention that the enzyme is still able to catalyze the oxidation of 200 mM 1a with a space time yield of 20.0 mmol L−1·h−1.
The effect of substrate concentration was studied at several temperatures (see Supplementary Material for complete data). Oxidation of 10 mM 1a at 45 °C led to complete conversion after 8 h (96% of sulfoxide 1b and 4% of sulfone 1c) and was much more efficient when compared with the conversion at 25 °C. Oxidation of 50 mM 1a at 45 °C afforded the highest space time yield (240 mmol L−1·h−1). Increasing the substrate concentration led to a decrease in space time yield. Yet, the enzyme still presented a high activity at substrate concentrations further 100–200 mM. PockeMO was also tested at 60 °C and the enzyme was still able to carry out sulfoxidations. When 1a was oxidized at 10 mM concentration, 85% conversion was observed after 6 h (with 93% of (R)-1b and a 7% of sulfone 1c as products) which results in the highest space time yield when compared with the lower temperatures. Increasing the concentration of 1a led to a similar trend as observed for the other two temperature conditions. However, the space time yields were lower when compared with the conversions at 45 °C. It was gratifying to observe that, except for altering enzyme activity, varying the temperature and/or the substrate concentration did not have a significant effect on the stereoselectivity of the biocatalyst, confirming the robust character of this biocatalyst (see Supplementary Materials).

2.4. Enzymatic Sulfoxidations in the Presence of Cosolvents

As previously reported, PockeMO showed a moderate tolerance to organic cosolvents in the Baeyer-Villiger oxidation of ketones. In addition, certain BVMOs have shown interesting properties in the biocatalyzed sulfoxidation of prochiral sulfides in presence of organic cosolvents [14]. For these reasons, we decided to test the effect of organic cosolvents with different properties, using 2a as model sulfide substrate, a substrate which was oxidized with good activity and selectivity to (R)-2b in 50 mM Tris/HCl, pH 8.0. The initial set of reactions were performed at 25 °C using a mixture of Tris/HCl buffer containing 10% v v−1 of cosolvent (Figure 3). PockeMO displays a higher activity in the presence of hydrophilic solvents such as dimethylsulfoxide, acetonitrile and 1,4-dioxane (>90% conversion for the three solvents). Interestingly, the presence of 10% v v−1 1,4-dioxane or dimethylsulfoxide (DMSO) improved the stereoselectivity of the biocatalyst when compared with using just Tris/HCl, as (R)-2b was recovered with 89% and 80% ee, respectively. The use of short alkyl chain alcohols such as ethylenglycol, methanol, ethanol and 2-propanol has a negative effect on the activity of PockeMO, while the selectivities do not significantly change. In general, the presence of hydrophobic solvents resulted in a significant loss of enzyme activity, with the exception of 10% v v−1 of 2-methyltetrahydrofuran and toluene, for which conversions of 79% and 89% were obtained. The presence of toluene also results in an increase in the optical purity of the formed sulfoxide (R)-2b (83%).
As the presence of both 1,4-dioxane and toluene (10% v v−1) seems to have a positive effect on PockeMO’s performance, the sulfoxidation of ethyl phenyl sulfide was tested with higher amounts of 1,4-dioxane and toluene (Table 3). The use of 30% v v−1 of 1,4-dioxane (entry 1) led to (R)-2b with 77% conversion and 77% enantiomeric excess, which is still a better result than those obtained for bioxidation in Tris/HCl buffer. A higher amount of this solvent (entry 2) led to a drastic decrease in conversion, with only 7% of the sulfoxide (with only 39% ee) being formed. The presence of 30% v v−1 of toluene also has a very negative effect on PockeMO performance, with only 11% of chiral sulfoxide obtained, as shown in entry 3.
The use of 10% v v−1 1,4-dioxane was also tested in the oxidation of several other sulfides, with the aim of improving some of the biocatalyzed reactions that led to moderate or low activities and/or selectivities, as shown in Table 3. Thus, the sulfoxidation of 4a in the presence of 1,4-dioxane led to (R)-4b with an excellent selectivity and a high conversion (entry 4). Chiral sulfoxide (R)-6b can be obtained with 97% ee, while the conversion for this compound was slightly lower when compared with the oxidation in buffer. A positive effect was observed for the bulky sulfides methyl napththyl sulfide 10a and benzyl methyl sulfide 11a, as the (R)-sulfoxides are recovered with higher conversions in the presence of 10% v v−1 1,4-dioxane. In a similar manner, complete conversion was achieved in the preparation of the alkyl sulfoxide (R)-cyclohexyl methyl sulfoxide 12b. For this compound, a higher amount of sulfone was obtained when using the organic solvent. For sulfoxides (R)-10–12b the organic solvents had no effect on stereoselectivity.
The sulfoxidation of 9a in 10% v v−1 1,4-dioxane after 24 h afforded (R)-9b with 95% conversion, for which 72% corresponds to the optically active sulfoxide with 31% ee (entry 6, Table 3), a much lower optical purity when compared with sulfoxidation carried out in Tris/HCl buffer. When this reaction in presence of 1,4-dioxane was stopped after 12 h, a conversion of 77% was measured (95% sulfoxide), obtaining (R)-9b with 39% ee. This result indicates that the optical purity of the chiral sulfoxide decreased during the conversion. The same experiment was performed for the reaction carried out in buffer. After 12 h, (R)-9b was obtained with 48% conversion (90% sulfoxide) and 65% ee, a similar value to that achieved after 16 h (entry 9, Table 1). In order to establish the reason for this effect, we analyzed the PockeMO-catalyzed oxidation of the racemic benzyl methyl sulfoxide (±)-9b in both 50 mM Tris/HCl (pH 8.0) and in Tris/HCl buffer containing 10% v v−1 1,4-dioxane. The kinetic resolution performed in absence of the organic solvent led to the formation of 75% of sulfone 9c. The remaining sulfoxide presented the S-configuration and 33% ee. The oxidation in presence of solvent yielded a higher conversion (87%). The 13% of remaining (S)-9b was achieved with 77% ee. Thus, the kinetic resolution of (±)-9b was faster and more selective in the presence of 1,4-dioxane, but PockeMO mainly oxidizes the R enantiomer, the one formed preferentially in the sulfoxidation of 9a, into benzyl methyl sulfone 9c, which led to a decrease in the sulfoxide optical purity over time, as shown in Scheme 2.

3. Materials and Methods

3.1. General Materials and Methods

Purified PockeMO was prepared as described previously [1]. Sodium phosphite dibasic pentahydrate, starting sulfides 1a, 3a and racemic sulfoxide (±)-1b were obtained from Sigma-Aldrich, Steinheim, Germany. Sulfides 2a, 4a, 7–9a and sulfoxide (±)-9b were purchased from TCI Europe, Zwijndrecht, Belgium. NADPH and starting compounds 5a and 10–12a were obtained from Alfa Aesar, Karlsruhe, Germany. Sulfide 6a was purchased from Acros Organics, Geel, Belgium. Racemic sulfoxides (±)-2–8b and (±)-10–12b were obtained by oxidizing the corresponding sulfides in presence of hydrogen peroxide and methanol at room temperature (yields higher than 80%), and exhibited physical and spectral properties in accordance with those reported [24,31].
GC/MS analyses were performed with a GC Hewlett Packard 7890 Series II equipped with a Hewlett Packard 5973 chromatograph MS (Agilent Technologies, Santa Clara, CA, USA) using a HP-5MS cross-linked methyl siloxane column (30 m × 0.25 mm × 0.25 μm, 1.0 bar N2). To monitor levels of conversion, substrates and products were quantified by use of calibration curves. Further data are supplied at the Supplementary Materials. HPLC analyses were performed on a Waters 2695 Instrument equipped with a Waters 996 Photodiode Array Detector. To determine the enantiomeric excesses of sulfoxides 1–12b the following columns from Daicel were employed: Chiralcel OD (25 cm × 0.46 cm) for sulfoxides 1–4b and 9–11b, Chiralcel OB (25 cm × 0.46 cm) for compounds 6–8b and 12b and Chiralcel OJ-H (25 cm × 0.46 cm) for product 5b. HPLC complete data are supplied at the Supplementary Material. The sulfoxide configurations were established by comparing the HPLC chromatograms with the ones described in the bibliography [24,31,33].

3.2. General Procedure for the Enzymatic Sulfoxidation of Prochiral Sulfides

Unless otherwise stated, the prochiral sulfides 1–12a (10–200 mM) were dissolved in 1.0 mL Tris/HCl 50 mM (pH 8.0) containing, when indicated, the corresponding organic solvent, NADPH (0.2 mM), sodium phosphite (1.0 equivalent) and PockeMO (1.0 μM). Reactions were stirred at the temperatures selected at 220 rpm for the times established. Once finished, the reactions were extracted with EtOAc (2 × 0.5 mL) and dried onto Na2SO4. The samples were directly analyzed by GC/MS and HPLC in order to determine, respectively, the level of conversion, the percentage of chiral sulfoxides 1–12b and sulfones 1–12c, as well as the enantiomeric excesses of sulfoxides (R)-1,2b, (S)-3b and (R)-4–12b.

4. Conclusions

The thermostable Baeyer-Villiger monooxygenase PockeMO from Thermothelomyces thermophila has been employed in the biocatalytic preparation of various optically active sulfoxides. In general, good conversions and high enantioselectivities can be achieved in the preparation of chiral sulfoxides 1–12b. For those compounds that showed a lower activity, the sulfoxidations performed at 45 °C lead to higher conversions with no effect on the enzyme selectivity, while the presence of 10% v v−1 of hydrophilic organic solvents such as DMSO, acetonitrile and 1,4-dioxane also has a highly positive effect on the performance of this biocatalyst. PockeMo-catalyzed sulfoxidations can even be carried out at 60 °C. At this temperature, the enzyme shows a higher space time yield than at room temperature, but the highest activities are obtained, in general, at 45 °C. PockeMO seems to also be very robust regarding substrate loading, as the experiments show that it can accept thioanisole concentrations of 200 mM. Overall, the results demonstrate that PockeMO is a valuable oxidative biocatalyst that can be employed for the preparation of optically active sulfoxides by properly choosing the reaction conditions.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/7/10/288/s1. Table S1. Enantiomeric excesses, conversions and space time yields obtained in the PockeMO-catalyzed sulfoxidation of thioanisole at different concentrations and temperatures, Table S2. Determination of conversions and amounts of sulfoxides and sulfones by employing GC, Table S3. Determination of enantiomeric excesses by HPLC.

Acknowledgments

Gonzalo de Gonzalo thanks MINECO (Ramón y Cajal Program) for personal funding. Maximilian J.L.J. Fürst and Marco W. Fraaije were supported by the EU project ROBOX (grant agreement no. 635734) under the EU’s Horizon 2020 Programme Research and Innovation actions H2020-LEIT BIO-2014-1.

Author Contributions

Gonzalo de Gonzalo performed the experiments and Gonzalo de Gonzalo, Maximilian J.L.J. Fürst and Marco W. Fraaije conceived, designed and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fürst, M.J.L.J.; Savino, S.; Dudek, H.M.; Gómez Castellanos, J.R.; Gutiérrez de Souza, C.; Rovida, S.; Fraaije, M.W.; Mattevi, A. Polycyclic Ketone Monooxygenase from the thermophilic fungus Thermoth elomyces thermophila: A structurally distinct biocatalyst for bulky substrates. J. Am. Chem. Soc. 2017, 139, 627–630. [Google Scholar] [CrossRef] [PubMed]
  2. Pellisier, H. Use of chiral sulfoxides in asymmetric synthesis. Tetrahedron 2006, 65, 5559–5601. [Google Scholar] [CrossRef]
  3. Carreño, M.C.; Hernández Torres, G.; Ribagorda, M.; Urbano, A. Enantiopure sulfoxides: Recent applications in asymmetric synthesis. Chem. Commun. 2009, 41, 6129–6144. [Google Scholar] [CrossRef] [PubMed]
  4. Trost, B.M.; Rao, M. Development of chiral sulfoxide ligands for asymmetric catalysis. Angew. Chem. Int. Ed. 2015, 54, 5026–5043. [Google Scholar] [CrossRef] [PubMed]
  5. Wojaczynska, E.; Wojaczynski, J. Enantioselective synthesis of sulfoxides: 2000–2009. Chem. Rev. 2010, 110, 4303–4356. [Google Scholar] [CrossRef] [PubMed]
  6. Han, Z.-S.; Reeves, D.C.; Krishnamurthy, D.; Senanayake, C.H. Synthetically Derived Auxiliaries: Sulfur Derivatives (including Sulfilamines and Sulfoximines). In Comprehensive Chirality; Carreira, E.M., Yamamoto, H., Eds.; Elsevier: Amsterdam, The Netherlands, 2012; Volume 3, pp. 560–600. [Google Scholar]
  7. Brondani, P.B.; de Gonzalo, G.; Fraaije, M.W. Recent developments in flavin-based catalysis: Enzymatic sulfoxidation. In Green Biocatalysis, 1st ed.; Patel, R.N., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 2016; Volume 1, pp. 149–164. [Google Scholar]
  8. Matsui, T.; Dekishima, Y.; Ueda, M. Biotechnological production of chiral organic sulfoxides: Current state and perspectives. Appl. Microbiol. Biotechnol. 2014, 98, 7699–7706. [Google Scholar] [CrossRef] [PubMed]
  9. Ten Brink, H.B.; Holland, H.L.; Schoemaker, H.E.; van Lingen, H.; Wever, R. Probing the scope of the sulfoxidation activity of vanadium peroxidase from Ascophyllum nodosum. Tetrahedron Asymmetry 1999, 10, 4563–4572. [Google Scholar] [CrossRef]
  10. Pezzoti, F.; Okrasa, K.; Therisod, M. Bienzymatic synthesis of chiral heteroary-methyl-sulfoxides. Tetrahedron Asymmetry 2005, 16, 2681–2683. [Google Scholar] [CrossRef]
  11. Linde, D.; Canellas, M.; Coscolin, C.; Davo-Siguero, I.; Romero, A.; Lucas, F.; Ruiz-Duenas, F.J.; Guallar, V.; Martínez, A.T. Asymmetric sulfoxidation catalyzed by engineering the heme-pocket of a dye-decolorizing peroxidase. Catal. Sci. Technol. 2016, 6, 6277–6285. [Google Scholar] [CrossRef] [Green Version]
  12. Lee, K.; Brand, J.M.; Gibson, D.T. Stereospecific sulfoxidation by toluene and naphthalene dioxygenases. Biochem. Biophys. Res. Commun. 1995, 212, 9–15. [Google Scholar] [CrossRef] [PubMed]
  13. Shainsky, J.; Bernath-Levin, K.; Isaschar-Ovdat, S.; Glaser, F.; Fishman, A. Protein engineering of nitrobenzene dioxygenase for enantioselective synthesis of chiral sulfoxides. Protein Eng. Des. Sel. 2013, 26, 1–11. [Google Scholar] [CrossRef] [PubMed]
  14. Li, A.T.; Zhang, J.D.; Xu, J.H.; Lu, W.Y.; Lin, G.Q. Isolation of Rhodococcus sp. strain ECU0066, a new sulfide monooxygenase producing strain for asymmetric sulfoxidation. Appl. Environ. Microbiol. 2009, 75, 551–556. [Google Scholar] [CrossRef] [PubMed]
  15. Nikodinovic-Runic, J.; Coulombel, L.; Francuski, D.; Sharma, N.D.; Boyd, D.R.; Ferral, R.M.O.; O’Connor, K.E. The oxidation of alkylaryl sulfides and benzo[b]thiophenes by Escherichia coli cells expressing wild-type and engineered styrene monooxygenase from Pseudomonas putida CA-3. Appl. Microbiol. Biotechnol. 2013, 97, 4849–4857. [Google Scholar] [CrossRef] [PubMed]
  16. Colonna, S.; Gaggero, N.; Carrea, G.; Ottolina, G.; Pasta, P.; Zambianchi, F. First asymmetric epoxidation catalysed by cyclohexanone monooxygenase. Tetrahedron Lett. 2002, 43, 1797–1799. [Google Scholar] [CrossRef]
  17. Leisch, H.; Morley, K.; Lau, P.C.K. Baeyer-Villiger monooxygenases: More than just Green Chemistry. Chem. Rev. 2011, 111, 4165–4222. [Google Scholar] [CrossRef] [PubMed]
  18. De Gonzalo, G.; van Berkel, W.J.H.; Fraaije, M.W. Baeyer-Villiger oxidations. In Science of Synthesis, Biocatalysis, 1st ed.; Faber, K., Turner, N.J., Fessner, W.D., Eds.; Georg-Thieme Verlag: Stuttgart, Germany, 2015; Volume 3, pp. 187–234. [Google Scholar]
  19. Bucko, M.; Gemeiner, P.; Schenkmayerova, A.; Krajcovic, T.; Rudroff, F.; Mihovilovic, M.D. Baeyer-Villiger oxidations: Biotechnological approach. Appl. Microbiol. Biotechnol. 2016, 100, 6585–6599. [Google Scholar] [CrossRef] [PubMed]
  20. Stewart, J.D. Cyclohexanone monooxygenase: A useful reagent for asymmetric Baeyer-Villiger reactions. Curr. Org. Chem. 1998, 2, 195–216. [Google Scholar]
  21. Ottolina, G.; Pasta, P.; Carrea, G.; Colonna, S.; Dallavalle, S.; Holland, H.L. A predictive active site model for the cyclohexanone monooxygenase oxidation of sulfides to chiral sulfoxides. Tetrahedron Asymmetry 1995, 6, 1375–1386. [Google Scholar] [CrossRef]
  22. Carrea, G.; Redigolo, B.; Riva, S.; Colonna, S.; Gaggero, N.; Battistel, E.; Bianchi, D. Effects of substrate structure on the enantioselectivity and stereochemical course of the sulfoxidation catalysed by cyclohexanone monooxygenase. Tetrahedron Asymmetry 1992, 8, 1063–1068. [Google Scholar] [CrossRef]
  23. Colonna, S.; Pironti, V.; Zambianchi, F.; Ottolina, G.; Gaggero, N.; Celentano, G. Diastereoselective synthesis of β-hydroxy sulfoxides: Enzymatic and biomimetic approaches. Eur. J. Org. Chem. 2007, 363–368. [Google Scholar] [CrossRef]
  24. De Gonzalo, G.; Torres Pazmiño, D.E.; Ottolina, G.; Fraaije, M.W.; Carrea, G. 4-Hydroxyacetophenone monooxygenase from Pseudomonas fluorescens ACB as an oxidative biocatalyst in the synthesis of optically active sulfoxides. Tetrahedron Asymmetry 2006, 17, 130–135. [Google Scholar] [CrossRef]
  25. Rioz-Martínez, A.; de Gonzalo, G.; Torres Pazmiño, D.E.; Fraaije, M.W.; Gotor, V. Enzymatic synthesis of novel chiral sulfoxides employing Baeyer-Villiger monooxygenases. Eur. J. Org. Chem. 2010, 33, 6409–6416. [Google Scholar] [CrossRef]
  26. Rehdorf, J.; Zimmer, C.L.; Bornscheuer, U.T. Cloning, expression, characterization and biocatalytic investigation of 4-hydroxyacetophenone monooxygenase from Pseudomonas putida JD1. Appl. Environ. Microbiol. 2009, 75, 3106–3114. [Google Scholar] [CrossRef] [PubMed]
  27. Fraaije, M.W.; Kamerbeek, N.M.; Heidekamp, A.J.; Fortin, R.; Janssen, D.B. The prodrug activator EtaA from Mycobacterium tuberculosis is a Baeyer-Villiger monooxygenase. J. Biol. Chem. 2004, 279, 3354–3360. [Google Scholar] [CrossRef] [PubMed]
  28. De Gonzalo, G.; Ottolina, G.; Zambianchi, F.; Fraaije, M.W.; Carrea, G. Biocatalytic properties of Baeyer-Villiger monooxygenases in aqueous-organic media. J. Mol. Catal. B Enzym. 2006, 39, 91–97. [Google Scholar] [CrossRef]
  29. Riebel, A.; Dudek, H.M.; de Gonzalo, G.; Stepniak, P.; Rychlewski, L.; Fraaije, M.W. Expanding the set of rhodococcal Baeyer-Villiger monooxygenases by high-throughput cloning, expression and substrate screening. Appl. Microbiol. Biotechnol. 2012, 95, 1479–1489. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Fraaije, M.W.; Wu, J.; Heuts, D.P.; van Hellemond, E.W.; Spelberg, J.H.; Janssen, D.B. Discovery of a thermostable Baeyer-Villiger monooxygenase by genome mining. Appl. Microbiol. Biotechnol. 2005, 66, 393–400. [Google Scholar] [CrossRef] [PubMed]
  31. De Gonzalo, G.; Torres Pazmiño, D.E.; Ottolina, G.; Fraaije, M.W.; Carrea, G. Oxidations catalyzed by phenylacetone monooxygenase from Thermobifida fusca. Tetrahedron Asymmetry 2005, 16, 3077–3083. [Google Scholar] [CrossRef]
  32. Torres Pazmiño, D.E.; Snajdrova, R.; Rial, D.V.; Mihovilovic, M.D.; Fraaije, M.W. Altering the substrate specificity and enantioselectivity of phenylacetone monooxygenase by structure-inspired enzyme redesign. Adv. Synth. Catal. 2007, 349, 1361–1368. [Google Scholar] [CrossRef]
  33. Dudek, H.M.; de Gonzalo, G.; Torres Pazmiño, D.E.; Stepniak, P.; Wyrwicz, L.S.; Rychlewski, L.; Fraaije, M.W. Mapping the substrate binding of phenylacetone monooxygenase from Thermobifida fusca by mutational analysis. Appl. Environ. Microbiol. 2011, 77, 5730–5738. [Google Scholar] [CrossRef] [PubMed]
  34. Johannes, T.W.; Woodyer, R.D.; Zhao, H. Efficient regeneration of NADPH using an engineered phosphite dehydrogenase. Biotechnol. Bioeng. 2007, 96, 18–26. [Google Scholar] [CrossRef] [PubMed]
  35. Torres Pazmiño, D.E.; Snajdrova, R.; Baas, B.-J.; Ghobrial, M.; Mihovilovic, M.D.; Fraaije, M.W. Self-sufficient Baeyer—Villiger Monooxygenases: Effective coenzyme regeneration for biooxygenation by fusion engineering. Angew. Chem. Int. Ed. 2008, 47, 2275–2278. [Google Scholar] [CrossRef] [PubMed]
  36. Torres Pazmiño, D.E.; Riebel, A.; de Lange, J.; Rudroff, F.; Mihovilovic, M.D.; Fraaije, M.W. Efficient biooxidations catalyzed by a new generation of self-sufficient Baeyer—Villiger monooxygenases. ChemBioChem 2009, 10, 2595–2598. [Google Scholar] [CrossRef] [PubMed]
Catalysts 07 00288 sch001 550
Scheme 1. PockeMO (Polycyclic ketone monooxygenase) -catalyzed sulfoxidation of a set of prochiral substrates 1–12a in Tris/HCl 50 mM (pH 8.0) buffer containing NADPH as coenzyme and phosphite as cosubstrate. PTDH: His-tagged phosphite dehydrogenase; NADPH: nicotine adenine dinucleotide phosphate.
Scheme 1. PockeMO (Polycyclic ketone monooxygenase) -catalyzed sulfoxidation of a set of prochiral substrates 1–12a in Tris/HCl 50 mM (pH 8.0) buffer containing NADPH as coenzyme and phosphite as cosubstrate. PTDH: His-tagged phosphite dehydrogenase; NADPH: nicotine adenine dinucleotide phosphate.
Catalysts 07 00288 sch001
Catalysts 07 00288 g001 550
Figure 1. Effect of pH on the activity (●) and selectivity (▲) of PockeMO-catalyzed oxidation of thioanisole to optically active (R)-1b.
Figure 1. Effect of pH on the activity (●) and selectivity (▲) of PockeMO-catalyzed oxidation of thioanisole to optically active (R)-1b.
Catalysts 07 00288 g001
Catalysts 07 00288 g002 550
Figure 2. Effect of the thioanisole concentration at different temperatures (25, 45 and 60 °C) in the PockeMO activity, expressed as mmoles of 1a consumed L−1·h−1. In brackets, the degree of conversion (%) is indicated.
Figure 2. Effect of the thioanisole concentration at different temperatures (25, 45 and 60 °C) in the PockeMO activity, expressed as mmoles of 1a consumed L−1·h−1. In brackets, the degree of conversion (%) is indicated.
Catalysts 07 00288 g002
Catalysts 07 00288 g003 550
Figure 3. Effect of different organic solvents (10% v v−1) on the conversion and the stereoselectivity of the enzymatic sulfoxidation of 2a catalyzed by PockeMO. Reactions were performed at 25 °C for 24 h. log P (▲) values are plotted as reference for the hydrophobicity of the solvent. DMSO: Dimethylsulfoxide; MeOH: Methanol; EtOH: Ethanol; 2-PrOH: 2-Propanol; TBME: tert-butyl methyl ether; DCM: Dichloromethane; 2-MeTHF: 2-Methyltetrahydrofuran.
Figure 3. Effect of different organic solvents (10% v v−1) on the conversion and the stereoselectivity of the enzymatic sulfoxidation of 2a catalyzed by PockeMO. Reactions were performed at 25 °C for 24 h. log P (▲) values are plotted as reference for the hydrophobicity of the solvent. DMSO: Dimethylsulfoxide; MeOH: Methanol; EtOH: Ethanol; 2-PrOH: 2-Propanol; TBME: tert-butyl methyl ether; DCM: Dichloromethane; 2-MeTHF: 2-Methyltetrahydrofuran.
Catalysts 07 00288 g003
Catalysts 07 00288 sch002 550

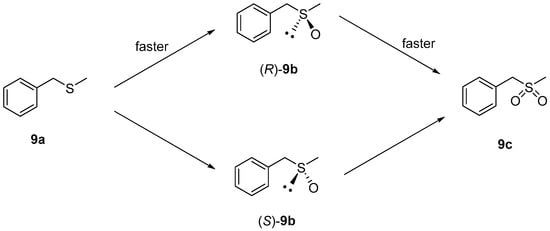

Scheme 2. PockeMO-catalyzed sulfoxidation of benzyl methyl sulfide 9a in 50 mM Tris/HCl (pH 8.0) containing 10% v v−1 1,4-dioxane.
Scheme 2. PockeMO-catalyzed sulfoxidation of benzyl methyl sulfide 9a in 50 mM Tris/HCl (pH 8.0) containing 10% v v−1 1,4-dioxane.
Catalysts 07 00288 sch002
Table
Table 1. Enzymatic sulfoxidation of prochiral sulfides 1–11a catalyzed by PockeMO a.
Table 1. Enzymatic sulfoxidation of prochiral sulfides 1–11a catalyzed by PockeMO a.
SulfideXnR1Time (h)Conversion (%) b% Sulfoxide cee (%) dConfiguration
1aH0Methyl16≥97≥9791R
2aH0Ethyl24769472R
3aH0CH2CH2Cl24278176S e
4ap-cyano0Methyl24438891R
5ap-methoxy0Methyl24≥979493R
6ap-Cl0Methyl2278≥9788R
7am-Cl0Methyl20≥97≥9779R
8ao-Cl0Methyl20859593R
9aH1Methyl16708268R
10aPhenyl0Methyl24168583R
11aH1Phenyl5615≥9783R
a For reaction details, see Materials and Methods Section. X, n, and R1 represent the same groups shown in Scheme 1. b Determined by Gas Chromatography/Mass spectroscopy (GC/MS) and refers to the amount of sulfide that is consumed. See Supplementary Material. c Represents the percentage of sulfoxide obtained from all the sulfide converted. d Determined by High Performance Liquid Chromatography (HPLC), see Supplementary Material. e Opposite configuration due to change in priority by CIP rules.
Table
Table 2. Temperature effect in the PockeMO-catalyzed sulfoxidations a.
Table 2. Temperature effect in the PockeMO-catalyzed sulfoxidations a.
EntrySulfideTime (h)Conversion (%) b% Sulfoxide cee (%) d
12a20≥976771
23a20438069
35a20679087
46a20≥979583
510a30775077
611a4827≥9780
a Reactions were performed at 45 °C in Tris/HCl buffer pH 8.0. b Determined by GC/MS and refers to the amount of sulfide that is consumed (Supplementary Material). c Represents the percentage of sulfoxide obtained from all the sulfide converted. d Determined by HPLC (Supplementary Materials).
Table
Table 3. Solvent effects in the oxidation of different sulfides catalyzed by PockeMO a.
Table 3. Solvent effects in the oxidation of different sulfides catalyzed by PockeMO a.
EntrySulfideCosolvent% CosolventTime (h)Conversion (%) b% Sulfoxide cee (%) d
12a1,4-dioxane3024779577
22a1,4-dioxane50247≥9739
32atoluene302411≥9774
44a1,4-dioxane102488≥9795
56a1,4-dioxane102469≥9797
69a1,4-dioxane1024957231
710a1,4-dioxane103029≥9785
811a1,4-dioxane105623≥9787
912a1,4-dioxane1024≥977433
a Reactions were performed at 45 °C in Tris/HCl buffer pH 8.0. b Determined by GC/MS. This refers to the amount of sulfide that is consumed in the reaction. See Supplementary Materials. c Represents the percentage of sulfoxide obtained from all the sulfide converted. d Determined by HPLC, see Supplementary Materials.
