Efficient Degradation of Aqueous Carbamazepine by Bismuth Oxybromide-Activated Peroxide Oxidation

Abstract

Bismuth oxyhalide, usually employed as a photocatalyst, has not been tested as an activator of peroxide for water purification. This work explores the potential application of bismuth oxyhalide (BiOX, X = Cl, Br, I)-activated peroxide (H₂O₂; peroxymonosulfate (PMS) and peroxydisulfate) systems for the degradation of carbamazepine (CBZ) in water destined for drinking water. BiOBr showed the highest activity toward the peroxides investigated, especially toward PMS. The most efficient combination, BiOBr/PMS, was selected to further research predominant species responsible for CBZ degradation and toxicity of transformation products. With repeated use of BiOBr, low bismuth-leaching and subtle changes in crystallinity and activity were observed. CBZ degradation was primarily (67.3%) attributable to attack by sulfate radical. Toxicity test and identification of the oxidation products indicated some toxic intermediates may be produced. A possible degradation pathway is proposed. Besides substitution of the hydroxyl groups on the surface of the catalyst particles, PMS’s complexation with the lattice Bi(III) through ion exchange with interlayer bromide ion was involved in the decomposition of PMS. The Bi(III)–Bi(V)–Bi(III) redox cycle contributed to the efficient generation of sulfate radicals from the PMS. Our findings provide a simple and efficient process to produce powerful radicals from PMS for refractory pollutant removal.

1. Introduction

Carbamazepine (CBZ) is a typical pharmaceutically-active compound widely used to control epilepsy and neuropathic pain [1]. Due to its improper disposal after use, CBZ is frequently detected in wastewater treatment plant effluents [2,3], surface water [4] and even drinking water [5] at nanogram- to milligram-per-liter concentrations. CBZ’s persistence in the ecosystem has urged researchers to investigate effective treatment technologies. Researchers have previously reported a general removal rate of CBZ below 10% for conventional biological wastewater treatment processes [6]. Even a popular membrane bioreactor removes less than 20% [1,7,8,9]. Conventional water-treatment processes cannot sufficiently eliminate CBZ [10,11]. More-efficient treatment technologies are urgently needed.

Advanced oxidation technologies (AOTs) have been extensively explored as an alternative solution for degrading and detoxifying bio-recalcitrant and toxic organic pollutants in water. Among AOTs, semiconductor photocatalytic oxidation, which can use UV and visible light energy, has generated much interest [12]. Recently, a relatively new and promising photocatalytic material—bismuth oxyhalide (BiOX, X = Cl, Br, I)—has drawn considerable attention. The bandgap energies for BiOCl, BiOBr and BiOI are about 3.2, 2.7 and 1.7 eV [13], respectively. Thus, BiOX can be driven by UV/visible light irradiation to degrade pollutants. For liquid-phase photocatalytic BiOX processes, hydroxyl radicals (HO·), superoxide radicals and photoinduced holes have been considered to play important roles [14]. Notably, rare effort has been devoted to producing reactive radicals such as HO· through BiOX-catalyzed decomposition of radical precursors like peroxides.

It is well established that BiOX compounds crystallize in layers in which double slabs of halogen atoms are interleaved with [Bi₂O₂] slabs [13]. Once metal oxides are added into water, dissociative adsorption of water molecules results in the formation of surface hydroxyl groups (–OH) [15]. Peroxides can complex with the metal ions on the surface of metal oxides by replacing part of the surface –OH, generating HO· and ${\mathrm{SO}}_4^{·-}$ radicals through electron transfer [16]. Therefore, besides acting as a photocatalyst, BiOX may activate peroxides and thus induce the degradation of organic pollutants. A preliminary study in our laboratory has found that BiOBr is indeed able to activate peroxymonosulfate (PMS). In addition, peroxides are usually applied as scavengers of photoinduced electrons rather than as radical precursors to increase the degradation rate of organic compounds through a semiconductor photocatalytic processes [17]. To date, CBZ degradation by BiOX-induced peroxide activation has not yet been documented.

In this study, the BiOX-enhanced degradation of CBZ was investigated using peroxide (H₂O₂, PMS and peroxydisulfate (PS)) addition with clean and natural water. Active species contributing to CBZ degradation were identified and those contributions were quantitatively analyzed. A mechanism for active species formation was proposed. Any changes in the biotoxicity of the reaction mixtures during the degradation process were monitored using Vibrio fisheri bioassays. Finally, the intermediates involved were characterized using high-performance liquid chromatography coupled with mass spectrometry (HPLC–MS) to elucidate the degradation pathway for CBZ.

2. Results and Discussion

2.1. CBZ Degradation

2.1.1. Degradation of CBZ under Pure Water Background

CBZ adsorbed weakly onto the surface of the three types of BiOX (X = Cl, Br, I) microspheres (Figure 1a), and it was barely oxidized by the peroxides studied (H₂O₂, PS and PMS) alone without the BiOX catalyst (Figure 1b–d). The degradation of CBZ required synergistic action of the peroxides and the BiOX. As shown in Figure 1b,c, the combination of BiOX with H₂O₂ or PS generated only rather slow CBZ degradation. By contrast, the rate with BiOX and PMS was much better (Figure 1d).

Among the three BiOX compounds, BiOBr showed the best degradation effectiveness, exhibiting 100% degradation of the CBZ in less than 5 min. Such catalytic performance was comparable with that of CuFe₂O₄ ferrite catalysts (Figure S3, Supplementary Materials). BiOBr was much more efficient than CuFe₂O₄ as a PMS activator.

The molecular structure of the peroxides and the physicochemical properties of the BiOX are important to the efficiency of peroxide activation by BiOX. The dissociation energy of the peroxide (O–O) bond in the three peroxides and their ability to bind with BiOX are two key factors. The lower O–O bond energy and easier availability of free persulfate ion under neutral pH compared with H₂O₂ (

Table 1. Physicochemical properties of H₂O₂, PS and PMS.

	Chemical Structure	O−O Bond Energy (E, kJ∙mol−1)	pKa	Ref.
H2O2		213.3	${\mathrm{H}}_2{\mathrm{O}}_2\to {\mathrm{HO}}_2^{-}+{\mathrm{H}}^{+}$ pKa = 11	[19,20]
PS		140	no change in dissociation form pH > 3	[19]
PMS		140 < EPMS < 213.3	${\mathrm{HSO}}_5^{-}\to { \mathrm{SO}}_5^{2-}+{\mathrm{H}}^{+}$ pKa = 9.4	[16,19]

) explain why either persulfate (PS or PMS) was easier to activate than H₂O₂ by the same oxyhalide. The observed performance difference between PS and PMS can be attributed to the asymmetrical structure of PMS (compared with the symmetrical structure of H₂O₂ and PS) [18].

The structure and surface chemistry of the BiOX would of course be expected to affect its activation of peroxides and thus the overall degradation effectiveness. Brunauer Emmett Teller (BET) surface area is one important determinant. The average pore size, particle size and pH_pzc were also influential (Table S1, Supplementary Materials). One can find correlation between degradation effectiveness of CBZ and BET surface area of BiOX (Figure S4, Supplementary Materials). The specific surface area of BiOBr was 10% larger than that of BiOCl. That corresponds with more accessible active sites, such as surface hydroxyl groups and Bi(III) ion, which may explain the superior activation with BiOBr. The BiOI had a much-larger specific surface area than the BiOBr, but its activation performance was poorer. That may have reflected the impact of halide released through BiOX hydrolysis (Equation (1), [21]) and ion exchange (Equations (2) and (3), [14]). Interfacial reactions may shed some light on this interesting phenomenon.

$$\mathrm{BiOX} (\mathrm{X}=\mathrm{Cl}, \mathrm{Br}, \mathrm{I}){+\mathrm{H}}_2\mathrm{O}\stackrel{\mathrm{hydrolysis}}{\to }{\mathrm{BiO}}^{+}\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}+\mathrm{X}}^{-}{+\mathrm{H}}^{+}$$

(1)

$$\mathrm{BiOX} (\mathrm{X}=\mathrm{Cl}, \mathrm{Br}, \mathrm{I}){+\mathrm{HSO}}_5^{-}\stackrel{\mathrm{ion} \mathrm{exchange}}{\to }{\mathrm{BiO}}^{+}{\text{-}\mathrm{HSO}}_5^{-}{+\mathrm{X}}^{-}$$

(2)

$$2\mathrm{BiOX} (\mathrm{X}=\mathrm{Cl}, \mathrm{Br}, \mathrm{I}){+\mathrm{S}}_2{\mathrm{O}}_8^{2-}\stackrel{\mathrm{ion} \mathrm{exchange}}{\to }{2\mathrm{BiO}}^{+}{\text{-}\mathrm{S}}_2{\mathrm{O}}_8^{2-}{+2\mathrm{X}}^{-}$$

(3)

When ${\mathrm{Cl}}^{-}$, ${\mathrm{Br}}^{-}$ or ${\mathrm{I}}^{-}$ is present in an HO· or ${\mathrm{SO}}_4^{·-}$-based process, halogen radicals such as X· and ${\mathrm{X}}_2^{·-}$ and nonradical ${\mathrm{X}}_3^{-}$, HOX and X₂ halogen species with weaker oxidizing power may be formed [22]. Besides its involvement in radical chain reactions with species such as ${\mathrm{Cl}}^{-}$ and ${\mathrm{Br}}^{-}$ [22] and direct reaction with peroxides (Equations (4)–(6)), ${\mathrm{I}}^{-}$ may undergo special reactions with metal ions (${\mathrm{Mn}}^{\mathrm{n}+}$) when persulfate is present to act as a mediator of electron-transfer reactions (Equations (7)–(10), [23]). Such reactions will slow the redox cycling of the surface bismuth ions of the BiOI particles (a color change was observed, as shown in Figure S5 of the Supplementary Materials), which would hinder activation of peroxides, tending to cancel out the enhancement caused by a large specific surface area.

$${\mathrm{S}}_2{\mathrm{O}}_8^{2-}{+2\mathrm{I}}^{-}\to {\mathrm{I}}_2{+2\mathrm{SO}}_4^{2-}{ k=~ 10}^4{ \mathrm{M}}^{-1}·{\mathrm{s}}^{-1}$$

(4)

$${\mathrm{HSO}}_5^{-}{+2\mathrm{I}}^{-}{+\mathrm{H}}^{+}\to {\mathrm{I}}_2{+\mathrm{SO}}_4^{2-}{+\mathrm{H}}_2\mathrm{O} \mathrm{slow}$$

(5)

$${\mathrm{H}}_2{\mathrm{O}}_2{+2\mathrm{I}}^{-}\to {\mathrm{I}}_2{+2\mathrm{OH}}^{-} \mathrm{slow}$$

(6)

$${\mathrm{S}}_2{\mathrm{O}}_8^{2-}{+\mathrm{M}}^{\mathrm{n}+}\to {\mathrm{S}}_2{\mathrm{O}}_8{\mathrm{M}}^{\mathrm{n}-2}$$

(7)

$${\mathrm{S}}_2{\mathrm{O}}_8{\mathrm{M}}^{\mathrm{n}-2}{+\mathrm{I}}^{-}\to {\mathrm{I}}^{+}{+\mathrm{M}}^{\mathrm{n}+}{+2\mathrm{SO}}_4^{2-}$$

(8)

$${\mathrm{I}}^{+}{+\mathrm{I}}^{-}\to {\mathrm{I}}_2$$

(9)

$${\mathrm{I}}_2{+\mathrm{H}}_2\mathrm{O}\to {\mathrm{I}}^{-}{+\mathrm{HIO}+\mathrm{H}}^{+}$$

(10)

For convenience, the system PMS with BiOBr, which was the most-effective combination of a peroxide and a BiOX, was used in the subsequent stability tests, kinetics studies, investigation of the effects of water quality parameters and elucidation of the CBZ degradation pathway.

2.1.2. Degradation of CBZ under Actual Water Background

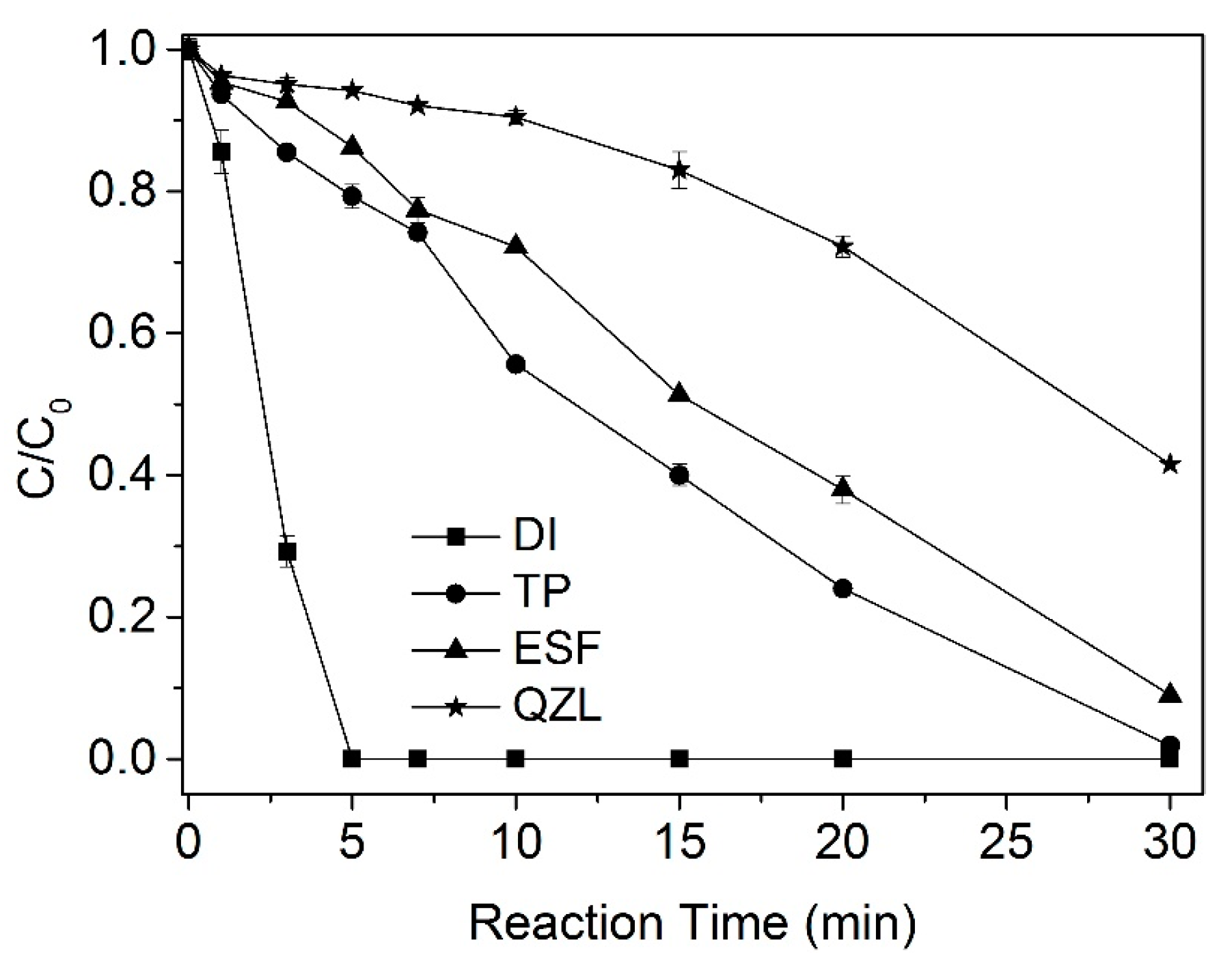

To examine CBZ degradation in more realistic conditions, effluent of sand filter from a drinking water plant (ESF), and tap water of Hangzhou (TP) and Qizhen Lake (QZL), were collected. Before the reaction, the water samples were pretreated by static deposition and membrane filtration (0.45 μm filter). The water quality parameters of the samples are listed in

Table 2. Water quality of the waters collected from tap water (TP), Qizhen Lake (QZL) and effluent of sand filter (ESF).

	DOM (mg/L)	Bicarbonate (mg/L)	$C{l}^{-}$ (mg/L)	pH	NO3−-N (mg/L)	UV254 (cm−1)
TP	3.73	107.06	3.43	7.84	0.24	3.38
QZL	6.61	97.95	2.80	7.83	0.25	4.99
ESF	3.17	100.11	2.36	7.82	0.01	3.10

. The pH values were nearly the same, but the other parameters of the various samples were different. Interestingly, the CBZ degradation differed considerably in the different field samples (Figure 2) and from that observed with the MilliQ water. For the tap water, 10 min of reaction was required to achieve complete removal of CBZ. However, the reaction time for complete removal was 20 min when QZL was used, indicating that CBZ degradation was inhibited by some background solutes, presumably inorganic salts and dissolved organic matters (DOM) specific to Qizhen Lake.

2.2. Stability of BiOBr as a PMS Activator

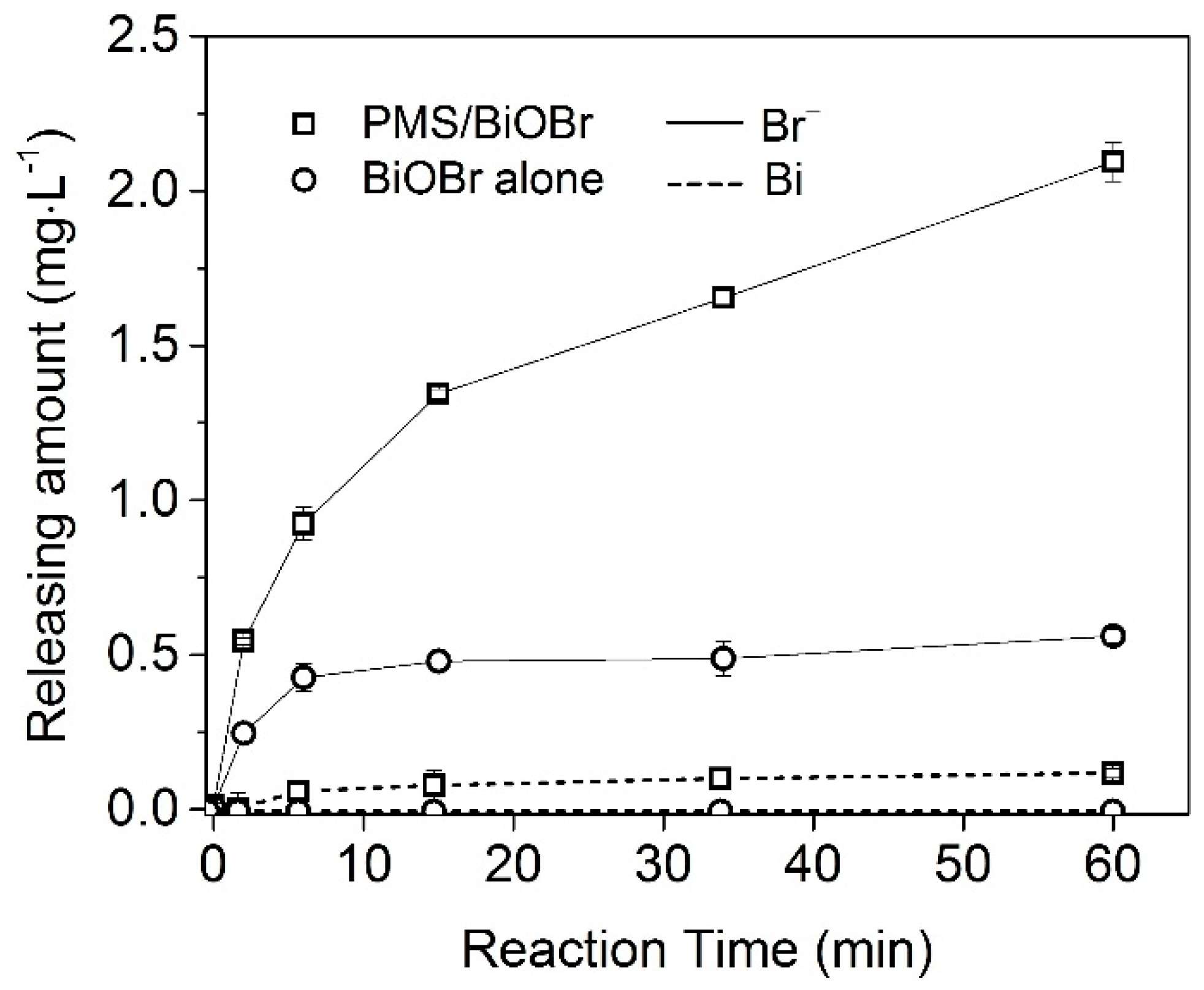

To test the durability and stability of the BiOBr catalyst, the particles were reclaimed and reused seven times. The mass-loss during the recycling process was kept within 2.0 ± 0.5% (Figure 3). The CBZ degradation rate remained almost constant, displaying very stable activation activity for BiOBr with respect to PMS. After seven reaction cycles the specific surface area of the BiOBr had not decreased significantly (virgin, 17.6 m²·g⁻¹; used, 16.8 m²·g⁻¹) (data not shown). In addition, the crystallinity of the BiOBr as characterized by XRD showed no apparent change after seven reaction cycles (Figure S6, Supplementary Materials). Moreover, any bismuth ion leaching during the degradation process was found to be minor, not exceeding 120 μg of bismuth ion per gram of BiOBr over 55 min of reaction time (Figure 4). These leaching bismuth ions may result from interaction of non-lattice surface Bi with PMS, given that BiOBr suspension in the absence of PMS almost did not release bismuth ion, and a subtle change of BiOBr crystallinity was observed during repeated use. Generally, this BiOBr catalyst was very stable.

2.3. Reactive Species

H₂O₂ and PMS have been reported to generate radicals such as HO· and ${\mathrm{SO}}_4^{·-}$ in the presence of some metal oxides (ferrites [15], iron-cobalt mixed oxide [24] and Co₃O₄ [25]). Since adsorption (Figure 1a), direct oxidation by peroxides (Figure 1b), and leached bismuth ions (Text S4 and Figure S7, Supplementary Materials) make little contribution to CBZ degradation, the CBZ degradation decrease likely resulted from the attack of ${\mathrm{SO}}_4^{·-}$ and/or HO· generated from the activation of PMS by BiOBr. For a direct observation, 5,5-dimethyl-1-pyrroline n-oxide (DMPO) was used to trap the radicals formed in BiOCl/H₂O₂ and BiOBr/PMS systems (Figure 5). The hyperfine coupling constants of DMPO radical adducts shown in Figure 5a (a(N) 1.48 mT, a(H) 1.47 mT) are consistent with the assignment of an HO· adduct, proving the formation of HO· in the BiOCl/H₂O₂ system. The signal of an ${\mathrm{SO}}_4^{·-}$ adduct (a(N) 1.36 mT, a(H) 1.02 mT, a(H) 0.15 mT, a(H) 0.08 mT, [26]), as well as the signal of an HO· adduct, were detected in the BiOBr/PMS system (Figure 5b), indicating that both ${\mathrm{SO}}_4^{·-}$ and HO· were generated during the reaction. These rapidly degraded CBZ in the BiOBr/PMS system. These results confirm that radical reactions on the BiOBr catalyst–water interface indeed dominated the CBZ degradation in peroxide/BiOX systems.

The widely-accepted mechanism for ${\mathrm{SO}}_4^{·-}$ formation in PMS heterogeneous catalysis with metal oxides involves the initial substitution of PMS for −OH with the consequent oxidation of metal ions from a low to a higher valence [16]. The high-valence metal ions are then reduced and thus regenerated by PMS. This mechanism requires that the M^x+/M^y+ redox couple of the metal oxide has a higher reduction potential than that of PMS (${\mathrm{HSO}}_5^{-}$).

BiOBr can form surface −OH ($\equiv \mathrm{Bi}(\mathrm{III})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}$) and interlayer −OH ($\equiv \mathrm{Bi}(\mathrm{III})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}$) through dissociative adsorption of water (Equation (11), [15]) and hydrolysis (Equation (12), [21]). This is evidenced by the increasing concentration of bromide in the BiOBr slurry (Figure 3). PMS can undergo direct ion exchange with Br atoms (−Br) (Equation (13), [14]) and complexation with Bi atoms in the [Bi₂O₂] layer through substitution of −OH (Equation (14)). It has been reported that surface Bi(III) in BiOCl can be oxidized to a high-valence state [27]. Furthermore, the accumulation of bismuth ion in the solution as the reaction proceeds (Figure 4) and promotion of CBZ degradation by homogeneous Bi(III) (Text S4 and Figure S7, Supplementary Materials) suggest that Bi(III) on the surface of BiOBr particles might be the active sites. Additionally, the reduction potential of Bi(V) to Bi(III) has been reported to be 2.0 V [28], which is higher than that of PMS. Thus, the possible surface reactions generating ${\mathrm{SO}}_4^{·-}$ in the BiOBr/PMS process can be specified as follows:

$$\mathrm{Bi}(\mathrm{III})\mathrm{OBr}+{\mathrm{H}}_2\mathrm{O}\stackrel{\mathrm{dissociative} \mathrm{adsorption}}{\to }{\mathrm{Br}}^{-}\text{-}{[\underset{\underset{{\mathrm{OH}}^{-}}{\uparrow }}{\mathrm{Bi}}\underset{\underset{{\mathrm{H}}^{+}}{\uparrow }}{\mathrm{O}}]}^{+}\to {\mathrm{Br}}^{-}\text{-}{[\mathrm{O}({\mathrm{H}}^{+})\mathrm{Bi}]}^{+}\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{S}}$$

(11)

$${\mathrm{Br}}^{-}\text{-}[\mathrm{O}({\mathrm{H}}^{+})\mathrm{Bi}{]}^{+}-{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}{+\mathrm{H}}_2\mathrm{O} \stackrel{\mathrm{hydrolysis} }{\to }{\mathrm{HO}}_{\mathrm{inter}}^{-}\text{-}[\mathrm{O}({\mathrm{H}}^{+})\mathrm{Bi}{]}^{+}\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}{+\mathrm{Br}}^{-}{+\mathrm{H}}^{+}$$

(12)

$${\mathrm{Br}}^{-}\text{-}[\mathrm{O}({\mathrm{H}}^{+})\mathrm{Bi}{]}^{+}\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}{+\mathrm{HSO}}_5^{-} \to {}_{}{}^{-}\mathrm{S}{\mathrm{O}}_3\mathrm{O}(\mathrm{HO})\text{-}[\mathrm{O}({\mathrm{H}}^{+})\mathrm{Bi}{]}^{+}{\text{-}\mathrm{OH}}_{\mathrm{s}}{+\mathrm{Br}}^{-}$$

(13)

$$\equiv \mathrm{Bi}(\mathrm{III})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+\mathrm{HSO}}_5^{-}\to \equiv \mathrm{Bi}(\mathrm{III})\text{-}(\mathrm{HO}){\mathrm{OSO}}_3^{-}{+ \mathrm{OH}}^{-}$$

(14)

$$\equiv \mathrm{Bi}(\mathrm{III})\text{-}(\mathrm{HO}){\mathrm{OSO}}_3^{-}\to \equiv \mathrm{Bi}(\mathrm{IV})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+\mathrm{SO}}_4^{·-}$$

(15)

$$\equiv \mathrm{Bi}(\mathrm{IV})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+\mathrm{HSO}}_5^{-}\to \equiv \mathrm{Bi}(\mathrm{IV})\text{-}(\mathrm{HO}){\mathrm{OSO}}_3^{-}{+\mathrm{OH}}^{-}$$

(16)

$$\equiv \mathrm{Bi}(\mathrm{IV})\text{-}(\mathrm{HO}){\mathrm{OSO}}_3^{-} \to \equiv \mathrm{Bi}(\mathrm{V})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+\mathrm{SO}}_4^{·-}$$

(17)

$$\equiv \mathrm{Bi}(\mathrm{V})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+\mathrm{HSO}}_5^{-}\to \equiv \mathrm{Bi}(\mathrm{IV})\text{-}{}_{}{}^{·}\mathrm{O}{\mathrm{OSO}}_3^{-}{+ \mathrm{H}}_2\mathrm{O}$$

(18)

$$2\equiv \mathrm{Bi}(\mathrm{IV})\text{-}{}_{}{}^{·}\mathrm{O}{\mathrm{OSO}}_3^{-}{+ 2\mathrm{H}}_2\mathrm{O}\to 2\equiv \mathrm{Bi}(\mathrm{IV})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+2\mathrm{SO}}_4^{·-}{+\mathrm{O}}_2{+2\mathrm{H}}^{+}$$

(19)

$$\equiv \mathrm{Bi}(\mathrm{IV})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+\mathrm{HSO}}_5^{-} \to \equiv \mathrm{Bi}(\mathrm{III})\text{-}{}_{}{}^{·}\mathrm{O}{\mathrm{OSO}}_3^{-}{+ \mathrm{H}}_2\mathrm{O}$$

(20)

$$2\equiv \mathrm{Bi}(\mathrm{III})\text{-}{}_{}{}^{·}\mathrm{O}{\mathrm{OSO}}_3^{-}{+ 2\mathrm{H}}_2\mathrm{O}\to 2\equiv \mathrm{Bi}(\mathrm{III})\text{-}{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{s}}/{}_{}{}^{-}\mathrm{O}{\mathrm{H}}_{\mathrm{inter}}{+2\mathrm{SO}}_4^{·-}{+\mathrm{O}}_2{+2\mathrm{H}}^{+}.$$

(21)

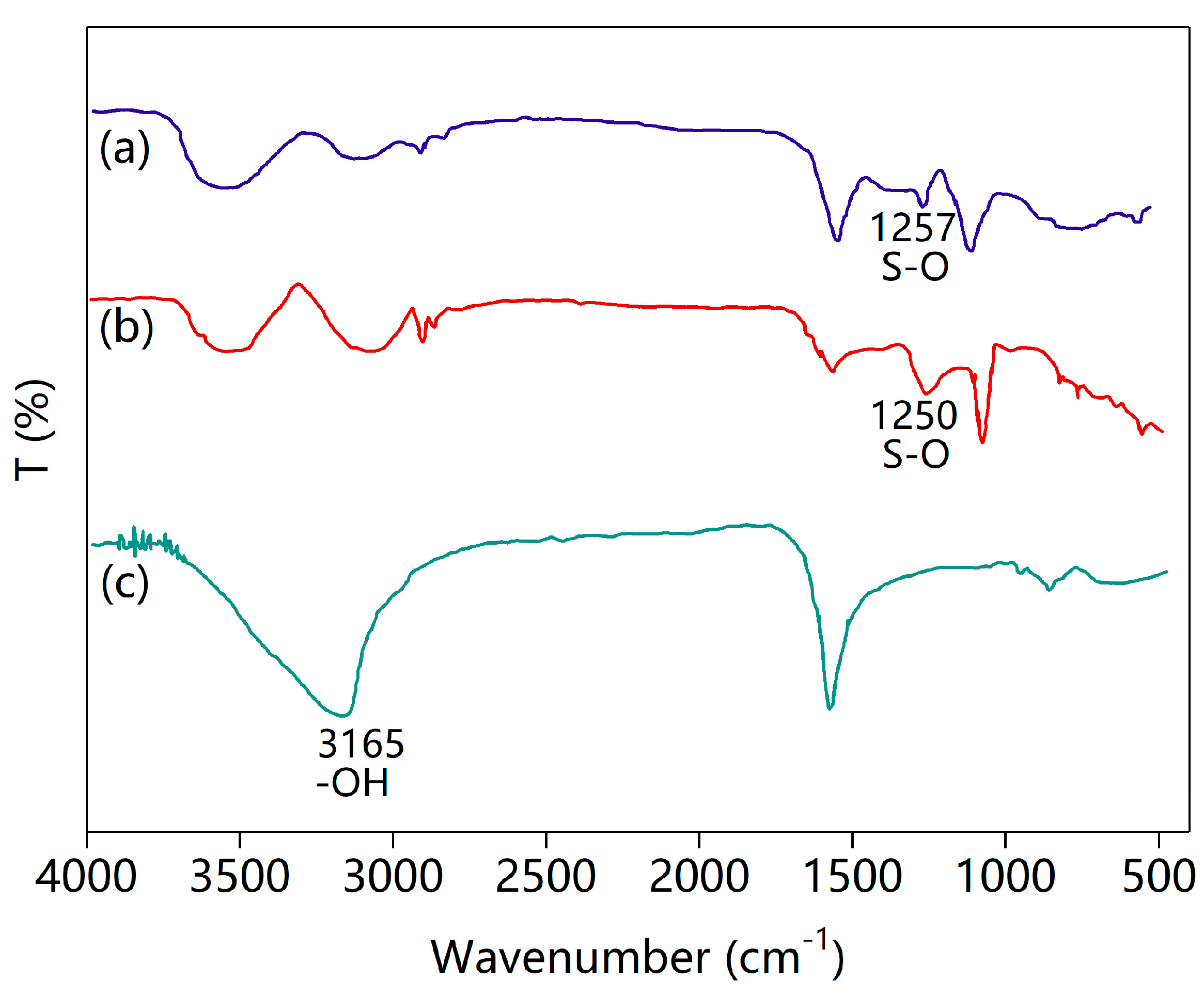

The complexation of BiOBr and PMS was directly confirmed by the ATR–FTIR data (Figure 6). The infrared bands at around 1249 cm⁻¹ have been reported as arising from S–O bond stretching vibrations of PMS [29]. This band (peaking at 1257 cm⁻¹ in Figure 6a and at 1250 cm⁻¹ in Figure 6b) obviously weakened when BiOBr was introduced into the PMS solution. Meanwhile, BiOBr caused the S–O vibration band of the PMS to shift by 7 cm⁻¹; conversely, PMS decreased the band of the surface –OH of BiOBr (peak at 3165 cm⁻¹) (Figure 6c). These two points support Equation (14).

The changes in the metal’s valence during the reaction were identified by X-ray photoelectron spectroscopy (XPS). As Figure 7a shows, there were two strong peaks (at 159.60 and 164.95 eV) in the Bi region, indicating that Bi(III) was present [30]. Peaks with higher binding energies at 159.69 and 159.77 eV (Figure 7b,c, respectively) can be attributed to Bi(III+x) ions (Bi(IV) or Bi(V)) [27]. The XPS data thus help to elucidate the possible electron-transfer reactions on the surface of the BiOBr particles (Equations (15)–(21)).

Two more issues must be addressed to quantitatively explain the excellent performance observed: (1) the reaction rate constants of CBZ with HO· and ${\mathrm{SO}}_4^{·-}$ and (2) the respective contribution of the two radicals.

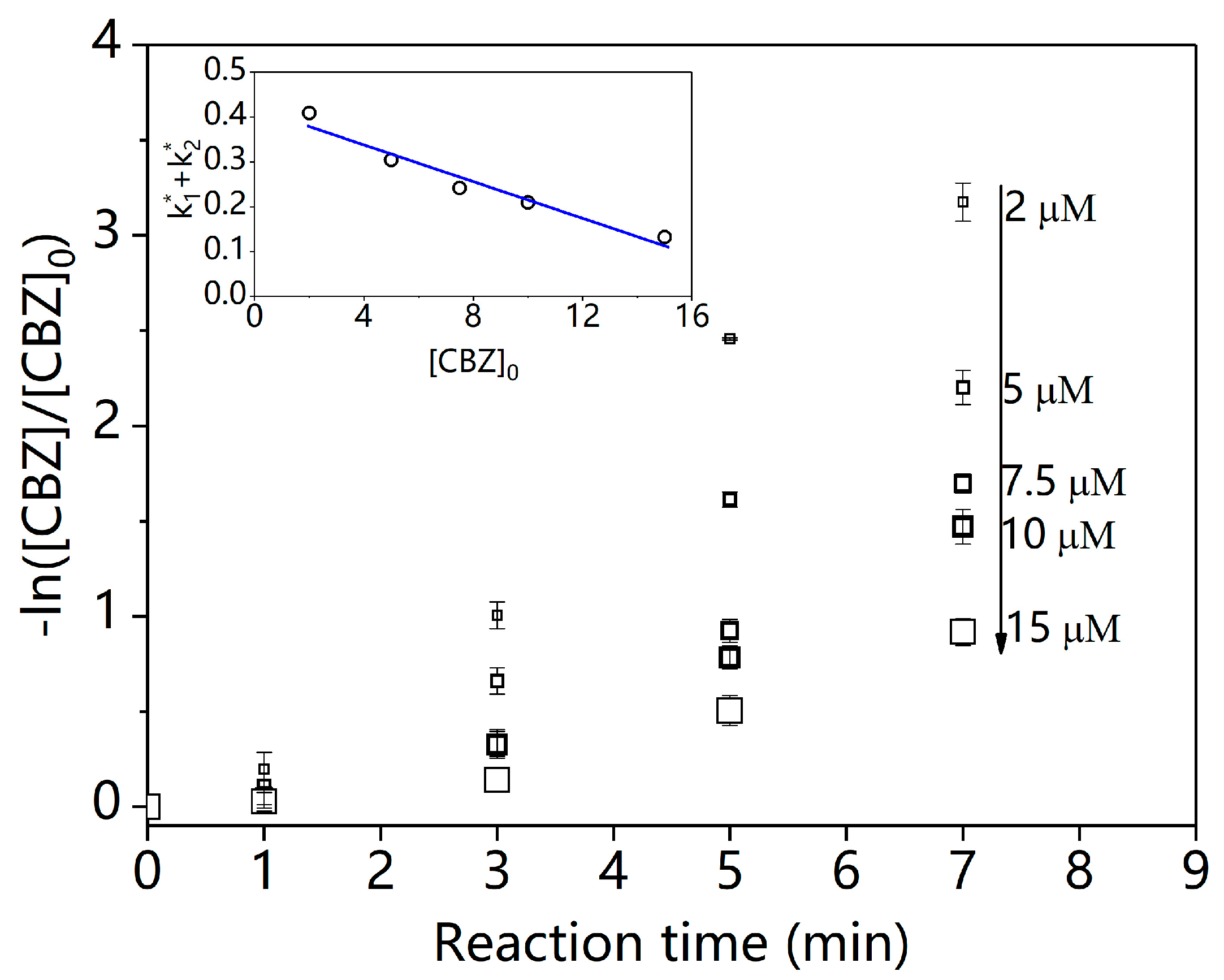

The CBZ degradation was mainly induced by HO· and ${\mathrm{SO}}_4^{·-}$ attack. These are both strong one-electron oxidants. The kinetics of CBZ degradation are therefore likely to be second-order, as in Equation (22). Equation (23) is the result of the integration of Equation (22) as follows:

$$-\frac{d[\mathrm{CBZ}]}{dt}=(k_1{{\displaystyle \int }}^{\text{}}[S{O}_4^{·-}]dt+ {{\displaystyle \int }}^{\text{}}[\mathrm{HO}·]dt)[\mathrm{CBZ}],$$

(22)

$$-\ln \frac{[\mathrm{CBZ}]}{{[\mathrm{CBZ}]}_0}=(k_1{{\displaystyle \int }}^{\text{}}[S{O}_4^{·-}]dt+ k_2{{\displaystyle \int }}^{\text{}}[\mathrm{HO}·]dt)dt,$$

(23)

where ${\mathrm{k}}_1$ and $k_2$ are the reaction rate constants of CBZ with HO· and ${\mathrm{SO}}_4^{·-}$, respectively, and [CBZ]₀ and [CBZ] are the CBZ concentrations at the start of the reaction and at time t, respectively. Assuming pseudo-steady state, Equation (23) can be simplified to Equation (24):

$$-\ln \frac{[\mathrm{CBZ}]}{{[\mathrm{CBZ}]}_0}=(k_1{[{\mathrm{SO}}_4^{·-}]}_{\mathrm{ss}}+ k_2{[\mathrm{HO}·]}_{ss})t=(k_1^{*}+k_2^{*})t,$$

(24)

where ${[{\mathrm{SO}}_4^{·-}]}_{\mathrm{ss}}$ and ${[\mathrm{HO}·]}_{\mathrm{ss}}$ are the quasi-stationary concentrations of ${\mathrm{SO}}_4^{·-}$ and HO·, respectively, and $k_1^{*}$ and $k_2^{*}$ are $k_1{[{\mathrm{SO}}_4^{·-}]}_{\mathrm{ss}}$ and $k_2{[\mathrm{HO}·]}_{ss}$, respectively. Thus, the contribution of ${\mathrm{SO}}_4^{·-}$ can be expressed as $k_1^{*}/(k_1^{*}+k_2^{*})$.

HO· has been reported to attack CBZ with a kinetic constant of 2.05 × 10⁹ M⁻¹·s⁻¹ [31], and a second-order rate constant of 1.62 × 10⁹ M⁻¹·s⁻¹ can be determined for ${\mathrm{SO}}_4^{·-}$ (Text S5 and Figure S8 in the Supplementary Materials). Both radicals showed nearly diffusion-controlled reactivity with CBZ, which suggests reasonably efficient degradation. The degradation at low initial CBZ concentration (≤5 μM) was well fitted with a pseudo first-order kinetic model, with high values of the correlation coefficient during the initial 7 min of the reaction time (Figure 8). This finding suggests that $k_1^{*}+k_2^{*}$ can be assumed to be constant. To determine the contribution of each radical, tertiary butanol (TBA) was added and $k_1^{*}+k_2^{*}$ was estimated by fitting a pseudo first-order constant (Figure S9, Supplementary Materials). HO· was considered to be scavenged by the TBA; thus $k_2^{*}$ can be ignored. $k_1^{*}/(k_1^{*}+k_2^{*})$ was calculated to be 67.3% ($k_2^{*}$ = 0.302, $k_1^{*}+k_2^{*}$ = 0.449) at neutral pH. This result tends to confirm that the 67.3% CBZ degradation was due primarily to ${\mathrm{SO}}_4^{·-}$-mediated oxidation.

2.4. Bromate Formation

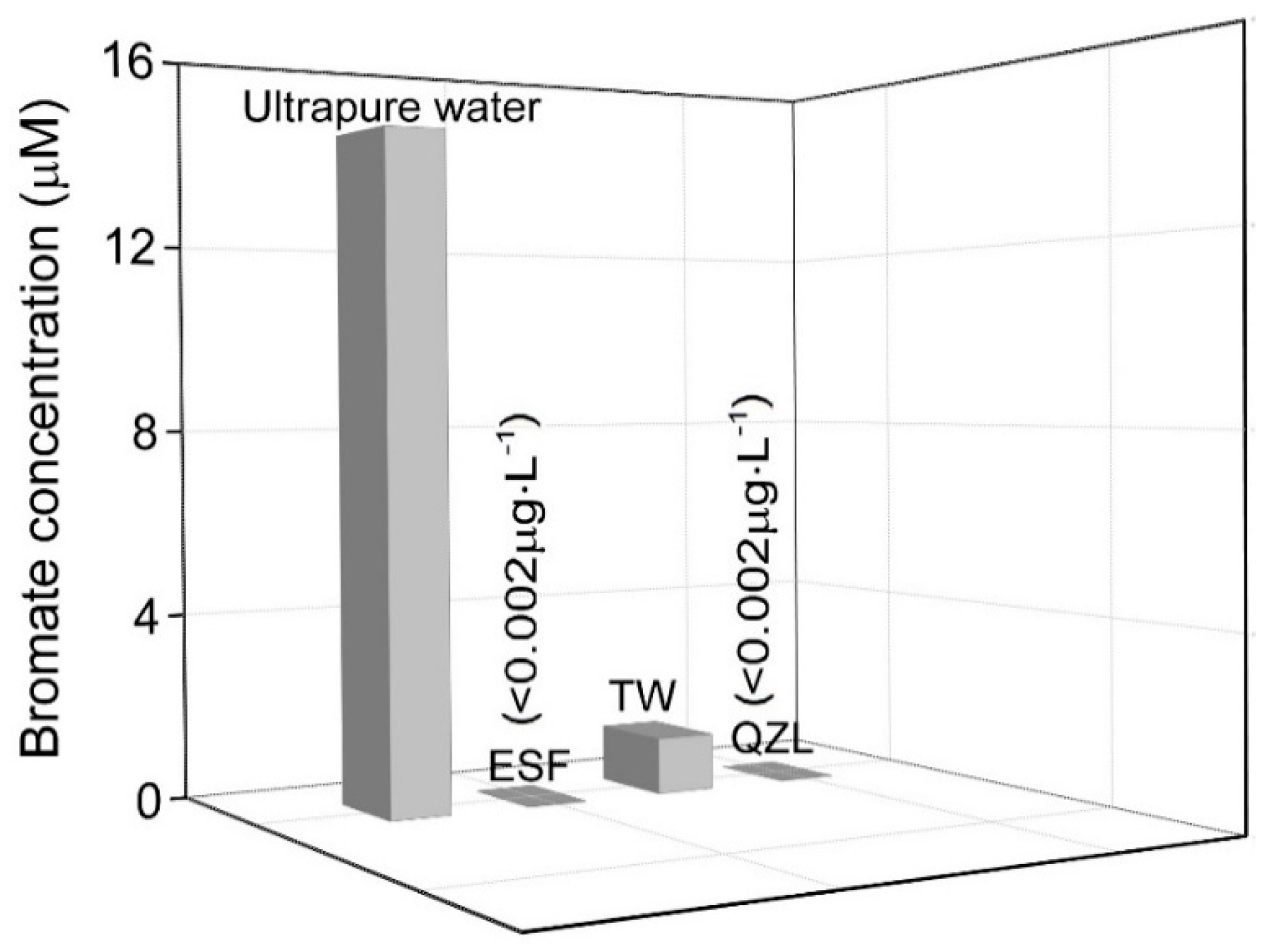

Bromate formation in bromide-containing solution in the presence of ${\mathrm{SO}}_4^{·-}$ or HO· has been reported [32]. As for the BiOBr/PMS system, bromide-ion releasing (Figure 4) and radicals (${\mathrm{SO}}_4^{·-}$ and HO·, Figure 5) have been detected, and bromate formation should be given concern. Therefore, bromate formation during treatment of three actual waters (ESF, TP and QZL) was compared with that of ultrapure water (Figure 9). Within a 30-min reaction time, no detectable bromate formation (<0.002 μg·L⁻¹) for ESF and QZL has been observed, while significant bromate formation happened for ultrapure water (14.3 μM) and TP (1.2 μM). Suppression of bromate formation by natural organic matters in AOTs has been reported [32,33], which is ascribed to scavenging of reactive bromine species and radicals by natural organic matter. A similar effect caused by DOM in ESF, TP and QZL is expected. It is important to highlight that the scavenging of reactive bromine species by natural organic matter or CBZ would pose a risk of yielding organobromated byproducts.

2.5. Detoxification Performance

The system’s acute toxicity was tested using BiOBr as the PMS activator (Figure 10). The toxicity toward Vibrio fisheri decreased as the CBZ was eliminated, but over the entire course of the degradation the toxicity decreased more slowly than the CBZ concentration. That suggests that some degradation byproducts also displayed toxicity. Similar to the toxicity, the total organic carbon (TOC) also decreased more slowly than the CBZ concentration. For a 78.2% degradation of CBZ, only 39.7% of the TOC was removed. These results indicate that a long reaction time may be needed to treat CBZ to a safe level. The toxicity evolution can be explained to some extent by exploring CBZ’s degradation pathway.

2.6. Degradation Mechanism

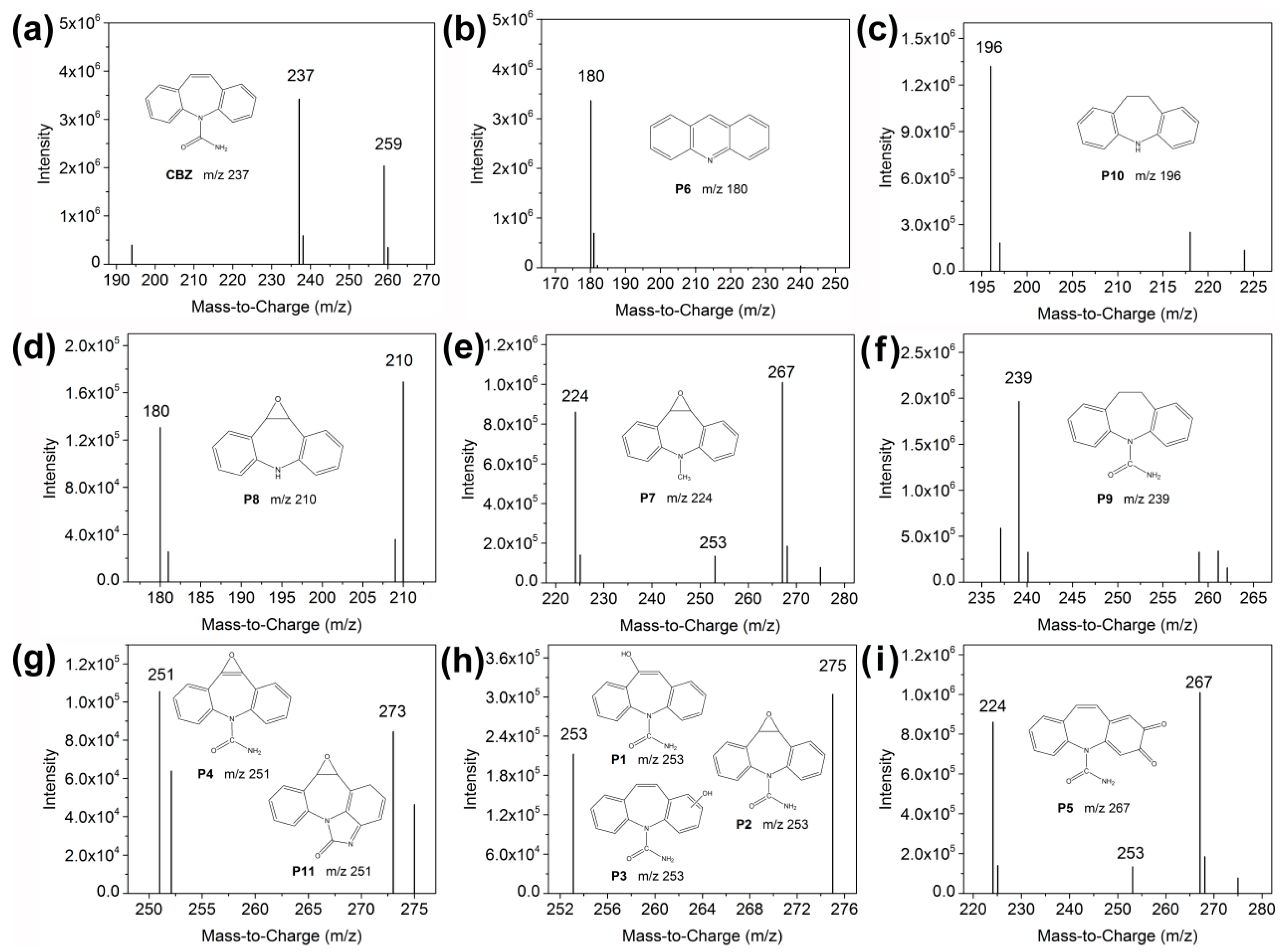

To elucidate the mechanism of CBZ degradation, the formation of intermediate products in the degradation of 0.1 mM CBZ in the presence of 4 mM PMS and 0.5 g·L⁻¹ BiOBr was detected using high-performance liquid chromatography with tandem mass spectrometric detection (HPLC–MS) (Figure 11). In the figure, the CBZ signal corresponds to the positive ion at m/z 237 generated after ${\mathrm{H}}^{+}$ addition during the electrospray ionization process. The mass-to-charge peak observed at m/z 259 was contributed by sodium. Meanwhile, intermediates were noted at m/z 180, 196, 210, 224, 239, 251, 253 and 267. Possible molecular structures for these intermediates can be proposed on the basis of the specific m/z values, CBZ’s chemical structure and the reaction characteristics of ${\mathrm{SO}}_4^{·-}$ and HO·. The inferred intermediates suggest the probable degradation pathway for CBZ shown in Figure 12.

The mass peak at 253 was assigned to hydroxy-CBZ (P1 and P3) or 10,11-epoxide-CBZ (P2) on the basis of a report from Sun’s group [34]. The further attack of HO· radicals on the hydroxy-CBZ (P1 and P3) induced the formation of 10,11-epoxy-CBZ (P4) and carbamazepine-o-quinone (P5) [35,36]. Subsequently, ring contraction in the 10,11-epoxy-CBZ caused the loss of a –CONH₂ group. The deamidation produced 9-acridine-9-carboxaldehyde as an intermediate and acridine (P6) as the final form, consistent with previous reports [37,38]. C–N cleavage on the side chains results in the formation of P7 from P2, followed by the formation of P8. Similarly, the ring contraction could also form P11, which could further be degraded to P10. Based on these intermediates, many transformation products retain the functional structure of CBZ and may retain some of its biological toxicity. This effect could partly explain the observed lag in detoxification relative to the degradation of the CBZ parent molecule.

3. Materials and Methods

3.1. Materials and Reagents

Sources of chemicals and reagents are provided in the Supplementary Materials Text S1 . All chemicals were used as received.

3.2. Synthesis and Characterization of BiOX Microstructures

The synthesis of BiOX (X = Cl, Br, I) microstructures was carried out through a solvothermal procedure [14]. This process yielded BiOX microspheres as shown in the scanning electron micrograph which is provided in Figure S1 in the Supplementary Materials. X-ray diffraction (XRD) analysis of a typical BiOBr specimen was conducted using a Rigaku Dmax-2000 diffractometer (Rigaku Co., Tokyo, Japan). A Bruker Optics Matrix-MF spectrometer (Bruker Optics, Ettlingen, Germany) was used for attenuated total-reflection Fourier transform infrared spectroscopy (ATR–FTIR). X-ray photoelectron spectroscopy (XPS) analysis was carried out with an ESCALAB 250Xi spectrometer (Thermo Scientific, Waltham, MA, USA). The specific surface area and average pore size were measured using an ASAP2020HD88 analyzer (Micromeritics, Norcross, GA, USA). The particle-size distribution was quantified using a Mastersizer 2000 laser particle size analyzer (Malvern Instruments Ltd., Malvern, UK). Acid–base titration was employed to determine the point of zero charge (pH_pzc).

3.3. Experimental Procedures

The CBZ degradation experiments were performed in a room thermostated 24 °C and under dark conditions. The 0.02 mM CBZ stock solution was stirred for 30 min before use. Except for the best peroxide-activator screening experiments where 1 mM peroxide (PS, PMS or H₂O₂) was used, the CBZ concentration was set at 5 μM and the initial concentration of peroxide (PS, PMS or H₂O₂) was kept at 4 mM in the reaction solution. Subsequently, 0.10 g of the BiOX microspheres was dispersed into 200 mL of the reaction solution, and the pH was adjusted with 10 mM Michaelis buffer (to pH 4.0 or 5.0) or borate buffer (to pH 7.0, 9.0 or 11.0) as necessary. The anions (tartrate ion and tetraborate ion) in the buffer showed weak ion exchange (Figure S2, Supplementary Materials), which means they had little influence on the BiOX-catalyzed peroxide oxidation. During the reaction, samples were collected using a syringe at predetermined time intervals and transferred to vials containing a quencher (100 μL of 0.2 M NaNO₂ [16]). The mixture was then filtered immediately for analysis of the CBZ concentration and to evaluate any toxicity.

3.4. Analysis

The CBZ content in the samples was determined using an Agilent 1200 HPLC (Agilent, Palo Alto, CA, USA) equipped with a UV–vis detector. The degradation intermediates were concentrated on a Gilson GX-271 ASPEC apparatus (Gilson, Middleton, WI, USA) and analyzed with an Agilent 6460 triple-quad HPLC–MS (Agilent, Palo Alto, CA, USA). The release of bromide (${\mathrm{Br}}^{-}$) from the BiOBr materials and possible bromate formation were monitored using a Dionex ICS-2000 ion chromatograph (Dionex, Sunnyvale, CA, USA). The bismuth leaching during the degradation process was detected using a PE NexION 300Q inductively-coupled plasma mass spectrometer (Perkin Elmer, Oak Brook, IL, USA). The detailed parameters are shown in Text S2 of the Supplementary Materials.

4. Conclusions

This study evaluated catalytic peroxide (PMS, PS and H₂O₂) oxidation of CBZ using BiOX as the catalyst. The results show that the BiOX microsphere catalyst activated PMS most efficiently. BiOBr generated the best kinetics and it was found to be both efficient and stable for CBZ degradation. Sulfate radical was determined to be the primary oxidative species in the BiOBr/PMS system. The high reduction potential of Bi(V)/Bi(III) facilitates the efficient formation of the sulfate radical. The degradation intermediates of CBZ retain some biotoxicity and a relatively long reaction time may be necessary to detoxify CBZ completely. Bromide is released from BiOBr in the process through hydrolysis and ion exchange, so bromate produced by the radical oxidation of bromide must be examined. Presence of dissolved organic matter acts as an inhibitor of bromate formation. Deposit of BiOBr onto materials with strong ion-exchange ability to locate bromide ions may relieve such concern. In addition, bismuth leaching, although very slow, is expected to shorten the catalyst’s lifespan. Modifications, such as metal doping, may be necessary to improve the stability and recyclability of BiOBr.
