Synthesis of Isoquinolinones via Regioselective Palladium-Catalyzed C–H Activation/Annulation

by
Wenke Qi
,
Yimei Wu
,
Yongxu Han
and
Yi Li
*
Department of Chemistry, Xi’an Jiaotong-Liverpool University, Suzhou 215123, China
*
Author to whom correspondence should be addressed.
Catalysts 2017, 7(11), 320; https://doi.org/10.3390/catal7110320
Submission received: 11 October 2017 / Revised: 27 October 2017 / Accepted: 27 October 2017 / Published: 30 October 2017
Browse Figures
Versions Notes

Abstract

:
The isoquinoline motif and its derivatives are of significant interest due to their important biological activities. The effective synthesis of substituted isoquinoline compounds has historically been a significant challenge. A new palladium-catalyzed C–H activation/annulation of N-methoxy benzamides and 2,3-allenoic acid esters is described. For the first time, 2,3-allenoic acid esters are employed for the syntheses of 3,4-substituted hydroisoquinolones, the heteroannulation of allenes proceeded smoothly and afforded the products with good yields and excellent regioselectivity.

1. Introduction

Isoquinoline and its derivatives form the cores of numerous natural products and they are the central components of many pharmaceutical agents [1,2,3,4]. Due to their unique DNA binding properties, isoquinolines and their derivatives show a wide range of biological activities, such as in vasodilatation [5,6,7], as well as for its antibacterial [3,8,9], anti-malarial [10], anti-HIV [11,12] and anti-tumor properties [13,14,15].
Isoquinolines possess diverse substitution patterns, and their synthesis has been the focus of many studies. Traditionally ortho-difunctionalized benzene starting materials are required for the construction of the heterocylic ring system [16,17]. A more general and efficient approach involves annulation of mono-functionalized arene with conventional synthetic methods, such as rearrangement [17,18], Fridel-Crafts reaction and ortho-lithiation, etc. [19,20].
Over the past decade, transition-metal-catalyzed direct C–H functionalization/annulation has established itself as a sustainable and more efficient strategy for constructing a range of valuable heterocyclic products [21,22,23,24]. These transformations, which involve a metal-promoted activation of “inert” C–H bonds and cycloadditions of unsaturated substrates, allow the formation of cyclic products from readily available precursors in a rapid and atom-economical manner. Palladium [25,26], rhodium [27,28], and ruthenium [29,30] are among the most frequently used transition-metal catalysts for this activation/annulation; the applications of first-row transition metals, such as cobalt [31] and copper [32], have also been reported in these processes.
The interactions between catalyst and directing group promote the desired C–H activation and also control the selectivity. The coordination of the metal center to the heteroatom-containing functional group—such as benzamides [33,34,35,36], aryl imines [37], and anilides [38,39,40]—directs and facilitates selective cleavage of Csp2-H bond to form the metallacycle. Migratory insertion of an alkene or alkyne forms the advanced intermediates, which undergo the subsequent reductive elimination to afford the heterocyclic product. This approach is characterized by the incorporation of the directing group into the final heterocyclic product structure. These reactions offer predictable site selectivity, and are often broadly applicable and high-yielding [41,42,43,44]. Various heterocyclic scaffolds have been successfully constructed using this strategy, including isoindolinone [44,45], phenanthridinone [46], isoquinolines [45], and spiroindenes [47], etc.
For the synthesis of isoquinoline compounds, alkenes and alkynes have already been used to intercept the aryl metal species in the abovementioned transition-metal catalyzed oxidative annulation [44,47,48]. For example, Wang reported Rh(III)-catalyzed C–H allylation/Pd-catalyzed N-allyation to synthesize vinyl substituted dihydroisoquinolinones [49]. Marsden developed a Rh(III)-catalyzed C–H activation/annulation with vinyl esters as an acetylene equivalent [50]. In 2016, Niu developed a Co-catalyzed decarboxylative C–H activation/annulation cascade to get access to isoquinolines and isoindolinones [45]. In contrast, transition-metal catalyzed oxidative C–H coupling reactions between arene and allene remain relatively unexplored, although allenes have been widely applied in transition-metal catalyzed reactions [51,52,53,54]. The initial effort in this area, reported by Ma [55], resulted in a direct allenylation reaction with N-methoxybenzamide. In 2012, Glorius and co-workers [56] reported the synthesis of hydroisoquinolinones from the first carbometalation reaction of allenes; however, the applicable substrates were limited to alkyl substituted allenes (Scheme 1a). In 2014, the synthesis of 3,4-dihydroisoquinolin-1(2H)-ones was successfully achieved by Liang [57], using strong NH acidic N-benzoylsulfonamide to react with allenes in a palladium-catalyzed activation/annulation (Scheme 1b). Very recently, Rao (Scheme 1c) [58,59] and Volla [31] found that cobalt catalysts could effectively promote C–H activation of benzamide, aryl sulfonamides and facilitate the subsequent annulation with allenes to produce isoquinolinones and sultams respectively.
Our continuing efforts in metal-catalyzed C–H activation/cyclization reactions and their applications in the synthesis of natural products and the active pharmaceutical ingredients prompted us to explore and develop a facile method for the synthesis of isoquinoline. Herein, we report a protocol for palladium-catalyzed C–H activation/annulation between N-methoxybenzamide and 2,3-allenoic acid ester to afford a range of hydroisoquinolinones with the suitable functional groups for further structural elaborations (Scheme 1d).

2. Results and Discussion

At the outset of this work, the reaction between N-methoxybenzamide 1a and 2,3-allenoic acid esters 2a was initially examined under the reaction conditions reported by Glorius in their work [56], which used [{RhCp*Cl2}2] as catalyst and CsOAc as additive. However, no desired product was observed when the reaction was performed in methanol at room temperature. Raising the reaction temperature did not improve the reaction. The result was not completely unexpected, considering the electron-poor nature of the 2,3-allenoic acid ester as starting material.
Disappointed by this result, we turned our attention from rhodium to palladium, which is well known for its different activity and selectivity as a catalyst [22]. To our delight, treatment of N-methoxybenzamide 1a and 2,3-allenoic acid esters 2a with Pd(OAc)2 (10 mol%), Ag2CO3 (2 equiv.), in toluene at 100 °C afforded 3,4-dihydroisoquinolin-1(2H)-ones 3a in an encouraging yield of 45% (Table 1, entry 1). Only one isomer of the shown structure was isolated, indicting a highly regioselective reaction. The yields could be further improved by testing other palladium catalysts (entries 2 and 3), Pd(CH3CN)2Cl2 provided the highest yield of 3a and was selected for further experimentation.
We also examined various oxidants, and found that the presence of silver salts is crucial to the reaction; only trace product could be detected when Cu(OAc)2 or O2 was employed (entries 6 and 7), and the best yield was obtained when Ag2CO3 (2 equiv.) was used. It was found that this annulation needed to be conducted at elevated temperature, as no reaction occurred when the temperature was below 65 °C; however, when the temperature was over 100 °C, the starting materials started decomposing due to their thermal instabilities. For this reason, an excess amount of 2,3-allenoic acid esters (3 equiv.) was required for the total consumption of N-methoxybenzamide. The optimal temperature was found to be 85 °C, as the reaction was able to give a good yield while also completing in a relatively short period of time (4 h).
Further optimization revealed that the presence of base did help to improve the yields, even though it was not essential. Among a variety of bases evaluated, inorganic bases generally facilitated the transformation, and the organic base DIPEA (N,N-diisopropylethylamine) showed the best efficiency. In contrast, the yield became very poor when DBU was present (entries 11–14). Next, common solvents, such as THF, DMF, and 1,2-dichloroethane, were screened. Toluene proved to be the best choice, while the reactions in other solvents were less effective (ClCH2CH2Cl) or totally ineffective (DMF, THF) (entries 15–17).
An assessment of the reaction scope was conducted under the optimized conditions, first by varying the substituents on the N-methoxybenzamide (Scheme 2). These experiments revealed that the electronic effects of substituents had a dramatic influence on the outcomes of this reaction. N-methoxybenzamide bearing electron-donating group, such as –OMe, and alkyl group at the 3-, and 4-positions all reacted smoothly to afford the corresponding hydroisoquinolinones in good yields (3d–3p, 61–87%). Impressively, N-methoxy-1-naphthamide was also a feasible substrate, and product 3m was isolated with a modest yield of 61%. However, no reaction took place with N-methoxy-2-naphthamide. The presence of electron-withdrawing substituents such as trifluoromethyl, halogen, nitro, acetyl on the phenyl ring reduced the reactivities of these substrates significantly. CF3- and Cl-substituted N-methoxybenzamides reacted with 2,3-allenoic acid esters to afford hydroisoquinolinones in relatively poor yields (3q–3s, 53–61%); no products could be isolated from the reactions when para-F-, para-NO2-, meta-NO2-, para-CH3CO-substituted substrates were used. This observation was remarkably different from the previous reports by other researchers [46,50,60], where rhodium was adopted as catalyst for the annulations, which indicates the limitation of this reaction.
The substrate scope was further extended to substituted allenoic acid esters, containing functional groups such as methyl, ethyl and phenyl, formation of a variety of 3,4-dihydroisoquinolin-1(2H)-ones was smoothly achieved in good yields from 53% to 87% (Scheme 2).
The ethyl 4-phenylbuta-2,3-dienoate, with the more sterically hindered phenyl group, afforded the products in relatively poorer yields. Importantly, the exocyclic double bond and the presence of an ester functional group in the molecules will allow for further elaboration of the products to generate more valuable skeletons for preparations of drug and biologically active compounds.
For this palladium-catalyzed C–H activation/annulation, the C–H bond activation site is decided by the relative steric repulsion between the substituents and the metal catalyst. If a meta substituent is present, the ortho position of directing group, which is opposite to the substituent, is preferred. The structure of 3 was determined and confirmed by 2D NMR experiment (NOESY) (3g) and X-ray analysis (3i) (see Supplementary Materials). Consistent with what is reported in the literature [56], the reaction was highly regioselective with regard to the insertion of allene into the palladium complex. The nucleophilic addition or reductive elimination occurred at C4 of 2,3-allenoic acid esters. While this feature likely rises from the steric hindrance of the palladium complex, the observed selectivity may also be preferred from the extra stabilities obtained from the conjugation with the ester functional group.
Based on literature precedents and experimental data, a plausible mechanism to account for the present reaction producing 3,4-dihydroisoquinolin-1(2H)-ones 3 is proposed in Scheme 3. The catalytic cycle is probably initiated by the coordination of palladium (II) with the N-methoxybenzamide 1, followed by N-metalation and subsequent C–H activation, assisted by the presence of DIPEA to form a five-membered cyclopalladation intermediate 4. The coordination and insertion of allene allenoic acid ester 2 leads to intermediate 5, which undergoes reductive elimination to give the product 3 and Pd (0) species. Pd (II) is regenerated by the oxidation of Pd (0) with silver carbonate and close the catalytic cycles. Insertion of allene occurs when a C–C bond is formed with the central carbon atom of the allene moiety, the regioselectivity of the annulation is controlled by the steric effect of substituent groups on allenoic acid ester and influenced by the thermodynamic stability of the final products. The attack from the sterically less hindered face of the allene may be the explanation for the formation of the product with Z exocyclic double bond.

3. Experimental Details

3.1. General Procedure for the Synthesis of N-Methoxybenzamide from Acid Chloride

The synthesis followed a procedure reported by Booker-Milburn et al. [61]. Methoxylamine hydrochloride (840 mg, 10 mmol) and potassium carbonate (2.76 g, 20 mmol) were dissolved in a mixture of water (25 mL) and EtOAc (50 mL), and cooled to 0 °C upon which acyl chloride (10 mmol) was added dropwise. The reaction was then allowed to warm to r.t. and stirred for between 5 h and overnight. The product was isolated by diluting the mixture with EtOAc/H2O and separating the layers. The organic phase was then washed with brine and dried over MgSO4, filtered and concentrated to give the product which was then recrystallized (EtOAc/Hex) to give the target compound.

3.2. General Procedure for the Synthesis of N-Methoxybenzamide from Acid

To a solution of substituted benzoic acid (10 mmol) in CH2Cl2 (30 mL) was added a few drops of DMF, followed by slow addition of oxalyl chloride (1.7 mL, 20 mmol) at room temperature. The reaction was stirred overnight. The reaction mixture was evaporated under reduced pressure to give crude acyl chloride, which was used directly without further purification. Methoxylamine hydrochloride (840 mg, 10 mmol) and potassium carbonate (2.76 g, 20 mmol) were dissolved in a mixture of water (25 mL) and EtOAc (50 mL), and cooled to 0 °C; acyl chloride (10 mmol), which was prepared as described above, was added dropwise. The reaction was then allowed to warm to r.t. and stirred for between 5 h and overnight. The product was isolated by diluting the mixture with EtOAc/H2O and separating the layers. The organic phase was then washed with brine and dried over MgSO4, filtered and concentrated to give the product which was then recrystallized (EtOAc/Hex) to give the target compound.

3.3. General Procedure for the Synthesis of 2,3-Allenoic Acid Esters

The synthesis followed a procedure reported by Kwon et al. [62]. Et3N (63 mmol, 1.1 equiv.) was added to a stirred solution of (carbethoxymethylene)triphenylphosphorane (57.5 mmol, 1 equiv.) in CH2Cl2 (200 mL). After stirring for 10 min, the required acyl chloride (57.5 mmol, 1 equiv.) was added dropwise over 30 min at room temperature. After stirring overnight, the resulting mixture was poured unto a funnel packed with silica gel and was washed with CH2Cl2 several times. The combined filtrate was carefully concentrated, and the resulting crude oil was purified by flash column chromatography (hexane/EtOAc, 20:1) to provide the 4-substituted 2,3-allenoic acid esters.

3.4. General Procedure for Pd-Catalyzed Oxidative Annulation with 2,3-Allenoic Acid Esters

An oven-dried round-bottom flask (25 mL) was charged with N-methoxybenzamide (0.50 mmol), 2,3-allenoic acid esters (1.5 mmol, 3 equiv.), silver(I) carbonate (0.275 g, 1 mmol, 2 equiv.), N,N-diisopropylethylamine (DIPEA) (0.174 mL, 1 mmol, 10 mol%), Bis(acetonitrile)dichloropalladium (II) (13.0 mg, 0.05 mmol) in 5 mL toluene. The mixture was heated at 85 °C for 4 h under the atmosphere of air, then allowed to cool down. The reaction mixture was diluted with EtOAc (10 mL) and filtered through a Celite® pad, the filtrate was washed with water (10 mL). The aqueous layer was extracted with EtOAc (2 × 10 mL), and the combined organic layers were dried with anhydrous MgSO4, then filtered and concentrated under reduced pressure. The crude product was purified by flash column chromatograph, eluted with n-hexane/EtOAc (10:1) to give the final product.

4. Conclusions

In conclusion, a palladium-catalyzed C–H activation/annulation of N-methoxybenzamides with 2,3-allenoic acid esters has been established. The strategy was able to proceed with high regioselectivity, and afforded various substituted 3,4-dihydroisoquinolin-1(2H)-ones in good yields under relatively mild conditions. This method is complementary to previously reported methods based on the use of rhodium catalysts and alkyl-substituted allenes substrates. Further application of this methodology in natural product synthesis is in progress, and the bioactivity data of the synthesized compounds will be reported in due course.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/7/11/320/s1, Experimental procedure and spectral data for final products.

Acknowledgments

The authors thank the Jiangsu Science and Technology Programme (Basic Research Programme) (Grant No. BK20131180) for the funding.

Author Contributions

Y.L. conceived and designed the experiments; W.Q. and Y.H. performed the experiments; Y.W. analyzed the data; Y.L. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hasrat, J.A.; De Bruyne, T.; De Backer, J.P.; Vauquelin, G.; Vlietinck, A.J. Isoquinoline derivatives isolated from the fruit of Annona muricata as 5-HTergic 5-HT1A receptor agonists in rats: Unexploited antidepressive (lead) products. J. Pharm. Pharmacol. 1997, 49, 1145–1149. [Google Scholar] [CrossRef] [PubMed]
  2. Lee, T.H.; Kim, K.H.; Lee, S.O.; Lee, K.R.; Son, M.; Jin, M. Tetrahydroberberine, an isoquinoline alkaloid isolated from corydalis tuber, enhances gastrointestinal motor function. J. Pharmacol. Exp. Ther. 2011, 338, 917–924. [Google Scholar] [CrossRef] [PubMed]
  3. Solecka, J.; Sitkowski, J.; Bocian, W.; Bednarek, E.; Kawecki, R.; Kozerski, L. A novel isoquinoline alkaloid, DD-carboxypeptidase inhibitor, with antibacterial activity isolated from Streptomyces sp. 8812. Part II: Physicochemical properties and structure elucidation. J. Antibiot. 2009, 62, 581–585. [Google Scholar] [CrossRef] [PubMed]
  4. Toth, C.E.; Ferrari, M.; Contessa, A.R.; Santi, R. Study on the mechanism of spasmolytic acion of some isoquinoline drugs. Arch. Int. Pharmacodyn. Ther. 1966, 162, 123–139. [Google Scholar] [PubMed]
  5. Appenzeller, O.; Schnieden, H. Effect of some drugs on reflex vasodilatation of hand produced by radiant heating of trunk. J. Appl. Physiol. 1964, 19, 995–998. [Google Scholar] [PubMed]
  6. Noon, J.P.; Walker, B.R.; Hand, M.F.; Webb, D.J. Studies with iontophoretic administration of drugs to human dermal vessels in vivo: Cholinergic vasodilatation is mediated by dilator prostanoids rather than nitric oxide. Br. J. Clin. Pharmacol. 1998, 45, 545–550. [Google Scholar] [CrossRef] [PubMed]
  7. Praskurnichii, E.A.; Shevchenko, O.P.; Makarova, S.V.; Zhukova, V.A.; Savel’eva, S.A. Effect of antihypertensive drugs of various pharmacological groups on reaction of arterial pressure under conditions of stree testing. Part II. Value of various strategies of potentiation of systemic vasodilatation. Kardiologiia 2008, 48, 18–24. [Google Scholar] [PubMed]
  8. Panchaud, P.; Bruyere, T.; Blumstein, A.C.; Bur, D.; Chambovey, A.; Ertel, E.A.; Gude, M.; Hubschwerlen, C.; Jacob, L.; Kimmerlin, T.; et al. Discovery and optimization of isoquinoline ethyl ureas as antibacterial agents. J. Med. Chem. 2017, 60, 3755–3775. [Google Scholar] [CrossRef] [PubMed]
  9. Tsai, I.L.; Liou, Y.F.; Lu, S.T. Screening of isoquinoline alkaloids and their derivatives for antibacterial and antifungal activities. Gaoxiong Yi Xue Ke Xue Za Zhi 1989, 5, 132–145. [Google Scholar] [PubMed]
  10. Fadaeinasab, M.; Taha, H.; Fauzi, P.N.; Ali, H.M.; Widyawaruyanti, A. Anti-malarial activity of isoquinoline alkaloids from the stem bark of actinodaphne macrophylla. Nat. Prod. Commun. 2015, 10, 1541–1542. [Google Scholar] [PubMed]
  11. Iwasa, K.; Moriyasu, M.; Tachibana, Y.; Kim, H.S.; Wataya, Y.; Wiegrebe, W.; Bastow, K.F.; Cosentino, L.M.; Kozuka, M.; Lee, K.H. Simple isoquinoline and benzylisoquinoline alkaloids as potential antimicrobial, antimalarial, cytotoxic, and anti-HIV agents. Bioorg. Med. Chem. 2001, 9, 2871–2884. [Google Scholar] [CrossRef]
  12. Miller, J.F.; Gudmundsson, K.S.; D’Aurora Richardson, L.; Jenkinson, S.; Spaltenstein, A.; Thomson, M.; Wheelan, P. Synthesis and sar of novel isoquinoline CXCR4 antagonists with potent anti-HIV activity. Bioorg. Med. Chem. Lett. 2010, 20, 3026–3030. [Google Scholar] [CrossRef] [PubMed]
  13. Gao, F.; Liu, H.; Li, L.; Guo, J.; Wang, Y.; Zhao, M.; Peng, S. Design, synthesis, and testing of an isoquinoline-3-carboxylic-based novel anti-tumor lead. Bioorg. Med. Chem. Lett. 2015, 25, 4434–4436. [Google Scholar] [CrossRef] [PubMed]
  14. Zheng, M.; Yang, Y.; Zhao, M.; Zhang, X.; Wu, J.; Chen, G.; Peng, L.; Wang, Y.; Peng, S. A class of novel N-isoquinoline-3-carbonyl-l-amino acid benzylesters: Synthesis, anti-tumor evaluation and 3D QSAR analysis. Eur. J. Med. Chem. 2011, 46, 1672–1681. [Google Scholar] [CrossRef] [PubMed]
  15. Arai, Y.; Enomoto, K. Studies on anti-tumor activity of isoquinoline derivatives. I. On the relationship between chemical constituion and antitumor (Hela and Ehrlich) activity. Yakugaku Zasshi 1968, 88, 44–54. [Google Scholar] [CrossRef] [PubMed]
  16. Morrison, A.E.; Hrudka, J.J.; Dudley, G.B. Thermal cycloisomerization of putative allenylpyridines for the synthesis of isoquinoline derivatives. Org. Lett. 2016, 18, 4104–4107. [Google Scholar] [CrossRef] [PubMed]
  17. Zhu, Y.P.; Liu, M.C.; Cai, Q.; Jia, F.C.; Wu, A.X. A cascade coupling strategy for one-pot total synthesis of beta-carboline and isoquinoline-containing natural products and derivatives. Chemistry 2013, 19, 10132–10137. [Google Scholar] [CrossRef] [PubMed]
  18. Brossi, A. New approaches on the synthesis of isoquinoline derivatives related with natural products. Trans. N. Y. Acad. Sci. 1966, 28, 685–693. [Google Scholar] [CrossRef] [PubMed]
  19. Angelov, P.A.; Ivanov, I.I.; Venkov, A.P. Synthesis of some novel 11b-substituted pyrimido[6,1-a]-isoquinoline derivatives. Molecules 2004, 9, 694–704. [Google Scholar] [CrossRef] [PubMed]
  20. Petersen, R.; Cohrt, A.E.; Petersen, M.A.; Wu, P.; Clausen, M.H.; Nielsen, T.E. Synthesis of hexahydropyrrolo[2,1-a]isoquinoline compound libraries through a pictet-spengler cyclization/metal-catalyzed cross coupling/amidation sequence. Bioorg. Med. Chem. 2015, 23, 2646–2649. [Google Scholar] [CrossRef] [PubMed]
  21. Kapdi, A.R.; Maiti, D. (Eds.) Strategies for Palladium-Catalyzed Non-Directed and Directed C–H Bond Functionalization; Elsevier: Amsterdam, The Netherlands, 2017. [Google Scholar]
  22. Li, G. Chapter 8—Directed meta-selective C–H bond functionalizations a2. In Strategies for Palladium-Catalyzed Non-Directed and Directed C–H Bond Functionalization; Kapdi, A.R., Maiti, D., Eds.; Elsevier: Amsterdam, The Netherlands, 2017; pp. 289–325. [Google Scholar]
  23. Balme, G.; Bossharth, E.; Monteiro, N. Pd-assisted multicomponent synthesis of heterocycles. Eur. J. Org. Chem. 2003, 4101–4111. [Google Scholar] [CrossRef]
  24. Gulias, M.; Mascarenas, J.L. Metal-catalyzed annulations through activation and cleavage of C–H bonds. Angew. Chem. Int. Ed. Engl. 2016, 55, 11000–11019. [Google Scholar] [CrossRef] [PubMed]
  25. Chen, Z.; Wang, B.; Zhang, J.; Yu, W.; Liu, Z.; Zhang, Y. Transition metal-catalyzed C–H bond functionalizations by the use of diverse directing groups. Org. Chem. Front. 2015, 2, 1107–1295. [Google Scholar] [CrossRef]
  26. Segawa, Y.; Maekawa, T.; Itami, K. Synthesis of extended PI-systems through C–H activation. Angew. Chem. Int. Ed. Engl. 2015, 54, 66–81. [Google Scholar] [CrossRef] [PubMed]
  27. Satoh, T.; Miura, M. Oxidative coupling of aromatic substrates with alkynes and alkenes under rhodium catalysis. Chem. Eur. J. 2010, 16, 11212–11222. [Google Scholar] [CrossRef] [PubMed]
  28. Song, G.; Wang, F.; Li, X. C-C, C-O and C-N bond formation via rhodium(III)-catalyzed oxidative C–H activation. Chem. Soc. Rev. 2012, 41, 3651–3678. [Google Scholar] [CrossRef] [PubMed]
  29. Ackermann, L. Carboxylate-assisted ruthenium-catalyzed alkyne annulations by HH/Het-H bond functionalizations. Acc. Chem. Res. 2014, 47, 281–295. [Google Scholar] [CrossRef] [PubMed]
  30. Kozhushkov, S.I.; Ackermann, L. Ruthenium-catalyzed direct oxidative alkenylation of arenes through twofold C–H bond functionalization. Chem. Sci. 2013, 4, 886–896. [Google Scholar] [CrossRef]
  31. Thrimurtulu, N.; Nallagonda, R.; Volla, C.M.R. Cobalt-catalyzed aryl C–H activation and highly regioselective intermolecular annulation of sulfonamides with allenes. Chem. Commun. 2017, 53, 1872–1875. [Google Scholar] [CrossRef] [PubMed]
  32. Guo, X.X.; Gu, D.W.; Wu, Z.; Zhang, W. Copper-catalyzed C–H functionalization reactions: Efficient synthesis of heterocycles. Chem. Rev. 2015, 115, 1622–1651. [Google Scholar] [CrossRef] [PubMed]
  33. Zhu, R.Y.; Farmer, M.E.; Chen, Y.Q.; Yu, J.Q. A simple and versatile amide directing group for C–H functionalizations. Angew. Chem. Int. Ed. Engl. 2016, 55, 10578–10599. [Google Scholar] [CrossRef] [PubMed]
  34. Guimond, N.; Gorelsky, S.I.; Fagnou, K. Rhodium(III)-catalyzed heterocycle synthesis using an internal oxidant: Improved reactivity and mechanistic studies. J. Am. Chem. Soc. 2011, 133, 6449–6457. [Google Scholar] [CrossRef] [PubMed]
  35. Fukui, Y.; Liu, P.; Liu, Q.; He, Z.T.; Wu, N.Y.; Tian, P.; Lin, G.Q. Tunable arylative cyclization of 1,6-enynes triggered by rhodium(III)-catalyzed C–H activation. J. Am. Chem. Soc. 2014, 136, 15607–15614. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, H.; Grohmann, C.; Nimphius, C.; Glorius, F. Mild Rh(III)-catalyzed C–H activation and annulation with alkyne mida boronates: Short, efficient synthesis of heterocyclic boronic acid derivatives. J. Am. Chem. Soc. 2012, 134, 19592–19595. [Google Scholar] [CrossRef] [PubMed]
  37. Desai, L.V.; Hull, K.L.; Sanford, M.S. Palladium-catalyzed oxygenation of unactivated sp3 C–H bonds. J. Am. Chem. Soc. 2004, 126, 9542–9543. [Google Scholar] [CrossRef] [PubMed]
  38. Jiang, T.S.; Wang, G.W. Palladium-catalyzed ortho-alkoxylation of anilides via C–H activation. J. Org. Chem. 2012, 77, 9504–9509. [Google Scholar] [CrossRef] [PubMed]
  39. Rauf, W.; Brown, J.M. Palladium-catalysed directed C–H activation by anilides and ureas; water participation in a general base mechanism. Org. Biomol. Chem. 2016, 14, 5251–5257. [Google Scholar] [CrossRef] [PubMed]
  40. Wang, G.W.; Yuan, T.T.; Wu, X.L. Direct ortho-acetoxylation of anilides via palladium-catalyzed sp2 C–H bond oxidative activation. J. Org. Chem. 2008, 73, 4717–4720. [Google Scholar] [CrossRef] [PubMed]
  41. Inamoto, K.; Yamamoto, A.; Ohsawa, K.; Hiroya, K.; Sakamoto, T. Highly regioselective palladium-catalyzed annulation reactions of heteroatom-substituted allenes for synthesis of condensed heterocycles. Chem. Pharm. Bull. 2005, 53, 1502–1507. [Google Scholar] [CrossRef] [PubMed]
  42. Phillips, D.; France, D.J. Palladium-catalyzed heterocyclization: A carbon-centered approach. Asian J. Org. Chem. 2017, 6, 27–40. [Google Scholar] [CrossRef]
  43. Ramesh, K.; Satyanarayana, G. A domino palladium-catalyzed cyclization: One-pot synthesis of 4b-alkyl-10-phenyl-4b,5-dihydroindeno[2,1-a]indenes via carbopalladation followed by C–H activation. J. Org. Chem. 2017, 82, 4254–4264. [Google Scholar] [CrossRef] [PubMed]
  44. Zhou, X.; Zhang, Z.; Zhao, H.; Lu, P.; Wang, Y. Rh-catalyzed annulations of N-methoxybenzamides and ketenimines: Sterically and electronically controlled synthesis of isoquinolinones and isoindolinones. J. Org. Chem. 2017, 82, 3787–3797. [Google Scholar] [CrossRef] [PubMed]
  45. Hao, X.Q.; Du, C.; Zhu, X.; Li, P.X.; Zhang, J.H.; Niu, J.L.; Song, M.P. Cobalt(II)-catalyzed decarboxylative C–H activation/annulation cascades: Regioselective access to isoquinolones and isoindolinones. Org. Lett. 2016, 18, 3610–3613. [Google Scholar] [CrossRef] [PubMed]
  46. Karthikeyan, J.; Haridharan, R.; Cheng, C.H. Rhodium(III)-catalyzed oxidative C–H coupling of N-methoxybenzamides with aryl boronic acids: One-pot synthesis of phenanthridinones. Angew. Chem. Int. Ed. Engl. 2012, 51, 12343–12347. [Google Scholar] [CrossRef] [PubMed]
  47. Reddy Chidipudi, S.; Khan, I.; Lam, H.W. Functionalization of Csp3-H and Csp2-H bonds: Synthesis of spiroindenes by enolate-directed ruthenium-catalyzed oxidative annulation of alkynes with 2-aryl-1,3-dicarbonyl compounds. Angew. Chem. Int. Ed. Engl. 2012, 51, 12115–12119. [Google Scholar] [CrossRef] [PubMed]
  48. Chen, D.F.; Han, Z.Y.; He, Y.P.; Yu, J.; Gong, L.Z. Metal-free oxidation/C(sp3)-H functionalization of unactivated alkynes using pyridine-N-oxide as the external oxidant. Angew. Chem. Int. Ed. Engl. 2012, 51, 12307–12310. [Google Scholar] [CrossRef] [PubMed]
  49. Zhang, S.-S.; Wu, J.-Q.; Liu, X.; Wang, H. Tandem catalysis: Rh(III)-catalyzed C–H allylation/PdII)-catalyzed N-allylation toward the synthesis of vinyl-substituted N-heterocycles. ACS Catal. 2015, 5, 210–214. [Google Scholar] [CrossRef]
  50. Webb, N.J.; Marsden, S.P.; Raw, S.A. Rhodium(III)-catalyzed C–H activation/annulation with vinyl esters as an acetylene equivalent. Org. Lett. 2014, 16, 4718–4721. [Google Scholar] [CrossRef] [PubMed]
  51. Jeganmohan, M.; Cheng, C.H. Transition metal-catalyzed three-component coupling of allenes and the related allylation reactions. Chem. Commun. 2008, 3101–3117. [Google Scholar] [CrossRef] [PubMed]
  52. Meguro, M.; Yamamoto, Y. Novel palladium catalyzed formal [3 + 2] cycloaddition via hydrocarbonation reactions of allenes. J. Org. Chem. 1999, 64, 694–695. [Google Scholar] [CrossRef] [PubMed]
  53. Ye, J.T.; Ma, S.M. Palladium-catalyzed cyclization reactions of allenes in the presence of unsaturated carbon-carbon bonds. Acc. Chem. Res. 2014, 47, 989–1000. [Google Scholar] [CrossRef] [PubMed]
  54. Zimmer, R.; Dinesh, C.U.; Nandanan, E.; Khan, F.A. Palladium-catalyzed reactions of allenes. Chem. Rev. 2000, 100, 3067–3125. [Google Scholar] [CrossRef] [PubMed]
  55. Zeng, R.; Wu, S.; Fu, C.; Ma, S. Room-temperature synthesis of trisubstituted allenylsilanes via regioselective C–H functionalization. J. Am. Chem. Soc. 2013, 135, 18284–18287. [Google Scholar] [CrossRef] [PubMed]
  56. Wang, H.; Glorius, F. Mild rhodium(III)-catalyzed C–H activation and intermolecular annulation with allenes. Angew. Chem. Int. Ed. Engl. 2012, 51, 7318–7322. [Google Scholar] [CrossRef] [PubMed]
  57. Xia, X.F.; Wang, Y.Q.; Zhang, L.L.; Song, X.R.; Liu, X.Y.; Liang, Y.M. Palladium-catalyzed C–H activation and intermolecular annulation with allenes. Chem. Eur. J. 2014, 20, 5087–5091. [Google Scholar] [CrossRef] [PubMed]
  58. Lan, T.; Wang, L.; Rao, Y. Regioselective annulation of aryl sulfonamides with allenes through cobalt-promoted C–H functionalization. Org. Lett. 2017, 19, 972–975. [Google Scholar] [CrossRef] [PubMed]
  59. Li, T.; Zhang, C.; Tan, Y.; Pan, W.; Rao, Y. Cobalt-catalyzed C–H activation and regioselective intermolecular annulation with allenes. Org. Chem. Front. 2017, 4, 204–209. [Google Scholar] [CrossRef]
  60. Ritleng, V.; Sirlin, C.; Pfeffer, M. Ru-, Rh-, and Pd-catalyzed C-C bond formation involving C–H activation and addition on unsaturated substrates: Reactions and mechanistic aspects. Chem. Rev. 2002, 102, 1731–1769. [Google Scholar] [CrossRef] [PubMed]
  61. Wrigglesworth, J.W.; Cox, B.; Lloyd-Jones, G.C.; Booker-Milburn, K.I. New heteroannulation reactions of N-alkoxybenzamides by Pd(II) catalyzed C–H activation. Org. Lett. 2011, 13, 5326–5329. [Google Scholar] [CrossRef] [PubMed]
  62. Castellano, S.; Fiji, H.D.; Kinderman, S.S.; Watanabe, M.; Leon, P.; Tamanoi, F.; Kwon, O. Small-molecule inhibitors of protein geranylgeranyltransferase type I. J. Am. Chem. Soc. 2007, 129, 5843–5845. [Google Scholar] [CrossRef] [PubMed]
Catalysts 07 00320 sch001 550

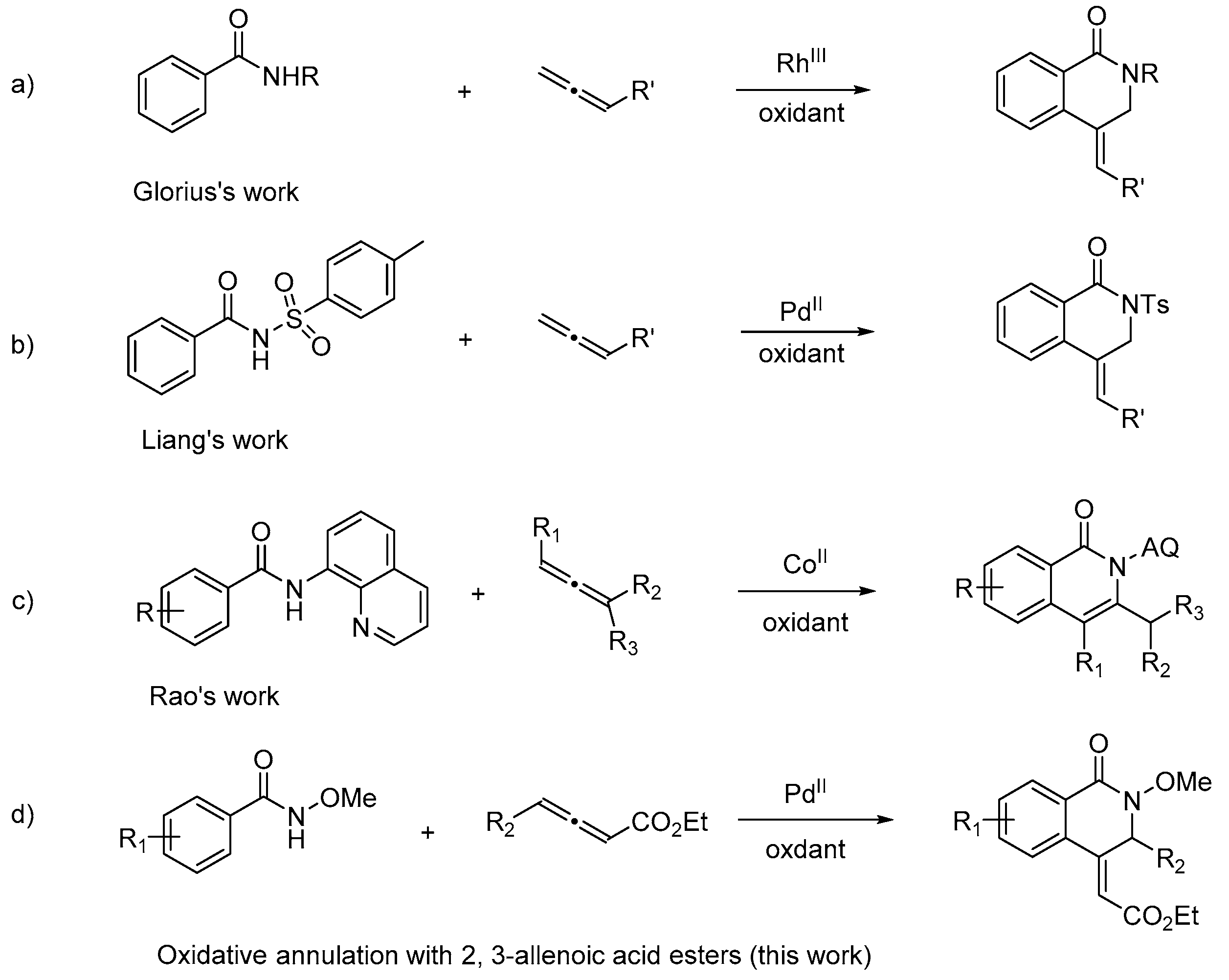

Scheme 1. Syntheses of isoquinolinone via metal-catalyzed oxidative annulation of allenes.
Scheme 1. Syntheses of isoquinolinone via metal-catalyzed oxidative annulation of allenes.
Catalysts 07 00320 sch001
Catalysts 07 00320 sch002a 550Catalysts 07 00320 sch002b 550

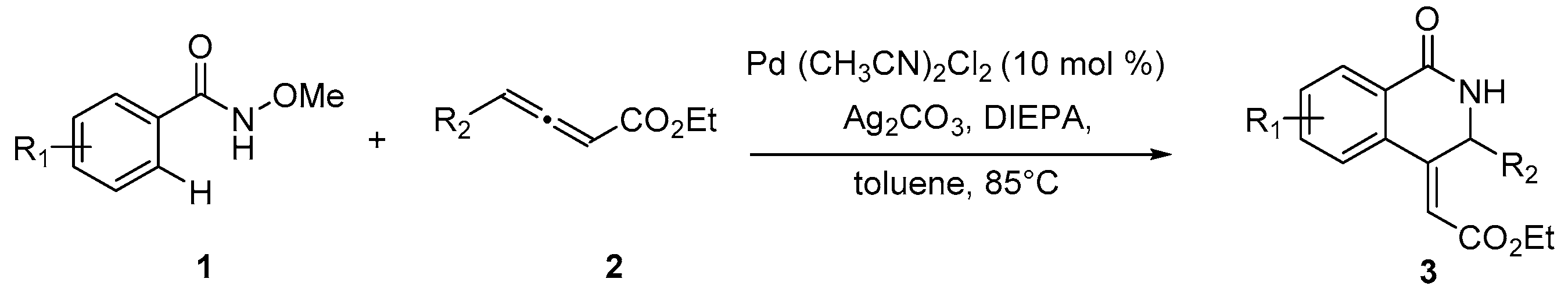

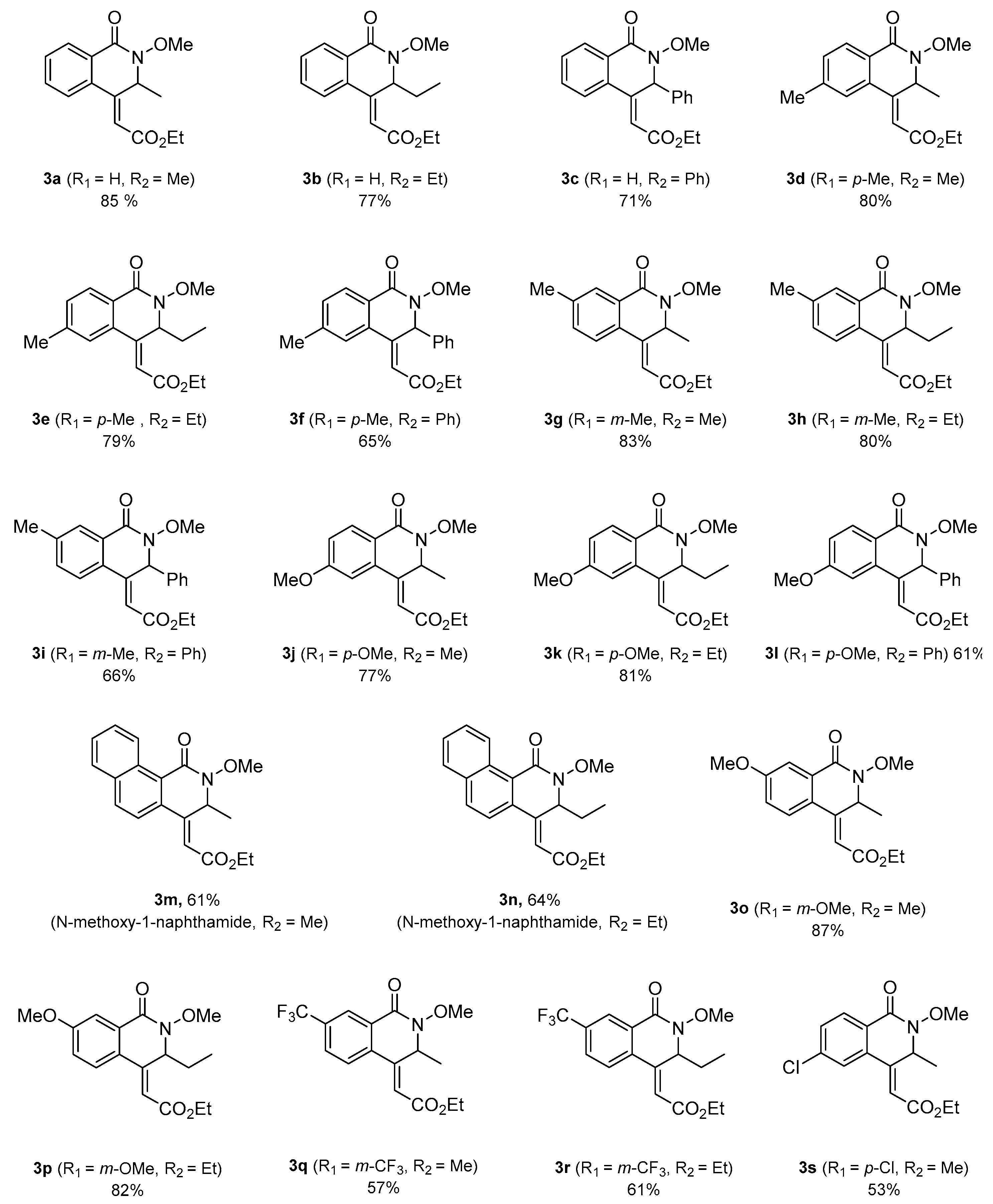

Scheme 2. Synthesis of isoquinolinone via palladium-catalyzed C–H activation annulation. a Reaction conditions: N-methoxybenzamide (0.50 mmol), 2,3-allenoic acid esters (3 equiv.), Ag2CO3 (2 equiv.), DIPEA (2 equiv.), Pd(CH3CN)2Cl2 (10 mol%) in toluene (10 mL) was heated at 85 °C for 4 h. b Isolated yield.
Scheme 2. Synthesis of isoquinolinone via palladium-catalyzed C–H activation annulation. a Reaction conditions: N-methoxybenzamide (0.50 mmol), 2,3-allenoic acid esters (3 equiv.), Ag2CO3 (2 equiv.), DIPEA (2 equiv.), Pd(CH3CN)2Cl2 (10 mol%) in toluene (10 mL) was heated at 85 °C for 4 h. b Isolated yield.
Catalysts 07 00320 sch002aCatalysts 07 00320 sch002b
Catalysts 07 00320 sch003 550

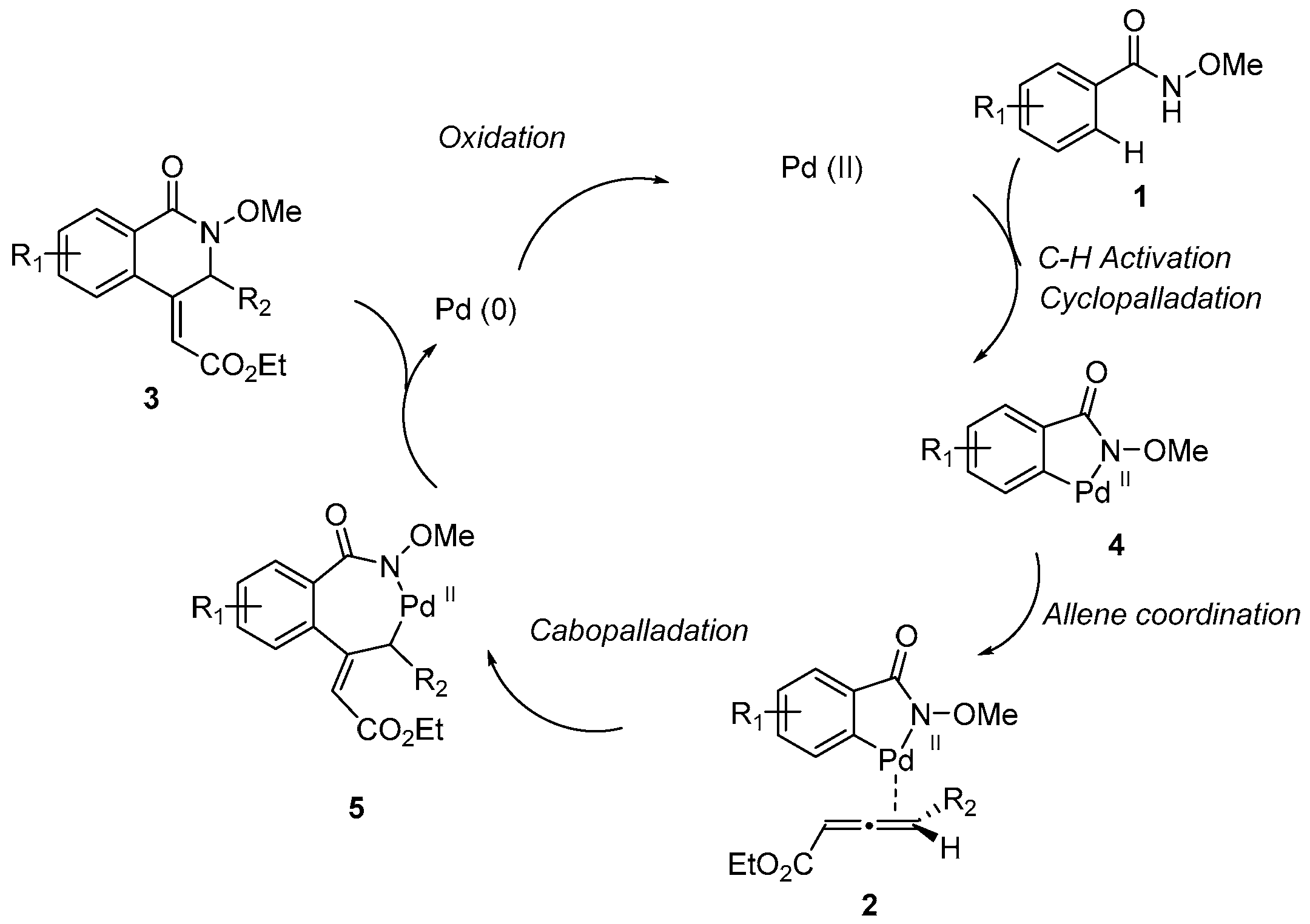

Scheme 3. Plausible mechanism of palladium-catalyzed C–H activation/annulation.
Scheme 3. Plausible mechanism of palladium-catalyzed C–H activation/annulation.
Catalysts 07 00320 sch003
Table
Table 1. Selected results for the optimization of the reaction conditions for oxidative annulation.1
Table 1. Selected results for the optimization of the reaction conditions for oxidative annulation.1
Catalysts 07 00320 i001
EntryCatalyst (10 mol%) Oxidant (equiv.)Temp (°C)Additive (equiv.)SolventYield (%) 2
1Pd(OAc)2Ag2CO3 (2)100-toluene45
2Pd(TFA)2Ag2CO3 (2)100-toluene43
3Pd(CH3CN)2Cl2Ag2CO3 (2)100-toluene65
4Pd(CH3CN)2Cl2Ag2O (2)100-toluene30
5Pd(CH3CN)2Cl2AgOAc (2)100-toluene35
6Pd(CH3CN)2Cl2Cu(OAc)2 (2)100-toluenetrace
7Pd(CH3CN)2Cl2O2 (1 atm)100-toluenetrace
8Pd(CH3CN)2Cl2Ag2CO3 (2)65-toluene10
9Pd(CH3CN)2Cl2Ag2CO3 (2)75-toluene35
10Pd(CH3CN)2Cl2Ag2CO3 (2)85-toluene73
11Pd(CH3CN)2Cl2Ag2CO3 (2)85K2CO3 (2)toluene70
12Pd(CH3CN)2Cl2Ag2CO3 (2)85Cs2CO3 (2)toluene63
13Pd(CH3CN)2Cl2Ag2CO3 (2)85DIPEA (2)toluene85
14Pd(CH3CN)2Cl2Ag2CO3 (2)85DBU (2)toluene15
15Pd(CH3CN)2Cl2Ag2CO3 (2)refluxDIPEA (2)THFnone
16Pd(CH3CN)2Cl2Ag2CO3 (2)85DIPEA (2)ClCH2CH2Cl20
17Pd(CH3CN)2Cl2Ag2CO3 (2)85DIPEA (2)DMFnone
1 Reaction conditions: 1a (0.5 mmol), 2a (3 equiv.), catalyst (10 mol%), additive (2 equiv.), oxidant (2 equiv.) in specific solvent was heated at the temperature indicated. 2 Yield of isolated compounds.
