Catalytic Performance of MgO-Supported Co Catalyst for the Liquid Phase Oxidation of Cyclohexane with Molecular Oxygen

by
Mingzhou Wu
,
Yu Fu
,
Wangcheng Zhan
*,
Yanglong Guo
,
Yun Guo
,
Yunsong Wang
and
Guanzhong Lu
*
Key Laboratory for Advanced Materials and Research Institute of Industrial Catalysis, School of Chemistry and Molecular Engineering, East China University of Science and Technology, Shanghai 200237, China
*
Authors to whom correspondence should be addressed.
Catalysts 2017, 7(5), 155; https://doi.org/10.3390/catal7050155
Submission received: 21 March 2017 / Revised: 27 April 2017 / Accepted: 9 May 2017 / Published: 13 May 2017
(This article belongs to the Special Issue Activation of Dioxygen and Liquid Phase Oxidation Catalysis for Fine Chemistry)
Browse Figures
Versions Notes

Abstract

:
A highly-efficient and stable MgO-supported Co (Co/MgO) catalyst was developed for the oxidation of cyclohexane with oxygen. The effects of the Co loading and support on the catalytic activity of the supported Co3O4 catalyst were investigated. The results show that the Co supported on MgO presented excellent activity and stability. When the Co/MgO catalyst with the Co content of 0.2 wt % (0.2%Co/MgO) was used, 12.5% cyclohexane conversion and 74.7% selectivity to cyclohexanone and cyclohexanol (KA oil) were achieved under the reaction conditions of 0.5 MPa O2 and 140 °C for 4 h. After being repeatedly used 10 times, its catalytic activity was hardly changed. Further research showed that the high catalytic performance of the 0.2%Co/MgO catalyst is attributed to its high oxygen-absorbing ability and the high ratio between the amount of weak and medium base sites with the help of the synergistic interaction between Co and MgO.

1. Introduction

The aerobic oxidation of cyclohexane is crucial in the chemical industry, because the products of this reaction—cyclohexanol and cyclohexanone (the mixture of the cyclohexanone and the cyclohexanol called KA oil in industry)—are important feedstock in a variety of reactions [1]. KA oil is also an indispensable intermediate for polyamide and plastics production, such as nylon 6 and nylon 66 [2,3,4]. Currently, the commercial production of cyclohexane oxidation is processed at about 150 °C under 1~2 MPa oxygen atmosphere over the homogeneous cobalt salt catalyst, in which a low conversion (~4%) is obtained to avoid the formation of side products and to obtain a high selectivity (~85%) toward KA oil [5]. Therefore, it is urgent to develop a new reaction process with a high cyclohexane conversion and high selectivity to KA oil.
To date, the varied reaction processes of cyclohexane oxidation have been exploited and can be distinguished by their different oxidants, mainly containing hydrogen peroxide (H2O2), tert-butyl hydroperoxide (TBHP) and oxygen. As a result, various kinds of catalysts have been developed based on the used oxidant and reaction system, such as metal coordination polymers [6,7,8,9,10], supported noble metals [11,12,13,14,15,16], supported metal complexes [17,18,19,20], metal doped-molecular sieves [21,22,23] and metal oxides [24,25,26]. There is great difference in the catalytic activity of the same catalyst for the cyclohexane oxidation under a different catalytic system. In general, the liquid reaction system using hydrogen peroxide and tert-butyl hydroperoxide is inclined to achieve a high cyclohexane conversion. For example, 15.97% conversion of cyclohexane can be achieved using CrCoAPO-5 molecular sieves with H2O2 oxidant and acetone solvent at 90 °C [27]. However, only 5.9% conversion of cyclohexane was obtained with 1.0 MPa O2 at 115 °C without any solvent using the CrCoAPO-5 catalyst [28]. However, due to ever-increasing environmental concerns, benign oxidation is urgently required for green chemistry, such as green oxidants, solvent-free reaction and heterogeneous catalysts. Hence, molecular oxygen as a kind of clean oxidant has garnered much more attention due to it being environmentally friendly and readily available in comparison to other oxidants [29].
The oxidation of cyclohexane without any solvent using O2 as an oxidant is a gas–solid–liquid reaction system, in which the reactants are difficult to turn into a product, leading to low conversion of cyclohexane generally. Even though significant progress has been made in the oxidation of cyclohexane with O2, a high conversion of cyclohexane and high selectivity to KA oil is still a challenge, in which the key problem is to develop a highly efficient catalyst that is environmentally benign, low-cost and with easy separation. Various heterogeneous catalysts were reported to be active in the oxidation of cyclohexane, mainly containing precious metals (Au, Pd) [11,12], modified molecular sieves (AlPO [30], Bi-MCM-41 [31], Au/ZSM-5 [29], Ce-HMS [23], etc.) and metal oxides [32,33,34]. Zhang et al. used Mn0.5Ce0.5Ox catalyst with mesoporous structure and rich porosity, which were in favor of fast mass transfer/diffusion and more active sites exposure, and 17.7% conversion of cyclohexane was obtained at 100 °C under 1.0 MPa O2 with CH3CN solvent for 12 h [24].
As is well-known, oxidation of cyclohexane follows the free radical mechanism [35], which requires plenty of surface defects on the catalyst to initiate the reaction. Therefore, metal oxides characterized by low cost, abundant surface hydroxyl and surface defects show potential application in the oxidation of cyclohexane. For example, 7.6% conversion of cyclohexane and selectivity of 89.1% to KA oil were achieved over the Co3O4 nanocrystals for cyclohexane oxidation with molecular oxygen [34]. In addition, the catalytic activity of Co3O4 could be improved by controlling its morphology and crystal face exposure. At the same time, its catalytic activity can also be enhanced by improving its surface area to increase the amount of active sites on the catalyst surface. For example, introducing Mn into Co3O4 to form Mn–Co mixed oxide can markedly enhance the catalytic activity and stability of Co3O4, over which 10.4% of cyclohexane conversion and 6.3% of KA oil yield were obtained [36].
In this paper, we prepared the Co3O4 supported on MgO catalysts for the oxidation of cyclohexane using molecular oxygen oxidant without any other solvent, and investigated the effects of the Co amount and the acid/base property of support on the physicochemical properties and catalytic performance of the Co3O4/MgO catalyst, and the improvement of its high catalytic performance by the synergistic effect between cobalt oxide and the MgO support. Using the hot filtration testing and recycle usage methods, the stability of the 0.2%Co/MgO catalyst was tested, and the results show that after being repeatedly used 10 times, the activity of this catalyst was hardly changed.

2. Results and Discussion

2.1. Effects of the Carrier and Co Loading

The effects of the carrier on the catalytic property of the 0.2% Co catalyst for the oxidation of cyclohexane are shown in Table 1. In the absence of any solvent with O2 oxidant, it is found that the catalytic activity of blank support was much lower than that of the prepared catalysts. The activity of the supported catalysts followed in the order of Co/MgO > Co/BaCO3 > Co/ZrO2 ≈ Co/SAPO-34 > Co/Al2O3 > Co/TiO2 > Co/SiO2 on the basis of the KA oil yield. The stronger basicity the support has, the higher its catalytic activity was. These results indicate that the basicity of the carrier and the interfacial interaction between the support and Co3O4 are critical to obtain the high activity catalyst. The increase in basicity or the electron of the support could enhance the net negative charge density on the support surface, and benefit the positively charged Co dispersion on the surface of the basic support. Similar phenomena were observed in the Al2O3, TiO2, SiO2 and MgO supported vanadium catalysts [37,38]. On the other hand, the increase in basicity of the support can accelerate the decomposition of intermediate product cyclohexyl hydroperoxide (CHHP) to cyclohexylperoxy radicals (ROO·). Subsequently, the propagation sequence can be enhanced, such as H abstraction from cyclohexane by ROO· to form CHHP accompanied by the formation of cyclohexyl radicals (R·). As a result, the activity of catalysts supported on the carrier with strong basicity for the oxidation of cyclohexane was improved [36]. Based on the results in Table 1, MgO was chosen as the support of the Co catalyst for cyclohexane oxidation.
Table 2 shows the catalytic performance of the MgO, Co3O4 and Co/MgO catalysts. By the GC-MS analysis, the main by-products were hexanoic acid, dicyclohexyl adipate, cyclohexyl caproate and adipic acid. As shown in the table, 1.1% conversion and 90.8% selectivity to KA oil were reached after reaction in the blank system without any catalyst. Over the pure MgO support, only 1.3% conversion of cyclohexane and 88.1% selectivity to KA oil were achieved, and in the N2 atmosphere, the oxidation products could not be detected, due to the absence of the oxidant. For the Co/MgO catalysts, their catalytic activities (based on the KA oil yield) were ranked in the order of 0.2%Co/MgO > 5.0%Co/MgO > 0.5%Co/MgO ≈ 1.0%Co/MgO > 3.0%Co/MgO > 0.1%Co/MgO > MgO. The catalytic activity of the 0.2%Co/MgO with 12.5% conversion of cyclohexane and 74.7% selectivity to KA oil was much higher than that of the physical mixture of Co3O4 and MgO catalyst (a conversion and selectivity of 6.1% and 64.5%). However, when air was used as an oxidant instead of O2, the conversion of cyclohexane and the selectivity to KA oil on the 0.2%Co/MgO declined to 3.2% and 90.1% in 0.5 Mpa air atmosphere, due to the decrease in the O2 pressure in the reaction system. These results indicate that Co3O4 supported on MgO is the main active component for the oxidation of cyclohexane, and 0.2%Co/MgO is an efficacious catalyst for cyclohexane oxidation using O2 oxidant. The Co dispersion (DCo) of the 0.2%Co/MgO was 7.5%, which was measured by the O2 pulse chemisorption [39]. TOF (turnover frequency) of 0.2%Co/MgO was calculated to be 8.2 s−1 by TOF = ∆n-ane/(nCo × DCo ×T) (-ane denotes the cyclohexane; ∆n-ane—the converted cyclohexane (mol); nCo—the Co amount in the catalyst (moL); T—the reaction time (s)). As shown in Table 2, compared with the Co-TUD-1 [40] and Au/MgO catalysts [35], the 0.2%Co/MgO catalyst exhibits higher catalytic activity for the oxidation of cyclohexane under similar reaction conditions.
Other researchers reported that a free-radical initiator (for example, TBHP) can improve the catalytic activity of the catalyst by accelerating the auto-oxidation process at the initiation stage using O2 oxidant [34]. Here, the effect of TBHP on the oxidation reaction over the 0.2%Co/MgO catalyst was also examined. As shown in Table 2, in the presence of TBHP, the conversion of cyclohexane was increased to 15.6%, and the yield of KA oil reached 10.5%. However, in the presence of the free-radical scavenger (hydroquinone), the process of oxidation was almost forced to stop, that is to say, this reaction procedure based on the free radical mechanism [41].

2.2. Structure and Surface Properties

XRD (X-ray powder diffraction). As shown in Figure 1, there are diffraction peaks of MgO at 2θ = 37.0, 42.9, 62.3, 74.7, and 78.7° (JCPDS No. 45-0946) for all the samples. With the increase in the Co loading, the diffraction peaks of MgO weakened gradually. In the XRD patterns of the Co/MgO catalysts, even though the Co loading reached 5.0%, the diffraction peaks of Co3O4 and CoO were not observed, due to high dispersion of Co on the MgO support. The crystallite size of the catalysts was calculated on the basis of the diffraction peak of (200) plane by the Scherrer formula. As shown in Table 3, MgO exhibited the biggest crystallite size (36.6 nm), and after Co oxide was supported, the crystallite sizes of the Co/MgO became smaller. With increasing Co amount, the crystallite size of the Co/MgO catalyst increased and then decreased, and 1.0%Co/MgO possessed the biggest crystallite size (24.5 nm). For the d200 spacing and cell parameter (a0), there is no obvious difference between the MgO support and Co/MgO samples with a different Co amount. However, after supporting Co on the MgO support, its BET (Brunner−Emmet−Teller measurement) surface area was increased from 15.0 to 58.7 m2 g−1 (0.2%Co/MgO), then gradually decreased from 58.7 to 41.2 m2 g−1 with the increase in the Co amount from 0.2% to 3.0%. When the Co amount was increased to 5.0%, the surface area of 5%Co/MgO instead increased to 51 m2/g, due to its smaller crystallite size (12.4 nm).
Co laser Raman spectroscopy (LRS). LRS is usually used to measure the surface properties of solid materials, especially for transition metal oxides, because it is able to sensitively probe the bonds of solid material and the surface structures by analyzing their vibration spectra. Laser Raman spectra of the MgO and Co/MgO catalysts are shown in Figure 2. The Raman spectrum of MgO did not show any characteristic bands in the region of 100~1500 cm−1 [42]. The band at 1100 cm−1 can be attributed to a disorder-induced two-phonon band [43], and is obvious in the Raman spectrum of 0.2%Co/MgO compared with other Co/MgO samples. Some vibration bands at 569~582 cm−1 appeared in the Raman spectra of 3%~5%Co/MgO catalysts and resulted from the substitution of Co ions by Mg ions in the solid [44]. The band at 660~680 cm−1 is the characteristic band of the octahedral sites (CoO6) and is assigned to the A1g symmetry mode in the Oh7 spectroscopic space group [45,46]. The weak band at 189 cm−1 of the 5%Co/MgO catalyst is attributed to the characteristic vibration mode of F2g3 symmetry from the tetrahedral sites (CoO4). For the A1g vibration mode, it shifts toward lower wavenumber with the increase in the Co amount, which indicates the highly defective structure in Co oxide [47,48]. Therefore, the Co/MgO catalysts are partially covered by Co oxide, and the surface defects are increased by increasing the Co amount from 3% to 5%, which is beneficial to the higher activity of the 5%Co/MgO catalyst compared with the 3%Co/MgO catalyst.
XPS (X-ray photoelectron spectroscopy). The XPS O 1s, Mg 1s and Co 2p spectra of the Co/MgO samples are shown in Figure 3. Table 4 shows the surface composition of the Co/MgO samples based on the XPS data. The results show that all Co/MgO catalysts exhibited a similar XPS O 1s spectra, in which two sub-peaks can be resolved at binding energy of ~529.4 eV and ~531.2 eV. The peak located at lower binding energy corresponds to the lattice oxygen O2− (Olat), and the one at higher binding energy can be assigned to Oads that includes the surface oxygen (O22− or O−) belonging to the defective oxide or hydroxyl-like group and weakly bonded oxygen species [49,50,51]. The ratio of Oads/(Olat + Oads) on the Co/MgO samples is similar except for the 0.5%Co/MgO sample, as shown in Table 1. The 0.5%Co/MgO sample shows the lowest ratio of Oads/(Olat + Oads) of 0.47. To a certain extent, this trend is opposite to their activity for cyclohexane oxidation. In the XPS Mg 1s spectra of the Co/MgO samples, there is only one peak at binding energy of 1304.4 eV, and no obvious difference can be observed with the increase in the Co amount. Because of the low Co amount, no peak was shown in the XPS Co 2p spectrum of the 1.0%Co/MgO sample. However, the 3.0%Co/MgO and 5.0%Co/MgO samples exhibit two peaks assigned to Co3+ and Co2+ at binding energy of 780.6 eV and 782.0 eV, respectively. In addition, the peak at about 787.4 eV is the satellite peak of Co 2p [52,53]. Compared with the atomic ratios of Co3+/Co (0.7) and Co3+/Co2+ (2.0) on the surface of the 5.0%Co/MgO catalyst, the corresponding values of the 3.0%Co/MgO catalyst are 0.6 and 2.0. These results indicate the same valence state of Co in the 3.0%Co/MgO and 5.0%Co/MgO samples. Therefore, the difference in their catalytic activities is due to other structure factors.

2.3. Surface Basic Property (Temperature Programmed Desorption of CO2 (CO2-TPD))

CO2-TPD was used to investigate the surface basicity of the Co/MgO catalysts and the CO2-TPD results of the MgO and Co/MgO samples are shown in Figure 4a. In the CO2-TPD pattern of the MgO support, there are three CO2 desorption peaks (α at 75 °C, β at 160 °C, γ at 235 °C) at <400 °C, which can be assigned as different kinds of basic sites with two strengths, i.e., “weak” (30~115 °C), “medium” (115~375 °C) basic sites; the desorption peak at >400 °C is ascribed to the “strong” basic sites. The “weak” sites probably correspond to Brönsted basicity, which most likely originates from the hydroxyl groups on the surface. The “medium” and “strong” sites are most likely associated with Lewis basicity which resulted from the three- and four-fold-coordinated O2− anions [48]. As is well-known, the surface of most oxides is hydroxylated due to the dissociative chemisorption of water [54].
After cobalt oxide was loaded onto the MgO support, the positions of desorption peaks are hardly changed, this is to say, the surface acidic strength on the Co/MgO is unchanged, but their peak areas are increased obviously, which may be ascribed to the increase in the surface area with increasing Co amount (Table 3). At this stage, the numbers of the weak and medium base sites per square meter were calculated and the results are listed in Table 5. With the increase in the Co loading, the weak base density (a.u. m−2) per square meter is decreased from 4.7 to 3.2 a.u. m−2 except for the 5.0%Co/MgO catalyst (5.2 a.u. m−2); for the medium base sites, there is no obvious change tendency. The ratios of weak base/medium base and weak base/(weak + medium) base were ranked in the order of 0.2%Co/MgO > 5.0%Co/MgO > 0.5%Co/MgO > 1.0%Co/MgO > 3.0%Co/MgO > MgO. The trends of KA oil yield and the ratio of weak base/medium base are shown in Figure 4b, and the consistency between them is illustrated. Therefore, the relative amount of weak base sites compared with medium base sites is one of the key parameters that influences the catalytic activity of the Co/MgO catalyst for the oxidation of cyclohexane.

2.4. Redox Property (H2 Temperature-Programmed Reduction (H2-TPR) and Temperature Programmed Desorption of O2 (O2-TPD))

The H2-TPR profiles of the MgO and Co/MgO samples are shown in Figure 5. Note that there are two negative peaks at ~330 °C and ~400 °C in the H2-TPR profiles of the MgO, 0.2%Co/MgO, 0.5%Co/MgO and 1.0%Co/MgO catalysts, which could be attributed to the release of H2 adsorbed on the catalyst surface, because MgO is an excellent hydrogen storage material [55]. When the Co loading was ≤1.0%, the Co3O4 reduction peaks could not be observed, which is probably because the amount of hydrogen released from MgO is much greater than the amount of hydrogen consumed for the Co3O4 reduction. In the TPR profiles of the 3.0%Co/MgO and 5.0%Co/MgO catalysts, there is a similar reduction peak at 350 °C~500 °C, which is ascribed to the reduction of Co3O4 [37,48,56]. Its H2 consumption amount is increased with the increase in the Co amount. Compared with the 3.0%Co/MgO catalyst, the reduction peak of the 5.0%Co/MgO catalyst moves to a lower temperature. This result indicates the better reduction property of 5.0%Co/MgO, which is favorable to improve its catalytic activity, since the decomposition of reaction intermediate cyclohexyl hydroperoxide (CHHP) is proposed to involve one-electron redox cycles [26,30].
In the O2-TPD profiles of 0.2%Co/MgO, 0.5%Co/MgO, 1.0%Co/MgO and 3.0%Co/MgO (Figure 6), there are two broad peaks at 95~500 °C, and only one peak is observed at <290 °C for the 5.0%Co/MgO sample. Generally, the difficulty in desorption of oxygen species from the catalyst is in the following sequence: O2 (ad) ˂ O2− (ad) ˂ O− (ad) ˂ O2− (lattice) [57,58]. In the O2-TPD profiles over the Co/MgO catalysts, the desorption peaks below 95 °C are assigned to physically adsorbed oxygen, and the α peak at 95~290 °C can be ascribed to chemically adsorbed oxygen O2 (ad) or O2− (ad) species [58]. The β peak at 290~500 °C can be ascribed to weak surface lattice oxygen O2− (surface) and chemically absorbed oxygen O− (ad) on the vacancies. Besides, bulk lattice oxygen O2− (lattice) can be desorbed at high temperature (> 750 °C) [59]. More attention should be paid to the α and β peaks because only chemically adsorbed oxygen and surface lattice oxygen can participate in the oxidation reaction. When the Co amount was increased to 5.0%, its α peak reached the maximum value (5.2, a.u. peak area). For the β peak, it was decreased with the increase in the Co amount. The total area of α and β peaks is decreased in the order of 0.2%Co/MgO (9.8) > 0.5%Co/MgO (5.7) ≈ 1.0%Co/MgO (5.5) > 3.0%Co/MgO (4.8), which coincides with the change order of the catalytic activity shown in Table 2.

2.5. SEM (scanning electron microscope) and TEM (transmission electron microscope) Images

The SEM images of the catalysts are shown in Figure 7. The 0.2%Co/MgO and 5.0%Co/MgO catalysts exhibited a similar and sheet-like morphology with a clear boundary and interconnection; with the increase in the Co amount, many pores developed in the sheet crystallites, which shows that the sheets consisted of many small particles by aggregation. In the TEM image of 0.2%Co/MgO (Figure 8a), the Co3O4 was well dispersed on the MgO surface with a tiny (0.2%) Co amount, which meant that the lattice fringes of the Co3O4 could not be observed during the TEM measurement; the stripe type particles with 30~50 nm × 100 nm should result from the MgO support. In comparison with the 0.2%Co/MgO catalyst, the 5.0%Co/MgO sample exhibited smaller Co3O4 particles, consistent with the crystallite size (Table 3). However, the interplanar spacings of 0.46 nm and 0.20 nm, assigned to the (111) and (400) planes of Co3O4, can be observed in HTEM (high resolution transmission electron microscopy) image of 5%Co/MgO catalyst [60,61].

2.6. The Stability of the 0.2%Co/MgO Catalyst

Firstly, the hot filtration experiment was adopted to test the stability of the 0.2%Co/MgO catalyst [62]. The reaction solution was filtered after 1.5 h of reaction, and then kept at 140 °C for a further 2.5 h under the same conditions. It was found that the cyclohexane conversion in the filtrate was slightly increased from 6.0% to 6.5%, which is much lower than that (12.5%) over the catalyst at 140 °C for 4 h.
Subsequently, the catalytic performance of the recycled 0.2%Co/MgO catalyst was tested with the same procedure as its first reaction, and the results for repeated usage (10 times) are shown in Figure 9. It is found that the cyclohexane conversion and the selectivity of KA oil are hardly changed after being repeatedly used 10 times. This research indicates the relative stability of the 0.2%Co/MgO catalyst for the oxidation of cyclohexane. After the first run, the contents of Co and Mg were measured to be 0.62 ppm and 0.78 ppm in the reaction solution by inductively coupled plasma atomic emission spectroscopy (ICP-AES), which indicates barely any Co and Mg loss during the reaction. Further, analysis of the mass ratio of Co/Mg in the 0.2%Co/MgO catalyst by ICP-AES showed that the Co loading is the same as the fresh catalyst after being repeatedly used 10 times, that is, 0.2%Co on MgO is not varied.
Unfortunately, as shown in the TEM/SEM images (Figure 10), the structure and morphology of the 0.2%Co/MgO catalyst have been changed to some degree, because the regenerated catalyst was calcinated at 500 °C for 2 h after every run. However, the diffraction peaks of Co3O4 and CoO were still not observed in the XRD pattern (Figure 10) of the catalyst after the tenth recycling cycle, indicating a high dispersion of Co on the MgO support. That is the reason why the activity of the regenerated catalyst for cyclohexane oxidation can be retained.

3. Materials and Methods

3.1. Synthesis of Catalysts

The MgO-supported Co catalysts with different Co content were synthesized by the incipient impregnation method whilst controlling the dosage of Co(NO3)2·6H2O (Sinopharm Chemical Reagent Co., Ltd., Beijing, China). The prepared catalysts were kept in an 80 °C drying oven overnight, followed by calcination at 500 °C for 4 h in static air. The obtained catalysts were designed as x%Co/MgO, where x was the Co content in the prepared catalysts determined by inductively coupled-plasma atomic emission spectroscopy, i.e., 0.2, 0.5, 1.0, 3.0 or 5.0.
The MgO support was purchased from Sinopharm Chemical Reagent Co. Ltd. ZrO2 (Sinopharm Chemical Reagent Co., Ltd., Beijing, China), TiO2 (Sinopharm Chemical Reagent Co., Ltd., Beijing, China), BaCO3 (Sinopharm Chemical Reagent Co., Ltd., Beijing, China), SiO2 (Sinopharm Chemical Reagent Co., Ltd., Beijing, China), Al2O3 (commercial, Jiangyan, China), and SAPO-34 (commercial, Shanghai, China) were used as the support materials, and the 0.2%Co/support catalysts were prepared with the same procedure as the Co/MgO catalyst.
Co3O4 was prepared by the precipitation method with the Co(NO3)2·6H2O aqueous solution and the NaOH (Sinopharm Chemical Reagent Co., Ltd., Beijing, China) aqueous solution as the precipitant. Typically, 1 M NaOH solution was dropped to 200 mL 0.2 M Co(NO3)2 solution under stirring until the pH of the synthesis solution was 8. After this synthesis solution was stirred for 6 h, the formed solids were collected by filtration, dried within a 120 °C oven, and kept for 4 h in a 500 °C furnace in the air atmosphere. A physical mixture of 0.2%Co and MgO was prepared by Co3O4 (equivalent 0.2 wt % Co) and MgO.

3.2. Characterization of Catalysts

The XRD characterization was obtained by a Bruker D8 Focus X-ray diffractometer equipped with CuKα radiation (λ = 0.15406 nm). N2 adsorption–desorption isotherms were conducted on an ASAP 2010 equipment (Micromeritics Co., Ltd., Atlanta, GA, USA). Scanning electron microscope (SEM) photos were obtained on a JSM-6360LV microscope (JEOL, Tokyo, Japan). Transmission electron microscopy (TEM) photographs were obtained by a JEM-2100 (JEOL, Tokyo, Japan) instrument, and the catalyst was dispersed on a copper grid in ethanol solution. The bulk composition of the catalyst was measured by inductively coupled plasma atomic emission spectroscopy (ICP) analysis on an Agilent 725 ES instrument (Palo Alto, CA, USA). Laser Raman spectra (LRS) were collected through a Renishaw spectrometer adopted with a 514-nm line of a Spectra Physics Ar+ laser.
H2 temperature-programmed reduction (H2-TPR) curves were tested on a PX200 apparatus (Tianjin Golden Eagle Technology Limited Corporation, Tianjin, China) and detected by TCD (thermal conductivity detector). The catalyst of 50 mg was heated to 800 °C at 10 °C min−1 in the 5 vol % H2/N2 reduction atmosphere with a gas flow rate of 45 mL min−1.
Temperature programmed desorption of CO2 (CO2-TPD) and O2-TPD were conducted on a conventional flow system equipped with a U-shape quartz reactor and a mass spectrometer (HIDEN HPR 20, Warrington, England). A 100-mg sample was used and pre-treated in He (50 mL min−1) at 400 °C for 30 min followed by cooling to ambient temperature. The catalyst was exposed to CO2 (50 mL min−1) or 3 vol % O2/He (50 mL min−1) for 1 h, and then purged with He for 1 h at ambient temperature. The catalyst was then heated from ambient temperature to 800 °C at a speed of 10 °C min−1 under He flow gas (50 mL min−1). The desorption amount of CO2/O2 was detected by the mass spectrometer.

3.3. Catalytic Activity Testing

The catalytic procedure of cyclohexane oxidation was carried out in a stainless-steel batch tank reactor (50 mL) equipped with an explosion-proof pressure sensor and a magnetic stirrer [63]. A 20-mg catalyst (~3000 mesh) and 4.0 g of cyclohexane were added to the reactor. After purging with oxygen three times, the reactor was charged to 0.5 MPa and then heated to 140 °C under stirring at a speed of 800 rpm and maintained for 4 h. In some cases, hydroquinone (free-radical scavenger) and tert-butyl hydroperoxide (TBHP, free-radical initiator) were used by adding them into the reaction system. Under the conditions of 4.0 g of cyclohexane, 20 mg catalyst, 140 °C and 0.5 MPa O2, the effect of the diffusion on the conversion of cyclohexane was excluded by changing the granular size of the catalyst and rotation speed, that is to say, the oxidation reaction occurred in the kinetics control region.
After the autoclave was thoroughly cooled, a certain amount of ethanol was added to the product mixture to dissolve all of the by-products, followed by separation of the catalyst with centrifugation. An amount of 0.25 g of methylbenzene was added to the reaction mixture as an internal standard substance. Excess triphenylphosphine (PPh3) was used to decompose cyclohexyl hydroperoxide (CHHP) to cyclohexanol in a mixture solution before analysis because of the easy decomposition of CHHP in the GC injector [64,65]. The remaining amount of cyclohexane and the main resultant cyclohexanol and cyclohexanone were quantified by an Agilent gas chromatograph (7890B) assembled with a FID (flame ionization detector) and HP-5 column. Other products were further identified by GC-MS (Agilent 7890A-5975C, Palo Alto, CA, USA). Formed acids were titrated by 0.1 M NaOH aqueous solution.
The conversion of cyclohexane (X), the selectivity (S) to cyclohexanol (A) or cyclohexanone (K) and the yield (Y) of KA oil were calculated by the following formulas:
X = n - a n e ( s u b s t r a t e ) − n - a n e ( r e s i d u a l ) n - a n e ( s u b s t r a t e ) × 100 %
S - n o l ( o r   - n o n e ) = n - n o l ( o r   - n o n e ) n - a n e ( s u b s t r a t e ) − n - a n e ( r e s i d u a l ) × 100 %
Y K A = ( S - n o l + S - n o n e ) × X
where n-nol and n-none denote the mole amount of cyclohexanol and cyclohexanone in the products mixture. n-ane (substrate) and n-ane (residual) refer to the mole amount of cyclohexane substrate and the remaining amount in the system, respectively.

3.4. Repeated Usage of the Catalyst

The 0.2%Co/MgO sample was collected from the mixture by filtration after each reaction. After being washed with ethyl alcohol three times under stirring, the catalyst was dried at 80 °C and calcined in atmosphere at 500 °C for 2 h, obtaining our regenerated catalyst. If necessary, the regenerated catalyst was supplemented with live catalyst, and the activity property of the regenerated catalyst was tested under the same operational process as the live catalyst.

4. Conclusions

In summary, changing the Co loading (0.2~5 wt %) and support would affect the bulk compositions, surface areas, surface oxygen species, basicity and reactivity of supported Co oxide catalyst. Furthermore, for the cyclohexane oxidation by oxygen, alkaline MgO is an appropriate support for Co3O4, and its catalytic activity was ranked in the order of 0.2%Co/MgO > 5.0%Co/MgO > 0.5%Co/MgO ≈ 1.0%Co/MgO > 3.0%Co/MgO > MgO, which is the same as the rank for the ratios of weak base/medium base and weak base/(weak + medium) base of the Co/MgO catalysts, and similar to the change tendency for their ratio of Oads/(Oads + Olat) calculated by the XPS data and the oxygen-absorbing ability. Over the 0.2%Co/MgO catalyst, conversion of cyclohexane up to 12.5% and selectivity to KA oil up to 74.7% can be achieved at 140 °C reacted for 4 h, and its TOF reached 8.2 s−1, which is higher than the results reported. After being repeatedly used 10 times, the activity of the 0.2%Co/MgO catalyst was hardly changed, showing that this catalyst has good operational stability. The high catalytic performance of the 0.2%Co/MgO catalyst should be attributed to its high oxygen-absorbing ability and the high ratio between the amount of weak and medium base sites with the help of the synergistic interaction between Co and MgO.

Acknowledgments

This project was supported financially by the National Natural Science Foundation of China (91545103, 21103048) and the Fundamental Research Funds for the Central Universities (222201717003).

Author Contributions

G.L. and W.Z. conceived and designed the experiments; M.W. and Y.F. performed the experiments. M.W. and W.Z. analyzed the data; M.W. wrote the manuscript; Y.G., Y.G. and Y.W. contributed reagents/materials/analysis tools; M.W., W.Z. and G.L. modified the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Clerici, M.G.; Kholdeeva, O.A. Liquid Phase Oxidation via Heterogeneous Catalysis: Organic Synthesis and Industrial Applications; John Wiley & Sons: Hoboken, NJ, USA, 2013; ISBN 1118356756. [Google Scholar]
  2. Schuchardt, U.; Carvalho, W.A.; Spinacé, E.V. Why is it interesting to study cyclohexane oxidation? Synlett 1993, 1993, 713–718. [Google Scholar] [CrossRef]
  3. Sakthivel, A.; Selvam, P. Mesoporous (Cr)MCM-41: A mild and efficient heterogeneous catalyst for solvent oxidation of cyclohexane. J. Catal. 2002, 211, 134–143. [Google Scholar] [CrossRef]
  4. Gómez-Hortigüela, L.; Corà, F.; Catlow, C.R.A. Aerobic oxidation of hydrocarbons catalyzed by Mn-doped nanoporous aluminophosphates(I): Preactivation of the Mn sites. ACS Catal. 2010, 1, 18–28. [Google Scholar] [CrossRef]
  5. Schuchardt, U.; Cardoso, D.; Sercheli, R.; Pereira, R.; de Cruz, R.S.; Guerreiro, M.C.; Mandelli, D.; Spinace, E.V.; Fires, E.L. Cyclohexane oxidation continues to be a challenge. Appl. Catal. A Gen. 2001, 211, 1–17. [Google Scholar] [CrossRef]
  6. Kirillov, A.M.; Haukka, M.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Preparation and crystal structures of benzoylhydrazido- and-diazenidorhenium complexes with N,O-ligands and their catalytic activity towards peroxidative oxidation of cycloalkanes. Eur. J. Inorg. Chem. 2005, 11, 2071–2080. [Google Scholar] [CrossRef]
  7. Gupta, S.; Kirillova, M.V.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L.; Kirillov, A.M. Alkali metal directed assembly of heterometallic Vv/M (M = Na, K, Cs) coordination polymers: Structures, topological analysis, and oxidation catalytic properties. Inorg. Chem. 2013, 52, 8601–8611. [Google Scholar] [CrossRef] [PubMed]
  8. Dias, S.S.P.; Kirillova, M.V.; André, V.; Kłak, J.; Kirillov, A.M. New tetracopper(II) cubane cores driven by a diamino alcohol: Self-assembly synthesis, structural and topological features, and magnetic and catalytic oxidation properties. Inorg. Chem. 2015, 54, 5204–5212. [Google Scholar] [CrossRef] [PubMed]
  9. Fernandes, T.A.; Santos, C.I.M.; André, V.; Kłak, J.; Kirillova, M.V.; Kirillov, A.M. Copper(II) coordination polymers self-assembled from aminoalcohols and pyromellitic acid: Highly active precatalysts for the mild water-promoted oxidation of alkanes. Inorg. Chem. 2016, 55, 125–135. [Google Scholar] [CrossRef] [PubMed]
  10. Kirillov, A.M.; Kirillova, M.V.; Pombeiro, A.J.L. Chapter one—Homogeneous multicopper catalysts for oxidation and hydrocarboxylation of alkanes. In Advances in Inorganic Chemistry; Rudi van, E., Colin, D.H., Eds.; Academic Press: Cambridge, MA, USA, 2013; Volume 65, pp. 1–31. ISBN 0898-8838. [Google Scholar]
  11. Long, J.L.; Liu, H.L.; Wu, S.J.; Liao, S.J.; Li, Y.W. Selective oxidation of saturated hydrocarbons using Au-Pd alloy nanoparticles supported on metal-organic frameworks. ACS Catal. 2013, 3, 647–654. [Google Scholar] [CrossRef]
  12. Wang, L.; Zhao, S.; Liu, C.; Li, C.; Li, X.; Li, H.; Wang, Y.; Ma, C.; Li, Z.; Zeng, J. Aerobic oxidation of cyclohexane on catalysts based on twinned and single-crystal Au75Pd25 bimetallic nanocrystals. Nano Lett. 2015, 15, 2875–2880. [Google Scholar] [CrossRef] [PubMed]
  13. Mohamed, M.M. Gold loaded titanium dioxide-carbon nanotube composites as active photocatalysts for cyclohexane oxidation at ambient conditions. RSC Adv. 2015, 5, 46405–46414. [Google Scholar] [CrossRef]
  14. Carabineiro, S.A.C.; Martins, L.M.D.R.S.; Avalos-Borja, M.; Buijnsters, J.G.; Pombeiro, A.J.L.; Figueiredo, J.L. Gold nanoparticles supported on carbon materials for cyclohexane oxidation with hydrogen peroxide. Appl. Catal. A Gen. 2013, 467, 279–290. [Google Scholar] [CrossRef]
  15. De Almeida, M.P.; Martins, L.M.D.R.S.; Carabineiro, S.A.C.; Lauterbach, T.; Rominger, F.; Hashmi, A.S.K.; Pombeiro, A.J.L.; Figueiredo, J.L. Homogeneous and heterogenised new gold C-scorpionate complexes as catalysts for cyclohexane oxidation. Catal. Sci. Technol. 2013, 3, 3056–3069. [Google Scholar] [CrossRef]
  16. Martins, L.M.D.R.S.; Carabineiro, S.A.C.; Wang, J.; Rocha, B.G.M.; Maldonado-Hódar, F.J.; Latourrette de Oliveira Pombeiro, A.J. Supported gold nanoparticles as reusable catalysts for oxidation reactions of industrial significance. ChemCatChem 2017, 9, 1211–1221. [Google Scholar] [CrossRef]
  17. Jiang, Y.X.; Su, T.M.; Qin, Z.Z.; Huang, G. A zinc sulfide-supported iron tetrakis (4-carboxyl phenyl) porphyrin catalyst for aerobic oxidation of cyclohexane. RSC Adv. 2015, 5, 24788–24794. [Google Scholar] [CrossRef]
  18. Feng, Z.; Xie, Y.J.; Hao, F.; Liu, P.L.; Luo, H.A. Catalytic oxidation of cyclohexane to KA oil by zinc oxide supported manganese 5,10,15,20-tetrakis(4-nitrophenyl)porphyrin. J. Mol. Catal. A Chem. 2015, 410, 221–225. [Google Scholar] [CrossRef]
  19. Mishra, G.S.; Alegria, E.C.B.; Martins, L.M.D.R.S.; Fraústo da Silva, J.J.R.; Pombeiro, A.J.L. Cyclohexane oxidation with dioxygen catalyzed by supported pyrazole rhenium complexes. J. Mol. Catal. A Chem. 2008, 285, 92–100. [Google Scholar] [CrossRef]
  20. Martins, L.M.D.R.S.; de Almeida, M.P.; Carabineiro, S.A.C.; Figueiredo, J.L.; Pombeiro, A.J.L. Heterogenisation of a C-scorpionate feii complex on carbon materials for cyclohexane oxidation with hydrogen peroxide. ChemCatChem 2013, 5, 3847–3856. [Google Scholar] [CrossRef]
  21. Devika, S.; Palanichamy, M.; Murugesan, V. Vapour phase oxidation of cyclohexane over CeAlPO-5 molecular sieves. J. Mol. Catal. A Chem. 2011, 351, 136–142. [Google Scholar] [CrossRef]
  22. Anand, R.; Hamdy, M.S.; Hanefeld, U.; Maschmeyer, T. Liquid-Phase oxidation of cyclohexane over Co-TUD-1. Catal. Lett. 2004, 95, 113–117. [Google Scholar] [CrossRef]
  23. Li, J.; Shi, Y.; Xu, L.; Lu, G.Z. Selective oxidation of cyclohexane over transition-metal-incorporated HMS in a solvent-free system. Ind. Eng. Chem. Res. 2010, 49, 5392–5399. [Google Scholar] [CrossRef]
  24. Zhang, P.F.; Lu, H.F.; Zhou, Y.; Zhang, L.; Wu, Z.L.; Yang, S.Z.; Shi, H.L.; Zhu, Q.L.; Chen, Y.F.; Dai, S. Mesoporous MnCeOx solid solutions for low temperature and selective oxidation of hydrocarbons. Nat. Commun. 2015, 6, 8446. [Google Scholar] [CrossRef] [PubMed]
  25. Zabihi, M.; Khorasheh, F.; Shayegan, J. Supported copper and cobalt oxides on activated carbon for simultaneous oxidation of toluene and cyclohexane in air. RSC Adv. 2015, 5, 5107–5122. [Google Scholar] [CrossRef]
  26. Aboelfetoh, E.F.; Pietschnig, R. Preparation, characterization and catalytic activity of MgO/SiO2 supported vanadium oxide based catalysts. Catal. Lett. 2014, 144, 97–103. [Google Scholar] [CrossRef]
  27. Liu, D.C.; Zhang, B.Q.; Liu, X.F.; Li, J. Cyclohexane oxidation over AFI molecular sieves: Effects of Cr, Co incorporation and crystal size. Catal. Sci. Technol. 2015, 5, 3394–3402. [Google Scholar] [CrossRef]
  28. Masters, A.F.; Beattie, J.K.; Roa, A.L. Synthesis of a CrCoAPO-5(AFI) molecular sSieve and its activity in cyclohexane oxidation in the liquid phase. Catal. Lett. 2001, 75, 159–162. [Google Scholar] [CrossRef]
  29. Zhao, R.; Ji, D.; Lv, G.M.; Qian, G.; Yan, L.; Wang, X.L.; Suo, J.S. A highly efficient oxidation of cyclohexane over Au/ZSM-5 molecular sieve catalyst with oxygen as oxidant. Chem. Commun. 2004, 7, 904–905. [Google Scholar] [CrossRef] [PubMed]
  30. Modén, B.; Oliviero, L.; Dakka, J.; Santiesteban, J.G.; Iglesia, E. Structural and functional characterization of redox mn and co sites in alpo materials and their role in alkane oxidation catalysis. J. Phys. Chem. B 2004, 108, 5552–5563. [Google Scholar] [CrossRef]
  31. Qian, G.; Ji, D.; Lu, G.M.; Zhao, R.; Qi, Y.X.; Suo, J.S. Bismuth-containing MCM-41: Synthesis, characterization, and catalytic behavior in liquid-phase oxidation of cyclohexane. J. Catal. 2005, 232, 378–385. [Google Scholar] [CrossRef]
  32. Perkas, N.; Koltypin, Y.; Palchik, O.; Gedanken, A.; Chandrasekaran, S. Oxidation of cyclohexane with nanostructured amorphous catalysts under mild conditions. Appl. Catal. A Gen. 2001, 209, 125–130. [Google Scholar] [CrossRef]
  33. Perkas, N.; Wang, Y.; Koltypin, Y.; Gedanken, A.; Chandrasekaran, S. Mesoporous iron-titania catalyst for cyclohexane oxidation. Chem. Commun. 2001, 11, 988–989. [Google Scholar] [CrossRef]
  34. Zhou, L.P.; Xu, J.; Miao, H.; Wang, F.; Li, X.Q. Catalytic oxidation of cyclohexane to cyclohexanol and cyclohexanone over Co3O4 nanocrystals with molecular oxygen. Appl. Catal. A Gen. 2005, 292, 223–228. [Google Scholar] [CrossRef]
  35. Conte, M.; Liu, X.; Murphy, D.M.; Whiston, K.; Hutchings, G.J. Cyclohexane oxidation using Au/MgO: An investigation of the reaction mechanism. Phys. Chem. Chem. Phys. 2012, 14, 16279–16285. [Google Scholar] [CrossRef] [PubMed]
  36. Wu, M.Z.; Zhan, W.C.; Guo, Y.L.; Guo, Y.; Wang, Y.S.; Wang, L.; Lu, G.Z. An effective Mn-Co mixed oxide catalyst for the solvent-free selective oxidation of cyclohexane with molecular oxygen. Appl. Catal. A Gen. 2016, 523, 97–106. [Google Scholar] [CrossRef]
  37. Aboelfetoh, E.F.; Pietschnig, R. Preparation and catalytic performance of Al2O3, TiO2 and SiO2 supported vanadium based-catalysts for C–H activation. Catal. Lett. 2009, 127, 83–94. [Google Scholar] [CrossRef]
  38. Masteri-Farahani, M. Investigation of catalytic activities of new heterogeneous molybdenum catalysts in epoxidation of olefins. J. Mol. Catal. A Chem. 2010, 316, 45–51. [Google Scholar] [CrossRef]
  39. Kim, P.S.; Kim, M.K.; Cho, B.K.; Nam, I.S. Autocatalytic synergism observed during lean-NOx reduction with a bifunctional reductant over Ag/Al2O3 catalyst. J. Catal. 2012, 292, 44–52. [Google Scholar] [CrossRef]
  40. Ramanathan, A.; Hamdy, M.S.; Parton, R.; Maschmeyer, T.; Jansen, J.C.; Hanefeld, U. Co-TUD-1 catalysed aerobic oxidation of cyclohexane. Appl. Catal. A Gen. 2009, 355, 78–82. [Google Scholar] [CrossRef]
  41. Tolman, C.A.; Druliner, J.D.; Nappa, M.J.; Herron, C. Activation and Functionalisation of Alkanes; Hill, C.L., Ed.; Wiley: New York, NY, USA, 1989. [Google Scholar]
  42. Cazzanelli, E.; Kuzmin, A.; Mariotto, G.; Mironova-Ulmane, N. Study of vibrational and magnetic excitations in Nic Mg1− cO solid solutions by Raman spectroscopy. J. Phys. Condens. Matter 2003, 15, 2045. [Google Scholar] [CrossRef]
  43. Mironova-Ulmane, N.; Kuzmin, A.; Steins, I.; Grabis, J.; Sildos, I.; Pärs, M. Raman scattering in nanosized nickel oxide NiO. J. Phys. Conf. Ser. 2007, 93, 012039. [Google Scholar] [CrossRef]
  44. Wu, L.B.; Jiao, D.M.; Wang, J.A.; Chen, L.F.; Cao, F.H. The role of MgO in the formation of surface active phases of CoMo/Al2O3-MgO catalysts for hydrodesulfurization of dibenzothiophene. Catal. Commun. 2009, 11, 302–305. [Google Scholar] [CrossRef]
  45. Wang, G.X.; Shen, X.P.; Horvat, J.; Wang, B.; Liu, H.; Wexler, D.; Yao, J. Hydrothermal synthesis and optical, magnetic, and supercapacitance properties of nanoporous cobalt oxide nanorods. J. Phys. Chem. C 2009, 113, 4357–4361. [Google Scholar] [CrossRef]
  46. Jiang, J.; Li, L.C. Synthesis of sphere-like Co3O4 nanocrystals via a simple polyol route. Mater. Lett. 2007, 61, 4894–4896. [Google Scholar] [CrossRef]
  47. Liu, Q.; Wang, L.C.; Chen, M.; Cao, Y.; He, H.Y.; Fan, K.N. Dry citrate-precursor synthesized nanocrystalline cobalt oxide as highly active catalyst for total oxidation of propane. J. Catal. 2009, 263, 104. [Google Scholar] [CrossRef]
  48. Li, J.; Lu, G.Z.; Wu, G.S.; Mao, D.S.; Guo, Y.L.; Wang, Y.Q.; Guo, Y. The role of iron oxide in the highly effective Fe-modified Co3O4 catalyst for low-temperature CO oxidation. RSC Adv. 2013, 3, 12409–12416. [Google Scholar] [CrossRef]
  49. Liu, F.D.; He, H.; Ding, Y.; Zhang, C.B. Effect of manganese substitution on the structure and activity of iron titanate catalyst for the selective catalytic reduction of NO with NH3. Appl. Catal. B Environ. 2009, 93, 194–204. [Google Scholar] [CrossRef]
  50. Wang, X.Y.; Kang, Q.; Li, D. Catalytic combustion of chlorobenzene over MnOx-CeO2 mixed oxide catalysts. Appl. Catal. B Environ. 2009, 86, 166–175. [Google Scholar] [CrossRef]
  51. Zhang, W.; Tay, H.L.; Lim, S.S.; Wang, Y.S.; Zhong, Z.Y.; Xu, R. Supported cobalt oxide on MgO: Highly efficient catalysts for degradation of organic dyes in dilute solutions. Appl. Catal. B Environ. 2010, 95, 93–99. [Google Scholar] [CrossRef]
  52. Riva, R.; Miessner, H.; Vitali, R.; Del Piero, G. Metal-support interaction in Co/SiO2 and Co/TiO2. Appl. Catal. A Gen. 2000, 196, 111–123. [Google Scholar] [CrossRef]
  53. Todorova, S.; Kolev, H.; Holgado, J.P.; Kadinov, G.; Bonev, C.; Pereñíguez, R.; Caballero, A. Complete n-hexane oxidation over supported Mn–Co catalysts. Appl. Catal. B Environ. 2010, 94, 46–54. [Google Scholar] [CrossRef]
  54. Sun, C.H.; Berg, J.C. A review of the different techniques for solid surface acid-base characterization. Colloid Interface Sci. 2003, 105, 151–175. [Google Scholar] [CrossRef]
  55. Skofronick, J.G.; Toennies, J.P.; Traeger, F.; Weiss, H. Helium atom scattering studies of the structure and vibrations of H2 physisorbed on MgO(001) single crystals. Phys. Rev. B 2003, 67, 035413. [Google Scholar] [CrossRef]
  56. Mei, J.; Zhao, S.J.; Xu, H.M.; Qu, Z.; Yan, N.Q. The performance and mechanism for the catalytic oxidation of dibromomethane (CH2Br2) over Co3O4/TiO2 catalysts. RSC Adv. 2016, 6, 31181–31190. [Google Scholar] [CrossRef]
  57. Li, C.; Domen, K.; Maruya, K.; Onishi, T. Dioxygen adsorption on well-outgassed and partially reduced cerium oxide studied by FT-IR. J. Am. Chem. Soc. 1989, 111, 7683–7687. [Google Scholar] [CrossRef]
  58. Huang, H.; Gu, Y.F.; Zhao, J.; Wang, X.Y. Catalytic combustion of chlorobenzene over VOx/CeO2 catalysts. J. Catal. 2015, 326, 54–68. [Google Scholar] [CrossRef]
  59. Liang, H.; Hong, Y.X.; Zhu, C.Q.; Li, S.H.; Chen, Y.; Liu, Z.L.; Ye, D.Q. Influence of partial Mn-substitution on surface oxygen species of LaCoO3 catalysts. Catal. Today 2013, 201, 98–102. [Google Scholar] [CrossRef]
  60. Xie, X.W.; Li, Y.; Liu, Z.Q.; Haruta, M.; Shen, W.J. Low-temperature oxidation of CO catalysed by Co3O4 nanorods. Nature 2009, 458, 746–749. [Google Scholar] [CrossRef] [PubMed]
  61. Qiu, X.P.; Yu, J.S.; Xu, H.M.; Chen, W.X.; Hu, W.; Chen, G.L. Interfacial effects of the Cu2O nano-dots decorated Co3O4 nanorods array and its photocatalytic activity for cleaving organic molecules. Appl. Surf. Sci. 2016, 382, 249–259. [Google Scholar] [CrossRef]
  62. Sheldon, R.A.; Wallau, M.; Arends, I.W.C.E.; Schuchardt, U. Heterogeneous catalysts for liquid-phase oxidations: Philosophers’ stones or Trojan horses? Acc. Chem. Res. 1998, 31, 485–493. [Google Scholar] [CrossRef]
  63. Wang, Q.; Peng, Y.; Fu, J.; Kyzas, G.Z.; Billah, S.M.R.; An, S.Q. Synthesis, characterization, and catalytic evaluation of Co3O4/γ-Al2O3 as methane combustion catalysts: Significance of Co species and the redox cycle. Appl. Catal. B Environ. 2015, 168–169, 42–50. [Google Scholar] [CrossRef]
  64. Wen, Y.; Potter, O.E.; Sridhar, T. Uncatalysed oxidation of cyclohexane in a continuous reactor. Chem. Eng. Sci. 1997, 52, 4593–4605. [Google Scholar] [CrossRef]
  65. Shul’pin, G.B. Metal-catalyzed hydrocarbon oxygenations in solutions: The dramatic role of additives: A review. J. Mol. Catal. A Chem. 2002, 189, 39–66. [Google Scholar] [CrossRef]
Catalysts 07 00155 g001 550

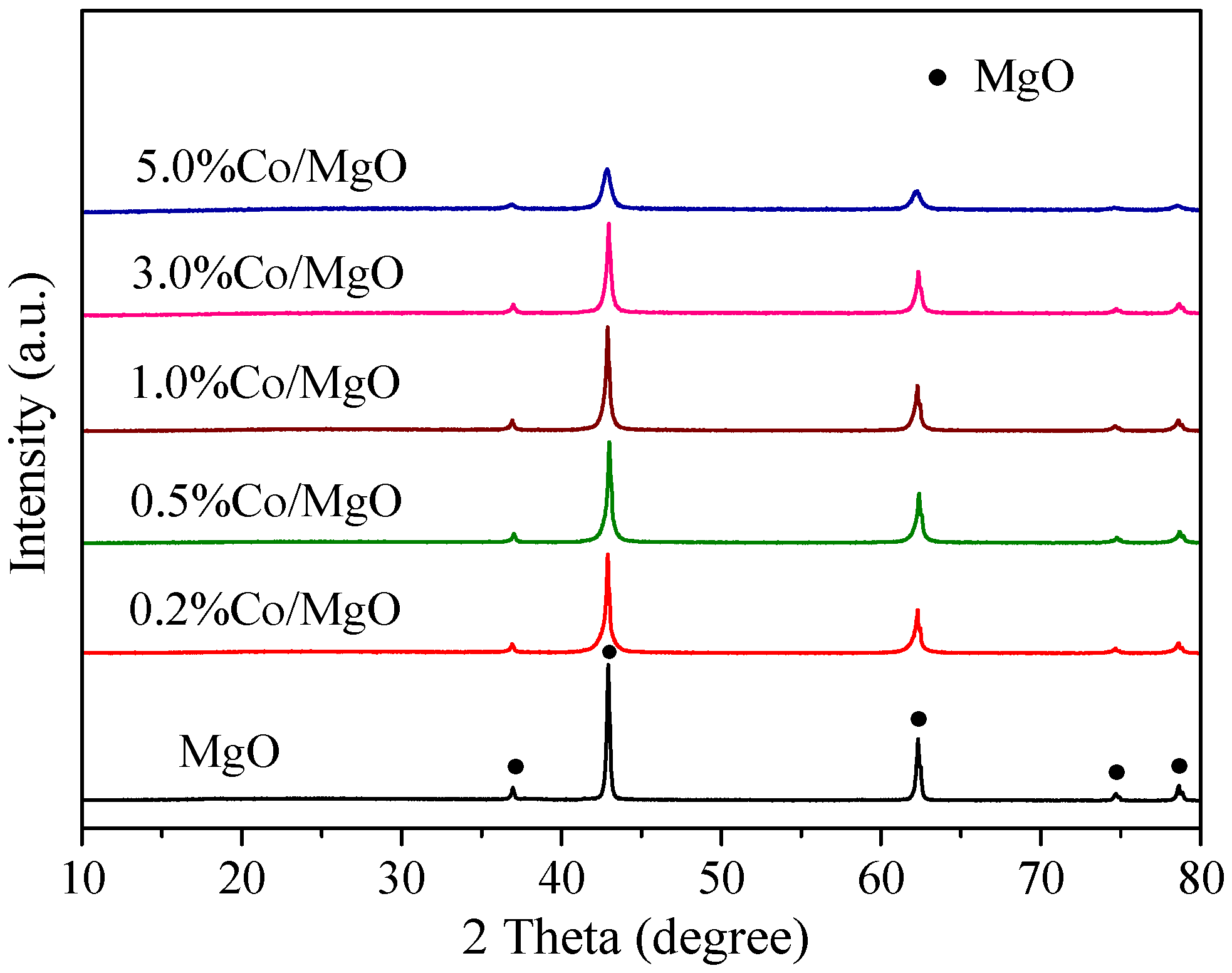

Figure 1. XRD patterns of the MgO and Co/MgO catalysts.
Figure 1. XRD patterns of the MgO and Co/MgO catalysts.
Catalysts 07 00155 g001
Catalysts 07 00155 g002 550

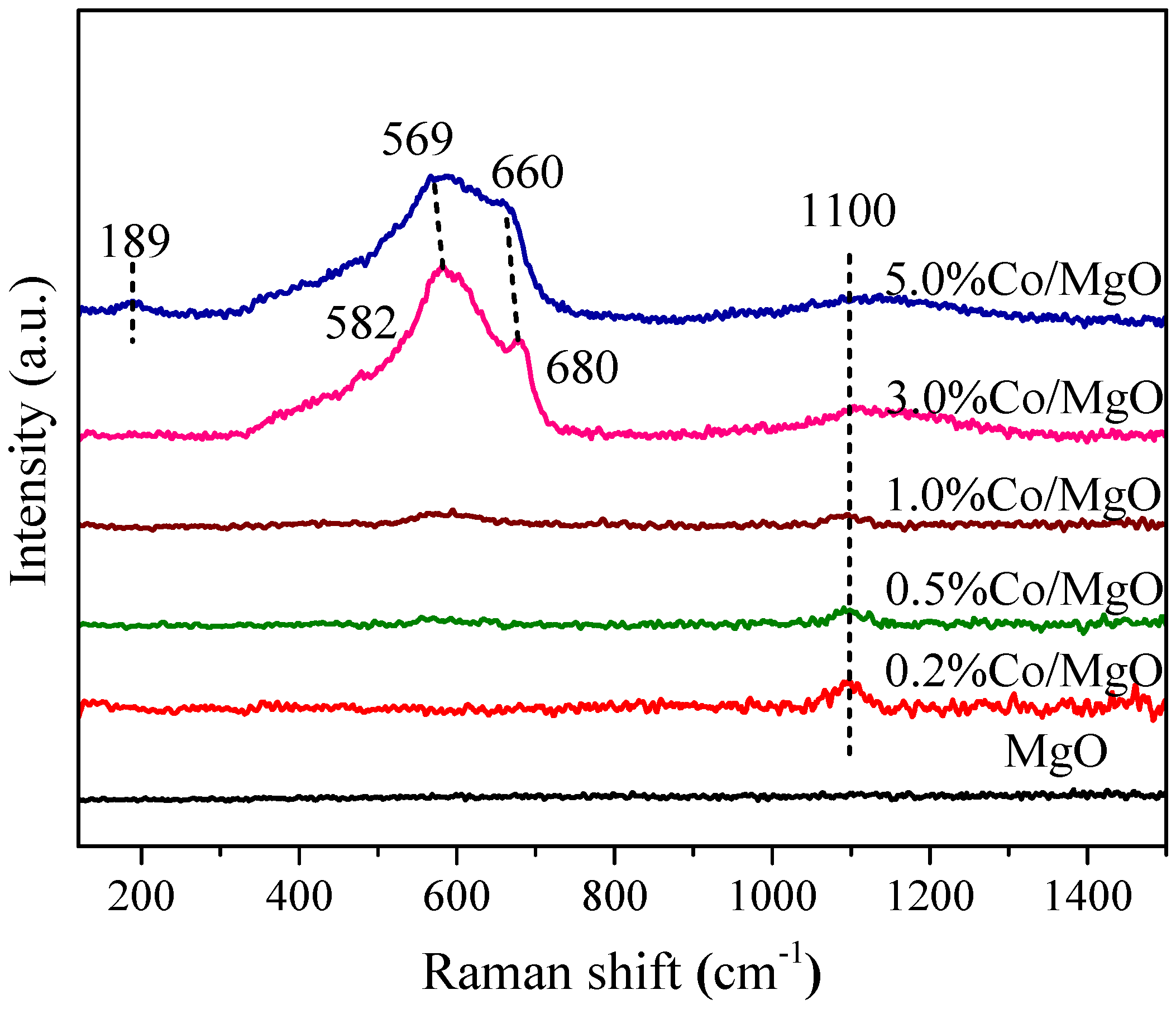

Figure 2. Laser Raman spectra of the MgO and Co/MgO catalysts.
Figure 2. Laser Raman spectra of the MgO and Co/MgO catalysts.
Catalysts 07 00155 g002
Catalysts 07 00155 g003 550

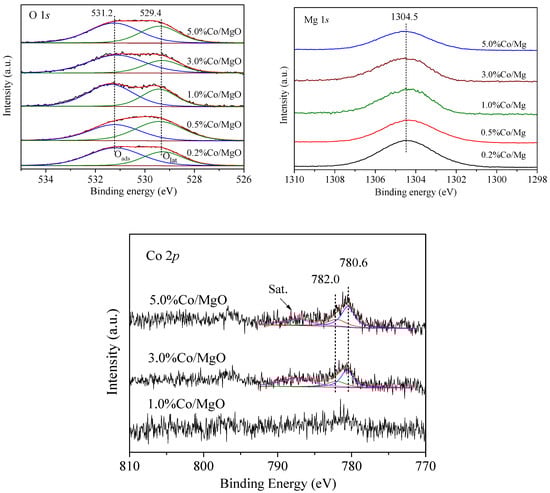

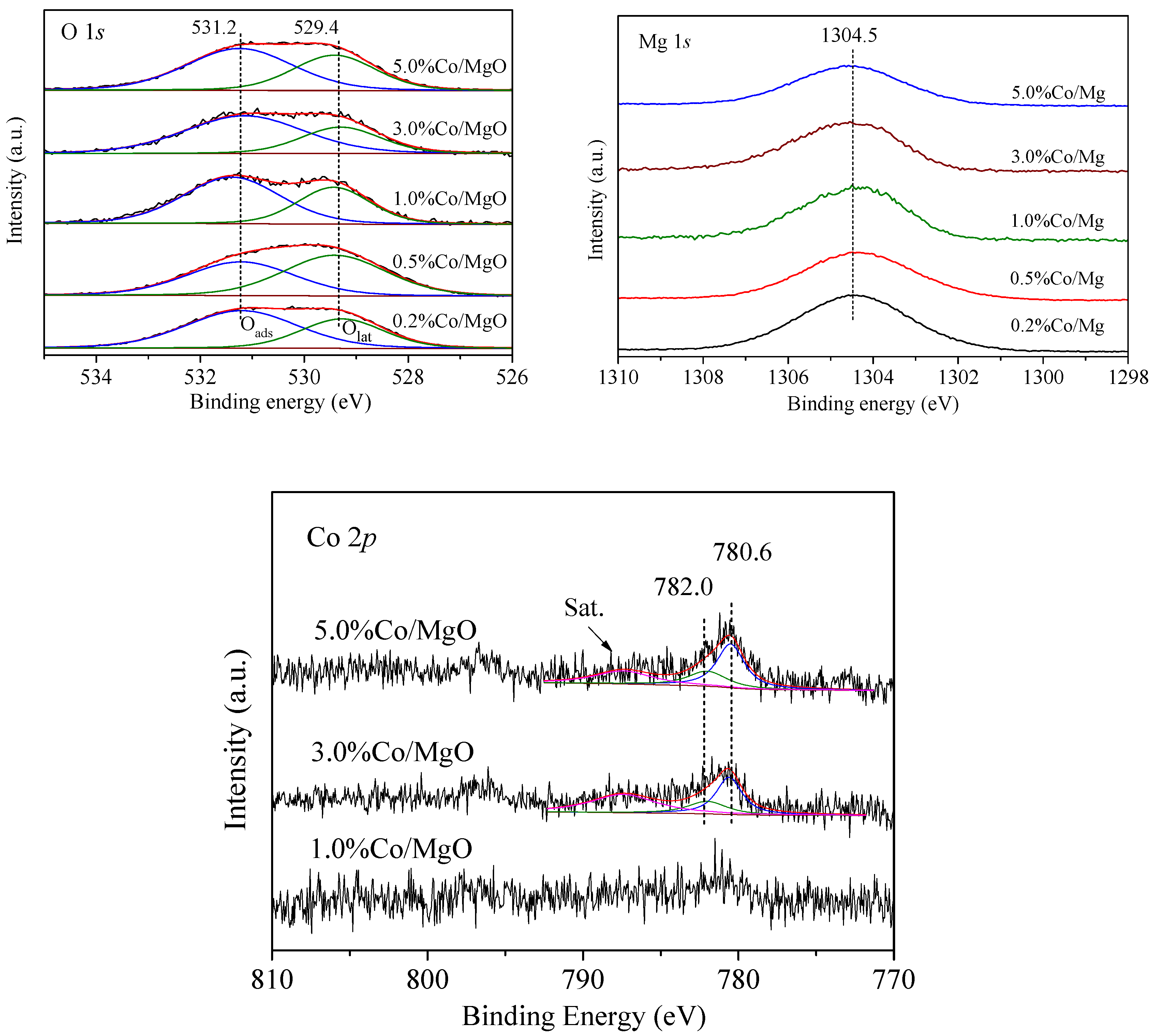

Figure 3. XPS O 1s and Mg 1s spectra of 0.2%Co/MgO, 0.5%Co/MgO and 5.0%Co/MgO; Co 2p spectra of 1.0%Co/MgO, 3.0%Co/MgO and 5.0%Co/MgO.
Figure 3. XPS O 1s and Mg 1s spectra of 0.2%Co/MgO, 0.5%Co/MgO and 5.0%Co/MgO; Co 2p spectra of 1.0%Co/MgO, 3.0%Co/MgO and 5.0%Co/MgO.
Catalysts 07 00155 g003
Catalysts 07 00155 g004 550

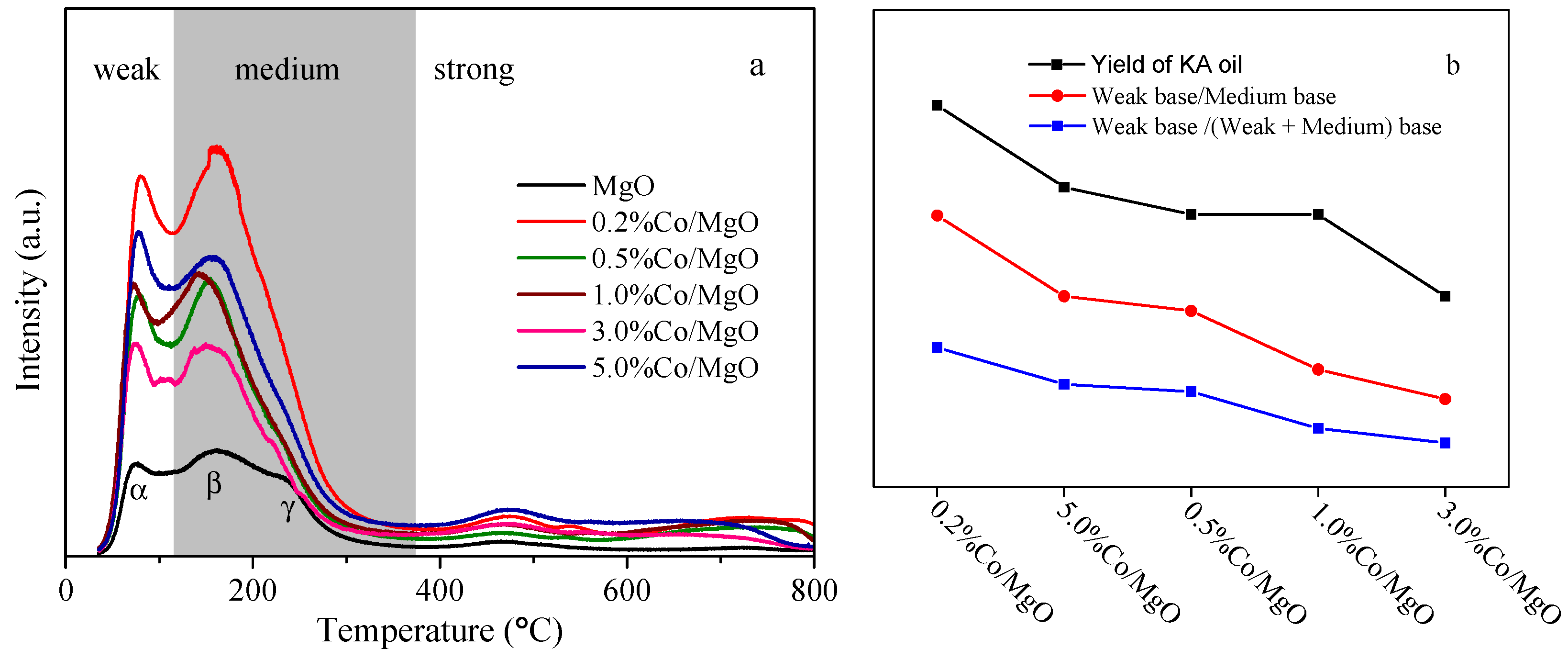

Figure 4. CO2-TPD profiles of the MgO and Co/MgO catalysts (a) and trends between KA yield and weak base ratio (b).
Figure 4. CO2-TPD profiles of the MgO and Co/MgO catalysts (a) and trends between KA yield and weak base ratio (b).
Catalysts 07 00155 g004
Catalysts 07 00155 g005 550

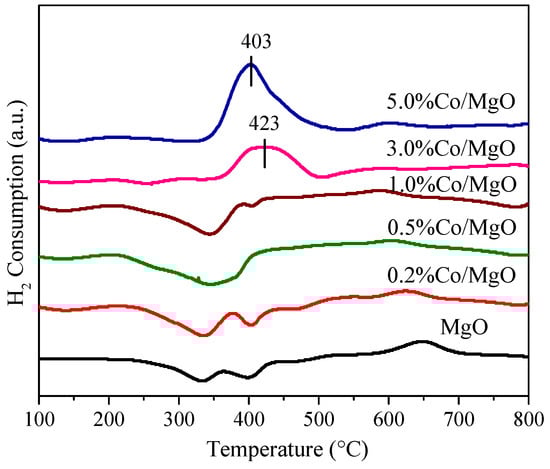

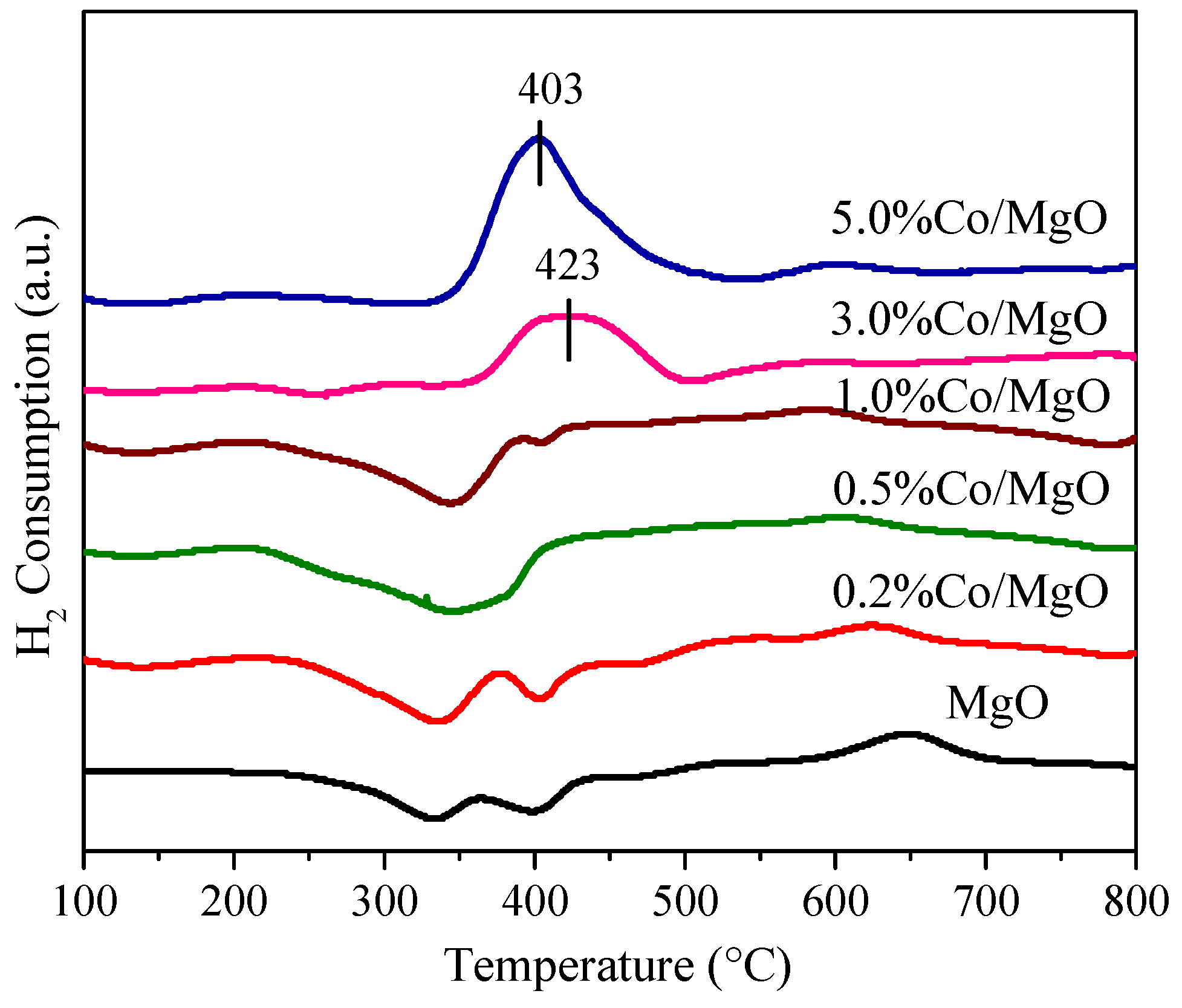

Figure 5. H2-TPR profiles of the MgO and Co/MgO catalysts.
Figure 5. H2-TPR profiles of the MgO and Co/MgO catalysts.
Catalysts 07 00155 g005
Catalysts 07 00155 g006 550

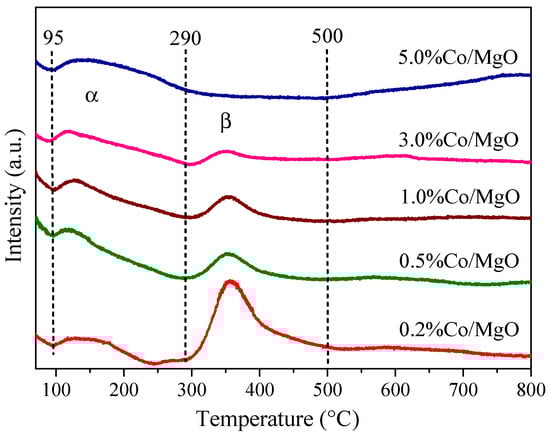

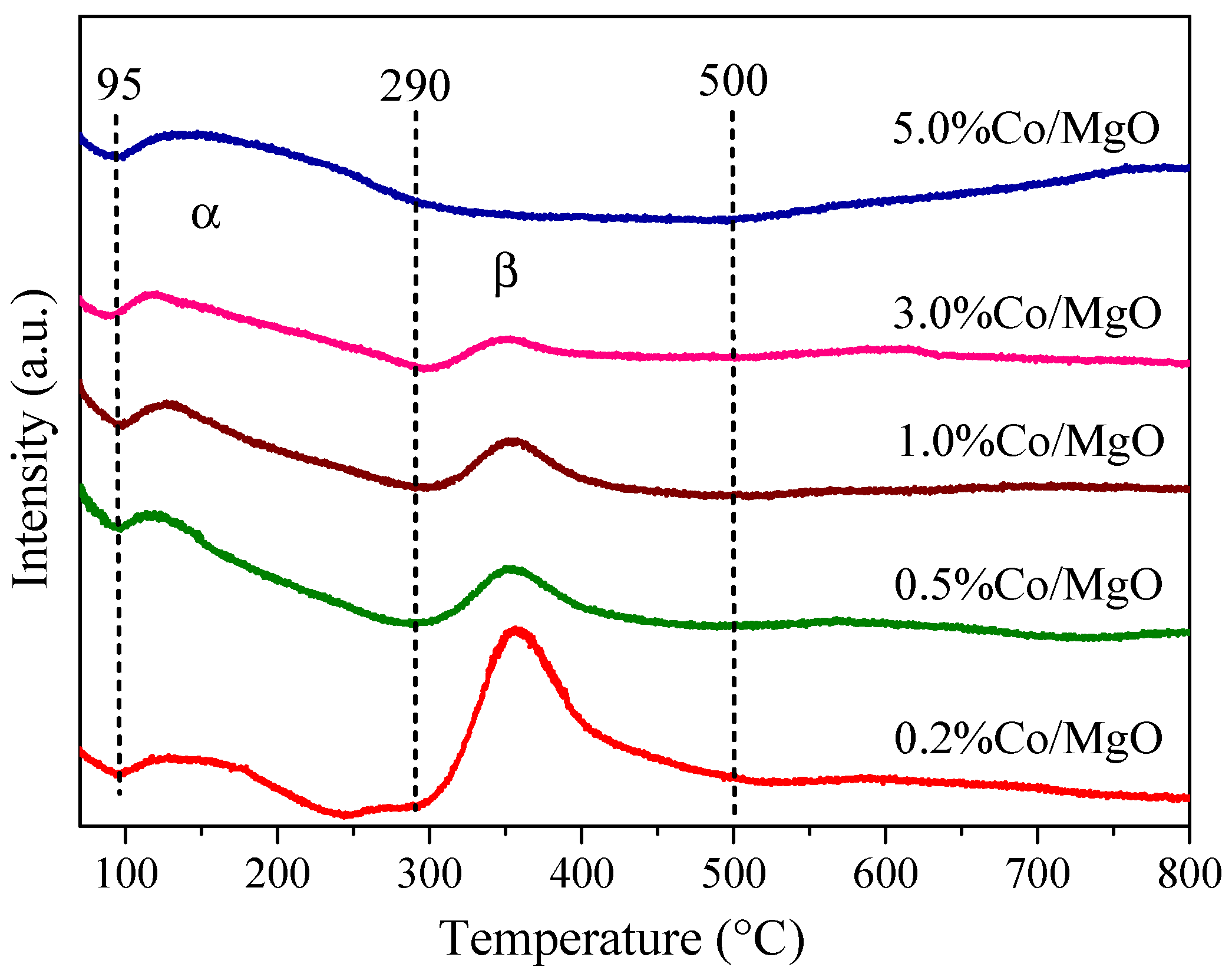

Figure 6. O2-TPD profiles of the Co/MgO catalysts.
Figure 6. O2-TPD profiles of the Co/MgO catalysts.
Catalysts 07 00155 g006
Catalysts 07 00155 g007 550
Figure 7. SEM images of the (a) 0.2%Co/MgO and (b) 5.0%Co/MgO catalysts.
Figure 7. SEM images of the (a) 0.2%Co/MgO and (b) 5.0%Co/MgO catalysts.
Catalysts 07 00155 g007
Catalysts 07 00155 g008 550
Figure 8. TEM images of the (a) 0.2%Co/MgO and (b,c) 5.0%Co/MgO catalysts.
Figure 8. TEM images of the (a) 0.2%Co/MgO and (b,c) 5.0%Co/MgO catalysts.
Catalysts 07 00155 g008
Catalysts 07 00155 g009 550

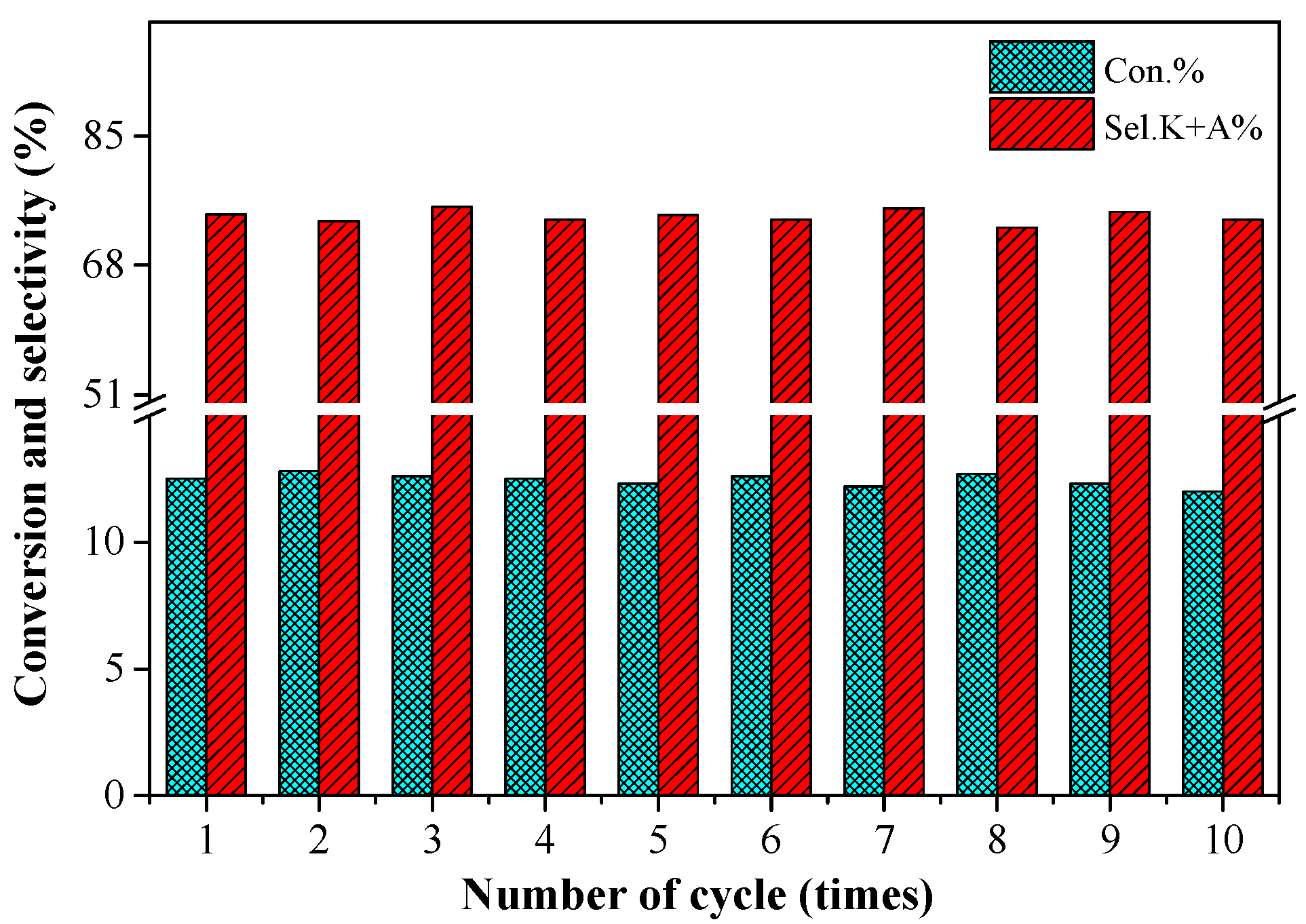

Figure 9. The recycling tests on the catalytic activity of 0.2%Co/MgO for the cyclohexane oxidation. Reaction conditions: 4.0 g of cyclohexane, 20 mg catalyst, initial 0.5 MPa O2, at 140 °C for 4 h.
Figure 9. The recycling tests on the catalytic activity of 0.2%Co/MgO for the cyclohexane oxidation. Reaction conditions: 4.0 g of cyclohexane, 20 mg catalyst, initial 0.5 MPa O2, at 140 °C for 4 h.
Catalysts 07 00155 g009
Catalysts 07 00155 g010 550
Figure 10. TEM (left) and SEM (middle) images, as well as XRD pattern (right) of the regenerated catalyst after the tenth recycling cycle.
Figure 10. TEM (left) and SEM (middle) images, as well as XRD pattern (right) of the regenerated catalyst after the tenth recycling cycle.
Catalysts 07 00155 g010
Table
Table 1. Oxidation of cyclohexane over an oxide support and supported by 0.2% Co catalysts a.
Table 1. Oxidation of cyclohexane over an oxide support and supported by 0.2% Co catalysts a.
CatalystConversion (%)Selectivity (%)Yield of KA (%)
-nol (A) b-none (K) bKA oilAcids
Co/MgO12.538.136.674.75.28.8
Co/BaCO310.140.537.978.45.07.9
ZrO25.339.336.876.15.54,0
Co/ZrO210.835.733.369.07.17.5
Co/SAPO-3410.237.235.672.89.27.4
Al2O34.832.335.067.34.83.2
Co/Al2O39.534.935.470.38.36.7
TiO21.539.143.582.65.91.2
Co/TiO28.137.839.277.07.96.2
SiO21.141.645.487.03,11.0
Co/SiO26.839.541.280.79.55.5
a Reaction conditions: 4.0 g of cyclohexane, 20 mg catalyst, initial 0.5 MPa O2, at 140 °C for 4 h; b -nol and -none denote the cyclohexanol and cyclohexanone.
Table
Table 2. Catalytic performances of the MgO, Co3O4 and Co/MgO catalysts for the oxidation of cyclohexane a.
Table 2. Catalytic performances of the MgO, Co3O4 and Co/MgO catalysts for the oxidation of cyclohexane a.
CatalystTemp./Time (°C h−1)Pressure (MPa)Conversion (%)Selectivity (%)YKA (%)Mass Balance c (%)
-nol (A)-none (K)Acids b
Blank140/5O2/0.51.243.049.24.11.195
MgO140/4O2/0.51.340.247.93.41.194
MgO140/4N2/0.5------
0.1%Co/MgO140/4O2/0.58.240.338.14.26.495
0.2%Co/MgO140/4air/0.53.247.542.62.72.996
0.2%Co/MgO140/4O2/0.512.538.136.65.29.3-
0.2%Co + MgO d140/4O2/0.56.135.728.85.04.6-
0.2%Co/MgO e140/4O2/0.515.634.732.56.310.5-
0.2%Co/MgO f140/4O2/0.5------
0.5%Co/MgO140/4O2/0.512.036.434.69.68.595
1.0%Co/MgO140/4O2/0.512.634.433.06.38.595
3.0%Co/MgO140/4O2/0.511.734.232.84.57.994
5.0%Co/MgO140/4O2/0.513.333.231.95.38.795
Co3O4140/4O2/0.57.744.222.410.25.195
Au/MgO g of [35]140/17O2/0.35.05029194.0-
Co-TUD-1 h [40]120/248%O2/N2/1.53.85631-3.3-
a Reaction conditions: 4.0 g of cyclohexane, 20 mg catalyst, initial 0.5 Mpa O2; b main byproducts: Adipic acid and hexanoic acid; c mass balance is equal to the weight ratio of (the products)/(the reaction mixture) without the catalyst; d physical mixture of Co3O4 and MgO; e adding a small amount (3 wt % cyclohexane) of tert-butyl hydroperoxide (free-radical initiator); f adding a small amount (3 wt % cyclohexane) of hydroquinone (free-radical scavenger); g of reaction conditions: 10 mL cyclohexane, 0.05 mmol tert-butylhydroperoxy (radical initiator), 6 mg catalyst; h TUD-1 is mesoporous molecular sieve; reaction conditions: 175 mmol cyclohexane, 0.05 mmol cyclohexyl hydroperoxide (radical initiator), 0.1 mmol active metal species.
Table
Table 3. BET surface area (SBET), and the crystal parameters of the MgO and Co/MgO catalysts.
Table 3. BET surface area (SBET), and the crystal parameters of the MgO and Co/MgO catalysts.
SampleSBET (m2 g−1)Co Content a (wt %)Crystallite Size b (nm)d200 Spacing (nm)a0 c (nm)
MgO15.0-36.62.1064.21
0.2%Co/MgO58.70.221.12.1054.21
0.5%Co/MgO49.30.522.82.1034.21
1.0%Co/MgO43.41.024.52.1084.22
3.0%Co/MgO41.23.023.42.1044.21
5.0%Co/MgO51.05.012.42.1094.22
a Co content in the bulk was determined by ICP-AES (inductively coupled plasma atomic emission spectroscopy); b Crystallite size was calculated by the Scherrer equation on the basis of the diffraction peak of (200) plane; c Cell parameter (a0) was calculated by a0 = d200 (4)1/2.
Table
Table 4. Compositions of the 0.2%Co/MgO, 0.5%Co/MgO and 5.0%Co/MgO samples determined by XPS.
Table 4. Compositions of the 0.2%Co/MgO, 0.5%Co/MgO and 5.0%Co/MgO samples determined by XPS.
SampleSurface Atom Concentration (%)Mg/O (Atom)Co3+/Co Atomic RatioCo3+/Co2+ Atomic RatioOads/(Oads + Olat)
MgO
0.2%Co/MgO29.649.50.60--0.63
0.5%Co/MgO28.851.80.56--0.47
1.0%Co/MgO34.665.40.53--0.63
3.0%Co/MgO33.466.60.500.62.00.65
5.0%Co/MgO22.851.90.440.72.00.60
Table
Table 5. The numbers (a.u. m−2) of the weak and medium base sites per square meter on MgO and Co/MgO.
Table 5. The numbers (a.u. m−2) of the weak and medium base sites per square meter on MgO and Co/MgO.
SampleWeak Base (a.u. m−2)Medium Base (a.u. m−2)Weak Base/Medium BaseWeak Base/(Weak + Medium) Base
MgO4.723.20.200.17
0.2%Co/MgO4.79.00.520.34
0.5%Co/MgO4.511.40.390.28
1.0%Co/MgO4.314.10.310.23
3.0%Co/MgO3.211.90.270.21
5.0%Co/MgO5.212.70.410.29

Share and Cite

MDPI and ACS Style

Wu, M.; Fu, Y.; Zhan, W.; Guo, Y.; Guo, Y.; Wang, Y.; Lu, G. Catalytic Performance of MgO-Supported Co Catalyst for the Liquid Phase Oxidation of Cyclohexane with Molecular Oxygen. Catalysts 2017, 7, 155. https://doi.org/10.3390/catal7050155

AMA Style

Wu M, Fu Y, Zhan W, Guo Y, Guo Y, Wang Y, Lu G. Catalytic Performance of MgO-Supported Co Catalyst for the Liquid Phase Oxidation of Cyclohexane with Molecular Oxygen. Catalysts. 2017; 7(5):155. https://doi.org/10.3390/catal7050155

Chicago/Turabian Style

Wu, Mingzhou, Yu Fu, Wangcheng Zhan, Yanglong Guo, Yun Guo, Yunsong Wang, and Guanzhong Lu. 2017. "Catalytic Performance of MgO-Supported Co Catalyst for the Liquid Phase Oxidation of Cyclohexane with Molecular Oxygen" Catalysts 7, no. 5: 155. https://doi.org/10.3390/catal7050155

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
