The Effects of CeO2 Nanorods and CeO2 Nanoflakes on Ni–S Alloys in Hydrogen Evolution Reactions in Alkaline Solutions

1
State Key Laboratory of Metastable Materials Science and Technology, Yanshan University, Qinhuangdao 066004, China
2
Hebei Key Laboratory of Applied Chemistry, College of Environmental and Chemical Engineering, Yanshan University, Qinhuangdao 066004, China
*
Authors to whom correspondence should be addressed.
Catalysts 2017, 7(7), 197; https://doi.org/10.3390/catal7070197
Submission received: 8 May 2017 / Revised: 15 June 2017 / Accepted: 16 June 2017 / Published: 27 June 2017
(This article belongs to the Special Issue Advances in Electrocatalysis)

Abstract

:
Composite coatings synthesized by different morphologies of CeO2 in supergravity devices are highly active in hydrogen evolution reactions (HERs). By adding CeO2 nanoflakes (CeO2 Nf) or CeO2 nanorods (CeO2 Nr), the change in the microstructures of composites becomes quite distinct. Moreover, most Ni–S alloys are attached on the surface of CeO2 and roughen it compare with pure CeO2. In order to make the expression more concise, this paper uses M instead of Ni–S. At a current density of 10 mA/cm2, overpotentials of Ni–S/CeO2 Nr (M–CeO2 Nr) and Ni–S/CeO2 Nf (M–CeO2 Nf) are 200 mV and 180 mV respectively, which is lower than that of Ni–S (M-0) coating (240 mV). The exchange current density (j0) values of M–CeO2 Nf and M–CeO2 Nr are 7.48 mA/cm2 and 7.40 mA/cm2, respectively, which are higher than that of M-0 (6.39 mA/cm2). Meanwhile, double-layer capacitances (Cdl) values of M–CeO2 Nf (6.4 mF/cm2) and M–CeO2 Nr (6 mF/cm2) are 21.3 times and 20 times of M-0 (0.3 mF/cm2), respectively.

1. Introduction

It is known to all that populations, food, energies, natural sources, and environmental problems are major threats to the survival and sustainable development of human beings. For the development of industries especially, energy issues urgently need to be resolved. Energies conducive to the development of human beings and the environment have been found and used, such as solar energy, wind energy, and hydrogen energy [1,2,3,4,5,6]. Moreover, hydrogen energy as a kind of important carbon-free and easily prepared and collected energy has aroused widespread interest [7,8,9,10,11]. For pure metals, the overpotentials of platinum-group metals are the lowest for hydrogen evolution reactions (HERs), but their prices are prohibitively expensive for widespread use [12,13]. In order to reduce the cost, other metals need to be substituted. Thus, these cheaper metals, such as Ni, Fe, and Co, with relatively low overpotentials and in an adequate supply on the planet, are being extensively applied [12]. In addition, their ion states can interact with each other to enhance the catalytic activity of HERs [12,13,14]. Now, various transition metals (Fe, Co, Ni, Cu, and Mo) have been deemed as high-efficiency catalysts in HERs [12,14,15,16,17]. Additionally, there have been many studies on Ni-based materials, such as Ni–Mo [16], Ni–P [18], Ni–W [13], and Ni–S [19], whose morphologies are different.
The properties of materials are closely related to their morphologies. Many studies about the lamellar structures of materials have been conducted. For instance, Choy et al. synthesized a new lamellar TiO2-pillared MoS2 via an extoliation-reassembling method [20]. Lan et al. reported a coupled molybdenum carbide on reduced graphene oxide electrocatalysts for efficient hydrogen evolution [21]. In other studies, materials have presented a rod-like or tubulose structure. Adding a rod-like and tubulose structure substance can also form a material with a new morphology. For example, by electrospinning, Du et al. prepared a new WO3−x catalyst on carbon nanofiber mats, and was found to have a small overpotential with a highly exchanged current density for HERs [22]. Shao et al. reported a new wool-ball-like Ni–carbon nanotube composite, which is favorable for the electrocatalytic activity of HERs [8].
As a rare earth oxide, CeO2, which has a large number of empty and half-filled d orbitals, unique f orbitals and cheaper market price, is an excellent composite phase that has a synergistic effect with an Ni matrix and is widely studied [23,24]. Therefore, for the CeO2 system, researchers have concentrated on the morphology and structure of CeO2. For instance, Li et al. found that CeO2 nanorods are more reactive in CO oxidation [25]. Wang et al. studied the morphology and crystal-plane effects of CeO2 on Ru/CeO2 catalyst in chlorobenzene catalyzed combustion [26]. Li et al. studied the effects of different magnitudes of CeO2 on Ni–S and Ni–Zn coatings in the catalytic activities of HERs [23,24]. Our team studied the catalytic activities of Ni–CeO2 and Ni–S/CeO2 composites in hydrogen evolution [27,28]. In this paper, we prepared different morphologies of CeO2 and studied the impacts of different CeO2 morphologies on Ni–S alloys in HERs. First, using the precipitation method, we prepared different morphologies of CeO2, which were mainly plate-shaped and rod-shaped. However, the precipitants and the reaction temperatures were not the same. Then, formerly prepared CeO2 was added to solutions to synthesize different coatings. By comparing with the electrochemical performance of Ni–S alloy coatings, it was found that the catalysts supplemented with CeO2 caused a higher catalytic activity in HERs.

2. Results and Discussion

According to the experiment, we have raised a simple method for the fabrication of Ni–S/CeO2 (in this paper, Ni–S is presented as “M”) composite materials. As shown in Figure 1, the coating is prepared by adding CeO2 Nr or CeO2 Nf to the solution containing Ni(NH2SO3)2·4H2O, NiCl2·6H2O, NH4Cl, and thiourea and then by electrodeposition. In the electric fields, part of the nickel ions and sulfur ions formed Ni–S alloys by interaction. However, because of the insufficient use of current efficiency, massive nickel ions and sulfur ions remain in the solution without combination. In our study, an Ni–S alloy was deposited onto a copper substrate in a supergravity device, while some CeO2 was likely to be the substrate of the Ni–S alloy, embedded in the coating, or attached to the surface of the coating.
Figure 2a displays the XRD of Ni–S/CeO2 composite materials. In the XRD image of the coating without adding CeO2, two strong peaks appear at 44.6° and 49.9° that can be ascribed as (202) and (113), which are features of Ni3S2 (JCPDS card No. 08-0126). There are wide diffraction peaks at 44° in all plots, so we can say that there are Ni–S alloys in coatings [29,30]. Due to tiny amounts of self-made CeO2 of the coatings, the diffraction peaks of CeO2 are very weak. In the XRD patterns of CeO2 (Figure 2b), three stronger peaks present at 28.6°, 47.5°, and 53.6° are consistent with (111), (220), and (311) planes of standard CeO2 (JCPDS card No. 04-0593).
As shown in Figure 3, the morphologies of the composites are different with the addition of CeO2. Compared with the Ni–S alloy (Figure S1), the particles of Ni–S/CeO2 (Figure 3A1–B1) become smaller, i.e., their relative specific surface areas are larger after CeO2 is added. Figure 3A1 is an SEM image of Ni–S/CeO2 with the addition of CeO2 nanorods and shows that global particles of different sizes are closely stacked. The TEM image of CeO2 nanorods in Figure 3A3 show their solid internal structures and their smooth surfaces. However, in the TEM image of the complex (Figure 3A2), the rod shape is irregular, and the rod’s surface is rough, perhaps because the Ni–S alloy grew on the exterior of the CeO2 nanorods. Figure 3B1 shows the rough surface and dense ball-flower resulting from the addition of CeO2 nanoflakes. Another TEM image of CeO2 nanoflakes (Figure 3B3) shows a large slice with a definite thickness. Figure 3B2 clearly shows that the presence of particles on the edge and particles adhered to the slice.
IR compensation was performed to correct the polarization data by determining the solution resistance value from the electrochemical impedance spectroscopy measurements. Figure 4a reveals the iR-corrected LSV curve of the three different catalysts. Compared with M-0 (i.e., the Ni–S alloy), the Ni–S/CeO2 Nf (M–CeO2 Nf) catalyst displays superior HER activity. As Figure S2 shows, the generation of hydrogen on the electrode surface is dense and intense when the current density is 100 mA/cm2 [31]. Meanwhile, the overpotentials of M–CeO2 Nf are lower than those of M-0 and Ni–S/CeO2 Nr (M–CeO2 Nr) at the same current density. For instance, at a current density of 10 mA/cm2, the overpotential of M–CeO2 Nf coating is 180 mV, which is lower than that of the M–CeO2 Nr (200 mV) and M-0 (240 mV). Moreover, at a current density of 60 mA/cm2, the overpotentials of M-0, M–CeO2 Nr, and M–CeO2 Nf are 420 mV, 265 mV, and 220 mV, respectively. In order to further study the electrochemical properties, the Tafel plots of the three different samples are detected. As we all know, the Tafel curve matches the Tafel equation (η = a + blog|j|), in which b (mV/dec) is the Tafel slope, and j (mA/cm2) is the current density [22]. According to the values of the Tafel slope (Table 1), it is easy to achieve the fundamental steps in the HER. In the alkaline medium, the reaction steps of catalytic hydrogen evolution are as follows [17,32,33]
H 2 O + M + e MH ads + OH
MH ads + H 2 O + e H 2 + M + OH
MH ads + MH ads H 2 + 2 M
That the Tafel slope of M–CeO2 Nf is 158 mV/dec, which was almost lower than that of M–CeO2 Nr (163 mV/dec) and M-0 (173.37 mV/dec), indicates that the Volmer reaction is the rate-limiting step in the Volmer-Heyrovsky mechanism. The comparatively low slopes of M–CeO2 Nf and M–CeO2 Nr are accompanied by smaller overpotentials at a large current density. Moreover, the addition of CeO2 to the coating can provide a greater specific surface area to enhance contact with the electrolyte [27,34], which is beneficial to the practical application of the catalyst in the HER. Meanwhile, due to empty and half-filled d orbitals of Ce atoms and oxygen vacancies of CeO2 [23,24], Hads can easily form on its surfaces. Therefore, there are significant differences in the number of catalytic activity sites for the three samples.
The exchange current density (j0) is another test method to prove the activity of the catalyst. As shown in Table 1, j0 values of M–CeO2 Nf and M–CeO2 Nr are 7.48 mA/cm2 and 7.40 mA/cm2, respectively, which are higher than that of M-0 (6.39 mA/cm2). Moreover, the coatings of M–CeO2 Nf and M–CeO2 Nr are superior to those of other similar materials, as shown in Table S1. This is attributed to the addition of CeO2 Nf (or Nr) to add more charge transfer channels to facilitate the formation of Hads [24,35,36,37,38,39,40]. In order to detect the kinetics of the electrode, electrochemical impedance spectra (EIS) were obtained. Figure 4c shows the Nyquist plots of the three different samples at η = 200 mV. The equivalent circuit is displayed in Figure 4c. For the solution resistance (Rs), all of the values of the electrodes were approximately 2 Ω, but values of the charge transfer resistance (Rct) are quite different, as shown in Table S2. The Rct value of M–CeO2 Nf is about 2.46 Ω, which is smaller than those of other samples. As we all know, Rct is closely related with hydrogen evolution reaction; that is, the smaller Rct is, the more superior the catalytic activity of the HER is [30,31,32,33,41]. Obviously, as discussed above, M–CeO2 Nf, which holds a smaller Rct and possesses more active sites, shows superior catalytic activity in HERs.
To calculate the effective specific surface area of the catalyst and qualitatively describe the electrochemical activity sites, one impactful way is to reckon the electrochemical double-layer capacitances (Cdl) [42,43,44], which is measured by half the slope of the straight line fitted by the difference between the current density of the anode and the cathode (Δj = jajc at the potential of 0.775 V) at different sweep speeds in the CV curves. To make the CV curve, the selected potential range where there is no faradic is 0.025 V to 0.125 V vs. RHE, and sweep speed range is 10 mV/s to 60 mV/s. Cdl values of M–CeO2 Nf and M–CeO2 Nr are 6.4 mF/cm2 and 6 mF/cm2, which is 21.3 times and 20 times that of M-0 (0.3 mF/cm2 in Figure S3). respectively. Compared with M-0, M–CeO2 Nf and M–CeO2 Nr have larger specific surface areas. This suggests that the two samples with added CeO2 have more active sites to promote the catalytic activity of the HER, which is consistent with the previous speculation.
The stability of the electrode was measured using CV and CP tools with an electrochemical workstation. CV plots were tested at a scan rate of 100 mV/s between −0.825 V and −1.025 V in a 1 M NaOH solution. CP measurement was carried out at a current density of 100 mA/cm2 in a 1 M NaOH electrolyte solution. SEM images of M–CeO2 Nr and M–CeO2 Nf after 3000 cycles are shown in Figure 5a,c. It can be clearly seen that coatings whose surfaces are rougher than before 3000 cycles are etched in an alkaline solution. However, its overall microstructure is almost unchanged, especially for M–CeO2 Nf. Similarly, the SEM image of M-0 after 3000 cycles shows also almost no change (Figure S4). Figure 5b shows that the LSV curves of M–CeO2 Nr before and after 3000 cycles are almost coincident, and the value of the voltage was not alterant in the inset image. Therefore, the stability of M–CeO2 Nr is superior. The LSV curves of M–CeO2 Nf are displayed in Figure 5d; like M–CeO2 Nr, the curves were completely overlaid before and after 3000 cycles, and voltages are unchanged. The stability of M-0 is obtained from Figure S4. It can be concluded that the stabilities of the coatings prepared by electrodeposition are firm, and coatings after a certain period of erosion still did not fall off. With regard to the several samples, the superior catalytic activity in the HER can be attributed to the following points [23,24,45,46]: (i) There is a strong adsorption of hydrogen in the interface of CeO2 and Ni–S, enhancing the catalytic activity of the HER. (ii) A large amount of the Ni–S alloy is attached to the CeO2 surface so that more active sites are exposed. (iii) Prepared coatings with added CeO2 can contact with the electrolyte completely. (iv) There might be a synergistic effect between CeO2 and Ni–S alloys.

3. Materials and Methods

3.1. Preparation of CeO2 Nanoflakes and CeO2 Nanorods

CeO2 nanoflakes were prepared via the precipitation method. Cerous nitrates (6 g) (Tianjin Kermel Chemical Reagent Co., Tianjin, China) were dissolved in 200 mL of distilled water under magnetic stirring until cerous nitrates completely disappeared. Then, the solution underwent an aging process with the help of a mixed solute of NaOH (Tianjin Kermel Chemical Reagent Co., Tianjin, China) and Na2CO3 (Tianjin Kermel Chemical Reagent Co., Tianjin, China) (NaOH/Na2CO3 = 1:1, n/n), which was acutely stirred for 4 h in an alkaline condition. After suction filtration, the collection was dried at 80 °C all day and heated to 600 °C for 4 h to obtain a powder. CeO2 nanorods were also made via a precipitation method. A mixed solute of Ce(NO3)3·6H2O and (NH2)2CO (Ce(NO3)3·6H2O/(NH2)2CO = 1:40, m/m) was melted in distilled water and then agitated at 90 °C for 4 h. The collection was dried at 80 °C for 48 h and warmed up to 700 °C for 3 h.

3.2. Fabrication of Ni–S/CeO2

In this paper, complex substances were prepared by one step in supergravity equipment [8,9,46]. A portion of CeO2 was added into 700 mL of plating solution of 350 g/L Ni(NH2SO3)2·4H2O (Tianjin Kermel Chemical Reagent Co., Tianjin, China), 10 g/L NiCl2·6H2O (Tianjin Kermel Chemical Reagent Co., Tianjin, China), 30 g/L NH4Cl (Tianjin Kermel Chemical Reagent Co., Tianjin, China), and 50 g/L thiourea (Tianjin Kermel Chemical Reagent Co., Tianjin, China). Then, the dispersed suspension was treated in a sonic bath for about 1 h. A pure nickel tube was used as the anode, and copper foil was used as the cathode. The pretreatment process consisted of mechanical polishing, followed by the use of ethanol, sodium hydroxide, and dilute hydrochloric acid, successively, in an ultrasonic device for 15 min. Copper foil were then washed with distilled water and dried every time. With the help of a DC-regulated power supply, experiments were carried out at a temperature of 45 °C for 1 h. The Ni–S alloy was synthesized by similar procedures.

3.3. Characterizations

The samples were characterized by SEM (FE-SEM, Carl Zeiss Super55 operated at 20 kV), X-ray power diffraction (RigakuSmart Lab, X-ray Diffractometer, Tokyo, Japan), and TEM (Hitachi HT 7700, transmission electronic microscope, Tokyo, Japan). The chemical compositional analysis was actualized by an energy dispersive spectrometer (EDS), which was attached to the TEM.

3.4. Electrochemical Measurements

All electrochemical measurements were performed with an electrode system in a 1.0 M NaOH on a CHI660E electrochemical workstation. An Hg/HgO electrode (0.097 V vs. standard hydrogen electrode) and a platinum foil were used as a reference electrode and counter electrode, respectively. The composite platings were cut into pieces of 1 × 1 cm2, and their backs were bonded with epoxy resin to be used directly as the working electrode. Linear sweep voltammetry (LSV) measurements were carried out at a scan rate of 5 mV s−1, and cyclic voltammetry (CV) measurements were implemented between −0.825 V and −1.025 V at a scan rate of 100 mV s−1. The long-term electrolysis was tested by chronopotentiometry (CP) measurement (Vt). This process was performed at a constant current density of 100 mA cm−2 in 1 M NaOH for 12 h. A.C. Impedance measurements were obtained at an overpotential of 200 mV with a wide frequency range from 0.01 Hz to 10 KHz. For all potentials and overpotentials, iR correction was performed.

4. Conclusions

Composite coatings were prepared by a supergravity device by adding different morphologies of CeO2. Although the uniformity of the two kinds of coating microstructures is poor, the Ni–S alloy adheres to the surface of CeO2, and its catalytic activity in HERs is substantial. The overpotentials of M–CeO2 Nr and M–CeO2 Nf are 200 mV and 180 mV, respectively. Moreover, the values of the Tafel slope suggest that the Volmer reaction is the rate-limiting step in the Volmer–Heyrovsky mechanism. The exchange current density (j0) values of M–CeO2 Nf and M–CeO2 Nr are 7.48 mA/cm2 and 7.40 mA/cm2, respectively, which are higher than that of M-0 (6.39 mA/cm2). Meanwhile, double-layer capacitances (Cdl) values of M–CeO2 Nf (6.4 mF/cm2) and M–CeO2 Nr (6 mF/cm2) are 21.3 times and 20 times that of M-0 (0.3 mF/cm2), respectively.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/7/7/197/s1, Video S1, Hydrogen evolution with the M-CeO2(Nr); Figure S1, SEM image of M-0, Figure S2, Image showing hydrogen evolution with the M-CeO2(Nr), Figure S3, Liner fitting of the capacitive current of M-0 vs. scan rates. The selected potential range where no faradic current was tested is 0.025 V to 0.125 V vs. RHE, Figure S4, (a) SEM of M-0 after 3000 cycles; (b) LSV curves of M-0 before and after 3000 CV cycles at a scan rate of 100 mV S−1 between −0.825 to −1.025 V. Inset, time dependence of the potential of M-0 at a current density of 100 mA cm−2, Table S1, Comparison of HER performance in alkaline media for Ni-S/CeO2(Nr) and Ni-S/CeO2(Nf) with other non-noble-metal HER electrocatalysts, Table S2, Values of the charge transfer resistance and the mass transfer resistance of four different electrodes.

Acknowledgments

This work was financially supported by the National Natural Science Foundation of China (NO.51674221).

Author Contributions

G.S., H.D., Z.L., and M.X. conceived and designed the experiments; M.Z. and Y.L. performed the experiments, analyzed the data, and wrote the paper. Y.W., L.W., and Z.C. participated in writing the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Winsche, W.E.; Hoffman, K.C.; Salzano, F.J. Hydrogen: Its future role in the nation’s energy economy. Science 1973, 180, 1325–1332. [Google Scholar] [CrossRef] [PubMed]
  2. Paseka, I. Influence of hydrogen absorption in amorphous Ni–P electrodes on double layer capacitance and charge transfer coefficient of hydrogen evolution reaction. Electrochim. Acta 1999, 44, 4551–4558. [Google Scholar] [CrossRef]
  3. Liu, W.; Hu, E.; Jiang, H.; Xiang, Y.; Weng, Z.; Li, M.; Fan, Q.; Yu, X.; Altman, E.I.; Wang, H. A highly active and stable hydrogen evolution catalyst based on pyrite-structured cobalt phosphosulfide. Nat. Commun. 2016, 7, 10771. [Google Scholar] [CrossRef]
  4. Xing, R.; Jiao, T.; Liu, Y.; Ma, K.; Zou, Q.; Ma, G.; Yan, X. Co-assembly of graphene oxide and albumin/photosensitizer nanohybrids towards enhanced photodynamic therapy. Polymers 2016, 8, 181. [Google Scholar] [CrossRef]
  5. Yang, W.; Yang, W.; Ding, F.; Sang, L.; Ma, Z.; Shao, G. Template-free synthesis of ultrathin porous carbon shell with excellent conductivity for high-rate supercapacitors. Carbon 2017, 111, 419–427. [Google Scholar] [CrossRef]
  6. Yang, W.; Yang, W.; Song, A.; Gao, L.; Sun, G.; Shao, G. Pyrrole as a promising electrolyte additive to trap polysulfides for lithium-sulfur batteries. J. Power Sources 2017, 348, 175–182. [Google Scholar] [CrossRef]
  7. Chen, Z.; Ma, Z.; Song, J.; Wang, L.; Shao, G. Novel one-step synthesis of wool-ball-like Ni–carbon nanotubes composite cathodes with favorable electrocatalytic activity for hydrogen evolution reaction in alkaline solution. J. Power Sources 2016, 324, 86–96. [Google Scholar] [CrossRef]
  8. Wang, L.; Li, Y.; Xia, M.; Li, Z.; Chen, Z.; Ma, Z.; Qin, X.; Shao, G. Ni nanoparticles supported on graphene layers: An excellent 3d electrode for hydrogen evolution reaction in alkaline solution. J. Power Sources 2017, 347, 220–228. [Google Scholar] [CrossRef]
  9. Ouyang, C.; Wang, X.; Wang, C.; Zhang, X.; Wu, J.; Ma, Z.; Dou, S.; Wang, S. Hierarchically porous Ni3S2 nanorod array foam as highly efficient electrocatalyst for hydrogen evolution reaction and oxygen evolution reaction. Electrochim. Acta 2015, 174, 297–301. [Google Scholar] [CrossRef]
  10. Zhang, R.; Xing, R.; Jiao, T.F.; Ma, K.; Chen, C.; Ma, G.; Yan, X. Carrier-free, chemo-photodynamic dual nanodrugs via self-assembly for synergistic antitumor therapy. ACS Appl. Mater. Interfaces 2016, 8, 13262. [Google Scholar] [CrossRef]
  11. Song, A.; Yang, W.; Yang, W.; Sun, G.; Yin, X.; Gao, L.; Wang, Y.; Qin, X.; Shao, G. Facile synthesis of cobalt nanoparticles entirely encapsulated in slim nitrogen-doped carbon nanotubes as oxygen reduction catalyst. ACS Sustain. Chem. Eng. 2017, 5, 3973–3981. [Google Scholar] [CrossRef]
  12. Xiao, P.; Sk, M.A.; Thia, L.; Ge, X.; Lim, R.J.; Wang, J.Y.; Lim, K.H.; Wang, X. Molybdenum phosphide as an efficient electrocatalyst for the hydrogen evolution reaction. Energy Environ. Sci. 2014, 7, 2624–2629. [Google Scholar] [CrossRef]
  13. Hong, S.H.; Sang, H.A.; Choi, J.; Jin, Y.K.; Kim, H.Y.; Kim, H.J.; Jang, J.H.; Kim, H.; Kim, S.K. High-activity electrodeposited NiW catalysts for hydrogen evolution in alkaline water electrolysis. Appl. Sur. Sci. 2015, 349, 629–635. [Google Scholar] [CrossRef]
  14. Wang, D.Y.; Gong, M.; Chou, H.L.; Pan, C.J.; Chen, H.A.; Wu, Y.; Lin, M.C.; Guan, M.; Yang, J.; Chen, C.W. Highly active and stable hybrid catalyst of cobalt-doped FeS2 nanosheets-carbon nanotubes for hydrogen evolution reaction. J. Am. Chem. Soc. 2016, 137, 1587–1592. [Google Scholar] [CrossRef] [PubMed]
  15. Gao, M.R.; Liang, J.X.; Zheng, Y.R.; Xu, Y.F.; Jiang, J.; Gao, Q.; Li, J.; Yu, S.H. An efficient molybdenum disulfide/cobalt diselenide hybrid catalyst for electrochemical hydrogen generation. Nat. Commun. 2015, 6, 5982. [Google Scholar] [CrossRef] [PubMed]
  16. Mckone, J.R.; Sadtler, B.F.; Werlang, C.A.; Lewis, N.S.; Gray, H.B. Ni–Mo nanopowders for efficient electrochemical hydrogen evolution. ACS Catal. 2013, 3, 166. [Google Scholar] [CrossRef]
  17. Bates, M.K.; Jia, Q.; Ramaswamy, N.; Allen, R.J.; Mukerjee, S. Composite Ni/NiO Cr2O3 catalyst for alkaline hydrogen evolution reaction. J. Phys. Chem. C 2016, 119, 5467–5477. [Google Scholar] [CrossRef] [PubMed]
  18. Azarniya, A.; Salatin, F.; Eskandaripoor, M.R.; Rasooli, A. A kinetic study on the mechanism of hydrogen evolution in Ni–P coated titanium hydride powder. Adv. Powder Technol. 2015, 26, 259–266. [Google Scholar] [CrossRef]
  19. Tang, C.; Pu, Z.; Liu, Q.; Asiri, A.M.; Luo, Y.; Sun, X. Ni3S2 nanosheets array supported on Ni foam: A novel efficient three-dimensional hydrogen-evolving electrocatalyst in both neutral and basic solutions. Int. J. Hydrogen Energy 2015, 40, 4727–4732. [Google Scholar] [CrossRef]
  20. Paek, S.M.; Jung, H.; Park, M.; Lee, J.K.; Choy, J.H. An inorganic nanohybrid with high specific surface area:  TiO2-pillared MoS2. Chem. Mater. 2005, 17, 3492–3498. [Google Scholar] [CrossRef]
  21. Li, J.S.; Yu, W.; Liu, C.H.; Li, S.L.; Wang, Y.G.; Dong, L.Z.; Dai, Z.H.; Li, Y.F.; Lan, Y.Q. Coupled molybdenum carbide and reduced graphene oxide electrocatalysts for efficient hydrogen evolution. Nat. Commun. 2016, 7, 11204. [Google Scholar] [CrossRef]
  22. Chen, J.; Yu, D.; Liao, W.; Zheng, M.; Xiao, L.; Zhu, H.; Zhang, M.; Du, M.; Yao, J. Wo3−x nanoplates grown on carbon nanofibers for an efficient electrocatalytic hydrogen evolution reaction. ACS Appl. Mater. Interfaces 2016, 8, 18132. [Google Scholar] [CrossRef] [PubMed]
  23. Zheng, Z.; Li, N.; Wang, C.Q.; Li, D.Y.; Meng, F.Y.; Zhu, Y.M.; Li, Q.; Wu, G. Electrochemical synthesis of Ni–S/CeO2 composite electrodes for hydrogen evolution reaction. J. Power Sources 2013, 230, 10–14. [Google Scholar] [CrossRef]
  24. Zheng, Z.; Li, N.; Wang, C.Q.; Li, D.Y.; Meng, F.Y.; Zhu, Y.M. Effects of CeO2 on the microstructure and hydrogen evolution property of Ni–Zn coatings. J. Power Sources 2013, 222, 88–91. [Google Scholar] [CrossRef]
  25. Zhou, K.; Xu, R.; Sun, X.; Chen, H.; Tian, Q.; Shen, D.; Li, Y. Favorable synergetic effects between CuO and the reactive planes of ceria nanorods. Catal. Lett. 2005, 101, 169–173. [Google Scholar] [CrossRef]
  26. Huang, H.; Dai, Q.; Wang, X. Morphology effect of Ru/CeO2 catalysts for the catalytic combustion of chlorobenzene. Appl. Catal. B 2014, 158–159, 96–105. [Google Scholar] [CrossRef]
  27. Chen, Z.; Ma, Z.; Song, J.; Wang, L.; Shao, G. A novel approach for the preparation of Ni–CeO2 composite cathodes with enhanced electrocatalytic activity. RSC Adv. 2016, 6, 60806–60814. [Google Scholar] [CrossRef]
  28. Zhao, M.; Dong, H.; Chen, Z.; Ma, Z.; Wang, L.; Wang, G.; Yang, W.; Shao, G. Study of Ni–S/CeO2 composite material for hydrogen evolution reaction in alkaline solution. Int. J. Hydrogen Energy 2016, 41, 20485–20493. [Google Scholar] [CrossRef]
  29. Han, Q.; Li, X.; Chen, J.; Liu, K.; Dong, X.; Wei, X. Study of amorphous Ni–S(La) alloy used as her cathode in alkaline medium. J. Alloys Compd. 2005, 400, 265–269. [Google Scholar] [CrossRef]
  30. Cao, Y.; Liu, J.; Wang, F.; Ji, J.; Wang, J.; Qin, S.; Zhang, L. Electrodeposited Ni–S intermetallic compound film electrodes for hydrogen evolution reaction in alkaline solutions. Mater. Lett. 2010, 64, 261–263. [Google Scholar] [CrossRef]
  31. Mali, M.G.; Yoon, H.; Joshi, B.N.; Park, H.; Aldeyab, S.S.; Dong, C.L.; Ahn, S.J.; Nervi, C.; Yoon, S.S. Enhanced photoelectrochemical solar water splitting using a platinum-decorated CIGS/CdS/ZnO photocathode. ACS Appl. Mater. Interfaces 2015, 7, 21619–21625. [Google Scholar] [CrossRef] [PubMed]
  32. Navarro-Flores, E.; Chong, Z.; Omanovic, S. Characterization of Ni, NiMo, NiW and NiFe electroactive coatings as electrocatalysts for hydrogen evolution in an acidic medium. J. Mol. Catal. A 2005, 226, 179–197. [Google Scholar] [CrossRef]
  33. González-Buch, C.; Herraiz-Cardona, I.; Ortega, E.; García-Antón, J.; Pérez-Herranz, V. Synthesis and characterization of macroporous Ni, Co and Ni–Co electrocatalytic deposits for hydrogen evolution reaction in alkaline media. Int. J. Hydrogen Energy 2013, 38, 10157–10169. [Google Scholar] [CrossRef]
  34. Ay, H.; Üner, D. Dry reforming of methane over CeO2 supported Ni, Co and Ni–Co catalysts. Appl. Catal. B 2015, 179, 128–138. [Google Scholar] [CrossRef]
  35. Burbano, M.; Norberg, S.T.; Hull, S.; Eriksson, S.G.; Marrocchelli, D.; Madden, P.A.; Watson, G.W. Oxygen vacancy ordering and the conductivity maximum in Y2O3-doped CeO2. Chem. Mater. 2012, 24, 222–229. [Google Scholar] [CrossRef]
  36. López, J.M.; Gilbank, A.L.; García, T.; Solsona, B.; Agouram, S.; Torrente-Murciano, L. The prevalence of surface oxygen vacancies over the mobility of bulk oxygen in nanostructured ceria for the total toluene oxidation. Appl. Catal. B Environ. 2015, 174–175, 403–412. [Google Scholar] [CrossRef]
  37. Tan, J.P.Y.; Tan, H.R.; Boothroyd, C.; Yong, L.F.; He, C.B.; Lin, M. Three-dimensional structure of CeO2 nanocrystals. J. Phys. Chem. C 2014, 115, 3544–3551. [Google Scholar] [CrossRef]
  38. Bhosale, A.K.; Shinde, P.S.; Tarwal, N.L.; Kadam, P.M.; Mali, S.S.; Patil, P.S. Synthesis and characterization of spray pyrolyzed nanocrystalline CeO2–SiO2 thin films as passive counter electrodes. Sol. Energy Mater. Sol. Cells 2010, 94, 781–787. [Google Scholar] [CrossRef]
  39. Yi, G.; Yuan, Y. Morphology effects of nanocrystalline CeO2 on the preferential co oxidation in H2-rich gas over Au/CeO2 catalyst. Chem. Phys. Lett. 2009, 479, 128–132. [Google Scholar] [CrossRef]
  40. Wu, Z.; Li, M.; Mullins, D.R.; Overbury, S.H. Probing the surface sites of CeO2 nanocrystals with well-defined surface planes via methanol adsorption and desorption. ACS Catal. 2012, 2, 2224–2234. [Google Scholar] [CrossRef]
  41. Liao, L.; Zhu, J.; Bian, X.; Zhu, L.; Scanlon, M.D.; Girault, H.H.; Liu, B. MoS2 formed on mesoporous graphene as a highly active catalyst for hydrogen evolution. Adv. Funct. Mater. 2013, 23, 5326–5333. [Google Scholar] [CrossRef]
  42. Zhou, H.; Wang, Y.; He, R.; Yu, F.; Sun, J.; Wang, F.; Lan, Y.; Ren, Z.; Chen, S. One-step synthesis of self-supported porous NiSe2/Ni hybrid foam: An efficient 3d electrode for hydrogen evolution reaction. Nano Energy 2016, 20, 29–36. [Google Scholar] [CrossRef]
  43. Xie, J.; Zhang, H.; Li, S.; Wang, R.; Sun, X.; Zhou, M.; Zhou, J.; Lou, X.W.; Xie, Y. Defect-rich MoS2 ultrathin nanosheets with additional active edge sites for enhanced electrocatalytic hydrogen evolution. Adv. Mater. 2013, 25, 5807–5813. [Google Scholar] [CrossRef] [PubMed]
  44. Xu, K.; Wang, F.; Wang, Z.; Zhan, X.; Wang, Q.; Cheng, Z.; Safdar, M.; He, J. Component-controllable WS(2(1−x))Se(2x) nanotubes for efficient hydrogen evolution reaction. ACS Nano 2014, 8, 8468–8476. [Google Scholar] [CrossRef] [PubMed]
  45. Tiwari, R.; Sarkar, B.; Tiwari, R.; Pendem, C.; Sasaki, T.; Saran, S.; Bal, R. Pt nanoparticles with tuneable size supported on nanocrystalline ceria for the low temperature water-gas-shift (WGS) reaction. J. Mol. Catal. A 2014, 395, 117–123. [Google Scholar] [CrossRef]
  46. Du, J.; Shao, G.; Qin, X.; Wang, G.; Zhang, Y.; Ma, Z. High specific surface area MnO2 electrodeposited under supergravity field for supercapacitors and its electrochemical properties. Mater. Lett. 2012, 84, 13–15. [Google Scholar] [CrossRef]
Figure 1. Schematic diagram of Ni–S/CeO2 synthesis.
Figure 1. Schematic diagram of Ni–S/CeO2 synthesis.
Catalysts 07 00197 g001
Figure 2. XRD images of (a) Ni–S/CeO2 composite materials and (b) CeO2 nanoflakes and CeO2 nanorods.
Figure 2. XRD images of (a) Ni–S/CeO2 composite materials and (b) CeO2 nanoflakes and CeO2 nanorods.
Catalysts 07 00197 g002

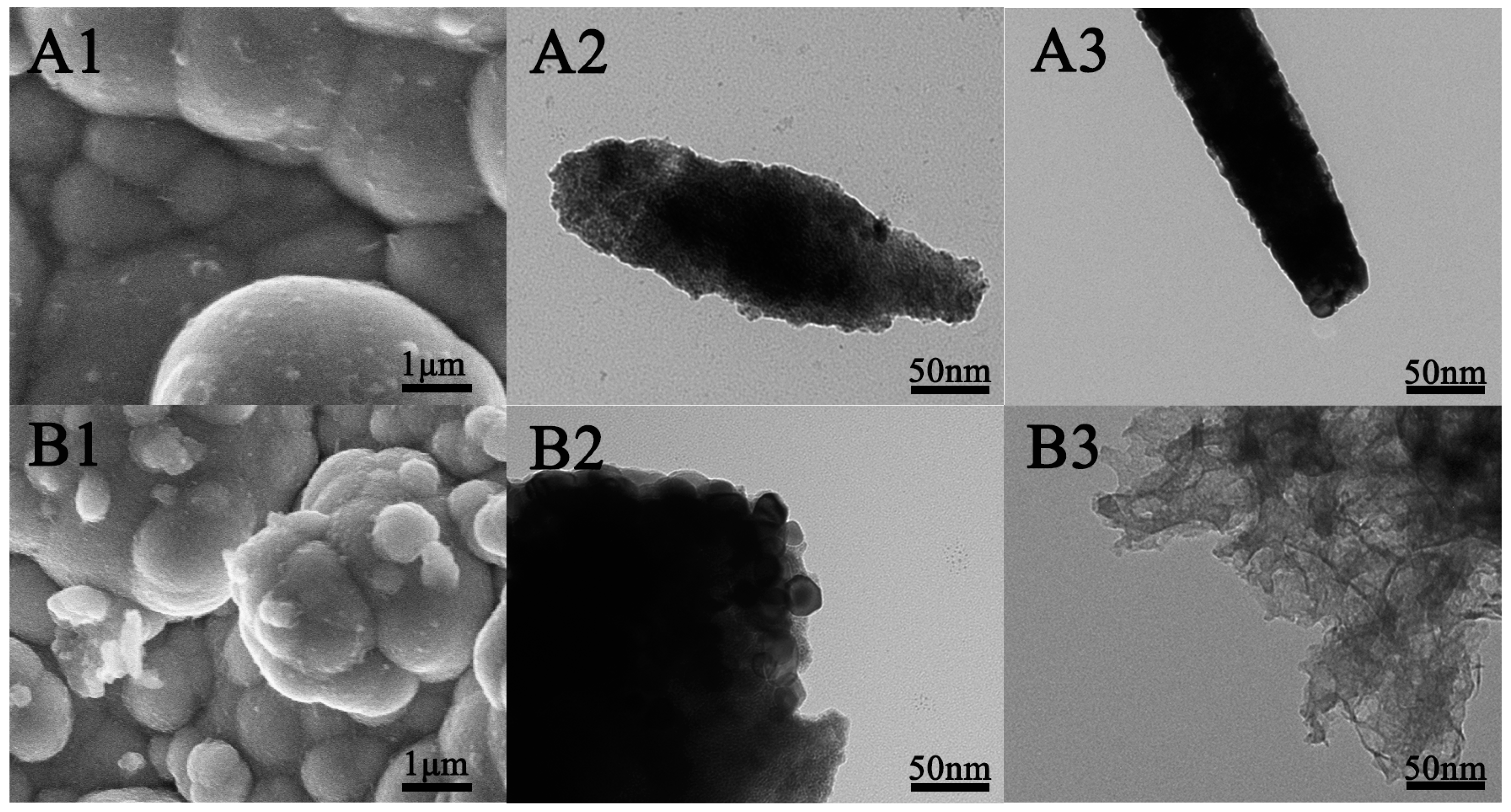

Figure 3. SEM and TEM images of (A1,A2) M–CeO2 Nr and (B1,B2) M–CeO2 Nf, respectively. TEM images of (A3) CeO2 nanorods and (B3) CeO2 nanoflakes.
Figure 3. SEM and TEM images of (A1,A2) M–CeO2 Nr and (B1,B2) M–CeO2 Nf, respectively. TEM images of (A3) CeO2 nanorods and (B3) CeO2 nanoflakes.
Catalysts 07 00197 g003

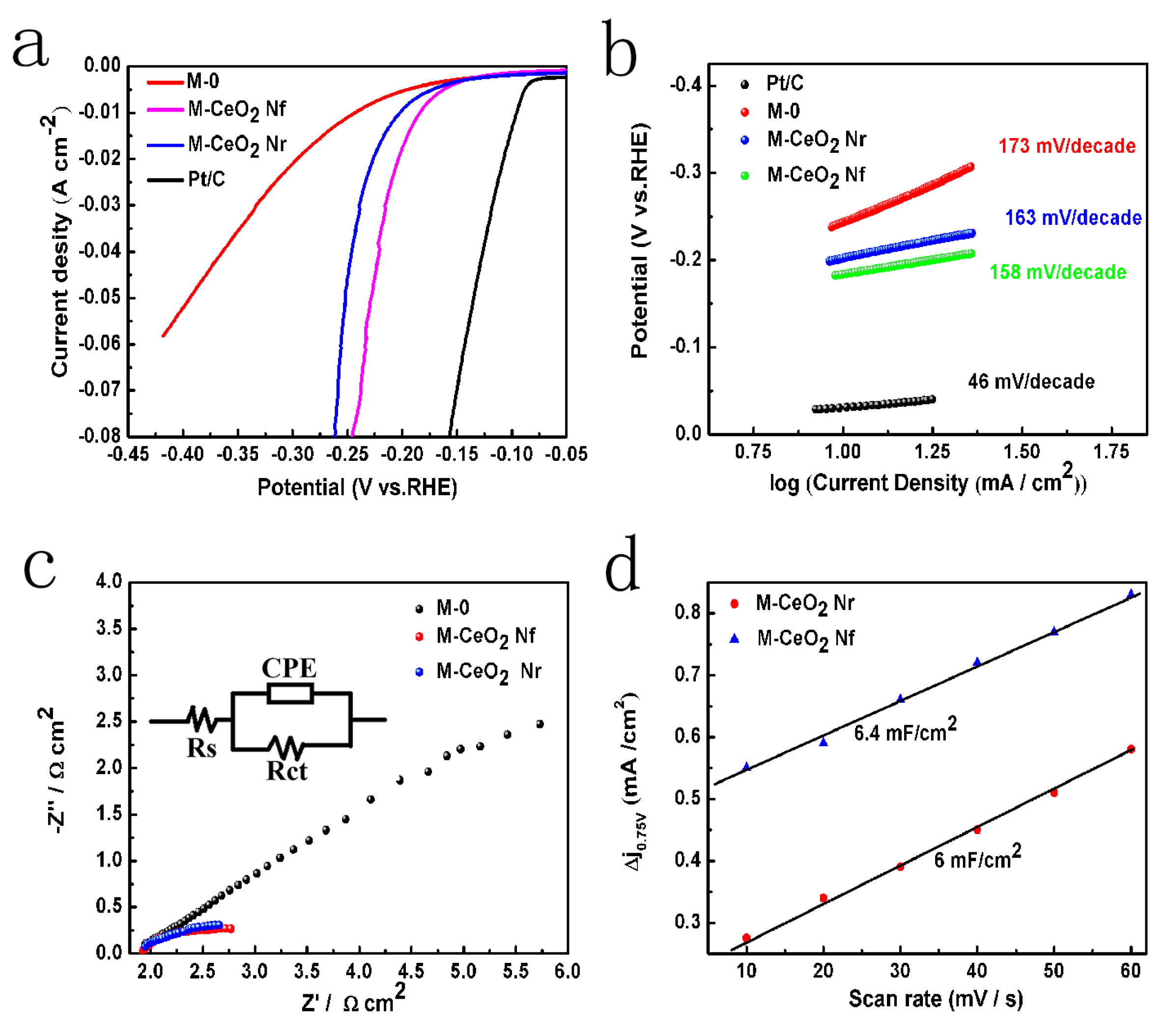

Figure 4. (a) Polarization curves obtained for three catalysts. (b) Corresponding Tafel plots. (c) electrochemical impedance spectra (EIS) of the three catalysts at η = 200 mV. Illustration is an equivalent circuit. (d) Liner fitting of the capacitive current of catalysts vs. scan rates. The selected potential range where no faradic was tested is 0.025 V to 0.125 V vs. RHE.
Figure 4. (a) Polarization curves obtained for three catalysts. (b) Corresponding Tafel plots. (c) electrochemical impedance spectra (EIS) of the three catalysts at η = 200 mV. Illustration is an equivalent circuit. (d) Liner fitting of the capacitive current of catalysts vs. scan rates. The selected potential range where no faradic was tested is 0.025 V to 0.125 V vs. RHE.
Catalysts 07 00197 g004

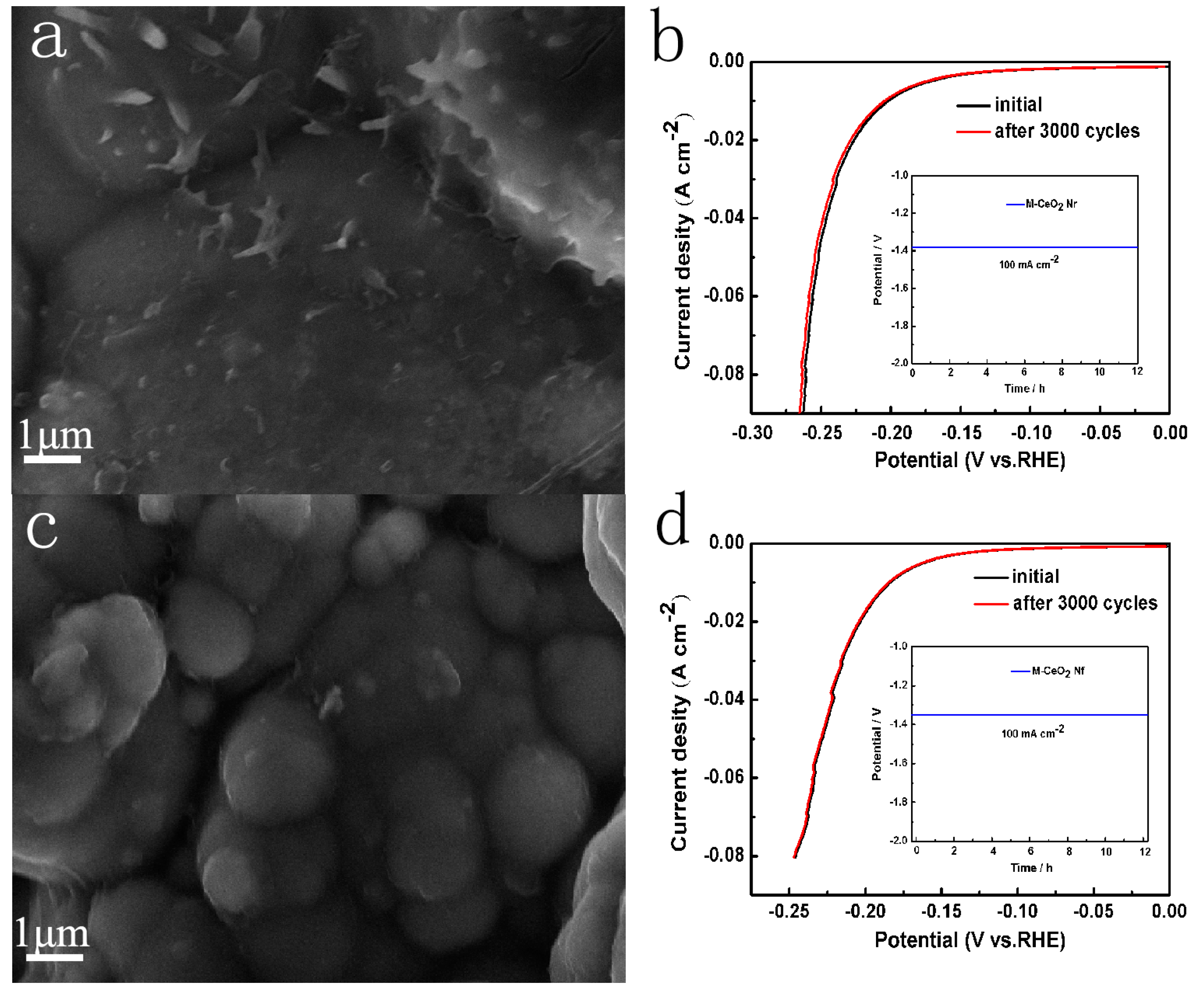

Figure 5. (a) SEM of M–CeO2 Nr after 3000 cycles. (b) LSV curves of M–CeO2 Nr before and after 3000 cycles at a scan rate of 100 mV S−1 between −0.825 to −1.025 V. Inset: time dependence of the potential of M–CeO2 Nr at a current density of 100 mA cm−2. (c) SEM of M–CeO2 Nf after 3000 cycles. (d) LSV curves of M–CeO2 Nf before and after 3000 cycles at a scan rate of 100 mV S−1 between −0.825 to −1.025 V. Inset: time dependence of the potential of M–CeO2 Nf at a current density of 100 mA m−2.
