Activated Carbon Supported Mo-Ti-N Binary Transition Metal Nitride as Catalyst for Acetylene Hydrochlorination

by
Hui Dai
1,
Mingyuan Zhu
2,
Haiyang Zhang
2,
Feng Yu
2,
Chao Wang
2 and
Bin Dai
2,*
1
School of Chemical Engineering & Technology, Tianjin University, Tianjin 300072, China
2
Key Laboratory for Green Processing of Chemical Engineering of Xinjiang Bingtuan, School of Chemistry and Chemical Engineering, Shihezi University, Shihezi 832003, China
*
Author to whom correspondence should be addressed.
Catalysts 2017, 7(7), 200; https://doi.org/10.3390/catal7070200
Submission received: 5 May 2017 / Revised: 17 June 2017 / Accepted: 27 June 2017 / Published: 30 June 2017
Browse Figures
Versions Notes

Abstract

:
Recently, many scientists have focused on the development of green industrial technology. However, the process of synthesizing vinyl chloride faces the problem of Hg pollution. Via a novel approach, we used two elements Mo and Ti to prepare an inexpensive and green binary transition metal nitride (BTMN) as the active ingredient in a catalyst with nano-sized particles and an excellent degree of activation, which was supported on activated carbon. When the Mo/Ti mole ratio was 3:1, the conversion of acetylene reached 89% and the selectivity exceeded 98.5%. The doping of Ti in Mo-based catalysts reduced the capacity of adsorption for acetylene and also increased the adsorption of hydrogen chloride. Most importantly, the performance of the BTMN excelled those of the individual transition metal nitrides, due to the synergistic activity between Mo and Ti. This will expand the new epoch of the employment of transition metal nitrides as catalysts in the hydrochlorination of acetylene reaction.

1. Introduction

Polyvinylchloride (PVC) has excited much attention owing to its high application value, low price, and comparatively simple preparation process. However, its manufacturing process still faces an environmental issue, namely, in the synthesis of vinyl chloride monomer (VCM), which is the monomer of PVC, Hg used as the catalyst easily accumulates, which simultaneously brings about hazards to the environment. This problem has been the subject of heated discussion among scholars in recent years [1,2]. Some metals have already been found to replace Hg as a catalyst for the preparation of VCM. Novel catalysts with high performance and stability are required, furthermore, they must be non-polluting and harmless. The search for catalysts tends to focus on metals that are active, but expensive and rare in the earth, to which the practical development of catalysts, such as Au-based [3,4,5,6,7] and Ru-based [8,9] catalysts, has been confined. Many scientists are concentrating on a reduction in the required load of noble metal while maintaining the same degree of activation. The addition of a second base metal, such as La [4], Co [5], Ni [10], Cu [11], and Cs [12], can modulate the electronic properties, which prevents the reduction of the +3 valence state of Au to a low valence, and more over promotes the whole activity. However, the problems that still face the use of Au as the main activated catalyst are that its cost is too high and it is hard to industrialize. Apart from that, the addition of non-metallic elements, such as P [13], N [14,15], B [16], etc., has been carried out. Whether these were added to the support or the active ingredient, the enhancement in performance due to these hetero atoms can transport extra electrons to the active site. Bao et al. reported a nano composite N-doped carbon catalyst supported by SiC, which exhibited an excellent degree of activation, with an analysis of its reaction mechanism, in which carbon atoms bonded to pyrrolic-N play a very important role [17]. Zhao et al. (2016), who added CuCl2 to g-C3N4/activated carbon (AC) as a catalyst for this reaction, increased the content of pyrrolic-N and improved the adsorption performance for the reacting gases [18]. It was demonstrated in a number of studies that the addition of nitrogen sources will help improve activation, besides, connected with base metals, which have become the focus of study.
In the last few years, scientists have been eager to find a substitute for noble metals. Fortunately, new materials, namely, transition metal nitrides (TMNs), have emerged. Many studies have focused on the analogies between the catalytic efficacy of TMNs and that of noble metals [19]. With lower costs than noble metals, thermal stability, and high melting points, TMNs also possess high chemical stability and most importantly, have excellent catalytic properties in many reactions, which are attributed to the fact that they exhibit platinum-like electronic structures. When the p-orbital of a heteroatom such as N, C, or S overlaps with a d-orbital of a transition metal, this can lead to an expansion in the metal lattice that generates a new d-band [20]. This combination gives rise to a higher density of states near the Fermi level that approach the d-band of Pt [21,22], and is based on two main forms that participate in the reaction. The first is as a carrier: Pan et al. [23] synthesized TiN nanotubes with a mesoporous structure, on which supported Pt was better than Pt/C in both activity and durability in the oxygen reduction reaction. There was a strong synergistic interaction between Pt and the TiN nanotubes. TMNs as supports for loading Pt or Pd as an electrocatalyst in direct methanol fuel cells exhibited high degrees of activation, even beyond that of Pt/C catalysts. Besides, a large surface area and a porous structure are also aims in the synthesis of binary transition metal nitrides (BTMNs). A one-pot solvothermal process has been used to prepare Ti0.8Mo0.2N hybrid support, of which the surface area can reach 148 m2 g−1, and which also contains a large amount of mesopores. When used as a support and decorated with Pt nanoparticles it exhibited excellent catalytic durability, which even exceeded that of a Pt/C catalyst in the methanol oxidation reaction [24]. Later, it was found that TMNs can be directly used as an active constituent that participates in the reaction. Using hydrothermal treatment, it was easy to fabricate hybrid 2D-0D graphene-VN quantum dots, which were used for lithium and sodium storage and of which the unique multiporous structure can prevent the aggregation of VN particles during the cycling process and the continuous graphene backbone leads to the fast diffusion of lithium and electrons [25]. Subsequently, BTMNs also became involved, and transition metals (Fe, Co, and Ni) were doped with Ti using an NH3 temperature-programmed method to obtain three different BTMN nanoparticles for the oxygen reduction reaction [26]. Under acidic conditions, Ti0.95Ni0.05N exhibits an excellent degree of activation, because doping with the transition metal can weaken the bonds between the Ti and O atoms. The four-layered stacking structure Co0.6Mo1.4N2 was employed under acidic conditions for the hydrogen evolution reaction; this layered structure allows the 3d transition metal to tune the electronic states of Mo at the surface of the catalyst without disrupting its catalytic activity [27]. In addition to these reactions, the hydrogenation of CO [28], production of hydrogen by decomposition of ammonia [29], and epoxidation of alkenes [30], etc., all proceeded with excellent activity.
BTMNs are generally promising for many catalytic applications, as they have high corrosion resistance. However, studies regarding the fabrication of BTMNs catalysts for employment in the hydrochlorination of acetylene, which would be an effective way of carrying out this reaction, are rare. We were therefore motivated to investigate the catalytic activity for the acetylene hydrochlorination of molybdenum and titanium BTMNs loaded on the classic support AC, of which the activity has not previously been reported.

2. Experimental

2.1. Materials

NH3 (gas, 99.999%), N2 (gas, 99.99%), C2H2 (gas, ≥98%) and HCl (gas, ≥99%), MoCl5 (99.6% metal basis, purchase from Aladdin, Shanghai, China), TiCl4 (Tianjin Guangfu Chemical reagent, Tianjin, China) and AC (20–40 mesh, coconut shell activated carbon).

2.2. Preparation of Catalysts

The Mo-Ti-N catalysts were synthesized by a hydrothermal method using a tandem ammonia calcination process [24]. Different molar proportions of MoCl5 and TiCl4 were dissolved in deionized water (more details are given in Table 1), and 5 g AC was added to the aqueous solution at room temperature (RT; 28 °C) and kept under continuous stirring for one day. Next, the mixture was poured into a Teflon-sealed autoclave and heated at 150 °C for 3 h. When it had cooled down to RT, the mixture was filtered and washed with deionized water. The product was dried in an oven at 80 °C and afterward was subjected to NH3(g) calcination treatment, in which the flow rate was 100 mL/min and the heating rate was 5 °C/min from RT to 750 °C, at which temperature the product was maintained for 2 h then cooled down to RT to obtain the ternary metal nitride. TiN/AC and Mo2N/AC were prepared using the same processes, only without using the other metal (Mo or Ti, respectively).

2.3. Characterization Techniques

X-ray diffraction (XRD) with a Bruker D8 diffractometer was used to determine the structures of the catalysts. A Micromeritics ASAP 2020 instrument was used for the analysis of surface areas and pore size distributions. A Kratos AXIS Ultra DLD spectrometer was employed for X-ray photoelectron spectroscopy (XPS) to analyze the electronic states and proportions of atoms on the surfaces of samples. An AutoChem 2720 instrument (Micromeritics Instrument Corporation, Norcross, GA, USA) was used to conduct temperature-programmed reduction and desorption. An SDT Q600 analyzer (TA Instruments, New Castle, DE, USA) was used for the thermogravimetric analysis of the samples. The Ti and Mo contents of the samples were determined by an inductively coupled plasma–optical emission spectrometer (ICP-OES) (Agilent 725, Santa Clara, CA, USA). Elemental analysis (EA) was used to test the N content in the catalysts using a vario EL cube analyzer (Elementar, Langenselbold, Germany).

2.4. Experimental Measurements

A fixed-bed flow micro reactor was used to test the catalytic performance at atmospheric pressure. To eliminate the harmful effects of air, the reactor was swept with nitrogen for one hour before the reaction. Besides, hydrogen chloride gas (25 mL min−1) was allowed to pass through the reactor until the reaction temperature of 180 °C was reached for another one hour, with the aim of activating the catalyst by this motion. After that, the two reagents were fed into the reactor at a gas hourly space velocity (GHSV) of 50 h−1. The reaction products were analyzed by gas chromatography (GC-2014C).

2.5. Analytical Methods and Criteria

After the reaction, the exit gas mixture in the reaction pass through the absorption bottle, which was used to absorb residual HCl after reaction. Other compositions of the product were injected into a Shimadzu GC-2014C for analysis.
The following equations were respectively expound the criteria of catalytic performance from two parts: acetylene conversion and VCM selectivity.
C2H2 conversion = (ΦA0 − ΦA)/ΦA0 × 100%
VCM selectivity = ΦVC/(1 − ΦA) × 100%
where ΦA0 is representative the volume fraction of C2H2 before the reaction, ΦA is representative the volume fraction of C2H2 still remained in the product gas, and ΦVC is defined as the volume fraction of vinyl chloride after the reaction.

3. Results and Discussion

3.1. Morphology of Samples

The different XRD patterns of the BTMNs and TMNs are compared in Figure 1. The two precursors have different diffraction peaks. The TiN/AC sample does not exhibit peaks of a pure metal nitride phase, and there also exists a number of TiO2 peaks. During the calcination process many nanoparticles possibly formed with a crystalline structure of TiN, with subsequent coating of the surface by a TiO2 film in the atmosphere, and diffraction peaks of TiN are hardly found. Similar synthesis conditions are to be found for Mo2N/AC, in which nanoparticles were supposedly formed; by contrast, the formation of an oxide layer was more difficult. Powder XRD studies of the BTMNs suggest that they are isostructural with Mo2N/AC. As the Mo:Ti mole ratio increased in the BTMN samples, an increase in the molybdenum titanium nitride phase and a decrease in the TiO2 phase took place. When the proportion of Mo:Ti was >3, the impurity peaks completely disappeared. For the BTMNs, the diffraction peaks of Mo2N were slightly shifted to smaller angles. According to the Bragg Equation [31], when the incident angle increased and the wavelength was fixed, this phenomenon implies that the inter planar spacing of Mo2N was increased. This suggests that an atom or ion with an atomic radius larger than that of Mo had been inserted into the Mo2N lattice phase; Ti (0.067 nm) has a larger ionic radius than Mo (0.059 nm) [32]. Furthermore, no other element peaks were detected and also the Ti atom was suitable for this phenomenon, which suggests that a Ti atom was added in the space between the Mo and N atoms.
From Figure 1, bonding between Ti and N in the TiN/AC sample can hardly be observed; besides, Mo, Ti, and N further combined with each other in the BTMNs. We used temperature-programmed desorption–mass spectrometry (TPD-MS) analysis to solve that problem according to the three different gases used for desorption, which were NHx (x = 1 – 3) (m/e = 17), H2O (m/e = 18), and N2 (m/e = 28) [33], as shown in Figure 2. The former two gases always appear as a desorption peak at low temperatures. If a peak of NHx arises, this means that an amount of NHx groups were present on the surface of the catalysts during the calcination process. As the catalyst adsorbs water from the air, the peak of H2O would increase. Both peaks emerged for Mo2N/AC as the temperature approached 200 °C. However, unlike Mo2N/AC, for TiN/AC the location of these two peaks appeared beginning at 50 °C. Then, on combining the two TMNs together, in comparison with Mo2N/AC not only did the area of the water peak increase, but the peak also shifted to lower temperatures. Moreover, the shape of the NHx peak became broader, which shows that the change in ingredients led to a change in the adsorbed surface groups on the catalysts. The peak of N2 underwent the most evident change of all. When the bond between the metal and nitride that exists in TMNs breaks, this would lead to the production of N2 in the high-temperature range [33]. A sharper peak emerged at 756 °C for Mo2N/AC, which confirmed the bonding between Mo and N in the catalyst. In comparison with this, TiN/AC had two peaks at 810 and 926.8 °C, which means that two different combined forms of Ti and N were present. BTMNs basically displayed a combination of two peaks around 760 and 800 °C, which corresponded to Mo-N and Ti-N bonds, respectively. A more obvious phenomenon was that the desorption temperature of Mo-N shifted upward; in contrast, that of Ti-N shifted downward. This indicated that the three elements underwent mutual combination in the BTMNs catalysts, not simply mechanical mixture. Mo4Ti1N/AC did not display two clear N2 peaks, and only a faint shoulder peak was discovered around 800 °C, which resulted in the conclusion that the content of Ti was minimal. This analysis directly confirms that bonding between the metal and N was present in BTMNs.

3.2. Catalytic Performance of Catalysts in Acetylene Hydrochlorination Reaction

A comparison of the activity for the seven different samples in the acetylene hydrochlorination reaction is shown in Figure 3. AC, as supported, had lower activity that only reached 35%, owing to its unique structure, large specific surface area, and amount of functional groups. It is obvious that TiN hardly influenced the catalytic activity, because TiN/AC had similar activity to the support. In sharp contrast, with the other TMN catalyst Mo2N/AC the conversion of acetylene rose from 58% at the start of the reaction to 74% after the reaction had proceeded for 2 h, after which it fell slightly to 55%. When the two TMNs were combined the activity and stability were both significantly improved: the trend for Mo1Ti1N/AC exhibited a rise from 56% to 80%, whereas Mo2Ti1N/AC reached 85% in around 3 h. Among these BTMNs, Mo3Ti1N/AC displayed excellent activity, with a conversion of acetylene about 62% at the beginning, which then increased to 89%. It is clear that the stability became worse when the Mo:Ti molar ratio was 4:1, which may have been caused by the deposition of coke. The conversion of acetylene decreased in the order of Mo3Ti1N/AC > Mo4Ti1N/AC > Mo2Ti1N/AC > Mo1Ti1N/AC > Mo2N/AC > TiN/AC. The selectivity for VCM of the catalysts is shown in Figure 3b. The lowest selectivity was displayed by the carrier, and Mo2N/AC followed. In comparison, TiN/AC possessed high selectivity; moreover, on adding Ti to Mo-based BTMN catalysts, the selectivity was also improved and reached 98.5% in all cases. The performance of the BTMNs excelled those of the two TMNs, and we can therefore speculate that there was synergistic activity between Mo and Ti.

3.3. Characteristics of Fresh and Used Samples

To further study their physicochemical properties, we analyzed the pore structure of the TMNs and supports, as shown in Table 1, and the adsorption branches for the samples are shown in Figure S1. The carrier had the largest surface area and pore volume. After loading the ingredients, all parameters underwent a clear decrease, which means that an enormous degree of activation occurred in the channels and pores of the support; moreover, every sample exhibited a type IV nitrogen adsorption isotherm [34]. On comparing the two different TMNs, namely, the Mo2N/AC and TiN/AC catalysts, it is apparent that TiN/AC displayed an even larger pore structure in surface area, pore size, and volume. The pore volume and surface area increased along with the increase in the mole ratio of Mo:Ti. After the reaction had proceeded for 4 h, TiN/AC underwent a slight decrease in surface area and pore volume, and the samples that contained Mo experienced a change in pore structure distinct from that in TiN/AC, with an especially dramatic loss of surface area and pore volume. This shows that the presence of Mo had a huge influence on the pore structure of the support. However, there was a slight difference in the used Mo-based catalysts, and the average pore diameter was higher than in the fresh BTMN catalysts. In contrast to Figure S1, this may indicate that a hysteresis loop that was formerly present disappeared for the Mo-based catalysts after the reaction. It was deduced that some coke deposits were possibly generated continuously throughout the entire reaction process, which led to a decrease in surface area and pore volume. As coke easily blocks micropores, after the reaction the mean diameter of the pores increased. As is widely known, in a porous support the active sites are mainly distributed on the surface, and thus a larger surface may possess more exposed active sites [34]. Furthermore, the capacity for reactant diffusion and product transfer largely depend on the pore structure and distribution; therefore, the change in pore structure may directly influence the stability of catalysts. This may also attribute to the rapid deactivation of the Mo-based catalysts.
The adsorption of reactants can influence the activity of a catalyst. To determine the adsorption capacity and activation of the reactants for different samples, TPD is always a useful method. Variations in the desorption temperature correspond to differences in binding or combination between the activated ingredient and the reactant; besides, the area of the desorption peak reflects the quantity of the adsorbed species. For the hydrochlorination reaction of acetylene, there was a focus on the ability of the catalysts to desorb acetylene and hydrogen chloride. Figure 4a shows the TPD profiles for the six samples of the desorption of C2H2. TiN/AC gave rise to very little adsorption of acetylene; in contrast, Mo2N/AC had the greatest adsorption ability among the samples based on the calculation of its peak area as presented in Table 2. For the BTMNs, the quantity of acetylene that was adsorbed decreased as the mole ratio of Mo and Ti increased. Furthermore, the desorption temperature of Mo3Ti1N/AC was the lowest at around 440 °C and adsorption was thus weak relative to that of other catalysts. Although TiN/AC had a low quantity of adsorbed acetylene, its desorption temperature was the highest, which suggested that the binding between the ingredient and acetylene was strong [35]. In this reaction, a higher degree of activation usually corresponds to stronger binding and a greater quantity of adsorbed HCl. The peak area of HCl for TiN/AC was slightly greater than that for Mo2N/AC, but it’s desorption temperature was the lowest, which shows that HCl was hardly combined. When the elemental components were used together, the adsorption capacity for HCl immediately increased and was directly proportional to the mole ratio of Mo and Ti. However, there was also a slight difference between the four BTMNs catalysts, Mo3Ti1N/AC exhibited the strongest binding to HCl with a desorption temperature of nearly 272 °C, as shown in Figure 4b. BTMNs had clearly different adsorption capability from TMNs; the results show clearly that BTMNs were not formed by simple addition of the single TMNs, but constituted new chemical products such as Mo-Ti-N or other form, in agreement with the TPD-MS analysis [36]. For two kinds of reactant, acetylene and HCl, Mo-based catalysts exhibited completely different adsorption ability. This phenomenon can lead C2H2 to occupy the active site, whereas only a small amount of HCl can occupy this position and most of it has yet to participate in the reaction, and thus coke is easily produced on the surface of the catalysts. For this reaction, the capacity to adsorb HCl is the key that influences the activity and stability of catalysts [37]. This analysis also explained why the performance of Mo3Ti1N/AC was outstanding.
From their microscopic structure, differences in TiN/AC, Mo2N/AC, and Mo3Ti1N/AC were investigated using TEM analysis, as shown in Figure 5. Figure 5a shows a TEM image of Mo2N/AC and its particle size distribution. It can be observed that Mo2N/AC nanoparticles form uniform spots on the surface of the carrier, and from calculations the average diameter of crystallites is about 1.35 nm. An HR-TEM image of Mo2N/AC is present in Figure 5b, and by measuring its crystal lattice, an inter planar spacing can be obtained that corresponds to the (111) planes in Mo2N. Spherical TiN nanoparticles with an average particle size of 2.44 nm were observed in Figure 5c. Their grains are larger than those of Mo2N/AC. The lattice spacing of 0.25 nm and 0.22 nm shown in Figure 5d are consistent with the (111) and (200) planes, respectively, of TiN [26]. In Figure 5e there can be observed some spherical structure and grain shape particles were combined together. The range of particle sizes extends from 0.5 nm to 5 nm, but the average calculated value is in between, at only 2.22 nm. From Figure 5f there can also be found different crystal phases that overlap together. This is evidence that BTMNs were formed from two different TMNs and shows both their advantages with well-dispersed nanoparticles of BTMNs [24]. Figure S2 shown the particles shape of three samples after the reaction. Compared with fresh catalysts, all the particles became a little bit larger than before. Used-Mo2N/AC show a large particle size distribution range from 0.5 to 3.5 nm and average grain diameter was 2.0 nm. For the other two, used catalysts particles are found up to 6.5 nm in diameter, mean size is 2.9 nm over used-TiN/AC and 3.5 nm over used-Mo3Ti1N/AC, respectively. This phenomenon indicated that these catalysts are not resistant to sintering and also show aggregation or coke deposition during the reaction, this may be another reason for the deactivation.
The elemental states of Mo, Ti, and N in the catalysts were analyzed by XPS. In the wide-scan spectrum shown in Figure S3, the peaks at 236, 284.8, 399.5, 458.6, and 531 eV can be assigned to the binding energies of Mo 3d, C 1s, N 1s, Ti 2p, and O 1s, respectively. It can be concluded from the three contrasting plots that Mo and Ti coexisted in Mo3Ti1N/AC. There was a Mo content of 4.39% in the Mo2N/AC catalyst, as shown by ICP analysis in Table S2. The content of Ti was 4.03% in TiN/AC, which showed that the two TMNs had nearly the same metal content. There are some very distinct differences between the N contents of the two TMNs listed in Table S1. In the carrier, the N content was only 0.09%, and the N contents were 0.48% in TiN/AC and 1.73% in Mo2N/AC; thereby, most Ti species present may not only be TiN, in accordance with the former analysis, may easily form TiO2. Mo3Ti1N/AC consisted of 2.88% Mo, 0.66% Ti, and 1.54% N. In view of this, elemental contents of lower than 1% are hard to determine via XPS narrow-scan analysis (Figure S2). The XPS spectrum of Mo 3d can be mainly deconvolved into two sub-peaks located at 229.7 and 232.9 eV, which is the Mo3d5/2 and Mo3d3/2 valences corresponding Moδ+ (2 < δ < 4) [38], Mo3Ti1N/AC and Mo2N/AC all have these two peaks. However, the Mo3d peak in the catalysts Mo3TiN/AC exists differently as it was slightly shifted to higher binding energies with respect to Mo2N/AC. Indicating that Mo atoms of the BTMN supplied electrons to Ti, leading to an increase in the extent of Ti d-band occupation near the Fermi level [26]. In the Ti 2p spectrum, we can observe three peaks at 464.3 eV (TiO2), 460.5 eV (TiN), and 458.5 eV (Ti-O-N) [39] for TiN/AC (Table 3). XPS analysis can only determine the surface states of samples, which can explain why XRD analysis only detected a TiO2 peak for TiN/AC. This catalyst was easily oxidized in air to form a thin TiO2 film on the surface. However, Ti states can hardly be detected because of their low content in the sample of Mo3Ti1N/AC. Therefore, we determined the N 1s peak energies for the samples. For Mo2N/AC, the binding energy at 395.5 eV corresponds to Mo-N bonds [38], and at the same time there still exist pyridinic-N and pyrrolic-N; however, Mo-N represents the largest amount of the three different forms of N. For Mo3Ti1N/AC, the N 1s spectrum shows that Mo-N bonds (395.6 eV) form the predominant component and comprise 74.6% of the N content. The surplus N peaks belong to Ti-N bonds (397.1 eV) [26]. Taken together, from the results for the N content obtained by EA and XPS N 1s spectra the following conclusion can be drawn, namely, that N was present in the form of metal-N bonds.
There are still unresolved issues, namely, the large decline in the pore structure after the reaction. Figure S4 shows the results of thermogravimetric analysis used for testing the deposition of carbon on the catalysts via a temperature-programmed route in air to test how the quality of the catalysts changed before and after the reaction to deduce how much coke was generated during the reaction. The quality declined below 110 °C as the carrier adsorbed moisture from the air. Another significant decline in quality was observed at high temperatures, which supported combustion in air [34]. Therefore, the range over which coke was removed was higher than 110 °C and lower than the combustion temperature. Table 4 summarizes the contents of carbon deposited on the six samples. On comparing the coke contents of the two TMN catalysts, the coke content of Mo2N/AC significantly exceeded that of TiN/AC. TiN/AC also had the lowest content of all the samples and its pore structure changed to the least extent after the reaction, which was confirmed by BET analysis. For the BTMN catalysts, it is obvious that the order of the coke content was as follows: Mo3Ti1N/AC (9.2%) < Mo2Ti1N/AC (9.3%) < Mo1Ti1N/AC (10.9%) < Mo4Ti1N/AC (11.8%). It is indicated that the Mo-based catalysts easily produced large amounts of coke during the reaction, which was connected with the change in pore quantity between the fresh and used catalysts. There existed a connection between the desorption area and the attributes of C2H2. For Mo-based catalysts the adsorption of C2H2 was easy and desorption was harder during the reaction, and much more C2H2 occupied the activated site, which led to the generation of large amounts of coke, which thereby blocked the pore structure. Upon the huge decline in the surface area of the catalyst, much more activated ingredients were blocked in the pores by the deposition of coke and could hardly come into contact with the reactant, which also influenced the mass transfer of the catalyst and thereby directly caused a decline in conversion.

4. Conclusions

BTMNs are inexpensive, easy to produce, and lead to no pollution to the environment, when used as novel catalysts first employed for the hydrochlorination reaction of acetylene. The optimal mole ratio of Mo/Ti was 3:1, whereas the conversion of acetylene reached 89%, and the selectivity for VCM attained 98.5%. The experimental data indicated that the doping of Ti in Mo-based catalysts reduced the adsorption of acetylene and also increased the adsorption capacity for hydrogen chloride. This also contributed to the unique structure of BTMNs. However, their stability was poor, owing to the main deactivating factors of the difficulty in desorbing C2H2, catalysts active ingredient are not resistant to sintering easy to aggregation and the production of large amounts of coke deposits under the reaction conditions used in this study. The content of adsorbed C2H2 can determine the production of coke. If the catalyst possesses a lower desorption temperature for acetylene and a higher desorption temperature for HCl, this indicates that it may have a greater degree of activation.
Most importantly, Mo3Ti1N/AC exhibited much greater activity than any other TMN catalysts. This catalyst may be used in the design of a novel catalyst system for a wide range of applications in the synthesis process of VCM.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/7/7/200/s1, Figure S1: The N2 adsorption-desorption isotherms for (a) fresh and (b) spend catalysts, Figure S2: Representative TEM figures of (a) used-Mo2N/AC; (b) used-TiN/AC and (c) used-Mo3Ti1N/AC, respectively, Figure S3: XPS spectra of Mo2N/AC, TiN/AC and Mo3Ti1N/AC, Figure S4: TG-DTG curves of six different catalysts: (a) Mo2N/AC; (b) TiN/AC; (c) Mo1Ti1N/AC; (d) Mo2Ti1N/AC; (e) Mo3Ti1N/AC and (f) Mo4Ti1N/AC, Table S1: N contents in catalysts analysis by EA, Table S2: Metal elements content in samples investigate by ICP.

Acknowledgments

The authors are grateful for the financial support from National Natural Science Funds of China (NSFC, U1403294, 21666033), and young scientific and technological innovation leader of Bingtuan (2015BC001).

Author Contributions

As for authors, Hui Dai completed the main experiments, also finished the manuscript with direction from Mingyuan Zhu; Haiyang Zhang and Feng Yu was responsible for analyzed the data; Chao Wang provided help with experiment. Bin Dai was corresponding authors in charge of supervising the work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zhu, M.; Wang, Q.; Chen, K.; Wang, Y.; Huang, C.; Dai, H.; Yu, F.; Kang, L.; Dai, B. Development of a heterogeneous non-mercury catalyst for acetylene hydrochlorination. ACS Catal. 2015, 5, 5306–5316. [Google Scholar] [CrossRef]
  2. Zhang, J.; Liu, N.; Li, W.; Dai, B. Progress on cleaner production of vinyl chloride monomers over non-mercury catalysts. Front. Chem. Sci. Eng. 2011, 5, 514–520. [Google Scholar] [CrossRef]
  3. Dai, B.; Wang, Q.; Yu, F.; Zhu, M. Effect of au nano-particle aggregation on the deactivation of the AUCL3/ac catalyst for acetylene hydrochlorination. Sci. Rep. 2014, 5, 10553. [Google Scholar] [CrossRef] [PubMed]
  4. Zhang, H.; Dai, B.; Wang, X.; Xu, L.; Zhu, M. Hydrochlorination of acetylene to vinyl chloride monomer over bimetallic au–la/sac catalysts. J. Ind. Eng. Chem. 2012, 18, 49–54. [Google Scholar] [CrossRef]
  5. Zhang, H.; Dai, B.; Wang, X.; Li, W.; Han, Y.; Gu, J.; Zhang, J. Non-mercury catalytic acetylene hydrochlorination over bimetallic Au–Co(iii)/sac catalysts for vinyl chloride monomer production. Green Chem. 2013, 15, 829–836. [Google Scholar] [CrossRef]
  6. Conte, M.; Carley, A.F.; Attard, G.; Herzing, A.A.; Kiely, C.J.; Hutchings, G.J. Hydrochlorination of acetylene using supported bimetallic au-based catalysts. J. Catal. 2008, 257, 190–198. [Google Scholar] [CrossRef]
  7. Nkosi, B.; Adams, M.D.; Coville, N.J.; Hutchings, G.J. Hydrochlorination of acetylene using carbon-supported gold catalysts: A study of catalyst reactivation. J. Catal. 1991, 128, 378–386. [Google Scholar] [CrossRef]
  8. Zhang, J.; Sheng, W.; Guo, C.; Li, W. Acetylene hydrochlorination over bimetallic ru-based catalysts. RSC Adv. 2013, 3, 21062–21068. [Google Scholar] [CrossRef]
  9. Li, G.; Li, W.; Zhang, H.; Pu, Y.; Sun, M.; Zhang, J. Non-mercury catalytic acetylene hydrochlorination over ru catalysts enhanced by carbon nanotubes. RSC Adv. 2015, 5, 9002–9008. [Google Scholar] [CrossRef]
  10. Pu, Y.; Zhang, J.; Wang, X.; Zhang, H.; Yu, L.; Dong, Y.; Li, W. Bimetallic Au–Ni/CsS catalysts for acetylene hydrochlorination. Catal. Sci. Technol. 2014, 4, 4426–4432. [Google Scholar] [CrossRef]
  11. Zhao, J.; Zeng, J.; Cheng, X.; Wang, L.; Yang, H.; Shen, B. An au–cu bimetal catalyst for acetylene hydrochlorination with renewable γ-Al2O3 as the support. RSC Adv. 2015, 5, 16727–16734. [Google Scholar] [CrossRef]
  12. Zhao, J.; Zhang, T.; Di, X.; Xu, J.; Xu, J.; Feng, F.; Jun, N.; Li, X. Nitrogen-modified activated carbon supported bimetallic gold–cesium (i) as highly active and stable catalyst for the hydrochlorination of acetylene. RSC Adv. 2015, 5, 6925–6931. [Google Scholar] [CrossRef]
  13. Wang, B.; Yu, L.; Zhang, J.; Pu, Y.; Zhang, H.; Li, W. Phosphorus-doped carbon supports enhance gold-based catalysts for acetylene hydrochlorination. RSC Adv. 2014, 4, 15877–15885. [Google Scholar] [CrossRef]
  14. Wang, X.; Zhu, M.; Zhang, H.; Chen, K.; Wang, Q.; Li, X. Melamine modification of spherical activated carbon and its effects on acetylene hydrochlorination. J. Wuhan Univ. Technol. Mater. Sci. Ed. 2014, 29, 1147–1151. [Google Scholar]
  15. Li, X.; Zhu, M.; Dai, B. AuCl3 on polypyrrole-modified carbon nanotubes as acetylene hydrochlorination catalysts. Appl. Catal. B Environ. 2013, 142, 234–240. [Google Scholar] [CrossRef]
  16. Dai, B.; Chen, K.; Wang, Y.; Kang, L.; Zhu, M. Boron and nitrogen doping in graphene for the catalysis of acetylene hydrochlorination. ACS Catal. 2015, 5, 2541–2547. [Google Scholar] [CrossRef]
  17. Li, X.; Yu, L.; Ren, P.; Wu, X.; Sun, L.; Jiao, F.; Bao, X. Silicon carbide-derived carbon nanocomposite as a substitute for mercury in the catalytic hydrochlorination of acetylene. Nat. Commun. 2014, 5, 3688–3694. [Google Scholar] [CrossRef] [PubMed]
  18. Dai, B.; Zhao, W.; Zhu, M. The preparation of Cu-g-C3N4/AC catalyst for acetylene hydrochlorination. Catalysts 2016, 6, 193. [Google Scholar]
  19. Toth, L. Transition Metal Carbides and Nitrides; Elsevier: New York, NY, USA, 1971. [Google Scholar]
  20. Alhajri, N.S.; Anjum, D.H.; Hedhili, M.N.; Takanabe, K. Generation and characteristics of iv–vi transition metal nitride and carbide nanoparticles using a reactive mesoporous carbon nitride. ChemistrySelect 2016, 1, 290–296. [Google Scholar] [CrossRef]
  21. Ham, D.J.; Lee, J.S. Transition metal carbides and nitrides as electrode materials for low temperature fuel cells. Energies 2009, 2, 873–899. [Google Scholar] [CrossRef]
  22. Chen, W.-F.; Muckerman, J.T.; Fujita, E. Recent developments in transition metal carbides and nitrides as hydrogen evolution electrocatalysts. Chem. Commun. 2013, 49, 8896–8909. [Google Scholar] [CrossRef] [PubMed]
  23. Pan, Z.; Xiao, Y.; Fu, Z.; Zhan, G.; Wu, S.; Xiao, C.; Hu, G.; Wei, Z. Hollow and porous titanium nitride nanotubes as high-performance catalyst supports for oxygen reduction reaction. J. Mater. Chem. A 2014, 2, 13966–13975. [Google Scholar] [CrossRef]
  24. Xiao, Y.; Fu, Z.; Zhan, G.; Pan, Z.; Xiao, C.; Wu, S.; Chen, C.; Hu, G.; Wei, Z. Increasing pt methanol oxidation reaction activity and durability with a titanium molybdenum nitride catalyst support. J. Power Sources 2015, 273, 33–40. [Google Scholar] [CrossRef]
  25. Wang, L.; Sun, J.; Song, R.; Yang, S.; Song, H. Hybrid 2D–0D Graphene–VR Quantum Dots for Superior Lithium and Sodium Storage. Adv. Energy Mater. 2015, 6, 1502067. [Google Scholar] [CrossRef]
  26. Tian, X.; Luo, J.; Nan, H.; Fu, Z.; Zeng, J.; Liao, S. Binary transition metal nitrides with enhanced activity and durability for the oxygen reduction reaction. J. Mater. Chem. A 2015, 3, 16801–16809. [Google Scholar] [CrossRef]
  27. Cao, B.; Veith, G.M.; Neuefeind, J.C.; Adzic, R.R.; Khalifah, P.G. Mixed close-packed cobalt molybdenum nitrides as non-noble metal electrocatalysts for the hydrogen evolution reaction. J. Am. Chem. Soc. 2013, 51, 19186–19192. [Google Scholar] [CrossRef] [PubMed]
  28. Yang, Z.; Guo, S.; Pan, X.; Wang, J.; Bao, X. Fen nanoparticles confined in carbon nanotubes for co hydrogenation. Energy Environ. Sci. 2011, 4, 4500–4503. [Google Scholar] [CrossRef]
  29. Podila, S.; Zaman, S.F.; Driss, H.; Alhamed, Y.A.; Al-Zahrani, A.A.; Petrova, L.A. Hydrogen production by ammonia decomposition using high surface area Mo2N and Co3Mo3N catalysts. Catal. Sci. Technol. 2013, 6, 1496–1506. [Google Scholar] [CrossRef]
  30. Gao, Q.; Wang, S.; Ma, Y.; Tang, Y.; Giordano, C.; Antonietti, M. SiO2-surface-assisted controllable synthesis of taon and Ta3N5 nanoparticles for alkene epoxidation. Angew. Chem. 2012, 124, 985–989. [Google Scholar] [CrossRef]
  31. Klug, H.P.; Alexander, L.E. X-ray Diffraction Procedures; Wiley: New York, NY, USA, 1954; Volume 2. [Google Scholar]
  32. Tian, X.; Luom, J.; Nan, H.; Zou, H.; Chen, R.; Shu, T.; Li, X.; Li, Y.; Song, H.; Liao, S.; et al. Transition metal nitride coated with atomic layers of pt as a low-cost, highly stable electrocatalyst for the oxygen reduction reaction. J. Am. Chem. Soc. 2016, 138, 1575–1583. [Google Scholar] [CrossRef] [PubMed]
  33. Shi, C.; Zhu, A.; Yang, X.; Au, C. On the catalytic nature of vn, Mo2N, and W2N nitrides for NO reduction with hydrogen. Appl. Catal. A Gen. 2004, 276, 223–230. [Google Scholar] [CrossRef]
  34. Chen, K.; Kang, L.; Zhu, M.; Dai, B. Mesoporous carbon with controllable pore sizes as a support of the AuCl3 catalyst for acetylene hydrochlorination. Catal. Sci. Technol. 2014, 5, 1035–1040. [Google Scholar] [CrossRef]
  35. Zhao, J.; Xu, J.; Xu, J.; Ni, J.; Zhang, T.; Xu, X.; Li, X. Activated-carbon-supported gold–cesium(i) as highly effective catalysts for hydrochlorination of acetylene to vinyl chloride. ChemPlusChem 2015, 80, 196–201. [Google Scholar] [CrossRef]
  36. Zhao, J.; Zhang, T.; Di, X.; Xu, J.; Gu, S.; Zhang, Q.; Ni, J.; Li, X. Activated carbon supported ternary gold-cesium(i)-indium(iii) catalyst for the hydrochlorination of acetylene. Catal. Sci. Technol. 2015, 5, 4973–4984. [Google Scholar] [CrossRef]
  37. Zhang, J.; He, Z.; Li, W.; Han, Y. Deactivation mechanism of AuCl3 catalyst in acetylene hydrochlorination reaction: A dft study. Rsc Adv. 2012, 2, 4814–4821. [Google Scholar] [CrossRef]
  38. Morozan, A.; Goellner, V.; Zitolo, A.; Fonda, E.; Donnadieu, B.; Jonesa, D.; Jaouen, F. Synergy between molybdenum nitride and gold leading to platinum-like activity for hydrogen evolution. Phys. Chem. Chem. Phys. 2015, 17, 4047–4053. [Google Scholar] [CrossRef] [PubMed]
  39. Zhan, G.; Fu, Z.; Sun, D.; Pan, Z.; Xiao, C.; Wu, S.; Chen, C.; Hu, G.; Wei, Z. Platinum nanoparticles decorated robust binary transition metal nitrideecarbon nanotubes hybrid as an efficient electrocatalyst for the methanol oxidation reaction. J. Power Sources 2016, 326, 84–92. [Google Scholar] [CrossRef]
Catalysts 07 00200 g001 550

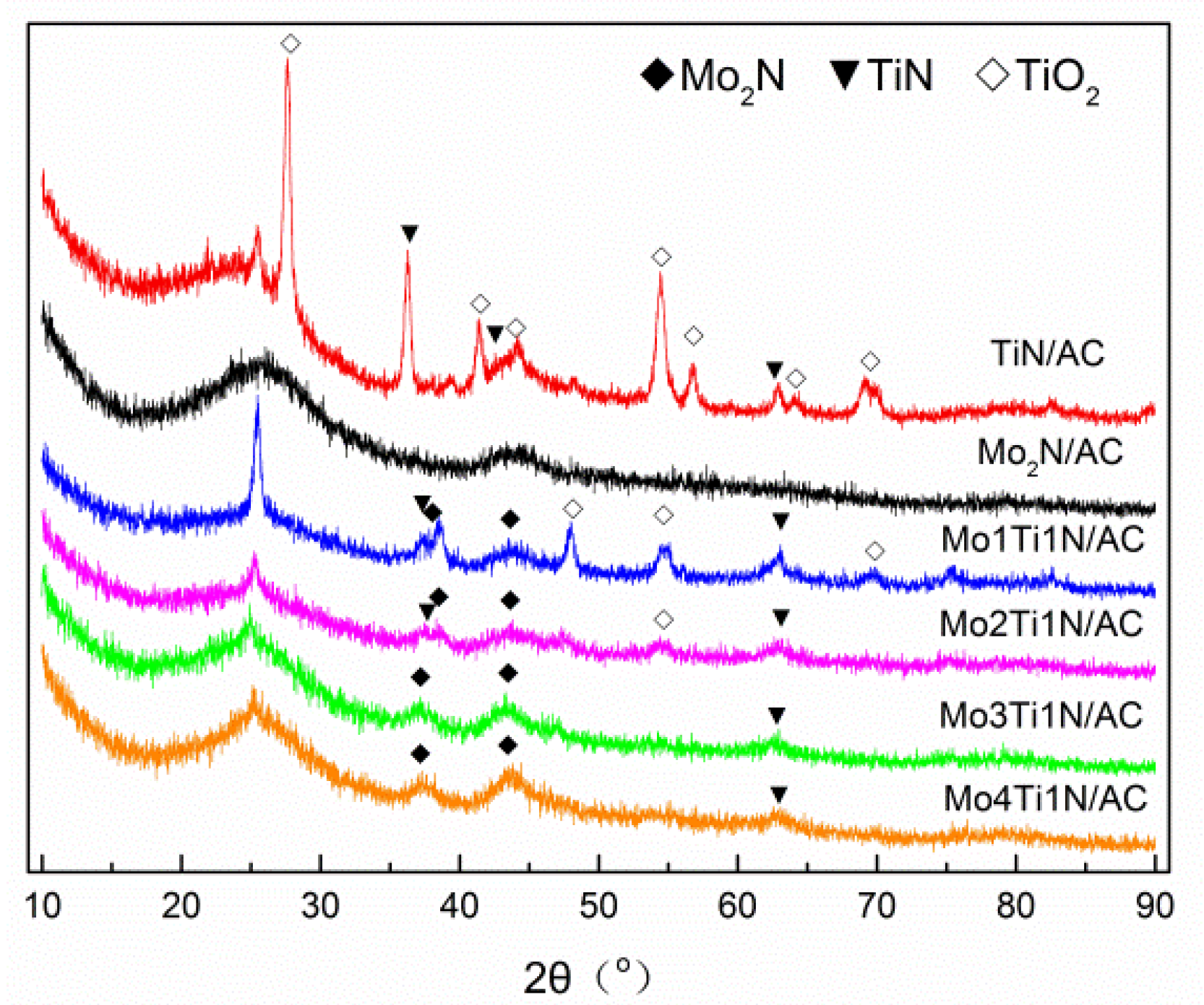

Figure 1. XRD patterns for six different catalysts.
Figure 1. XRD patterns for six different catalysts.
Catalysts 07 00200 g001
Catalysts 07 00200 g002 550

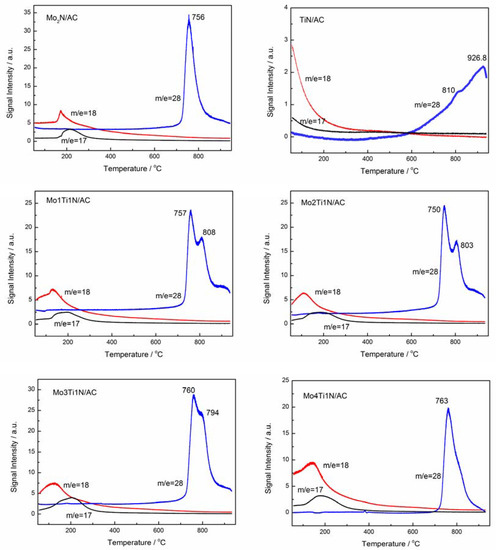

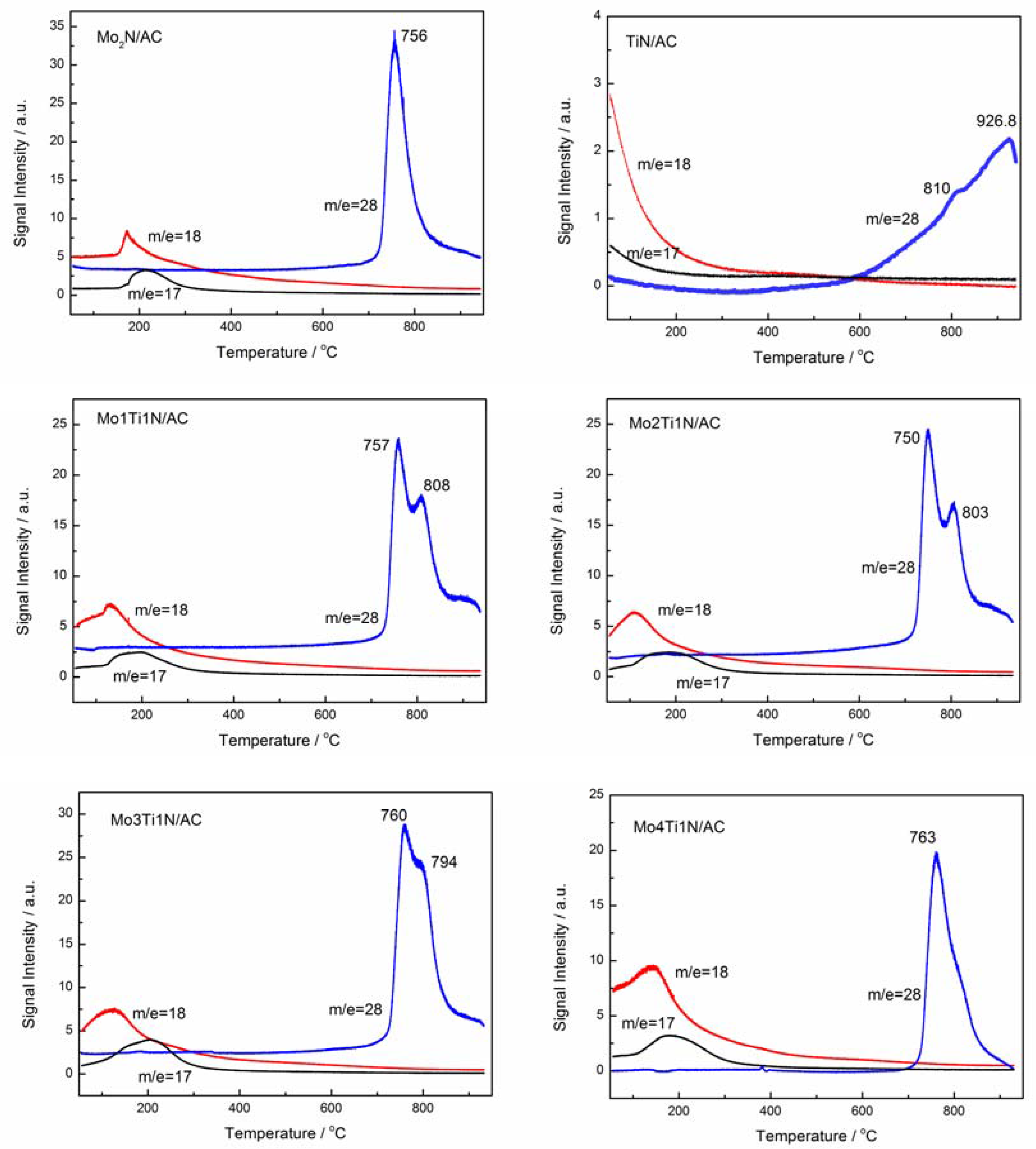

Figure 2. TPD-MS profiles of six catalysts.
Figure 2. TPD-MS profiles of six catalysts.
Catalysts 07 00200 g002
Catalysts 07 00200 g003 550

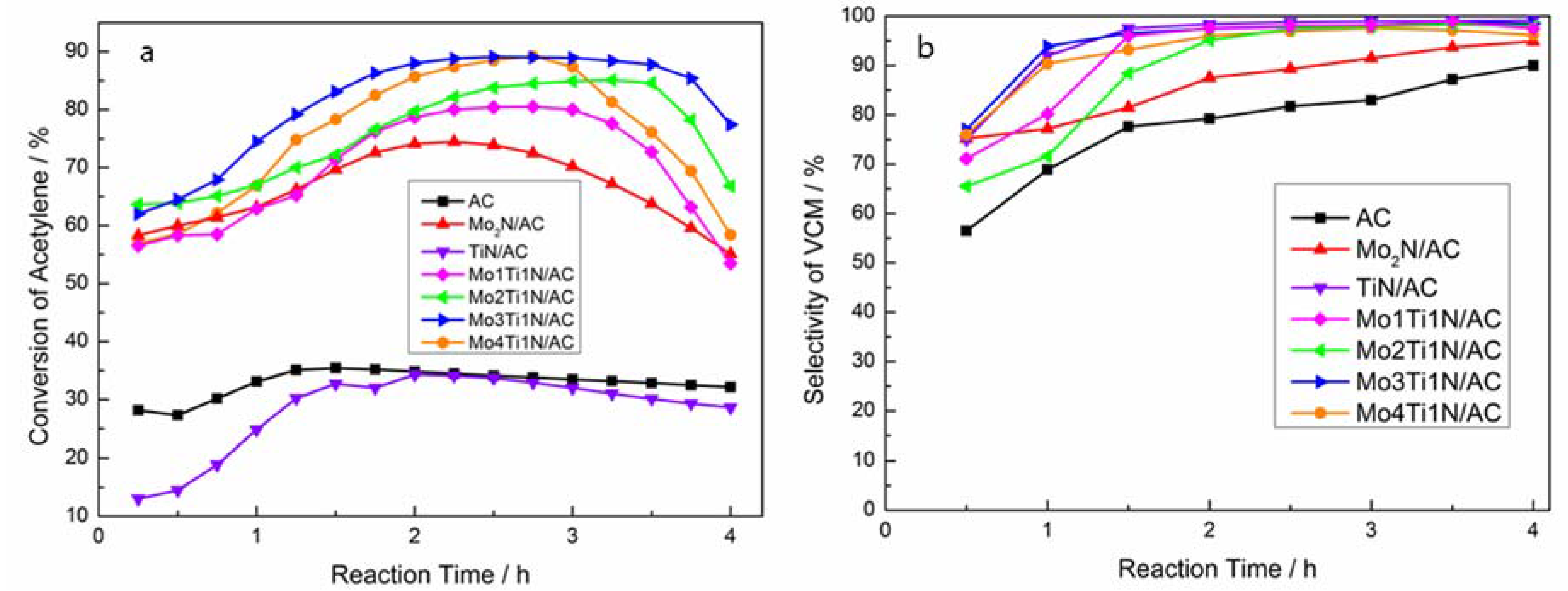

Figure 3. The (a) acetylene conversion and (b) VCM selectivity over catalysts of AC, TiN/AC, Mo2N/AC, Mo1Ti1N/AC, Mo2Ti1N/AC, Mo3Ti1N/AC, Mo4Ti1N/AC; Reaction conditions: Temperature (T) = 180 °C, C2H2(GHSV) = 50 h−1, VHCl:VC2H2 = 1.15:1.
Figure 3. The (a) acetylene conversion and (b) VCM selectivity over catalysts of AC, TiN/AC, Mo2N/AC, Mo1Ti1N/AC, Mo2Ti1N/AC, Mo3Ti1N/AC, Mo4Ti1N/AC; Reaction conditions: Temperature (T) = 180 °C, C2H2(GHSV) = 50 h−1, VHCl:VC2H2 = 1.15:1.
Catalysts 07 00200 g003
Catalysts 07 00200 g004 550

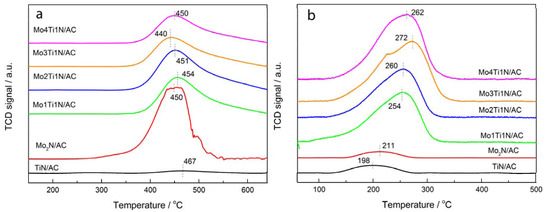

Figure 4. (a) C2H2-TPD and (b) HCl-TPD analysis for catalysts.
Figure 4. (a) C2H2-TPD and (b) HCl-TPD analysis for catalysts.
Catalysts 07 00200 g004
Catalysts 07 00200 g005 550
Figure 5. Representative TEM figures of (a,b) Mo2N/AC; (c,d) TiN/AC and (e,f) Mo3Ti1N/AC, respectively.
Figure 5. Representative TEM figures of (a,b) Mo2N/AC; (c,d) TiN/AC and (e,f) Mo3Ti1N/AC, respectively.
Catalysts 07 00200 g005
Table
Table 1. Detailed synthetic ratio and the physicochemical properties.
Table 1. Detailed synthetic ratio and the physicochemical properties.
SamplesMole RatioD (nm)SBET (m2 g−1)Vtot (cm3 g−1)
FreshUsedFreshUsedFreshUsed
AC-2.22.19489150.520.48
Mo2N/AC-2.11.9811400.430.19
TiN/AC-2.22.28898810.490.47
Mo1Ti1N/ACMo:Ti = 1:12.22.6649300.360.19
Mo2Ti1N/ACMo:Ti = 2:12.12.8680330.360.23
Mo3Ti1N/ACMo:Ti = 3:12.22.7772320.420.20
Mo4Ti1N/ACMo:Ti = 4:12.22.6785270.430.18
Table
Table 2. Calculation of peak area of different catalysts’ desorption reactant.
Table 2. Calculation of peak area of different catalysts’ desorption reactant.
SamplesPeak Area of Desorption C2H2Peak Area of Desorption HCl
Mo2N/AC12.60.06
TiN/AC0.570.10
Mo1Ti1N/AC7.320.76
Mo2Ti1N/AC6.950.90
Mo3Ti1N/AC6.550.96
Mo4Ti1N/AC6.080.99
Table
Table 3. The binding energy and relative content of Mo, Ti and N species in the catalysts.
Table 3. The binding energy and relative content of Mo, Ti and N species in the catalysts.
SamplesBinding Energy/eV (Area/%)
Mo 3dTi 2pN 1s
Moδ+ (2 < δ < 4)TiO2TiNTi-O-NPyridinic-NMo-NTi-NPyrrolic-N
Mo2N/AC229.9 (61.1)233.1 (38.8)---397.9 (27.4)398.5 (43.2) 399.3 (29.4)
TiN/AC--464.3 (29.0)460.5 (11.5)458.5 (59.5)----
Mo3Ti1N/AC229.9 (54.5)233.1 (45.4)----398.6 (76.4)397.1 (23.6)-
Table
Table 4. The carbon depositions of the three catalysts.
Table 4. The carbon depositions of the three catalysts.
CatalystAmount of Carbon Deposition (%)
Mo2N/AC6.63
TiN/AC1.88
Mo1Ti1N/AC10.9
Mo2Ti1N/AC9.3
Mo3Ti1N/AC9.2
Mo4Ti1N/AC11.8
