Article

Recyclable Fe3O4 Nanoparticles Catalysts for Aza-Michael Addition of Acryl Amides by Magnetic Field

1
State Key Laboratory of Heavy Oil Processing, Institute of New Energy, China University of Petroleum (Beijing), Beijing 102249, China
2
Institute of Fine Chemistry and Engineering, Henan Engineering Laboratory of Flame-Retardant and Functional Materials, College of Chemistry and Chemical Engineering, Henan University, Kaifeng 475004, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Catalysts 2017, 7(7), 219; https://doi.org/10.3390/catal7070219
Submission received: 20 June 2017 / Revised: 11 July 2017 / Accepted: 18 July 2017 / Published: 20 July 2017
(This article belongs to the Special Issue Magnetic Nanocatalysts)

Abstract

:
A nanostructure-based catalytic system has the advantages of both homogeneous and heterogeneous catalysis. It is of great significance to develop the sustainable and green process of homogeneous catalytic reaction. We report a novel, efficient and recyclable magnetic Fe3O4 nanoparticles-catalyzed aza-Michael addition reaction of acryl amides, and the magnetic nanoparticles catalysts can be recovered by external magnetic field. Both primary amine and secondary amine can react with various acryl amides providing a good output to target products successfully at room temperature. Further experiments reveal that the magnetic Fe3O4 nanoparticles-based catalyst shows excellent yields, which can be recycled 10 times, and, at the same time, it maintains a high catalytically activity. In this catalytic system, the tedious separation procedures are replaced by external magnetic field, which gives us a different direction for choosing a catalyst in a nanostructure-based catalytic system.

Graphical Abstract

1. Introduction

Environmental pollution caused by man-made waste and the decrease of natural resources is the main threat that has caught the attention of the whole world. The growing population needs more resources and naturally generates more waste. Land, air and fresh water, which are necessary for human life, all get affected by the release of chemical waste. For the sake of reduction in the harmful effects of the pollution and resource depletion, the best remedy is to develop the sustainable and atom-economic chemical process. This process can be improved upon by careful selection of starting materials and a catalytic system. Homogeneous catalysis is studied extensively as a powerful catalytic system, because of its special capabilities including high efficiency, flexible structures, high catalytic selectivity and activity, and so on. Nevertheless, the homogeneous catalyst is often difficult to isolate from reaction product, because both of the catalyst, reactants and products are same phase, which effects its extensive appliance [1]. Therefore, it is not only an environmentally-friendly but an atom-economic chemical process. The heterogeneous catalysis is distinguished from homogeneous catalysis by the different phases present during reaction. The main advantage of using a heterogeneous catalyst is the relative ease of catalyst separation from the product. Therefore, the catalyst can be recycled and achieve the continuous chemical processes. The creation of a catalytic system, which has advantages of both homogeneous and heterogeneous catalysis, is of great significance. A nanostructure-based catalytic system provides an opportunity to meet the requirements, because the nanoparticles show not only large surface areas, but also tunable exposed surface, and high dispersity in the solvent [2].
Recently, many efforts have been made to use noble metal nanoparticles as catalysts in a homogeneous catalytic system, based on rationale design [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17], e.g., cyclization reactions catalyzed by Pt nanoparticles [18], Heck coupling reactions and Ullmann coupling reactions of chlorobenzene catalyzed by Pd nanoparticles catalysts [19], and Heck and Suzuki reactions catalyzed by Pd nanoparticles [20], cycloisomerizations of enynes catalyzed by Au/CeO2 nanocubes [21], and so on. However, the metal oxide has been more or less neglected. Compared with noble metal nanoparticles catalysts, the metal oxide is low-cost, low-toxicity and has tunable properties. Hence, a metal oxide nanoparticles-based catalytic system has great potential inorganic synthesis.
The Michael addition reaction is of such importance in inorganic synthesis [22]; thus, carbon-heteroatom and carbon-carbon bonds can be formed by this atom-economy and efficiency approach [23,24,25,26,27]. Especially, the aza-Michael addition reaction of acryl amides is a widely used in research and industry owing to its importance for several pharmaceutical products or important pharmaceutical intermediates, which can also be transformed into a large range of biologically active molecules under further treatment [28,29,30]. In traditional organic synthesis, the Michael addition reaction is catalyzed by strong bases, and the catalysts are quite difficult to recover and recycle, and moreover, the undesirable side reactions are unavoidable [31,32,33,34]. Therefore, this process is not sustainable and green chemistry. Herein, we report a novel, efficient and recyclable magnetic Fe3O4 nanoparticles-catalyzed aza-Michael addition reaction of acryl amides with amines, and the magnetic Fe3O4 nanoparticle catalysts can easily be recovered by external magnetic field.

2. Results and Discussion

Thermal decomposition of metal organic precursors is one of the best ways to prepare the high-quality monodisperse nanoparticles in high-boiling point solvent [35,36,37,38,39,40], such as, metal acetylacetonates [35,36], metal carbonyls, etc. The monodisperse Fe3O4 nanoparticles with good crystallinity and uniform size is obtained by thermal decomposition of the iron acetylacetonates dissolved in 1-octadecene at 300 °C using oleic acid and oleyl amine as surfactants under argon atmosphere. The size and shape of the obtained Fe3O4 nanoparticles were measured through using transmission electron microscopy (TEM). Figure 1 is representative images of obtained Fe3O4 nanoparticles. The perfectly spherical Fe3O4 nanoparticles are highly uniform, with diameter of 13 nm (Figure 1a). The high uniformity of these Fe3O4 nanoparticles allows the formation of nanoarrays arranged with long range order. After slow evaporation of a concentrated Fe3O4 nanoparticles solution in hexane, the super lattice of Fe3O4 nanoparticles are formed on the TEM grid (Figure 1b), The high-resolution TEM (HRTEM) image show that Fe3O4 nanoparticle is of single crystalline nature enclosed by the (111) plane and the surfaces are perfect without any sheathed amorphous phase (Figure 1c). The selected area electron diffraction (SAED) pattern (Figure 1d) further confirms that the spherical Fe3O4 nanoparticle is single crystalline nature. The SAED pattern exhibits that the d space is 0.24, 0.21, 0.17 and 0.13 nm, which correspond to the (222), (400), (422), and (533) planes of the standard cubic structure of Fe3O4 pattern.
The crystallinity and structure of the Fe3O4 nanoparticles are also confirmed by powder X-ray diffraction (XRD). The XRD pattern is illustrated in Figure 2. The diffraction peaks are indexed to (220), (311), (400), (511) and (440) reflections, corresponding to a cubic structure with lattice constants in the range of 0.5421–0.5432 nm (JCPDS card no. 11-0614, a = 0.83963 nm, space group Fd-3m). The relative intensity and peak position of all diffraction peaks are in good agreement with standard powder diffraction data, and no crystallized precursor is observed in the XRD pattern. The broadening of the reflections distinctly indicates the intrinsic nature of nanocrystals, which agrees well with the TEM results.
The aza-Michael addition reaction of acryl amides is significant for preparing kinds of β-amino carbonyl compounds from readily manufactured raw materials in a sustainable and clean method [41,42,43,44,45,46]. Recently, the researches in aza-Michael addition by the imidazolium-based polymer [47], enzymes [48,49,50,51], and room-temperature ionic liquids (RTILs) have given a novelty way to achieve the important β-amino carbonyl derivatives [28]. These methods definitely have excellent potential as powerful tools which can build multiple molecules with different acryl amides, and in the meantime provide new catalytic cascade reaction sequences. Even if basic studies have effectively expanded the range of substrates for aza-Michael addition reaction, the relatively difficulty to separate the product and reuse the catalysts in the reaction have effected its application a lot. Moreover, the magnetic nanostructure-based catalyst is a prospective way to improve this situation effectively. In contrast, the smooth instances of magnetic nanostructure-based catalysts that display creditable catalytic reactivity are as yet unusual in practice. We design a magnetic nanoparticles-based catalytic system, by using the magnetic Fe3O4 nanoparticles as catalysts, and the external magnetic field segregate catalyst readily with the reaction products by an external magnetic field.
We investigate the aza-Michael addition reaction of various substituents on N position of acryl amides catalyzed by the magnetic Fe3O4 nanoparticles. The reactions are carried out by using dichloromethane as the solvent normal pressure of atmosphere air at room temperature and the result is presented in Table 1. The magnetic Fe3O4 nanoparticles show excellent catalytic performance in the aza-Michael addition reaction, which can significantly enhance the yield of the desired product. The reactivity of Michael acceptors is affected by the substituent on the N position of acryl amide. The acrylamide and 1-morpholinoprop-2-en-1-one show a low reaction rate and yield (Table 1, entries 1, 3), and the N-phenylacrylamide exhibits higher the reaction rate and yield (Table 1, entries 5). The isolated yields are 38.1, 36.2 and 39.6, respectively. In contrast, under the magnetic Fe3O4 nanoparticles-catalyzed conditions, the acrylamide and 1-morpholinoprop-2-en-1-one are efficient Michael acceptors to give the corresponding products in 89% and 85.2% yields (Table 1, entries 2, 4). In addition, it is most significant that the isolated yield of N-phenylacrylamide reached up to 93.2% (Table 1, entry 6). It is worth mentioning that the magnetic Fe3O4 nanoparticles significantly improve the reaction rate and yield of acryl amide.
Such a catalytic ability of the magnetic Fe3O4 nanoparticles-based catalyst is not novel to amines, other common amines substrates can be performed too. In addition, all of them performed high isolated yield (Table 2, entries 1–16). The secondary amines such as morpholine (Table 2, entries 1, 7 and 13), pyrrolidine (Table 2, entries 2, 8 and 14), 2-methylpiperidine (Table 2, entries 3 and 9), 4-methylpiperidine (Table 2, entries 4, 10 and 15) and 1-ethylpiperazine (Table 2, entries 5 and 11) are efficient Michael donors and the yield is more than 80%. Furthermore, the primary amine (phenylmethanamine) also exhibit high reaction rate and yield, and the isolated yields are 80.2, 90.1 and 80.1, respectively (Table 2, entries 6, 12 and 16). In addition, this aza-Michael addition reaction can also be carried out on the acyclic amines. The n-butylamine and n-propylamine (Table 2, entries 17 and 18) have been tested and the isolated yields are 78.6% and 77.9%, respectively. The substituted amides and acyclic secondary amines cannot be catalyzed by the Fe3O4 nanoparticles in a reaction system.
According to all the experimental results, a feasible mechanism for Fe3O4 nanoparticles-catalyzed aza-Michael addition of acryl amide with amines is proposed in Scheme 1. Coordination of 1 with Fe3O4 nanoparticles leads to I; amine 2 added to the activated double bond to form II; Proton transfer of II gives product 3 and leaves Fe3O4 nanoparticles.
It is generally agreed that the recovery of the catalyst system is the main factor to determine whether it has potential large-scale application in industry or not. To illustrate the recycling performance of the magnetic Fe3O4 nanoparticles-based catalyst, the model reaction of N-phenylacrylamide with morpholine is chosen to investigate the reusability of the magnetic Fe3O4 nanoparticles-based catalyst. The magnetic Fe3O4 nanoparticles can be segregated readily with the reaction products by external magnetic field (Figure 3), which shows good recyclability. Moreover, the recycled catalyst shows the magnetic Fe3O4 nanoparticles are extremely stable with excellent catalytic activity of 86.3% after the tenth reuse (Figure 4). The isolated yields from the first to tenth catalytic reaction are 93.2, 92.6, 91.4, 90.6, 90.6, 89.5, 88.6, 88.6, 87.4 and 86.3, respectively. Because the outside of the Fe3O4 nanoparticles has been overlaped fractionally with organic compounds, the catalytic activity can decline mildly. In addition, the TEM image and powder XRD of the Fe3O4 nanoparticles after the catalytic reaction does not exhibit any appreciable aggregation or leaching (Figures S1 and S2). Based on the above experimental data, no catalytically active species have been leached from Fe3O4 nanoparticles in the reactive process, and the catalytically active species are Fe3O4 nanoparticles.

3. Experimental

3.1. Synthesis of Magnetic Fe3O4nanoparticles

The magnetic Fe3O4 nanoparticles were prepared as previously reported involving two-steps: synthesis Fe3O4 seeds and growth of Fe3O4 nanoparticles [35]. Fe(acac)3 (2 mmol), oleylamine (6 mmol), oleic acid (6 mmol), 1,2-hexadecanediol (10 mmol) and benzyl ether (20 mL) were added in a three-neck round bottom flask, then heated to 200 °C for 2 h. Then the mixture was heated to reflux at 300 °C for 1 h under argon flow. The reaction was stopped by cooling to room temperature. The obtained Fe3O4 seeds were washed thrice with adding appropriate amount of ethanol and dispersed in hexane. Fe(acac)3 (4 mmol), benzyl ether (20 mL), oleic acid (2 mmol), 1,2-hexadecanediol (20 mmol) and oleylamine (2 mmol) added in a three-neck round bottom flask, and then magnetically stirred under argon flow. 80 mg of Fe3O4 seeds were added and then the mixture was heated to 120 °C for 1 h and then heated to 200 °C for 2 h. After that, the mixture was further heated to 300 °C for 60 min under argon flow. The obtained Fe3O4 nanoparticles were washed thrice by adding an appropriate amount of ethanol and dispersed in hexane.

3.2. Characterization

The powder X-ray diffraction (XRD) patterns were recorded on a RigakuD/MAX-2000 diffractometer (rigaku corporation corporate, Tokyo, Japan) using Cu-Kα radiation (λ = 1.5406 Å). The transmission electron microscopy (TEM) observations were performed on a Philips Tecnai F20 FEG-TEM (FEI Company, Hillsboro, OR, USA) operated at 200 kV. The FTIR absorption spectrum was recorded on a Bruker spectrometer.

3.3. Representative Procedure for Catalytic Reactions

A mixture of acryl amides (2 mmol), amines (2 mmol) and the magnetic Fe3O4 nanoparticles (10 mol %) was stirred in 1 mL of CH2Cl2 for 24 h at 32 °C in a Schlenk tube. The reaction mixture was extracted with ethyl acetate when the reaction was completed (monitored by Thin Layer Chromatography (TLC)). The resulting crude product was purified with column chromatography by using petroleum ether/ethyl acetate or methanol/ethyl acetate as the eluent. The resulting products were characterized by 1H NMR. The catalyst used in the reaction was segregated with external magnetic field and then used in subsequent reactions without further processing.
  • 3-morpholinopropanamide (Table 2, entry 1). 1H NMR (600 MHz, CDCl3) (ppm): δ 7.92 (s, 1H), 5.64 (s, 1H), 3.90–3.80 (m, 2H), 3.72 (s, 2H), 2.41–2.63 (m, 8H).
  • 3-(pyrrolidin-1-yl)propanamide (Table 2, entry 2). 1H NMR (600 MHz, CDCl3) (ppm): δ 8.00 (s, 1H), 5.38 (s, 1H), 2.86 (t, J = 6.2 Hz, 2H), 2.70 (s, 4H), 2.52 (t, J = 6.2 Hz, 2H), 1.91–1.80 (m, 4H).
  • 3-(2-methylpiperidin-1-yl)propanamide (Table 2, entry 3). 1H NMR (600 MHz, CDCl3) (ppm): δ 8.38 (s, 1H), 5.56 (s, 1H), 3.72 (q, J = 7.0 Hz, 2H), 3.40 (d, J = 11.9 Hz, 2H), 2.81 (t, J = 11.0 Hz, 2H), 1.89 (s, 1H), 1.67 (d, J = 12.7 Hz, 2H), 1.49 (d, J = 6.5 Hz, 2H), 1.3 (t, J = 7.0 Hz, 2H), 1.12 (d, J = 6.3 Hz, 3H).
  • 3-(4-methylpiperidin-1-yl)propanamide (Table 2, entry 4). 1H NMR (600 MHz, CDCl3) (ppm): δ 8.47 (s, 1H), 5.48 (s, 1H), 3.73 (q, J = 7.0 Hz, 2H), 2.94 (d, J = 11.4 Hz, 2H), 2.62–2.56 (m, 2H), 2.40 (t, J = 6.0 Hz, 2H), 1.98 (t, J = 12.3 Hz, 2H), 1.68 (d, J = 13.4 Hz, 1H), 1.25 (t, J = 8.3 Hz, 2H), 0.94 (d, J = 6.5 Hz, 3H).
  • 3-(4-ethylpiperazin-1-yl)propanamide (Table 2, entry 5). 1H NMR (600 MHz, CDCl3) (ppm): δ 8.09 (s, 1H), 5.47 (s, 1H), 2.68–2.60 (m, 3H), 2.47–2.37 (m, 11H), 1.10 (t, J = 7.2 Hz, 3H).
  • 3-(benzylamino)propanamide (Table 2, entry 6). 1H NMR (600 MHz, CDCl3) (ppm): δ 7.49(s, 1H), 7.23–7.25 (m, 4H), 6.26 (s, 1H), 3.71 (s, 4H), 1.33 (d, J = 6.9 Hz, 2H), 1.23 (t, J = 6.7 Hz, 2H).
  • 3-morpholino-1-morpholinopropan-1-one (Table 2, entry 7). 1H NMR (600 MHz, CDCl3) (ppm): δ 3.71 (t, J = 4.5 Hz, 4H), 3.68–3.60 (m, 2H), 3.60 (s, 4H), 3.45 (d, J = 4.7 Hz, 2H), 2.74 (t, J = 7.4 Hz, 2H), 2.52 (d, J = 19.6 Hz, 4H), 2.36 (s, 4H).
  • 1-morpholino-3-(pyrrolidin-1-yl)propan-1-one (Table 2, entry 8). 1H NMR (600 MHz, CDCl3) (ppm): δ 3.71–3.60 (m, 6H), 3.57 (d, J = 4.7 Hz, 2H), 2.93 (t, J = 7.3 Hz, 6H), 2.04 (s, 4H).
  • 3-(2-methylpiperidin-1-yl)-1-morpholinopropan-1-one (Table 2, entry 9). 1H NMR (600 MHz, CDCl3) (ppm): δ 3.70 (q, J = 7.0 Hz, 4H), 3.41 (d, J = 12.7 Hz, 4H), 2.79 (t, J = 11.1 Hz, 2H), 2.52 (d, J = 7.8 Hz, 2H), 2.41 (s, 2H), 1.85 (s, 1H), 1.68 (s, 1H), 1.46 (d, J = 9.8 Hz, 2H), 1.42 (t, J = 7.0 Hz, 2H), 1.06 (s, 3H).
  • 3-(4-methylpiperidin-1-yl)-1-morpholinopropan-1-one (Table 2, entry 10). 1H NMR (600 MHz, CDCl3) (ppm): δ 3.76–3.67 (m, 1H), 3.67–3.58 (m, 4H), 3.53–3.45 (m, 5H), 2.93 (d, J = 11.5 Hz, 2H), 2.79–2.71 (m, 2H), 2.63–2.55 (m, 2H), 2.06 (t, J = 11.0 Hz, 2H), 1.96 (s, 1H), 1.65 (d, J = 13.5 Hz, 2H), 0.93 (d, J = 6.5 Hz, 3H).
  • 3-(4-ethylpiperazin-1-yl)-1-morpholinopropan-1-one (Table 2, entry 11). 1H NMR (600 MHz, CDCl3) (ppm): δ 3.69–3.68 (m, 6H), 3.49 (d, J = 5.0 Hz, 2H), 2.53 (d, J = 8.0 Hz, 2H), 2.45–2.29 (m, 12H), 1.11 (t, J = 7.2 Hz, 3H).
  • 3-(benzylamino)-1-morpholinopropan-1-one (Table 2, entry 12). 1H NMR (600 MHz, CDCl3) (ppm): δ 7.49 (d, J = 6.2 Hz, 5H), 4.12 (s, 2H), 3.64 (d, J = 3.6 Hz, 4H), 3.54 (s, 4H), 2.97 (s, 2H), 2.03 (s, 2H), 1.24 (s, 1H).
  • 3-morpholin-4-yl-N-phenyl-propionamide (Table 2, entry 13). 1H NMR (400 MHz, CDCl3) (ppm): δ 11.31 (s, 1H), 7.53 (d, J = 8.6 Hz, 2H), 7.30 (d, J = 9.9 Hz, 2H), 7.07 (t, J = 7.4 Hz, 1H), 3.04 (d, J = 11.7 Hz, 2H), 2.72–2.64 (m, 4H), 2.55–2.47 (m, 2H), 2.07 (t, J = 10.8 Hz, 4H).
  • N-phenyl-3-pyrrolidin-1-yl-propionamide (Table 2, entry 14).1H NMR (600 MHz, CDCl3) (ppm): δ 9.97 (s, 1H), 7.66 (d, J = 7.9 Hz, 2H), 7.29 (d, J = 7.0 Hz, 2H), 7.09 (t, J = 7.3 Hz, 1H), 3.73 (q, J = 7.0 Hz, 2H), 3.11 (t, J = 6.5 Hz, 2H), 2.08 (s, 4H), 1.25 (t, J = 7.0 Hz, 4H).
  • 3-(4-methyl-piperidin-1-yl)-N-phenyl-propionamide (Table 2, entry 15). 1H NMR (400 MHz, CDCl3) (ppm): δ 10.76 (s, 1H), 7.53 (d, J = 7.9 Hz, 2H), 7.32 (t, J = 7.8 Hz, 2H), 7.08 (t, J = 7.4 Hz, 1H), 3.82 (s, 2H), 2.87 (d, J = 23.3 Hz, 2H), 2.86 (d, J = 37.1 Hz, 2H), 2.71 (d, J = 29.6, 23.8 Hz, 2H), 1.74 (m, 1H), 1.25 (s, 4H), 0.86 (s, 3H).
  • 3-benzylamino-N-phenyl-propionamide (Table 2, entry 16). 1H NMR (600 MHz, CDCl3) (ppm): δ 10.44 (s, 1H), 7.52 (d, J = 7.8 Hz, 2H), 7.41–7.25 (m, 7H), 7.07 (s, 1H), 3.88 (s, 2H), 2.97 (m, 2H), 2.59–2.51 (m, 2H), 1.94 (d, J = 6.7 Hz, 1H).
  • 3-butyl-N-phenyl-propionamide (Table 2, entry 17). 1H NMR (600 MHz, CDCl3) (ppm): δ 10.51 (s, 1H), 7.45 (d, J = 7.9 Hz, 2H), 7.24 (m, 2H), 6.97 (t, J = 7.4 Hz, 1H), 2.95 (m, 2H), 2.57 (t, J = 7.0 Hz, 4H), 1.37 (d, J = 8.6 Hz, 4H), 1.23 (s, 1H), 0.78 (s, 3H).
  • 3-propyl-N-phenyl-propionamide (Table 2, entry 18). 1H NMR (600 MHz, CDCl3) (ppm): δ9.44 (s, 1H), 7.51 (s, 2H), 7.25 (s, 2H), 7.02 (s, 1H), 2.95 (s, 2H), 2.55 (d, J = 1.2 Hz, 4H), 1.57 (s, 1H), 1.42 (s, 2H), 0.86 (t, J = 7.3 Hz, 3H).

4. Conclusions

In conclusion, the magnetic Fe3O4 nanoparticles are used as catalyst in homogeneous catalytic system, and we have achieved the recovery of the catalyst by magnetic field in aza-Michael addition reaction, which is of great significance to develop the sustainable and green process of homogeneous catalytic reaction. In this catalytic system, the tedious separation procedures are replaced by an external magnetic field, which gives a different direction for picking a catalyst inhomogeneous catalysis. The magnetic Fe3O4 nanoparticles-based catalyst gives excellent yields at room temperature, and both primary amine and secondary amine can react with various acryl amides providing a good output to target products successfully. Further experiments reveal that the catalyst can be recycled 10 times, and also maintains a high catalytic activity. Meanwhile, this study in catalytic applications may be useful in the selection and design of a catalytic system with novel selectivity and activity in an even broader range of chemical reactions.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4344/7/7/219/s1, Figure S1: TEM image of the recyclable Fe3O4 nanoparticles, Figure S2: Wide-angle X-ray diffraction pattern of the recyclable Fe3O4 nanoparticles and NMR spectra for all aza-Michael addition products.

Acknowledgments

We gratefully acknowledge the financial support from the National Natural Science Foundation of China (NSFC) (Grant Nos. 21501197) and Science Foundation of China University of Petroleum, Beijing (Grant No. 2462015YJRC004).

Author Contributions

Z.-X.L. and H.X. conceived and designed the experiments; D.L. and M.-M.L. performed the experiments; X.-F.X. analyzed the data; Z.-Z.M. contributed reagents/materials/analysis tools; Z.-X.L. wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. De Jesús, E.; Flores, J.C. Dendrimers: Solutions for catalyst separation and recycling—A review. Ind. Eng. Chem. Res. 2008, 47, 7968–7981. [Google Scholar] [CrossRef]
  2. Astruc, D.; Lu, D.F.; Aranzaes, J.R. Nanoparticles as recyclable catalysts: The frontier between homogeneous and heterogeneous catalysis. Angew. Chem. Int. Ed. 2005, 44, 7852–7872. [Google Scholar] [CrossRef] [PubMed]
  3. Lun, X.; Liebscher, J. Carbon-carbon coupling reactions catalyzed by heterogeneous palladium catalysts. Chem. Rev. 2007, 107, 133–173. [Google Scholar]
  4. Köhler, K.; Heidenreich, R.G.; Krauter, J.G.E.; Pietsch, J. Highly active palladium/activated carbon catalysts for heck reactions: Correlation of activity, catalyst properties, and Pd leaching. Chem. Eur. J. 2002, 8, 622–631. [Google Scholar] [CrossRef]
  5. Yu, J.; Shen, A.; Cao, Y.; Lu, G. Preparation of Pd-Diimine@SBA-15 and its catalytic performance for the Suzuki coupling reaction. Catalysts 2016, 6, 181. [Google Scholar] [CrossRef]
  6. Mehnert, C.P.; Weaver, D.W.; Ying, J.Y. Heterogeneous Heck catalysis with palladium-grafted molecular sieves. J. Am. Chem. Soc. 1998, 120, 12289–12296. [Google Scholar] [CrossRef]
  7. Stevens, P.D.; Li, G.F.; Fan, J.D.; Yen, M.; Gao, Y. Recycling of homogeneous Pd catalysts using superparamagnetic nanoparticles as novel soluble supports for Suzuki, Heck, and Sonogashira cross-coupling reactions. Chem. Commun. 2005, 4435–4437. [Google Scholar] [CrossRef] [PubMed]
  8. Papp, A.; Galbacs, G.; Molnar, R. Recyclable ligand-free mesoporous heterogeneous Pd catalysts for Heck coupling. Tetrahedron Lett. 2005, 46, 7725–7728. [Google Scholar] [CrossRef]
  9. Wight, A.P.; Davis, M.E. Design and preparation of organic−inorganic hybrid catalysts. Chem. Rev. 2002, 102, 3589–3613. [Google Scholar] [CrossRef] [PubMed]
  10. Li, H.X.; Chai, W.; Zhang, F.; Chen, J. Water-medium Ullmann reaction over a highly active and selective Pd/Ph-SBA-15 catalyst. Green Chem. 2007, 9, 1223–1228. [Google Scholar] [CrossRef]
  11. Crudden, C.M.; Sateesh, M.; Lewis, R. Mercaptopropyl-modified mesoporous silica: A remarkable support for the preparation of a reusable, heterogeneous palladium catalyst for coupling reactions. J. Am. Chem. Soc. 2005, 127, 10045–10050. [Google Scholar] [CrossRef] [PubMed]
  12. Prockl, S.S.; Kleist, W.; Gruber, M.A.; Kohler, K. In situ generation of highly active dissolved palladium species from solid catalysts—A concept for the activation of aryl chlorides in the Heck reaction. Angew. Chem. Int. Ed. 2004, 43, 1881–1882. [Google Scholar] [CrossRef] [PubMed]
  13. Karimi, B.; Enders, D. New N-heterocyclic carbene palladium complex/ionic liquid matrix immobilized on silica: Application as recoverable catalyst for the Heck reaction. Org. Lett. 2006, 8, 1237–1240. [Google Scholar] [CrossRef] [PubMed]
  14. Reetz, M.T.; de Vries, J.G. Ligand-free Heck reactions using low Pd-loading. Chem. Commun. 2004, 35, 1559–1563. [Google Scholar] [CrossRef] [PubMed]
  15. Wang, S.; Zhao, Q.; Wei, H.; Wang, J.; Cho, M.; Cho, H.; Terasaki, O.; Wan, Y. Aggregation-free gold nanoparticles in ordered mesoporous carbons: Toward highly active and stable heterogeneous catalysts. J. Am. Chem. Soc. 2013, 135, 11849–11860. [Google Scholar] [CrossRef] [PubMed]
  16. Sydnes, M.O. The Use of palladium on magnetic support as catalyst for Suzuki–Miyaura cross-coupling reactions. Catalysts 2017, 7, 35. [Google Scholar] [CrossRef]
  17. Carrettin, S.; Blanco, M.C.; Corma, A.; Hashmi, A.S. K. Heterogeneous gold-catalysed synthesis of phenols. Adv. Synth. Catal. 2006, 348, 1283–1288. [Google Scholar] [CrossRef]
  18. Witham, C.A.; Huang, W.; Tsung, C.K.; Kuhn, J.N.; Somorjai, G.A.; Toste, F.D. Converting homogeneous to heterogeneous in electrophilic catalysis using monodisperse metal nanoparticles. Nat. Chem. 2010, 2, 36–41. [Google Scholar] [CrossRef] [PubMed]
  19. Wan, Y.; Wang, H.; Zhao, Q.; Klingstedt, M.; Terasaki, O.; Zhao, D. Ordered mesoporous Pd/silica—Carbon as a highly active heterogeneous catalyst for coupling reaction of chlorobenzene in aqueous media. J. Am. Chem. Soc. 2009, 131, 4541–4550. [Google Scholar] [CrossRef] [PubMed]
  20. Gaikwad, A.V.; Holuigue, A.; Thathagar, M.B.; ten Elshofand, E.; Rothenberg, G. Ion- and atom-leaching mechanisms from palladium nanoparticles in cross-coupling reactions. Chem. Eur. J. 2007, 13, 6908–6913. [Google Scholar] [CrossRef] [PubMed]
  21. Li, Z.X.; Xue, W.; Guan, B.T.; Shi, F.B.; Shi, Z.J.; Jiang, H.; Yan, C.H. A conceptual translation of homogeneous catalysis into heterogeneous catalysis: Homogeneous-like heterogeneous gold nanoparticle catalyst induced by ceria supporter. Nanoscale 2013, 5, 1213–1220. [Google Scholar] [CrossRef] [PubMed]
  22. Perlmutter, P. Conjugate Addition Reactions in Organic Synthesis; Pergamon: Oxford, UK, 1992. [Google Scholar]
  23. Nising, C.F.; Bräse, S. Recent developments in the field of oxa-Michael reactions. Chem. Soc. Rev. 2012, 41, 988–999. [Google Scholar] [CrossRef] [PubMed]
  24. Nising, C.F.; Bräse, S. The oxa-Michael reaction: From recent developments to applications in natural product synthesis. Chem. Soc. Rev. 2008, 37, 1218–1228. [Google Scholar] [CrossRef] [PubMed]
  25. Vaxelaire, C.; Winter, P.; Christmann, M. One-pot reactions accelerate the synthesis of active pharmaceutical ingredients. Angew. Chem. Int. Ed. 2011, 50, 3605–3637. [Google Scholar] [CrossRef] [PubMed]
  26. Busacca, C.A.; Fandrick, D.R.; Song, J.J.; Senanayake, C.H. The growing impact of catalysis in the pharmaceutical industry. Adv. Synth. Catal. 2011, 353, 1825–1864. [Google Scholar] [CrossRef]
  27. Harrison, C.L.; Krawiec, M.; Forslund, R.E.; Nugent, W.A. Beyond the chiral pool: A general approach to β-amino-α-keto amides. Tetrahedron 2011, 67, 41–47. [Google Scholar] [CrossRef]
  28. Ying, A.; Li, Z.; Yang, J.; Liu, S.; Xu, S.; Yan, H.; Wu, C. DABCO-based ionic liquids: Recyclable catalysts for aza-Michael addition of α,β-unsaturated amides under solvent-free conditions. J. Org. Chem. 2014, 79, 6510–6516. [Google Scholar] [CrossRef] [PubMed]
  29. Corey, E.J.; Reichard, G.A. Enantioselective and practical syntheses of R- and S-fluoxetines. Tertrahedron Lett. 1989, 30, 5207–5210. [Google Scholar] [CrossRef]
  30. Duan, J.; Li, P. Asymmetric or ganocatalysis mediated by primary amines derived from cinchona alkaloids: Recent advances. Catal. Sci. Technol. 2014, 4, 311–320. [Google Scholar] [CrossRef]
  31. Schmidt, R.R.; Vankar, Y.D. 2-Nitroglycals as powerful glycosyl donors: Application in the synthesis of biologically important molecules. Acc. Chem. Res. 2008, 41, 1059–1073. [Google Scholar] [CrossRef] [PubMed]
  32. Fabris, M.; Lucchini, V.; Noe, M.; Perosa, A. Ionic liquids made with dimethyl carbonate: Solvents as well as boosted basic catalysts for the Michael reaction. Chem. Eur. J. 2009, 15, 12273–12282. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Stewart, I.C.; Bergman, R.G.; Toste, F.D. Phosphine-catalyzed hydration and hydroalkoxylation of activated olefins: Use of a strong nucleophile to generate a strong base. J. Am. Chem. Soc. 2003, 125, 8696–8697. [Google Scholar] [CrossRef] [PubMed]
  34. Kisanga, P.B.; Illankumaran, P.; Fetterley, B.M.; Verkade, J.G. P(RNCH2CH2)3N: Efficient 1,4-addition catalysts. J. Org. Chem. 2002, 67, 3555–3560. [Google Scholar] [CrossRef] [PubMed]
  35. Sun, S.; Zeng, H.; Robinson, D.B.; Raoux, S.; Rice, P.M.; Wang, S.X.; Li, G. Monodisperse MFe2O4 (M = Fe, Co, Mn) nanoparticles. J. Am. Chem. Soc. 2004, 126, 273–279. [Google Scholar] [CrossRef] [PubMed]
  36. Zeng, H.; Rice, P.M.; Wang, S.X.; Sun, S. Shape-controlled synthesis and shape-induced texture of MnFe2O4 nanoparticles. J. Am. Chem. Soc. 2004, 126, 11458–11459. [Google Scholar] [CrossRef] [PubMed]
  37. Tirosh, E.; Shemer, G.; Markovich, G.; Markovich, G. Optimizing cobalt ferrite nanocrystal synthesis using a magneto-optical probe. Chem. Mater. 2006, 18, 465–470. [Google Scholar] [CrossRef]
  38. Bao, N.; Shen, L.; Wang, Y.; Padhan, P.; Gupta, A. A facile thermolysis route to monodisperse ferrite nanocrystals. J. Am. Chem. Soc. 2007, 129, 12374–12375. [Google Scholar] [CrossRef] [PubMed]
  39. Song, Q.; Zhang, Z.J. Shape control and associated magnetic properties of spinel cobalt ferrite nanocrystals. J. Am. Chem. Soc. 2004, 126, 6164–6168. [Google Scholar] [CrossRef] [PubMed]
  40. Vestal, C.R.; Song, Q.; Zhang, Z.J. Effects of interparticle interactions upon the magnetic properties of CoFe2O4 and MnFe2O4 nanocrystals. J. Phys. Chem. B 2004, 108, 18222–18227. [Google Scholar] [CrossRef]
  41. Xu, D.Q.; Luo, S.P.; Wang, Y.F.; Xia, A.B.; Yue, H.D.; Wang, L.P.; Xu, Z.Y. Organocatalysts wrapped around by Poly(ethylene glycol)s (PEGs): A unique host–guest system for asymmetric Michael addition reactions. Chem. Commun. 2007, 4393–4395. [Google Scholar] [CrossRef] [PubMed]
  42. Choudhary, V.R.; Dumbre, D.K.; Patil, S.K. FeCl3/montmorillonite K10 as an efficient catalyst for solvent-free aza-Michael reaction between amine and α,β-unsaturated compounds. RSC Adv. 2012, 2, 7061–7065. [Google Scholar] [CrossRef]
  43. Yang, L.; Xu, L.W.; Xia, C.G. Highly efficient KF/Al2O3-catalyzed versatile hetero-Michael addition of nitrogen, oxygen, and sulfur nucleophiles to α,β-ethylenic compounds. Tetrahedron Lett. 2005, 46, 3279–3282. [Google Scholar] [CrossRef]
  44. Surendra, K.; Krishnaveni, N.S.; Sridhar, R.; Rao, K.R. β-Cyclodextrin promoted aza-Michael addition of amines to conjugated alkenes in water. Tetrahedron Lett. 2006, 47, 2125–2127. [Google Scholar] [CrossRef]
  45. Perin, G.; Borges, E.L.; Rosa, P.C.; Carvalho, P.N.; Lenardão, E.J. Simple cleavage of diorganyl diselenides with NaBH4/PEG-400 and direct Michael addition to electron-deficient alkenes. Tetrahedron Lett. 2013, 54, 1718–1721. [Google Scholar] [CrossRef]
  46. Wang, X.; Quan, Z.; Zhang, Z. Michael additions of dihydropyrimidines and 2-amino-1,3,4-thiadiazoles to α,β-ethylenic compounds: Using polyethylene glycols as a green reaction media. Tetrahedron 2007, 63, 8227–8233. [Google Scholar] [CrossRef]
  47. Alleti, R.; Woon, S.O.; Perambuduru, M.; Ramena, C.V.; Reddy, V.P. Imidazolium-based polymer supported gadolinium triflate as a heterogeneous recyclable Lewis acid catalyst for Michael additions. Tetrahedron Lett. 2008, 49, 3466–3470. [Google Scholar] [CrossRef]
  48. Jin, J.; Oskam, P.C.; Karmee, S.K.; Straathof, A.J.; Hanefeld, U. MhyADH catalysed Michael addition of water and in situ oxidation. Chem. Commun. 2010, 46, 8588–8590. [Google Scholar] [CrossRef] [PubMed]
  49. Cai, J.F.; Guan, Z.; He, Y.H. The lipase-catalyzed asymmetric C–C Michael addition. J. Mol. Catal. B Enzym. 2011, 68, 240–244. [Google Scholar] [CrossRef]
  50. Madalińska, L.; Kwiatkowska, M.; Cierpiał, T.; Kiełbasiński, P. Investigations on enzyme catalytic promiscuity: The first attempts at a hydrolytic enzyme-promoted conjugate addition of nucleophiles to α,β-unsaturated sulfinyl acceptors. J. Mol. Catal. B Enzym. 2012, 81, 25–30. [Google Scholar] [CrossRef]
  51. Ying, A.; Liu, S.; Ni, Y.; Qiu, F.; Xu, S.; Tang, W. Ionic tagged DABCO grafted on magnetic nanoparticles: A water-compatible catalyst for the aqueous aza-Michael addition of amines to α,β-unsaturated amides. Catal. Sci. Technol. 2014, 4, 2115–2125. [Google Scholar] [CrossRef]

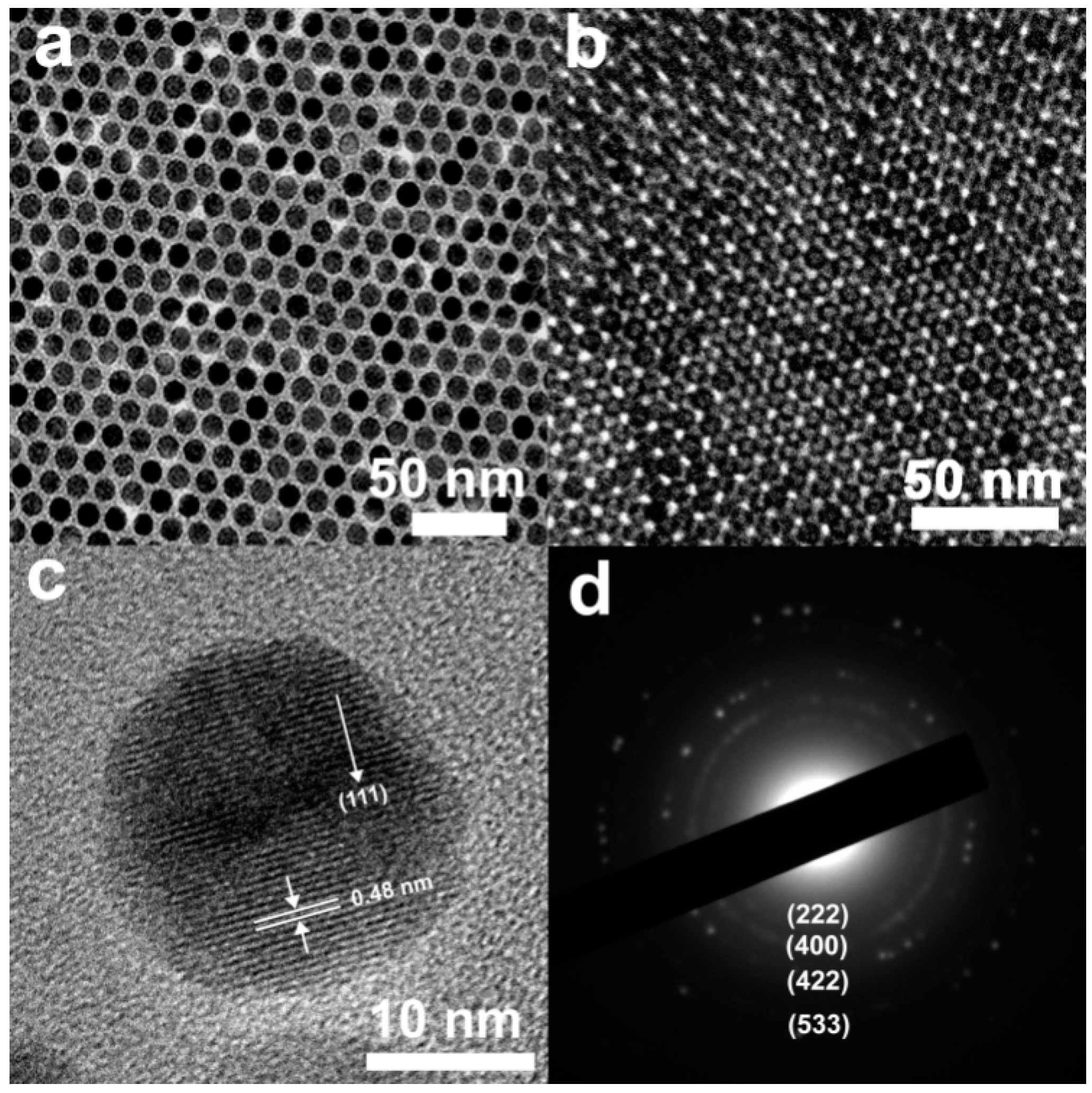

Figure 1. (a) Transmission electron microscopy (TEM) image of the prepared Fe3O4 nanoparticles; (b) The superlattice of Fe3O4 nanoparticles are formed on the TEM grid; (c) High-resolution TEM (HRTEM) image of the prepared Fe3O4 nanoparticles; (d) Selected area electron diffraction (SAED) pattern of the prepared Fe3O4 nanoparticles.
Figure 1. (a) Transmission electron microscopy (TEM) image of the prepared Fe3O4 nanoparticles; (b) The superlattice of Fe3O4 nanoparticles are formed on the TEM grid; (c) High-resolution TEM (HRTEM) image of the prepared Fe3O4 nanoparticles; (d) Selected area electron diffraction (SAED) pattern of the prepared Fe3O4 nanoparticles.
Catalysts 07 00219 g001
Figure 2. Powder X-ray diffraction (XRD) of the prepared Fe3O4 nanoparticles.
Figure 2. Powder X-ray diffraction (XRD) of the prepared Fe3O4 nanoparticles.
Catalysts 07 00219 g002

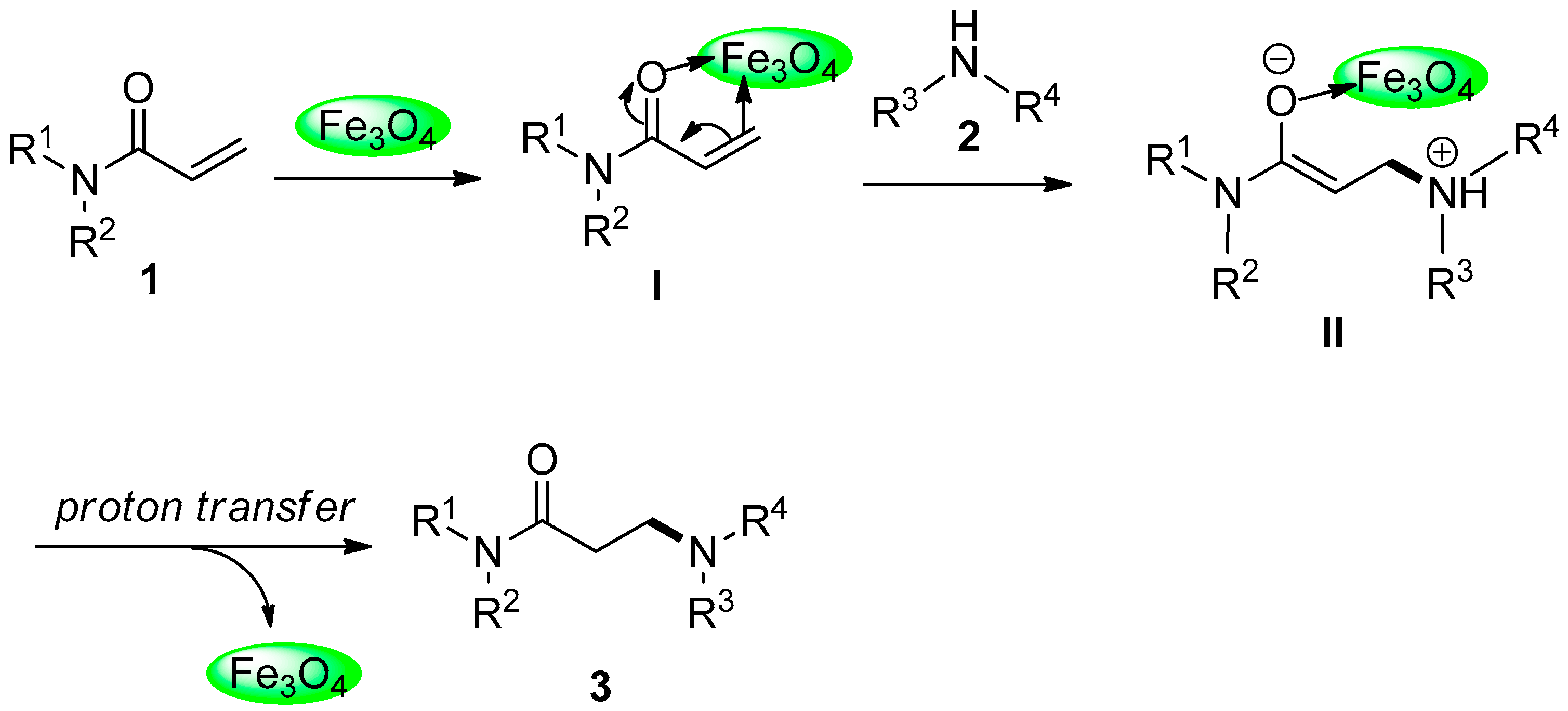

Scheme 1. A possible mechanism for Fe3O4 nanoparticles-catalyzed aza-Michael addition of acryl amides with amines.
Scheme 1. A possible mechanism for Fe3O4 nanoparticles-catalyzed aza-Michael addition of acryl amides with amines.
Catalysts 07 00219 sch001

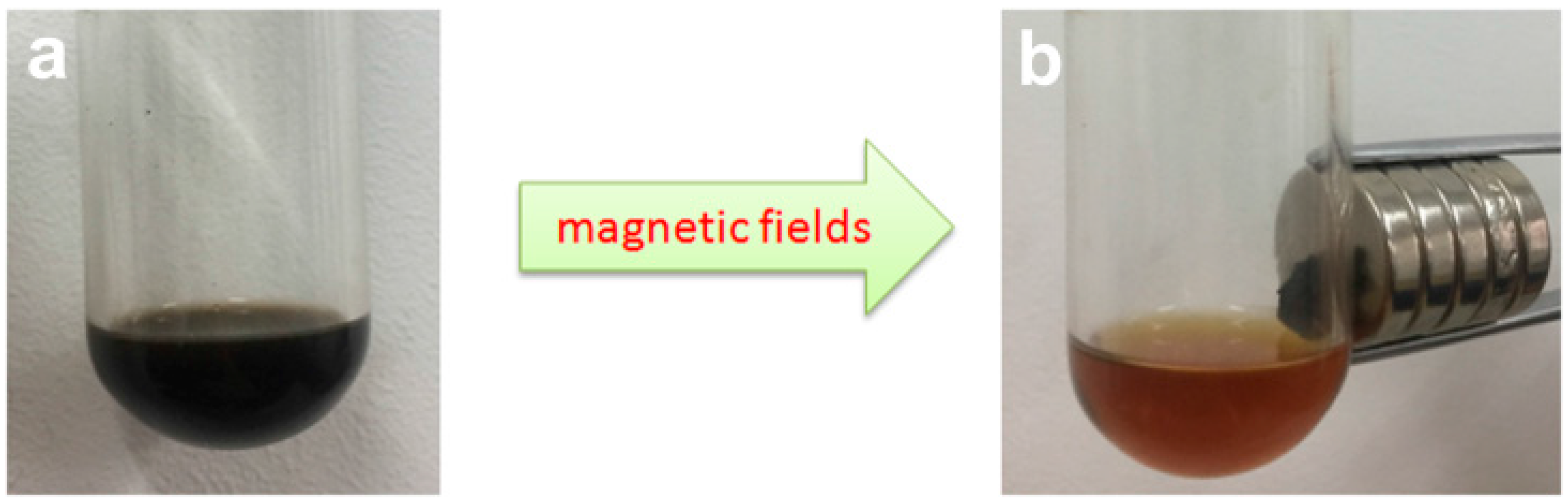

Figure 3. The magnetic Fe3O4 nanoparticles can be recovered from the reaction products by external magnetic field. (a) the reaction products and Fe3O4 nanoparticles before the external magnetic field; (b) the reaction products and Fe3O4 nanoparticles after the external magnetic field.
Figure 3. The magnetic Fe3O4 nanoparticles can be recovered from the reaction products by external magnetic field. (a) the reaction products and Fe3O4 nanoparticles before the external magnetic field; (b) the reaction products and Fe3O4 nanoparticles after the external magnetic field.
Catalysts 07 00219 g003

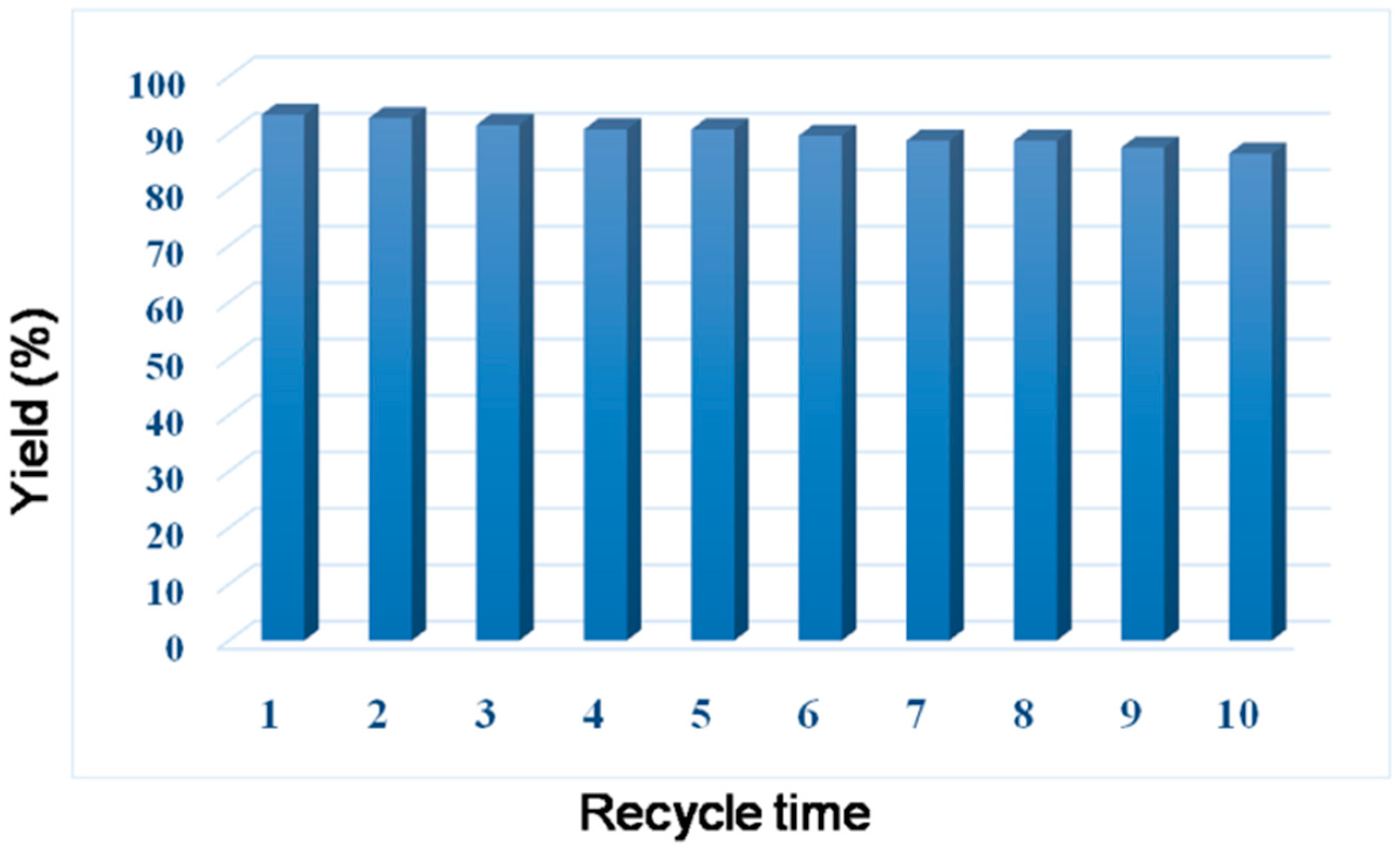

Figure 4. The reuses of magnetic Fe3O4 nanoparticles on the aza-Michael addition of N-phenylacrylamide with morpholine.
Figure 4. The reuses of magnetic Fe3O4 nanoparticles on the aza-Michael addition of N-phenylacrylamide with morpholine.
Catalysts 07 00219 g004
Table 1. Influence of the Fe3O4 nanoparticles on the aza-Michael addition of various substituent on N position of acryl amides with morpholine. a
Table 1. Influence of the Fe3O4 nanoparticles on the aza-Michael addition of various substituent on N position of acryl amides with morpholine. a
EntryAcryl AmideAmineCatalystYield (%) b
1 Catalysts 07 00219 i001 Catalysts 07 00219 i002-38.1
2 Catalysts 07 00219 i001 Catalysts 07 00219 i002Fe3O4 nanoparticles89.0
3 Catalysts 07 00219 i003 Catalysts 07 00219 i002-36.2
4 Catalysts 07 00219 i003 Catalysts 07 00219 i002Fe3O4 nanoparticles85.2
5 Catalysts 07 00219 i004 Catalysts 07 00219 i002-39.6
6 Catalysts 07 00219 i004 Catalysts 07 00219 i002Fe3O4 nanoparticles93.2
a Reaction conditions: acryl amides (2 mmol), amines (2 mmol), and catalyst (10 mol %) in 1 mL of CH2Cl2 for 24 h at room temperature in a Schlenk tube; b Isolated yield.
Table 2. The magnetic Fe3O4 nanoparticles-catalyzed aza-Michael addition of acryl amides with various amines. a
Table 2. The magnetic Fe3O4 nanoparticles-catalyzed aza-Michael addition of acryl amides with various amines. a
Catalysts 07 00219 i030
EntryAcryl AmidesAmineProductYield (%) b
1 Catalysts 07 00219 i001 Catalysts 07 00219 i002 Catalysts 07 00219 i00589.0
2 Catalysts 07 00219 i001 Catalysts 07 00219 i006 Catalysts 07 00219 i00790.6
3 Catalysts 07 00219 i001 Catalysts 07 00219 i008 Catalysts 07 00219 i00990.4
4 Catalysts 07 00219 i001 Catalysts 07 00219 i010 Catalysts 07 00219 i01191.7
5 Catalysts 07 00219 i001 Catalysts 07 00219 i012 Catalysts 07 00219 i01390.1
6 Catalysts 07 00219 i001 Catalysts 07 00219 i014 Catalysts 07 00219 i01580.2
7 Catalysts 07 00219 i003 Catalysts 07 00219 i002 Catalysts 07 00219 i01685.2
8 Catalysts 07 00219 i003 Catalysts 07 00219 i006 Catalysts 07 00219 i01786.9
9 Catalysts 07 00219 i003 Catalysts 07 00219 i008 Catalysts 07 00219 i01884.3
10 Catalysts 07 00219 i003 Catalysts 07 00219 i010 Catalysts 07 00219 i01985.6
11 Catalysts 07 00219 i003 Catalysts 07 00219 i012 Catalysts 07 00219 i02080.2
12 Catalysts 07 00219 i003 Catalysts 07 00219 i014 Catalysts 07 00219 i02190.1
13 Catalysts 07 00219 i004 Catalysts 07 00219 i002 Catalysts 07 00219 i02293.2
14 Catalysts 07 00219 i004 Catalysts 07 00219 i006 Catalysts 07 00219 i02381.2
15 Catalysts 07 00219 i004 Catalysts 07 00219 i010 Catalysts 07 00219 i02484.6
16 Catalysts 07 00219 i004 Catalysts 07 00219 i014 Catalysts 07 00219 i02580.1
17 Catalysts 07 00219 i004 Catalysts 07 00219 i028 Catalysts 07 00219 i02678.6
18 Catalysts 07 00219 i004 Catalysts 07 00219 i029 Catalysts 07 00219 i02777.9
a Reaction conditions: acryl amides (2 mmol), amines (2 mmol), and catalyst (10 mol %) in 1 mL of CH2Cl2 for 24 h at room temperature in a Schlenk tube; b Isolated yield.
