Open AccessFeature PaperArticle
Catalysts 2017, 7(8), 231; doi:10.3390/catal7080231

Is Selective Heating of the Sulfonic Acid Catalyst AC-SO3H by Microwave Radiation Crucial in the Acid Hydrolysis of Cellulose to Glucose in Aqueous Media?

1
Department of Materials and Life Sciences, Faculty of Science and Technology, Sophia University, 7-1 Kioicho, Chiyodaku, Tokyo 102-8554, Japan
2
Microwave Science Research Center (MSRC), Sophia University, 7-1 Kioicho, Chiyodaku, Tokyo 102-8554, Japan
3
Department of Chemical Science and Engineering School of Materials and Chemical Technology Tokyo Institute of Technology Ookayama 2-12-1 E4-3, Meguro, Tokyo 152-8550, Japan
4
Research Laboratory of Hydrothermal Chemistry, Faculty of Science, Kochi University, Akebono-Cho 2-5-1, Kochi 780-8520, Japan
5
Visiting Professor, PhotoGreen Laboratory, Dipartimento di Chimica, Universita di Pavia, Via Taramelli 12, Pavia 27100, Italy
*
Author to whom correspondence should be addressed.
Received: 1 July 2017 / Revised: 23 July 2017 / Accepted: 1 August 2017 / Published: 8 August 2017
(This article belongs to the Special Issue Enabling Technologies toward Green Catalysis)
View Full-Text   |   Download PDF [3770 KB, uploaded 8 August 2017]   |

Abstract

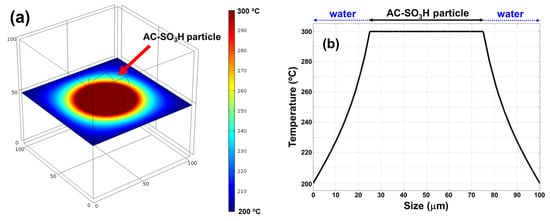

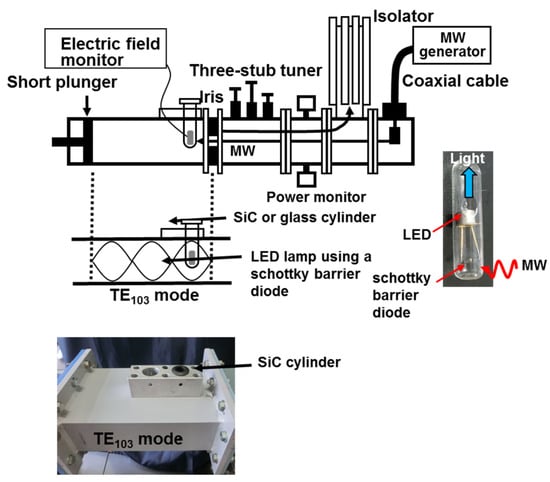

Selective heating of microwave-absorbing solid catalysts in a heterogeneous medium may affect a chemical reaction; such selectivity cannot be achieved by conventional oil-bath or steam heating methods. Moreover, microwave methods are often misunderstood with respect to equipment and temperature measurements, so that additional experimentation is necessary. In this regard, the present study intended to clarify the effect of microwave selective heating on acid hydrolytic processes using a sulfonated activated carbon catalyst (AC-SO3H). The model reaction chosen was the acid hydrolysis of cellulose carried out in a Pyrex glass microwave reactor, with the process being monitored by examining the quantity of total sugar, reducing sugar, and glucose produced. Heat transfer from the catalyst to the aqueous solution through absorption of microwaves by the catalyst occurred as predicted from a simulation of heat transfer processes. The resulting experimental consequences are compared with those from the more uniform microwave conduction heating method by also performing the reaction in a SiC microwave reactor wherein microwaves are absorbed by SiC. Some inferences of the influence of microwave selective heating of carbon-based catalyst particles are reported. Under selective heating conditions (Pyrex glass reactor), the yield of glucose from the acid hydrolysis of cellulose was 56% upon microwave heating at 200 °C, nearly identical with the yield (55%) when the hydrolytic process was performed under mainly conventional heating conditions in the SiC reactor. Although the beneficial effect of catalyst selective heating was not reflected in the reaction efficiency, there were substantial changes in the state of adsorption of cellulose on the catalyst surface. View Full-Text
Keywords: microwave selective heating; microwave-absorbing heterogeneous catalysts (MAHCs); biomass; cellulose; glucose microwave selective heating; microwave-absorbing heterogeneous catalysts (MAHCs); biomass; cellulose; glucose
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
