Regioselective Synthesis of Lactulose Esters by Candida antarctica and Thermomyces lanuginosus Lipases

Abstract

The interest in sugar esters as emulsifiers has been increasing in recent years because they have tunable surfactant properties that depend on the chain length of the fatty acid and the type of the sugar, covering a wide range of hydrophilic-lipophilic balance (HLB). In this work, ten biocatalysts were used for the transesterification reaction screening of lactulose, a prebiotic sugar, with vinyl laurate. The reactions were followed by thin layer chromatography (TLC) analysis, identifying two major monoesters mixtures defined as monoester fraction 1 and monoester fraction 2. Candida antarctica lipase B (Novozym 435) produces “monoester fraction 1”, while Thermomyces lanuginosus lipase (Lipozyme^® TL IM) and Mucor miehei lipase (Lipozyme^®) seem to produce the same “monoester fraction 2”. These three enzymes were selected as model biocatalysts for a kinetic study, and monoester fractions 1 and 2 from Novozym 435 and Lipozyme^® TL IM, respectively, were used for product characterization. Monoester fraction 1 contained 86.9% of the major monoester in position 1-O-, and monoester fraction 2 contained 91.4% of 6′-O-. Although these lipases acylated three positions of lactulose, they mainly synthesize a monoester presenting regioselectivity. These results contribute to the study of the chemical structure diversity of biosurfactants to enhance their applications in foods, pharmaceutical products, and cosmetics.

1. Introduction

Sugar fatty acid esters have a wide range of applications in the food, cosmetic, detergent, and pharmaceutical industries [1]. They present interesting properties as surfactant [2], antimicrobial [3,4,5,6,7,8], antitumoral [9], and insecticide agents [10]. The degree of esterification and the type of fatty acid used determine their surfactant properties. It has also been demonstrated that sucrose esters (mono-, di-, or tri-esters) are hydrolysed to sucrose and fatty acids prior to intestinal absorption [11,12], giving them a GRAS (Generally Recognized As Safe) status [13]. Although different sugars and acyl donors have been widely studied [1,6,14,15,16,17], the use of a single sugar with prebiotic properties, such as lactulose, has been less studied [18,19] and might open significant applications in the food and pharmaceutical fields.

Lactulose is the simplest existent prebiotic. It is a disaccharide composed of galactose and fructose (4-O-β-d-galactopyranosyl-d-fructofuranose), and, in contrast to lactose, cannot be hydrolyzed due to its resistance to digestive enzymes, and therefore reaches the colon without alteration. There, lactulose is selectively metabolized by bifidobacterias and lactobacillus to lactic and acetic acids, reducing intestinal pH. These actions improve the gastrointestinal environment and microbiota presence and help to avoid the occurrence of constipation [20]. Therefore, lactulose is extensively used in infant and senior nutrition as a prebiotic [21].

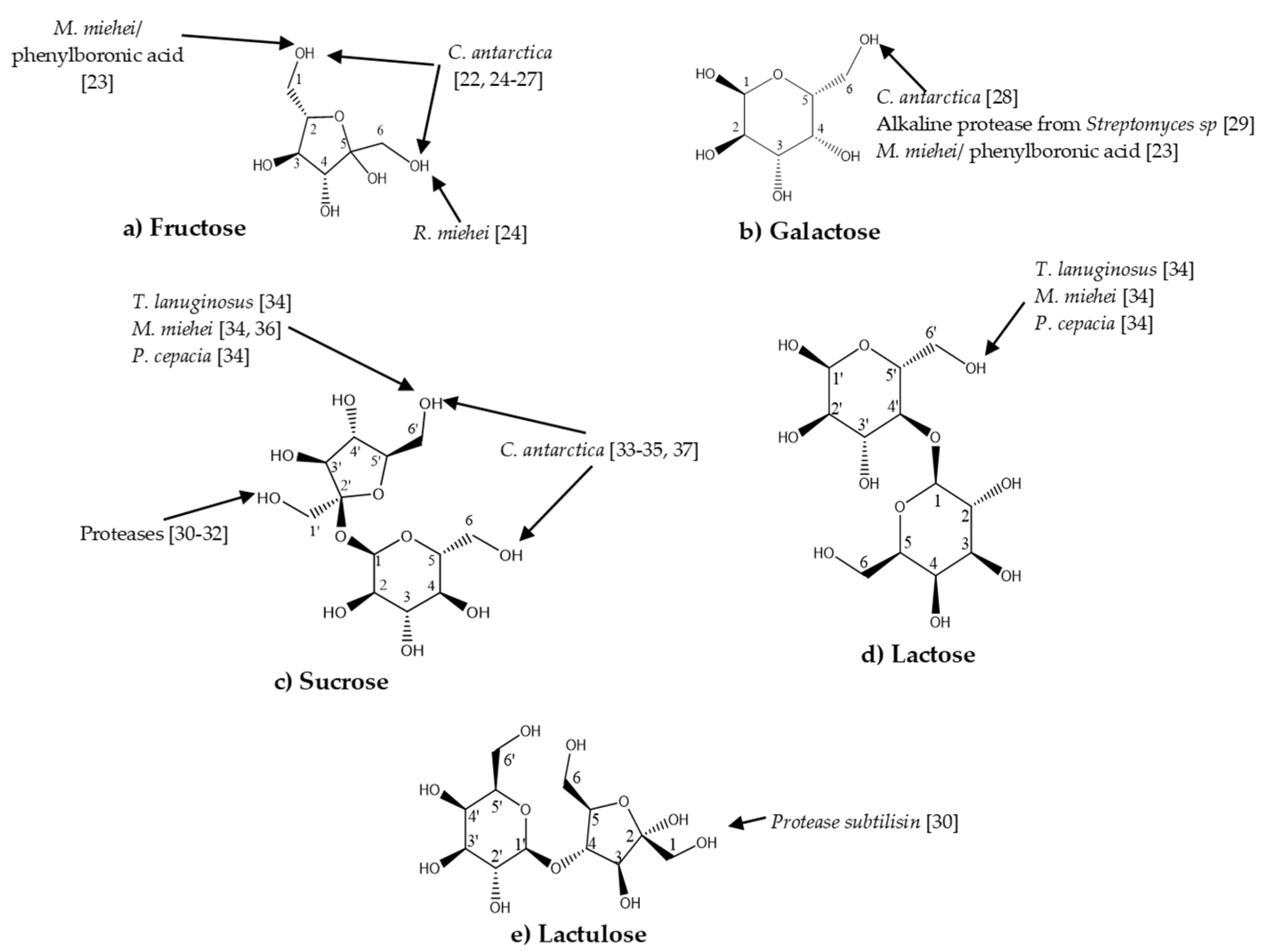

On the other hand, lipases’ regioselectivity has been explored and used as an advantage for enzymatic synthesis over chemical synthesis. Nevertheless, due to the abundance of different hydroxyl groups in sugars, it is necessary to evaluate the behavior of enzymes to achieve a “directed enzymatic synthesis” for selective sugar esters. Enzymatic esterification using fructose, galactose-sugars that form lactulose-, lactose, and sucrose have been previously reported. Figure 1 shows the acylation positions of these sugars according to the following tendency: (a) fructose: 6-O- [22,23,24,25,26], 1-O- [23,27], and 1,6-O- [26]; (b) galactose: 6-O- [23,28,29]; (c) sucrose: 1′-O- [30,31,32], 6-O- [33,34,35,36,37], 6′-O- [33,34,35], 6,1-O-, and 6,6′-O- [37]; (d) lactose: 6′-O- [34]; (e) lactulose: 1-O- [30]. Other studies on the synthesis of lactulose esters have been previously reported; however, to the best of our knowledge, the acylation position has not been described [18,19].

In this work, we study the regioselective synthesis of lactulose esters, controlling the esterification position into the lactulose molecule as well as the esterification degree through modulating the biocatalyst used and the solvent composition in order to modify the structures of the lactulose esters and their properties.

2. Results

2.1. Enzymatic Synthesis of Lactulose Esters and Screening with Different Biocatalysts

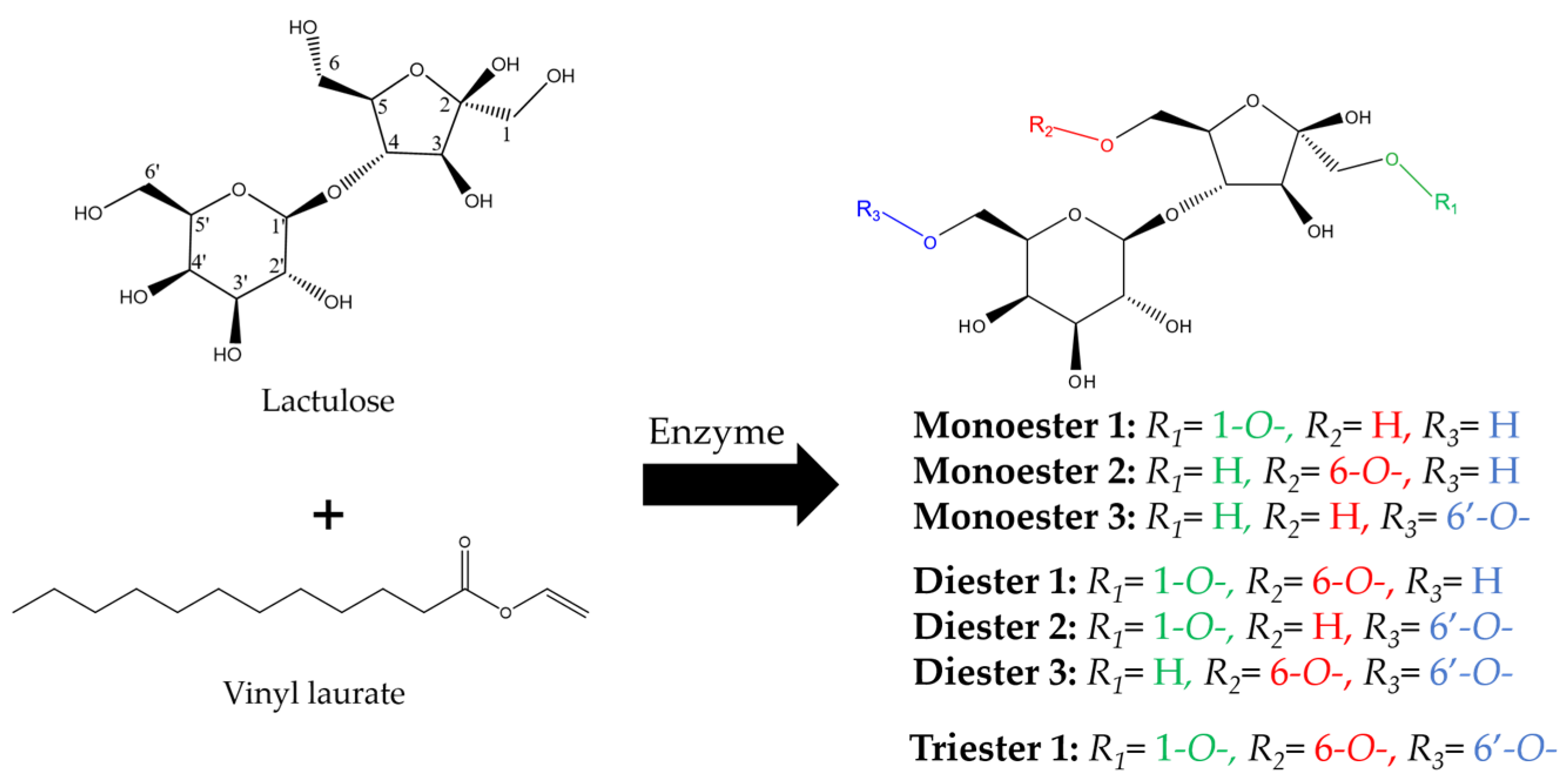

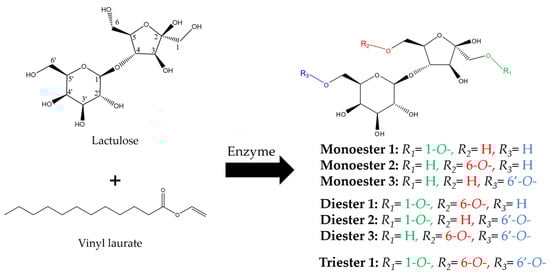

The synthesis of lactulose esters was developed by transesterification with vinyl laurate, an acyl donor that shifts the equilibrium reaction towards ester formation due to a well-known vinyl alcohol tautomerization to acetaldehyde and product evaporation [37]. The enzymatic model reaction is shown in Figure 2.

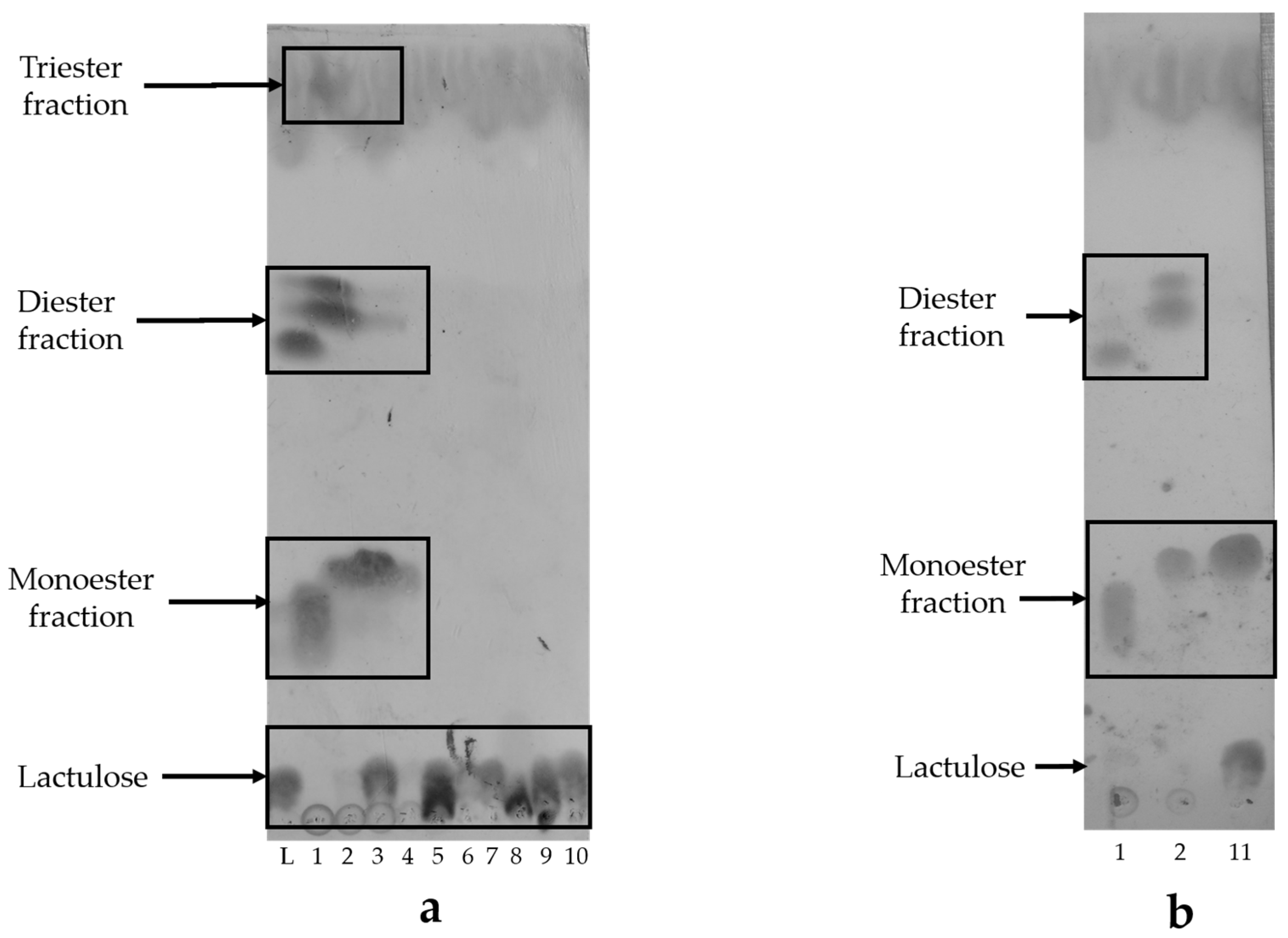

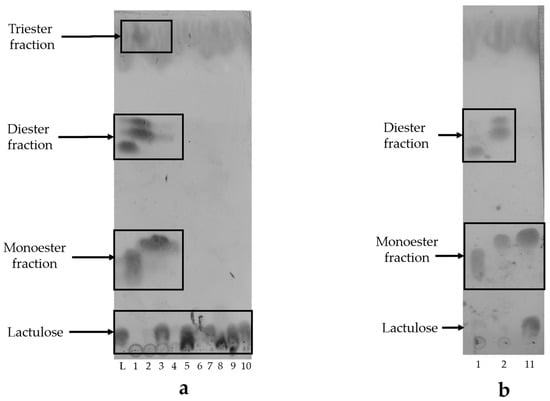

Ten biocatalysts were used for the transesterification reaction screening, and they are shown in Figure 3a,b. Candida antarctica lipase B immobilized in acrylic resin (Novozym 435), Mucor miehei lipase immobilized on a macroporus ion-exchange resin (Lipozyme^®), Thermomyces lanuginosus lipase immobilized as silica granulated (Lipozyme^® TL IM), and Alcaligenes sp. lipase immobilized in granulated diatomaceous earth (QLG) showed activity and different products were observed. The monoesters produced with Lipozyme TL IM, Lipozyme, and QLG have the same retention factor (R_f = 0.289), while with Novozym 435 the R_f is 0.235.

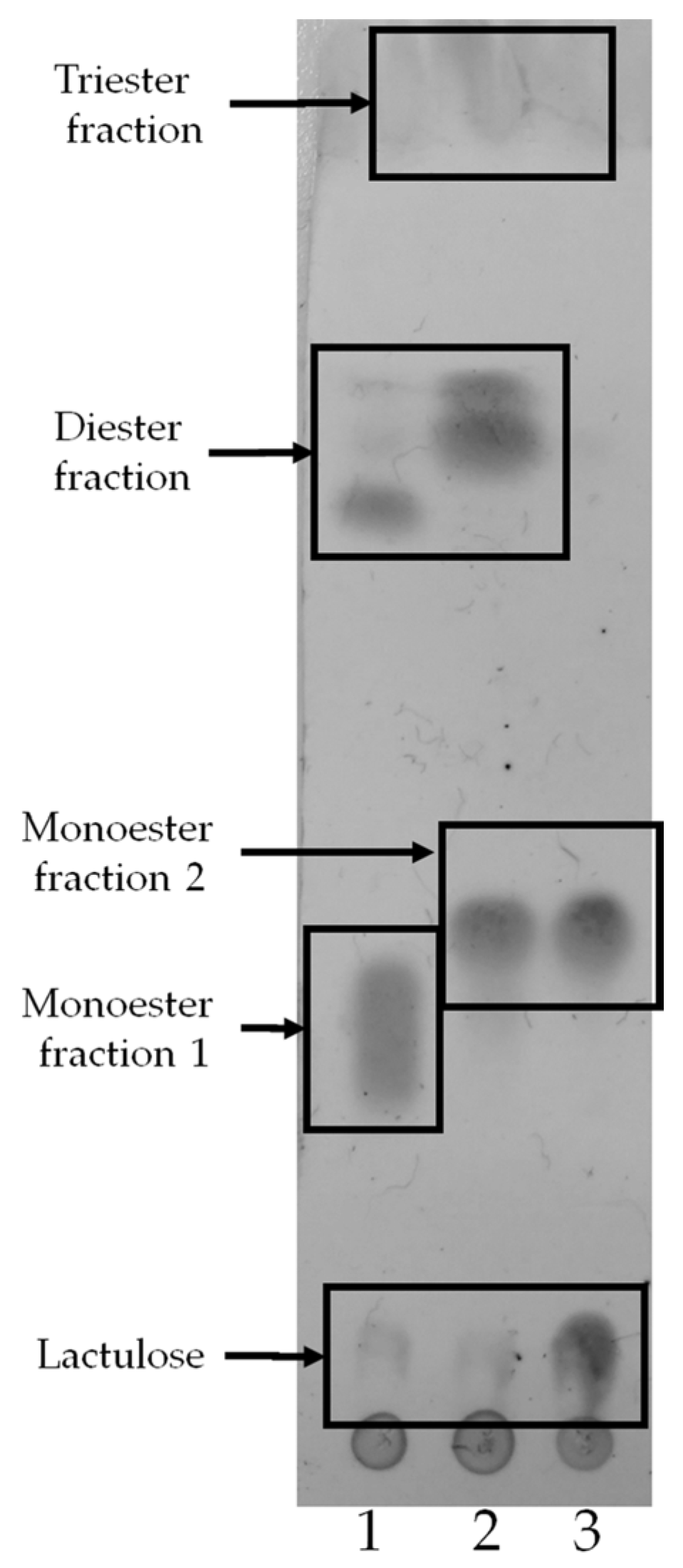

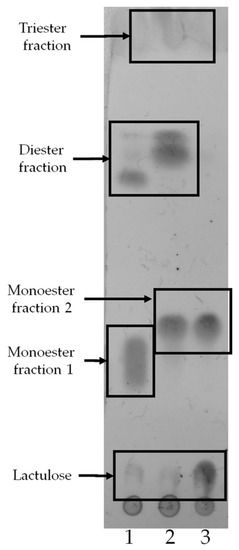

Three biocatalysts were tested by their ability to synthesize lactulose esters. After one hour, the reaction products were followed by TLC (Figure 4). As observed here, there are two major groups of monoesters, defined as monoester fraction 1 and monoester fraction 2. The Novozym 435 biocatalyst produces “monoester fraction 1”, while Lipozyme TL IM and Lipozyme from Mucor miehei lipases seem to produce the same “monoester fraction 2”. These three enzymes were selected as model biocatalysts for the kinetic study, and monoester fractions 1 and 2 from the Novozym 435 and Lipozyme TL IM lipases were used for product characterization.

The monoester fractions obtained were purified by liquid–liquid extraction and flash chromatography, and were characterized by ¹H, ¹³C, and two-dimensional (2D) (HMBC) NMR, MS-ESI, and FT-IR.

2.2. Characterization by FT-IR, ¹H, ¹³C, and 2D (HMBC) NMR and MS-ESI

FT-IR: The analysis of the FT-IR data has shown a specific band at 1740 cm⁻¹, clearly stating the presence of C=O ester stretching vibrations.

Electrospray Mass Spectrometry (MS-ESI) Analysis: The products’ reaction was first analyzed by MS-ESI (+). Electrospray is a technique where droplets are generated when a high voltage is applied to a liquid stream. In the ESI process, a population of variably charged ions is generated. In this study, the monoesters’ spectra mainly contain [M + H]⁺, [M + Na]⁺, or [M + K]⁺.

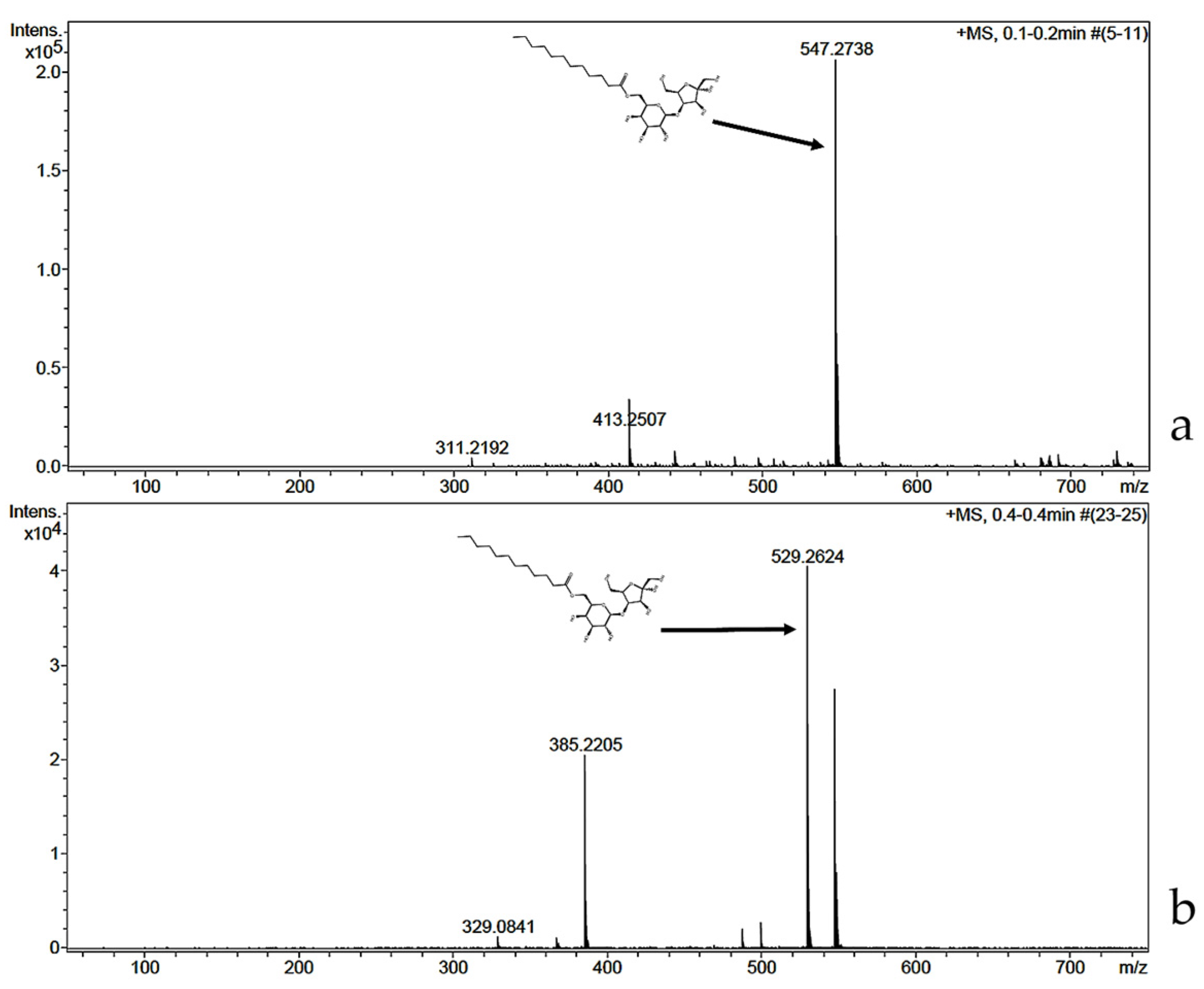

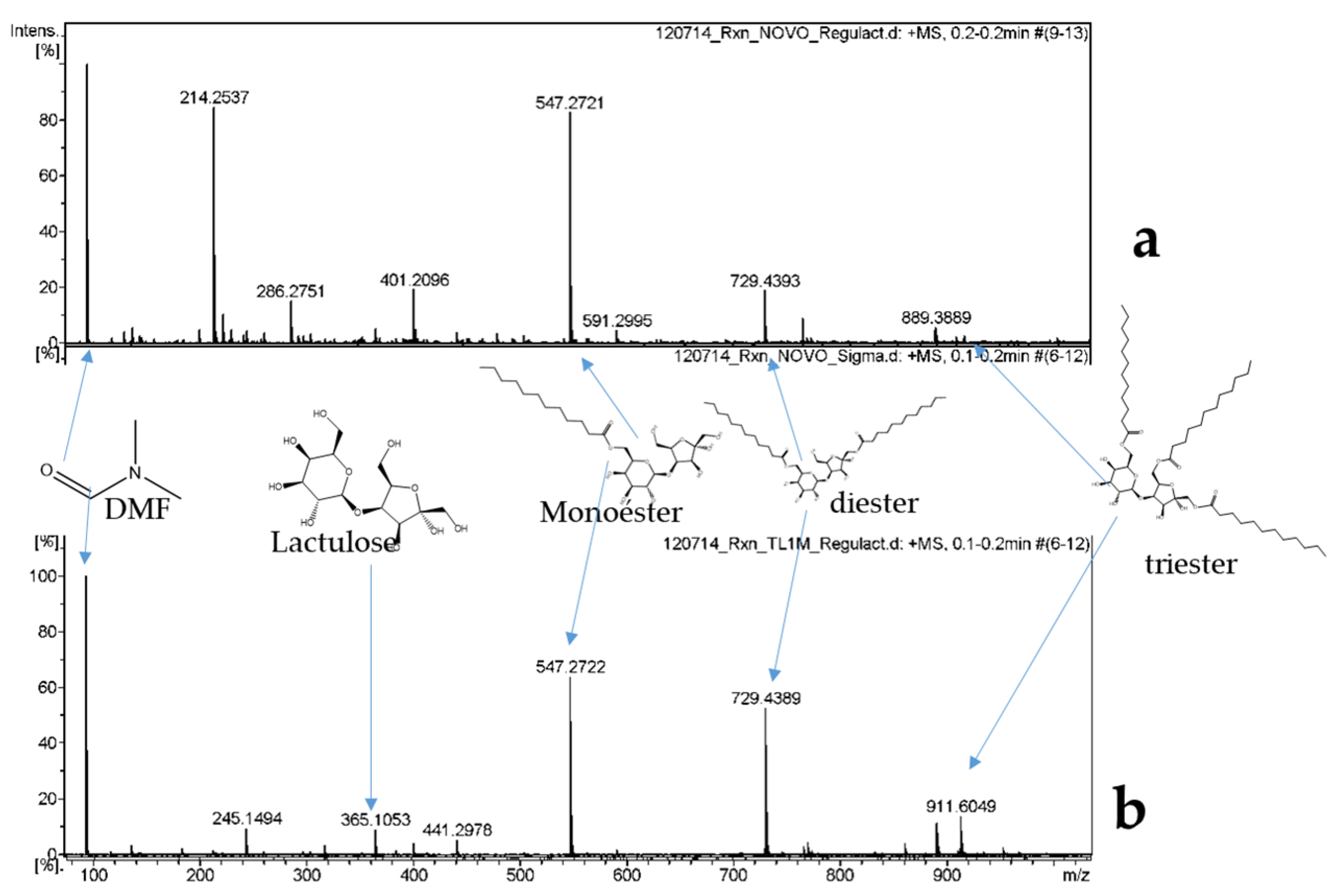

Both mixture reactions were injected separately in a direct form into the spectrometer to analyze the products formed. According to the ESI (+) mass spectra, both enzymes produce a monoester with an m/z of 547.2738 (For a [C₂₄H₄₄O₁₂ + Na] + calc., m/z 547.2730). However, when enzyme Lipozyme TL IM was used instead of Novozym 435, the reaction products were purer (Figure 5).

The signals observed in the products from Lipozyme TL IM belong to the monoester fragmentation, as we can see in Figure 6b, and this fragmentation was not observed when products from Novozym 435 were analyzed (Figure 6a), indicating that it is not the same product.

NMR Analysis: The ¹H-NMR spectrum of the monoester fractions from the lipase-catalyzed reactions clearly shows a group of signals that belong to more than one product, which means that there are at least two different acylation positions in monoesters (

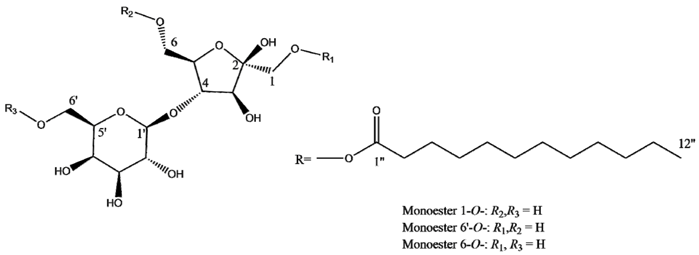

Table 1. Comparative NMR data of the experimental and predicted data of monoesters 1, 6, and 6′.

Monoester Fraction		Monoester-1 (1-O) (ppm)				Monoester-6 (6-O) (ppm)				Monoester-6′ (6′-O) (ppm)
	Atom	13Cexp	13Ccal	1Hexp	1Hcal	13Cexp	13Ccal	1Hexp	1Hcal	13Cexp	13Ccal
Fructose moiety	1	64.00	64.04	4.39	4.46 4.21	63.53	63.87	3.94 (dd)	3.92 (dd)	64.21	64.42
	2	103.11	103.01			104.62	104.43			104.12	104.43
	4	87.00	87.18	3.61 (dd)	3.65 (dd)	87.01	87.18	3.60 (dd)	3.63 (dd)	86.9	88.20
	6	63.79	63.81	4.00, 3.58	3.99, 3.58	63.80	63.81	4.45,	4.32, 4.07	----	----
Galactose moiety	1′	103.97	103.92	3.92	4.03	103.96	103.92	3.92	4.03	3.92	4.03
	5′	76.08	76.69			74.96	74.94
	6′	61.43	61.72	3.70, 3.46	3.70, 3.50	62.63	62.56	4.14 (dd)	4.13 (dd)	4.42	4.32 4.07
Lauroyl moiety	1″	173.5	173.5			174.1	174.1			173.8	173.5
	2″	33.58	34.03	2.38 (m)	2.34 (m)	33.56	34.03	2.39	2.37 (m)

¹³C_exp: Experimental data in ppm; ¹³C_cal: Predicted data in ppm. ¹H_exp: Experimental data in ppm; ¹H_cal: Predicted data in ppm. Prediction calculated with: MestReNova Version 6.0.2–5475 and ACD/NMR Predictor Version 9.02 (ACD-Labs, USA).

).

According to the ¹³C NMR analysis, three different lactulose monoesters could be identified. When the acylation occurs in position 1 of the fructose moiety (Monoester-1 (1-O-), Table 1) the chemical shift of the C-1 was found at 64.0 ppm, whereas if the acylation is located in position C-6′ of the galactose moiety the signal is located at δ 62.63 ppm (Monoester-6′ (6′-O-), Table 1). These observations corroborated with the predicted carbonyl signals of the monoesters at the ¹³C NMR. Two carbonyl signals were observed at δ 173.5 ppm for the acylation in position C-1 of the fructose, and another signal at δ 174.1 ppm for the acylation in position C-6′ of the galactose. The NMR analysis of the fractions showed two signals that could indicate the presence of another monoester. Signals at δ 64.21 and 173.8 ppm belong to another structure, probably to a monoester with acylation in position C-6 of the fructose moiety (Monoester-6 (6-O-), Table 1). This signal showed correlation in HMBC indicating the presence of this monoester. The ¹H and ¹³C NMR spectra can be viewed in Supplementary Figures S1a,b and S2a,b.

Signals assignments where corroborated with the HMBC 2D NMR spectral analysis of the products by the correlation of the carbonyl signals with the C-2″ of the lauroyl chain (Figure S3a,b).

According to the observations in the ¹³C NMR spectrum (Figure S2a), three products (Table 1) were found in the Novozyme 435-catalyzed reaction. However, only two monoesters (1-O- and 6′-O-) were identified when Lipozyme TL IM was used to catalyze the reaction (Figure S2b) (Table 1). This could be explained from the point of view of the steric hindrance to achieve ester formation. As we could see in Figure 7, -OH in position 6′ of the galactose moiety are more sterically available instead of C-OH in position 6 of the fructose moiety. Therefore, this means that the lipase Lipozyme TL IM is more selective to produce only two isomers of the monoester, while the lipase Novozym 435 does not have this restriction to produce more isomers, as it was demonstrated with this analysis.

The proportion of monoesters synthesized by lipases from Novozym 435 and Lipozyme TL IM was determined by a ¹H NMR signal integration of the characteristic chemical shifts at each monoester, where the characteristic chemical shifts of each molecule were identified. This was also performed in order to aid in the quantification of each molecule, and this was feasible because each molecule presented a characteristic chemical shift without overlap among at least one of their signals and thus were differentiable to determine proportions through signal integration.

As stated, the ¹H NMR signals corresponding to each monoester were integrated to identify and quantify the studied molecules, and each one appeared as a doublet with displacements of 4.39 (Monoester-1 (1-O)), 4.42 (Monoester-6′ (6′-O)), and 4.45 (Monoester-6 (6-O)) ppm from Novozym 435 (Figure S4) and from Lipozyme TL IM at 4.39 (Monoester-1 (1-O)) and 4.42 (Monoester-6′ (6′-O)) ppm (Figure S5).

The signals from each monoester contained in the mixture generated by Novozym 435 were identified and integrated: a doublet to -H of C-1 4.39 ppm and integration of 1, -H of C-6′ 4.42 ppm and integration of 0.1, and -H of C-6 at 4.45 ppm and integration of 0.05. The integration of the proton related to C-1′ appearing as a doublet at 3.92 ppm resulted in 1.15 (Figure S4), coinciding with the sum of the integrals of the three doublets described above, and also indicating that no other isomers or related structures were present. The mixture contained 87% of 1-O-, which is the major monoester, 8.7% of 6-O-, and 4.3% of 6′-O-.

The signals in the ¹H spectra resulting from the Lipozyme TL IM catalyzed-synthesis were identified: 3.92 ppm, 3.93 ppm, and integration of 1.09 for the doublet proton related to C-1′, -H of C-1 at 4.39 ppm and integration of 0.093, and -H of C-6′ at 4.42 ppm and integration of 1 (Figure S5). The mixture contained 91.5% of the major monoester (6′-O-) and 8.5% of the minor one (1-O-). Although lipases from Novozym 435 and Lipozyme TL IM are able to acylate in different positions of lactulose, these mainly synthesized one monoester, presenting regioselectivity. Comparing the lipase acylation positions for disaccharides reported in the literature (Figure 1c,d), the produced monoesters also gathered the acyl moiety in the two less steric-hindered 1-O- and 6′-O- positions of lactulose, while the 6-O- position remained almost untouched, as occurred in the 1′-O- of sucrose. In this work, lipase B from Candida antarctica acylates the less steric-hindered position 1-O- with a yield of 86.9%. On the other hand, Thermomyces lanuginosus lipase prefers the acylation of lactose (Figure 1d) in position 6′-O- (in galactose), coinciding with this work where Lipozyme TL IM acyls the same position of lactulose (6′-O-) with a yield of 91.4%.

2.3. Conversion to Monoester by Selected Enzymes and Effect of Temperature in the Reaction

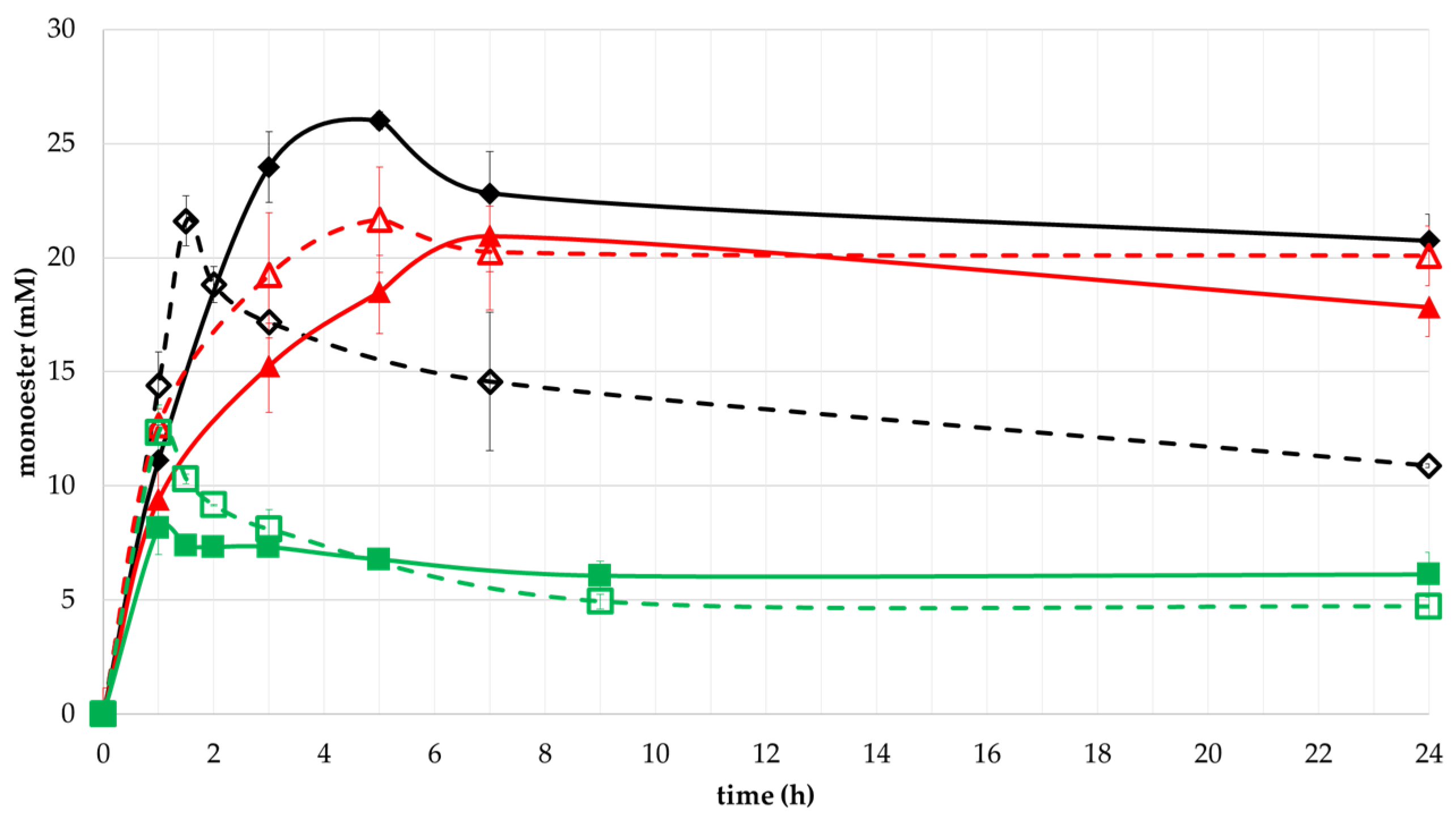

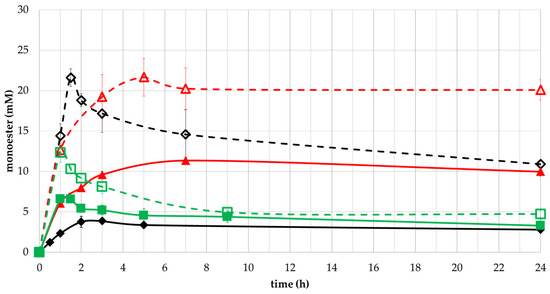

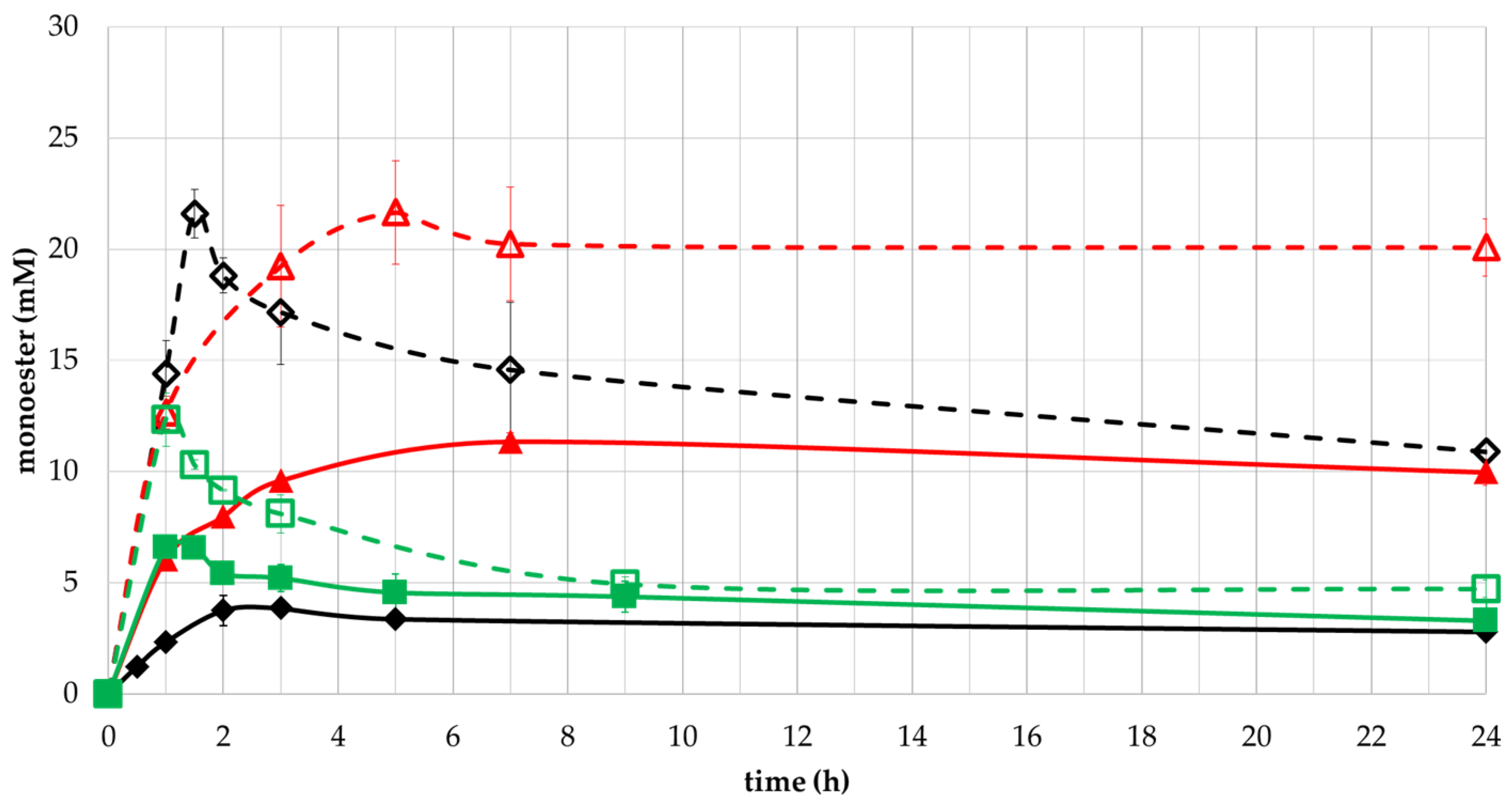

Figure 8 shows the time-course of the mixture of monoesters produced by each catalyzed reaction at 30 and 60 °C, observed as one monoester peak in a HPLC analysis. At 60 °C, Novozyme 435 and Lipozyme TL IM had similar behaviour: maximum monoesters production in short time (21.6 mm of monoesters in 1.5 h and 12.3 mm in 1 h, respectively). The decay in the concentration was due to the formation of diesters and triesters, observed by HPLC analysis (data not shown). Lipozyme from Mucor miehei achieved 21.6 mm in 5 h, with less conversion to diesters.

When the reaction temperature decreased from 60 to 30 °C, the synthesis of monoesters was preferred over diesters synthesis, and the effect could be translated into an increase in selectivity with a lower temperature. This effect could be observed with Novozyme 435 and Lipozyme TL IM but not with the Lipozyme from the Mucor miehei lipase. In the last case, when the temperature decreased, the synthesis of lactulose monoesters was maintained almost equal from 21.6 mm in 5 h to 20.9 mm in 7 h, and a lower diester production was also observed, possibly due to the active site structure of this type of lipase [38,39], as commented on in the next section.

Effect of Substrates Concentrations on Monoesters Yield

In order to evaluate the effect of the molar ratio sugar/acyl donor on the transesterification reaction, two conditions were evaluated (Figure 9). A ratio of 1:5 was better than 1:1 for achieving higher yields: Novozym 73% vs. 6% in 1.5 h; Lipozyme TL IM 43% vs. 23% in 1 h; Lipozyme from Mucor miehei 73% vs. 37% in 5 h. Two factors could be involved in this behaviour: (a) due to the lower concentration of acyl donor in the 1:1 reaction, the low water content present was enough for the vinyl laurate’s hydrolysis, and therefore the transesterification reaction to sugar esters decreased [40]; (b) the lactulose monoesters produced, due to their amphiphilic behaviour, could help to avoid sugar precipitation, stabilizing the reaction mixture and displacing the equilibrium of the reaction towards transesterification [41,42].

2.4. Calculation of the Hydrophilic-Lipophilic Balance (HLB)

The HLB of an emulsifier is an expression of its Hydrophile-Lipophile Balance, i.e., the balance of the size and strength of the hydrophilic (or polar) and the lipophilic (or nonpolar) groups of the emulsifier. All emulsifiers consist of a molecule that combines both hydrophilic and lipophilic groups [43].

The classification of surfactants by HLB numbers allows for the making of certain predictions of the behaviour of these compounds, facilitating the optimum selection of emulsifiers, wetting agents, and other types of agents, and making a connection between theory and practical applications [44].

According to the structures studied (Figure 2) and the Equations (1) and (3) (Davies method) and (2) (Griffin method) (Subsection 4.2.5), HLB values were calculated.

2.4.1. Griffin Method

• M_h = 341.29 g/mol
• M_T-mono = 524.60 g/mol
• M_T-di = 706.91 g/mol
• M_T-tri = 889.22 g/mol
• HLB _mono = 20 (341.29/524.60) = 13.01 ≈ 13
• HLB _di = 20 (341.29/706.91) = 9.65 ≈ 10
• HLB _tri = 20 (341.29/889.22) = 7.67 ≈ 8

where:

• HLB_mono: HLB value by monoester
• HLB_di: HLB value by diester
• HLB_tri: HLB value by triester

2.4.2. Davies Method

$$HLB={\displaystyle \sum }n\left(\#\mathrm{group}-\mathrm{O}-\mathrm{C}=\mathrm{O}\right)+n\left(\#\mathrm{group}-\mathrm{O}-\right)+n\left(\#\mathrm{group}-\mathrm{OH}\right)-n\left({\#\mathrm{group}-\mathrm{CH}-,-\mathrm{CH}}_2{-,-\mathrm{CH}}_3,-\mathrm{C}-\right)+7$$

(1)

HLB_mono = $\sum \left(2.4\right)+3\left(1.3\right)+7\left(1.9\right)-23\left(0.475\right)+7=15.675\approx 16$

HLB_di = $\sum 2\left(2.4\right)+3\left(1.3\right)+6\left(1.9\right)-34\left(0.475\right)+7=10.95\approx 11$

HLB_tri = $\sum 3\left(2.4\right)+3\left(1.3\right)+5\left(1.9\right)-45\left(0.475\right)+7=6.225\approx 6$

HLB scale goes from 1 to 20, where 1 is the most hydrophobic and 20 the most hydrophilic compound. The HLB values from the sucrose and lactulose esters are similar because of their chemical structures. According to their values, these sugar monoesters (Griffin 13 and Davies 16) could be used for dairy drinks, ice creams, or in the production of wheat products and detergents; the diesters (Griffin 10 and Davies 11) in the manufacture of chewing gum and wheat products; and the triesters (Griffin 8 and Davies 6) for processing milk powder and confectionery [2,45].

3. Discussion

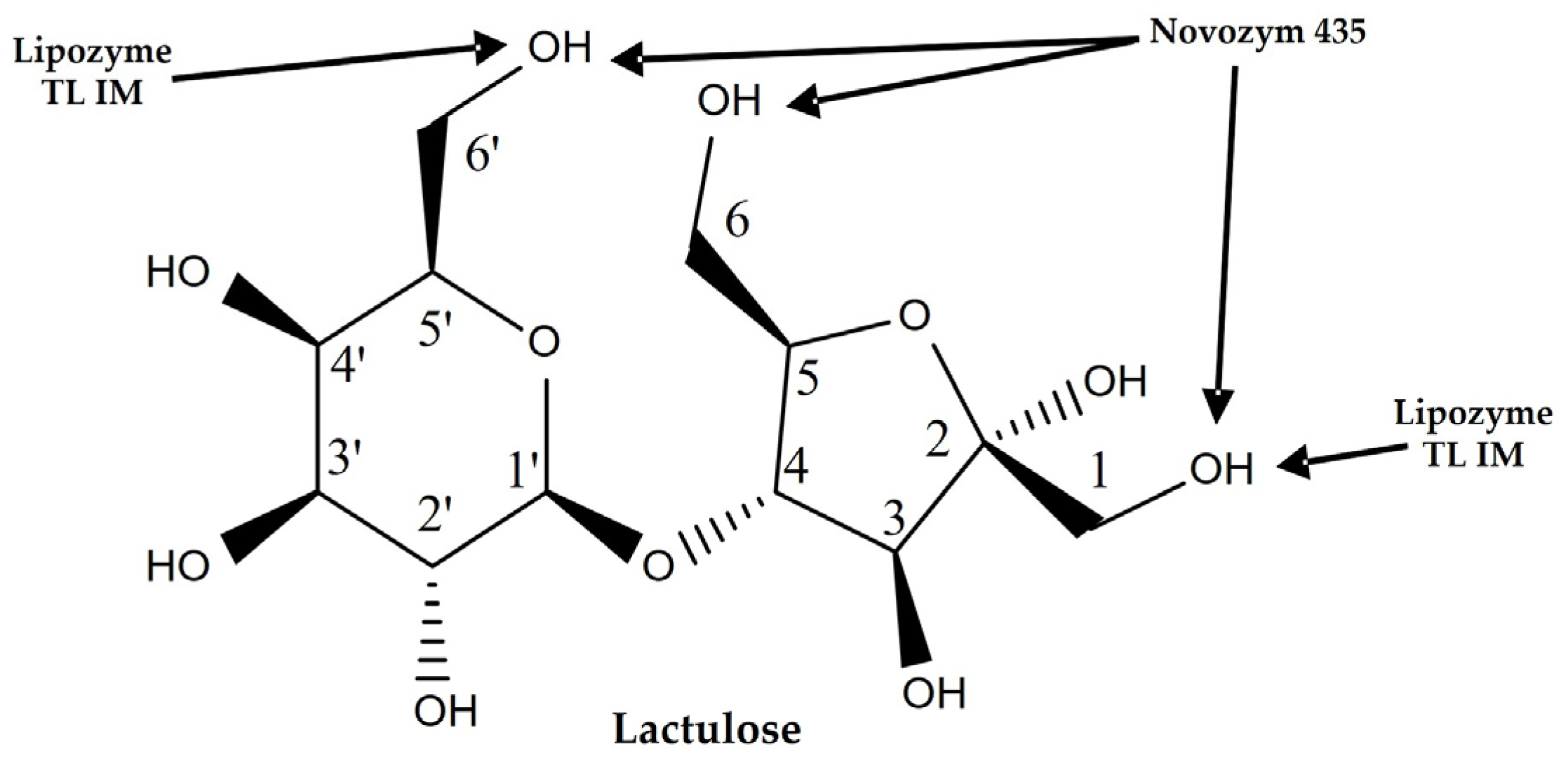

Novozym 435 recognizes three acylation positions for lactulose monoesters (8.6% of 6-O- and 4.5% of 6′-O-) but shows preferred regioselectivity for 1-O- (86.9%), whereas Lipozyme TL IM shows regioselectivity for the less steric-hindered 1-O- (8.5%) and 6′-O- (91.4%) positions of lactulose (Figure 10).

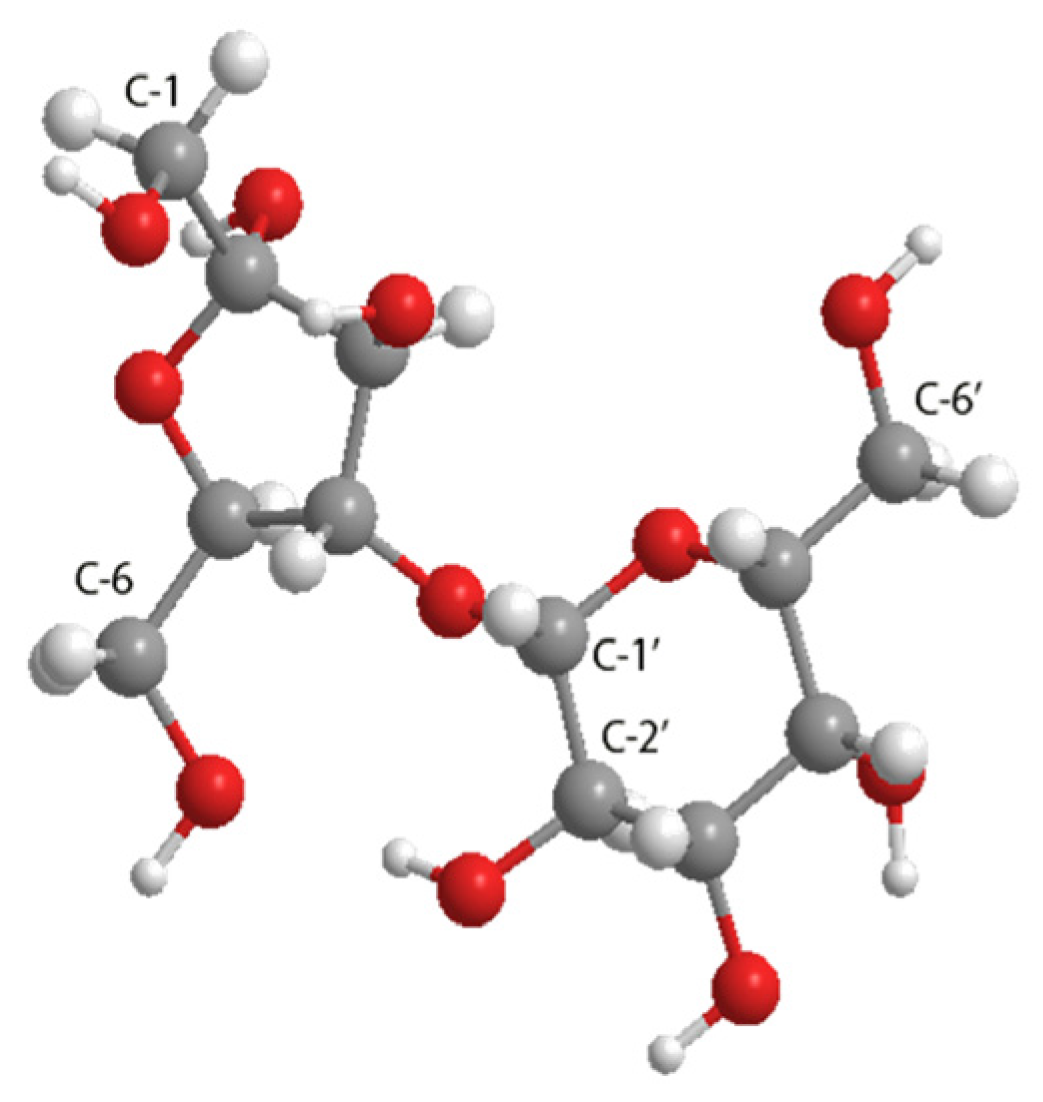

The difference of this preference could be based on the structural and physicochemical properties of the active sites of these enzymes; whereas Thermomyces lanuginosus lipase (Lipozyme TL IM) has a large cleavage for attachment to alcohols and a narrow cleavage for acyl bonding, the lipase B of Candida antarctica (Novozym 435) has a large cleavage for attachment to the acyl and a small cleavage for attachment to alcohols [46]. This allows Candida antarctica lipase B to accept a wide type of large substrates, while Thermomyces lanuginosus has steric restrictions in its active site, only catalyzing on the most exposed acyl positions. These results match with the already known sn-1(3) specificity of the Thermomyces lanuginosus and Mucor miehei lipases and the non-regiospecificity of Candida antarctica lipase B over triglycerides [38,39]. This work supports the view that lactulose monoesters can be produced while controlling the molecular properties of each enzyme, and that the structure of the substrates and the parameters of the reaction affect the binding enzyme substrate [41]. As shown in this work and coinciding with previous studies, the use of a polar co-solvent (20% DMF) allows the reactions to produce more monoesters due to the improvement of the solubility of the sugar, producing the monoester as the main product [40].

On the other hand, Novozym 435 (reaction conditions: 30 °C and ratio sugar/acyl donor 1:5) is the best enzyme for the regioselective synthesis of the monoester 1-O- and Lipozyme TL IM for the monoester 6′-O- (reaction conditions: 60 °C and ratio sugar/acyl donor 1:5). Lipozyme from Mucor miehei presumably catalyzed the synthesis of the same monoesters as Lipozyme TL IM; in such a case, it would give higher yields than the last one for producing 6′-O-lactulose monoester (reaction conditions: 60 °C and ratio sugar/acyl donor 1:5). This work gives us the opportunity to produce new compounds with potential functional properties that have to be explored.

4. Materials and Methods

4.1. Materials

Lipozyme TL IM^® and Novozym 435^® were kindly donated from Novo Nordisk (Mexico City, Mexico); QLG (from Alcaligenes sp. from Meito Sangyo Co.( Tokyo, Japan)) was donated by F. Plou; and LEW-ROL-PEI and LEW-ROL-160 from Rhyzomucor oryzae immobilized in celite mono- and multi-point were donated by F.Valero (ENZNUT-BIOCATEM network). The following enzymes are from Sigma-Aldrich: Lipozyme^® from Mucor miehei, lipase from porcine pancreas type II (lyophilized), Amano lipase PS from Burkholderia cepacia, Palatase^® lipase from Rhizomucor miehei, and protease from Bacillus licheniformis.

Lactulose ≥95%, vinyl laurate, and 2-methyl-2-butanol (2M2B) were obtained from Sigma-Aldrich (St. Louis, MO, USA). Solvents such as dimethylformamide (DMF), chloroform, methanol, ethyl acetate, and acetonitrile were purchased from Fermont (Monterrey, México). Flash silica (gel 60, 230–400 mesh) was from Merck (Edo. de México, México). HPLC columns C-8 250 × 4.6 mm Microsorb-MV were from Varian. Chromatographic plates Polygram Sil G/UV254 (0.2 mm) were from Machery-Nagel (Düren, Germany).

4.2. Methods

4.2.1. Enzymatic Reactions

Lactulose laurate was synthesized by the transesterification of vinyl laurate (150 mm) and lactulose (30 mm) in 2M2B or tert-butanol with 20% DMF, with 25 mg/mL of biocatalysts, in a 5 mL scale. The reactions were performed at 30 and 60 °C with orbital shaking (600 rpm). The reactions were followed by TLC and HPLC. Different biocatalysts were used for the reaction screening using 25 mg/mL.

4.2.2. Products Purification

The synthesis was scaled up to a volume of 120 mL and incubated for one hour. Immediately after reaching the maximum yield for monoesters, the reaction was stopped to avoid the occurrence of diesters (determined by TLC and HPLC). Subsequently, the mixture was cooled and filtered. Purification continued in two steps: (i) a solvent extraction/partition using chloroform: hexane: acetonitrile (1:3.5:4.5 v/v), and (ii) flash chromatography on silica flash (Gel 40/140 Mesh) using ethyl acetate and methanol (9:1 v/v) as eluent.

4.2.3. TLC and HPLC Analysis

Analytical TLC was performed on silica gel plates using chloroform/methanol 4:1 (v/v) as eluent. Spots were revealed with a ceric ammonium sulfate staining solution and heating at 120 °C for 10 min.

The HPLC analysis was carried out by reverse-phase high-performance liquid chromatography (HPLC) using a Varian Prostar (Agilent, Santa Clara, CA, USA), a Microsorb-MV C18 column (250 × 4.6 mm) (Agilent, Santa Clara, CA, USA ), and an evaporative light-scattering detector (PL-ELSD 2100 Ice) (Polymer Laboratories-Agilent, Santa Clara, CA, USA) equilibrated at 60 °C The mobile phase initiated with acetonitrile:water 40:60 (v/v) at 1.2 mL/min for 4 min. Then, a gradient to 95% of acetonitrile was performed in 3 min and continued to pure acetonitrile for 20 min more. Acetonitrile was then held as a mobile phase for 7 min. Integration was carried out using the Galaxie software Varian (Agilent, Santa Clara, CA, USA). Calibration analyses were performed using monoesters obtained and purified as described above.

4.2.4. Products Characterization by FT-IR, 1H, 13C, and 2D NMR and MS-ESI

The FT-IR analysis was measured in a Bruker Tensor 27 FT-IR (Bruker Daltonics, Billerica, MA, USA). The mass spectrometry analysis was done using 1 mg of reaction products dissolved in 1 mL of methanol and directly injected into a Bruker MicrOTOF-QII system by an electrospray ionization (ESI) interface (Bruker Daltonics, Billerica, MA, USA) for its mass spectrometric (MS) analysis. The conditions of MS analysis in the positive ion mode were as follows: drying gas (nitrogen), flow rate, 8 L/min; gas temperature, 180 °C; scan range, 50–3000 m/z; end plate off set voltage, 500 V; capillary voltage, 4500 V; nebulizer pressure, 2.5 bar. The accurate mass data of the molecular ions were processed through the software DataAnalysis 4.0 (BrukerDaltonics, Billerica, MA, USA), which provided a list of possible elemental formulas using Generate Molecular Formula Editor, as well as a sophisticated comparison of the theoretical with the measured isotope pattern (σ value) for increased confidence in the suggested molecular formula (Bruker Daltonics Technical Note 008, 2004). The widely accepted accuracy threshold for confirmation of elemental compositions was established at 5 ppm. The instrument calibration was performed using a 74,900-00-05 Cole Palmer syringe pump (Cole Palmer, Vernon Hills, IL, USA) directly connected to the interface, with a sodium formate cluster solution.

The monoesters obtained from the lipase-catalyzed reactions were characterized by ¹H- and ¹³C-NMR (AVANCE III, Bruker NMR System, 750 MHz) (BrukerDaltonics, Billerica, MA, USA). The NMR spectra were recorded in deuterated methanol (CH₃OD). Chemical shifts (δ values) were given in ppm. ACD/CNMR Predictor 2015 (ACD-Labs, Toronto, Canada) was used to calculate the chemical shifts of the monoesters, using CH₃OD as a solvent and 187.5 MHz as a theoretical frequency.

4.2.5. Calculation of HLB Values

The term HLB (hydrophilic-lipophilic balance) is a systematic scheme of emulsifiers suitable for any application. It is determined by two formulas. In the Griffin method, the HLB value of a nonionic surfactant is proportional to the weight of the fraction of the hydrophilic part: [47,48,49].

$$HLB=20\frac{M_h}{M_T}$$

(2)

where:

• M_h = weight fraction of the hydrophilic group
• M_T = the molecular weight of the whole molecule

The Davies method consists in the assumption that hydrophilic groups have a positive contribution to HLB number, while the hydrophobic groups have a negative effect. Davies calculated these contributions and named them as HLB group numbers.

Knowing the molecular structure, these values are added according to the following formula [50]:

$$HLB={\displaystyle \sum }numberofhydrophilicgroup+numberoflipophilicgroup+7.$$

(3)

5. Conclusion

In this work, we used lactulose for the synthesis of sugar esters. Under the studied conditions, using 2M-2B with DMF (20%), Novozym 435 preferably synthesized 1-O-lactulose monoester, whereas Lipozyme TL IM showed preferred regioselectivity for 6′-O-lactulose monoester. The products reached conversions over 60% (1:5, sugar:acyl donor) in less than 2 h. The conversions with lactulose were higher than with other disaccharides, like sucrose, as shown in previous reports. In this research, by using a prebiotic sugar, we demonstrated that it is possible to control the esterification degree in sugar ester synthesis through the modulation of the solvent composition and the biocatalyst, in order to obtain products with new potential properties, like prebiotic surfactants of interest in the food industry.
