Communication

Synthesis of New C2-Symmetric Six-Membered NHCs and Their Application for the Asymmetric Diethylzinc Addition of Arylaldehydes

1
School of Medicine, Zhejiang University City College, No. 48, Huzhou Road, Hangzhou 310015, China
2
Department of Dermatologry, The Third Affiliated Hospital of Soochow University, No. 185, Juqian Street, Changzhou 213000, China
*
Author to whom correspondence should be addressed.
Catalysts 2018, 8(2), 46; https://doi.org/10.3390/catal8020046
Submission received: 23 December 2017 / Revised: 11 January 2018 / Accepted: 15 January 2018 / Published: 26 January 2018
(This article belongs to the Special Issue Asymmetric Catalysis in Organic Synthesis)

Abstract

:
A concise method for the preparation of new 3,4,5,6-tetrahydropyrimidinium salts was presented in this paper. Further application of these salts in asymmetric diethylzinc addition of arylaldehydes was explored, giving the corresponding chiral second alcohols in good yields and moderate enantioselectivities.

1. Introduction

Since Arduengo et al. reported the first isolation of stable N-heterocyclic carbene (NHCs) [1], this kind of ligand has attracted great interest, and tremendous success has been achieved in carbene chemistry [2,3,4,5,6,7,8,9,10,11,12]. Not surprisingly, great effort has been devoted to the design and development of efficient NHC ligands in past decades. These ligands, initially considered as mimics of phosphine [13], are now ubiquitous in organic chemistry because of their outstanding properties such as stronger σ-donor and weaker π-acceptor compared to the corresponding phosphane ligand, and the metal complexes of these ligands usually show better stability to moisture, air, and heat as well [14,15]. Naturally, the development of chiral NHCs and the application of these ligands in stereoselective catalysis are receiving considerable attention as a next step [16,17,18,19,20,21]. To date, most of the research has employed five-membered NHCs based on imidazole or imidazoline. The so-called “expanded-ring” NHCs with six- [22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37] and seven- [38,39,40,41,42,43,44,45,46,47,48,49] heterocyclic rings have recently attracted attention, as these “non-standard” NHCs show quite different properties, such as stronger basicity (nucleophilicity) and greater steric demand [50]. Structurally, the larger ring sizes of these unusual NHCs will lead to a comparatively large N–CNHC–N angle and consequential smaller CNHC–N–CR angle, which in turn results in better protection of metal centers and subsequently better performance in catalysis. As part of our ongoing interest in ring-expanded NHC chemistry [51,52], we here present the synthesis of C2-symmetric six-membered NHCs precursors by a smooth three-step method. After deprotonation of the precursor salts in situ, the new six-membered NHCs were tested as catalysts in asymmetric diethylzinc addition of arylaldehydes, giving the corresponding secondary alcohol with good yields and moderate enantioselectivities.

2. Results

Using commercial available amino alcohols as a starting material, we synthesized a series of enantiopure 3,4,5,6-tetrahydropyrimidinium salts (1a1f) incorporating two hydroxyl groups and evaluated their efficiency as ligands in palladium-catalyzed deprotonative-cross-coupling processes (DCCP) [52]. However, these salts showed poor enantioselectivities when tested as catalysts in an asymmetric diethylzinc addition to aldehydes (Table 1, entries 1–6). Since a steric functional group around the carbene center may be beneficial for asymmetric catalysis, we were interested in preparing the derivatives of salts (1) by modification of the OH group with bulky silyl groups. As presented in Scheme 1, simple treatment of 1a1f with tert-butyldimethylsilyl chloride (TBSCl) gave silicification products 2a2f in good yields (76–94% yield, see Figure S1 in Supplementary Materials for NMR data of 2a2f).
The new precursor salts were then tested in enantioselective asymmetric diethylzinc addition to 1-naphthaldehyde (3a). As shown in Table 1, derivatives 2b, 2e, and 2f, as catalysts in this transformation, showed better enantioselectivity than their parent compounds, and 2b gave the best result (92% yield, 45% ee). Three new tetrahydropyrimidinium salts (Figure 1, 2g2i) were further prepared by the same method as shown in Scheme 1, with 1b as a starting material. These salts replaced the OH group with different substituents. However, no improvement of ee values was observed when they were tested in this reaction (Table 1, entries 13–15). Next, we tried a variety of conditions with different solvents and bases. Unfortunately, no combination improved the enantioselectivity either (see Table S1 in Supplementary Materials for details).
With 2b as a catalyst precursor, different arylaldehydes were next applied in this transformation. As indicated in Table 2, the reaction proceeded well in most cases (67–95% yield). Arylaldehydes bearing electron-withdrawing (entries 3–9) and electron-donating (entries 10–13) groups, as well as heterocyclic substrates (entries 15–17), were all well-tolerated, giving product 4b4r in good yields and moderate enantiomeric excesses. The best enantioselectivity was obtained with nicotinaldehyde (3p) as a starting material, giving the product in 54% ee.

3. Materials and Methods

3.1. General

1H- and 13C-NMR spectra were obtained on Bruker AVANCE III 500 MHz and 600 MHz spectrometers (Bruker Co., Billerica, MA, USA) with TMS as the internal standard; MS spectra were measured on a Finnigan LCQDECA XP instrument and a Agilent Q-TOF 1290 LC/6224 MS system (Santa Clara, CA, USA); silica gel GF254 and H (10−40 mm, Qingdao Marine Chemical Factory, Qingdao, China) were used for TLC and CC. Unless otherwise noted, all reactions were carried out under an atmosphere of argon or nitrogen.

3.2. Preparation of Benzimidazolium Salt (2)

A mixture of 1a (824 mg, 2 mmol), tert-butyldimethylsilyl chloride (1.2 g, 8 mmol) (Energy Chemical, Shanghai, China), and imidazole (1.09 g, 8 mmol) was dissolved in dry THF (10 mL). After stirring at room temperature for 12 h, the mixture was poured into water (50 mL) and extracted with dichloromethane (3 × 20 mL). The organic fractions were combined, washed with brine, and dried over Na2SO4 (Energy Chemical, Shanghai, China). The solvent was removed under reduced pressure, and the crude material purified by column chromatography (CH2Cl2/MeOH = 50/1) to give 2a (1.06 g, 83%). 1H-NMR (500 MHz, CDCl3) δ 8.66 (s, 1H), 7.44–7.35 (m, 10H), 4.97 (dd, J = 7.1, 3.9 Hz, 2H), 4.25–4.18 (m, 4H), 3.44–3.36 (m, 2H), 3.31–3.24 (m, 2H), 2.02–1.96 (m, 2H), 0.87 (s, 18H), 0.08 (s, 12H); 13C-NMR (125 MHz, CDCl3) δ 153.6, 133.7, 129.3, 129.2, 127.9, 68.6, 62.2, 41.3, 29.7, 25.8, 19.2, 18.1.
Analogous compounds 2b2i were prepared according to a procedure similar to that of 2a. 2b: 92% yield; 1H-NMR (500 MHz, CDCl3) δ 8.13 (s, 1H), 7.32 (t, J = 7.4 Hz, 4H), 7.26 (d, J = 7.3 Hz, 2H), 7.18 (d, J = 7.2 Hz, 4H), 4.00 (s, 2H), 3.81–3.78 (m, 4H), 3.29 (m, 4H), 2.96 (dd, J = 7.8, 4.7 Hz, 4H), 1.77–1.70 (m, 2H), 0.90 (d, J = 4.9 Hz, 18H), 0.08 (s, 12H); 13C-NMR (125 MHz, CDCl3) δ 153.1, 136.1, 129.0, 127.2, 67.4, 64.0, 42.2, 34.7, 25.8, 18.9, 18.1. 2c: 76% yield; 1H-NMR (500 MHz, CDCl3) δ 8.20 (s, 1H), 3.87 (m, J = 11.6, 4.8 Hz, 4H), 3.58–3.51 (m, 2H), 3.44–3.35 (m, 4H), 2.13–2.01 (m, 4H), 1.02 (d, J = 6.6 Hz, 6H), 0.96 (d, J = 6.7 Hz, 6H), 0.88 (s, 18H), 0.08 (s, 12H); 13C-NMR (125 MHz, CDCl3) δ 154.0, 72.6, 62.3, 41.0, 26.4, 25.8, 19.8, 19.2, 19.1, 18.2. 2d: 91% yield; 1H-NMR (500 MHz, CDCl3) δ 8.15 (s, 1H), 3.85–3.78 (m, 4H), 3.71 (dd, J = 12.0, 7.5 Hz, 2H), 3.49 (m, 2H), 3.42 (m, 2H), 2.18 (s, 2H), 2.12–2.07 (m, 2H), 1.54–1.45 (m, 4H), 0.98 (dd, J = 6.3, 3.7 Hz, 12H), 0.89 (d, J = 6.8 Hz, 18H), 0.08 (s, 12H); 13C-NMR (125 MHz, CDCl3) δ 153.4, 64.8, 63.5, 41.6, 36.5, 25.8, 24.8, 22.7, 22.4, 19.1, 18.1. 2e: 86% yield; 1H-NMR (500 MHz, CDCl3) δ 8.17 (s, 1H), 3.92–3.84 (m, 4H), 3.59–3.45 (m, 4H), 3.40–3.33 (m, 2H), 2.10 (dd, J = 11.6, 5.7 Hz, 2H), 1.82 (dt, J = 10.0, 6.6 Hz, 2H), 1.38–1.33 (m, 2H), 1.20–1.17 (m, 2H), 0.97 (d, J = 6.6 Hz, 6H), 0.93 (t, J = 7.4 Hz, 6H), 0.90 (s, 18H), 0.08 (s, 12H); 13C-NMR (125 MHz, CDCl3) δ 154.1, 71.2, 62.3, 41.0, 32.5, 25.8, 25.5, 19.1, 18.2, 15.0, 10.8. 2f: 94% yield; 1H-NMR (500 MHz, CDCl3) δ 8.13 (s, 1H), 3.92 (d, J = 6.8 Hz, 4H), 3.55–3.46 (m, 6H), 2.13 (dd, J = 11.1, 5.5 Hz, 2H), 1.03 (s, 18H), 0.87 (s, 18H), 0.10 (s, 6H), 0.90 (s, 6H). 2g: 73% yield; 1H-NMR (500 MHz, CDCl3) δ 8.19 (s, 1H), 7.32 (t, J = 7.4 Hz, 4H), 7.25 (d, J = 7.0 Hz, 2H), 7.15 (d, J = 7.3 Hz, 4H), 3.97–3.79 (m, 4H), 3.45–3.23 (m, 4H), 3.07–2.85 (m, 4H), 1.79–1.74 (m, 2H), 1.03 (d, J = 6.5 Hz, 36H), 1.00 (m, 6H), 0.64 (m, 2H); 13C-NMR (125 MHz, CDCl3) δ 153.1, 136.0, 129.1, 129.0, 127.3, 67.6, 64.9, 42.2, 34.7, 29.7, 18.0, 11.8. 2h: 84% yield; 1H-NMR (500 MHz, CDCl3) δ 8.10 (s, 1H), 7.32 (t, J = 7.4 Hz, 4H), 7.24 (t, J = 7.1 Hz, 2H), 7.19 (d, J = 7.1 Hz, 4H), 3.98 (tt, J = 8.3, 4.2 Hz, 2H), 3.85–3.73 (m, 4H), 3.37–3.22 (m, 4H), 3.03–2.90 (m, 4H), 1.73 (p, J = 5.7 Hz, 2H), 0.98–0.91 (m, 18H), 0.60 (q, J = 8.0 Hz, 12H); 13C-NMR (125 MHz, CDCl3) δ 153.0, 136.1, 129.1, 129.0, 128.8, 127.2, 67.5, 63.6, 42.3, 34.8, 29.7, 18.9, 6.8, 4.2. 2i: 69% yield; 1H-NMR (500 MHz, CDCl3) δ 8.07 (s, 1H), 7.61–7.56 (m, 8H), 7.47 (m, 4H), 7.41 (td, J = 7.2, 5.0 Hz, 8H), 7.24 (t, J = 7.4 Hz, 4H), 7.16 (t, J = 7.3 Hz, 2H), 7.10 (d, J = 7.1 Hz, 4H), 3.97 (d, J = 11.0 Hz, 2H), 3.88–3.79 (m, 4H), 3.29–3.13 (m, 4H), 2.95–2.83 (m, 4H), 1.70–1.64 (m, 2H), 1.07 (s, 18H); 13C-NMR (125 MHz, CDCl3) δ 153.2, 135.7, 135.6, 135.5, 132.3, 130.2, 129.0, 128.9, 128.1, 128.0, 127.2, 67.3, 64.3, 41.6, 34.8, 29.7, 27.0, 19.2.

3.3. Representative Procedure for the Asymmetric Addition of Diethylzinc to Aldehyde

Under an argon atmosphere, a mixture of salt (2b) (0.01 mmol) and KN (SiMe3)2 (0.03 mmol) in xylene (1 mL) was stirred for 5 min at room temperature. Then diethylzinc (0.2 mmol) was added dropwise, followed by an addition of 1-naphthaldehdye (3a; 14 µL, 0.1 mmol). Upon stirring for 24 h at room temperature, the reaction was quenched by HCl (1 M, 1.0 mL) and extracted with Et2O (3 × 2 mL). The combined organic phases were washed with water and dried over Na2SO4 and concentrated under vacuum. The residue was further purified by column chromatography (silica gel, hexane/AcOEt) to yield product 4a as a colorless oil (92% yield, 45% ee). The spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 15.7 min, tr (major) = 28.6 min).
Analogous compounds 4b4r were prepared according to a procedure similar to that of 4a. 4b: 82% yield, 40% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 19.1 min, tr (major) = 22.4 min). 4c: 74% yield, 33% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 11.3 min, tr (major) = 12.2 min). 4d: 89% yield, 26% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 11.3 min, tr (major) = 12.7 min). 4e: 78% yield, 40% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.4 mL/min, tr (major) = 14.5 min, tr (minor) = 16.6 min). 4f: 69% yield, 28% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 12.2 min, tr (major) = 13.1 min). 4g: 86% yield, 37% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.4 mL/min, tr (major) = 8.6 min, tr (minor) = 9.2 min). 4h: 92% yield, 35% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (major) = 13.6 min, tr (minor) = 15.4 min). 4i: 81% yield, 38% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 18.9 min, tr (major) = 21.5 min). 4j: 73% yield, 28% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 10.6 min, tr (major) = 12.4 min). 4k: 88% yield, 14% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (major) = 11.7 min, tr (minor) = 15.0 min). 4l: 79% yield, 28% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 93/7, flow rate = 0.5 mL/min, tr (major) = 11.1 min, tr (minor) = 12.3 min). 4m: 95% yield, 48% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (major) = 7.7 min, tr (minor) = 8.6 min). 4n: 84% yield, 44% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 93/7, flow rate = 0.5 mL/min, tr (major) = 11.6 min, tr (minor) = 14.8 min). 4o: 81% yield, 36% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 93/7, flow rate = 0.5 mL/min, tr (major) = 12.8 min, tr (minor) = 15.6 min). 4p: 67% yield, 54% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 93/7, flow rate = 0.5 mL/min, tr (minor) = 12.9 min, tr (major) = 14.1 min). 4q: 75% yield, 33% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 93/7, flow rate = 0.5 mL/min, tr (minor) = 9.4 min, tr (major) = 10.7 min). 4r: 87% yield, 29% ee; the spectral data were comparable to those reported [53]. The ee was determined by HPLC analysis with Daicel Chiralcel OD-H (hexane/iPrOH = 90/10, flow rate = 0.5 mL/min, tr (minor) = 15.6 min, tr (major) = 29.1 min).

4. Conclusions

The chiral 3,4,5,6-tetrahydropyrimidinium salts with bulky silyl groups were readily synthesized by a three-step method starting with commercial amino alcohols. In situ prepared corresponding carbenes, along with their parent carbenes, were then tested in an asymmetric diethylzinc addition of arylaldehydes, producing the product in good yield and better enantioselectivities. In brief, an example of improvement in performance of catalysts by modification of their OH group with a steric functional group has been shown. Further study of these tetrahydropyrimidinium salts as ligands for metal-mediated asymmetric catalysis are currently underway [54,55].

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4344/8/2/46/s1, Figure S1: 1H and 13C NMR Spectra of Compounds 2a2i, Table S1: Optimization of the reaction conditions.

Acknowledgments

We are grateful to Changzhou High-Level Medical Talents Training Project (2016CZBJ034), the National Natural Science Foundation of China (81302668), and the Hangzhou Science and Technology Information Institute of China (20150633B45).

Author Contributions

Xiaoming Liu and Jie Li conceived and designed the experiments; Bihui Zhou and Yajie Jiang performed the experiments and analyzed the data; Xiaoming Liu and Jie Li wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Arduengo, A.J.; Harlow, R.L.; Kline, M.J. A stable crystalline carbene. J. Am. Chem. Soc. 1991, 113, 361–363. [Google Scholar] [CrossRef]
  2. Herrmann, W.A.; Köcher, C. N-heterocyclic carbenes. Angew. Chem. Int. Ed. 1997, 36, 2162–2187. [Google Scholar] [CrossRef]
  3. Bourissou, D.; Guerret, O.; Gabbaï, F.P.; Bertrand, G. Stable carbenes. Chem. Rev. 2000, 100, 39–92. [Google Scholar] [CrossRef] [PubMed]
  4. Zinn, F.K.; Viciu, M.S.; Nolan, S.P. Carbenes: Reactivity and catalysis. Annu. Rep. Prog. Chem. Sect. B Org. Chem. 2004, 100, 231–249. [Google Scholar] [CrossRef]
  5. Cavell, K.J.; McGuinness, D.S. Redox processes involving hydrocarbylmetal (N-heterocyclic carbene) complexes and associated imidazolium salts: Ramifications for catalysis. Coord. Chem. Rev. 2004, 248, 671–681. [Google Scholar] [CrossRef]
  6. Peris, E.; Crabtree, R.H. Recent homogeneous catalytic applications of chelate and pincer N-heterocyclic carbenes. Coord. Chem. Rev. 2004, 248, 2239–2246. [Google Scholar] [CrossRef]
  7. Crudden, C.M.; Allen, D.P. Stability and reactivity of N-heterocyclic carbene complexes. Coord. Chem. Rev. 2004, 248, 2247–2273. [Google Scholar] [CrossRef]
  8. Pugh, D.; Danopoulos, A.A. Metal complexes with ‘pincer’-type ligands incorporating N-heterocyclic carbene functionalities. Coord. Chem. Rev. 2007, 251, 610–641. [Google Scholar] [CrossRef]
  9. Mata, J.A.; Poyatos, M.; Peris, E. Structural and catalytic properties of chelating bis- and tris-N-heterocyclic carbenes. Coord. Chem. Rev. 2007, 251, 841–859. [Google Scholar] [CrossRef]
  10. Sommer, W.J.; Weck, M. Supported N-heterocyclic carbene complexes in catalysis. Coord. Chem. Rev. 2007, 251, 860–873. [Google Scholar] [CrossRef]
  11. Hahn, F.E.; Jahnke, M.C. Heterocyclic carbenes: Synthesis and coordination chemistry. Angew. Chem. Int. Ed. 2008, 47, 3122–3172. [Google Scholar] [CrossRef] [PubMed]
  12. Hopkinson, M.N.; Richter, C.; Schedler, M.; Glorius, F. An overview of N-heterocyclic carbenes. Nature 2014, 510, 485–496. [Google Scholar] [CrossRef] [PubMed]
  13. Green, J.C.; Scur, R.G.; Arnold, P.L.; Cloke, G.N. An experimental and theoretical investigation of the electronic structure of Pd and Pt bis(carbene) complexes. Chem. Commun. 1997, 1963–1964. [Google Scholar] [CrossRef]
  14. Peris, E.; Loch, J.A.; Mata, J.; Crabtree, R.H. A Pd complex of a tridentate pincer CNC bis-carbene ligand as a robust homogenous Heck catalyst. Chem. Commun. 2001, 201–202. [Google Scholar] [CrossRef]
  15. Briot, A.; Bujard, M.; Gouverneur, V.; Nolan, S.P.; Mioskowski, C. Improvement in olefin metathesis using a new generation of ruthenium catalyst bearing an imidazolylidene ligand: Synthesis of heterocycles. Org. Lett. 2000, 2, 1517–1519. [Google Scholar] [CrossRef] [PubMed]
  16. Perry, M.C.; Burgess, K. Chiral N-heterocyclic carbene-transition metal complexes in asymmetric catalysis. Tetrahedron Asymmetry 2003, 14, 951–961. [Google Scholar] [CrossRef]
  17. César, V.; Bellemin-Laponnaz, S.; Gade, L.H. Chiral N-heterocyclic carbenes as stereodirecting ligands in asymmetric catalysis. Chem. Soc. Rev. 2004, 33, 619–636. [Google Scholar] [CrossRef] [PubMed]
  18. Douthwaite, R.E. Metal-mediated asymmetric alkylation using chiral N-heterocyclic carbenes derived from chiral amines. Coord. Chem. Rev. 2007, 251, 702–717. [Google Scholar] [CrossRef]
  19. Gade, L.H.; Bellemin-Laponnaz, S. Mixed oxazoline-carbenes as stereodirecting ligands for asymmetric catalysis. Coord. Chem. Rev. 2007, 251, 718–725. [Google Scholar] [CrossRef]
  20. Snead, D.R.; Seo, H.; Hong, S. Recent developments of chiral diaminocarbene-metal complexes for asymmetric catalysis. Curr. Org. Chem. 2008, 12, 1370–1387. [Google Scholar] [CrossRef]
  21. Wang, F.J.; Liu, L.J.; Wang, W.F.; Li, S.K.; Shi, M. Chiral NHC–metal-based asymmetric catalysis. Coord. Chem. Rev. 2012, 256, 804–853. [Google Scholar] [CrossRef]
  22. Alder, R.W.; Blake, M.E.; Bortolotti, C.; Bufali, S.; Butts, C.P.; Linehan, E.; Oliva, J.M.; Orpen, A.G.; Quayle, M.J. Complexation of stable carbenes with alkali metals. Chem. Commun. 1999, 241–242. [Google Scholar] [CrossRef]
  23. Guillen, F.; Winn, C.L.; Alexakis, A. Enantioselective copper-catalyzed conjugate addition using chiral diaminocarbene ligands. Tetrahedron Asymmetry 2001, 12, 2083–2086. [Google Scholar] [CrossRef]
  24. Bazinet, P.; Yap, G.P.A.; Richeson, D.S. Constructing a stable carbene with a novel topology and electronic framework. J. Am. Chem. Soc. 2003, 125, 13314–13315. [Google Scholar] [CrossRef] [PubMed]
  25. Mayr, M.; Wurst, K.; Ongania, K.H.; Buchmeiser, M.R. 1,3-dialkyl- and 1,3-diaryl-3,4,5,6-tetrahydropyrimidin-2-ylidene rhodium(I) and palladium(II) complexes: Synthesis, structure, and reactivity. Chem. Eur. J. 2004, 10, 1256–1266. [Google Scholar] [CrossRef] [PubMed]
  26. Herrmann, W.A.; Schneider, S.K.; Öfele, K.; Sakamoto, M.; Herdtweck, E. First silver complexes of tetrahydropyrimid-2-ylidenes. J. Organomet. Chem. 2004, 689, 2441–2449. [Google Scholar] [CrossRef]
  27. Imlinger, N.; Mayr, M.; Wang, D.R.; Wurst, K.; Buchmeiser, M.R. Arylation of carbonyl compounds catalyzed by rhodium and iridium 1,3-R2-tetrahydropyrimidin-2-ylidenes: Structure-reactivity correlations. Adv. Synth. Catal. 2004, 346, 1836–1843. [Google Scholar] [CrossRef]
  28. Yun, J.; Marinez, E.R.; Grubbs, R.H. A new ruthenium-based olefin metathesis catalyst coordinated with 1,3-dimesityl-1,4,5,6-tetrahydropyrimidin-2-ylidene: Synthesis, X-ray structure, and reactivity. Organometallics 2004, 23, 4172–4173. [Google Scholar] [CrossRef]
  29. Yang, L.R.; Mayr, M.; Wurst, K.; Buchmeiser, M.R. Novel metathesis catalysts based on ruthenium 1,3-dimesityl-3,4,5,6-tetrahydropyrimidin-2-ylidenes: Synthesis, structure, immobilization, and catalytic activity. Chem. Eur. J. 2004, 10, 5761–5770. [Google Scholar] [CrossRef] [PubMed]
  30. Bazinet, P.; Ong, T.G.; O’Brien, J.S.; Lavoie, N.; Bell, E.; Yap, G.P.A.; Korobkov, I.; Richeson, D.S. Design of sterically demanding, electron-rich carbene ligands with the perimidine scaffold. Organometallics 2007, 26, 2885–2895. [Google Scholar] [CrossRef]
  31. Binobaid, A.; Iglesias, M.; Beetstra, D.J.; Kariuki, B.; Dervisi, A.; Fallis, I.A.; Cavell, K.J. Expanded ring and functionalised expanded ring N-heterocyclic carbenes as ligands in catalysis. Dalton Trans. 2009, 35, 7099–7112. [Google Scholar] [CrossRef] [PubMed]
  32. Hill, A.F.; McQueen, C.M.A. Dihydroperimidine-derived N-heterocyclic pincer carbene complexes via double C–H activation. Organometallics 2012, 31, 8051–8054. [Google Scholar] [CrossRef]
  33. Zhang, J.; Qin, X.K.; Fu, J.; Wang, X.; Su, X.L.; Hu, F.L.; Jiao, J.J.; Shi, M. Fine-tunable 3,4-dihydroquinazol-2-ylidene carbenes: Synthesis, rhodium(I) complexes, and reactivity. Organometallics 2012, 31, 8257–8282. [Google Scholar] [CrossRef]
  34. Armstrong, R.; Ecott, C.; Ma Dunsford, J.J.; Tromp, D.S.; Cavell, K.J.; Elsevier, C.J.; Kariuki, B.M. N-alkyl functionalised expanded ring N-heterocyclic carbene complexes of rhodium(I) and iridium(I): Structural investigations and preliminary catalytic evaluation. Dalton Trans. 2013, 42, 7318–7329. [Google Scholar]
  35. Yang, B.M.; Xiang, K.; Tu, Y.Q.; Zhang, S.H.; Yang, D.T.; Wang, S.H.; Zhang, M. Spiro-fused six-membered N-heterocyclic carbene: A new scaffold toward unique properties and activities. Chem. Commun. 2014, 50, 7163–7165. [Google Scholar] [CrossRef] [PubMed]
  36. Verlinden, K.; Ganter, C. Converting a perimidine derivative to a cationic N-heterocyclic carbene. J. Organomet. Chem. 2014, 750, 23–29. [Google Scholar] [CrossRef]
  37. Hill, A.F.; McQueen, C.M.A. Dihydroperimidine-derived PNP pincer complexes as intermediates en route to N-heterocyclic carbene pincer complexes. Organometallics 2014, 33, 1909–1912. [Google Scholar] [CrossRef]
  38. Scarborough, C.C.; Grady, M.J.W.; Guzei, I.A.; Gandhi, B.A.; Bunel, E.E.; Stahl, S.S. PdII complexes possessing a seven-membered N-heterocyclic carbene ligand. Angew. Chem. Int. Ed. 2005, 44, 5269–5272. [Google Scholar] [CrossRef] [PubMed]
  39. Scarborough, C.C.; Popp, B.V.; Guzei, I.A.; Stahl, S.S. Development of 7-membered N-heterocyclic carbene ligands for transition metals. J. Organomet. Chem. 2005, 690, 6143–6155. [Google Scholar] [CrossRef]
  40. Rogers, M.M.; Wendlandt, J.E.; Guzei, I.A.; Stahl, S.S. Aerobic intramolecular oxidative amination of alkenes catalyzed by NHC-coordinated palladium complexes. Org. Lett. 2006, 8, 2257–2260. [Google Scholar] [CrossRef] [PubMed]
  41. Iglesias, M.; Beetstra, D.J.; Stasch, A.; Horton, P.N.; Hursthouse, M.B.; Coles, S.J.; Cavell, K.J.; Dervisi, A.; Fallis, I.A. First examples of diazepanylidene carbenes and their late-transition-metal complexes. Organometallics 2007, 26, 4800–4809. [Google Scholar] [CrossRef]
  42. Iglesias, M.; Beetstra, D.J.; Knight, J.C.; Ooi, L.L.; Stasch, A.; Coles, S.; Male, L.; Hursthouse, M.B.; Cavell, K.J.; Dervisi, A.; et al. Novel expanded ring N-heterocyclic carbenes: Free carbenes, silver complexes, and structures. Organometallics 2008, 27, 3279–3289. [Google Scholar] [CrossRef]
  43. Scarborough, C.C.; Guzei, I.A.; Stahl, S.S. Synthesis and isolation of a stable, axially-chiral seven-membered N-heterocyclic carbene. Dalton Trans. 2009, 13, 2284–2286. [Google Scholar] [CrossRef] [PubMed]
  44. Iglesias, M.; Beetstra, D.J.; Kariuki, B.; Cavell, K.J.; Dervisi, A.; Fallis, I.A. Synthesis and structural features of rhodium complexes of expanded ring N-heterocyclic carbenes. Eur. J. Inorg. Chem. 2009, 1913–1919. [Google Scholar] [CrossRef]
  45. Newman, P.D.; Cavell, K.J.; Kariuki, B. Metal complexes of chiral NHCs containing a fused six- and seven-membered central ring. Organometallics 2010, 29, 2724–2734. [Google Scholar] [CrossRef]
  46. Hudnall, T.W.; Tennyson, A.G.; Bielawski, C.W. A seven-membered N, N’-diamidocarbene. Organometallics 2010, 29, 4569–4578. [Google Scholar] [CrossRef]
  47. Dunsford, J.J.; Cavell, K.J.; Kariuki, B.M. Gold(I) complexes bearing sterically imposing, saturated six- and seven-membered expanded ring Nheterocyclic carbene ligands. Organometallics 2012, 31, 4118–4121. [Google Scholar] [CrossRef]
  48. Hauwert, P.; Dunford, J.J.; Tromp, D.S.; Weigand, J.J.; Lutz, M.; Cavell, K.J.; Elsevier, C.J. Zerovalent [Pd(NHC)(Alkene)1,2] complexes bearing expanded-ring N-heterocyclic carbene ligands in transfer hydrogenation of alkynes. Organometallics 2013, 32, 131–140. [Google Scholar] [CrossRef]
  49. Dunsford, J.J.; Cavell, K.J. Pd–PEPPSI-type expanded ring N-heterocyclic carbene complexes: Synthesis, characterization, and catalytic activity in Suzuki–Miyaura cross coupling. Organometallics 2014, 33, 2902–2905. [Google Scholar] [CrossRef]
  50. Li, J.; Shen, W.X.; Li, X.R. Recent developments of expanded ring N-heterocyclic carbenes. Curr. Org. Chem. 2012, 16, 2879–2891. [Google Scholar] [CrossRef]
  51. Li, J.; Xu, L. Novel C2-symmetric six-membered NHCs for asymmetric copper-catalysed conjugate addition of Grignard reagents to 3-methylhexenone. Tetrahedron 2015, 71, 2858–2862. [Google Scholar] [CrossRef]
  52. Zhou, B.H.; Wu, C.; Chen, X.X.; Huang, H.X.; Li, L.L.; Fan, L.M.; Li, J. New C2-symmetric six-membered carbine ligands incorporating two hydroxyl groups for palladium-catalyzed deprotonative-cross-coupling processes (DCCP) of sp3 C–H bonds in diarylmethanes. Tetrahedron Lett. 2017, 58, 4157–4161. [Google Scholar] [CrossRef]
  53. Zhou, B.H.; He, W.P.; Li, L.L.; Fan, L.M.; Li, X.R.; Li, J. Synthesis of novel chiral pyrimidone salts and their application in asymmetric diethylzinc addition of arylaldehydes. Curr. Org. Synth. 2017, 14. [Google Scholar] [CrossRef]
  54. Nitti, A.; Bianchi, G.; Po, R.; Swager, T.M.; Pasini, D. Domino direct arylation and cross-aldol for rapid construction of extended polycyclic π-scaffolds. J. Am. Chem. Soc. 2017, 139, 8788–8791. [Google Scholar] [CrossRef] [PubMed]
  55. Nitti, A.; Signorile, M.; Boiocchi, M.; Bianchi, G.; Po, R.; Pasini, D. Conjugated thiophene-fused isatin dyes through intramolecular direct arylation. J. Org. Chem. 2016, 81, 11035–11042. [Google Scholar] [CrossRef] [PubMed]

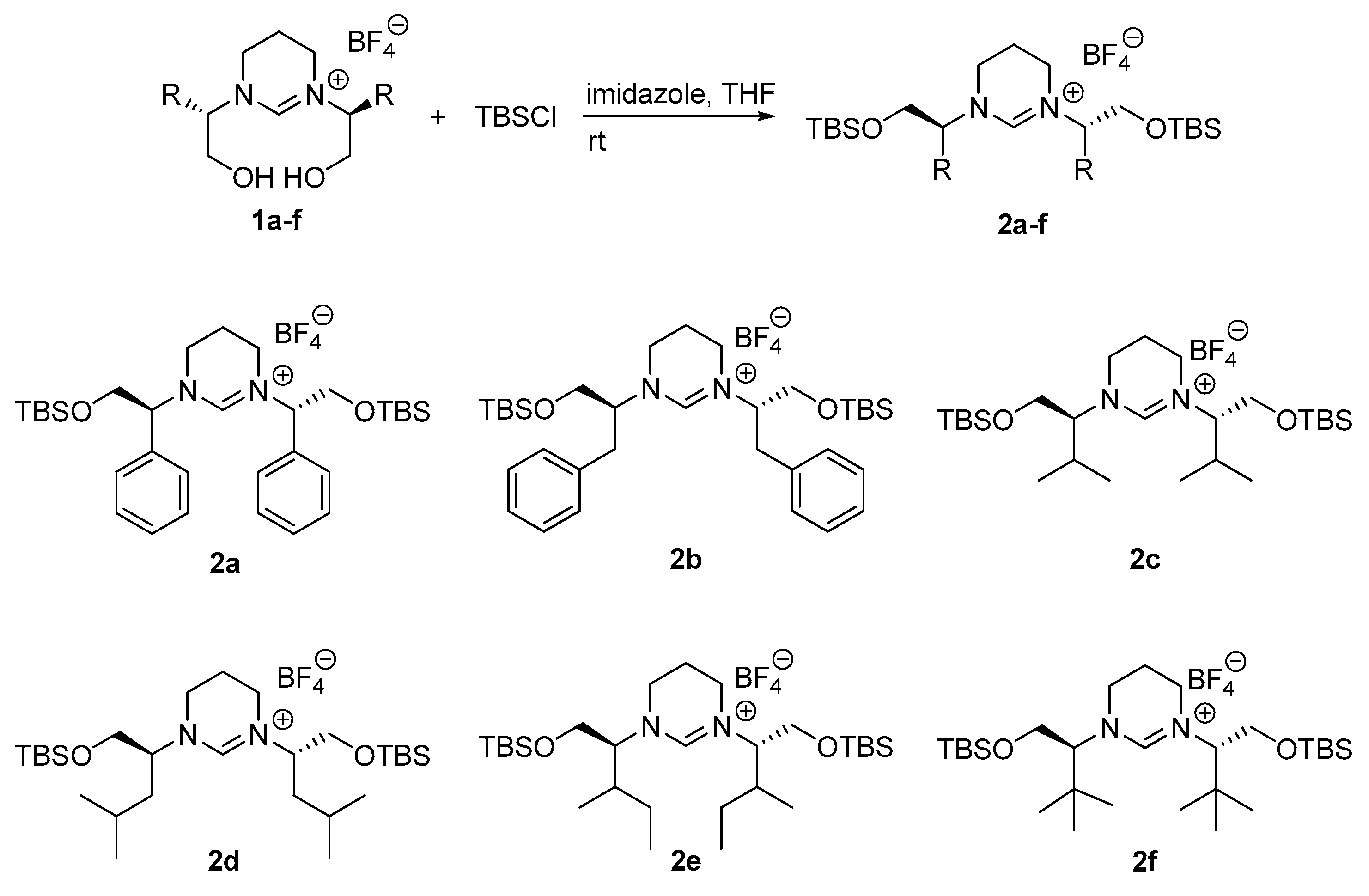

Scheme 1. Synthesis of NHC precursors 2a2f.
Scheme 1. Synthesis of NHC precursors 2a2f.
Catalysts 08 00046 sch001

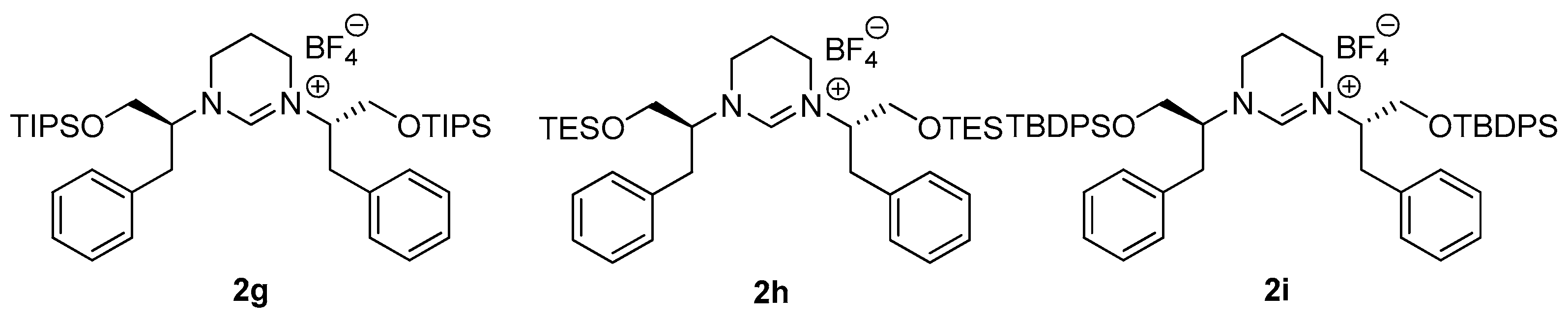

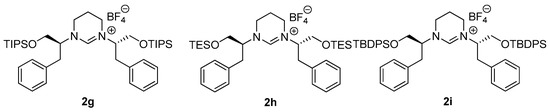

Figure 1. The structures of 2g2i.
Figure 1. The structures of 2g2i.
Catalysts 08 00046 g001

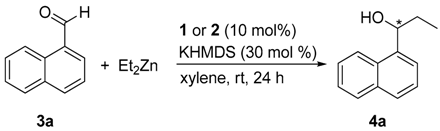

Table 1. Comparison of NHC precursors.
Table 1. Comparison of NHC precursors.
Catalysts 08 00046 i001
Entry aSaltsYield (%) bee (%) c
11a974
21b8613
31c9521
41d905
51e919
61f771
72a952
82b9245
92c960
102d951
112e7024
122f8911
132g950
142h976
152i7816
a Reaction condition: salt (10 mol %), KN(SiMe3)2 (30 mol %), Et2Zn (2 equiv.), N2, xylene, rt, 24 h. b Isolated yield. c Determined by chiral HPLC (CHIRALCEL OD Column) analysis.

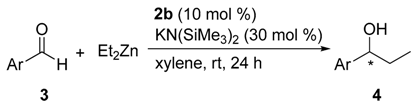

Table 2. Scope of methodology.
Table 2. Scope of methodology.
Catalysts 08 00046 i002
Entry aArProductYield (%) bee (%) c
12-Naphthyl3b4b8240
2Ph3c4c7433
32-MePh3d4d8926
43,4-diMePh3e4e7840
52,4,6-triMePh3f4f6928
64-EtPh3g4g8637
72-MeOPh3h4h9235
83-MeOPh3i4i8138
94-MeOPh3j4j7328
102-FPh3k4k8814
114-FPh3l4l7928
124-CF3Ph3m4m9548
133,5-diFPh3n4n8444
14Cinnamyl3o4o8136
153-Pyridine3p4p6754
162-Thienyl3q4q7533
172-Quinolyl3r4r8729
a Reaction condition: 2b (10 mol %), KN(SiMe3)2 (30 mol %), Et2Zn (2 equiv.), N2, xylene, rt, 24 h. b Isolated yield. c Determined by chiral HPLC (CHIRALCEL OD Column) analysis.
