Ethyl 2,6-Dimethoxybenzoate: Synthesis, Spectroscopic and X-ray Crystallographic Analysis

1
Department of Chemistry, Quaid-i-Azam University, 45320, Islamabad, Pakistan
2
Bio-21 Institute, School of Chemistry, University of Melbourne, 3052 Parkville, Australia
*
Author to whom correspondence should be addressed.
Crystals 2012, 2(2), 521-527; https://doi.org/10.3390/cryst2020521
Submission received: 19 March 2012 / Revised: 4 May 2012 / Accepted: 9 May 2012 / Published: 22 May 2012

Abstract

:
The acid catalyzed esterification of 2,6-dimethoxybenzoic acid (1) in the presence of absolute ethanol afforded ethyl 2, 6-dimethoxybenzoate (2). The structure of the resulting compound was supported by spectroscopic data and unambiguously confirmed by single crystal X-ray diffraction studies. The title compound crystallized in the triclinic space group P ī with unit cell parameters a = 8.5518(3) Å, b = 10.8826(8) Å, c = 11.9939(6) Å, α = 101.273(5)°, β = 98.287(3)°, γ = 94.092(4)°, V = 1077.54(10) Å3, Z = 4, Dc = 1.296 Mg/m3, F(000) = 448 and μ = 0.098 mm−1. Compound (2) crystallizes with two molecules in the asymmetric unit with similar conformations.

1. Introduction

Ester derivatives are imperative intermediates in organic synthesis, which have been employed in various areas including medicinal chemistry [1,2,3], chiral sources [4,5,6], polymer materials [7,8] and for the synthesis of a variety of biologically important heterocycles including 1,2,4-triazoles, 1,3,4-thiadiazoles [9] and 1,3,4-oxadiazoles [10]. The benzoate derivatives have also been reported to show a strong antifeedant effect on the pine weevil [11] and corrosion inhibitive properties for different metals such as aluminum, zinc and copper [12].
Esters of substituted benzoic acids are also used as anti-thrombotic agents [13] and have attracted substantial attention in medicinal research due to their antimycotic activities and cytotoxicity against a wide variety of tumor cell lines [14]. Furthermore, these derivatives are applicable as emulsifiers for foodstuffs, personal care products, and medical supplies and possess some antimicrobial and insecticidal activities [15]. Literature investigations revealed that similar benzoate derivatives have been reported by Qadeer [16], Saleem [17] and Kumar et al. [3].
In the present study, we report the synthesis and X-ray crystal structure of ethyl 2,6-dimethoxybenzoate.

2. Results and Discussion

The reaction sequence leading to the formation of the title compound is outlined in Figure 1. By adopting the procedure of [18], 2,6-dimethoxybenzoic acid (1) was transformed to the corresponding ethyl 2,6-dimethoxybenzoate (2) resulting in excellent yield.

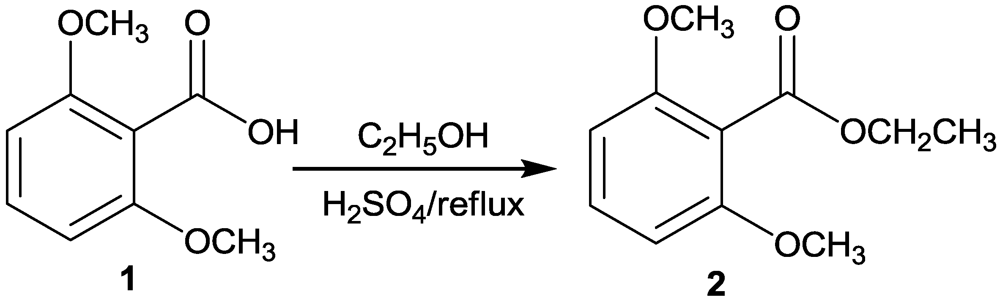

Figure 1. The synthesis of title compound 2.
Figure 1. The synthesis of title compound 2.
Crystals 02 00521 g001
In the IR spectrum, Compound (2) showed the characteristic stretching band for C=O (ester) at 1729 cm−1 indicating the formation of the required product. Similarly, disappearance of the broad COOH peak in the range 3400–2400 cm−1 and C=O (acid) stretching frequency in the range 1720–1700 cm−1 also indicated the formation of ester (2). Moreover, the appearance of stretching bands for CH2and CH3at 2965 and 2843 cm–1, respectively, also indicated the formation of the title compound. The 1H-NMR spectrum showed characteristic signals at 4.40 and 1.38 ppm for methylene and methyl protons, respectively, in addition to those due to aromatic protons in the range of 7.29–6.57 ppm. In the 13C-NMR spectrum, the characteristic signal for C=O appeared at 166.7 ppm along with aromatic signals at their respective chemical shifts. In addition, the appearance of two signals for methylene and methyl protons at 56.0 and 41.3 ppm, respectively, also confirmed the product. The title compound was further confirmed by mass spectrometry and microanalysis.
The molecular structure was established by single crystal X-ray diffraction studies. Compound (2) crystallizes with two molecules in the asymmetric unit, both molecules adopt similar conformations, however, the ethoxy group in molecule one (left in Figure 2) is disordered over two closely related conformations with refined occupancies close to 50%. For this reason, discussion of the structural parameters will be restricted to the ordered molecule. A thermal ellipsoid plot at 20% probability level for compound (2) is presented in Figure 2. The crystal and instrumental parameters used in the unit cell determination, the data collection, and structure refinement parameters are presented in the experimental section [19] while selected bond distances and angles are shown in Table 1.

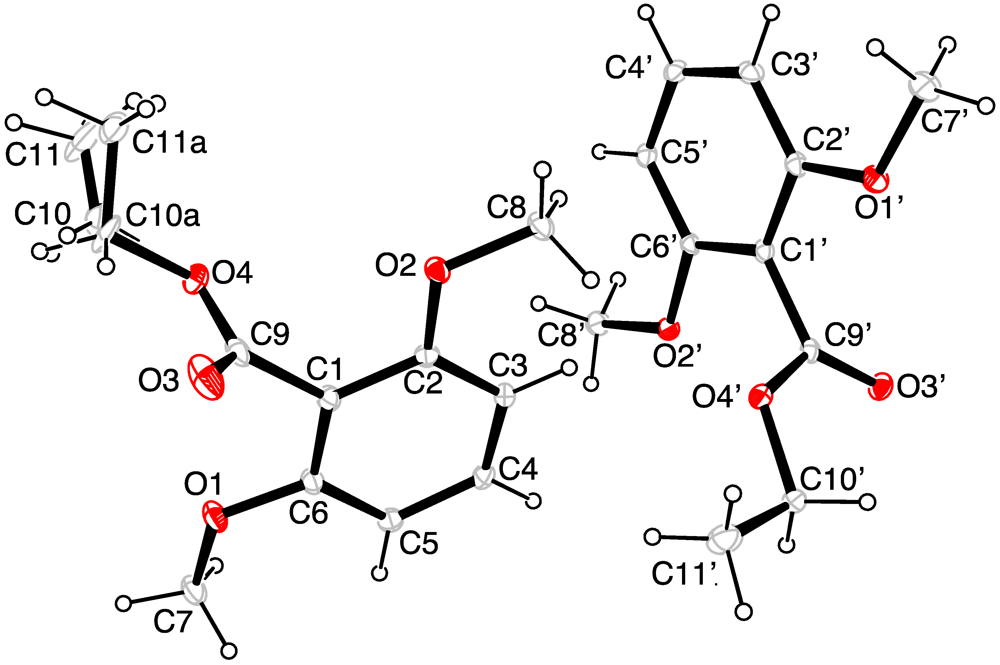

Figure 2. Thermal ellipsoid plot of the two molecules of title compound 2. The ethoxy group in molecule one (left) has refined occupancies of 50% over the two sites. The ellipsoids are at the 20% probability level.
Figure 2. Thermal ellipsoid plot of the two molecules of title compound 2. The ethoxy group in molecule one (left) has refined occupancies of 50% over the two sites. The ellipsoids are at the 20% probability level.
Crystals 02 00521 g002
Table 1. Selected bond lengths [Å] and angles [°] in compound 2.
Table 1. Selected bond lengths [Å] and angles [°] in compound 2.
AtomsBond lengthAtomsBond angle
O(2')-C(6')1.367(2)C(6')-O(2')-C(8')116.91(14)
O(2')-C(8')1.429(2)C(2')-O(1')-C(7')116.82(16)
O(3')-C(9')1.202(2)C(9')-O(4')-C(10')117.21(14)
O(1')-C(2')1.362(2)C(6)-O(2)-C(8)117.52(15)
O(1')-C(7')1.432(2)O(2')-C(6')-C(1')115.06(16)
O(4')-C(9')1.336(2)O(1')-C(2')-C(3')125.07(17)
O(4')-C(10')1.456(2)O(2')-C(6')-C(5')124.77(17)
O(1)-C(6)1.368(2)O(4')-C(9')-C(1')109.96(15)
O(4)-C(10A)1.504(4)O(4')-C(10')-C(11')106.46(16)
C(10')-C(11')1.497(3)O(3)-C(9)-O(4)124.5(2)
C(10A)-C(11A)1.214(5)C(11A)-C(10A)-O(4)120.2(5)
The presence of the two methoxy substituents ortho to the ethyl ester group forces this substituent to adopt a conformation which is essentially orthogonal to the aromatic ring (O(3')-C(9')-C(1')-C(6') = 88.6(2)°). This electronically less favoured conformation prevents any resonance interaction between the carbonyl group and the aromatic ring. As a result the C1-C9 bond distance of 1.497(2) Å is at the longer side of all the Ar-CO2Et bond distances 1.485(8) Å obtained from the Cambridge Crystallographic database [20] for ethyl benzoate derivatives (organic molecules only) in which the carbonyl group is co-planar (within +/− 20°) with the aromatic ring (204 hits with R factors < 5%). However, there is close agreement between the C1-C9 bond distance with the corresponding distance (1.498 (2) Å) observed for the methyl ester derivative [19] which exists in a similar conformation to that observed for compound (2). This shorter bond distance is consistent with the expected structural effect associated with the resonance interaction of the carbonyl group with the aromatic ring.
Interestingly, if a search is made of those ethyl esters in which the carbonyl group is constrained to be close to orthogonal with the ring (90 +/− 20°), (8 hits with R factors < 5%) then the mean Ar-C bond distance increases to 1.508 Å. The two methoxy substituents are co-planar with the aromatic ring, this allows for delocalization of the oxygen p-type lone pair electrons with the aromatic ring, the Ar-OCH3 bond distances for molecule two are 1.362 (2) and 1.367 (2) Å, respectively, which compares with 1.369 Å, the mean value from the Cambridge Crystallographic database (Search fragment; CH3O-Ar, 10,022 hits with R factors < 5%). If a subset of this hit list is selected having the methoxy orthogonal to the aromatic ring (90 +/−20°), then the mean Ar-OCH3 distance increases to 1.381 Å, demonstrating the bond-shortening effect of the lone pair delocalization with the aromatic ring.
The crystal packing of the two molecules of compound (2), is stabilized by a combination of dipole-dipole attraction, CH-π and weak CH…O interactions as presented in Table 2. There is no evidence for π-π stacking.
Table 2. Intermolecular interactions in compound 2.
Table 2. Intermolecular interactions in compound 2.
C-H…π interactionsC-H…O interactions
H7B…C4´ 2.856 (x, y, 1 + z)H8b…O2 (1-x, -y, 2 − z) 2.620 Å
H7B…C5´ 2.862H4´…O3´ (1 + x, y, z) 2.680 Å
H3…C6´ 2.888 ÅH7´1…O3 (x, y, z − 1) 2.547 Å
H4´…C5 (1 − x, 1 − y, 2 − z) 2.881ÅH7´2…O1 (−x, −y, 1 − z) 2.654 Å
H5…O3´ (-x, 1 − y, 2 − z) 2.498 Å

3. Experimental Section

3.1. General

Proton (1H) and carbon (13C) nuclear magnetic resonance (NMR) spectra were recorded with a Bruker AV-300 spectrometer at 300 and 75 MHz, respectively. Spectra were measured in deuterochloroform (CDCl3) solution using residual solvent peak as the reference and coupling constants were determined in Hertz. Infrared spectrum was recorded on a Bruker Optics Alpha FTIR Spectrophotometer. Melting point was determined on a Sanyo Gallenkamp melting point apparatus in open capillary and remains uncorrected. Analytical thin-layer chromatography was carried out with Merck silica gel 60 F254 aluminum backed sheets. Mass Spectrum was recorded on a Finnigan MAT-311A (Germany) mass spectrometer operating at an ionization potential of 70 eV. Elemental analysis was performed on a Carlo Erba Strumentazion-Mod-1106 Italy.

3.2. General Procedure for the Synthesis of Ethyl 2, 6-Dimethoxybenzoate (2)

Ethyl 2,6-dimethoxybenzoate (2) was synthesized by refluxing 2,6-dimethoxybenzoic acid (1) (0.01 mol) with absolute ethanol (25 mL) in the presence of a catalytic amount of sulfuric acid [18]. The reaction was monitored by thin layer chromatography. After completion of the reaction, the excess solvent was removed under reduced pressure and the resulting oil was poured into water. The aqueous layer was extracted with diethyl ether (3 × 25 mL). The combined organic layers were washed with dilute solution of sodium carbonate to remove unreacted acid. The organic layer was dried over anhydrous sodium sulfate. The solvent was removed on a rotary evaporator to afford the ester as white crystals (2).
Yield: 90% (1.89 g); mp 129–130 oC; Rf: 0.72 (petroleum ether : ethyl acetate, 8:2); IR (neat, cm−1): 3065 (Csp2-H), 2965, 2843 (Csp3-H), 1729 (C=O), 1581, 1498 (C=CAr), 1228 (C-O); 1H NMR (300 MHz, CDCl3): δ 7.29 (d, 1H, 3J = 8.4 Hz, Ar-H), 6.57 (dd, 2H, 3J = 8.4 Hz, 4J = 2.4 Hz, Ar-H), 4.40 (q, 2H, 3J = 7.2 Hz, OCH2), 3.82 (s, 6H, 2 × OCH3), 1.38 (t, 3H, 3J = 7.2 Hz, CH3); 13C NMR (75 MHz, CDCl3): δ 166.7, 157.2, 131.0, 113.3, 103.9, 61.3, 56.0, 14.3. EIMS: m/z 210 [M+], 195, 181, 179, 165, 137, 45, 29, 15. Elemental analysis calcd. for C11H14O4: C, 62.85; H, 6.71. Found: C, 62.64; H, 6.49.

3.3. Data Collection and Structure Solution

A suitable crystal of ethyl 2,6-dimethoxybenzoate (2) having dimensions of 0.6 × 0.5 × 0.3 mm was selected and all the reflection data were collected on an Oxford SuperNova CCD diffractometer using Mo-K α (λ= 0.71073 Å) radiation at 130 K. The structure was solved by direct methods and refined by full-matrix least squares using SHELX-97 [21].
Crystal Data for 2. C11H14O4, M = 210.22, crystal size, 0.6 × 0.5 × 0.3 mm. Triclinic, P ī, a = 8.5518 (3), b = 10.8826 (8), c = 11.9939 (6) Å, α = 101.273 (5)°, β= 98.287 (3)°, γ = 94.092 (4)°, V = 1077.54 (10) Å3, Z = 4, F (000) = 448, T = 130 (2) K, ρcalc = 1.296 mg/m3, µ = 0.098 mm−1, 7807 reflections measured, Rint = 0.0202, R indices [I > 2sigma(I)]: R1 = 0.0447, wR2 = 0.1143, [all data] R1 = 0.0545, wR2 = 0.1220, Goodness-of-fit on F2 = 1.045, data / restraints / parameters = 3782 / 0 / 298, wavelength = 0.7107 Å, max. and min. transmission = 1.00000 and 0.72479, extinction coefficient = 0.025(3), largest diff. peak and hole 0.428 and − 0.391 e Å−3. CSD deposition number: CCDC 869822. CCDC 869822 contains the supplementary crystallographic data for this paper. These data can be obtained free of charge from The Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif.

4. Conclusions

Synthesis, spectroscopic characterization and the X-ray crystal and molecular structure of ethyl 2,6-dimethoxybenzoate, have been described. The reaction offers convenient, mild conditions and good yield.

Conflict of Interest

The authors declare no conflict of interest.

Acknowledgments

The authors gratefully acknowledge the Department of Chemistry, Quaid-i-Azam University, Islamabad-45320, Pakistan, for providing the necessary research facilities.

References

  1. Manjinder, S.L.; Yeeman, K.R.; Michael, N.G.J.; John, C.V. Serine and Threonine β-Lactones:A New Class of Hepatitis A Virus 3C Cysteine Proteinase Inhibitors. J. Org. Chem. 2002, 67, 1536–1547. [Google Scholar]
  2. Tandon, V.K.; Yadav, D.B.; Singh, R.V.; Chaturvedi, A.K.; Shukla, P.K. Synthesis and activity of oleanolic acid derivatives, a novel class of inhibitors of osteoclast formation. Bioorg. Med. Chem. Lett. 2005, 15, 5324–5328. [Google Scholar] [CrossRef]
  3. Kumar, A.P.; Garcia, G.E.; Ghosh, R.; Rajnarayanany, R.V.; Alworth, W.L.; Slaga, T.J. 4-Hydroxy-3-Methoxybenzoic Acid Methyl Ester: A Curcumin Derivative Targets Akt/NFkB Cell Survival Signaling Pathway: Potential for Prostate Cancer Management. Neoplasia 2003, 5, 255–266. [Google Scholar]
  4. Tomasz, Z.; Michał, A.; Janusz, J. A simple synthesis of chiral macrocyclic tetraamides derived from α-amino acids. Tetrahedron: Asymmetry 2002, 13, 2053–2059. [Google Scholar] [CrossRef]
  5. Kim, J.; Kim, J.; Song, S.; Jung, O.; Suh, H. Enantiomeric Recognition of D- and L-Amino acidMethyl Ester Hydrochlorides by New Chiral Bis-pyridino-18-crown-6 Substituted with Urea, and Diphenyl Groups. J. Incl. Phenom.Macrocycl.Chem. 2007, 58, 187–192. [Google Scholar] [CrossRef]
  6. Somlai, C.; Peter, A.; Forgo, P.; Penke, B. One-Pot Synthesis of N-Protected β-Chiral Amino Alcohols. Syn. Commun. 2003, 33, 1815–1820. [Google Scholar] [CrossRef]
  7. Pollini, G.; Baricordi, N.; Benetti, S.; De Risi, C.; Zanirato, V. A simple entry to chiralnonracemic 2-piperazinone derivatives. Tetrahedron Lett. 2005, 46, 3699–3701. [Google Scholar]
  8. Atsushi, N.; Toyoharu, M.; Hiroto, K.; Takeshi, E. Controlled Cationic Ring-Opening Polymerization of 1,3-Oxazolidine-2-thione Derived from L-Serine. Macromolecules 2003, 36, 9335–9339. [Google Scholar] [CrossRef]
  9. Khan, I.; Ali, S.; Hameed, S.; Rama, N.H.; Hussain, M.T.; Wadood, A.; Uddin, R.; Haq, Z.U.; Khan, A.; Ali, S.; Choudhary, M.I. Synthesis, antioxidant activities and urease inhibition of some new 1,2,4-triazole and 1,3,4-thiadiazole derivatives. Eur. J. Med. Chem. 2010, 45, 5200–5207. [Google Scholar]
  10. Syed, T.; Akhtar, T.; Al-Masoudi, N.A.; Jones, P.G.; Hameed, S. Synthesis, QSAR and anti- HIV activity of new 5-benzylthio-1,3,4-oxadiazoles derived from α-amino acids. J. Enzym. Inhib. Med. Chem. 2011, 26, 668–680. [Google Scholar] [CrossRef]
  11. Legrand, S.; Nordlander, G.; Nordenhem, H.; Borg-Karlson, A.K.; Unelius, C.R. Hydroxy-Methoxybenzoic Methyl Esters: Synthesis and Antifeedant Activity on the Pine Weevil, Hylobius abietis. Z. Naturforsch. 2004, 59b, 829–835. [Google Scholar]
  12. Blustein, G.; Romagnoli, R.; Jaen, J.A.; Di Sarli, A.R.; del Amo, B. Zinc basic benzoate as eco-friendly steel corrosion inhibitor pigment for anticorrosive epoxy-coatings. Colloid. Surface. A 2006, 290, 7–18. [Google Scholar] [CrossRef]
  13. Yun-Choi, H.S.; Kim, M.H.; Jung, K.H. Esters of Substituted Benzoic Acids as Anti thrombotic Agents. Arch. Pharm. Res. 1996, 19, 66–70. [Google Scholar] [CrossRef]
  14. You, Y.J.; Kim, K.; Nam, N.H.; Bang, S.C.; Ahn, B.Z. Alkyl and carboxylalkyl esters of 4′-demethyl-4-deoxypodophyllotoxin: synthesis, cytotoxic, and antitumor activity. Eur. J. Med. Chem. 2004, 39, 189–193. [Google Scholar] [CrossRef]
  15. Habulin, M.; Sabeder, S.; Knez, Z. Enzymatic synthesis of sugar fatty acid esters in organic solvent and in supercritical carbon dioxide and their antimicrobial activity. J. Supercrit. Fluid. 2008, 45, 338–345. [Google Scholar] [CrossRef]
  16. Qadeer, G.; Rama, N.H.; Malik, M.A.; Helliwell, M. Methyl 2,6-dimethoxybenzoate. Acta. Cryst. 2007, E63, o3027. [Google Scholar]
  17. Saleem, R.; Qadeer, G.; Shabir, G.; Hanif, M.; Wong, W.Y. Methyl 2-[2-(2,6-dichloroanilino)phenyl]acetate. Acta Crystallogr. E 2008, E64, o2400. [Google Scholar]
  18. Abid, O.R.; Babar, T.M.; Ali, F.I.; Ahmed, S.; Wadood, A.; Rama, N.H.; Uddin, R.; Haq, Z.U.; Khan, A.; Choudhary, M.I. Identification of Novel Urease Inhibitors by High-Throughput Virtual and in Vitro Screening. ACS Med. Chem. Lett. 2010, 1, 145–149. [Google Scholar] [CrossRef]
  19. Oxford Diffraction, CrysAlisPro; Oxford Diffraction Ltd.: Yarnton, England, 2009.
  20. Allen, F.H. The Cambridge Structural Database: a quarter of a million crystal structures and rising. Acta Cryst. 2008, B58, 380–388. [Google Scholar]
  21. Sheldrick, G.M. A short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar]

Share and Cite

MDPI and ACS Style

Khan, I.; Ibrar, A.; White, J.M. Ethyl 2,6-Dimethoxybenzoate: Synthesis, Spectroscopic and X-ray Crystallographic Analysis. Crystals 2012, 2, 521-527. https://doi.org/10.3390/cryst2020521

AMA Style

Khan I, Ibrar A, White JM. Ethyl 2,6-Dimethoxybenzoate: Synthesis, Spectroscopic and X-ray Crystallographic Analysis. Crystals. 2012; 2(2):521-527. https://doi.org/10.3390/cryst2020521

Chicago/Turabian Style

Khan, Imtiaz, Aliya Ibrar, and Jonathan M. White. 2012. "Ethyl 2,6-Dimethoxybenzoate: Synthesis, Spectroscopic and X-ray Crystallographic Analysis" Crystals 2, no. 2: 521-527. https://doi.org/10.3390/cryst2020521
