Article

Cation Dependence of Crystal Structure and Band Parameters in a Series of Molecular Conductors, β'-(Cation)[Pd(dmit)2]2 (dmit = 1,3-dithiole-2-thione-4,5-dithiolate)

Condensed Molecular Materials Laboratory, RIKEN, 2-1, Hirosawa, Wako-shi, Saitama, 351-0198, Japan
*
Author to whom correspondence should be addressed.
Crystals 2012, 2(3), 861-874; https://doi.org/10.3390/cryst2030861
Submission received: 27 March 2012 / Revised: 25 June 2012 / Accepted: 27 June 2012 / Published: 4 July 2012
(This article belongs to the Special Issue Molecular Conductors)

Abstract

:
An isostructural series of anion radical salts, β'-(EtxMe4−xZ)[Pd(dmit)2]2 (x = 0–2, Z = P, As, Sb), with a quasi-triangular lattice comprising the dimer unit [Pd(dmit)2]2 belong to a strongly correlated electron system with geometrical frustration. Intra and interdimer transfer integrals between the frontier molecular orbitals, which characterize the strength of electron correlation and degree of frustration, can be tuned by selection of the counter cation. We have systematically analyzed the crystal structure with X-ray diffraction method and intermolecular transfer integrals using extended Hückel molecular orbital calculations based on structural data. The variation in the cation affects the unit cell in a manner equivalent to an anisotropic pressure. Increasing the covalent radius of the central atom Z and the number of ethyl groups (x) in the cation leads to slight arching of the Pd(dmit)2 molecule. This arch-shaped distortion of the Pd(dmit)2 molecule modifies the interdimer transfer integrals in formation of the regular triangular dimer lattice. On the other hand, the intradimer transfer integral, which is correlated with the effective on-site Coulomb interaction of the dimer, is weakly dependent on the type of cation.

Graphical Abstract

1. Introduction

Molecular conductors are notable for their simple and clear electronic structures. This means that simple tight-binding band calculations based on the extended Hückel method are quite useful for describing the energy bands in the vicinity of the Fermi level [1]. The conduction process in molecular conductors is governed by electron transfer between the frontier molecular orbitals; that is, the highest occupied molecular orbital (HOMO) or the lowest unoccupied molecular orbital (LUMO), and thus the transfer integrals between HOMOs or LUMOs determine the electronic structure. In the crystal state, the transfer integrals are generally sensitive to the molecular arrangement and orientation, because the component molecules belong to conjugated π systems with highly anisotropic molecular shapes. Another notable attribute of molecular conductors is the variety of chemical modifications that are possible, leading to a diversity of electronic properties and enabling their fine tuning. Most molecular conductors are classified as ion (cation or anion) radical salts composed of conducting and insulating parts. Notably, chemical modifications of the insulating part, as well as the conducting part, allow control of the electronic properties, because the insulating part can affect the molecular arrangement and orientation of the conducting part.
The metal dithiolene complex Pd(dmit)2 (dmit = 1,3-dithiole-2-thione-4,5-dithiolate; Figure 1) provides an isostructural series of anion radical salts, β'-(EtxMe4−xZ)[Pd(dmit)2]2 (x = 0–2, Z = P, As, Sb) [2,3,4,5]. Here, the monovalent counter cations, EtxMe4−xZ+, form the insulating part while electrical conduction is attributed to the anion radical of Pd(dmit)2. In crystals of the β'-type Pd(dmit)2 salts, Pd(dmit)2 molecules form a dimer unit with one negative charge, [Pd(dmit)2]2. The dimer units are networked to form a quasi-triangular lattice. At ambient pressure, they are Mott insulators, in which the electrons cannot move due to strong on-site Coulomb repulsion. Application of (hydrostatic or uni-axial) pressure enlarges the band width and leads to metallic and (frequently) superconducting states. In the Mott insulating state, the localized spins exhibit various ground states (antiferromagnetic long-range order [6], quantum spin liquid state [7,8,9,10,11], and non-magnetic charge-ordered state [12,13,14]), depending on the counter cation. In the background of all these transport and magnetic properties, electron correlation and geometrical frustration operate [3,6]. The strength of the electron correlation and degree of frustration are characterized by the intra- and interdimer transfer integrals between the frontier molecular orbitals [2,15]. These transfer integrals can be systematically tuned by selecting counter cations, EtxMe4−xZ+, with different x (number of ethyl groups) and Z (central pnictogen atom). However, the observed effects of the counter cation on the structural properties of the Pd(dmit)2 site remain unclear. Herein, we report on the cation dependence of the crystal and molecular structures of β'-type Pd(dmit)2 salts and discuss their relation in terms of intermolecular transfer integrals.

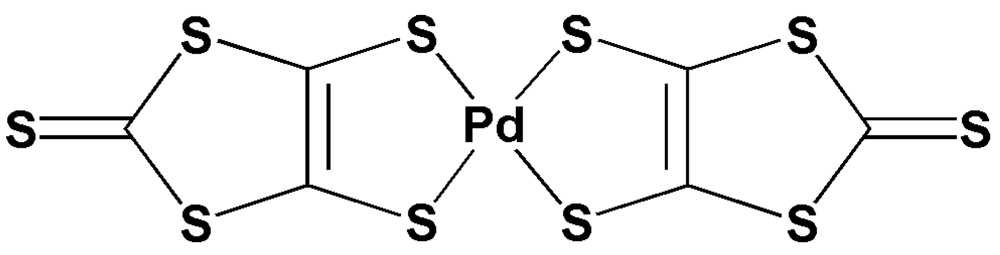

Figure 1. Molecular structure of Pd(dmit)2.
Figure 1. Molecular structure of Pd(dmit)2.
Crystals 02 00861 g001

2. Results and Discussion

2.1. Lattice Constants

Crystals of the β'-type Pd(dmit)2 salts belong to a monoclinic system with space group C2/c. The unit cell contains two crystallographically equivalent Pd(dmit)2 anion layers (1 and 2), which are separated by a cation layer (Figure 2). The Pd(dmit)2 layers are related by glide plane symmetry. The cations are located on a two-fold axis, and thus cations without two-fold symmetry (EtMe3Z+) may adopt two possible orientations with an occupancy of 50% for each orientation. In the Pd(dmit)2 layer, Pd(dmit)2 molecules are strongly dimerized with an eclipsed overlapping mode. The number of crystallographically independent dimer units is one. The two Pd(dmit)2 molecules in the dimer unit are equivalent and related by inversion symmetry. The dimer units stack along the a + b direction in layer 1 and along the ab direction in layer 2 (Figure 2; solid-crossing column structure). Table 1 shows the lattice constants of β'-(EtxMe4−xZ)[Pd(dmit)2]2, plotted as a function of the covalent radius of the central atom Z (RZ) in Figure 3. Understandably, the effect of the number of ethyl groups (x) is larger than that of RZ in general. With decreasing RZ and x, the unit cell volume V decreases. In this sense, the cation effect appears equivalent to an application of pressure. However, each lattice constant shows complicated behavior. In particular, in the ac plane, the lattice constants a and c exhibit oppositeRZ dependences, and the x dependence of the β angle gets weaker as RZ increases. Overall, however, the area of the ac plane (ac sinβ) shows rather normal dependence on RZ and x. All these results indicate that the cation effect on the unit cell is similar to the pressure effect but is not isotropic, which would be a feature of chemical pressure.

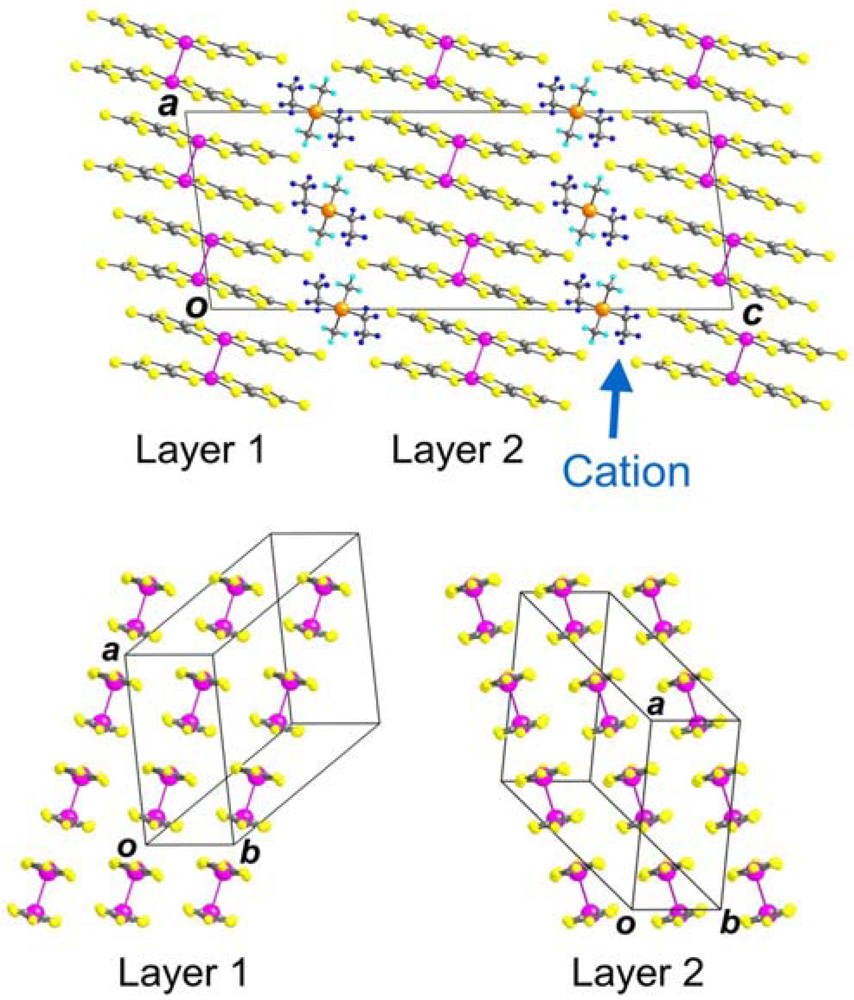

Figure 2. Crystal structure of the β'-type Pd(dmit)2 salt.
Figure 2. Crystal structure of the β'-type Pd(dmit)2 salt.
Crystals 02 00861 g002
Figure 3. Lattice constants of β'-(EtxMe4−xZ)[Pd(dmit)2]2 plotted as a function of the covalent radius of the central atom Z (RZ).
Figure 3. Lattice constants of β'-(EtxMe4−xZ)[Pd(dmit)2]2 plotted as a function of the covalent radius of the central atom Z (RZ).
Crystals 02 00861 g003
Table 1. Lattice constants of β'-(Cation)[Pd(dmit)2]2.
Table 1. Lattice constants of β'-(Cation)[Pd(dmit)2]2.
Cationa (Å)b (Å)c (Å)β (°)V3)
Me4P14.379(3)6.3539(12)36.496(7)98.070(2)3301.5(11)
Me4As14.383(4)6.3691(15)36.672(9)97.793(3)3328.4(14)
EtMe3P14.437(4)6.3614(15)37.243(9)96.938(3)3395.3(14)
EtMe3As14.448(4)6.3715(18)37.282(11)96.973(3)3406.7(18)
Et2Me2P14.473(3)6.3918(13)37.859(8)96.009(3)3483.1(13)
Et2Me2As14.495(4)6.4000(15)37.816(10)96.388(3)3486.3(15)
Me4Sb14.325(7)6.403(3)36.893(19)97.543(5)3355(3)
EtMe3Sb14.503(3)6.3989(12)37.244(7)97.352(2)3427.9(12)
Et2Me2Sb14.628(4)6.4235(15)37.577(9)97.577(2)3500.0(15)

2.2. Interdimer Transfer Integrals

In molecular conductors, including the present system, the electronic structure in the vicinity of the Fermi level is well described by the tight-binding method based on the extended Hückel molecular orbital calculation. Intermolecular transfer integrals between frontier orbitals (in general, HOMOs in a donor system and LUMOs in an acceptor system) calculated from crystal data determine the energy bands around the Fermi level. Figure 4a shows a set of intermolecular transfer integrals for the β'-type Pd(dmit)2 salts. (Note here that the C-centered unit cell is reduced to a primitive cell that contains only one dimer in the anion layer. Interlayer interactions are weak, and thus neglected in this work). Although the Pd(dmit)2 molecule is an acceptor, the conduction band of the β'-type Pd(dmit)2 salts originates from the HOMO. This is a quite unique feature of this system, and is due to the small HOMO-LUMO energy gap, , and the strong dimerization [16]. In the dimer unit, each HOMO and LUMO in the monomer forms bonding and antibonding pairs with a dimerization gap. The dimerization gap is expressed as 2|TA|, and both pairs have nearly the same gap value. In the β'-type Pd(dmit)2 salts, because 2|TA| is larger than , the antibonding HOMO pair is located above the bonding LUMO pair and forms a half-filled conduction band. The LUMO-based energy bands are located near the HOMO-based conduction band and play an important role, which is another unique feature of the present system. Hereinafter, however, we focus on the intermolecular HOMO-HOMO interactions that govern the electronic structure near the Fermi level. In Table 2, the intermolecular HOMO-HOMO transfer integrals are listed for all the salts.

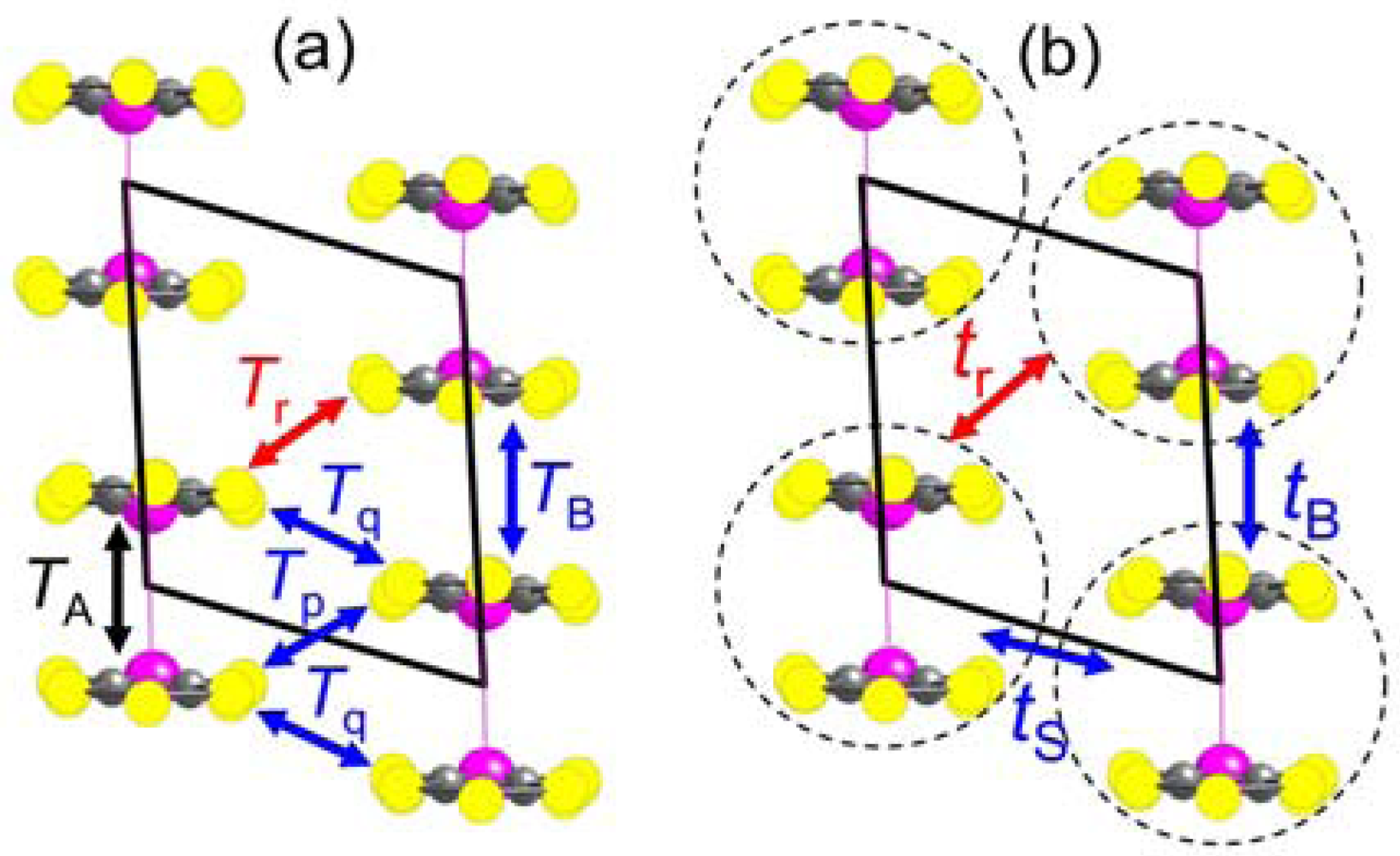

Figure 4. End-on projections of the dimer lattice in β'-type Pd(dmit)2 salts showinglabelling of (a) intermolecular transfer integrals and (b) interdimer transfer integrals.
Figure 4. End-on projections of the dimer lattice in β'-type Pd(dmit)2 salts showinglabelling of (a) intermolecular transfer integrals and (b) interdimer transfer integrals.
Crystals 02 00861 g004
Table 2. Intermolecular highest occupied molecular orbital (HOMO)-HOMO transfer integrals in β'-(Cation)[Pd(dmit)2]2 (See Figure 4a).
Table 2. Intermolecular highest occupied molecular orbital (HOMO)-HOMO transfer integrals in β'-(Cation)[Pd(dmit)2]2 (See Figure 4a).
CationTA (meV)TB (meV)Tp (meV)Tq (meV)Tr (meV)
Me4P43768.229.518.241.6
Me4As44065.227.218.044.7
EtMe3P44364.725.318.645.1
EtMe3As44164.624.118.346.3
Et2Me2P44056.022. 017.347.2
Et2Me2As43653.721.117.147.5
Me4Sb44957.722.716.348.5
EtMe3Sb44956.420.416.850.1
Et2Me2Sb44552.518.315.951.6
The strong dimerization allows us to take each dimer as an effective unit [2] and we can then redraw the unit cell with interdimer transfer integrals as shown in Figure 4b. In the dimer model, the conduction band is described by three interdimer transfer integrals, tB, tS, and tr, as listed in Table 3. The interdimer transfer integrals relate to the intermolecular transfer integrals in Table 2 as tB = TB/2, tS = (Tp + 2Tq)/2, and tr = Tr/2. The largest transfer integral, tB or tS, is correlated with the band width W. For each salt, the triangular lattice formed by the interdimer interactions is approximately isosceles (tBtS), and thus the anisotropy of the triangular lattice can be estimated by the ratio tr/t, where t = (tB + tS)/2. The anisotropy of the triangular lattice indicates the degree of geometrical frustration. As shown in Table 3 and Figure 5, tr/t increases with increasing RZ and x, and the Et2Me2Sb salt has an almost regular triangular lattice. The RZ and x dependences of t and tr are plotted in Figure 6. The increasing tendency of tr/t is a consequence of decreasing t and increasing tr. The decrease in t may be reasonable given that any increase in RZ or x would expand the lattice and lengthen the intermolecular distances. On the other hand, the increase in tr indicates some non-trivial structural change. In this system, the intermolecular transfer integrals are governed mainly by the overlap between the p orbitals of the sulfur atoms in the dmit ligand. Figure 7 shows the relation between Tr and the intermolecular S···S distances responsible for Tr. Notably, an increase in Tr results in shortening of d1 and d2, associated with the outer heteroring, while d3 and d4, associated with the inner heteroring, remain almost constant or slightly lengthen. These trends cannot be explained by changes in the lattice constants. When the dimer is viewed along the vector connecting the two Pd atoms, we notice that the Pd(dmit)2 molecules in the dimer are not completely eclipsed (Figure 8). In particular, there is significant displacement of the outer parts, which indicates that the Pd(dmit)2 molecule is slightly arched, with both ends of the molecule slightly deviating from the expected linear axis. Indeed, the arch-shaped distortion of the molecule can be detected in the bond lengths and angles, for example, in the Et2Me2Sb salt (Figure 9). In addition, Figure 8 suggests that the curvature depends on the counter cation. We tentatively describe the degree of arch-shaped distortion by defining the torsion angle of S–Pd–Pd–S (Φ) within the dimer (Figure 10). Figure 10 indicates that Φ changes systematically depending on the counter cation (RZ and x), which is consistent with the above-mentioned trends for the intermolecular S···S distances.
Table 3. Interdimer HOMO-HOMO transfer integrals and band width, W, calculated in the dimer model (See Figure 4b).
Table 3. Interdimer HOMO-HOMO transfer integrals and band width, W, calculated in the dimer model (See Figure 4b).
CationtB (meV)tS (meV)t (meV)tr (meV)tr/tW (meV)
Me4P34.132.933.520.80.620271
Me4As32.631.632.122.30.696264
EtMe3P32.331.331.822.50.709262
EtMe3As30.530.330.423.20.761254
Et2Me2P28.028.328.123.60.839240
Et2Me2As26.927.627.223.80.873235
Me4Sb28.827.728.324.20.858243
EtMe3Sb28.227.027.625.00.907241
Et2Me2Sb26.325.125. 725.81.005231

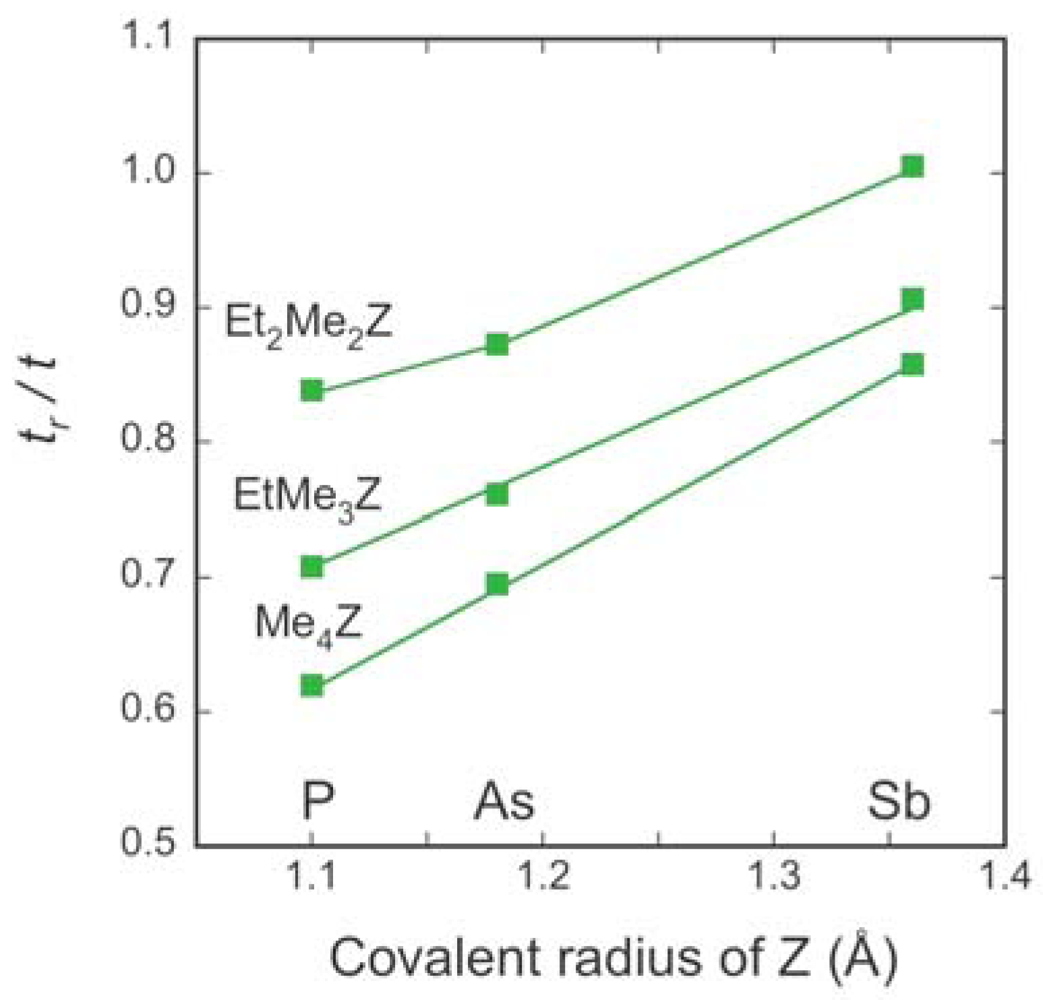

Figure 5. Relation between anisotropy of the dimer lattice tr/t (See Table 3), and the covalent radius of the central atom Z (RZ).
Figure 5. Relation between anisotropy of the dimer lattice tr/t (See Table 3), and the covalent radius of the central atom Z (RZ).
Crystals 02 00861 g005

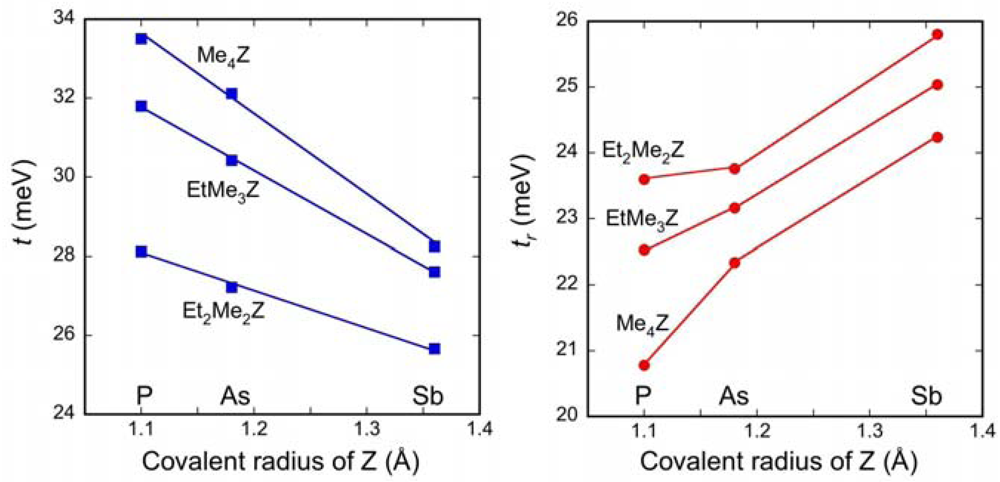

Figure 6. Intermolecular highest occupied molecular orbital (HOMO)-HOMO transfer integrals t and tr (See Table 3) plotted as a function of the covalent radius of the central atom Z (RZ).
Figure 6. Intermolecular highest occupied molecular orbital (HOMO)-HOMO transfer integrals t and tr (See Table 3) plotted as a function of the covalent radius of the central atom Z (RZ).
Crystals 02 00861 g006

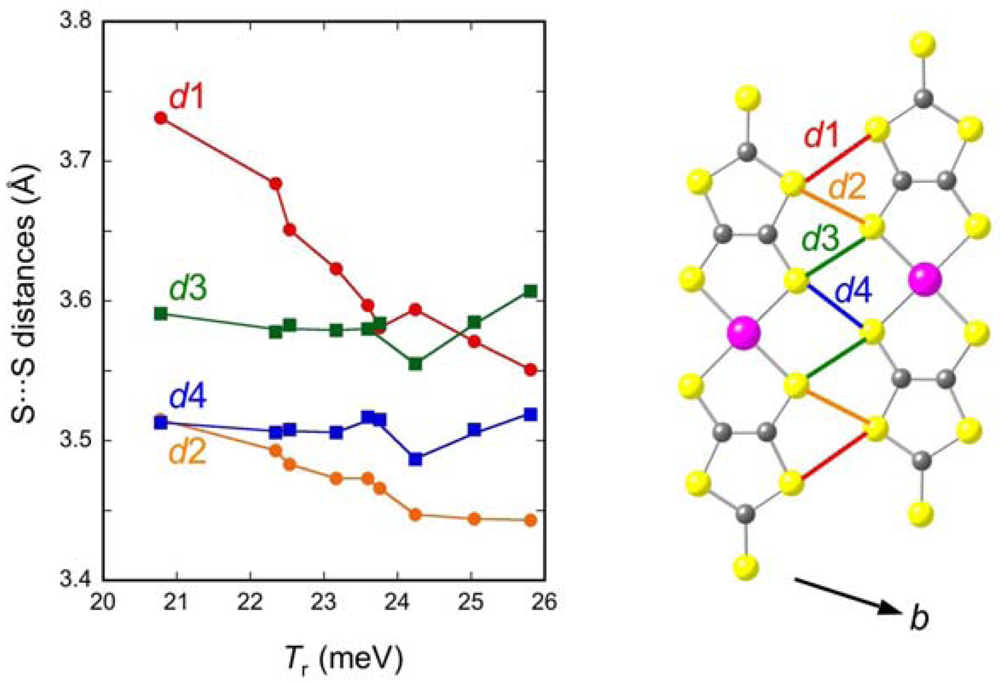

Figure 7. Relations between tr and intermolecular S···S distances (Å) responsible for Tr.
Figure 7. Relations between tr and intermolecular S···S distances (Å) responsible for Tr.
Crystals 02 00861 g007

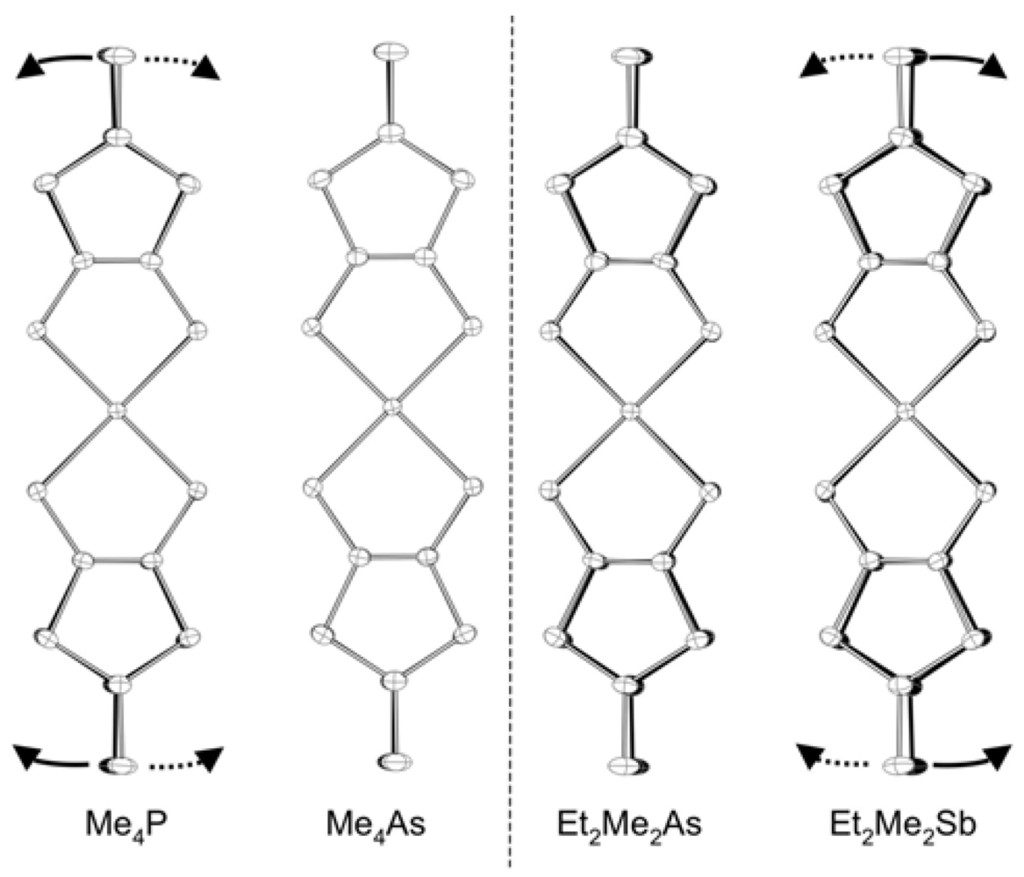

Figure 8. [Pd(dmit)2]2 dimers viewed along the vector connecting the two Pd atoms in Me4P, Me4As, Et2Me2As, and Et2Me2Sb salts.
Figure 8. [Pd(dmit)2]2 dimers viewed along the vector connecting the two Pd atoms in Me4P, Me4As, Et2Me2As, and Et2Me2Sb salts.
Crystals 02 00861 g008

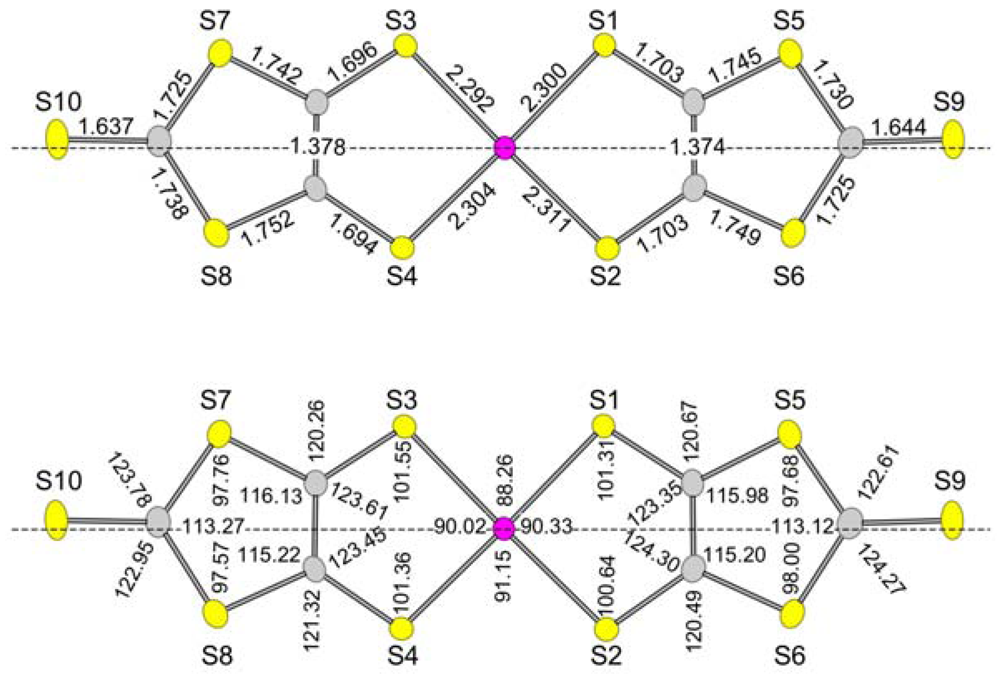

Figure 9. Bond lengths and angles of the Pd(dmit)2 unit in the Et2Me2Sb salt.
Figure 9. Bond lengths and angles of the Pd(dmit)2 unit in the Et2Me2Sb salt.
Crystals 02 00861 g009

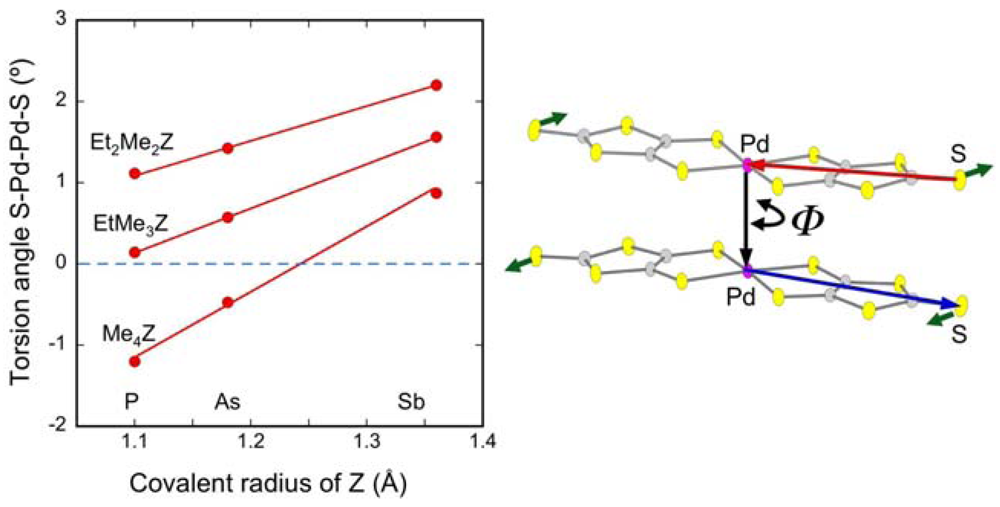

Figure 10. Relation between torsion angle of S–Pd–Pd–S (Φ) within the dimer and the covalent radius of the central atom Z (RZ).
Figure 10. Relation between torsion angle of S–Pd–Pd–S (Φ) within the dimer and the covalent radius of the central atom Z (RZ).
Crystals 02 00861 g010
The arch-shaped distortion affects not only Tr but also the other intermolecular transfer integrals. With increasing cation size (RZ and x), the Pd(dmit)2 molecule becomes distorted, as indicated by the green arrows in Figure 11. The distortion reduces the face-to-face overlap along the stacking direction that correlates with TB (Figure 11). The distortion lengthens the intermolecular S···S contacts responsible for Tp, which is consistent with the observed relation between Tp and the intermolecular S···S distances responsible for Tp (Figure 12). In contrast to the results for Tr (Figure 7), a reduction in Tp correlates with elongation of all the S···S distances (Figure 12). As a result, the three interdimer transfer integrals, tB, tS, and tr, are reasonably correlated with Ф (Figure 13).

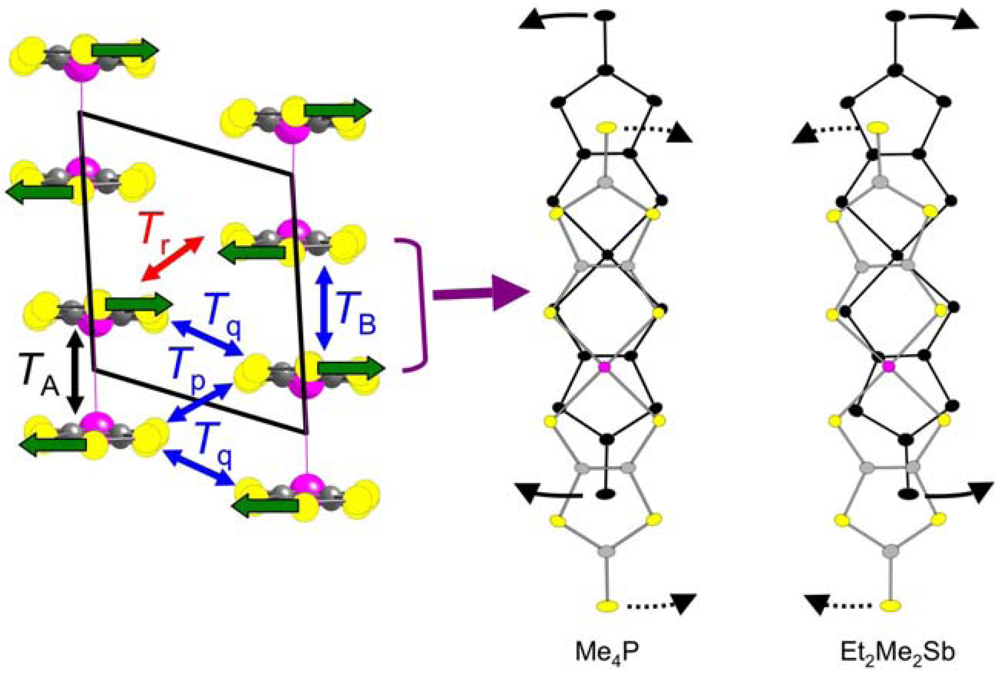

Figure 11. End-on projection of the dimer lattice, in which the green arrows indicate the molecular distortions occurring with increasing cation size (RZ and x). Overlapping modes associated with TB for Me4P and Et2Me2Sb salts are also presented on the right side.
Figure 11. End-on projection of the dimer lattice, in which the green arrows indicate the molecular distortions occurring with increasing cation size (RZ and x). Overlapping modes associated with TB for Me4P and Et2Me2Sb salts are also presented on the right side.
Crystals 02 00861 g011

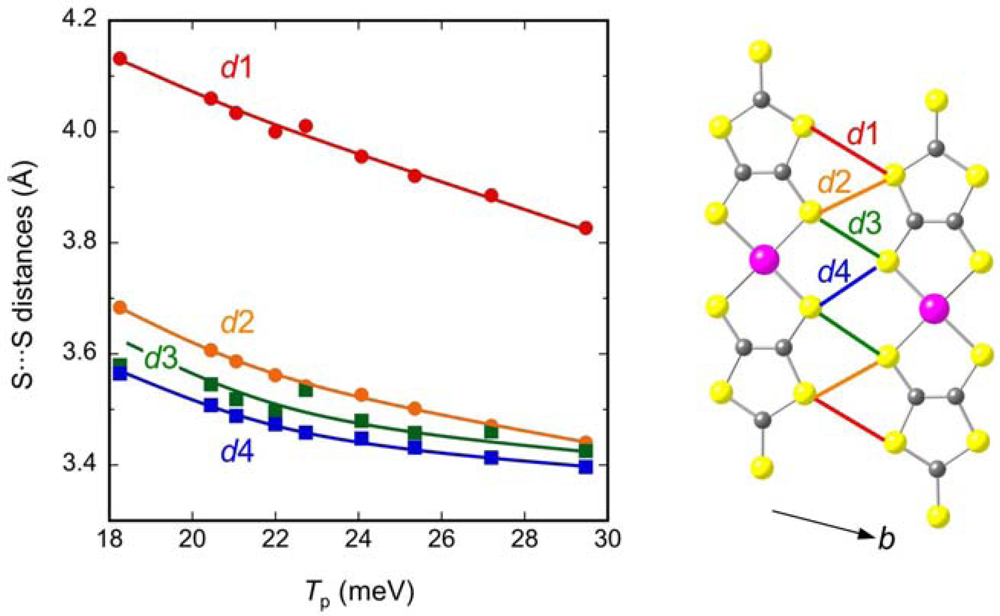

Figure 12. Relations between Tp and intermolecular S···S distances (Å) responsible for Tp.
Figure 12. Relations between Tp and intermolecular S···S distances (Å) responsible for Tp.
Crystals 02 00861 g012
Figure 13. Interdimer transfer integrals as a function of the torsion angle of S–Pd–Pd–S (Ф).
Figure 13. Interdimer transfer integrals as a function of the torsion angle of S–Pd–Pd–S (Ф).
Crystals 02 00861 g013

2.3. Intradimer Transfer Integrals

In the Mott system based on dimer units, the intradimer transfer integral (TA) is approximately correlated with the effective on-site Coulomb energy of the dimer [15]. Figure 14 shows the TA values of β'-type Pd(dmit)2 salts as a function of RZ. Although the TA values are larger than the interdimer transfer integrals, their variation is within 5%, which is smaller than the observed variations in t and tr. As a result, we can say that the effect of the counter cation on TA is relatively weak. The cation dependence of TA appears complicated and does not show a systematic trend. In Figure 15, the intermolecular S···S distances responsible for TA are plotted against TA. (Note here that the TA contribution of the Pd···Pd contact is small because the contribution of the d orbital of Pd to the HOMO is small). The inner S···S distances (d1 and d2) are shorter than the outer S···S distances (d3 and d4), which implies that the molecular plane is warped, as if the two Pd(dmit)2 molecules in the dimer act to repel each other. For these two distinct groupings, the S···S distances are almost constant within each group over all the salts. The terminal S···S distances (d5) are largest and are slightly scattered without any clear tendency. The relation between TA and Ф is shown in Figure 16, which suggests there are two distinct groups among the salts. The salts with Z = Sb show larger TA values, while the other salts (Z = P, As) exhibit a chevron-shaped Ф dependence. Since it is expected that the dimer with Ф =0 would have well-eclipsed overlapping modes, this chevron-shaped dependence on Ф seems reasonable. On the other hand, the origin of the larger TA values for the Sb series remains an open question.

3. Experimental Section

Single crystals of β'-(EtxMe4−xZ)[Pd(dmit)2]2 were obtained by air oxidation of (EtxMe4−xZ)2 [Pd(dmit)2] in acetone containing acetic acid. A typical procedure was as follows: (EtxMe4−xZ)2 [Pd(dmit)2] (ca. 35 μmol) was dissolved in acetone (35–70 mL). After addition of acetic acid (4.0–5.5 mL), the resultant solution was allowed to stand at 5–10 °C for 3–4 weeks. The β'-type crystals (black elongated or hexagonal plates) were obtained as a single phase, with the exception of the EtMe3P salt. The EtMe3P salt contains a monoclinic P21/m phase [17,18,19,20,21] as the main phase, and triclinic- [22] and β'-phases (monoclinic C2/c) as minor phases . The β'-phase of the EtMe3P salt was a very minor component.

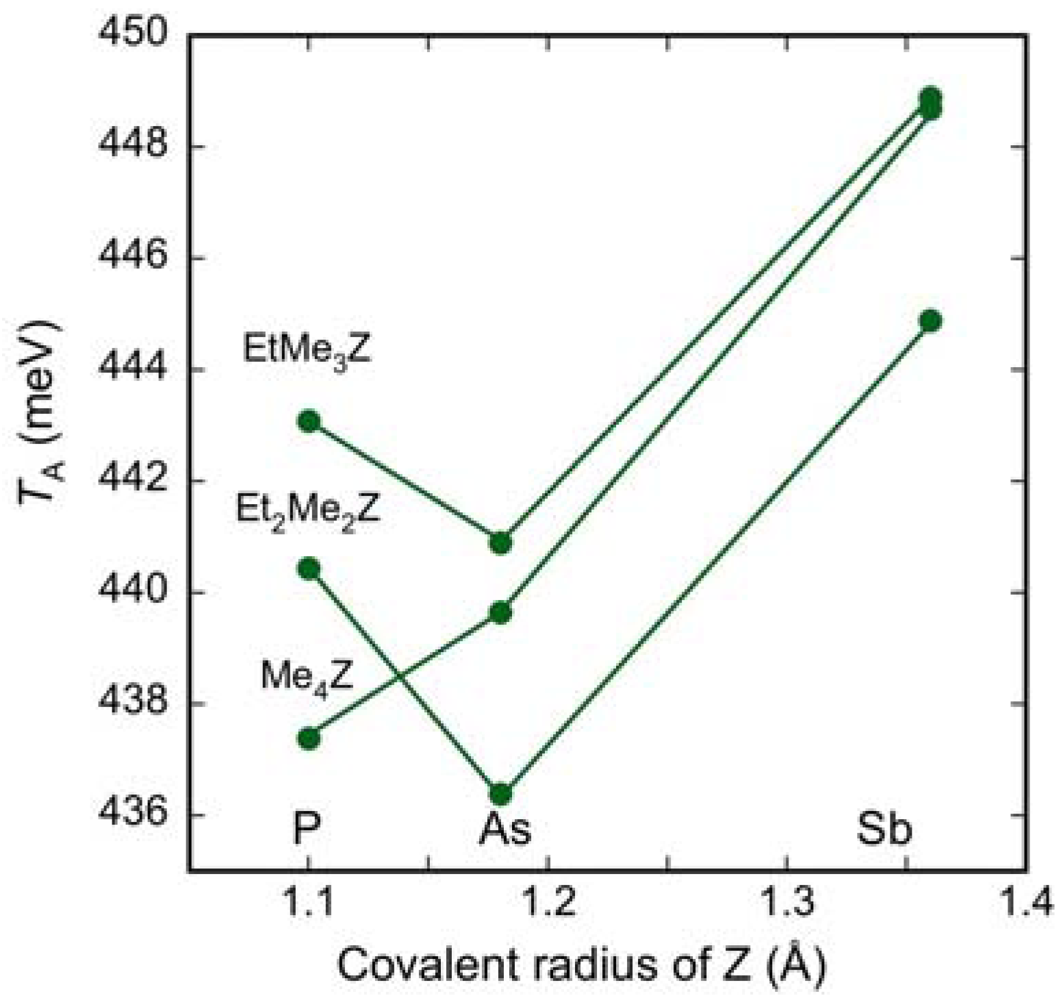

Figure 14. Mapping of intradimer HOMO-HOMO transfer integrals TA to the covalent radius of the central atom Z (RZ).
Figure 14. Mapping of intradimer HOMO-HOMO transfer integrals TA to the covalent radius of the central atom Z (RZ).
Crystals 02 00861 g014

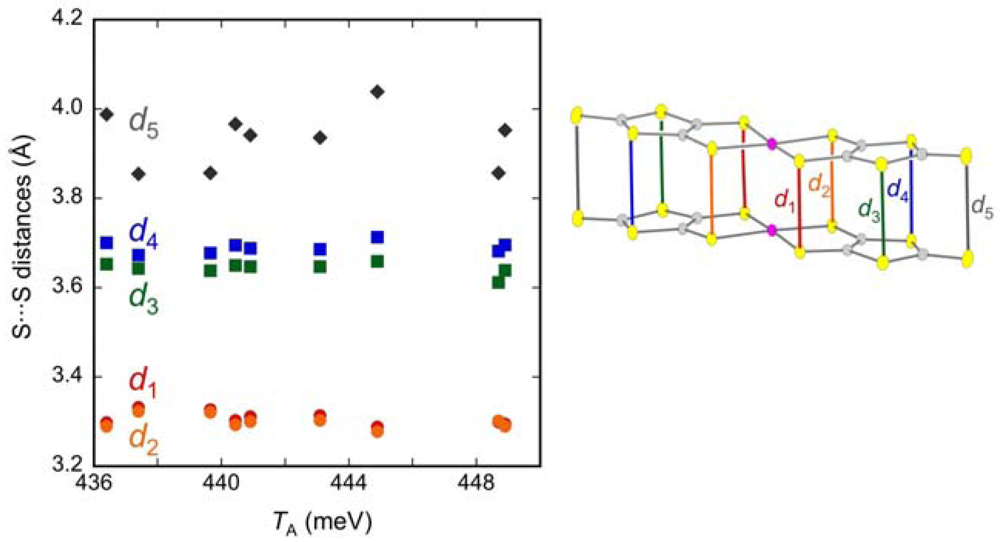

Figure 15. Relations between TA and intermolecular S···S distances (Å) responsible for TA.
Figure 15. Relations between TA and intermolecular S···S distances (Å) responsible for TA.
Crystals 02 00861 g015

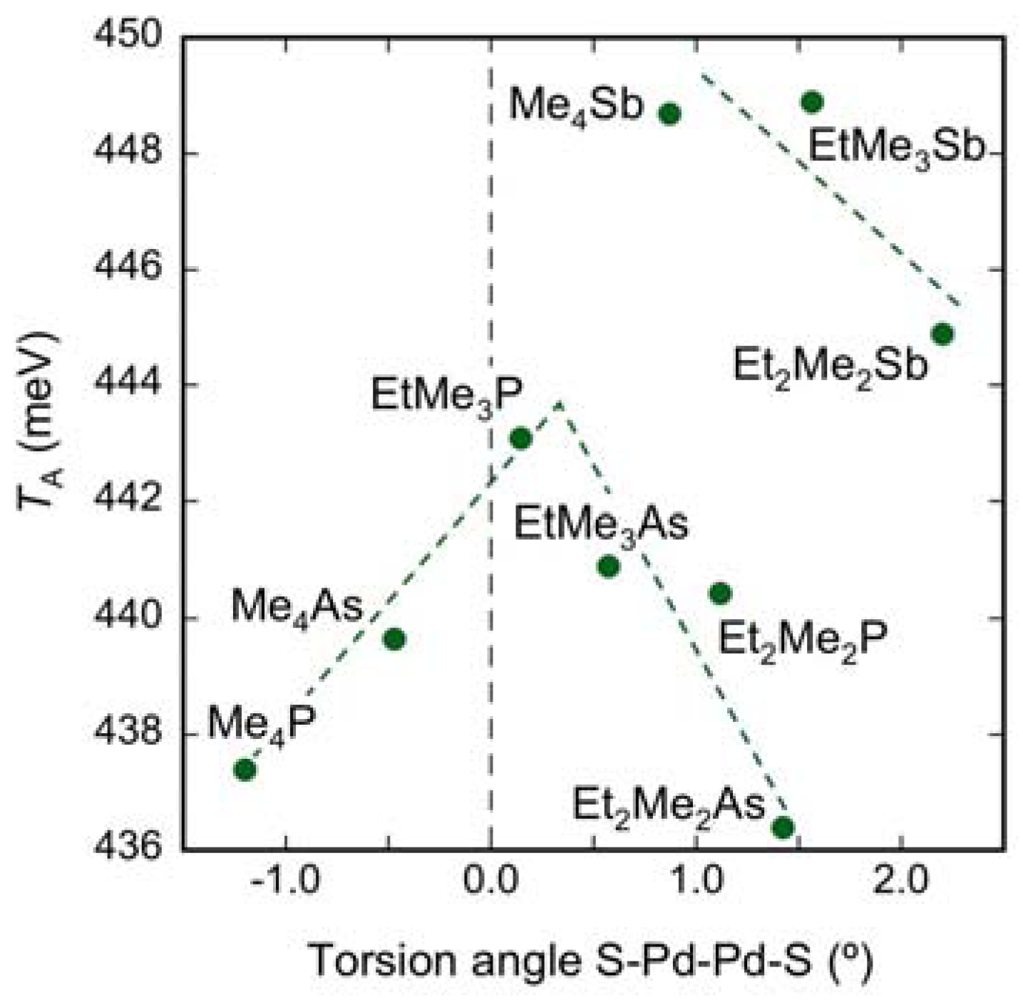

Figure 16. Mapping of intradimer HOMO-HOMO transfer integrals TA to torsion angle of S–Pd–Pd–S (Ф).
Figure 16. Mapping of intradimer HOMO-HOMO transfer integrals TA to torsion angle of S–Pd–Pd–S (Ф).
Crystals 02 00861 g016
X-ray diffraction data were collected using a Rigaku Mercury CCD AFC10 system with monochromated Mo Kα radiation at room temperature. All structures were solved by a direct method (SIR92) [23] and refined on F2 by the full-matrix least-squares method (SHELXL-97) [24]. Anisotropic atomic displacements were applied to all non-H atoms. The H atoms were placed at the calculated positions and refined by applying the riding model.
Intermolecular overlap integrals (S) between HOMOs were obtained using extended Hückel molecular orbital calculations based on structural data. Semi-empirical parameters for Slater-type atomic orbitals are summarized in Table 4. Intermolecular transfer integrals, t (eV), were estimated using the equation t = −10S[1].
Table 4. Semi-empirical parameters for Slater-type atomic orbitals.
Table 4. Semi-empirical parameters for Slater-type atomic orbitals.
atomorbitalIp (Ryd)ζ1ζ2
C2s1.5731.625
2p0.8381.625
S3s1.6202.122
3p0.7701.827
Pd5s0.6762.19
5p0.3902.15
4d0.9495.982.613
(0.5264) *(0.6372) *
* Contraction coefficients used in the double-ζ expansion.

4. Conclusions

The crystal structures of β'-type Pd(dmit)2 salts corresponding to a two-dimensional Mott system with a quasi triangular lattice were investigated systematically, and the effects of the counter cation on intermolecular transfer integrals revealed. The intradimer transfer integral, which is correlated with the effective on-site Coulomb interaction of the dimer and the dimerization gap, weakly depends on the type of cation. On the other hand, the anisotropy of the triangular lattice (the ratio of interdimer transfer integrals, tr/t), which determines the degree of frustration, can be tuned from 0.6 (Me4P salt) to 1.0 (Et2Me2Sb salt) by changing the bulkiness of the cation (RZ and x). An essential feature of the effect of the cation on the interdimer transfer integrals is the arch-shaped distortion observed in the Pd(dmit)2 molecule rather than molecular rearrangement. That is, the Pd(dmit)2 molecule is sufficiently flexible within the crystal field, allowing distortions of the molecular skeleton to occur with different counter cations, in turn leading to systematic changes in the intermolecular interactions. Understanding the origin of the arch-shaped molecular distortion is of considerable interest in materials design in such systems. In the present system, the counter cations are located discretely and there is no observable cation framework based on cation···cation interactions which can accommodate anions. Although some kind of cation···anion interaction would be expected, we did not identify any significant short contacts between cations and anions. Notably, structural optimization for atomic geometries calculated within the generalized gradient approximation can reproduce the arch-shaped molecular distortion and its cation dependence [25], which should provide important clues to its origin. Further studies are needed to clarify how the degree of molecular distortion is controlled by the counter cation in the crystal.

Acknowledgments

This research was partially supported by grant-in-aid for Scientific Research on Innovative Areas (No. 20110003) from the Ministry of Education, Culture, Sports, Science and Technology (MEXT), and by grant-in-aid for Scientific Research (S) (No. 22224006) from the Japan Society for the Promotion of Science (JSPS).

Conflict of Interest

The authors declare no conflict of interest.

References and Notes

  1. Mori, T.; Kobayashi, A.; Sasaki, Y.; Kobayashi, H.; Saito, G.; Inokuchi, H. The intermolecular interaction of tetrathiafulvalene and bis(ethylenedithio)tetrathiafulvalene in organic metals. Calculation of orbital overlaps and models of energy-band structures. Bull. Chem. Soc. Jpn. 1984, 57, 627–633. [Google Scholar]
  2. Kato, R. Conducting metal dithiolene complexes: Structural and electronic properties. Chem. Rev. 2004, 104, 5319–5346. [Google Scholar] [CrossRef]
  3. Tamura, M.; Kato, R. Variety of valence bond states formed of frustrated spins on triangular lattices based on a two-level System Pd(dmit)2. Sci. Technol. Adv. Mater. 2009, 10, 024304:1–024304:12. [Google Scholar]
  4. Tamura, M.; Kato, R. Spin-1/2 Heisenberg antiferromagnets on anisotropic triangular lattice, [Pd(dmit)2] salts—How do they release frustration? Polyhedron 2005, 24, 2817–2820. [Google Scholar] [CrossRef]
  5. Kanoda, K.; Kato, R. Mott physics in organic conductors with triangular lattices. Annu. Rev. Condens. Matter Phys. 2011, 2, 167–188. [Google Scholar] [CrossRef]
  6. Tamura, M.; Kato, R. Magnetic susceptibility of β'-[Pd(dmit)2] salts (dmit = 1,3-dithiol-2-thione-4,5-dithiolate, C3S5): Evidence for frustration in spin-1/2 Heisenberg antiferromagnets on a triangular lattice. J. Phys. Condens. Matter. 2002, 14, L729–L734. [Google Scholar] [CrossRef]
  7. Itou, T.; Oyamada, A.; Maegawa, S.; Tamura, M.; Kato, R. Quantum spin liquid in the spin-1/2 triangular antiferromagnet EtMe3Sb[Pd(dmit)2]2. Phys. Rev. B 2008, 77, 104413:1–104413:5. [Google Scholar]
  8. Itou, T.; Oyamada, A.; Maegawa, S.; Kato, R. Instability of a quantum spin liquid in an organic triangular-lattice antiferromagnet. Nat. Physics 2010, 6, 673–676. [Google Scholar] [CrossRef]
  9. Yamashita, M.; Nakata, N.; Senshu, Y.; Nagata, M.; Yamamoto, H.M.; Kato, R.; Shibauchi, T.; Matsuda, Y. Highly mobile gapless excitations in a two-dimensional candidate quantum spin liquid. Science 2010, 328, 1246–1248. [Google Scholar]
  10. Kato, R.; Itou, T. Molecular quasi-triangular lattice antiferromagnets. In Understanding Quantum Phase Transitions; Lincoln, D.C., Ed.; CRC Press: Boca Raton, FL, USA, 2010; pp. 419–443. [Google Scholar]
  11. Yamashita, S.; Yamamoto, T.; Nakazawa, Y.; Tamura, M.; Kato, R. Gapless spin liquid of an organic triangular compound evidenced by thermodynamic measurements. Nature Commun. 2011, 2, 275:1–275:6. [Google Scholar]
  12. Tamura, M.; Kato, R. Valence instability in a dimer of two-orbital system: Possible charge separation due to “Negative U” effect. Chem. Phys. Lett. 2004, 387, 448–452. [Google Scholar] [CrossRef]
  13. Nakao, A.; Kato, R. Structural study of low temperature charge-separated phases of Pd(dmit)2-based molecular conductors. J. Phys. Soc. Jpn. 2005, 74, 2754–2763. [Google Scholar] [CrossRef]
  14. Tamura, M.; Takenaka, K.; Takagi, H.; Sugai, S.; Tajima, A.; Kato, R. Spectroscopic evidence for the low-temperature charge-separated state of [Pd(dmit)2] salts. Chem. Phys. Lett. 2005, 411, 133–137. [Google Scholar] [CrossRef]
  15. Tamura, M.; Kato, R. Effective on-site repulsion in molecular conductors with dimeric structure: Is the transfer integral a good measure of correlation? J. Phys. Soc. Jpn. 2004, 73, 3108–3110. [Google Scholar] [CrossRef]
  16. Canadell, E.; Ravy, S.; Pouget, J.P.; Brossard, L. Concerning the band structure of D[M(dmit)2]2 (D=TTF,Cs,NMe4; M=Ni,Pd) molecular conductors and superconductors: Role of the M(dmit)2 HOMO and LUMO. Solid State Commun. 1990, 75, 633–638. [Google Scholar] [CrossRef]
  17. Tamura, M.; Nakao, A.; Kato, R. Frustration-induced valence-bond ordering in a new quantum triangular antiferromagnet based on [Pd(dmit)2]. J. Phys. Soc. Jpn. 2006, 75, 093701:1–093701:4. [Google Scholar]
  18. Kato, R.; Tajima, A.; Nakao, A.; Tamura, M. Two pressure-induced superconducting anion radical salts exhibiting different spin states at ambient pressure. J. Am. Chem. Soc. 2006, 128, 10016–10017. [Google Scholar]
  19. Ishii, Y.; Tamura, M.; Kato, R. Magnetic study of pressure-induced superconductivity in the [Pd(dmit)2] salt with spin-gapped ground state. J. Phys. Soc. Jpn. 2007, 76, 033704:1–033704:4. [Google Scholar]
  20. Shimizu, Y.; Akimoto, H.; Tsujii, H.; Tajima, A.; Kato, R. Mott transition in a valence-bond solid insulator with a triangular lattice. Phys. Rev. Lett. 2007, 99, 256403:1–256403:4. [Google Scholar]
  21. Itou, T.; Oyamada, A.; Maegawa, S.; Kubo, K.; Yamamoto, H.M.; Kato, R. Superconductivity on the border of a spin-gapped Mott insulator: NMR studies of the quasi-two-dimensional organic system EtMe3P[Pd(dmit)2]2. Phys. Rev. B 2009, 79, 174517:1–174517:6. [Google Scholar]
  22. Yamamoto, T.; Nakazawa, Y.; Tamura, M.; Nakao, A.; Ikemoto, Y.; Moriwaki, T.; Fukaya, A.; Kato, R.; Yakushi, K. Intradimer charge disproportionation in triclinic-EtMe3P[Pd(dmit)2]2 (dmit: 1,3-dithiole-2-thione-4,5-dithiolate). J. Phys. Soc. Jpn. 2011, 80, 123709:1–123709:4. [Google Scholar]
  23. Altomare, A.; Cascarano, G.; Giacovazzo, C.; Gualiardi, A.; Burla, M.C.; Polidori, G.; Camalli, M. SIR92—a program for automatic solution of crystal structures by direct methods. J. Appl. Cryst. 1994, 27, 435–435. [Google Scholar]
  24. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef]
  25. Tsumuraya, T.; Seo, H.; Miyazaki, T.; Kato, R. Frustrated Mott system on the quasi-triangular lattice, Pd(dmit)2 salts; A first-principles study. J. Phys. Soc. Jpn. 2012. to be submitted for publication.. [Google Scholar]
