Article

Optical Characterization of AlAsSb Digital Alloy and Random Alloy on GaSb

1
Department of Electrical Engineering, University of California, Los Angeles, CA 90095, USA
2
California NanoSystems Institute, Los Angeles, CA 90095, USA
3
Department of Molecular and Medical Pharmacology, Crump Institute for Molecular Imaging, University of California, Los Angeles, CA 90095, USA
*
Author to whom correspondence should be addressed.
Crystals 2017, 7(10), 313; https://doi.org/10.3390/cryst7100313
Submission received: 9 September 2017 / Revised: 13 October 2017 / Accepted: 15 October 2017 / Published: 18 October 2017

Abstract

:
III-(As, Sb) alloys are building blocks for various advanced optoelectronic devices, but the growth of their ternary or quaternary materials are commonly limited by spontaneous formation of clusters and phase separations during alloying. Recently, digital alloy growth by molecular beam epitaxy has been widely adopted in preference to conventional random alloy growth because of the extra degree of control offered by the ordered alloying. In this article, we provide a comparative study of the optical characteristics of AlAsSb alloys grown lattice-matched to GaSb using both techniques. The sample grown by digital alloy technique showed stronger photoluminescence intensity, narrower peak linewidth, and larger carrier activation energy than the random alloy technique, indicating an improved optical quality with lower density of non-radiative recombination centers. In addition, a relatively long carrier lifetime was observed from the digital alloy sample, consistent with the results obtained from the photoluminescence study.

1. Introduction

Sb-based compound semiconductors are attractive for advanced optoelectronic applications because of their capability to form ternary and quaternary alloys that allow flexible bandgap engineering, which can be grown lattice-matched to common substrates such as InAs, InP, and GaSb [1,2,3,4,5]. For example, high Al-content alloys with large bandgaps that contain As and Sb are often used as window layers or active regions for photodetectors, lasers, and thermophotovoltaics [6,7,8,9,10]. Normally, mixed-anion alloys rely on random alloy (RA) growth in which direct deposition of atoms on the sample surface with carefully tuned growth parameters to achieve the targeted alloy composition. Unfortunately, due to the non-unity incorporation coefficients of volatile group V elements, the epitaxy of mixed-anion alloys is much more complicated than that of alloys with only one group V element. The wide miscibility gap of these alloys can easily create undesired crystalline disorders, e.g., As/Sb clusters and phase separation [11,12]. As an alternative, Zhang has proposed modulated molecular beam epitaxy (MMBE) [13], known as the digital alloy (DA), for III-(As, Sb) ordered alloys. The DA growth has been shown to offer a precise control over alloy composition and reproducibility against RA growth [14,15]. Although such a technique has been widely implemented to facilitate growths of III-(As, Sb) alloys in device applications [10,16,17,18], a direct comparison of the material properties of those alloys grown by DA and RA has not been reported. In this work, we provide a detailed material analysis of lattice-matched AlAs0.08Sb0.92 (AlAsSb, hereafter) DA and RA grown on GaSb substrates, and unveil the real strength of DA over RA by comparing heterointerfaces, optical characteristics, and minority carrier lifetimes. We believe this fundamental material research will offer a deeper insight into both growth techniques, and trigger further validating work and device applications.

2. Experiments

The AlAsSb samples were deposited on lightly n-doped GaSb (001) substrate using a Veeco Gen930 solid-source MBE reactor. Prior to the material growth, the GaSb substrate temperature was raised to 535 °C for 20 min under a Sb2 overpressure to desorb surface oxide. After oxide removal, the substrate was cooled to 510 °C to grow an unintentionally-doped GaSb buffer. A nominal 600 nm-thick AlAsSb layer was then grown at the same substrate temperature, followed by a 20 nm GaSb cap layer to prevent it from rapid oxidation in air. The DA sample was realized by periodically alternating the As and Sb shutter while maintaining a steady Al flux during deposition, resulting in AlSb/AlAs equivalent sequence of 4.0/0.8 MLs. Additional 4.0 MLs of AlSb was used prior to the transition to GaSb cap layer. On the other hand, the RA sample was grown by keeping Al, As, and Sb shutters open simultaneously, followed by the GaSb cap layer without growth interruption. The substrate temperature was monitored by an optical pyrometer and calibrated by the change in the surface reconstruction of GaSb from (1 × 3) to (2 × 5) using reflection high-energy electron diffraction (RHEED) equipped with the MBE reactor [19]. Separate campaigns of DA and RA samples were grown to obtain their lattice-matching condition, characterized using peak separation from the X-ray diffraction (XRD) scans. The two samples were kept with the identical layer structure and minimal difference in alloy composition to enable a fair comparison. High-resolution triple-axis XRD (HRXRD) measurement (D1, Bede) was performed by inserting an analyzer crystal to define the measurement resolution via a narrow acceptance angle (0.0033° or 11″). Cross-sectional high-resolution transmission electron microscopy (HRTEM) was performed using FEI Titan TEM. Photoluminescence (PL) characterization was conducted using a 532 nm solid-state laser to investigate the optical properties of the AlAsSb DA and RA samples. Samples were mounted in the Advanced Research System DE-204 closed-cycle cryostat for temperature-dependent measurement. A silicon photodetector (Model 2151, New Focus, San Jose, CA, USA) was used for steady-state PL measurement via standard lock-in technology. For time-resolved photoluminescence (TRPL), the samples were excited by the NKT Photonics SuperK Extreme laser running at 532 nm with ~20 ps pulse-width. A silicon single-photon avalanche diode from Micro Photon Devices was used to record the TRPL signals. The system time resolution, i.e., instrument response function (IRF), is about 20 ps as extracted from signals of the direct reflection of the pulsed laser.

3. Results and Discussion

The HRXRD ω-2θ scans of the AlAsSb DA and RA samples exhibit a single peak of the epitaxial layers, inseparable from the GaSb substrate peak, as shown in Figure 1. The full-width-at-half-maximum (FWHM) values are 18″ and 21″ for the AlAsSb DA and RA samples, respectively, compared to a value of 16″ for the GaSb substrate. This clearly shows that the epitaxial layers are lattice-matched to the substrates, and the compositional fluctuation is negligible.
The cross-section TEM of the AlAsSb DA and RA samples is shown in Figure 2. Both samples exhibit ordered phase in AlAsSb based on the presence of the satellite spots in the electron diffraction pattern. The DA sample exhibits no signs of phase separation in the AlAsSb film, as shown in Figure 2a, and the alternating shutter sequence does not produce modulated contrast as found in superlattice growth (Figure 2c). On the other hand, the bulk part of the AlAsSb film in the RA sample is also uniform, whereas a relatively rough GaSb/AlAsSb interface is observed (Figure 2c,d). Some bright contrast features parallel to the growth front has been found in the RA sample, likely related to the sample preparation.
Low-temperature photoluminescence (PL) spectra of the DA and RA samples are shown in Figure 3a. Both spectra show similar features, including an anomalous emission around 1.29 eV (DL), a narrow peak at 1.6 eV (EX), and a sideband peaking around 1.84 eV (EГ), which can be seen more clearly in Figure 3b. In general, the DA sample exhibits stronger luminescence than the RA sample with a considerable difference for the EX peak. The PL peaks located at higher energies are most likely due to band-to-band transition. For an indirect bandgap material, the low-temperature optical transition is known to be dominated by the indirect bands, i.e., X band in AlAsSb. Following these rules, we identified the strong emission at 1.6 eV as being the carrier recombination from the X band, and the sideband peaking at 1.84 eV is likely due to the transition from the Γ band. In Figure 4a, temperature-dependent EX peak energies are fitted with a hyperbolic cotangent relation [20],
E g ( T ) = E g ( 0 ) S   ω ( c o t h ( ω 2 k B T ) 1 )
where E g ( 0 ) is the bandgap energy at 0 K, S is the dimensionless coupling coefficient, ω is the average phonon energy, and k B is the Boltzmann constant. The fitting parameters are shown in Table 1. The fittings show good agreement with the experimental data, and the extracted values of ω also match the calculated optical phonon energies [21]. The DA sample also exhibits a smaller bandgap energy than the RA sample, likely due to the ordering effect [22]. Similar results have been observed in other quaternary materials, the DA growths of which exhibit a relatively small bandgap energy, within 2–3% of that of the RA growth [15,23]. On the other hand, DL peaks display an anomalous temperature dependence with respect to the EX peak, which will be discussed later in the text.
Temperature-dependent FWHM of the EX peaks for both samples are shown in Figure 4b, and these are anticipated to be relatively high, due to the involvement of multiple phonons in the indirect band transition. However, the DA sample does not exhibit broader PL emissions, such as those found in as-grown AlGaInP systems [23], suggesting that there is no sign of defects originating from the large numbers of interfaces. The FWHM is approximately the same (40–45 meV) at low temperatures (<40 K), whereas the DA sample shows consistently smaller FWHM than the RA sample at elevated temperatures, suggesting a better crystalline quality.
Integrated PL intensities of the EX and DL peaks were studied, and the results are shown in Figure 4c. It can be seen that EX peak intensities drop quickly below 40 K with increasing temperature. In spite of the similar temperature-dependence of DL peaks between the DA and RA samples, a marked difference in the EX peak can be observed. The activation energies of the EX peak can be extracted using the Arrhenius equation [24],
I ( T ) = I 0 1 + C 0 e x p ( E a / k B T )
where I 0 is the integrated PL intensity at 0 K, C 0 is the rate constant, and E a is the activation energy. The EX peak shows a much higher activation energy for the DA sample than for the RA sample, suggesting that the carrier-quenching process is much faster in the RA sample. The loss of carriers is likely due to phonon scattering, assisted by crystalline disorders such as phase separation during the RA growth. In addition, the non-uniformity of alloy composition could also enhance non-radiative recombination. On the other hand, the similar activation energies of the DL peaks indicate a common mechanism, regardless of the growth methods.
The origins of photon emission have been characterized using the power law, I P k . , where I is the integrated PL intensity and the exponent k is a characteristic coefficient. The fitted k value depends on the radiative recombination mechanisms, where an exciton transition usually gives 1 < k < 2 and transitions due to free-to-bound or donor-acceptor pair recombination give k < 1 [25,26,27]. In Figure 5a, fitting the data to EX peaks exhibits k = 1.22 and 1.3 for the DA and RA samples, respectively, confirming that the transition is dominated by band-to-band recombination, as discussed earlier. On the other hand, fitting to the DL peak for both samples yields k = 0.66 and 0.71 for the DL and RA samples, respectively, suggesting that the radiative recombination involved states located within the bandgap. The appearance of the low-energy DL peak is common to both samples at all temperatures studied, regardless of the growth methods, and shows a relatively weak temperature dependence for the peak energies and integrated PL intensities, as shown in Figure 4a,c. As a result, the DL peak could presumably be associated with unresolved transitions from deep level states in AlAsSb [28].
TRPL decay from the EX peak transition of the DA and RA samples are measured and pumped under the same excitation power, as shown in Figure 6. The decay tails of both samples are best fitted using a single exponential relation [29],
I ( T ) = A 0 + A 1 exp ( t / τ )
where I ( T ) is the counted PL intensity, A 0 and A 1 are fitting parameters, and τ is the carrier lifetime. The IRF is also shown as an indication of the system time resolution. The DA sample shows a longer minority carrier lifetime in comparison to the RA sample, providing further evidence that the DA sample has fewer non-radiative recombination centers.

4. Conclusions

This study investigated the optical characteristics of the AlAsSb lattice-matched to GaSb using DA and RA growth techniques by MBE. Both samples are lattice-matched to GaSb substrates, as verified using HRXRD. The AlAsSb indirect band transition in the DA sample shows consistently stronger PL intensities with smaller FWHM values at elevated temperatures, suggesting that the material is relatively free from non-radiative recombination and phonon scattering induced by phase separation. This is supported by the higher activation energy of carrier quenching, as well as the longer lifetime of the DA sample in comparison to the values for the RA sample. These results provide direct evidence that, compared to conventional RA growth, DA growth could offer a more compositionally uniform III-(As, Sb) alloy with enhanced optical quality, better suited for applications in optoelectronic devices.

Acknowledgments

The authors acknowledge the financial support by the Defense Threat Reduction Agency (DTRA) through award number HDTRA1-14-1-0035 and the support by the CNSI/HP seeding funding (Grant # 449041-HD-79740). The authors would also like to acknowledge the financial support provided by Sêr Cymru National Research Network in Advanced Engineering and Materials.

Author Contributions

Bor-Chau Juang, Baolai Liang, and Diana L. Huffaker conceived and designed the experiments; David L. Prout and Arion F. Chatziioannou provide scientific discussion; Bor-Chau Juang performed the MBE growth of samples and the optical experiments; Dingkun Ren performed the transmission electron microscopy; Bor-Chau Juang and Baolai Liang analyzed the data; Bor-Chau Juang wrote the original draft.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Dutta, P.S.; Bhat, H.L.; Kumar, V. The physics and technology of gallium antimonide: An emerging optoelectronic material. J. Appl. Phys. 1997, 81, 5821–5870. [Google Scholar] [CrossRef]
  2. Kroemer, H. The 6.1 Å family (InAs, GaSb, AlSb) and its heterostructures: A selective review. Phys. E Low-Dimens. Syst. Nanostruct. 2004, 20, 196–203. [Google Scholar] [CrossRef]
  3. Soibel, A.; Hill, C.J.; Keo, S.A.; Hoglund, L.; Rosenberg, R.; Kowalczyk, R.; Khoshakhlagh, A.; Fisher, A.; Ting, D.Z.Y.; Gunapala, S.D. Room temperature performance of mid-wavelength infrared InAsSb nBn detectors. Appl. Phys. Lett. 2014, 105, 23512. [Google Scholar] [CrossRef]
  4. Krier, A. Mid-Infrared Semiconductor Optoelectronics; Springer Series in Optical Sciences; Springer: London, UK, 2012; ISBN 9781849965613. [Google Scholar]
  5. Zhao, Z.; Laghumavarapu, R.B.; Simmonds, P.J.; Ji, H.; Liang, B.; Huffaker, D.L. Photoluminescence study of the effect of strain compensation on InAs/AlAsSb quantum dots. J. Cryst. Growth 2015, 425, 312–315. [Google Scholar] [CrossRef]
  6. Xie, J.; Ng, J.S.; Tan, C.H. An InGaAs/AlAsSb Avalanche Photodiode With a Small Temperature Coefficient of Breakdown. IEEE Photonics J. 2013, 5, 6800706. [Google Scholar] [CrossRef]
  7. Wilk, A.; Genty, F.; Fraisse, B.; Boissier, G.; Grech, P.; El Gazouli, M.; Christol, P.; Oswald, J.; Simecek, T.; Hulicius, E.; et al. MBE growth of InAs/InAsSb/AlAsSb structures for mid-infrared lasers. J. Cryst. Growth 2001, 223, 341–348. [Google Scholar] [CrossRef]
  8. Revin, D.G.; Wilson, L.R.; Zibik, E.A.; Green, R.P.; Cockburn, J.W.; Steer, M.J.; Airey, R.J.; Hopkinson, M. InGaAs/AlAsSb quantum cascade lasers. Appl. Phys. Lett. 2004, 85, 3992–3994. [Google Scholar] [CrossRef]
  9. Xie, S.; Tan, C.H. AlAsSb Avalanche Photodiodes With a Sub-mV/K Temperature Coefficient of Breakdown Voltage. IEEE J. Quantum Electron. 2011, 47, 1391–1395. [Google Scholar] [CrossRef]
  10. Woodson, M.E.; Ren, M.; Maddox, S.J.; Chen, Y.; Bank, S.R.; Campbell, J.C. Low-noise AlInAsSb avalanche photodiode. Appl. Phys. Lett. 2016, 108, 81102. [Google Scholar] [CrossRef]
  11. Stringfellow, G.B. Miscibility gaps in quaternary III/V alloys. J. Cryst. Growth 1982, 58, 194–202. [Google Scholar] [CrossRef]
  12. Wang, C.A. Progress and continuing challenges in GaSb-based III–V alloys and heterostructures grown by organometallic vapor-phase epitaxy. J. Cryst. Growth 2004, 272, 664–681. [Google Scholar] [CrossRef]
  13. Zhang, Y.H. Accurate control of As and Sb incorporation ratio during solid-source molecular-beam epitaxy. J. Cryst. Growth 1995, 150, 838–843. [Google Scholar] [CrossRef]
  14. Maddox, S.J.; March, S.D.; Bank, S.R. Broadly Tunable AlInAsSb Digital Alloys Grown on GaSb. Cryst. Growth Des. 2016, 16, 3582–3586. [Google Scholar] [CrossRef]
  15. Kaspi, R.; Donati, G.P. Digital alloy growth in mixed As/Sb heterostructures. J. Cryst. Growth 2003, 251, 515–520. [Google Scholar] [CrossRef]
  16. Kaspi, R.; Ongstad, A.; Dente, G.C.; Chavez, J.; Tilton, M.L.; Gianardi, D. High power and high brightness from an optically pumped InAs/InGaSb type-II midinfrared laser with low confinement. Appl. Phys. Lett. 2002, 81, 406–408. [Google Scholar] [CrossRef]
  17. Mourad, C.; Gianardi, D.; Malloy, K.J.; Kaspi, R. 2 μm GaInAsSb/AlGaAsSb midinfrared laser grown digitally on GaSb by modulated-molecular beam epitaxy. J. Appl. Phys. 2000, 88, 5543–5546. [Google Scholar] [CrossRef]
  18. Bennett, B.R.; Ancona, M.G.; Boos, J.B.; Canedy, C.B.; Khan, S.A. Strained GaSb/AlAsSb quantum wells for p-channel field-effect transistors. J. Cryst. Growth 2008, 311, 47–53. [Google Scholar] [CrossRef]
  19. Bracker, A.S.; Yang, M.J.; Bennett, B.R.; Culbertson, J.C.; Moore, W.J. Surface reconstruction phase diagrams for InAs, AlSb, and GaSb. J. Cryst. Growth 2000, 220, 384–392. [Google Scholar] [CrossRef]
  20. O’Donnell, K.P.; Chen, X. Temperature dependence of semiconductor band gaps. Appl. Phys. Lett. 1991, 58, 2924–2926. [Google Scholar] [CrossRef]
  21. Sela, I.; Bolognesi, C.R.; Kroemer, H. Single-mode behavior of AlSb(1−x)Asx alloys. Phys. Rev. B 1992, 46, 16142–16143. [Google Scholar] [CrossRef]
  22. Kawamura, Y.; Gomyo, A.; Suzuki, T.; Higashino, T.; Inoue, N. Band-Gap Change in Ordered/Disordered GaAs1−ySby Layers Grown on (001) and (111)B InP Substrates. Jpn. J. Appl. Phys. 2002, 41, L447. [Google Scholar] [CrossRef]
  23. Kwon, O.; Lin, Y.; Boeckl, J.; Ringel, S.A. Growth and properties of digitally-alloyed AlGaInP by solid source molecular beam epitaxy. J. Electron. Mater. 2005, 34, 1301–1306. [Google Scholar] [CrossRef]
  24. As, D.J.; Schmilgus, F.; Wang, C.; Schöttker, B.; Schikora, D.; Lischka, K. The near band edge photoluminescence of cubic GaN epilayers. Appl. Phys. Lett. 1997, 70, 1311–1313. [Google Scholar] [CrossRef]
  25. Schmidt, T.; Lischka, K.; Zulehner, W. Excitation-power dependence of the near-band-edge photoluminescence of semiconductors. Phys. Rev. B 1992, 45, 8989–8994. [Google Scholar] [CrossRef]
  26. Lieten, R.R.; Bustillo, K.; Smets, T.; Simoen, E.; Ager, J.W.; Haller, E.E.; Locquet, J.P. Photoluminescence of bulk germanium. Phys. Rev. B 2012, 86, 35204. [Google Scholar] [CrossRef]
  27. Wang, G.; Liang, B.; Juang, B.C.; Das, A.; Debnath, M.C.; Huffaker, D.L.; Mazur, Y.I.; Ware, M.E.; Salamo, G.J. Comparative study of photoluminescence from In0.3Ga0.7As/GaAs surface and buried quantum dots. Nanotechnology 2016, 27, 465701. [Google Scholar] [CrossRef] [PubMed]
  28. Ma, Y.J.; Zhang, Y.G.; Gu, Y.; Xi, S.P.; Chen, X.Y.; Liang, B.; Juang, B.C.; Huffaker, D.L.; Du, B.; Shao, X.M.; et al. Behaviors of beryllium compensation doping in InGaAsP grown by gas source molecular beam epitaxy. AIP Adv. 2017, 7. [Google Scholar] [CrossRef]
  29. Baranowski, M.; Kudrawiec, R.; Syperek, M.; Misiewicz, J.; Sarmiento, T.; Harris, J.S. Time-resolved photoluminescence studies of annealed 1.3-μm GaInNAsSb quantum wells. Nanoscale Res. Lett. 2014, 9, 81. [Google Scholar] [CrossRef] [PubMed]

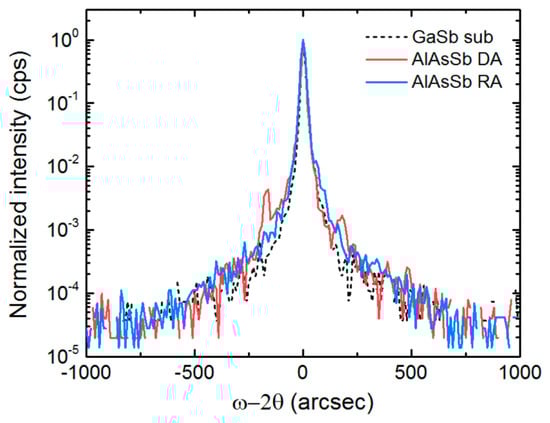

Figure 1. HRXRD ω-2θ scans for the AlAsSb DA and RA samples. The ω-2θ scan of the GaSb substrate is also shown as a reference.
Figure 1. HRXRD ω-2θ scans for the AlAsSb DA and RA samples. The ω-2θ scan of the GaSb substrate is also shown as a reference.
Crystals 07 00313 g001
Figure 2. Cross-section TEM images for the AlAsSb (a) DA and (b) RA samples, and (c,d) show the HRTEM images of the GaSb/AlAsSb interfaces.
Figure 2. Cross-section TEM images for the AlAsSb (a) DA and (b) RA samples, and (c,d) show the HRTEM images of the GaSb/AlAsSb interfaces.
Crystals 07 00313 g002

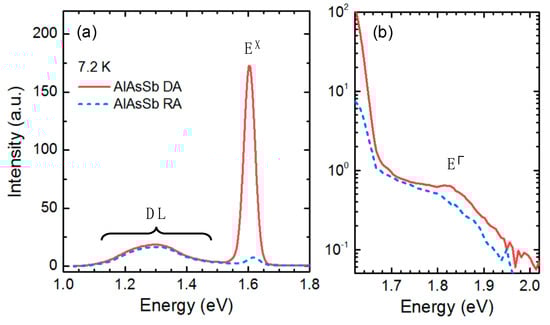

Figure 3. (a) Low-temperature PL spectra of the AlAsSb DA and RA samples at 7.2 K; and (b) the Γ band transition with a logarithmic scale.
Figure 3. (a) Low-temperature PL spectra of the AlAsSb DA and RA samples at 7.2 K; and (b) the Γ band transition with a logarithmic scale.
Crystals 07 00313 g003

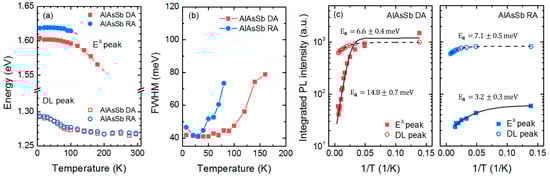

Figure 4. Temperature-dependent measurement of (a) peak energies; (b) peak FWHM; and (c) integrated PL intensities of the EX and DL peaks for the AlAsSb DA and RA samples.
Figure 4. Temperature-dependent measurement of (a) peak energies; (b) peak FWHM; and (c) integrated PL intensities of the EX and DL peaks for the AlAsSb DA and RA samples.
Crystals 07 00313 g004
Figure 5. PL peak energies of (a) EX peak and (b) DL peak for both DA and RA samples as a function of laser excitation power.
Figure 5. PL peak energies of (a) EX peak and (b) DL peak for both DA and RA samples as a function of laser excitation power.
Crystals 07 00313 g005

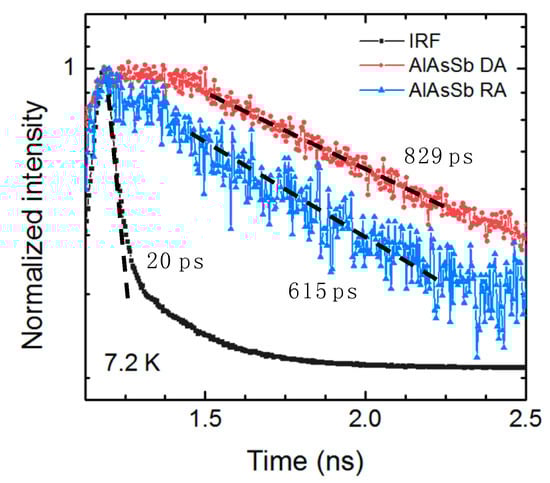

Figure 6. The TRPL data for the DA and RA samples of X band transition at 7.2 K. The IRF is also shown in the plot.
Figure 6. The TRPL data for the DA and RA samples of X band transition at 7.2 K. The IRF is also shown in the plot.
Crystals 07 00313 g006
Table 1. Parameters extracted by fitting experimental data of the AlAsSb DA and RA samples.
Table 1. Parameters extracted by fitting experimental data of the AlAsSb DA and RA samples.
Sample E g ( 0 ) S ω
AlAsSb DA1.602 eV4.8938.1 ± 3.4 meV
AlAsSb RA1.619 eV3.0032.3 ± 9.2 meV
