Open AccessArticle
Crystals 2017, 7(12), 362; doi:10.3390/cryst7120362

Study of Anisotropic Plastic Behavior in High Pressure Torsion of Aluminum Single Crystal by Crystal Plasticity Finite Element Method

1
State Key Laboratory of Mechanical Transmissions, Chongqing University, Chongqing 400044, China
2
School of Mechanical, Materials and Mechatronic Engineering, University of Wollongong, Wollongong, NSW 2522, Australia
3
Department of Materials Science and Engineering, Kyoto University, Sakyo-ku 606-8501, Japan
*
Author to whom correspondence should be addressed.
Academic Editor: Peter Lagerlof
Received: 28 October 2017 / Revised: 25 November 2017 / Accepted: 4 December 2017 / Published: 6 December 2017
(This article belongs to the Special Issue Crystal Dislocations: Their Impact on Physical Properties of Crystals)
View Full-Text   |   Download PDF [2227 KB, uploaded 6 December 2017]   |

Abstract

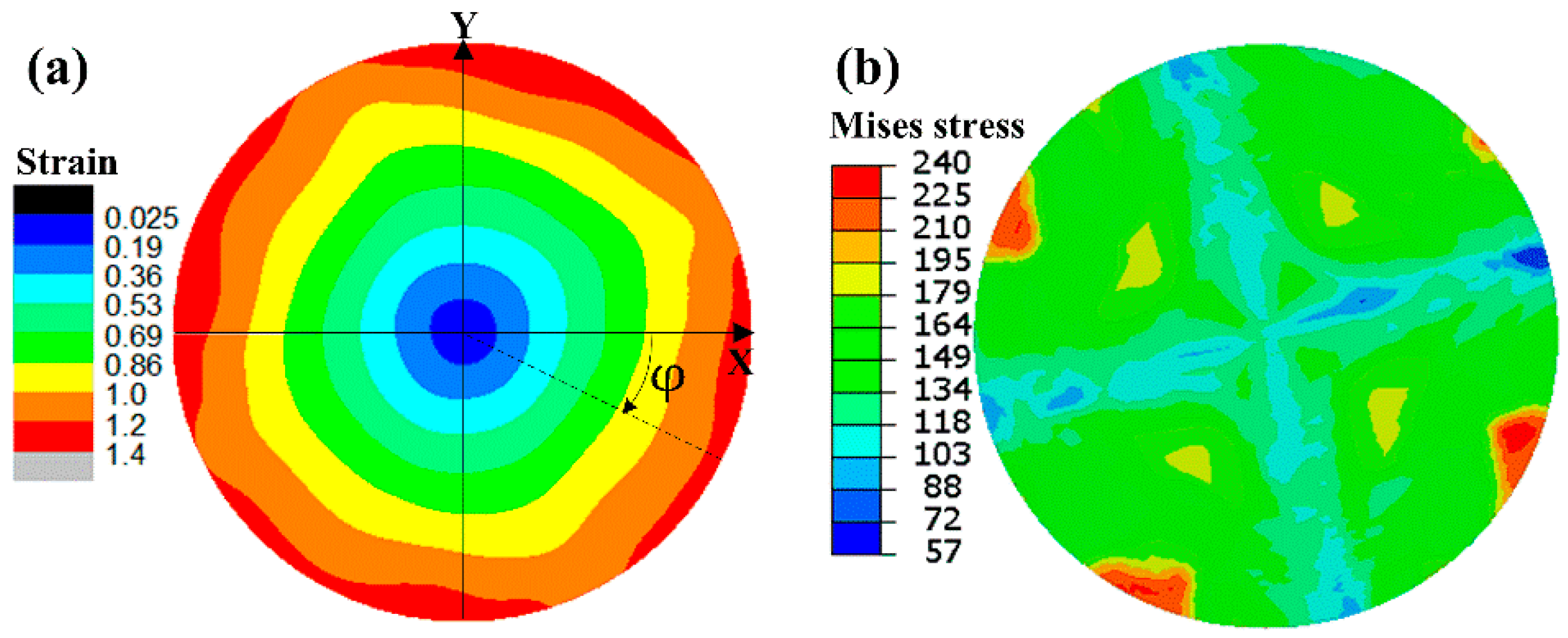

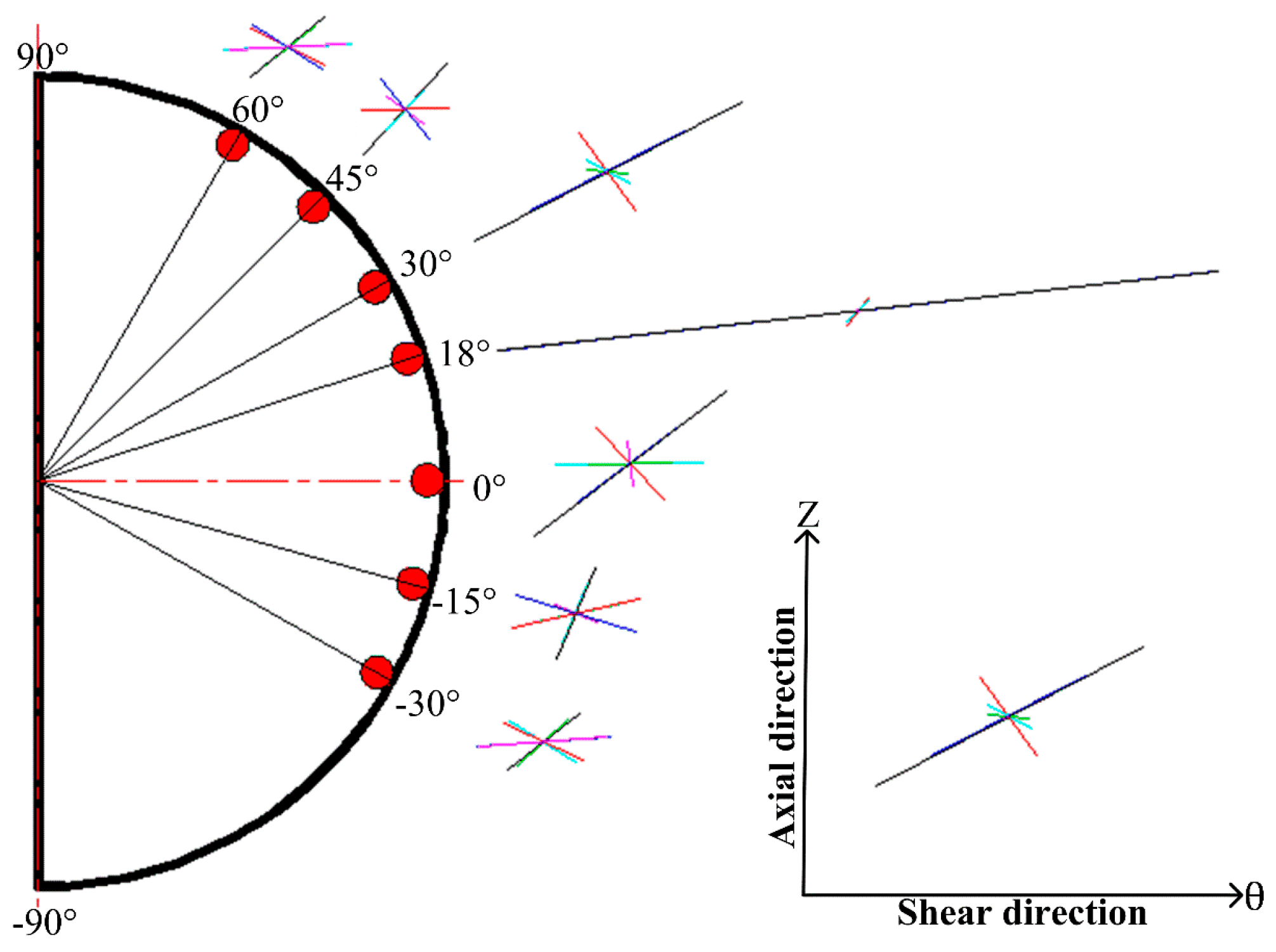

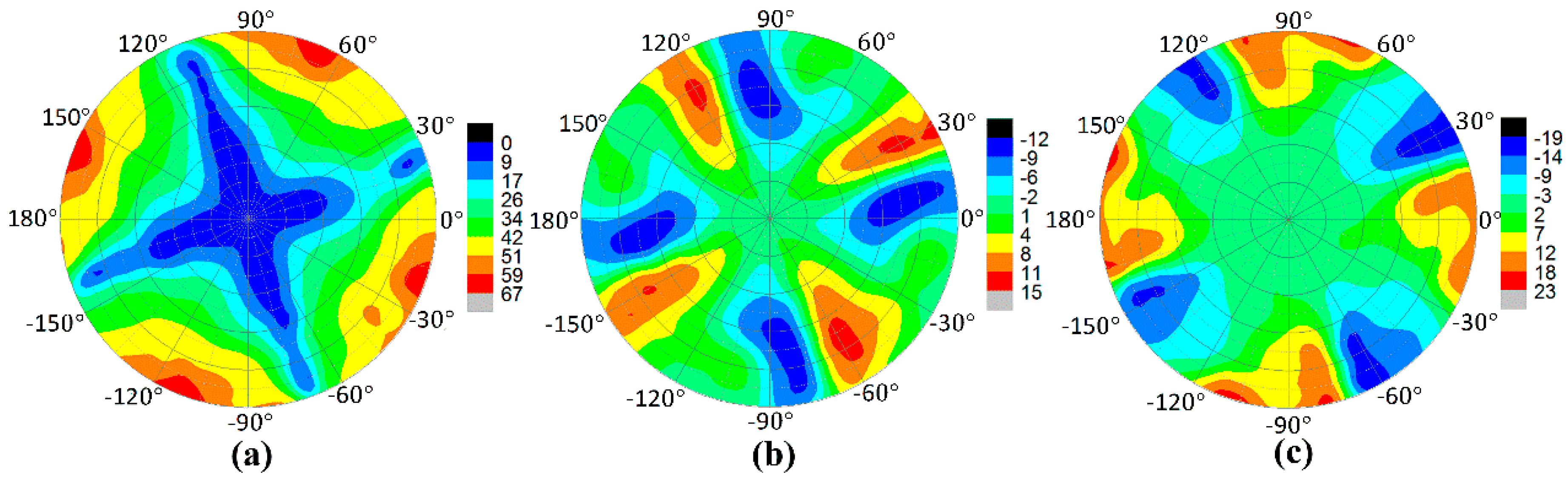

In this study, a crystal plasticity finite element method (CPFEM) model has been developed to investigate the anisotropic plastic behavior of (001) aluminum single crystal during high-pressure torsion (HPT). The distributions of equivalent plastic strain and Mises stress recorded on the sample surface are presented. The directional variations of plastic strain and Mises stress with the development of four-fold symmetry pattern are observed along the sample circumference. The crystallographic orientation evolution along the tangential direction is studied, and the corresponding lattice rotation and slip trace are predicted, respectively. The plastic anisotropy mechanism is discussed in detail based on the theory of crystal plasticity. The simulation results reveal that the differences in slip systems activation (dominant slip and multiple slips) are responsible for the anisotropic plastic deformation in HPT. View Full-Text
Keywords: high pressure torsion (HPT); crystal plasticity; anisotropic; crystallographic orientation; slip trace; lattice rotation high pressure torsion (HPT); crystal plasticity; anisotropic; crystallographic orientation; slip trace; lattice rotation
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).
