Article

Site Identity and Importance in Cosubstituted Bixbyite In2O3

1
Department of Chemistry, Northwestern University, Evanston, IL 60208, USA
2
Department of Physics, Osmaniye Korkut Ata University, Osmaniye 80000, Turkey
3
Physics Department, Cukurova University, Adana 01330, Turkey
4
Department of Physics and Astronomy, Northwestern University, Evanston, IL 60208, USA
*
Author to whom correspondence should be addressed.
Crystals 2017, 7(2), 47; https://doi.org/10.3390/cryst7020047
Submission received: 14 December 2016 / Revised: 5 February 2017 / Accepted: 6 February 2017 / Published: 9 February 2017
(This article belongs to the Special Issue Crystal Structure of Electroceramics)

Abstract

:
The bixbyite structure of In2O3 has two nonequivalent, 6-coordinate cation sites and, when Sn is doped into In2O3, the Sn prefers the “b-site” and produces a highly conductive material. When divalent/tetravalent cation pairs are cosubstituted into In2O3, however, the conductivity increases to a lesser extent and the site occupancy is less understood. We examine the site occupancy in the MgxIn2−2xSnxO3 and ZnxIn2−2xSnxO3 systems with high resolution X-ray and neutron diffraction and density functional theory computations, respectively. In these sample cases and those that are previously reported in the MxIn2−2xSnxO3 (M = Cu, Ni, or Zn) systems, the solubility limit is greater than 25%, ensuring that the b-site cannot be the exclusively preferred site as it is in Sn:In2O3. Prior to this saturation point, we report that the M2+ cation always has at least a partial occupancy on the d-site and the Sn4+ cation has at least a partial occupancy on the b-site. The energies of formation for these configurations are highly favored, and prefer that the divalent and tetravalent substitutes are adjacent in the crystal lattice, which suggests short range ordering. Diffuse reflectance and 4-point probe measurements of MgxIn2−xSnxO3 demonstrate that it can maintain an optical band gap >2.8 eV while surpassing 1000 S/cm in conductivity. Understanding how multiple constituents occupy the two nonequivalent cation sites can provide information on how to optimize cosubstituted systems to increase Sn solubility while maintaining its dopant nature, achieving maximum conductivity.

1. Introduction

Bixbyite indium oxide is the basis of industrially important n-type transparent conducting oxides, which are in turn fundamental components of flat panel displays, touch screens, and solar cells [1,2,3]. Specifically, tin-doped indium oxide (ITO) is a highly effective transparent conducting oxide that derives its desirable conductivity from the formation of Frank-Köstlin clusters [4]. The concentration of these clusters are directly influenced by the solubility of tin in the bixbyite lattice. As higher conductivities are being demanded of transparent conductors, increasing the solubility of tin in the bixbyite structure is of interest.
One proven method to increase the solubility of tin in In2O3 is to perform a cosubstitution of M2+ and Sn4+ into In2O3, where M = Mg, Ca, Ni, Cu, Zn, or Cd, to form MxIn2−2xSnxO3 which maintains the bixbyite structure of In2O3. In so doing, solubility limits as high as x = 0.5 can be achieved, which is approximately double the amount of tin in ITO [5,6]. This does not double the conductivity of ITO, however, as the cosubstitution is not true doping because the tetravalent tin is counterbalanced by a divalent cation when replacing two trivalent cations. A complete counterbalancing effect would substantially decrease the conductivity when compared to ITO, but in some cases an inherent off stoichiometry in the divalent and tetravalent cation is observed, which results in a dopant effect and high conductivity [7].
In ITO, the dopant favors one of the two nonequivalent cation sites present in the bixbyite structure. Both sites are 6-coordinate and can be described as a cube with two anion positions vacant along either a body diagonal (b-site) or a face diagonal (d-site). Computational and experimental studies agree that the tin in ITO favors the b-site [8,9,10]. The b-site comprises 25% of the cation sites in the bixbyite structure, shown in Figure 1, which would inherently limit the solubility of tin, but the solubility limit is actually lower, resulting in mixed indium and tin occupancy of the b-site. The solubility limits of cosubstituted bixbyite, however, can occupy up to 50% of the cation sites and therefore must alter the d-site either exclusively or in combination with the b-site. The impact of multiple constituents (i.e., only Sn vs. M/Sn pairs) on the electronic properties has already drawn investigative interest, particularly for M = Zn, but the importance of site occupancy has not yet been tied to either the multiple constituents or the electronic properties [11,12]. The constituent identities and their site preferences have been linked to crystal structure, however, as exhibited by the cosubstitution of Zn/Ge pairs. In this instance, the system forms a single defined phase instead of a solid solution and departs from the bixbyite structure in order to provide a 4-coordinate site for Ge [13].
A thorough understanding of how multiple constituents occupy the two nonequivalent cation sites in bixbyite can provide information on how to optimize the cosubstituted systems to increase tin solubility while maintaining its dopant nature. Herein, the cosubstituted bixbyite system MxIn2−2xSnxO3, with M = Mg or Zn, is evaluated and the site occupancies and electronic properties are compared to each other and reported cosubstituted systems. The ZnxIn2−2xSnxO3 system (commonly referred to as either ZITO or IZTO) is widely studied as a transparent conductor and the electronic properties have been previously reported, but here it is investigated with a computational approach that examines local site structure [6,11,14,15,16,17,18,19]. MgxIn2−2xSnxO3, in contrast, has been the subject of a single bulk study and a thin film study and here is the subject of a more thorough structural and property study [5,20]. Local coordination environments and site occupancies are difficult to confidently determine with experimental techniques, which average sites in a bulk sample, and thus computational approaches are more informative in these approaches. Both methods are presented here and suggest that the b-site is still the more important site for the tetravalent cation and thus the conductivity of these materials.

2. Results

2.1. Solid Solution Characterization

The lattice parameters for as-synthesized MgxIn2−2x − SnxO3 (x ≤ 0.3) are determined by X-ray diffraction (XRD) and the lattice parameters for ZnxIn2−2x − SnxO3 (x ≤ 0.5) are calculated via density functional theory (DFT). Both sets of lattice parameters are provided in Figure S1 and the XRD patterns used to calculate the parameters for MgxIn2−2x − SnxO3 are shown in Figure S2. The lattice parameters exhibit linear decreases, following Vegard’s Law, as a result of the smaller radii of Mg/Sn (0.72 Å/0.69 Å) and Zn/Sn (0.74 Å/0.69 Å) pairs compared to that of In/In (0.80 Å) pairs [21,22,23]. The MgxIn2−2x − SnxO3 lattice parameters closely match those that have been previously reported for the system, but the ZnxIn2−2x − SnxO3 lattice parameters are systematically expanded, a somewhat common occurrence when DFT results are compared with experimental results [24,25]. The solubility limit of the Mg/Sn pairing (0.3) is slightly higher than previous reports (0.25) [5]. Surpassing the solubility limit in MgxIn2−2x − SnxO3 produces the easily identified SnO2 and MgO phases. Off stoichiometry trials (i.e., where [Mg] ≠ [Sn]) were attempted, but were unsuccessful in creating the Sn rich phases reported via thin film synthesis [20].

2.2. Mg0.1In1.8Sn0.1O3 Structural Refinement

A joint Rietveld refinement of synchrotron XRD and time-of-flight neutron diffraction (TOF-ND) data for Mg0.1In1.8Sn0.1O3 (x = 0.1) is considered. The overall bixbyite structure is maintained and the goodness-of-fit parameters for a joint Rietveld refinement of each probable occupancy pattern are provided in Table 1. The Rietveld refinement and difference patterns are provided in Figure S3. As can be observed, all of the occupancy patterns display similar fits, with differences in total Rwp values being less than 0.0012. The χ2 and Bragg factors also display similar values. One factor that negatively impacts the goodness of fit parameters for the XRD refinement is a systematic, asymmetric peak shape with tails at lower d values. Such a shape is typically associated with stacking or deformation faults. The fits discussed here do not account for this asymmetry, as the exact cause is unclear and thus an appropriate model cannot be applied. Even without accounting for this asymmetry, the fits are reasonable but maintain residual intensity on each reflection. Using Hamilton’s R test with 45 refined parameters, 545 XRD reflections, and 1080 ND reflections, the difference between the Rwp values ≥ 0.2208 and the Rwp values ≤ 0.2199 is statistically significant at the 0.5% level. That is, the hypothesis that the fits without Mg on the d-site are correct is rejected [26]. The differences between the remaining models, however, are not statistically significant. The qualitative assessment of the difference patterns for these fits do not offer assistance in selecting a site. These data suggest that a “correct” structural model must contain Mg on the d-site, but the exact quantity is unknown and the Sn location is inconclusive. It is possible that this ambiguity arises from the aforementioned asymmetric peak shapes that are not accounted for in the refinement, but it is also possible that introducing a model to handle the asymmetry would decrease the ability to accurately discern occupancies, maintaining the inconclusive results.

2.3. ZnxIn2−2xSnxO3 Formation Energy Computations

The formation energies of ZnxIn2−2xSnxO3 for different values of x are calculated and provided in Figure 2a. As the amount of substitutes increases, the favorability of the reaction decreases and the results are prone to a higher variability. Even with this increased variability, the data set displays a good linear fit for x > 0 until the final data point (x = 0.50) which changes the R2 value from 0.9817 to 0.9515. Note that previous reports place the experimentally determined solubility limit as x ≤ 0.4 in ZnxIn2−2xSnxO3 [6]. The higher variability is a result of the greater possible variety of site occupancies of the substitutes that are considered. These different occupancies are considered in Figure 2b for a single Zn/Sn pair. A shorter Zn-Sn separation difference is the most favored configuration, regardless as to the specific site occupancies. The relative favorability between the different site occupancies is maintained with distance and the overall most favorable occupancy pattern is Zn present on the d-site, Sn present on the b-site, and the Zn and Sn present in neighboring positions.

2.4. MgxIn2−2xSnxO3 Conductivity and Band Gap Measurements

The original discovery of the MgxIn2−2xSnxO3 solid solution assessed the optical properties of x = 0.05 and 0.25 and the temperature-dependent conductivity of x = 0.05. From this preliminary characterization, the band gap is known to be similar to that of ITO, but the conductivity is approximately one order of magnitude lower than that of ITO [5]. The Seebeck coefficients of the as-synthesized materials (see Figure S4) have a negative parity, identifying the MgxIn2−2xSnxO3 system as n-type. In the original investigation, the samples were air quenched, but reduction treatments of n-type TCOs are common practices for increasing oxygen defects and therefore the conductivity and had not yet been performed. The room temperature conductivity of MgxIn2−2xSnxO3 before and after such a reduction procedure is shown in Figure 3 [27]. The conductivity of as-synthesized MgxIn2−2xSnxO3 was previously reported to be on the order of 100 Ω ∙ cm (equivalent to 100 S/cm), but here, the conductivity of the as-synthesized MgxIn2−2xSnxO3 ranges from 5.8 × 101 S/cm−1 to 1.56 × 102 S/cm−1, which are orders of magnitude greater. Furthermore, upon reduction, the conductivity of MgxIn2−2xSnxO3 can reach as high as 1064 S/cm, which makes that specific composition (x = 0.05) of potential interest as a commercial TCO material. Most notable is the severe drop in reduced conductivity from x = 0.05 to 0.1. Although conductivity typically decreases with decreasing In content in cosubstituted In2O3, a decrease of such magnitude is remarkable [11]. Powder XRD of the reduced samples do not exhibit any structural alterations, such as the emergence of secondary phases, that would account for the increased conductivity (relative to the pre-reduction conductivity).
With the favorable conductivity, the optical properties of the MgxIn2−2xSnxO3 solid solution are of interest and have also been assessed. Prior to reduction, pellets of MgxIn2−2xSnxO3 are pale yellow. After reduction, the same pellets are blue-gray. The optical band gaps of these materials are displayed in Figure 4 and, as can be observed, exhibit a ~0.1 eV increase upon reduction. Such an increase is common in n-type TCOs, as the reduction procedure increases the number of carriers, as evidenced by the increased conductivity, which enables a Burstein-Moss shift to occur, elevating the value of the optical band gap [28,29]. The fact that these materials are still n-type is confirmed by the Seebeck coefficients of the reduced samples (Figure S4), as they are negative. As mentioned in the discovery of the MgxIn2−2xSnxO3 system, the optical properties compare favorably with those of ITO. Thus the MgxIn2−2xSnxO3 solid solution can display both a high transparency and conductivity.

3. Discussion

The greatest question facing a complete structural solution of the MgxIn2−2xSnxO3 system is the location(s) of the substituting elements. As demonstrated in Table 1, the joint Rietveld refinement does not provide a definite occupancy of the structure. The structurally characterized members of the MxIn2−2xSnxO3 (M = Ca, Ni, Cu, Zn, or Cd) family can be considered for guiding which of the aforementioned occupancy models is most accurate and the site occupancies of those that have been structurally characterized (M = Ni, Cu, Zn) are provided in Table 2. In all cases where Rietveld refinement of X-ray and neutron data were used, (1) a substantial amount of the M2+ substitute is present on the d-site; (2) there is some Sn4+ present on the b-site; and (3) the majority of M2+ is present on the site with the minority of Sn4+. Unlike these overarching trends, relative site concentrations vary significantly, with a majority of M2+ being able to be present on either the b-site (M = Ni) or the d-site (M = Cu, Zn) and Sn4+ being entirely confined to the b-site (M = Cu) or nearly confined to the d-site (M = Ni). In the similar In2−xX2x/3Sbx/3O3 (X = Zn or Cu) system, however, Sb5+ only occupies the b-site, which is similar to the occupancy of Sn4+ in ITO and one of the best fits for Mg0.1In1.8Sn0.1O3 [9,10,30] With the similar goodness-of-fit parameters for the different occupancy models of Mg0.1In1.8Sn0.1O3, and the lack of a distinguishing trend in the MxIn2−2xSnxO3 family, the most reliable conclusion from this structural investigation is that there must be some Mg on the d-site in Mg0.1In1.8Sn0.1O3.
As shown in Table 2, the M = Zn system has been structurally characterized previously, but the reported occupancies are in conflict. Powder XRD studies suggest that Sn4+ only occupies the b-site, but additional studies with extended X-ray absorption fine structure (EXAFS) analysis have shown that both Zn and Sn are statistically distributed over the two available sites, with the probable formation of Sn clusters [5,14,15]. These contradicting results and the difficulty in definitively determining the site occupancies in MgxIn2−2xSnxO3, which is likely exacerbated by a microstructure disorder that results in the asymmetric peak shapes, suggest that an approach that avoids these difficulties is needed. Computational chemistry offers such a solution and the formation energies of different occupational models of ZnxIn2−2xSnxO3 are calculated to seek a guiding principle and are provided in Figure 2b. Regardless as to the site occupancies, the higher the degree of separation, the lower the favorability of the formation, suggesting short range ordering may be present. The most favored points are when Zn and Sn are separated by 3.5769 Å, which translates to Zn and Sn being present in adjacent cation sites. Of the configurations that can have Zn and Sn adjacent, the mixed configurations, specifically when Zn is on the d-site and Sn is on the b-site, are most favored. These findings corroborate earlier reports of the stability of Zn on the d-site and Sn on the b-site. In the prior study, however, substitution on solely the b- or d-site was not mentioned [12]. This also fits with what is currently known experimentally, as Sn prefers the b-site in ITO and M2+ is always present on the d-site in MxIn2-2xSnxO3. The inverse of these trends, when Sn is only present on the d-site and Zn is only present on the b-site are far less favored. Furthermore, the least favored configuration is when the b-site is not substituted, again suggesting that ITO’s trends are still apparent in the cosubstituted systems. Interestingly, the stability switches to complete b-site substitution once the larger separations are considered. This suggests that local M2+/Sn4+ interactions stabilize the structure, but the b-site is energetically favored if the interactions are negligible.

4. Materials and Methods

4.1. MgxIn2-2xSnxO3 Sample Preparation

Samples of MgxIn2−2xSnxO3 (x = 0.05, 0.1, 0.15, 0.2, 0.25, and 0.3) were prepared by mixing stoichiometric quantities of MgO, In2O3, and SnO2 via a Fritsch planetary ball mill using agate media at 600 rpm for 4 cycles of 15 min, with pauses of 5 min between cycles. MgO was subjected to thermogravimetric analysis prior to this preparation and no carbonates or hydroxides were detected. Each sample was pressed into six, 13 mm in diameter cylindrical pellet under 16000 psi, buried in sacrificial powder in separate nested alumina crucibles, and heated to 1300 °C at a rate of 5 °C per min. The temperature was held at 1300 °C for 28 h before being cooled to 25 °C at a rate of 5 °C per min. Reduced samples were prepared on beds of sacrificial powder in alumina boats and ramped to 500 °C at a rate of 5 °C per min, dwelled at 500 °C for 7 h, and cooled to room temperature at a rate of 5 °C per min under a 5% hydrogen atmosphere (argon balance).

4.2. MgxIn2−2xSnxO3 Sample Characterization

Structure studies were performed with X-ray and neutron diffraction. A sample of Mg0.1In1.8Sn0.1O3 was prepared as a 2.54 cm cylindrical pellet and treated to the same procedure as above, but was not subjected to the reduction treatments. Instead, it was reground in the ball mill using tungsten carbide media at 600 rpm for 3 min and placed into a cylindrical (diameter = 6 mm) vanadium can and time-of-flight ND data were collected at the POWGEN beamline at the spallation neutron source at Oak Ridge National Laboratory. All data were collected at 26.85 °C with a central wavelength of 1.066 Å. Another portion of this sample was packed into a cylindrical Kapton capillary (inner diameter = 0.8 mm) and both ends were sealed with Q Compound (Apiezone). Synchrotron XRD data were collected at 11-BM on the advanced photon source at Argonne National Laboratory with a wavelength of 0.459 Å at 26.85 °C. Structural determinations used these data in joint Rietveld refinements via EXPGUI using GSAS [31,32]. One of the six pellets of each composition was removed after firing and a second pellet was removed after the reduction. Each pellet was ground in an agate mortar and pestle with ~10% silicon by mass, packed onto a flat glass slide, and subjected to Cu radiation in an Ultima IV (Rigaku, Tokyo, Japan) X-ray diffractometer. Scans were taken with 2θ beginning at 10 and ending at 70. The non-reduced patterns were the input used to calculate lattice parameters via whole pattern fitting (MDI Jade 2010). Silicon was used as an internal standard to correct for instrumental offset.
Conductivity studies were performed with a four-point probe. The sheet resistance of each pellet was measured after firing and reduction at five different locations on each face at room temperature using a four-point probe (Model 280PI, Four Dimensions, Inc. Hayward, CA, USA). Sample dimensions and masses were taken at each step to apply geometry and thickness corrections and the sheet resistance was converted to bulk conductivity [33]. Additionally, a porosity correction following the Bruggeman symmetric medium model was applied to each result, assuming that the air in the pellet acts as an insulating phase, following the same procedure as reported previously [13,34].
Band gaps were determined via diffuse reflectance. The diffuse reflectance of each pellet was measured from 250 to 800 nm at room temperature using a Lambda 1050 UV-Vis spectrophotometer with an integrating sphere attachment (PerkinElmer, Inc. Waltham, MA, USA) after firing and reduction. Background spectra were performed on compacted polytetrafluoroethylene. Optical band gaps were calculated by converting diffuse reflectance into Kubelka-Munk notation and approximating the optical band gap as the intersection of a linear extrapolation of the band edge and a linear extrapolation of the background [35,36,37].
Seebeck coefficients were measured on a Seebeck Measurement System (MMR Technologies, San Jose, CA, USA). Pre-and post-reduced samples were prepared as cylindrical pellets as described above. These were then cut down to ~1 mm × ~1 mm × ~5 mm rectangular prisms and mounted on an alumina stage with silver paste. Five measurements were taken every 15 °C between 305 K and 590 K.

4.3. ZnxIn2-2xSnxO3 Computational Procedure

The structural energies and electronic properties were calculated using spin restricted DFT employed through the Vienna ab initio simulation package (VASP) [38,39,40,41]. Plane augmented wave (PAW) pseudopotentials were used with Perdew-Becke-Ernzerhof (PBE) exchange-correlation functionals [42]. A 2 × 2 × 2 k-point grid and an energy cutoff of 400 eV were used in initial structural relaxations. The final grid was augmented (up to 5 × 5 × 5) to guarantee adequate energy precision to distinguish between differing site configurations. Full 80 atom bixbyite unit cells were used, with varying amounts of pairwise zinc and tin substitution on the indium sites. To reduce computational costs, structural relaxations were mainly performed with tin and indium d-electrons in the pseudopotential core. Static calculations on relaxed cells were performed with indium d-electrons in the valence space to obtain possibly more accurate total energy values, and to assess possible effects on spectroscopic properties. Zinc d-states were always treated as valence, as the Zn d-band falls only a few eV below the Fermi energy. Although quantitative energies changed somewhat, energy ordering with respect to doping and ordering of structures was essentially unaltered. In retrospect, it was found that inclusion of the nominally fully occupied d10 shells of In, Sn and Zn in the valence space was useful in interpreting covalent contributions to bonding, and in elucidating subtle features of the optical densities of states.

5. Conclusions

In summary, we performed a thorough computational examination of ZnxIn2-2xSnxO3 and an experimental examination of MgxIn2−2xSnxO3 to determine site preferences of the substituting atoms. In both instances, and the prior reported materials MxIn2−2xSnxO3 (M = Ni, Cu, or Zn), a M2+ presence on the d-site of bixbyite and a Sn4+ presence on the b-site are suggested. Furthermore, the formation energies of ZnxIn2−2xSnxO3 suggest a short range neighbor pairing of Zn and Sn. Property characterizations of MgxIn2−2xSnxO3 demonstrate that a reduction treatment makes its conductivity and optical properties much more competitive as a transparent conductor while continuing to be n-type despite the counterbalancing effect of Mg2+.

Supplementary Materials

The following are available online at www.mdpi.com/2073-4352/7/2/47/s1, Figure S1: Lattice Parameters of MgxIn2−2xSn2O16 and ZnxIn2−2xSn2O16, Figure S2: XRD patterns of MgxIn2−2xSn2O16, Figure S3: Rietveld Refinement Pattern for Mg0.1In1.8Sn0.1O16, Figure S4: Seebeck Coefficients of MgxIn2−2xSn2O16.

Acknowledgments

Karl Rickert recognizes that this material is based upon work supported by the National Science Foundation Graduate Research Fellowship Program under Grant No. DGE-1324585. Any opinions, findings, and conclusions or recommendations expressed in this material are those of the author(s) and do not necessarily reflect the views of the National Science Foundation. N.S. gratefully acknowledge that this study was partially supported by the Council of Higher Education (CoHE) of Turkey. Karl Rickert, Nazmi Sedefoglu, Jeremy Harris, and Kenneth R. Poeppelmeier gratefully acknowledge additional support from the Department of Energy Basic Energy Sciences Award No. DE-FG02-08ER46536. A portion of this research was performed at Oak Ridge National Laboratory’s Spallation Neutron Source at POWGEN, which is sponsored by the Scientific User Facilities Division, Office of Basic Energy Sciences, and the U.S. Department of Energy. Use of 11BM at the Advanced Photon Source at Argonne National Laboratory was supported by the U.S. Department of Energy, Office of Science, Office of Basic Energy Sciences, under Contract No. DE-AC02-06CH11357. This work made use of the J. B. Cohen X-ray Diffraction Facility which is supported by the MRSEC program of the National Science Foundation (DMR-1121262) at the Materials Research Center of Northwestern University. A portion of this work was supported by the NU Keck Biophysics Facility and a Cancer Center Support Grant (NCI CA060553).

Author Contributions

Karl Rickert, Nazmi Sedefoglu, Hamide Kavak, and Kenneth R. Poeppelmeier conceived and designed the experiments for MgxIn2−2xSnxO3. Jeremy Harris and Donald E. Ellis conceived and designed the experiments for ZnxIn2−2xSnxO3. Karl Rickert, Jeremy Harris, and Nazmi Sedefoglu performed the experiments for their respective materials. Karl Rickert wrote the paper and analyzed the data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Minami, T. Transparent conducting oxide semiconductors for transparent electrodes. Semicond. Sci. Technol. 2005, 20, S35–S44. [Google Scholar] [CrossRef]
  2. Granqvist, C.G. Transparent conductors as solar energy materials: A panoramic review. Sol. Energy Mater. Sol. Cells 2007, 91, 1529–1598. [Google Scholar] [CrossRef]
  3. Ginley, D.S.; Perkins, J.D. Transparent Conductors. In Handbook of Transparent Conductors; Ginley, D.S., Ed.; Springer: Boston, MA, USA, 2011; pp. 1–25. [Google Scholar]
  4. Frank, G.; Kostlin, H. Electrical-properties and defect model of tin-doped indium oxide layers. Appl. Phys. A 1982, 27, 197–206. [Google Scholar] [CrossRef]
  5. Bizo, L.; Choisnet, J.; Retoux, R.; Raveau, B. The great potential of coupled substitutions in In2O3 for the generation of bixbyite-type transparent conducting oxides, In2−2xMxSnxO3. Solid State Commun. 2005, 136, 163–168. [Google Scholar] [CrossRef]
  6. Hoel, C.A.; Mason, T.O.; Gaillard, J.-F.; Poeppelmeier, K.R. Transparent conducting oxides in the ZnO-In2O3-SnO2 system. Chem. Mater. 2010, 22, 3569–3579. [Google Scholar] [CrossRef]
  7. Harvey, S.P.; Mason, T.O.; Buchholz, D.B.; Chang, R.P.H.; Korber, C.; Klein, A. Carrier generation and inherent off-stoichiometry in Zn, Sn codoped indium oxide (ZITO) bulk and thin-film specimens. J. Am. Ceram. Soc. 2008, 91, 467–472. [Google Scholar] [CrossRef]
  8. Nomura, K.; Ujihira, Y.; Tanaka, S.; Matsumoto, K. Characterization and estimation of ito (indium-tin-oxide) by mossbauer spectrometry. Hyperfine Interact. 1988, 42, 1207–1210. [Google Scholar] [CrossRef]
  9. Nadaud, N.; Lequeux, N.; Nanot, M.; Jové, J.; Roisnel, T. Structural studies of tin-doped indium oxide (ITO) and In4Sn3O12. J. Solid State Chem. 1998, 135, 140–148. [Google Scholar] [CrossRef]
  10. Mryasov, O.N.; Freeman, A.J. Electronic band structure of indium tin oxide and criteria for transparent conducting behavior. Phys. Rev. B 2001, 64, 233111. [Google Scholar] [CrossRef]
  11. Palmer, G.B.; Poeppelmeier, K.R.; Mason, T.O. Conductivity and transparency of ZnO/SnO2-cosubstituted In2O3. Chem. Mater. 1997, 9, 3121–3126. [Google Scholar] [CrossRef]
  12. Lu, Y.-B.; Yang, T.L.; Ling, Z.C.; Cong, W.-Y.; Zhang, P.; Li, Y.H.; Xin, Y.Q. How does the multiple constituent affect the carrier generation and charge transport in multicomponent tcos of In-Zn-Sn oxide. J. Mater. Chem. C 2015, 3, 7727–7737. [Google Scholar] [CrossRef]
  13. Rickert, K.; Sedefoglu, N.; Malo, S.; Caignaert, V.; Kavak, H.; Poeppelmeier, K.R. Structural, electrical, and optical properties of the tetragonal, fluorite-related Zn0.456In1.084Ge0.460O3. Chem. Mater. 2015, 27, 5072–5079. [Google Scholar] [CrossRef]
  14. Proffit, D.E.; Buchholz, D.B.; Chang, R.P.H.; Bedzyk, M.J.; Mason, T.O.; Ma, Q. X-ray absorption spectroscopy study of the local structures of crystalline Zn-In-Sn oxide thin films. J. Appl. Phys. 2009, 106, 113524. [Google Scholar] [CrossRef]
  15. Hoel, C.A.; Gaillard, J.F.; Poeppelmeier, K.R. Probing the local structure of crystalline ZITO: In2-2xSnxZnxO3 (x ≤ 0.4). J. Solid State Chem. 2010, 183, 761–768. [Google Scholar] [CrossRef]
  16. Hoel, C.A.; Gallardo Amores, J.M.; Moran, E.; Angel Alario-Franco, M.; Gaillard, J.-F.; Poeppelmeier, K.R. High-pressure synthesis and local structure of corundum-type In2−2xMxSnxO3 (x ≤ 0.7). JACS 2010, 132, 16479–16487. [Google Scholar]
  17. Hoel, C.A.; Xie, S.; Benmore, C.; Malliakas, C.D.; Gaillard, J.-F.; Poeppelmeier, K.R. Evidence for tetrahedral zinc in amorphous In2-2xZnxSnxO3 (a-ZITO). Z. Anorg. Allg. Chem. 2011, 637, 885–894. [Google Scholar] [CrossRef]
  18. Hoel, C.A.; Buchholz, D.B.; Chang, R.P.H.; Poeppelmeier, K.R. Pulsed-laser deposition of heteroepitaxial corundum-type zito: Cor-In2-2xZnxSnxO3. Thin Solid Films 2012, 520, 2938–2942. [Google Scholar] [CrossRef]
  19. Proffit, D.E.; Philippe, T.; Emery, J.D.; Ma, Q.; Buchholz, B.D.; Voorhees, P.W.; Bedzyk, M.J.; Chang, R.P.H.; Mason, T.O. Thermal stability of amorphous Zn-In-Sn-O films. J. Electroceram. 2015, 34, 167–174. [Google Scholar] [CrossRef]
  20. Ni, J.; Wang, L.; Yang, Y.; Yan, H.; Jin, S.; Marks, T.J.; Ireland, J.R.; Kannewurf, C.R. Charge transport and optical properties of mocvd-derived highly transparent and conductive Mg- and Sn-doped In2O3 thin films. Inorg. Chem. 2005, 44, 6071–6076. [Google Scholar] [CrossRef] [PubMed]
  21. Vegard, L. The constitution of the mixed crystals and the filling of space of the atoms. Z. Phys. 1921, 5, 17–26. [Google Scholar] [CrossRef]
  22. Shannon, R.D. Revised effective ionic-radii and systematic studies of interatomic distances in halides and chalcogenides. Acta Crystallogr. Sect. A Found. Crystallogr. 1976, 32, 751–767. [Google Scholar] [CrossRef]
  23. Denton, A.R.; Ashcroft, N.W. Vegard law. Phys. Rev. A 1991, 43, 3161–3164. [Google Scholar] [CrossRef] [PubMed]
  24. Haas, P.; Tran, F.; Blaha, P. Calculation of the lattice constant of solids with semilocal functionals. Phys. Rev. B 2009, 79, 085104. [Google Scholar] [CrossRef]
  25. Sæterli, R.; Flage-Larsen, E.; Friis, J.; Løvvik, O.M.; Pacaud, J.; Marthinsen, K.; Holmestad, R. Experimental and theoretical study of electron density and structure factors in CoSb3. Ultramicroscopy 2011, 111, 847–853. [Google Scholar] [CrossRef] [PubMed]
  26. Hamilton, W.C. Significance tests on crystallographic r factor. Acta Crystallogr. 1965, 18, 502–510. [Google Scholar] [CrossRef]
  27. Sunde, T.O.L.; Lindgren, M.; Mason, T.O.; Einarsrud, M.A.; Grande, T. Solid solubility of rare earth elements (Nd, Eu, Tb) in In2-xSnxO3—Effect on electrical conductivity and optical properties. Dalton Trans. 2014, 43, 9620–9632. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Burstein, E. Anomalous optical absorption limit in InSb. Phys. Rev. 1954, 93, 632–633. [Google Scholar] [CrossRef]
  29. Moss, T.S. The interpretation of the properties of indium antimonide. Proc. Phys. Soc. Lond. Sect. B 1954, 67, 775–782. [Google Scholar] [CrossRef]
  30. Bizo, L.; Choisnet, J.; Raveau, B. Coupled substitutions in In2O3: New transparent conductors In2−2xM2x/3Sbx/3O3 (M = Cu, Zn). Mater. Res. Bull. 2006, 41, 2232–2237. [Google Scholar] [CrossRef]
  31. Larson, A.C.; Von Dreele, R.B. General structure analysis system (GSAS); Report LAUR; Los Alamos National Laboratory: Los Alamos, NM, USA; pp. 86–748.
  32. Toby, B.H. ‘Expgui’, a graphical user interface for gsas. J. Appl. Crystallogr. 2001, 34, 210–213. [Google Scholar] [CrossRef]
  33. Smits, F.M. Measurement of sheet resistivities with the 4-point probe. Bell Syst. Tech. J. 1958, 37, 711–718. [Google Scholar] [CrossRef]
  34. McLachlan, D.S.; Blaszkiewicz, M.; Newnham, R.E. Electrical-resistivity of composites. J. Am. Ceram. Soc. 1990, 73, 2187–2203. [Google Scholar] [CrossRef]
  35. Kubelka, P.; Munk, Z. An article on optics of paint layers. Z. Tech. Phys. 1931, 12, 593–603. [Google Scholar]
  36. Wendlandt, W.W.; Hecht, H.G. Reflectance Spectroscopy; Interscience Publishers: New York, NY, USA, 1966. [Google Scholar]
  37. Tandon, S.P.; Gupta, J.P. Measurement of forbidden energy gap of semiconductors by diffuse refectance technique. Phys. Status Solidi 1970, 38, 363. [Google Scholar] [CrossRef]
  38. Kresse, G.; Hafner, J. Ab initio molecular-dynamics for liquid-metals. Phys. Rev. B 1993, 47, 558–561. [Google Scholar] [CrossRef]
  39. Kresse, G.; Hafner, J. Ab-initio molecular-dynamics simulation of the liquid metal amorphous-semiconductor transition in germanium. Phys. Rev. B 1994, 49, 14251–14269. [Google Scholar] [CrossRef]
  40. Kresse, G.; Furthmuller, J. Efficient iterative schemes for ab initio total-energy calculations using a plane-wave basis set. Phys. Rev. B 1996, 54, 11169–11186. [Google Scholar] [CrossRef]
  41. Kresse, G.; Furthmuller, J. Efficiency of ab-initio total energy calculations for metals and semiconductors using a plane-wave basis set. Comput. Mater. Sci. 1996, 6, 15–50. [Google Scholar] [CrossRef]
  42. Perdew, J.P.; Burke, K.; Ernzerhof, M. Generalized gradient approximation made simple. Phys. Rev. Lett. 1996, 77, 3865–3868. [Google Scholar] [CrossRef] [PubMed]

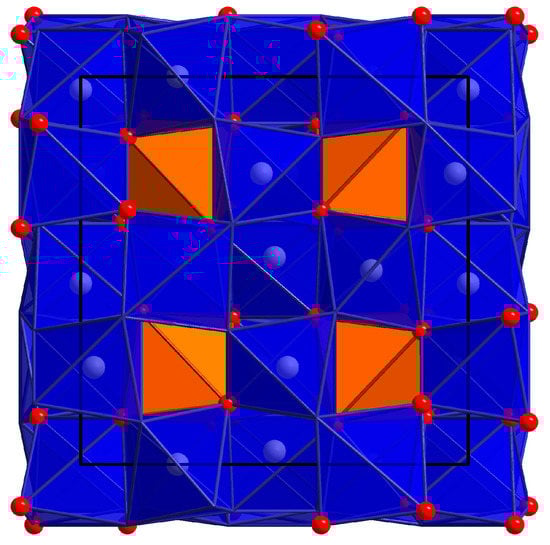

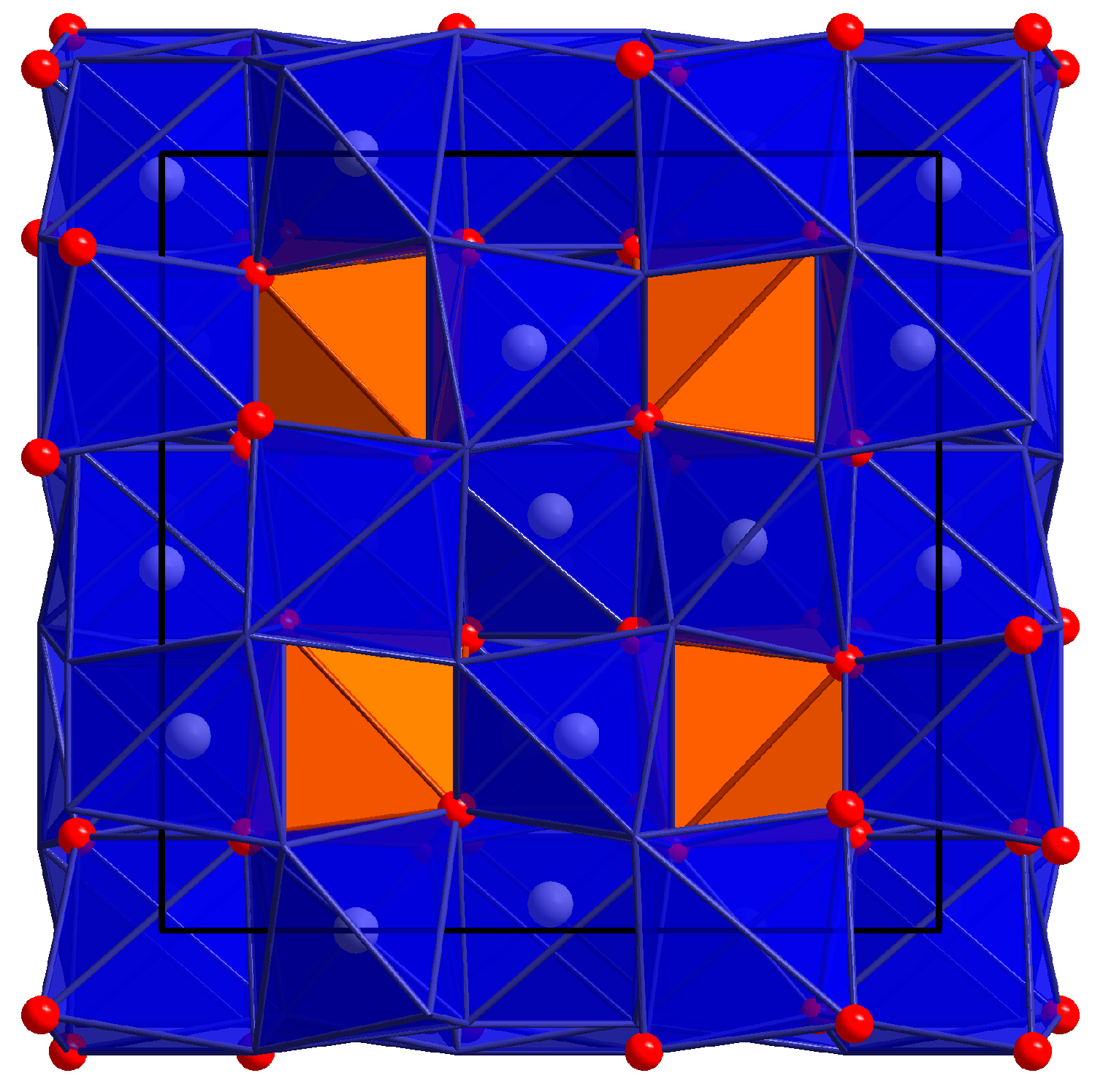

Figure 1. The unit cell (black lines) of bixbyite In2O3 as viewed along the b axis, showing the locations of the b-sites (opaque, orange, 25% of cation sites) and the d-sites (transparent, blue, 75%).
Figure 1. The unit cell (black lines) of bixbyite In2O3 as viewed along the b axis, showing the locations of the b-sites (opaque, orange, 25% of cation sites) and the d-sites (transparent, blue, 75%).
Crystals 07 00047 g001

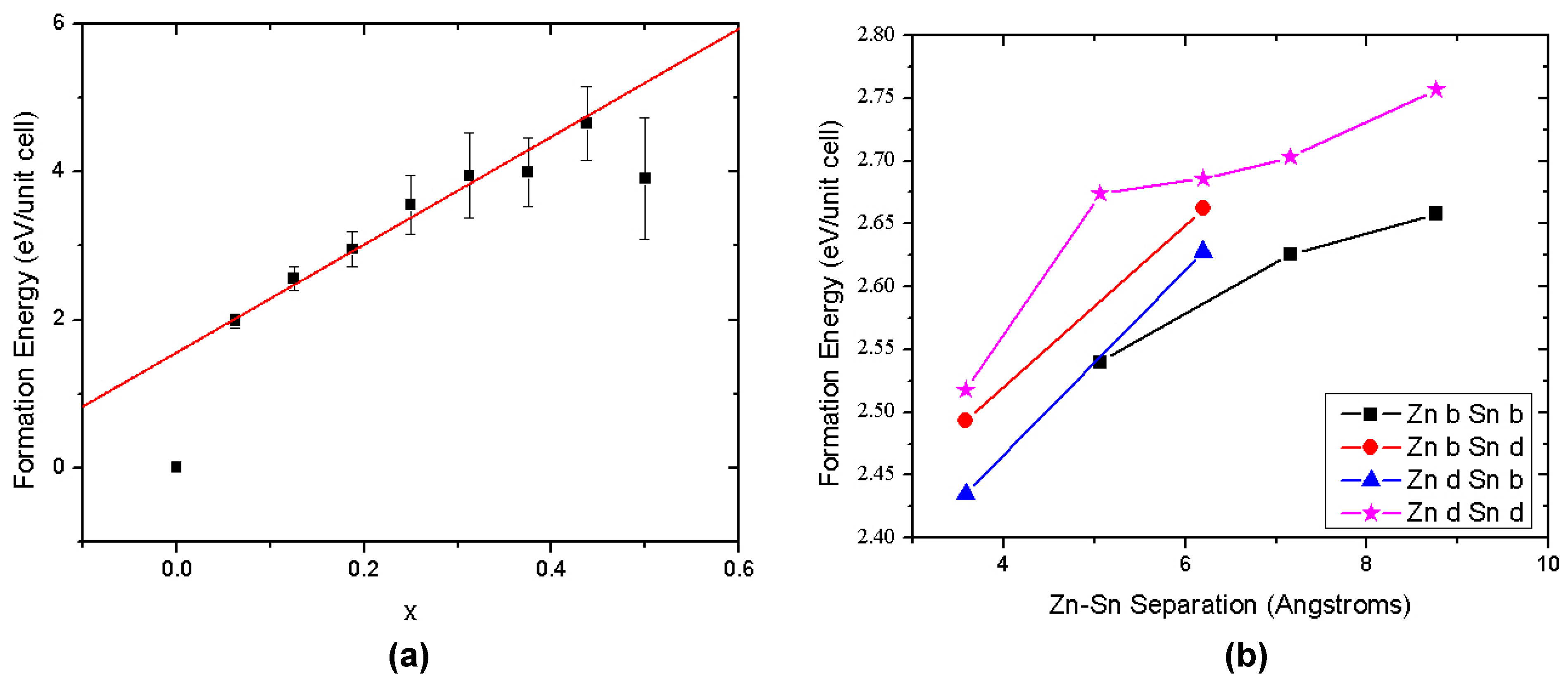

Figure 2. Formation energies as a function of (a) cosubstitution amounts of ZnxIn2−2xSnxO3 and (b) Zn-Sn separation for different site occupancies (i.e., “Zn b Sn b” represents Zn and Sn present on the b site). The linear fit in (a) is for 0 < x < 0.5. All values in (a,b) are normalized to the −449.832 eV of In2O3 (x = 0), thus the greater values have less favored formation energies.
Figure 2. Formation energies as a function of (a) cosubstitution amounts of ZnxIn2−2xSnxO3 and (b) Zn-Sn separation for different site occupancies (i.e., “Zn b Sn b” represents Zn and Sn present on the b site). The linear fit in (a) is for 0 < x < 0.5. All values in (a,b) are normalized to the −449.832 eV of In2O3 (x = 0), thus the greater values have less favored formation energies.
Crystals 07 00047 g002

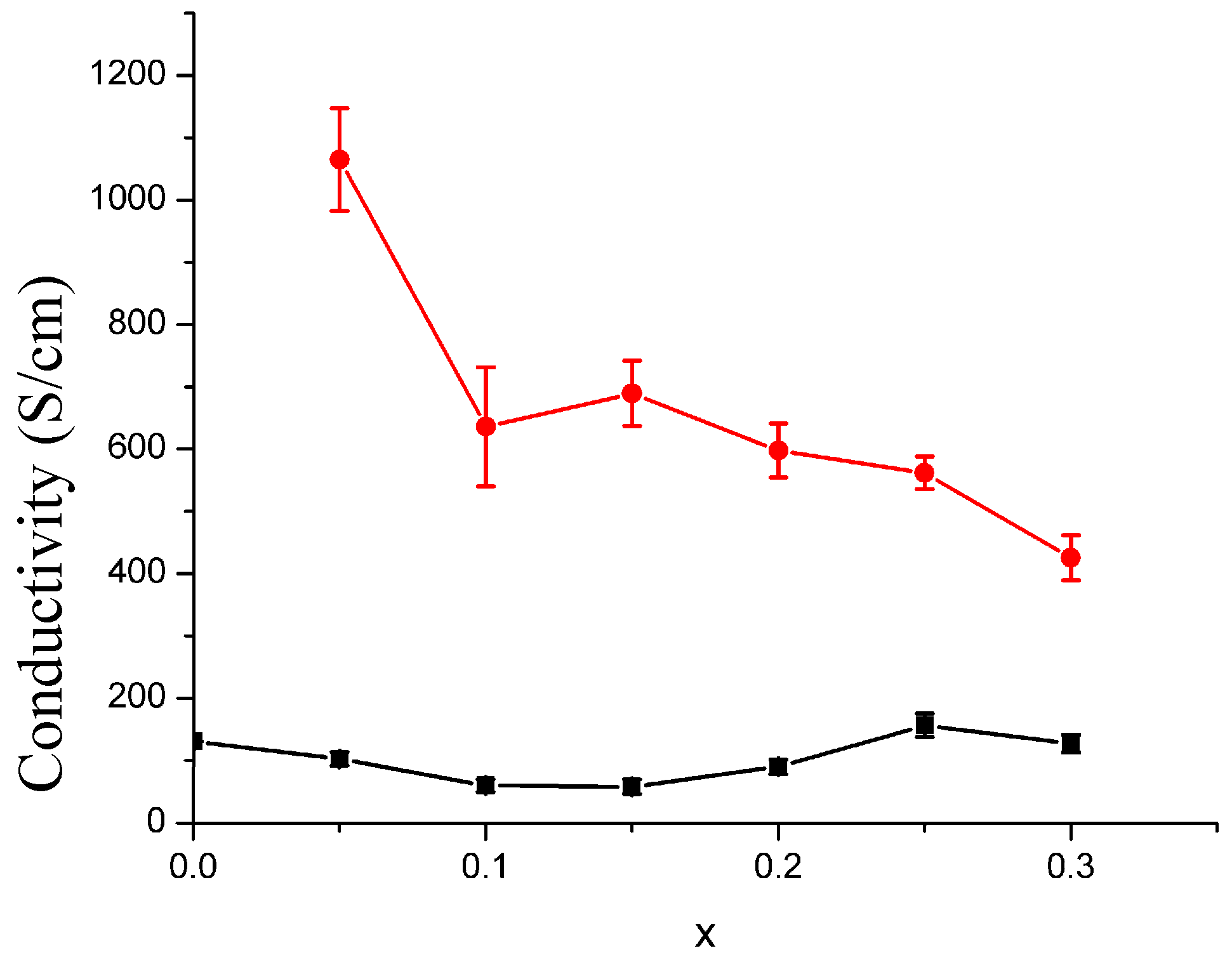

Figure 3. The conductivity of MgxIn2−2xSnxO3 before (squares) and after (circles) reduction. Error bars may be hidden by the data points. The point at x = 0 (pure In2O3) is reproduced from Reference [27], which follows a similar sample preparation.
Figure 3. The conductivity of MgxIn2−2xSnxO3 before (squares) and after (circles) reduction. Error bars may be hidden by the data points. The point at x = 0 (pure In2O3) is reproduced from Reference [27], which follows a similar sample preparation.
Crystals 07 00047 g003

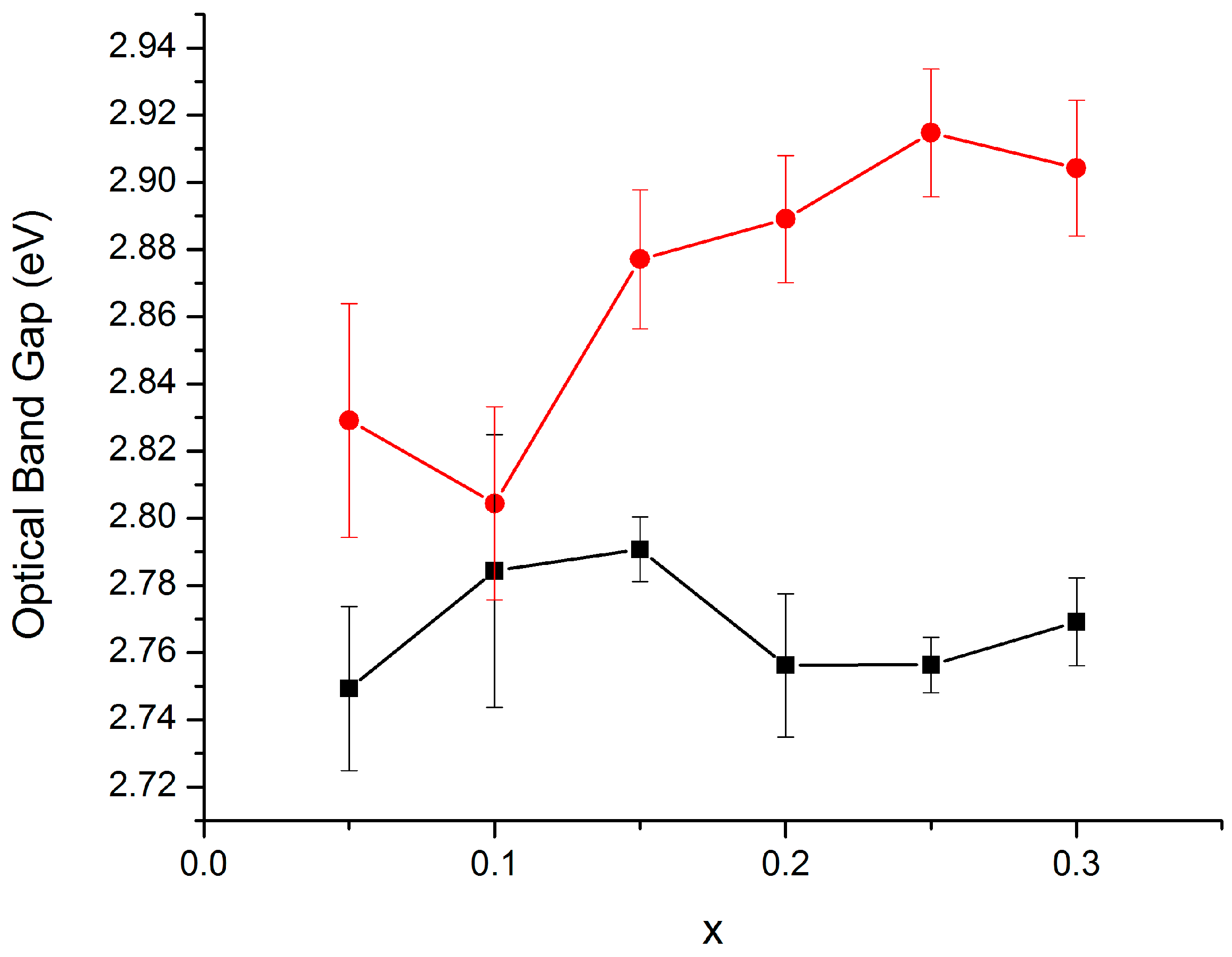

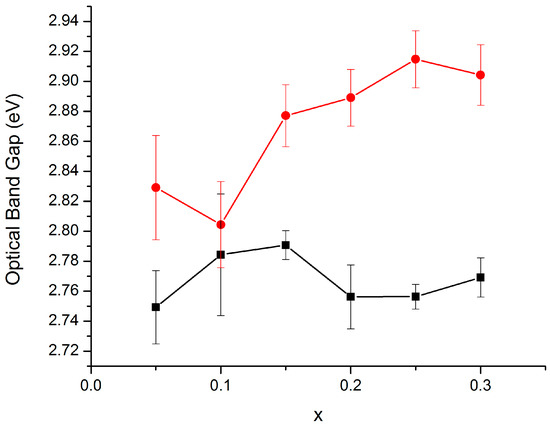

Figure 4. Optical band gaps of the MgxIn2−2xSnxO3 solid solution before (squares) and after (circles) reduction.
Figure 4. Optical band gaps of the MgxIn2−2xSnxO3 solid solution before (squares) and after (circles) reduction.
Crystals 07 00047 g004
Table 1. Goodness of fit parameters for joint X-ray diffraction (XRD) and ND Rietveld refinement of Mg0.1In1.8Sn0.1O3 with different cation occupancies. Indium occupies the remaining site percentages.
Table 1. Goodness of fit parameters for joint X-ray diffraction (XRD) and ND Rietveld refinement of Mg0.1In1.8Sn0.1O3 with different cation occupancies. Indium occupies the remaining site percentages.
Mg Location (%)Sn Location (%)Rwpχ2 R F 2
b-sited-siteb-sited-siteTotalXRDND XRDND
20006.670.22090.26940.042324.320.09470.1442
06.672000.21980.26800.042624.090.09170.1528
2002000.22080.26920.043324.300.09400.1420
06.6706.670.21980.26790.043124.080.09130.1544
103.33103.330.21990.26810.042024.090.08980.1482
Table 2. Site occupancies of reported cosubstituted bixbyite phases. Indium occupies the remaining site percentages.
Table 2. Site occupancies of reported cosubstituted bixbyite phases. Indium occupies the remaining site percentages.
MaterialM Location (%)Sn Location (%)Method
b-sited-siteb-sited-site
Cu0.275In1.45Sn0.275O31414550Rietveld Refinement—Neutron and X-ray [5]
Ni0.5InSn0.5O36511233Rietveld Refinement—Neutron and X-ray [5]
Zn0.1In1.8Sn0.1O3No ordering, randomly distributedExtended X-ray Absorption Fine Structure [14]
Zn0.2In1.6Sn0.2O3No ordering, randomly distributedExtended X-ray Absorption Fine Structure [14]
Zn0.25In1.5Sn0.25O31811500Rietveld Refinement—Neutron and X-ray [5]
Zn0.3In1.4Sn0.3O3No ordering, randomly distributedExtended X-ray Absorption Fine Structure [14]
Zn0.4In1.2Sn0.4O3No ordering, randomly distributedExtended X-ray Absorption Fine Structure [14]
