Article

Trinuclear Co(II) and Mononuclear Ni(II) Salamo-Type Bisoxime Coordination Compounds

School of Chemical and Biological Engineering, Lanzhou Jiaotong University, Lanzhou 730070, China
*
Author to whom correspondence should be addressed.
Crystals 2018, 8(1), 43; https://doi.org/10.3390/cryst8010043
Submission received: 19 December 2017 / Revised: 13 January 2018 / Accepted: 15 January 2018 / Published: 17 January 2018
(This article belongs to the Special Issue Crystal Structures of Boron Compounds)

Abstract

:
One trinuclear Co(II) coordination compound [{CoL1(OAc)(CH3COCH3)}2Co] (1) and one unprecedented mononuclear Ni(II) coordination compound [Ni(L2)2] (2), constructed from a Salamo-type ligand H2L1 were synthesized and characterized by elemental analyses, IR, UV-vis spectra, and single crystal X-ray diffraction analyses. The results show that the Co(II) atoms have no significant distortion in CoO6 or CoO4N2 octahedrons in coordination compound 1. Interestingly, in coordination compound 2, the desired tri- or mono-nuclear Salamo-type Ni(II) coordination compound was not obtained, but an unprecedented Ni(II) coordination compound [Ni(L2)2] was synthesized, the Ni1 atom having no significant distortion in the NiO2N2 planar quadrilateral geometry. Furthermore, the antimicrobial activities of coordination compound 1 and previously reported coordination compound [{CoL1(OAc)(MeOH)}2Co]·2MeOH (3) are discussed.

Graphical Abstract

1. Introduction

N2O2-type chelating ligands and their metal coordination compounds have achieved considerable attention in inorganic chemistry over several decades [1,2,3], especially in the area of their potential application in catalysts [4,5], biological fields [6,7,8,9,10], electrochemical conducts [11], ion recognitions [12,13,14,15,16], supramolecular architecture [17,18,19,20], as well as magnetic [21,22,23,24] and luminescence [25,26] materials. Recently, a new N2O2-type analogue, the Salamo ligand was developed [27,28,29,30,31,32]. Interestingly, other works have contributed to researching mono-, multi-, homo- or heteromultinuclear metal coordination compounds having Salamo-type ligands or their derivatives [33,34,35].
Herein, we designed and synthesized two Co(II) and Ni(II) coordination compounds: [{CoL1(OAc)(CH3COCH3)}2Co] (1) and [Ni(L2)2] (2). Furthermore, a previously reported coordination compound [{CoL1(OAc)(MeOH)}2Co]·2MeOH (3) was synthesized [36]. Compared with the previously reported coordination compounds [36,37,38,39,40,41,42,43,44,45,46,47,48,49], coordination compounds 1 and 3 with a similar structure are both symmetrically trinuclear. The content of these previous works is mainly based on the study of solvent effect and fluorescence properties. In this paper, not merely the fluorescence properties were studied but also the most important discovery was to find coordination compounds 1 and 3 have good antimicrobial activities. This study provides a new idea for the application of such Salamo-type coordination compounds. Interestingly, catalysis of Ni(II) ions gives rise to unexpected cleavage of two N–O and two C–C bonds in H2L1 and an unprecedented mono-nuclear Ni(II) coordination compound has been discovered; this catalytic phenomenon of Ni(II) ions is a first for the previously reported Salamo Ni(II) coordination compounds.

2. Experimental

2.1. Materials and Methods

5-Chlorosalicylaldehyde (98%) was purchased from Alfa Aesar (New York, NY, USA) and was used without further purification. 1,3-Dibromoprophane, other reagents and solvents were analytical grade reagents from Tianjin Chemical Reagent Factory.
Carbon, hydrogen, and nitrogen analyses were obtained using a GmbH VariuoEL V3.00 automatic elemental analysis instrument (Berlin, Germany). Elemental analyses for Co(II) or Ni(II) were detected with an IRIS ER/S-WP-1 ICP atomic emission spectrometer (Berlin, Germany). Melting points were obtained by the use of a microscopic melting point apparatus made by Beijing Taike Instrument Company Limited (Beijing, China) and were uncorrected. IR spectra (400–4000 cm−1) were recorded on a Vertex 70 FT-IR spectrophotometer (Bruker, Billerica, MA, USA), with samples prepared as KBr pellets. UV-vis absorption spectra were recorded on a Shimadzu UV-3900 spectrometer (Shimadzu, Japan). 1H NMR spectra were determined by German Bruker AVANCE DRX-400/600 spectroscopy (Bruker AVANCE, Billerica, MA, USA). X-ray single crystal structure determinations for coordination compounds 1 and 2 were carried out on a Bruker Smart Apex CCD (Bruker AVANCE, Billerica, MA, USA) and SuperNova Dual (Cu at zero) Eos four-circle diffractometer. Fluorescence spectra were recorded on a F-7000 FL spectrophotometer (Hitachi, Tokyo, Japan). Antimicrobial experiments were carried out using a SW-CJ (Standard Type), LDZX-50KBS Vertical Pressure Steam Sterilizer made by Boyn Instrument Company Limited (Hangzhou, China), YCP-100P Microbiological incubator made by Guangzhou Fangtong Biotechnology Company Limited (Guangzhou, China).

2.2. Synthesis of H2L1

The ligand 4,4′-dichloro-2,2′-[(propane-1,3-diyldioxy)bis(nitrilomethylidyne)]diphenol (H2L1) was synthesized in accordance with a similar method reported earlier [44,48,50]. (Scheme 1) Yield: 75.8%. m.p. 164–166 °C. 1H NMR (400 MHz, CDCl3), δ 2.14 (t, J = 6.0 Hz, 2H, CH2), 4.31 (t, J = 6.0 Hz, 4H, CH2), 6.85 (d, J = 8.0 Hz, 2H, ArH), 7.25 (s, 2H, ArH), 7.33 (d, J = 8.0 Hz, 2H, ArH), 8.09 (s, 2H, CH=N), 9.80 (s, 2H, OH). IR (KBr, cm–1): 3101 [ν(O-H)], 1606 [ν(C=N)], 1263 [ν(Ar-O)]. UV-Vis (CH3OH), λmax (nm) (εmax): 220, 265 and 323 nm (2.5 × 10−5 M). Anal. Calcd. for C17H16Cl2N2O4 (%): C 53.02; H 4.11; N 7.45. Found: C 53.28; H 4.21; N 7.31.

2.3. Syntheses of Coordination Compounds 1, 2, and 3

Tri- and mono-nuclear coordination compounds 1, 2, and 3 were synthesized via the reaction of Co(OAc)2 and Ni(OAc)2 with H2L1, respectively (Scheme 2).

2.3.1. Synthesis of Coordination Compound 1

To an isopropanol solution (2 mL) of cobalt(II) acetate tetrahydrate (3.72 mg, 0.015 mmol), a solution of H2L1 (3.83 mg, 0.010 mmol) in acetone (3 mL) was added dropwise, the mixed solution color changed to brown instantly, and stirring was continued for 20 min. With the gradual diffusion of solvent, several brown block crystals were obtained after three weeks on slow evaporation of the mixture solution in open atmosphere.

2.3.2. Synthesis of Coordination Compound 2

To a solution (3 mL) of nickel(II) acetate tetrahydrate (5.07 mg, 0.015 mmol) in methanol was added dropwise H2L1 (3.83 mg, 0.010 mmol) in acetone (2 mL) and then stirred for 20 min. With the gradual diffusion of solvent, several green block single crystals were obtained after two weeks on slow evaporation of the solution in open atmosphere. Several green block crystals suitable for X-ray crystallography were collected and then filtered and washed with n-hexane.

2.3.3. Synthesis of Coordination Compound 3

Coordination compound 3 was synthesized according to the same method reported earlier [36].
Coordination compound 1, light brown blocks. Yield, 3.05 mg (51.9%). IR (KBr, cm−1): 1616 [ν(C=N)], 1205 [ν(Ar-O)]. UV–Vis (CH3OH), λmax (nm) (εmax): 230 and 367 nm (2.5 × 10−5 M). Anal. Calcd. for C44H46Cl4Co3N4O14 (%): C, 45.04; H, 3.95; N, 4.77; Co, 15.07. Found: C, 45.10; H, 4.18; N, 4.59; Co, 15.09.
Coordination compound 2, light green blocks. Yield, 2.75 mg (60.3%). IR (KBr, cm−1): 1626 [ν(C=N)], 1254 [ν(Ar-O)]. UV–Vis (CH3OH), λmax (nm) (εmax): 232 and 364 nm (2.5 × 10−5 M). Anal. Calcd. for C18H18Cl2N2NiO4 (%): C, 47.42; H, 3.98; N, 6.14; Ni, 12.87. Found: C, 47.46; H, 4.05; N, 6.07; Ni, 12.81.

2.4. Crystal Structures of Coordination Compounds 1 and 2

A crystal diffractometer provides a monochromatic beam of Mo Kα radiation (0.71073 Å) produced from a sealed Mo X-ray tube using a graphite monochromator and was used for obtaining crystal data for coordination compounds 1 and 2 at 293(2) and 294.29(10) K, respectively. The LP factor and semi-empirical absorption were applied using the SADABS program. The structures of coordination compounds 1 and 2 were solved by direct methods (SHELXS-2014) [51], and H atoms were included at the calculated positions and constrained to ride on their parent atoms. All the non-hydrogen atoms were refined anisotropically using a full-matrix least-squares procedure on F2 with SHELXL-2014 [52]. Crystal data and experimental parameters relevant to the structure determinations are given in Table 1.
Crystallographic data were deposited with the Cambridge Crystallographic Data Centre as supplementary publication, No. CCDC 1812269, 1812270 and 1812268 for coordination compounds 1, 2, and 3. Copies of the data can be obtained free of charge on application to CCDC, 12 Union Road, Cambridge CB21EZ, UK (Telephone: (44) 01223 762910; Fax: +44-1223-336033; E-mail: deposit @ccdc.cam.ac.uk). These data can be also obtained free of charge at www.ccdc.cam. Ac.uk/conts/retrieving.html.

3. Results and Discussion

3.1. IR Spectra

The IR spectra of H2L1 and coordination compounds 1 and 2 show various absorption bands (Figure 1). A characteristic band of C=N stretching vibrations of the free ligand H2L1 appears at 1606 cm−1, which is shifted to 1616 and 1626 cm−1 in the spectra of coordination compounds 1 and 2, respectively [53,54,55]. This indicates that the Co(II) and Ni(II) atoms are coordinated with azomethine nitrogen atoms of deprotonated (L1)2− and (L2) units [56,57]. An Ar–O stretching band emerges at 1263 cm-1 in the IR spectrum of the free ligand H2L1, while those of coordination compounds 1 and 2 appear at 1205 and 1254 cm−1, respectively. The Ar–O stretching bands are shifted to lower frequencies, which can be evidence of the coordination of phenolic oxygen atoms to the Co(II) and Ni(II) atoms [58,59]. The free ligand H2L1 shows an expected absorption band at 3101 cm−1 and a sharp absorption band emerges at 3361 cm−1 in coordination compound 2, which indicates that the phenolic groups of the ligand have been deprotonated in the case of coordination compound 1 [60,61], while the N-H bond exists in coordination compound 2.

3.2. UV-Vis Spectra

UV-vis spectra of H2L1 and coordination compounds 1 and 2 are presented in Figure 2. The absorption spectrum of H2L1 exhibits three absorption peaks at ca. 220, 265, and 323 nm, the former two peaks could be attributed to the π-π* type transitions of the benzene rings, the later peak at 323 nm is assigned to the π-π* transitions of the C=N bonds and conjugated aromatic chromophore [62,63]. Compared to the absorption peaks of the free ligand H2L1, the first absorption peaks are observed at 230 and 235 nm in coordination compounds 1 and 2, respectively. These peaks are bathochromically shifted, indicating coordination of the (L1)2− and (L2) moieties with the Co(II) and Ni(II) atoms. The other two peaks at ca. 265 and 323 nm have disappeared in coordination compounds 1 and 2. Meanwhile, new peaks emerge at ca. 367 and 364 nm in coordination compounds 1 and 2, respectively, which belong to the n-π* charge transfer transitions from the lone-pair electrons of the N atoms of C=N groups [64,65].

3.3. Description of the Crystal Structures

Selected bond lengths and angles for coordination compounds 1 and 2 are listed in Table 2, respectively. The corresponding hydrogen bonds of coordination compound 1 are summarized in Table 3.

3.3.1. Crystal Structure of Coordination Compound 1

The unit cell of coordination compound 1 is composed of three Co(II) atoms, two completely deprotonated (L1)2− units, two μ2-acetate ions, and two coordinated acetone molecules. (Figure 3) A symmetrical trinuclear Co(II) coordination compound is formed, with the Co1 atom occupying the center of symmetry (1/2, 1/2, 1/2) and the other two Co(II) atoms (Co2, Co2#1, symmetry code (#1): −x + 1, −y + 1, −z) to be related by this center of symmetry. The two (L1)2−, two μ2-acetate ions and the two coordinated acetone molecules are also centrosymmetry related. The Co(II) atoms have no significant distortion in CoO6 or CoO4N2 octahedrons. The two terminal Co(II) atom (Co2 or Co2#1) is hexa-coordinated with donor N2O2 atoms (N1, N2, O1, O2 or N1#1, N2#1, O1#1, O2#1), one µ2-phenoxo oxygen atom (O2 or O2#1) and the other oxygen atom (O7 or O7#1) comes from the coordinated acetone molecule, respectively. One axial bond of Co2-O7 is 2.276(2) Å, is longer than the bond of Co2-O6 (2.0224(19) Å). It shows that the acetate ions involved in the coordination are more stable than the coordinated acetone molecules [66]. The dihedral angle between the planes of N1-Co2-O1 and N2-Co2-O4 is 4.23(5)°, reveals the Co(II) atom (Co2 or Co2#1) with significant distortion in the CoO4N2 octahedron [67]. Meanwhile, the central Co1 atom is completed by four phenoxo oxygen atoms (O1, O5, O1#1, and O5#1) of two deprotonated (L1)2− units, two oxygen atoms (O2 and O2#1) from the bridging µ2-acetate ions, and the axial bond Co1-O5 (2.0884(16) Å) is also shorter by 0.0064(01) Å than the Co1-O1 bond (2.0948(17) Å) and by 0.05540 Å than the Co1-O2 bond (2.1438(16) Å). Although the Co(II) atoms are all hexa-coordinated, the coordination sphere of the Co1 atom consists of six oxygen atoms, and that of the Co2 (or Co2#1) atom includes two nitrogen and four oxygen atoms.
In coordination compound 1, six pairs of intramolecular hydrogen bond (C2–H2···O2, C8–H8B···O7, C10–H10B···O3, C10–H10B···O6, C16–H16···O5 and C20–H20C···O5) [68] interactions involving one phenoxo oxygen, one coordinated acetone, two acetate ions, and alkoxy O atoms in each molecule (Figure 4) and the weak hydrogen bonds existing in the coordination compound 1 are described in graph sets (Figure 5) [69], A pair of π⋯π interactions (Cg1⋯Cg2 (Cg1=C1-C2-C3-C4-C5-C6 and Cg2=C12-C13-C14-C15-C16-C17)) (Figure 6) were formed [70].

3.3.2. Crystal Structure of Coordination Compound 2

The crystal structure of coordination compound 2 is given in Figure 7. The crystal structure demonstrates that coordination compound 2 crystallizes in the monoclinic system, space group P21/c. A mononuclear Ni(II) coordination compound is formed, with a Ni1 atom occupying the center of symmetry (1/2, 1/2, 1/2) is related by this center of symmetry. The two (L2)2− (symmetry code (#2): −x + 1/2, −y + 1/2, −z) is related by this center of symmetry. Obviously, the desired tri- or mono-nuclear Ni(II) coordination compound was not obtained (Scheme 2). The coordination compoundation of the ligand H2L1 with Ni(II) acetate is unstable, giving a new NO bidentate ligand (H2L2). The formation of the new ligand may be due to the catalysis of Ni(II) ions resulting in unexpected cleavage of two N–O and two C–C bonds in H2L1. In the C=N bond, the electronegativity of the N atom is higher than the C atom, so the electron cloud density of C atom is lower. At the same time, due to the high electronegativity of the Cl atom, the electron cloud density of the C atom in the C=N bond will be further reduced in this conjugated system, and is positively charged. The electronegativity of the O atom in the O–C–C bond is high, and will attack the C atom in the C=N bond and form the new ligand H2L1. Finally, an unprecedented mono-nuclear Ni(II) coordination compound is obtained. This phenomenon is observed in the formation of Salamo-type Cu(II) coordination compounds [71]. However, the catalytic phenomenon of Ni(II) ions is a first in the previously reported Salamo Ni(II) coordination compounds. In coordination compound 2, the Ni1 atom has no significant distortion in the NiO2N2 planar quadrilateral geometry. It is noteworthy that the angles of N1–Ni1–N1#3 and O1–Ni1–O1#3 are all 180.0° in coordination compound 2 [72].

3.4. Fluorescence Properties

The fluorescence properties of H2L1 and coordination compounds 1 and 2 were investigated (Figure 8). The H2L1 demonstrates an intense emission peak at ca. 508 nm upon excitation at 328 nm. Coordination compounds 1 and 2 demonstrate weak photoluminescence with maximum emission peaks at ca. 516 and 510 nm upon excitation at 386 nm, respectively, and the absorption peaks are bathochromically-shifted, which could be attributed to LMCT (ligand-to-metal charge transfer) [73,74]. Compared with H2L1, the emission intensity of coordination compound 2 is reduced, which indicates that the Ni(II) ions possess the property of fluorescent quenching.

3.5. Antimicrobial Activities

The antimicrobial activities of H2L1, cobalt acetate and its coordination compounds 1 and 3 were tested against Escherichia coli as Gram-negative bacteria and Staphylococcus aureus as Gram-positive bacteria by a disk diffusion test. With sterile disks impregnated with purified H2L1, cobalt acetate, coordination compounds 1 and 3 were applied to lysogeny broth agar (LB) plates (2% agar). The bacteria inoculum was spread on the surface of the plate, while the impregnated disks were placed near the edge of the plate at a constant distance from the disk for all assays. After eight hours of incubation at 37 °C, the growth-inhibitory influence and diameters of the inhibition zones were mensurated. The discs measuring 5 mm in diameter were dissolved in dimethyl sulfoxide (DMSO) and soaked in concentrations of 0.35, 0.7, 1.4, 2.8 and 5.0 mg mL−1. The results were compared to Ampicillin as reference standard with different concentrations. The diameter of inhibition zones of H2L1, cobalt acetate and coordination compounds 1 and 3 are shown in Figure 9, the two coordination compounds show more enhanced antimicrobial activities than H2L1 and cobalt acetate under the same conditions. H2L1 and cobalt acetate also have weak biological activity [75,76]. As shown in Figure 9, chelation decreases the polarity of the metal atom mainly because of the partial share of the positive charge of the Co(II) atom with donor groups and possible delocalization of π-electrons within the whole chelating ring. Further, it enhances the lipophilic character of the central atom. These observations are analogical to earlier reports of biological activities of related Schiff base coordination compounds [77].

4. Conclusions

One trinuclear Co(II) coordination compound 1 and one unprecedented mononuclear Ni(II) coordination compound 2 were formulated and synthesized. The results show that the Co(II) atoms have no significant distortion in CoO6 or CoO4N2 octahedrons in coordination compound 1. Catalysis of Ni(II) ions gives rise to unexpected cleavage of two N–O and two C–C bonds in H2L1, the coordination compoundation of the ligand H2L1 with Ni(II) acetate is unstable, giving a new NO bidentate ligand (H2L2). The desired tri- or mono-nuclear Salamo Ni(II) coordination compound was not obtained, a novel mono-nuclear Ni(II) coordination compound [Ni(L2)2] was however obtained. Interestingly, in coordination compound 2, the Ni1 atom has no significant distortion in the NiO2N2 planar quadrilateral geometry. The fluorescence behavior of H2L1 and its coordination compounds 1 and 2 were investigated, compared with the ligand H2L1: the emission intensity of coordination compound 2 decreases obviously, which indicates that the Ni(II) ions possess the quality of fluorescent quenching. Antimicrobial experiments show that coordination compounds 1 and 3 demonstrate more enhanced antimicrobial activities than Salamo bisoxime ligand H2L1 under the same conditions and the ligand possesses a weak biological activity.

Supplementary Materials

Supplementary File 1

Acknowledgments

This work was supported by the National Natural Science Foundation of China (21761018) and the Program for the Excellent Team of Scientific Research in Lanzhou Jiaotong University (201706), which is gratefully acknowledged.

Author Contributions

Wen-Kui Dong and Quan-Peng Kang conceived and designed the experiments; Ling-Zhi Liu performed the experiments; Jian-Chun Ma analyzed the data; Wen-Kui Dong contributed reagents/materials/analysis tools; Xiao-Yan Li wrote the paper.

Conflicts of Interest

The authors declare no competing financial interests.

References

  1. Sun, Y.X.; Zhang, S.T.; Ren, Z.L.; Dong, X.Y.; Wang, L. Synthesis, characterization, and crystal structure of a new supramolecular CdII complex with halogen-substituted salen-type bisoxime. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2013, 43, 995–1000. [Google Scholar] [CrossRef]
  2. Chai, L.Q.; Wang, G.; Sun, Y.X.; Dong, W.K.; Zhao, L.; Gao, X.H. Synthesis, crystal structure, and fluorescence of an unexpected dialkoxo-bridged dinuclear copper(II) complex with bis(salen)-type tetraoxime. J. Coord. Chem. 2012, 65, 1621–1631. [Google Scholar] [CrossRef]
  3. Song, X.Q.; Liu, P.P.; Liu, Y.A.; Zhou, J.J.; Wang, X.L. Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: Synthesis, structure, luminescence and magnetic properties. Dalton Trans. 2016, 45, 8154–8163. [Google Scholar] [CrossRef] [PubMed]
  4. Li, X.Y.; Chen, L.; Gao, L.; Zhang, Y.; Akogun, S.F.; Dong, W.K. Syntheses, crystal structures and catalytic activities of two solvent-induced homotrinuclear Co(II) complexes with a naphthalenediol-based bis(Salamo)-type tetraoxime ligand. RSC Adv. 2017, 7, 35905–35916. [Google Scholar] [CrossRef]
  5. Haak, R.M.; Decortes, A.; Escudero, E.C.; Belmonte, M.M.; Martin, E.; Buchholz, J.B.; Kleij, A.W. Shape-persistent octanuclear zinc salen clusters: Synthesis, characterization, and catalysis. Inorg. Chem. 2011, 50, 7934–7936. [Google Scholar] [CrossRef] [PubMed]
  6. Wu, H.L.; Bai, Y.C.; Zhang, Y.H.; Pan, G.L.; Kong, J.; Shi, F.; Wang, X.L. Two lanthanide(III) complexes based on the schiff base N,N-Bis(salicylidene)-1,5-diamino-3-oxapentane: Synthesis, characterization, DNA-binding properties, and antioxidation. Z. Anorg. Allg. Chem. 2014, 640, 2062–2071. [Google Scholar] [CrossRef]
  7. Chen, C.Y.; Zhang, J.W.; Zhang, Y.H.; Yang, Z.H.; Wu, H.L. Gadolinium(III) and dysprosium(III) complexes with a Schiff base bis(N-salicylidene)-3-oxapentane-1,5-diamine: Synthesis, characterization, antioxidation, and DNA-binding studies. J. Coord. Chem. 2015, 68, 1054–1071. [Google Scholar] [CrossRef]
  8. Wu, H.L.; Pan, G.L.; Wang, H.; Wang, X.L.; Bai, Y.C.; Zhang, Y.H. Study on synthesis, crystal structure, antioxidant and DNA-binding of mono-, di- and poly-nuclear lanthanides complexes with bis(N-salicylidene)-3-oxapentane-1,5-diamine. J. Photochem. Photobiol. B Biol. 2014, 135, 33–43. [Google Scholar] [CrossRef] [PubMed]
  9. Wu, H.L.; Wang, C.P.; Wang, F.; Peng, H.P.; Zhang, H.; Bai, Y.C. A new manganese(III) complex from bis(5-methylsalicylaldehyde)-3-oxapentane-1,5-diamine: Synthesis, characterization, antioxidant activity and luminescence. J. Chin. Chem. Soc. 2015, 62, 1028–1034. [Google Scholar] [CrossRef]
  10. Wu, H.L.; Bai, Y.C.; Zhang, Y.H.; Li, Z.; Wu, M.C.; Chen, C.Y.; Zhang, J.W. Synthesis, crystal structure, antioxidation and DNA-binding properties of a dinuclear copper(II) complex with bis(N-salicylidene)-3-oxapentane-1, 5-diamine. J. Coord. Chem. 2014, 67, 3054–3066. [Google Scholar] [CrossRef]
  11. Chai, L.Q.; Tang, L.J.; Chen, L.C.; Huang, J.J. Structural, spectral, electrochemical and DFT studies of two mononuclear manganese(II) and zinc(II) complexes. Polyhedron 2017, 122, 228–240. [Google Scholar] [CrossRef]
  12. Dong, Y.J.; Li, X.L.; Zhang, Y.; Dong, W.K. A highly selective visual and fluorescent sensor for Pb2+ and Zn2+ and crystal structure of Cu2+ complex based-on a novel single-armed Salamo-type bisoxime. Supramol. Chem. 2017, 29, 518–527. [Google Scholar] [CrossRef]
  13. Dong, W.K.; Li, X.L.; Wang, L.; Zhang, Y.; Ding, Y.J. A new application of Salamo-type bisoximes: As a relay-sensor for Zn2+/Cu2+ and its novel complexes for successive sensing of H+/OH. Sens. Actuators B 2016, 229, 370–378. [Google Scholar] [CrossRef]
  14. Wang, B.J.; Dong, W.K.; Zhang, Y.; Akogun, S.F. A novel relay-sensor for highly sensitive and selective detection of Zn2+/Pic and fluorescence on/off switch response of H+/OH. Sens. Actuators B 2017, 247, 254–264. [Google Scholar] [CrossRef]
  15. Wang, F.; Gao, L.; Zhao, Q.; Zhang, Y.; Dong, W.K.; Ding, Y.J. A highly selective fluorescent chemosensor for CN based on a novel bis(salamo)-type tetraoxime ligand. Spectrochim. Acta Part A 2018, 190, 111–115. [Google Scholar] [CrossRef] [PubMed]
  16. Dong, W.K.; Akogun, S.F.; Zhang, Y.; Sun, Y.X.; Dong, X.Y. A reversible “turn-on” fluorescent sensor for selective detection of Zn2+. Sens. Actuators B 2017, 238, 723–734. [Google Scholar] [CrossRef]
  17. Wang, L.; Ma, J.C.; Dong, W.K.; Zhu, L.C.; Zhang, Y. A novel Self-assembled nickel(II)-cerium(III) heterotetranuclear dimer constructed from N2O2-type bisoxime and terephthalic acid: Synthesis, structure and photophysical properties. Z. Anorg. Allg. Chem. 2016, 642, 834–839. [Google Scholar] [CrossRef]
  18. Chai, L.Q.; Huang, J.J.; Zhang, J.Y.; Li, Y.X. Two 1-D and 2-D cobalt(II) complexes: Synthesis, crystal structures, spectroscopic and electrochemical properties. J. Coord. Chem. 2015, 68, 1224–1237. [Google Scholar] [CrossRef]
  19. Zheng, S.S.; Dong, W.K.; Zhang, Y.; Chen, L.; Ding, Y.J. Four Salamo-type 3d-4f hetero-bimetallic [ZnIILnIII] complexes: Syntheses, crystal structures, and luminescent and magnetic properties. New J. Chem. 2017, 41, 4966–4973. [Google Scholar] [CrossRef]
  20. Dong, W.K.; Ma, J.C.; Zhu, L.C.; Zhang, Y. Self-assembled zinc(II)-lanthanide(III) heteromultinuclear complexes constructed from 3-MeOsalamo ligand: Syntheses, structures and luminescent properties. Cryst. Growth Des. 2016, 16, 6903–6914. [Google Scholar] [CrossRef]
  21. Liu, Y.A.; Wang, C.Y.; Zhang, M.; Song, X.Q. Structures and magnetic properties of cyclic heterometallic tetranuclear clusters. Polyhedron 2017, 127, 278–286. [Google Scholar] [CrossRef]
  22. Song, X.Q.; Liu, P.P.; Xiao, Z.R.; Li, X.; Liu, Y.A. Four polynuclear complexes based on a versatile salicylamide salen-like ligand: Synthesis, structural variations and magnetic properties. Inorg. Chim. Acta 2015, 438, 232–244. [Google Scholar] [CrossRef]
  23. Liu, P.P.; Wang, C.Y.; Zhang, M.; Song, X.Q. Pentanuclear sandwich-type ZnII-LnIII clusters based on a new Salen-like salicylamide ligand: Structure, near-infrared emission and magnetic properties. Polyhedron 2017, 129, 133–140. [Google Scholar] [CrossRef]
  24. Liu, P.P.; Sheng, L.; Song, X.Q.; Xu, W.Y.; Liu, Y.A. Synthesis, structure and magnetic properties of a new one dimensional manganese coordination polymer constructed by a new asymmetrical ligand. Inorg. Chim. Acta 2015, 434, 252–257. [Google Scholar] [CrossRef]
  25. Dong, X.Y.; Akogun, S.F.; Zhou, W.M.; Dong, W.K. Tetranuclear Zn(II) complex based on an asymmetrical Salamo-type chelating ligand: Synthesis, structural characterization, and fluorescence property. J. Chin. Chem. Soc. 2017, 64, 412–419. [Google Scholar] [CrossRef]
  26. Song, X.Q.; Cheng, G.Q.; Liu, Y.A. Enhanced Tb(III) luminescence by d10 transition metal coordination. Inorg. Chim. Acta 2016, 450, 386–394. [Google Scholar] [CrossRef]
  27. Dong, Y.J.; Ma, J.C.; Zhu, L.C.; Dong, W.K.; Zhang, Y. Four 3d-4f heteromultinuclear zinc(II)-lanthanide(III) complexes constructed from a distinct hexadentate N2O2-type ligand: Syntheses, structures and photophysical properties. J. Coord. Chem. 2017, 70, 103–115. [Google Scholar] [CrossRef]
  28. Dong, W.K.; Zheng, S.S.; Zhang, J.T.; Zhang, Y.; Sun, Y.X. Luminescent properties of heterotrinuclear 3d-4f complexes constructed from a naphthalenediol-based acyclic bis(salamo)-type ligand. Spectrochim. Acta Part A 2017, 184, 141–150. [Google Scholar] [CrossRef] [PubMed]
  29. Hao, J.; Li, L.L.; Zhang, J.T.; Akogun, S.F.; Wang, L.; Dong, W.K. Four homo- and hetero-bismetallic 3d/3d-2s complexes constructed from a naphthalenediol-based acyclic bis(salamo)-type tetraoxime ligand. Polyhedron 2017, 134, 1–10. [Google Scholar] [CrossRef]
  30. Gao, L.; Wang, F.; Zhao, Q.; Zhang, Y.; Dong, W.K. Mononuclear Zn(II) and trinuclear Ni(II) complexes derived from a coumarin-containing N2O2 ligand: Syntheses, crystal structures and fluorescence properties. Polyhedron 2018, 139, 7–16. [Google Scholar] [CrossRef]
  31. Akine, S.; Taniguchi, T.; Dong, W.K.; Masubuchi, S.; Nabeshima, T. Oxime-based salen-type tetradentate ligands with high stability against imine metathesis reaction. J. Org. Chem. 2005, 70, 1704–1711. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, L.; Li, X.Y.; Zhao, Q.; Li, L.H.; Dong, W.K. Fluorescence properties of heterotrinuclear Zn(II)-M(II) (M=Ca, Sr and Ba) bis(salamo)-type complexes. RSC Adv. 2017, 7, 48730–48737. [Google Scholar] [CrossRef]
  33. Wang, P.; Zhao, L. An infinite 2D supramolecular cobalt(II) complex based on an asymmetric Salamo-type ligand: Synthesis, crystal structure, and spectral properties. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2016, 46, 1095–1101. [Google Scholar] [CrossRef]
  34. Chai, L.Q.; Zhang, K.Y.; Tang, L.J.; Zhang, J.Y.; Zhang, H.S. Two mono- and dinuclear Ni(II) complexes constructed from quinazoline-type ligands: Synthesis, X-ray structures, spectroscopic, electrochemical, thermal, and antimicrobial studies. Polyhedron 2017, 130, 100–107. [Google Scholar] [CrossRef]
  35. Akine, S.; Taniguchi, T.; Nabeshima, T. Novel synthetic approach to trinuclear 3d-4f complexes: Specific exchange of the central metal of a trinuclear zinc(II) complex of a tetraoxime ligand with a lanthanide(III) ion. Angew. Chem. Int. Ed. 2002, 41, 4670–4673. [Google Scholar] [CrossRef] [PubMed]
  36. Dong, W.K.; Duan, J.G.; Guan, Y.H.; Shi, J.Y.; Zhao, C.Y. Synthesis, crystal structure and spectroscopic behaviors of Co(II) and Cu(II) complexes with Salen-type bisoxime ligands. Inorg. Chim. Acta 2009, 362, 1129–1134. [Google Scholar] [CrossRef]
  37. Dong, W.K.; Sun, Y.X.; Zhao, C.Y.; Dong, X.Y.; Xu, L. Synthesis, structure and properties of supramolecular MnII, CoII, NiII and ZnII complexes containing Salen-type bisoxime ligands. Polyhedron 2010, 29, 2087–2097. [Google Scholar] [CrossRef]
  38. Dong, W.K.; Duan, J.G. A trinuclear Ni(II) cluster with two significantly different configurations in the solid state. J. Coord. Chem. 2008, 61, 781–788. [Google Scholar] [CrossRef]
  39. Sun, Y.X.; Zhang, Y.J.; Meng, W.S.; Li, X.R.; Lu, R.E. Synthesis and crystal structure of new nickel(II) complex with Salen-type bisoxime ligand. Asian J. Chem. 2014, 26, 416–418. [Google Scholar]
  40. Gao, X.H.; Dong, X.Y.; Li, L.; Sun, Y.X.; Dong, W.K. Crystal structure of bis[(3,3′-dimethoxy-2,2′-1,3-propylene)dioxybis(nitrilomethylidyne)diphenolato]-bis(acetato-O1,O2)-bis(ethanol-O)trinickel(II)-ethanol-acetone (1:2:1.06), Ni3(C19H20N2O6)2(C2H5OH)2(C2H3O2)2·2C2H5OH·1.06C3H6O. Z. Kristallogr. NCS 2011, 226, 138–140. [Google Scholar] [CrossRef]
  41. Dong, W.K.; Duan, J.G.; Xu, L.; Sun, Y.X.; Shi, J.Y.; Tang, X.L. Synthesis, characterization and crystal structure of a trinuclear Ni(II) cluster. Chin. J. Inorg. Chem. 2009, 25, 522–527. [Google Scholar]
  42. Dong, W.K.; Li, L.; Sun, Y.X.; Tong, J.F.; Wu, J.C. Syntheses, structures and properties of 3,3’-dimethoxy-2,2’-[(1,3-propylene)dioxybis(nitrilomethylidyne)]diphenol and its Ni(II) cluster. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2012, 41, 716–724. [Google Scholar] [CrossRef]
  43. Dong, W.K.; Li, L.; Sun, Y.X.; Tong, J.F.; Wu, J.C. Supramolecular cobalt(II) complexes: Syntheses, crystal structures and solvent effects. Transit. Met. Chem. 2010, 35, 787–794. [Google Scholar] [CrossRef]
  44. Dong, W.K.; Yao, J.; Sun, Y.X. Synthesis, characterization, and crystal structure of a tri-nuclear cobalt(II) cluster. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2011, 41, 177–181. [Google Scholar]
  45. Dong, W.K.; Shi, J.Y.; Zhong, J.K.; Sun, Y.X.; Duan, J.G. Synthesis and structural characterization of a novel tricobalt cluster with 4,4′-dichloro-2,2′-[(1,3-propylene)dioxybis(nitrilomethylidyne)]diphenol. Struct. Chem. 2008, 19, 95–99. [Google Scholar] [CrossRef]
  46. Dong, W.K.; Duan, J.G.; Liu, G.L.; Shi, J.Y. Synthesis, characterization and crystal structure of a novel tri-nuclear Ni(II) cluster bearing tetra-µ-phenoxo and di-µ-acetato bridges. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2007, 37, 627–631. [Google Scholar]
  47. Dong, W.K.; Ma, J.C.; Zhu, L.C.; Zhang, Y.; Li, X.L. Four new nickel(II) complexes based on an asymmetric Salamo-type ligand: Synthesis, structure, solvent effect and electrochemical property. Inorg. Chim. Acta 2016, 445, 140–148. [Google Scholar] [CrossRef]
  48. Dong, W.K.; Shi, J.Y.; Zhong, J.K.; Tian, Y.Q.; Duan, J.G. Synthesis, crystal structure and infrared spectral analysis for a trinuclear nickel(II) cluster. Chin. J. Inorg. Chem. 2008, 24, 10–14. [Google Scholar]
  49. Dong, W.K.; Chen, X.; Sun, Y.X.; Yang, Y.H.; Zhao, L.; Xu, L.; Yu, T.Z. Synthesis, structure and spectroscopic properties of two new trinuclear nickel(II) clusters possessing solvent effect. Spectrochim. Acta Part A 2009, 74, 719–725. [Google Scholar] [CrossRef] [PubMed]
  50. Dong, W.K.; Shi, J.Y.; Xu, L.; Zhong, J.K.; Duan, J.G.; Zhang, Y.P. Synthesis, crystal structure and infrared spectra of Cu(II) and Co(II) complexes with 4,4′-dichloro-2,2′-[ethylene dioxybis(nitrilomethylidyne)]diphenol. Appl. Organometal. Chem. 2008, 22, 89–96. [Google Scholar] [CrossRef]
  51. Sheldrick, G.M. SHELXS 97, Program for Crystal Structure Solution; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  52. Sheldrick, G.M. SHELXL 97, Program for Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  53. Xu, L.; Zhu, L.C.; Ma, J.C.; Zhang, Y.; Zhang, J.; Dong, W.K. Syntheses, structures and spectral properties of mononuclear CuII and dimeric ZnII complexes based on an asymmetric Salamo-type N2O2 ligand. Z. Anorg. Allg. Chem. 2015, 641, 2520–2524. [Google Scholar] [CrossRef]
  54. Zhang, H.; Dong, W.K.; Zhang, Y.; Akogun, S.F. Naphthalenediol-based bis(Salamo)-type homo- and heterotrinuclear cobalt(II) complexes: Syntheses, structures and magnetic properties. Polyhedron 2017, 133, 279–293. [Google Scholar] [CrossRef]
  55. Yang, Y.H.; Hao, J.; Dong, Y.J.; Wang, G.; Dong, W.K. Two znic(II) complexes constructed from a bis(salamo)-type tetraoxime ligand: Syntheses, crystal structures and luminescence properties. Chin. J. Inorg. Chem. 2017, 33, 1280–1292. [Google Scholar]
  56. Sun, Y.X.; Xu, L.; Zhao, T.H.; Liu, S.H.; Liu, G.H.; Dong, X.T. Synthesis and crystal structure of a 3D supramolecular copper(II) complex with 1-(3-{[(E)-3-bromo-5-chloro-2-hydroxybenzylidene]amino}phenyl) ethanone oxime. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2013, 43, 509–513. [Google Scholar] [CrossRef]
  57. Wang, L.; Hao, J.; Zhai, L.X.; Zhang, Y.; Dong, W.K. Synthesis, crystal structure, luminescence, electrochemical and antimicrobial properties of bis(salamo)-based Co(II) complex. Crystals 2017, 7, 277. [Google Scholar] [CrossRef]
  58. Zhao, L.; Dang, X.T.; Chen, Q.; Zhao, J.X.; Wang, L. Synthesis, Crystal Structure and Spectral Properties of a 2D Supramolecular Copper(II) Complex With 1-(4-{[(E)-3-ethoxyl-2-hydroxybenzylidene]amino}phenyl)ethanone Oxime. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2013, 43, 1241–1246. [Google Scholar] [CrossRef]
  59. Dong, X.Y.; Gao, L.; Wang, F.; Zhang, Y.; Dong, W.K. Tri- and Mono-Nuclear Zinc(II) Complexes Based on Half- and Mono-Salamo Chelating Ligands. Crystals 2017, 7, 267. [Google Scholar] [CrossRef]
  60. Wang, P.; Zhao, L. Synthesis and crystal structure of supramolecular copper(II) complex based on N2O2 coordination Sphere. Asian J. Chem. 2015, 4, 1424–1426. [Google Scholar] [CrossRef]
  61. Dong, X.Y.; Kang, Q.P.; Jin, B.X.; Dong, W.K. A dinuclear nickel(II) complex derived from an asymmetric Salamo-type N2O2 chelate ligand: Synthesis, structure and optical properties. Z. Naturforsch. 2017, 72, 415–420. [Google Scholar] [CrossRef]
  62. Sun, Y.X.; Gao, X.H. Synthesis, characterization, and crystal structure of a new CuII complex with salen-type ligand. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2011, 41, 973–978. [Google Scholar] [CrossRef]
  63. Li, G.; Hao, J.; Liu, L.Z.; Zhou, W.M.; Dong, W.K. Syntheses, crystal structures and thermal behaviors of two supramolecular salamo-type cobalt(II) and zinc(II) complexes. Crystals 2017, 7, 217. [Google Scholar]
  64. Wang, P.; Zhao, L. Synthesis, structure and spectroscopic properties of the trinuclear cobalt(II) and nickel(II) complexes based on 2-hydroxynaphthaldehyde and bis(aminooxy)alkane. Spectrochim. Acta Part A 2015, 135, 342–350. [Google Scholar] [CrossRef] [PubMed]
  65. Ma, J.C.; Dong, X.Y.; Dong, W.K.; Zhang, Y.; Zhu, L.C.; Zhang, J.T. An unexpected dinuclear Cu(II) complex with a bis(Salamo) chelating ligand: Synthesis, crystal structure, and photophysical properties. J. Coord. Chem. 2016, 69, 149–159. [Google Scholar] [CrossRef]
  66. Dong, X.Y.; Li, X.Y.; Liu, L.Z.; Zhang, H.; Ding, Y.J.; Dong, W.K. Tri- and hexanuclear heterometallic Ni(II)–M(II) (M=Ca, Sr and Ba) bis(salamo)-type complexes: Synthesis, structure and fluorescence properties. RSC Adv. 2017, 7, 48394–48403. [Google Scholar] [CrossRef]
  67. Sun, Y.X.; Wang, L.; Dong, X.Y.; Ren, Z.L.; Meng, W.S. Synthesis, characterization, and crystal structure of a supramolecular CoII complex containing Salen-type bisoxime. Synth. React. Inorg. Met.-Org. Nano-Met. Chem. 2013, 43, 599–603. [Google Scholar] [CrossRef]
  68. Tao, C.H.; Ma, J.C.; Zhu, L.C.; Zhang, Y.; Dong, W.K. Heterobimetallic 3d-4f Zn(II)-Ln(III) (Ln=Sm, Eu, Tb and Dy) complexes with a N2O4 bisoxime chelate ligand and a simple auxiliary ligand Py: Syntheses, structures and luminescence properties. Polyhedron 2017, 128, 38–45. [Google Scholar] [CrossRef]
  69. Bernstein, J.; Davis, R.E.; Shimoni, L.; Chang, N.L. Patterns in hydrogen bonding: Functionality and graph set analysis in crystals. Angew. Chem. Int. Ed. Engl. 1995, 34, 1555–1573. [Google Scholar] [CrossRef]
  70. Kruszynski, R.; Sierański, T. Can stacking interactions exist beyond the commonly accepted limits? Cryst. Growth Des. 2016, 16, 587–595. [Google Scholar] [CrossRef]
  71. Chen, L.; Dong, W.K.; Zhang, H.; Zhang, Y.; Sun, Y.X. Structural variation and luminescence properties of tri- and dinuclear CuII and ZnII complexes constructed from a naphthalenediol-based bis(Salamo)-type ligand. Cryst. Growth Des. 2017, 17, 3636–3648. [Google Scholar] [CrossRef]
  72. Chai, L.Q.; Liu, G.; Zhang, Y.L.; Huang, J.J.; Tong, J.F. Synthesis, crystal structure, fluorescence, electrochemical property, and SOD-like activity of an unexpected nickel(II) complex with a quinazoline-type ligand. J. Coord. Chem. 2013, 66, 3926–3938. [Google Scholar] [CrossRef]
  73. Dong, Y.J.; Dong, X.Y.; Dong, W.K.; Zhang, Y.; Zhang, L.S. Three asymmetric Salamo-type copper(II) and cobalt(II) complexes: Syntheses, structures, fluorescent properties. Polyhedron 2017, 123, 305–315. [Google Scholar] [CrossRef]
  74. Song, X.Q.; Peng, Y.J.; Chen, G.Q.; Wang, X.R.; Liu, P.P.; Xu, W.Y. Substituted group-directed assembly of Zn(II) coordination complexes based on two new structural related pyrazolone based Salen ligands: Syntheses, structures and fluorescence properties. Inorg. Chim. Acta 2015, 427, 13–21. [Google Scholar] [CrossRef]
  75. Wu, H.L.; Bai, Y.; Yuan, J.K.; Wang, H.; Pan, G.L.; Fan, X.Y.; Kong, J. A zinc(II) complex with tris(2-(N-methyl)benzimidazlylmethyl)amine and salicylate: Synthesis, crystal structure, and DNA-binding. J. Coord. Chem. 2012, 65, 2839–2851. [Google Scholar] [CrossRef]
  76. Wu, H.L.; Pan, G.L.; Bai, Y.C.; Wang, H.; Kong, J. Synthesis, structure, antioxidation, and DNA-bindingstudies of a binuclear ytterbium(III) complex with bis(N-salicylidene)-3-oxapentane-1,5-diamine. Res. Chem. Intermed. 2015, 41, 3375–3388. [Google Scholar] [CrossRef]
  77. Wu, H.L.; Pan, G.L.; Bai, Y.C.; Wang, H.; Kong, J.; Shi, F.; Zhang, Y.H.; Wang, X.L. Preparation, structure, DNA-binding properties, and antioxidant activities of a homodinuclear erbium(III) complex with a pentadentate Schiff base ligand. J. Chem. Res. 2014, 38, 211–217. [Google Scholar] [CrossRef]

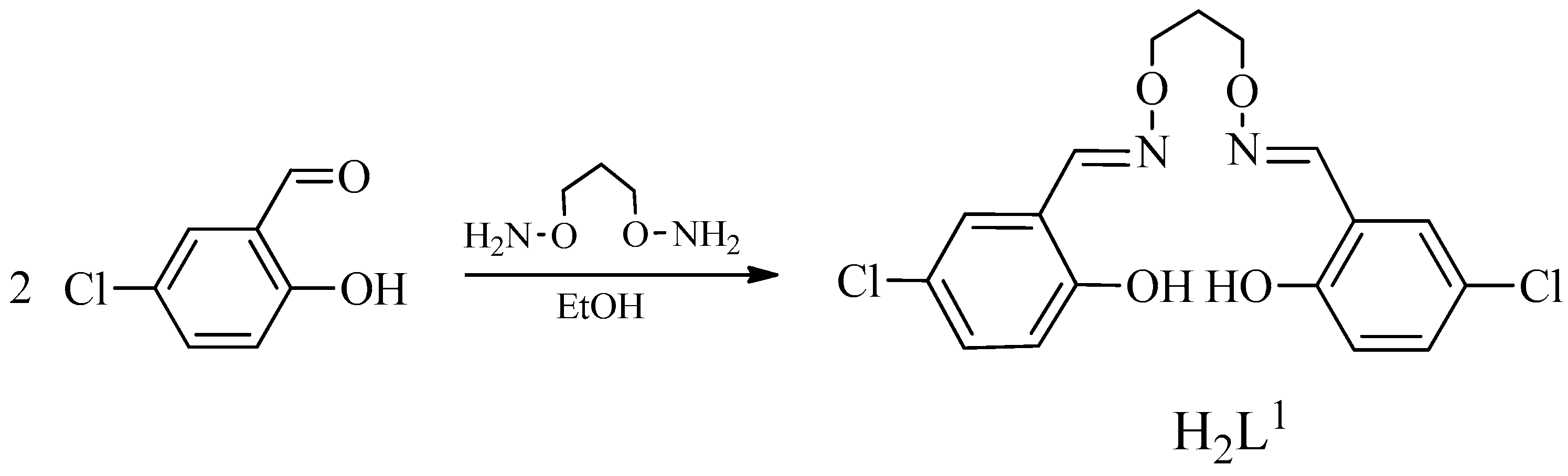

Scheme 1. Synthetic route to H2L1.
Scheme 1. Synthetic route to H2L1.
Crystals 08 00043 sch001

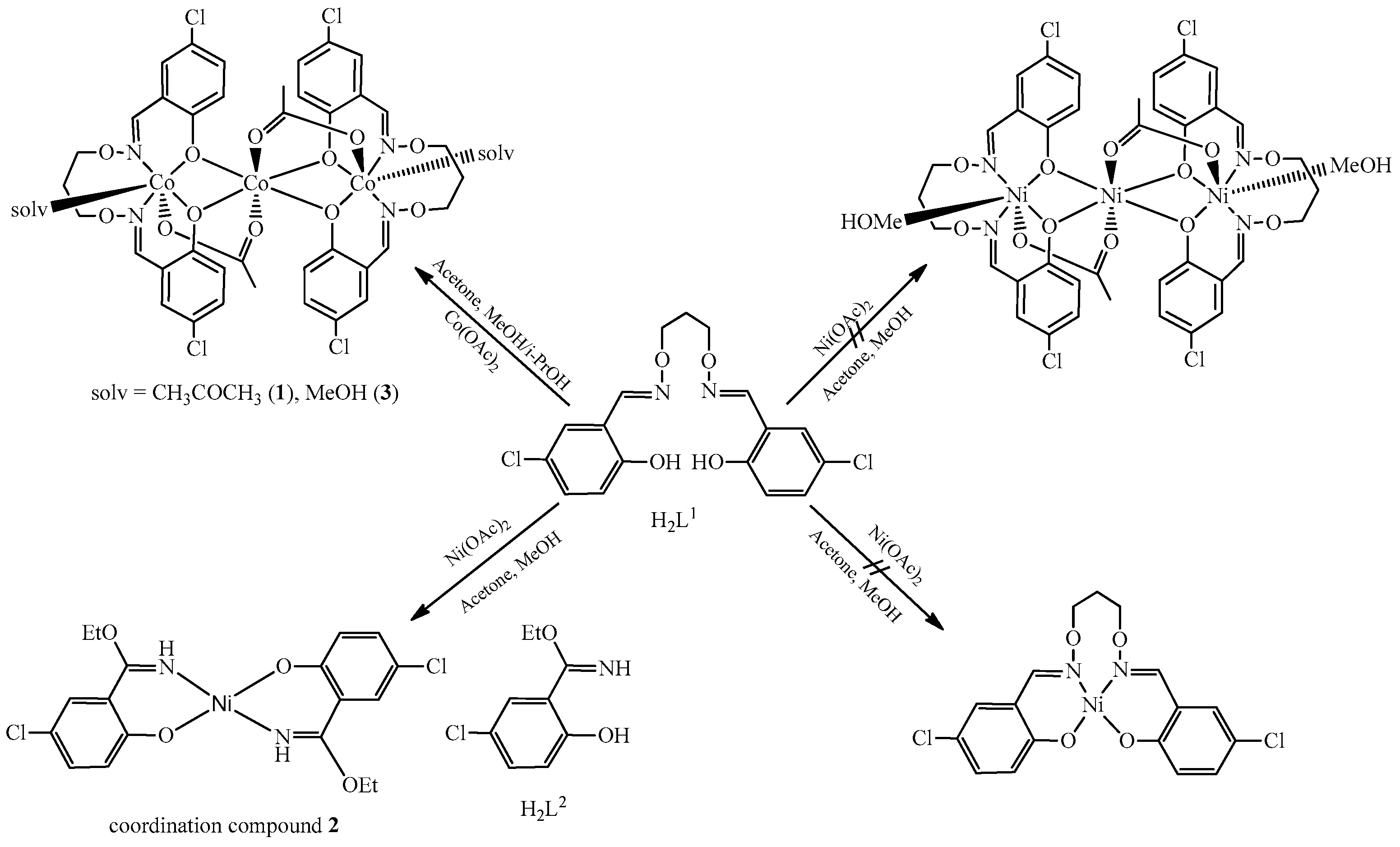

Scheme 2. Syntheses of coordination compounds 1, 2, and 3.
Scheme 2. Syntheses of coordination compounds 1, 2, and 3.
Crystals 08 00043 sch002

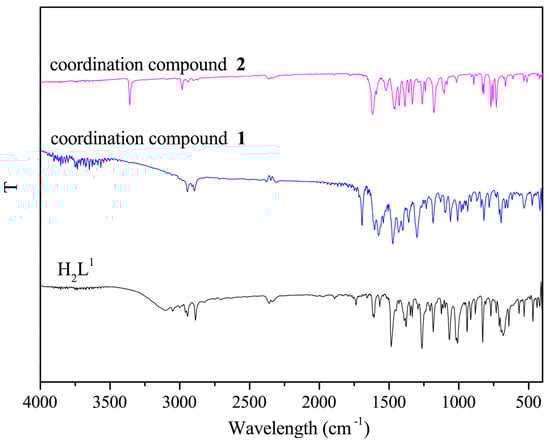

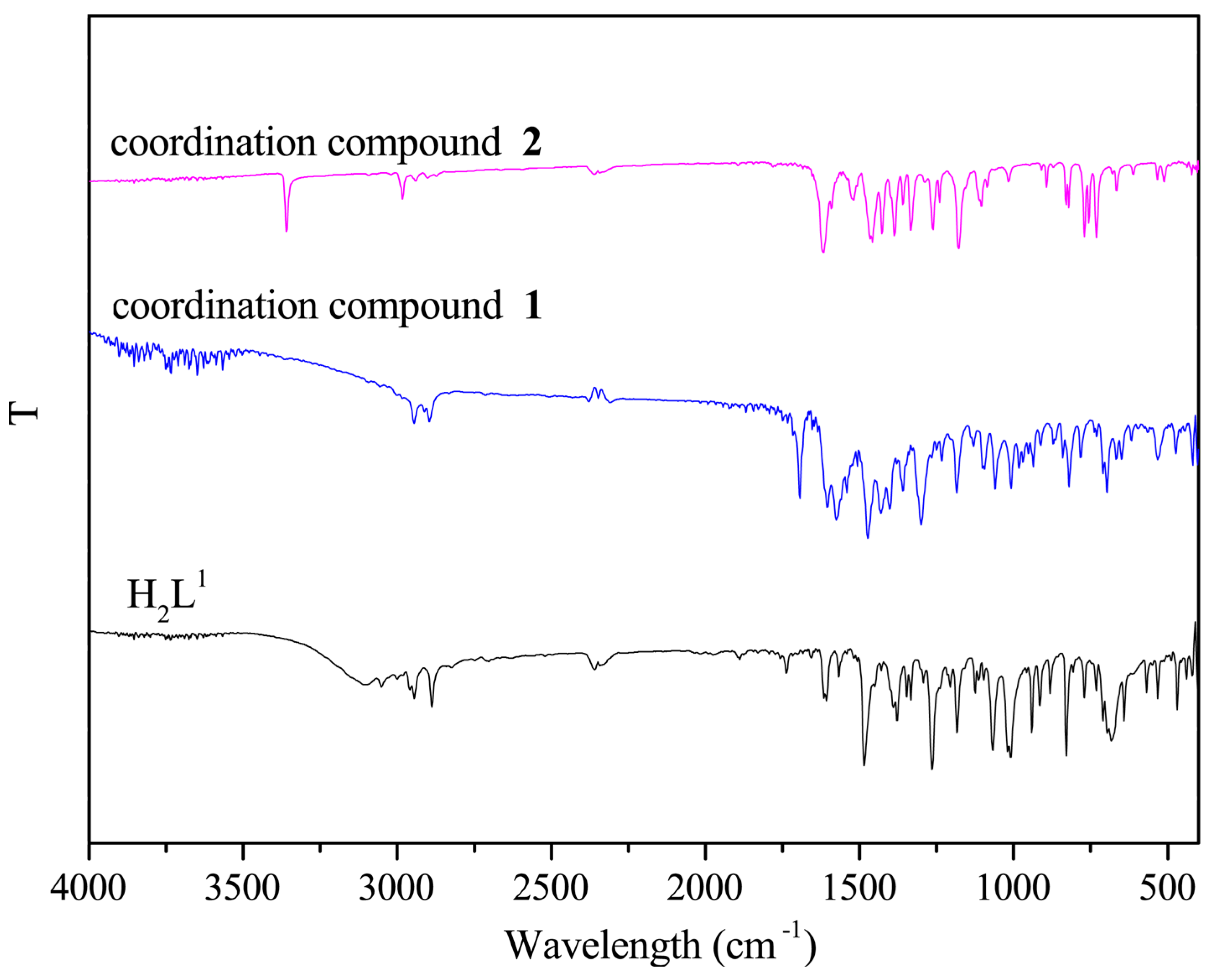

Figure 1. Infrared spectra of H2L1 and its coordination compounds 1 and 2.
Figure 1. Infrared spectra of H2L1 and its coordination compounds 1 and 2.
Crystals 08 00043 g001

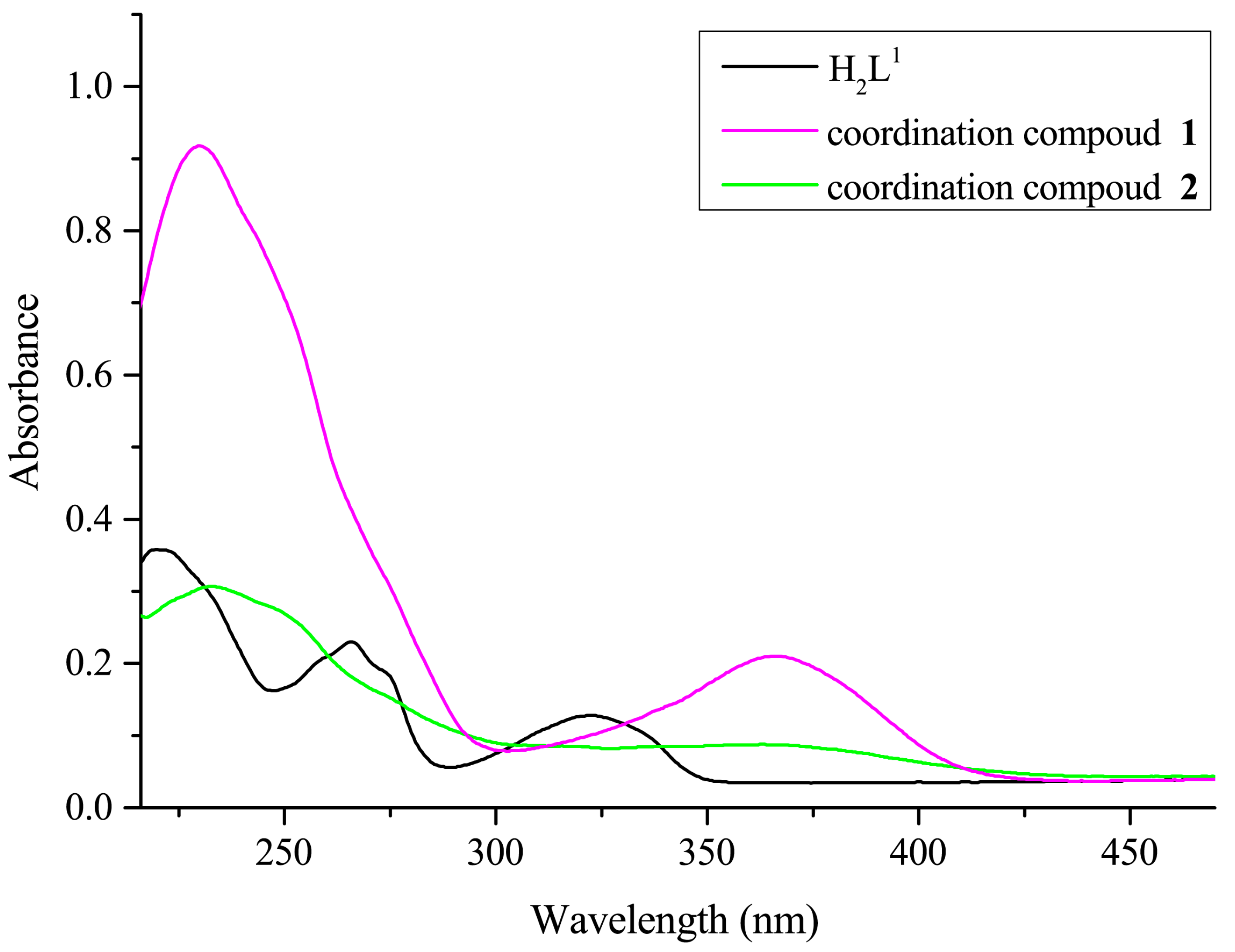

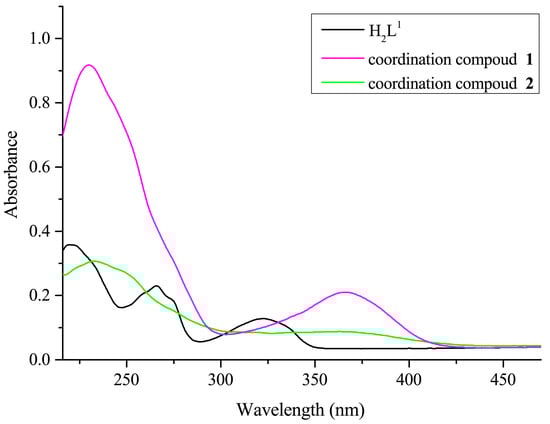

Figure 2. UV-vis spectra of H2L1 and coordination compounds 1 and 2 in methanol (c = 2.5 × 10−5 M).
Figure 2. UV-vis spectra of H2L1 and coordination compounds 1 and 2 in methanol (c = 2.5 × 10−5 M).
Crystals 08 00043 g002

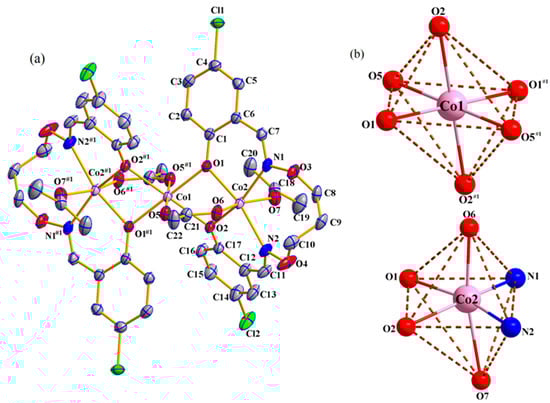

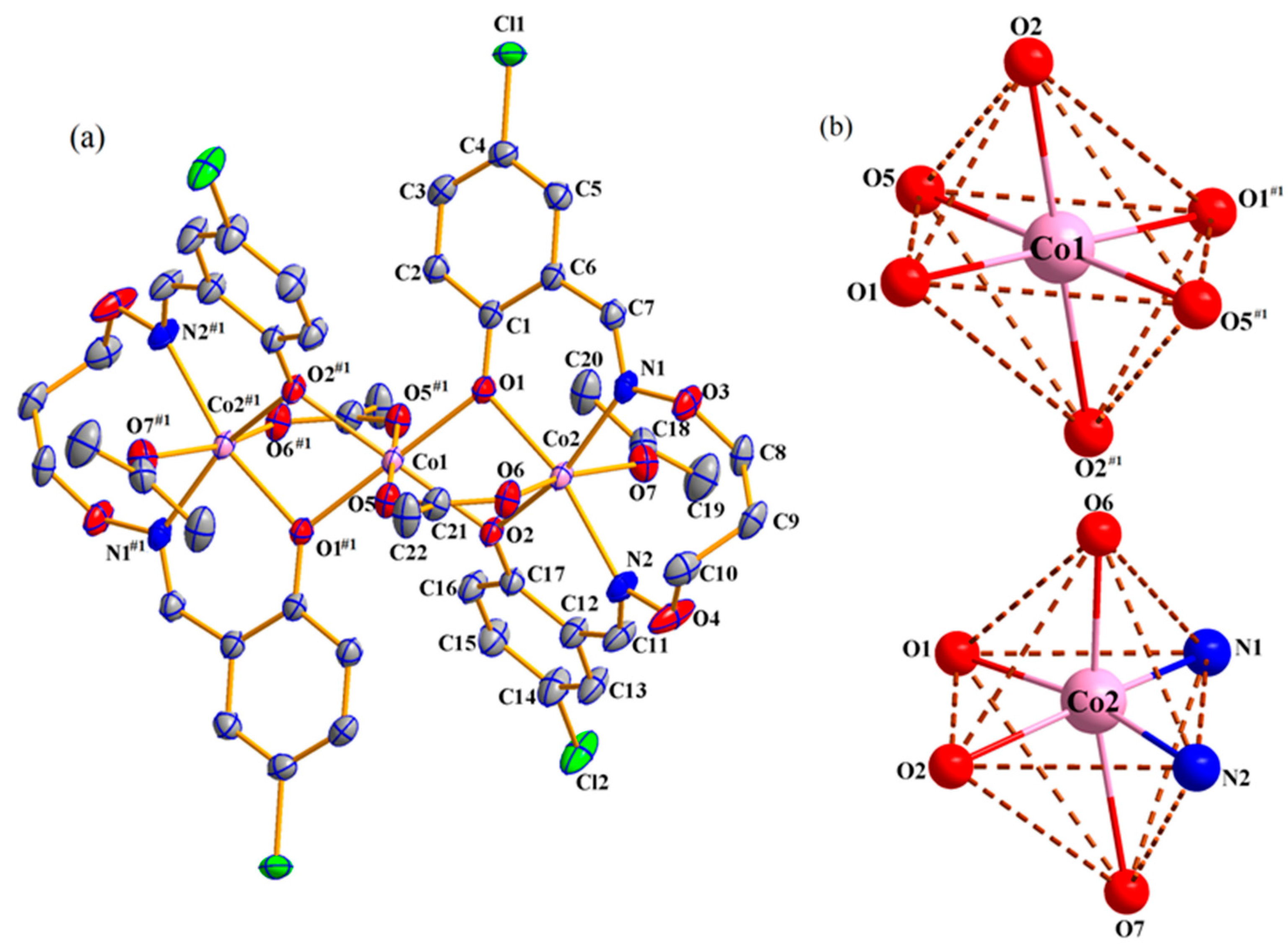

Figure 3. (a) Molecular structure and atom numberings of coordination compound 1 with 30% probability displacement ellipsoids (hydrogen atoms are omitted for clarity); (b) Coordination polyhedra for Co(II) atoms of coordination compound 1.
Figure 3. (a) Molecular structure and atom numberings of coordination compound 1 with 30% probability displacement ellipsoids (hydrogen atoms are omitted for clarity); (b) Coordination polyhedra for Co(II) atoms of coordination compound 1.
Crystals 08 00043 g003

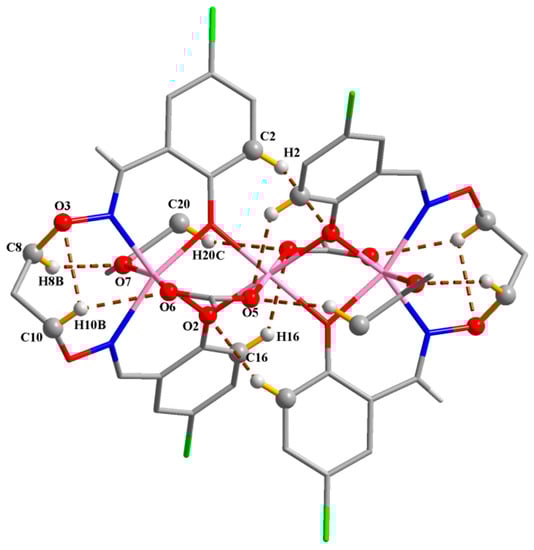

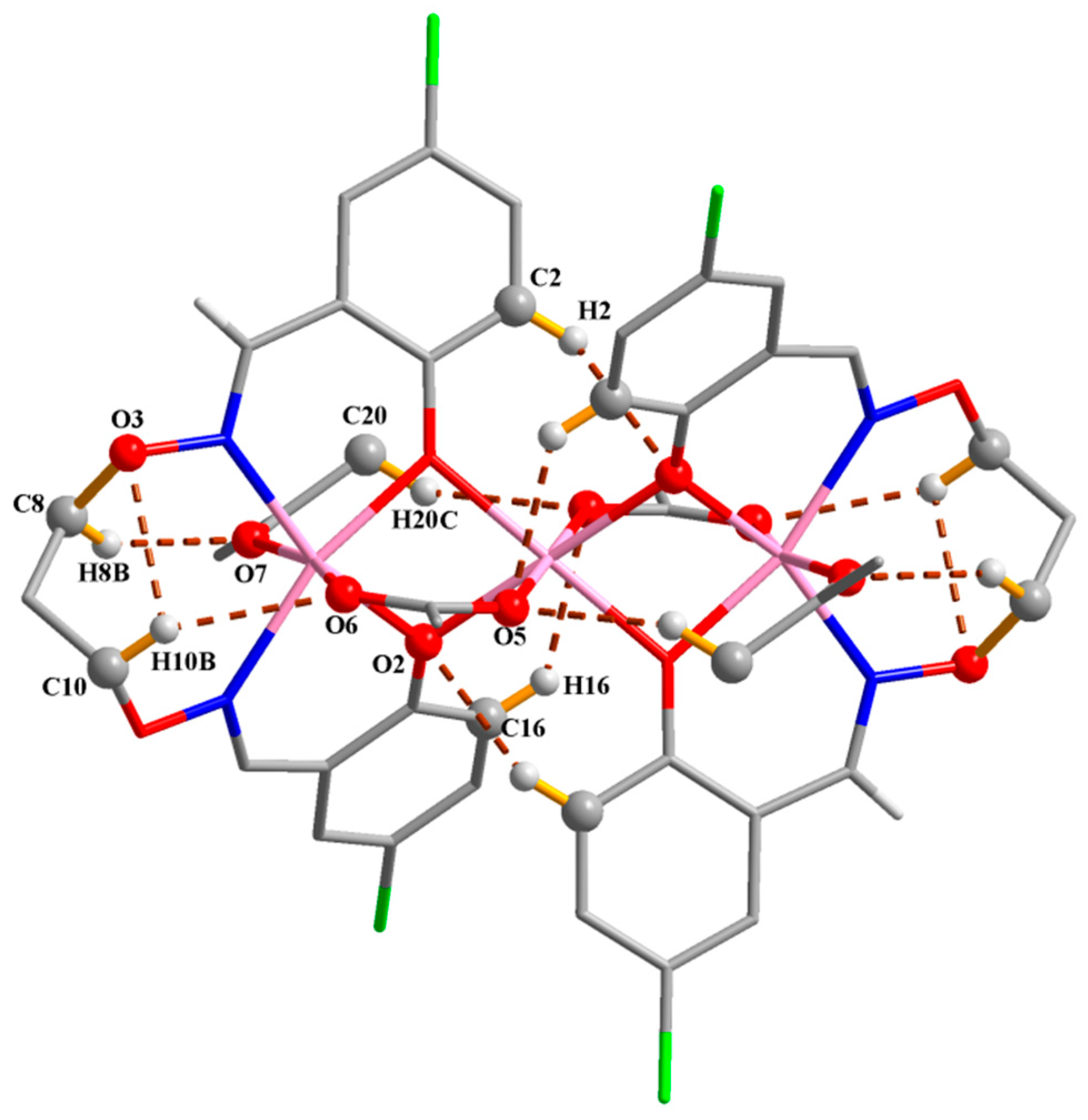

Figure 4. View of the intra-molecular hydrogen bonds of coordination compound 1.
Figure 4. View of the intra-molecular hydrogen bonds of coordination compound 1.
Crystals 08 00043 g004

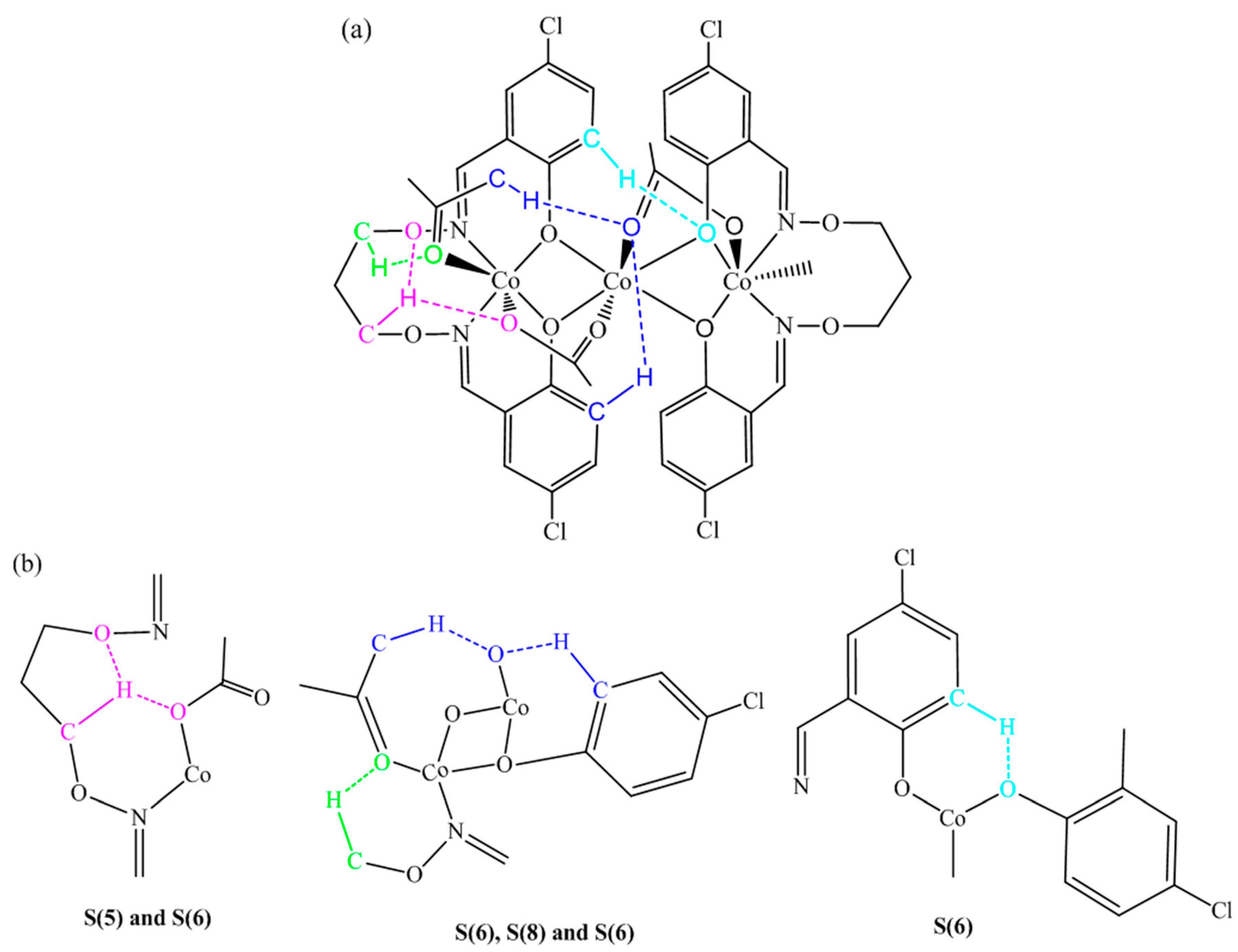

Figure 5. (a) Graph set assignments for coordination compound 1; (b) partial enlarged drawing of hydrogen bonds.
Figure 5. (a) Graph set assignments for coordination compound 1; (b) partial enlarged drawing of hydrogen bonds.
Crystals 08 00043 g005

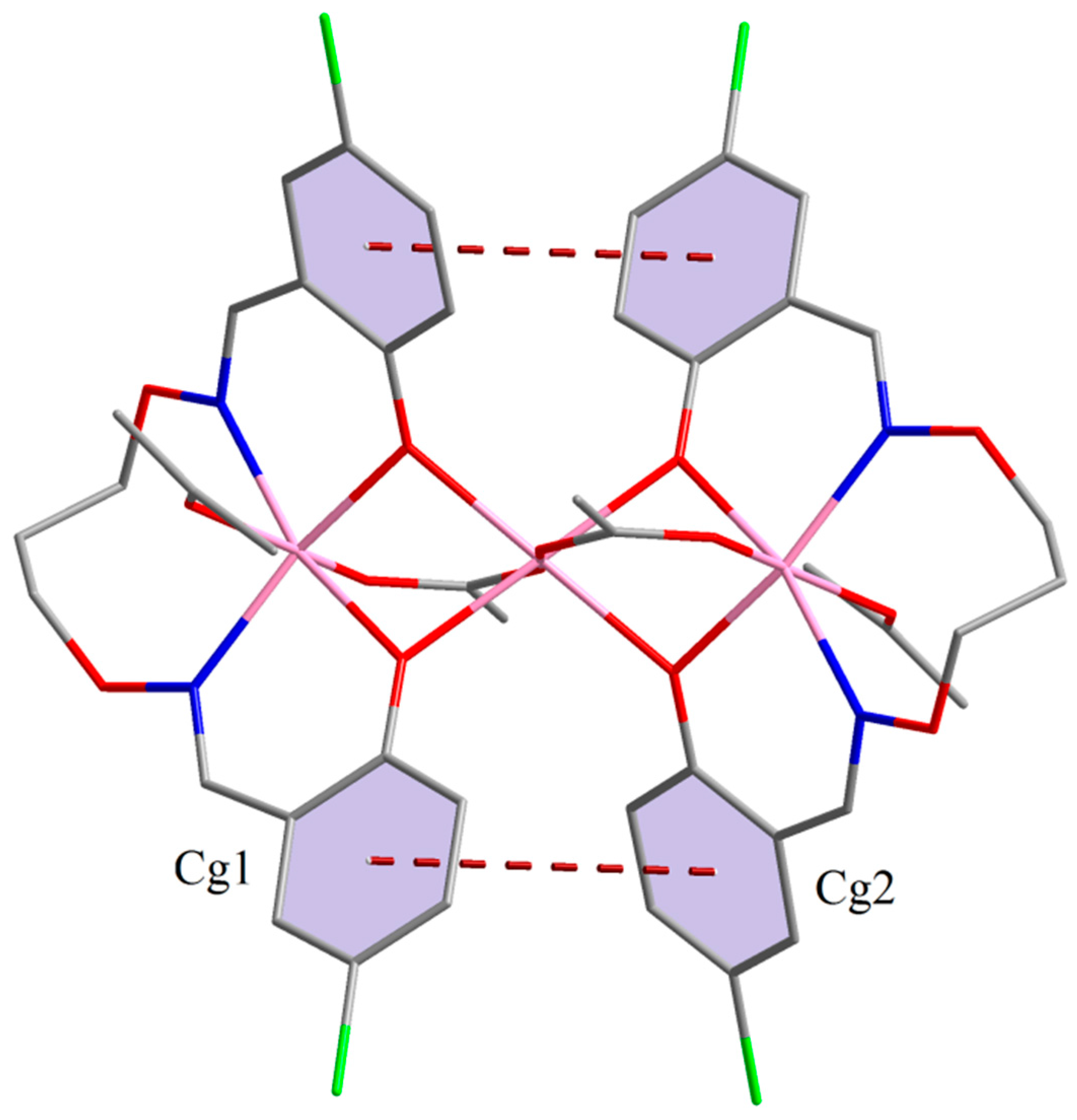

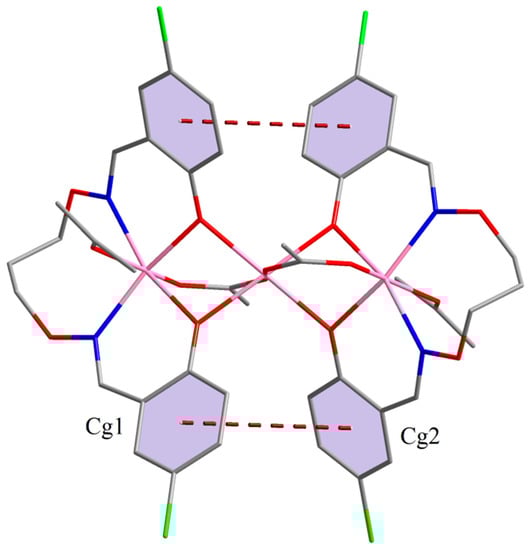

Figure 6. π⋯π interactions of coordination compound 1.
Figure 6. π⋯π interactions of coordination compound 1.
Crystals 08 00043 g006

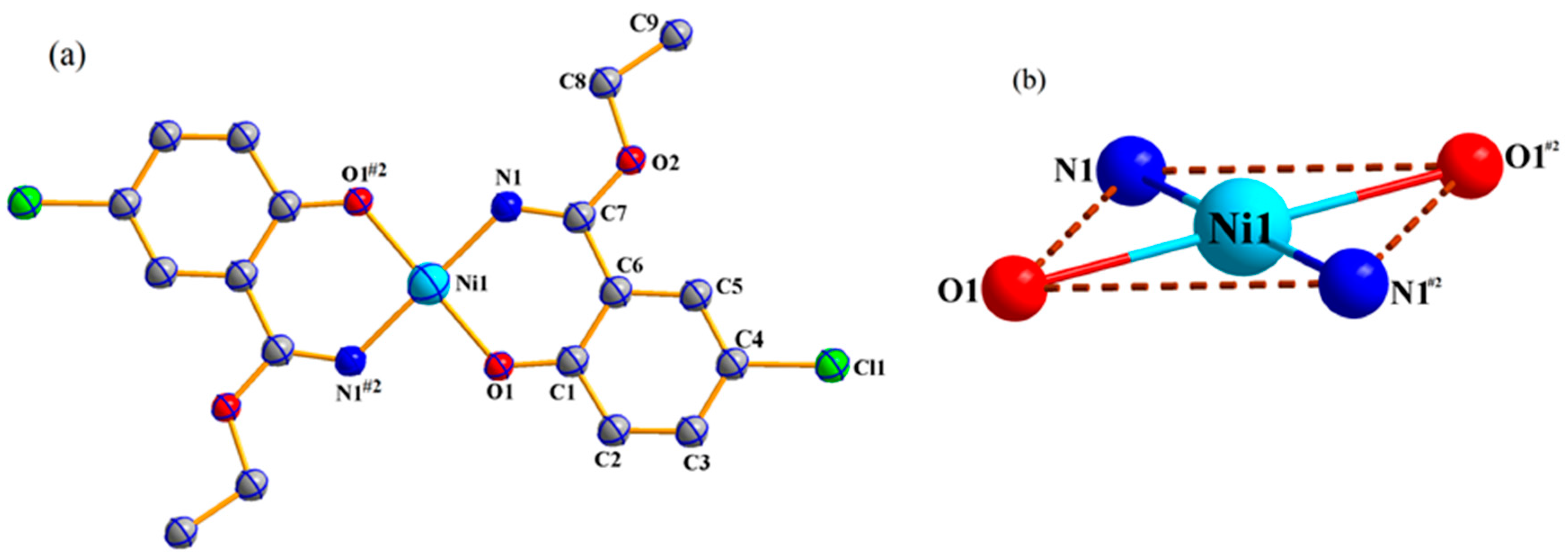

Figure 7. (a) Molecular structure and atom numberings of coordination compound 2 with 30% probability displacement ellipsoids (hydrogen atoms are omitted for clarity); (b) Coordination polyhedra for Ni(II) atoms of coordination compound 2.
Figure 7. (a) Molecular structure and atom numberings of coordination compound 2 with 30% probability displacement ellipsoids (hydrogen atoms are omitted for clarity); (b) Coordination polyhedra for Ni(II) atoms of coordination compound 2.
Crystals 08 00043 g007

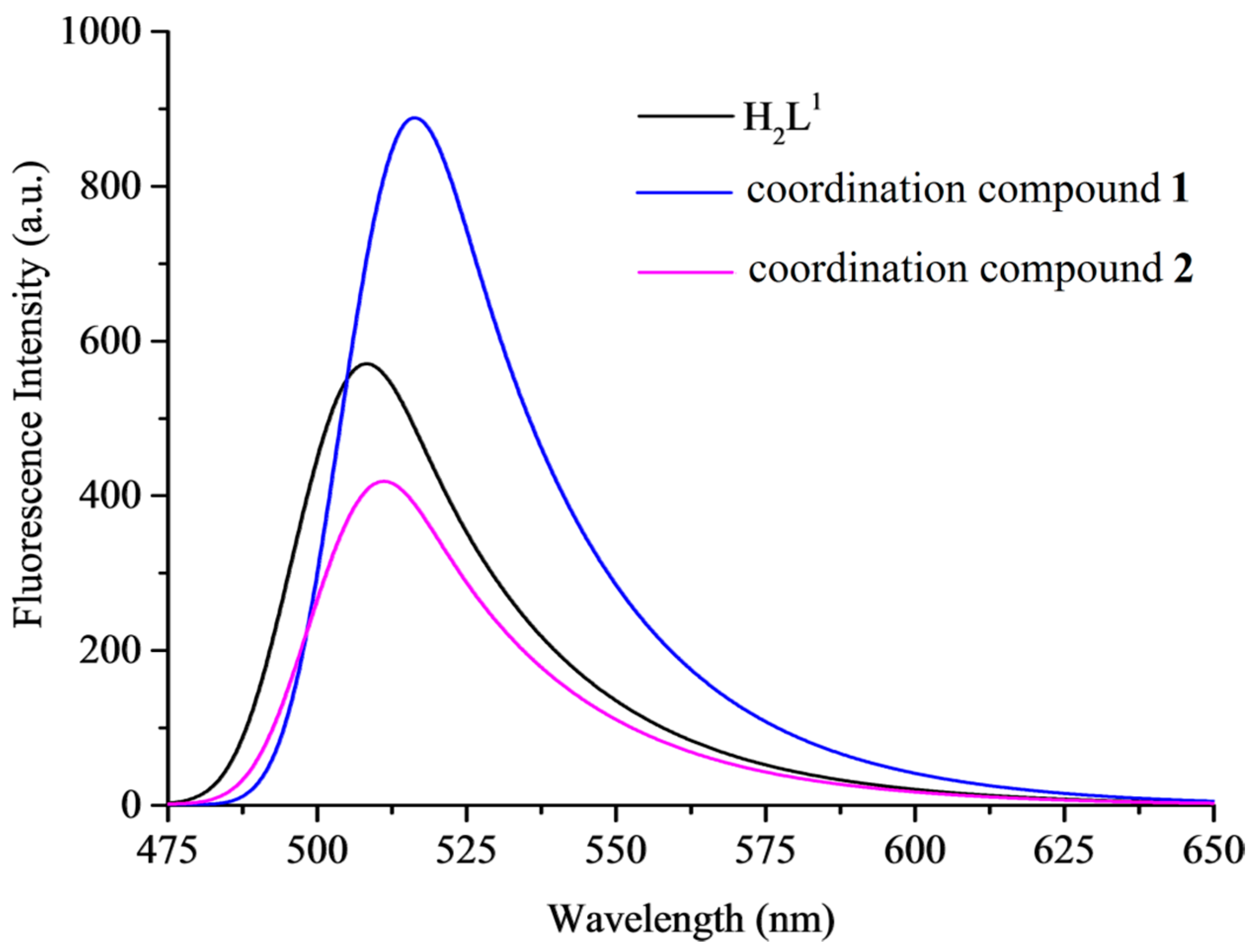

Figure 8. Emission spectra of H2L1ex = 328 nm) and its coordination compounds 1 and 2ex = 386 nm) in CH3OH (2.5 × 10−5 M).
Figure 8. Emission spectra of H2L1ex = 328 nm) and its coordination compounds 1 and 2ex = 386 nm) in CH3OH (2.5 × 10−5 M).
Crystals 08 00043 g008

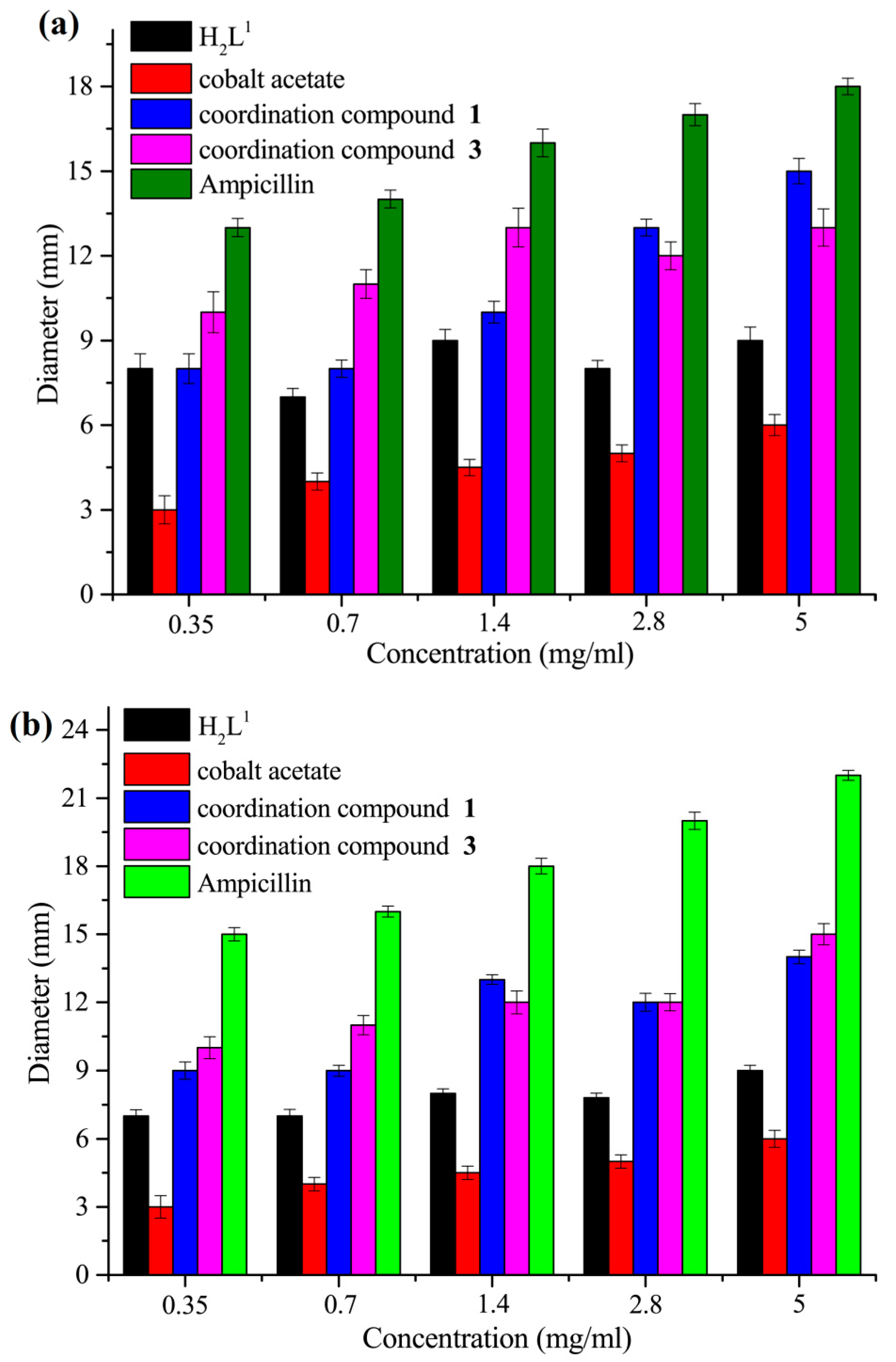

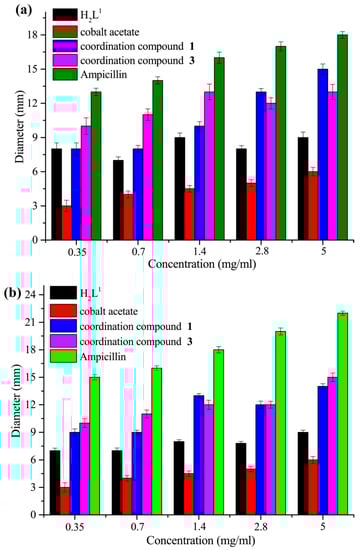

Figure 9. The diameter of inhibition zones of E. coli (a) and S. aureus (b) at different concentrations.
Figure 9. The diameter of inhibition zones of E. coli (a) and S. aureus (b) at different concentrations.
Crystals 08 00043 g009
Table 1. Crystallographic data and refinement parameters for coordination compounds 1 and 2.
Table 1. Crystallographic data and refinement parameters for coordination compounds 1 and 2.
Coordination Compound12
FormulaC44H46Cl4Co3N4O14C18H18Cl2N2NiO4
Formula weight1173.44455.95
Temperature (K)293(2)294.29(10)
Wavelength (Å)0.710730.71073
Crystal systemtriclinicmonoclinic
Space groupP-1P21/c
a (Å)9.6429(13)26.642(2)
b (Å)11.4136(15)5.0020(4)
c (Å)12.5954(17)13.8504(14)
α (°)99.797(2)90
β (°)106.340(2)92.278(9)
γ (°)104.907(2)90
V3)1240.7(3)1844.3(3)
Z14
Dcalc (g∙cm–3)1.5701.642
µ (mm–1)1.2741.369
F (000)599936
Crystal size (mm)0.18 × 0.22 × 0.250.04 × 0.05 × 0.14
θ Range (°)1.75–25.0083.372–26.022
Index ranges–11 ≤ h ≤ 8–32 ≤ h ≤ 32
–13 ≤ k ≤ 13–6 ≤ k ≤ 6
–14 ≤ l ≤ 14–16 ≤ l ≤ 17
Reflections collected69373674
Independent reflections43591808
Rint0.01750.0584
Completeness to θ99.5% (θ = 25.01)99.7% (θ = 25.242)
Data/restraints/parameters4359/0/3161808/0/129
GOF1.0461.017
Final R1, wR2 indices0.0376, 0.10380.0526, 0.0882
R1 a, wR2 b indices (all data)0.0429, 0.10960.0899, 0.1105
Largest differences peak and hole (e Å−3)0.844/−0.4780.449/−0.368
a R1 = Σ||Fo| − |Fc||/Σ|Fo||. b wR2 = {Σw(Fo2Fc2)2/Σ[w(Fo2)]2}1/2.
Table 2. Selected bond lengths (Å) and angles (°) of coordination compounds 1 and 2.
Table 2. Selected bond lengths (Å) and angles (°) of coordination compounds 1 and 2.
Coordination Compound 1
BondLengthsBondLengths
Co1-O12.0948(17)Co1-O22.1438(16)
Co1-O52.0884(17)Co1-O1#12.0948(17)
Co1-O2#12.1437(16)Co1-O5#12.0884(17)
Co2-O12.0756(16)Co2-O22.0177(17)
Co2-O62.0224(19)Co2-O72.276(2)
Co2-N12.109(2)Co2-N22.208(2)
BondAnglesBondAngles
O1-Co1-O276.14(6)O5-Co1-O188.26(7)
O1-Co1-O1#1180.0O1-Co1-O2#1103.86(6)
O5#1-Co1-O191.74(7)O5-Co1-O287.37(7)
O1#1-Co1-O2103.86(6)O2-Co1-O2#1180.0
O5#1-Co1-O292.63(7)O5-Co1-O1#191.74(7)
O5-Co1-O2#192.63(7)O5#1-Co1-O5180.0
O1#1-Co1-O2#176.14(6)O5#1-Co1-O1#188.26(7)
O5#1-Co1-O2#187.37(7)O2-Co2-O179.36(7)
O6-Co2-O191.68(7)O1-Co2-O799.74(8)
O1-Co2-N184.64(7)O1-Co2-N2164.08(8)
O2-Co2-O699.88(8)O2-Co2-O786.31(7)
O2-Co2-N1160.21(8)O2-Co2-N284.77(7)
O6-Co2-O7167.88(7)O6-Co2-N192.09(8)
O6-Co2-N289.78(9)N1-Co2-O785.00(8)
N2-Co2-O780.36(8)N1-Co2-N2111.15(8)
Coordination Compound 2
BondLengthsBondLengths
Ni1-O11.914(3)Ni1-N11.918(4)
Ni1-O1#21.914(3)Ni1-N1#21.918(4)
BondAnglesBondAngles
O1-Ni1-N192.15(15)O1#2-Ni1-O1180.0
O1-Ni1-N1#287.85(15)O1#2-Ni1-N187.85(15)
N1-Ni1-N1#2180.0O1#2-Ni1-N1#292.15(15)
Symmetry transformations used to generate equivalent atoms: #1 −x + 1, −y + 1, −z; #2 −x + 1/2, −y + 1/2, −z.
Table 3. Hydrogen bonding interactions (Å, °) of coordination compound 1.
Table 3. Hydrogen bonding interactions (Å, °) of coordination compound 1.
D–H···AD–HH···AD···AD–H···A
Coordination compound 1
C2–H2···O20.932.583.281(3)133
C8–H8B···O70.972.533.425(4)153
C10–H10B···O30.972.542.931(5)104
C10–H10B···O60.972.453.329(4)150
C16–H16···O50.932.483.207(3)135
C20–H20C···O50.962.493.358(5)151

Share and Cite

MDPI and ACS Style

Li, X.-Y.; Kang, Q.-P.; Liu, L.-Z.; Ma, J.-C.; Dong, W.-K. Trinuclear Co(II) and Mononuclear Ni(II) Salamo-Type Bisoxime Coordination Compounds. Crystals 2018, 8, 43. https://doi.org/10.3390/cryst8010043

AMA Style

Li X-Y, Kang Q-P, Liu L-Z, Ma J-C, Dong W-K. Trinuclear Co(II) and Mononuclear Ni(II) Salamo-Type Bisoxime Coordination Compounds. Crystals. 2018; 8(1):43. https://doi.org/10.3390/cryst8010043

Chicago/Turabian Style

Li, Xiao-Yan, Quan-Peng Kang, Ling-Zhi Liu, Jian-Chun Ma, and Wen-Kui Dong. 2018. "Trinuclear Co(II) and Mononuclear Ni(II) Salamo-Type Bisoxime Coordination Compounds" Crystals 8, no. 1: 43. https://doi.org/10.3390/cryst8010043

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
