Synthesis and Characterization of Perovskite-Type [K1−xNax]MgF3 Mixed Phases via the Fluorolytic Sol-Gel Synthesis

Department of Chemistry, Humboldt-Universität zu Berlin, 12489 Berlin, Germany
*
Author to whom correspondence should be addressed.
Crystals 2018, 8(2), 66; https://doi.org/10.3390/cryst8020066
Submission received: 18 January 2018 / Revised: 18 January 2018 / Accepted: 27 January 2018 / Published: 30 January 2018
(This article belongs to the Special Issue Structure and Properties of Fluoride-based Materials)

Abstract

:
The focus of this article is the synthesis of perovskite-type [K1−xNax]MgF3 mixed phases via the room-temperature fluorolytic sol-gel approach. Different molar ratios of K/Na were examined and analyzed by 19F MAS NMR and X-ray powder diffraction. Starting from pure KMgF3, a systematic substitution of potassium by sodium was evidenced when replacing K by Na. As long as the amount of sodium is less than 80% as compared to potassium, spectra just show [K4−xNaxF] environments in a [K1−xNax]MgF3 mixed phase but separate structures appear when the amount of sodium is further increased. Moreover, colloidal dispersions of nanoscaled KMgF3 particles were obtained, which were used to fabricate coatings on glass slides. Thin films showed antireflective behavior and high transmittance.

Graphical Abstract

1. Introduction

In 2003, our group explored the fluorolytic sol-gel synthesis [1]. In contrast to the common aqueous sol-gel synthesis which leads to the formation of nanosized metal oxides, the fluorolytic sol-gel synthesis yields metal fluoride nanoparticles [2,3]. Because of the low refractive indexes of metal fluorides, obtained metal fluoride sols can be used to fabricate antireflective thin films on different substrates, e.g., glasses or polymers, via dip coating. Additionally, these sols can be subsequently processed to xerogels as well. This is achieved by evaporating the solvent and yields solid metal fluorides with high surface areas. Diversification of the general fluorolytic synthesis approach resulted in the access of a wide variety of fluoride based materials [4,5]. In addition, in this case, the powerful room temperature synthesis method is used to access homodispersed perovskite-type mixed phases of [K1−xNax]MgF3 on a nano-scaled dimension under ambient conditions. For many decades, scientists are dealing with perovskite-type compounds like KMgF3 and NaMgF3 for different purposes, especially because of their interesting physical properties [6,7], synthetic accessibility [8,9], and application-focused demands [10,11]. Furthermore, the synthesis of mixed phases was investigated and will be used for direct comparison [12]. In general, compounds like KMgF3 act as high-performance ceramics and luminescence host matrices [13,14,15]. Hence, the synthetic access of nanosized [K1−xNax]MgF3 mixed phases via the fluorolytic sol-gel synthesis under ambient conditions, their characterization, and probing their applicability for antireflective coatings is the main focus of this article.

2. Methods and Experimental

2.1. Methods

19F MAS NMR: 19F MAS NMR data were measured with a Bruker Advance 400 MHz spectrometer (Billerica, MA, USA). All dried powder samples were filled into 2.5 mm ZrO2 rotors and the main rotation frequency was applied at 20 kHz. Referred to δ = 0 ppm of CFCl3 (using α-AlF3 as the secondary standard for calibration) and with a D1 time of 5 s, every spectrum consists of 32 scans.
XRD: Powder diffraction analysis was done by a Seifert XRD 3003 TT (Schnaittach-Hormersdorf, Germany) with rotating sample holder using Cu radiation (Cu Kα1,2; λ = 1.54 Å; U = 40 kV; I = 40 mA; Ni filter). All samples were measured in Bragg-Bretano geometry and results compared to powder diffraction files of COD-inorganic.
Dip-Coating: To fabricate thin films from nanoscopic dispersions, float glasses (40 mm × 20 mm × 3 mm) were coated by dip coating. To ensure a layer thickness of d > 100 nm, the dip-coating process was repeated three times. Obtained layers were heated up to 450 °C with a heating rate (HR) of 10 K·min−1, and kept at this temperature for 15 min.
Transmission-Spectroscopy: Layer thickness (d), reflectance (Rmin), transmission (Tmax), and refractive index n, using a FILMetrics Thin Film Analyzer F10-RT (Unterhaching, Germany) were determined. Spectra were measured in a wavelength range of λ = 400–1050 nm.

2.2. Experimental

Materials:
CompoundFormulaConcentration/PuritySupplier
Magnesium EthoxideMg(OEt)299.8%EVONIK Industries
Magnesium ChlorideMgCl2anhydrous, ≥98%Aldrich
Potassium MethoxideKOMe≥95%Aldrich
Hydrogen FluorideHFanhydrous, pureSolvay
MethanolMeOH≥99.6%Aldrich
HF solution in MethanolHFMeOH20.53 mol·L−1-
Synthesis of HFMEOH: The alcoholic HF solution was prepared according to our previous report by dissolving HF in methanol [4].
Synthesis of KMgF3 (coating sol): 100 mL MeOH, 2.99 mL HFMeOH (60 mmol), and 0.1 mL nitric acid (2 mmol) were added in a 250 mL PP bottle. In a schlenk flask, 1.40 g KOMe (20 mmol) and 2.29 g Mg(OEt)2 (20 mmol) were dissolved in 90 mL MeOH. The grey solution of the potassium and magnesium precursors were transferred dropwise into the HF/HNO3 solution under heavy stirring. After one day, the grey dispersion turned into a milky sol and 0.3 mL TMOS (2 mmol) were added. After 7 days of stirring, a clear, colorless sol was obtained.
Synthesis of NaMgF3: 100 mL MeOH, 2.99 mL HFMeOH (60 mmol), and 0.1 mL nitric acid (2 mmol) were added in a 250 mL PP bottle. In a schlenk flask, 0.46 g Na (20 mmol) and 2.29 g Mg(OEt)2 (20 mmol) were dissolved in 90 mL MeOH. The grey solution of the sodium and magnesium precursors were transferred dropwise into the HF/HNO3 solution under heavy stirring. After one day, an additive (Table 1) was added. After 7 days of stirring, a grey opaque dispersion was obtained.
Xerogel: 40 mL of NaMgF3 sol were put into a glass flask. The solvent was removed under vacuum and the obtained powder was divided into three parts, whereas two were thermally treated at different temperatures.
Synthesis of [K1−xNax]MgF3: 100 mL MeOH, 2.99 mL HFMeOH (60 mmol), and 0.1 mL nitric acid (2 mmol) were added in a 250 mL PP bottle. In a schlenk flask, Na (Table 2), KOMe (Table 2) and 2.29 g Mg(OEt)2 (20 mmol) were dissolved in 90 mL MeOH. The grey solution of the sodium/potassium and magnesium precursors were transferred dropwise into the HF/HNO3 solution under heavy stirring. After one day, an additive (Table 1) was added. After 7 days of stirring, a grey opaque dispersion was obtained.
Xerogel: 40 mL of [K1−xNax]MgF3 sol were put into a glass flask. The solvent was removed under vacuum and the obtained powder was divided into three parts, whereas two were thermally treated at different temperatures.

3. Results and Discussion

[K1−xNax]MgF3 phases of varying K to Na ratios were synthesized according the following general reaction stoichiometry (Scheme 1).
In addition to the reaction presented in the scheme above, Mg(OEt)2 was partly replaced by MgCl2 (10–30%). In analogy to our previous report, the idea was to generate a catalytic cycle in which HCl, formed by the reaction of MgCl2 with HF, would increase the reaction rate significantly due to the higher acidity of HCl as comapred to HF [4]. Unfortunately, the usage of MgCl2 within this reaction leads to the formation of [K/Na]Cl, and hence, is not recommended for this reaction system. Thus, we tried to create a new catalytic cycle based on nitric acid: comparing the acidity of nitric acid sand hydrogen fluoride, nitric acid is a better proton donator towards metal–oxygen bonds than HF. Fortunately, metal nitrates react subsequently with HF forming [K1−xNax]MgF3 mixed phases without any side products.
With the focus on easily access clear sols, which indicates the formation of mainly homodispersed nanoparticles inside the sol, we investigated the influence of temperature on clearing up rate during KMgF3 syntheses (Table 3). Thus, it turns out that clear sols can only be obtained by performing the synthesis under cooling. To ensure a long-time stability of the obtained sols, different additives were tested in order to avoid particle agglomeration and water induced gelation. Moreover, the addition of zeta-potential affecting electrolytes allows a faster clearing up of the KMgF3-sols. Especially tetramethoxysilane (TMOS) and trifluoroacetic acid (TFA) turned out to cause a fast clearing up of the reaction systems resulting in very fast formation of clear sols. Comparing the visual appearance of different samples, the influence of TMOS and TFA is conspicuous (Figure 1). Based on dynamic light scattering (DLS) investigations, a mean particle size diameter of d = 69 nm within sol 12 was determined (Figure 2). It can be seen that the majority of the particles exhibit diameters less than 50 nm. Moreover, the correlation curve appears to be sigmoidal, which basically indicates a monodispers contribution.
To understand the action of the sol-stabilizing additives TMOS and TFA more precisely, IR-measurements of xerogel 9 and 12 (obtained from sol 9 and 12) were performed (Figure 3). Comparing the IR spectra of obtained xerogels to pure additives, it can be seen that xerogel 9 shows similar stretching bands to pure TFA. Especially the shifting of the C=O band from1760 cm−1 (purple) to 1685 cm−1 (orange) supports the supposition of a coordinative bonding between the Lewis acidic sites of the nanoparticle and the trifluoro acetic acid molecules. Thus, electrons of the C=O HOMO drain off, leading to a weaker bonding and a red-shifted band within the IR spectrum. In contrast to this, no traces of TMOS within xerogel 12 were found, which may be taken as an indication for the zeta-potential affecting properties of TMOS.
To receive structural information, obtained X-ray amorphous xerogel 12 was thermally treated at 450 °C to increase crystallinity and to allow analysis by XRD. The 19F MAS NMR spectra of non-annealed sample of xerogel 12 show the main signal of KMgF3 at −184.6 ppm (Figure 4) [12]. Moreover, a small signal for MgF2 can be found at −198.2 ppm [4]. Thermally induced changes in the structure were not confirmed by comparing 19F MAS NMR spectra, but by XRD. While the non-annealed perovskite-type mixed phases of [K1−xNax]MgF3. xerogel is totally amorphous, the annealed xerogel shows good agreement with the powder diffraction file of KMgF3 (Figure 5, pdf: 18-1033, star). Hence, just amorphous KMgF3 can evidently be obtained not only via hydrothermal synthesis as described in literature but also via the fluorolytic sol-gel synthesis very easily under ambient conditions [9].
Based on the results described above, we tried to obtain pure NaMgF3 and [K1−xNax]MgF3 mixed phases the same way by cooling down the reaction mixtures and adding TMOS subsequently. Unfortunately, all sols obtained this way were not fully clear but opaque (Table 4).
To receive structural information of obtained [K(1−x)Nax]MgF3 mixed solid phases, 19F MAS NMR of annealed xerogels 9, 1317 were compared (Figure 6). In line with literature reports, the replacement of K-cations by Na-cations can be confirmed [12]. Up to an amount of 20% of Na-doping, the cation mixed perovskite phases remain in a KMgF3 structural environment; the formation of a separate NaMgF3 phase can be excluded. As already mentioned before, 19F MAS NMR of xerogel 9 shows the main signal of KMgF3 at −184.6 ppm. With increasing Na+ doping concentration, the spectra show a high field shifted widening. At a Na+ doping level of 40% (xerogel 16) a signal at −202.9 ppm appears, pointing out the formation of [Na4F] moieties. While this signal increases with higher amounts of Na+ within the samples (xerogel 15 and 14), the corresponding KMgF3 signal decreases until complete disappearance (xerogel 13). With the help of the dmfit program, separate signals in the range of −180 ppm and −200 ppm can be determined and allow the assignment of different fluoride ion environments within a cubic KMgF3 structure (Figure 7) [16]. The dmfit simulation shows four almost equidistant (Δδave = 4.3 ppm) signals with different intensities at invariable peak-widths (Table 5). The equidistant shifts to a higher field can be explained by a step-by-step substitution of K+ by Na+. Although it can be assumed that a statistic substitution occurs, the experimentally determined proportion for end-member environments [K4F] and [Na4F] is favored, and therefore, results given in the literature can be confirmed.
This cation-replacement can also be evidenced by XRD measurements complying with the law of Vegard (Figure 8) [17]. With increasing amounts of the smaller Na-cations (rNa+ = 153 pm, rK+ = 178 pm) [18], the cell volume decreases leading to right-side shifting of peaks in the diffractograms. In comparison to the 19F MAS NMR spectra, a pure NaMgF3 phase cannot be found at x = 0.4. This may confirm the formation of [Na4F] moieties within a [K(1−x)Nax]MgF3 solid solution, but does not indicate the formation of pure a NaMgF3 phase. The varying numbers for calculated and experimentally determined ntotal(K+) are in line with this assumption (Table 5). Even at Na-doping level of 60%, reflections of a NaMgF3 phase are difficult to identify, whereas reflections of both compounds show up at Na-levels ≥80% [K0.2Na0.8]MgF3.
Concerning the fact that sol 12 represents a water clear colorless sol, it was used for dip coating on glass-slides. After dip coating, glass slides were thermally treated at 450 °C for 15 min. The obtained thin films show nearly perfect antireflective behavior with a remaining reflectance of just R = 0.15% and transmission as high as T = 96.1% (Figure 9, Table 6).

4. Summary

Employing the room-temperature fluorolytic sol-gel synthesis, the formation of KMgF3, NaMgF3, and [K1-xNax]MgF3 mixed phases was evidenced. However, only with pure KMgF3 colorless and water clear sols were they obtained when the synthesis was performed under ice bath cooling and with the addition of TMOS as a stabilizer. With the help of 19F MAS NMR and XRD, we obtained evidence for the consecutive occupancy of potassium by sodium sites within a cubic KMgF3 structure. If the Na dopant concentration exceeds 20% in relation to K, the formation of [Na4F] environments takes place and can be observed in 19F MAS NMR. In addition, the substitution does not take place statistically, instead, end-membered environments are favored. The appearance of a pure NaMgF3 phase within samples with less than 80% Na+ can be denied as evidenced by XRD measurements. Thin films, which were obtained by dip coating with clear KMgF3 sols showed very low remaining reflectance and high transmission.

Acknowledgments

The authors thank the research training network GRK 1582/2 “Fluorine as a Key Element” of DFG (Deutsche Forschungsgemeinschaft) for funding. This project was partly also funded by the German Federal Ministry of Economics and Technology (Grant 03ET1235C).

Author Contributions

Florian Schütz wrote the paper and did the experiments with the help of Linda Lange. Kerstin Scheurell and Gudrun Scholz analyzed, evaluated and discussed the NMR data. Erhard Kemnitz was responsible for coordinating the experiments and correcting the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kemnitz, E.; Groß, U.; Rüdiger, S.; Shekar, C.S. Amorphe metallfluoride mit außergewöhnlich großer spezifischer oberfläche. Angew. Chem. 2003, 115, 4383–4386. [Google Scholar] [CrossRef]
  2. Hench, L.L.; West, J.K. The sol-gel process. Chem. Rev. 1990, 90, 33–72. [Google Scholar] [CrossRef]
  3. Rudiger, S.; Kemnitz, E. The fluorolytic sol-gel route to metal fluorides-a versatile process opening a variety of application fields. Dalton Trans. 2008, 1117–1127. [Google Scholar] [CrossRef] [PubMed]
  4. Krahl, T.; Broßke, D.; Scheurell, K.; Lintner, B.; Kemnitz, E. Novel aspects in the chemistry of the non-aqueous fluorolytic sol–gel synthesis of nanoscaled homodisperse MgF2 sols for antireflective coatings. J. Mater. Chem. C Mater. Opt. Electron. Devices 2016, 4, 1454–1466. [Google Scholar] [CrossRef]
  5. Rehmer, A.; Scheurell, K.; Kemnitz, E. Formation of nanoscopic CaF2 via a fluorolytic sol-gel process for antireflective coatings. J. Mater. Chem. C Mater. Opt. Electron. Devices 2015, 3, 1716–1723. [Google Scholar] [CrossRef]
  6. Adamkovičová, K.; Fellner, P.; Kosa, L.; Nerad, I.; Proks, I.; Strečko, J. Determination of the enthalpy of fusion of NaMgF3 and KMgF3. Thermochim. Acta 1994, 242, 23–26. [Google Scholar] [CrossRef]
  7. Sahnoun, M.; Zbiri, M.; Daul, C.; Khenata, R.; Baltache, H.; Driz, M. Full potential calculation of structural, electronic and optical properties of KMgF3. Mater. Chem. Phys. 2005, 91, 185–191. [Google Scholar] [CrossRef]
  8. Sevonkaev, I.; Goia, D.V.; Matijević, E. Formation and structure of cubic particles of sodium magnesium fluoride (neighborite). J. Colloid Interface Sci. 2008, 317, 130–136. [Google Scholar] [CrossRef] [PubMed]
  9. Zhao, C.; Feng, S.; Chao, Z.; Shi, C.; Xu, R.; Ni, J. Hydrothermal synthesis of the complex fluorides LiBaF3 and KMgF3 with perovskite structures under mild conditions. Chem. Commun. 1996, 1641–1642. [Google Scholar] [CrossRef]
  10. Dotzler, C.; Williams, G.V.M.; Rieser, U.; Edgar, A. Optically stimulated luminescence in NaMgF3:Eu2+. 2007, 91, 121910. [Google Scholar] [CrossRef]
  11. Wu, M.; Song, E.H.; Chen, Z.T.; Ding, S.; Ye, S.; Zhou, J.J.; Xu, S.Q.; Zhang, Q.Y. Single-band red upconversion luminescence of Yb3+–Er3+ via nonequivalent substitution in perovskite KMgF3 nanocrystals. J. Mater. Chem. C Mater. Opt. Electron. Devices 2016, 4, 1675–1684. [Google Scholar] [CrossRef]
  12. Martin, C.D.; Chaudhur, S.; Grey, C.P.; Parise, J.B. Effect of a-site cation radius on ordering of bx6 octahedra in (K, Na) MgF3 perovskite. Am. Mineral. 2005, 90, 1522–1533. [Google Scholar] [CrossRef]
  13. Bacci, C.; Fioravanti, S.; Furetta, C.; Missouri, M.; Ramogida, G.; Rossetti, R.; Sanipoli, C.; Scacco, A. Photoluminescence and thermally stimulated luminescence in KMgF3:Eu2+ crystals. Radiat. Prot. Dosim. 1993, 47, 277–280. [Google Scholar] [CrossRef]
  14. Bhalla, A.S.; Guo, R.; Roy, R. The perovskite structure—A review of its role in ceramic science and technology. Mater. Res. Innov. 2000, 4, 3–26. [Google Scholar] [CrossRef]
  15. Furetta, C.; Bacci, C.; Rispoli, B.; Sanipoli, C.; Scacco, A. Luminescence and dosimetric performances of KMgF3 crystals doped with metal impurity ions. Radiat. Prot. Dosim. 1990, 33, 107–110. [Google Scholar] [CrossRef]
  16. Massiot, D.; Fayon, F.; Capron, M.; King, I.; Le Calvé, S.; Alonso, B.; Durand, J.-O.; Bujoli, B.; Gan, Z.; Hoatson, G. Modelling one- and two-dimensional solid-state NMR spectra. Magn. Reson. Chem. 2002, 40, 70–76. [Google Scholar] [CrossRef]
  17. Vegard, L. Die konstitution der mischkristalle und die raumfüllung der atome. Z. Phys. 1921, 5, 17–26. [Google Scholar] [CrossRef]
  18. Shannon, R.T.; Prewitt, C.T. Effective ionic radii in oxides and fluorides. Acta Crystallogr. B Struct. Crystallogr. Crys. Chem. 1969, 25, 925–946. [Google Scholar] [CrossRef]
Scheme 1. Formation of [K1−xNax]MgF3 by fluorolytic sol-gel synthesis.
Scheme 1. Formation of [K1−xNax]MgF3 by fluorolytic sol-gel synthesis.
Crystals 08 00066 sch001

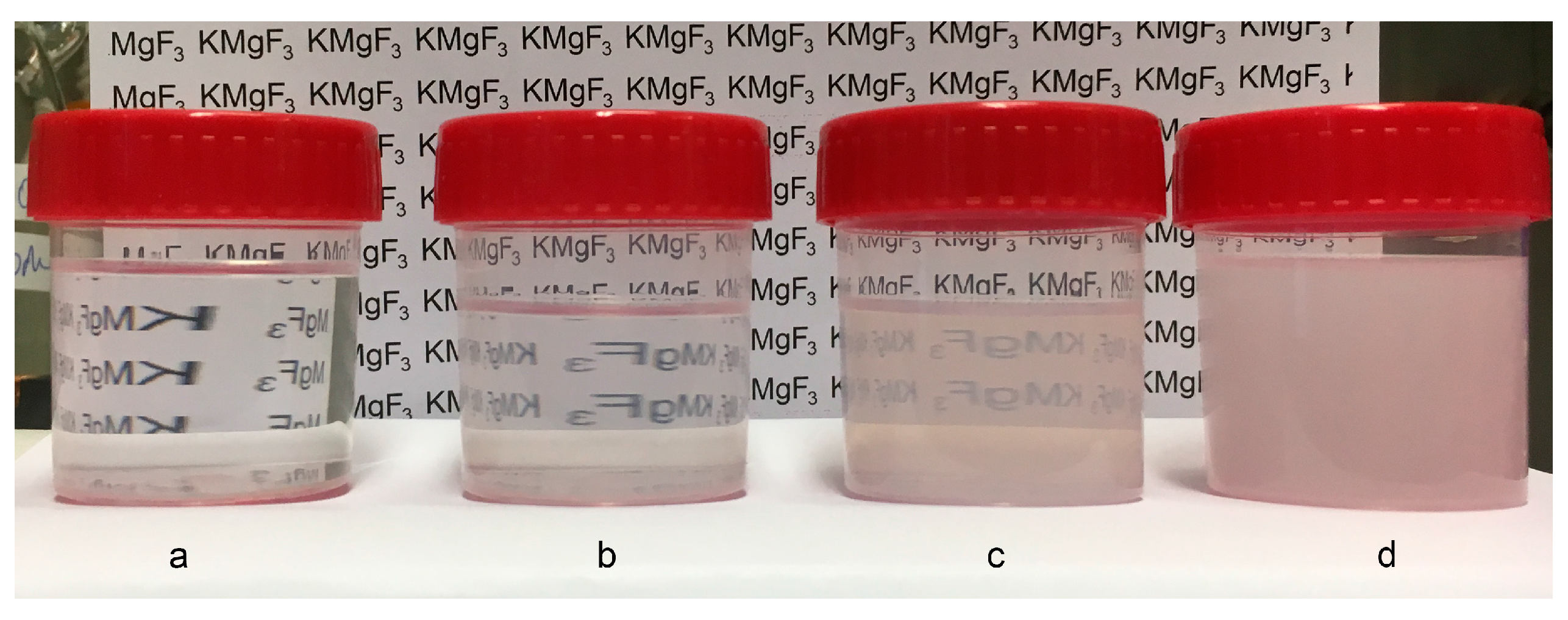

Figure 1. Comparison of visual appearances. (a) ethanol, (b) sol 12, (c) sol 9, (d) sol 10.
Figure 1. Comparison of visual appearances. (a) ethanol, (b) sol 12, (c) sol 9, (d) sol 10.
Crystals 08 00066 g001

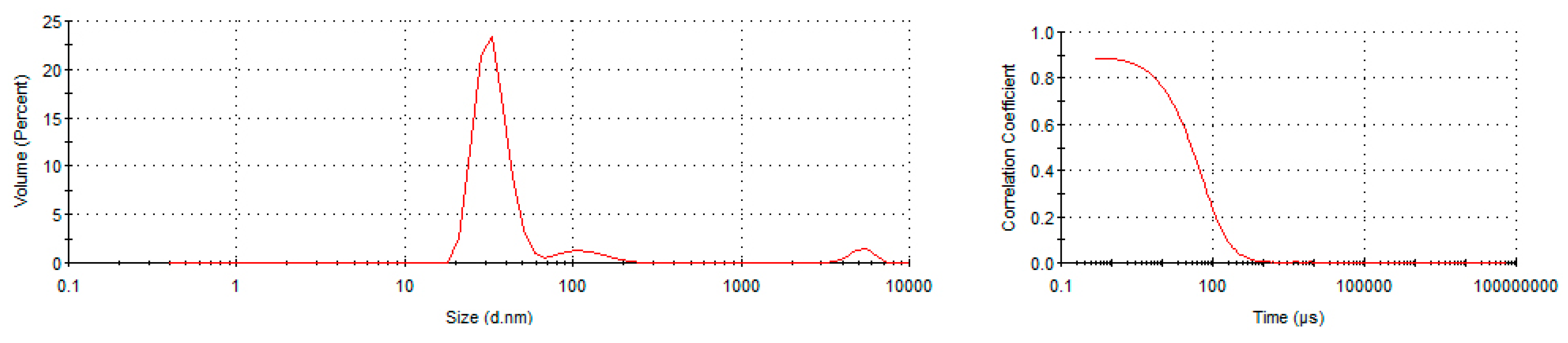

Figure 2. Volume weighted particle size distribution (Left) and corresponding correlation curve (Right) of sol 12.
Figure 2. Volume weighted particle size distribution (Left) and corresponding correlation curve (Right) of sol 12.
Crystals 08 00066 g002

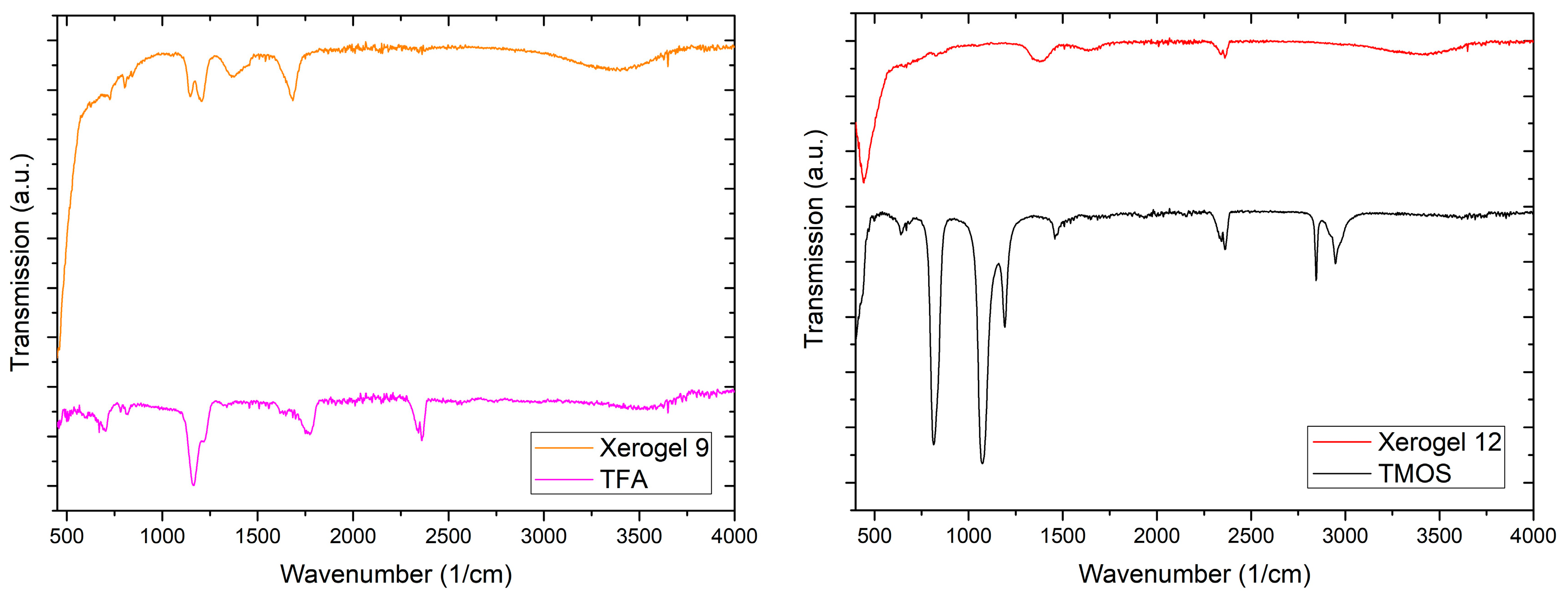

Figure 3. IR spectra of xerogel 9 (orange) and TFA (purple) (Left), IR spectra of xerogel 12 and TMOS (black) (Right).
Figure 3. IR spectra of xerogel 9 (orange) and TFA (purple) (Left), IR spectra of xerogel 12 and TMOS (black) (Right).
Crystals 08 00066 g003

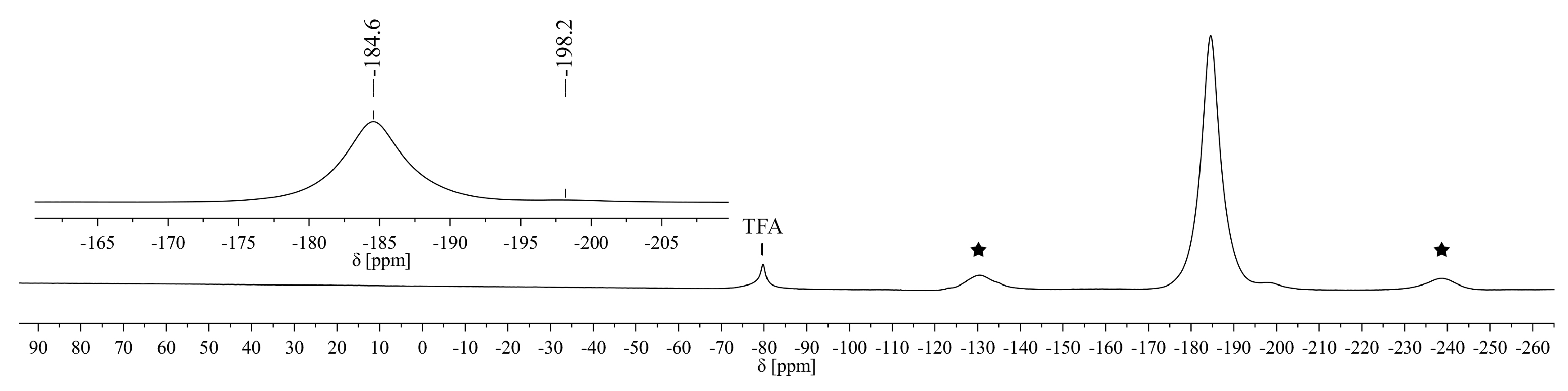

Figure 4. 19F MAS NMR of non-annealed xerogel 12, star: rotational side band, υrot = 20 kHz.
Figure 4. 19F MAS NMR of non-annealed xerogel 12, star: rotational side band, υrot = 20 kHz.
Crystals 08 00066 g004

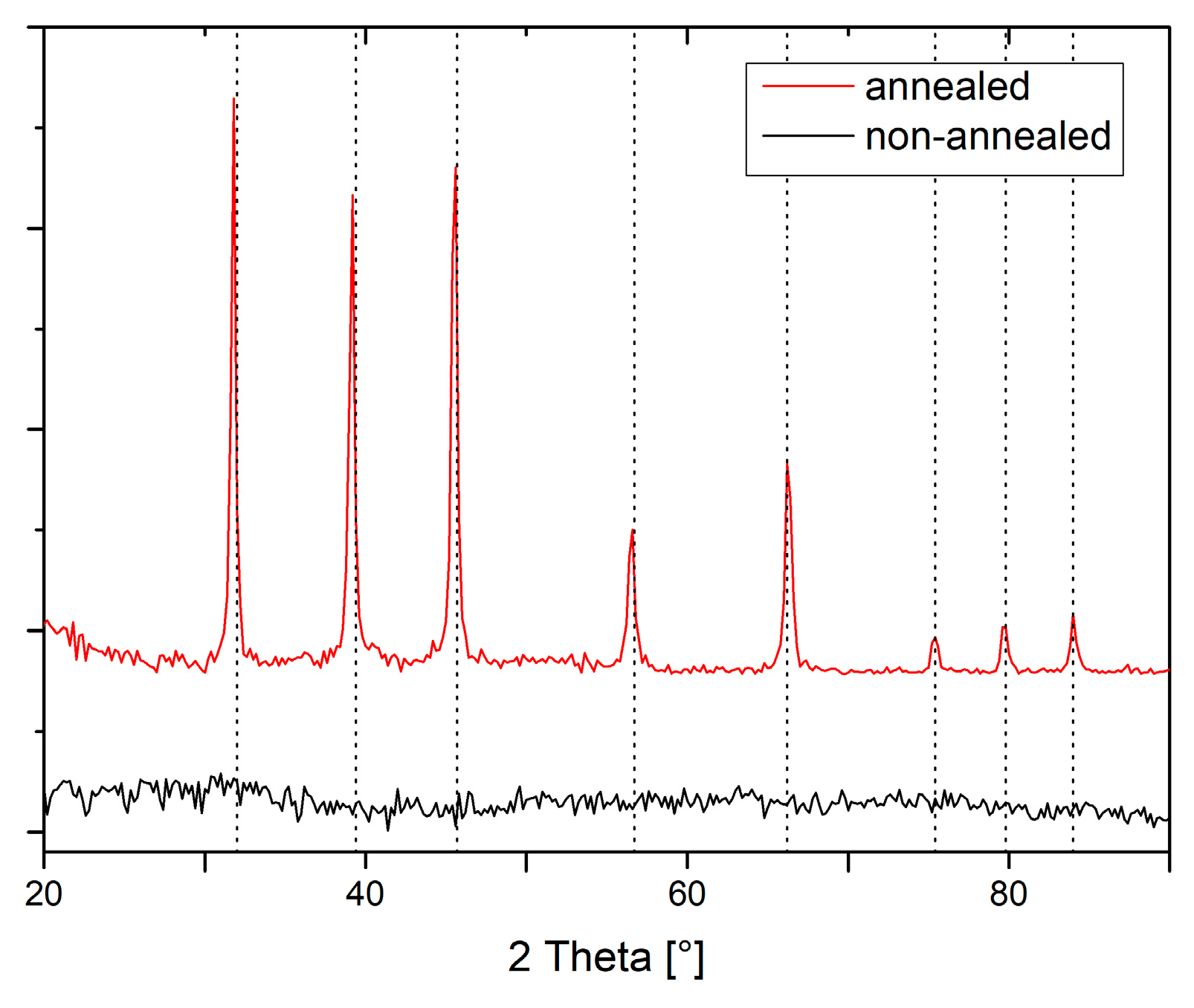

Figure 5. XRD of annealed (red) and non-annealed (black) xerogel 12, dashed lines: KMgF3 (pdf: 18-1033, star).
Figure 5. XRD of annealed (red) and non-annealed (black) xerogel 12, dashed lines: KMgF3 (pdf: 18-1033, star).
Crystals 08 00066 g005

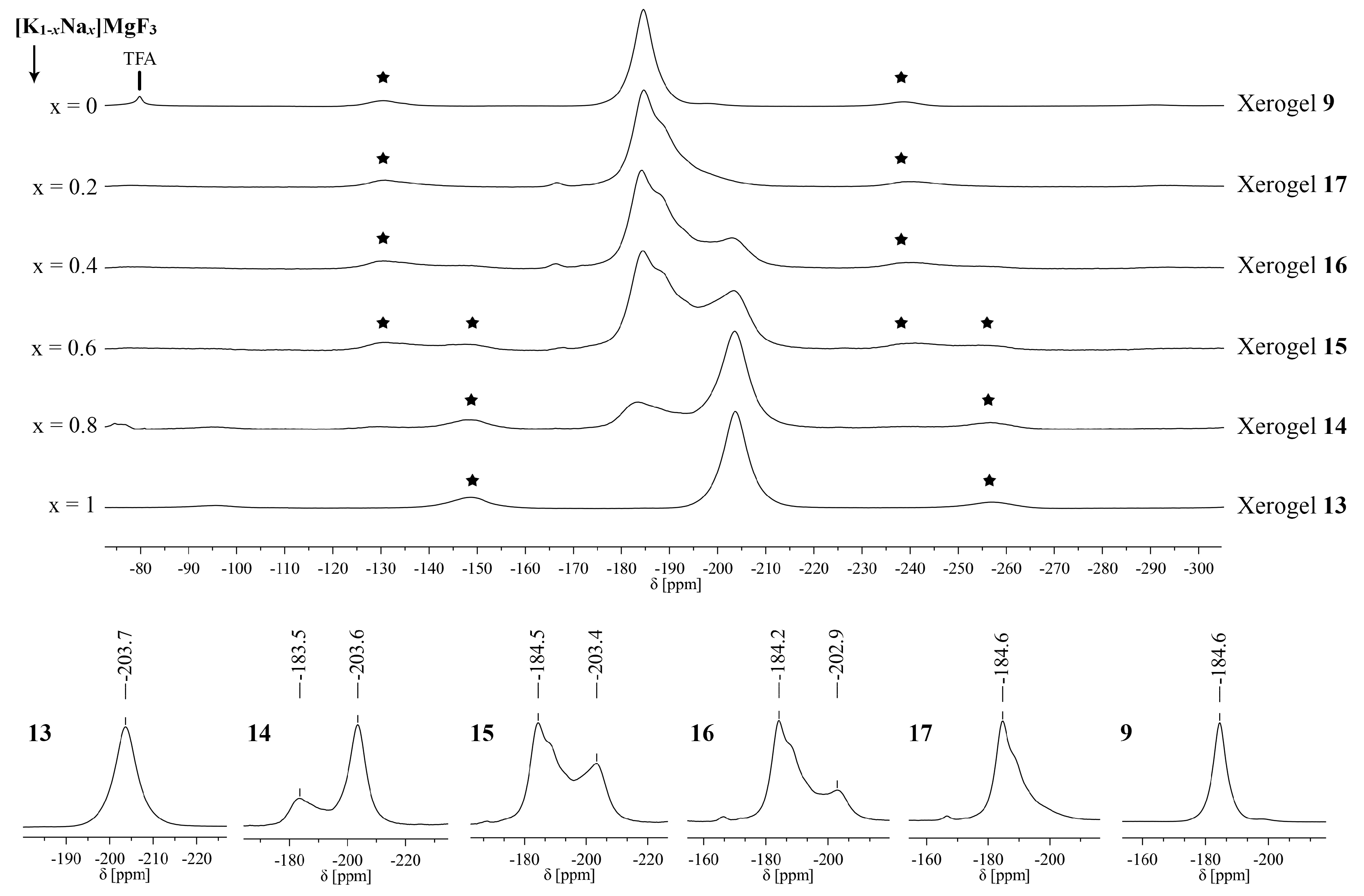

Figure 6. 19F MAS NMR of xerogels 9, 1317, star: spinning side band, υrot = 20 kHz.
Figure 6. 19F MAS NMR of xerogels 9, 1317, star: spinning side band, υrot = 20 kHz.
Crystals 08 00066 g006

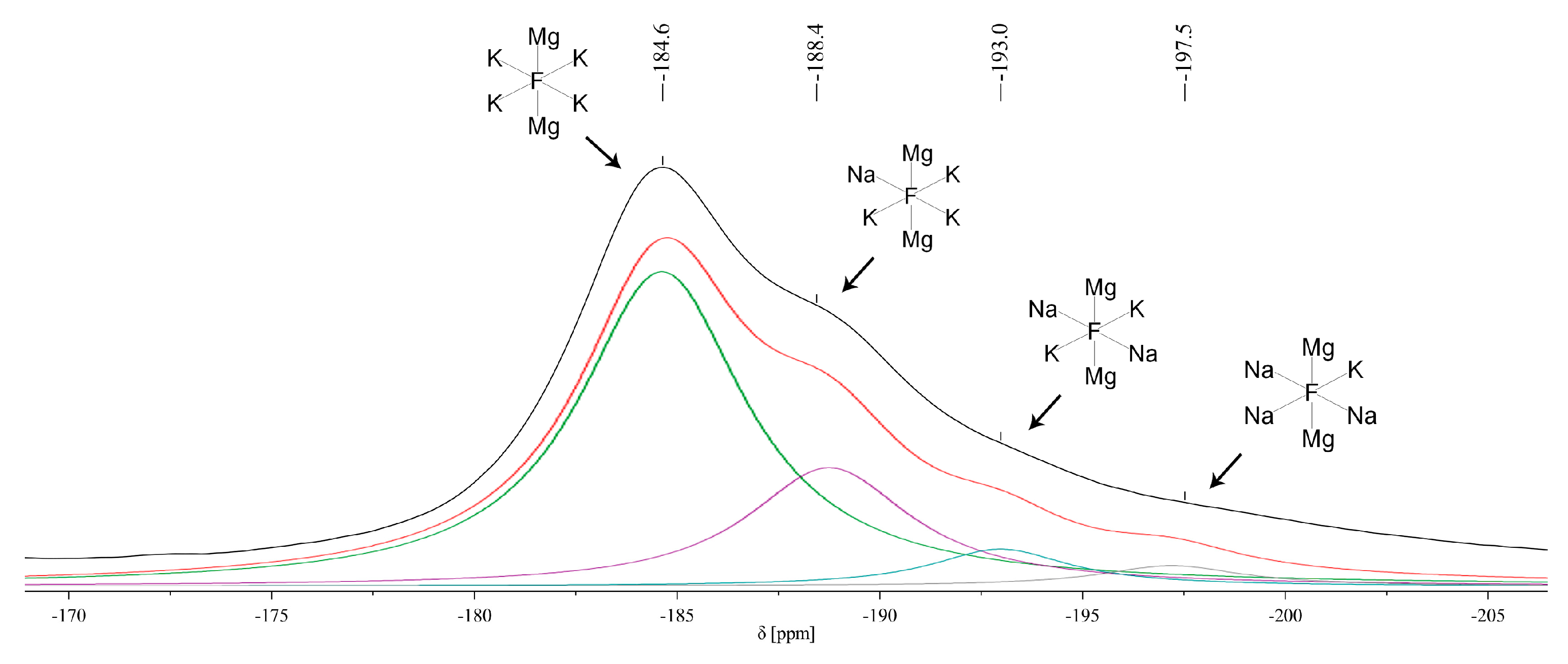

Figure 7. 19F MAS NMR of xerogel 17, dmfit analysis and corresponding fluorine sites [16].
Figure 7. 19F MAS NMR of xerogel 17, dmfit analysis and corresponding fluorine sites [16].
Crystals 08 00066 g007

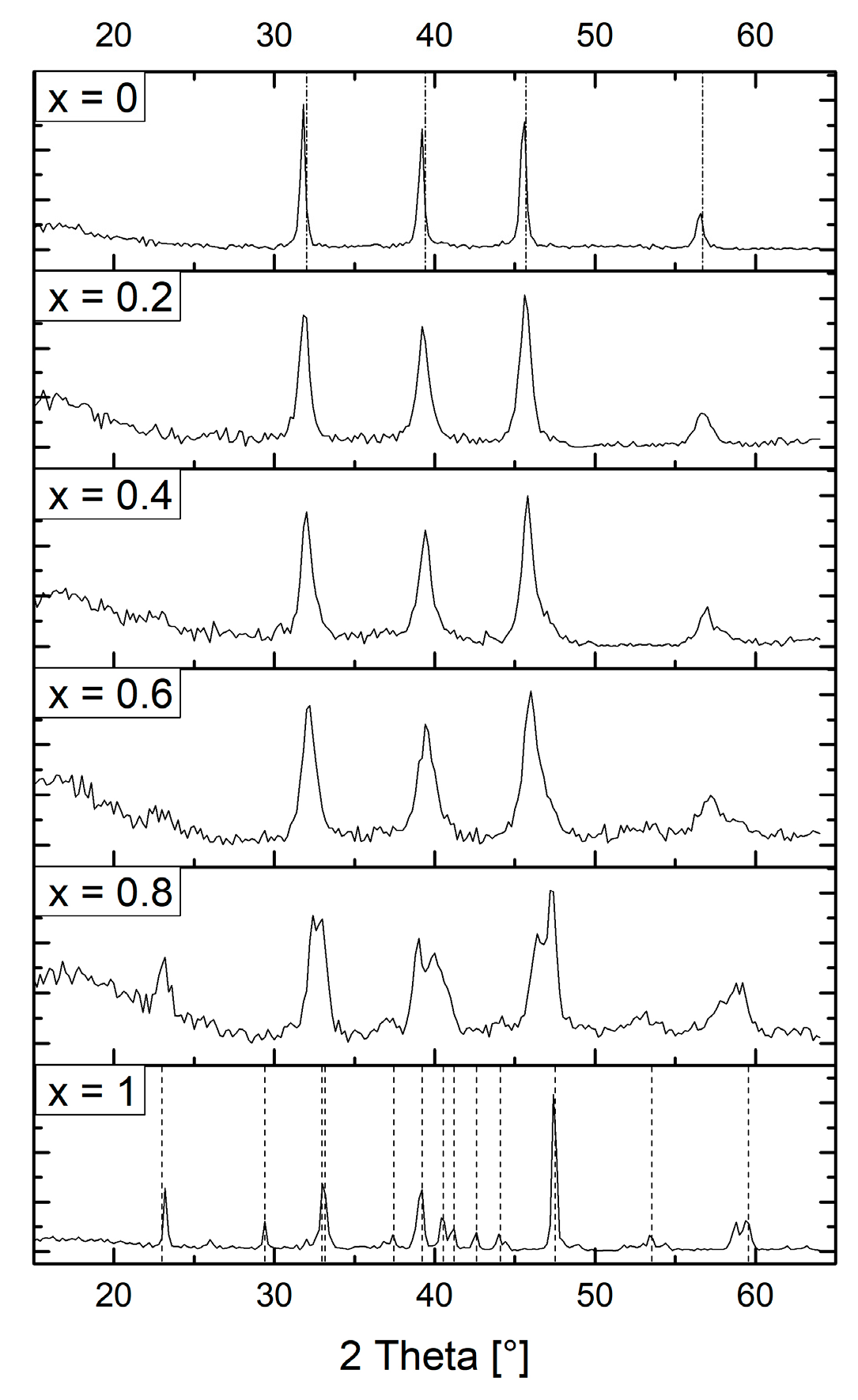

Figure 8. XRDs of annealed xerogels 9, 1317, pdfx=0: 18-1033, star, pdfx=1: 81-952.
Figure 8. XRDs of annealed xerogels 9, 1317, pdfx=0: 18-1033, star, pdfx=1: 81-952.
Crystals 08 00066 g008

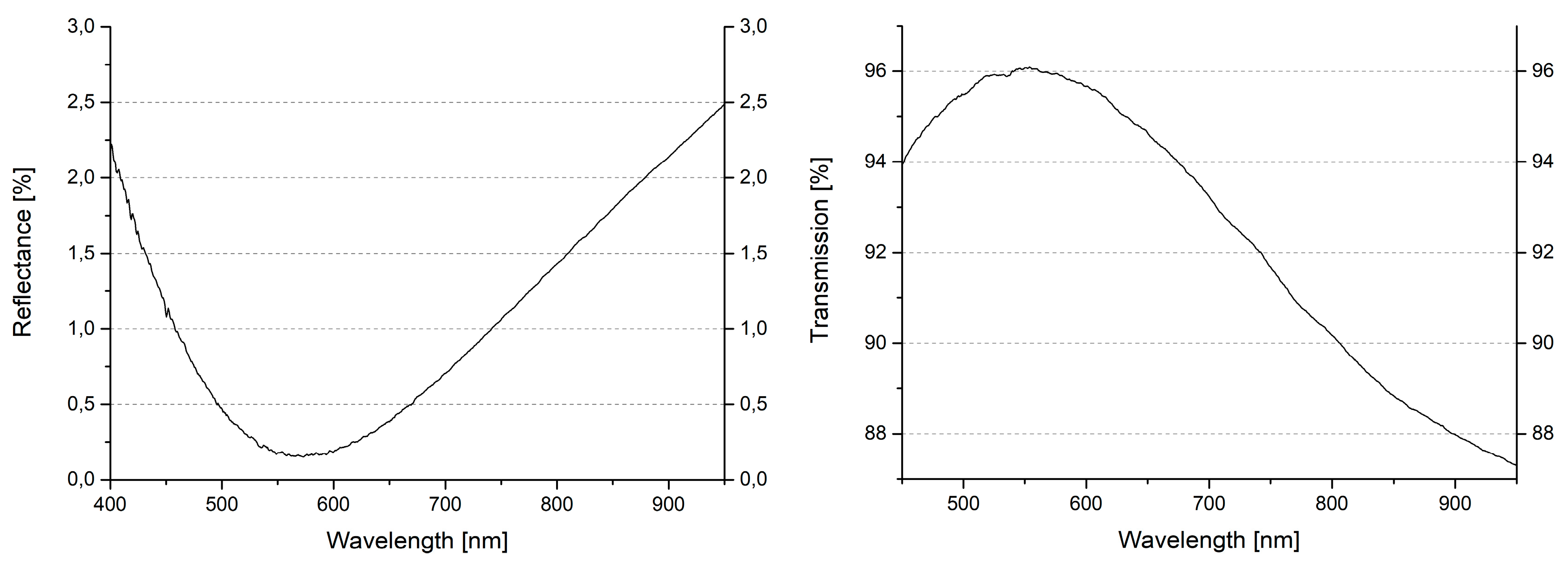

Figure 9. Reflectance and transmission curves of KMgF3 thin film.
