Review

Vertical Transistors Based on 2D Materials: Status and Prospects

1
Consiglio Nazionale delle Ricerche—Institute for Microelectronics and Microsystems (CNR-IMM), Strada VIII, 5 I-95121 Catania, Italy
2
Institute for Molecular Engineering, The University of Chicago, Eckhardt Research Center, 5640 South Ellis Avenue, Chicago, IL 60637, USA
3
Center for Nanoscale Materials, Argonne National Laboratory, 9700 Cass Ave, Lemont, IL 60439, USA
*
Authors to whom correspondence should be addressed.
Crystals 2018, 8(2), 70; https://doi.org/10.3390/cryst8020070
Submission received: 15 December 2017 / Revised: 21 January 2018 / Accepted: 29 January 2018 / Published: 31 January 2018
(This article belongs to the Special Issue Integration of 2D Materials for Electronics Applications)

Abstract

:
Two-dimensional (2D) materials, such as graphene (Gr), transition metal dichalcogenides (TMDs) and hexagonal boron nitride (h-BN), offer interesting opportunities for the implementation of vertical transistors for digital and high-frequency electronics. This paper reviews recent developments in this field, presenting the main vertical device architectures based on 2D/2D or 2D/3D material heterostructures proposed so far. For each of them, the working principles and the targeted application field are discussed. In particular, tunneling field effect transistors (TFETs) for beyond-CMOS low power digital applications are presented, including resonant tunneling transistors based on Gr/h-BN/Gr stacks and band-to-band tunneling transistors based on heterojunctions of different semiconductor layered materials. Furthermore, recent experimental work on the implementation of the hot electron transistor (HET) with the Gr base is reviewed, due to the predicted potential of this device for ultra-high frequency operation in the THz range. Finally, the material sciences issues and the open challenges for the realization of 2D material-based vertical transistors at a large scale for future industrial applications are discussed.

1. Introduction

In 2004, the pioneering works on the field effect in atomically thin carbon films [1], from then on named graphene (Gr), gave birth to an entirely new research branch of solid-state electronics, focused on the use of two-dimensional (2D) materials and their heterostructures for electronics/optoelectronics devices with unconventional or improved performances compared to traditional semiconductor devices. Due to its excellent carrier mobility (up to ~105 cm2 V−1 s−1) [2,3] and micrometer electron mean free path [4,5,6,7], Gr has been considered since the first studies as the channel material for fast field effect transistors (FETs) [8]. Essentially, the Gr field effect transistor (GFET) resembles the classical metal-oxide-semiconductor FET architecture, where lateral transport in the channel is modulated by a gate electrode separated from Gr by a thin insulator. As a matter of fact, the lack of a bandgap in the electronics band structure of Gr results in a poor ON/OFF current ratio in GFETs, making them unsuitable for digital (logic) or switching applications [9]. On the other hand, GFETs can be of interest for radio frequency (RF) applications, where fast current modulation of the device operated in the on-state is required and switch-off is not necessarily needed [9,10]. To date, RF GFETs allowing current amplification at very high frequencies (>400 GHz) have been demonstrated [11]. However, the same devices suffer from limited performances in terms of voltage and power amplification, mainly due to the high output conductance resulting from the lack of a bandgap. On the other hand, the peculiar symmetric ambipolar conduction of GFETs has been exploited to demonstrate novel device concepts, such as the RF mixer [12].
To overcome the Gr fundamental limitations arising from the missing bandgap both in digital and RF electronics, new solutions have been explored inside the wide family of 2D materials. In particular, two routes have been followed by scientists working in this field.
The first route was replacing Gr as the channel material in lateral FETs with semiconducting 2D materials, such as some members of the transition metal dichalcogenides (TMDs) family (MoS2, WS2, MoSe2, WSe2) [13] or phosphorene (a 2D lattice composed of phosphorus atoms) [14]. The second route has been to introduce novel device architectures based on van der Waals (vdW) heterostructures obtained by the stacking of 2D materials (such as Gr, hexagonal boron nitride (h-BN), TMDs) [15,16] or by 2D material heterojunctions with thin conventional 3D (i.e., bulk) semiconductors [17]. These devices rely on quite different working principles than traditional lateral FETs and mainly exploit vertical current transport across the interfaces of these materials. They include the tunneling field effect transistors (TFETs) [18,19], the band-to-band tunneling transistor [20], the transistor based on the field effect modulation of the Gr/semiconductor Schottky barrier (barristor) [21] and the hot electron transistor (HET) with the base made with a 2D material [22,23,24,25]. These devices typically show high ON/OFF current ratios, not reachable by conventional lateral GFETs, that make them suitable for logic and switching applications. Furthermore, some of these device concepts, like the HET with a Gr base, are especially targeted to operate at ultra-high frequencies up to THz.
This paper reviews recent developments in 2D material-based vertical transistors. Section 2 discusses the open issues of Gr and TMD lateral FETs, and it serves to introduce some of the potential advantages of vertical architectures. Therefore, the main vertical device structures considered so far are presented in the Section 3, where the working principles and the targeted application fields for each structure are discussed. In particular, recent implementations of TFET based on 2D materials are overviewed due to their interest in beyond-CMOS digital electronics. Furthermore, recent experimental activity on the HET with Gr base is presented, considering the predicted potential of these devices in ultra-high frequency electronics. In Section 4, the materials science issues and the open challenges for the realization of 2D material vertical transistors at a large scale are illustrated. Finally, the last section includes a summary and some prospects for future industrial applications of the discussed device structures.

2. Lateral Field Effect Transistors

Due to the proper bandgap (in the range from 1–2 eV), combined with a good stability under ambient conditions, semiconductor TMDs are very promising candidates as channel materials for digital electronics [13]. As an example, MoS2-channel FETs have been fabricated with large Ion/Ioff ratios (>104) and small subthreshold swings (SS < 80 mV/decade) [26], approaching the desired requirements of FETs for CMOS digital circuits. The energy gap of TMDs comes, however, at the cost of a relatively low mobility. As an example, the upper theoretical limit for the mobility of monolayer MoS2 at room temperature is about 400 cm2 V−1 s−1 [27], whereas the experimental values reported so far are in the range of a few tens of cm2 V−1 s−1 [28,29].
Besides TMDs, also phosphorene has recently attracted interest as a semiconducting channel material for FETs. A mobility of 286 cm2 V−1 s−1 has been reported for few-layer phosphorene [14], whereas values up to ~1000 cm2 V−1 s−1 have been shown for multilayer phosphorene with an ~10 nm thickness [30]. However, the main disadvantage of phosphorene (as compared to TMDs) is its chemical reactivity under ambient conditions, which can represent a serious concern for practical applications.
The ultimate thin body of TMDs can be very beneficial for the scaling prospects of lateral FETs for CMOS applications, as discussed in many simulation works [31,32,33,34]. As an example, Liu et al. [33] predicted that MoS2 FETs can meet the requirements of the International Technology Roadmap for Semiconductors (ITRS) [35] down to a minimum channel length of 8 nm. For such aggressively reduced geometries, the low mobility of MoS2 is not a real issue, because transport can be considered as almost ballistic for channel lengths below 10 nm. Although most of these predictions are based on simulations, some experimental work has been also reported, where the challenges of channel length scaling in TMD lateral transistors down to the nanometric limit started to be addressed [36].

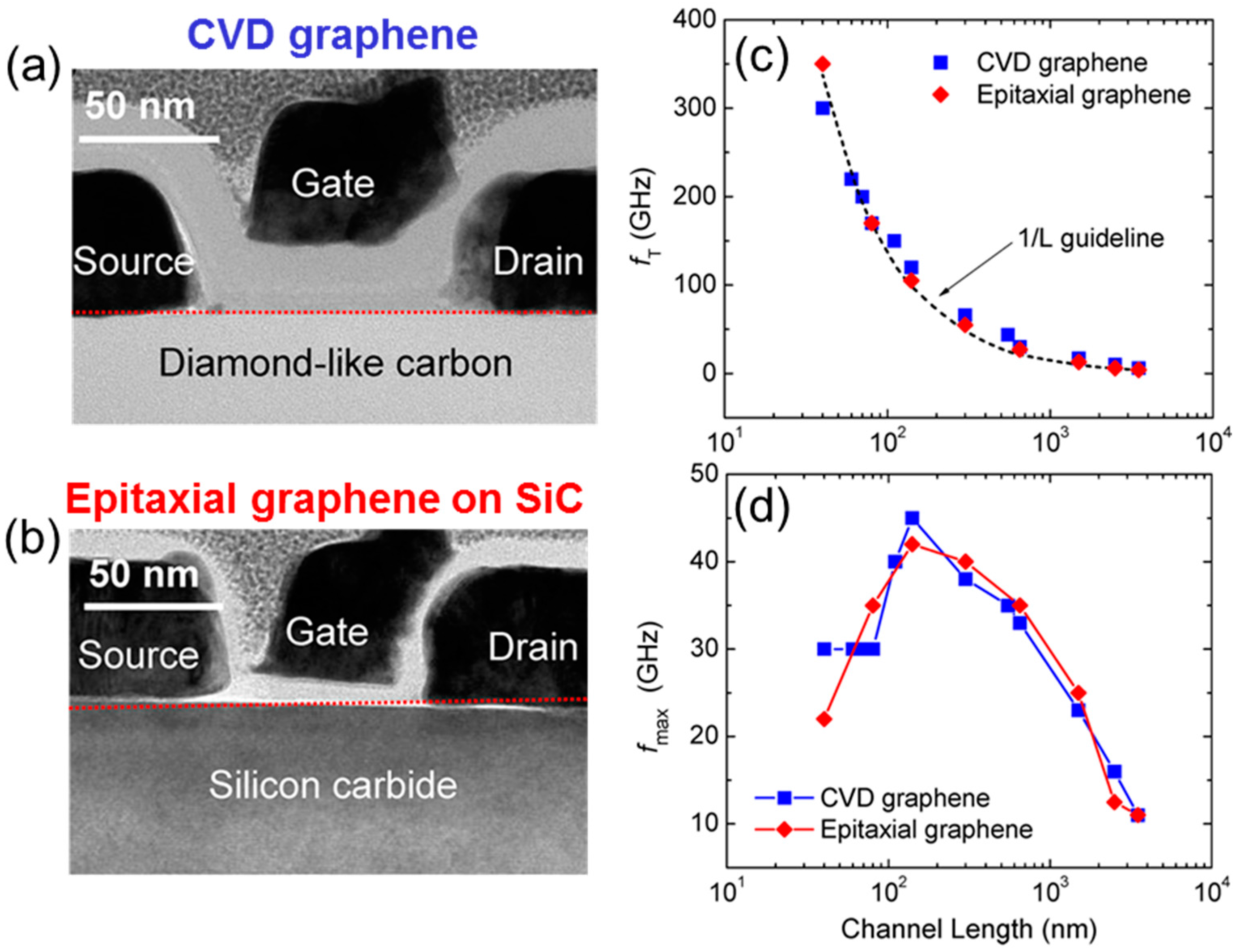

Concerning high frequency applications, the first Gr-based FET capable of RF operation, fabricated using exfoliated Gr from graphite, was reported in 2008 [37]. Later on, the development of advanced synthesis methods, such as epitaxial growth of Gr on SiC by controlled high temperature graphitization [38,39,40,41] or chemical vapor deposition (CVD) on catalytic metals [42], provided high quality Gr of a large area for device fabrication. Ultra-scaled transistors with interesting RF performances have been demonstrated both using transferred CVD Gr [43] (see, e.g., Figure 1a) and epitaxial Gr on SiC (see, e.g., Figure 1b) [43,44].
RF transistors are typically used for the amplification of a high frequency input signal (current or voltage), and the amplifier gain decreases with increasing frequency. Hence, the two main figures of merit for RF transistors are the cut-off frequency fT (i.e., the frequency for which current gain is reduced to unity) and the maximum oscillation frequency fMAX (i.e., the frequency for which power gain is reduced to unity). As in the case of more conventional RF transistors, the fT of GFETs was found to increase with reducing the channel length L (see, as an example, Figure 1c). A record value of fT = 427 GHz has been reported for scaled devices obtained with a self-aligned fabrication process [11].
These values of fT are comparable with those achieved by the state of the art InP high electron mobility transistors (HEMTs) with similar channel lengths. However, for most RF applications, both high fT and high fMAX are required, and unfortunately, fMAX values measured for GFETs are significantly smaller than fT values, as illustrated in Figure 1d [43]. Furthermore, contrary to common expectations for RF FETs, fMAX shows a non-monotonic behavior with the channel length L. In fact, it reaches a peak value around 150 nm and decreases for lower L values.
The reason for these poorer power gain performances can be argued by comparing the theoretical expressions of fT and fMAX for RF transistors:
f T = g m 2 π ( C g s + C g d ) [ 1 1 + g d ( R s + R d ) + g m C g d ( R s + R d ) C g s + C g d ]
f M A X = f T 2 g d ( R s + R g s ) + 2 π f T R g s C g d
Here, Cgs and Cgd are the gate-source and gate-drain coupling capacitances, Rs and Rd are the source and drain series resistances, Rgs is the gate-source resistance, gm = dID/dVG is the transconductance and gd = dID/dVD is the output conductance.
The drain current ID of an FET is proportional to the saturated velocity vs and to the sheet concentration ns of the carriers in the channel. Hence, the two prerequisites to achieve a high transconductance are a high vs and a high dns/dVG, i.e., an effective modulation of the carrier density with the gate bias.
If the Rs and Rd resistance contributions in Equation (1) are properly minimized, the expression of fT can be approximated as fTgm/[2π(Cgs + Cgd)], and it results in being independent of the output conductance gd. For this reason the high carrier mobility and saturation velocity of Gr results in a high transconductance gm and, hence, in a high fT. On the other hand, from Equation (2), it is evident that, even minimizing Rs, the output conductance gd still plays a role in the expression of fMAX. As a matter of fact, the output characteristics of Gr channel FETs exhibit a poor saturation behavior, i.e., a large gd. This overcompensates the effect of a large gm, ultimately resulting in degradation of fMAX. The non-monotonic behavior of fMAX in Figure 1d has been also ascribed to the competing contributions from fT, gd and Rgs as L decreases [43].
The poor saturation of the output characteristics is mainly a consequence of the missing bandgap in the Gr band structure. Hence, this peculiar physical property of Gr not only hinders its application in digital electronics, but severely limits also the high frequency performances of GFETs in terms of power amplification and fMAX. Finally, the high off-state current (Ioff) of GFETs results in a high power dissipation and represents a significant concern in terms of energy efficiency.

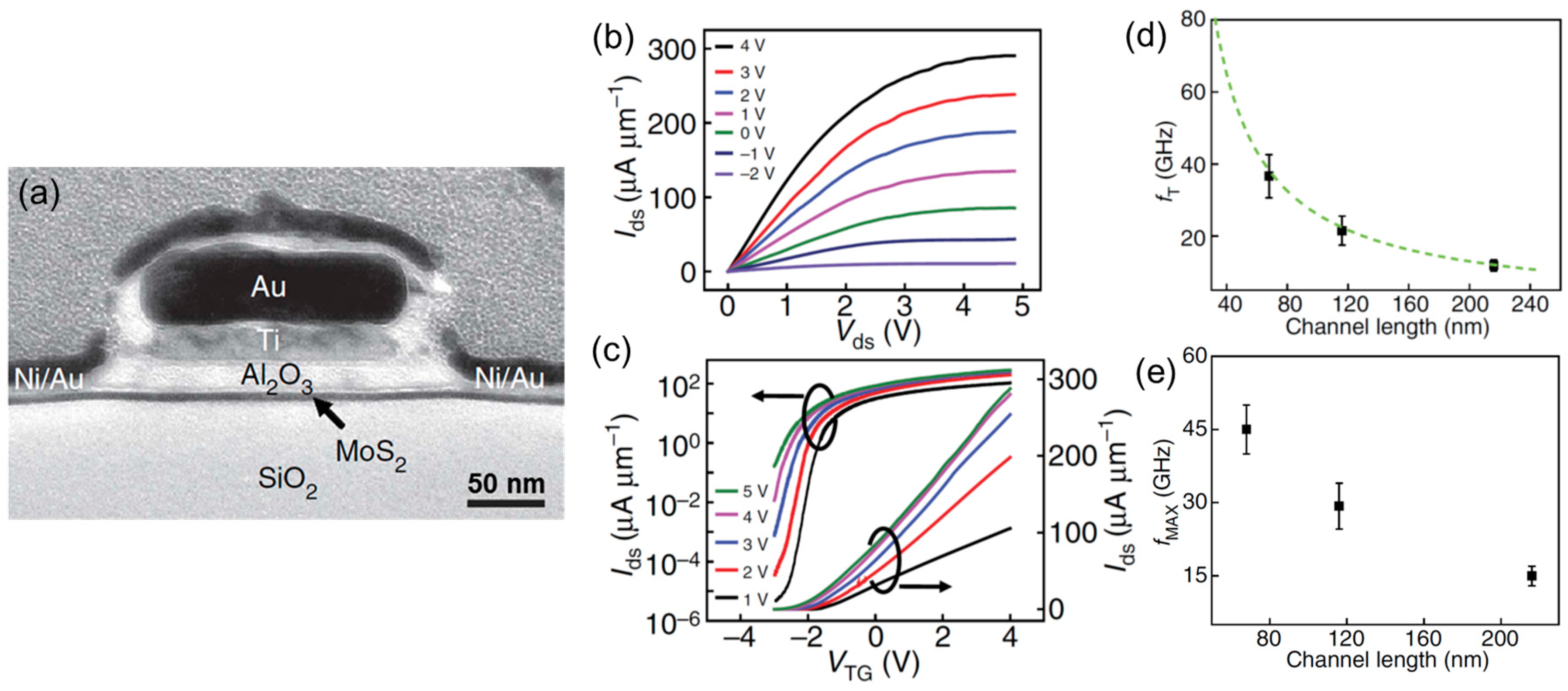

Besides Gr, single and multiple layers of MoS2 have been also investigated as channel materials in lateral FETs for RF applications. Thanks to an electron saturation velocity vs > 3 × 106 cm/s [45] and to a high bandgap (resulting in a high ratio gm/gd > 30), MoS2 FETs can achieve, in principle, both current and power amplification [46,47,48,49]. However, quite low values of fT and fMAX have been reported to date. Initial work on exfoliated monolayer MoS2 RF FETs yielded fT = 2 GHz and fMAX = 2.2 GHz at a gate length of 240 nm [48]. Figure 2 shows a cross-sectional TEM micrograph (a) and the DC output (b) and transfer (c) characteristics of an FET fabricated with multilayer MoS2 flakes. For these devices, the scaling behavior of fT and fMAX with the channel length is illustrated in Figure 2d,e, showing how fT = 42 GHz and fMAX = 50 GHz are achieved at a gate length of 68 nm [47]. More recently, RF FETS fabricated with monolayer MoS2 deposited by CVD showed fT = 6.7 GHz and fMAX = 5.3 GHz at a gate length of 250 nm [49].
Several issues still need to be addressed to evaluate the real potentialities of TMDs both in digital and RF electronics. Besides the issues related to the lattice defects (such as chalcogen vacancies) [50,51,52] and impurities [53] commonly present in these compound materials, some critical processing steps need to be developed. These include the fabrication of low resistance source/drain contacts [54,55] and doping [56,57,58].
As an example, MoS2 thin films are typically unintentionally n-type doped. Furthermore, most of the elementary metals exhibit a Fermi level pinning close to the MoS2 conduction band, resulting in a small (but not negligible) Schottky barrier height (SBH) for electrons’ injection and a high SBH for holes’ injection. The origin of this Fermi level pinning is still a matter of debate, although some nanoscale electrical investigations highlighted the possible role of the defects present at the MoS2 surface [59,60]. As a matter of fact, this Schottky barrier results in a significant source/drain contact resistance [54,61], which degrades the intrinsic performances of the transistor. Furthermore, the high injection barrier for holes makes it difficult to achieve p-type or ambipolar transport in MoS2 FETs [62,63]. On the other hand, ambipolar transistors can be useful not only for logic (CMOS) applications, but also for some RF circuits. To date, p-type MoS2 transistors have been fabricated by using high work function MoOx contacts [64]. Recently, multilayer MoS2 transistors with ambipolar behavior have been demonstrated by selective-area p-type doping in the source/drain regions with O2 plasma [65]. Besides MoS2, other TMDs have been also considered for FETs’ fabrication. As an example, WSe2 is a slightly p-doped semiconductor, allowing the fabrication of both p-type and n-type FETs by proper selection of the metal contacts [66,67,68]. However, the problem of the contact resistance still holds also in the case of WSe2.

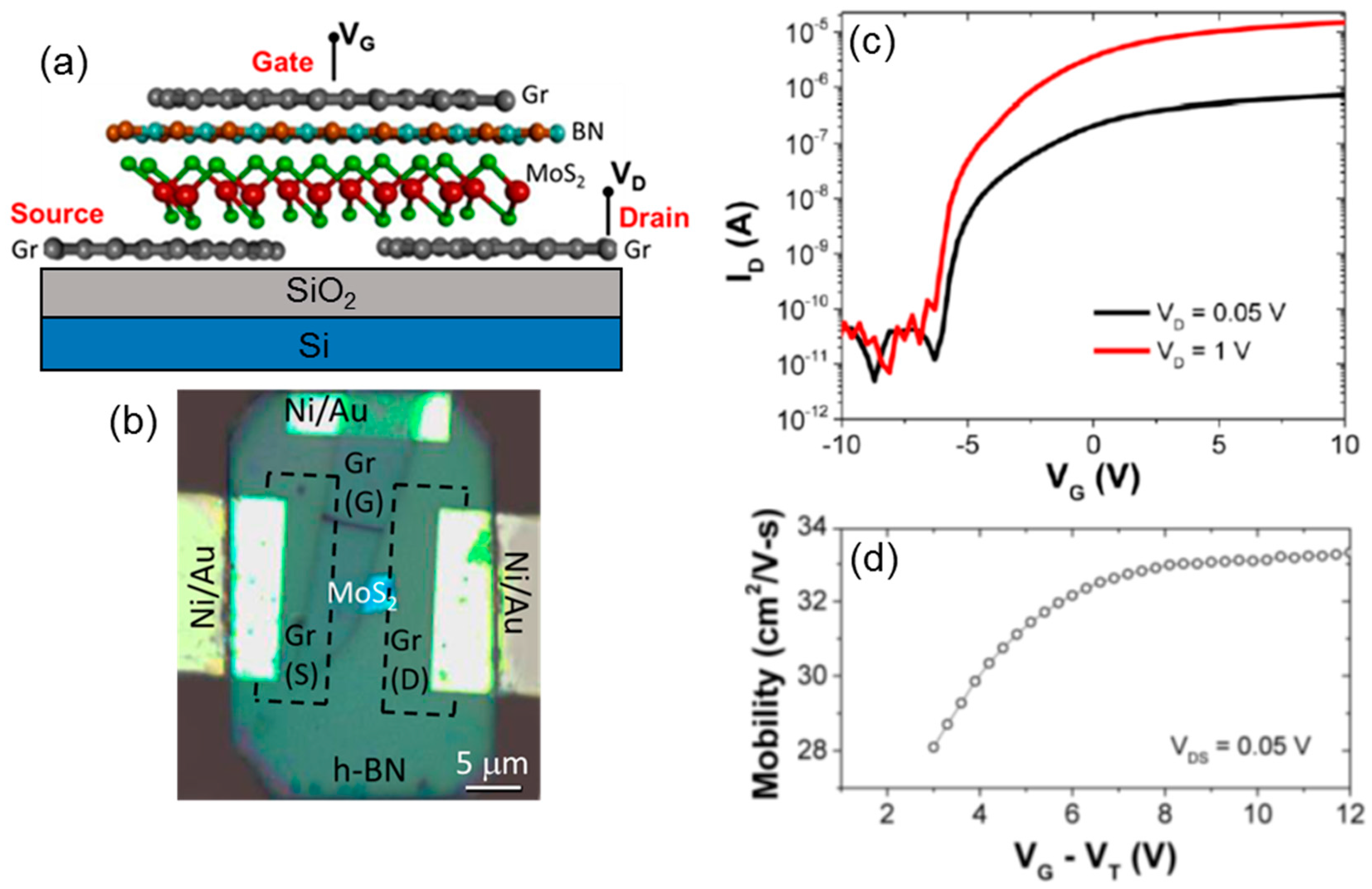

Most of the TMD-based FETs have been fabricated using metals as source-drain contacts and high permittivity (high-k) dielectrics as gate insulators. Recently, some attempts at fabricating FETs with all components formed by 2D materials have been reported. As an example, Roy and co-workers have demonstrated an FET including MoS2 as the channel material, h-BN as the dielectric layer for top electrode isolation and Gr for semi-metal contacts (see the schematic and the optical microscopy in Figure 3a,b) [69]. An optimal Ohmic contact between Gr and MoS2 is possible by tuning the Gr Fermi level by the SiO2/Si back-gate bias. Due to its large bandgap, h-BN acts as a top-gate dielectric, allowing current modulation over several orders of magnitude (see Figure 3c). Furthermore, thanks to its atomically-smooth surface without charge trapping, h-BN forms an ideal interface with the MoS2 channel [3]. One of the most relevant advantages of this smooth interface is that the channel mobility of this device remains constant at high gate bias values (see Figure 3d), different from that in common FETs, where a decrease of mobility is observed at high fields due to the effect of the interface roughness.

3. Vertical Transistors

3.1. Tunneling Field Effect Transistors

One of the main issues for modern digital electronics is the dramatic increase of power consumption with the increase in the device integration density. As a matter of fact, the minimum supply voltage to switch an MOSFET from the OFF to the ON state is determined by the thermionic emission mechanism of carrier injection over the energy barrier at the source. This mechanism results in a theoretical limit of 60 mV/decade for the minimum subthreshold swing (SS) for MOSFET devices. On the other hand, tunneling field effect transistors (TFETs), based on quantum mechanical tunneling across an energy barrier, have the potential of reduced supply voltage, since a pure tunneling process is not thermally activated. Numerous studies have been conducted in the last decade to implement this device concept using bulk (3D) semiconductors, such as Ge, III-V and Si [70,71], and sub-thermionic SS values have been reported with TFETs based on these materials. However, the demonstrated performances have not been good enough for practical applications. In particular, one of the main limitations is that SS < 60 mV/decade (at room temperature) is typically obtained only at low drain currents, whereas it would be desirable to get such a behavior over a current range of several orders of magnitude. One of the reasons for the difficulty in obtaining sharp switching over a wide current range is the presence of band-tail states in bulk semiconductors [72]. Under this point of view, 2D materials with sharp band edges even at a thickness of a monolayer can represent an interesting platform to implement TFETs.

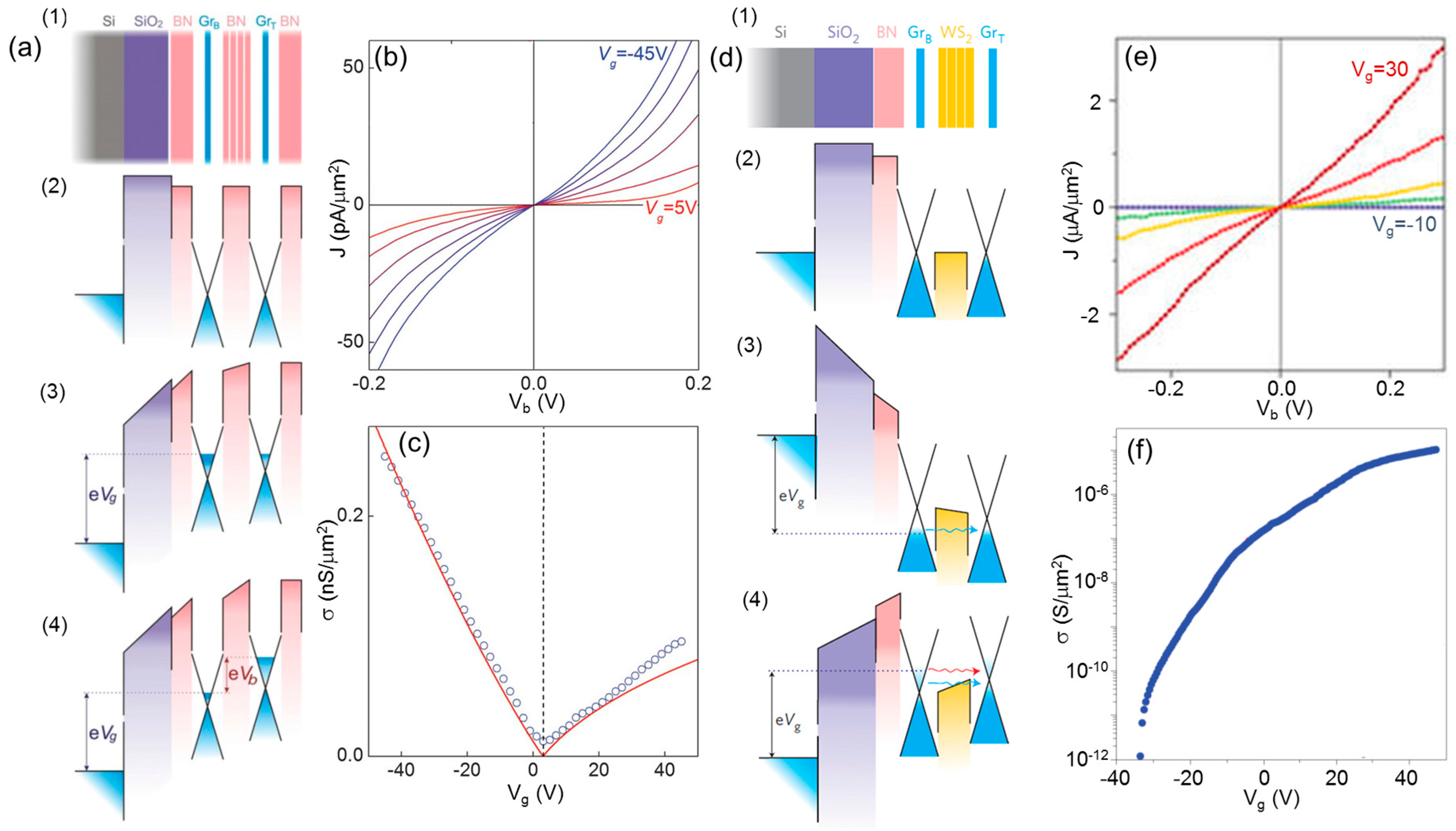

Britnell and co-workers first reported a TFET with the vertically-stacked heterostructure composed of Gr and thin h-BN [18]. Figure 4a schematically shows the layer stacking (1); the energy band diagram under equilibrium (2); under the effect of the back-gate bias Vg (3); and under the effect of Vg and of a bias Vb between the two Gr layers (4). The basic principle of this vertical transistor is the quantum tunneling between the two Gr electrodes separated by the thin h-BN barrier. Current tunneling was controlled by tuning the density of states in Gr and the associated barrier by the external gate voltage. Figure 4b shows the tunneling current density J vs. the bias Vb for different values of Vg. Figure 4c shows the conductance dJ/dVb (at Vb = 0) as a function of Vg, from which an ON/OFF ratio of ~50 was deduced.
As the transit time associated with tunneling is very low, the field effect tunneling transistor can be potentially suitable for high speed operation. On the other hand, as a result of the direct tunneling mechanism, this device suffers from very low current density (in the order of 10–100 pA/μm2), making it not useful for practical applications. Starting from the same idea, Georgiou and co-workers reported a Gr vertical FET with WS2 layers as the barrier [19]. Figure 4d schematically shows the layer stacking (1); and the energy band diagrams under equilibrium (2); under the effect of Vg < 0 (3); and under the effect of Vg > 0 (4). Due to the smaller band gap of WS2, current transport between the two Gr layers occurs by direct tunneling for Vg < 0 and by tunneling or thermionic emission for Vg > 0. Figure 4e shows the tunneling current density J vs. the bias Vb for different values of Vg, whereas Figure 4f shows the conductance as a function of Vg. As compared to the Gr/h-BN/Gr prototype, this device exhibits much higher ON current (in the order of 1 μA/μm2) and better current modulation, with an ON/OFF current ratio up to 106.

3.1.1. Resonant Interlayer Tunneling Transistors

Progress in the alignment and transfer techniques of 2D materials permitted the demonstration of resonant tunneling phenomena in TFETs. Devices showing gate-tunable negative differential resistance (NDR) of the output characteristics due to resonant tunneling were first obtained by Gr/h-BN/Gr stacks with a precise rotational crystallographic alignment between the two Gr monolayers [73,74]. Since carriers in a Gr monolayer are populated near the K-point on the periphery of its Brillouin zone, conservation of both energy and momentum in the tunneling from one layer to the other is allowed only in the presence of a rotational alignment in momentum space.
Following the first demonstrations with double monolayer Gr, resonant TFET using bilayer Gr as the top and bottom electrodes and h-BN as the interlayer tunnel barrier were also demonstrated [75,76]. Due to the more complex band structure of bilayer Gr (with two sub-bands both in the conduction and valence bands at the K-point), additional NDR peaks occur at higher interlayer bias [75]. In fact, when the first sub-band of one bilayer energetically aligns with the second sub-band of the opposite bilayer, a second resonant tunneling condition is established. More recently, experimental results for resonant TFETs with multilayer Gr electrodes separated by an h-BN tunnel barrier have been also reported [77]. With an increase in the Gr electrode layer thickness, from bilayer to pentalayer Gr, the resonance peaks have been shown to become narrower in width and stronger in intensity, mainly due to the increase in the density of states with the increase in the Gr thickness. On the other hand, due to the increased complexity in the band structure with multiple sub-bands for thicker Gr, multiple resonance conditions arise in the output characteristics.
h-BN has been widely used as the interlayer in resonant TFETs with symmetric Gr electrodes, due to its good insulating properties and chemically-inert and atomically-flat surface. However, its wide energy bandgap (~5.8 eV) severely limits the peak current at resonance in Gr/h-BN/Gr TFETs [77]. In this context, using TMDs with a smaller bandgap as tunnel barriers may enhance the peak-to-valley ratio of the resonances in the electrical characteristics. Recently, Burg et al. [78] demonstrated gate-tunable resonant tunneling and NDR between two rotationally-aligned bilayer Gr sheets separated by a bilayer WSe2. Remarkable large interlayer current densities of 2 μA/μm2 and NDR peak-to-valley ratios of ~4 were observed at room temperature in these device structures.
Recently, the possibility of realizing resonant TFETs using TMD electrodes instead of Gr has been also considered [79,80]. Theoretical reports indicate that vertical heterostructures consisting of two identical monolayer MoS2 electrodes separated by an h-BN barrier can result in a peak-to-valley ratio several orders of magnitude higher than the best that can be achieved using Gr electrodes [79]. However, practical implementation of resonant tunneling TFETs with identical electrodes (different than Gr) proved to be difficult.
On the other hand, many vertical transistor demonstrators have been implemented with differing bottom and top electrode layers, exploiting the principle of band-to-band tunneling, as discussed in the following.

3.1.2. Band-To-Band Tunneling Vertical Transistor

Roy et al. [81] first experimentally demonstrated interlayer band-to-band tunneling in vertical MoS2/WSe2 vdW heterostructures using a dual-gate device architecture. The electric potential and carrier concentration of the MoS2 and WSe2 layers were independently controlled by the two symmetric gates. Depending on the gate bias, the device behaves as either an Esaki diode with NDR, a backward diode with large reverse bias tunneling current or a forward rectifying diode with low reverse bias current. Notably, the weak electrostatic screening by the atomically thin MoS2 and WSe2 layers resulted in a high gate coupling efficiency for tuning the interlayer band alignments. Later on, Nourbakhsh et al. [82] further investigated band-to-band tunneling in the transverse and lateral directions of the MoS2/WSe2 heterojunctions. The room-temperature NDR in a heterojunction diode formed by few-layer WSe2 stacked on multilayer MoS2 was attributed to the lateral band-to-band tunneling at the edge of this heterojunction.
A band-to-band tunneling vertical transistor has been demonstrated also using the vdW heterojunction between differently-doped layered semiconductors as WSe2 and SnSe2, where WSe2 worked as the back-gate-controlled p-layer and SnSe2 was the degenerately n-type-doped layer [83].
Yan et al. [84] demonstrated room temperature Esaki tunnel diodes using a vdW heterostructure made of two layered semiconductors with a broken-gap energy band offset: black phosphorus (BP) and tin diselenide (SnSe2). The presence of a thin insulating barrier between BP and SnSe2 enabled the observation of a prominent NDR region in the forward-bias current voltage characteristics, with a peak to valley ratio of 1.8 at 300 K and a weak temperature dependence, indicating electron tunneling as the dominant transport mechanism.
Another recently demonstrated very interesting device concept is based on the field effect modulation of current transport across the p-n heterojunction between 3D and 2D semiconductors. The 3D semiconductor component of the heterojunction is heavily doped in equilibrium by substitutional dopants, whereas the doping level of the 2D semiconductor component can be tuned by the field effect. Therefore, gate-tunable 2D–3D p-n heterojunctions provide a unique opportunity to realize band-to-band tunneling devices. As an example, Sarkar and co-workers have recently demonstrated a band-to-band tunnel FET with a vertical heterojunction between a p-type Ge and an n-type bilayer MoS2 [20] (see the schematic representation in Figure 5a). The band diagrams for the device in the OFF and ON states are illustrated in Figure 5b and the transfer characteristics in Figure 5c. By gating the MoS2 into the high n-type doping regime, direct tunneling occurs from the Ge valence band to the MoS2 conduction band. Figure 5d illustrates the values of the SS at room temperature as a function of the drain current for this bilayer MoS2/p-Ge TFET and for a conventional MOSFET fabricated with a bilayer MoS2 channel. Different from the conventional FET, this TFET exhibits an SS lower than the thermionic limit of 60 mV/decade in the considered drain current range (from 10−13 to 10−9 A). On the other hand, for larger drain currents, significantly larger SS values are obtained.

3.2. Gate Modulated Schottky Barrier Transistor (Barristor)

The Barristor device concept is based on the tunability of the Schottky barrier height of a Gr contact with a semiconductor by an external electric field. Clearly, a nearly ideal interface between Gr and the semiconductor, without interface states responsible for Fermi level pinning, is required to achieve an efficient field effect modulation of the Schottky barrier height. The first Barristor was demonstrated by transferring CVD graphene onto hydrogen-passivated Si, thus obtaining a nearly ideal Schottky diode behavior both with n- and p-type Si [21]. Figure 6a illustrates a cross-sectional schematic of a Gr/Si barristor, and Figure 6b shows the band diagram for the Gr/n-Si Schottky junction for Vg > 0 and Vg < 0. The modulation of the Gr/n-Si Schottky barrier height with the gate bias is shown in Figure 6c, and the resulting output characteristics of the device (for different Vg values) are reported in Figure 6d. A current ON/OFF ratio of ~105 under forward bias was achieved, which is suitable for digital logic applications.

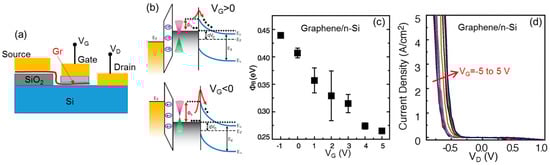

The early demonstration of the Barristor was based on the vdW heterostructure between a 2D material (i.e., Gr) and a 3D material (i.e., Si). More recently, a vertical transistor working on the same principle has been demonstrated using the 2D/2D vdW heterostructure between Gr and a TMD. Also in this case, current modulation was obtained by electric-field tuning of the Schottky barrier between Gr and the TMD, whereas a proper metal layer provides an Ohmic contact with the TMD. Yu and coworkers have demonstrated such a device with a Gr/few-layer MoS2/metal heterostructure. This FET showed an ON/OFF ratio larger than 100 and a high current density of 5000 A/cm2 [85]. Moriya and co-workers further improved the current modulation to >105 and current density up to 104 A/cm2 with a similar structure, but better interface fabrication [86]. The advantages of this type of vertical transistor are the large current density and the small device scale, providing high potential for future high density integration circuits.

3.3. Hot Electron Transistor

The hot electron transistor (HET) is a three-terminal (i.e., emitter, base and collector) heterostructure device where the ultra-thin base layer is sandwiched between two thin insulating barriers (i.e., the emitter-base and base-collector barriers), as schematically illustrated in Figure 7a. For a sufficiently high forward bias VBE applied between the base and the emitter, electrons are injected into the base by Fowler–Nordheim (FN) tunneling through the barrier or by thermionic emission above the barrier, depending on the barrier height and thickness. A key aspect for the HET operation is that the injected electrons (hot electrons) have a higher energy compared to the Fermi energy of the electrons’ thermal population (cold electrons) in the base. Ideally, for a base thickness lower than the scattering mean free path of hot electrons, a large fraction of the injected electrons can traverse the base ballistically, i.e., without losing energy, and finally reach the edge of the base-collector barrier. This barrier is aimed to act as an energy filter, which allows the hot electrons to reach the collector and reflects back the electrons with insufficient energy. These reflected electrons eventually become part of the cold electrons’ population in the base and contribute to base current (IB), whereas the hot electrons reaching the collector give rise to the collector current (IC). Besides transmitting hot electrons, the base-collector barrier must be thick and high enough to block the leakage current IBCleak of cold electrons from the base to the collector.

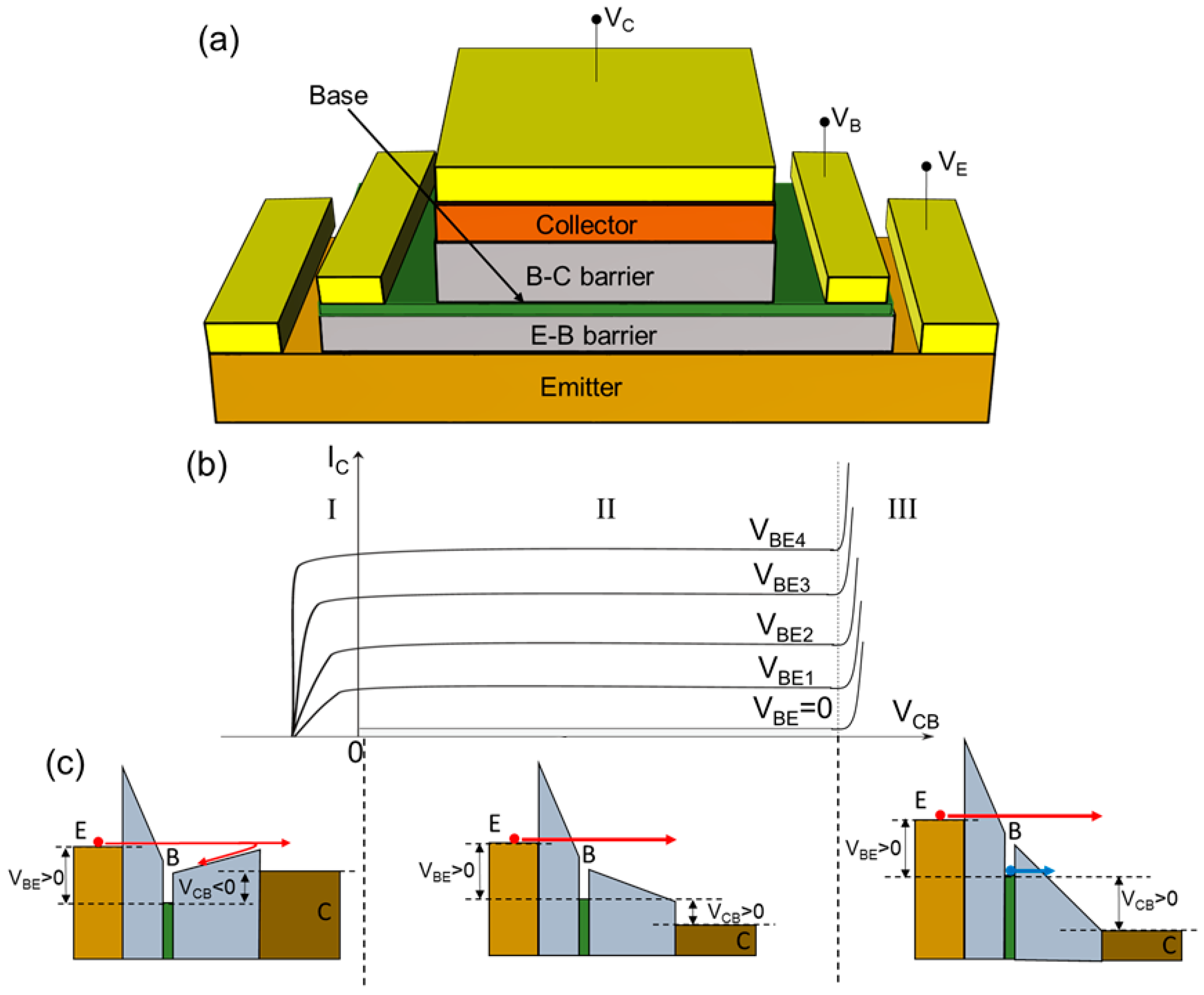

Figure 7b,c illustrates the DC electrical characteristics and the band diagrams for an HET biased in the common-base configuration (i.e., with VB = 0 and VBE = VB − VE > 0). Depending on the values of the potential difference VCB = VC − VB, three current transport regions can be observed in the output characteristics IC-VCB (Figure 7b). For VCB > 0 (Region II), IC is almost independent of VCB, i.e., all the injected hot electrons are transmitted above the B-C barrier (current saturation regime of the transistor). For VCB < 0 (Region I), the collector edge of the B-C barrier is raised up, and part of the hot electrons is reflected back in the base, resulting in a decrease of IC with increasing negative values of VCB, up to device switch-off. For large positive values of VCB (Region III), the leakage current (IBCleak) contribution of cold electrons injected by FN tunneling through the B-C barrier becomes large, and this leads to a rapid increase of IC as a function of VCB.
The main figures of merits for DC operation of an HET are the common-base current transfer ratio α = IC/IE and the common-emitter current gain β = IC/IB. For good DC performances, α ≈ 1 and β as large as possible are needed.
In the case of an HET, the high-frequency figures of merit, i.e., the cutoff frequency fT and the maximum oscillation frequency fMAX, can be expressed as follows:
f T = 1 2 π ( τ d + C E B + C B C g m )
f M A X = f T 2 π R B C B C
where τd is the total delay time associated with electrons’ transit in the E-B barrier layer, in the base and in the B-C filtering layer, CEB and CBC are the capacitances of the two barriers, gm = dJC/dVBE is the transconductance and RB is the base resistance. Clearly, the most effective way to maximize fT is the increase of gm. In fact, a reduction of the barrier layer capacitances would imply an increase of the E-B and B-C barrier thicknesses, with a consequent impact on the transit delay times across these barriers. Under saturation conditions, when all the hot electrons injected from the emitter reach the collector (JC ≈ JE), the transconductance gm ≈ dJE/dVBE. As the emitter current is injected over a barrier, it exhibits an exponential dependence on VBE, i.e., JE ∝ exp(qVBE/kT). As a result, gm ∝ qJE/kT. This means that a high injection current density is one of the main requirements to achieve a high cut-off frequency fT. The RB term in Equation (4) is the resistance associated with “lateral” current transport in the base layer from the device active area to the base contact. Hence, RB is the sum of different contributions, i.e., the “intrinsic” base resistance RB_int ∝ ρ/dB (with ρ the base resistivity and dB the base thickness), the resistance of the Ohmic metal contact with the base and the access resistance from this contact to the device active area. All these contributions should be minimized to achieve a low RB. Of course, the most challenging issue to obtain high fMAX is to fabricate an ultra-thin base (allowing ballistic transport of hot electrons in the vertical direction) while maintaining low enough intrinsic and extrinsic base resistances. However, for most of the bulk materials, reducing the film thickness to the nanometer or sub-nanometer range implies an increase of the resistivity, due to the dominance of surface roughness and/or grain boundaries’ scattering, as well as to the presence of pinholes and other structural defects in the film.
Indeed, the HET device concept was introduced more than 50 years ago by Mead [87]. Since then, several material systems have been considered for HET implementation, including metal thin films [87,88,89,90], complex oxides [91], superconducting materials [92], III-V and III-nitride semiconductor heterostructures [93,94,95,96,97]. However, the successful demonstration of high-performance HETs has been limited by the difficulty to scale the base thickness below the electron mean free path of the carriers. In this context, 2D materials, in particular Gr and TMDs, can represent ideal candidates to fabricate the base of HETs, since they maintain excellent conduction properties and structural integrity down to single atomic layer thickness, allowing one to overcome the base scalability issue.
Theoretical studies have predicted that, with an optimized structure, fT and fMAX up to several terahertz [98], Ion/Ioff over 105, high current and voltage gains can be achieved with a Gr-based HET (GBHET). The first experimental prototypes of GBHETs were reported by Vaziri et al. [22] and by Zeng et al. [23] in 2013. Those demonstrators were fabricated on Si wafers using a CMOS-compatible technology and were based on metal/insulator/Gr/SiO2/n+-Si stacks, where n+-doped Si substrate worked as the emitter, a few nm thick SiO2 as the E-B barrier, a thicker high-k insulator (Al2O3 or HfO2) as the B-C barrier and the topmost metal layer as the collector. Figure 8a shows a schematic of the device structure, while Figure 8b illustrates the band diagrams in the OFF and ON states. The measured common-base output characteristics of this device are reported in Figure 8c, showing a collector current IC nearly independent of VCB and strongly dependent on VBE.

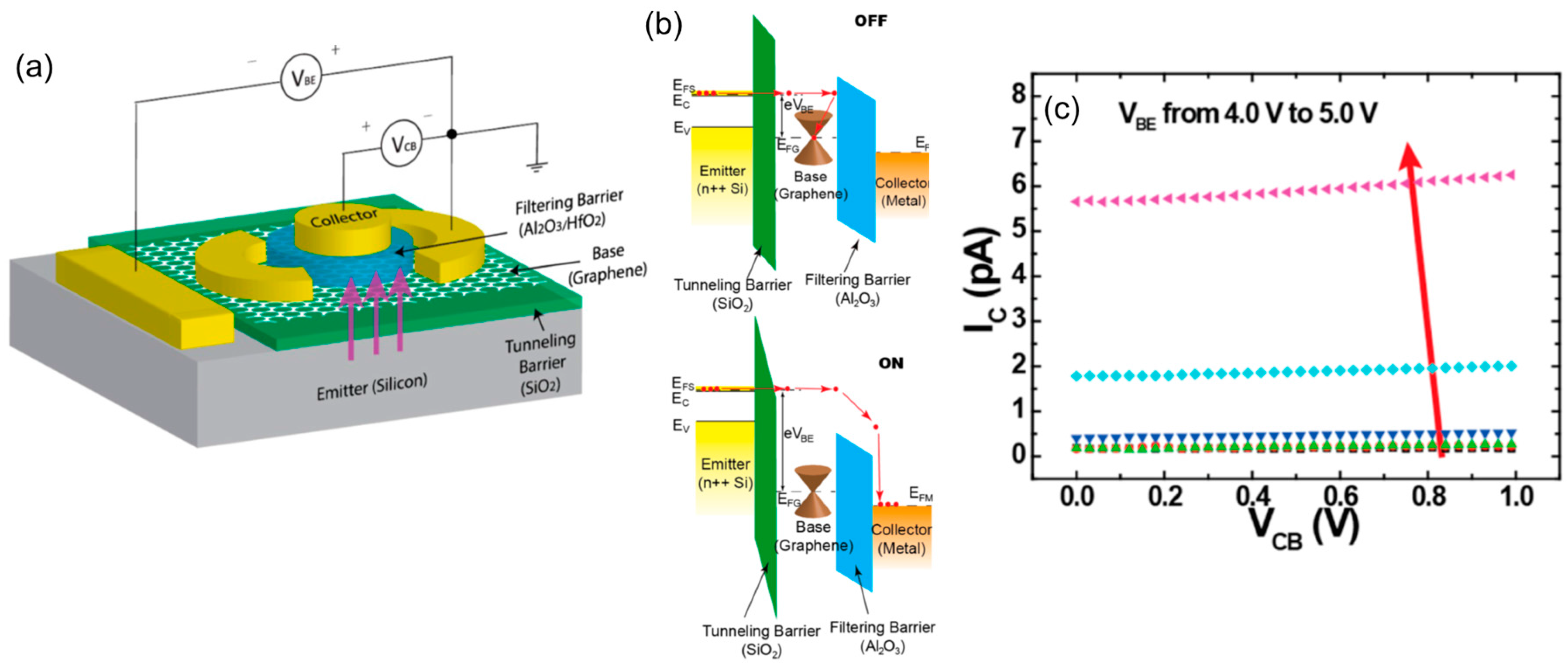

In spite of the wide modulation of IC as a function of VBE, these first prototypes suffered from a high threshold voltage and a very poor injected current density (in the order of μA/cm2) due to the high Si/SiO2 barrier, hindering their application at high frequencies.
In order to improve the current injection efficiency, other materials have been investigated as E-B barrier layers in replacement of SiO2 [99]. As an example, using a 6 nm-thick HfO2 (including a 0.5-nm interfacial SiO2) deposited by atomic layer deposition results in an improved threshold voltage and a higher injected current density. Further improvements have been obtained using a TmSiO/TiO2 (1 nm/5 nm) bilayer, where the thin TmSiO layer (with low electron affinity) in contact with the Si emitter allows high current injection by step tunneling, while the thicker TiO2 layer (with higher electron affinity) serves to block the leakage current from the Si valence band. For this GBHET with a TmSiO/TiO2 E-B barrier, a collector current density JC ≈ 4 A/cm2 (more than five orders of magnitude higher than in the first prototypes) was obtained at VBE = 5V and for VBC = 0. However, the device still suffers from low values of α ≈ 0.28 and β ≈ 0.4, which can be due to the insufficient quality of the interface between Gr and the deposited B-C barrier.
Besides Gr, monolayer MoS2 has been also considered as the base material. As an example, Torres et al. [25] demonstrated an HET device based on a stack of ITO/HfO2/MoS2/SiO2/n+-Si, where the n+-doped Si substrate worked as the emitter, thermally-grown SiO2 (3 nm) as the E-B tunneling barrier, a monolayer of CVD-grown MoS2 as the base, the HfO2 layer (55 nm thick) as the B-C barrier and the topmost ITO as the collector electrode. This device showed an improved value of α ≈ 0.95 with respect to the previously described Gr-base HET prototypes, mainly due to the lower conduction band offset between MoS2 and HfO2 (1.52 eV), with respect to the cases of Gr/HfO2 (2.05 eV) and Gr/Al2O3 (3.3 eV). In spite of this, the collector current density of these devices was still poor (in the order of μA/cm2), due to the high E-B barrier between Si and SiO2.

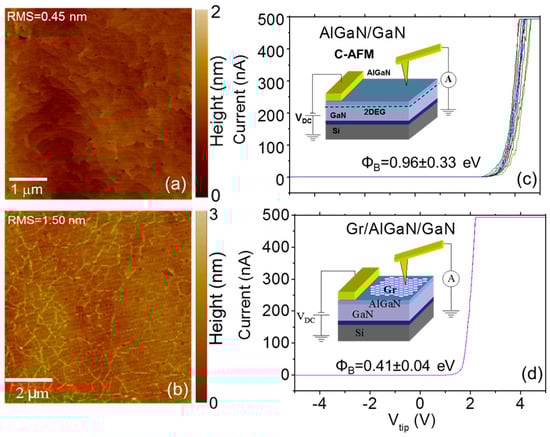

The above discussed attempts to implement the GBHET device using Si as the emitter material have been mainly motivated by the perspective of integrating this new technology with the state-of-the-art CMOS fabrication platform. More recently, the possibility of demonstrating GBHETs by the integration of Gr with nitride semiconductors has been investigated. GaN/AlGaN or GaN/AlN heterostructures are excellent systems to be used as emitter/emitter-base barriers, due to the presence of high density 2DEG at the interface and to the high structural quality of the barrier layer. Thermionic emission has been demonstrated as the main current transport mechanisms in GaN/AlGaN/Gr systems with a thick (~20 nm) AlGaN barrier layer [100,101,102].Very efficient current injection by FN tunneling has been recently shown in the case of GaN/AlN/Gr heterojunctions with an ultra-thin (3 nm) AlN barrier [103].

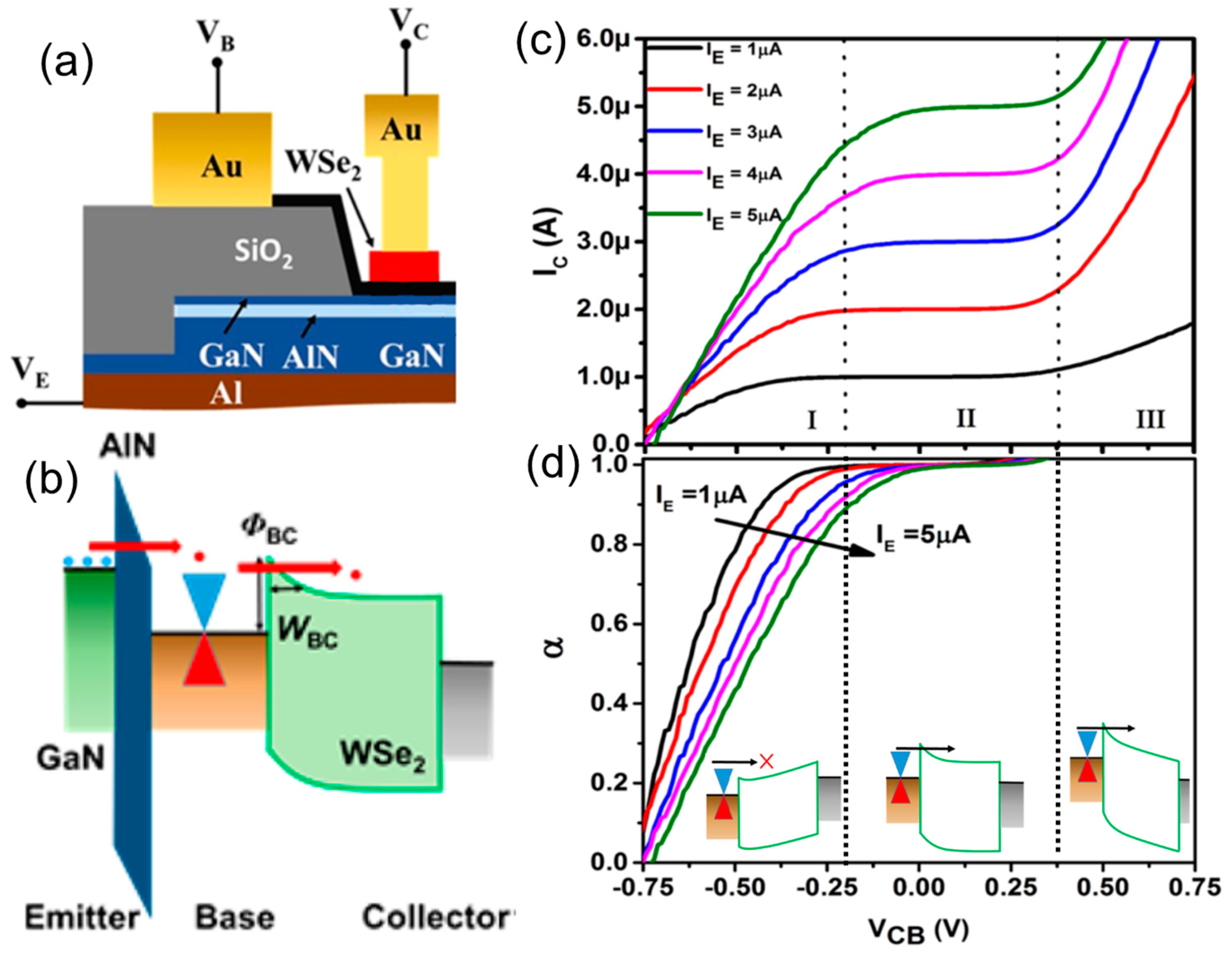

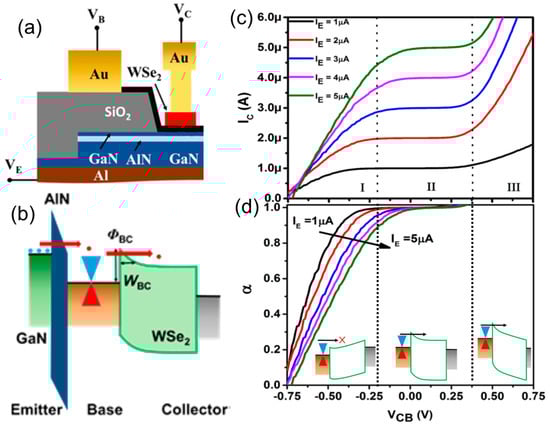

Figure 9a,b illustrates a cross-sectional schematic and the band diagram of a recently-demonstrated GBHET based on a GaN/AlN/Gr/WSe2/Au stack [103]. The 3-nm AlN tunneling barrier was grown on top of a bulk GaN substrate (n+-doped), working as the emitter. In order to circumvent the problems related to the poor interface quality between Gr and conventional insulators or semiconductors deposited on top of it, an exfoliated WSe2 layer (forming a vdW heterojunction with Gr) was adopted as the B-C barrier layer. The resulting Gr/WSe2 Schottky junction is characterized by a low barrier height due the small band offset (~0.54 eV) between Gr and WSe2. Figure 9c shows the common-base output characteristics (IC-VCB) for different values of the emitter injection current IE in the case of a GBHET with a 2.6 nm-thick WSe2 barrier. Furthermore, Figure 9d plots the common-base current transfer ratio α = IC/IE as a function of VCB in the same bias range. Three current transport regimes can be identified in Figure 9c,d. At intermediate VCB bias (Region II), IC is almost independent of the VCB and α ≈ 1, indicating that almost all the injected hot electrons are able to overcome the Gr/WSe2 Schottky barrier and reach the collector. For VCB < 0 (Region I), the injected electrons from the emitter are reflected back by the elevated B-C potential barrier, resulting in a reduced IC and α < 1. Finally, at higher positive VCB, current starts to increase due to the increasing contribution of cold electrons’ leakage current from the base. Although this device showed excellent DC characteristics in terms of α, its operating VBC window was very limited (~0.3 V), due to the poor blocking capability of the B-C junction with an ultrathin WSe2 barrier. Increasing the WSe2 thickness improved the blocking capability of the B-C barrier, but resulted in a reduced value of α. As an example, α = 0.75 was evaluated for a GaN/AlN/Gr/WSe2/Au GBHET with a 10 nm-thick WSe2 barrier [103].
Table 1 reports a comparison of the main DC electrical parameters (i.e., the collector current density JC, the common-base current transfer ratio α and the common-emitter current gain β) for the HETs with a Gr or MoS2 base reported in the literature. Some examples of HETs fully based on nitride-semiconductors with a sub-10-nm base thickness are reported for comparison. In spite of the theoretically-predicted superior performances (related to ballistic transport in the atomically-thin Gr base), GBHETs still suffer from reduced values of JC, α and β with respect to HETs fabricated by bandgap engineering of III-N semiconductors (even with a thicker GaN base). This reduced GBHET performance can be due to the non-ideal quality of Gr interfaces with the emitter and collector barriers, indicating that further work will be necessary in this direction.

4. Materials Science Issues and Challenges

The device structures reviewed in this paper are based on vdW heterostructures of 2D materials (Gr, TMDs, h-BN) [15] or on mixed-dimensional vdW heterostructures [17] formed by the integration of 2D materials with 3D semiconductors and insulators (bulk or thin films). In many cases, proof of concept devices have been fabricated by the transfer of the individual 2D components, obtained by mechanical or chemical exfoliation of flakes from layered bulk crystals. As a matter of fact, the large area growth method of electronic quality 2D materials and heterostructures are mandatory to move from proof-of-concept devices to industrial applications.
Nowadays, high quality Gr can be grown on a large area by CVD on catalytic metals, such as copper [42], followed by transfer to arbitrary substrates [104]. Although this is a very versatile and widely-used method, it suffers from some drawbacks related to Gr damage and polymer contaminations during the transfer procedure, as well as of possible adhesion problems between Gr and the substrate. Furthermore, it typically introduces undesired metal (Cu, Fe) contaminations [105] originating from the growth substrate and the typically used Cu etchants. An intense research activity is still in progress to optimize Gr transfer procedures to minimize Gr defectivity and contaminations associated with Gr manipulation [106,107,108,109].
Notwithstanding the above-mentioned issues, large area (cm2) Gr heterojunctions with semiconductors are currently fabricated by optimized transfer of CVD-grown Gr. These have been used for the fabrication of device arrays using semiconductor fab-compatible approaches. As an example, Gr junctions with AlGaN/GaN heterostructures showing excellent lateral uniformity have been reported [100,110] and are currently investigated as building blocks for HET devices. Figure 10a,b reports two representative morphologies of the AlGaN surface without (a) and with (b) a single-layer Gr membrane on top. Figure 10c,d shows two arrays of local current-voltage characteristics measured by conductive atomic force microscopy (CAFM) at the different positions on bare AlGaN- and Gr-coated AlGaN, respectively. In both cases, all the I-V curves exhibit a rectifying behavior, with a lower Schottky barrier height for the Gr/AlGaN junction. Noteworthy, a very narrow spread between different curves is observed for the Gr/AlGaN junction, indicating an excellent lateral homogeneity of the Gr/AlGaN Schottky contact.
Under many respects, the direct growth/deposition of Gr on the target substrate would be highly desirable. However, to date, high quality Gr growth has been demonstrated only on a few semiconducting or semi-insulating materials, such as silicon-carbide [38,39,40,111,112] and, more recently, germanium [113]. Single or few layers of Gr can be obtained on the Si face (0001) of hexagonal SiC, either by controlled sublimation of Si at high temperatures (typically > 1650 °C) in Ar at atmospheric pressure or by direct CVD deposition at lower temperatures (~1450 °C) using an external carbon source (such as C3H8) with H2 or H2/Ar carrier gases [111]. Gr grown on SiC(0001), commonly named epitaxial graphene (EG), generally exhibits a precise epitaxial orientation with respect to the substrate, which originates from the peculiar nature of the interface, i.e., the presence of a carbon buffer layer with mixed sp2/sp3 hybridization sharing covalent bonds with the Si face of SiC [114,115]. This buffer layer has a strong impact both on the lateral (i.e., in plane) current transport in EG, causing a reduced carrier mobility, and on the vertical current transport at the EG/SiC interface [116,117]. Hydrogen intercalation at the interface between the buffer layer and Si face has been demonstrated to be efficient in increasing Gr carrier mobility and tuning the Schottky barrier and, hence, the vertical current transport across the Gr/SiC interface [118]. Recently, CVD growth of Gr from carbon precursors on nitride semiconductor (AlN) substrates/templates has been also investigated. Gr deposition on these non-catalytic surfaces represents a challenging task, as it requires significantly higher temperatures as compared to conventional deposition on metals. The first experimental works addressing this issue showed the possibility of depositing a few layers of Gr both on bulk AlN (Al and N face) and on AlN templates grown on different substrates, such as Si(111) and SiC, at temperatures >1250 °C using propane (C3H8) as the carbon source, without significantly degrading the morphology of AlN substrates/templates [119,120]. In spite of the very promising results of these experiments, further work will be required to evaluate the feasibility and the effects of CVD Gr growth onto AlN/GaN or AlGaN/GaN heterostructures. Moreover, the possibility of integrating these high temperature processes in the fabrication flow of GBHETs with the GaN/AlN (or GaN/AlGaN) emitter needs to be investigated.
Although most of TMD-based devices are still fabricated using exfoliated flakes, much progress has been made in the last few years in the CVD deposition of MoS2 and other TMDs, both on insulating substrates, such as SiO2 [121,122] and sapphire [123], and on semiconductors, such as GaN [124]. Noteworthy, an epitaxial registry with the substrate has been observed for CVD-grown MoS2 on sapphire and on GaN.

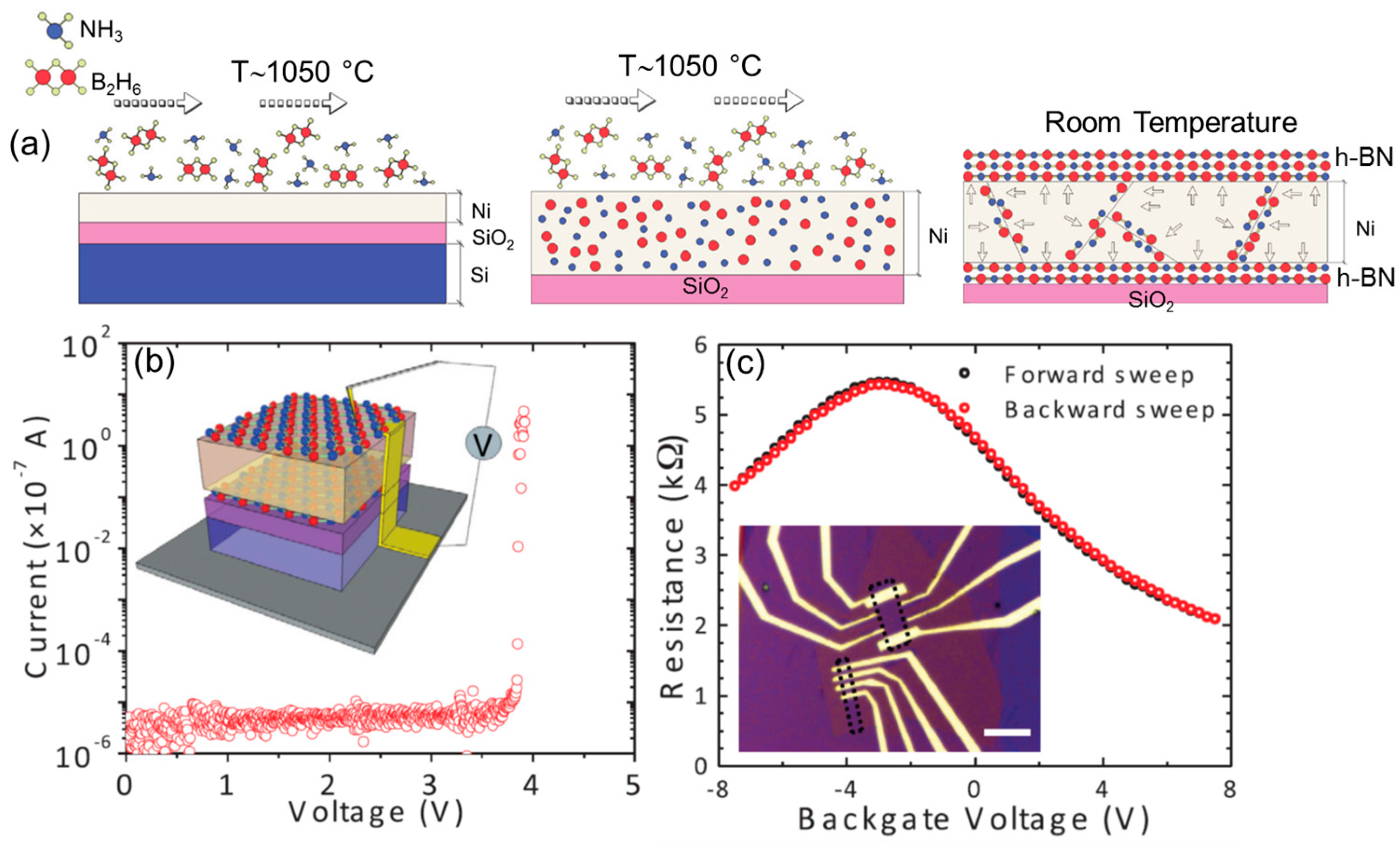

High quality thin insulating layers are key components for most of the above-discussed lateral and vertical devices based on Gr and TMDs. In this context, due to the layer-by-layer deposition mechanism, atomic layer deposition (ALD) has been considered as method of choice to grow thin high-k dielectrics (such as Al2O3 and HfO2) on Gr and TMDs [125]. The main challenge related to ALD on the chemically inert and dangling-bonds’ free surface of 2D materials is the activation of nucleation sites from which the growth can initiate. Several approaches have been explored so far to this aim, like ex situ deposition of metal or metal-oxide seed layers [126] or pre-functionalization of Gr [127]. Recently, highly uniform Al2O3 films with very low leakage current and a high breakdown field have been deposited on Gr by a two-step thermal ALD process, resulting in minimal degradation of the Gr electronic/structural properties [128]. As a matter of fact, the interface between Gr and TMDs with common insulators is not atomically flat. Furthermore, interface or near-interface defects are typically present in the oxide and act as trapping states for electrons/holes.
In this respect, due to its atomically-flat crystal surface, excellent insulating properties and chemical inertness, h-BN represents an ideal ultra-flat substrate and interlayer dielectric for Gr (to which it is closely lattice matched, within 1.6%) and, by extension, other 2D semiconductor materials [3]. Although single and multilayer h-BN used for device demonstration are still mainly obtained by exfoliation from the bulk crystal, significant progress has been also made towards the controlled synthesis of large-area, high-quality h-BN films by CVD on metal catalysts, such as Ni [129], Cu [130] and Ni/Cu alloys [131]. Recently, Sonde et al. reported a detailed study clarifying the mechanisms of CVD h-BN growth on Ni and Co thin films on SiO2/Si substrates [132], which could lead to large area (up to wafer scale) growth of h-BN thin films on arbitrary substrates in a transfer-free manner. As schematically illustrated in Figure 11a, after exposure to ammonia (NH3) and diborane (B2H6) precursors at high temperature (~1050 °C), diffusion of boron (B) and nitrogen (N) in Ni occurs, followed by segregation/precipitation of h-BN multilayers both on the upper and the buried face of the Ni film. These h-BN films showed excellent insulating properties, with a breakdown field of 9.34 MV·cm−1, as determined from current-voltage characteristics measured by CAFM (see Figure 11b). Finally, the quality of h-BN as a substrate for back-gated Gr field effect transistors has been evaluated. The Gr resistance measured under forward and backward gate bias sweep is reported in Figure 11c, showing minimal hysteresis associated with the absence of charge trapping at the Gr/h-BN interface.
PMMA-assisted transfer is the simplest way to construct arbitrary 2D heterostructures. However, the quality of the interface can be affected by the trapping of polymer, solvents or chemicals used for transfer. This represents a major issue, especially for large-area 2D heterostructures. In this respect, the direct synthesis of vertically-stacked 2D heterojunctions, obtained by CVD growth of one 2D material on another, would be highly desirable, as the direct growth would result, in principle, in clean heterojunction interfaces. The early van der Waals epitaxy experiments started from Gr and h-BN, which share a similar lattice constant. Yang et al. reported a plasma-assisted deposition method for the growth of single domain Gr on the h-BN substrate [133]. Gr grows with a preferred orientation with respect to the h-BN lattice, and the size of the domain is only restricted by the area of underlying h-BN. Furthermore, Shi et al. have obtained a vertically-stacked MoS2/Gr heterostructure via thermal decomposition of ammonium thiomolybdate precursors on Gr surfaces [134]. In spite of the 28% mismatch between MoS2 and Gr lattice constants, Gr is still a good growth platform for MoS2, as the growth of MoS2 on Gr involves strain to accommodate the lattice mismatch. Lin et al. demonstrated the direct growth of MoS2, WSe2 and h-BN on epitaxial Gr on SiC through CVD methods [135], showing how the morphology of the underlying Gr strongly affects the growth and the properties of top heterostructures. In particular, strain, wrinkling and defects on the surface of Gr provide the nucleation centers for the upper layer material growth.

5. Summary and Outlook

We have reviewed the state-of-the-art of 2D material-based vertical transistors for logic and high frequency electronics.
Regarding logic applications, vdW heterostructures obtained by 2D/2D or 2D/3D material stacking have been explored by several research groups as a platform to implement tunneling field effect transistors (TFETs). Resonant TFETs have been demonstrated by rotationally-aligned Gr monolayers or bilayers separated by a tunnel barrier (h-BN or TMD). However, although these prototypes permitted exploring interesting physical phenomena, the possibility of realizing vdW heterostructures with a precise crystallographic alignment on a large area represents a big challenge, making real applications of resonant TFETs in the near future difficult. On the other hand, TFETs relying on the band-to-band-tunneling across the interface of different semiconducting layered materials could have more realistic prospects of practical applications, once further progress in van der Waals epitaxy of TMDs is achieved.
Regarding high frequency applications of 2D materials, lateral Gr FETs with a very high cut-off frequency (fT > 400 GHz) have been demonstrated, exploiting the high Gr channel mobility. However, these devices suffer from a lower maximum oscillation frequency fMAX, due to the poor saturation of the output characteristics mainly originating from the missing bandgap of Gr. Vertical transistors based on 2D/2D or 2D/3D material heterostructures can represent an alternative to lateral Gr FETs to realize RF functions. In particular, the hot electrons transistor (HET) has been theoretically predicted to be suitable for ultra-high-frequency applications, with fT and fMAX values in the THz range. The main requirement for the implementation of this device concept, i.e., an ultrathin base allowing both ballistic transport in the vertical direction and low base resistance in the lateral direction, can be fulfilled by 2D materials, in particular Gr. However, although much progress has been made in the last few years in the fabrication of Gr-based HETs, the electrical performances of these demonstrators are still lower than those of previously-reported HET devices fabricated with III-V heterostructures (even with a thicker base) and far from the state-of-the-art RF HEMTs (which represent the benchmark for any competing RF device concept). Further improvements in the emitter-base and base-collector barrier layers and interfaces are still required to achieve the theoretical DC and RF performances of HETs.
Generally speaking, the perspective of industrial applications of 2D material-based devices is strongly related to the possibility of growing individual 2D layers and, possibly, vdW heterostructures on a large area.

Acknowledgments

The authors want to acknowledge all of the following colleagues for useful discussions and participation in the experiments: Gabriele Fisichella., Emanuela Schilirò, Salvatore Di Franco, Patrick Fiorenza, Raffaella Lo Nigro, Ioannis Deretzis, Antonino La Magna, Giuseppe Nicotra, Corrado Bongiorno, Corrado Spinella (CNR—Institute for Microelectronics and Microsystems (CNR-IMM), Catania, Italy); Sebastiano Ravesi, Stella Lo Verso, Ferdinando Iucolano (STMicroelectronics, Catania, Italy); Eric Frayssinet, Roy Dagher, Adrien Michon, Yvon Cordier (CNRS—Centre de Recherche sur l’Hétéro-Epitaxie et ses Applications (CNRS-CRHEA), Valbonne, France); Mike Leszczynski, Piotr Kruszewski, Pawel Prystawko (TopGaN, Warsaw, Poland); Rositza Yakimova, Anelia Kakanakova (Linkoping University, Linkoping, Sweden); Bela Pecz (Institute for Technical Physics and Materials Science Research, Centre for Energy Research, Hungarian Academy of Science, Budapest, Hungary); and Luigi Colombo (Texas Instruments, Texas, TX, USA). This paper has been supported, in part, by the Flag-ERA project “GraNitE: Graphene heterostructures with Nitrides for high frequency Electronics”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A. Electric Field Effect in Atomically Thin Carbon Films. Science 2004, 306, 666–669. [Google Scholar] [CrossRef] [PubMed]
  2. Bolotin, K.I.; Sikes, K.J.; Hone, J.H.; Stormer, L.; Kim, P. Temperature-Dependent Transport in Suspended Graphene. Phys. Rev. Lett. 2008, 101, 096802. [Google Scholar] [CrossRef] [PubMed]
  3. Dean, C.R.; Young, A.F.; Meric, I.; Lee, C.; Wang, L.; Sorgenfrei, S.; Watanabe, K.; Taniguchi, T.; Kim, P.; Shepard, K.L.; et al. Boron nitride substrates for high-quality graphene electronics. Nat. Nanotechnol. 2010, 5, 722–726. [Google Scholar] [CrossRef] [PubMed]
  4. Mayorov, A.S.; Gorbachev, R.V.; Morozov, S.V.; Britnell, L.; Jalil, R.; Ponomarenko, L.A.; Blake, P.; Novoselov, K.S.; Watanabe, K.; Taniguchi, T.; et al. Micrometer-scale ballistic transport in encapsulated graphene at room temperature. Nano Lett. 2011, 11, 2396–2399. [Google Scholar] [CrossRef] [PubMed]
  5. Giannazzo, F.; Raineri, V. Graphene: Synthesis and nanoscale characterization of electronic properties. Rivista del Nuovo Cimento 2012, 35, 267–304. [Google Scholar]
  6. Sonde, S.; Giannazzo, F.; Vecchio, C.; Yakimova, R.; Rimini, E.; Raineri, V. Role of graphene/substrate interface on the local transport properties of the two-dimensional electron gas. Appl. Phys. Lett. 2010, 97, 132101. [Google Scholar] [CrossRef]
  7. Giannazzo, F.; Sonde, S.; Lo Nigro, R.; Rimini, E.; Raineri, V. Mapping the Density of Scattering Centers Limiting the Electron Mean Free Path in Graphene. Nano Lett. 2011, 11, 4612–4618. [Google Scholar] [CrossRef] [PubMed]
  8. Lemme, M.C.; Echtermeyer, T.J.; Baus, M.; Kurz, H. A Graphene Field-Effect Device. IEEE Electron Device Lett. 2007, 28, 282–284. [Google Scholar] [CrossRef]
  9. Schwierz, F. Graphene transistors. Nat. Nanotechnol. 2010, 5, 487–496. [Google Scholar] [CrossRef] [PubMed]
  10. Liao, L.; Duan, X. Graphene for radio frequency electronics. Mater. Today 2012, 15, 328–338. [Google Scholar] [CrossRef]
  11. Cheng, R.; Bai, J.; Liao, L.; Zhou, H.; Chen, Y.; Liu, L.; Lin, Y.-C.; Jiang, S.; Huang, Y.; Duan, X. High-frequency self-aligned graphene transistors with transferred gate stacks. Proc. Natl. Acad. Sci. USA 2012, 109, 11588–11592. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, H.; Hsu, A.; Wu, J.; Kong, J.; Palacios, T. Graphene-Based Ambipolar RF Mixers. IEEE Electron Device Lett. 2010, 31, 906–908. [Google Scholar] [CrossRef]
  13. Wang, Q.H.; Zadeh, K.K.; Kis, A.; Coleman, J.N.; Strano, M.S. Electronics and optoelectronics of two-dimensional transition metal dichalcogenides. Nat. Nanotechnol. 2012, 7, 699–712. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, H.; Neal, A.T.; Zhu, Z.; Luo, Z.; Xu, X.; Tománek, D.; Ye, P.D. Phosphorene: An Unexplored 2D Semiconductor with a High Hole Mobility. ACS Nano 2014, 8, 4033–4041. [Google Scholar] [CrossRef] [PubMed]
  15. Geim, A.K.; Grigorieva, I.V. Van der Waals heterostructures. Nature 2013, 499, 419–425. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, H.; Liu, F.; Fu, W.; Fang, Z.; Zhoue, W.; Liu, Z. Two-dimensional heterostructures: Fabrication, characterization, and application. Nanoscale 2014, 6, 12250–12272. [Google Scholar] [CrossRef] [PubMed]
  17. Jariwala, D.; Marks, T.J.; Hersam, M.C. Mixed-dimensional van der Waals heterostructures. Nat. Mater. 2017, 16, 170–181. [Google Scholar] [CrossRef] [PubMed]
  18. Britnell, L.; Gorbachev, R.V.; Jalil, R.; Belle, B.D.; Schedin, F.; Mishchenko, A.; Georgiou, T.; Katsnelson, M.I.; Eaves, L.; Morozov, S.V.; et al. Field-Effect Tunneling Transistor Based on Vertical Graphene Heterostructures. Science 2012, 335, 947–950. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  19. Georgiou, T.; Jalil, R.; Belle, B.D.; Britnell, L.; Gorbachev, R.V.; Morozov, S.V.; Kim, Y.-J.; Gholinia, A.; Haigh, S.J.; Makarovsky, O.; et al. Vertical field-effect transistor based on graphene-WS2 heterostructures for flexible and transparent electronics. Nat. Nanotechnol. 2013, 8, 100–103. [Google Scholar] [CrossRef] [PubMed]
  20. Sarkar, D.; Xie, X.; Liu, W.; Cao, W.; Kang, J.; Gong, Y.; Kraemer, S.; Ajayan, P.M.; Banerjee, K. A subthermionic tunnel field-effect transistor with an atomically thin channel. Nature 2015, 526, 91–95. [Google Scholar] [CrossRef] [PubMed]
  21. Yang, H.; Heo, J.; Park, S.; Song, H.J.; Seo, D.H.; Byun, K.-E.; Kim, P.; Yoo, I.; Chung, H.-J.; Kim, K. Graphene barristor, a triode device with a gate-controlled Schottky barrier. Science 2012, 336, 1140–1143. [Google Scholar] [CrossRef] [PubMed]
  22. Vaziri, S.; Lupina, G.; Henkel, C.; Smith, A.D.; Ostling, M.; Dabrowski, J.; Lippert, G.; Mehr, W.; Lemme, M.C. A graphene-based hot electron transistor. Nano Lett. 2013, 13, 1435–1439. [Google Scholar] [CrossRef] [PubMed]
  23. Zeng, C.; Song, E.B.; Wang, M.; Lee, S.; Torres, C.M.; Tang, J.; Weiller, B.H.; Wang, K.L. Vertical graphene-base hot electron transistor. Nano Lett. 2013, 13, 2370–2375. [Google Scholar] [CrossRef] [PubMed]
  24. Vaziri, S.; Smith, A.D.; Östling, M.; Lupina, G.; Dabrowski, J.; Lippert, G.; Mehr, W.; Driussi, F.; Venica, S.; Di Lecce, V.; et al. Going ballistic: Graphene hot electron transistors. Solid State Commun. 2015, 224, 64–75. [Google Scholar] [CrossRef]
  25. Torres, C.M.; Lan, Y.W.; Zeng, C.; Chen, J.H.; Kou, X.; Navabi, A.; Tang, J.; Montazeri, M.; Adleman, J.R.; Lerner, M.B.; et al. High-Current Gain Two-Dimensional MoS2-Base Hot-Electron Transistors. Nano Lett. 2015, 15, 7905–7912. [Google Scholar] [CrossRef] [PubMed]
  26. Radisavljevic, B.; Radenovic, A.; Brivio, J.; Giacometti, V.; Kis, A. Single-layer MoS2 transistors. Nat. Nanotechnol. 2011, 6, 147–150. [Google Scholar] [CrossRef] [PubMed]
  27. Kaasbjerg, K.; Thygesen, K.S.; Jacobsen, K.W. Phonon-limited mobility in n-type single-layer MoS2 from first principles. Phys. Rev. B 2012, 85, 115317. [Google Scholar] [CrossRef]
  28. Radisavljevic, B.; Kis, A. Mobility engineering and a metal–insulator transition in monolayer MoS2. Nat. Mater. 2013, 12, 815–820. [Google Scholar] [CrossRef] [PubMed]
  29. Fuhrer, M.S.; Hone, J. Measurement of mobility in dual-gate MoS2 transistor. Nat. Nanotechnol. 2013, 8, 146–147. [Google Scholar] [CrossRef] [PubMed]
  30. Li, L.; Yu, Y.; Ye, G.J.; Ge, Q.; Ou, X.; Wu, H.; Feng, D.; Chen, X.H.; Zhang, Y. Black phosphorus field-effect transistors. Nat. Nanotechnol. 2014, 9, 372–377. [Google Scholar] [CrossRef] [PubMed]
  31. Yoon, Y.; Ganapathi, K.; Salahuddin, S. How good can monolayer MoS2 transistors be? Nano Lett. 2011, 11, 3768–3773. [Google Scholar] [CrossRef] [PubMed]
  32. Alam, K.; Lake, R. Monolayer MoS2 transistors beyond the technology road map. IEEE Trans. Electron Devices 2012, 59, 3250–3254. [Google Scholar] [CrossRef]
  33. Liu, L.; Lu, Y.; Guo, J. On monolayer MoS2 field-effect transistors at the scaling limit. IEEE Trans. Electron Devices 2013, 60, 4133–4139. [Google Scholar] [CrossRef]
  34. Majumdar, K.; Hobbs, C.; Kirsch, P.D. Benchmarking transition metal dichalcogenide MOSFET in the ultimate physical scaling limit. IEEE Electron Device Lett. 2014, 35, 402–404. [Google Scholar] [CrossRef]
  35. International Technology Roadmap for Semiconductors (ITRS, 2013). Available online: http://www.itrs2.net/ (accessed on 1 December 2017).
  36. Desai, S.B.; Madhvapathy, S.R.; Sachid, A.B.; Llinas, J.P.; Wang, Q.; Ahn, G.H.; Pitner, G.; Kim, M.J.; Bokor, J.; Hu, C.; et al. MoS2 transistors with 1-nanometer gate lengths. Science 2016, 354, 99–102. [Google Scholar] [CrossRef] [PubMed]
  37. Meric, I.; Baklitskaya, N.; Kim, P.; Shepard, K.L. RF performance of to p-gated, zero-bandgap graphene field-effect transistors. In Proceedings of the IEEE International Electron Devices Meeting (IEDM 2008), San Francisco, CA, USA, 15–17 December 2008; pp. 1–4. [Google Scholar]
  38. Berger, C.; Song, Z.; Li, X.; Wu, X.; Brown, N.; Naud, C.; Mayou, D.; Li, T.; Hass, J.; Marchenkov, A.N.; et al. Electronic confinement and coherence in patterned epitaxial graphene. Science 2006, 312, 1191–1196. [Google Scholar] [CrossRef] [PubMed]
  39. Emtsev, K.V.; Bostwick, A.; Horn, K.; Jobst, J.; Kellogg, G.L.; Ley, L.; McChesney, J.L.; Ohta, T.; Reshanov, S.A.; Röhrl, J.; et al. Towards wafer-size graphene layers by atmospheric pressure graphitization of silicon carbide. Nat. Mater. 2009, 8, 203–207. [Google Scholar] [CrossRef] [PubMed]
  40. Virojanadara, C.; Syvajarvi, M.; Yakimova, R.; Johansson, L.I.; Zakharov, A.A.; Balasubramanian, T. Homogeneous large-area graphene layer growth on 6H-SiC(0001). Phys. Rev. B 2008, 78, 245403. [Google Scholar] [CrossRef]
  41. Vecchio, C.; Sonde, S.; Bongiorno, C.; Rambach, M.; Yakimova, R.; Rimini, E.; Raineri, V.; Giannazzo, F. Nanoscale structural characterization of epitaxial graphene grown on off-axis 4H-SiC (0001). Nanoscale Res. Lett. 2011, 6, 269. [Google Scholar] [CrossRef] [PubMed]
  42. Li, X.; Cai, W.; An, J.; Kim, S.; Nah, J.; Yang, D.; Piner, R.; Velamakanni, A.; Jung, I.; Tutuc, E.; et al. Large-area synthesis of high-quality and uniform graphene films on copper foils. Science 2009, 324, 1312–1314. [Google Scholar] [CrossRef] [PubMed]
  43. Wu, Y.; Jenkins, K.A.; Valdes-Garcia, A.; Farmer, D.B.; Zhu, Y.; Bol, A.A.; Dimitrakopoulos, C.; Zhu, W.; Xia, F.; Avouris, P.; et al. State-of-the-Art Graphene High-Frequency Electronics. Nano Lett. 2012, 12, 3062–3067. [Google Scholar] [CrossRef] [PubMed]
  44. Lin, Y.M.; Dimitrakopoulos, C.; Jenkins, K.A.; Farmer, D.B.; Chiu, H.Y.; Grill, A.; Avouris, P. 100-GHz transistors from wafer-scale epitaxial graphene. Science 2010, 327, 662. [Google Scholar] [CrossRef] [PubMed]
  45. Li, X.; Mullen, J.T.; Jin, Z.; Borysenko, K.M.; Nardelli, M.B.; Kim, K.W. Intrinsic electrical transport properties of monolayer silicene and MoS2 from first principles. Phys. Rev. B 2013, 87, 115418. [Google Scholar] [CrossRef]
  46. Akinwande, D.; Petrone, N.; Hone, J. Two-dimensional flexible nanoelectronics. Nat. Commun. 2014, 5, 5678. [Google Scholar] [CrossRef] [PubMed]
  47. Cheng, R.; Jian, S.; Chen, Y.; Weiss, N.; Cheng, H.C.; Wu, H.; Huang, Y.; Duan, X. Few-layer molybdenum disulfide transistors and circuits for high-speed flexible electronics. Nat. Commun. 2014, 5, 5143. [Google Scholar] [CrossRef] [PubMed]
  48. Krasnozhon, D.; Lembke, D.; Nyffeler, C.; Leblebici, Y.; Kis, A. MoS2 Transistors Operating at Gigahertz Frequencies. Nano Lett. 2014, 14, 5905–5911. [Google Scholar] [CrossRef] [PubMed]
  49. Sanne, A.; Ghosh, R.; Rai, A.; Yogeesh, M.N.; Shin, S.H.; Sharma, A.; Jarvis, K.; Mathew, L.; Rao, R.; Akinwande, D.; et al. Radio Frequency Transistors and Circuits Based on CVD MoS2. Nano Lett. 2015, 15, 5039–5045. [Google Scholar] [CrossRef] [PubMed]
  50. Hong, J.; Hu, Z.; Probert, M.; Li, K.; Lv, D.; Yang, X.; Gu, L.; Mao, N.; Feng, Q.; Xie, L.; et al. Exploring atomic defects in molybdenum disulphide monolayers. Nat. Commun. 2015, 6, 6293. [Google Scholar] [CrossRef] [PubMed]
  51. Yu, Z.; Pan, Y.; Shen, Y.; Wang, Z.; Ong, Z.-Y.; Xu, T.; Xin, R.; Pan, L.; Wang, B.; Sun, L.; et al. Towards intrinsic charge transport in monolayer molybdenum disulfide by defect and interface engineering. Nat. Commun. 2014, 5, 5290. [Google Scholar] [CrossRef] [PubMed]
  52. Guo, Y.; Liu, D.; Robertson, J. Chalcogen vacancies in monolayer transition metal dichalcogenides and Fermi level pinning at contacts. Appl. Phys. Lett. 2015, 106, 173106. [Google Scholar] [CrossRef]
  53. Addou, R.; McDonnell, S.; Barrera, D.; Guo, Z.; Azcatl, A.; Wang, J.; Zhu, H.; Hinkle, C.L.; Quevedo-Lopez, M.; Alshareef, H.N.; et al. Impurities and Electronic Property Variations of Natural MoS2 Crystal Surfaces. ACS Nano 2015, 9, 9124–9133. [Google Scholar] [CrossRef] [PubMed]
  54. Das, S.; Chen, H.-Y.; Penumatcha, A.V.; Appenzeller, J. High Performance Multi-layer MoS2 Transistors with Scandium Contacts. Nano Lett. 2013, 13, 100–105. [Google Scholar] [CrossRef] [PubMed]
  55. Kappera, R.; Voiry, D.; Yalcin, S.E.; Branch, B.; Gupta, G.; Mohite, A.D.; Chhowalla, M. Phase-Engineered Low-Resistance Contacts for Ultrathin MoS2 Transistors. Nat. Mater. 2014, 13, 1128–1134. [Google Scholar] [CrossRef] [PubMed]
  56. Suh, J.; Park, T.-E.; Lin, D.-Y.; Fu, D.; Park, J.; Jung, H.J.; Chen, Y.; Ko, C.; Jang, C.; Sun, Y.; et al. Doping against the Native Propensity of MoS2: Degenerate Hole Doping by Cation Substitution. Nano Lett. 2014, 14, 6976–6982. [Google Scholar] [CrossRef] [PubMed]
  57. Fang, H.; Tosun, M.; Seol, G.; Chang, T.C.; Takei, K.; Guo, J.; Javey, A. Degenerate n-Doping of Few-Layer Transition Metal Dichalcogenides by Potassium. Nano Lett. 2013, 13, 1991–1995. [Google Scholar] [CrossRef] [PubMed]
  58. Nipane, A.; Karmakar, D.; Kaushik, N.; Karande, S.; Lodha, S. Few-Layer MoS2 p-type Devices Enabled by Selective Doping Using Low Energy Phosphorus Implantation. ACS Nano 2016, 10, 2128–2137. [Google Scholar] [CrossRef] [PubMed]
  59. McDonnell, S.; Addou, R.; Buie, C.; Wallace, R.M.; Hinkle, C.L. Defect-Dominated Doping and Contact Resistance in MoS2. ACS Nano 2014, 8, 2880–2888. [Google Scholar] [CrossRef] [PubMed]
  60. Giannazzo, F.; Fisichella, G.; Piazza, A.; Agnello, S.; Roccaforte, F. Nanoscale inhomogeneity of the Schottky barrier and resistivity in MoS2 multilayers. Phys. Rev. B 2015, 92, 081307. [Google Scholar] [CrossRef]
  61. Giannazzo, F.; Fisichella, G.; Piazza, A.; Di Franco, S.; Greco, G.; Agnello, S.; Roccaforte, F. Impact of Contact Resistance on the Electrical Properties of MoS2 Transistors at Practical Operating Temperatures. Beilstein J. Nanotechnol. 2017, 8, 254–263. [Google Scholar] [CrossRef] [PubMed]
  62. Das, S.; Prakash, A.; Salazar, R.; Appenzeller, J. Toward Low-Power Electronics: Tunneling Phenomena in Transition Metal Dichalcogenides. ACS Nano 2014, 8, 1681–1689. [Google Scholar] [CrossRef] [PubMed]
  63. Giannazzo, F.; Fisichella, G.; Piazza, A.; Di Franco, S.; Greco, G.; Agnello, S.; Roccaforte, F. Effect of Temperature−Bias Annealing on the Hysteresis and Subthreshold Behavior of Multilayer MoS2 Transistors. Phys. Status Solidi RRL 2016, 10, 797–801. [Google Scholar] [CrossRef]
  64. Chuang, S.; Battaglia, C.; Azcatl, A.; McDonnell, S.; Kang, J.S.; Yin, X.; Tosun, M.; Kapadia, R.; Fang, H.; Wallace, R.M.; et al. MoS2 P-Type Transistors and Diodes Enabled by High Work Function MoOx Contacts. Nano Lett. 2014, 14, 1337–1342. [Google Scholar] [CrossRef] [PubMed]
  65. Giannazzo, F.; Fisichella, G.; Greco, G.; Di Franco, S.; Deretzis, I.; La Magna, A.; Bongiorno, C.; Nicotra, G.; Spinella, C.; Scopelliti, M.; et al. Ambipolar MoS2 Transistors by Nanoscale Tailoring of Schottky Barrier Using Oxygen Plasma Functionalization. ACS Appl. Mater. Interfaces 2017, 9, 23164–23174. [Google Scholar] [CrossRef] [PubMed]
  66. Fang, H.; Chuang, S.; Chang, T.C.; Takei, K.; Takahashi, T.; Javey, A. High-Performance Single Layered WSe2 p-FETs with Chemically Doped Contacts. Nano Lett. 2012, 12, 3788–3792. [Google Scholar] [CrossRef] [PubMed]
  67. Tosun, M.; Chuang, S.; Fang, H.; Sachid, A.B.; Hettick, M.; Lin, Y.; Zeng, Y.; Javey, A. High-Gain Inverters Based on WSe2 Complementary Field-Effect Transistors. ACS Nano 2014, 8, 4948–4953. [Google Scholar] [CrossRef] [PubMed]
  68. Yu, L.; Zubair, A.; Santos, E.J.G.; Zhang, X.; Lin, Y.; Zhang, Y.; Palacios, T. High-Performance WSe2 Complementary Metal Oxide Semiconductor Technology and Integrated Circuits. Nano Lett. 2015, 15, 4928–4934. [Google Scholar] [CrossRef] [PubMed]
  69. Roy, T.; Tosun, M.; Kang, J.S.; Sachid, A.B.; Desai, S.B.; Hettick, M.; Hu, C.C.; Javey, A. Field-Effect Transistors Built from All Two-Dimensional Material Components. ACS Nano 2014, 8, 6259–6264. [Google Scholar] [CrossRef] [PubMed]
  70. Esaki, L. New phenomenon in narrow germanium p-n junctions. Phys. Rev. 1958, 109, 603. [Google Scholar] [CrossRef]
  71. Chang, L.L. Resonant tunneling in semiconductor double barriers. Appl. Phys. Lett. 1974, 24, 593. [Google Scholar] [CrossRef]
  72. Agarwal, S.; Yablonovitch, E. Band-Edge Steepness Obtained from Esaki Backward Diode Current–Voltage Characteristics. IEEE Trans. Electron Devices 2014, 61, 1488–1493. [Google Scholar] [CrossRef]
  73. Britnell, L.; Gorbachev, R.V.; Geim, A.K.; Ponomarenko, L.A.; Mishchenko, A.; Greenaway, M.T.; Fromhold, T.M.; Novoselov, K.S.; Eaves, L. Resonant tunnelling and negative differential conductance in graphene transistors. Nat. Commun. 2013, 4, 1794. [Google Scholar] [PubMed]
  74. Mishchenko, A.; Tu, J.S.; Cao, Y.; Gorbachev, R.V.; Wallbank, J.R.; Greenaway, M.T.; Morozov, V.E.; Morozov, S.V.; Zhu, M.J.; Wong, S.L.; et al. Twist-controlled resonant tunnelling in graphene/boron nitride/graphene heterostructures. Nat. Nanotechnol. 2014, 9, 808–813. [Google Scholar] [PubMed]
  75. Kang, S.; Fallahazad, B.; Lee, K.; Movva, H.; Kim, K.; Corbet, C.M.; Taniguchi, T.; Watanabe, K.; Colombo, L.; Register, L.F.; et al. Bilayer Graphene–Hexagonal Boron Nitride Heterostructure Negative Differential Resistance Interlayer Tunnel FET. IEEE Electron Device Lett. 2015, 36, 405–407. [Google Scholar]
  76. Fallahazad, B.; Lee, K.; Kang, S.; Xue, J.; Larentis, S.; Corbet, C.; Kim, K.; Movva, H.C.P.; Taniguchi, T.; Watanabe, K.; et al. Gate-Tunable Resonant Tunneling in Double Bilayer Graphene Heterostructures. Nano Lett. 2015, 15, 428–433. [Google Scholar] [PubMed]
  77. Kang, S.; Prasad, N.; Movva, H.C.P.; Rai, A.; Kim, K.; Mou, X.; Taniguchi, T.; Watanabe, K.; Register, L.F.; Tutuc, E.; et al. Effects of electrode layer band structure on the performance of multilayer graphene–hBN–graphene interlayer tunnel field effect transistors. Nano Lett. 2016, 16, 4975–4981. [Google Scholar] [PubMed]
  78. Burg, G.W.; Prasad, N.; Fallahazad, B.; Valsaraj, A.; Kim, K.; Taniguchi, T.; Watanabe, K.; Wang, Q.; Kim, M.J.; Register, L.F.; et al. Coherent interlayer tunneling and negative differential resistance with high current density in double bilayer graphene–WSe2 heterostructures. Nano Lett. 2017, 17, 3919–3925. [Google Scholar] [CrossRef] [PubMed]
  79. Campbell, P.M.; Tarasov, A.; Joiner, C.A.; Ready, W.J.; Vogel, E.M. Enhanced Resonant Tunneling in Symmetric 2D Semiconductor Vertical Heterostructure Transistors. ACS Nano 2015, 9, 5000–5008. [Google Scholar] [PubMed]
  80. Srivastava, A.; Fahad, M.S. Vertical MoS2/hBN/MoS2 interlayer tunneling field effect transistor. Solid-State Electron. 2016, 126, 96–103. [Google Scholar]
  81. Roy, T.; Tosun, M.; Cao, X.; Fang, H.; Lien, D.-H.; Zhao, P.; Chen, Y.-Z.; Chueh, Y.-L.; Guo, J.; Javey, A. Dual-Gated MoS2/WSe2 van der Waals Tunnel Diodes and Transistors. ACS Nano 2015, 9, 2071–2079. [Google Scholar] [PubMed]
  82. Nourbakhsh, A.; Zubair, A.; Dresselhaus, M.S.; Palacios, T. Transport properties of a MoS2/WSe2 heterojunction transistor and its potential for application. Nano Lett. 2016, 16, 1359–1366. [Google Scholar] [PubMed]
  83. Roy, T.; Tosun, M.; Hettick, M.; Ahn, G.H.; Hu, C.; Javey, A. 2D–2D tunneling field-effect transistors using WSe2/SnSe2 heterostructures. Appl. Phys. Lett. 2016, 108, 83111. [Google Scholar] [CrossRef]
  84. Yan, R.; Fathipour, S.; Han, Y.; Song, B.; Xiao, S.; Li, M.; Ma, N.; Protasenko, V.; Muller, D.A.; Jena, D.; et al. Esaki diodes in van der Waals heterojunctions with broken-gap energy band alignment. Nano Lett. 2015, 15, 5791–5798. [Google Scholar] [CrossRef] [PubMed]
  85. Yu, W.J.; Li, Z.; Zhou, H.; Chen, Y.; Wang, Y.; Huang, Y.; Duan, X. Vertically stacked multi-heterostructures of layered materials for logic transistors and complementary inverters. Nat. Mater. 2013, 12, 246–252. [Google Scholar] [CrossRef] [PubMed]
  86. Moriya, R.; Yamaguchi, T.; Inoue, Y.; Morikawa, S.; Sata, Y.; Masubuchi, S.; Machida, T. Large current modulation in exfoliated-graphene/MoS2/metal vertical heterostructures. Appl. Phys. Lett. 2014, 105, 083119. [Google Scholar] [CrossRef]
  87. Mead, C.A. Operation of Tunnel-Emission Devices. J. Appl. Phys. 1961, 32, 646–652. [Google Scholar] [CrossRef]
  88. Atalla, M.M.; Soshea, R.W. Hot-carrier triodes with thin-film metal base. Solid-State Electron. 1963, 6, 245–250. [Google Scholar] [CrossRef]
  89. Hensel, J.C.; Levi, A.F.J.; Tung, R.T.; Gibson, J.M. Transistor action in Si/CoSi2/Si heterostructures. Appl. Phys. Lett. 1985, 47, 151–153. [Google Scholar] [CrossRef]
  90. Rosencher, E.; Badoz, P.A.; Pfister, J.C.; Arnaud d’Avitaya, F.; Vincent, G.; Delage, S. Study of ballistic transport in Si-CoSi2-Si metal base transistors. Appl. Phys. Lett. 1986, 49, 271–273. [Google Scholar] [CrossRef]
  91. Yajima, T.; Hikita, Y.; Hwang, H.Y. A heteroepitaxial perovskite metal-base transistor. Nat. Mater. 2011, 10, 198–201. [Google Scholar] [CrossRef] [PubMed]
  92. Tonouchi, M.; Sakai, H.; Kobayashi, T.; Fujisawa, K. A novel hot-electron transistor employing superconductor base. IEEE Trans. Magn. 1987, 23, 1674–1677. [Google Scholar] [CrossRef]
  93. Heiblum, M.; Thomas, D.C.; Knoedler, C.M.; Nathan, M.I. Tunneling hot-electron transfer amplifier: A hot-electron GaAs device with current gain. Appl. Phys. Lett. 1985, 47, 1105–1107. [Google Scholar] [CrossRef]
  94. Shur, M.S.; Bykhovski, A.D.; Gaska, R.; Asif Khan, M.; Yang, J.W. AlGaN–GaN–AlInGaN induced base transistor. Appl. Phys. Lett. 2000, 76, 3298–3300. [Google Scholar] [CrossRef]
  95. Dasgupta, S.; Raman, N.A.; Speck, J.S.; Mishra, U.K. Experimental demonstration of III-nitride hot-electron transistor with GaN base. IEEE Electron Device Lett. 2011, 32, 1212–1214. [Google Scholar] [CrossRef]
  96. Yang, Z.; Zhang, Y.; Nath, D.N.; Khurgin, J.B.; Rajan, S. Current gain in sub-10nm base GaN tunneling hot electron transistors with AlN emitter barrier. Appl. Phys. Lett. 2015, 106, 032101. [Google Scholar] [CrossRef]
  97. Gupta, G.; Ahmadi, E.; Hestroffer, K.; Acuna, E.; Mishra, U.K. Common Emitter Current Gain >1 in III-N Hot Electron Transistors with 7-nm GaN/InGaN Base. IEEE Electron Device Lett. 2015, 36, 439–441. [Google Scholar] [CrossRef]
  98. Kong, B.D.; Jin, Z.; Kim, K.W. Hot-Electron Transistors for Terahertz Operation Based on Two-Dimensional Crystal Heterostructures. Phys. Rev. Appl. 2014, 2, 054006. [Google Scholar] [CrossRef]
  99. Vaziri, S.; Belete, M.; Dentoni Litta, E.; Smith, A.D.; Lupina, G.; Lemme, M.C.; Östlinga, M. Bilayer insulator tunnel barriers for graphene-based vertical hot-electron transistors. Nanoscale 2015, 7, 13096–13104. [Google Scholar] [CrossRef] [PubMed]
  100. Fisichella, G.; Greco, G.; Roccaforte, F.; Giannazzo, F. Current transport in graphene/AlGaN/GaN vertical heterostructures probed at nanoscale. Nanoscale 2014, 6, 8671–8680. [Google Scholar] [CrossRef] [PubMed]
  101. Giannazzo, F.; Fisichella, G.; Greco, G.; Roccaforte, F. Challenges in graphene integration for high-frequency electronics. In AIP Conference Proceedings; AIP Publishing: Melville, NY, USA, 2016; Volume 1749, p. 020004. [Google Scholar]
  102. Giannazzo, F.; Fisichella, G.; Greco, G.; La Magna, A.; Roccaforte, F.; Pecz, B.; Yakimova, R.; Dagher, R.; Michon, A.; Cordier, Y. Graphene integration with nitride semiconductors for high power and high frequency electronics. Phys. Status Solidi A 2017, 214, 1600460. [Google Scholar] [CrossRef]
  103. Zubair, A.; Nourbakhsh, A.; Hong, J.-Y.; Qi, M.; Song, Y.; Jena, D.; Kong, J.; Dresselhaus, M.; Palacios, T. Hot Electron Transistor with van der Waals Base-Collector Heterojunction and High-Performance GaN Emitter. Nano Lett. 2017, 17, 3089–3096. [Google Scholar] [CrossRef] [PubMed]
  104. Kim, K.S.; Zhao, Y.; Jang, H.; Lee, S.Y.; Kim, J.M.; Kim, K.S.; Ahn, J.-H.; Kim, P.; Choi, J.-Y.; Hong, B.H. Large-scale pattern growth of graphene films for stretchable transparent electrodes. Nature 2009, 457, 706–710. [Google Scholar] [CrossRef] [PubMed]
  105. Lupina, G.; Kitzmann, J.; Costina, I.; Lukosius, M.; Wenger, C.; Wolff, A.; Vaziri, S.; Östling, M.; Pasternak, I.; Krajewska, A.; et al. Residual Metallic Contamination of Transferred Chemical Vapor Deposited Graphene. ACS Nano 2015, 9, 4776–4785. [Google Scholar] [CrossRef] [PubMed]
  106. Fisichella, G.; Di Franco, S.; Roccaforte, F.; Ravesi, S.; Giannazzo, F. Microscopic mechanisms of graphene electrolytic delamination from metal substrates. Appl. Phys. Lett. 2014, 104, 233105. [Google Scholar] [CrossRef]
  107. Hong, J.-Y.; Shin, Y.C.; Zubair, A.; Mao, Y.; Palacios, T.; Dresselhaus, M.S.; Kim, S.H.; Kong, J. A Rational Strategy for Graphene Transfer on Substrates with Rough Features. Adv. Mater. 2016, 28, 2382–2392. [Google Scholar] [CrossRef] [PubMed]
  108. Choi, J.-K.; Kwak, J.; Park, S.-D.; Yun, H.D.; Kim, S.-Y.; Jung, M.; Kim, S.Y.; Park, K.; Kang, S.; Kim, S.-D.; et al. Growth of Wrinkle-Free Graphene on Texture-Controlled Platinum Films and Themal-Assisted Transfer of Large-Scale Patterned Graphene. ACS Nano 2015, 9, 679–686. [Google Scholar] [CrossRef] [PubMed]
  109. Kim, H.H.; Lee, S.K.; Lee, S.G.; Lee, E.; Cho, K. Wetting-Assisted Crack- and Wrinkle-Free Transfer of Wafer-Scale Graphene onto Arbitrary Substrates over a Wide Range of Surface Energies. Adv. Funct. Mater. 2016, 26, 2070–2077. [Google Scholar] [CrossRef]
  110. Giannazzo, F.; Fisichella, G.; Greco, G.; Schilirò, E.; Deretzis, I.; Lo Nigro, R.; La Magna, A.; Roccaforte, F.; Iucolano, F.; Lo Verso, S.; et al. Fabrication and Characterization of Graphene Heterostructures with Nitride Semiconductors for High Frequency Vertical Transistors. Phys. Status Solidi A 2017, 1700653. [Google Scholar] [CrossRef]
  111. Michon, A.; Vézian, S.; Roudon, E.; Lefebvre, D.; Zielinski, M.; Chassagne, T.; Portail, M. Effects of pressure, temperature, and hydrogen during graphene growth on SiC (0001) using propane-hydrogen chemical vapor deposition. J. Appl. Phys. 2013, 113, 203501. [Google Scholar] [CrossRef]
  112. Bouhafs, C.; Zakharov, A.A.; Ivanov, I.G.; Giannazzo, F.; Eriksson, J.; Stanishev, V.; Kühne, P.; Iakimov, T.; Hofmann, T.; Schubert, M.; et al. Multi-scale investigation of interface properties, stacking order and decoupling of few layer graphene on C-face 4H-SiC. Carbon 2017, 116, 722–732. [Google Scholar] [CrossRef]
  113. Lee, J.-H.; Lee, E.K.; Joo, W.-J.; Jang, Y.; Kim, B.-S.; Lim, J.Y.; Choi, S.-H.; Ahn, S.J.; Ahn, J.R.; Park, M.-H.; et al. Wafer-Scale Growth of Single-Crystal Monolayer Graphene on Reusable Hydrogen-Terminated Germanium. Science 2014, 344, 286–288. [Google Scholar] [CrossRef] [PubMed]
  114. Varchon, F.; Feng, R.; Hass, J.; Li, X.; Nguyen, B.N.; Naud, C.; Mallet, P.; Veuillen, J.Y.; Berger, C.; Conrad, E.H.; et al. Electronic Structure of Epitaxial Graphene Layers on SiC: Effect of the Substrate. Phys. Rev. Lett. 2007, 99, 126805. [Google Scholar] [CrossRef] [PubMed]
  115. Nicotra, G.; Ramasse, Q.M.; Deretzis, I.; La Magna, A.; Spinella, C.; Giannazzo, F. Delaminated Graphene at Silicon Carbide Facets: Atomic Scale Imaging and Spectroscopy. ACS Nano 2013, 7, 3045–3052. [Google Scholar] [CrossRef] [PubMed]
  116. Giannazzo, F.; Deretzis, I.; La Magna, A.; Roccaforte, F.; Yakimova, R. Electronic transport at monolayer-bilayer junctions in epitaxial graphene on SiC. Phys. Rev. B 2012, 86, 235422. [Google Scholar] [CrossRef]
  117. Sonde, S.; Giannazzo, F.; Raineri, V.; Yakimova, R.; Huntzinger, J.-R.; Tiberj, A.; Camassel, J. Electrical properties of the graphene/4H-SiC (0001) interface probed by scanning current spectroscopy. Phys. Rev. B 2009, 80, 241406. [Google Scholar] [CrossRef]
  118. Speck, F.; Jobst, J.; Fromm, F.; Ostler, M.; Waldmann, D.; Hundhausen, M.; Weber, H.; Seyller, T. The quasi-freestanding nature of graphene on H-saturated SiC (0001). Appl. Phys. Lett. 2011, 99, 122106. [Google Scholar] [CrossRef]
  119. Michon, A.; Tiberj, A.; Vezian, S.; Roudon, E.; Lefebvre, D.; Portail, M.; Zielinski, M.; Chassagne, T.; Camassel, J.; Cordier, Y. Graphene growth on AlN templates on silicon using propane-hydrogen chemical vapor deposition. Appl. Phys. Lett. 2014, 104, 071912. [Google Scholar] [CrossRef]
  120. Dagher, R.; Matta, S.; Parret, R.; Paillet, M.; Jouault, B.; Nguyen, L.; Portail, M.; Zielinski, M.; Chassagne, T.; Tanaka, S.; et al. High temperature annealing and CVD growth of few-layer graphene on bulk AlN and AlN templates. Phys. Status Solidi A 2017, 1600436. [Google Scholar] [CrossRef]
  121. Van der Zande, A.M.; Huang, P.Y.; Chenet, D.A.; Berkelbach, T.C.; You, Y.; Lee, G.-H.; Heinz, T.F.; Reichman, D.R.; Muller, D.A.; Hone, J.C. Grains and grain boundaries in highly crystalline monolayer molybdenum disulphide. Nat. Mater. 2013, 12, 554–561. [Google Scholar] [CrossRef] [PubMed]
  122. Kang, K.; Xie, S.; Huang, L.; Han, Y.; Huang, P.Y.; Mak, K.F.; Kim, C.-J.; Muller, D.; Park, J. High-mobility three-atom-thick semiconducting films with wafer-scale homogeneity. Nature 2015, 520, 656–660. [Google Scholar] [CrossRef] [PubMed]
  123. Dumcenco, D.; Ovchinnikov, D.; Marinov, K.; Lazic, P.; Gibertini, M.; Marzari, N.; Sanchez, O.L.; Kung, Y.-C.; Krasnozhon, D.; Chen, M.-W.; et al. Large-Area Epitaxial Monolayer MoS2. ACS Nano 2015, 9, 4611–4620. [Google Scholar] [CrossRef] [PubMed]
  124. Ruzmetov, D.; Zhang, K.; Stan, G.; Kalanyan, B.; Bhimanapati, G.R.; Eichfeld, S.M.; Burke, R.A.; Shah, P.B.; O’Regan, T.P.; Crowne, F.J.; et al. Vertical 2D/3D Semiconductor Heterostructures Based on Epitaxial Molybdenum Disulfide and Gallium Nitride. ACS Nano 2016, 10, 3580–3588. [Google Scholar] [CrossRef] [PubMed]
  125. Vervuurt, R.H.J.; Kessels, W.M.M.; Bol, A.A. Atomic Layer Deposition for Graphene Device Integration. Adv. Mater. Interfaces 2017, 1700232. [Google Scholar] [CrossRef]
  126. Kim, S.; Nah, J.; Jo, I.; Shahrjerdi, D.; Colombo, L.; Yao, Z.; Tutuc, E.; Banerjee, S.K. Realization of a High Mobility Dual-Gated Graphene Field-Effect Transistor with Al2O3 Dielectric. Appl. Phys. Lett. 2009, 94, 062107. [Google Scholar] [CrossRef]
  127. Jandhyala, S.; Mordi, G.; Lee, B.; Lee, G.; Floresca, C.; Cha, P.-R.; Ahn, J.; Wallace, R.M.; Chabal, Y.J.; Kim, M.J.; et al. Atomic Layer Deposition of Dielectrics on Graphene Using Reversibly Physisorbed Ozone. ACS Nano 2012, 6, 2722–2730. [Google Scholar] [CrossRef] [PubMed]
  128. Fisichella, G.; Schilirò, E.; Di Franco, S.; Fiorenza, P.; Lo Nigro, R.; Roccaforte, F.; Ravesi, S.; Giannazzo, F. Interface Electrical Properties of Al2O3 Thin Films on Graphene Obtained by Atomic Layer Deposition with an in Situ Seedlike Layer. ACS Appl. Mater. Interfaces 2017, 9, 7761–7771. [Google Scholar] [CrossRef] [PubMed]
  129. Ismach, A.; Chou, H.; Ferrer, D.A.; Wu, Y.; McDonnell, S.; Floresca, H.C.; Covacevich, A.; Pope, C.; Piner, R.; Kim, M.J.; et al. Toward the controlled synthesis of hexagonal boron nitride films. ACS Nano 2012, 6, 6378–6385. [Google Scholar] [CrossRef] [PubMed]
  130. Tay, R.Y.; Griep, M.H.; Mallick, G.; Tsang, S.H.; Singh, R.S.; Tumlin, T.; Teo, E.H.T.; Karna, S.P. Growth of large single-crystalline two-dimensional boron nitride hexagons on electropolished copper. Nano Lett. 2014, 14, 839–846. [Google Scholar] [CrossRef] [PubMed]
  131. Lu, G.; Wu, T.; Yuan, Q.; Wang, H.; Wang, H.; Ding, F.; Xie, X.; Jiang, M. Synthesis of large single-crystal hexagonal boron nitride grains on Cu–Ni alloy. Nat. Commun. 2015, 6, 6160. [Google Scholar] [CrossRef] [PubMed]
  132. Sonde, S.; Dolocan, A.; Lu, N.; Corbet, C.; Kim, J.; Tutuc, E.; Banerjee, S.K.; Colombo, L. Ultrathin wafer-scale hexagonal boron nitride on dielectric surfaces by diffusion and segregation mechanism. 2D Mater. 2017, 4, 025052. [Google Scholar] [CrossRef]
  133. Yang, W.; Chen, G.; Shi, Z.; Liu, C.-C.; Zhang, L.; Xie, G.; Cheng, M.; Wang, D.; Yang, R.; Shi, D.; et al. Epitaxial growth of single-domain graphene on hexagonal boron nitride. Nat. Mater. 2013, 12, 792–797. [Google Scholar] [CrossRef] [PubMed]
  134. Shi, Y.; Zhou, W.; Lu, A.-Y.; Fang, W.; Lee, Y.-H.; Hsu, A.L.; Kim, S.M.; Kim, K.K.; Yang, H.Y.; Li, L.-J.; et al. van der Waals Epitaxy of MoS2 Layers Using Graphene as Growth Templates. Nano Lett. 2012, 12, 2784–2791. [Google Scholar] [CrossRef] [PubMed]
  135. Lin, Y.-C.; Lu, N.; Perea-Lopez, N.; Li, J.; Lin, Z.; Peng, X.; Lee, C.H.; Sun, C.; Calderin, L.; Browning, P.N.; et al. Direct Synthesis of van der Waals Solids. ACS Nano 2014, 8, 3715–3723. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Cross-sectional TEM micrographs of scaled RF graphene (Gr) field effect transistors (GFETs) fabricated with transferred CVD Gr (a) and with epitaxial Gr grown on SiC(0001) (b); behavior of the cut-off frequency fT (c) and of the maximum oscillation frequency fMAX (d) as a function of channel length. Figures adapted with permission from [43].
Figure 1. Cross-sectional TEM micrographs of scaled RF graphene (Gr) field effect transistors (GFETs) fabricated with transferred CVD Gr (a) and with epitaxial Gr grown on SiC(0001) (b); behavior of the cut-off frequency fT (c) and of the maximum oscillation frequency fMAX (d) as a function of channel length. Figures adapted with permission from [43].
Crystals 08 00070 g001
Figure 2. Cross-sectional TEM micrograph (a); DC output (b) and transfer (c) characteristics of an FET fabricated with multilayer MoS2. Scaling behavior of fT (d) and fMAX (e) with the channel length. Figures adapted with permission from [47].
Figure 2. Cross-sectional TEM micrograph (a); DC output (b) and transfer (c) characteristics of an FET fabricated with multilayer MoS2. Scaling behavior of fT (d) and fMAX (e) with the channel length. Figures adapted with permission from [47].
Crystals 08 00070 g002
Figure 3. Schematic (a) and optical microscopy (b) of an FET with all components formed by 2D materials, where MoS2 works as the channel, hexagonal boron nitride (h-BN) as the dielectric layer for top electrode isolation and Gr for semimetal source/drain contacts. Transfer characteristics (c) and mobility vs. gate bias behavior (d) of this transistor. Figures adapted with permission from [69]
Figure 3. Schematic (a) and optical microscopy (b) of an FET with all components formed by 2D materials, where MoS2 works as the channel, hexagonal boron nitride (h-BN) as the dielectric layer for top electrode isolation and Gr for semimetal source/drain contacts. Transfer characteristics (c) and mobility vs. gate bias behavior (d) of this transistor. Figures adapted with permission from [69]
Crystals 08 00070 g003
Figure 4. (a) Schematic illustration of a Gr/h-BN/Gr field effect tunneling transistor: (1) layer stacking; (2) energy band diagrams under equilibrium; (3) under the effect of the back-gate bias Vg; and (4) under the effect of Vg and of a bias Vb between the two Gr layers; (b) tunneling current density J vs. Vb for different values of Vg; (c) conductance σ = dJ/dVb as a function of Vg; (d) schematic illustration of a Gr/WS2/Gr field effect tunneling transistor: (1) layer stacking; (2) energy band diagrams under equilibrium; (3) under the effect of Vg < 0; and (4) under the effect of Vg > 0; (e) tunneling current density J vs. Vb for different values of Vg; (f) conductance σ = dJ/dVb as a function of Vg. Figures adapted with permission from [18,19].
Figure 4. (a) Schematic illustration of a Gr/h-BN/Gr field effect tunneling transistor: (1) layer stacking; (2) energy band diagrams under equilibrium; (3) under the effect of the back-gate bias Vg; and (4) under the effect of Vg and of a bias Vb between the two Gr layers; (b) tunneling current density J vs. Vb for different values of Vg; (c) conductance σ = dJ/dVb as a function of Vg; (d) schematic illustration of a Gr/WS2/Gr field effect tunneling transistor: (1) layer stacking; (2) energy band diagrams under equilibrium; (3) under the effect of Vg < 0; and (4) under the effect of Vg > 0; (e) tunneling current density J vs. Vb for different values of Vg; (f) conductance σ = dJ/dVb as a function of Vg. Figures adapted with permission from [18,19].
Crystals 08 00070 g004
Figure 5. (a) Schematic cross-section of a gate-modulated bilayer MoS2/p-Ge junction; (b) band diagrams of the device in the OFF and ON state; (c) transfer characteristics of the device for different VDS; (d) comparison of the subthreshold swing (SS) of this bilayer MoS2/p-Ge tunneling field effect transistor (TFET) with that of a conventional FET with a bilayer MoS2 channel. Figures adapted with permission from [20].
Figure 5. (a) Schematic cross-section of a gate-modulated bilayer MoS2/p-Ge junction; (b) band diagrams of the device in the OFF and ON state; (c) transfer characteristics of the device for different VDS; (d) comparison of the subthreshold swing (SS) of this bilayer MoS2/p-Ge tunneling field effect transistor (TFET) with that of a conventional FET with a bilayer MoS2 channel. Figures adapted with permission from [20].
Crystals 08 00070 g005
Figure 6. (a) Schematic cross-section of a Gr/Si Barristor; (b) band-diagrams of the Gr/n-Si device for Vg > 0 (a) and Vg < 0; (c) behavior of the Gr/n-Si Schottky barrier height vs. the gate voltage Vg; (d) Current density vs. VD for different Vg from −5 to 5 V. Figures adapted with permission from [21].
Figure 6. (a) Schematic cross-section of a Gr/Si Barristor; (b) band-diagrams of the Gr/n-Si device for Vg > 0 (a) and Vg < 0; (c) behavior of the Gr/n-Si Schottky barrier height vs. the gate voltage Vg; (d) Current density vs. VD for different Vg from −5 to 5 V. Figures adapted with permission from [21].
Crystals 08 00070 g006
Figure 7. (a) Schematic illustration of a hot electron transistor (HET); (b) ideal output characteristics IC-VCB for the transistor biased in the common-base configuration (VB = 0 and VBE = VB − VE > 0) for different VBE values; (c) energy band diagrams for different VCB biasing regimes.
Figure 7. (a) Schematic illustration of a hot electron transistor (HET); (b) ideal output characteristics IC-VCB for the transistor biased in the common-base configuration (VB = 0 and VBE = VB − VE > 0) for different VBE values; (c) energy band diagrams for different VCB biasing regimes.
Crystals 08 00070 g007
Figure 8. (a) Schematic illustration of a Si/SiO2/Gr/Al2O3/Ti Gr-based hot electron transistor (HET) (GBHET) biased in the common base configuration; (b) band diagrams in the OFF and in the ON state; and (c) output characteristics IC-VCB of the device. Figures adapted from [23].
Figure 8. (a) Schematic illustration of a Si/SiO2/Gr/Al2O3/Ti Gr-based hot electron transistor (HET) (GBHET) biased in the common base configuration; (b) band diagrams in the OFF and in the ON state; and (c) output characteristics IC-VCB of the device. Figures adapted from [23].
Crystals 08 00070 g008
Figure 9. (a) Cross-section schematic and (b) band diagram of a GBHET based on the GaN/AlN/Gr/WSe2/Au stack; (c) common-base output characteristics (IC-VCB) for different values of the emitter injection current IE in the case of a GBHET with a 2.6 nm-thick WSe2 barrier; (d) plots of α = IC/IE as a function of VCB in the same bias range. Images adapted with permission from [103].
Figure 9. (a) Cross-section schematic and (b) band diagram of a GBHET based on the GaN/AlN/Gr/WSe2/Au stack; (c) common-base output characteristics (IC-VCB) for different values of the emitter injection current IE in the case of a GBHET with a 2.6 nm-thick WSe2 barrier; (d) plots of α = IC/IE as a function of VCB in the same bias range. Images adapted with permission from [103].
Crystals 08 00070 g009

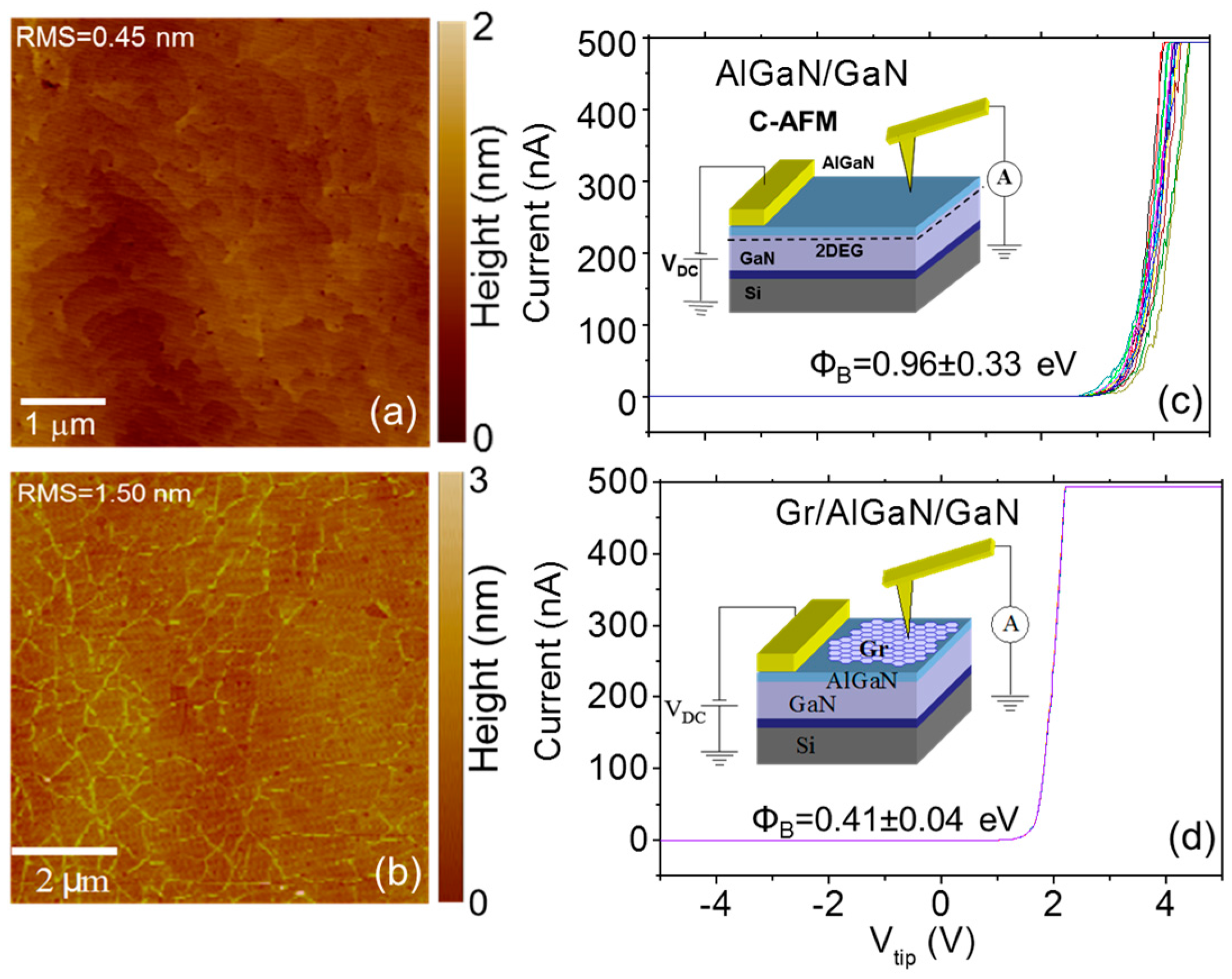

Figure 10. AFM morphologies of an AlGaN/GaN heterostructure (a) and of Gr transferred onto AlGaN/GaN (b). Current-voltage characteristics measured by conductive atomic force microscopy (CAFM) on an array of different positions on the bare AlGaN surface (c) and on the Gr-coated AlGaN surface (d). Figures adapted with permission from [100].
Figure 10. AFM morphologies of an AlGaN/GaN heterostructure (a) and of Gr transferred onto AlGaN/GaN (b). Current-voltage characteristics measured by conductive atomic force microscopy (CAFM) on an array of different positions on the bare AlGaN surface (c) and on the Gr-coated AlGaN surface (d). Figures adapted with permission from [100].
Crystals 08 00070 g010
Figure 11. (a) Schematic illustration of the mechanism of h-BN CVD growth on Ni thin films by ammonia (NH3) and diborane (B2H6) precursors at high temperature (~1050 °C); (b) estimation of the breakdown field (9.34 MV·cm−1) of the multilayer h-BN (10–11 layers) by current-voltage measurements with CAFM; (c) resistance of a Gr field effect transistor with an h-BN back-gate, showing minimal hysteresis between forward and backward gate bias sweep. Figures adapted with permission from [132].
Figure 11. (a) Schematic illustration of the mechanism of h-BN CVD growth on Ni thin films by ammonia (NH3) and diborane (B2H6) precursors at high temperature (~1050 °C); (b) estimation of the breakdown field (9.34 MV·cm−1) of the multilayer h-BN (10–11 layers) by current-voltage measurements with CAFM; (c) resistance of a Gr field effect transistor with an h-BN back-gate, showing minimal hysteresis between forward and backward gate bias sweep. Figures adapted with permission from [132].
Crystals 08 00070 g011
Table 1. Comparison of JC, α and β for the-state-of-the-art HETs with a Gr or MoS2 base and for nitride semiconductor-based HETs with a sub-10-nm base thickness
Table 1. Comparison of JC, α and β for the-state-of-the-art HETs with a Gr or MoS2 base and for nitride semiconductor-based HETs with a sub-10-nm base thickness
Emitter/Emitter-Base BarrierBase (Thickness)Base-Collector BarrierJC (A/cm2)αβReference
Si/SiO2Gr (0.35 nm)Al2O3~1 × 10−5~0.06~0.06[22]
Si/SiO2Gr (0.35 nm)Al2O3, HfO2~5 × 10−5~0.44~0.78[23]
Si/TmSiO/TiO2Gr (0.35 nm)Si~4~0.28~0.4[99]
GaN/AlNGr (0.35 nm)WSe2 (10 nm)~50~0.754–6[103]
Si/SiO2MoS2 (0.7 nm)HfO2~1 × 10−6~0.95~4[25]
GaN/Al0.24Ga0.76NGaN (10 nm)Al0.08Ga0.92N~5 × 103~0.97 [95]
GaN/AlNGaN/InGaN (7 nm)GaN~2.5 × 103>0.5>1[97]
GaN/AlNGaN (8 nm)AlGaN/GaN~46 × 103~0.93~14.5[96]

Share and Cite

MDPI and ACS Style

Giannazzo, F.; Greco, G.; Roccaforte, F.; Sonde, S.S. Vertical Transistors Based on 2D Materials: Status and Prospects. Crystals 2018, 8, 70. https://doi.org/10.3390/cryst8020070

AMA Style

Giannazzo F, Greco G, Roccaforte F, Sonde SS. Vertical Transistors Based on 2D Materials: Status and Prospects. Crystals. 2018; 8(2):70. https://doi.org/10.3390/cryst8020070

Chicago/Turabian Style

Giannazzo, Filippo, Giuseppe Greco, Fabrizio Roccaforte, and Sushant S. Sonde. 2018. "Vertical Transistors Based on 2D Materials: Status and Prospects" Crystals 8, no. 2: 70. https://doi.org/10.3390/cryst8020070

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
