Synthesis, Structure, and Properties of Coordination Polymers Based on 1,4-Bis((2-methyl-1H-imidazol-1-yl)methyl)benzene and Different Carboxylate Ligands

by
Kang Liu
,
Yaowen Zhang
,
Liming Deng
,
Shaoshao Jiao
,
Zhenyu Xiao
,
Fan Cao
and
Lei Wang
*
Key Laboratory of Eco-chemical Engineering, Ministry of Education, Laboratory of Inorganic Synthesis and Applied Chemistry, College of Chemistry and Molecular Engineering, Qingdao University of Science and Technology, Qingdao 266042, China
*
Author to whom correspondence should be addressed.
Crystals 2018, 8(7), 288; https://doi.org/10.3390/cryst8070288
Submission received: 31 May 2018 / Revised: 10 July 2018 / Accepted: 11 July 2018 / Published: 13 July 2018
(This article belongs to the Section Crystalline Materials)
Browse Figures
Versions Notes

Abstract

:
Three novel coordination polymers, formulated as {[Zn(1,4-bmimb)(PhAA)2]·H2O}n (1), [Cu(1,4-bmimb)0.5(2,6-PyDC)]n (2), and {[Cu(1,4-bmimb)0.5(2-PAC)(HCOO)]·2H2O}n (3) (1,4-bmimb = 1,4-bis((2-methyl-1H-imidazol-1-yl)methyl)benzene; PhAA = phenylacetic acid; 2,6-PyDC = pyridine-2,6-dicarboxylic acid; 2-PAC = 2-pyrazinecarboxylic acid), were synthesized by the self-assembly of mixed ligands with Zn(II) and Cu(II) under solvothermal conditions and characterized by means of single-crystal X-ray diffraction, X-ray powder diffraction, infrared spectra, thermogravimetric analysis, fluorescence spectra and UV-vis absorption spectra. 1 is shown as a Z-shaped chain, which is formed by Zn2+, PhAA ligands, and 1,4-bmimb ligands, and is assembled into a 3D structure by hydrogen bonding and π···π interaction. Similarly, 2 displays a single chain, which is built by Cu2+, 2,6-PyDC ligands, and 1,4-bmimb ligands, and is assembled into a 3D structure by hydrogen bonding and π···π interaction. 3 possesses a 1D ladder structure, which is formed by Cu2+, 2,6-PyDC ligands, and 1,4-bmimb ligands, and is assembled into a 3D structure by hydrogen bonding. The luminescence properties (for 1) and UV-vis spectrum (for 2 and 3) were also studied and discussed.

Graphical Abstract

1. Introduction

Coordination polymers (CPs), a series of solid-state materials with an infinite framework structure, are generated by the self-assembly of metal ions and organic ligands [1,2,3,4]. CPs are continuously gaining attention owing to their appealing structures and various potential applications in luminescence, catalysis, magnetism, drug delivery, gas adsorption and separation, and so on [5,6,7,8,9,10,11]. It is apparent that certain structures give materials unique properties, which are crucial for the application of the material [12,13,14]. However, the design and manufacture of novel functional CPs remain a serious challenge at present.
There are many factors (metal ions, ligands, solvents, pH, etc.) that can affect the synthesis of CPs. The most effective strategy for the synthesis of valuable CPs is selecting suitable organic ligands [15,16,17,18,19]. Crystal engineers select diverse ligands to purposefully synthesize CPs [20,21]. Although it is a convenient strategy to construct a CP using a single ligand, to obtain unique structures, crystal engineers are more likely to use mixed ligands to manufacture CPs [22,23,24,25].
Among the reported studies, a mixture of 1,4-bmimb ligand and carboxylic acid ligands has been applied extensively in the construction of novel CPs due to the excellent coordination modes of these ligands [26,27,28]. N-donor organic ligands (such as bis-imidazolium) have been extensively studied to construct stable CPs containing nitrogen-metal bonds. The mixture of carboxylic acid and nitrogen-containing ligands not only helps to enrich structures but also supports the addition of their own characteristics to new CPs. In the present paper, we report herein the solvothermal synthesis, crystal structures, thermal stability, luminescent properties, and UV-vis spectra of three novel coordination compounds, which are named {[Zn(1,4-bmimb)(PhAA)2]·H2O}n (1), [Cu(1,4-bmimb)0.5(2,6-PyDC)]n (2), and {[Cu(1,4-bmimb)0.5(2-PAC)(HCOO)]·2H2O}n (3).

2. Materials and Methods

2.1. Materials and Physical Measurements

The reagents and drugs used in the experiment were obtained directly from commercial sources and used without further purification. Infrared (IR) spectra were recorded on a NEXUS 670 FTIR spectrometer (Thermo Nicolet Corporation, Madison, WI, USA) with KBr pellets in the range of 400–4000 cm−1. Elemental analyses (C, H, and N) were performed using an EA 1110 elemental analyzer (Carlo-Erba Corporation, Sandwich, Italy). Powder X-ray diffraction (PXRD) measurements were executed using a Rigaku D/Max-2500 diffractometer (Rigaku Corporation, Tokyo, Japan) at 40 kV and 40 mA with a Cu-target tube and a graphite monochromator. The recording speed was 6° min−1 at room temperature. Thermogravimetric analysis (TGA) was performed using an SDT Q600 instrument (TA Instruments, New Castle, DE, USA) with a heating rate of 10 °C min−1 in a flowing N2 atmosphere. The solid fluorescence test was performed using an Edinburgh Hitachi F-4500 fluorescence spectrophotometer (Hitachi Limited, Tokyo, Japan) with a power of 450 W at room temperature. During the test, the crystal powder was flatly adhered to a clean glass plate. The amount of sample used for each test was 20 mg.

2.2. Methods

2.2.1. Synthesis of {[Zn(1,4-bmimb)(PhAA)2]·H2O}n (1)

Zn(NO3)2·6H2O (0.2974 g, 1 mmol), PhAA (0.0681 g, 0.5 mmol), and 1,4-bmimb (0.1282 g, 0.5 mmol) were dissolved in a mixture of DMF (2.5 mL) and deionized water (2.5 mL). The solution was then transferred to a 10 mL glass bottle. The sealed bottle was heated under autogenous pressure at 100 °C for 2 days and cooled in air to room temperature. After being collected by filtration, colorless crystals were washed several times with DMF/H2O (VDMF/Vwater = 1/1), and dried at 45 °C. Yield: 62%. Anal. calcd for C32H34N4O5Zn (%): C 61.99, H 5.53, N 9.03. Found: C 61.78, H 5.64, N 8.96. IR (KBr disc, cm−1): 3453 (m), 3142 (s), 3026 (s), 2931 (s), 1640 (w), 1627 (w), 1516 (m), 1433 (w), 1339 (m), 1281 (m), 1167 (w), 1073 (m), 1020 (s), 943 (m), 886 (s), 833 (m), 685 (m), 661 (m), 605 (m).

2.2.2. Synthesis of [Cu(1,4-bmimb)0.5(2,6-PyDC)]n (2)

A mixture of Cu(NO3)2·6H2O (0.2956 g, 1 mmol), 2,6-PyDC (0.0835 g, 0.5 mmol), and 1,4-bmimb (0.1282 g, 0.5 mmol) in ethanol/water (Vethanol/Vwater = 1/1, 5 mL) was placed in a 10 mL glass bottle. The sealed vessel was heated at 90 °C for 3 days and then cooled to room temperature, giving the blue block crystals of 2. In the same procedure as that described for 1, crystals were dried in air after filtration and washed with ethanol/H2O (Vethanol/Vwater = 1/1). Yield: 67%. Anal. calcd for C15H12CuN3O4 (%): C 49.79, H 3.34, N 11.61. Found: C 49.82, H 3.38, N 11.67. IR (KBr disc, cm−1): 3433 (s), 3138 (m), 3065 (s), 2926 (w), 1627 (s), 1541 (w), 1508 (w), 1458 (m), 1375 (m), 1285 (w), 1149 (w), 987 (m), 828 (s), 735 (m), 678 (w).

2.2.3. Synthesis of {[Cu(1,4-bmimb)0.5(2-PAC)(HCOO)]·2H2O}n (3)

Compound 3 was synthesized using a procedure similar to 1 except that PhAA was replaced by 2-PAC (0.0620 g, 0.5 mmol). Blue block crystals suitable for single-crystal X-ray diffraction analysis were collected by filtration, washed several times with a mixed solvent (VDMF/Vwater = 1/1), and then dried in air. Yield: 67%. Anal. calcd for C14H17CuN4O6 (%): C 41.95, H 4.27, N 13.98. Found: C 41.85, H 4.22, N 13.94. IR (KBr disc, cm−1): 3463 (s), 3142 (m), 3034 (s), 2933 (w), 1657 (s), 1521 (w), 1503 (w), 1458 (m), 1375 (m), 1283 (w), 1141 (w), 933 (m), 856 (s), 738 (m), 673 (w).

2.2.4. IR Spectra

The IR spectra of the obtained coordination polymers is in accordance with their single crystal structures. For instance, compounds show strong and broad absorption bands in the range 3400–3500 cm−1, demonstrating the presence of the O–H stretching modes within the coordinated or lattice water molecules. The absence of any obvious absorption band in the region of 1700 cm−1 signifies full deprotonation of the original carboxylic ligands. The C–H vibration band for benzene exhibited characteristic absorptions in the range of 3000–3300 cm−1, and the methyl C–H stretching vibration band on the 1,4-bmimb ligand was detected at 2900–3000 cm−1. The C=N and C=C stretching vibration band of the ligands appeared in the range of 1500–1650 cm−1.

2.3. Crystal Structure Determination

Three appropriately sized crystals (0.27 mm × 0.26 mm × 0.24 mm (1), 0.28 mm × 0.26 mm × 0.24 mm (2), and 0.27 mm × 0.24 mm × 0.22 mm (3)), were picked under a microscope and measured on a single crystal diffractometer named Siemens SMART (Siemens Limited, Berlin, Germany). This instrument is equipped with a graphite monochromator (Mo-Kα radiation, λ = 0.71073 Å). Absorption corrections were executed using the SADABS program (Version 2.03) [29]. The structure was solved by direct methods using SHELXS-97 [30] and refined by full-matrix least-squares techniques using SHELXL-2014/7 (Sheldrick, 2014) [31]. Hydrogen atoms were placed in calculated positions and included as riding atoms with isotropic displacement parameters 1.2–1.5 times the Ueq of the attached atoms. The O–H hydrogen atoms of water were placed in calculated positions and refined using a SHELX DFIX restraint to fix their positions in the structure of 1, and using SHELX DFIX and DANG restraints in 3. The C–H hydrogen atoms on methyl were held in calculated positions by HFIX 137 in the structures of 1–3. Related information belonging to the crystallographic parameters and structure refinement is revealed in Table 1. Selected bond lengths and angles are listed in Tables S1–S3. Hydrogen bond parameters are listed in Tables S4–S6.
CCDC (1843844 for 1, 1843845 for 2, 1843846 for 3) contains the supplementary crystallographic information for this paper.

3. Results and Discussion

3.1. Crystal Structures of {[Zn(1,4-bmimb)(PhAA)2]·H2O}n (1)

The asymmetric unit of 1 consists of half aZn(II) ion, half a solvate water molecule, a phenylacetic acid ligand, and half a 1,4-bmimb ligand. As depicted in Figure 1a, Zn1 atoms are four-coordinate, adopting [ZnN2O2] coordination environments. Each Zn1 ion is coordinated with two nitrogen atoms from two individual 1,4-bmimb ligands and two carboxylate oxygen atoms from two individual phenylacetic acid ligands. The Zn–N bond lengths are 2.0173(15) Å, the Zn–O bond lengths are 1.9498(13)Å, and the bond angles around the Zn1 centers range from 99.54(9)° to 121.52(6)°, see Table S1.
As shown in Figure 1b, two 1,4-bmimb ligands bridge between neighboring Zn(II) ions in alternating layers, resulting in a Z-shaped chain structure that extends indefinitely in one dimension. These Z-shaped chains are assembled into a 2D supramolecular framework through O–H···O hydrogen-bonding interactions, detailed in Figure 1c and Table S4. Furthermore, the neighboring 2D layers are connected by π···π interactions (3.935 Å) from the imidazole rings to generate a 3D supramolecular framework, shown in Figure 1d.

3.2. Crystal Structures of [Cu(1,4-bmimb)0.5(2,6-PyDC)]n (2)

The asymmetric unit of 2 contains a crystallographically independent Cu(II) ion, a 2,6-PyDC ligand, and half a 1,4-bmimb ligand. As depicted in Figure 2a, Cu1 atoms are five-coordinate, adopting [CuN2O3] distorted hexahedron geometry coordination environments. Each Cu1 ion is coordinated by two nitrogen atoms and three carboxylate oxygen atoms from two individual 2,6-PyDC ligands in the equatorial plane. The Cu–O bond lengths are, 1.9940(18) Å, 2.0214(18) Å and 2.651(22) Å which are acceptable bond lengths [30,31]. The lengths of Cu–N bonds are, 1.897(2) Å and 1.930(2) Å. The angles of N–Cu–O bonds range from 80.35(9)° to 102.30(8)°, and the angles of N–Cu–N and O–Cu–O bonds are, 176.12(8)° and 160.88(8)°, respectively.
Figure 2b shows that two 2,6-PDA ligands connect to two copper ions to form a secondary building units (SBU) and the 1,4-bmimb ligand forms a 1D Z-chain by linking adjacent SBUs. Different chains are assembled into 2D structures through C–H···O hydrogen bonds, shown in Figure 2c and Table S5. In addition, the adjacent 2D layers are connected by π···π interactions (3.935 Å) from the benzene rings to generate a 3D framework, as shown in Figure 2d.

3.3. Crystal Structures of {[Cu(1,4-bmimb)0.5(2-PAC)(HCOO)]·2H2O}n (3)

Acrystallographically independent Cu(II) ion, a 2-PAC ligand, a formate ligand, half a 1,4-bmimb ligand, and two solvate water molecules make up the asymmetric structural unit of compound 3. Figure 3a gives a description of the coordination environment of each Cu(II) ion, highlighting the distorted octahedral geometry of the [CuN2O4] coordination mode, which consists of two nitrogen atoms originating from a 1,4-bmimb ligand and a 2-PAC ligand and four oxygen atoms originating from three different 2-PAC ligands. The Cu–O bond lengths are in the range of 1.9651(19) Å to 2.6320(19) Å, and the lengths of Cu–N bonds are 1.968(2) Å and 2.027(2) Å. The bond angles around the Cu1 centers range from 54.95(7)° to 174.30(8)°. The two oxygen atoms from the same carboxylic acid are alternately linked to copper ions, creating an infinitely-extended –Cu–O–Cu– chain, shown in Figure 3b. Additionally, the 1,4-bmimb ligand bridges two –Cu–O–Cu– chains to form an infinitely extended 1D ladder-shaped chain, as shown in Figure 3c. Different ladder-shaped structures build up a 3D framework that is relianton O–H···O hydrogen bonds between ligands and solvate water molecules (see Figure 3d and Table S6).

3.4. Structure Discussion

As described above, three co-ligands with different coordination sites have marked effects on the structure. For 1, the structural extension is terminated due to a lack of coordination sites in the PhAA ligands, which makes 1 possess a 1D structure only. Although 2 and 3 have one of the same coordination sites (the functional groups circled by a dotted line in Figure 4), the type and position of another functional group results in different chain structures. As for 2, three coordination sites chelate copper ions like “crab claws”, and as there is no coordination site present on the opposite side of the 2,6-PyDC ligand, the extension into a 2D structure is impossible. In the case of 3, the coordination sites circled by a dotted line chelate the copper ion and leave no suitable coordination conditions for the third functional group, resulting in 3 possessing a 1D ladder-shaped chain. In summary, a co-ligand with diverse coordination sites enriches structures with the same dimension.

3.5. XRD Analysis and Thermal Analysis

The XRD patterns of the three compounds were measured at room temperature using a scanning range of 5° to 40°. Figures S1–S3 show the PXRD patterns of the compounds 1–3 (red line) and the XRD pattern simulated from the single crystal structure (black line). The two lines are essentially in agreement, demonstrating that the synthesized compound is phase pure, i.e., does not contain an impurity phase. The difference in the reflection intensity between the simulated and experimental patterns is due to a certain degree of preferred orientation of the powder samples during data collection.
To examine the thermal stability of the three compounds, TGA was implemented in the temperature range of 25–800 °C under a steady N2 flow, the outcome of which is given in Figure 5. For 1, the decomposition starts at 158 °C. All uncoordinated water molecules (calculated for the asymmetric unit) were lost in the temperature range of 158 °C to 200 °C (obsd 2.6%, calcd 2.9%). The compound then decomposed further at 420 °C with a weight loss of 49% (calcd 48.12%), which was most probably due to the removal of PhAA ligands from the metal. At a temperature of 450 °C, ZnO (obsd 13.12%, calcd 13.14%) was the final residue. The TGA curve of compound 2 shows the loss of 2,6-PyDC ligands in the temperature range of 200 °C to 240 °C (obsd 32%, calcd 45.64%). The observed weight loss is much less than the theoretical value, which is most likely due to the fact that the weight-loss process was not complete before the next step started. Finally, a residue of CuO (obsd 22.21%, calcd 21.98%) was left at 600 °C. For 3, the first weight loss (obsd 6.9%, calcd 9%) was observed in the temperature range of 90 °C to 200 °C, due to the loss of two uncoordinated water molecules (calculated for the asymmetric unit). The observed weight loss of 20% in the temperature range of 200 °C to 240 °C (calcd 30.68%) most likely corresponds with the loss of 2-PAC ligands. The reason this weight loss is much less than the theoretical value is similar to the reason given for 2. At 670 °C, the metal center was freed from all ligands, leaving behind the residue of CuO (obsd 19.54%, calcd 19.86%).

3.6. Photoluminescent Properties and UV-Vis Spectra

The luminescent properties of CPs with d10 metal centers have attracted intense interest because of their potential applications in chemical sensors, photochemistry, and electroluminescent displays [32,33,34]. Therefore, synthesizing a novel Zn(II)-CP is a method for obtaining novel luminescent materials. The fluorescence properties of 1 and 1,4-bmimb ligand are shown in Figure 6 (λex = 350 nm). When excited at 350 nm, compound 1 and the 1,4-bmimb ligand showed strong fluorescence emission peaks at 442 nm and 453 nm, respectively. The difference in peak position may be owing to the interaction of metal and ligand, or the interaction between molecules, such as π···π stacking.
The UV-vis absorption spectra of 2 and 3 were given under the conditions of solid state and room temperature (Figure 7). In the UV region of the spectrum (200–350 nm), it is intraligand transitions that result in the absorption maxima from 200 nm to 270 nm. 2 and 3 also exhibit broad bands in the visible region with absorption maxima at 562 nm for 1 and 583 nm for 2, due to d–d transitions (2Eg to 2T2g transitions) of copper(II) compounds [35,36,37].

4. Conclusions

In conclusion, three novel CPs with diverse chain structures (Z-shaped chain, single chain and ladder-shaped chain) were successfully synthesized by the assembly of a 1,4-bmimb ligand, three other co-ligands, and zinc or copper ions. Each structure is assembled in a 3D supramolecular structure through intermolecular forces (hydrogen bonds and π···π interactions for 1 and 2, hydrogen bonds for 3). In addition, the thermal stability, XRD patterns, fluorescence spectra, and UV-vis absorption spectra of CPs were discussed in detail.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4352/8/7/288/s1, Table S1: Selected bond distances (Å) and angles (°) for 1, Table S2: Selected bond distances (Å) and angles (°) for 2, Table S3: Selected bond distances (Å) and angles (°) for 3, Table S4: Hydrogen bond distances (Å) and angles (°) for 1, Table S5: Hydrogen bond distances (Å) and angles (°) for 2, Table S6: Hydrogen bond distances (Å) and angles (°) for 3, Figure S1: The PXRD data of 1, Figure S2: The PXRD data of 2, Figure S3: The PXRD data of 3.

Author Contributions

K.L. and Y.Z. conceived and designed the experiments; K.L. performed the experiments; L.D. and S.J. analyzed the data; L.W. supervised the work. All the authors have contributed to manuscript revision.

Funding

This work was supported by the National Natural Science Foundation of China (No. 21601103, 21701097, 21571112, 51572136 and 51772162), the Natural Science Foundation of Shandong Province, China (No. ZR2016BP04 and ZR2017BB080), the Scientific and Technical Development Project of Qingdao (No. 17-1-1-78-jch), and the Taishan Scholars Program.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Clearfield, A. Metal phosphonate chemistry. Prog. Inorg. Chem. 1998, 47, 371–510. [Google Scholar]
  2. Eddaoudi, M.; Moler, D.B.; Li, H.; Chen, B.L.; Reineke, T.M.; O’Keeffe, M.; Yaghi, O.M. Modular chemistry: Secondary building units as a basis for the design of highly porous and robust metal-organic carboxylate frameworks. Acc. Chem. Res. 2001, 34, 319–330. [Google Scholar] [CrossRef] [PubMed]
  3. Yaghi, O.M.; O’Keeffe, M.; Ockwig, M.; Chae, H.; Eddaoudi, M.; Kim, J. Reticular synthesis and the design of new materials. Nature 2003, 423, 705–714. [Google Scholar] [CrossRef] [PubMed]
  4. Férey, G.; Mellot-Draznieks, C.; SerreSerre, C.; Millange, F.; Dutour, J.; Surblé, S.; Margiolaki, I. A chromium terephthalate-based solid with unusually large pore volumes and surface area. Science 2005, 309, 2040–2042. [Google Scholar] [CrossRef] [PubMed]
  5. Zhou, H.C.; Long, J.R.; Yaghi, O.M. Introduction to metal-organic frameworks. Chem. Rev. 2012, 112, 673–674. [Google Scholar] [CrossRef] [PubMed]
  6. Chen, L.; Ye, J.W.; Wang, H.P.; Pan, M.; Yin, S.Y.; Wei, Z.W.; Zhang, L.Y.; Wu, K.; Fan, Y.N.; Su, C.Y. Ultrafast water sensing and thermal imaging by a metal-organic framework with switchable luminescence. Nat. Commun. 2017, 8, 15985. [Google Scholar] [CrossRef] [PubMed]
  7. Yang, Q.H.; Xu, Q.; Jiang, H.L. Metal-organic frameworks meet metal nanoparticles: Synergistic effect for enhanced catalysis. Chem. Soc. Rev. 2017, 46, 4774–4808. [Google Scholar] [CrossRef] [PubMed]
  8. Tan, P.; Xie, X.Y.; Liu, X.Q.; Pan, T.; Gu, C.; Chen, P.F.; Zhou, J.Y.; Pan, Y.C.; Sun, L.B. Fabrication of magnetically responsive HKUST-1/Fe3O4 composites by dry gel conversion for deep desulfurization and denitrogenation. J. Hazard. Mater. 2017, 321, 344–352. [Google Scholar] [CrossRef] [PubMed]
  9. Wu, M.X.; Yang, Y.W. Metal-organic framework (MOF)-based drug/cargo delivery and cancer therapy. Adv. Mater. 2017, 29, 201606134. [Google Scholar] [CrossRef] [PubMed]
  10. Ma, Y.L.; Du, L.; Wang, K.M.; Zhao, Q.H. Synthesis, crystal structure, luminescence and magnetism of three novel coordination polymers based on flexible multicarboxylate zwitterionic ligand. Crystals 2017, 7, 32. [Google Scholar] [CrossRef]
  11. Liu, K.; Li, X.; Ma, D.X.; Han, Y.; Li, B.Y.; Shi, Z.; Li, Z.J.; Wang, L. A microporous yttrium metal-organic framework of an unusual nia topology for high adsorption selectivity of C2H2 and CO2 over CH4 at room temperature. Mater. Chem. Front. 2017, 1, 1982–1988. [Google Scholar] [CrossRef]
  12. Song, B.H.; Ding, X.; Li, C.; An, G.F. Synthesis, crystal structures, and anti-liver cancer activity studies on three similar coordination polymers. Crystals 2018, 8, 207. [Google Scholar] [CrossRef]
  13. Gu, J.Z.; Wen, M.; Liang, X.X.; Shi, Z.F.; Kirillova, M.V.; Kirillov, A.M. Multifunctional aromatic carboxylic acids as versatile building blocks for hydrothermal design of coordination polymers. Crystals 2018, 8, 83. [Google Scholar] [CrossRef]
  14. Fan, L.M.; Fan, W.L.; Li, B.; Zhao, X.; Zhang, X.T. Coligand syntheses, crystal structures, luminescence and photocatalytic properties of five coordination polymers based on rigid tetracarboxylic acids and imidazole linkers. CrystEngComm 2015, 17, 9413–9422. [Google Scholar] [CrossRef]
  15. Yang, Q.X.; Chen, X.Q.; Cui, J.H.; Hu, J.S.; Zhang, M.D.; Qin, L.; Wang, G.F.; Lu, Q.Y.; Zheng, H.G. Metal-organic frameworks based on flexible v-shaped polycarboxylate acids: Hydrogen bondings, non-interpenetrated and polycatenated. Cryst. Growth Des. 2012, 12, 4072–4082. [Google Scholar] [CrossRef]
  16. Hu, J.S.; Huang, L.F.; Yao, X.Q.; Qin, L.; Li, Y.Z.; Guo, Z.J.; Zheng, H.G.; Xue, Z.L. Six new metal-organic frameworks based on polycarboxylate acids and v-shaped imidazole-based synthon: Syntheses, crystal structures, and properties. Inorg. Chem. 2011, 50, 2404–2414. [Google Scholar] [CrossRef] [PubMed]
  17. Han, M.L.; Duan, Y.P.; Li, D.S.; Wang, H.B.; Zhao, J.; Wang, Y.Y. Positional isomeric tunable two Co(II) 6-connected 3-D frameworks with pentanuclear to binuclear units: Structures, ion-exchange and magnetic properties. Dalton Trans. 2014, 43, 15450–15456. [Google Scholar] [CrossRef] [PubMed]
  18. Liu, K.; Sun, Y.Y.; Deng, L.M.; Cao, F.; Han, J.S.; Wang, L. Cu(II) coordination polymers constructed by tetrafluoroterephthalic acid and varied imidazole-containing ligands: Syntheses, structures and properties. J. Solid State Chem. 2018, 258, 24–31. [Google Scholar] [CrossRef]
  19. Liu, L.L.; Yu, C.X.; Li, Y.R.; Han, J.J.; Ma, F.J.; Ma, L.F. Positional isomeric effect on the structural variation of Cd(II) coordination polymers based on flexible linear/V-shaped bipyridyl benzene ligands. CrystEngComm 2015, 17, 653–664. [Google Scholar] [CrossRef]
  20. Yu, M.H.; Zhang, P.; Feng, R.; Yao, Z.Q.; Yu, Y.C.; Hu, T.L.; Bu, X.H. Construction of a multi-cage-based MOF with a unique network for efficient CO2 capture. ACS Appl. Mater. Interfaces 2017, 9, 26177–26183. [Google Scholar] [CrossRef] [PubMed]
  21. Wang, Y.; He, M.H.; Tian, Z.; Zhong, H.Y.; Zhu, L.S.; Zhang, Y.Y.; Zhang, X.P.; Chen, D.L.; He, Y.B. Rational construction of anssa-type of MOF through pre-organizing the ligand's conformation and its exceptional gas adsorption properties. Dalton Trans. 2018, 47, 2444–2452. [Google Scholar] [CrossRef] [PubMed]
  22. Gu, T.Y.; Dai, M.; Young, D.J.; Ren, Z.G.; Lang, J.P. Luminescent Zn(II) coordination folymers for highly selective sensing of Cr(III) and Cr(VI) in water. Inorg. Chem. 2017, 56, 4668–4678. [Google Scholar] [CrossRef] [PubMed]
  23. Cui, J.W.; Hou, S.X.; Hecke, K.V.; Cui, G.H. Rigid versus semi-rigid bis(imidazole) ligands in the assembly of two Co(II) coordination polymers: Structural variability, electrochemical properties and photocatalytic behavior. Dalton Trans. 2017, 46, 2892–2903. [Google Scholar] [CrossRef] [PubMed]
  24. Hao, S.Y.; Hou, S.X.; Hecke, K.V.; Cui, G.H. Construction of noninterpenetrating and interpenetrating Co(II) networks with halogenated carboxylate modulated by auxiliary N-donor co-ligands: Structural diversity, electrochemical and photocatalytic properties. Dalton Trans. 2017, 46, 1951–1964. [Google Scholar] [CrossRef] [PubMed]
  25. Sun, D.; Han, L.L.; Yuan, S.; Deng, Y.K.; Xu, M.Z.; Sun, D.F. Four new Cd(II) coordination polymers with mixed multidentate N-donors and biphenyl-based polycarboxylate ligands: Syntheses, structures, and photoluminescent properties. Cryst. Growth Des. 2013, 13, 377–385. [Google Scholar] [CrossRef]
  26. Shi, L.L.; Zhang, Y.Q.; Han, S.S.; Yang, Z.; Zhu, L.M.; Li, B.L.; Li, H.Y. Syntheses, structures, properties of a series of coordination polymers with flexible bis(imidazole) and dicarboxylate ligands. Polyhedron 2017, 133, 82–91. [Google Scholar] [CrossRef]
  27. Dobrzańska, L.; Lloyd, G.; Jacobs, T.; Rootman, I.; Oliver, C.; Bredenkamp, M.; Barbour, L. Construction of one- and two-dimensional coordination polymers using ditopic imidazole ligands. J. Mol. Struct. 2006, 796, 107–113. [Google Scholar] [CrossRef]
  28. Xiao, Z.Y.; Yang, X.; Zhao, S.W.; Wang, D.B.; Yang, Y.; Wang, L. Metal-organic hybrid materials built with tetrachlorophthalate acid and different N-donor coligands: Structure diversity and photoluminescence. J. Solid State Chem. 2016, 234, 36–47. [Google Scholar] [CrossRef]
  29. Blessing, R.H. A Program for the Siemens Area Detector Absorption Correction; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  30. Sheldrick, G.M. SHELX-97, Program of Crystal Structure Solution; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  31. Sheldrick, G.M. SHELX-97, Program of Crystal Structure Refinement; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  32. Allendorf, M.D.; Bauer, C.A.; Bhakta, R.K.; Houk, R.J. Luminescent metal-organic frameworks. Chem. Soc. Rev. 2009, 38, 1330–1352. [Google Scholar] [CrossRef] [PubMed]
  33. Braverman, M.A.; LaDuca, R.L. Luminescent two- and three-dimensional zinc coordination polymers containing isomers of phenylenediacetate and a kinked tethering organodiimine. Cryst. Growth Des. 2007, 7, 2343–2351. [Google Scholar] [CrossRef]
  34. Lan, A.J.; Li, K.H.; Wu, H.H.; Olson, H.D.; Emge, T.J.; Ki, W.; Hong, M.C.; Li, J. A luminescent microporous metal-organic framework for the fast and reversible detection of high explosives. Angew. Chem. Int. Ed. 2009, 48, 2334–2338. [Google Scholar] [CrossRef] [PubMed]
  35. Han, L.L.; Wang, S.N.; Jagličić, Z.; Zeng, S.Y.; Zheng, J.; Li, Z.H.; Chen, J.S.; Sun, D. Synthesis, structural versatility and magnetic properties of a series of copper(II) coordination polymers based on bipyrazole and various dicarboxylate ligands. CrystEngComm 2015, 17, 1405–1415. [Google Scholar] [CrossRef]
  36. Carranza, J.; Brennan, C.; Sletten, J.; Clemente-Juan, J.M.; Lloret, F.; Julve, M. Crystal structures and magnetic properties of 2,3,5,6-tetrakis(2-pyridyl)pyrazine (tppz)-containing copper(II) complexes. Inorg. Chem. 2003, 42, 8716–8727. [Google Scholar] [CrossRef] [PubMed]
  37. Nath, J.K.; Mondal, A.; Powell, A.K.; Baruah, J.B. Structures, magnetic properties, and photoluminescence of dicarboxylate coordination polymers of Mn, Co, Ni, Cu having N-(4-Pyridylmethyl)-1,8-naphthalimide. Cryst. Growth Des. 2014, 14, 4735–4748. [Google Scholar] [CrossRef]
Crystals 08 00288 g001 550

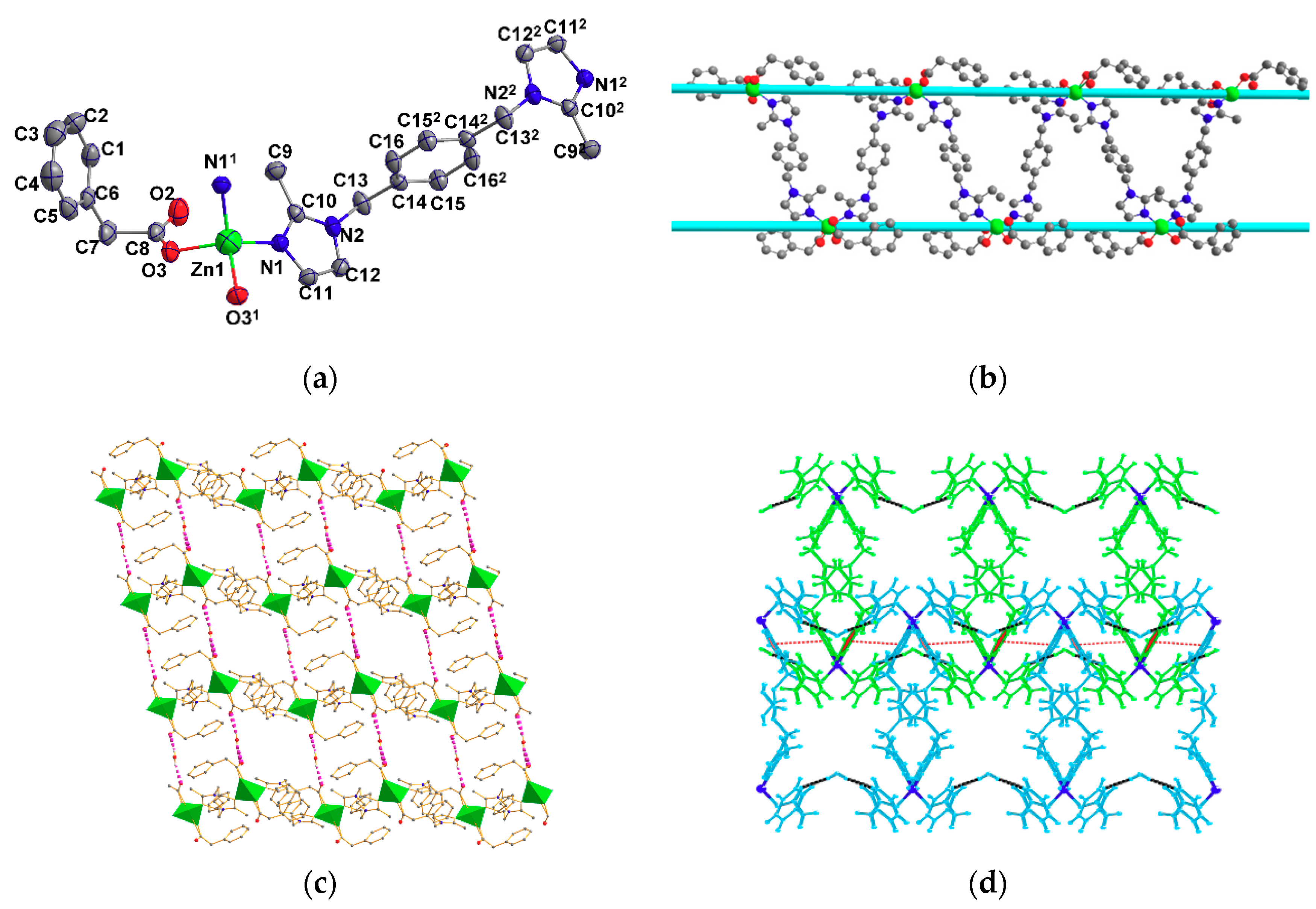

Figure 1. The structure of compound 1: (a) coordination environment of the Zn(II) ion (symmetry transformations used to generate equivalent atoms codes: 1 1 − X, +Y, ½ − Z; 2 1 − X, 1 − Y, −Z); (b) 1D Z-type chain structure; (c) polyhedral representation of the 2D layer; (d) 3D framework formed by π···π interactions and hydrogen bonding (green, Zn; red O; blue, N; gray, C).
Figure 1. The structure of compound 1: (a) coordination environment of the Zn(II) ion (symmetry transformations used to generate equivalent atoms codes: 1 1 − X, +Y, ½ − Z; 2 1 − X, 1 − Y, −Z); (b) 1D Z-type chain structure; (c) polyhedral representation of the 2D layer; (d) 3D framework formed by π···π interactions and hydrogen bonding (green, Zn; red O; blue, N; gray, C).
Crystals 08 00288 g001
Crystals 08 00288 g002 550

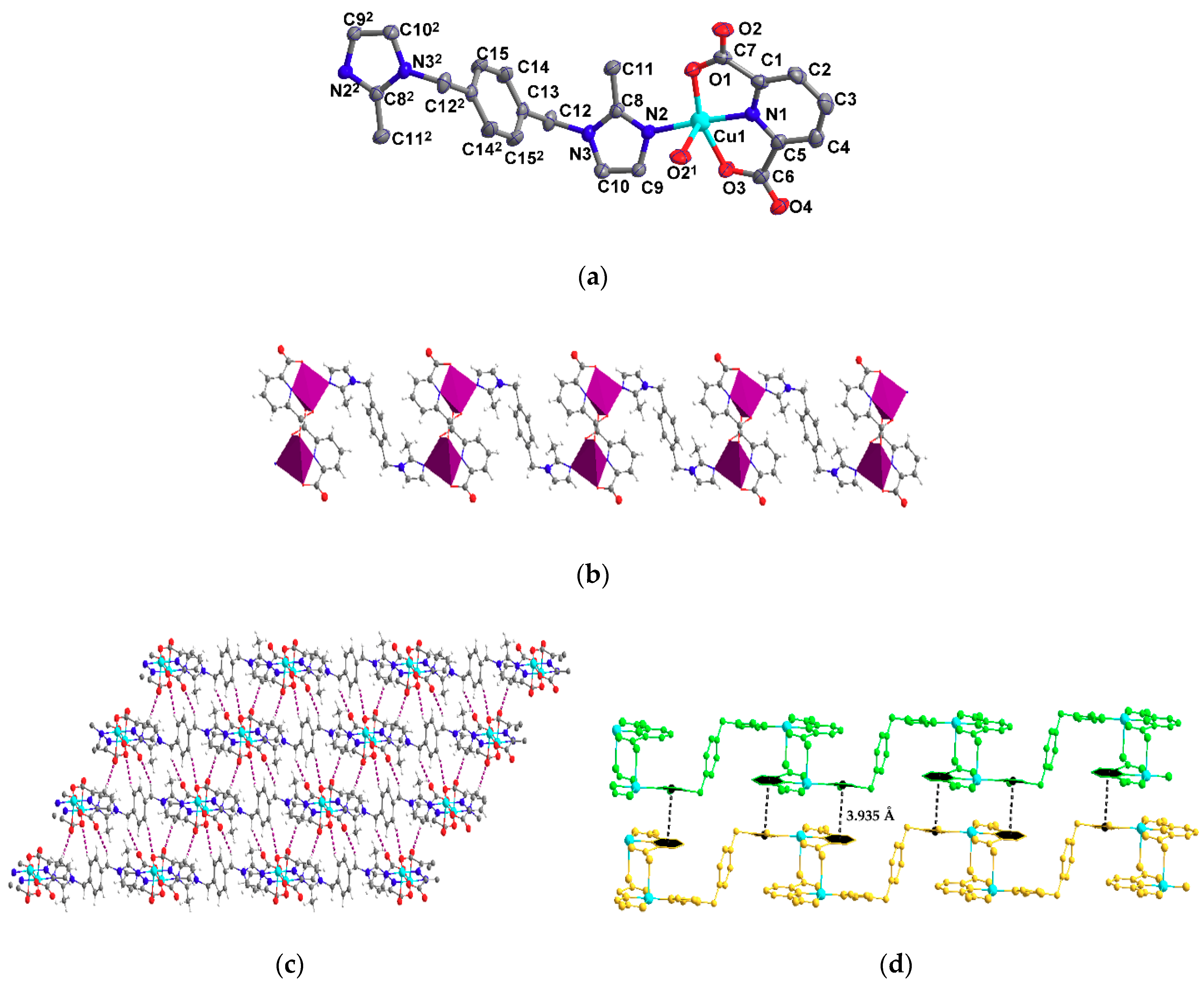

Figure 2. The structure of compound 2: (a) coordination environment of the Cu(II) ion (symmetry transformations used to generate equivalent atom codes: 1 −X, 1 − Y, 2 − Z; 2 −X, 1 − Y, 1 − Z); (b) polyhedral representation of the 1D Z-type chain structure; (c) 2D layer formed by hydrogen bonding; (d) 3D supramolecular structure formed by π···π interactions (green, Cu; red, O; blue, N; black, C).
Figure 2. The structure of compound 2: (a) coordination environment of the Cu(II) ion (symmetry transformations used to generate equivalent atom codes: 1 −X, 1 − Y, 2 − Z; 2 −X, 1 − Y, 1 − Z); (b) polyhedral representation of the 1D Z-type chain structure; (c) 2D layer formed by hydrogen bonding; (d) 3D supramolecular structure formed by π···π interactions (green, Cu; red, O; blue, N; black, C).
Crystals 08 00288 g002
Crystals 08 00288 g003a 550Crystals 08 00288 g003b 550

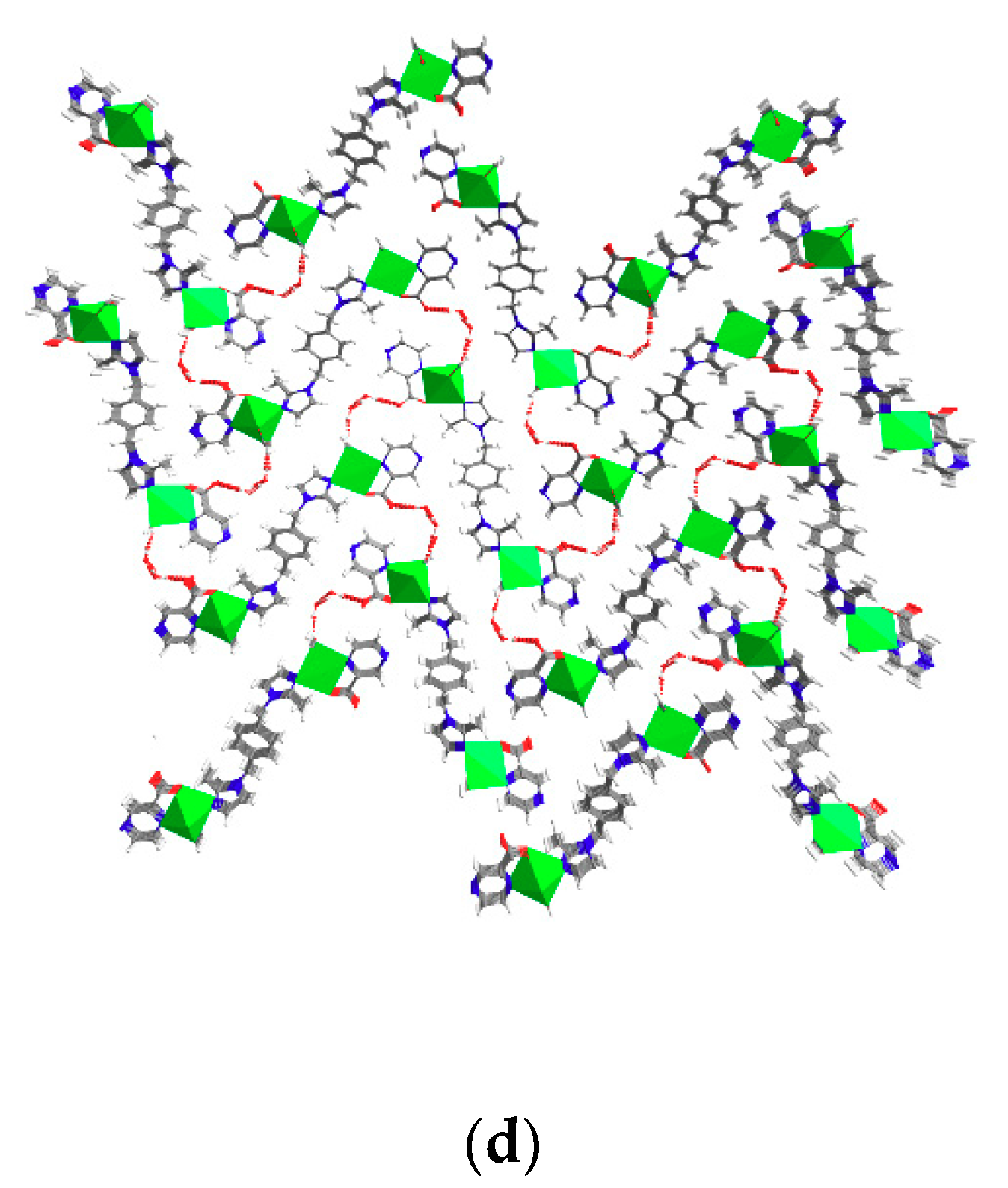

Figure 3. The structure of compound 3: (a) coordination environment of the Cu(II) ion (symmetry transformations used to generate equivalent atoms: 1 1 + X, +Y, +Z; 2 −X, −Y, −Z; 3 −1 + X, +Y, +Z); (b) the structure of infinitely-extended –Cu–O–Cu– chain; (c) 2D layer formed by hydrogen bonding; (d) 3D framework relying on O–H···O hydrogen bonds (turquiose, Cu; red, O; blue, N; black, C).
Figure 3. The structure of compound 3: (a) coordination environment of the Cu(II) ion (symmetry transformations used to generate equivalent atoms: 1 1 + X, +Y, +Z; 2 −X, −Y, −Z; 3 −1 + X, +Y, +Z); (b) the structure of infinitely-extended –Cu–O–Cu– chain; (c) 2D layer formed by hydrogen bonding; (d) 3D framework relying on O–H···O hydrogen bonds (turquiose, Cu; red, O; blue, N; black, C).
Crystals 08 00288 g003aCrystals 08 00288 g003b
Crystals 08 00288 g004 550

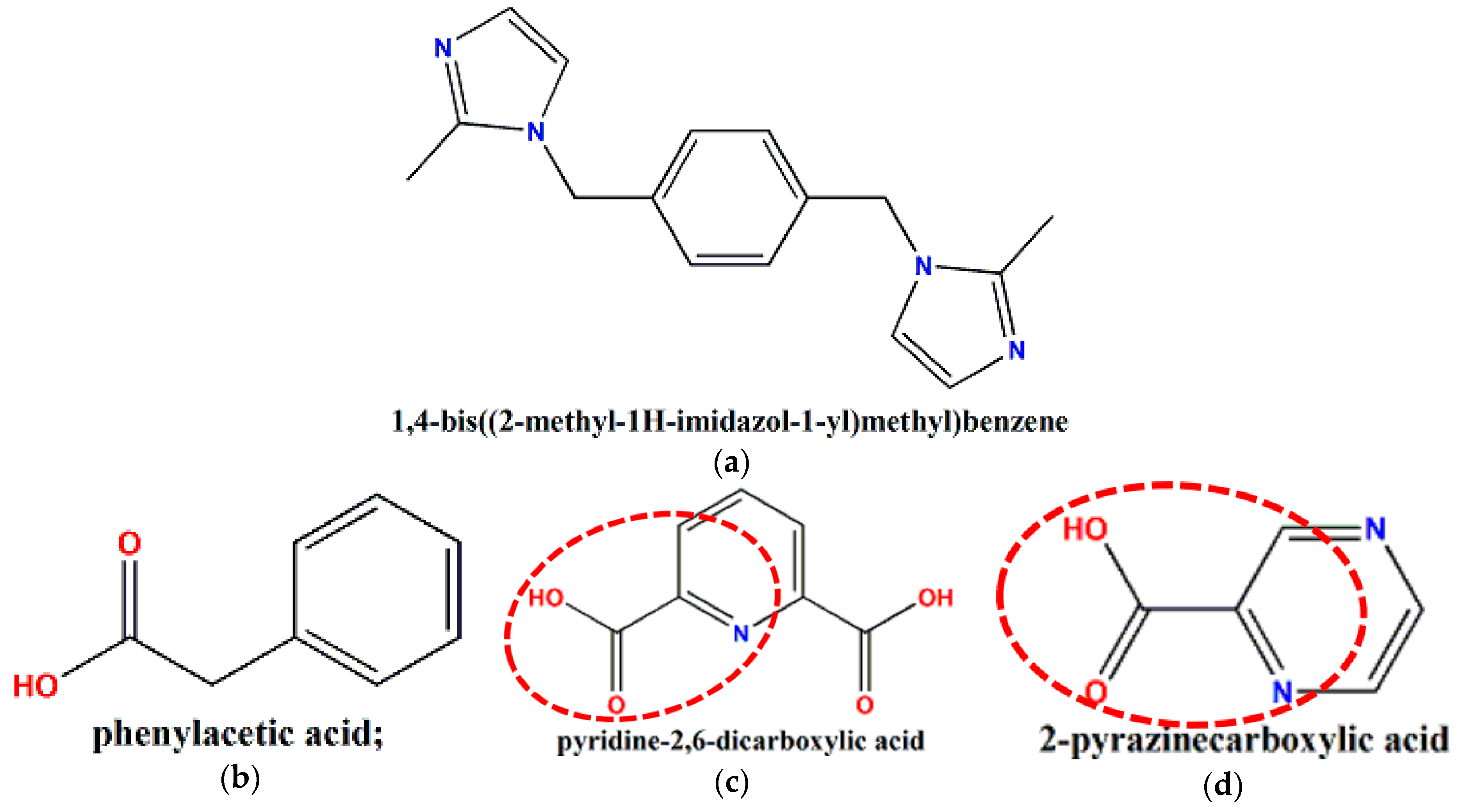

Figure 4. Construction of ligands for compounds 1–3: (a) the primary ligand of compounds 1–3, named 1,4-bmimb; (b) the co-ligand of 1, named PhAA; (c) the co-ligand of 2, named 2,6-PyDC; (d) the co-ligand of 3, named 2-PAC. Red dotted lines indicate corresponding functional groups.
Figure 4. Construction of ligands for compounds 1–3: (a) the primary ligand of compounds 1–3, named 1,4-bmimb; (b) the co-ligand of 1, named PhAA; (c) the co-ligand of 2, named 2,6-PyDC; (d) the co-ligand of 3, named 2-PAC. Red dotted lines indicate corresponding functional groups.
Crystals 08 00288 g004
Crystals 08 00288 g005 550
Figure 5. Curves of thermal gravimetric analysis (TGA) for compounds 1–3.
Figure 5. Curves of thermal gravimetric analysis (TGA) for compounds 1–3.
Crystals 08 00288 g005
Crystals 08 00288 g006 550
Figure 6. Fluorescence spectra of compound 1 and 1,4-bmimb ligand.
Figure 6. Fluorescence spectra of compound 1 and 1,4-bmimb ligand.
Crystals 08 00288 g006
Crystals 08 00288 g007 550

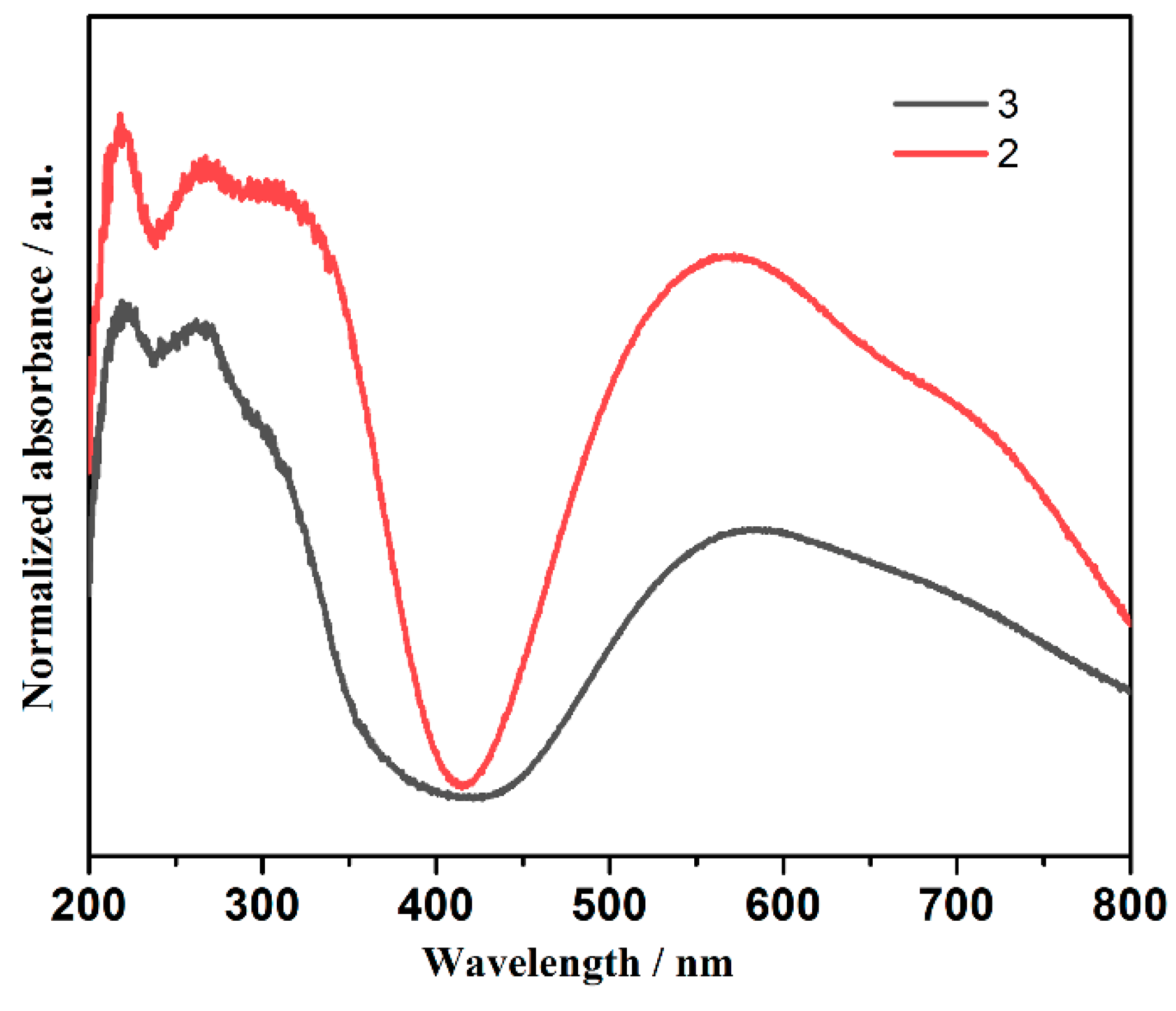

Figure 7. UV-vis absorption spectra of 2 and 3.
Figure 7. UV-vis absorption spectra of 2 and 3.
Crystals 08 00288 g007
Table
Table 1. Crystal data and structure refinement details of compounds 1–3.
Table 1. Crystal data and structure refinement details of compounds 1–3.
Compound123
Empirical formulaC32H34N4O5ZnC15H12CuN3O4C56H68Cu4N16O24
Formula weight620.02361.821603.46
Temperature/K293(2)293(2)293(2)
Crystal systemMonoclinicTriclinicMonoclinic
Space groupC2/cP 1 -- P21/c
a/Å11.4038(6)7.6721(9)4.65300(10)
b/Å18.1018(10)8.6074(10)14.5305(4)
c/Å14.5195(11)10.8246(13)25.9934(7)
α/deg9087.660(2)90.00
β/deg105.0440(10)78.863(2)98.735(2)
γ/deg9083.878(2)90.00
V/Å32894.5(3)697.21(14)1737.04(8)
Z421
Dc(Mg·m−3 )1.4231.7231.533
F(000)1296.0368.0824.0
Rint0.04960.04760.0183
GOF1.0491.0451.044
R1a/wR2bI > 2σ(I)R1 = 0.0292
wR2 = 0.0792		R1 = 0.0358
wR2 = 0.0994		R1 = 0.0412
wR2 = 0.1162
R1/wR2 (all data)R1 = 0.0310
wR2 = 0.0803		R1 = 0.0386
wR2 = 0.1012		R1 = 0.0422
wR2= 0.1171
aR1 = Σ(ǀǀF0ǀ − ǀFcǀǀ)/ΣǀF0ǀ. b wR2 = [Σw(ǀF0ǀ2 − ǀFcǀ2)2/Σ(F02)2]1/2.
