Effect of the Configuration of a Bulky Aluminum Initiator on the Structure of Copolymers of l,l-Lactide with Symmetric Comonomer Trimethylene Carbonate

Abstract

The effect of configuration of an asymmetric bulky initiator 2,2′-[1,1′-binaphtyl-2,2′-diyl- bis-(nitrylomethilidyne)]diphenoxy aluminum isopropoxide (Ini) on structure of copolymer of asymmetric monomer l,l-lactide (Lac) with symmetric comonomer trimethylene carbonate (Tmc) was studied using polarimetry, dilatometry, Size Exclusion Chromatography (SEC), and Carbon Nuclear Magnetic Resonance (¹³C NMR). When the S-enantiomer of Ini was used the distribution in copolymer chains at the beginning of polymerization is statistical, with alternacy tendency, changing next through a gradient region to homoblocks of Tmc. However, when R-Ini was used, the product formed was a gradient oligoblock one, with Tmc blocks prevailing at the beginning, changing to Lac blocks dominating at the end part of chains. Initiation of copolymerization with the mixture of both initiator enantiomers (S:R = 6:94) gave a multiblock copolymer of similar features but shorter blocks. Analysis of copolymerization progress required complex analysis of dilatometric data, assuming different molar volume contraction coefficients for units located in different triads. Comonomer reactivity ratios of studied copolymerizations were determined.

1. Introduction

Synthetic biodegradable polymers, e.g., aliphatic polyesters and polycarbonates, as well as copolymers of the corresponding monomers, have attracted increasing attention because of their useful properties for applications in the medical field as materials for temporary medical devices, such as scaffolds in tissue engineering or tissue reconstruction and drug-controlled-delivery systems [1,2].

Particularly, high modulus and high strength polylactides (PLac) have received special interest, as lactide (Lac) derives from annually renewable resources (i.e., corn starch or sugarcane). To the currently available products obtained from PLac belong sutures, GTR (guided tissue regeneration), orthopedic implants, and implantable drug delivery systems [3,4,5].

However, due to PLac brittleness and relatively low resistance to oxygen and water vapor permeation, the range of possible applications of polylactides is restricted. Those properties could be altered by incorporation of different, suitable comonomer units into the main chain of PLac.

Copolymers containing lactide and carbonate units (e.g., trimethylene carbonate (Tmc), Scheme 1):

They are especially interesting due to their increased flexibility and reduced acidity of the degradation products [6].

A ring-opening (co)polymerization (ROP) of aliphatic cyclic esters and carbonates is known as the most convenient method for the controlled synthesis of biodegradable and biocompatible copolymers [7]. Systematic studies on homopolymerization of lactones, lactides, and cyclic carbonates allowed to establish the fundamental thermodynamic, kinetic, and stereochemical aspects of these processes [7,8,9,10]. Particularly, controlled coordination polymerization of lactones and lactides that allowed preparation of polyester from oligomers to high molar mass polymers (M_n ~ 10⁶) with desired end groups, have been elaborated in our group [11].

In preparation of Tmc/Lac copolymers the tin derivatives are the most widely used catalyst/initiator systems [12,13,14,15,16,17,18]. The valuable results have also been obtained with various aluminum [19], lanthanide [20,21,22], and zirconium complexes [23]. The homopolymerization rates of Tmc and Lac are substantially different. Previous studies with the yttrium [24] and calcium [25] complexes proved that the rate of polymerization of Tmc is much higher than that for Lac. Nevertheless, during copolymerization of Tmc and Lac, both comonomers possess nearly the same reactivity ratio or the lactide monomer reveals higher reactivity. For example Yasuda et al. [26] have reported the formation of random Tmc/Lac copolymers in which both monomers exhibited similar reactivity ratios, using SmMe(C₅Me₅)₂THF initiator.

On the other hand, Spassky et al. [24] have reported the formation of almost pure block structure, in process initiated with yttrium alkoxide. The copolymerization of an equimolar mixture of Lac and Tmc leads to the formation of block copolymers. Lac was consumed first due to its significantly higher reactivity ratio. Similarly, the reactivity ratios reported by Dobrzynski [23] (r_Lac = 13.0 and r_Tmc = 0.53) proved favorable incorporation of repeating units derived from Lac into the copolymer chain. The product r_Lac × r_Tmc = 6.89 determined for the copolymerization initiated with zirconium complex was significantly higher than that previously reported for copolymerizations initiated with samarium complex [22] (r_Lac × r_Tmc = 1.81, r_Lac = 7.24, and r_Tmc = 0.25), and it was the evidence for a strong tendency to form a copolymer with a block structure.

The observed reactivities of Tmc and Lac in the copolymerization are reversed in comparison with their reactivities in homopolymerization, where the observed rates of polymerization of Tmc are higher than of Lac while applying the same initiator. Although the first report describing this puzzling phenomenon appeared about twenty years ago [24], to this day there is no plausible explanation on the molecular level.

The present work shows the preliminary results of our investigation of the effect of configuration of a bulky asymmetric initiator 2,2′-[1,1′-binaphtyl-2,2′-diyl-bis-(nitrylomethilidyne)]-diphenoxy aluminum isopropoxide (Ini) (Scheme 2) on copolymerization of Lac with Tmc.

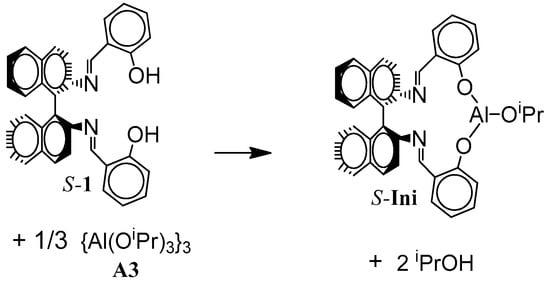

We have chosen this initiator because of its bulkiness, hindering chain transfer reactions and cyclization [27]. This feature was recently used by us in preparation of block Lac/Tmc copolymer by sequential copolymerization using this initiator [28].

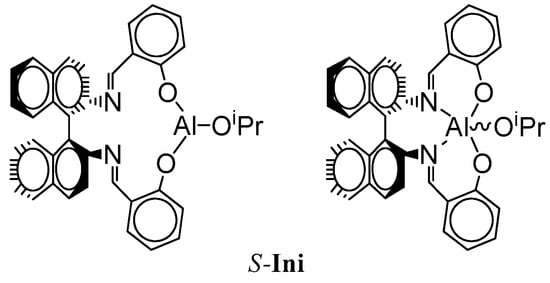

The other reason of choosing the indicated initiator is its asymmetry resulting in asymmetry of active chain-ends [29,30,31]. This feature implies possible differences in rates of addition of asymmetric comonomer Lac in relation to configuration of active species of growing chain (configuration of residue coming from R or S-Ini). These differences in propagation rate constants result in differences of copolymer structure as shown in the paper.

Due to complexity of the systems discussed in the paper, the reported reactivity ratios are only estimates, depending on the assumed model of copolymerization. They are, however, still useful in predicting of the outcome of Tmc/Lac copolymerization in dependence on initial conditions.

2. Materials and Methods

2.1. Materials

l,l-Lac (Boehringer Ingelheim, Ingelheim, Germany, >99%) was crystallized from dry 2-propanol and then purified by sublimation in vacuum (10⁻³ mbar, 90 °C). Tmc (Boehringer Ingelheim, Ingelheim Germany, >99%) was crystallized from dry THF/ethyl ether mixture (3/1) and sublimed (10⁻³ mbar, 45 °C). THF solvent was purified, as described previously [11]. Aluminum tris-isopropoxide used in trimeric form {Al(OiPr)₃}₃ (A3) was prepared from the commercial alkoxide (Aldrich, Poznan, Poland, 98%) as described elsewhere [32,33]. Bidentate initiator precursor, asymmetric Schiff’s base derivative, (R)-(-) and (S)-(+)-2,2′-[1,1′-binaphtyl-2,2′-diyl-bis-(nitrylomethilidyne)]diphenol (1), was prepared as described in reference [34].

2.2. Polymerization Procedure

All polymerization were performed using the standard high-vacuum technique. The actual initiator, R- and/or S-Ini, was formed in situ using 1 and A3 in 1.2:1 ratio. The mixture was kept for 24 h in THF as a solvent at 80 °C just before use to ensure complete transformation of precursors to Ini.

The 20% excess of 1 did not affect the course of polymerization, both kinetics nor product structure. The mixtures of comonomers and initiator in THF were prepared at room temperature in the special glass vessels in a vacuum. Then the reaction mixture was distributed into several small glass ampoules and/or into a dilatometer, and placed in thermostat at 80 °C. Both homo- and copolymerization experiments have shown that isopropanol present in the initiating mixture acted as effective chain-transfer agent. The observed number average molar masses M_n were approximately equal as expected for all ⁱPrO- groups initiating chain growth, M_n = (M_Tmc[Tmc]₀ + M_Lac[Lac]₀)/(3[Al(OⁱPr)₃]₀) (M_Tmc = 102 and M_Lac = 144 are molar masses of corresponding monomers). On the other hand, the dispersities observed for homopolymers were only slightly higher than expected for processes without side reactions (about 1.1–1.2) and those observed for copolymers were significantly higher (about 1.5–1.6), indicating probably not very fast rate of exchange of chains bearing different terminal units at aluminum active centers (see discussion of results).

Homopolymerizations of Tmc and Lac were used as reference in kinetic analysis, including molar volume contraction coefficients (CC) for dilatometry. Homopolymerization of monomers were carried out in THF at 80 °C with (S)-(−)- and (R)-(+)-2,2′-[1,1′-binaphtyl-2,2′-diyl-bis-(nitrylomethilidyne)]diphenoxy aluminum isopropoxide (Ini). The starting concentrations of components were as follows:

[Lac]₀ = 1.2 mol·L⁻¹, [Tmc]₀ = 2 mol·L⁻¹, and [Ini]₀ ≈ 0.002 mol·L⁻¹. The conversion of Lac in both homo- and copolymerizations was monitored by polarimetry while conversion of Tmc in homopolymerizations was monitored with dilatometry and in copolymerizations it was determined at various reaction times from a complex analysis of copolymerization kinetics, consistent with kinetics of changes of dilatometer meniscus level, as described below.

The resulting (co)polymers were isolated by precipitation into cold methanol, and dried in vacuum at room temperature to a constant mass. For comparative studies two poly(trimethylene carbonate) (PTmc) and two poly(l-lactide) (PLac) homopolymers, i.e., PTmcs with M_n of 33.8 × 10³ and 32.1 × 10³ (Ð ≈ 1.5) as well as PLacs with M_n equal to 23.5 × 10³ and 22.2 × 10³ (Ð = 1.4 and 1.8 respectively), have been prepared.

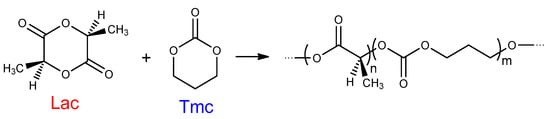

Copolymers of Lac and Tmc were obtained in ring-opening copolymerization, initiated with (S)-(−)-Ini or (R)-(+)-Ini, or with the chosen mixture of both initiator enantiomers, at 80 °C in THF. All experiments were carried out with identical initial concentrations of Tmc and initiator: [Tmc]₀ = 2 mol·L⁻¹ and [Ini]₀ = 0.002 mol·L⁻¹ (prepared in situ, cf. Scheme 3: concentration of growing chains equal to 0.006 mol·L⁻¹ due to initial presence of ⁱPrOH, acting as an effective chain transfer agent). Concentration of [Lac]₀ varied from 0.3 to 1.2 mol·L⁻¹.

2.3. Carbon Nuclear Magnetic Resonance (¹³C NMR)

Composition and microstructure of copolymers were determined by NMR spectroscopy. ¹³C NMR spectra were recorded on a Bruker (Billerica, Massachusetts, USA) AVANCE III (apparatus operating at 500 MHz) in CDCl₃ (99.8% D) as the solvent. The sample solutions were prepared by dissolving 15–30 mg of dried polymer in 1 mL of CDCl₃. ¹³C NMR spectra were recorded with inverse gated decoupling, allowing one to minimize the errors of quantitative analyses.

2.4. Size Exclusion Chromatography (SEC)

The SEC chromatograph was composed of Agilent (Santa Clara, CA, USA) 1100 isocratic pump, MALLS DAWN EOS photometer (Wyatt Technology Corporation, Santa Barbara, CA, USA) and Optilab Rex differential refractometer (Wyatt Technology Corporation, Santa Barbara, CA, USA). Two PL Gel 5-μm MIXD-C columns were used in a series for separation. Methylene chloride was used as a mobile phase at a flow rate of 0.8 mL·min⁻¹. The measurements were conducted at 27 °C. The calibration of the DAWN EOS was performed using p.a. grade toluene, and normalization was performed using a polystyrene standard (PS: M_n = 3.0 × 10⁴, Polymer Standards Service). The ASTRA 4.90.07 software package (Wyatt Technology Corporation, Santa Barbara, CA, USA) was used for the data collection and processing. dn/dc increments of the refractive index were determined at λ = 658 nm, as 0.048 and 0.035 mL·g⁻¹ for PTmc and PLac, respectively. Samples (100 μL) were injected as solutions in methylene chloride.

2.5. Polarimetry

A Perkin-Elmer (Waltham, MA, USA) 241 MC polarimeter was employed for the optical rotation measurements. The optical rotations (OR) of the living polymerization mixtures were measured at 578 nm at room temperature. The instantaneous Lac concentrations were determined, assuming additivity of the optical rotations for Lac (ORM = 270°) and poly-Lac (ORP = 166°), i.e., [LA] = [LA]₀(OR-ORP)/(ORM-ORP).

2.6. Dilatometry

(Co)polymerizations of Tmc were carried out in dilatometers equipped with capillary tubes. Dilatometers, of volume about 5 mL, precisely measured, were put in the thermostated water bath in order to perform accurate measurements of the volume changes during polymerization, calculated from measurements of the meniscus level in the capillary tube, diameter 2 mm, with accuracy 0.01 mm. The instantaneous Tmc concentrations in polymerization were determined assuming additivity of the polymer and monomer density, using the corresponding equation: [Tmc] = [Tmc]₀ΔH/ΔH_max, where ΔH and ΔH_max are the changes of meniscus level at the given reaction time and when reaching total conversion of Tmc, respectively (small Tmc equilibrium concentration was neglected).

The attempts to determine in the same way consumption of Tmc in copolymerization failed because the molar volume-contraction-coefficients (CC) for Tmc units located in different triads appeared to be not equal. The elaborated method for determining Tmc consumption in copolymerization from dilatometric data, based on fitting of simulated copolymerization conversions to experimental ones, is described in details in the Supporting Information section.

2.7. Computer Simulations

Kinetics of studied copolymerizations were analyzed comparing experimental data with computer simulations carried out on personal computer with Intel Core i7-975 processor working at frequency 3.33 GHz, 12 GB RAM memory, under Microsoft Windows 7 Pro 64-bit operating system.

Two types of numerical computations were used. Numerical integrations of kinetic differential equations were performed in Matlab v. 7.10 (Natick, MA, USA), adopting the Matlab function ode15s, while parameter fitting performed using the function fminsearch. For more details see the Supporting Information. The computational times of fitting kinetic parameter to experimental data varied between 2 and 48 h, depending on the number of fitted parameters. Monte-Carlo computations were performed using in-house prepared computation programs, according to algorithm devised by Gillespie [35]. Programs were written in Delphi and compiled under Delphi XE2 environment (Embarcadero, Austin, TX, USA). Times of simulations varied in a range of 2–48 h, depending on the number of simulated chains, selected kinetic parameters, and on accounting or neglecting of depropagation reactions.

3. Results

In this work, we determined that the relative reactivities of Tmc and Lac in the copolymerization differ considerably from their reactivities in homopolymerizations, similarly as it was observed for ε-caprolactone/Lac systems initiated with the same initiator Ini [32]. Significant discrepancies in reactivities of active centers differing in configuration of the used initiator were already observed in Lac homopolymerization studies [31]. It stems from different diastereomeric arrangements at the end of growing chains formed by asymmetric Lac terminal unit (S configuration) and residue from R- or S-Ini. Results of our reference Lac homopolymerizations, performed for [Lac]₀ = 1.2 mol·L⁻¹, are shown in Supporting Information, confirming large differences in rates of polymerization. On the other hand, one cannot expect any differences in Tmc homopolymerization rates, what was confirmed experimentally (initial rate coefficients equal to about 0.088 and 0.093 (±5%) L·mol⁻¹·s⁻¹, for polymerizations initiated with R-Ini and S-Ini, respectively). Therefore, we could expect that the copolymerization reactivity ratios change by altering the active-center initiator-residue configuration, what can result in quite different copolymer structures. In fact, the differences in reactivity ratios were larger than expected by us.

This striking phenomenon is of general importance, since it provides a useful tool for tuning the resultant copolymer microstructure and properties.

3.1. Outlook of General Features of Copolymerization Kinetics

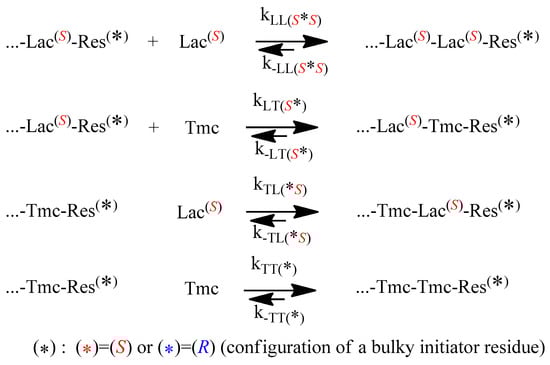

The propagation and depropagation reactions, describing the studied copolymerization, are shown in Scheme 4.

One can note that diastereomeric arrangements imply differences in propagation and depropagation rate constants, in relation to configuration of used initiator, with the exception of the last reversible reaction in the Scheme 4: homopropagation and corresponding depropagation of Tmc (apparently no diastereometry, one can expect identical reactivity of enantiomeric Tmc-Res *).

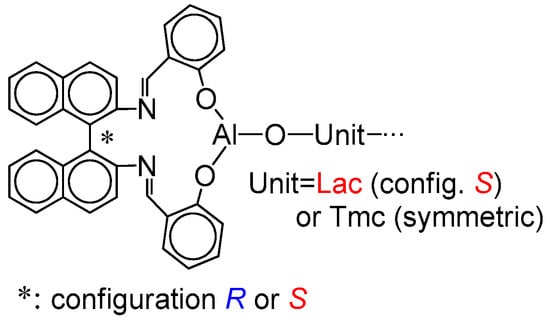

The structure of the active species is shown in Scheme 5. If the copolymer unit is symmetric (Tmc), one can expect that the rate of insertion of alike monomer molecule into Al-O-Unit bond does not depend on configuration of initiator residue Res at the chain-end. On the other hand, addition of asymmetric monomer molecule (Lac) depends on configuration of Res because we can have two different diastereomeric arrangements here. Similarly, when Unit is asymmetric (Lac), addition of any of comonomers (Lac or Tmc) depends on configuration of Res (reactions involving diastereomeric active species).

Thus, depending on the configuration of Ini, copolymerization can proceed in a different way.

In principle, copolymerization kinetics can be monitored by any method giving access to comonomer conversions. Unfortunately, spectroscopic methods we considered (UV, IR, ¹H NMR) could not be used effectively because of the lack of sufficiently separated signals of the comonomers and the copolymer. Only ¹³C NMR spectra could give the corresponding information. Unfortunately, due to technical problems (taking samples from the reaction mixture avoiding its contamination, followed by isolation of product) only a few kinetic data points could be obtained. Much more convenient methods seemed polarimetry for following conversion of Lac and dilatometry for following conversion of Tmc (polymerization of Lac results in no change of the reaction system volume), following the approach, applied by Florczak and Duda in analysis of copolymerization kinetics of Lac with ε-caprolactone [32].

However, it appeared that following conversion of Tmc with dilatometry was not straightforward. We have observed that changes of the system volume were significantly larger than expected on the basis of contraction coefficients determined from homopolymerization of Tmc. Moreover, conversion of Tmc determined from dilatometry in a standard way was significantly different from that obtained from ¹³C NMR, available for a few reaction times of one copolymerization system, initiated with the mixture of R- and S-Ini (cf. below in the corresponding section).

Consequently, we came to conclusion that contraction coefficients for Tmc and, possibly, also for Lac units, depend on the type of triad in which the given unit occupies the central place. Thus, in order to be able to use dilatometry for following the Tmc conversion, we had to determine, or at least estimate, three values of contraction coefficients for any of comonomers, e.g., for A unit coefficients for homotriad AAA, heterotriad BAB, and the average value for asymmetric triads AAB and BAA. The average value for asymmetric triads is sufficient because in copolymer of sufficiently long chains the numbers of triads AAB and BAA are virtually equal.

However, in order to estimate these parameters directly we would have to have a sufficiently large number of experimental data describing the relationship between comonomer conversions and copolymer microstructure (triad level), and volume contraction corresponding to the given samples.

Unfortunately, ¹³C NMR did not give the sufficient information about triad (nor dyad) contributions, because some triads, assigned according to Dobrzynski and Kasperczyk [23], overlap (e.g., of triads TmcLLTmc, LacLLTmc, and TmcLLLac: LL means here Lac unit, composed of two lactic units L, in bold are marked the lactic units relevant to overlapping signals, cf.

Table 1. Assignment of the resonance lines in the ¹³C NMR spectra of Lac (composed of 2 lactic units denoted here as L: Lac = LL) and Tmc copolymer units in copolymers.

	Resonance line (i)	Comonomer sequence	δ (ppm) a
The carbonyl carbon atoms absorption range
Lac repeating units (LL)	1	TLLT + LLLLT + TLLLT	-  (170.24)
	2	TLT	170.14 (170.09)
	3	TLLT + TLLLL + TLLLT + LLLLT	169.97 (169.92)
	4	TLLLT + TLLLL	169.79 (169.75)
	5	LLLLL	169.61 (169.57)
Tmc repeating units (T)	6	TTT + LLTT + TLTT	154.89 (154.85)
	7	TTLL + LLTLL + TLTLL	154.33 (154.29)
	8	TTLT + LLTLT + TLTLT	-  (153.85)
The methine carbon atoms absorption range
Lac repeating units (LL)	9	TLT	-  (71.98)
	10	TLLLT	71.75 (71.71)
	11	TLLT	71.65 (71.60)
	12	TLLLT + TLLLT	71.38 (71.33)
	13	TLLLL + LLLLT	69.26 (69.20)
	14	LLLLLL	69.03 (68.98)
The methylene carbon atoms absorption range b
Tmc repeating units (T)	15	LT′T + TT″L	64.74 (64.70)
	16	TT′T + TT″T	64.28 (64.24)
	17	LT′L + LT″L	-  (61.79)
	18	TT′L + LT″T	61.70 (66.66)

^a In parentheses data from reference [23] are listed; ^b T′ = –OCH₂CH₂CH₂–OCO–, T″ = –OCH₂CH₂CH₂–OCO–.

).

Signals of copolymer structures stemming from segmental exchange (e.g., of the isolated lactic unit TmcLTmc) were observed by us only in spectra of systems kept more than 24 h after completing copolymerization which confirmed our assumption that reshuffling can be neglected.

We managed to estimate the contraction coefficients from analysis of copolymerization kinetics. Unfortunately, some assumptions, leading eventually to estimates valid only for the assumed model of copolymerization, had to be adopted. These assumptions were as follows:

• Kinetics of copolymerization follows the reactions as reported in Scheme 4 and depolymerizations can be neglected up to at least 80% of conversion. The last is based on our simulations of reversible copolymerizations [36], indicating that depolymerizations with low equilibrium concentrations of comonomers are usually negligible in most systems up to conversions about 90%.
• The chain-transfer reactions involving hydroxyl containing chains are fast, allowing one to neglect them in kinetic analysis and consider all chains terminated with the given unit kinetically indistinguishable. Alcohol chain end-groups in the copolymerization systems are formed at the very beginning of copolymerization due to the fact that we initiated our systems with the in situ formed Ini (Scheme 3), what resulted in formation of isopropanol, which also can initiate copolymer chains via chain-transfer processes (Scheme 6). The chain-transfer reactions were, however, taken into account in more detailed kinetic analysis, allowing to get better agreement of experimental and simulated dispersities of copolymers.
• Instantaneous initiation gives living unimers prior to any propagation reactions. This approximating assumption allows to neglect initiation reaction in kinetic analysis.

These assumptions allowed us to describe copolymerization systems entirely by the kinetic Scheme 4, not accounting OH-terminated chains. Such a simple model of copolymerization appeared to be useful if copolymerization main features, such as copolymer composition and microstructure, are concerned. However, when more detailed features, like molar mass distribution are to be analyzed, the copolymerization model including the rate of exchange of OH-terminated chains with ones bearing active species, has to be used, as shown below in the paper.

Nevertheless, kinetics of irreversible copolymerizations following Scheme 4 (with all depropagation rate constant equal to zero) can be predicted from integration of the corresponding kinetic differential equations. On the other hand, Monte Carlo simulations, taking into account depropagations, could confirm validity of neglecting them, as well as could give access to detailed description of copolymer microstructure.

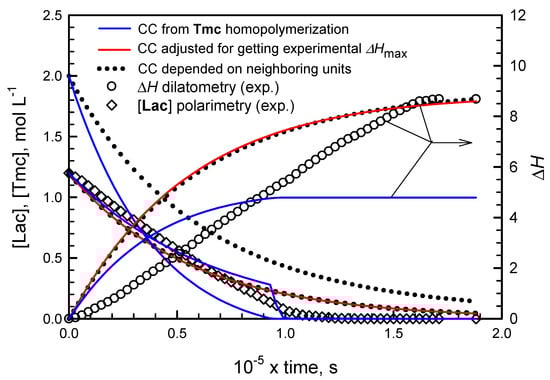

Applying numerical integration of differential kinetic equations we could predict evolution of copolymerization in time. However, attempts to fit rate coefficients failed, indicating that comonomer consumption rates seemed not to decrease with comonomer concentrations as expected. Rates of consumption of comonomers were initially lower than those predicted from simulations and eventually higher: the apparent rate coefficients seemed to increase with conversion. An example of such fitting is given in Figure 1. More details concerning this type of kinetic analysis are given in Supporting Information.

The presented plots suggest that apparent rate coefficients change with conversion, being initially lower than obtained from parameter fitting (experimental slope for evolution of [Lac] initially lower than obtained in simulations) and, at the end of comonomer consumption, the rate coefficients seem to be higher than obtained from simulations (the corresponding slope for experimental points for reaction times longer than 1000 min is higher than that of fitted plots).

Important is also observation that volume contraction coefficients for copolymer units differ from those observed in homopolymerizations. Either contraction coefficients for Tmc unit depend on other units neighboring the given one, or the same can be said about Lac units (contraction coefficients for some triads with Lac located in the middle not equal to zero as in homopolymerization), or contraction coefficients for both types of copolymer units depend on copolymer microstructure. Our fitting analysis (see below and Supporting Information) suggest that the third possibility is true.

Analyzing simulated kinetic curves in comparison to experimental ones we deduced that the reaction medium, continuously changing while concentrations of comonomers and copolymer units evolve, makes the rate coefficients depend on conversion. It can be understood as both comonomer molecules and copolymer units solvate active species in varying proportions at different conversions. As Lac molecule and copolymer units are asymmetric one cannot exclude some diastereomeric effect making the apparent rate coefficients dependent on conversion.

In order to get a relatively simple kinetic model of copolymerization consistent with experimental data we have assumed that the relative changes of apparent rate coefficients with conversion are approximately identical for all reactions, changing simultaneously, resulting in constant ratios of rate constants. The analyzed models of copolymerization and methods of fitting apparent relative rate coefficients to experimental data are described in detail in Supporting Information. Here we only indicate the main result of this analysis. Namely, if the abovementioned assumption is valid then the kinetics presented in conversion scale is characterized by kinetic parameters independent of conversion or reaction time. These kinetic parameters are ratios of instantaneous (changing) rate coefficients of reactions operating in the system. One can choose different ratios to describe the analyzed copolymerizations but our choice was given as below.

Initially, we related all rate constants to the Tmc homopropagation rate constant k_TT (see Scheme 4), chosen as the rate constant presumably independent of configuration of Ini and denoted the corresponding ratios z_XY = k_XY/k_TT, where X, Y is L and/or T, which stand for Lac or Tmc comonomer/unit.

However, one can easily find that one can relate these z_XY parameters (XY different than LL) with z_LL and standard parameters such as reactivity ratios and, for depropagation rate constants, additionally with the equilibrium constants. These relationships are presented in the equation set (1). Starting from this equation set we use letters L and T, while denoting with Lac and Tmc comonomers/comonomer units, respectively. Besides, in all equation sets we use for these letters red and blue color, respectively. The same colors are used in some Figures and plots describing copolymer units or blocks related to the studied comonomers.

$$\begin{array}{l}{z}_{\mathrm{LL}}=\frac{k_{\mathrm{LL}}}{k_{\mathrm{TT}}},z_{\mathrm{TT}}=\frac{k_{\mathrm{TT}}}{k_{\mathrm{TT}}}=1\\ z_{\mathrm{L}\mathrm{T}}=\frac{k_{\mathrm{L}\mathrm{T}}}{k_{\mathrm{TT}}}=\frac{k_{\mathrm{L}\mathrm{T}}}{k_{\mathrm{LL}}}\times \frac{k_{\mathrm{LL}}}{k_{\mathrm{TT}}}=\frac{z_{\mathrm{LL}}}{r_{\mathrm{L}}},z_{\mathrm{T}\mathrm{L}}=\frac{k_{\mathrm{T}\mathrm{L}}}{k_{\mathrm{TT}}}=\frac{1}{r_{\mathrm{T}}}\\ z_{-\mathrm{LL}}=\frac{k_{-\mathrm{LL}}}{k_{\mathrm{TT}}}=\frac{k_{-\mathrm{LL}}}{k_{\mathrm{LL}}}\times \frac{k_{\mathrm{LL}}}{k_{\mathrm{TT}}}=\frac{z_{\mathrm{LL}}}{K_{\mathrm{LL}}},z_{-\mathrm{TT}}=\frac{k_{-\mathrm{TT}}}{k_{\mathrm{TT}}}=\frac{1}{K_{\mathrm{TT}}}\\ z_{-\mathrm{L}\mathrm{T}}=\frac{k_{-\mathrm{L}\mathrm{T}}}{k_{\mathrm{TT}}}=\frac{k_{-\mathrm{L}\mathrm{T}}}{k_{\mathrm{L}\mathrm{T}}}\times \frac{k_{\mathrm{L}\mathrm{T}}}{k_{\mathrm{LL}}}\times \frac{k_{\mathrm{LL}}}{k_{\mathrm{TT}}}=\frac{z_{\mathrm{LL}}}{K_{\mathrm{L}\mathrm{T}}{r}_{\mathrm{L}}},z_{-\mathrm{T}\mathrm{L}}=\frac{k_{-\mathrm{T}\mathrm{L}}}{k_{\mathrm{TT}}}=\frac{1}{K_{\mathrm{T}\mathrm{L}}{r}_{\mathrm{T}}}\end{array}$$

(1)

Thus, we could formulate the kinetic differential equations in conversion scale, with only the limited number of the mentioned relative kinetic parameters: z_LL and reactivity ratios r_L and r_T (and for not negligible depropagations also the equilibrium constants), taking into account the following relationships (formulated here for irreversible copolymerization):

$$\begin{array}{l}Conv={\displaystyle \underset{0}{\overset{t}{\int }}\frac{\left(-\frac{d\left[\mathrm{L}\right]}{dt}-\frac{d\left[\mathrm{T}\right]}{dt}\right)}{{\left[\mathrm{L}\right]}_0+{\left[\mathrm{T}\right]}_0}}dt\\ \frac{dConv}{dt}=\frac{\left(-\frac{d\left[\mathrm{L}\right]}{dt}-\frac{d\left[\mathrm{T}\right]}{dt}\right)}{{\left[\mathrm{L}\right]}_0+{\left[\mathrm{T}\right]}_0}=\frac{{\mathrm{k}}_{\mathrm{LL}}[\mathrm{L}*]\left[\mathrm{L}\right]+{\mathrm{k}}_{\mathrm{T}\mathrm{L}}[\mathrm{T}*]\left[\mathrm{L}\right]+{\mathrm{k}}_{\mathrm{TT}}[\mathrm{T}*]\left[\mathrm{T}\right]+{\mathrm{k}}_{\mathrm{L}\mathrm{T}}[\mathrm{L}*]\left[\mathrm{T}\right]}{{\left[\mathrm{L}\right]}_0+{\left[\mathrm{T}\right]}_0}\\ \frac{d[ ]}{dConv}=\frac{\frac{d[ ]}{dt}}{\frac{dConv}{dt}}=f\left(\left[\mathrm{L}\right],\left[\mathrm{T}\right],\dots {,\mathrm{z}}_{\mathrm{LL}}{,\mathrm{r}}_{\mathrm{L}}{,\mathrm{r}}_{\mathrm{T}}\right)\end{array}$$

(2)

where [ ] in Equation (2) corresponds to concentration of any reagent, species, or copolymer sequence in copolymer. For instance, the corresponding equations formulated for evolution of concentrations of Lac (L) monomer and LT dyads are given by equation set (3):

$$\begin{array}{l}\frac{d\left[\mathrm{L}\right]}{dConv}=-\left({\left[\mathrm{L}\right]}_0+{\left[\mathrm{T}\right]}_0\right)\times \frac{{\mathrm{z}}_{\mathrm{LL}}[\mathrm{L}*]\left[\mathrm{L}\right]+{[\mathrm{T}*]\left[\mathrm{L}\right]/\mathrm{r}}_{\mathrm{T}}}{{\mathrm{z}}_{\mathrm{LL}}[\mathrm{L}*]\left[\mathrm{L}\right]+{[\mathrm{T}*]\left[\mathrm{L}\right]/\mathrm{r}}_{\mathrm{T}}+[\mathrm{T}*]\left[\mathrm{T}\right]+{\mathrm{z}}_{\mathrm{LL}}{[\mathrm{L}*]\left[\mathrm{T}\right]/\mathrm{r}}_{\mathrm{L}}}\\ \frac{d\left[\mathrm{L}\mathrm{T}\right]}{dConv}=\left({\left[\mathrm{L}\right]}_0+{\left[\mathrm{T}\right]}_0\right)\times \frac{{\mathrm{z}}_{\mathrm{LL}}{[\mathrm{L}*]\left[\mathrm{T}\right]/\mathrm{r}}_{\mathrm{L}}}{{\mathrm{z}}_{\mathrm{LL}}[\mathrm{L}*]\left[\mathrm{L}\right]+{[\mathrm{T}*]\left[\mathrm{L}\right]/\mathrm{r}}_{\mathrm{T}}+[\mathrm{T}*]\left[\mathrm{T}\right]+{\mathrm{z}}_{\mathrm{LL}}{[\mathrm{L}*]\left[\mathrm{T}\right]/\mathrm{r}}_{\mathrm{L}}}\end{array}$$

(3)

Applying the formulated set of kinetic differential equations in conversion scale (see Supporting Information) to experimental data allowed us to predict main features of copolymers obtained in the studied systems.

3.2. Dependence of Copolymer Structure on Configuration of Ini

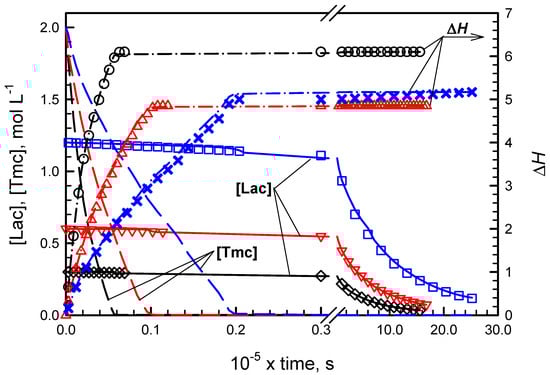

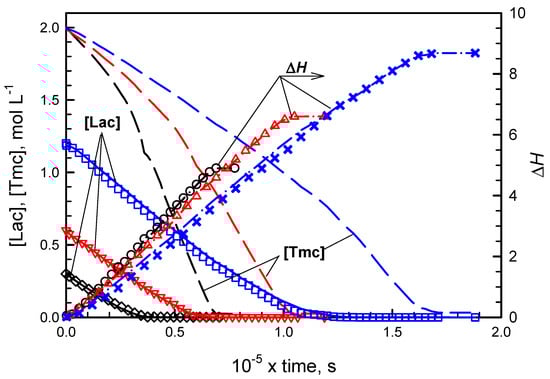

Figure 2 and Figure 3 present conversions of comonomers in copolymerizations initiated with R- and S-Ini, respectively. Conversions of Lac were detected directly due to polarimetric measurements while conversions of Tmc were obtained from the elaborated kinetic analysis presented in Supporting Information. The kinetic and contraction parameters were fitted to describe simultaneously three copolymerization experiments initiated with the given enantiomer of Ini, differing with the initial Lac concentrations.

While in systems with R initiator enantiomer, initially mostly Tmc is consumed, giving presumably the product resembling diblock copolymer, in systems with S-Ini we obtained product containing in the initial parts of chains both comonomers in similar quantities. The chains are terminated eventually with Tmc blocks due to the fact that Lac was consumed before Tmc, used in significant excess. Kinetic analysis confirms this description of products giving both reactivity ratios much higher than unity in R-Ini systems and the product of reactivity ratios lower than unity in S-Ini systems.

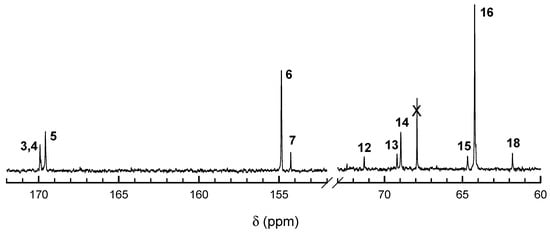

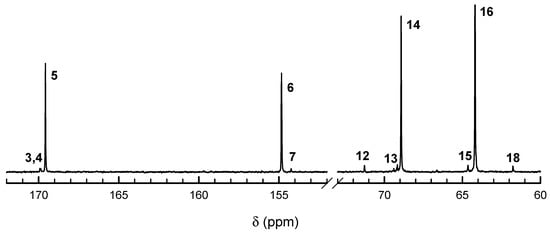

¹³C NMR spectra (Figure 4 and Figure 5) also confirm the above description of copolymers, indicating the large excess of homodyads in products initiated with R-Ini and a low quantity of homodyads LacLac in copolymer initiated with S-Ini, what indicates some tendency to alternacy, as expected from the estimated product of reactivity ratios being significantly lower than unity. Assignment of ¹³C NMR signals is given in Table 1.

Our kinetic analysis allowing us to estimate the reactivity ratios for the studied systems is described in details in Supporting Information. It was based on fitting of the simulated evolution of the studied systems, described by the formulated differential kinetic equations with the relative kinetic parameters, including reactivity ratios, to experimental evolution of the studied systems.

Main results of the primary kinetic analysis are given in

Table 2. The reactivity ratios and relative rates of comonomer consumption ^a estimated for Lac/Tmc copolymerization systems initiated with R-Ini and S-Ini.

Initiator	R-Ini	S-Ini
rL	21.5	1.11
rT	2.5 × 102	9.7 × 10−2
d[Lac]/d[Tmc]	4.1 × 10−4 (0.05)	0.17 (0.02)
	2.5 × 10−3 (0.15)	0.36 (0.05)
	8.9 × 10−3 (0.3)	0.71 (0.15)
	3.3 × 10−2 (0.6)	1.01 (0.3)
	0.35 (2)	1.43 (0.6)

^a Comonomer concentrations ratios corresponding to the calculated ratios of rates of comonomer consumption, assuming the validity of the Mayo-Lewis equation (steady state conditions), are given in parentheses (in bold data for initial ratios for analyzed copolymerizations are given).

while the Figure 2 and Figure 3 present experimental and computed from kinetic analysis evolution of copolymerizations initiated with R and S enantiomers of Ini.

Rather unexpected was the finding that the difference between Tmc reactivity ratios in relation to configuration of Ini (r_T(R) > r_T(S)) is as large as three orders of magnitude. It stems probably from strong steric hindrance of R-Ini residue of active species while the transition state for Lac addition to Tmc * is formed. The corresponding hindrance for Tmc addition is smaller because of the lack of methyl groups, present in Lac. On the other hand, the smaller difference observed for Lac reactivity ratios (r_L(R) > r_L(S)) and indicating that addition of Lac to Lac * is faster than addition of Tmc for both configurations of Ini, is probably due to relatively large differences in activation enthalpies of the corresponding reactions.

It is important to indicate here that our fitting computations could not estimate the z_LL parameter in copolymerizations initiated with S-Ini, nor initiated with the mixture of Ini enantiomers. It is so, because of the systems quickly attaining steady state conditions maintaining the proportion of active species. These steady state conditions, applied also while deriving Mayo-Lewis equations, are generally accepted while analyzing copolymerization kinetics. However, when at least one of the reactivity ratios is very high, attaining of the steady state conditions can require quite large conversions. For such systems, here observed for R-Ini initiated Lac/Tmc copolymerization, the Mayo-Lewis equations can be regarded as giving only crude estimates for relative rates of comonomer consumptions. In fact, the z_LL parameter in ‘normal’ copolymerizations determines the steady state condition ratio of concentrations of Lac * and Tmc * active species, not influencing the relative rates of comonomer consumption. The estimation of the z_LL = k_LL/k_TT parameter can be done only applying some specific methods, for instance analyzing in details the molar mass distribution in relation to chain compositions [37].

Thus, in our simulations, when fitting the relative kinetic parameters for S-Ini systems by minimization of the defined objective function (see Supporting Information), we observed, as expected, independence of the fitting results for r_L and r_T, for any assumed value for z_LL in the range between 10⁻² and 10² (not checked outside this range).

On the other hand, due to non-steady state conditions up to high conversions, while fitting relative parameters for R-Ini systems we could attain minima of the objective function (see Supporting Information), giving different results for r_L and r_T, for any assumed value of z_LL. Besides, also due to slowly attaining the steady state conditions, the fitting results depended on the assumed proportion of initiating unimers. The observed minima were on quite similar levels for z_LL in the range between 10⁻³ and 0.5, being on apparently higher levels outside this range. Thus, our estimates of the reactivity ratios r_L and r_T and of the relative rates of comonomer consumption for R-Ini systems, given in the Table 2, are rather crude. They were obtained for z_LL equal to 4 × 10⁻³, giving only slightly lower the objective function minimum than observed for different z_LL in the indicated range. Moreover, these estimates were obtained assuming initiation exclusively with Tmc unimers. The last assumption was made because of the observed large differences of rates of homopolymerization of Tmc and Lac initiated with R-Ini, Tmc polymerizing much faster, see Supporting Information.

The results presented in Table 2 indicate tremendous differences between copolymerization systems differing only in configuration of asymmetric bulky initiator. While R-Ini gives copolymer of virtually oligoblock structure: initially mostly only Tmc is consumed, forming the corresponding blocks, and next the blocks of poly-Lac are formed. The product of reactivity ratios is very high, indicating that practically negligible inserts of Lac units in the initial, mostly homo-Tmc parts of chains, are short blocks of Lac rather than separate single Lac units. Similarly, at the end parts of chains, being approximately the Lac homo-blocks, one can expect only infrequent inserts of short homo-blocks of Tmc. However, due to a very high r_L, similarly as of r_T, and k_LL << k_TT, (z_LL estimated to be about 10⁻²) some homo-Lac chains, if formed in the initial part of copolymerization, grow slower than chains formed from Tmc unimers. Some of these chains can survive till the end of copolymerizations, forming small, not negligible for systems with not sufficiently high DP_n, fractions of homo Lac polymer, differing in the average molar mass from copolymer chains. One cannot also exclude formation of a fraction of homo-Tmc polymer in some copolymerization systems. This characteristics of R-Ini copolymerization systems results in dispersity of product significantly higher than expected for random copolymerizations proceeding without side reactions like, for instance, segmental exchange or cyclizations. Even if one assumed that the system is initiated only with Tmc unimers (as done by us in simulations giving r_L and r_T values for R-Ini systems in Table 1), dispersity can be quite high, due to slow transformation of Tmc * chains into Lac * chains. This phenomenon resembles slow initiation, which also leads to broadened dispersity.

On the other hand, using as initiator the S-Ini results in initial rates of consumption of both comonomers not differing much and in some tendency to alternacy (product of reactivity ratios about 0.1). Due to the excess of Tmc in all studied copolymerization systems one can expect copolymer chains ended with homoblocks of Tmc containing some small amount of inserts of separated units of Lac.

Our Monte Carlo simulations confirm the above description of copolymer chains, deduced from the estimated reactivity ratios for products obtained in the studied systems.

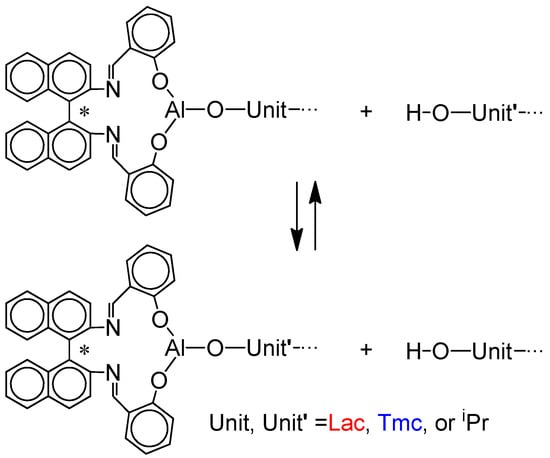

However, there was one experimental inconsistency in numerical simulations with experimental data. Namely, dispersity of copolymer chains initiated with S-Ini (fast inter-transformations of Lac * and Tmc * active species), are significantly higher than expected from simulations assuming, as mentioned above, fast exchange of active chain-ends with hydroxyl terminated ones. A relatively large dispersity (above 1.5 for higher conversions) was successfully explained by the rate of the exchange reactions involving OH terminated chains (Scheme 6) being not sufficiently high. Therefore, the copolymerization systems do not behave exactly, as expected from simulations assuming the discussed until now model. Verifying this hypothesis with Monte Carlo simulations, we came to the conclusion that the hydroxyl terminated chains are probably transformed into living chains with rates much lower than propagation, resulting in broadening of the molar mass distribution. Numerical simulations, described in Supporting Information, taking into account the slow chain-transfer processes, allowed us to estimate the average relative rate constants of chain-exchange in analyzed copolymerizations k_ex/k_TT as well as the effective ratio of homopropagation rate constants k_LLR/k_LLS, important for systems initiated with the mixture of Ini enantiomers, as described below.

Consequently, the presented below results take into account the chain-end exchange reactions in all studied systems.

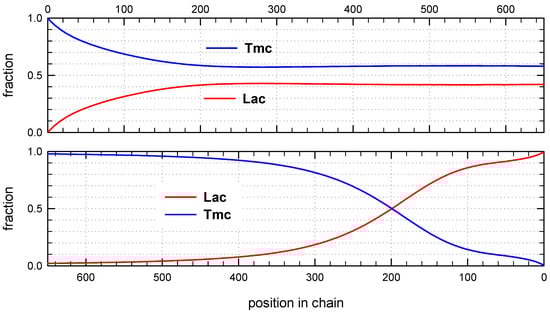

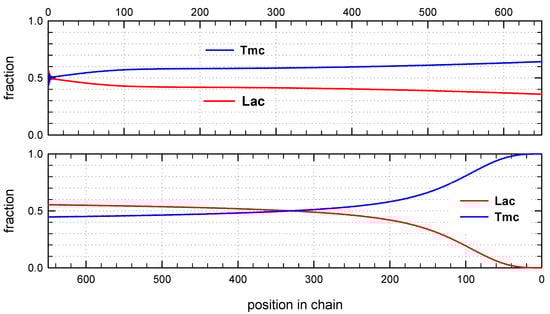

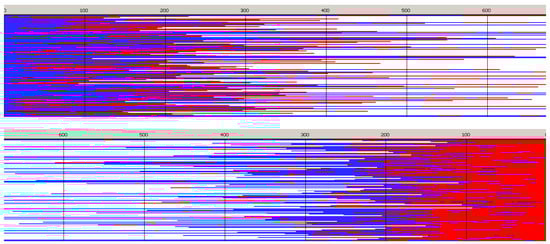

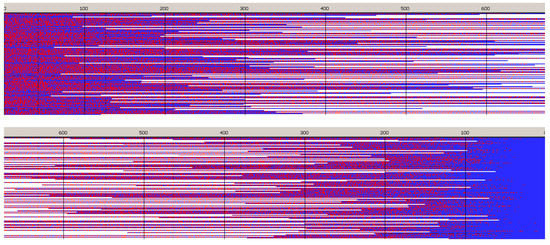

Figure 6, Figure 7, Figure 8 and Figure 9 present structures of copolymer chains formed in systems initiated by S- or R- enantiomer of Ini, simulated by MC method neglecting depropagation reactions. Initial concentrations of reagents were the same: [Tmc]₀ = 2, [Lac]₀ = 1.2 mol·L⁻¹, and [Ini]₀ = 2 × 10⁻³ mol·L⁻¹ (+[ⁱPrOH]₀ = 4 × 10⁻³ mol·L⁻¹ due to in situ synthesis of Ini). The only difference consisted in initiation by Tmc * unimer in case of R- enantiomer and mixture of Tmc * and Lac * unimers (proportionally to comonomer concentrations) in case of S-enantiomer. Reactivity ratios used in each simulation are given in Table 2. Top boxes: plots prepared using unit positions numerated starting from chain beginning; bottom boxes: starting units numeration from chain-end.

Copolymer formed with R-Ini and initiated with Tmc * unimers (Figure 6) is a block copolymer, containing on the average 5.2 blocks in a chain. As it was initiated with Tmc unimers chains start with Tmc blocks and, due to faster consumption of Tmc, chains are terminated with Lac blocks.

Monte Carlo simulations allow to present also the average composition of copolymers along average chain (computed for the whole set of chains) as well as similar distribution of homo and hetero dyads. The corresponding plots are shown in Figure 8 and Figure 9.

The corresponding plots differ, being dependent on numeration of unit positions, starting either from the chain beginning or chain-end. Due to rather broad molar mass distribution these differences are quite large. If position of unit is counted from chain beginning the fractions of copolymer units at more distant positions come to plateau and practically does not change up to chain positions at least about twice DP_n. On the other hand, if unit positions are counted from chain-ends, one can clearly see a gradient-like feature of copolymer chains.

Distribution of units in copolymer formed with S-Ini and initiated with the mixture of Lac-S-Ini * and Tmc-S-Ini * unimers, in proportion corresponding to initial concentration of comonomers (1.2:2) (Figure 7) differs significantly from system initiated by Tmc-R-Ini * unimers.

Initial parts of chains, exceeding up to about 70% of chain length, contain statistical distribution of comonomers, apparently with close to each other proportion of comonomer units, no gradient of comonomer composition along individual chains in these regions were visible. However, when we analyze positions of units and sequences in the whole set of copolymer chains, the contributions of Lac and Tmc units (Figure 9) change slightly steadily with unit position, indicating gradient feature. The shapes of the corresponding plots differ, depending on that if unit positions are numerated starting from the chain beginning or chain-end, similarly as it was observed for R-Ini system.

In the Supporting Information one can find the similar plots presenting distribution of dyads and the average lengths of homoblocks along chain for systems initiated with both Ini enantiomers.

The presented copolymer structures Figure 6 and Figure 7 were prepared choosing the exchange relative parameter z_ex (listed in the Figure captions) to get dispersity close to the observed in experiments. One can observe that z_ex for R- and S-Ini systems differ significantly. It stems probably not only from different reactivities of Lac-R-Res* and Lac-S-Res* species (diastereomers) but also from the simplifying assumption (see Supporting Information) that all relative kinetic exchange parameters are equal, independently on copolymer units neighboring OH group or R/S-Ini residue of active centers.

The rate of chain-end exchange is more important in copolymerization system initiated with the mixture of R and S enantiomers of Ini. It is so because beyond determining copolymer dispersity it predetermines also the effective rate of exchange of the Ini residues of different configuration at active chain-ends and consequently the chain reactivity ratios, establishing copolymer microstructure. Any growing chain can, if the exchange is sufficiently fast, change configuration of its active species, with frequency dependent on the discussed relative rate coefficient z_ex.

3.3. Copolymerization Initiated with the Mixture of Enantiomers of Ini

The observed differences in features of copolymerization systems initiated with R-Ini and S-Ini suggests that one can control, to some extent, copolymerization features by using instead of one enantiomer of the studied asymmetric bulky initiator Ini the mixture of its enantiomers in variable proportions.

We performed such an experiment choosing the proportion of initiators R-Ini:S-Ini equal to 94:6. The large excess of R enantiomer was adopted because the rate of copolymerization initiated with R-Ini, leading to long homo-blocks, is much lower than that initiated with S-Ini and, on the other hand, the latter leads to statistical, almost alternating structures. Thus, the S enantiomer, although being in minority but with relatively fast cross-propagation rate constants, can effectively change the type of active species from Lac * to Tmc * and vice versa. The expected result was to obtain relatively homogeneous multi-block chains.

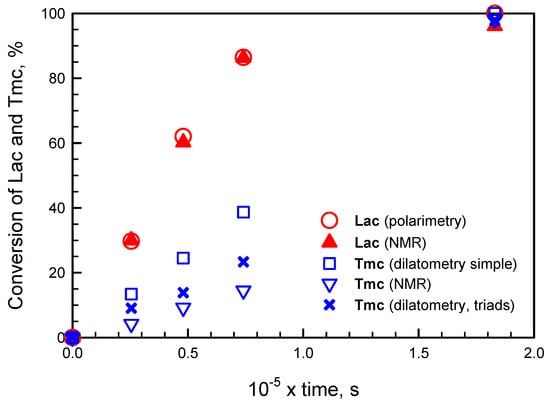

Copolymerization results were only partly as expected. Although the copolymerization rate and proportion of hetero-dyads were higher than in R-Ini copolymerization (for ¹³C NMR see the Supporting Information) and the average number of copolymer blocks increased, a gradient-like feature is still visible in Monte Carlo simulations. It was explained by rather slow, not sufficiently fast, as we expected, exchange of Lac-R-Res * active species (characterized by high reactivity ratio) into Lac-S-Res * active species (via Lac-OH terminating chains, acting as intermediates). If this process was fast enough, Lac-S-Res * could fast attach Tmc comonomer (low reactivity ratio), forming Tmc-S-Res* terminated chain, which can readily attach Lac. Similarly, Tmc-R-Res * active species (high reactivity ratio, slow addition of Lac comonomer unit), apparently not as fast as we expected, can be transformed (also via OH terminated intermediate) into Tmc-S-Res * attaching next relatively quickly Lac, forming Lac-S-Res * species, already discussed. Consequently, contribution of heterodyads, as observed in ¹³C NMR spectrum (Supporting Information), is higher than in copolymer formed with R-Ini, but instead of approximately homogeneous unit distribution, one can rather expect regions in one chain differing in microstructure: those formed with R-Ini * and ones formed with S-Ini* active species

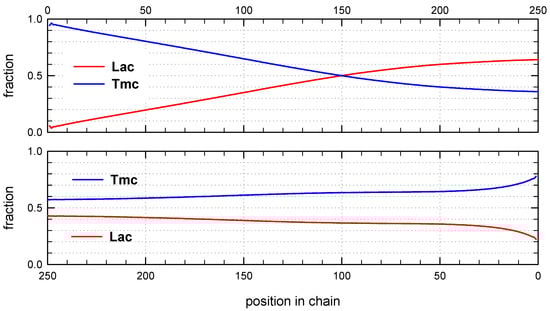

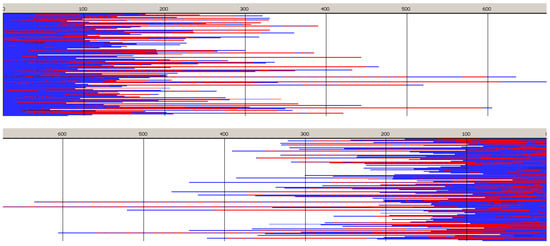

Monte Carlo simulations, presented in Figure 10 and Figure 11 (and those in Supporting Information) confirm the described briefly structure of the copolymer. The average number of blocks is significantly higher (25.3) than estimated for copolymerization initiated with R-Ini (5.2). Unfortunately, due to insufficiently fast exchange of R and S active species one can easily find (Figure 10) segments of copolymer chains containing a statistical distribution of copolymer chains. Consequently, dispersity of block-lengths is high at any chain position (see Supporting Information), being the highest at the beginning of chains (about 10 for Lac, and about 16 for Tmc blocks) and the lowest at chain positions close to active species (about four-five for both types of blocks). In the Supporting Information one can find also the plots presenting the computed distribution of dyads and the average lengths of homoblocks along chain and the discussion concerning the average homoblock lengths along copolymer chains. The average homoblock lengths can be calculated not only in dependence on chain position, but also on the way the homoblocks are selected for computing their average DP.

Analyzing this copolymerization and performing fitting computations, we got to a rather unexpected result. Namely, the reasonably good fitting of kinetic parameters for the chain-end R/S exchanging systems was achieved only when we have removed restriction of equal Tmc homopropagation rate constants on active species terminated with initiator residue Res of different configuration. It can be explained by solvation of Tmc-Res * active species (of both Ini configurations) by asymmetric Lac comonomer molecules and corresponding copolymer units. Depending on configuration of Res presumably different average numbers of asymmetric Lac monomers/copolymer units solvate active species, and consequently also different numbers of Tmc molecules can be present in the corresponding solvation spheres. Thus, different spatial molecular arrangements can be expected around Tmc-R-Res * and Tmc-S-Res * active species. In fact, taking into account asymmetric solvating entities one can consider these active species with their solvation spheres as different environments or arrangements, what results in their different reactivities, and consequently different Tmc homopropagation rate constants k_TTR ≠ k_TTS. These differences in solvation spheres can be of two kinds: Tmc-R-Res * (solvated) and Tmc-S-Res * (solvated) can be diastereomeric if the same numbers of Lac monomer molecules and copolymer units are present in them, or they can differ in numbers of Tmc molecules if enantiomeric Tmc-Res * active species differ in accepting in their solvation spheres asymmetric Lac molecules, competing with symmetric Tmc molecules.

We believe that this presumption based on our simulations (that k_TTR ≠ k_TTS) is sound because not only the corresponding fitting to experimental [Lac] and ΔH is the best but also it gives the closest agreement with experimental [Tmc], determined with ¹³C NMR (Figure 12).

Although this correlation between [Tmc]_exp and [Tmc]_calc obtained applying the devised method with triad dependence of volume contraction coefficients CC is not very good, we think that the observed differences stem from our approximations concerning the assumed model of copolymerization. Namely, the assumed very similar, parallel changes of rate coefficients with conversion and also the approximations concerning volume contraction coefficients may be responsible for the observed discrepancy. We think that the largest errors in estimation of Tmc concentrations are introduced by the limitation of the number of CC coefficients to be fitted, done by assumption that CC_AAB + CC_BAA = CC_AAA + CC_BAB (see Supplementary Materials).

4. Conclusions

We have shown that a bulky asymmetric initiator 2,2′-[1,1′-binaphtyl-2,2′-diyl-bis-(nitrylomethilidyne)]diphenoxy aluminum isopropoxide used in copolymerization of asymmetric monomer Lac with symmetric comonomer Tmc gives an opportunity to synthesize a product with a range of possible structures. Copolymer structure can be controlled by the choice of the initiator enantiomer, or proportion of both used simultaneously, as well as by the proportion of initial comonomer concentrations. When R-enantiomer is used a copolymer built of long homoblocks is formed. Moreover, it can contain some fractions of homo-Lac and homo-Tmc polymers. On the other hand, using the S-Ini results in a statistical copolymer containing random fragments with some tendency to alternacy at the beginning of chains, with approximately 1:1 distribution of copolymer units and homoblocks of Tmc at the end of chains (if, as in our experiments, this comonomer is used in excess).

When copolymerization is initiated with the mixture of R-Ini and S-Ini then copolymer of some intermediate structure can be obtained. For instance using the 94:6 proportion of initiator enantiomers one can obtain a multiblock copolymer with blocks much shorter than those formed while using R enantiomer.

Another important result of our investigation is a rather general observation that analysis of dilatometric data for copolymers may require, as it was in our systems, taking into account the different volume contraction coefficients for copolymer units in different triads. We have proposed the way of solving this analytical problem by numerical fitting of the simulated copolymerization kinetics to experimental data.

The analysis of copolymerization kinetics suggests that kinetic rate coefficients in our systems change with conversion, what was explained by variation of solvation effect involving asymmetric comonomer molecules and copolymer units. This solvation effect can also explain the difference of rate coefficients of Tmc homopropagation on R- and S-enantiomeric Tmc * active species.
