Anion-Controlled Architecture and Photochromism of Naphthalene Diimide-Based Coordination Polymers

by
Jian-Jun Liu
*,
Shu-Biao Xia
,
Yu-Lian Duan
,
Teng Liu
,
Fei-Xiang Cheng
and
Cheng-Ke Sun
Center for Yunnan-Guizhou Plateau Chemical Functional Materials and Pollution Control, Qujing Normal University, Qujing 655011, China
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(2), 165; https://doi.org/10.3390/polym10020165
Submission received: 1 January 2018 / Revised: 6 February 2018 / Accepted: 7 February 2018 / Published: 8 February 2018
(This article belongs to the Special Issue Coordination Polymer)
Browse Figures
Versions Notes

Abstract

:
Three new cadmium coordination polymers, namely [Cd(NO3)2(DPNDI)(CH3OH)]·CH3OH (1), [Cd(SCN)2(DPNDI)] (2), and [Cd(DPNDI)2(DMF)2]·2ClO4 (3) (DPNDI = N,N-di(4-pyridyl)-1,4,5,8-naphthalene diimide, DMF = N,N-dimethylformamide) have been synthesized by reactions of DPNDI with Cd(NO3)2, Cd(SCN)2, and Cd(ClO4)2, respectively. Compound 1 is a one-dimensional coordination polymer with strong lone pair-π interactions between the coordinated NO3− anions and the imide ring of DPNDI; while 2 is a two-dimensional network with a (4, 4) net topology. In the case of 3, due to the presence of uncoordinated perchlorate counter ions, it exhibits a non-interpenetrated square-grid coordination polymer containing one-dimensional rhomboid channels. The structural diversity in these compounds is attributed to different coordination abilities and geometries of counter anions. Due to the presence of electron-deficient NDI moiety, the photochromic behavior of these compounds was studied. Interestingly, only compounds 1 and 3 exhibit color changes under light irradiation. The influence of the anions on the photochromism process of the NDI-based materials has been discussed.

Graphical Abstract

1. Introduction

Due to the versatility of coordination polymers in crystal structures and chemical compositions, they have developed into an important class of materials and enable a wide range of applied properties, such as catalysis, guest/ion-exchange, fluorescence, adsorption, and separation [1,2,3,4,5,6,7,8]. So far, although a large number of coordination networks have been reported, synthesis of coordination polymers with desired topology still remains a long-term challenge to chemists because many factors, such as pH value, solvents, temperature, and counter ions affect the final structures of the coordination polymers [9,10,11,12,13,14]. As we know, anions play important roles in the formation of coordination polymers. For example, some anions, such as X−, NO3−, and CH3COO− with strong coordination ability can coordinate to metal ions or bridge metal centers to generate multi-nuclear units or high-dimensional frameworks [15,16,17,18], but some other anions, such as PF6−, ClO4−, BF4−, and CF3SO3− possess very weak coordination ability and usually act as counterions and templates in the formation of the products [19,20,21]. Although many studies on anion-controlled formation of coordination polymers have been reported, very few examples of anion effect on the photochromic properties of coordination polymers have been involved so far because it is usually difficult to create appropriate coordination polymers with photochemical activity, but also containing different anions [22,23,24].
Naphthalene diimide (NDI) possess π-conjugated planes, high redox activity, and strong π-acidity, which are excellent candidates of organic ligands for the construction of photochromic coordination polymers due to the controllability of the substituent groups on the diimide nitrogens and the reversibility of the electron transfer [25,26,27]. Many groups have been used as NDI derivatives as catalysts through anion-π catalysis, and as organic ligands to construct coordination polymers [26,28,29,30,31,32,33]. In order to investigate the detailed effect of different anions on the structures and photochromic properties, and as coordination polymers constructed by the neutral ligands have close relationship with the counter anions [34], we chose a neutral ligand N,N-di(4-pyridyl)-1,4,5,8-naphthalene diimide (DPNDI) as an organic ligand. The counter anions can greatly influence the resultant supramolecular architectures because they can either coordinate to the metal center or accommodate in the frameworks for charge-balance requirements. As expected, three Cd(II) coordination polymers, namely [Cd(NO3)2(DPNDI)(CH3OH)]·CH3OH (1), [Cd(SCN)2(DPNDI)] (2), and [Cd(DPNDI)2(DMF)2]·2ClO4 (3) were obtained when reaction of DPNDI with Cd(NO3)2, Cd(SCN)2, and Cd(ClO4)2, respectively, in which 1 is a one-dimensional linear network showing strong lone pair-π interactions, 2 is a two-dimensional networks with the (4, 4) net topology, while 3 is also a two-dimensional network showing a one-dimensional rhomboid channel. It was found that counter anions significantly affect the final structureof the crystal lattice. Moreover, the influence of the anions on the photochromism process of these compounds has been also discussed.

2. Experimental Section

2.1. Materials and Methods

All chemicals and reagents were used as received unless otherwise stated. The organic ligand DPNDI was synthesized according to the same procedures reported in the literature [35]. The infrared spectra were obtained in the range of 400–4000 cm‒1 from a Perkin-Elmer FT-IR spectrophotometer (Waltham, MA, USA), and powder X-ray diffraction (PXRD) were recorded on a Rigaku MiniFlex-II X-Ray diffractometer (Tokyo, Japan) using graphite-monochromated Cu Kα radiation (λ = 1.5406 Å) in the range of 5–50°. TGA measurements were performed on a TG-209 system (DuPont, Wilmington, DE, USA), with a heating rate of 10 °C/min with N2 atmosphere. The electron spin resonance (ESR) measurements were obtained on a Bruker A300 instrument (Billerica, MA, USA) operating in the X-band at room temperature using powder crystal material. Luminescent properties were recorded on an Edinburgh Instrument FLS 920 luminescence spectrometer (Livingston, UK). UV–Vis diffuse reflectance spectra were recorded at room temperature on a Perkin–Elmer Lambda 900 UV–Vis spectrophotometer (Waltham, MA, USA) equipped with an integrating sphere by using BaSO4 as a white standard in the range of 300–800 nm.

2.2. Synthesis of [Cd(NO3)2(DPNDI)(CH3OH)]·CH3OH (1)

A solution of Cd(NO3)2·4H2O (61.6 mg, 0.2 mmol) in CH3OH (5 mL) was carefully layered onto a solution of DPNDI (21.0 mg, 0.05 mmol) in N,N′-dimethylacetamide (5 mL) in a test tube. The solution was left to stand for several days in the dark at room temperature, and light-yellow crystals of 1 were obtained (yield: 42% based on DPNDI). Anal. Calcd for C28H20CdN6O14: C 43.25, H 2.57, N 10.81%. Found: C 43.52, H 2.50, N 10.88%. IR (KBr, cm‒1): 3067 (w), 2938 (w), 1724 (s), 1676 (s), 1590 (s), 1433 (m), 1347 (s), 1294 (s), 1247 (s), 1028 (m), 871 (m), 833 (m), 762 (s), 632 (m), 528 (s).

2.3. Synthesis of [Cd(SCN)2(DPNDI)] (2)

A solution of Cd(SCN)2 (45.6 mg, 0.2 mmol) in CH3OH (5 mL) was carefully layered onto a solution of DPNDI (21.0 mg, 0.05 mmol) in N,N′-dimethylacetamide (5 mL) in a test tube. The solution was left to stand for several days in the dark at room temperature, and yellow crystals of 2 were obtained (yield: 58% based on DPNDI). Anal. Calcd for C26H12CdN6O4S2: C 48.07, H 1.85, N 12.94%. Found: C 48.73, H 1.98, N 13.06%. IR (KBr pellet, cm−1): 3596 (w), 3510 (w), 3057 (w), 2095 (s), 1714 (m), 1667 (s), 1576 (s), 1442 (m), 1342 (m), 1243 (s), 1185 (s), 976 (m), 833 (m), 751 (s), 632 (m), 523 (s).

2.4. Synthesis of [Cd(DPNDI)2(DMA)2]·2ClO4 (3)

A solution of Cd(ClO4)2·6H2O (83.9 mg, 0.2 mmol) in CH3OH (5 mL) was carefully layered onto a solution of DPNDI (21.0 mg, 0.05 mmol) in N,N′-dimethylacetamide (5 mL) in a test tube. The solution was left to stand for several days in the dark at room temperature, and light-yellow crystals of 3 were obtained (yield: 45% based on DPNDI). Anal. Calcd. for C56H42CdCl2N10O18: C 50.67, H 3.17, N 10.55%. Found: C 50.93, H 3.41, N 11.08%. IR (KBr, cm‒1): 3229 (br, w), 2938 (w), 1714 (m), 1676 (m), 1609 (s), 1499 (m), 1400 (m), 1342 (s), 1254 (s), 1080 (s), 971 (s), 890 (s), 789 (s), 590 (m), 513 (m).

2.5. X-ray Data Collection and Structure Refinement

The crystallographic data for compounds 1, 2, and 3 were collected at 153 K using a Rigaku-AFC7 (Tokyo, Japan) equipped with a Saturn CCD area-detector system. Measurements were made by using graphite-monochromatic Mo Kα radiation (λ = 0.71073 Å). The frame data were integrated, and absorption correction was calculated using the Rigaku CrystalClear program package (Tokyo, Japan). All the structures were solved by direct methods with the SHELXS-97 program (Göttingen, Germany) [36], and refined by full-matrix least-squares methods on F2 using the SHELXL-2014 program package (Göttingen, Germany) [37]. All non-hydrogen atoms were refined anisotropically, and hydrogen atoms of aromatic rings were placed at calculated positions and refined isotropically using a riding mode. The crystal data and the structure refinements are summarized in Table 1. Crystallographic data have been deposited in the Cambridge Crystallographic Data Center as supplementary publication number CCDC 1,812,274–1,812,276 for 1–3, which can be obtained free of charge from the Cambridge Crystallographic Data Centre via www.ccdc.cam.ac.uk/data_request/cif. Experimental details for X-ray data collection and the refinements are summarized in Table 1.

3. Results and Discussion

3.1. Crystal Structure

Single-crystal X-ray analysis reveals that compound 1 is a 1D coordination polymer. There are half of a Cd2+ ion, one half of a DPNDI, one NO3− anion, one coordinated methanol molecule, and one free methanol molecule in the asymmetric unit. As shown in Figure 1a, each Cd cation is coordinated in hexagonal bipyramidal geometry by four oxygen atoms from two NO3− anions, two oxygen atoms from two methanol molecules (dCd-O = 2.160–2.517 Å) and two nitrogen atoms from two electron-deficient DPNDI ligands (dCd-N = 2.295 Å). The neighboring two Cd cations are bridged by DPNDI ligands to form a one-dimensional coordination polymer (Figure 1b). For each DPNDI, the dihedral angle between NDI core and pyridine group is around 83.9°, which is slightly larger than that of free ligand [38].
In the one-dimensional linear networks, each smallest repetitive unit contains one free methanol molecule which is pointed to the imide ring of DPNDI unit through lone pair-π interaction. The distance between the oxygen lone-pair electrons in methanol molecule and the imide ring is only 2.785 Å (Figure 1b), which is much shorter than that reported previously [38]. Interestingly, the neighboring two one-dimensional coordination polymers are connected each other through another lone pair-π interactions between the lone pair-bearing coordinated NO3− anions and imide ring of DPNDI, to generate a two-dimensional supramolecular network (Figure 1c). The distance between oxygen atoms of coordinated NO3− anions and the imide rings is 2.953 Å. These 2D networks are further connected by van der Waals interactions to form a three-dimensional supramolecular architecture.
Single-crystal X-ray diffraction analysis reveals that 2 crystallizes in the triclinic space group P 1 ¯ and is composed of a two-dimensional framework. The asymmetric unit of 2 contains a half of Cd2+ cation, a half of DPNDI ligand and one SCN− anion (Figure 2a). The Cd2+ cation has a slightly distorted octahedral coordination environment, with the site occupied by two nitrogen atoms from two DPNDI, two nitrogen atoms from two SCN− anions (dCd-N = 2.265–2.381 Å), and two sulfur atoms from two other SCN− anions (dCd-S = 2.709 Å). Each Cd2+ cation is connected by two DPNDI ligands to form a one-dimensional coordination configuration (Figure 2b). As shown in Figure 2c, the one-dimensional units are connected each other by S and N atoms of SCN− anions resulting in a two-dimensional grid network with the Cd···Cd separations of 5.771 Å. The metal ions play a role as 4-connecting nodes in this grid network. If the DPNDI node is represented by the N–N bond, two thiocyanates node is represented by N–S bond, connections between the metal nodes, the DPNDI and thiocyanates nodes alternately will bring about a 2D (4, 4) topological network, as shown in Figure 2d; and there are π···π stacking interactions (3.358 Å) between the naphthalene rings in the (4, 4) grid. In the crystal lattice, such 2D networks are piled up in parallel and separated by solvent molecules.
Single-crystal X-ray diffraction analysis reveals that 3 crystallizes in the monoclinic space group C2/c and is composed of an extrodinarily large, cationic square-grid framework carrying two ClO4− anions in each square cavity. The asymmetric unit consists of one half of Cd2+ cation, one DPNDI ligand, one DMA molecule and one ClO4− anion (Figure 3a). It should be pointed out that the diffraction data were treated by the SQUEEZE during the refinement to remove diffuse electron density associated with these largely disordered solvent molecules [39]. Each octahedral Cd2+ cation is linked by four equatorial DPNDI tectons through the formation of Cd–N bonds (dCd–N = 2.352 Å) and capped by two O atoms from two DMA molecules in axial directions through the formation of Cd–O bonds (dCd–N = 2.301 Å), which leads to a non-interpenetrated and cationic two-dimensional network with square cavities of around 20 Å × 20 Å (Figure 3b). In a given grid, the Cd2+ cations are responsible for the square-grid architecture, the ClO4− anions play important roles in preventing interpenetration of networks by partially occupying the cavities and aligning planar network sheets parallel to each other by participating in CH···anion interactions with core-Hs of DPNDI (dC–O = 3.168 Å) (Figure 3b). Along c axis, the neighboring two-dimensional networks are further bridged by ClO4− anions through another CH···anion interactions to form a three-dimensional framework with one-dimensional channels filled by ClO4− anions and solvent molecules (Figure 3c).

3.2. Photochromic Properties

Compounds 1 and 3 are photosensitive, giving a color change from yellow into brown or dark brown upon exposure to UV–VIS light in air within 5 min (Figure 4). However, no color changes are observed for compound 2 even when irradiated for 30 min. The photoproducts of 1 and 3 are stable in air, but can return to yellow in a dark room for one day at room temperature. In addition, such decolored samples can also display color changes after irradiation again, which indicates reversible photochromism of 1 and 3. X-Ray crystallography and PXRD reveals that the crystal structures of photoproducts of 1 and 3 are identical to original of 1 and 3 (Figures S4–S6), but their UV–Vis spectra are different (Figure 4). This phenomenon indicates that the photo-responsive behaviors may be a result from an electron-transfer chemical process in the structure, and not from a structural transformation. As shown in Figure 4, the original of 1–3 show strong absorption bands below 500 nm, which corresponds to the n–π* and π–π* transition of the conjugated aromatic ligand [40]. After irradiation, the photochromic products of 1 and 3 show new characteristic bands around 520 nm and 645 nm. These characteristic spectral bands are similar to that observed for NDI radical, suggesting that the color changes of 1 and 3 may arise from the photo-induced generation of radicals in DPNDI molecules [29,30,41].
To confirm the generation of the radicals, the electron spin resonance (ESR) spectra of 1–3 were measured before and after irradiation (Figure 5). Compounds 1 and 3 exhibit no ESR signal before irradiation, but strong ESR signals at 2.0026 and 2.0019 for compounds 1 and 3 are observed after irradiation, which are similar to those found in NDI-based coordination polymers [29,30,32,40]. This indicates that DPNDI ligand is indeed reduced to generate DPNDI− free radicals after two compounds are irradiated. On the contrary, 2 shows no ESR signals before and after irradiation (Figure 5c), which evidences, again, the silence of its photochromism.

3.3. Luminescence

Coordination polymers containing metal centers with the d10 electron configuration have been attracting more interest because of their wide-spread applications in chemical sensors, labeling, and photo-chemistry [42]. Considering the luminescence performance of DPNDI (Figure S7), the d10 Cd(II) metal ion, and the photochromism of 1 and 3, the photo-controlled luminescence of these compounds were studied in the solid state at room temperature. As shown in Figure 6, compound 1-3 can exhibit blue luminescence with emission maximum at 462, 448, and 495 nm, respectively, upon excitation at 350 nm. For compounds 1 and 3, photocontrolled tunable luminescences are observed under the trigger of ultraviolet visible light. The strength of the emission of 1 and 3 are gradually reduced under ultraviolet visible light irradiation, and the luminescence is almost quenching when the samples change to dark brown after irradiating for six minutes (Figure 4a,c), but their luminescence can be recovered when the samples stand in the dark for several hours. These distinct behaviors indicate that the photocontrolled tunable luminescence of 1 and 3 are reversible, which further demonstrate that there are electron-transfer interactions among the components of the compounds during irradiation, thus resulting in weaker luminescence and even quenching. However, for compound 2, almost no obvious changes are observed even upon irradiation for 30 min (Figure 4b).
On the basis of the above results, the anions should play a very important role in determining the structures of the three Cd(II) cadmium coordination polymers. The nature (coordinating ability and geometry) of the anions is the primary reason. In 1, the NO3− anion coordinates to the Cd(II) cation in a terminal chelating mode, which prevents the structure extending into a higher dimension. When the anions are changed to SCN−, the 2D layered networks of 2 are obtained, due to the adjacent 1D chains bridged by SCN−. Compared with NO3− and SCN−, the coordinating ability of ClO4− is worst in the construction of coordination polymers. The ClO4− cannot coordinate to the Cd(II) cation in the self-assembly of 3 and it is located at the 1D channel as a counter ion. It is known that MeOH and DMA are electron-donating species, which can give electron in redox photochromic metal complexes [43,44]. Therefore, the radical generation in 1 and 3 are related to electron transfer pathway from solvent molecules (based on TGA data, Figures S1–S3), but not the anions to DPNDI, which coincides with the recent examples [44,45]. For 2, because S atoms of SCN¯ anions coordinated to the Cd(II) cation, they can remotely donate some electrons from the electronegative S atoms to the electron-deficient NDI cores, which will slightly decrease the π-acidities of the DPNDI (increase the LUMO level of DPNDI) [46]. In other words, the electron-accepting ability of the DPNDI in 2 is slightly decreased by the coordinated SCN− anion, which probably results in the energy level not matching between the solvent molecules and electron-deficient DPNDI electron-deficient NDI. Thus, only 1 and 3 can undergo a photoinduced radical generation upon irradiation, while 2 is silent to the light.

4. Conclusions

In summary, three coordination polymers were successfully constructed from the DPNDI ligand and cadmium ions with different counter anions. Compound 1 displays the one-dimensional linear network, 2 displays the two-dimensional network with the (4, 4) net topology, and 3 is a non-interpenetrated square-grid coordination polymer containing one-dimensional rhomboid channels. The structural differences between compounds 1, 2, and 3 reveals that the coordination abilities and geometries of counter anions have a significant influence on the assembly procedure. Moreover, due to the different electron donating abilities of counter anions, they exhibit different photochromic behaviors upon irradiation. These studies demonstrate that counter anions not only affect the geometry of coordination polymers, but also can effectively control the photochromic properties of coordination polymers.

Supplementary Materials

Luminescence spectra of ligand, TG curves of compounds 1–3, and PXRD. The supplementary materials are available online at https://www.mdpi.com/2073-4360/10/2/165/s1.

Acknowledgments

This work has been supported by National Natural Science Foundation of China (award No. 51764048) and Application Basis Research Project of Yunnan Province Science and Technology Department (award No. 2017FD144).

Author Contributions

Jian-Jun Liu and Fei-Xiang Cheng conceived and designed the experiments; Shu-Biao Xia performed the experiments; Yu-Lian Duan and Teng Liu analyzed the data; Cheng-Ke Sun contributed reagents/materials/analysis tools; and Jian-Jun Liu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Medishetty, R.; Zaręba, J.K.; Mayer, D.; Samoć, M.; Fischer, R.A. Nonlinear optical properties, upconversion and lasing in metal–organic frameworks. Chem. Soc. Rev. 2017, 46, 4976–5004. [Google Scholar] [CrossRef] [PubMed]
  2. Jiang, J.; Furukawa, H.; Zhang, Y.-B.; Yaghi, O.M. High methane storage working capacity in metal organic frameworks with acrylate links. J. Am. Chem. Soc. 2016, 138, 10244–10251. [Google Scholar] [CrossRef] [PubMed]
  3. De Voorde, B.V.; Bueken, B.; Denayer, J.; Vos, D.D. Adsorptive separation on metal–organic frameworks in the liquid phase. Chem. Soc. Rev. 2014, 43, 5766–5788. [Google Scholar] [CrossRef] [PubMed]
  4. Bobbitt, N.S.; Mendonca, M.L.; Howarth, A.J.; Islamoglu, T.; Hupp, J.T.; Farha, O.K.; Snurr, R.Q. Metal–organic frameworks for the removal of toxic industrial chemicals and chemical warfare agents. Chem. Soc. Rev. 2017, 46, 3357–3385. [Google Scholar] [CrossRef] [PubMed]
  5. Yoon, M.; Srirambalaji, R.; Kim, K. Homochiral metal–organic frameworks for asymmetric heterogeneous catalysis. Chem. Rev. 2012, 112, 1196–1231. [Google Scholar] [CrossRef] [PubMed]
  6. Kreno, L.E.; Leong, K.; Farha, O.K.; Allendorf, M.; Duyne, R.P.V.; Hupp, J.T. Metal–organic framework materials as chemical sensors. Chem. Rev. 2012, 112, 1105–1125. [Google Scholar] [CrossRef] [PubMed]
  7. Cui, Y.; Yue, Y.; Qian, G.; Chen, B. Luminescent functional metal–organic frameworks. Chem. Rev. 2012, 112, 1126–1162. [Google Scholar] [CrossRef] [PubMed]
  8. Lu, W.; Wei, Z.; Gu, Z.-Y.; Liu, T.-F.; Park, J.; Park, J.; Tian, J.; Zhang, M.; Zhang, Q.; Gentle, T., III; et al. Tuning the structure and function of metal–organic frameworks via linker design. Chem. Soc. Rev. 2014, 43, 5561–5593. [Google Scholar] [CrossRef] [PubMed]
  9. Stock, N.; Biswas, S. Synthesis of metal-organic frameworks (MOFs): Routes to various MOF topologies, morphologies, and composites. Chem. Rev. 2012, 112, 933–969. [Google Scholar] [CrossRef] [PubMed]
  10. Zhang, S.-Y.; Li, D.; Guo, D.; Zhang, H.; Shi, W.; Cheng, P.; Wojtas, L.; Zaworotko, M.J. Synthesis of a chiral crystal form of MOF-5, CMOF-5, by chiral induction. J. Am. Chem. Soc. 2015, 137, 15406–15409. [Google Scholar] [CrossRef] [PubMed]
  11. Wu, X.-W.; Pan, F.; Zhang, D.; Jin, G.-X.; Ma, J.-P. Self-assembly of new M(II) coordination polymers based on asymmetric 1,3,4-oxadiazole-containing ligands: Effect of counterions and magnetic properties. CrystEngComm 2017, 19, 5864–5872. [Google Scholar] [CrossRef]
  12. Li, T.; Hong, X.-J.; Liu, X.; Chen, R.; Zhan, Q.-G.; Xu, X.; Cai, Y.-P. Construction of three pH-dependent luminescent metal–organic frameworks with 3-(4-carboxyphen-yl)-1,3-benzoimidazole. CrystEngComm 2014, 16, 3883–3889. [Google Scholar] [CrossRef]
  13. Yu, H.-Y.; Fang, X.; Zhang, K.-K.; Lin, M.-J.; Gao, D.; Huang, M.-D.; Wang, J.-D. Hydrothermal synthesis of benzothiazole–carboxylic cadmium(II) coordination networks: pH-Controlled topologies and compositional distributions. CrystEngComm 2013, 15, 343–348. [Google Scholar] [CrossRef]
  14. Lee, J.Y.; Lee, S.Y.; Sim, W.; Park, K.-M.; Kim, J.; Lee, S.S. Temperature-dependent 3-D CuI coordination polymers of calix[4]-bis-dithiacrown: Crystal-to-crystal transformation and photoluminescence change on coordinated solvent removal. J. Am. Chem. Soc. 2008, 130, 6902–6903. [Google Scholar] [CrossRef] [PubMed]
  15. Du, M.; Bu, X.-H.; Huang, Z.; Chen, S.-T.; Guo, Y.-M. From metallacyclophanes to 1-D coordination polymers:  Role of anions in self-assembly processes of copper(II) and 2,5-bis(3-pyridyl)-1,3,4-oxadiazole. Inorg. Chem. 2003, 42, 552–559. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, Z.; Zhang, B.; Kurmoo, M.; Green, M.A.; Fujiwara, H.; Otsuka, T.; Kobayashi, H. Synthesis and characterization of a porous magnetic diamond framework, Co3(HCOO)6, and Its N2 sorption characteristic. Inorg. Chem. 2005, 44, 1230–1237. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, H.; Yan, Z.-H.; Luo, Y.; Zheng, X.-Y.; Kong, X.-J.; Long, L.-S.; Zheng, L.-S. Anion-controlled assembly of a series of heterometallic 3d–4f compounds with 0D cluster, 1D chain, 2D network and 3D frameworks. CrystEngComm 2016, 18, 4142–4149. [Google Scholar] [CrossRef]
  18. Chen, Z.; Zhang, L.; Liu, F.; Wang, R.; Sun, D. Anion-controlled formation of two silver lamella frameworks based on in situ ligand reaction. CrystEngComm 2013, 15, 8877–8880. [Google Scholar] [CrossRef]
  19. Cui, F.; Li, S.; Jia, C.; Mathieson, J.S.; Cronin, L.; Yang, X.-J.; Wu, B. Anion-dependent formation of helicates versus mesocates of triple-stranded M2L3 (M = Fe2+, Cu2+) Complexes. Inorg. Chem. 2012, 51, 179–187. [Google Scholar] [CrossRef] [PubMed]
  20. Ni, J.; Wei, K.-J.; Liu, Y.; Huang, X.-C.; Li, D. Silver coordination polymers based on neutral trinitrile ligand: Topology and the role of anion. Cryst. Growth Des. 2010, 10, 3964–3976. [Google Scholar] [CrossRef]
  21. Tanaka, D.; Kitagawa, S. Template effects in porous coordination polymers. Chem. Mater. 2008, 20, 922–931. [Google Scholar] [CrossRef]
  22. Liu, J.-J.; Guan, Y.-F.; Lin, M.-J.; Huang, C.-C.; Dai, W.-X. Anion-mediated architecture and photochromism of rigid bipyridinium-based coordination polymers. Cryst. Growth Des. 2016, 16, 2836–2842. [Google Scholar] [CrossRef]
  23. Shen, J.-J.; Wang, F.; Yu, T.-L.; Zhang, F.-Q.; Tian, L.; Fu, Y.-L. Halogen-dependent photoinduced electron transfer and chromism of three protonated nicotinohydrazide halozincates. Dalton Trans. 2017, 46, 5414–5419. [Google Scholar] [CrossRef] [PubMed]
  24. Sun, J.-K.; Wang, P.; Yao, Q.-X.; Chen, Y.-J.; Li, Z.-H.; Zhang, Y.-F.; Wu, L.-M.; Zhang, J. Solvent- and anion-controlled photochromism of viologen-based metal–organic hybrid materials. J. Mater. Chem. 2012, 22, 12212–12219. [Google Scholar] [CrossRef]
  25. Kobaisi, M.A.; Bhosale, S.V.; Latham, K.; Raynor, A.M.; Bhosale, S.V. Functional naphthalene diimides: Synthesis, properties, and applications. Chem. Rev. 2016, 116, 11685–11796. [Google Scholar] [CrossRef] [PubMed]
  26. Pan, M.; Lin, X.-M.; Li, G.-B.; Su, C.-Y. Progress in the study of metal–organic materials applying naphthalene diimide (NDI) ligands. Coord. Chem. Rev. 2011, 255, 1921–1936. [Google Scholar] [CrossRef]
  27. Bhosale, S.V.; Jani, C.H.; Langford, S.J. Chemistry of naphthalene diimides. Chem. Soc. Rev. 2008, 37, 331–342. [Google Scholar] [CrossRef] [PubMed]
  28. Zhao, Y.; Domoto, Y.; Orentas, E.; Beuchat, C.; Emery, D.; Mareda, J.; Sakai, N.; Matile, S. Catalysis with Anion-π interactions. Angew. Chem. Int. Ed. 2013, 52, 9940–9943. [Google Scholar] [CrossRef] [PubMed]
  29. Han, L.; Qin, L.; Xu, L.; Zhou, Y.; Sun, J.; Zou, X. A novel photochromic calcium-based metal–organic framework derived from a naphthalene diimide chromophore. Chem. Commun. 2013, 49, 406–408. [Google Scholar] [CrossRef] [PubMed]
  30. Xie, Y.-X.; Zhao, W.-N.; Li, G.-C.; Liu, P.-F.; Han, L. A Naphthalenediimide-based metal–organic framework and thin film exhibiting photochromic and electrochromic properties. Inorg. Chem. 2016, 55, 549–551. [Google Scholar] [CrossRef] [PubMed]
  31. Li, G.-B.; Liu, J.-M.; Cai, Y.-P.; Su, C.-Y. Structural diversity of a series of Mn(II), Cd(II), and Co(II) complexes with pyridine donor diimide ligands. Cryst. Growth Des. 2011, 11, 2763–2772. [Google Scholar] [CrossRef]
  32. Mallick, A.; Garai, B.; Addicoat, M.A.; Petkov, P.S.; Heine, T.; Banerjee, R. Solid state organic amine detection in a photochromic porous metal organic framework. Chem. Sci. 2015, 6, 1420–1425. [Google Scholar] [CrossRef]
  33. Feng, X.; Chen, W.; Xiang, B. Solvothermal syntheses, crystal structures, and luminescent properties of two new cadmium(II) coordination polymers based on rigid/flexible dicarboxylate and N,N′-Bis(4-pyridyl)-1,4,5,8-naphthalenetetracarboxydiimide. Z. Anorg. Allg. Chem. 2015, 641, 853–857. [Google Scholar] [CrossRef]
  34. Liao, J.-Z.; Dui, X.-J.; Zhang, H.-L.; Wu, X.-Y.; Lu, C.-Z. Polyoxometalate anion-π interaction-directed assembly of a three-dimensional hydrogen-bonded supramolecular framework with nanoscale porosity. CrystEngComm 2014, 16, 10530–10533. [Google Scholar] [CrossRef]
  35. Guha, S.; Goodson, F.S.; Corson, L.J.; Saha, S. Boundaries of anion/naphthalenediimide interactions: From anion-π interactions to anion-induced charge-transfer and electron-transfer phenomena. J. Am. Chem. Soc. 2012, 134, 13679–13691. [Google Scholar] [CrossRef] [PubMed]
  36. Sheldrick, G.M. A short history of SHELX. Acta Crystallogr. Sect. A 2008, 64, 112–122. [Google Scholar] [CrossRef] [PubMed]
  37. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  38. Liu, J.-J.; Hong, Y.-J.; Guan, Y.-F.; Lin, M.-J.; Huang, C.-C.; Dai, W.-X. Lone pair-π interaction-induced generation of non-interpenetrated and photochromic cuboid 3-D naphthalene diimide coordination networks. Dalton Trans. 2015, 44, 653–658. [Google Scholar] [CrossRef] [PubMed]
  39. Spek, A.L. Single-crystal structure validation with the program PLATON. J. Appl. Cryst. 2003, 36, 7–13. [Google Scholar] [CrossRef]
  40. Liao, J.-Z.; Zhang, H.-L.; Wang, S.-S.; Yong, J.-P.; Wu, X.-Y.; Yu, R.; Lu, C.-Z. Multifunctional radical-doped polyoxometalate-based host−guest material: Photochromism and photocatalytic activity. Inorg. Chem. 2015, 54, 4345–4350. [Google Scholar] [CrossRef] [PubMed]
  41. Leong, C.F.; Chan, B.; Faust, T.B.; D’Alessandro, D.M. Controlling charge separation in a novel donor–acceptor metal–organic framework via redox modulation. Chem. Sci. 2014, 5, 4724–4728. [Google Scholar] [CrossRef]
  42. Hu, Z.; Deibert, B.J.; Li, J. Luminescent metal–organic frameworks for chemical sensing and explosive detection. Chem. Soc. Rev. 2014, 43, 5815–5840. [Google Scholar] [CrossRef] [PubMed]
  43. Qin, S.; Xin, F.; Liu, Y.; Yin, X.; Ma, W. Photocatalytic reduction of CO2 in methanol to methyl formate over CuO–TiO2 composite catalysts. J. Colloid Interface Sci. 2011, 356, 257–261. [Google Scholar] [CrossRef] [PubMed]
  44. Liao, J.-Z.; Wu, X.-Y.; Yong, J.-P.; Zhang, H.-L.; Yang, W.-B.; Yu, R.; Lu, C.-Z. Anion-π Interaction-Directed Assembly of Polyoxometalate-Based Host–Guest Compounds and Its Contribution to Photochromism. Cryst. Growth Des. 2015, 15, 4952–4958. [Google Scholar] [CrossRef]
  45. Liu, J.-J.; Guan, Y.-F.; Chen, Y.; Lin, M.-J.; Huang, C.-C.; Dai, W.-X. The impact of lone pair-π interactions on photochromic properties in 1-D naphthalene diimide coordination networks. Dalton Trans. 2015, 44, 17312–17317. [Google Scholar] [CrossRef] [PubMed]
  46. Sakai, N.; Mareda, J.; Vauthey, E.; Matile, S. Core-substituted naphthalenediimides. Chem. Commun. 2010, 46, 4225–4237. [Google Scholar] [CrossRef] [PubMed]
Polymers 10 00165 g001 550

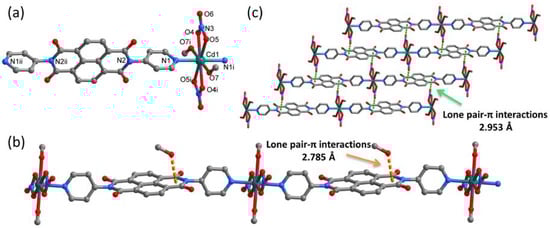

Figure 1. (a) Coordination environment of Cd2+ in 1, symmetry codes: (i) 2 – x, –y, 1 – z; (ii) –x, 2 – y, –z; (b) the lone pair-π interactions between NDI units and methanol; and (c) the lone pair-π interactions extending the one-dimensional chains into a two-dimensional supramolecular network. All hydrogen atoms are omitted for clarity.
Figure 1. (a) Coordination environment of Cd2+ in 1, symmetry codes: (i) 2 – x, –y, 1 – z; (ii) –x, 2 – y, –z; (b) the lone pair-π interactions between NDI units and methanol; and (c) the lone pair-π interactions extending the one-dimensional chains into a two-dimensional supramolecular network. All hydrogen atoms are omitted for clarity.
Polymers 10 00165 g001
Polymers 10 00165 g002 550

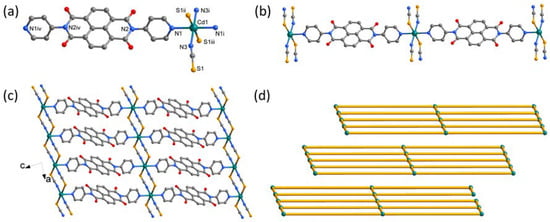

Figure 2. (a) The coordination environment of the Cd atom in 2, symmetry codes: (i) 1 – x, –y, –z; (ii) –1 + x, y, z; (iii) 2 – x, –y, –z; (iv) –x, 1 – y, 1 – z; (b) the one-dimensional coordination configuration; (c) the two-dimensional framework view along the ac plane; and (d) the topological structure of 2. All hydrogen atoms are omitted for clarity.
Figure 2. (a) The coordination environment of the Cd atom in 2, symmetry codes: (i) 1 – x, –y, –z; (ii) –1 + x, y, z; (iii) 2 – x, –y, –z; (iv) –x, 1 – y, 1 – z; (b) the one-dimensional coordination configuration; (c) the two-dimensional framework view along the ac plane; and (d) the topological structure of 2. All hydrogen atoms are omitted for clarity.
Polymers 10 00165 g002
Polymers 10 00165 g003 550

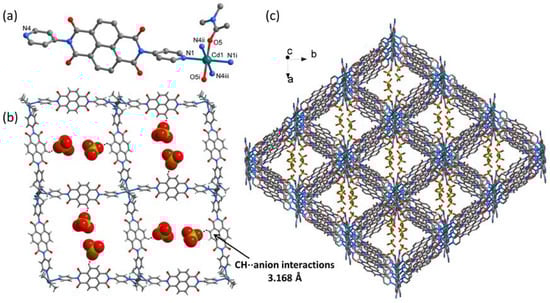

Figure 3. (a) The coordination environment of the Cd atom in 3, symmetry codes: (i) 1 – x, –y, 2 – z; (ii) 0.5 + x, 0.5 – y, –0.5 + z; (iii) 0.5 – x, –0.5 + y, 2.5 – z; (b) the square-grid framework, in which ClO4– anions were filled in the cavities through CH···anion interactions; and (c) the packing diagram for 3 viewing along the c axis.
Figure 3. (a) The coordination environment of the Cd atom in 3, symmetry codes: (i) 1 – x, –y, 2 – z; (ii) 0.5 + x, 0.5 – y, –0.5 + z; (iii) 0.5 – x, –0.5 + y, 2.5 – z; (b) the square-grid framework, in which ClO4– anions were filled in the cavities through CH···anion interactions; and (c) the packing diagram for 3 viewing along the c axis.
Polymers 10 00165 g003
Polymers 10 00165 g004 550

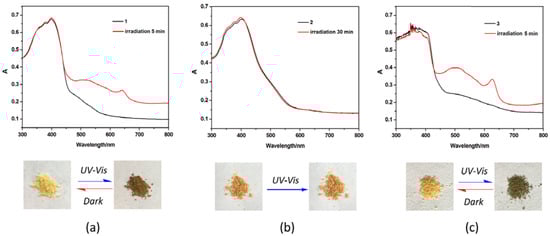

Figure 4. UV−Vis diffuse reflectance spectra of 1–3 before and after irradiation (upper, 1 (a), 2 (b), 3 (c)); photographs showing the photochromic behavior of 1–3 (bottom).
Figure 4. UV−Vis diffuse reflectance spectra of 1–3 before and after irradiation (upper, 1 (a), 2 (b), 3 (c)); photographs showing the photochromic behavior of 1–3 (bottom).
Polymers 10 00165 g004
Polymers 10 00165 g005 550

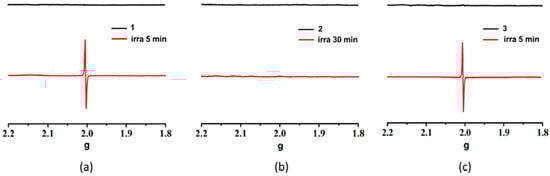

Figure 5. ESR spectra of compounds 1 (a), 2 (b), and 3 (c) before and after irradiation.
Figure 5. ESR spectra of compounds 1 (a), 2 (b), and 3 (c) before and after irradiation.
Polymers 10 00165 g005
Polymers 10 00165 g006 550

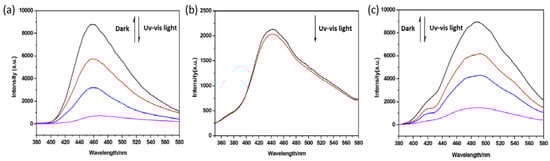

Figure 6. The photocontrolled tunable luminescence performance of 1 (a), 2 (b), and 3 (c), the spectra of 1 and 3 are measured every 2 min upon irradiations (300 W xenon lamp). The spectra of 1 and 2 were recorded upon irradiations (300 W xenon lamp) at every 2 minutes, the spectra of 2 were recorded before radiation (black line) and after radiation for 30 min (red line).
