Review

Chain Trajectory, Chain Packing, and Molecular Dynamics of Semicrystalline Polymers as Studied by Solid-State NMR

1
Department of Polymer Science, The University of Akron, Akron, OH 44325-3909, USA
2
RIKEN CLST-JEOL Collaboration Center, RIKEN, Yokohama, Kanagawa 230-0045, Japan
3
State Key Lab of Pollution Control and Resource Reuse Study, College of Environmental Science and Engineering, Tongji University, Shanghai 200092, China
4
School of Physics and Materials Science & Shanghai Key Laboratory of Magnetic Resonance, East China Normal University, Shanghai 200062, China
5
Graduate School of Human and Environmental Studies, Kyoto University, Kyoto 606-8501, Japan
*
Author to whom correspondence should be addressed.
Polymers 2018, 10(7), 775; https://doi.org/10.3390/polym10070775
Submission received: 3 June 2018 / Revised: 13 July 2018 / Accepted: 13 July 2018 / Published: 15 July 2018
(This article belongs to the Special Issue NMR in Polymer Science)

Abstract

:
Chain-level structure of semicrystalline polymers in melt- and solution-grown crystals has been debated over the past half century. Recently, 13C–13C double quantum (DQ) Nuclear Magnetic Resonance (NMR) spectroscopy has been successfully applied to investigate chain-folding (CF) structure and packing structure of 13C enriched polymers after solution and melt crystallization. We review recent NMR studies for (i) packing structure, (ii) chain trajectory, (iii) conformation of the folded chains, (iv) nucleation mechanisms, (v) deformation mechanism, and (vi) molecular dynamics of semicrystalline polymers.

1. Introduction

Crystallization of long polymer chains leads to drastic structural change from random coils in the melt and solution states into folded chains in thin crystalline lamellae [1,2,3,4,5]. Much attention has been paid to understand the chain-folding structure of semicrystalline polymers over the last half century, because chain-level structures include specific information regarding when, where, and how long polymer chains change their own structures during crystallization [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26]. Thus, characterization of folded chain structure is a particularly important subject to understand the crystallization process, as well as the mechanism at the molecular level.
Three or four decades ago, neutron scattering (NS) on 2H/1H polymers indicated that the radius of gyration (Rg) of polyethylene (PE) crystallized from the melt is close to that in the melt state, and the Rg in the solution-grown crystals is much smaller than that in the solution state [7]. Furthermore, local folding structures of PE and other polymers have been investigated by NS [8,9,10,11,12], infrared (IR) [13,14,15], morphological observation by transmission electron microscopy (TEM) via surface decoration by oligomers [16], direct visualization of chains [23,24,25], and force detections of single chain by atomic force microscopy (AFM) [26]. However, there are inconsistent views on the chain-folding patterns because of insufficient experimental resolutions. Moreover, most analytical techniques need either mono disperse molecular weight [12], specific morphology [16,23,26], or large supercooling [7,8,9,10,11,13,14,15]. Thereby, it is still difficult to systematically reveal the chain trajectory of semicrystalline polymers crystallized from the melt and solution states in a wide crystallization temperature (Tc) range. The crystallization process of polymers is governed by kinetics. Thereby, lacking in kinetics effects on chain-level structure is critical in understanding polymer crystallization.
Solid-state (ss) NMR spectroscopy is a sophisticated and powerful means to investigate the structure and dynamics of organic and inorganic systems [27]. Magnetic anisotropic information of chemical shift anisotropy (CSA) and 2H quadruple coupling has significantly contributed to understanding molecular dynamics of polymers in both amorphous and crystalline regions. High-resolution NMR is sensitive to intermolecular interactions, packing structure, and conformations of polymers. Dipolar-based ssNMR techniques have successfully revealed the three dimensional structure of peptides, as well as biomacromolecules, in the past decade [28,29,30]. In polymers, molecular motions including time scale and amplitude of re-orientations in the glassy [27], crystalline [31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47], and melt [48,49] states, and local packing [50] and conformation [51] in the glassy state have been elucidated by various NMR techniques.
Recently, 13C–13C double quantum (DQ) NMR spectroscopy has been applied to elucidate chain trajectory and packing structures for 13C selectively isotopic enriched isotactic-Poly(1-butene) (iPB1), isotactic-poly(propylene) (iPP), and poly(L-lactic acid) (PLLA) in the melt- and solution-grown crystals [52,53,54,55,56,57,58,59,60,61,62,63]. 13C–13C dipolar interaction is governed by internuclear distance, spin topology, and spin number. In the crystalline regions, atomic coordinates of all carbon atoms have been successfully determined by wide angle X-ray diffraction (WAXD) and electron diffraction (ED). Thus, the experimental DQ results were compared with the simulated ones based on 13C atomic positions determined by the folding patterns of 13C labeled chains in the crystalline regions [52,55,62]. As results, average values of chain-folding number <n>, chain-folding fraction <F>, and shape and size of folded chains clusters were extracted. Here, we review recent progress for the chain-level structure and molecular dynamics of various semicrystalline polymers by ssNMR.

2. Definition of <n> and <F>

The chain-folding pattern of the jth chain in one lamella is schematically depicted in Scheme 1, where the chain locally forms adjacent re-entry structures. For example, the first and second clusters have five and three adjacent folds, respectively. The number of adjacent re-entry folds of the ith cluster of the jth chain is defined as nij. The term <n> can be expressed by an equation of <n> = j = 1 m ( i = 1 l j n i j ) / j = 1 m l j , where lj is the number of chain-folding (CF) clusters in the jth chain of total m chains. Fj is the fraction of the crystallized chain stems participating in the adjacent re-entry clusters in the jth chain. Thus, Fj is expressed as i = 1 l j ( n i j + 1 ) / N j , where Nj is the total number of crystallized chain stems in the jth chain. For example, there are si stems in the CF cluster of i = 1 and four stems in cluster i = 2. <F> is an ensemble average of Fj, which is expressed as <F> =   j = 1 m ( i = 1 l j ( n i j + 1 ) ) / j = 1 m N j .

3. Packing Analysis

Figure 1a shows the 13C single quantum (SQ) and DQ cross-polarization magic angle spinning (CPMAS) NMR spectra of 13C CH3 35 wt% enriched iPB1 form I melt-grown crystals at 95 °C [55], acquired using BRUKER AVANCE 300 equipped with a 4 mm double resonance probe at room temperature. The MAS frequency was set to 5102 Hz. The recycle delay and cross-polarization (CP) time was set as 2 s and 1 ms, respectively. A PostC7 sequence pulse [64] with field strength of 35.7 kHz was used for exciting and reconverting 13C−13C DQ signals into single quantum (SQ) signals. Two-pulse phase modulation (TPPM) [65] and continuous wave decoupling with a field strength of 104 kHz were carried on 1H channel during the 13C acquisition and recoupling periods, respectively. DQ efficiency (ξ) is obtained as the intensity ratio of the DQ and SQ signals. Figure 1e,f depict DQ buildup curves of the 13C-labeled iPB1 form I melt- and solution-grown crystals, respectively. The initial increase of the DQ curve represents measurement of the apparent dipolar coupling strengths for a given 13C site, which represents root mean square (RMS) of many 13C–13C pair couplings and the latter decay is attributed to T2 relaxation process. The DQ buildup curve of the melt-grown crystals is identical with that in the solution-grown crystals. Hong et al. quantitatively treated with nuclear magnetic interactions of 13C CH3 spin systems in the crystalline regions. Eleven-spin system as shown in Figure 1b–d was used to determine the chain-packing and folding structure. The system consists of a reference methyl carbon colored in red as well as the 10 surrounding carbons (eight carbons among interstems and two in an intrastem) at distances of less than 6.4 Å (Figure 1b). The projection of the 11 carbon systems on the (001) and (1 2 ¯ 0) planes is shown in Figure 1c,d. The reference is fixed to detect the DQ signals in the numerical simulations performed using SPINEVOLUTION [55,66]. The atomic coordinates determined by Natta et al. are used for the spin-dynamics simulation [67]. The calculated curve is slightly slower than the experimental curve (Figure 1e,f). Thus, the internuclear distances are slightly shortened by modifying atomic coordinates. The simulated DQ curve based on the shortest 13C–13C interstem distance of 4.0 Å and relaxation value of T2 = 8.3 ms can reproduce the experimental data (red curves in Figure 1e,f). Similar packing analysis was conducted on iPP [53,54] and PLLA crystals [58,63]. In all systems, the internuclear distances determined by NMR are consistent with those by WAXD and electron diffraction (ED) within 5% errors.
Very recently, Zhou et al. studied the packing structure of PLLA/poly(D-Lactic-Acid) (PDLA) stereocomplex (SC) by DQ NMR [63]. Ikada et al. reported that PLLA/PDLA blends precipitated by excess poor solvent showed a crystalline structure with a higher melting point (Tm = 220 °C) than PLLA (or PDLA) homo α crystals (180 °C) [68]. Later on, Lotz et al. proposed the crystal packing structure of SC to be R3c or R 3 ¯ c , where PLLA 31 helices alternatively pack with PDLA 31 helices by paring PLLA and PDLA in a trigonal crystal lattice with a = b = 1.498 nm, c = 0.87 nm, α = β = 90°, and γ = 120° [69]. Recently, Tashiro et al. carefully investigated fiber WAXD data for SC crystals crystallized from the melt state with different blending ratios of PLLA/PDLA= 7/3–3/7 and proposed the P3 model [70], where either PDLA or PLLA occupies one site with the probability determined by the blending ratio and the neighboring site can be occupied by either PDLA or PLLA, depending on the blending ratio. However, the calculated WAXD pattern for P3 model is very similar to that for R3c. Thereby, Zhou et al. applied DQ NMR to distinguish two structures by atomic resolutions [63].
In the case of the R3c ( R 3 ¯ c ) model, the PLLA stems are located at three sites in the hexagons depicted in Figure 2a. A maximum five spin system is statistically treated in simulations of the DQ buildup curve in the R3c model [69]. The atomic coordinates determined by ED [69] are slightly different and the shortest inter-stem methyl–methyl carbons distance is shortened to 3.9 Å. The calculated result is depicted as a red curve in Figure 2c. In the P3 model, PLLA stems are statistically located at each site of the six sites in the hexagon depending on the blending ratio of 7/3–3/7, as shown in Figure 2b. Six kinds of submodels including different PLLA stem numbers were constructed. Thus, the weight-averaged DQ curves for all submodels generate different curves depending on the blending ratio, as depicted in Figure 2b. All three simulated curves for different blending ratios show much faster increases at the initial stage and much larger ξmax than the calculated one for the R3c model.
Figure 2d depicts experimental DQ curves of 13C-labeled PLLA chains in SC at blending ratios of PLLA/PDLA = 7/3–3/7. The individual curves are very consistent with each other. Mixing-ratio independence of the DQ curves can reject the P3 model. The results convincingly indicate that PLLA and PDLA stems regularly and alternatively pack with each other. Thereby, DQ NMR with atomic-scale resolution allows one to conclude that PLLA/PDLA SC form R3c ( R 3 ¯ c ) structure proposed by ED study [69].
Another example is the metastable form of iPP. When iPP melt is slowly cooled, the stable α crystal can be formed. On the other hand, quenching with cooling rates above ~90 K/s results in the mesomorphic form [71]. WAXD data generates two broad maxima at = 15.1° and 21.7°. As a result of insufficient resolutions of WAXD pattern, the crystalline structure of iPP mesomorphoic form has not been well understood compared with other polymorphs of α and β forms. To solve this issue, Yuan et al. studied packing structure of iPP mesomorphic by DQ NMR approach. By comparisons of the simulated and experimental DQ curves for the α, β, and mesomorphic form of iPP, it is concluded that the packing structure of the mesomorphic form is extremely close to or the same as that for the β form [59].

4. Evaluations of Re-entrance sites of Folded Chains by DQ NMR

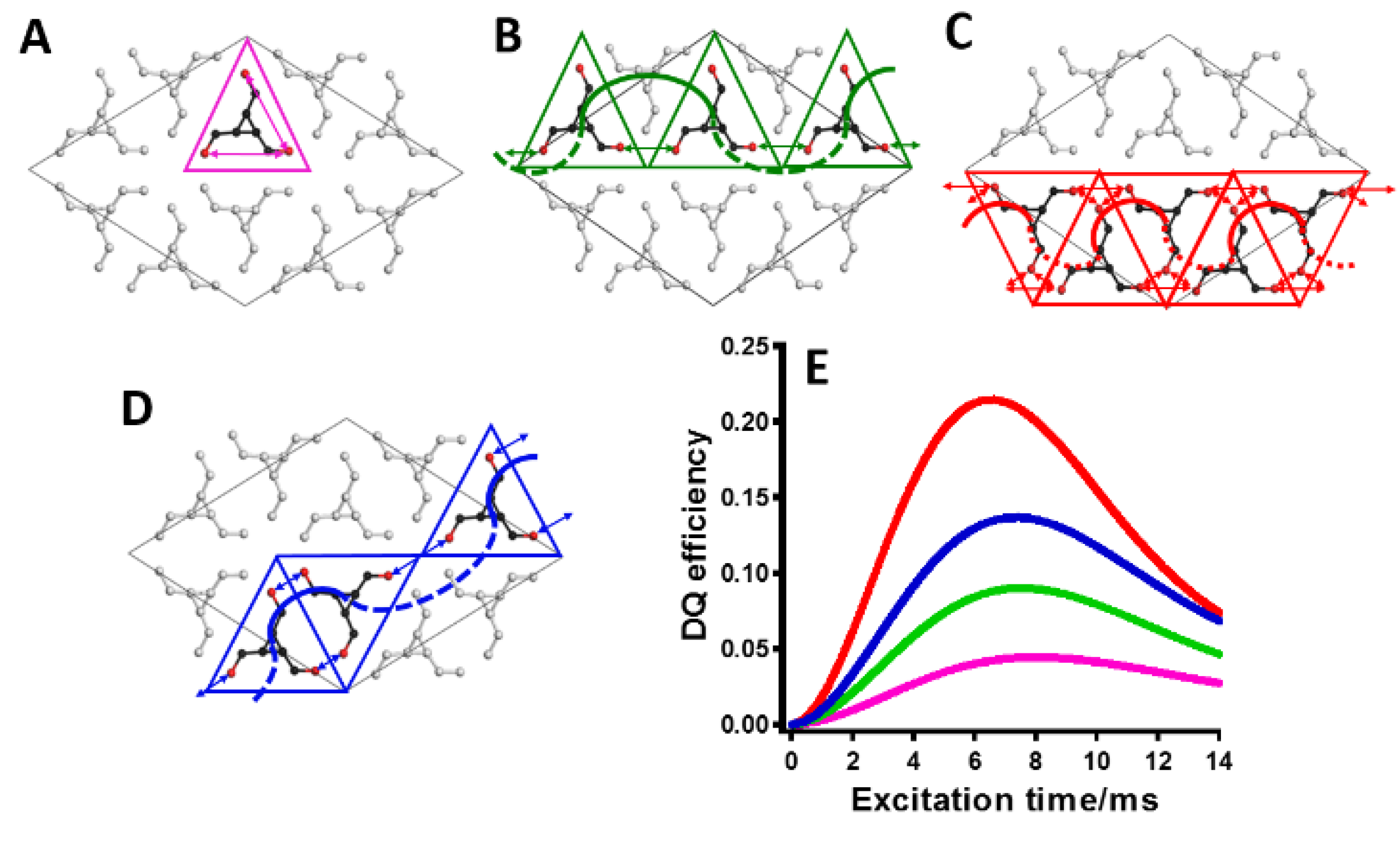

Figure 3A–D illustrates various chain-folding patterns of iPB1 in form I crystals. Depending on re-entrance sites of the folded chains, interaction spin number, and spin topology, inter-nuclear distances are varied. Figure 3E depicts calculated 13C–13C DQ curves for CF0-III of 35% 13C CH3 enriched iPB1 in the form I crystals under the assumption of a blending ratio of labeled and nonlabeled chains with 1:9 [52,55,56]. Infinite chain-folding models are used in the simulations. CFI is an isolated stem without adjacent re-entry structure, where intra-stem 13C–13C dipolar interactions result in the lowest buildup curve (pink curve in Figure 3E) among the four models. In CFI-III, additional inter-stem 13C–13C dipolar interactions depending on the re-entrance sites result in faster and higher DQ curves than that in CF0 [52]. For example, the CFII model with a zigzag pattern showed the highest spin density and, as a result, led to the fastest and highest DQ curve (red curve in Figure 3E) among the four models [52]. The simulation perspective emphasizes that the DQ approach potentially identifies different chain trajectories. In real folding analysis, <n> and <F> in addition to the chain-folding pattern affect experimentally obtained DQ curves.

5. Co-Crystallization of 13C Selectively Labeled and Non-Labeled Chains at Molecular Scales

When the isotope labeling technique is applied to structural study in crystalline polymers, special attention must be given to avoid segregations of the labeled and non-labeled chains during crystallization. In fact, slow crystallization of 2H and 1H PE blends induces physical separations of two components [10]. Thereby, most NS and IR studies using 2H/1H isotope labeling were conducted on rapidly quenched samples [7,8,9,11,13,14]. This is the reason the kinetics effect on chain-level structure of PE cannot be explored by NS and IR techniques.
In the literature [55], Hong et al. carefully investigates co-crystallization (segregation) of 13C labeled and non-labeled iPB1 form I crystals crystallized from dilute solution and melt. The 13C–13C DQ buildup curves of the iPB1 crystal blends with different mixing ratios (10/0, 5/5, 1/9) of 13C-labeled/non-labeled iPB1 crystallized at 95 °C and solution-grown crystals at 60 °C are measured, respectively. If segregations occur during crystallization, blending-ratio independence of DQ curves is expected. Actually, the mixing-ratio dependences of the DQ buildup curves were clearly observed in both solution- and melt-grown crystals. These results evidently indicate that individual 13C-labeled chains are surrounded by the non-labeled chains. The investigated Tc in both solution- and melt-grown crystallization were the highest. This fact indicates that the 13C selective isotopic labeling approach is applicable to chain-folding analysis in both melt- and solution-grown crystals over a wide Tc range. The same conclusions were obtained in iPP [53] and PLLA systems [58].

6. Solution-Grown Crystals

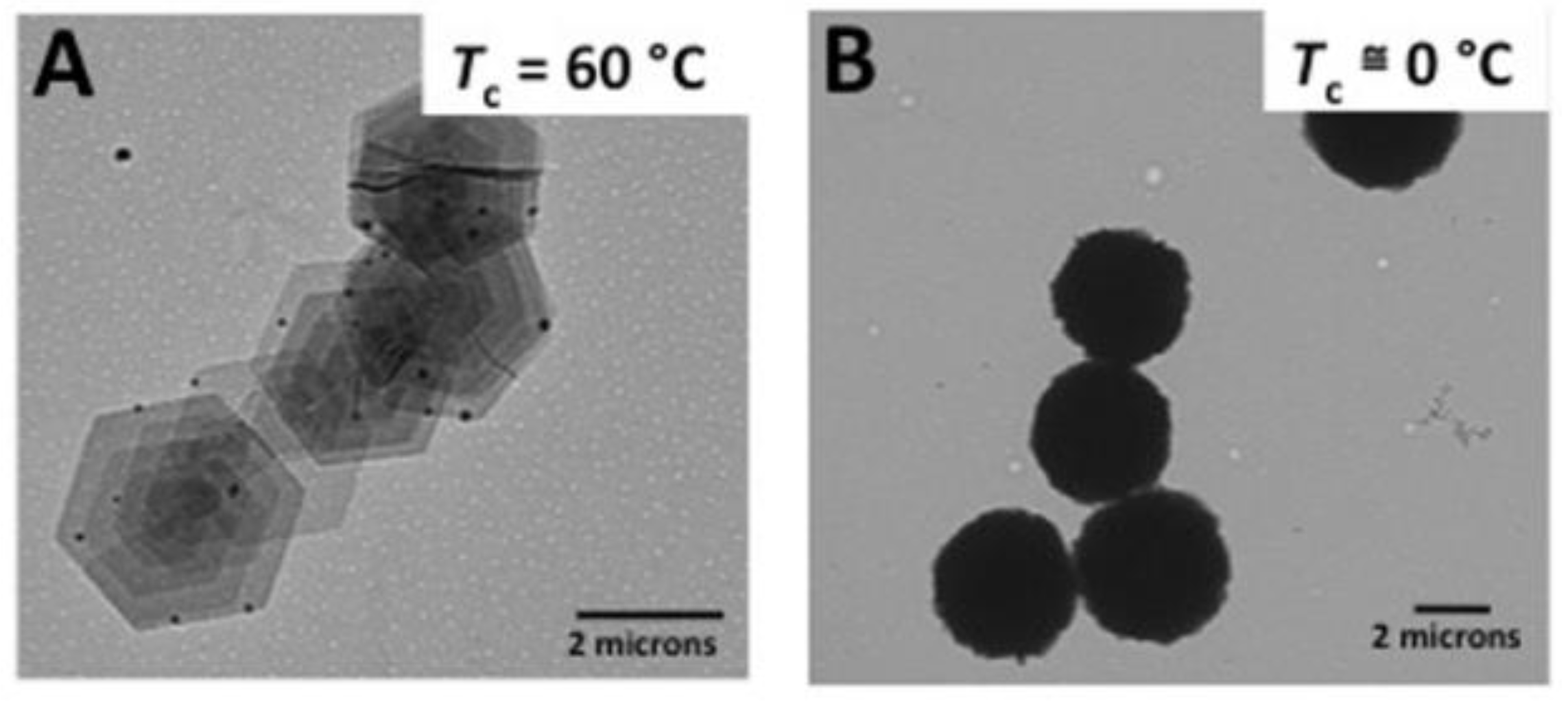

Hong and Miyoshi investigated the morphology and chain-folding structure of iPB1 in solution-grown crystals as a function of supercooling [55,56]. Figure 4A,B depicts TEM image of iPB1 solution grown crystals, crystallized at 60 and ~0 °C, respectively [55,56]. In the former, the crystals represent hexagonal morphology with a flat face with side-plane length of 2–3 μm and thickness of ca. 6.5 nm (AFM). In the latter, rapid quenching leads to kinetically circulated crystals consisting of multiple layers [56]. The observed morphological change is attributed to kinetics effect.
According to Lauritzen–Hoffman (LH) theory [3,4], it is expected that chain-folding direction is parallel to the growth front at sufficiently high Tc. Thus, CFI and CFII structures are constructed as shown in Figure 5a. On the basis of the crystal thickness of 6.5 nm and the molecular weight, the maximum folding number <nmax> is calculated to be 21. By comparisons of the experimental DQ curve with the simulated curves, it is demonstrated that only the CFII model can reproduce the experimental data at Tc = 60 °C (black open circle in Figure 5b). After adjusting either <n> or <F> values, simulated curves based on <n> = 21 at <F> = 90% and <n> = 8 at <F> = 100% well reproduce the experimental data (black open circle) as shown in Figure 5c,d [55,56].
Surprisingly, the experimentally obtained DQ curve at Tc = ~0 °C (open circle in Figure 6b) is well consistent with the DQ curve at 60 °C. This result indicates that at low concentrations (0.03 wt%), the majority of the individual chains adopt nearly perfect adjacent re-entry structures and create clusters of single molecules at ~0 °C, and the cluster size is independence of Tc used in the experiment [55,56]. This result means that chain-folding event is a local process and is not affected by available kinetics, while kinetics significantly affects morphology. In other words, kinetics differently influences formations of polymer crystals at different length scales. This explanation contradicts the LH theory [3,4], which hypothesizes that microscopic chain-level structure, dominated by kinetics, determines the macroscopic morphology. This is the first experimental data to support nanocluster formation in solution grown crystals.
It is believed that secondary nucleation generates two dimensional (2D) clusters (linear) of the folded chains under sufficiently low supercooling, while primary nucleation results in 3D clusters to minimize surface free energy [1]. The Tc independence of cluster size may give one new question about the chain-folding process: When do polymer chains fold during the crystallization process? The key issue to answer this question is determination of the cluster shape (2D vs. 3D). Hong and Miyoshi simulated DQ buildup curves for multiple layers nanoclusters for 13C-labeled iPB1 form I crystal blends with non-labeled chains. Unfortunately, the DQ curve at a single resonance of iPB1 form I cannot distinguish between the 2D and 3D clusters [55,56].

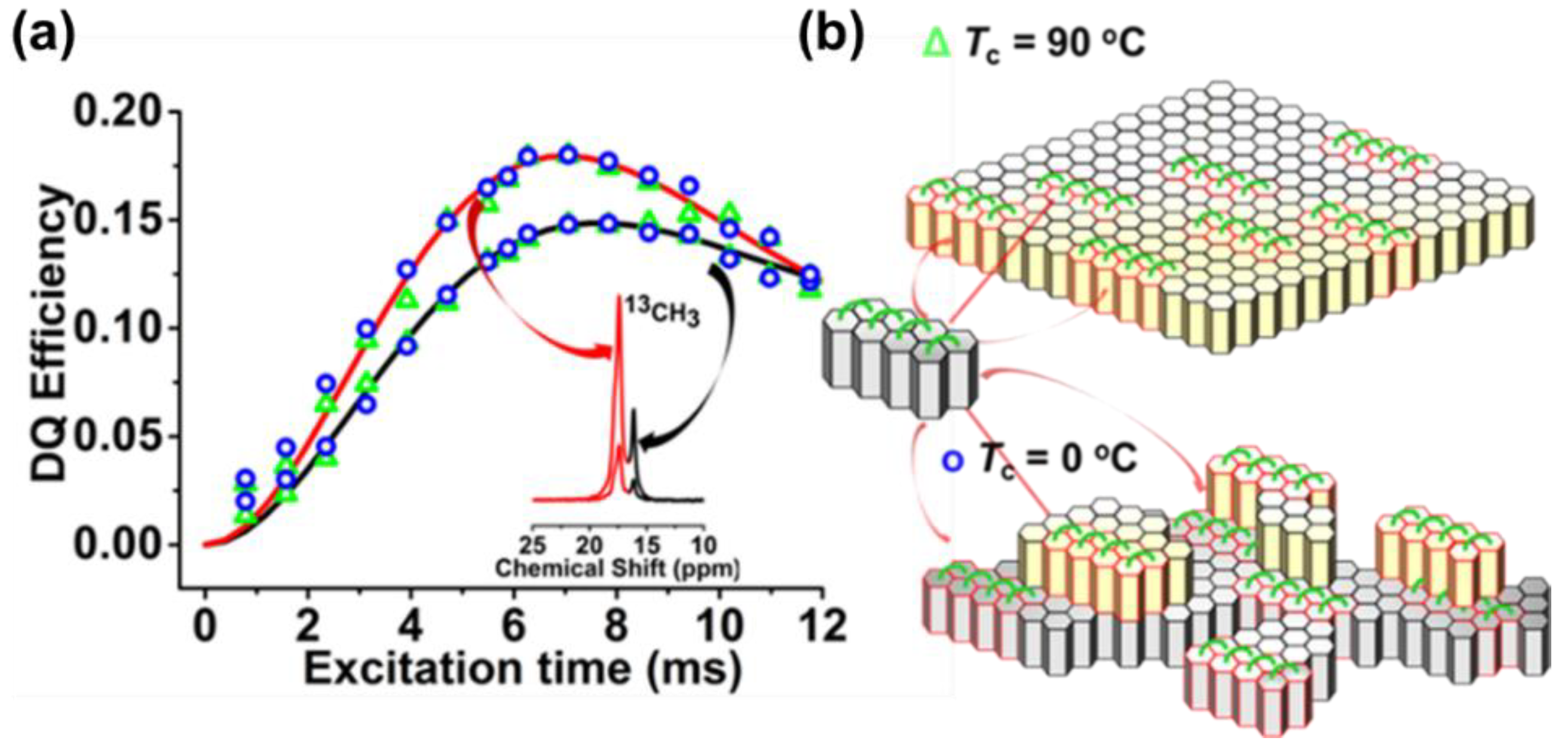

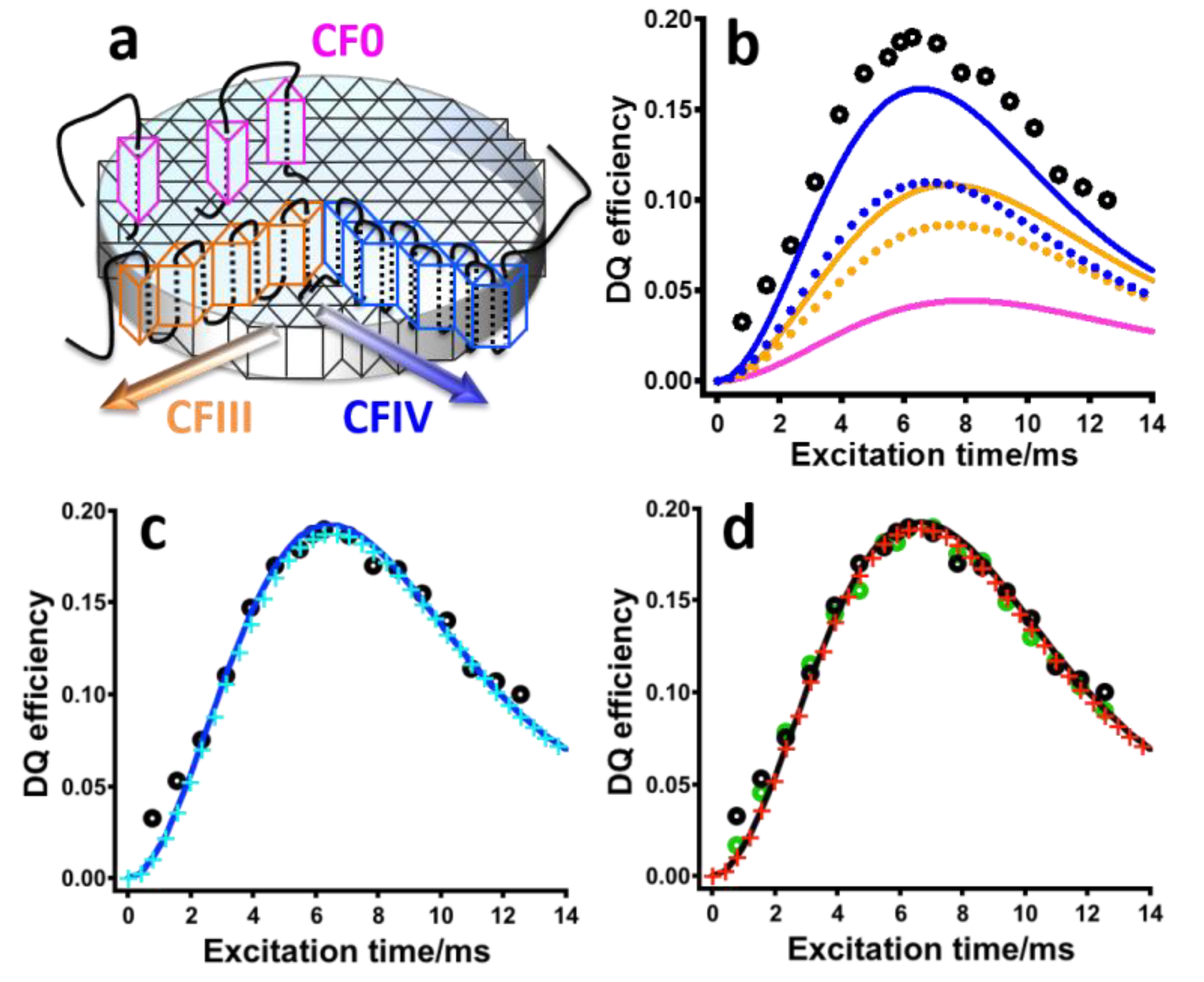

To elucidate the cluster dimensions of the folded chains, as well as the folding mechanism, Hong et al chose form III of iPB1 among the various semicrystalline polymers [57]. Form III adopts an orthorhombic packing structure leading to magnetically inequivalent doublet 13C peaks for each carbon (Figure 7B). Thus, dipolar interactions at two sites within the same chains are used to recognize either 2D or 3D clusters. By assuming various 2D conformations, simulated data cannot simultaneously reproduce the experimental DQ buildup curves at two sites. On the other hand, 3D clusters in multiple layers, for example, 14 stems in two layers and 12 stems in four layers, can reproduce the experimental data by adjusting the <F> value (Figure 7C) [57]. The observed Tc independence of the 3D cluster structure supports; (i) poor solvent–polymer interactions leads to 3D clusters by self-folding in the initial stage and (ii) the formed clusters are deposited on the growth front as the second step (Figure 7E). The proposed mechanism provides a falsification of the well-known LH theory [3,4], but is consistent with the bundle [6,17,18] and aggregation models [19].
Very recently, Wang et al. investigated morphology, chain-packing structure, and chain-folding patterns of 13C 30% CH3 labeled PLLA in solution-grown crystals at Tc = 90, 50, and ~0 °C [58]. At the highest Tc, lozenge shape single crystals with well-defined growth faces are obtained while the lowest Tc induces dendrite morphology. Again, it is demonstrated that kinetics significantly affects morphology at μm. Interestingly, PLLA chains adopt thermodynamically stable α crystals in solution grown crystals at all Tc s of 90–0 °C.
By comparisons of experimental DQ curves with simulated ones, only multiple layers model with <n> = 7 in two or higher layers can reproduce the experimental data (Figure 8a). Each PLLA chain participates in small nano-clusters in three dimensions. This result also supports three dimensional nanoblock formations of a part of polymer chains prior to crystallization as illustrated in Figure 8b. Nano-block size is much larger than the unit cell of α crystals. Tc independence of nano-cluster size could reasonably explain why PLLA chains adopt thermodynamically α packing structure even in different morphologies as a function of Tc.

7. Melt-Grown Crystals

Polymer chains are highly entangled in the highly condensed melt. Thereby, topological constraints might significantly affect chain-folding events during crystallization as a function of kinetics. In the literature [52], chain trajectory of iPB1 form I crystallized at a wide range of Tc of 95–~0 °C was investigated by ssNMR. Melting temperature of iPB1 is ca. 126 °C. Crystallization at Tc of 95 °C was really slow and took two days. Small-angle X-ray scattering (SAXS) indicated that crystal lamellae thickness varies between 10 nm at Tc = 0 °C and 21 nm at Tc = 95 °C.

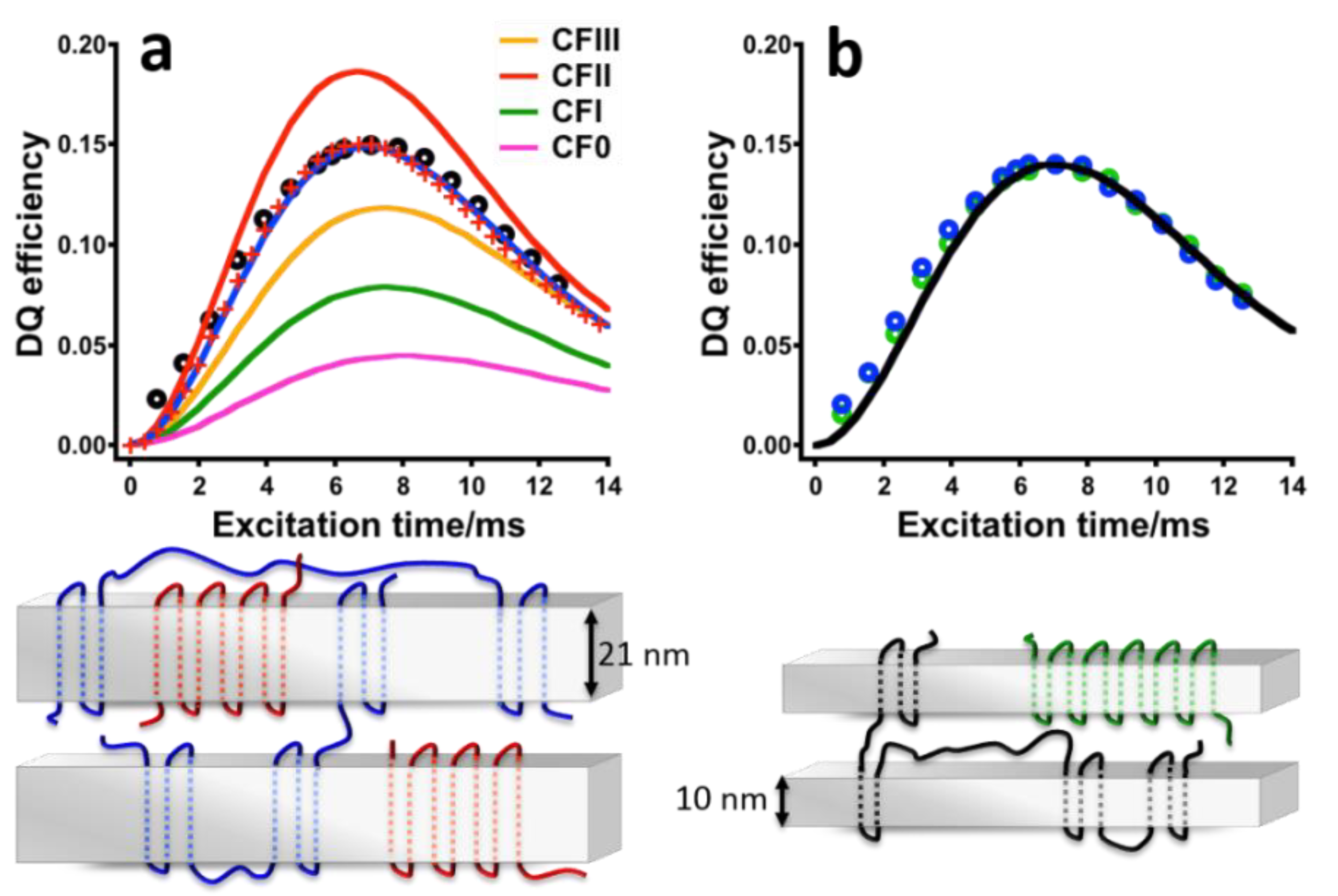

Figure 9a depicts the DQ buildup curve (black open circles) of 35 wt% 13C–CH3 enriched iPB1 form I crystal blends with non-labeled chains crystallized at 95 °C. The ξmax value of 15% is considerably higher than the simulated curves of CF0, CFI, and CFIII, and is lower than that of CFII under the assumptions of <n> = 5 and <F> = 100%. Thus, only CFII is a plausible structure at Tc = 95 °C. Using the crystal thickness and molecular weight, the best-fit curves were obtained in two limit structures of <n> = 2 and <FCFII> = 100% (blue solid curve) and <n> = 5 and <FCFII> = 80% (red crosses) (Figure 9a). The possible two chain trajectories in the melt-grown crystals are represented at the bottom of Figure 9a. One structure includes five successive folds in one lamella and another limit structure is a small nano-cluster including three stems connected by two folds. Note that the DQ results cannot distinguish between two limit structures. The ξmaxs of the DQ buildup curves at Tc = 50 (blue open circles) and ~0 °C (green) are ca. 14% as illustrated in Figure 9b. They are slightly lower than the ξmax at Tc = 95 °C (15%). The best-fit DQ buildup curves to the experimental data at Tc = 50 and ~0 °C are drawn using CFII with <n> = 1.7 and <F> = 100% (black solid curve in Figure 9b). This means that the CF structure is almost independent of Tc, even though lamellae thickness drastically changes as a function of Tc.
Another interesting sample is iPP α crystal. When iPP melt is cooled down at temperatures from melt state, iPP crystallizes as α form. The α form is further divided into α1 and α2 crystals as shown in Figure 10a,b [41,72]. The α1 crystals are kinetically favored, while the α2 crystals are thermodynamically favored. XRD has been used to distinguish α1 from α2 structure. However, very minor differences led to difficulty of quantification of α2 fraction at high Tc.

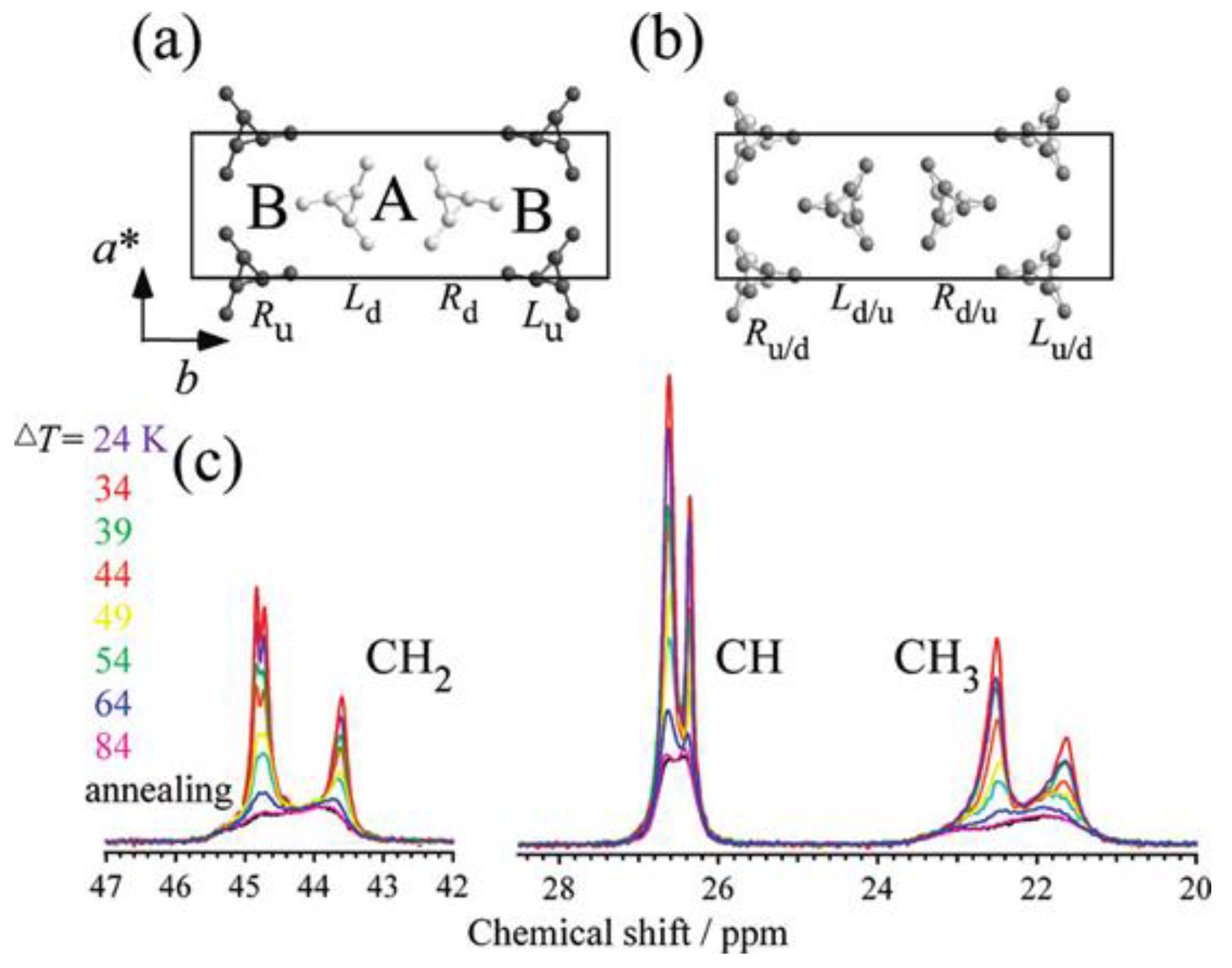

Figure 10c depicts 13C CPMAS NMR spectra for iPP melt-grown crystals formed as a function of supercooling [41]. The annealed and low Tc samples represent structure-less broad 13C signals, corresponding to α1. The observed broad signals originate from inhomogeneous line broadening due to variations of up- and downward chain orientations. At ΔT = 64 °C, narrowed doublet signals appear on the broad line shapes, and the doublet signals grow with decreasing ΔT. The observed doublet line shape corresponds to local ordering of the packing structures, namely, α2. The fraction of α2 can be determined in terms of subtraction of the structure less line shape from the observed spectra at various ΔTs. As results, the maximum α2 fraction was determined to be 62% at Tc = 150 °C, where crystallization takes more than 30 days.

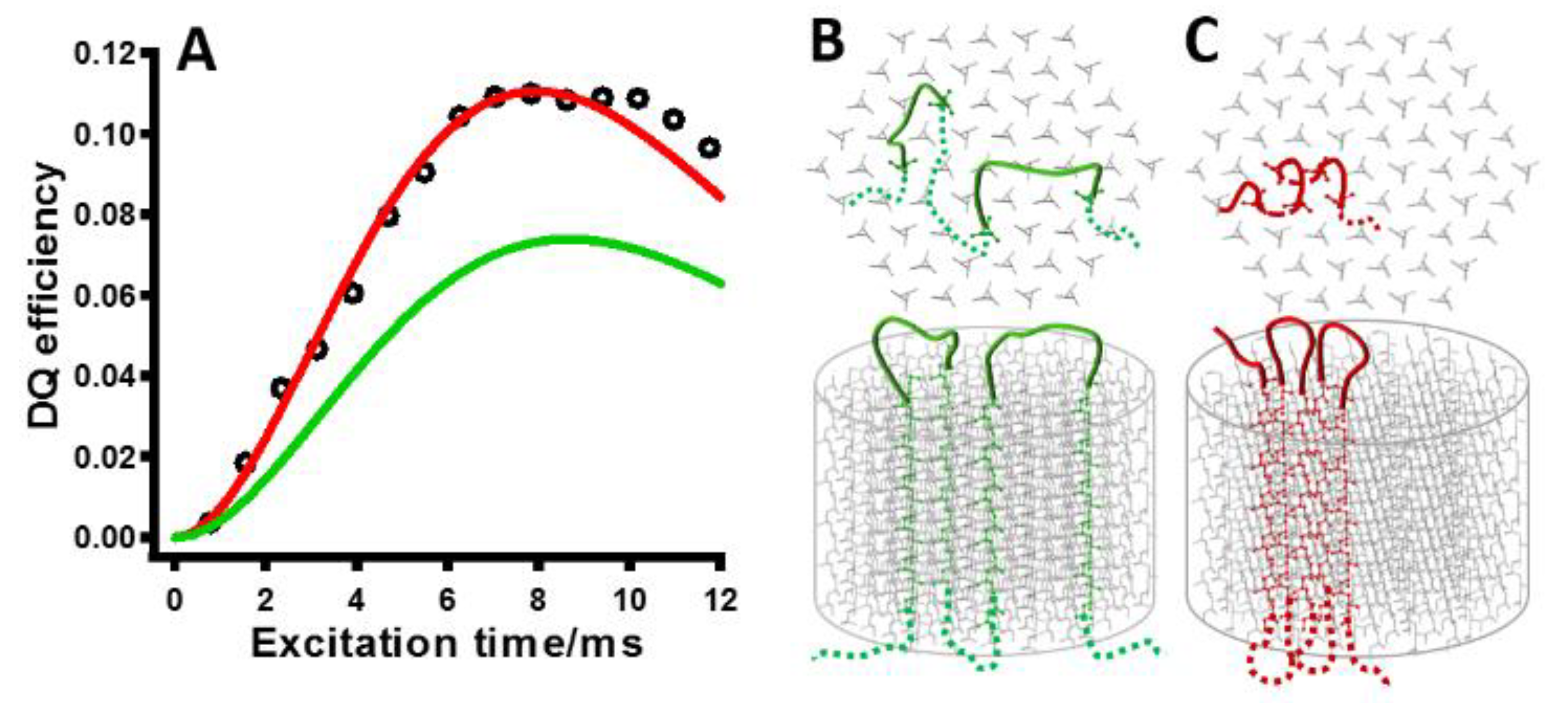

Furthermore, the kinetic effect on chain-folding structure was investigated for 13C 30 wt% CH3 enriched iPP (<Mw> = 172 K g/ mol) α1 and α2-rich crystals, which were crystallized at 100 and 150 °C [41]. It was expected that α1 and α2 crystals have largely different <n> and <F>. However, DQ experiments clearly demonstrate that the iPP chains adopt <n> = ~5 under the assumption of <F> = 100% in both α1- and α2-rich crystals.
Both iPP and iPB in the melt-grown crystals indicate that <n> and <F> do not vary as a function of Tc. These newly obtained results contradict expectations from the LH theory [3,4] and indicate that chain-folding events are not related to overall crystal growth rate. It is worthwhile to note that recent MD simulation of coarse grained Poly(vinyl alcohol) (PVA) model predicted <n> to be ~2.4 in the melt-grown and <n> is independent of Tc [73,74]. These simulation results are very consistent with recent ssNMR observations [52,53,54,55,56].
Understanding the formation of nucleation in the early stages of crystallization is a challenging issue in polymer crystallization. Simultaneous measurements of SAXS, WAXD, and IR enabled us to observe structural evolution of semicrystalline polymer prior to crystallization. Kaji et al. [20] and Olmsted et al. [21] proposed spinodal decomposition (SD) prior to nucleation and growth. It is difficult for DQ NMR to conduct in-situ observations. However, a rapidly quenched system can retain the structure dominated by primary nucleation. One good sample is the iPP mesomorphic form obtained by rapid quenching into icy water from the melt. Yuan et al. investigated the chain-folding structure of the mesomorphic form of iPP. [54] The mesomorphic domain includes only ~60 stems and its size is comparable to critical nuclei in the initial stage of crystallization predicted by MD simulation. [54] Figure 11A depicts the DQ buildup curve for 15% 13C CH3 enriched iPP mesomorphic blends with non-labeled iPP and simulated curves on the basis of isolated model, as depicted in Figure 11B, and nanoclusters (Figure 11C). The comparison indicates that the iPP chains fold 3–4 times during rapid quenching into icy water. [54] From the NMR observations, it is concluded that the iPP chains initiate nucleation via self-folding in the early stage of crystallization.

8. Molecular Dynamics in Semicrystalline Polymers

Molecular dynamics of polymer chains in the crystalline regions plays a significant role in polymer crystallization, phase transition, surface melting, mechanical property, and deformations. Among various characterization tools and ssNMR especially, exchange NMR has successfully contributed to understanding detailed dynamics mode and dynamics frequency (or correlation time, <τc>) of various semicrystalline polymers, including polyethylene [31,32,33,34,35,75], iPP [41,59,72,76], poly(acrylonitrile) [36,77], poly(ethylene oxide) [46], poly(oxymethylene) [78], poly(ethylene terephthalate) [79], isotactic-poly(4-methyl-1-penetene) (iP4M1P) [38,39,40], PLLA [42,43], Nylon 66 [80,81], Poly(ε-caprolactone) [44,45], poly(tetrafuloroethylene) [82], poly(vinylidene fluoride) [83], and so on. Through NMR dynamics works, one dimensional exchange NMR using center-bands only of detection of exchange (CODEX) NMR [37] has significantly contributed to progress of our understanding molecular dynamics of chemically complex semicrystalline polymers in the last decade [38,39,40,41,42,43]. The CODEX experiments utilize the recoupling of the chemical shift anisotropy (CSA) interaction by 180o pulse trains in the two evolution periods sandwiching a mixing period, tmix. The dephasing of magnetization brought about by changes in orientation dependent CSA because of a re-orientational dynamic process during tmix leads to signal decays in the spectrum (so called exchange spectrum, S). Additionally, reference spectrum without dynamics effect (S0) can be obtained by interchanging tmix with a z-filter time after second evolution time in the CODEX exchange pulse program [37].
iP4M1P is a unique polymer because crystalline density (0.823 g/cm3) is lower than that of the amorphous density (0.840 g/cm3) at room temperautre. Dynamics mechanical analysis showed segmental motions in the amorphous regions at around 20–50 °C [38,39,40].
Figure 12a depicts chemical structure and chemical shift anisotropy (CSA) of iP4M1P. In small chemical shift range, CSA patterns for all the functional groups overlap each other. Thereby, 2D exchange NMR based on CSA patterns cannot provide detailed dynamics information. Figure 12b represents CODEX S and S0 of iP4M1P at evolution time of 2.2 ms and mixing time of 107 ms at 87 °C, where T1ρC relaxation filter was used to suppress the amorphous signals. CODEX data indicate that all functional groups of the crystalline chains participate in molecular dynamics at 87 °C. Figure 12c represents CODEX evolution time dependence of (S/S0) ratio for the backbone CH2 carbon (C1) at 60 °C. Comparisons of simulation and experimental data provide that iP4M1P 72 helical chains perform helical jump motions at 60 °C. Mixing-time dependence of all the functional groups can be analyzed in terms of one master curve with <τc> = 13.9 ms and β = 0.71, where β is a distribution paramter (0 < β ≤ 1). Both CODEX data in Figure 12c and d indicate that all the functional groups participate in helical jump dynamics in the crystalline regions. Temperature dependence of <τc> for the helical jump motions is bent at around Tg. Such unique dynamics is interpreted in terms of coupling of molecular dynamics of the amorphous and crystalline chains at the interface. Such uniqueness in molecular dynamics arises from unique densities at temperatures below 50 °C.
iPP experiences order–disorder transitions in packing structure depending on Tc as illustrated in Figure 10. It is interesting to investigate how order–disorder in packing structure affect molecular dynamics of the crystalline chain dynamics. In the literature [41], slow molecular dynamics of iPP α1- and α2-rich melt-grown crystals prepared at Tc = 100 and 150 °C, respectively, were investigated by CODEX NMR. <τc> in the ordered packing structures for iPP α2 rich sample is 35 folds longer than that in disordered packing ones at the same temperature (Figure 13a). Figure 13b shows Arrhenius plots of <τc> for the α1 (●) and the α2-rich samples (○). Using Arrhenius curves, the α2-rich sample show the larger activation energy of 102 ± 5 than that for the α1 samples (72 ± 4 kJ/mol). Tight packing of α2 significantly slows down mobility of iPP chains compared with the disordered α1 packing structure. It is worthwhile to note that the α2-rich sample shows much thicker lamellae (28 nm) than those for the α1 sample (11 nm). Thereby, not only packing structure but also crystal thickness contributes to slowing down the chain dynamics. The observed chain dynamics in the crystalline regions play a significant role for large deformation of semicrystalline polymers (see Section 9).

9. Deformation of Semicrystalline Polymers

The effects of deformation on the crystalline structure [84] and chain-level structure, for example, Rg [85,86] for semicrystalline polymers, have been successfully investigated in the past decades. However, the evolution of the locally folded chains under deformation has never been reported.
Kang et al. investigated chain-level structures of iPP α1 crystals under tensile drawing at 100 °C, where helical jump motions are thermally activated as shown in Figure 13b. They applied 13C–13C DQ NMR to trace <n> and <F> of iPP folded chains under hot drawing [60]. It is found that the folded chains are gradually unfolded with increasing engineering strain (e), and that the folded chain conformations are locally extended (<n> = 0) at e ≥ 10 at 100 °C (Figure 14). It is concluded that directional chain transportation occurs inside the crystallites under stretching and plays an important role for large deformability of semicrystalline polymers. Additional DQ NMR experiments on deformations at different temperatures and different stretching rates will provide complete pictures for deformation mechanisms of semicrystalline polymers at the molecular level.

10. Future Subjects in ssNMR of Semicrystalline Polymers

We reported the recent progress on understanding the chain-trajectory and molecular dynamics of various semicrystalline polymers using ssNMR. Dipolar-based NMR on 13C labeled sites has successfully traced chain-folding pattern and packing structure of various semicrystalline polymers. As results, it was concluded that (i) entanglement and polymer concentration significantly affect adjacent re-entry number, while available kinetics does not affect adjacent re-entry number; and (ii) polymer chains self-fold in the early stage of melt crystallization, as well as in dilute solution. The important findings falsify the well-established LH theory [3,4], and point out importance of primary nucleation in polymer crystallization [6,17]. The folded chain structures accessible by ssNMR [52,53,55,56,57,58,62] are consistent with recent views on primary nucleation in amino acids [87], metal ions [88,89], and proteins [90], among others. Combining atomic scale information by ssNMR with direct observations of morphology, as well as visualization of chains by computations, will significantly contribute to understanding in the research field of crystallization. Moreover, the novel NMR approach will be possibly applied to analysis of chain-level structure in (i) confined crystallization [91]; (ii) self-assembly at liquid/liquid interface [92,93]; (iii) other processing such as shear flow, tensile drawing, and electrospinning [94]; and (iv) glassy state.

Funding

This research was funded by the National Science Foundation (grant no. DMR-1708999) and a UA start-up fund.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cheng, S.Z.D. Phase Transitions in Polymers; Elsevier: New York, NY, USA, 2008. [Google Scholar]
  2. Strobl, G. Crystallization and melting of bulk polymers: New observations, conclusions and a thermodynamic scheme. Prog. Polym. Sci. 2006, 31, 398–442. [Google Scholar] [CrossRef]
  3. Hoffman, J.D.; Lauritzen, J.I. Crystallization of Bulk Polymers with Chain Folding: Theory of Growth of Lamellar Spherulites. J. Res. Natl. Bur. Stand. Sect. A 1961, 65, 1961. [Google Scholar] [CrossRef]
  4. Hoffman, J.D.; Miller, R.L. Kinetic of crystallization from the melt and chain folding in polyethylene fractions revisited: Theory and experiment. Polymer 1997, 38, 3151–3212. [Google Scholar] [CrossRef]
  5. Lotz, B.; Miyoshi, T.; Cheng, S.Z.D. 50th Feature Perspective, Polymer Crystals and Crystallization: Our Personal Journeys in this Challenging and Rediscovering Research Field. Macromolecules 2017, 50, 5995–6025. [Google Scholar] [CrossRef]
  6. Allegra, G.; Meille, S.V. The bundle theory for polymer crystallisation. Phys. Chem. Chem. Phys. 1999, 1, 5179–5188. [Google Scholar] [CrossRef]
  7. Sadler, D.M.; Keller, A. Neutron Scattering of Solution-Grown Polymer Crystals: Molecular Dimensions Are Insensitive to Molecular Weight. Science 1979, 203, 263–265. [Google Scholar] [CrossRef] [PubMed]
  8. Guttman, C.M.; DiMarzio, E.A.; Hoffman, J.D. Calculation of SANS intensity for polyethylene: Effect of varying fold planes and fold plane roughening. Polymer 1981, 22, 597–608. [Google Scholar] [CrossRef]
  9. Yoon, D.Y.; Flory, P.J. Small-angle neutron scattering by semicrystalline polyethylene. Polymer 1977, 18, 509–513. [Google Scholar] [CrossRef]
  10. Schelten, J.; Wignall, G.D.; Ballard, D.G.H.; Longman, G.W. Small-angle neutron scattering studies of molecular clustering in mixtures of polyethylene and deuterated polyethylene. Polymer 1977, 18, 1111–1120. [Google Scholar] [CrossRef]
  11. Spells, S.J.; Sadler, D.M. Neutron scattering studies on solution-grown crystals of polyethylene: A statistical preference for adjacent re-entry. Polymer 1984, 25, 739–748. [Google Scholar] [CrossRef]
  12. Zeng, X.; Ungar, G.; Spells, S.J.; King, S.M. Real-Time Neutron Scattering Study of Transient Phases in Polymer Crystallization. Macromolecules 2005, 38, 7201–7204. [Google Scholar] [CrossRef]
  13. Jing, X.; Krimm, S. Mixed-Crystal Infrared Studies of Chain Folding in Polyethylene Single Crystals: Effect of Crystallization Temperature. J. Polym. Sci. Polym. Phys. Ed. 1982, 20, 1155–1173. [Google Scholar] [CrossRef]
  14. Jing, X.; Krimm, S. Mixed-crystal infrared studies of chain folding in melt-crystallized polyethylene. J. Polym. Sci. Polym. Lett. Ed. 1983, 21, 123–130. [Google Scholar] [CrossRef]
  15. Reddy, K.R.; Tashiro, K.; Sakurai, T.; Yamaguchi, N. Cocrystallization phenomenon between the H and D species of Isotactic polypropylene blends as revealed by thermal and infrared spectroscopic analyses for a series of D/H blend samples. Macromolecules 2008, 41, 9807–9813. [Google Scholar] [CrossRef]
  16. Wittmann, J.C.; Lotz, B. Polymer Decoration: The Orientation of Polymer Folds As Revealed By the Crystallization of Polymer Vapors. J. Polym. Sci. Polym. Phys. Ed. 1985, 23, 205–226. [Google Scholar] [CrossRef]
  17. Allegra, G.; Meille, S.V. Pre-crystalline, high-entropy aggregates: A role in polymer crystallization? Adv. Polym. Sci. 2005, 191, 87–135. [Google Scholar]
  18. Liu, C.; Muthukumar, M. Langevin dynamics simulations of early-stage polymer nucleation and crystallization. J. Chem. Phys. 1998, 109, 2536–2542. [Google Scholar] [CrossRef]
  19. Zhang, J.; Muthukumar, M. Monte Carlo simulations of single crystals from polymer solutions. J. Chem. Phys. 2007, 126, 234904. [Google Scholar] [CrossRef] [PubMed]
  20. Kaji, K.; Nishida, K.; Kanaya, T.; Matsuba, G.; Konishi, T.; Imai, M. Spinodal crystallization of polymers: Crystallization from the unstable melt. Adv. Polym. Sci. 2005, 191, 187–240. [Google Scholar]
  21. Olmsted, P.D.; Poon, W.C.K.; McLeish, T.C.B.; Terrill, N.J.; Ryan, A.J. Spinodal-assisted crystallization in polymer melts. Phys. Rev. Lett. 1998, 81, 373–376. [Google Scholar] [CrossRef]
  22. Strobl, G. Colloquium: Laws controlling crystallization and melting in bulk polymers. Rev. Mod. Phys. 2009, 81, 1287–1300. [Google Scholar] [CrossRef]
  23. Kumaki, J.; Kawauchi, T.; Yashima, E. Two-dimensional folded chain crystals of a synthetic polymer in a langmuir-blodgett film. J. Am. Chem. Soc. 2005, 127, 5788–5789. [Google Scholar] [CrossRef] [PubMed]
  24. Mullin, N.; Hobbs, J.K. Direct imaging of polyethylene films at single-chain resolution with torsional tapping atomic force microscopy. Phys. Rev. Lett. 2011, 107, 197801. [Google Scholar] [CrossRef] [PubMed]
  25. Savage, R.C.; Mullin, N.; Hobbs, J.K. Molecular Conformation at the Crystal-Amorphous Interface in Polyethylene. Macromolecules 2015, 48, 6160–6165. [Google Scholar] [CrossRef]
  26. Liu, K.; Song, Y.; Feng, W.; Liu, N.; Zhang, W.; Zhang, X. Extracting a single polyethylene oxide chain from a single crystal by a combination of atomic force microscopy imaging and single-molecule force spectroscopy: Toward the investigation of molecular interactions in their condensed states. J. Am. Chem. Soc. 2011, 133, 3326–3329. [Google Scholar] [CrossRef] [PubMed]
  27. Schmidt-Rohr, K.; Spiess, H.W. Multidimensional Solid-State NMR and Polymers; Academic Press: London, UK, 1994. [Google Scholar]
  28. Tang, M.; Comellas, G.; Rienstra, C.M. Advanced Solid-State NMR Approaches for Structure Determination of Membrane Proteins and Amyloid Fibrils. Acc. Chem. Res. 2013, 46, 2080–2088. [Google Scholar] [CrossRef] [PubMed]
  29. Polenova, T.; Gupta, R.; Goldbourt, A. Magic angle spinning NMR spectroscopy: A versatile technique for structural and dynamic analysis of solid-phase systems. Anal. Chem. 2015, 87, 5458–5469. [Google Scholar] [CrossRef] [PubMed]
  30. Hong, M.; Schmidt-Rohr, K. Magic-angle-spinning NMR techniques for measuring long-range distances in biological macromolecules. Acc. Chem. Res. 2013, 46, 2154–2163. [Google Scholar] [CrossRef] [PubMed]
  31. Hu, W.G.; Boeffel, C.; Schmidt-Rohr, K. Chain flips in polyethylene crystallites and fibers characterized by dipolar C-13 NMR. Macromolecules 1999, 32, 1611–1619. [Google Scholar] [CrossRef]
  32. Yao, Y.-F.; Graf, R.; Spiess, H.W.; Lippits, D.R.; Rastogi, S. Morphological differences in semicrystalline polymers: Implications for local dynamics and chain diffusion. Phys. Rev. E 2007, 76, 060801. [Google Scholar] [CrossRef] [PubMed]
  33. Yao, Y.-F.; Graf, R.; Spiess, H.W.; Rastogi, S. Restricted segmental mobility can facilitate medium-range chain diffusion: A NMR study of morphological influence on chain dynamics of polyethylene. Macromolecules 2008, 41, 2514–2519. [Google Scholar] [CrossRef]
  34. Barenwald, R.; Goerlitz, S.; Godehardt, R.; Osichow, A.; Tong, Q.; Krumova, M.; Mecking, S.; Saalwachter, K. Local Flips and Chain Motion in Polyethylene Crystallites: A Comparison of Melt-Crystallized Samples, Reactor Powders, and Nanocrystals. Macromolecules 2014, 47, 5163–5173. [Google Scholar] [CrossRef]
  35. Barenwald, R.; Goerlitz, S.; Godehardt, R.; Osichow, A.; Tong, Q.; Krumova, M.; Mecking, S.; Saalwachter, K. Correction to Local Flips and Chain Motion in Polyethylene Crystallites: A Comparison of Melt-Crystallized Samples, Reactor Powders, and Nanocrystals. Macromolecules 2014, 47, 7677–7678. [Google Scholar] [CrossRef]
  36. Kaji, H.; Miura, N.; Schmidt-Rohr, K. Rotational motions in atactic poly (acrylonitrile) studied by one-and two-dimensional 15N solid-state NMR and dielectric measurements. Macromolecules 2003, 36, 6100–6113. [Google Scholar] [CrossRef]
  37. DeAzevedo, E.R.; Hu, W.G.; Bonagamba, T.J.; Schmidt-Rohr, K. Centerband-only detection of exchange: Efficient analysis of dynamics in solids by NMR. J. Am. Chem. Soc. 1999, 121, 8411–8412. [Google Scholar] [CrossRef]
  38. Miyoshi, T.; Pascui, O.; Reichert, D. Helical jump motions in isotactic poly(4-methyl-1-pentene) crystallites revealed by 1D MAS exchange NMR spectroscopy. Macromolecules 2002, 35, 7178–7181. [Google Scholar] [CrossRef]
  39. Miyoshi, T.; Pascui, O.; Reichert, D. Slow Chain Dynamics in Isotactic -poly(4-methyl-1-pentene) Crystallites near the Glass Transition Temperature Characterized by Solid-State 13C MAS Exchange NMR. Macromolecules 2004, 37, 6460–6471. [Google Scholar] [CrossRef]
  40. Miyoshi, T.; Pascui, O.; Reichert, D. Large-amplitude motions of form III of isotactic poly(4-methyl-1-pentene) crystallites prior to crystal-crystal transformation. Macromolecules 2004, 37, 6653–6656. [Google Scholar] [CrossRef]
  41. Miyoshi, T.; Mamun, A.; Hu, W. Molecular ordering and molecular dynamics in isotactic-polypropylene characterized by solid state NMR. J. Phys. Chem. B 2010, 114, 92–100. [Google Scholar] [CrossRef] [PubMed]
  42. Chen, W.; Reichert, D.; Miyoshi, T. Helical Jump Motions of Poly(l -Lactic Acid) Chains in the α Phase As Revealed by Solid-State NMR. J. Phys. Chem. B 2015, 119, 4552–4563. [Google Scholar] [CrossRef] [PubMed]
  43. Chen, W.; Zhou, W.; Makita, Y.; Wang, S.; Yuan, S.; Konishi, T.; Miyoshi, T. Characterization of the Slow Molecular Dynamics of Poly(l-Lactic Acid) in α and α′ Phases, in a Glassy State, and in a Complex with Poly(d-Lactic Acid) by Solid-State NMR. Macromol. Chem. Phys. 2018, 1700451. [Google Scholar] [CrossRef]
  44. Schäler, K.; Ostas, E.; Schröter, K.; Thurn-Albrecht, T.; Binder, W.H.; Saalwächter, K. Influence of Chain Topology on Polymer Dynamics and Crystallization. Investigation of Linear and Cyclic Poly (ε-caprolactone) by 1H Solid-State NMR Methods. Macromolecules 2011, 44, 2743–2754. [Google Scholar] [CrossRef]
  45. Schäler, K.; Achilles, A.; Bärenwald, R.; Hackel, C.; Saalwächter, K. Dynamics in Crystallites of Poly(ε-caprolactone) As Investigated by Solid-State NMR. Macromolecules 2013, 46, 7818–7825. [Google Scholar] [CrossRef]
  46. Kurz, R.; Achilles, A.; Chen, W.; Schäfer, M.; Seidlitz, A.; Golitsyn, Y.; Kressler, J.; Paul, W.; Hempel, G.; Miyoshi, T.; et al. Intracrystalline Jump Motion in Poly(ethylene oxide) Lamellae of Variable Thickness: A Comparison of NMR Methods. Macromolecules 2017, 50, 3890–3902. [Google Scholar] [CrossRef]
  47. Miyoshi, T.; Hu, W.; Li, Y. Dynamic geometry and kinetics of polymer confined in self-assembly via cooperative hydrogen bonding: A solid-state NMR study under paramagnetic doping. Macromolecules 2010, 43, 4435–4437. [Google Scholar] [CrossRef]
  48. Vaca Chávez, F.; Saalwächter, K. Time-domain NMR observation of entangled polymer dynamics: Analytical theory of signal functions. Macromolecules 2011, 44, 1560–1569. [Google Scholar] [CrossRef]
  49. Vaca Chávez, F.; Saalwächter, K. Time-domain NMR observation of entangled polymer dynamics: Universal behavior of flexible homopolymers and applicability of the tube model. Macromolecules 2011, 44, 1549–1559. [Google Scholar] [CrossRef]
  50. Singh, M.; Schaefer, J. Chain packing in glassy polymers by natural-Abundance 13C-13C spin diffusion using 2D centerband-Only detection of exchange. J. Am. Chem. Soc. 2011, 133, 2626–2631. [Google Scholar] [CrossRef] [PubMed]
  51. Schmidt-Rohr, K.; Hu, W.; Zumbulyadis, N. Elucidation of the chain conformation in a glassy polyester, PET, by two-dimensional NMR. Science 1998, 280, 714–717. [Google Scholar] [CrossRef] [PubMed]
  52. Hong, Y.L.; Miyoshi, T. Chain-folding structure of a semicrystalline polymer in bulk crystals determined by 13C-13C double quantum NMR. ACS Macro Lett. 2013, 2, 501–505. [Google Scholar] [CrossRef]
  53. Li, Z.; Hong, Y.L.; Yuan, S.; Kang, J.; Kamimura, A.; Otsubo, A.; Miyoshi, T. Determination of Chain-Folding Structure of Isotactic Polypropylene in Melt-Grown α Crystals by 13C-13C Double Quantum NMR and Selective Isotopic Labeling. Macromolecules 2015, 48, 5752–5760. [Google Scholar] [CrossRef]
  54. Yuan, S.; Li, Z.; Hong, Y.L.; Ke, Y.; Kang, J.; Kamimura, A.; Otsubo, A.; Miyoshi, T. Folding of Polymer Chains in the Early Stage of Crystallization. ACS Macro Lett. 2015, 4, 1382–1385. [Google Scholar] [CrossRef]
  55. Hong, Y.L.; Koga, T.; Miyoshi, T. Chain trajectory and crystallization mechanism of a semicrystalline polymer in melt- and solution-grown crystals as studied using 13C-13C double-quantum NMR. Macromolecules 2015, 48, 3282–3293. [Google Scholar] [CrossRef]
  56. Hong, Y.L.; Miyoshi, T. Elucidation of the chain-folding structure of a semicrystalline polymer in single crystals by solid-state NMR. ACS Macro Lett. 2014, 3, 556–559. [Google Scholar] [CrossRef]
  57. Hong, Y.L.; Yuan, S.; Li, Z.; Ke, Y.; Nozaki, K.; Miyoshi, T. Three-Dimensional Conformation of Folded Polymers in Single Crystals. Phys. Rev. Lett. 2015, 115, 168301. [Google Scholar] [CrossRef] [PubMed]
  58. Wang, S.; Yuan, S.; Chen, W.; He, Q.; Hong, Y.L.; Miyoshi, T. Solid-State NMR Study of the Chain Trajectory and Crystallization Mechanism of Poly(l -lactic acid) in Dilute Solution. Macromolecules 2017, 50, 6404–6414. [Google Scholar] [CrossRef]
  59. Yuan, S.; Li, Z.; Kang, J.; Hong, Y.L.; Kamimura, A.; Otsubo, A.; Miyoshi, T. Determination of local packing structure of mesomorphic form of isotactic polypropylene by Solid-State NMR. ACS Macro Lett. 2015, 4, 143–146. [Google Scholar] [CrossRef]
  60. Kang, J.; Yuan, S.; Hong, Y.L.; Chen, W.; Kamimura, A.; Otsubo, A.; Miyoshi, T. Unfolding of Isotactic Polypropylene under Uniaxial Stretching. ACS Macro Lett. 2016, 5, 65–68. [Google Scholar] [CrossRef]
  61. Chen, W.; Wang, S.; Zhang, W.; Ke, Y.; Hong, Y.L.; Miyoshi, T. Molecular Structural Basis for Stereocomplex Formation of Polylactide Enantiomers in Dilute Solution. ACS Macro Lett. 2015, 4, 1264–1267. [Google Scholar] [CrossRef]
  62. Hong, Y.L.; Chen, W.; Yuan, S.; Kang, J.; Miyoshi, T. Chain Trajectory of Semicrystalline Polymers As Revealed by Solid-State NMR Spectroscopy. ACS Macro Lett. 2016, 5, 355–358. [Google Scholar] [CrossRef]
  63. Zhou, W.; Wang, K.; Wang, S.; Yuan, S.; Chen, W.; Konishi, T.; Miyoshi, T. Stoichiometry and Packing Structure of Poly(lactic acid) Stereocomplex as Revealed by Solid-State NMR and 13C Isotope Labeling. ACS Macro Lett. 2018, 7, 667–671. [Google Scholar] [CrossRef]
  64. Hohwy, M.; Jakobsen, H.J.; Edén, M.; Levitt, M.H.; Nielsen, N.C. Broadband dipolar recoupling in the nuclear magnetic resonance of rotating solids: A compensated C7 pulse sequence. J. Chem. Phys. 1998, 108, 2686–2694. [Google Scholar] [CrossRef]
  65. Bennett, A.E.; Rienstra, C.M.; Auger, M.; Lakshmi, K.V.; Griffin, R.G. Heteronuclear decoupling in rotating solids. J. Chem. Phys. 1995, 103, 6951. [Google Scholar] [CrossRef]
  66. Veshtort, M.; Griffin, R.G. SPINEVOLUTION: A powerful tool for the simulation of solid and liquid state NMR experiments. J. Magn. Reson. 2006, 178, 248–282. [Google Scholar] [CrossRef] [PubMed]
  67. Natta, G.; Corradini, P.; Bassi, I.W. Crystal structure of isotactic poly-alpha-butene. Nuovo Cim. Ser. 10 1960, 15, 52–67. [Google Scholar] [CrossRef]
  68. Ikada, Y.; Jamshidi, K.; Tsuji, H.; Hyon, S.H. Stereocomplex Formation between Enantiomeric Poly(lactides). Macromolecules 1987, 20, 904–906. [Google Scholar] [CrossRef]
  69. Cartier, L.; Okihara, T.; Lotz, B. Triangular polymer single crystals: Stereocomplexes, twins, and frustrated structures. Macromolecules 1997, 30, 6313–6322. [Google Scholar] [CrossRef]
  70. Tashiro, K.; Kouno, N.; Wang, H.; Tsuji, H. Crystal Structure of Poly(lactic acid) Stereocomplex: Random Packing Model of PDLA and PLLA Chains As Studied by X-ray Diffraction Analysis. Macromolecules 2017, 50, 8048–8065. [Google Scholar] [CrossRef]
  71. Coccorullo, I.; Pantani, R.; Titomanlio, G. Crystallization kinetics and solidified structure in iPP under high cooling rates. Polymer 2003, 44, 307–318. [Google Scholar] [CrossRef]
  72. Li, Z.; Miyoshi, T.; Sen, M.K.; Koga, T.; Otsubo, A.; Kamimura, A. Solid-state NMR characterization of the chemical defects and physical disorders in α form of isotactic poly(propylene) synthesized by Ziegler-Natta catalysts. Macromolecules 2013, 46, 6507–6519. [Google Scholar] [CrossRef]
  73. Meyer, H.; Müller-Plathe, F. Formation of chain-bolded structures in supercooled polymer melts examined by MD simulations. Macromolecules 2002, 35, 1241–1252. [Google Scholar] [CrossRef]
  74. Luo, C.; Sommer, J.U. Role of Thermal History and Entanglement Related Thickness Selection in Polymer Crystallization. ACS Macro Lett. 2016, 5, 30–34. [Google Scholar] [CrossRef]
  75. Schmidt-Rohr, K.; Spiess, H.W. Chain Diffusion between Crystalline and Amorphous Regions in Polyethylene Detected by 2D Exchange 13C NMR. Macromolecules 1991, 24, 5288–5293. [Google Scholar] [CrossRef]
  76. Schaefer, D.; Spiess, H.W.; Suter, U.W.; Fleming, W.W. Two-Dimensional Solid-State NMR Studies of Ultraslow Chain Motion: Glass Transition in Atactic Poly(propylene) versus Helical Jumps in Isotactic Poly(propylene). Macromolecules 1990, 23, 3431–3439. [Google Scholar] [CrossRef]
  77. Thomsen, T.; Zachmann, H.G.; Korte, S. Molecular motion in polyacrylonitrile as determined by deuteron NMR. Macromolecules 1992, 25, 6934–6937. [Google Scholar] [CrossRef]
  78. Kentgens, A.P.M.; De Boer, E.; Veeman, W.S. Ultraslow molecular motions in crystalline polyoxymethylene. A complete elucidation using two-dimensional solid state NMR. J. Chem. Phys. 1987, 87, 6859–6866. [Google Scholar] [CrossRef]
  79. English, A.D. Macromolecular dynamics in solid poly(ethylene terephthalate): Proton and carbon-13 solid-state NMR. Macromolecules 1984, 17, 2182–2192. [Google Scholar] [CrossRef]
  80. Hirschinger, J.; Miura, H.; Gardner, K.H.; English, A.D. Segmental dynamics in the crystalline phase of nylon 66: Solid state deuterium NMR. Macromolecules 1990, 23, 2153–2169. [Google Scholar] [CrossRef]
  81. Miura, H.; Hirschinger, J.; English, A.D. Segmental dynamics in the amorphous phase of nylon 66: Solid state deuterium NMR. Macromolecules 1990, 23, 2169–2182. [Google Scholar] [CrossRef]
  82. Vega, A.J.; English, A.D. Multiple-Pulse Nuclear Magnetic Resonance of Solid Polymers. Polymer Motions in Crystalline and Amorphous Poly(tetrafluoroethylene). Macromolecules 1980, 13, 1635–1647. [Google Scholar] [CrossRef]
  83. Schaefer, D.; Spiess, H.W.; Hirschinger, J.; Lovinger, A.J. Chain Dynamics in the Crystalline α-Phase of Poly(vinylidene fluoride) by Two-Dimensional Exchange 2H NMR. Macromolecules 1991, 24, 2428–2433. [Google Scholar]
  84. Nozue, Y.; Shinohara, Y.; Ogawa, Y.; Takamizawa, T.; Sakurai, T.; Kasahara, T.; Yamaguchi, N.; Yagi, N.; Amemiya, Y. Deformation behavior of banded spherulite during drawing investigated by simultaneous microbeam SAXS-WAXS and POM measurement. Polymer 2010, 51, 222–231. [Google Scholar] [CrossRef]
  85. Sadler, D.M.; Barham, P.J. Structure of drawn fibres: 1. Neutron scattering studies of necking in melt-crystallized polyethylene. Polymer 1990, 31, 36–42. [Google Scholar] [CrossRef]
  86. Sadler, D.M.; Barham, P.J. Structure of drawn fibres: 3. Neutron scattering studies of polyethylene fibres drawn beyond the neck. Polymer 1990, 31, 46–50. [Google Scholar] [CrossRef]
  87. Chattopadhyay, S.; Erdemir, D.; Evans, J.M.B.; Ilavsky, J.; Amenitsch, H.; Segre, C.U.; Myerson, A.S. SAXS study of the nucleation of glycine crystals from a supersaturated solution. Cryst. Growth Des. 2005, 5, 523–527. [Google Scholar] [CrossRef]
  88. Gebauer, D.; Volkel, A.; Colfen, H. Stable prenucleation calcium carbonate clusters. Science 2008, 322, 1819–1822. [Google Scholar] [CrossRef] [PubMed]
  89. Dey, A.; Bomans, P.H.H.; Muller, F.A.; Will, J.; Frederik, P.M.; de With, G.; Sommerdijk, N.A.J.M. The role of prenucleation clusters in surface-induced calcium phosphate crystallization. Nat. Mater. 2010, 9, 1010–1014. [Google Scholar] [CrossRef] [PubMed]
  90. Sleutel, M.; Van Driessche, E.S.A. Role of clusters in nonclassical nucleation and growth of protein crystals. Proc. Natl. Acad. Sci. USA 2014, 111, E546–E553. [Google Scholar] [CrossRef] [PubMed]
  91. Duran, H.; Steinhart, M.; Butt, H.H.-J.; Floudas, G. From heterogeneous to homogeneous nucleation of isotactic poly (propylene) confined to nanoporous alumina. Nano Lett. 2011, 11, 1671–1675. [Google Scholar] [CrossRef] [PubMed]
  92. Qi, H.; Wang, W.; Li, C.Y. Janus polymer single crystal nanosheet via evaporative crystallization. ACS Macro Lett. 2014, 3, 675–678. [Google Scholar] [CrossRef]
  93. Zhang, C.; Pansare, V.J.; Prud’homme, R.K.; Priestley, R.D. Flash nanoprecipitation of polystyrene nanoparticles. Soft Matter 2012, 8, 86–93. [Google Scholar] [CrossRef]
  94. Richard-Lacroix, M.; Pellerin, C. Molecular orientation in electrospun fibers: From mats to single fibers. Macromolecules 2013, 46, 9473–9493. [Google Scholar] [CrossRef]

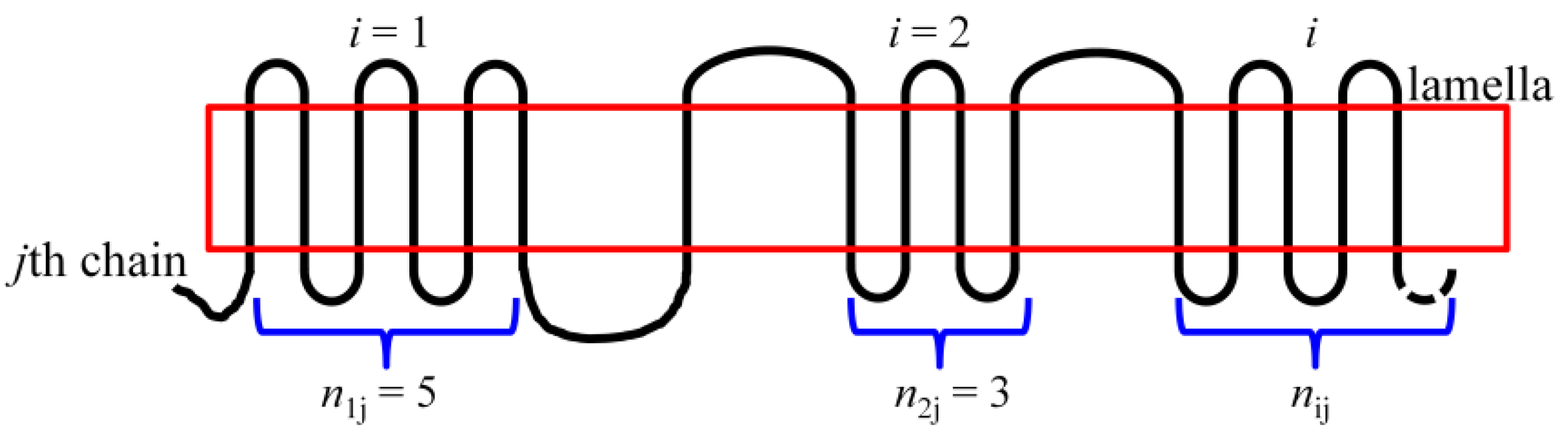

Scheme 1. Schematic illustration of chain-folding patterns of jth chain in one lamella. nij means number of adjacent re-entry folds of the ith cluster of the jth chain. (Reprinted with permission from Macromolecules 2015, 48, 5752–5760. Copyright (2015) American Chemical Society).
Scheme 1. Schematic illustration of chain-folding patterns of jth chain in one lamella. nij means number of adjacent re-entry folds of the ith cluster of the jth chain. (Reprinted with permission from Macromolecules 2015, 48, 5752–5760. Copyright (2015) American Chemical Society).
Polymers 10 00775 sch001
Figure 1. (a) 13C relaxation-filtered single quantum (SQ) (black) and double quantum (DQ) (red) cross-polarization magic angle spinning (CPMAS) NMR spectra of 35 wt% 13CH3-enriched iPB1 form I-rich sample grown at Tc = 95 °C. (b) Trigonal crystal structure of iPB1 form I determined by wide angle X-ray diffraction (WAXD) and corresponding 11-spin system of 13C CH3 groups on the (001) plane [67]. The projection of the 11-spin systems on the (c) (001) and (d) (1 2 ¯ 0) planes. The DQ buildup curves of iPB1 form I (e) melt grown-crystals crystallized at 95 °C (black open circles) and at ~0 °C (green ones) and (f) solution-grown crystals at 60 °C (black ones) and at ~0 °C (green ones). In (e) and (f), the simulated red and blue DQ curves based on the closest interstem 13C–13C internuclear distance; <r> of 4.0 Å; and an exponential T2 of 8.3 ms and <r> = 4.2 Å and T2 = 10.5 ms, respectively. (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Figure 1. (a) 13C relaxation-filtered single quantum (SQ) (black) and double quantum (DQ) (red) cross-polarization magic angle spinning (CPMAS) NMR spectra of 35 wt% 13CH3-enriched iPB1 form I-rich sample grown at Tc = 95 °C. (b) Trigonal crystal structure of iPB1 form I determined by wide angle X-ray diffraction (WAXD) and corresponding 11-spin system of 13C CH3 groups on the (001) plane [67]. The projection of the 11-spin systems on the (c) (001) and (d) (1 2 ¯ 0) planes. The DQ buildup curves of iPB1 form I (e) melt grown-crystals crystallized at 95 °C (black open circles) and at ~0 °C (green ones) and (f) solution-grown crystals at 60 °C (black ones) and at ~0 °C (green ones). In (e) and (f), the simulated red and blue DQ curves based on the closest interstem 13C–13C internuclear distance; <r> of 4.0 Å; and an exponential T2 of 8.3 ms and <r> = 4.2 Å and T2 = 10.5 ms, respectively. (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Polymers 10 00775 g001

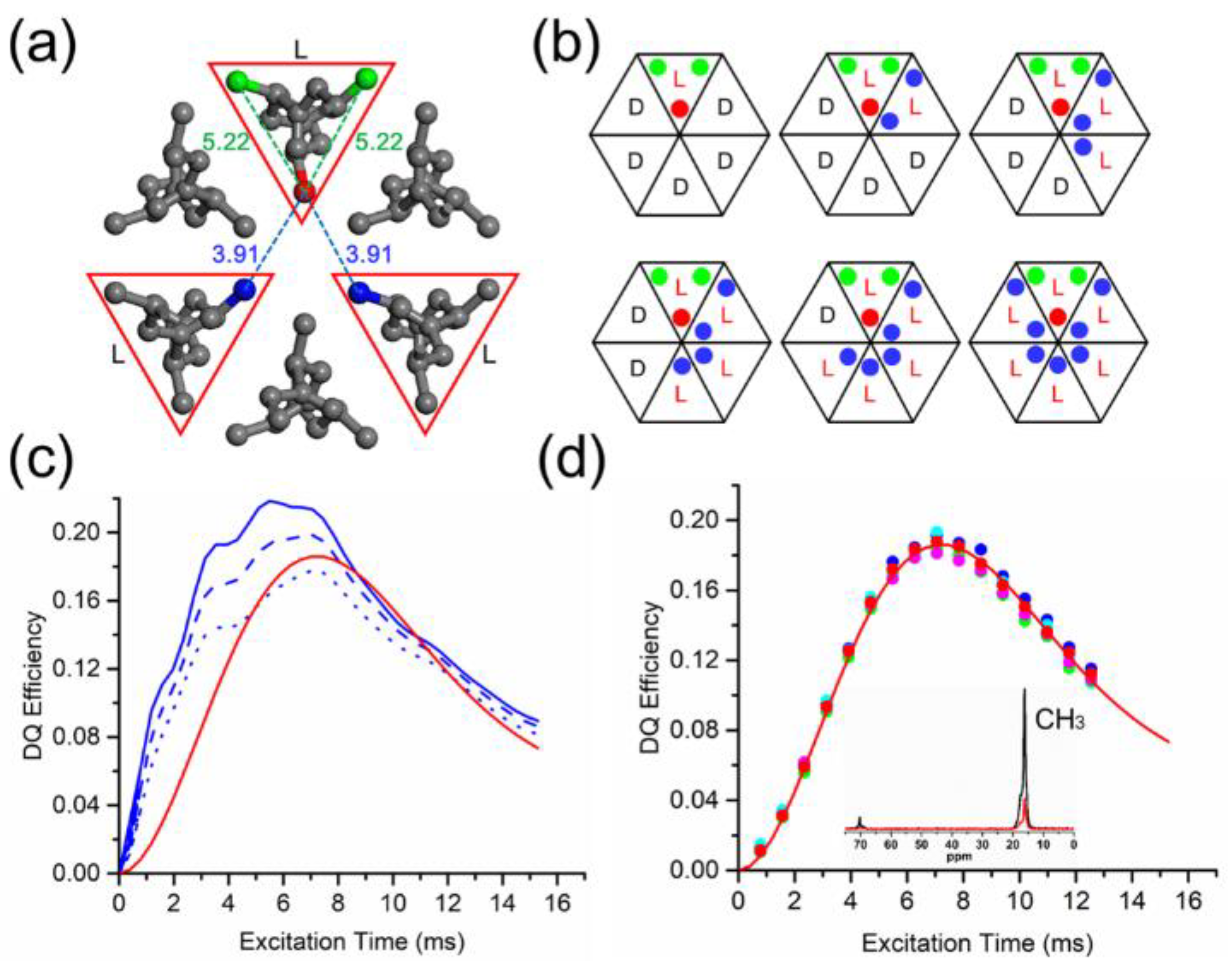

Figure 2. (a) R3c packing structure and 13C five spin systems of 13C CH3 labeled poly(L-lactic acid) (PLLA) in stereocomplex (SC), including reference (red) two intrastem (green) and two interstem spins (blue) at distance less than 7 Å used in calculations for the DQ curve. (b) Schematic drawing for six submodels in the P3 model. (c) Calculated 13C–13C DQ buildup curves based on R3C (red solid) and P3 models (blue) at blending ratios of PLLA/PDLA=7/3 (solid), 1/1 (dashed), and 3/7(dotted) with T2 value of 9.5 ms. (d) 13C CPMAS SQ (black) and DQ (red) NMR spectra for the 33% PLLA/PDLA blends at a blending ratio of PLLA/PDLA= 1/1, with an excitation time of 6.27 ms and DQ buildup curves for PLLA/PDLA SC at PLLA/PDLA blending ratios of 7/3 (pink filled circle), 6/4 (light blue), 5/5 (sky blue), 4/6(light green), and 3/7 (red) with the calculated curve for the R3c model. (Reprinted with permission from ACS Macro Lett. 2018, 7, 667–671. Copyright (2018) American Chemical Society).
Figure 2. (a) R3c packing structure and 13C five spin systems of 13C CH3 labeled poly(L-lactic acid) (PLLA) in stereocomplex (SC), including reference (red) two intrastem (green) and two interstem spins (blue) at distance less than 7 Å used in calculations for the DQ curve. (b) Schematic drawing for six submodels in the P3 model. (c) Calculated 13C–13C DQ buildup curves based on R3C (red solid) and P3 models (blue) at blending ratios of PLLA/PDLA=7/3 (solid), 1/1 (dashed), and 3/7(dotted) with T2 value of 9.5 ms. (d) 13C CPMAS SQ (black) and DQ (red) NMR spectra for the 33% PLLA/PDLA blends at a blending ratio of PLLA/PDLA= 1/1, with an excitation time of 6.27 ms and DQ buildup curves for PLLA/PDLA SC at PLLA/PDLA blending ratios of 7/3 (pink filled circle), 6/4 (light blue), 5/5 (sky blue), 4/6(light green), and 3/7 (red) with the calculated curve for the R3c model. (Reprinted with permission from ACS Macro Lett. 2018, 7, 667–671. Copyright (2018) American Chemical Society).
Polymers 10 00775 g002
Figure 3. Four chain-folding (CF) patterns of (A) CF0, (B) CFI, (C) CFII, and (D) CFIII, and (E) the corresponding calculated DQ buildup curves for 35% 13C CH3 enriched iPB1 form I crystal blends with non-labeled iPB1 at a blending ratio of 1:9 under the assumption of infinite folding structures [52,55,56]. (Reprinted with permission from ACS Macro Lett. 2016, 5, 355–358. Copyright (2016) American Chemical Society).
Figure 3. Four chain-folding (CF) patterns of (A) CF0, (B) CFI, (C) CFII, and (D) CFIII, and (E) the corresponding calculated DQ buildup curves for 35% 13C CH3 enriched iPB1 form I crystal blends with non-labeled iPB1 at a blending ratio of 1:9 under the assumption of infinite folding structures [52,55,56]. (Reprinted with permission from ACS Macro Lett. 2016, 5, 355–358. Copyright (2016) American Chemical Society).
Polymers 10 00775 g003
Figure 4. Transmission electron microscopy (TEM) images of iPB1(A) hexagonal and (B) circulated crystals prepared at 60 °C and ~0 °C, respectively, in dilution solution. (Reprinted with permission from ACS Macro Lett. 2014, 3, 556–559.Copyright (2014) American Chemical Society).
Figure 4. Transmission electron microscopy (TEM) images of iPB1(A) hexagonal and (B) circulated crystals prepared at 60 °C and ~0 °C, respectively, in dilution solution. (Reprinted with permission from ACS Macro Lett. 2014, 3, 556–559.Copyright (2014) American Chemical Society).
Polymers 10 00775 g004
Figure 5. Schematic illustration of (a) hexagonal single crystal crystallized in dilute solution at 60 °C and two possible chain-folding patterns of CFI or CFII. (bd) Black open circles are the experimental DQ buildup curve for 13C-labeled iPB1 stems in the blend single crystals with non-labeled chains (1/9) crystallized at 60 °C. (b) The simulated DQ buildup curve for CFI and CFII based on <n> = 21 and <F> = 100%. (c) <n> and (d) <F> effects on the simulated DQ buildup curves based on <FCFII> = 100% and <n> = 21, respectively. (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Figure 5. Schematic illustration of (a) hexagonal single crystal crystallized in dilute solution at 60 °C and two possible chain-folding patterns of CFI or CFII. (bd) Black open circles are the experimental DQ buildup curve for 13C-labeled iPB1 stems in the blend single crystals with non-labeled chains (1/9) crystallized at 60 °C. (b) The simulated DQ buildup curve for CFI and CFII based on <n> = 21 and <F> = 100%. (c) <n> and (d) <F> effects on the simulated DQ buildup curves based on <FCFII> = 100% and <n> = 21, respectively. (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Polymers 10 00775 g005
Figure 6. Schematic illustrations of (a) the circular crystal crystallized in dilute solution at ~0 °C and three possible chain-folding structures of CF0, CFIII, and CFIV. (bd) The black and green open circles represent the experimental DQ buildup curves for 13C-labeled iPB1 chains in the crystal blends with non-labeled chains (1/9) crystallized at ~0 and 60 °C, respectively. (b) The simulated DQ curves for CFIII (orange) and CFIV (blue) with <n> = 10 and <F> = 80% (solid line) and <n> = 5 and <F> = 50% (dots) and for CF0 (pink solid curve). (c) Blue solid curve is simulated on the basis of CFIV <n> = 21 and <FCFIV> = 95%, and the curve composed of sky blue crosses is simulated on the basis of <n> = 8 and <FCFIV> = 100%. (d) Red crosses and black solid curve are the simulated curves for CFII with <n> = 21 and <FCFII> = 90%, and <n> = 8 and <FCFII> = 100%, respectively. (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Figure 6. Schematic illustrations of (a) the circular crystal crystallized in dilute solution at ~0 °C and three possible chain-folding structures of CF0, CFIII, and CFIV. (bd) The black and green open circles represent the experimental DQ buildup curves for 13C-labeled iPB1 chains in the crystal blends with non-labeled chains (1/9) crystallized at ~0 and 60 °C, respectively. (b) The simulated DQ curves for CFIII (orange) and CFIV (blue) with <n> = 10 and <F> = 80% (solid line) and <n> = 5 and <F> = 50% (dots) and for CF0 (pink solid curve). (c) Blue solid curve is simulated on the basis of CFIV <n> = 21 and <FCFIV> = 95%, and the curve composed of sky blue crosses is simulated on the basis of <n> = 8 and <FCFIV> = 100%. (d) Red crosses and black solid curve are the simulated curves for CFII with <n> = 21 and <FCFII> = 90%, and <n> = 8 and <FCFII> = 100%, respectively. (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Polymers 10 00775 g006
Figure 7. (A) Orthorhombic packing structure of iPB1 form III and two magnetically inequivalent CH3 sites colored by blue (B) and red (A). (B) T1ρH filtered 13C CPMAS (black) and DQ (green) NMR spectra for 35% 13C CH3 enriched iPB1 form III single crystal blends with nonl-abeled chains at a blending ratio of 1:9, crystallized in dilute solution at 50 °C. (C) The DQ buildup curves for the 13C labeled CH3 signals at A (red) and B (blue). The corresponding calculated curves based on the 3D clusters including twelve stems in four layers at <F> = 65% [57]. Two possible chain-folding mechanisms: (D) primary nucleation in solution and (E) secondary nucleation on the growth front [57]. (Reprinted with permission from ACS Macro Lett. 2016, 5, 355–358. Copyright (2016) American Chemical Society).
Figure 7. (A) Orthorhombic packing structure of iPB1 form III and two magnetically inequivalent CH3 sites colored by blue (B) and red (A). (B) T1ρH filtered 13C CPMAS (black) and DQ (green) NMR spectra for 35% 13C CH3 enriched iPB1 form III single crystal blends with nonl-abeled chains at a blending ratio of 1:9, crystallized in dilute solution at 50 °C. (C) The DQ buildup curves for the 13C labeled CH3 signals at A (red) and B (blue). The corresponding calculated curves based on the 3D clusters including twelve stems in four layers at <F> = 65% [57]. Two possible chain-folding mechanisms: (D) primary nucleation in solution and (E) secondary nucleation on the growth front [57]. (Reprinted with permission from ACS Macro Lett. 2016, 5, 355–358. Copyright (2016) American Chemical Society).
Polymers 10 00775 g007
Figure 8. (a) 13C–13C DQ buildup curve for 13C CH3-enriched PLLA single crystal blends with non-labeled chains crystallized (a) in 0.05 wt% amino acetate solution at 90 °C (green open triangles) and ~0 °C (blue open circles). The solid curves with <n> = 7 and <F> = 100% in two layers represents best-fit curves with experimental data. (b) Schematic illustration of nano building blocks of eight stem clusters in solution grown crystals at Tc = 90 and ~0 °C. (Reprinted with permission from Macromolecules 2017, 50, 6404–6414.Copyright (2017) American Chemical Society).
Figure 8. (a) 13C–13C DQ buildup curve for 13C CH3-enriched PLLA single crystal blends with non-labeled chains crystallized (a) in 0.05 wt% amino acetate solution at 90 °C (green open triangles) and ~0 °C (blue open circles). The solid curves with <n> = 7 and <F> = 100% in two layers represents best-fit curves with experimental data. (b) Schematic illustration of nano building blocks of eight stem clusters in solution grown crystals at Tc = 90 and ~0 °C. (Reprinted with permission from Macromolecules 2017, 50, 6404–6414.Copyright (2017) American Chemical Society).
Polymers 10 00775 g008
Figure 9. 13C–13C DQ buildup curves for 35% 13C–CH3 enriched iPB1 crystal blends with a non-labeled one with a mixing ratio of 1/9, formed at (a) 95 °C (black open circles), (b) 50 °C (blue open circles), and ~ 0 °C (green open circles). (a) The calculated DQ buildup curves based on CF0 (pink), CFI (green), CFII (red), and CFIII (orange) under the assumption of <n> = 5 and <F> = 100%. The calculated DQ curves for CFII with <n> = 2 and <FCFII> = 100% (blue solid curve), and <n> = 5 and <FCFII> = 80% (red crosses). (b) The calculated DQ buildup curves for CFII with <n> = 1.7 with FCFII> = 100% (black solid) at Tc = 50 °C and ~0 °C. Schematic illustrations of plausible chain-folding patterns in the lamellae: <n> = 5 (red chain) and <n> = 2 (blue) on the bottom of (a) and <n> = 10 (green) and <n> = 1.7 (black) on the bottom of (b). (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Figure 9. 13C–13C DQ buildup curves for 35% 13C–CH3 enriched iPB1 crystal blends with a non-labeled one with a mixing ratio of 1/9, formed at (a) 95 °C (black open circles), (b) 50 °C (blue open circles), and ~ 0 °C (green open circles). (a) The calculated DQ buildup curves based on CF0 (pink), CFI (green), CFII (red), and CFIII (orange) under the assumption of <n> = 5 and <F> = 100%. The calculated DQ curves for CFII with <n> = 2 and <FCFII> = 100% (blue solid curve), and <n> = 5 and <FCFII> = 80% (red crosses). (b) The calculated DQ buildup curves for CFII with <n> = 1.7 with FCFII> = 100% (black solid) at Tc = 50 °C and ~0 °C. Schematic illustrations of plausible chain-folding patterns in the lamellae: <n> = 5 (red chain) and <n> = 2 (blue) on the bottom of (a) and <n> = 10 (green) and <n> = 1.7 (black) on the bottom of (b). (Reprinted with permission from Macromolecules 2015, 48, 3282–3293. Copyright (2015) American Chemical Society).
Polymers 10 00775 g009
Figure 10. Unit-cell structures of (a) α2 and (b) α1 forms of iPP. (c) The 13C CPMAS NMR spectra for the pure α form of iPP at different supercoolings. (Reprinted with permission from J. Phys. Chem. B 2010, 114, 92–100. Copyright (2010) American Chemical Society).
Figure 10. Unit-cell structures of (a) α2 and (b) α1 forms of iPP. (c) The 13C CPMAS NMR spectra for the pure α form of iPP at different supercoolings. (Reprinted with permission from J. Phys. Chem. B 2010, 114, 92–100. Copyright (2010) American Chemical Society).
Polymers 10 00775 g010
Figure 11. (A) 13C–13C DQ buildup curve for 15 wt% 13C CH3 enriched iPP mesomorphic blends with nonlabeled one with a blending ratio of 1:9. The simulated DQ curves were obtained on the basis of (B) isolated model (green) and (C) nanocluster model via folding with <n> = 4 and <F > = 100% [54,62]. (Reprinted with permission from ACS Macro Lett. 2016, 5, 355–358. Copyright (2016) American Chemical Society).
Figure 11. (A) 13C–13C DQ buildup curve for 15 wt% 13C CH3 enriched iPP mesomorphic blends with nonlabeled one with a blending ratio of 1:9. The simulated DQ curves were obtained on the basis of (B) isolated model (green) and (C) nanocluster model via folding with <n> = 4 and <F > = 100% [54,62]. (Reprinted with permission from ACS Macro Lett. 2016, 5, 355–358. Copyright (2016) American Chemical Society).
Polymers 10 00775 g011
Figure 12. (a) iP4M1P 72 helical structure and corresponding chemical shift anisotropy (CSA) patterns. (b) Center-bands only of detection of exchange (CODEX) and reference spectra of iP4M1P with evolution time of 2.2 ms and mixing time of 107 ms at 87 °C. (c) CODEX evolution time-dependence of (S/S0) of CH2 (C1) signals of iP4M1P with mixing time of 107 ms at 60 °C. (d) CODEX mixing time-dependence of (S/S0)* intensities for C1 (●), C2 (○), C3, (□), and C6 (×) of iP4M1P with evolution time of 2.2 ms at 87 °C. (Reprinted with permission from Macromolecules 2004, 37, 6460–6471 Copyright (2004) American Chemical Society).
Figure 12. (a) iP4M1P 72 helical structure and corresponding chemical shift anisotropy (CSA) patterns. (b) Center-bands only of detection of exchange (CODEX) and reference spectra of iP4M1P with evolution time of 2.2 ms and mixing time of 107 ms at 87 °C. (c) CODEX evolution time-dependence of (S/S0) of CH2 (C1) signals of iP4M1P with mixing time of 107 ms at 60 °C. (d) CODEX mixing time-dependence of (S/S0)* intensities for C1 (●), C2 (○), C3, (□), and C6 (×) of iP4M1P with evolution time of 2.2 ms at 87 °C. (Reprinted with permission from Macromolecules 2004, 37, 6460–6471 Copyright (2004) American Chemical Society).
Polymers 10 00775 g012
Figure 13. (a) CODEX mixing-time dependence of (S/S0)* signal intensities for iPP α1 (●), and the iPP α2-rich samples (○) at 95 °C. (b) Arrhenius plots of <τc> of α1 (●), and the α2-rich samples (○). (Reprinted with permission from J. Phys. Chem. B 2010, 114, 92–100. Copyright (2004) American Chemical Society).
Figure 13. (a) CODEX mixing-time dependence of (S/S0)* signal intensities for iPP α1 (●), and the iPP α2-rich samples (○) at 95 °C. (b) Arrhenius plots of <τc> of α1 (●), and the α2-rich samples (○). (Reprinted with permission from J. Phys. Chem. B 2010, 114, 92–100. Copyright (2004) American Chemical Society).
Polymers 10 00775 g013
Figure 14. 13C–13C DQ buildup curves of 13C 50 wt% labeled iPP α1 crystal blends with non-labeled one at a mixing ratio of 1:9 at different e values and calculated DQ curves with different <n> values. Schematic illustrations of chain-folding numbers as a function of e. (Reprinted with permission from ACS Macro Lett. 2016, 5, 65–68. Copyright (2016) American Chemical Society).
Figure 14. 13C–13C DQ buildup curves of 13C 50 wt% labeled iPP α1 crystal blends with non-labeled one at a mixing ratio of 1:9 at different e values and calculated DQ curves with different <n> values. Schematic illustrations of chain-folding numbers as a function of e. (Reprinted with permission from ACS Macro Lett. 2016, 5, 65–68. Copyright (2016) American Chemical Society).
Polymers 10 00775 g014

Share and Cite

MDPI and ACS Style

Wang, S.; Hong, Y.-L.; Yuan, S.; Chen, W.; Zhou, W.; Li, Z.; Wang, K.; Min, X.; Konishi, T.; Miyoshi, T. Chain Trajectory, Chain Packing, and Molecular Dynamics of Semicrystalline Polymers as Studied by Solid-State NMR. Polymers 2018, 10, 775. https://doi.org/10.3390/polym10070775

AMA Style

Wang S, Hong Y-L, Yuan S, Chen W, Zhou W, Li Z, Wang K, Min X, Konishi T, Miyoshi T. Chain Trajectory, Chain Packing, and Molecular Dynamics of Semicrystalline Polymers as Studied by Solid-State NMR. Polymers. 2018; 10(7):775. https://doi.org/10.3390/polym10070775

Chicago/Turabian Style

Wang, Shijun, You-Lee Hong, Shichen Yuan, Wei Chen, Wenxuan Zhou, Zhen Li, Kun Wang, Xu Min, Takashi Konishi, and Toshikazu Miyoshi. 2018. "Chain Trajectory, Chain Packing, and Molecular Dynamics of Semicrystalline Polymers as Studied by Solid-State NMR" Polymers 10, no. 7: 775. https://doi.org/10.3390/polym10070775

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
