Review

Polysilane Dendrimers

Department of Chemistry & Biochemistry, Texas Tech University, Memorial Dr. & Boston, Lubbock, TX 79409, USA
Polymers 2012, 4(1), 408-447; https://doi.org/10.3390/polym4010408
Submission received: 15 December 2011 / Revised: 21 January 2012 / Accepted: 29 January 2012 / Published: 9 February 2012
(This article belongs to the Special Issue Dendrimers and Hyperbranched Polymers)

Abstract

:
The synthesis, structure and electronic properties of polysilane dendrimers, a relatively new class of highly branched and silicon-rich molecular architectures is reviewed. After a detailed discussion of main synthetic strategies to well-defined single-core and double-core polysilane dendrimers, important structural and conformational features determined by single crystal X-ray crystallography and 29Si-NMR spectroscopy are presented. The last part highlights the most interesting photochemical properties of polysilane dendrimers such as UV absorption and emission behavior, which are compared with those of linear and branched polysilanes.

Graphical Abstract

1. Introduction

The last three decades have seen intense research in the field of poly- and oligosilanes, organosilicon compounds that are composed of one or more silicon-silicon bonds. Interest in this class of compounds primarily arises from their unique optical, photoelectric, and other excited state dependent properties, which result from σ-conjugation along the silicon main chain [1,2,3]. Despite their promising photo-physical properties, commercial applications have been limited by the chemical and photochemical sensitivity of the silicon-silicon bond in oligo- and polysilanes. To overcome this problem, architectures alternative to linear and cyclic polysilanes such as branched and hyperbranched polysilanes [4,5,6,7], network polysilanes (polysilyne) [8,9,10,11,12,13] ladder polysilanes [14], organosilicon nanoclusters [15,16,17] and also dendritic polysilanes have been proposed and investigated [18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45,46,47,48,49,50].
The chemistry of well-defined polysilane dendrimers dates back to 1995, when Lambert et al. [18] and Suzuki et al. [19] independently reported the synthesis and structure of the first polysilane dendrimer of first generation, MeSi[SiMe2Si(SiMe3)3]3. Soon after the synthesis and structural characterization of further dendritic polysilanes including the first polysilane dendrimer of second generation reported by Sekiguchi et al. [20], the field developed rapidly, in part driven by the belief that polysilane dendrimers have the potential of being useful as optoelectronic materials. In fact, polysilane dendrimers combine photo-physical properties with good solubility—similar to linear polysilanes—but have higher thermal and chemical resistance. Moreover, the well-defined molecular nature of polysilane dendrimers allowed for detailed structural studies using single crystal X-ray crystallography and various spectroscopic techniques. Although the chemistry of polysilane dendrimers is still in its early stage, certain aspects of this chemistry have already been covered in two short reviews [30,35] and a book chapter [49]. This more comprehensive review seeks to thoroughly cover the entire field of polysilane dendrimers. Special emphasis is given to the synthesis, solid-state structures, 29Si-NMR spectroscopy and electronic properties. The structural and electronic properties of polysilane dendrimers will be compared with those of simple branched and linear polysilanes.

2. General Remarks

There are two subgroups of dendritic polysilanes, single-core dendrimers (S) and double-core dendrimers (D) (Figure 1 and Figure 2). Both types of dendrimers display four main structural characteristics. (1) The core silicon atom (c) in all known single-cored structures is bound exclusively to three silicon atoms that begin the dendrimer wings (W). Dendrimers that have a central silicon core bound to four silicon atoms have not been reported so far, presumably due to repulsive steric interactions between the dendrimer wings, which render the formation of such highly strained compounds thermodynamically unfavourable [46]. In double-cored structures, the core silicon atom is connected to two silicon atoms that begin the dendrimer wings (the silicon spacer group that connects the two cores is not included!). Again, due to repulsive interactions, stable double-cored dendrimers with cores that have three wings have not been observed so far. Following Lambert’s [35] suggestions we assign the designation c = 2 when two wings are bound to the core (didendrons) and c = 3 for three wings bound to the core (tridendrons); (2) In both single- and double- core structures the core silicon (c) may have any number of silicon atom spacers between the core and the first branch point. The number of silicon spacer atoms is defined by s; s = 0 (no spacer atom); s = 1 (one spacer atom) and so on. In double-core structures the spacer silicon chain that connects the two silicon cores (c) may have any number of silicon atoms. When there are no silicon spacer atoms, n = 0; when there is one spacer atom, n = 1, when there are two spacer atoms, n = 2 and so on; (3) The silicon atom (Si*), which represents the branch point may have either two (-Si*Si2) or three (-Si*Si3) additional silicon atoms that emanate from it. The number of those silicon atoms is defined as (b); b = 2 for two-fold branching and b = 3 for three-fold branching; (4) The generation of the dendrimer is defined as (g). If there is only one branch point on each dendrimer wing we assign the designation g = 1 for first generation dendrimers. If a second branch point follows, the molecule is designated g = 2 for a second generation dendrimer. Thus, for single-core polysilane dendrimers the designation S-gcsb is used, whereas double-core dendrimers are referred to as D-gcsb-n.

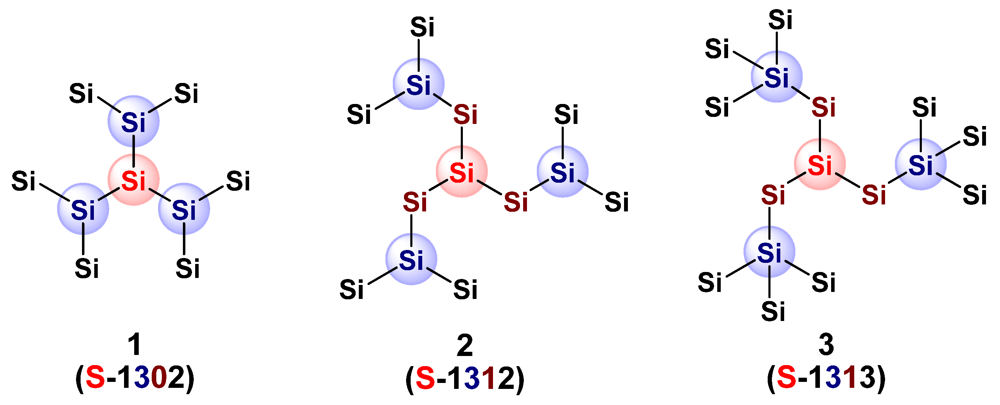

Figure 1 shows the single-core dendrimers 1-3 of first generation with either no (s = 0) or one (s = 1) spacer silicon atom between the core and the branch point. To reach a valency of four, typical for silicon, either exclusively methyl groups (referred to as permethylated dendrimers) or methyl groups along with some functional groups (halides, OH, metals, phenyls) are attached to each silicon atom. Because in both dendrimers 1 and 2 the core silicon is three-fold and the branch silicons are two-fold, the structures are referred to as S-1302 and S-1312. Dendrimer 3 on the other hand is designated as S-1313 because both core silicon and branch silicons are three-fold and the number of spacer silicon atoms is one.
Figure 1. Single-core dendrimers of first generation (all non-silyl groups are omitted for clarity, blue = branch point, brown = spacer, red = core).
Figure 1. Single-core dendrimers of first generation (all non-silyl groups are omitted for clarity, blue = branch point, brown = spacer, red = core).
Polymers 04 00408 g001

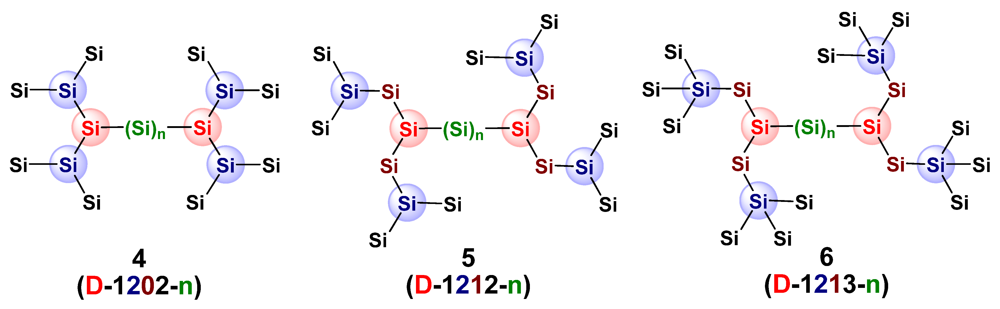

Figure 2 contains double-core dendrimers of first generation with either zero or one spacer silicon atom between the core and the branch point (s = 0, 1). These dendrimers, however, may or may not have an additional silicon spacer group located between the two cores, a structural feature that is distinct from single-core dendrimers. Accordingly, we assign the designation n = 0 for no spacer silicon atom between cores, n = 1 for one silicon atom between cores, and so on. The structures 4 and 5 are referred to as D-1202-n and D-1212-n, because in both cases the core is two-fold and the branch points are two-fold and the number of silicon spacer atoms between the cores is equal to n. Dendrimer 6 is designated D-1213-n since the branch points are threefold and the number of spacer silicon atoms between core and branch is one.
Figure 2. Double-core dendrimers of first generation (all non-silyl groups are omitted for clarity; blue = branch point, brown = spacer, red = core, green = spacer between cores).
Figure 2. Double-core dendrimers of first generation (all non-silyl groups are omitted for clarity; blue = branch point, brown = spacer, red = core, green = spacer between cores).
Polymers 04 00408 g002

3. Synthetic Strategies

The key step in the synthesis of well-defined polysilane dendrimers is the selective formation of silicon-silicon bonds through either Wurtz-type coupling, salt metathesis or a combination of both methods. In a Wurtz-type coupling reaction silicon halides or triflates are coupled reductively by using group 1 metals to form silicon-silicon bonds with elimination of metal salt. This method is particularly useful for the preparation of permethylated branched oligosilanes such as Si(SiMe3)4 and MeSi(SiMe3)3 first reported by Gilman and coworkers [51,52,53]. These branched structures are important precursors for the generation of cores, wings and dendrons. In salt metathesis chemistry suitable silicon nucleophiles, also referred to as silyl anions or metal silanides (for reviews see also [54,55,56,57,58]), are treated with silicon electrophiles such as organosilicon chlorides, bromides or triflates to selectively form Si-Si bonds, again with the elimination of metal salt. This type of silicon-silicon bond formation reaction usually proceeds with higher selectivity and therefore is more suitable for the connection of cores with wings to generate dendritic structures of first and second generation.

3.1. Cores, Spacers and Wings

The synthesis of the branched oligosilanes 7-11, precursor compounds for the construction of core structures and wings, is shown in Figure 3. Reductive coupling of mixtures of SiCl4 and Me3SiCl with elemental lithium in THF (Tetrahydrofuran) gives access to 7 in yields of 60–80% [59]. Reductive coupling of mixtures of MeSiCl3 and Me3SiCl with elemental lithium in THF produces 10 as the major product in ca. 60–75% yields and 11 as the byproduct in ca. 20–25% yield [60]. The phenyl functionalized silanes 8 and 9 were synthesized in yields of ca. 70% by treatment of LiSiMe2Ph with PhSiCl3 and MeSiCl3, respectively [32,61]. All five oligosilanes are air- and moisture-stable compounds that can be prepared on a ca. 50 g scale and purified easily by vacuum distillation or sublimation.
The introduction of multiple functional leaving groups can be achieved by selective chlorodemethylation of 7, 10 and 11 [62,63,64,65,66] and by chlorodephenylation of 8 [67]. Both types of reactions proceed with high selectivities to furnish the chlorosilanes 12, 13, 15 and 16 each in excellent yields as moisture-sensitive but air-stable compounds. Again, purification of these compounds can be carried out easily by vacuum distillation or sublimation. The triflato-functionalized core structure 14 can conveniently be generated via protodesilylation of 9 with three equivalents of trifluoromethanesulfonic acid [20]. The hexachloro-functionalized silane 17 is generated by base-induced redistribution of Cl2MeSi-SiMeCl2 (derived from chlorination of the Mueller-Rochow disilane fraction) [68,69].
Wing structures that contain silyl anions (herein referred to as metalated wings) can conveniently be generated from oligosilanes 7, 9 and 10 by a synthetic approach that was first developed by the groups of Gilman and Brook and involves selective cleavage of silicon-silicon bonds by strong metallo-nucleophiles. For example, reaction of LiMe with 7 and 10, respectively, generates after 2–3 days the highly air- and moisture-sensitive branched lithium silanides Li-18 [70,71] and Li-19 [72] (Figure 4). Similarly, branched polysilane 21 [73] can be converted into Li-22 [74] in good yields (Figure 5). Recently, Marschner developed an easy and cheap synthetic method that gives access to a wide variety of potassium silanides via the selective cleavage of a Si-Si bond with KOBut in THF [75]. Using this straightforward synthetic protocol, the potassium silanides K-18 [75], K-19 [76] and K-20 [41] (Figure 4) and also K-22 [77] (Figure 5) could be generated within a few hours in almost quantitative yields. Both, lithium and potassium silanide wings are used as strong nucleophiles in the selective formation of Si-Si bond required for the assembly of the final polysilane dendrimer. The use of the more reactive potassium silanides, however, allows for the isolation of the raw dendrimer in higher purities and yields and facilitates the purification of the dendrimer.

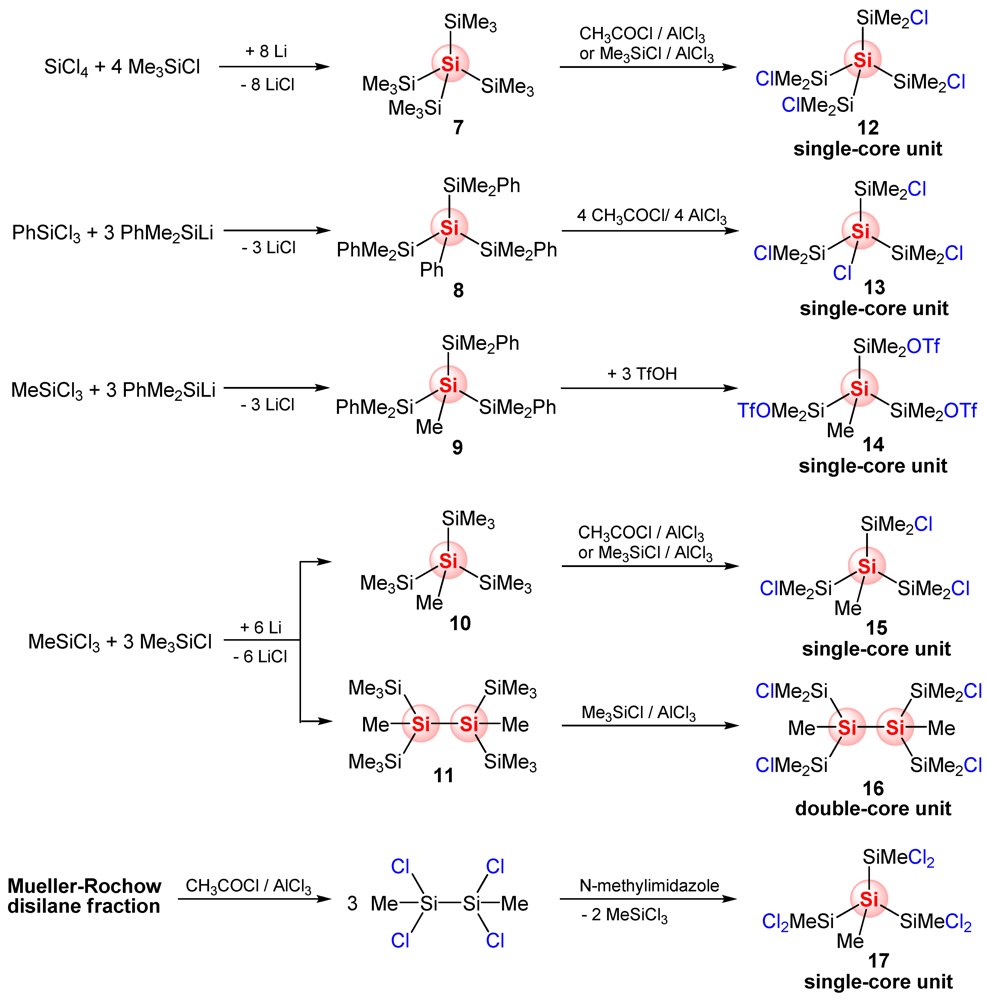

Figure 3. Synthesis of single-core and double-core units that contain multiple leaving groups (red = core, blue = leaving group for nucleophilic substitution reactions).
Figure 3. Synthesis of single-core and double-core units that contain multiple leaving groups (red = core, blue = leaving group for nucleophilic substitution reactions).
Polymers 04 00408 g003

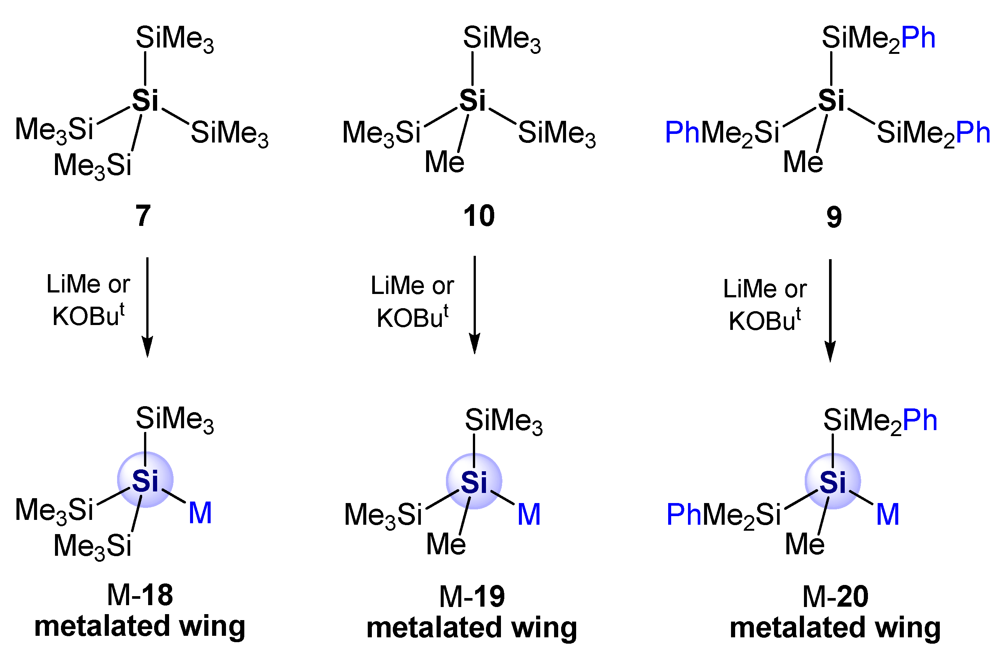

Figure 4. Formation of the metalated wings M-18, M-19 and M-20 (M = Li, K; dark-blue = branch point, blue = chemically active group).
Figure 4. Formation of the metalated wings M-18, M-19 and M-20 (M = Li, K; dark-blue = branch point, blue = chemically active group).
Polymers 04 00408 g004

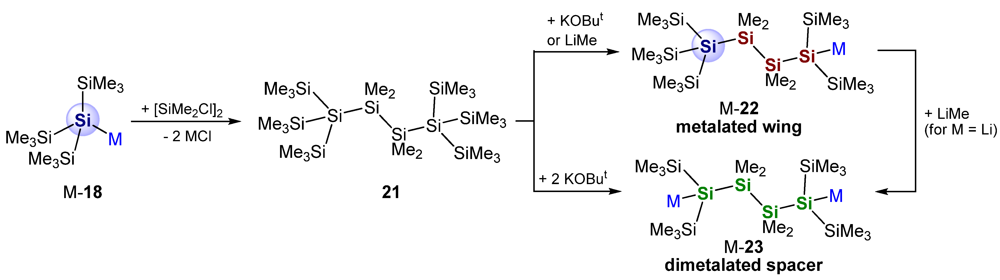

Figure 5. Synthesis of branched oligosilanes and metal silanides (wings) [brown = spacer silicon, dark blue = branch point, blue = chemically active group].
Figure 5. Synthesis of branched oligosilanes and metal silanides (wings) [brown = spacer silicon, dark blue = branch point, blue = chemically active group].
Polymers 04 00408 g005
An extension of this synthetic approach to oligosilanes that contain two Si-M functionalities is shown in Figure 5. Reaction of two equivalents of KOBut with branched oligosilane 21 in THF at elevated temperatures gave access to the dipotassium disilanide K-23 in excellent yields [77]. Dilithiated disilanide Li-23 was obtained in modest overall yields in two steps [74]. Compound K-23 proved to be useful as a metalated spacer unit for the construction of large double-core polysilane dendrimers of first generation via silicon-silicon bond formation chemistry.

3.2. Regular Single-Core Polysilane Dendrimers of First Generation

In 1995 Lambert et al. [18,24] and Suzuki et al. [19] independently reported the convergent synthesis and structure of the first polysilane dendrimers of first generation (Figure 6). Both groups used a similar synthetic approach involving reactions of the lithiated wing units Li-18, Li-19 and Li-22, respectively, with core structure 15 which generated the regular single-core dendrimers 24 (S-1312), 25 (S-1313) and 26 (S-1343). These reactions proceeded rapidly with formation of three new silicon-silicon bonds via elimination of lithium chloride. Notably, dendrimer 26, structurally characterized by X-ray crystallography, is composed of 31 silicon atoms, has a molecular weight of 1833 and has 13 silicon atoms in the longest silicon chain. It is the largest single-core dendrimer prepared to date [24].

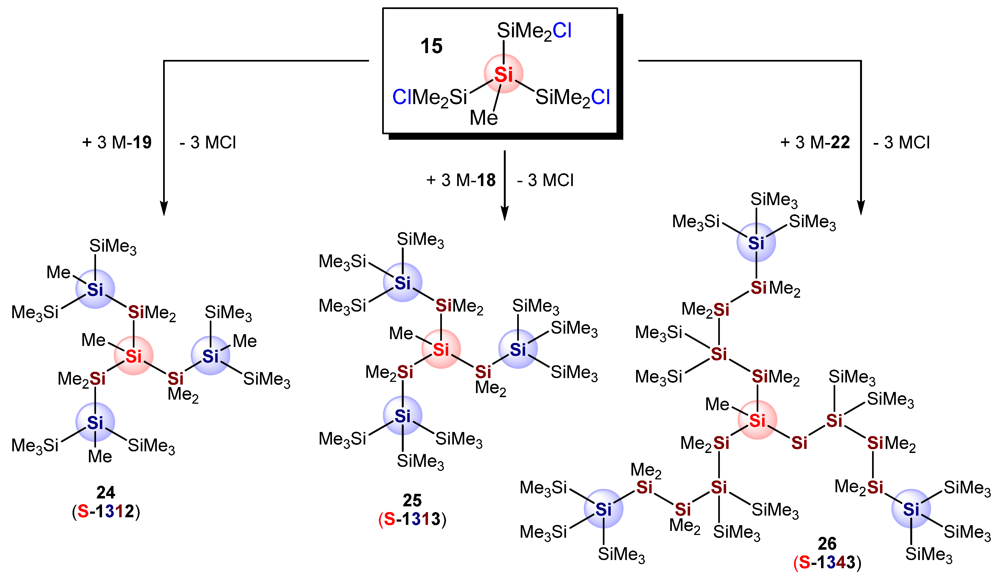

Figure 6. Convergent synthesis of regular polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Figure 6. Convergent synthesis of regular polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Polymers 04 00408 g006
Attempts to synthesize first generation polysilane dendrimers with four wings emanating from the central core failed, primarily for steric reasons [46]. For example, treatment of core structure 12 with four equivalents of Li-19 led to partial reduction and fragmentation processes resulting in the formation of 27 and 28 as low-yield byproducts (Figure 7) [21,27]. Both molecules, however, represent further examples of regular polysilane dendrimers of first generation with three wings emanating from the central core. Hydrido-functionalized dendrimer 27 (S-1312) is closely related to 24 (S-1312), in which the methyl group bound to the central core is replaced by H.

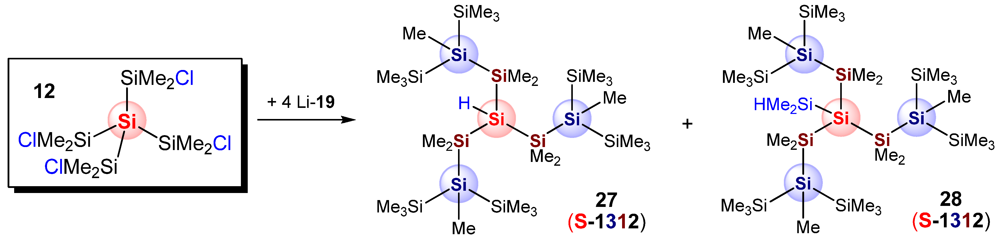

Figure 7. Synthesis of core-functionalized polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Figure 7. Synthesis of core-functionalized polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Polymers 04 00408 g007
Recently, Krempner et al. have shown that a variety of core- and spacer-functionalized single-core dendrimers of first generation can be prepared easily and in high yields by modifying the number and position of the leaving chloro groups at the iso-tetrasilane single-core units (Figure 8). For example, reaction of potassium silanide K-19 with iso-tetrasilane 13 gave the remarkably stable chloro-functionalized dendrimer 29 [43]. Subsequent hydrolysis in the presence of sulfuric acid slowly but almost quantitatively generated the hydroxo-substituted dendrimer 30 [50]. Treatment of hexachloro substituted iso-tetrasilane 17 with potassium silanide K-19 in hexanes furnished the trichloro-substituted dendrimer 31 in excellent yields [42]. The reaction proceeds with high regio- and diastereoselectivity to form the l,l-form of 31 as the only detectable diastereomer. Hydrolysis of l,l-31 in the presence of NH4(H2NCOO) gave racemic mixtures of the two possible diastereomers l,l-32 and l,u-32 with the latter form being the major diastereomer [42]. In contrast, hydrolysis of l,l-31 without base gave l,l-32 as the major diastereomer [48].

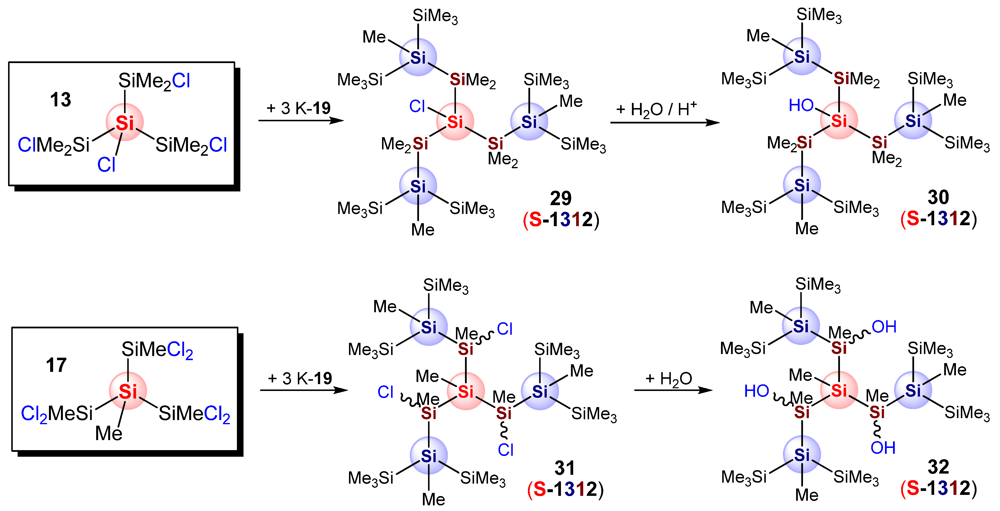

Figure 8. Synthesis of core- and spacer-functionalized polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Figure 8. Synthesis of core- and spacer-functionalized polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Polymers 04 00408 g008
In 1996, Lambert et al. reported the first convergent synthesis and solid-state structure of permethylated polysilane dendrimer 33 (S-1302), the smallest dendritic polysilane with a total of 10 silicon atoms and a longest silicon chain with 5 silicon atoms [21] (Figure 9). Compound 33 was obtained in fairly low yields (16%) from the reaction of Li-19 with MeSiCl3 in THF, along with a cyclic by-product arising from silicon-silicon bond cleavage processes. Krempner et al. found that formation of cyclic by-products can be suppressed by replacing the solvent THF with n-pentane and by adding neat MeSiCl3 to a pentane solution of Li-19 at −78 °C. This synthetic protocol allowed for the preparation of 33 in much higher yields (78%). Reacting HSiCl3 with Li-19 under similar experimental conditions gave the hydrido-functionalized dendrimer 34 in yields of 67%. 34 proved to be a useful precursor for the synthesis of various other core-functionalized first-generation polysilane dendrimers (Figure 9) [31,32]. Note, however, that in these dendrimers the three emanating wings are directly connected to the central core with its functional group because of the absence of spacer groups. This structural arrangement enforces steric repulsion between wings and core and is therefore inappropriate for the construction of stable polysilane dendrimers of higher generation. On the other hand, the functionalized core is fully encumbered by the three wings, which results in enhanced hydrolytic stabilities of, for example, dendritic bromo silane 35. Notably, no hydrolysis of 35 in water occurred; only in the presence of sulfuric acid 35 slowly hydrolyzed to the OH-functionalized dendrimer 36. Lithiation of dendritic bromosilane 35 led to the formation of the first metalated dendrimer 37 as an air- and moisture sensitive but thermally stable red solid; no fragmentation of the dendritic silicon backbone occurred even at higher temperature [38,39].

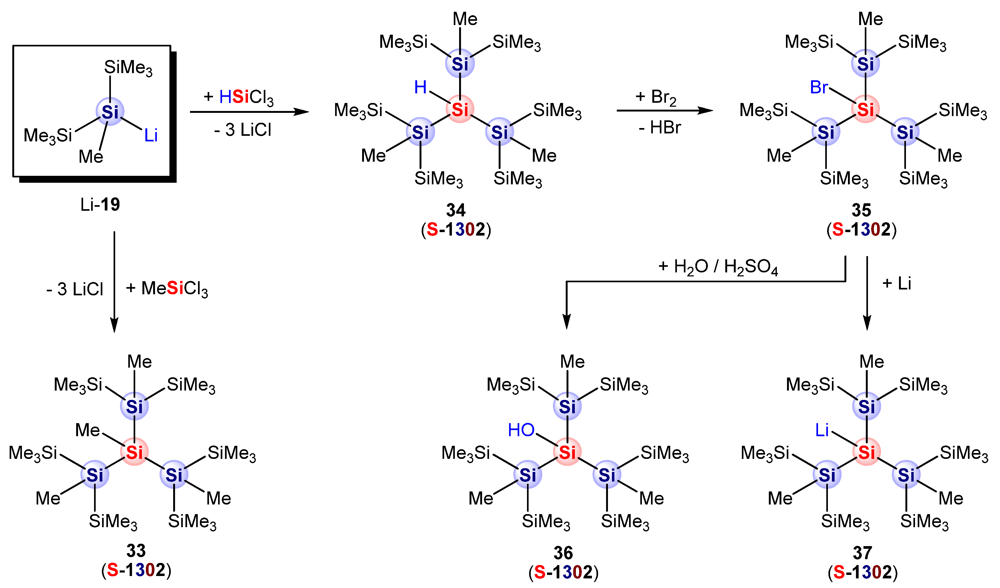

Figure 9. Synthesis of core-functionalized polysilane dendrimers of first generation (red = core, dark blue = branch point, blue = chemically active group).
Figure 9. Synthesis of core-functionalized polysilane dendrimers of first generation (red = core, dark blue = branch point, blue = chemically active group).
Polymers 04 00408 g009

3.3. Irregular Single-Core Polysilane Dendrimers of First Generation

The synthesis of irregular single-core dendritic polysilanes was motivated by efforts to compare structural and spectroscopic properties of dendrimers with the same silicon chain length, but with different substitution patterns [45]. The preparation of irregular dendrimers requires a stepwise assembly of strategic silicon-silicon bonds using differently structured metalated wings to be attached to the central core unit. As shown in Figure 10, reactions of two equivalents of either K-19 or K-18 with 15 lead to the formation of the chloro-functionalized polysilane dendrons 38 and 39, respectively. Subsequent treatment of 38 with K-18 and 39 with K-19 furnished the irregular single-core polysilane dendrimers 40 and 41, respectively. On the other hand, reaction of the dichloro silane 42 (derived from the stoichiometric reaction of 15 with K-18) with dipotassium disilanide 43 [78] gave the first carbocyclic polysilane dendrimer 44 in modest yields.

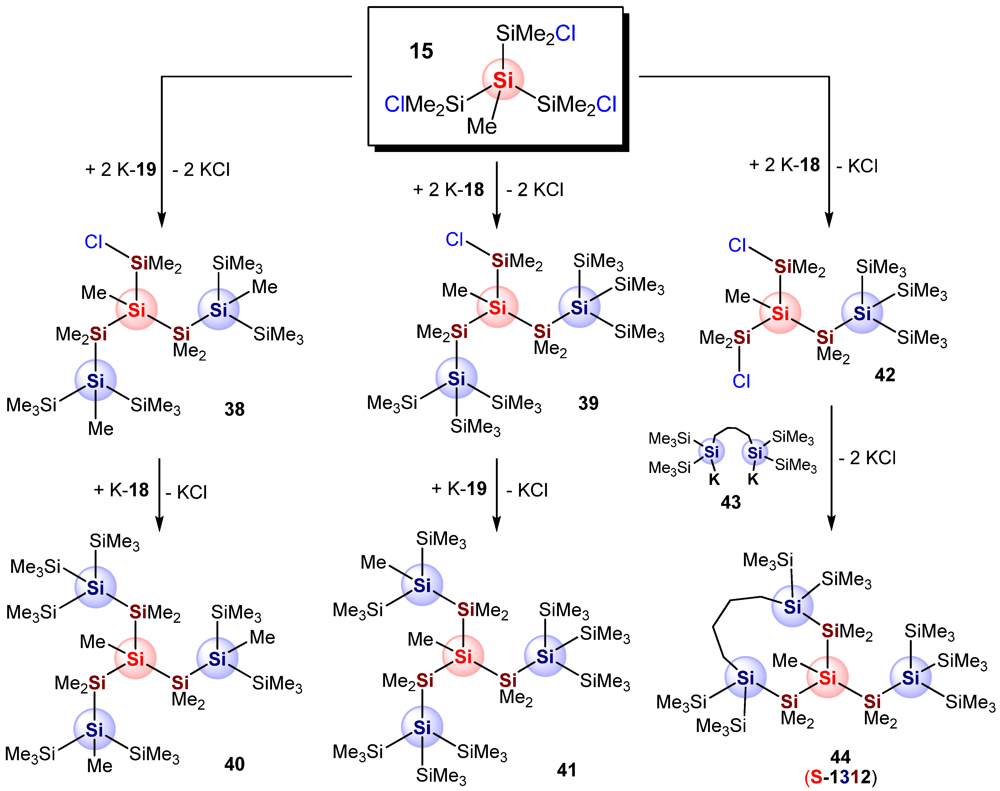

Figure 10. Synthesis of irregular polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Figure 10. Synthesis of irregular polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Polymers 04 00408 g010

3.4. Single-Core Polysilane Dendrimers of Second Generation

Sekiguchi’s group was the first to report the synthesis of a single-core polysilane dendrimer of second generation 47 by using a divergent synthetic methodology (Figure 11) [20]. In the first step, silyl triflate 14 (X = OTf) was generated in situ from the reaction of TfOH with 9 (see also Figure 4) and subsequently reacted with 3 equivalents of lithium silanide Li-20 to afford the phenyl-functionalized first-generation dendrimer 45 (S-1312) in 43% yield. Finally, dendrimer 47 was obtained in yields of 29% by dephenylation of 45 with TfOH, followed by addition of Li-19. Later, Sekiguchi et al. [28] and Marschner et al. [41] reported an improved procedure for the synthesis of phenylated dendrimer 45. Replacement of silyl trifilate 14 (X = OTf) with either bromosilane 14 (X = Br) or chlorosilane 15 avoided frequently encountered side-reactions of strong nucleophiles such as metal silanides with silyl triflates and produced 45 in much better yields (74% in both cases).
Marschner et al. also reported the synthesis of 49, a phenyl-substituted regular polysilane dendrimer of second generation, in good overall yields (Figure 11) [41]. Dendrimer 45, derived from the reaction of bromosilane 14 (X = Br) with potassium silanide K-20, was treated with neat HBr at −78 °C to furnish the bromo-substituted first generation dendrimer 48 in 83% yield. Subsequent reaction 48 with K-20 gave access to dendrimer 49 in yields of 41%. Notably, compounds 47 and 49 are the only examples of a regular polysilane dendrimers of second generation; both are composed of 31 silicon atoms and have longest chains of 13 silicon atoms. The structure of 47 was unambiguously identified by single-crystal X-ray crystallography (Figure 15) [20].

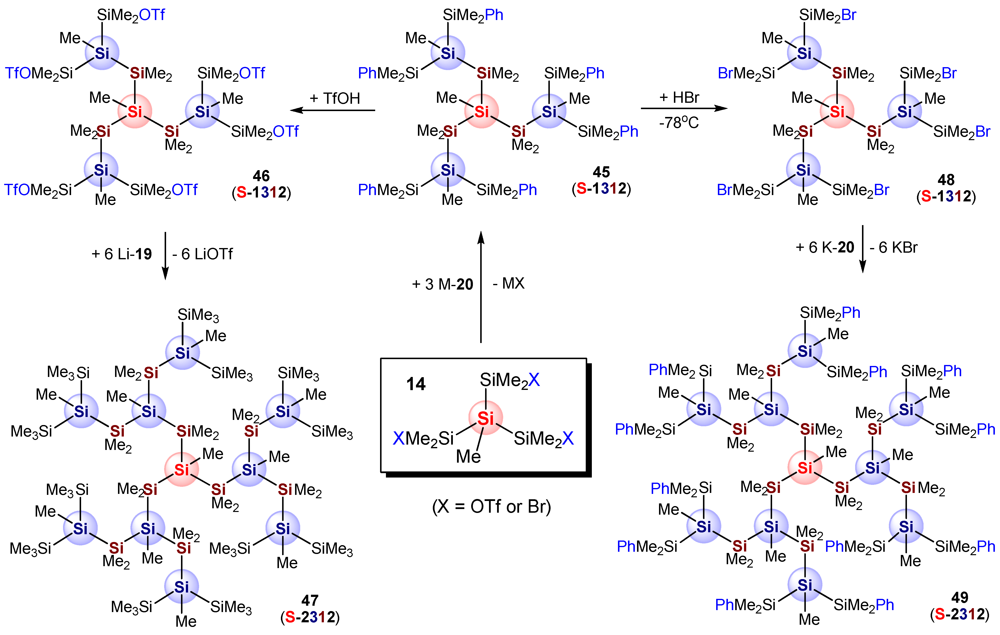

Figure 11. Synthesis of single-core polysilane dendrimers of second generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Figure 11. Synthesis of single-core polysilane dendrimers of second generation (red = core, brown = spacer silicon, dark blue = branch point, blue = chemically active group).
Polymers 04 00408 g011

3.5. Double-Core Polysilane Dendrimers of First Generation

The synthesis and solid-state structure of dendritic silane 51 (Figure 12), the first double-core polysilane dendrimer was reported by Lambert et al. in 1998 [24]. Later, Krempner et al. published an improved synthesis via reductive coupling of bromo-functionalized dendron 50 with Na-K alloy, which gave 51 in yields of 32% [40]. Dendrimer 51 is of first generation with a longest chain of 6 silicon atoms and a total of 14 silicon atoms. Again, because of the absence of any silicon containing spacer groups the cores of the two dendrons are directly connected with each other, which introduces significant steric strain in the molecule. These repulsive steric interactions render the construction of double-core polysilane dendrimers of higher generation impossible.
Shortly after, Krempner et al. synthesized a variety of new double-core polysilane dendrimers of first generation and showed by means of X-crystallography that introducing spacer silicon groups in various positions indeed reduces the steric strain significantly [37]. For example, dendrimer 52 (Figure 12), derived from lithiation of 50 and subsequent addition of ClMe2SiSiMe2Cl, contains two silicon spacer groups between both central cores, which minimizes steric interactions between the two dendrons.

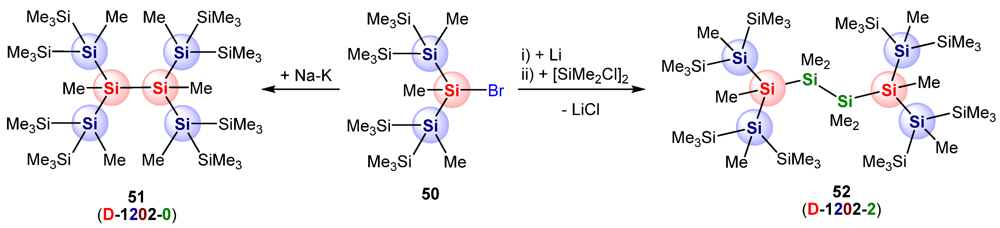

Figure 12. Synthesis of double-core polysilane dendrimers of first generation (red = core, dark blue = branch point, green = spacer silicon atoms between the cores, blue = chemically active group).
Figure 12. Synthesis of double-core polysilane dendrimers of first generation (red = core, dark blue = branch point, green = spacer silicon atoms between the cores, blue = chemically active group).
Polymers 04 00408 g012
Spacer silicon groups were also incorporated between core and branch point such as in dendrimer 53, which was prepared by treatment of 4 equivalents of potassium silanide K-19 with the chloro-functionalized double-core unit 16 via salt metathesis (Figure 13). Reductive coupling of dendron 38 with Na-K alloy furnished the double-core polysilanes dendrimer 54 that contains spacer silicon groups between both cores and branch point and core. Compound 54 has a longest chain of 10 silicon atoms and total of 20 silicon atoms [44].

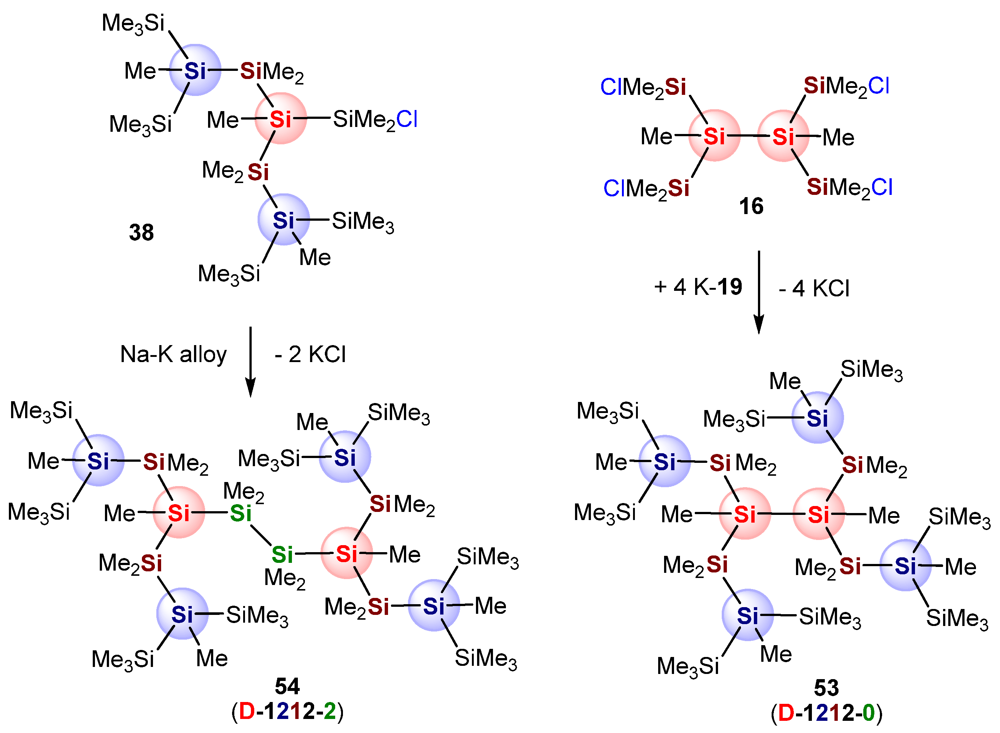

Figure 13. Synthesis of double-core polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, green = spacer silicon atoms between the cores, blue = chemically active group).
Figure 13. Synthesis of double-core polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, green = spacer silicon atoms between the cores, blue = chemically active group).
Polymers 04 00408 g013
Recently, the Krempner lab reported a synthetic strategy to even larger double-core polysilane dendrimers involving a convergent methodology [47]. Key to this approach is the generation of dimetalated oligosilane K-23 published by Marschner and coworker (see also Figure 5) [77], which in reactions with the chloro-functionalized dendrons 38 and 39 afforded the double-core dendrimers 55 (D-1312-6) and 56 (D-1313-6), respectively, in good yields (Figure 14). In particular polysilane 56 is worth mentioning as it represents the largest dendritic polysilane prepared to date; it has a longest chain of 14 silicon atoms and a total of 32 silicon atoms. Both compounds have been characterized by X-ray crystallography and NMR spectroscopy.

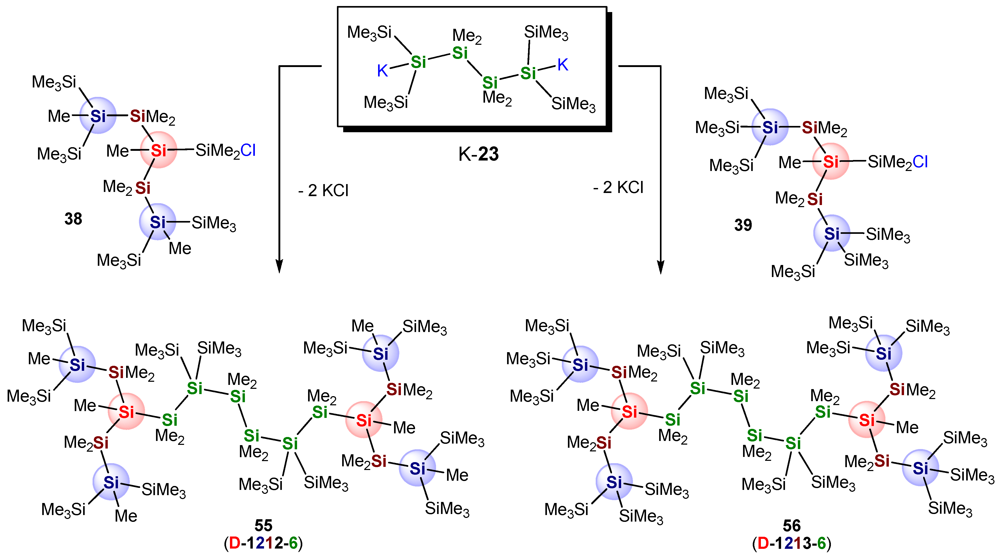

Figure 14. Synthesis of double-core polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, green = spacer silicon atoms between the cores, blue = chemically active group).
Figure 14. Synthesis of double-core polysilane dendrimers of first generation (red = core, brown = spacer silicon, dark blue = branch point, green = spacer silicon atoms between the cores, blue = chemically active group).
Polymers 04 00408 g014

4. X-Ray Crystallography

Since all synthesized polysilane dendrimers are well-defined crystalline materials, most (except for 41, 54 and 49) have been structurally unambiguously characterized by means of single-crystal X-ray crystallography. The solid-state structures of the largest polysilane dendrimers 47, 55 and 56 (top- and side view) along with their corresponding Connolly surfaces are shown in Figure 15, Figure 16 and Figure 17, respectively. All three dendrimers are in the nanometer size regime even though shape and size differ considerably. The bond lengths and bond angles in the periphery of all structurally characterized polysilane dendrimers are in the expected range with Si-Si distances ranging from ca. 235–236 pm and Si-Si-Si angles deviating by only 3–4° from the ideal tetrahedral angle [79]. However, the inner Si-Si distances ranging from 236–240 pm and some of the inner Si-Si-Si angles ranging from 108 up to 129° are significantly larger, which indicates repulsive steric interactions in these dendrimers. Figure 18 illustrates the approximate structure of the interior silicon backbone of spacer-containing polysilane dendrimers with formally two-fold (left) and/or three-fold branch points (right). The average Si-Si distances and Si-Si-Si angles of the two types of silicon backbones are listed in Table 1. A comparison of the values implies that steric strain is most pronounced in dendrimers with exclusively three-fold branches, in which four silicon atoms are linked to the branch silicon. The increased number of substitutents being in close proximity to the branch silicon enforces steric repulsion between the individual substituents, which is partially reduced by larger Si-Si distances and wider Si-Si-Si angles.

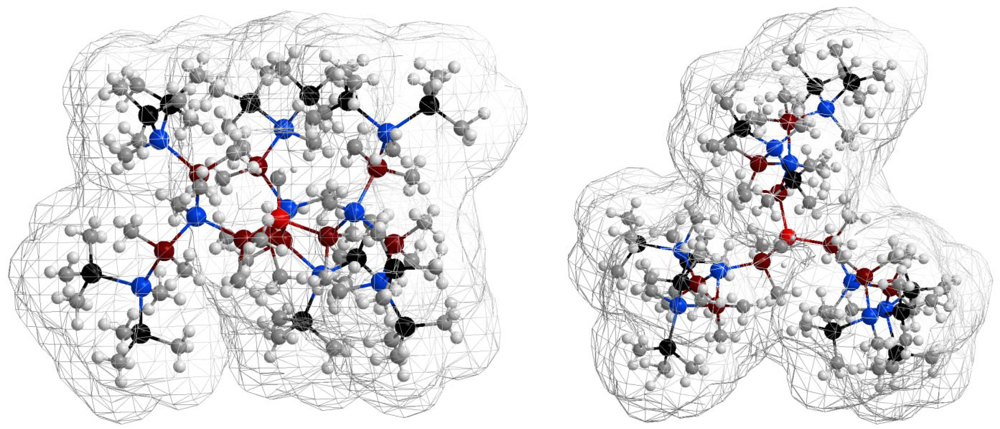

Figure 15. Solid-state structure of 47 with Connolly surface (side view left; top view right; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i094 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; Polymers 04 00408 i096 = carbon; white = hydrogen).
Figure 15. Solid-state structure of 47 with Connolly surface (side view left; top view right; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i094 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; Polymers 04 00408 i096 = carbon; white = hydrogen).
Polymers 04 00408 g015

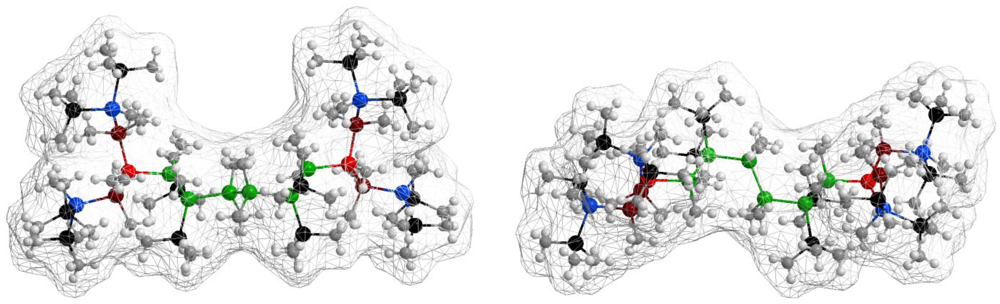

Figure 16. Solid-state structure of 55 with Connolly surface (side view left; top view right; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; Polymers 04 00408 i096 = carbon; white = hydrogen).
Figure 16. Solid-state structure of 55 with Connolly surface (side view left; top view right; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; Polymers 04 00408 i096 = carbon; white = hydrogen).
Polymers 04 00408 g016

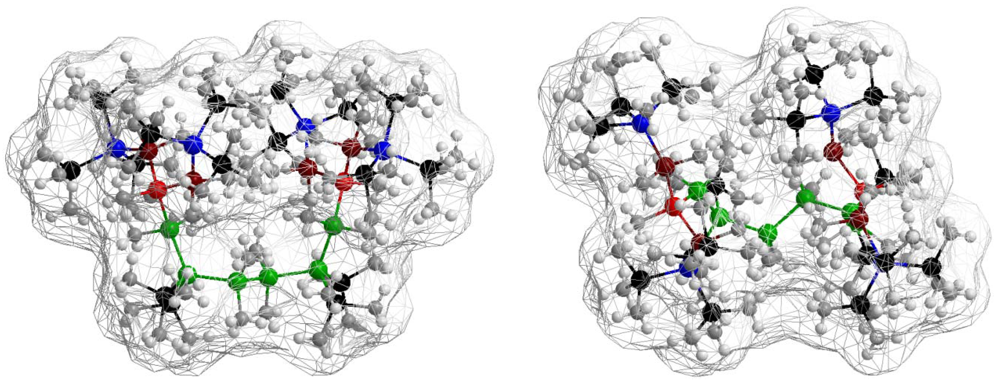

Figure 17. Solid-state structure of 56 with Connolly surface (side view left; top view right; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; Polymers 04 00408 i096 = carbon; white = hydrogen).
Figure 17. Solid-state structure of 56 with Connolly surface (side view left; top view right; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; Polymers 04 00408 i096 = carbon; white = hydrogen).
Polymers 04 00408 g017

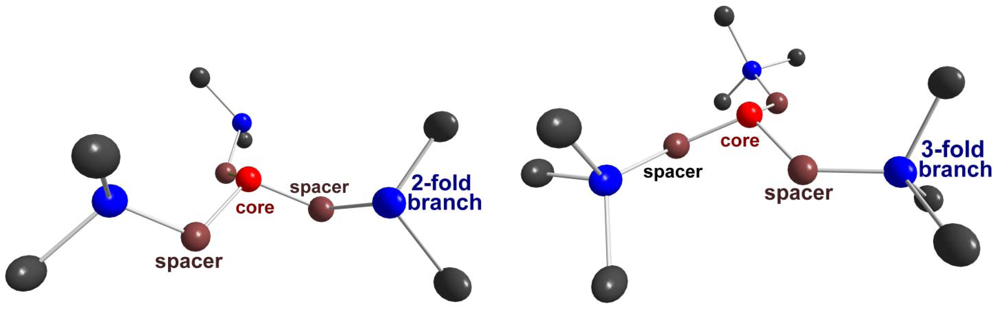

Figure 18. Approximate structures of the central silicon-silicon backbone of polysilane dendrimers with formally two-fold branches (left) and three-fold branches (right) (all C and H atoms and some silicon atoms in the periphery are omitted for clarity).
Figure 18. Approximate structures of the central silicon-silicon backbone of polysilane dendrimers with formally two-fold branches (left) and three-fold branches (right) (all C and H atoms and some silicon atoms in the periphery are omitted for clarity).
Polymers 04 00408 g018
Table 1. Average Si-Si distances [pm] and Si-Si-Si angles [°] of selected polysilane dendrimers with 2-fold and 3-fold branch points ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Table 1. Average Si-Si distances [pm] and Si-Si-Si angles [°] of selected polysilane dendrimers with 2-fold and 3-fold branch points ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
No.StructureBranchSi-Si-Si
spacer-core-
spacer
Si-Si-Si
core-spacer-
branch
Si-Si
core-
spacer
Si-Si
spacer-
branch
Ref.
24 Polymers 04 00408 i0012-fold108115237236[28]
47 Polymers 04 00408 i0022-fold109119239238[20]
55 Polymers 04 00408 i0032-fold
3-fold
107
110
116
123
238
239
237
238
[47]
40 Polymers 04 00408 i0042-fold
3-fold
106
111
116
119
239
239
238
237
[45]
53 Polymers 04 00408 i0052-fold110116239236[44]
25 Polymers 04 00408 i0063-fold112129237240[19]
56 Polymers 04 00408 i0073-fold111129237239[47]
26 Polymers 04 00408 i0083-fold111128238239[24]
For example, the average Si-Si distances (spacer-branch) for dendrimers with exclusively three-fold branches, are relatively large ranging from 239–240 pm, whereas the values of dendrimers with only two-fold branches are slightly smaller with values ranging from 236–238 pm, even though the three Si-Si bonds emanating from the central core (core-spacer) are rather similar for both types of dendrimers ranging from 237–239 pm. Most remarkable, however, are the relatively large average Si-Si-Si angles emanating from the core silicon (core-spacer-branch), which by flattening reduces steric strain in these molecules. Again, these angles are significantly larger for dendrimers with three-fold branches (average values 128–129°) relative to dendrimers with two-fold branches where the average angles range from 115–119°.

5. NMR-Spectroscopy

The structural analysis of polysilane dendrimers in solution by means of 1H- and 13C-NMR spectroscopy is complicated by the extremely narrow chemical shift window in which the hydrogen and carbon nuclei of methylsilyl groups usually appear. 29Si-NMR, however, is a much more useful spectroscopic tool because of a variety of differently substituted silicon nuclei present in polysilanes dendrimers that can appear at significantly different chemical shifts. For example, there can be four types of silicon nuclei, [Si], in permethylated branched polysilanes that differ in α-substitution; primary [R3Si(Si)], secondary [R2Si(Si)2], tertiary [RSi(Si)3] and quaternary silicon nuclei [Si(Si)4] (R = non-silyl group). Table 2 displays the Si-NMR chemical shifts of secondary (Sβ), tertiary (Tβ) and quaternary silicons (Qβ) of a series of permethylated linear and branched oligosilanes. The symbols Sβ, Tβ and Qβ are used to indicate the number of silicon atoms that are linked to them in α- and β-position; the symbols S, T and Q for the number of silicons in α-position and β for the number of silicons in β-position (Si-Siα-Siβ) [80]. Two opposing chemical shift trends are seen; an up-field shift of the central silicon as the number of α-silicons increases and a down-field shift as the number of β-silicons increases [81]. The influence of β-silicon on chemical shifts is best seen for secondary silicons (S), which shift from −48.6 ppm for S0 to −26.0 ppm for S6. Although not fully consistent, quaternary and tertiary silicons show similar behavior. However, the observation that silicon nuclei in branched and linear polysilanes appear at certain shift windows, ranging from −9 to −20 ppm for primary (P), −25 to −50 ppm for secondary (S), −70 to −90 ppm for tertiary (T) and −118 to −136 ppm for quaternary silicons (Q), allows for the assignment of silicon nuclei just based on their chemical shifts.
Table 2. 29Si-NMR chemical shifts, δ [ppm] of selected permethylated branched polysilanes (● = primary silicon; Polymers 04 00408 i097 = secondary silicon; Polymers 04 00408 i093 = tertiary silicon; Polymers 04 00408 i095 = quaternary silicon; all methyl groups are omitted for clarity; β refers to the number of silicon nuclei in β-position).
Table 2. 29Si-NMR chemical shifts, δ [ppm] of selected permethylated branched polysilanes (● = primary silicon; Polymers 04 00408 i097 = secondary silicon; Polymers 04 00408 i093 = tertiary silicon; Polymers 04 00408 i095 = quaternary silicon; all methyl groups are omitted for clarity; β refers to the number of silicon nuclei in β-position).
StructureSolventδ(Si)Tβδ(Si)Qβδ(Si)Sβδ(Si)SβRef.
Polymers 04 00408 i009CDCl3------−48.6S0[81]
Polymers 04 00408 i010CDCl3------−44.9S1[81]
Polymers 04 00408 i011CDCl3----−43.6S1−40.9S2[81]
Polymers 04 00408 i012CDCl3----−43.4S1−39.5S2[81]
Polymers 04 00408 i013C6D6−88.1T0------[81]
Polymers 04 00408 i014C6D6--−135.5Q0----[81]
Polymers 04 00408 i015C6D6−82.8T1--−42.9S1−37.4S3[82]
Polymers 04 00408 i016CDCl3--−131.9Q1--−39.8S3[81]
Polymers 04 00408 i017THF-D8−82.1T1--−34.8S3--[77]
Polymers 04 00408 i018CDCl3−81.2T1−128.6Q1−33.2S3−31.8S4[81]
Polymers 04 00408 i019CDCl3--−126.5Q1--−29.0S4[81]
Polymers 04 00408 i020C6D6−81.6T1----−33.0S4[31]
Polymers 04 00408 i021CDCl3−78.8T1−126.0Q1--−29.2S5[81]
Polymers 04 00408 i022CDCl3--−118.2Q1--−26.0S6[81]
Polymers 04 00408 i023CDCl3−81.4T2------[81]
Polymers 04 00408 i024CDCl3−79.8T3−129.4Q2----[81]
Polymers 04 00408 i025CDCl3--−130.0Q3----[81]
Polymers 04 00408 i026CDCl3−78.7
−71.4
T2
T4
------[23]
Similar shifts but at slightly lower field are observed for dendritic polysilanes ranging from −9 ppm to –12 ppm for primary silicons (P), −24 ppm to −32 ppm for secondary silicons (S), −35 ppm to −80 ppm for tertiary silicons (T) and −112 ppm to −128 ppm for quaternary silicons (Q). Again, the broad ranges seem to depend primarily on the number of α- and β-silicon atoms, causing opposing chemical shift trends. These trends are nicely reflected in a series of branched and dendritic polysilanes shown in Figure 19. Thus, the central tertiary silicon core experiences a strong down-field shift as more silicon atoms are added in β-position from −88.3 ppm for T0 to −55.4 ppm for T6, while the silicons next to it (shown in blue) are shifted up-field as the number of α-silicons increases from −12.5 ppm for P2 to −76.1 ppm for T2. Table 3 summarizes the chemical shifts of all known permethylated polysilane dendrimers with no spacer between core and branch point along with some selected branched polysilanes for comparison. Again, progressive down-field shifts are observed for the silicon cores, branch points and spacer (between cores!) upon adding silicons in positions β to them.

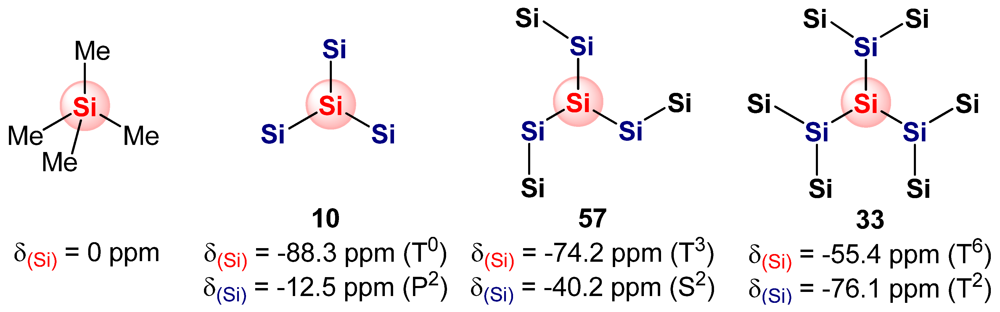

Figure 19. NMR chemical shift trends for selected permethylated branched and dendritic polysilane 33 (red = central silicon, blue = α-silicon, black = β-silicon, all methyl groups are omitted for clarity).
Figure 19. NMR chemical shift trends for selected permethylated branched and dendritic polysilane 33 (red = central silicon, blue = α-silicon, black = β-silicon, all methyl groups are omitted for clarity).
Polymers 04 00408 g019
Table 3. 29Si-NMR chemical shifts, δ [ppm] of selected permethylated branched and dendritic polysilanes with no spacer between core and branch point ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i098 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity; the letters β and γ refer to the number of silicon nuclei in β- and γ-positions).
Table 3. 29Si-NMR chemical shifts, δ [ppm] of selected permethylated branched and dendritic polysilanes with no spacer between core and branch point ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i098 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity; the letters β and γ refer to the number of silicon nuclei in β- and γ-positions).
No.StructureSolventδ(Si)
core
Tβ−γδ(Si)
branch
Tβ−γδ(Si)
spacer
Sβ−γRef.
10 Polymers 04 00408 i027CDCl3−88.3T0-0----[81]
Polymers 04 00408 i028THF-D8−82.1T1-1--−34.8S3-2[77]
11 Polymers 04 00408 i029CDCl3−81.4T2-0----[81]
57 Polymers 04 00408 i030CDCl3−74.2T3-0--−40.2S2-2[33]
52 Polymers 04 00408 i031C6D6−54.4T5-1−76.8T2-3−31.4S3-6[37]
33 Polymers 04 00408 i032C6D6−55.4T6-0−76.1T2-4--[31]
51 Polymers 04 00408 i033CDCl3−43.8T6-4−74.8T2-4--[21]
Careful analysis of the 29Si-NMR data of all known polysilanes dendrimers by Krempner et al. revealed that the chemical shifts of the silicon nuclei also depend on the number of silicon atoms in γ-positions in addition to the number of α- and β-silicons (Si-Siα-Siβ-Siγ) [48]. It was also noticed that the number of silicon nuclei in γ-position relative to central tertiary silicon core (T) can have a pronounced effect on its chemical shift and that in all polysilane dendrimers the chemical shifts of the tertiary silicon cores (T), tertiary or quaternary branch points (T, Q) and secondary silicon spacers (S) are progressively down-field shifted upon increasing the number of silicon nuclei in γ-positions (Figure 20 and Table 4). The impact of all three types of silicons (α, β, γ) on the chemical shift trends clearly appears for a series of selected branched polysilanes and dendritic polysilanes shown in Figure 20. First, the T3-γ silicons (shown in red) are progressively down-field shifted as the number of γ-silicons increases (from 0 to 9), while the Sβ-2 silicons (shown in brown) are shifted to lower field with increasing number of β-silicons (from 2 to 5). In contrast, the silicon nuclei shown in blue–all have the same number of β- and γ-silicons (1-2)–are tremendously up-field shifted as the number of α-silicons increases (from P to Q). Table 3 summarizes the chemical shifts of all known permethylated polysilane dendrimers with spacers between core and branch point along with some selected branched polysilanes for comparison. Again, progressive down-field shifts are observed for the silicon cores, branch points and spacer upon adding silicons in β- and γ-positions to them.

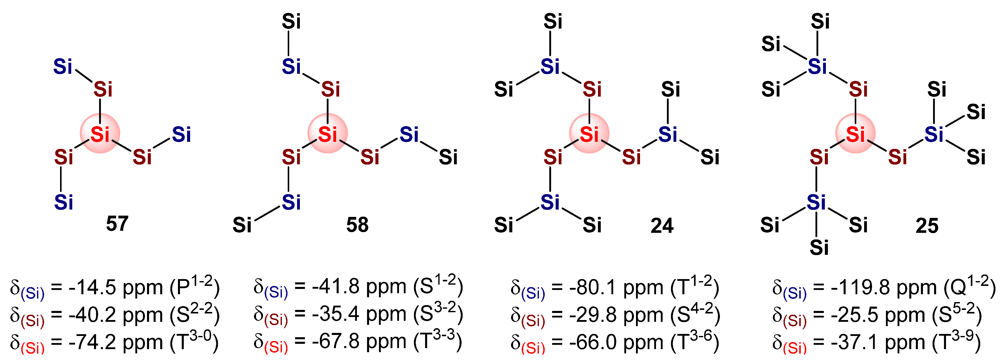

Figure 20. NMR chemical shift trends for selected permethylated branched and dendritic polysilanes (red = central silicon, brown = α-silicon, blue = β-silicon, black = γ-silicon; all methyl groups are omitted for clarity).
Figure 20. NMR chemical shift trends for selected permethylated branched and dendritic polysilanes (red = central silicon, brown = α-silicon, blue = β-silicon, black = γ-silicon; all methyl groups are omitted for clarity).
Polymers 04 00408 g020
Table 4. 29Si-NMR chemical shifts [ppm] of selected branched and dendritic polysilanes [ Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; the letters β and γ refer to the number of silicon nuclei in β- and γ-position].
Table 4. 29Si-NMR chemical shifts [ppm] of selected branched and dendritic polysilanes [ Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; the letters β and γ refer to the number of silicon nuclei in β- and γ-position].
No.StructureSolventδ(Si)Tβ−γδ(Si)Qβ−γδ(Si)Sβ−γRef.
57 Polymers 04 00408 i034CDCl3−74.2T3-0--−40.2S2-2[33]
58 Polymers 04 00408 i035C6D6−67.8T3-3--−41.8
−35.4
S1-2
S3-2
[45]
54 Polymers 04 00408 i036C6D6−80.0 T1-2 --−30.0 S4-2[44]
−64.6T3-5−31.7S3-4
24 Polymers 04 00408 i037C6D6−80.1T1-2--−29.8S4-2[45]
−66.0T3-6
47 Polymers 04 00408 i038CDCl3−80.1 T1-2 --−30.0
−26.7
S4-2
S4-4
[20]
−64.8 T3-6
−62.3T3-6
40 Polymers 04 00408 i039C6D6−78.3 T1-2 −123.0 Q1-2 −29.3
−25.1
S4-2
S5-2
[45]
−59.9T3-7
55 Polymers 04 00408 i040C6D6−78.2 T1-2 −109.7 Q2-3 −28.7 S4-2 [47]
−55.7T3-7 −26.6
−24.7
?
?
41 Polymers 04 00408 i041C6D6−79.1 T1-2 −121.8 Q1-2 −29.3
−25.2
S4-2
S5-2
[45]
−50.8T3-8
25 Polymers 04 00408 i042CDCl3−37.1T3-9−119.8
Q1-2
-25.5S5-2[19]
56 Polymers 04 00408 i043C6D6−35.3T3-9−120.9 Q1-2 −26.3
−25.7
−25.6
?
?
?
[47]
−109.7
Q2-3
26 Polymers 04 00408 i044CDCl3−30.3T3-9−126.8
−110.0
Q1-1
Q2-3
−28.5
−27.0
−25.0
?
?
?
[84]
53 Polymers 04 00408 i045C6D6−77.9 T1-2 --−28.6S4-3[44]
−55.1 T4-6
Most remarkable, however, are the extreme down-field shifts upon going from T3-6 and T3-7 silicon nuclei (−57 ppm to −66 ppm) to T3-9 silicon nuclei with values ranging from −30 ppm to −37 ppm [83,84]. These drastic changes in chemical shift seem to originate from dramatic changes in critical bond parameters such Si-Si distances and Si-Si-Si angles around the central core units, which are only observed for polysilane dendrimers with exclusively three-fold branches (core = T3-9). As mentioned before, the strain in these molecules is released by an extreme flattening of the Si-Si-Si angles (core-spacer-branch ~130°) emanating from the central T3-9 core and an elongation of the spacer-branch Si-Si distances (239–240 pm). Therefore, it is reasonable to assume that these drastic chemical shift changes are a result of both electronic (increased number of electropositive silicon nuclei) and steric effects (changes in the overall geometry). Note, however, that the spacer silicon nuclei (Sβ-γ), which are most affected by these changes in geometry are only slightly down-field shifted upon increasing the number of silicon nuclei in β-positions.
To summarize, the empirical 29Si-NMR chemical shift ranges of branched and linear polysilanes quoted in Table 2 provide a useful basis for the assignment of 29Si resonances to the various silicons in single-core and double-core dendrimers. Moreover, application of an extended empirical model that considers the impact of silicon nuclei in γ-positions (γ-silicons) on the Si-NMR chemical shift allowed for differentiation between tertiary silicons being the central cores and tertiary silicon being the branch points. The observed ranges for secondary spacer silicons (Sβ-γ), however, are too small to be useful in terms of assigning 29Si resonances to certain secondary silicons within the large dendritic molecules 55 and 56. As suggested by Lambert et al. [25], an unambiguous assignment to specific silicon nuclei can only be achieved by carrying out 29Si-29Si 2D INADEQUATE-NMR spectroscopy, which provides proof for sequential connectivities of Si-Si bonds in all structural types of polysilanes, although it is a time-consuming experiment (ca. 4 days).

6. Electronic Properties

6.1. General Remarks

One of the most characteristic features of polysilanes, regardless of whether they are linear, branched, hyperbranched or dendritic in structure, is the extensive delocalization of σ-bonded electrons (σ-conjugation) along silicon chains, resulting in strong electronic absorptions in the near UV due to a σ-σ* transition [1,2,3]. Both intensity and energy of the absorption are extremely sensitive to the overall conformation and the number of silicon atoms in the longest silicon chain [1,2,3] as well as the electronic and steric nature of the attached substituents [85,86,87,88,89]. For example, in linear permethylated polysilanes of general formula Me(SiMe2)nMe [90,91,92,93] delocalization of σ-electrons along the silicon chain leads to UV absorption that increases in wavelength and intensity as the number of silicon atoms in the polysilane chain increases with a wavelength reaching an asymptotic value of around 293 nm for [Me(SiMe2)24Me] (see also Figure 21 (left)).

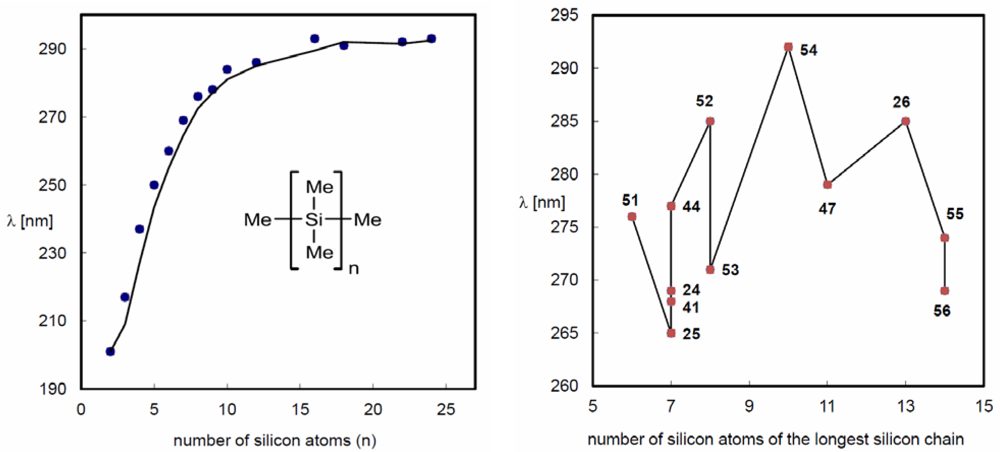

Figure 21. (left) UV absorption maxima [λmax] as a function of the number of silicon atoms of the silicon chain of linear polysilanes with general formula, Me(SiMe2)nMe (measured at room temperature in solution); (right) UV absorption maxima [λmax] of the permethylated polysilane dendrimers 24-26, 41, 44, 47 and 51-56 as a function of the number of silicon atoms of the longest silicon chain (measured at room temperature in solution).
Figure 21. (left) UV absorption maxima [λmax] as a function of the number of silicon atoms of the silicon chain of linear polysilanes with general formula, Me(SiMe2)nMe (measured at room temperature in solution); (right) UV absorption maxima [λmax] of the permethylated polysilane dendrimers 24-26, 41, 44, 47 and 51-56 as a function of the number of silicon atoms of the longest silicon chain (measured at room temperature in solution).
Polymers 04 00408 g021
Table 5 and Figure 21 (right) summarize the electronic absorption data for dendritic polysilanes. The data show that only the extinction coefficient for permethylated polysilane dendrimers tends to increase as the total number of silicon atoms and the number of silicon atoms in the longest chain increase from 3.4 × 104 to 13.0 × 104. The intensity of the UV absorption maximum is stronger in polysilane dendrimers than in linear polysilanes, primarily because of the higher “concentration” of silicon chains. Accordingly, the permethylated single-core polysilane dendrimers with longest chains of 7 silicon atoms 24, 25, 40 and 41 exhibit similar extinction coefficients and absorption maxima ranging from 0.5 to 0.6 × 105 and from 265 to 269 nm, respectively. However, unlike in linear polysilanes there is no correlation between the energy of the absorption maximum and the number of silicon atoms in the longest chain for permethylated polysilane dendrimer. For example, comparison of UV data of the single-core dendrimers 44 with 40, both have a total number of 14 silicon atoms and longest chains of 7 silicon atoms shows that the absorption maximum of 44 is red shifted by ca. 8 nm relative to 40. Furthermore, double-core dendrimer 52 with a longest chain of only 8 silicon atoms displays an absorption maximum at 285 nm, whereas 56 absorbs at only 269 nm even though it is the largest polysilane dendrimer reported to date with longest chains of 14 silicon atoms and a total of 32 silicon atoms per molecule. Clearly, there are other factors such as conformational arrangements, steric and electronic effects that may influence the electronic properties of polysilane dendrimers.
Table 5. UV absorption spectra of permethylated single-core and double-core polysilane dendrimers ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Table 5. UV absorption spectra of permethylated single-core and double-core polysilane dendrimers ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
No.StructureDendrimertypeλmax
(nm)
ε
(104)
No. of Si atoms of the longest Si chainTotal no. of Si atomsRef.
33 Polymers 04 00408 i046S-13022403.4510[31]
25 Polymers 04 00408 i047S-13132655.2716[47]
41 Polymers 04 00408 i048irregular2685.9715[47]
24 Polymers 04 00408 i049S-13122695.0713[47]
40 Polymers 04 00408 i050irregular2696.0714[45]
56 Polymers 04 00408 i051D-1213-626913.01432[47]
53 Polymers 04 00408 i052D-1212-02718.2818[44]
55 Polymers 04 00408 i053D-1212-627413.01428[47]
51 Polymers 04 00408 i054D-1202-02762.3614[21]
44 Polymers 04 00408 i055irregular2776.0714[45]
47 Polymers 04 00408 i056S-23122799.61131[20]
52 Polymers 04 00408 i057D-1202-22855.6816[37]
26 Polymers 04 00408 i058S-134328512.01331[24]
54 Polymers 04 00408 i059D-1212-22925.51020[44]

6.2. Conformational Effects

Peralkylated linear polysilanes can adopt various conformational arrangements that deviate from the two preferred CCCC dihedral angles ω in hydrocarbons, 180° (A, anti) and 60° (gauche, G). Deviations from these angles can reasonably be explained by repulsive interaction between substituents attached to the silicon silicon backbone, which increase as the size of the substituents is increased relative to the Si-Si bond length [94,95]. Steric effects are also responsible for the observation of three conformational families of dihedral angles: gauche (G, ω ~ 60°), ortho (O, ω ~ 90°) and anti (A, ω ~ 180°) dominating in linear polysilanes [96,97,98]. Even more conformers are possible in branched and dendritic polysilanes due to the redundancy of silicon-silicon chains combined with strongly repulsive interactions between substituents. Possible conformers in polysilane dendrimers can be classified according to their SiSiSiSi dihedral angles as syn (S, ω ~ 0°), cis (C, ω ~ 30°), gauche (G, ω ~ 60°), ortho (O, ω ~ 90°), eclipsed (E, ω ~ 120°), deviant (D, ω ~ 150°) and anti (A, ω ~ 180°).
Recent studies on permethylated linear polysilanes with discrete conformations have revealed the great impact of the overall silicon chain conformation on the degree of σ-conjugation and the UV spectroscopic properties. It was shown theoretically and experimentally that the σ-σ* absorption peak shifts dramatically to the red as the SiSiSiSi dihedral angle, ω, is increased from 0° to 180° [99,100,101,102,103,104]. This effect was explained by 1,4-orbital interactions (βvic), being most effective (maximum orbital overlap) in the HOMO (σ-type orbital) of a syn-conformer, while not present in an anti-conformer. In fact, the 1,4-orbital interaction in syn-conformers lowers the energy of the HOMO (σ-orbital) and consequently increases the energy of the σ-σ* transition relative to that of the anti-conformer ([99] and references cited therein).
Perhaps, the most striking example provides a series of conformationally constrained hexasilanes 59-62 (composed of three dihedral angles) that have been structurally characterized by X-ray studies [100,101] (Figure 22). Within this series of hexasilanes both absorption maximum and extinction coefficient monotonically increase as the SiSiSiSi dihedral angles become larger from SAS (λ = 239 nm, ε = 1.9 × 104), AAS (λ = 255 nm, ε = 3.1 × 104), AEA (λ = 259 nm, ε = 5.4 × 104) to AAD (λ = 267 nm, ε = 6.7 × 104) (Figure 22). These findings clearly revealed that σ-conjugation in polysilanes is effectively extended by anti or deviant conformations, while conformations with small dihedral angles such as syn, cis or gauche do not contribute to the extent of σ-conjugation [102].

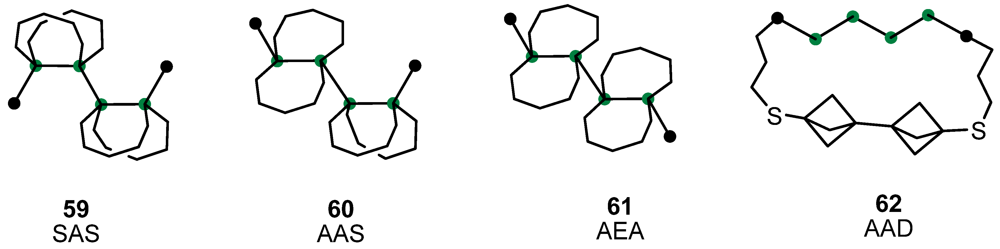

Figure 22. Structure and conformation of selected hexasilanes with rigid silicon chains ( Polymers 04 00408 i098 = secondary silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Figure 22. Structure and conformation of selected hexasilanes with rigid silicon chains ( Polymers 04 00408 i098 = secondary silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Polymers 04 00408 g022
Similar conclusions can be drawn for polysilane dendrimer, even though the redundancy of silicon chains and the steric strain causes a variety of more or less flexible conformers to be formed, each contributing differently to the extent of σ-conjugation along the silicon backbone. The presence of these different conformers complicates analysis and assignment of the often broad and intense UV absorption bands and hampers deducing the relationship between conformation and photophysical properties. Moreover, dihedral angles such as ortho are common in dendritic structures and it is not clear yet to what extent ortho conformers would contribute to the degree of σ-conjugation along silicon chains. Table 6 summarizes the overall conformation and average silicon-silicon distances of the longest silicon chains in selected polysilane dendrimers obtained from the X-ray data along with the measured UV absorption maxima. Note, that the average silicon-silicon distances of the longest silicon chains of all structurally characterized polysilane dendrimers (except for 51) lie within the relatively narrow range of 236–238 pm, suggesting only minimal influence of silicon-silicon bond stretching on the energy of the σ-σ* transition [105] and allowing for comparison of both conformational arrangements and UV absorption characteristics of individual dendrimers with each other.
The longest silicon chains in the single-core dendrimers 24, 40 and 25 contain seven silicon atoms (heptasilane chain) and are defined by four tetrasilane dihedral angles. The conformational analysis revealed that conformers with exclusively large dihedrals angles such as all-anti (A-A) or all deviant (D-D) or mixed A-D segments exist only in several pentasilane subunits and that in most of the heptasilane chains anti (A) or deviant (D) segments are interrupted by additional ortho (O) or gauche (G) conformers, which are predicted to interrupt σ-conjugation along the chain. The observed conformational arrangements (DDOD, ADOD etc.) can be explained in terms of the bulkiness of the dendrimer wings. They are oriented in the same direction (clockwise or anti-clockwise), which reduces their repulsive interactions (see also Figure 18). In all three dendrimers, however, the heptasilane chains with largest dihedral angles are fairly similar to each other, which correlate with the similar UV spectroscopic data of 24, 40 and 25.
Table 6. UV absorption maxima of polysilane dendrimers and conformations of silicon chains with largest Si-Si-Si-Si dihedral angles (A, ω ~ 180°; D, ω ~ 150°; E, ω ~ 120°; O, ω ~ 90°; G, ω ~ 60°; C, ω ~ 30°) and average Si-Si distances [pm] thereof ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon).
Table 6. UV absorption maxima of polysilane dendrimers and conformations of silicon chains with largest Si-Si-Si-Si dihedral angles (A, ω ~ 180°; D, ω ~ 150°; E, ω ~ 120°; O, ω ~ 90°; G, ω ~ 60°; C, ω ~ 30°) and average Si-Si distances [pm] thereof ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon).
No.Structureλmax [nm]No. of chain SiConformation (X-ray)Av. Si-Si distanceRef.
33 Polymers 04 00408 i0602405OA236.0[31]
51 Polymers 04 00408 i0612766EAE238.6[21]
25 Polymers 04 00408 i0622657DAGD235.7[47]
24 Polymers 04 00408 i0632697DDOD235.8[47]
40 Polymers 04 00408 i0642697
7
ADOD
DDOD
237.4
236.9
[45]
44 Polymers 04 00408 i0652777ADAD237.0[45]
52 Polymers 04 00408 i0662858DEDED237.2[37]
53 Polymers 04 00408 i0672718
7
DDCDD
DDOD
237.3
237.2
[44]
47 Polymers 04 00408 i06827911
7
DDODODOD
DDOD
237.6
236.7
[20]
26 Polymers 04 00408 i06928513ADGCAGGGDA237.1[24]
55 Polymers 04 00408 i07027414
7
DDOAGDGAODD
DDOD
237.7
236.1
[47]
56 Polymers 04 00408 i07126914
7
DAGOGDGOGAD
DAGD
238.2
237.7
[47]
The strong impact of the silicon chain conformation on the energy of the UV absorption maxima of this class of single-core dendrimers is best demonstrated by comparing dendrimer 40 with conformationally constrained dendrimer 44; both have longest heptasilane chains and the same total number of silicon atoms in the molecule [45]. Assuming that the absorption maximum originates from silicon chains with largest dihedral angles, 44 is red-shifted by 8 nm as a result of a conformational change from a ADOD conformer in 40 to a ADAD conformer in 44. Clearly this conformational arrangement can only be enforced by connecting two of the three dendrimer wings with an alkylene linker as is the case for 44. The formation of all-anti or all-deviant conformers in unconstrained single-core dendrimers is not preferred, since this would lead to considerable repulsions of the bulky wings as shown in Figure 23.

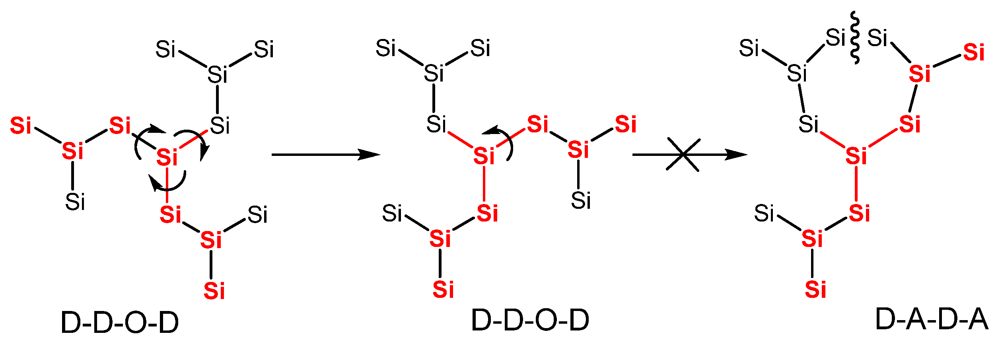

Figure 23. Conformations of heptasilane chains in 24 (shown in red) [all methyl groups are omitted for clarity].
Figure 23. Conformations of heptasilane chains in 24 (shown in red) [all methyl groups are omitted for clarity].
Polymers 04 00408 g023
Notably, the broad and intense absorption maxima of the majority of double-core polysilane dendrimers are at lower energy than to those of single-core dendrimers with comparable silicon chain length. Most remarkable in this respect are the double-core dendrimers 51 (longest hexasilane chain; λmax = 276 nm), 52 (longest octasilane chain; λmax = 285 nm) both being characterized by X-ray crystallography and 54 (longest decasilane chain; λmax = 292 nm); the latter with the longest wavelength of all known permethylated polysilane dendrimers. The conformational analysis (from the X-ray data) reveals that the SiSiSiSi dihedral angles in at least one of the longest hexasilane and octasilane chains of the double-core species 51 (EAE) and 52 (DEDED) (Figure 24), respectively, are larger than any of the longest heptasilane and undecasilane chains of the single-core species 24 (DDOD) (Figure 24) and 47 (DDODODOD), respectively.

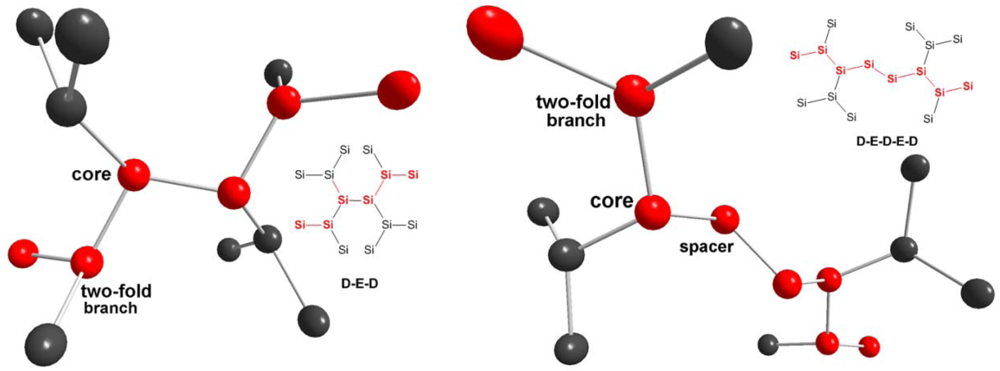

Figure 24. Solid-state structures of the double-core dendrimers 51 (left) and 52 (right) (all H and C atoms omitted for clarity; longest silicon chains with largest dihedral angles are shown in red).
Figure 24. Solid-state structures of the double-core dendrimers 51 (left) and 52 (right) (all H and C atoms omitted for clarity; longest silicon chains with largest dihedral angles are shown in red).
Polymers 04 00408 g024
On the other hand, the absorption maximum of double-core dendrimer 53max = 271 nm) is only slightly shifted to the red relative to single-core dendrimer 24max = 269 nm). Again, the X-ray data of 53 revealed that conformers with all-deviant segments exist only in several pentasilane subunits and that in the octasilane chains deviant (D) segments are interrupted by additional ortho (O) or even cis (C) conformers. Thus, it seems that in this type of dendrimer the σ-electrons are fully delocalized along the dendrimer wings (dendrons), which, similar to 24, have longest chains of 7 silicon atoms and DDOD conformations (Figure 25). The observation that the double-core dendrimers 52 and 54 (no X-ray data) absorb at significantly longer wavelengths than 53 implies that the incorporation of silicon spacer groups between the two cores as in 52 and 54 reduces steric repulsion between the dendrimer wings and, consequently, allows for conformations being optimal for the delocalization of σ-electrons along the silicon main chains.

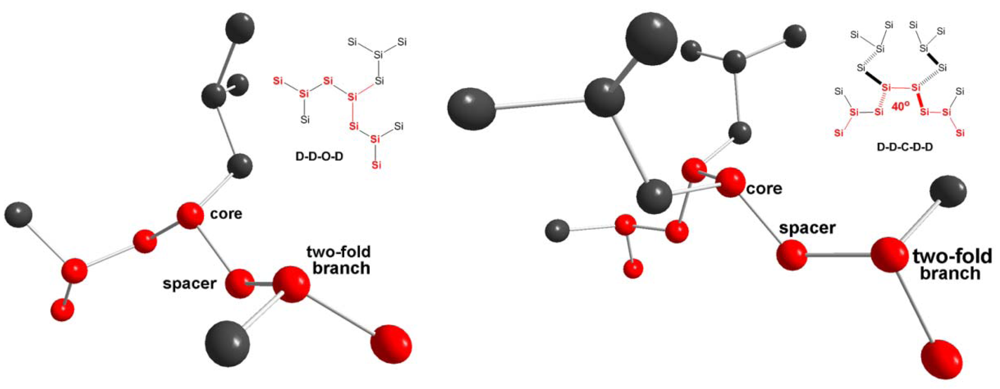

Figure 25. Solid-state structures of single-core dendrimer 24 (left) and double-core dendrimer 53 (right) [all H and C atoms are omitted for clarity; longest silicon chains with largest dihedral angles are shown in red].
Figure 25. Solid-state structures of single-core dendrimer 24 (left) and double-core dendrimer 53 (right) [all H and C atoms are omitted for clarity; longest silicon chains with largest dihedral angles are shown in red].
Polymers 04 00408 g025
Another striking example, which emphasizes the importance of conformational effects with regard to the degree of σ-conjugation, is provided by the double-core dendrimers 55 and 56 (Figure 26). According to the X-ray data, 55 has longest chains of 14 silicon atoms but conformers with exclusively large dihedrals angles such as all-anti or all-deviant segments exist only in several hexa- and pentasilane subunits, which are interrupted by additional ortho (O) or gauche (G) units. Note, however, that the heptasilane subunits of the dendrimer wings of 55 (DDOD) have dihedral angles fairly similar to those of the irregular single-core dendrimer 40 (DAGD and DDOD). In fact, 55 may be described as a dimer of 40: dendrimer 55 has a total of 28 silicon atoms, whereas 40 is composed of 14 silicon atoms. Accordingly, the wavelengths of UV absorption maxima 55 (λ = 274 nm) and 40 (λ = 269 nm) are similar to each other, but the extinction coefficients differ by a factor of two (40, ε = 0.6 × 105; 55, ε = 0.6 × 105). Clearly, these examples show that it is primarily the conformation of the silicon chain that determines the optical properties of polysilane dendrimers.

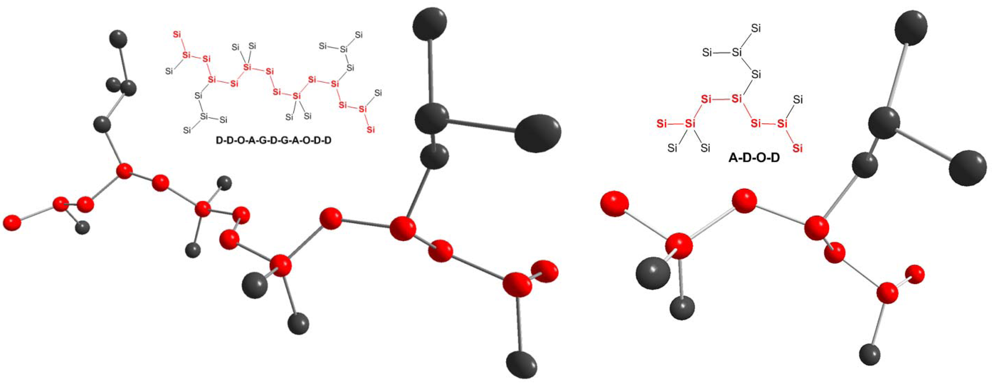

Figure 26. Solid-state structures of double-core dendrimer 55 (left) and irregular single-core dendrimer 40 (right) (all H and C atoms omitted for clarity; longest silicon chains with largest dihedral angles are shown in red).
Figure 26. Solid-state structures of double-core dendrimer 55 (left) and irregular single-core dendrimer 40 (right) (all H and C atoms omitted for clarity; longest silicon chains with largest dihedral angles are shown in red).
Polymers 04 00408 g026

6.3. Conformation and σ-conjugation in Dendritic, Branched and Linear Structures

From the discussion above it seems to be clear that the silicon backbone conformation is one the major factors in determining the degree σ-conjugation not only in linear polysilanes but also in branched and dendritic structures. For comparison, the silicon backbone conformations and average silicon-silicon distances, derived from X-ray diffraction data and the UV absorption data of linear, branched and dendritic polysilanes of chain lengths 6, 8 and 10 are summarized in Table 7.
Linear permethylated polysilanes can adopt various silicon chain conformations in solution primarily due to the low rotational barriers of the silicon-silicon bonds. As a result, mixtures of twisted conformers are observed in solution causing relatively broad UV absorption bands at room temperature. Upon cooling to 77 K, however, the absorption maxima of these linear oligosilanes are significantly red-shifted and the absorption bands become sharper due to a conformational transition from twisted to predominantly helical all-anti conformers, meant to be optimal for σ-conjugation.
Evidence that a transition from twisted to all-trans conformers is responsible for the observed red-shift of the absorption maxima upon cooling to 77 K was provided by the synthesis and UV spectroscopic measurements of conformationally rigid linear oligosilanes with exclusively large dihedral angles (ideally all-anti). In fact, hexasilane 62 and all-anti octasilane 63, reported by Michl [100] and Tamao [103] et al., respectively, and decasilane/cyclodextrin inclusion complex 64, reported by Kira’s group [106], display absorption maxima at room temperature that have the longest wavelengths and the highest extinction coefficients within the series of linear hexa- octa- and decasilanes.
Table 7. UV absorption data (in solution) and critical structural parameters of the longest silicon chains of selected permethylated linear, branched and dendritic polysilanes (A, ω ~ 180°; D, ω ~ 150°; E, ω ~ 120°; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Table 7. UV absorption data (in solution) and critical structural parameters of the longest silicon chains of selected permethylated linear, branched and dendritic polysilanes (A, ω ~ 180°; D, ω ~ 150°; E, ω ~ 120°; Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Types of polysilanesno. of chain Sino. of chain Sino. of chain Si
6810
linear Polymers 04 00408 i072 Polymers 04 00408 i073 Polymers 04 00408 i074
λmax/nm (293 K) 260 276 284
ε/1042.33.04.6
λmax/nm (77 K)265282294
ε/1046.813.416.0/12.5
Ref.[90][90][90,106]
linear with rigid conformation Polymers 04 00408 i075 Polymers 04 00408 i076 Polymers 04 00408 i077
626364
conformationDAAAAAAA-
av. Si-Si distance [pm]235.0234.9-
λmax/nm267288299
ε/1046.710.015.0
Ref.[100][103][106]
branched Polymers 04 00408 i078 Polymers 04 00408 i079 Polymers 04 00408 i080
216566
conformationDADDDADDDADDADD
av. Si-Si distance [pm]236.8236.7236.1
λmax/nm257280294
ε/1046.612.06.9
Ref.[107,108][108,109][108]
dendritic Polymers 04 00408 i081 Polymers 04 00408 i082 Polymers 04 00408 i083
515254
conformationEAEDEDED-
av. Si-Si distance [pm]238.6237.2-
λmax/nm276285292
ε/1042.35.65.5
Ref.[21][37][44]
Comparing the structural and electronic properties of these linear polysilanes with their branched and dendritic counterparts appears to be difficult as significant steric strain is introduced upon adding silyl groups to the inner silicons of the silicon main chain as is the case in branched and dendritic polysilanes. In fact, the introduction of further branch points leads to significant deviations of the Si-Si-Si angles from the ideal tetrahedral angles (see also discussion in section 4) and an increase of the average silicon-silicon distances of the longest silicon chains from ca. 235 pm for linear polysilanes to ca. 239 pm for some of the dendritic polysilanes. As demonstrated for various substituted disilanes by Michl et al., changes of the silicon-silicon distances may affect the energy of the σ-σ* transition and consequently the electronic properties of the bulk material quite dramatically [105]. Note, for example, that sterically crowded hexasilane dendrimer 51 (conformation EDE) clearly outperforms the conformationally rigid carbocyclic hexasilane 62 (conformation AAD) by 10 nm with respect to the wavelength of the absorption maximum (see Table 7). On the other hand, the absorption maximum of sterically less crowded octasilane dendrimer 52 (conformation DEDED) is slightly blue-shifted relative to that of all-anti octasilane 63, but red-shifted relative to that of its branched counterpart 65. It is also not clear to what extent the conformations of the longest silicon chains found in the solid-state (X-ray diffraction) for branched and dendritic polysilanes will retain in solution. However, according to the UV absorption characteristics of the branched silanes 65 and 66, there seem to be some control over the conformation in solution as the absorption maxima of both compounds are significantly red-shifted relative to that of the linear silanes Me(SiMe2)8Me and Me(SiMe2)10Me at room temperature. Obviously, similar conclusions can be drawn for polysilane dendrimers as steric strain appears to be the dominating factor in terms of controlling certain silicon main-chain conformations of these well-defined molecules in solution.

6.4. Electronic Effects

Recently, the groups of Stueger and Krempner independently investigated the molecular structures and electronic properties of oxo-functionalized cyclohexasilanes and branched heptasilanes [110,111,112,113,114,115], respectively. Strong electronic coupling of oxygen-containing donor groups such as OR, OH and OSiR3 with the silicon-silicon backbone (σ-n mixing) was noticed, resulting in a substantial decrease of the optical band gaps of these compounds. The results of DFT calculations revealed that the energy of the HOMO (primarily σ-orbital of silicon backbone) in these compounds is almost unaffected by the introduction of one or even more of oxo group. In the LUMO, however, strong σ-n mixing of the oxygen lone pairs with the σ-orbitals of the silicon-silicon backbone occurs, which significantly lowers the energy of the LUMO relative to that of permethylated cyclohexasilane and branched heptasilane. Thus, the rather unusual electronic spectra of these oxo-functionalized polysilanes can be explained by a symmetry forbidden HOMO-LUMO transition, which causes the red-shifted UV absorption maxima to be reduced in intensity [116,117].
Table 8 summarizes the absorption data for various functionalized and non-functionalized single-core polysilane dendrimers of first generation along with the conformational data. All these dendrimers have the same numbers of silicon atoms in the longest chains, same total numbers of silicon atoms per molecule and fairly similar conformational arrangements. Note, however, that the UV absorption characteristics of 29 and 30 are strikingly different from that of the hydrido-functionalized analogue 27 and permethylated 24. In fact, replacing the hydride group attached to the central silicon core with either a chlorine atom or an OH group tremendously shifts the absorption maximum to the red by 23 nm for 29 and 41 nm for 30, coupled with some reduction in intensity. Again, these findings can be understood as an optical band gap reduction resulting from effective interactions between chlorine or oxygen lone pair (n) and the σ-orbitals of the silicon main chains, resulting in HOMO-LUMO transitions that are symmetry forbidden.
Table 8. Electronic absorption spectra of selected single-core polysilane dendrimers of first generation ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i094 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Table 8. Electronic absorption spectra of selected single-core polysilane dendrimers of first generation ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i094 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Compoundλmax (nm)ε (104)Conformation (X-ray)Ref.
27 (X = H) Polymers 04 00408 i084 259 6.9 ADOA [21]
24 (X = Me)2695.0DDOD[47]
29 (X = Cl) 2822.7-[43]
30 (X = OH)3002.0-[50]
l,l-32 Polymers 04 00408 i085 280 a 2.2 DDOD [42]
l,u-322823.7DDED[42]
a measured at 70 °C.
Notably, the absorption maxima of the OH functionalized dendrimers l,l-32 and l,u-32, each of which has a total number of three OH groups and two OH groups per heptasilane chain, are blue-shifted by ca. 20 nm relative to 30, which contains only one OH group attached to the central core silicon. This suggests that the position of the silicon at which the OH group is attached within the silicon chain is more influential in determining the optical band-gaps of these compounds than the absolute number of OH groups attached to the silicon main chain. It seems that strongest electronic coupling of the OH group with the silicon backbone (σ-n mixing) is seen when the OH group is attached to a tertiary silicon atom, whereas secondary and primary Si-OH groups show weaker coupling in the LUMO. This observation is consistent with previous results on the absorption spectra of alkoxy substituted polysilanes of general formula Me-(SiMeOR)n-Me and –[Si(OR)2]n-, in which the OR groups are primarily attached to secondary silicon atoms [87,88]. It is, perhaps, the greater inductive effect associated with the central tertiary silicon compared to secondary or primary silicon atoms, that will more effectively equalize the energies of the oxygen p orbital and silicon main chain σ levels. This would lead to a greater overlap of the involved orbitals resulting in a substantial decrease of the optical band gap [117].

6.5. Emissive Properties

The emission properties of linear polysilanes are characterized by sharp emissions in the UV region with a relatively small Stokes shift. Branched polysilanes show a dual emission, one sharp emission at around 360 nm that is assignable to the linear silicon chain and a very broad one in the visible region at around 450 nm, which is related to a branching point (tertiary silicon atom).
Sekiguchi and coworker studied the emissive properties of the first and second generation polysilane dendrimers 24 (S-1312) and 47 (S-2312) at 77 K, and also found for each dendrimer two bands in time-resolved emission spectra [33,36]. From the observed small Stokes shift of the sharp emissions, they concluded that the excitons are fully delocalized over the silicon chains. The broad emission, on the other hand, was thought to be due to excitons that are localized at branching points [Si(Si)2]. It was shown that the broad emission arises from an intramolecular energy transfer from the excited state in the silicon chains to that in the branching points. Similar observations were made by Krempner et al., who studied the emissive properties of the permethylated dendrimers 24, 25, 40, 55 and 56 at room temperature, which all showed similarly weak dual emissions (Table 9). Sharp emissions appeared in the UV region at ca. 330 nm and broad emissions in the visible region at around 450-460 nm. In the OH-containing dendrimers 30 and l,l-32 the broad emissions at 480 nm (30) and 465 nm (l,l-32) predominated. The most striking feature of 30 and l,l-32, however, was a marked enhancement of the signal intensity by about a factor of 100 relative to the permethylated counterpart 24. Interestingly, this behavior closely resembles that of the strongly photoluminescent 2D-siloxene, [Si(OH)3H3]n and its counterpart the 2D-polysiline, [Si6H6]n, which showed a rather weak emission [116,118].
Table 9. Emission data of selected polysilane dendrimers ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
Table 9. Emission data of selected polysilane dendrimers ( Polymers 04 00408 i093 = core silicon; Polymers 04 00408 i097 = spacer silicon; Polymers 04 00408 i095 = branch silicon; ● = primary silicon; all methyl groups are omitted for clarity).
No.StructureDendrimer
type
λem1
(nm)
λem2
(nm)
λex
(nm)
c
(M)
T
(K)
Ref.
24 Polymers 04 00408 i086S-1312~3304552835 × 10−5298[50]
25 Polymers 04 00408 i087S-1313~330450–46027510−5298[47]
40 Polymers 04 00408 i088irregular~330450–46027510−5298[47]
55 Polymers 04 00408 i089D-1212-6~330450–46027510−5298[47]
56 Polymers 04 00408 i090D-1213-6~330450–46027510−5298[47]
30 Polymers 04 00408 i091S-1312-4803105 × 10−5298[50]
l,l-32 Polymers 04 00408 i092S-1312-4653005 × 10−5298[50]

7. Conclusions

The chemistry and properties of single-core and double-core polysilane dendrimers constitute a new class of highly-branched and silicon-rich architectures, which might have the potential to be useful as opto-electronic materials, has been reviewed. These well-defined molecular compounds are thermally robust and soluble in a variety of solvents and display opto-electronic properties that largely depend on the electronic nature of the substituents and the individual conformational arrangements of the various silicon chains realized in these molecules. Notably, in most double-core polysilane dendrimers the degree of delocalization of the σ-bonded electrons (σ-conjugation) is larger than in single-core dendrimers of comparable chain length as reflected in the different UV spectra. Conformations with large SiSiSiSi dihedral angles optimal for σ-conjugation along silicon chains are only possible in double-core systems, whereas symmetry and steric requirements render those conformational arrangements in single-core dendrimers impossible. The introduction of oxygen-containing functional groups into dendritic polysilanes, regardless of whether they are single- or double core structures, opens new ways of further tuning the opto-electronic properties of these molecules for materials applications. However, efficient synthetic methods to functionalized polysilane dendrimers of higher generation in high yields still need to be developed.

Acknowledgments

The support of this work by Texas Tech University is greatly acknowledged.

References

  1. Miller, A.D.; Michl, J. Polysilane high polymers. Chem. Rev. 1989, 89, 1359–1410. [Google Scholar]
  2. West, R. Polysilanes. In The Chemistry of Organic Silicon Compounds; Patai, S., Rappoport, Z., Eds.; Wiley: Chichester, UK, 1989; pp. 1207–1240. [Google Scholar]
  3. Koe, J.R. Organopolysilanes. In Comprehensive Organometallic Chemistry III; Crabtree, R.H., Mingos, D.M.P., Eds.; Elsevier Science Ltd.: Oxford, UK, 2006; Volume 3, pp. 549–650. [Google Scholar]
  4. Wilson, W.L.; Weidman, T.W. Excited-state dynamics of one- and two-dimensional σ-conjugated silicon frame polymers: Dramatic effects of branching in a series of hexylsilyne-branched poly(hexylmethylsilylene) copolymers. J. Phys. Chem. 1991, 95, 4568–4572. [Google Scholar]
  5. Watanabe, A.; Miike, H.; Tsutsumi, Y.; Matsuda, M. Photochemical properties of network and branched polysilanes. Macromolecules 1993, 26, 2111–2116. [Google Scholar]
  6. Maxka, J.; Chrusciel, J.; Sasaki, M.; Matyaszewski, K. Polysilanes with various architectures. Macromol.Symp. 1994, 77, 79–92. [Google Scholar]
  7. Richter, R.; Roewer, G.; Böhme, U.; Busch, K.; Babonneau, F.; Martin, H.P.; Müller, E. Organosilicon polymers-synthesis, architecture, reactivity and applications. Appl. Organomet. Chem. 1997, 11, 71–106. [Google Scholar]
  8. Bianconi, P.A.; Weidman, T.W. Poly(n-hexylsilyne): Synthesis and properties of the first alkyl silicon [RSi]n network polymer. J. Am. Chem. Soc. 1988, 10, 2342–2344. [Google Scholar]
  9. Bianconi, P.A.; Schilling, F.C.; Weidman, T.W. Ultrasound-mediated reductive condensation synthesis of silicon-silicon-bonded network polymers. Macromolecules 1989, 22, 1697–1704. [Google Scholar]
  10. Furukawa, K.; Fujino, M.; Matsumoto, N. Optical properties of silicon network polymers. Macromolecules 1990, 23, 3423–2426. [Google Scholar]
  11. Watanabe, A.; Matsuda, M. Electrical and optical properties of heat-treated silicon network polymers. Chem. Lett. 1991, 1101–1104. [Google Scholar]
  12. Watanabe, A.; Matsuda, M.; Yoshida, Y.; Tagawa, S. Radical ions of polysilynes. In Polymeric Materials for Microelectronic Applications, ACS Symposium Series 1994; Volume 579, pp. 408–424.
  13. Watanabe, A.; Ito, O.; Matsuda, M.; Suezawa, M.; Sumino, K. Photodegradation of polysilanes studied by far-infrared spectroscopy. Jpn. J. Appl. Phys. 1994, 33, 4133–4134. [Google Scholar]
  14. Matsumoto, H.; Miyamoto, H.; Kojima, N.; Nagai, Y. The first bicyclo[2.2.0]hexasilane system: Synthesis of decaisopropylhexasilabicyclo[2.2.0]hexane. J. Chem. Soc. Chem. Commun. 1987, 1316–1317. [Google Scholar]
  15. Watanabe, A.; Fujitsuka, M.; Ito, O.; Miwa, T. Soluble three-dimensional polysilane with organosilicon nanocluster structure. Jpn. J. Appl. Phys. 1997, 36, L1265–L1267. [Google Scholar]
  16. Watanabe, A.; Fujitsuka, M.; Ito, O.; Miwa, T. Control of silicon dimensionality of polysilanes and their optical properties. Mol. Cryst. Liq. Cryst. 1998, 316, 363–366. [Google Scholar]
  17. Watanabe, A.; Fujitsuka, M.; Ito, O. Micropatterning of SiO2 film using organosilicon nanocluster as a precursor. Thin Solid Film 1999, 354, 13–18. [Google Scholar]
  18. Lambert, J.B.; Pflug, J.L.; Stern, C.L. Synthesis and structure of a dendritic polysilane. Angew.Chem. (Int. Ed. Engl.) 1995, 34, 98–99. [Google Scholar]
  19. Suzuki, H.; Kimata, Y.; Satoh, S.; Kuriyama, A. Polysilane dendrimer. Synthesis and characterization of [2,2-(Me3Si)2Si3Me5]3SiMe. Chem. Lett. 1995, 293–294. [Google Scholar]
  20. Sekiguchi, A.; Nanjo, M.; Kabuto, C.; Sakurai, H. polysilane dendrimers. J. Am. Chem. Soc. 1995, 117, 4195–4196. [Google Scholar]
  21. Lambert, J.B.; Pflug, J.L.; Denari, J.M. First-generation dendritic polysilanes. Organometallics 1996, 15, 615–625. [Google Scholar]
  22. Suzuki, H.; Kuryama, A. Branched polysilanes and production thereof. Jpn. Kokai Tokkyo Koho 1996. JP 8073472 A.. [Google Scholar]
  23. Herzog, U.; Notheis, C.; Brendler, E.; Roewer, G.; Thomas, B. 29Si NMR investigations on oligosilane dendrimers. Fresenius.J. Anal. Chem. 1997, 357, 503–504. [Google Scholar]
  24. Lambert, J.B.; Wu, H. Synthesis and crystal structure of a nanometer-scale dendritic polysilane. Organometallics 1998, 17, 4904–4909. [Google Scholar]
  25. Lambert, J.B.; Basso, E.; Qing, N.; Lim, S.H.; Pflug, J.L. Two-dimensional silicon-29 inadequate as a structural tool for branched and dendritic polysilanes. J. Organomet. Chem. 1998, 554, 113–116. [Google Scholar]
  26. Marschner, C.; Hengge, E. Stepwise synthesis of functional polysilane dendrimers. In Organosilicon ChemistryIII: From Molecules to Materials, 3rd; Auner, N., Weis, J., Eds.; Wiley-VCH Verlag GmbH: Weinheim, Germany, 1998; pp. 333–336. [Google Scholar]
  27. Lambert, J.B.; Liu, X.; Wu, H.; Pflug, J.L. Anionic vs. radical intermediates in the fragmentation reactions of dendritic polysilanes. J. Chem. Soc. Perkin Trans. 1999, 2, 2747–2749. [Google Scholar]
  28. Nanjo, M.; Sunaga, T.; Sekiguchi, A.; Horn, E. Crystal structures of the first generation of phenyl-substituted and permethyl-substituted dendritic polysilanes. Inorg. Chem. Comm. 1999, 2, 203–206. [Google Scholar]
  29. Lambert, J.B.; Wu, H. Atom connectivity and spectral assignments from the 29Si-29Si INADEQUATE experiment on a nanometer scale dendritic polysilane. Magn. Res. Chem. 2000, 38, 388–389. [Google Scholar]
  30. Sekiguchi, A.; Lee, V.Y.; Nanjo, M. Lithiosilanes and their application to the synthesis of polysilane dendrimers. Coord. Chem. Rev. 2000, 210, 11–45. [Google Scholar]
  31. Chtchian, S.; Kempe, R.; Krempner, C. Synthesis, structure and spectroscopic properties of branched oligosilanes. J. Organomet. Chem. 2000, 613, 208–219. [Google Scholar]
  32. Chtchian, S.; Krempner, C. Synthesis and functionalization of branched oligosilanes. In Organosilicon Chemistry IV: From Molecules to Materials, 4th; Auner, N., Weis, J., Eds.; Wiley-VCH Verlag GmbH: Weinheim, Germany, 2000; pp. 352–355. [Google Scholar]
  33. Watanabe, A.; Nanjo, M.; Sunaga, T.; Sekiguchi, A. Dynamic of excited state of polysilane dendrimers: Origin of the broad visible emission of branched silicon chains. J. Phys. Chem. A 2001, 105, 6436–6442. [Google Scholar]
  34. Oh, H.-S.; Omote, M.; Suzuki, K.; Imae, I.; Kawakami, Y. Study on the synthesis of optically active polysilane dendrimer. Polymer Preprints 2001, 42, 194–195. [Google Scholar]
  35. Lambert, J.B.; Pflug, J.L.; Wu, H.; Liu, X. Dendritic polysilanes. J. Organomet. Chem. 2003, 685, 113–121. [Google Scholar]
  36. Watanabe, A. Optical properties of polysilanes with various silicon skeletons. J. Organomet. Chem. 2003, 685, 122–133. [Google Scholar]
  37. Krempner, C.; Reinke, H. Structure and UV spectroscopic properties of a novel dendritic oligosilane. J. Organomet. Chem. 2003, 685, 134–137. [Google Scholar]
  38. Krempner, C.; Reinke, H. Synthesis and reactivity of a novel oligosilyl anion. J. Organomet. Chem. 2003, 686, 158–163. [Google Scholar]
  39. Reinke, H.; Krempner, C. Synthesis and reactivity of novel oligosilyl anions. In Organosilicon ChemistryV: From Molecules to Materials, 5th; Auner, N., Weis, J., Eds.; Wiley-VCH Verlag GmbH: Weinheim, Germany, 2003; pp. 217–222. [Google Scholar]
  40. Krempner, C.; Chtchian, S.; Reinke, H. First synthesis of a dihydrido functionalized double-cored oligosilane dendrimer. Inorg.Chim. Acta 2004, 357, 3733–3738. [Google Scholar]
  41. Fischer, R.; Baumgartner, J.; Kickelbick, G.; Hassler, K.; Marschner, C. Adamantanes, nortricyclenes, and dendrimers with extended silicon backbones. Chem. Eur. J. 2004, 10, 1021–1030. [Google Scholar] [CrossRef]
  42. Krempner, C.; Jäger-Fiedler, U.; Köckerling, M.; Ludwig, R.; Wulf, A. Hydroxyl substituted oligosilane dendrimers – controlling the electronic properties through hydrogen bonding. Angew.Chem. Int. Ed. 2006, 45, 6755–6759. [Google Scholar]
  43. Krempner, C.; Reinke, H. The unusual absorption behavior of chloro functionalized oligosilane dendrimers. Inorg. Chem. Commun. 2006, 9, 259–262. [Google Scholar]
  44. Krempner, C.; Köckerling, M.; Mamat, C. Novel double cored oligosilane dendrimers—Conformational dependence of the UV absorption spectra. Chem. Commun. 2006, 720–722. [Google Scholar]
  45. Krempner, C.; Reinke, H. An approach to dendritic oligosilanes – controlling the conformation through ring formation. Organometallics 2007, 26, 2053–2057. [Google Scholar]
  46. Mu, T.; Feng, D.; Feng, S. A molecular modeling study of generation-dependent stability of dendritic polysilanes. J. Theoret. Comput. Chem. 2008, 7, 923–931. [Google Scholar] [CrossRef]
  47. Krempner, C.; Koeckerling, M. Nanoscale double-core oligosilane dendrimers: Synthesis, structure, and electronic properties. Organometallics 2008, 27, 346–352. [Google Scholar]
  48. Krempner, C.; Jäger-Fiedler, U.; Reinke, H.; Koeckerling, M. Synthesis and structure of titanium and zirconium trisiloxides. Organometallics 2009, 28, 382–385. [Google Scholar]
  49. Nanjo, M.; Sekiguchi, A. Polysilane dendrimers. In Silicon-Containing Dendritic Polymers; Dvornic, P., Owen, M.J., Eds.; Springer Science + Business Media B.V.: Dordrecht, The Netherlands, 2009; Volume 2, pp. 75–96. [Google Scholar]
  50. Jaeger-Fiedler, U.; Koeckerling, M.; Reinke, H.; Krempner, C. Discrete oxygen containing oligosilane dendrimers: Modelling oxygen defects in silicon nanomaterials. Chem. Comm. 2010, 46, 4535–4537. [Google Scholar]
  51. Gilman, H.; Smith, C.L. Tetrakis(trimethylsilyl)silane. J. Am. Chem. Soc. 1964, 86, 1454. [Google Scholar]
  52. Gilman, H.; Smith, C.L. Tetrakis(trimethylsilyl)silane. J. Organomet. Chem. 1967, 8, 245–253. [Google Scholar]
  53. Gilman, H.; Holmes, J.M.; Smith, C.L. Branched-chain methylated polysilanes containing a silyl-lithium group. Chem. Ind. (Lond. UK) 1965, 848–849. [Google Scholar]
  54. Lickiss, P.D.; Smith, C. Silicon derivatives of the metals of Groups 1 and 2. Coord.Chem. Rev. 1995, 145, 75–124. [Google Scholar]
  55. Tamao, K.; Kawachi, A. Silyl anions. Adv. Organomet. Chem. 1995, 38, 1–58. [Google Scholar]
  56. Wiberg, N. Sterically overloaded supersilylated main group elements and main group element clusters. Coord. Chem. Rev. 1997, 163, 217–252. [Google Scholar]
  57. Belzner, J.; Dehnert, U. Alkali and Alkaline Earth Silyl Compounds-Preparation and Structure. In The Chemistry of Organic Silicon Compounds; Rappoport, Z., Apeloig, Y., Eds.; Wiley: Chichester, UK, 1998; Volume 2, pp. 779–825. [Google Scholar]
  58. Marschner, C. Preparation and reactions of polysilanyl anions and dianions. Organometallics 2006, 25, 2110–2125. [Google Scholar]
  59. Kiyomori, A.; Kubota, T.; Kaneo, T.; Hasegawa, K.; Watanabe, T. Method for producing tetrakis(trimethylsilyl)silane and tris(trimethylsilyl)silane. Jpn. Kokai Tokkyo Koho 2001. JP 2001192387 A.. [Google Scholar]
  60. Marsmann, H.C.; Raml, W.; Hengge, E. Silicon-29 nuclear resonance measurements on polysilanes. 2. Isotetrasilanes. Z. Naturforsch. B 1980, 35B, 1541–1547. [Google Scholar]
  61. Notheis, C.; Brendler, E.; Thomas, B. NMR spectroscopic investigations on methylphenyl-substituted tri- and tetrasilanes. GIT Labor-Fachzeitschrift 1997, 41, 824–826. [Google Scholar]
  62. Sakurai, H.; Watanabe, T.; Kumada, M. Aluminum chloride-catalyzed reactions of organosilicon compounds. IV. Preparation of tetrakis(chlorodimethylsilyl)silane and -methane. J. Organomet. Chem. 1967, 9, P11–P12. [Google Scholar]
  63. Ishikawa, M.; Kumada, M.; Sakurai, H. Preparation of some polysilicon halides by aluminum halide catalyzed interchange of methyl and halogen on silicon. J. Organomet. Chem. 1970, 23, 63–69. [Google Scholar]
  64. Hassler, K. Preparation of functional polysilanes: Tris(chlorodimethylsilyl)methylsilane. Monatsh.Chem. 1986, 117, 613–615. [Google Scholar]
  65. Kollegger, G.; Hassler, K. Synthesis and properties of functional polysilanes: the tetrasilanes MeSi(SiMe2X)3 and hexasilanes (Me2XSi)2MeSiSiMe(SiMe2X)2, X = Me, H, F, Cl, Br, I. J. Organomet. Chem. 1995, 485, 233–236. [Google Scholar] [CrossRef]
  66. Herzog, U.; Schulze, N.; Trommer, K.; Roewer, G. Reaction of the Si-Cl bond with trialkyl orthoformates. Preparation of alkoxy-substituted silanes. J. Organomet. Chem. 1997, 547, 133–139. [Google Scholar]
  67. Notheis, C.; Brendler, E.; Thomas, B. Chlorination of Methylphenyloligosilanes: Products and reactions. In Organosilicon ChemistryIII: From Molecules to Materials, 3rd; Auner, N., Weis, J., Eds.; Wiley-VCH Verlag GmbH: Weinheim, Germany, 1998; pp. 307–311. [Google Scholar]
  68. Lehnert, R.; Hoeppner, M.; Kelling, H. Silicon-29 NMR investigations on methylchlorodisilanes. Z. Anorg. Allg. Chem. 1990, 591, 209–213. [Google Scholar]
  69. Herzog, U.; Richter, R.; Brendler, E.; Roewer, G. Methylchlorooligosilanes as products of the base catalyzed disproportionation of various methylchlorodisilanes. J. Organomet. Chem. 1996, 507, 221–228. [Google Scholar]
  70. Gilman, H.; Smith, C.L. Tris(trimethylsilyl)silyllithium. J. Organomet. Chem. 1968, 14, 91–101. [Google Scholar]
  71. Gutekunst, G.; Brook, A.G. Tris(trimethylsilyl)silyllithium 3 THF: A stable crystalline silyllithium reagent. J. Organomet. Chem. 1982, 225, 1–3. [Google Scholar]
  72. Baines, K.M.; Brook, A.G.; Ford, R.R.; Lickiss, P.D.; Saxena, A.X.; Sawyer, W.J.; Behnam, B.A. Photochemical rearrangements of stable silenes. Organometallics 1989, 8, 693–709. [Google Scholar]
  73. Whittaker, S.M.; Brun, M.-C.; Cervantes-Lee, F.; Pannell, K.H. Synthesis, structure, and reactivity of the permethylated decasilane (Me3Si)3SiSiMe2SiMe2Si(SiMe3)3. J. Organomet. Chem. 1995, 499, 247–252. [Google Scholar]
  74. Apeloig, Y.; Korogodsky, G.; Bravo-Zhivotovskii, D.; Blaser, D.; Boese, R. The syntheses and molecular structure of a branched oligosilyl anion with a record of nine silicon atoms and of the first branched oligosilyl dianion. Eur. J. Inorg. Chem. 2000, 1091–1095. [Google Scholar]
  75. Marschner, C. A new and easy route to polysilanylpotassium compounds. Eur. J. Inorg. Chem. 1998, 221–226. [Google Scholar]
  76. Kayser, C.; Fischer, R.; Baumgartner, J.; Marschner, C. Tailor-made oligosilyl potassium compounds. Organometallics 2002, 21, 1023–1030. [Google Scholar]
  77. Kayser, C.; Kickelbick, G.; Marschner, C. Simple synthesis of oligosilyl-α,ω-dipotassium compounds. Angew. Chem. (Int. Ed. Engl.) 2002, 41, 989–992. [Google Scholar] [CrossRef]
  78. Mechtler, C.; Marschner, C. Polysilyldianions: Synthesis and reactivity. Tetrahedron Lett. 1999, 40, 7777–7778. [Google Scholar]
  79. Note that in relatively unstrained linear and branched oligosilanes the Si-Si distances range from 234 to 236 pm and the Si-Si-Si angles deviate usually only by 3 to 4° from the ideal tetrahedral angle.
  80. Stanislawski, D.A.; West, R. Silicon-29 and carbon-13 NMR spectra of permethylpolysilanes. J. Organomet. Chem. 1980, 204, 295–305. [Google Scholar]
  81. Ishikawa, M.; Iyoda, J.; Ikeda, H.; Kotake, K.; Hashimoto, T.; Kumada, M. Aluminum chloride catalyzed skeletal rearrangement of permethylated acyclic polysilanes. J. Am. Chem. Soc. 1981, 103, 4845–4850. [Google Scholar]
  82. Dzambaski, A.; Baumgartner, J.; Flock, M.; Hassler, K. Conformation control of oligosilanes by trimethylsilyl groups: dodecamethyl-, undecamethyl-2-trimethylsilyl- and decamethyl-2, 4-bis(trimethylsilyl)-n-pentasilane studied by Raman spectroscopy and quantum chemical calculations. Silicon 2010, 1, 225–237. [Google Scholar]
  83. Lambert et al. [18] reported the tertiary silicon core (T3-9) of polysilane dendrimer 25, to appear at -65.0 ppm in the 29Si-NMR (measured in C6D6). Suzuki et al. [19], however, found the latter signal to be at -37.1 ppm (measured in CDCl3). Measuring 25 again in C6D6 as solvent, we found chemical shifts for the central silicon core and also the other silicon nuclei being almost identical with those reported by Suzuki et al. [19].
  84. During the preparation of this manuscript we noticed that the 29Si-NMR chemical shift of the central core silicon (T3-9) of polysilane dendrimer 26, reported by Lambert and coworkers [24] to be at -66.1 ppm, did not match the expected chemical shift range for a tertiary silicon nucleus that has 3 silicon nuclei in β-position and 9 silicon nuclei in γ-position (T3-9). Note that the central T3-9 silicon nuclei of 25 and 56 appear at −37.1 ppm and −35.3 ppm, respectively. We independently prepared 26 by treating 3.5 equivalents of K-Si(SiMe3)2SiMe2SiMe2Si(SiMe3)3 with one equivalent of MeSi(SiMe2Cl)3 in hexane. After aqueous workup of the reaction mixture and re-crystallization of the residue from acetone, compound 26 was isolated as a white crystalline material in 16% yield consistent with the results reported earlier by Lambert et al. Compound 26 was characterized by 1H-, 13C and 29Si-NMR spectroscopy. However, 29Si-NMR spectroscopic measurement in CDCl3 revealed the chemical shift of the central core silicon (T3-9) to be at −30.3 ppm. Although we have carried out several 29Si-NMR experiments, including INEPT and DEPT pulse sequences, we could not find any signal at around -66 ppm as reported by Lambert and coworkers.
  85. Hsiao, Z.-L.; Waymouth, R.M. Free-radical hydrosilylation of poly(phenylsilane): Synthesis of functional polysilanes. J. Am. Chem. Soc. 1994, 116, 9779–9780. [Google Scholar]
  86. Koe, J.; Powell, D.R.; Buffy, J.J.; Hayase, S.; West, R. Perchloropolysilane: X-ray structure, solid-state 29Si NMR spectroscopy, and reactions of [SiCl2]n. Angew. Chem. Int. Ed. 1998, 37, 1441–1442. [Google Scholar]
  87. Herzog, U.; West, R. Heterosubstituted polysilanes. Macromolecules 1999, 32, 2210–2214. [Google Scholar]
  88. Koe, J.; Motanaga, M.; Fujiki, M.; West, R. Synthesis and spectroscopic characterization of heteroatom polysilylenes: Poly(dialkoxysilylene)s and evidence for silicon σ-oxygen n mixing interaction. Macromolecules 2001, 34, 706–712. [Google Scholar]
  89. Koe, J.R.; Fujiki, M. Heteroatom polysilylenes. Silicon Chem. 2002, 1, 77–87. [Google Scholar]
  90. Obata, K.; Kira, M. Synthesis, structure, and spectroscopic properties of perhexyloligosilanes. Organometallics 1999, 18, 2216–2222. [Google Scholar] [CrossRef]
  91. Boberski, W.G.; Allred, A.L. Preparation of permethyloctadecasilane and permethyltetracosasilane. J. Organomet. Chem. 1974, 71, C27–C28. [Google Scholar]
  92. Boberski, W.G.; Allred, A.L. Properties of long-chain permethylpolysilanes. J. Organomet. Chem. 1975, 88, 65–72. [Google Scholar]
  93. Maxka, J.; Huang, L.M.; West, R. Synthesis and NMR spectroscopy of permethylpolysilane oligomers Me(SiMe2)10Me, Me(SiMe2)16Me, and Me(Me2Si)22Me. Organometallics 1991, 10, 656–659. [Google Scholar]
  94. Michl, J.; West, R. Conformations of linear chains. Systematics and suggestions for nomenclature. Acc. Chem. Res. 2000, 33, 821–823. [Google Scholar] [CrossRef]
  95. West, R. A new theory for rotational isomeric states: polysilanes lead the way. J. Organomet. Chem. 2003, 685, 6–8. [Google Scholar]
  96. Teramae, H.; Michl, J. Electronic states of linear tetrasilane and polysilanes. Mol. Cryst. Liq. Cryst. 1994, 256, 149–159. [Google Scholar]
  97. Neumann, F.; Teramae, H.; Downing, J.W.; Michl, J. Gauche, ortho, and anti conformations of saturated A4X10 chains: When will all six conformers exist? J. Am. Chem. Soc. 1998, 120, 573–582. [Google Scholar]
  98. Albinsson, B.; Antic, D.; Neumann, F.; Michl, J. The conformers of n-Si5Me12: A comparison of Ab initio and molecular mechanics methods. J. Phys. Chem. A 1999, 103, 2184–2196. [Google Scholar]
  99. Tsuji, H.; Michl, J.; Tamao, K. Recent experimental and theoretical aspects of the conformational dependence of UV absorption of short chain peralkylated oligosilanes. J. Organomet. Chem. 2003, 685, 9–14. [Google Scholar]
  100. Mazieres, S.; Raymond, M.K.; Raabe, G.; Prodi, A.; Michl, J. [2]Staffane rod as a molecular rack for unravelling conformer properties: Proposed singlet excitation localization isomerism in anti,anti,anti-Hexasilanes. J. Am. Chem. Soc. 1997, 119, 6682–6683. [Google Scholar]
  101. Tamao, K.; Tsuji, H.; Terada, M.; Asahara, M.; Yamaguchi, S.; Toshimitsu, A. Conformation control of oligosilanes based on configurationally constrained bicyclic disilane units. Angew. Chem. Int. Ed. 2000, 39, 3287–3290. [Google Scholar]
  102. Tsuji, H.; Terada, M.; Toshimitsu, A.; Tamao, K. σσ* Transition in anti,cisoid alternating oligosilanes: Clear-cut evidence for suppression of conjugation effect by a cisoid turn. J. Am. Chem. Soc. 2003, 125, 7486–7487. [Google Scholar]
  103. Fukazawa, A.; Tsuji, H.; Tamao, K. All-anti-octasilane: Conformation control of silicon chains using the robust bicyclic trisilane as the building block. J. Am. Chem. Soc. 2006, 128, 6800–6801. [Google Scholar]
  104. Tsuji, H.; Fukazawa, A.; Yamaguchi, S.; Toshimitsu, A.; Tamao, K. All-anti pentasilane: Conformation control of oligosilanes based on bis(tetramethylene)-tethered trisilane unit. Organometallics 2004, 23, 3375–3377. [Google Scholar]
  105. Casher, D.L.; Tsuji, H.; Sano, A.; Katkevics, M.; Toshimitsu, A.; Tamao, K.; Kubota, M.; Kobayashi, T.; Ottosson, C.H.; David, D.E.; et al. The disilane chromophore:  Photoelectron and electronic spectra of hexaalkyldisilanes and 1,(n+2)-Disila[n.n.n]propellanes. J. Phys. Chem. A 2003, 107, 3559–3566. [Google Scholar]
  106. Sakamoto, K.; Naruoka, T.; Kira, M. Regulation of main-chain conformation of permethyldecasilane by complexation with γ-cyclodextrin. Chem. Lett. 2003, 32, 380–381. [Google Scholar]
  107. Lambert, J.B.; Pflug, J.L.; Allgeier, A.M.; Campbell, D.J.; Higgins, T.B.; Singewald, E.T.; Stern, C.L. A branched polysilane. Acta Cryst. C 1995, C51, 713–715. [Google Scholar]
  108. Baumgartner, J.; Frank, D.; Kayser, C.; Marschner, C. comparative study of structural aspects of branched oligosilanes. Organometallics 2005, 24, 750–761. [Google Scholar]
  109. Wallner, A.; Wagner, H.; Baumgartner, J.; Marschner, C.; Rohm, H.W.; Koeckerling, M.; Krempner, C. Structure, conformation, and UV absorption behavior of partially trimethylsilylated oligosilane chains. Organometallics 2008, 27, 5221–5229. [Google Scholar]
  110. Krempner, C.; Flemming, A.; Koeckerling, M.; Ludwig, R.; Miethchen, R. Twisted oxygen containing oligosilanes: Unprecendented examples of σ–n mixed conjugated systems. Chem. Comm. 2007, 1810–1812. [Google Scholar]
  111. Krempner, C.; Kopf, J.; Mamat, K.; Reinke, H.; Spannenberg, A. Novel polysilanoles via selective functionalization on oligosilanes. Angew.Chem. (Int. Ed. Engl.) 2004, 43, 5406–5408. [Google Scholar] [CrossRef]
  112. Stueger, H.; Albering, J.; Flock, M.; Fuerpass, G.; Mitterfellner, T. cis,cis-1,3,5-trihydroxynonamethylcyclohexasilane: A cyclopolysilane with unusual properties. Organometallics 2011, 30, 2531–2538. [Google Scholar]
  113. Stueger, H.; Fuerpass, G.; Baumgartner, J.; Mitterfellner, T.; Flock, M. Molecular structure and UV absorption spectra of OH and NH2 derivatives of dodecamethylcyclohexasilane: A combined experimental and computational study. Z. Naturforsch. B 2009, 64, 1598–1606. [Google Scholar]
  114. Stueger, H.; Fuerpass, G.; Renger, K.; Baumgartner, J. Synthesis, structures, and unusual photoluminescence of O- and N-functional cyclohexasilanes. Organometallics 2005, 24, 6374–6381. [Google Scholar] [CrossRef]
  115. Renger, K.; Kleewein, A.; Stueger, H. Fluorescence of siloxy substituted cyclohexasilanes. Phosphorus Sulfur Silicon. 2001, 169, 449–452. [Google Scholar]
  116. Takeda, K.; Shiraishi, K. Electronic structure of silicon-oxygen high polymers. Solid State Commun. 1993, 85, 301–305. [Google Scholar]
  117. Pitt, C.G. Ultraviolet absorption spectra of derivatives of polysilanes. A probe of (p→d)π bonding in organosilicon compounds. J. Am. Chem. Soc. 1969, 91, 6613–6622. [Google Scholar] [CrossRef]
  118. Brus, L. Luminescence of silicon materials: Chains, sheets, nanocrystals, nanowires, microcrystals, and porous silicon. J. Phys. Chem. 1994, 98, 3575–3581. [Google Scholar] [CrossRef]

Share and Cite

MDPI and ACS Style

Krempner, C. Polysilane Dendrimers. Polymers 2012, 4, 408-447. https://doi.org/10.3390/polym4010408

AMA Style

Krempner C. Polysilane Dendrimers. Polymers. 2012; 4(1):408-447. https://doi.org/10.3390/polym4010408

Chicago/Turabian Style

Krempner, Clemens. 2012. "Polysilane Dendrimers" Polymers 4, no. 1: 408-447. https://doi.org/10.3390/polym4010408

Article Metrics

Back to TopTop
