Review

Polybenzoxazine/Polyhedral Oligomeric Silsesquioxane (POSS) Nanocomposites

by
Mohamed Gamal Mohamed
and
Shiao-Wei Kuo
*
Department of Materials and Optoelectronic Science, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2016, 8(6), 225; https://doi.org/10.3390/polym8060225
Submission received: 9 April 2016 / Revised: 26 May 2016 / Accepted: 2 June 2016 / Published: 7 June 2016
(This article belongs to the Collection Featured Mini Reviews in Polymer Science)
Browse Figures
Versions Notes

Abstract

:
The organic/inorganic hybrid materials from polyhedral oligomeric silsesquioxane (POSS, inorganic nanoparticles) and polybenzoxazine (PBZ) have received much interesting recently due to their excellent thermal and mechanical properties, flame retardance, low dielectric constant, well-defined inorganic framework at nanosized scale level, and higher performance relative to those of non-hybrid PBZs. This review describes the synthesis, dielectric constants, and thermal, rheological, and mechanical properties of covalently bonded mono- and multifunctionalized benzoxazine POSS hybrids, other functionalized benzoxazine POSS derivatives, and non-covalently (hydrogen) bonded benzoxazine POSS composites.

Graphical Abstract

1. Introduction

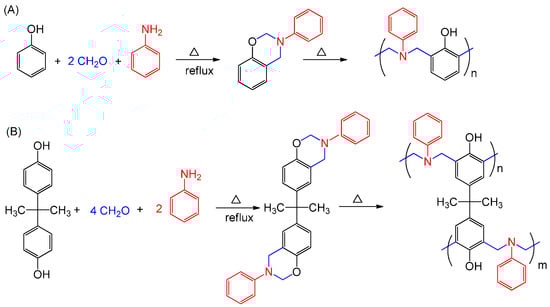

Benzoxazine (BZ) monomers are heterocyclic compounds containing oxygen and nitrogen atoms in a six-membered oxazine ring; they can be synthesized through facile and environmentally friendly condensation reactions of aromatic phenols, primary or aromatic amines, and paraformaldehyde in the absence of a catalyst [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20]. Polybenzoxazines (PBZs) could be obtained through thermally activated ring-opening polymerizations from BZ monomers, as displayed in Figure 1 [21,22,23,24,25,26]. PBZs are phenolic resin–like materials and thermosetting polymers that possess attractive dielectric constants (k), excellent thermal, chemical, and mechanical properties, flame-retardance, low moisture absorption, good heat resistance, and flexibility in molecular structural design [27,28,29,30,31,32,33,34]. In addition, PBZs comprise a new class of non-silicon or non-fluorine polymer materials with low-surface-free-energy properties; they have wide applications as mold release materials in nanoimprint technology, in lithographic patterning, and as a superhydrophobic surface material due to their strong intramolecular hydrogen bonding after thermal curing polymerization [31,35,36,37,38,39,40]. In some cases, PBZs have properties superior to those of some traditional thermosets (including epoxies, bismaleimides). Nevertheless, PBZs can possess some unattractive characteristics-for example, the high temperature need for complete ring opening polymerization and the brittleness of the cured materials compared with those of other thermoset crosslinking materials, restricting their applications as matrices for some high-performance composites [41,42]. The incorporation of organic functional groups (e.g., vinyl, allyl, methacryloyl, nitrile, benzoxazole, epoxy), inorganic silicates (e.g., clay), carbon nanotubes (CNTs), and polyhedral oligomeric silsesquioxane (POSS) into BZ monomers can improve the thermal or mechanical properties of PBZ resins through the crosslinking network formation and decreased chain mobility [43,44,45,46,47,48,49,50,51,52,53,54,55,56].
Both organic components and inorganic POSS can display the enhancement of performance capability compared with that of their non-hybrid polymeric materials [57,58]. The molecular structure of POSS features a silica cage as the core (a Si–O–Si framework of nanoscale size) with the other organic functional group covalently bonded at the cage corners (i.e., each Si atom); thus, it consists of the inorganic siloxane group as the inner core and the polar or nonpolar organic groups as an outer layer. POSS nanostructures typically have the empirical chemical formula RSiO1.5, where R could be the hydrogen or the organic moiety such as alkyl, alkylene, arylene, aryl, acrylate, epoxy or hydroxyl units [59,60,61,62]. They have attracted much recent attention because of their nanometer-scale dimensions (diameter: 1–3 nm), their organic/inorganic hybrid structures, and excellent mechanical and thermal properties [63,64,65,66].

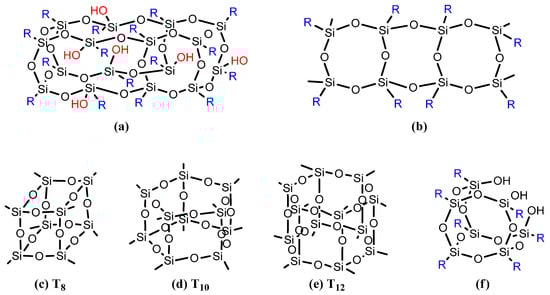

Scott was the first to synthesize oligomeric organosilsesquioxanes (CH3SiO1.5)n through thermolysis of the polymer materials afforded by the co-hydrolysis of methyltrichlorosilane and dimethylchlorosilane [67]. POSS structures can be divided into monofunctional (when only one of the organic groups is reactive) and multifunctional (when more than one organic group is reactive) derivatives [68,69,70]. Silsesquioxane nanostructures include random, cage, partial cage, and ladder structures (Figure 2) [59,70,71,72]. In general, monofunctional POSS derivatives (R´R7Si8O12) are synthesized through (i) co-hydrolysis of trifunctional organo- or hydrosilanes [73,74], (ii) corner-capping reactions [75], and (iii) substitution reaction with the siloxane cage retention [76,77]. On the other hand, multifunctional POSS derivatives are typically prepared via the Pt-catalyzed hydrosilylation with (HSiO1.5)8 or octakis(dimethylsiloxy)silsesquioxane [(HMe2SiOSiO1.5)8, Q8M8H] cage with alkenes or alkynes [78,79,80,81]. The dispersion and incorporation of POSS nanoparticles (NPs) within polymers to form organic/inorganic hybrid materials without surface treatment is a particularly active field of research in academia and industry because these NPs have zero dimensionality (1-, 2-, or 3-D scaffolds), well-defined structures, high temperature-stability, monodisperse molecular weights, ultra-low dielectric constants, and greater design flexibility relative to conventional fillers (for example, clay, graphene, carbon nanotube and boron nitride) [81]; in addition to the sizable interfacial interaction between the polymer segments and composite particles, these hybrids have several applications in polymer electrolytes, drug delivery, and as thermosetting polymers [82,83,84,85,86,87,88,89,90]. The dispersion of POSS NPs into a polymer matrix can enhance its rigidity, modulus, and strength, while decreasing its flammability and viscosity [36,88,89]. Two approaches are generally used to incorporate the POSS NPs into polymer materials: (i) chemical crosslinking or chemical copolymerization, where the POSS nanostructures are attached to the polymer through covalent bonds [91], and (ii) physical blending, where POSS NPs are physically bonded with the polymer through solvent-casting or melt-mixing. Such physical blending approaches depend strongly on the compatibility and processability of the POSS with the polymer matrix; these phenomena can be enhanced through the connection of vertex groups to the silicon atoms [31,92]. Accordingly, many attempts have been made to control the locations of the NPs in POSS-containing polymer nanocomposites. The difference between the chemical crosslinking and physical blending approaches is the absence of macro-phase separation between the polymer matrix and the POSS NPs in the former, due to the linkage through covalent bonds [93].
The incorporation of POSS NPs into a polymer matrix can be performed through several organic reactions, including hydrosilylation, condensation, and grafting [59]. Many different types of POSS compounds have been synthesized, including octa(aminophenyl)silsesquioxane (OAPS) [92,94], incomplete-cage POSS [95,96], epoxide octavinyl-POSS (EOVS) [97], and octa(3-chloroammoniumpropyl)-POSS (OCAPS) [98]. These novel POSS materials can be used to prepare various POSS-containing PBZ nanocomposites through either chemical crosslinking or physical blending. The incorporation of POSS NPs into PBZ matrix allows the development of new classes of organic/inorganic hybrid nanocomposite materials potentially possessing unique properties, making the field one of the most interesting in materials science. In this review, we focus on the synthesis and characterization of various kinds of POSS-containing PBZs, including those derived covalently and noncovalently (such as, hydrogen bonded) from mono- and multifunctional POSS as well as through physical blending with PBZs.

2. Preparation of PBZs Containing POSS Nanocomposites

Three approaches have been developed for the introduction of POSS NPs into BZs monomers for the synthesis of PBZ-POSS: (i) using Q8H8, OAPS, HPOSS, and amine-POSS as precursors; (ii) incorporating POSS structures as crosslinkers to increase the crosslinking density of the PBZ resins [e.g., allowing the reactive groups of OAPS (amino group), EOVS (epoxy group), and trisilanol POSS (T7POSS) to react with BZ monomers during thermal curing polymerization]; and (iii) incorporating POSS derivatives as catalysts to accelerate the ring-opening polymerization of BZ monomers through the release of free acid or amino groups (for example, from octa(p-toluenesulfonic acid ammonium salt) polyhedral oligomeric silsesquioxane (OPAAS POSS)) at elevated temperature [99]. Yu et al. successfully synthesized the diverse array of POSS materials that they used to modify PBZ resin; these hybrid materials exhibited mechanical and thermal properties superior to those of pristine BZ monomers [100].

2.1. Monobenzoxazine-Functionalized POSS (BZ-POSS)

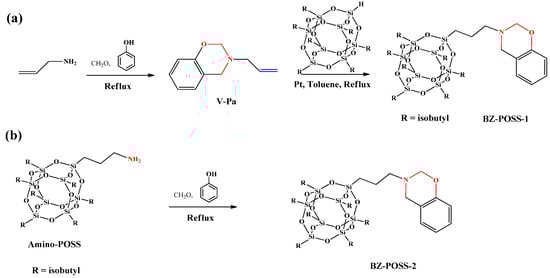

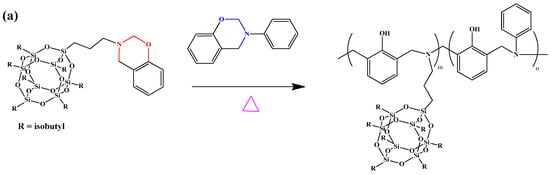

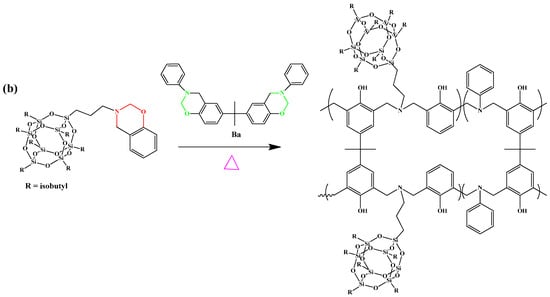

Monofunctional POSS derivative is the most useful compound for copolymerization with other monomers through free-radical polymerization, living anionic polymerization or controlled living radical polymerization such as atom transfer radical polymerization (ATRP) or reversible addition fragmentation chain transfer polymerization (RAFT) for the preparation of high-performance POSS-containing polymers [101,102,103,104]. We first synthesized mono-functionalized BZ ring containing POSS (BZ-POSS) using two approaches (Figure 3) [105]: (i) the preparation of vinyl-terminated BZ and then hydrosilylation with POSS to afford BZ-POSS-1 and (ii) condensation of a primary amine-containing POSS (amine-POSS) with formaldehyde and phenol in THF solution at 90 °C to obtain BZ-POSS-2. The chemical structure of BZ-POSS-2 was investigated using 1H NMR and FTIR spectroscopy and size exclusion chromatography. Subsequent copolymerization of BZ-POSS-1 with 3-phenyl-3,4-dihydro-2H-benzoxazine (Pa) and 6,6′-(propane-2,2-diyl)bis(3-phenyl-3,4-dihydro-2H-benzoxazine) (Ba) BZ monomers by thermally activated ring-opening polymerizations afforded Pa-POSS and Ba-POSS copolymers, respectively (Figure 4).
According to thermogravimetric analysis (TGA), increasing the BZ-POSS contents from 0 to 10 wt % caused the degradation temperature (Td) and char yield of the Ba-POSS and Pa-POSS copolymers to increase, due to the POSS nanostructures restricting the mobility of polymer chains at elevated temperature. The thermal stability of the POSS copolymers decreased upon adding more than 10 wt % of BZ-POSS because of the macrophase separation and gross aggregation of BZ-POSS that occurred prior to polymerization.

2.2. Multibenzoxazine-Functionalized POSS

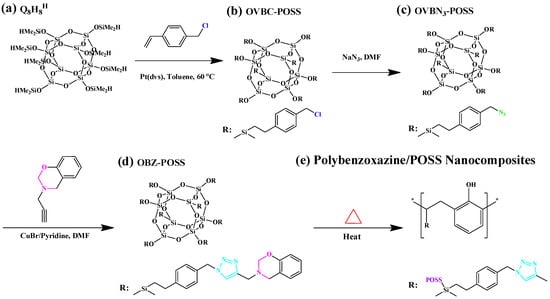

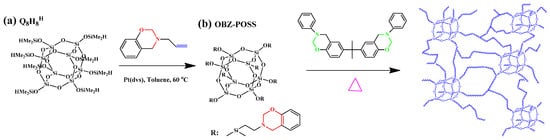

Multifunctional POSS/BZ monomers have been synthesized in high purity and yield by many research groups. We synthesized our first reported multifunctionalized POSS presenting eight organic BZ tether units (OBZ-POSS) via the hydrosilylation of a vinyl-terminated BZ monomer (VP-a) with Q8M8H by using the platinum complex (Pt-dvs) as catalyst (Figure 5) [106,107]. The thermal stability in the resulting PBZ/POSS nanocomposites was evidenced by the increased decomposition temperatures of Pa-POSS and Ba-POSS nanocomposites upon increasing the OBZ-POSS contents [106]. We have also synthesized new multifunctional BZ-containing POSS (OBZ-POSS) through 1,3-dipolar cycloaddition between an octaazido-functionalized POSS (OVPN3-POSS) and 3,4-dihydro-3-(prop-2-ynyl)-2H-benzoxazine (P-pa) (Figure 6). The decomposition temperature (Td) and char yield of OBZ-POSS nanocomposites, determined through TGA analysis, were higher than those of P-pa and BA-m [108].
The TGA data indicated that the weight loss decreased after heating with temperature higher than 550 °C for both samples of OBZ-POSS and P-pa and the incorporation of POSS NPs into the PBZ matrix enhanced its thermal stability through the formation of a crosslinking network structure after ring opening of the BZ units on the inorganic silsesquioxane. In addition, this OBZ-POSS material displayed a low surface free energy, measured from water contact angles, after modification of the thin film with poly(4-vinylpyridine) (Figure 7).

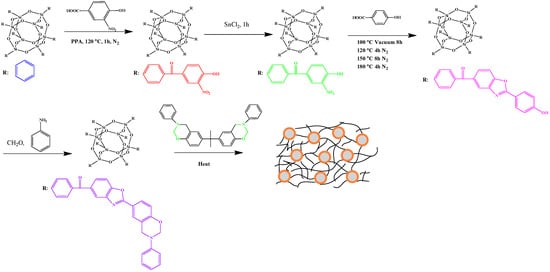

Han et al. [109] prepared a class of benzoxazole-modified [PhSiO1.5]8 BZ (OPS-BZ) monomers and blended them with BA-a to afford POSS/PBZ nanocomposites (Figure 8).

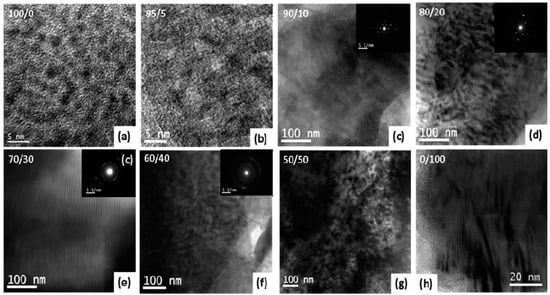

They used high-resolution transmission electron microscopy (HR-TEM) to study the microstructure of the POSS/PBZ (30/70 wt %) nanocomposite (Figure 9) [109]. The TEM images revealed highly dispersed POSS units (size: 3–10 nm) in the PBZ matrix, due to the rigid benzoxazole group around the OPS core minimizing the aggregation of the POSS NPs. Moreover, these OPS-BZ/PBZ nanocomposites possessed low dielectric constants and dielectric losses for frequencies in the range from 10 Hz to 1 MHz.

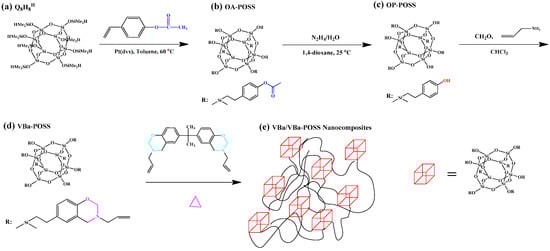

We also developed a new PBZ/POSS nanocomposite prepared from the reactions of a multifunctional vinyl-terminated POSS derivative (VBa-POSS) and the VBa BZ monomer at various compositions (Figure 10) [110]. These hybrid materials exhibited good thermal stability because the incorporation of the POSS units into the PBZ resins hindered the mobility.

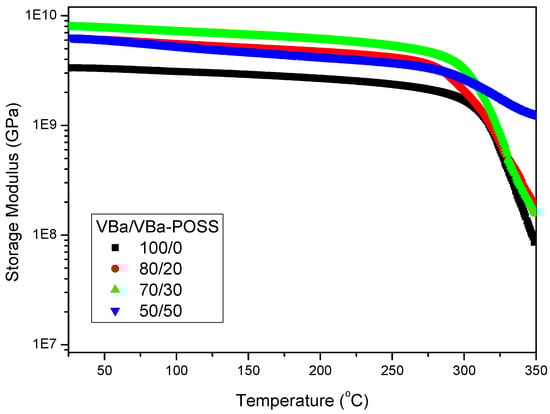

In addition, these poly(VBa/VBa-POSS) hybrid materials displayed enhanced mechanical and thermal properties after curing (Figure 11) because (i) the bulky POSS cores tend to stiffen the crosslinking network structure and (ii) the hydrogen-bonding interaction existed between the hydroxyl (OH) groups of the PBZ moieties and the siloxane units in the POSS cores after thermal polymerization.

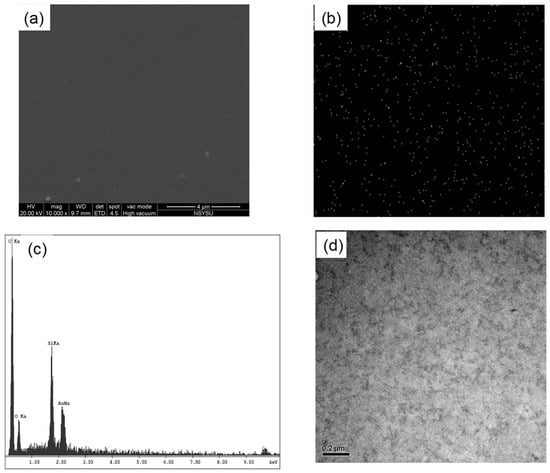

Moreover, scanning and transmission electron microscopy of cured VBa/VBa-POSS (70/30) revealed uniformly dispersed spherical POSS NPs throughout the PBz matrix, without any discernible phase separation (Figure 12a,b).

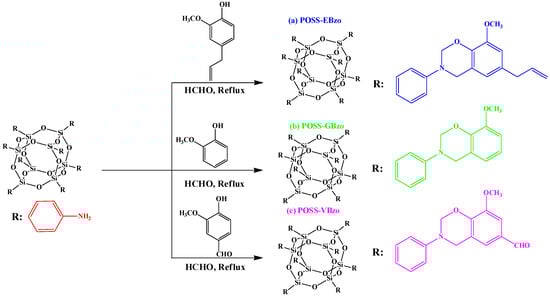

Recently, Muthusamy et al. [111] synthesized PBZ-tethered polyhedral oligomeric silsesquioxane nanocomposites through condensation of eugenol (E), guaiacol (G), and vanillin (V) with POSS octamine and paraformaldehyde in DMSO at 130 °C for 5 h (Figure 13).

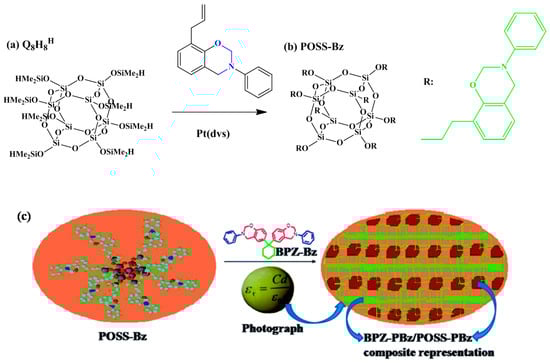

SEM images of the POSS-EPbz, POSS-GPbz, and POSS-VPbz indicated that the POSS NPs remained well dispersed in this PBZ resin. In addition, AFM images of these hybrid materials revealed rough areas corresponding to the POSS domains and smooth areas corresponding to the PBZ regions. The dielectric constant and dielectric loss of such materials are strongly dependent on their chemical structures, porosities, and polarizabilities [111]. The values of dielectric constant of POSS-EPbz, POSS-GPbz, and POSS-VPbz hybrid materials were 1.98, 1.85 and 1.88, respectively. The relatively low dielectric values of these hybrid nanocomposite materials presumably arose from the uniformity of the dispersion of the POSS units throughout the matrix and from the low polarity of the POSS units themselves. Kumar et al. [112] observed a new class of lamellar structure of POSS/bisphenol Z (POSS/BPZ) nanocomposites during the ring opening polymerization of BZ (Figure 14). They found that this lamellar structure for the 30% POSS-PBZ nanocomposite had an ultralow value of k (1.7).

2.3. Other Functionalized POSS Derivatives in PBZ

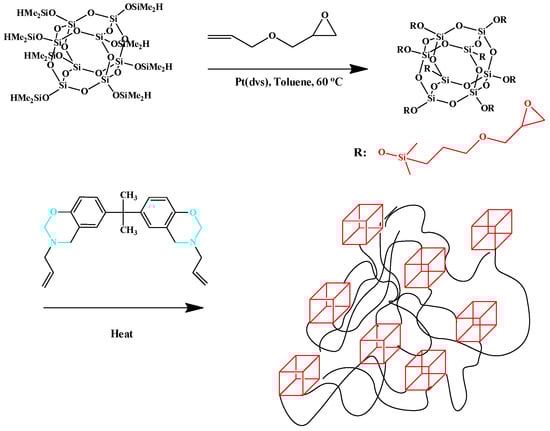

The introduction POSS NPs into PBZ matrices can be performed not only with BZ-functionalization but also with other functionalized groups. For example, Zheng et al. and our own group incorporated octafunctionalized epoxy POSS into a BZ monomer to form PBZ/POSS nanocomposites (Figure 15) [113,114].

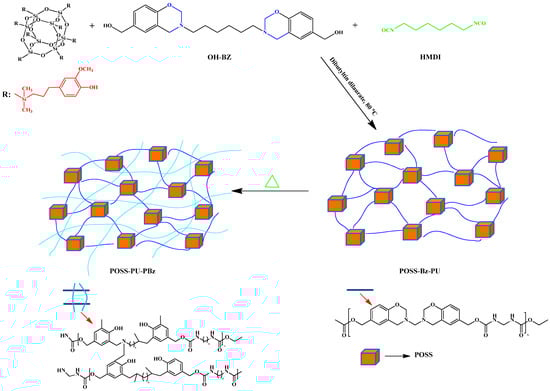

Using thermal curing polymerization, Selvi et al. [115] prepared transparent and homogenous reinforced PBZ/EP/OG-POSS nanocomposites after reinforcing OG-POSS at various weight ratios into BA-a monomer and DGEBA epoxy (EP) matrices. They observed distinct dark spots (ca. 40 nm) representing well-dispersed POSS core units within the PBZ/DGEBA epoxy matrix after thermal polymerization, as well as improved resistance of these hybrid materials toward UV radiation, attributed to the presence of the inert silica layer on the composite surface. Alagar et al. prepared a low-k nanocomposite material through copolymerization of OH-BZ and OH-POSS with hexamethylene diisocyanate (HMDI) to afford POSS-BZ-PU, with subsequent thermal curing polymerization giving the POSS-PU-PBZ nanocomposite material (Figure 16) [114].
After reinforcing PU-PBZ with 30 or 40 wt% of POSS, the degradation temperature (Td10) and char yield of the nanocomposite (326.6 °C/33.9% and 350.2 °C/36.8%, respectively) were higher than those of the PU-PBZ (321.0 °C/9.8%) after thermal curing. In addition, the 30% POSS-PU-PBZ nanocomposite possessed a dielectric constant (1.94) lower than pure PU-PBZ because of the lack of agglomeration of the POSS NPs and the presence of the porous network structure, as revealed in the SEM and HRTEM images.

2.4. Hydrogen-Bonding Interactions from Heteronucleobase-Functionalized BZ and POSS

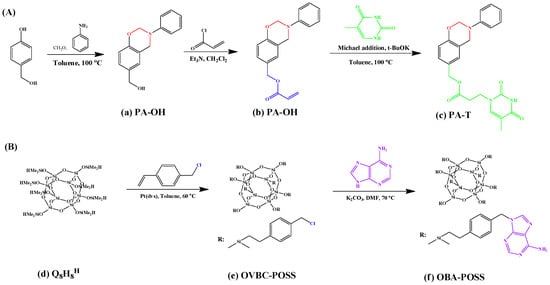

We have prepared octuply adenine (A)-functionalized POSS (OBA-POSS) NPs through hydrosilylation of A with the octakis(benzyl chloride) POSS (OVBC-POSS); this compound formed complementary multiple hydrogen bonding with thymine (T) groups of PA-T upon physical blending in THF solution (Figure 17) [49,117]. The second heating DSC scans of PA-T/OBA-POSS nanocomposites revealed two interesting phenomena:
(i) the glass transition temperatures (Tg) of PA-T/OBA-POSS nanocomposites were higher than that of neat OBA-POSS and (ii) the value of Tg of the hybrid materials decreased with the increase of OBA-POSS contents, because of the aggregation of POSS units and the occurrence of macro-phase separation. In addition, TGA results revealed that upon incorporation 20 wt % of OBA-POSS, the thermal stability of PA-T was greater than those neat PA-T and OBA-POSS, presumably because of intermolecular hydrogen-bonding interaction and formation of network structure PA-T and inorganic POSS. The TEM image and selected area electron diffraction (SAED) pattern of pure PA-T and the PA-T/OBA-POSS nanocomposites (Figure 18) revealed that the former self-assembled into an ordered lamellae structure [117] whereas the latter formed the long range order structure within the PBZ matrix, as displayed in Figure 19.

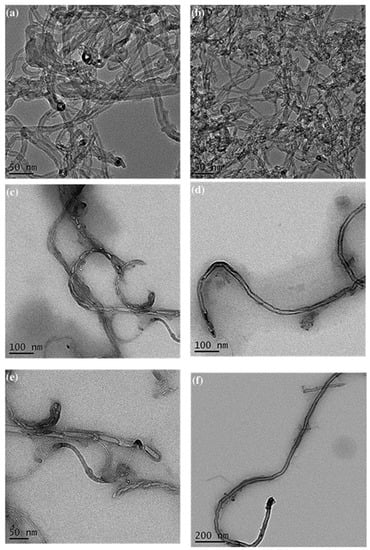

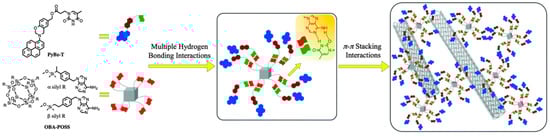

We have also prepared ternary nanocomposites of zero-dimensional POSS and one-dimensional single walled carbon nanotube (SWCNT) linked throughout T-functionalized PBZ matrix, stabilized via the multiple hydrogen bonding and the π–π stacking interaction (noncovalent supramolecular interactions) as presented in Figure 20 [118]. TEM images of these PBz/POSS/SWCNTs hybrid materials revealed (Figure 21) that the SWCNTs were well dispersed within the PBZ matrix.

3. Conclusions

Many different kinds of PBZ/POSS nanocomposites have been prepared displaying superior thermal stability, higher glass transition and degradation temperatures, and lower dielectric constants than those of pristine BZ monomers and PBZ polymers. POSS NPs have several attractive features that make them attractive alternatives to traditional fillers or clay, including well-defined structures, an absence of trace metals, highly uniform dispersion within polymer matrices, and good interfacial interactions with the polymer segments. The incorporation POSS NPs into PBZ matrix has been performed through both chemical crosslinking and physical blending. In this review, we have discussed several different classes of PBZ/POSS hybrid materials formed from mono- and multi-functionalized POSS through both covalent and noncovalent bonding. According to literature reviews, they reported that the incorporation POSS nanoparticles and DNA bases into polybenzoxazine could be enhanced the thermal and mechanical properties of PBZ. The preparation of such organic/inorganic hybrid materials containing POSS and PBZs remains one of the hottest topics in academic and industrial research because of their potential applications in, for example, drug delivery and microelectronic devices, and for their use as low-k materials (e.g., as insulators).

Author Contributions

Mohamed Gamal Mohamed and Shiao-Wei Kuo both contributed to the literature review and to the writing of this paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Laobutee, A.; Chirachanchai, S.; Ishida, H. Asymmetric mono-oxazine: An inevitable product from Mannich reaction of benzoxazine dimers. J. Am. Chem. Soc. 2001, 123, 9947–9955. [Google Scholar] [CrossRef]
  2. Ghosh, N.N.; Kiskan, B.; Yagci, Y. Polybenzoxazines-new high performance thermosetting resins: synthesis and properties. Prog. Polym. Sci. 2007, 32, 1344–1391. [Google Scholar] [CrossRef]
  3. Tsutomu, T.; Takehiro, K.; Tarek, A. High performance polybenzoxazines as a novel type of phenolic resin. Polymer. J. 2008, 40, 1121–1131. [Google Scholar]
  4. Kim, H.J.; Brunovska, Z.; Ishida, H. Synthesis and thermal characterization of polybenzoxazines based on acetylene-functional monomers. Polymer 1999, 40, 6565–6573. [Google Scholar] [CrossRef]
  5. Kuo, S.W.; Liu, W.C. Synthesis and characterization of a cured epoxy resin with a benzoxazine monomer containing allyl groups. J. Appl. Polym. Sci. 2010, 117, 3121–3127. [Google Scholar] [CrossRef]
  6. Kudoh, R.; Sudo, A.; Endo, T. A Highly reactive benzoxazine monomer, 1-(2-hydroxyethyl)-1,3-benzoxazine: activation of benzoxazine by neighboring group participation of hydroxyl group. Macromolecules 2010, 43, 1185–1187. [Google Scholar] [CrossRef]
  7. Kuo, S.W.; Wu, Y.C.; Wang, C.F.; Jeong, K.W. Preparing low-surface energy polymer materials by minimizing intermolecular hydrogen bonding interactions. J. Phys. Chem. C 2009, 113, 20666–20673. [Google Scholar] [CrossRef]
  8. Chernykh, A.; Liu, L.P.; Ishida, H. Synthesis and properties of a new crosslinkable polymer containing benzoxazine moiety in the main chain. Polymer 2006, 47, 7664–7669. [Google Scholar] [CrossRef]
  9. Shih, H.K.; Chu, Y.L.; Chang, F.C.; Zhu, C.Y.; Kuo, S.W. A cross-linkable triphenylamine derivative as a hole injection/transporting material in organic light-emitting diodes. Polym. Chem. 2015, 6, 6227–6237. [Google Scholar] [CrossRef]
  10. Xu, H.; Lu, Z.; Zhang, G. Synthesis and properties of thermosetting resin based on urushiol. RSC Adv. 2012, 2, 2768–2772. [Google Scholar] [CrossRef]
  11. Arslan, M.; Kiskan, B.; Yagci, Y. Combing elemental sulfur with polybenzoxazines via vulcanization. Macromolecules 2016, 49, 767–773. [Google Scholar] [CrossRef]
  12. Ohashi, S.; Kilbane, J.; Heyl, T.; Ishida, H. Synthesis and characterization of cyanate ester functional benzoxazine and its polymer. Macromolecules 2015, 48, 8412–8417. [Google Scholar] [CrossRef]
  13. Mohamed, G.M.; Hsiao, C.H.; Loo, F.; Dai, L.Z.; Kuo, S.W. Multifunctional polybenzoxazine nanocomposites containing photoresponsive azobenzene units, catalytic carboxylic acid groups, and pyrene units capable of dispersing carbon nanotubes. RSC Adv. 2015, 5, 45201–45212. [Google Scholar] [CrossRef]
  14. Kan, Z.; Ishida, H. An anomalous trade-off effect on the properties of smart ortho-functional benzoxazines. Polym. Chem. 2015, 6, 2541–2550. [Google Scholar]
  15. Mohamed, G.M.; Hsu, K.C.; Kuo, S.W. Bifunctional polybenzoxazine nanocomposites containing photo-crosslinkable coumarin units and pyrene units capable of dispersing single-walled carbon nanotubes. Polym. Chem. 2015, 6, 2423–2433. [Google Scholar] [CrossRef]
  16. Li, X.; Xia, Y.; Xu, W.; Ran, Q.; Gu, Y. The curing procedure for a benzoxazine‑cyanate‑epoxy system and the properties of the terpolymer. Polym. Chem. 2012, 3, 1629–1633. [Google Scholar] [CrossRef]
  17. Sudo, A.; Kudo, R.; Nakayama, H.; Arima, K.; Endo, T. Selective formation of poly(N,O-acetal) by polymerization of 1,3-benzoxazine and its main chain rearrangement. Macromolecules 2008, 41, 9030–9034. [Google Scholar] [CrossRef]
  18. Wang, C.F.; Chang, F.C.; Kuo, S.W. Surfaces properties of polybenzoxazines. In Handbook of benzoxazine resins; Ishida, H., Agag, T., Eds.; Elsevier: Amsterdam, The Netherlands, 2011; p. 579. [Google Scholar]
  19. Demir, D.K.; Kiskan, B.; Latthe, S.S.; Demirel, L.A.; Yagci, Y. Thermally curable fluorinated main chain benzoxazine polyethers via Ullmann coupling. Polym. Chem. 2013, 4, 2106–2114. [Google Scholar] [CrossRef] [Green Version]
  20. Mohamed, G.M.; Lin, R.C.; Tu, F.C.; Hong, L.J.; Jeong, U.K.; Wang, F.C.; Kuo, S.W. Thermal property of an aggregation-induced emission fluorophore that forms metal–ligand complexes with Zn(ClO4)2 of salicylaldehyde azine-functionalized polybenzoxazine. RSC Adv. 2015, 5, 65635–65645. [Google Scholar] [CrossRef]
  21. Ishida, H.; Low, H.Y. A study on the volumetric expansion of benzoxazine-based phenolic resin. Macromolecules 1999, 30, 1099–1106. [Google Scholar] [CrossRef]
  22. Vengatesan, M.R.; Devarau, S.; Dinkaran, K.; Alagar, M. SBA-15 filled polybenzoxazine nanocomposites for low-k dielectric applications. J. Mater. Chem. 2012, 22, 7559–7566. [Google Scholar] [CrossRef]
  23. Holly, F.; Cope, C.A. Condensation products of aldehydes and ketones with o-aminobenzyl alcohol and o-hydroxybenzylamine. J. Am. Chem. Soc. 1944, 66, 1875–1879. [Google Scholar] [CrossRef]
  24. Ishida, H.; Allen, J.D. Mechanical characterization of copolymers based on benzoxazine and epoxy. Polymer 1996, 37, 4487–4495. [Google Scholar] [CrossRef]
  25. Ning, X.; Ishida, H. Phenolic materials via ring-opening polymerization: Synthesis and characterization of bisphenol-A based benzoxazines and their polymers. J. Polym. Sci. Part A Polym. Chem. 1994, 32, 1121–1129. [Google Scholar] [CrossRef]
  26. Kassapoglu, F.; Cianga, I.; Yagci, Y.; Takeichi, T.J. Photoinitiated cationic polymerization of monofunctional benzoxazine. J. Polym. Sci. Part A Polym. Chem. 2003, 41, 3320–3328. [Google Scholar] [CrossRef]
  27. Zhang, K.; Liu, J.; Ishida, H. High performance crosslinked polyimide based on main-chain type polybenzoxazine. RSC Adv. 2014, 4, 62550–62556. [Google Scholar] [CrossRef]
  28. Lin, C.R.; Mohamed, M.G.; Jia, Y.W.; Yu, R.J.; Kuo, S.W. Multivalent photo-crosslinkable coumarin-containing polybenzoxazines exhibiting enhanced thermal and hydrophobic surface properties. RSC Adv. 2016, 6, 10683–10696. [Google Scholar] [CrossRef]
  29. Yagci, Y.; Kiskan, B.; Ghosh, N.N. Recent advancement on polybenzoxazine-a newly developed high performance thermoset. J. Polym. Sci. Part A Polym. Chem. 2008, 47, 5565–5576. [Google Scholar] [CrossRef]
  30. Liu, X.; Gu, Y. Study on the volumetric expansion of benzoxazine curing with different catalysts. J. Appl. Polym. Sci. 2002, 84, 1107. [Google Scholar] [CrossRef]
  31. Wang, C.F.; Su, Y.C.; Kuo, S.W.; Huang, C.F.; Sheen, C.Y.; Chang, F.C. Low-surface-free-energy materials based on polybenzoxazines. Angew. Chem. Int. Ed. 2006, 45, 2248–2251. [Google Scholar] [CrossRef] [PubMed]
  32. Lu, C.L.; Hung, J.Y.; Yu, R.K.; Chyi, M.L.; Tzong, M.L.; Guey, S.L. Novel near-infrared and multi-colored electrochromic polybenzoxazines with electroactive triarylamine moieties. J. Mater. Chem. C 2014, 2, 7796–7803. [Google Scholar]
  33. Ishida, H.; Allen, D. Physical and mechanical characterization of near-zero shrinkage polybenzoxazines. J. Polym. Sci. Part B Polym. Phys. 1996, 34, 1019–1030. [Google Scholar] [CrossRef]
  34. Liu, W.; Jianlong, W.; Chong, F.; Yahui, S.; Kaixi, L. Synthesis of polybenzoxazine based nitrogen-rich porous carbons for carbon dioxide capture. Nanoscale 2015, 7, 6534–6544. [Google Scholar]
  35. Liao, C.S.; Wang, C.F.; Lin, H.C.; Chou, H.Y.; Chang, F.C. Fabrication of patterned superhydrophobic polybenzoxazine hybrid surfaces. Langmuir 2009, 25, 3359–3362. [Google Scholar] [CrossRef] [PubMed]
  36. Su, W.C.; Kuo, S.W. Reversible surface properties o polybenzoxazine/silica nanocomposites thin films. J. Nanomater. 2013, 2013, 97. [Google Scholar] [CrossRef]
  37. Wang, C.F.; Wang, Y.T.; Tung, P.H.; Kuo, S.W.; Lin, C.H.; Sheen, Y.C.; Chang, F.C. Stable superhydrophobic polybenzoxazine surfaces over a wide pH range. Langmuir 2006, 22, 8289–8292. [Google Scholar] [CrossRef] [PubMed]
  38. Wang, C.F.; Chen, H.Y.; Kuo, S.W.; Lai, Y.S.; Yang, P.F. Rapid, low temperature microwave synthesis of durable, superhydrophobic carbon nanotube‑polybenzoxazine nanocomposites. RSC Adv. 2013, 3, 9764–9769. [Google Scholar] [CrossRef]
  39. Wang, C.F.; Chiou, S.H.; Ko, F.H.; Chou, C.T.; Lin, H.C.; Huang, C.F.; Chang, F.C. Fabrication of biomimetic super-amphiphobic surfaces through plasma modification of benzoxazine films. Macromol. Rapid. Commun. 2006, 27, 333–337. [Google Scholar] [CrossRef]
  40. Wang, C.F.; Chiou, F.H.; Ko, F.H.; Chen, J.K.; Chou, C.T.; Huang, C.F.; Kuo, S.W.; Chang, F.C. Polybenzoxazine as a mold-release agent for nanoimprint lithography. Langmuir 2007, 23, 5868–5871. [Google Scholar] [CrossRef] [PubMed]
  41. Chu, W.C.; Li, J.G.; Kuo, S.W. From flexible to mesoporous polybenzoxazine resins templated by poly (ethylene oxide-b-ε-caprolactone) copolymer through reaction induced microphase separation mechanism. RSC Adv. 2013, 3, 6485–6498. [Google Scholar] [CrossRef]
  42. Velez-Herrara, P.; Doyama, K.; Abe, H.; Ishida, H. Synthesis and characterization of highly fluorinated polymer with the benzoxazine moiety in the main chain. Macromolecules 2008, 41, 9704–9714. [Google Scholar] [CrossRef]
  43. Mohamed, G.M.; Su, W.C.; Lin, Y.C.; Wang, C.F.; Chen, J.K.; Jeong, U.K.; Kuo, S.W. Azopyridine-functionalized benzoxazine with Zn(ClO4)2 form high-performance polybenzoxazine stabilized through metal–ligand coordination. RSC Adv. 2014, 4, 50373–50385. [Google Scholar] [CrossRef]
  44. Ohashi, S.; Pandey, V.; R.Arza, C.; Frimowicz, P.; Ishida, H. Simple and low energy consuming synthesis of cyanate ester functional naphthoxazines and their properties. Polym. Chem. 2016, 7, 2245–2252. [Google Scholar] [CrossRef]
  45. Zhang, K.; Zhuang, Q.; Zhou, Y.; Liu, X.; Yang, G.; Han, Z. Preparation and properties of novel low dielectric constant benzoxazole-based polybenzoxazine. J. Polym. Sci. Part A Polym. Chem. 2012, 50, 5115–5123. [Google Scholar] [CrossRef]
  46. Cui, H.W.; Kuo, S.W. Nanocomposites of polybenzoxazine and exfoliated montmorillonite using a polyhedral oligomeric silsesquioxane surfactant and click chemistry. J. Polym. Res. 2013, 20, 1–13. [Google Scholar] [CrossRef]
  47. Brunovska, Z.; Lyon, R.; Ishida, H. Thermal properties of phthalonitrile functional polybenzoxazines. Thermochim. Acta. 2000, 357, 195–207. [Google Scholar] [CrossRef]
  48. Yang, C.C.; Lin, Y.C.; Wang, P.I.; Liaw, D.J.; Kuo, S.W. Polybenzoxazine/single-walled carbon nanotube nanocomposites stabilized through noncovalent bonding interactions. 2014, 55, 2044–2050. [Google Scholar] [CrossRef]
  49. Hu, H.W.; Huang, K.W.; Kuo, S.W. Heteronucleobase-functionalized benzoxazine: synthesis, thermal properties, and self-assembled structure formed through multiple hydrogen bonding interactions. Polym. Chem. 2012, 3, 1546–1554. [Google Scholar] [CrossRef]
  50. Kiskan, B.; Ghosh, N.N.; Yagci, Y. Polybenzoxazine-based composites as high-performance materials. Polym. Int. 2011, 60, 167–177. [Google Scholar] [CrossRef]
  51. Oie, H.; Sudo, A.; Endo, T. Synthesis of networked polymers by crosslinking reactions of polybenzoxazine bearing allyl group in the side chain. J. Polym. Sci. Part. A Polym. Chem. 2013, 51, 2035–2039. [Google Scholar] [CrossRef]
  52. Fu, H.K.; Huang, C.F.; Kuo, S.W.; Lin, H.C.; Yei, D.R.; Chang, F.C. Effect of an organically modified nanoclay on low-surface-energy materials of polybenzoxazine. Macromol. Rapid Commun. 2008, 29, 1216–1220. [Google Scholar] [CrossRef]
  53. Wang, C.F.; Kuo, S.W.; Lin, C.H.; Chen, H.G.; Liao, C.S.; Hung, P.R. Benzoxazine as a reactive noncovalent dispersant for carbon nanotubes. RSC Adv. 2014, 4, 36012–36016. [Google Scholar] [CrossRef]
  54. Huang, J.M.; Kuo, S.W.; Huang, H.J.; Wang, Y.X.; Chen, Y.T. Preparation of VB-a/POSS hybrid monomer and its polymerization of polybenzoxazine/POSS hybrid nanocomposites. J. Appl. Polym. Sci. 2009, 111, 628–634. [Google Scholar] [CrossRef]
  55. Demir, K.D.; Kiskan, B.; Yagci, Y. Thermally curable acetylene-containing main-chain benzoxazine polymers via sonogashira coupling reaction. Macromolecules 2011, 44, 1801–1897. [Google Scholar] [CrossRef]
  56. Zhang, J.; Xu, R.; Yu, D. A novel poly-benzoxazinyl functionalized polyhedral oligomeric silsesquioxane and its nanocomposite with polybenzoxazine. Eur. Polym. J. 2007, 43, 743–752. [Google Scholar] [CrossRef]
  57. Lee, K.M.; Knight, P.T.; Chung, T.; Mather, P.T. Polycaprolactone−POSS chemical/physical double networks. Macromolecules 2008, 41, 4730–4748. [Google Scholar] [CrossRef]
  58. Kuo, S.W. Building Blocks Precisely from Polyhedral Oligomeric Silsesquioxane Nanoparticles. ACS Cent. Sci. 2016, 2, 62–64. [Google Scholar] [CrossRef] [PubMed]
  59. Kuo, S.W.; Chang, F.C. POSS related polymer nanocomposites. Prog. Polym. Sci. 2011, 36, 1649–1996. [Google Scholar] [CrossRef]
  60. Cordes, D.B.; Lickiss, P.D.; Rataboul, F. Recent developments in the chemistry of cubic polyhedral oligosilsesquioxanes. Chem. Rev. 2010, 110, 2081–2173. [Google Scholar] [CrossRef] [PubMed]
  61. Tomasz, P.; Anna, K.; Bozena, Z.; Marek, J.P. Structure, dynamics, and host−guest interactions in POSS functionalized cross-linked nanoporous hybrid organic−inorganic polymers. J. Phys. Chem. C 2015, 119, 26575–26587. [Google Scholar]
  62. Shea, K.J.; Loy, D.A. Bridged polysilsesquioxanes. Molecular-engineered hybrid organic−inorganic materials. Chem. Mater. 2001, 13, 3306–3319. [Google Scholar] [CrossRef]
  63. Phillips, S.H.; Haddad, T.S.; Tomczak, S.J. Development in nanoscience: Polyherdral oligomeric silsesquioxane (POSS)-polymers. Cur Opi. Sol. Sta. Mater. Sci. 2004, 8, 21–29. [Google Scholar] [CrossRef]
  64. Hong, B.; Thoms, T.P.S.; Murfee, H.J.; Lebrun, M.L. Highly dendritic macromolecules with core polyhedral silsesquioxane functionalities. Inorg. Chem. 1997, 36, 6146–6147. [Google Scholar] [CrossRef]
  65. Strachota, A.; Kroutilova, I.; Kovaro, J.; Matejka, L. Epoxy networks reinforced with Polyhedral Oligomeric Silsesquioxanes (POSS) thermomechanical properties. Macromolecules 2004, 37, 9457–9464. [Google Scholar] [CrossRef]
  66. Leu, C.M.; Chang, Y.T.; Wei, K.H. Synthesis and dielectric properties of polyimide-tethered Polyhedral Oligomeric Silsesquioxane (POSS) nanocomposites via POSS-diamine. Macromolecules 2003, 36, 9122–9127. [Google Scholar] [CrossRef]
  67. Scott, D.W. Thermal rearrangement of branched-chain methylpolysiloxanes. J. Am. Chem. Soc. 1946, 68, 356–358. [Google Scholar] [CrossRef]
  68. Ebunoluwa, A.; Biswajit, S.; Paschalis, A. Polyhedral Oligomeric Silsesquioxane (POSS)-containing polymer nanocomposites. Nanomaterials 2012, 2, 445–475. [Google Scholar]
  69. Pan, M.J.; Gorzkowski, E.; McAlliste, K. Dielectric properties of polyhedral oligomeric silsesquioxane (POSS)-based nanocomposites at 77k. IOP Conf. Ser. Mater. Sci. Eng. 2001, 18, 082006. [Google Scholar] [CrossRef]
  70. Li, G.; Wang, L.; Ni, H.; Pittman, C.U., Jr. Polyhedral oligomeric silsesquioxane (POSS) polymers and copolymers: A Review. J. Inorg. Organomet. Polym. 2001, 11, 123–154. [Google Scholar] [CrossRef]
  71. Wu, J.; Mather, P.T. POSS polymers: Physical properties and biomaterials applications. Polym. Rev. 2009, 49, 25–63. [Google Scholar] [CrossRef]
  72. Baney, R.H.; Itoh, M.; Sakakibara, A.; Suzuki, T. Silsesquioxanes. Chem. Rev. 1995, 95, 1409–1430. [Google Scholar] [CrossRef]
  73. Marcolli, C.; Calzaferri, G. Review monosubstituted octasilasesquioxanes. Appl. Organometal. Chem. 1999, 13, 213–226. [Google Scholar] [CrossRef]
  74. Shockey, E.G.; Bolf, A.G.; Jones, P.F.; Schwab, J.J.; Chaffee, K.P.; Haddad, T.S.; Lichtenhan, J.D. Functionalized polyhedral oligosilsesquioxanes (POSS) macromers: new graftable POSS hydride, POSS a-Olefin POSS epoxy, and POSS chlorosilane macromers and POSS-siloxane triblocks. Appl. Organometal. Chem. 1999, 13, 311–327. [Google Scholar] [CrossRef]
  75. Tsuchida, A.; Bolln, C.; Sernetz, F.G.; Frey, H.; Mulhaupt, R. Ethene and propene copolymers containing silsesquioxane side groups. Macromolecules 1997, 30, 2818–2824. [Google Scholar] [CrossRef]
  76. Feher, F.J.; Newman, D.A.; Walzer, J.F. Silsesquioxanes as models for silica surfaces. J. Am. Chem. Soc. 1997, 3, 900–903. [Google Scholar] [CrossRef]
  77. Feher, F.J.; Weller, K.J. Polyhedral aluminosilsesquioxanes as models for aluminosilicates: unique synthesis of anionic aluminum/silicon/oxygen frameworks. Organometallics 1990, 9, 2638–2640. [Google Scholar] [CrossRef]
  78. Shenn, Y.C.; Lu, C.H.; Huang, F.C.; Kuo, S.W. Synthesis and characterization of amorphous octakis-functionalized polyhedral oligomeric silsesquioxanes for polymer nanocomposites. Polymer 2008, 49, 4017–4024. [Google Scholar] [CrossRef]
  79. Zhang, C.; Laine, R.M. Hydrosilylation of allyl alcohol with [HSiMe2OSiO1.5]8: octa(3-hydroxypropyldimethylsiloxy) octasilsesquioxane and its octamethacrylate derivative as potential precursors to hybrid nanocomposites. J. Am. Chem. Soc. 2000, 122, 6979–6988. [Google Scholar] [CrossRef]
  80. Kuo, S.W.; Lin, H.C.; Huang, W.J.; Huang, C.F.; Chang, F.C. Hydrogen bonding interactions and miscibility between phenolic resin and octa (acetoxystyryl) polyhedral oligomeric silsesquioxane (AS-POSS) nanocomposites. J. Polym. Sci. Part B Polym. Phys. 2006, 44, 673–686. [Google Scholar] [CrossRef]
  81. Sellinger, A.; Laine, R.M. Silsesquioxanes as synthetic platforms. Thermally curable and photocurable inorganic/organic hybrids. Macromolecules 1996, 29, 2327–2330. [Google Scholar] [CrossRef]
  82. Shih, R.S.; Lu, C.H.; Kuo, S.W.; Chang, F.C. Hydrogen bond-mediated self-assembly of polyhedral oligomeric silsesquioxane-based supramolecules. J. Phys. Chem. C 2010, 114, 12855–12862. [Google Scholar] [CrossRef]
  83. Tseng, M.C.; Liu, Y.L. Preparation, morphology, and ultra-low dielectric constants of benzoxazine-based polymers/polyhedral oligomeric silsesquioxane (POSS) nanocomposites. Polymer 2015, 51, 5567–5575. [Google Scholar] [CrossRef]
  84. Lee, B.; Oh, W.; Hwang, Y.T.; Park, Y.H.; Yoon, J.; Ree, M. Ultralow-k nanoporous organosilicate dielectric films imprinted with dendritic spheres. Nat. Mater. 2005, 4, 147. [Google Scholar] [CrossRef] [PubMed]
  85. Chiou, C.W.; Lin, Y.C.; Wang, L.; Maeda, R.; Hayakawa, T.; Kuo, S.W. Hydrogen bond interactions mediate hierarchical self-assembly of POSS-containing block copolymers lended with phenolic resin. Macromolecules 2014, 47, 8709–8721. [Google Scholar] [CrossRef]
  86. Xu, H.Y.; Kuo, S.W.; Lee, J.S.; Chang, F.C. Preparations, thermal properties, and Tg increase mechanism of inorganic/organic hybrid polymers based on Polyhedral Oligomeric Silsesquioxanes. Macromolecules 2002, 35, 8788–8790. [Google Scholar] [CrossRef]
  87. Kuo, S.W.; Lee, H.F.; Huang, W.J.; Jeong, K.U.; Chang, F.C. Solid state and solution self-assembly of helical polypeptides tethered to Polyhedral Oligomeric Silsesquioxanes. Macromolecules 2009, 42, 1619–1626. [Google Scholar] [CrossRef]
  88. Huang, K.W.; Tsai, L.W.; Kuo, S.W. Influence of octakis-functionalized polyhedral oligomeric silsesquioxanes on the physical properties of their polymer nanocomposites. Polymer 2009, 50, 4876–4887. [Google Scholar] [CrossRef]
  89. Guo, Q.Y.; Knight, P.T.; Mather, P.T. Tailored drug release from biodegradable stent coatings based on hybrid polyurethanes. J. Control. Release 2009, 137, 224–233. [Google Scholar] [CrossRef] [PubMed]
  90. Liu, Y.L. Developments of highly proton-conductive sulfonated polymers for proton exchange membrane fuel cells. Polym. Chem. 2012, 3, 1373–1383. [Google Scholar] [CrossRef]
  91. Choi, J.; Harcup, J.; Yee, A.F.; Zhu, Q.; Laine, R.M. Organic/inorganic hybrid composites from cubic silsesquioxanes. J. Am. Chem. Soc. 2001, 123, 11420–11430. [Google Scholar] [CrossRef] [PubMed]
  92. Kim, S.C.; Choi, J.; Tamaki, R.; Laine, R.M. Synthesis of amino-containing oligophenylsilsesquioxanes. Polymer 2006, 46, 4514–4524. [Google Scholar] [CrossRef]
  93. Striolo, A.; McCabe, C.; Cummings, P.T. Organic-inorganic telechelic molecules: Solution properties from simulations. J. Chem. Phys. 2006, 125, 104904–104911. [Google Scholar] [CrossRef] [PubMed]
  94. Zhang, J.; Xu, R.W.; Yu, D.S. A novel and facile method for the synthesis of octa(aminophenyl)silsesquioxane and its nanocomposites with bismaleimide-diamine resin. J. Appl. Polym. Sci. 2007, 103, 1004–1010. [Google Scholar] [CrossRef]
  95. Pescarmona, P.P.; Waal, J.C.; Maxwell, I.E.; Maschmeyer, T. A New, efficient route to titanium-Silsesquioxane oxidation catalysts developed by using high-speed experimentation techniques. Angew. Chem. Int. Ed. 2001, 40, 740–743. [Google Scholar] [CrossRef]
  96. Pescarmona, P.P.; Maschmeyer, T. Oligomeric silsesquioxanes: synthesis, characterization and selected applications. Aust. J. Chem. 2001, 54, 583–596. [Google Scholar] [CrossRef]
  97. Xu, H.Y.; Yang, B.H.; Gao, X.Y.; Li, C.; Guang, S.Y. Synthesis and characterization of organic–inorganic hybrid polymers with a well-defined structure from diamines and epoxy-functionalized polyhedral oligomeric silsesquioxanes. J. Appl. Polym. Sci. 2006, 101, 3730–3735. [Google Scholar] [CrossRef]
  98. Gravel, M.C.; Zhang, C.; Dinderman, M.; Laine, R.M. Octa(3-chloroammoniumpropyl) octasilsesquioxane. Appl. Organometal. Chem. 1999, 13, 329–336. [Google Scholar] [CrossRef]
  99. Lei, W.; Wenjie, D.; Yixian, W.; Riwei, Y.; Dingsheng, Y. Synthesis and characterizations of a latent polyhedral oligomeric silsequioxane-containing catalyst and its application in polybenzoxazine resin. J. Appl. Polym. Sci. 2012, 126, 150–155. [Google Scholar]
  100. Chen, Q.; Xu, R.; Zhang, J.; Yu, D. Polyhedral Oligomeric Silsesquioxane (POSS) nanoscale reinforcement of thermosetting resin from benzoxazine and bisoxazoline. Macromol. Rapid. Commun. 2005, 26, 1878–1882. [Google Scholar] [CrossRef]
  101. Chiou, C.W.; Lin, Y.C.; Wang, L.; Hirano, C.; Suzuki, Y.; Hayakawa, T.; Kuo, S.W. Strong screening effect of Polyhedral Oligomeric Silsesquioxanes (POSS) nanoparticles on hydrogen onded polymer blends. Polymers 2014, 6, 926–948. [Google Scholar] [CrossRef]
  102. Huang, C.F.; Kuo, S.W.; Lin, F.J.; Huang, W.J.; Wang, C.F.; Chen, W.Y.; Chang, F.C. Influence of PMMA-chain-end tethered polyhedral oligomeric silsesquioxanes on the miscibility and specific interaction with phenolic blends. Macromolecules 2006, 39, 300–308. [Google Scholar] [CrossRef]
  103. Lu, C.H.; Wang, J.H.; Chang, F.C.; Kuo, S.W. Star block copolymers through nitroxide-mediated radical polymerization from Polyhedral Oligomeric Silsesquioxane (POSS) core. Macromol. Chem. Phys. 2010, 211, 1339–1347. [Google Scholar] [CrossRef]
  104. Mohamed, M.G.; Hsu, K.C.; Hong, J.L.; Kuo, S.W. Unexpected fluorescence from maleimide-containing polyhedral oligomeric silsesquioxanes: nanoparticle and sequence distribution analyses of polystyrene-based alternating copolymers. Polym. Chem. 2016, 7, 135–145. [Google Scholar] [CrossRef]
  105. Lee, Y.J.; Kuo, S.W.; Su, Y.C.; Chen, J.K.; Tu, C.W.; Chang, F.C. Syntheses, thermal properties, and phase morphologies of novel benzoxazines functionalized with polyhedral oligomeric silsesquioxane (POSS) nanocomposites. Polymer 2004, 45, 6321–6331. [Google Scholar] [CrossRef]
  106. Lee, Y.J.; Kuo, S.W.; Huang, C.F.; Chang, F.C. Synthesis and characterization of polybenzoxazine networks nanocomposites containing multifunctional polyhedral oligomeric silsesquioxane (POSS). Polymer 2006, 4, 4378. [Google Scholar] [CrossRef]
  107. Lee, Y.J.; Huang, J.M.; Kuo, S.W.; Chen, J.K.; Chang, F.C. Synthesis and characterizations of a vinyl-terminated benzoxazine monomer and its blending with polyhedral oligomeric silsesquioxane (POSS). Polymer 2005, 46, 2320–2330. [Google Scholar] [CrossRef]
  108. Wu, Y.C.; Kuo, S.W. Synthesis and characterization of polyhedral oligomeric silsesquioxane (POSS) with multifunctional benzoxazine groups through click chemistry. Polymer 2010, 51, 3948–3955. [Google Scholar] [CrossRef]
  109. Zhang, K.; Zhuang, Q.; Liu, X.; Yang, G.; Cai, R.; Han, Z. A new benzoxazine containing benzoxazole-functionalized Polyhedral Oligomeric Silsesquioxane and the corresponding polybenzoxazine nanocomposites. Macromolecules 2013, 46, 2696–2704. [Google Scholar] [CrossRef]
  110. Huang, K.W.; Kuo, S.W. High-performance polybenzoxazine nanocomposites containing multifunctional POSS cores presenting vinyl-terminated benzoxazine groups. Macromol. Chem. Phys. 2010, 211, 2301–2311. [Google Scholar] [CrossRef]
  111. Periyasamy, T.; Asrafali, S.P.; Muthusamy, S. New benzoxazines containing polyhedral oligomeric silsesquioxane from eugenol, guaiacol and vanillin. New. J. Chem. 2015, 39, 1691–1702. [Google Scholar] [CrossRef]
  112. Kumar, R.S.; Ariraman, M.; Alagar, M. Design of lamellar structured POSS/BPZ polybenzoxazine nanocomposites as a novel class of ultra-low-k dielectric materials. RSC Adv. 2014, 4, 19127–19136. [Google Scholar] [CrossRef]
  113. Haung, K.W.; Kuo, S.W. High-performance nanocomposites derived from allyl-terminated benzoxazine and octakis (propylglycidyl ether) polyhedral oligomeric silsesquioxane. Polym. Comp. 2011, 32, 1086–1094. [Google Scholar] [CrossRef]
  114. Liu, Y.; Zheng, S. Inorganic–organic nanocomposites of polybenzoxazine with octa(propylglycidyl ether) polyhedral oligomeric silsesquioxane. J. Polym. Sci. Part. A Polym. Chem. 2006, 44, 1168–1181. [Google Scholar] [CrossRef]
  115. Selvi, M.; Devaraju, S.; Vengatesan, M.R.; Go, J.S.; Kumar, M.; Alagar, M. The effect of UV radiation on polybenzoxazine/epoxy/OG-POSS nanocomposites. RSC Adv. 2014, 4, 8238–8244. [Google Scholar] [CrossRef]
  116. Kumar, R.S.; Alagar, M. Dielectric and thermal behaviors of POSS reinforced polyurethane based polybenzoxazine nanocomposites. RSC Adv. 2015, 5, 33008–33015. [Google Scholar] [CrossRef]
  117. Hu, W.H.; Huang, K.W.; Chiou, C.W.; Kuo, S.W. Complementary multiple hydrogen bonding interactions induce the self-assembly of supramolecular structures from heteronucleobase-functionalized benzoxazine and Polyhedral Oligomeric Silsesquioxane nanoparticles. Macromolecules 2012, 45, 9020–9028. [Google Scholar] [CrossRef]
  118. Shih, H.K.; Hsieh, C.C.; Mohamed, G.M.; Zhu, C.Y.; Kuo, S.W. Ternary polybenzoxazine/POSS/SWCNT hybrid nanocomposites stabilized through supramolecular interactions. Soft Matter 2016, 12, 1847–1858. [Google Scholar] [CrossRef] [PubMed]
Polymers 08 00225 g001 550
Figure 1. Preparation and thermally induced ring-opening polymerization of (A) P-a and (B) B-a types of BZ monomers.
Figure 1. Preparation and thermally induced ring-opening polymerization of (A) P-a and (B) B-a types of BZ monomers.
Polymers 08 00225 g001
Polymers 08 00225 g002 550
Figure 2. Chemical structures of silsesquioxanes: (a) random structure, (b) ladder structure, (c) T8, (d) T10, (e) T12 cage structure, and (f) partial cage structure [59]. Reproduced with permission from Elsevier.
Figure 2. Chemical structures of silsesquioxanes: (a) random structure, (b) ladder structure, (c) T8, (d) T10, (e) T12 cage structure, and (f) partial cage structure [59]. Reproduced with permission from Elsevier.
Polymers 08 00225 g002
Polymers 08 00225 g003 550
Figure 3. (a) The mechanism and the corresponding chemical structure for the synthesis of the VP-a monomer, as well as the preparation of the BZ-POSS-1 macromonomer through hydrosilylation; (b) synthesis of the BZ-POSS-2 macromonomer from amino-POSS [105]. Reproduced with permission from Elsevier.
Figure 3. (a) The mechanism and the corresponding chemical structure for the synthesis of the VP-a monomer, as well as the preparation of the BZ-POSS-1 macromonomer through hydrosilylation; (b) synthesis of the BZ-POSS-2 macromonomer from amino-POSS [105]. Reproduced with permission from Elsevier.
Polymers 08 00225 g003
Polymers 08 00225 g004a 550Polymers 08 00225 g004b 550
Figure 4. Preparation of PBZ/POSS nanocomposites from BZ-POSS monomers containing (a) P-a and (b) B-a type BZ monomers [105]. Reproduced with permission from Elsevier.
Figure 4. Preparation of PBZ/POSS nanocomposites from BZ-POSS monomers containing (a) P-a and (b) B-a type BZ monomers [105]. Reproduced with permission from Elsevier.
Polymers 08 00225 g004aPolymers 08 00225 g004b
Polymers 08 00225 g005 550
Figure 5. Preparation of multi-functionalized (OBZ POSS) (a) through hydrosilylation from Q8M8H (b) with VB-a monomer and subsequent formation of PBZ/POSS nanocomposites with a network structure [107]. Reproduced with permission from Elsevier.
Figure 5. Preparation of multi-functionalized (OBZ POSS) (a) through hydrosilylation from Q8M8H (b) with VB-a monomer and subsequent formation of PBZ/POSS nanocomposites with a network structure [107]. Reproduced with permission from Elsevier.
Polymers 08 00225 g005
Polymers 08 00225 g006 550
Figure 6. The hydrosilylation of vinyl benzyl chloride monomer with Q8M8H (a) to form OVBC-POSS (b) and OVBN3-POSS (c) and the click reaction to give OBZ-POSS (d) and thermal curing to give PBZ/POSS nanocomposite (e) [108]. Reproduced with permission from Elsevier.
Figure 6. The hydrosilylation of vinyl benzyl chloride monomer with Q8M8H (a) to form OVBC-POSS (b) and OVBN3-POSS (c) and the click reaction to give OBZ-POSS (d) and thermal curing to give PBZ/POSS nanocomposite (e) [108]. Reproduced with permission from Elsevier.
Polymers 08 00225 g006
Polymers 08 00225 g007 550

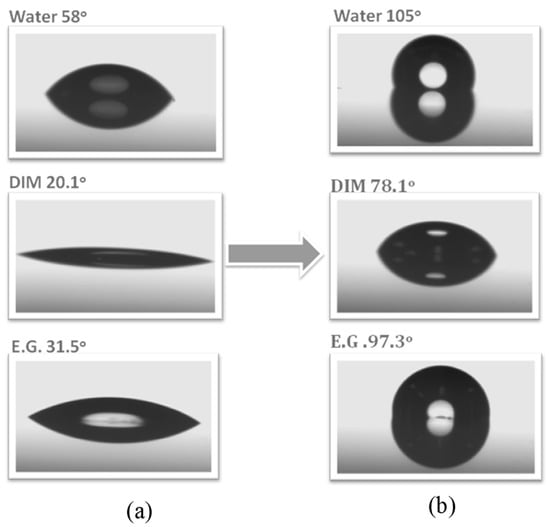

Figure 7. Advancing contact angles for water, diiodomethane (DIM), and ethylene glycol (EG) of (a) a P4VP thin film and (b) surface modified with the OBZ-POSS thin film [108]. Reproduced with permission from Elsevier.
Figure 7. Advancing contact angles for water, diiodomethane (DIM), and ethylene glycol (EG) of (a) a P4VP thin film and (b) surface modified with the OBZ-POSS thin film [108]. Reproduced with permission from Elsevier.
Polymers 08 00225 g007
Polymers 08 00225 g008 550
Figure 8. Synthesis of OPS-BZ and possible morphology of POSS/PBZ nanocomposites after thermal curing [109]. Reproduced with permission from American Chemical Society.
Figure 8. Synthesis of OPS-BZ and possible morphology of POSS/PBZ nanocomposites after thermal curing [109]. Reproduced with permission from American Chemical Society.
Polymers 08 00225 g008
Polymers 08 00225 g009 550
Figure 9. HR-TEM images for POSS/PBZ =30/70 nanocomposites (scale bars for A: 50 nm; B: 20 nm; C: 10 nm, and D: 5 nm) [109]. Reproduced with permission from American Chemical Society.
Figure 9. HR-TEM images for POSS/PBZ =30/70 nanocomposites (scale bars for A: 50 nm; B: 20 nm; C: 10 nm, and D: 5 nm) [109]. Reproduced with permission from American Chemical Society.
Polymers 08 00225 g009
Polymers 08 00225 g010 550
Figure 10. (a–d) The reaction and chemical structures for the preparation from Q8M8H (a) to form OA-POSS (b), OP-POSS (c), and VBa-POSS (d); the possible morphology of VBa/VBa-POSS blends after the thermal curing (e) [110]. Reproduced with permission from John Wiley and Sons.
Figure 10. (a–d) The reaction and chemical structures for the preparation from Q8M8H (a) to form OA-POSS (b), OP-POSS (c), and VBa-POSS (d); the possible morphology of VBa/VBa-POSS blends after the thermal curing (e) [110]. Reproduced with permission from John Wiley and Sons.
Polymers 08 00225 g010
Polymers 08 00225 g011 550
Figure 11. Storage moduli of VBa/VBa-POSS nanocomposites after thermal curing [110]. Reproduced with permission from John Wiley and Sons.
Figure 11. Storage moduli of VBa/VBa-POSS nanocomposites after thermal curing [110]. Reproduced with permission from John Wiley and Sons.
Polymers 08 00225 g011
Polymers 08 00225 g012 550
Figure 12. SEM image (a), Si-mapping image (b), EDX analysis (c), and TEM image of VBa/VBa-POSS = 70/30 after thermal curing (d) [110]. Reproduced with permission from John Wiley and Sons.
Figure 12. SEM image (a), Si-mapping image (b), EDX analysis (c), and TEM image of VBa/VBa-POSS = 70/30 after thermal curing (d) [110]. Reproduced with permission from John Wiley and Sons.
Polymers 08 00225 g012
Polymers 08 00225 g013 550
Figure 13. Synthesis of POSS-BZ monomers of POSS-EBzo (a), POSS-GBzo (b), and POSS-VBzo (c) [111]. Reproduced with permission from Royal Society of Chemistry.
Figure 13. Synthesis of POSS-BZ monomers of POSS-EBzo (a), POSS-GBzo (b), and POSS-VBzo (c) [111]. Reproduced with permission from Royal Society of Chemistry.
Polymers 08 00225 g013
Polymers 08 00225 g014 550
Figure 14. (a) Q8M8H; (b) synthesis of POSS-Bz; (c) the schematic representation of BPZ/POSS nanocomposite with the cross-linked lamellae structure [112]. Reproduced with permission from Royal Society of Chemistry.
Figure 14. (a) Q8M8H; (b) synthesis of POSS-Bz; (c) the schematic representation of BPZ/POSS nanocomposite with the cross-linked lamellae structure [112]. Reproduced with permission from Royal Society of Chemistry.
Polymers 08 00225 g014
Polymers 08 00225 g015 550
Figure 15. Preparation of OG-POSS and the subsequent reaction with VBa monomer to give PBZ/POSS nanocomposites [113]. Reproduced with permission from John Wiley and Sons.
Figure 15. Preparation of OG-POSS and the subsequent reaction with VBa monomer to give PBZ/POSS nanocomposites [113]. Reproduced with permission from John Wiley and Sons.
Polymers 08 00225 g015
Polymers 08 00225 g016 550
Figure 16. Preparation of POSS-PU-PBZ nanocomposites [116]. Reproduced with permission from Royal Society of Chemistry
Figure 16. Preparation of POSS-PU-PBZ nanocomposites [116]. Reproduced with permission from Royal Society of Chemistry
Polymers 08 00225 g016
Polymers 08 00225 g017 550
Figure 17. Syntheses of (A) PA-OH, PA-ac, and PA-T and (B) OBA-POSS [117]. Reproduced with permission from American Chemical Society.
Figure 17. Syntheses of (A) PA-OH, PA-ac, and PA-T and (B) OBA-POSS [117]. Reproduced with permission from American Chemical Society.
Polymers 08 00225 g017
Polymers 08 00225 g018 550
Figure 18. The TEM images and their corresponding SAED patterns of PA-T/OBA-POSS nanocomposites with different OBA-POSS contents of (a) 100/0, (b) 95/5, (c) 90/10, (d) 80/20, (e) 70/30, (f) 60/40, (g) 50/50, and (h) 0/100 [117]. Reproduced with permission from American Chemical Society.
Figure 18. The TEM images and their corresponding SAED patterns of PA-T/OBA-POSS nanocomposites with different OBA-POSS contents of (a) 100/0, (b) 95/5, (c) 90/10, (d) 80/20, (e) 70/30, (f) 60/40, (g) 50/50, and (h) 0/100 [117]. Reproduced with permission from American Chemical Society.
Polymers 08 00225 g018
Polymers 08 00225 g019 550
Figure 19. Possible three-step mechanism for self-assembly structure of PA-T/OBA-POSS hybrid complexes: (a) PA-T was miscible with OBA-POSS; (b) the OBA-POSS separated from the thermal cured PA-T through the reaction-induced microphase separation mechanism; (c) the self-aggregation of OBA-POSS was restricted by complementary A–T multiple hydrogen-bonding interaction and the self-assembly lamellae structure of the POSS units via the subsequent growth along (012) plane [117]. Reproduced with permission from American Chemical Society.
Figure 19. Possible three-step mechanism for self-assembly structure of PA-T/OBA-POSS hybrid complexes: (a) PA-T was miscible with OBA-POSS; (b) the OBA-POSS separated from the thermal cured PA-T through the reaction-induced microphase separation mechanism; (c) the self-aggregation of OBA-POSS was restricted by complementary A–T multiple hydrogen-bonding interaction and the self-assembly lamellae structure of the POSS units via the subsequent growth along (012) plane [117]. Reproduced with permission from American Chemical Society.
Polymers 08 00225 g019
Polymers 08 00225 g020 550
Figure 20. The cartoon representation of the Py-Bz-T/OBA-POSS/SWCNT ternary hybrid complexes formation [118]. Reproduced with permission from Royal Society of Chemistry.
Figure 20. The cartoon representation of the Py-Bz-T/OBA-POSS/SWCNT ternary hybrid complexes formation [118]. Reproduced with permission from Royal Society of Chemistry.
Polymers 08 00225 g020
Polymers 08 00225 g021 550
Figure 21. TEM images of pure SWCNT (a,b), the Py-Bz-T/OBA-POSS/SWCNT (1 wt%) (c,d), and the Py-Bz-T/OBA-POSS/SWCNT (3 wt %) hybrid complex (e,f) [118]. Reproduced with permission from Royal Society of Chemistry.
Figure 21. TEM images of pure SWCNT (a,b), the Py-Bz-T/OBA-POSS/SWCNT (1 wt%) (c,d), and the Py-Bz-T/OBA-POSS/SWCNT (3 wt %) hybrid complex (e,f) [118]. Reproduced with permission from Royal Society of Chemistry.
Polymers 08 00225 g021

Share and Cite

MDPI and ACS Style

Mohamed, M.G.; Kuo, S.-W. Polybenzoxazine/Polyhedral Oligomeric Silsesquioxane (POSS) Nanocomposites. Polymers 2016, 8, 225. https://doi.org/10.3390/polym8060225

AMA Style

Mohamed MG, Kuo S-W. Polybenzoxazine/Polyhedral Oligomeric Silsesquioxane (POSS) Nanocomposites. Polymers. 2016; 8(6):225. https://doi.org/10.3390/polym8060225

Chicago/Turabian Style

Mohamed, Mohamed Gamal, and Shiao-Wei Kuo. 2016. "Polybenzoxazine/Polyhedral Oligomeric Silsesquioxane (POSS) Nanocomposites" Polymers 8, no. 6: 225. https://doi.org/10.3390/polym8060225

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
