Review

Development of Conjugated Polymers for Memory Device Applications

1
Physical Chemistry and Applied Spectroscopy (C-PCS), Chemistry Division, Los Alamos National Laboratory, Los Alamos, NM 87545, USA
2
Center for Condensed Matter Science, National Taiwan University, 1 Roosevelt Road, 4th Sec., Taipei 10617, Taiwan
3
School of Chemistry and Chemical Engineering, Harbin Institute of Technology, Harbin 150001, China
4
Department of Chemistry, Northeast Normal University, Changchun 130024, China
*
Authors to whom correspondence should be addressed.
Polymers 2017, 9(1), 25; https://doi.org/10.3390/polym9010025
Submission received: 20 November 2016 / Revised: 27 December 2016 / Accepted: 8 January 2017 / Published: 12 January 2017
(This article belongs to the Special Issue Conjugated Polymers 2016)

Abstract

:
This review summarizes the most widely used mechanisms in memory devices based on conjugated polymers, such as charge transfer, space charge traps, and filament conduction. In addition, recent studies of conjugated polymers for memory device applications are also reviewed, discussed, and differentiated based on the mechanisms and structural design. Moreover, the electrical conditions of conjugated polymers can be further fine-tuned by careful design and synthesis based on the switching mechanisms. The review also emphasizes and demonstrates the structure-memory properties relationship of donor-acceptor conjugated polymers for advanced memory device applications.

Graphical Abstract

1. Introduction

1.1. Conjugated Polymers (CPs)

Conjugated polymers (CPs) are organic macromolecules characterized by a backbone chain consisting of alternating single- and double-bonds. Their overlapping p-orbitals create a delocalization system of π-electrons thus resulting in interesting and useful optoelectronic properties. The simplest CP, polyacetylene, constitutes the core of all conjugated polymers although it is itself too unstable for any practical applications (Scheme 1). Owing to its structural and electronic simplicity, polyacetylene is well suited to ab initio and semi-empirical calculations, which has played a critical role in the theoretical aspects of CPs [1].
Attention on π-CPs has increased over the years [2,3,4,5,6]. The extensive delocalization of π electrons in CPs is well recognized to be responsible for their remarkable characteristics, including electronic conductivity, interesting optical characteristics, and exceptional mechanical properties [7,8] such as high tensile strength and resistance to harsh environments. CPs comprising aromatic or hetero-aromatic ring structures have also been considered particularly as outstanding materials. Moreover, applications of CPs in advanced aerospace technology have provided a powerful motivation for the development of functionalized polyhetero-aromatics [9]. Later investigations were directed to rigid rod polybenzobisazoles (Scheme 2).
From an electrochemical perspective, the most important aspect of CPs is their capability as electronic conductors. Therefore, π-electron polymers have been the focus of extensive research [10], ranging from applications of conventional CPs (as shown in Scheme 3) in energy storage devices, to novel CPs with special electronic properties such as low band-gap and intrinsic conductivity. Indeed, many successful commercial applications of CPs have been available for more than fifteen years, including capacitors, batteries, magnetic storage, electrostatic loudspeakers, and anti-static bags.
Recently, CPs have been considered as electroactive memory materials and reported as revealing electrically volatile and non-volatile memory characteristics. The conjugated backbone is the most important component since it contributes to most of the electrical properties. In general, the incorporation of different electron acceptors into CPs significantly affects the memory properties, which can either create a trapping site or provide the charge transfer (CT) conducting channel. In addition, the stability of charge trapping or the CT complex process, further determines the volatility of the memory device.

1.2. Resistor-Type Electronic Memories

The basic goal of a memory device is to provide a means for storing and accessing binary digital data sequences of “1” and “0”, being one of the core functions (primary storage) of modern computers. An electronic memory is a form of semiconductor storage, fast in response, compact in size, and can be read and written when coupled with a central processing unit (CPU). In the conventional silicon-based electronic memory, data are stored based on the amount of charge stored in the memory cells. On the contrary, organic/polymer electronic memory stores data in an entirely different way, for instance, based on the different electrical conductivity states (ON and OFF states) in response to the applied electric field. In particular, polymeric memory devices with an electrically bi-stable behavior have received considerable attention recently due to their attractive characteristics such as rich structure flexibility, low cost, solution processability, and three-dimensional stacking capability. Therefore, the organic/polymer electronic memory is likely to be alternative or supplementary to the conventional semiconductor electronic memory.
Electronic memories can be generally divided into two primary categories according to the storage type: volatile and non-volatile memories (Figure 1). Volatile memory eventually loses the stored information unless it is provided with a constant power supply or refreshed periodically with a pulse; non-volatile memory is capable of holding data permanently and being read repeatedly. Among these types of electronic memories, write-once read-many-times (WORM) memory [11], hybrid non-volatile and rewritable (flash) memory [12], static random access memory (SRAM) and dynamic random access memory (DRAM) are the most widely reported polymer memories [13,14].
Memory devices incorporating switchable resistive materials are generally classified as resistor-type memory, or resistive random access memory (RRAM). Unlike transistor and capacitor memories, a resistor-type memory does not require a specific cell structure (e.g., field-effect transistor; FET) or to be integrated with the complementary metal-oxide-semiconductor (CMOS) technology. The electrical bi-stability of resistor-type memories usually results from the changes in intrinsic properties of electroactive materials in response to the applied voltage or electric field, such as charge transfer, phase change, conformation change, and redox reaction [15].
The important parameters to the memory performance include switching (write and erase) time, ON/OFF current ratio, read cycles, and retention time. The switching time influences the rate to write and access the stored information; the ON/OFF current ratio defines the control of the misreading rate during device operation; while the number of read cycles and long retention time are related to the stability and reliability of the memory devices. For practical applications, other factors, such as power consumption and cost, structural simplicity and packing density, as well as mechanical stiffness and flexibility, are of equal importance when designing and fabricating new memory devices. Considerable efforts have been devoted to develop novel CPs for information and communication technologies [16,17,18,19,20,21].

1.2.1. Operation Mechanism

Many research works have been dedicated to understanding the electric switching phenomena of memory devices. Although this field is still controversial, researchers have proposed several well established switching mechanisms based on theoretical simulations, experimental results, and advanced analytical techniques [15,22,23,24,25,26,27]. In this review, we summarize the most widely used mechanisms in CP resistive memory devices, such as charge transfer, space charge traps, and filamentary conduction.

Charge Transfer (CT)

CT can be clarified as a process of partial transfer of electronic charge from the donor (D) to the acceptor (A) moiety in the electron D-A system by applying a suitable voltage, which can result in a sharp increase in conductivity [28]. In order to obtain a better understanding of switching mechanisms, several study methods, such as density functional theory (DFT) calculations, ultraviolet-visible (UV/Vis) absorption spectra, in-situ fluorescence spectra, and transmission electron microscope (TEM) techniques, can be used to investigate and explain the CT phenomenon [29,30,31,32]. CT is anticipated to occur most frequently in D-A polymers [33,34,35]. The memory behaviors based on the D-A polymers can be tuned adequately through modification of the polymer structures. By tuning the electron-donating or -accepting capability of D-A polymers, different memory behaviors can be achieved [36]. The strong dipole moment in a polymer is also beneficial to maintain the conductive CT state, usually leading to non-volatile memory behavior. Otherwise, the conductive CT state is not stable after removing the electric field and a volatile memory characteristic will be observed if the dipole moment is not strong enough.

Space Charge Traps

When the interface between electrode and polymer is ohmic and the polymer is trap-free, the carriers near the electrode will accumulate and build up a space charge channel. Mutual repulsion between individual charges restricts the total charge injected into the polymer, and the resulting current is defined as space charge-limited current (SCLC). Space charges in materials may occur from several sources, such as (1) electrode injection of electrons and/or holes; (2) ionized dopants in interfacial depletion regions; and (3) accumulation of mobile ions at electrode interfaces. Traps may be present in the bulk materials or at interfaces, and result in lower carrier mobility. When present at interfaces, they may also affect charge injection into the materials. The electrical switching behaviors of some polymeric materials have been reported to be associated with space charges and traps [30].

Filament Conduction

Particularly, when the ON state current is highly localized to a small area within the memory device, the phenomenon can be termed “filament conduction”. It has been suggested that filament conduction is confined to device physical damage in RRAMs. Two types of filament conduction have been widely reported in polymer resistive memory devices, and the formed filaments could be observed under an optical microscope or scanning electron microscope [37,38]. One type is carbon-rich filaments formed by local degradation of polymer films [38,39]. The other is associated with metallic filaments that result from migration of electrodes through the polymer films [40,41]. For filamentary conduction, the polymers with both the coordinating atom and π-conjugation can bind to metal ions, regardless of the binding sites as side chain or main chain, are essential for the production of metal filaments [15,42]. Therefore, the filamentary conduction mechanism has been often suggested to explain switching phenomena observed in a variety of polymer memory devices. However, the severe current leakage caused by the filament effect is the main factor in restricting the exploration of memory mechanism. Therefore, some literature examples discussing how to reduce the filament effect have been reported [43,44]. Unfortunately, although the device concept is simple, the physics is anything but. There are controversies surrounding the conductive filament and the role of the top and the bottom electrodes. The mobility, energy, and stability of the oxygen vacancies remain topics of intense study. As a result of these open issues, projection of device reliability becomes difficult. Furthermore, the switching mechanisms in different references of similar structures are always various, and they need to be unique from both an understanding point of view as well as for application. RRAMs have issues on reproducibility of their electrical characteristics; there are large resistance variations not just between devices, but also between cycles of programming of the same device. Therefore, selecting the switching material and deposition method also plays an important role.

2. CPs for Volatile Memory Devices

For volatile memory effects, the device cannot be kept at the ON state and will relax to the OFF state after the power is turned off. Nevertheless, the ON state can be maintained by refreshing the voltage pulse. Volatile memory effects can be divided into DRAM and SRAM, depending on the retention time of the ON state after removal of the applied voltage. For DRAM behavior (Figure 2) [30], the ON state can only be retained for a short time (less than 1 min) after the removal of the applied voltage. For SRAM (Figure 3) [45], the device can stay in the ON state for a longer period of time after turning off the power than in DRAM devices. Despite the longer retention time of the ON state in SRAM memory devices, it is still volatile, and the ON state will relax to the OFF state without an erasing process.

2.1. Dynamic Random Access Memory (DRAM) Properties

P1 containing oxadiazole and bipyridine as acceptor units was synthesized by Suzuki coupling and exhibited DRAM memory behavior with an ON/OFF ratio of more than 106 (Scheme 4) [14]. The memory effect was volatile due to space charge and traps, resulting in the short retention ability of its ON state. The ON state current could be electrically sustained by a refreshing voltage pulse every 10 s.
Devices with the sandwich structure of ITO/P2/Al exhibited volatile DRAM property with bi-stable electrical switching characteristics, which is due to the existence of trapping sites in the poly(3-phenoxymethylthiophene) domains, whereas poly(3-hexylthiophene) devices only showed semiconductor characteristics [30]. This result suggested the importance of the amorphous poly(3-phenoxymethylthiophene) segments on the electrical switching behavior. Both the ON and OFF states of P2 are stable up to 108 read cycles under a constant voltage stress of −1.0 V with a high ON/OFF current ratio of about 106.
Ree et al. also investigated the memory characteristics of arylamine-linked poly(2,7-carbazole)s P3, P4, and P5 [46]. These polymers are amorphous but slightly oriented in the film plane. All polymers with the sandwich structure of ITO/polymers/Al were found to exhibit similar DRAM behaviors without polarity. The devices are programmable at low voltage with a high ON/OFF current ratio up to 109 as the thickness ranged between 8 and 60 nm. The memory behaviors are governed by SCLC and local filament formation, which might originate from the electron-donating carbazole and triphenylamine units in the polymer backbones.

2.2. Static Random Access Memory (SRAM) Properties

Chen et al. reported a D-A CP, poly(arylenevinylene), consisting of carbazole (Car) with pendent phenanthro[9,10-d]imidazole (P6-Car) (Scheme 5) [45]. The flexible P6-Car device with the sandwich configuration of poly(ethylene-2,6-naphthalate) (PEN)/Al/P6-Car/Al revealed volatile SRAM characteristic, which can be operated at low voltages with high ON/OFF current ratios (more than 104) and excellent durability. The high steric hindrance between carbazole donor and phenanthro[9,10-d]imidazole side chain leads to a weak electric charge separated state and easy recombination after turning off the electrical power, resulting in volatile memory characteristics.

3. CPs for Non-Volatile Memory Devices

Non-volatile memory devices can stay in the ON state steadily without an applied voltage bias. Non-volatile memory behaviors can be divided into two classes, namely WORM memory and rewritable (flash) memory, depending on whether a suitable voltage can switch the ON state to the OFF state or not. If the ON state can be switched back to the OFF state by applying a suitable voltage, which is an erasing process, the memory effect is called rewritable memory (Figure 4) [47]. However, WORM is capable of maintaining the ON state (holding data) permanently, even applying a reverse voltage (Figure 5) [48].

3.1. WORM Properties

The non-volatile memory effect was investigated in other fluorene-acceptor push-pull polymeric systems [14,49,50,51,52,53,54,55]. P7 consisting of 9,9-didodecylfluorene, pendent triphenylamine donors, and pyridine acceptors exhibited WORM memory behavior (Scheme 6) [49]. Hole injection from ITO into the highest occupied molecular orbital (HOMO) of P7 is an energetically favored process due to the low energy barrier between the work function of ITO and the HOMO level of P7. The injected hole migrates through the continuous positive electrostatic potential channel along the polymer chain and becomes trapped by the electron acceptor group (nitrogen atom in the pyridine ring) but cannot get activated by a reverse voltage bias, resulting in the WORM type memory behavior.
Nonvolatile WORM memory behavior with tristable property was obtained by poly(2,6-diphenyl-4-((9-ethyl)-9H-carbazole)-pyridinyl-alt-2,7-(9,9-didodecyl)-9H-fluorenyl) (P8) [51]. The device switched from the initial low-conductivity (OFF) state to the first high-conductivity (ON-1) state at a threshold voltage of 1.8 V, and subsequently to the second high-conductivity (ON-2) state at a higher voltage of 2.4 V, which is also elucidated by the enhanced UV-Vis absorption. Under an applied field, the process of conformational order, arising from charge carrier delocalization-induced D-A interaction to form a partial or complete face-to-face conformation of the fluorene and carbazole units, can be generated throughout the polymer layer. An effective charge transport channel originated from the electron hopping between the ordered structures effectively switched the device from the OFF to ON-1 state. The coordinating ability of the nitrogen atoms in the carbazole pendant moieties and the indium atoms of ITO also promoted the charge transfer at the polymer/ITO interface.

3.2. Flash Properties

Chen et al. reported a flexible bipolar resistive memory device with reliable performance in response to electric and mechanical stimuli by using a conjugated poly(fluorene-thiophene) donor tethered phenanthro[9,10-d]imidazole acceptor (P9) as the active layer (Scheme 7) [54]. The P9 device exhibited low threshold voltages, large ON/OFF memory windows, and good retention time. In the backbone of P9, fluorene and thiophene donors act as hole transporters/trapping centers, while the phenanthro[9,10-d]-imidazole acceptor serves as an electron transporter/trapping center. Both the donor and acceptor act as trapping sites that depend on the charge association and polarity of the electric field. As the applied voltage approaches the threshold voltage, the majority of trapped charges are filled to create a trap-free environment. The captured charges and the charged states can be maintained due to a large energy barrier for the back transfer of charges, and the deep trapping sites may not be easily recovered even after turning off the power. However, under a reverse voltage bias, the trapped charges can be extracted and then return the device back to the OFF state, leading to bipolar flash-type memory behavior. Chen and Li designed a fluorene-acceptor copolymer P10 for resistor memory where 9,9-bis[4-(4-phenoxyl)phthalonitrile] pendant groups at the C-9 position of the fluorene unit are electron acceptors [55]. A strong dipole moment in P10 (10.71 Debye) is also beneficial for maintaining the conductive state.

3.3. Negative Differential Resistance (NDR) Properties

Non-volatile resistive memory properties based on polyfluorenes have been statically characterized [56,57]. The working mechanism was attributed to metallic filaments with a write pulse at 4 V and an erase pulse ranging from 8–10 V. Lee et al. used two different polyfluorenes, P11 and P12, and two Al and Au electrodes to fabricate the memory devices, respectively (Scheme 8) [58]. Bi-stability was observed in all devices with deposited Al as electrode. On the contrary, bi-stable switching was observed only when Au was deposited on the oxidized polyfluorene P12. Presumably, both the internal trap site and organic/metal interface were responsible for the electric bi-stability of these memory devices. Gomes’ group also reported resistive memory devices based on poly(spirofluorene) P13 using small signal impedance measurements [59,60]. The device remained highly resistive but the low frequency capacitance increased by several orders of magnitude. Higher external applied voltages led to an increased electrical stress across the oxide, which reduced the resistance, hence the switching.
Chen et al. have reported the synthesis of novel D-A rod-coil diblock copolymer P14 and its memory device [61]. The highest occupied molecular orbital (HOMO) energy level at −6.08 eV for polyoxadiazole was employed as a charge trap for electrical switching memory devices. The ITO/P14/Al memory device exhibited nonvolatile memory property with a NDR effect due to the polyoxadiazole charge trapped block (Figure 6).

4. Effects of the Molecular Design on Volatility

4.1. Donor Effect

The tunable electrical switching characteristics of the vinylene-based CPs [47], P6-Car, P6-TH, and P6-TPA, consisting of various donors, such as carbazole, thiophene, and triphenylamine, respectively, with the pendant acceptor of phenanthro[9,10-d]imidazole were demonstrated (Scheme 9). The donor structures not only affected the polymer conformation, but also the D-A interaction and LUMO energy levels for stabilizing the charge separation. The PEN/Al/P6-Car/Al flexible device revealed SRAM behavior while the P6-TPA device exhibited WORM property, both memory devices can be operated at low voltages with high ON/OFF current ratios and excellent durability under repeated bending tests. However, the P6-TH device only exhibited a diode-like electrical behavior.
Ree et al. reported the programmable memory characteristics of fully π-conjugated polymers P15 and P16 [62,63]. The memory properties of P15 were investigated as a function of temperature and film thickness. P15 with a thickness of 15–30 nm showed excellent unipolar DRAM behavior with a high ON/OFF ratio up to 108, which was mainly governed by filament formation supported by the metallic properties of the P15 film. The ON state current was dominated by Ohmic conduction, and the OFF state current appeared to undergo a transition from Ohmic to space charge limited conduction with a shallow-trap distribution. On the other hand, P16 with a thickness of 30 nm exhibited a very stable WORM memory property with an ON/OFF ratio of 106. Both the ester units and the conjugated double bonds of the P16 polymer backbone acted as efficient charge trapping sites.
Li et al. also reported two donor-acceptor type poly(azomethine)s, incorporating an oxadiazole group either acting as an electron acceptor in P17 with the triphenylamine donor, or serving as a donor in P18 with the 3,3′-dinitro-diphenylsulfone acceptor [64]. The variation in the role of the oxadiazole group in the D-A polymers resulted in different memory properties of the prepared poly(azomethine)s. The P17-based memory device with Pt/P17/Pt sandwiched structure showed rewritable memory behavior but poor endurance of less than 20 cycles, while the P18-based device exhibited WORM memory behavior. The different memory properties are attributed to the different band gaps of the poly(azomethine)s, indicating the different degree of intra- and intermolecular charge transfer interaction between the electron donor and acceptor. The stronger electron push-pull interaction in P17 facilitates the charge transfer effect, resulting in a lower switching threshold voltage than that of the P18-based device. For the memory devices with Al/polymer/Al sandwiched structure, both P17 and P18 demonstrate a much improved resistive switching effect, and the endurance of the P18-based device is better than that of the P17-based device. The difference in the electronic transport and memory properties of the four devices may originate from the different charge injection/extraction and electron transfer processes of the sandwich systems.

4.2. Acceptor Effect

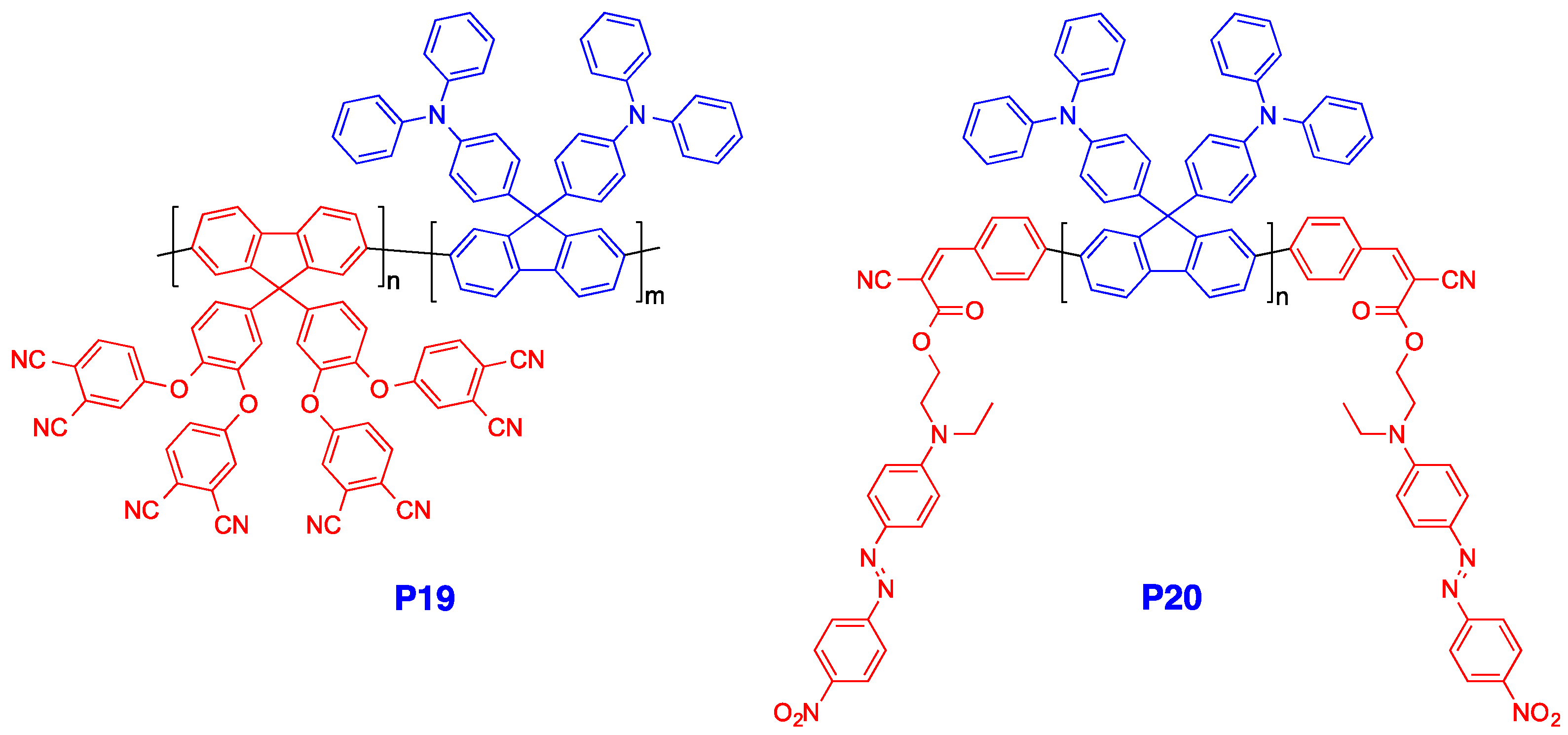

Polyfluorene-based copolymer P19 containing electron-donor triphenylamine and electron-acceptor 9,9-bis[3,4-bis(3,4-dicyanophenoxy)phenyl] side chains at the C-9 position of the fluorene unit was applied for a nonvolatile WORM memory device (Scheme 10) [52], meanwhile P20 consisting of poly[9,9-bis(4-diphenylaminophenyl)-2,7-fluorene] donors with end-capped Disperse Red 1 exhibited bi-stable conductive states and rewritable memory behavior [50]. Under a low positive voltage sweep, favorable hole injection and migration resulted in the formation of a high current state. As the hole injection process was underway, the positive charges on the triphenylamine moieties in P19 were rapidly consumed by the cyano groups as a result of the irreversible switching operation. On the contrary, the active area- or temperature-independent current density in P20 indicated the absence of sample degradation or breakdown and excluded the metallic filamentary conduction effect.

4.3. Thickness Effect

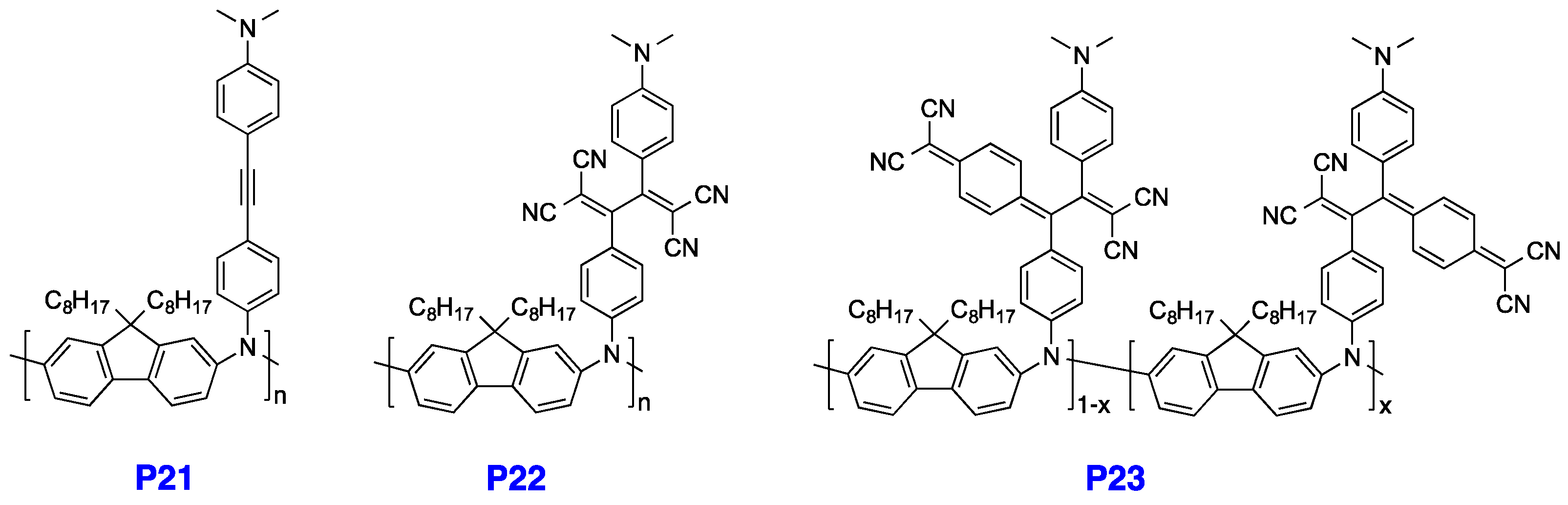

Ree et al. reported donor-acceptor polymers, P21, P22, and P23, which were composed of fluorene, triphenylamine, dimethylphenylamine, alkyne, tetracyanoethylene (TCNE), and 7,7,8,8-tetracyanoquinodimethane (TCNQ) adducts (Scheme 11) [65]. The TCNE and TCNQ units were found to enhance the π-conjugation lengths and intramolecular charge transfer of P22 and P23, respectively, despite their electron-acceptor characteristics. The TCNE and TCNQ units enabled the authors to fine-tune the memory properties and widen the thickness window of the polymer layer. In the memory device with Al/polymer/Al sandwiched structure, P21 exhibited stable unipolar permanent memory behavior with high reliability. On the other hand, P22 and P23 devices showed stable unipolar permanent memory behavior over only a narrow film thickness window of 10–20 nm while DRAM behavior can be obtained with a wider thickness window of 10–30 nm at higher operation voltages. The memory behavior of P23 was observed to be driven by both hole and electron injection in which the electron donor and acceptor groups both acted as charge trapping sites, indicating that the memory devices can be operated at relatively low voltages.

5. CPs Containing Metal Complexes

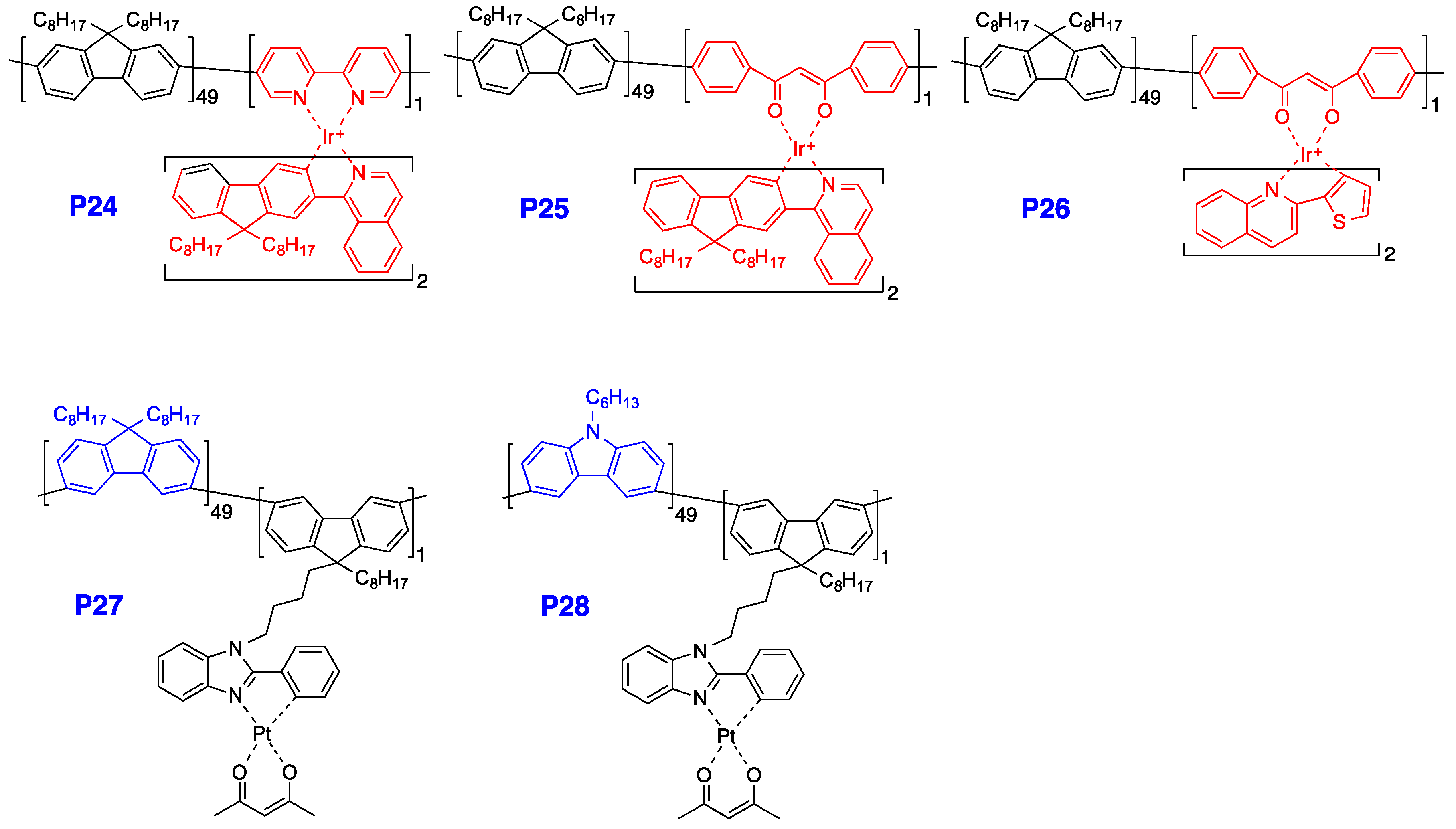

Conjugated polyfluorenes with cationic Ir(III) complexes, P2426, were selected as active memory materials for the functionalities of flash memory devices [33,66]. The memory device based on P24 containing Ir(III) complex exhibited low reading, writing, and erasing voltages with a high ON/OFF current ratio of more than 105 (Scheme 12). Both ON and OFF states were stable under a constant voltage stress of −1.0 V up to 108 read cycles. The flash memory behavior was attributed to the polarized charge transfer between the fluorene donor and the cationic Ir(III) complex acceptors under an applied field. Furthermore, through the modification of the ligand structures of the Ir(III) complexes, the resulting polymers P25 and P26 also showed excellent memory behavior with different threshold voltage and current at the conductive state [33].
CPs containing Pt(II) complexes have also been fabricated in resistor memory devices with ITO/polymer/Al sandwiched structure [67,68]. Conjugated polyfluorene and polycarbazole with Pt(II) complexes in the side chain (P27 and P28, respectively) exhibited excellent flash memory behaviors with a high ON/OFF current ratio and excellent stability with repetitive read cycles (107) [67]. According to the redox properties and theoretical calculation results, the memory mechanism can be attributed to the formation and dissociation of a charge transfer state induced by negative and positive voltages, respectively. When applying an electric field over the threshold voltage, charge transfer from the polymer main chain to the side chain Pt(II) complex units occurs and switches the device to the ON state. According to the stable charge transfer complex, the ON state was still maintained even after the driving power was turned off. However, the device can be returned to the original OFF state as a reverse bias voltage is applied thus dissociating the charge transfer state. In addition, the main chain structures had significant influence on the threshold voltages. The threshold voltages of the P28-based device were lower than that of the P27-based device due to the lower oxidation potential of polycarbazole (0.43 V) than polyfluorene (0.96 V), resulting in a lower energy barrier between the work function of the ITO anode and the HOMO level of P28 as well as an easier charge transfer compared to that of P27.

6. Flexible CP-Based Memory Devices

Flexible polymer memory devices were also demonstrated by using CPs as active layers as in other organic electronics [69]. Ueda, Liu, and Chen fabricated a typical memory device based on a flexible polyethylene terephthalate (PET) substrate [47,54], which showed a highly stable nonvolatile memory behavior even after bending up to 1000 bending cycles at a radius curvature of 5 mm. Also, the flexible memory device reported by our group [70] was tested under severe bending at various curvature radii of 11, 9, 7, and 5 mm, respectively, showing no crack or deform upon bending. The reliable and reproducible switching memory behavior of CP film in the device can also be obtained under mechanical bending stress. Similar to other organic electronics, such as organic transistors, organic photovoltaics, etc., the development of device fabrication for practical application is well underway, and the performance of polymer memory devices can be further improved by optimizing the associated processing parameters. Therefore, there is still ample opportunity for improving the electroactive materials and polymer memory devices.

7. Conclusions and Perspectives

Conjugated polymers for memory devices is an emerging area of intense research interest as it encompasses low cost, high mechanical strength, facile processability, and high-density data storage. This review summarized the most widely studied mechanisms in CP resistive memory devices, such as charge transfer, space charge traps, and filament conduction. Further refinements in structural design and preparation methods, enhancement in device fabrication, measurement, characterization, and integration techniques, are essential to advance polymeric memory technology.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Roncali, J. Conjugated poly(thiophenes): Synthesis, functionalization, and applications. Chem. Rev. 1992, 92, 711. [Google Scholar] [CrossRef]
  2. Vogel, H.; Marvel, C.S. Polybenzimidazoles, new thermally stable polymers. J. Polym. Sci. 1961, 50, 511. [Google Scholar] [CrossRef]
  3. Skotheim, T. Handbook of Conducting Polymers; Marcel Dekker: New York, NY, USA, 1986; Volumes 1 and 2. [Google Scholar]
  4. Techagumpuch, A.; Nalwa, H.S.; Miyata, S. Promising Applications of Conducting Polymers. In Electroresponsive Molecular and Polymeric Systems; Marcel Dekker: New York, NY, USA, 1988; Volume 2. [Google Scholar]
  5. Yu, L.; Chen, M.; Dalton, L.R. Ladder polymers: Recent developments in syntheses, characterization, and potential applications as electronic and optical materials. Chem. Mater. 1990, 2, 649. [Google Scholar] [CrossRef]
  6. Miller, J.S. Conducting polymers—Materials of commerce. Adv. Mater. 1993, 5, 671. [Google Scholar] [CrossRef]
  7. Osaheni, J.A.; Jenekhe, S.A. Synthesis and processing of heterocyclic polymers as electronic, optoelectronic, and nonlinear optical materials. 1. New conjugated rigid-rod benzobisthiazole polymers. Chem. Mater. 1992, 4, 1282. [Google Scholar] [CrossRef]
  8. Roberts, M.F.; Jenekhe, S.A. Preparation and processing of molecular composites of rigid-rod and flexible-chain polymers from soluble complexes. Chem. Mater. 1994, 6, 135. [Google Scholar] [CrossRef]
  9. Arnold, F.E., Jr.; Arnold, F.E. Rigid-rod polymers and molecular composites. Adv. Polym. Sci. 1994, 117, 257. [Google Scholar]
  10. Frommer, J.E.; Chance, R.R. Encyclopedia of Polymer Science and Engineering; Wiley: New York, NY, USA, 1986; Volume 5. [Google Scholar]
  11. Moller, S.; Perlov, C.; Jackson, W.; Taussig, C.; Forrest, S.R. A polymer/semiconductor write-once read-many-times memory. Nature 2003, 426, 166. [Google Scholar] [CrossRef] [PubMed]
  12. Ouyang, J.Y.; Chu, C.W.; Szmanda, C.R.; Ma, L.P.; Yang, Y. Programmable polymer thin film and non-volatile memory device. Nat. Mater. 2004, 3, 918. [Google Scholar] [CrossRef] [PubMed]
  13. Liu, Y.-L.; Wang, K.-L.; Huang, G.-S.; Zhu, C.-X.; Tok, E.-S.; Neoh, K.-G.; Kang, E.-T. Volatile electrical switching and static random access memory effect in a functional polyimide containing oxadiazole moieties. Chem. Mater. 2009, 21, 3391. [Google Scholar] [CrossRef]
  14. Ling, Q.-D.; Song, Y.; Lim, S.-L.; Teo, E.Y.-H.; Tan, Y.-P.; Zhu, C.; Chan, D.S.H.; Kwong, D.-L.; Kang, E.-T.; Neoh, K.-G. A dynamic random access memory based on a conjugated copolymer containing electron-donor and -acceptor moieties. Angew. Chem. Int. Ed. 2006, 45, 2947. [Google Scholar] [CrossRef] [PubMed]
  15. Ling, Q.-D.; Liaw, D.-J.; Zhu, C.; Chan, D.S.-H.; Kang, E.-T.; Neoh, K.-G. Polymer electronic memories: Materials, devices and mechanisms. Prog. Polym. Sci. 2008, 33, 917. [Google Scholar] [CrossRef]
  16. Ajayaghosh, A. Donor-acceptor type low band gap polymers: Polysquaraines and related systems. Chem. Soc. Rev. 2003, 32, 181. [Google Scholar] [CrossRef] [PubMed]
  17. Zhang, W.; Wang, C.; Liu, G.; Wang, J.; Chen, Y.; Li, R.-W. Structural effect on the resistive switching behavior of triphenylamine-based poly(azomethine)s. Chem. Commun. 2014, 50, 11496. [Google Scholar] [CrossRef] [PubMed]
  18. Zhang, W.; Wang, C.; Liu, G.; Zhu, X.; Chen, X.; Pan, L.; Tan, H.; Xue, W.; Ji, Z.; Wang, J.; et al. Thermally-stable resistive switching with a large ON/OFF ratio achieved in poly(triphenylamine). Chem. Commun. 2014, 50, 11856. [Google Scholar] [CrossRef] [PubMed]
  19. Murari, N.M.; Hwang, Y.-J.; Kim, F.S.; Jenekhe, S.A. Organic nonvolatile memory devices utilizing intrinsic charge-trapping phenomena in an n-type polymer semiconductor. Org. Electron. 2016, 31, 104. [Google Scholar] [CrossRef]
  20. Tan, C.; Liu, Z.; Huang, W.; Zhang, H. Non-volatile resistive memory devices based on solution-processed ultrathin two-dimensional nanomaterials. Chem. Soc. Rev. 2015, 44, 2615. [Google Scholar] [CrossRef] [PubMed]
  21. Zhou, Y.; Han, S.-T.; Yan, Y.; Zhou, L.; Huang, L.-B.; Zhuang, J.; Sonar, P.; Roy, V.A.L. Ultra-flexible nonvolatile memory based on donor-acceptor diketopyrrolopyrrole polymer blends. Sci. Rep. 2015, 5, 10683. [Google Scholar] [CrossRef] [PubMed]
  22. Yen, H.J.; Liou, G.S. Solution-processable triarylamine-based high-performance polymers for resistive switching memory devices. NPG Polym. J. 2016, 48, 117–138. [Google Scholar] [CrossRef]
  23. Verbakel, F.; Meskers, S.C.J.; Janssen, R.A.J. Electronic memory effects in a sexithiophene−poly(ethylene oxide) block copolymer doped with NaCl. combined diode and resistive switching behavior. Chem. Mater. 2006, 18, 2707–2712. [Google Scholar] [CrossRef]
  24. Lin, H.-T.; Pei, Z.; Chen, J.-R.; Hwang, G.-W.; Fan, J.-F.; Chan, Y.-J. A new nonvolatile bistable polymer-nanoparticle memory device. IEEE Electron Device Lett. 2007, 28, 951–953. [Google Scholar]
  25. Attianese, D.; Petrosino, M.; Vacca, P.; Concilio, S.; Iannelli, P.; Rubino, A.; Bellone, S. Switching device based on a thin film of an azo-containing polymer for application in memory cells. IEEE Electron Device Lett. 2008, 29, 44–46. [Google Scholar] [CrossRef]
  26. Cho, B.; Kim, T.-W.; Choe, M.; Wang, G.; Song, S.; Lee, T. Unipolar nonvolatile memory devices with composites of poly(9-vinylcarbazole) and titanium dioxide nanoparticles. Org. Electron. 2009, 10, 473–477. [Google Scholar] [CrossRef]
  27. Zhuang, X.-D.; Zhuang, X.-D.; Chen, Y.; Liu, G.; Zhang, B.; Neoh, K.-G.; Kang, E.-T.; Zhu, C.-X.; Li, Y.-X.; Niu, L.-J. Preparation and memory performance of a nanoaggregated dispersed red 1-functionalized poly (n-vinylcarbazole) film via solution-phase self-assembly. Adv. Funct. Mater. 2010, 20, 2916–2922. [Google Scholar] [CrossRef]
  28. Chu, C.W.; Ouyang, J.; Tseng, H.H.; Yang, Y. Organic donor-acceptor system exhibiting electrical bistability for use in memory devices. Adv. Mater. 2005, 17, 1440–1443. [Google Scholar] [CrossRef]
  29. Ling, Q.-D.; Chang, F.-C.; Song, Y.; Zhu, C.-X.; Liaw, D.-J.; Chan, D.S.-H.; Kang, E.-T.; Neoh, K.-G. Synthesis and dynamic random access memory behavior of a functional polyimide. J. Am. Chem. Soc. 2006, 128, 8732–8733. [Google Scholar] [CrossRef] [PubMed]
  30. Lai, Y.-C.; Ohshimizu, K.; Lee, W.-Y.; Hsu, J.-C.; Higashihara, T.; Ueda, M.; Chen, W.-C. Electrically bistable memory devices based on all-conjugated block copolythiophenes and their PCBM composite films. J. Mater. Chem. 2011, 21, 14502. [Google Scholar] [CrossRef]
  31. Li, Y.-Q.; Fang, R.-C.; Zheng, A.-M.; Chu, Y.-Y.; Tao, X.; Xu, H.-H.; Ding, S.-J.; Shen, Y.-Z. Nonvolatile memory devices based on polyimides bearing noncoplanar twisted biphenyl units containing carbazole and triphenylamine side-chain groups. J. Mater. Chem. 2011, 21, 15643–15654. [Google Scholar] [CrossRef]
  32. Zhang, B.; Zhang, B.; Liu, Y.-L.; Chen, Y.; Neoh, K.-G.; Li, Y.-X.; Zhu, C.-X.; Tok, E.-S.; Kang, E.-T. Nonvolatile rewritable memory effects in graphene oxide functionalized by conjugated polymer containing fluorene and carbazole units. Chemistry 2011, 17, 10304–10311. [Google Scholar] [CrossRef] [PubMed]
  33. Liu, S.-J.; Lin, Z.-H.; Zhao, Q.; Ma, Y.; Shi, H.-F.; Yi, M.-D.; Ling, Q.-D.; Fan, Q.-L.; Zhu, C.-X.; Kang, E.-T.; et al. Flash-memory effect for polyfluorenes with on-chain Iridium(III) complexes. Adv. Funct. Mater. 2011, 21, 979–985. [Google Scholar] [CrossRef]
  34. Chen, C.-J.; Yen, H.-J.; Chen, W.-C.; Liou, G.-S. Resistive switching non-volatile and volatile memory behavior of aromatic polyimides with various electron-withdrawing moieties. J. Mater. Chem. 2012, 22, 14085–14093. [Google Scholar] [CrossRef]
  35. Zhang, B.; Liu, G.; Chen, Y.; Wang, C.; Neoh, K.-G.; Bai, T.; Kang, E.-T. Electrical bistability and worm memory effects in donor-acceptor polymers based on poly(N-vinylcarbazole). Chempluschem 2012, 77, 74–81. [Google Scholar] [CrossRef]
  36. Liu, C.-L.; Chen, W.-C. Donor-acceptor polymers for advanced memory device applications. Polym. Chem. 2011, 2, 2169–2174. [Google Scholar] [CrossRef]
  37. Carchano, H.; Lacoste, R.; Segui, Y. Bistable Electrical Switching in Polymer Thin Films. Appl. Phys. Lett. 1971, 19, 414. [Google Scholar] [CrossRef]
  38. Pender, L.F.; Fleming, R.J. Memory switching in glow discharge polymerized thin films. J. Appl. Phys. 1975, 46, 3426–3431. [Google Scholar] [CrossRef]
  39. Segui, Y.; Ai, B.; Carchano, H. Switching in polystyrene films: Transition from on to off state. J. Appl. Phys. 1976, 47, 140–143. [Google Scholar] [CrossRef]
  40. Hwang, W.; Kao, K.C. On the theory of filamentary double injection and electroluminescence in molecular crystals. J. Chem. Phys. 1974, 60, 3845–3855. [Google Scholar] [CrossRef]
  41. Wierschem, A.; Niedernostheide, F.J.; Gorbatyuk, A.; Purwins, H.G. Observation of current-density filamentation in multilayer structures by EBIC measurements. Scanning 1995, 17, 106–116. [Google Scholar] [CrossRef]
  42. Joo, W.-J.; Choi, T.-L.; Lee, J.; Lee, S.K.; Jung, M.-S.; Kim, N.; Kim, J.M. Metal filament growth in electrically conductive polymers for nonvolatile memory application. J. Phys. Chem. B 2006, 110, 23812–23816. [Google Scholar] [CrossRef] [PubMed]
  43. Jana, D.; Roy, S.; Panja, R.; Dutta, M.; Rahaman, S.Z.; Mahapatra, R.; Maikap, S. Conductive-bridging random access memory: Challenges and opportunity for 3D architecture. Nanoscale Res. Lett. 2015, 10, 188. [Google Scholar] [CrossRef] [PubMed]
  44. Waser, R.; Aono, M. Nanoionics-based resistive switching memories. Nat. Mater. 2007, 6, 833. [Google Scholar] [CrossRef] [PubMed]
  45. Wu, H.-C.; Liu, C.-L.; Chen, W.-C. Donor-acceptor conjugated polymers of arylene vinylene with pendent phenanthro[9,10-d]imidazole for high-performance flexible resistor-type memory applications. Polym. Chem. 2013, 4, 5261. [Google Scholar] [CrossRef]
  46. Hahm, S.G.; Lee, T.J.; Kim, D.M.; Kwon, W.; Ko, Y.-G.; Michinobu, T.; Ree, M. Electrical memory characteristics of nitrogen-linked poly(2,7-carbazole)s. J. Phys. Chem. C 2011, 115, 21954. [Google Scholar] [CrossRef]
  47. Yu, A.-D.; Kurosawa, T.; Lai, Y.-C.; Higashihara, T.; Ueda, M.; Liu, C.-L.; Chen, W.-C. Flexible polymer memory devices derived from triphenylamine–pyrene containing donor-acceptor polyimides. J. Mater. Chem. 2012, 22, 20754–20763. [Google Scholar] [CrossRef]
  48. Chen, C.-J.; Yen, H.-J.; Hu, Y.-C.; Liou, G.-S. Novel programmable functional polyimides: Preparation, mechanism of CT induced memory, and ambipolar electrochromic behavior. J. Mater. Chem. C 2013, 1, 7623–7634. [Google Scholar] [CrossRef]
  49. Liu, G.; Ling, Q.-D.; Kang, E.-T.; Neoh, K.-G.; Liaw, D.-J.; Chang, F.-C.; Zhu, C.-X.; Chan, D.S.-H. Bistable electrical switching and write-once read-many-times memory effect in a donor-acceptor containing polyfluorene derivative and its carbon nanotube composites. J. Appl. Phys. 2007, 102, 024502. [Google Scholar] [CrossRef]
  50. Ling, Q.-D.; Kang, E.-T.; Neoh, K.-G.; Chen, Y.; Zhuang, X.-D.; Zhu, C.; Chan, D.S.H. Thermally stable polymer memory devices based on a π-conjugated triad. Appl. Phys. Lett. 2008, 92, 143302. [Google Scholar] [CrossRef]
  51. Liu, G.; Liaw, D.-J.; Lee, W.-Y.; Ling, Q.-D.; Zhu, C.-X.; Chan, D.S.-H.; Kang, E.-T.; Neoh, K.-G. Tristable electrical conductivity switching in a polyfluorene–diphenylpyridine copolymer with pendant carbazole groups. Philos. Trans. R. Soc. A 2009, 367, 4203. [Google Scholar] [CrossRef] [PubMed]
  52. Zhuang, X.-D.; Chen, Y.; Li, B.-X.; Ma, D.-G.; Zhang, B.; Li, Y. Polyfluorene-Based Push−Pull Type Functional Materials for Write-Once-Read-Many-Times Memory Devices. Chem. Mater. 2010, 22, 4455. [Google Scholar] [CrossRef]
  53. Xu, X.; Li, L.; Liu, B.; Zou, Y. Organic semiconductor memory devices based on a low-band gap polyfluorene derivative with isoindigo as electron-trapping moieties. Appl. Phys. Lett. 2011, 98, 063303. [Google Scholar] [CrossRef]
  54. Wu, H.-C.; Yu, A.-D.; Lee, W.-Y.; Liu, C.-L.; Chen, W.-C. A poly(fluorene-thiophene) donor with a tethered phenanthro[9,10-d]imidazole acceptor for flexible nonvolatile flash resistive memory devices. Chem. Commun. 2012, 48, 9135. [Google Scholar] [CrossRef] [PubMed]
  55. Wang, C.; Liu, G.; Chen, Y.; Liu, S.; Chen, Q.; Li, R.; Zhang, B. Dithienopyrrole-/Benzodithiophene-Based Donor-Acceptor Polymers for Memristor. ChemPlusChem 2014, 79, 1263. [Google Scholar] [CrossRef]
  56. Lei, B.; Kwan, W.L.; Shao, Y.; Yang, Y. Statistical characterization of the memory effect in polyfluorene based non-volatile resistive memory devices. Org. Electron. 2009, 10, 1048. [Google Scholar] [CrossRef]
  57. Kwan, W.L.; Lei, B.; Shao, Y.; Yang, Y. Understanding the switching mechanism of polymer memory. Curr. Appl. Phys. 2010, 10, E50. [Google Scholar] [CrossRef]
  58. Joo, C.W.; Jeon, S.O.; Yook, K.S.; Lee, J.Y. Origin of bistability in polyfluorene-based organic bistable devices. Synth. Met. 2009, 159, 1809. [Google Scholar] [CrossRef]
  59. Gomes, H.L.; Benvenho, A.R.V.; de Leeuw, D.M.; Colle, M.; Stallinga, P.; Verbakel, F.; Taylor, D.M. Switching in polymeric resistance random-access memories (RRAMS). Org. Electron. 2008, 9, 119. [Google Scholar] [CrossRef]
  60. Rocha, P.R.F.; Kiazadeh, A.; De Leeuw, D.M.; Meskers, S.C.J.; Verbakel, F.; Taylor, D.M.; Gomes, H.L. The role of internal structure in the anomalous switching dynamics of metal-oxide/polymer resistive random access memories. J. Appl. Phys. 2013, 113, 134504. [Google Scholar] [CrossRef]
  61. Fang, Y.-K.; Liu, C.-L.; Li, C.; Lin, C.-J.; Mezzenga, R.; Chen, W.-C. Synthesis, morphology, and properties of poly(3-hexylthiophene)-block-poly(vinylphenyl oxadiazole) donor-acceptor rod-coil block copolymers and their memory device applications. Adv. Funct. Mater. 2010, 20, 3012. [Google Scholar] [CrossRef]
  62. Park, S.; Lee, T.J.; Kim, D.M.; Kim, J.C.; Kim, K.; Kwon, W.; Ko, Y.-G.; Choi, H.; Chang, T.; Ree, M. Electrical memory characteristics of a nondoped π-conjugated polymer bearing carbazole moieties. J. Phys. Chem. B 2010, 114, 10294. [Google Scholar] [CrossRef] [PubMed]
  63. Lee, T.J.; Park, S.; Hahm, S.G.; Kim, D.M.; Kim, K.; Kim, J.; Kwon, W.; Kim, Y.; Chang, T.; Ree, M. Programmable digital memory characteristics of nanoscale thin films of a fully conjugated polymer. J. Phys. Chem. C 2009, 113, 3855. [Google Scholar] [CrossRef]
  64. Pan, L.; Hu, B.; Zhu, X.; Chen, X.; Shang, J.; Tan, H.; Xue, W.; Zhu, Y.; Liu, G.; Li, R.-W. Role of oxadiazole moiety in different D-A polyazothines and related resistive switching properties. J. Mater. Chem. C 2013, 1, 4556. [Google Scholar] [CrossRef]
  65. Ko, Y.-G.; Kim, D.M.; Kim, K.; Jung, S.; Wi, D.; Michinobu, T.; Ree, M. Digital memory versatility of fully π-conjugated donor-acceptor hybrid polymers. ACS Appl. Mater. Interfaces 2014, 6, 8415. [Google Scholar] [CrossRef] [PubMed]
  66. Liu, S.-J.; Lin, W.-P.; Yi, M.-D.; Xu, W.-J.; Tang, C.; Zhao, Q.; Ye, S.-H.; Liu, X.-M.; Huang, W. Conjugated polymers with cationic iridium(III) complexes in the side-chain for flash memory devices utilizing switchable through-space charge transfer. J. Mater. Chem. 2012, 22, 22964. [Google Scholar] [CrossRef]
  67. Wang, P.; Liu, S.-J.; Lin, Z.-H.; Dong, X.-C.; Zhao, Q.; Lin, W.-P.; Yi, M.-D.; Ye, S.-H.; Zhu, C.-X.; Huang, W. Design and synthesis of conjugated polymers containing Pt(II) complexes in the side-chain and their application in polymer memory devices. J. Mater. Chem. 2012, 22, 9576. [Google Scholar] [CrossRef]
  68. Lin, W.; Sun, H.; Liu, S.; Yang, H.; Ye, S.; Xu, W.; Zhao, Q.; Liu, X.; Huang, W. Conjugated polymer with on-chain Pt(II) complex for resistive random-access memory device. Macromol. Chem. Phys. 2012, 213, 2472. [Google Scholar] [CrossRef]
  69. Han, S.T.; Zhou, Y.; Roy, V.A.L. Towards the development of flexible non-volatile memories. Adv. Mater. 2013, 25, 5425–5449. [Google Scholar] [CrossRef] [PubMed]
  70. Yen, H.J.; Tsai, H.; Kuo, C.Y.; Nie, W.; Mohite, A.D.; Gupta, G.; Wang, J.; Wu, J.H.; Liou, G.S.; Wang, H.L. Flexible memory devices with tunable electrical bistability via controlled energetics in donor-donor and donor-acceptor conjugated polymers. J. Mater. Chem. C 2014, 2, 4374–4378. [Google Scholar] [CrossRef]

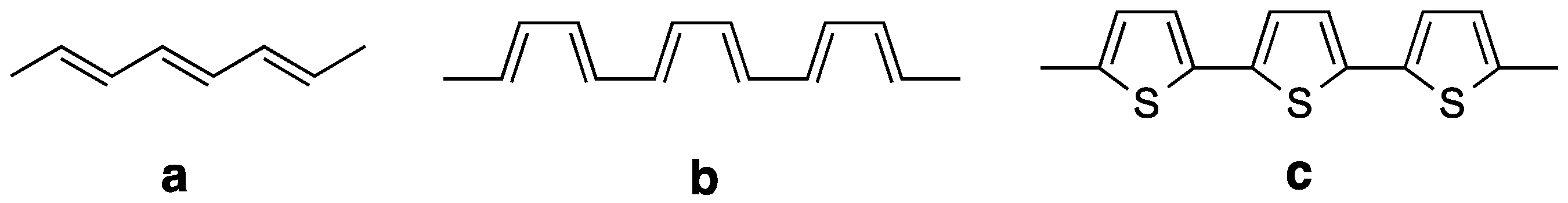

Scheme 1. Structures of conjugated polymers (a) trans- and (b) cis-polyacetylene; and (c) polythiophene.
Scheme 1. Structures of conjugated polymers (a) trans- and (b) cis-polyacetylene; and (c) polythiophene.
Polymers 09 00025 sch001

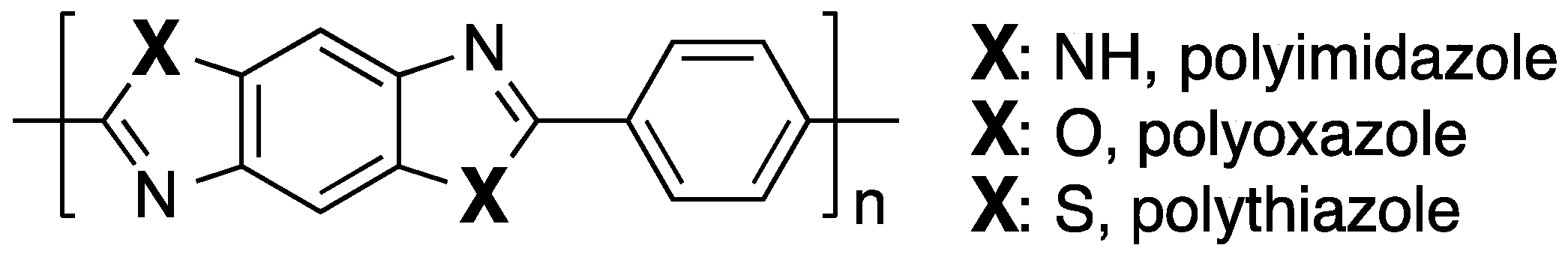

Scheme 2. Structures of typical rigid rod polybenzobisazoles.
Scheme 2. Structures of typical rigid rod polybenzobisazoles.
Polymers 09 00025 sch002

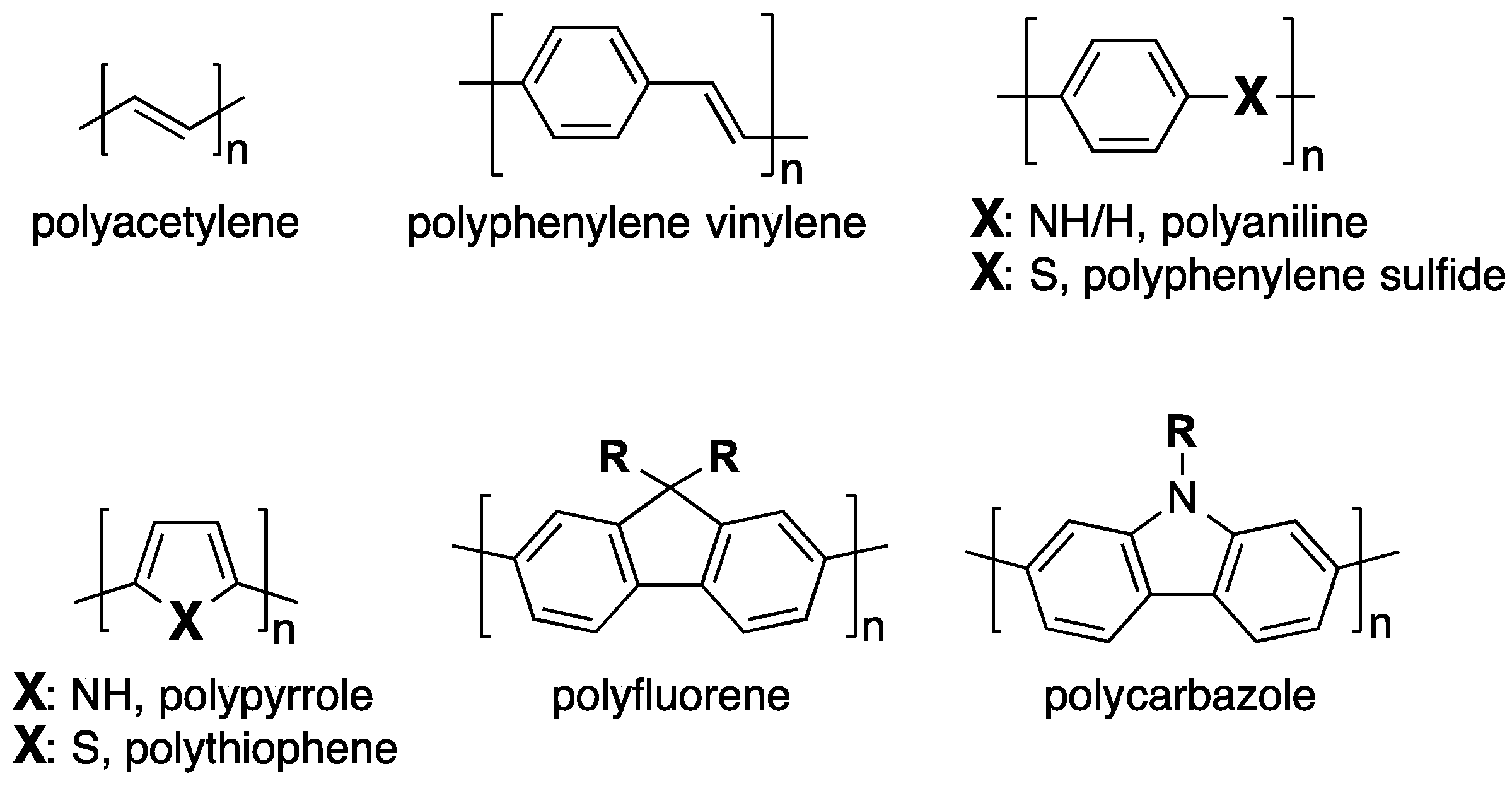

Scheme 3. Structures of conventional conjugated polymers.
Scheme 3. Structures of conventional conjugated polymers.
Polymers 09 00025 sch003

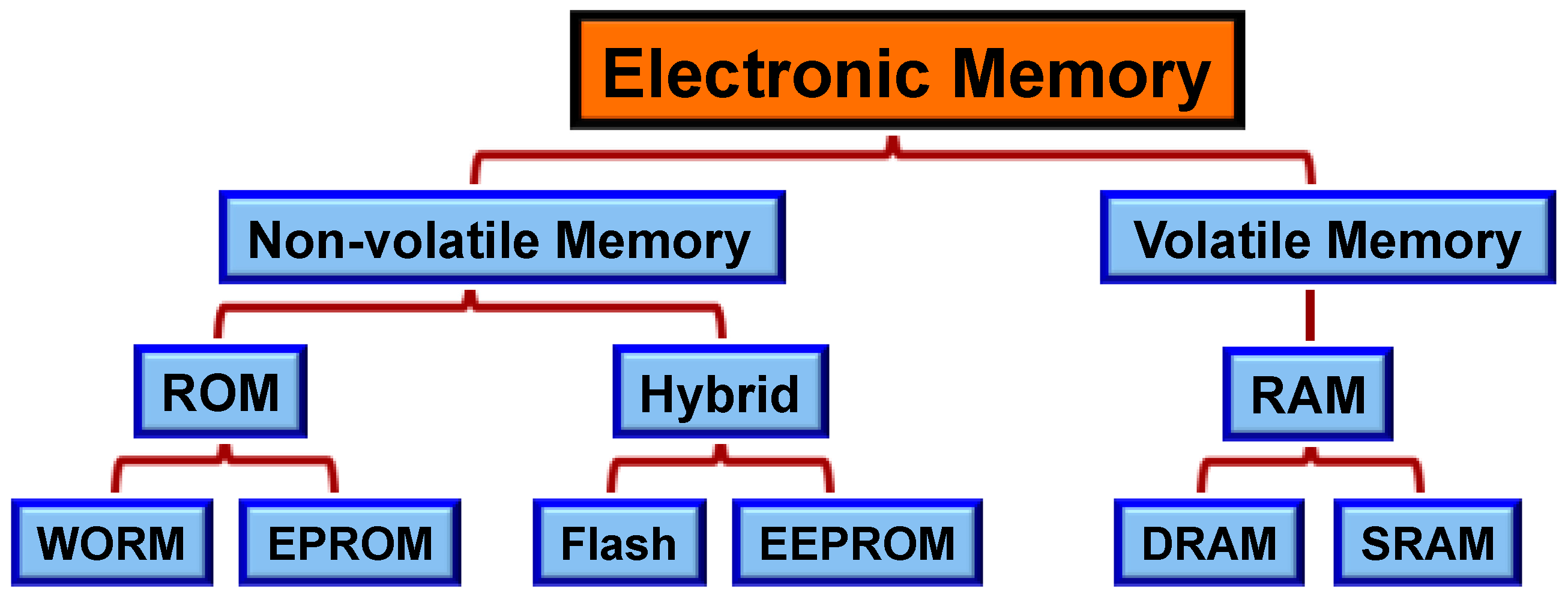

Figure 1. Classification of electronic memories. ROM: read-only memory; RAM: random-access memory; EPROM: erasable programmable read-only memory; EEPROM: electrically erasable programmable read-only memory.
Figure 1. Classification of electronic memories. ROM: read-only memory; RAM: random-access memory; EPROM: erasable programmable read-only memory; EEPROM: electrically erasable programmable read-only memory.
Polymers 09 00025 g001

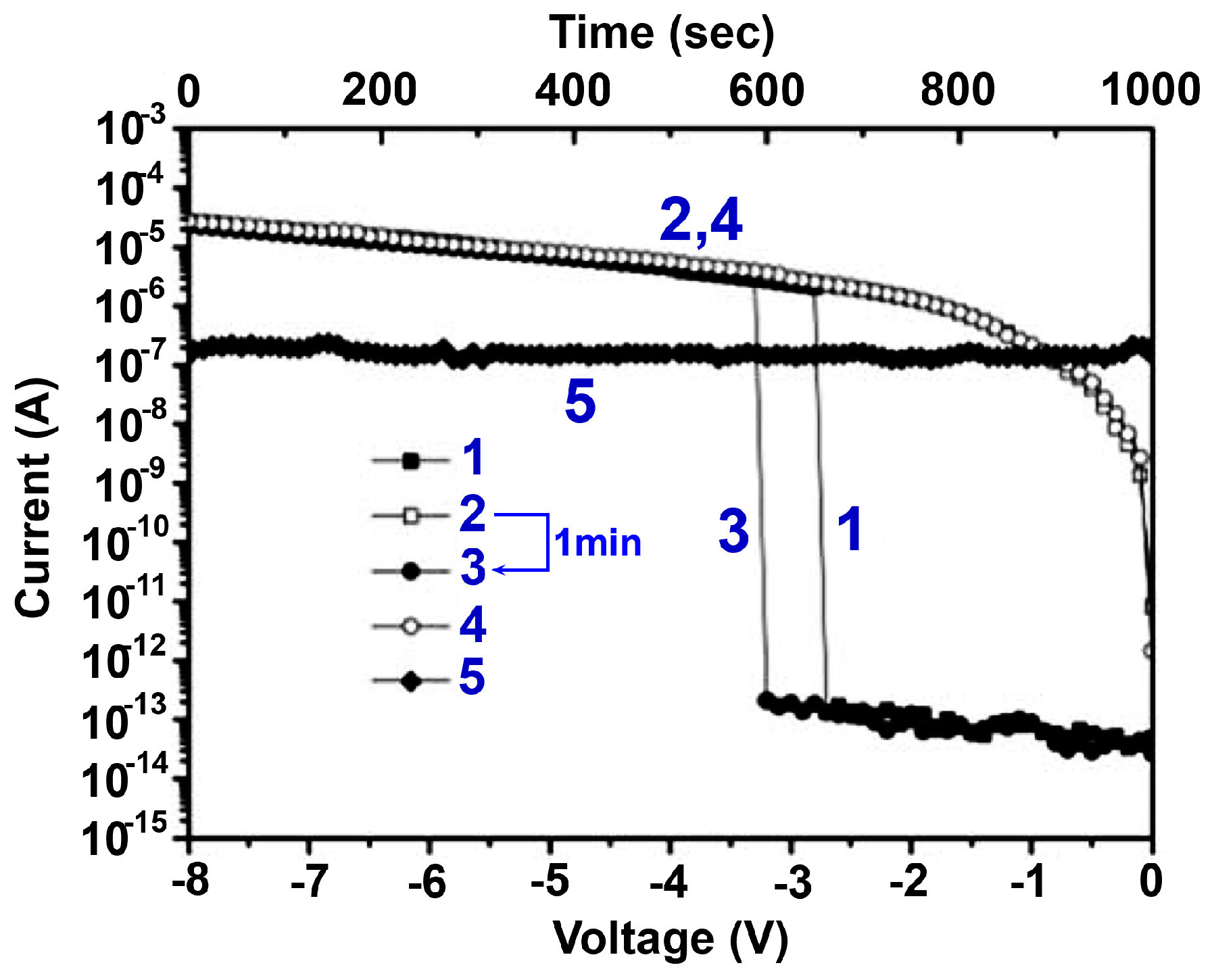

Figure 2. Current-voltage (I–V) characteristics of the indium tin oxide (ITO)/polymer/Al memory device as a representative of DRAM characteristic. (The third sweep was conducted about 1 min after turning off the power).
Figure 2. Current-voltage (I–V) characteristics of the indium tin oxide (ITO)/polymer/Al memory device as a representative of DRAM characteristic. (The third sweep was conducted about 1 min after turning off the power).
Polymers 09 00025 g002
Figure 3. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of SRAM characteristic. (The third sweep was conducted about 50 min after turning off the power).
Figure 3. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of SRAM characteristic. (The third sweep was conducted about 50 min after turning off the power).
Polymers 09 00025 g003
Scheme 4. Chemical structures of some polymers with DRAM memory properties.
Scheme 4. Chemical structures of some polymers with DRAM memory properties.
Polymers 09 00025 sch004

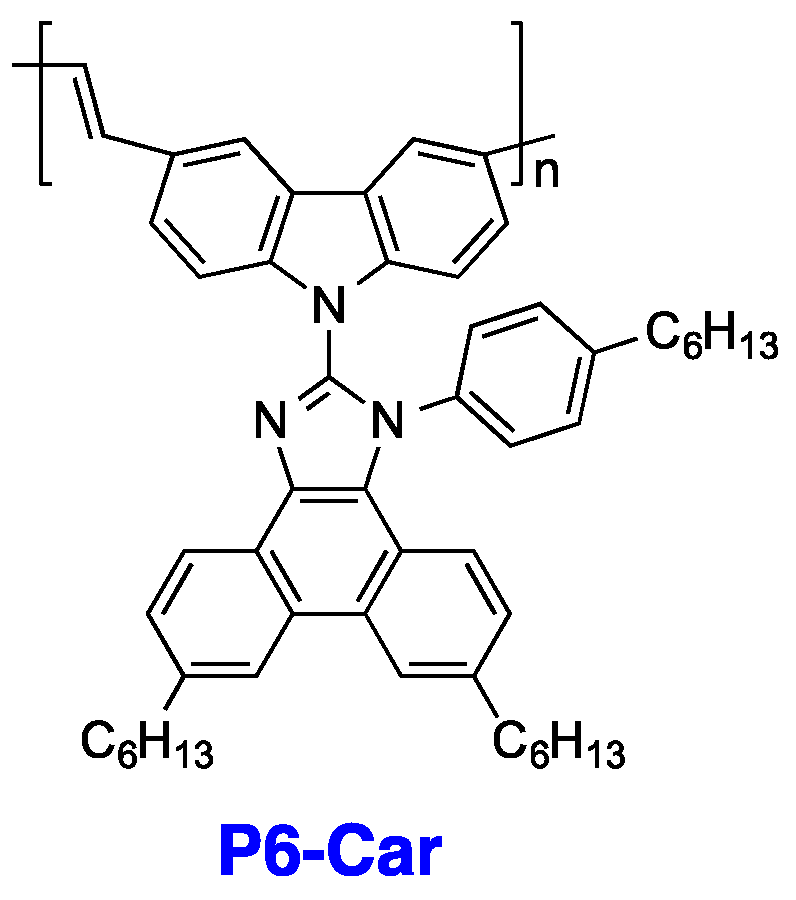

Scheme 5. Chemical structure of polymer with SRAM memory property.
Scheme 5. Chemical structure of polymer with SRAM memory property.
Polymers 09 00025 sch005

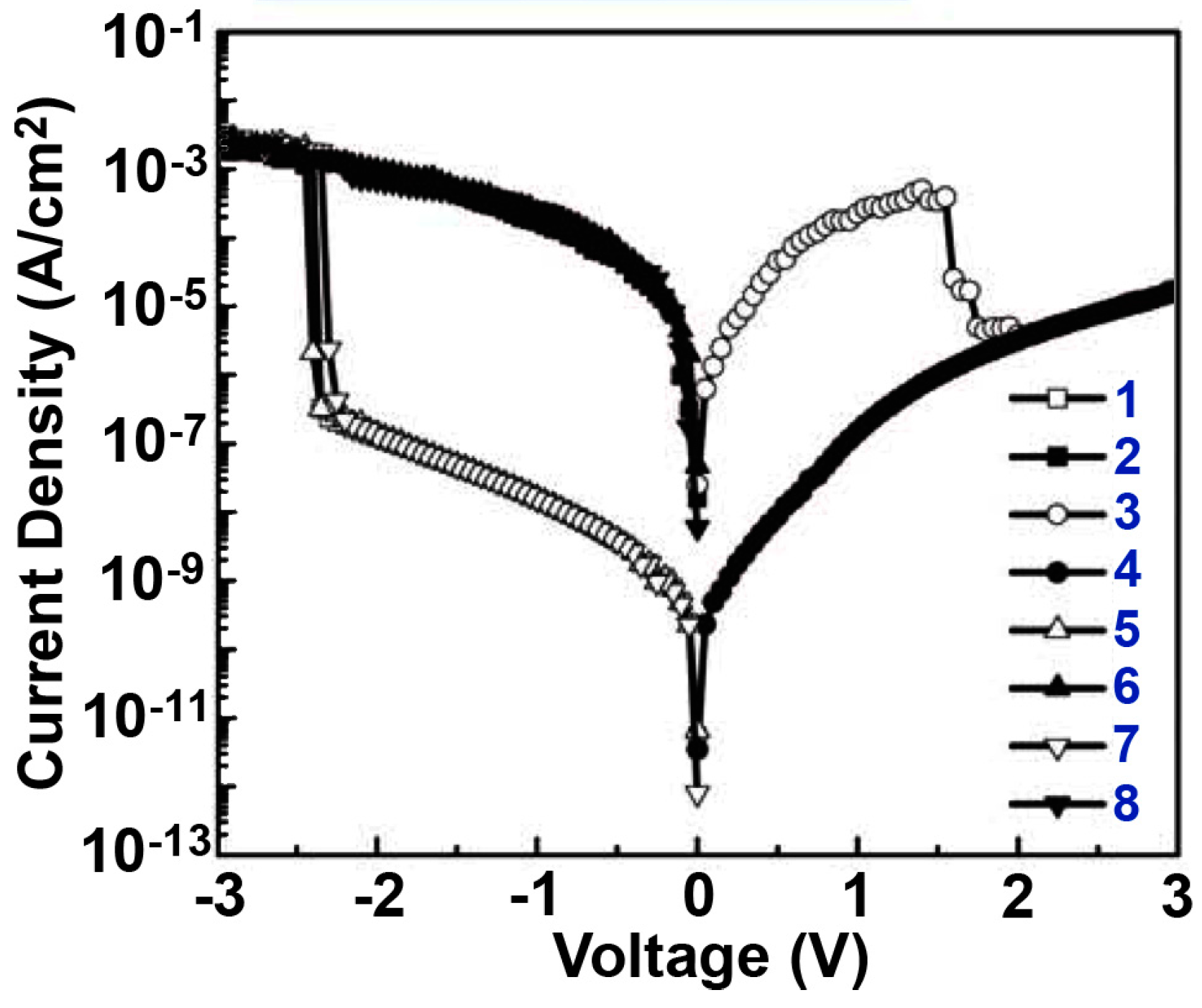

Figure 4. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of Flash characteristic.
Figure 4. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of Flash characteristic.
Polymers 09 00025 g004

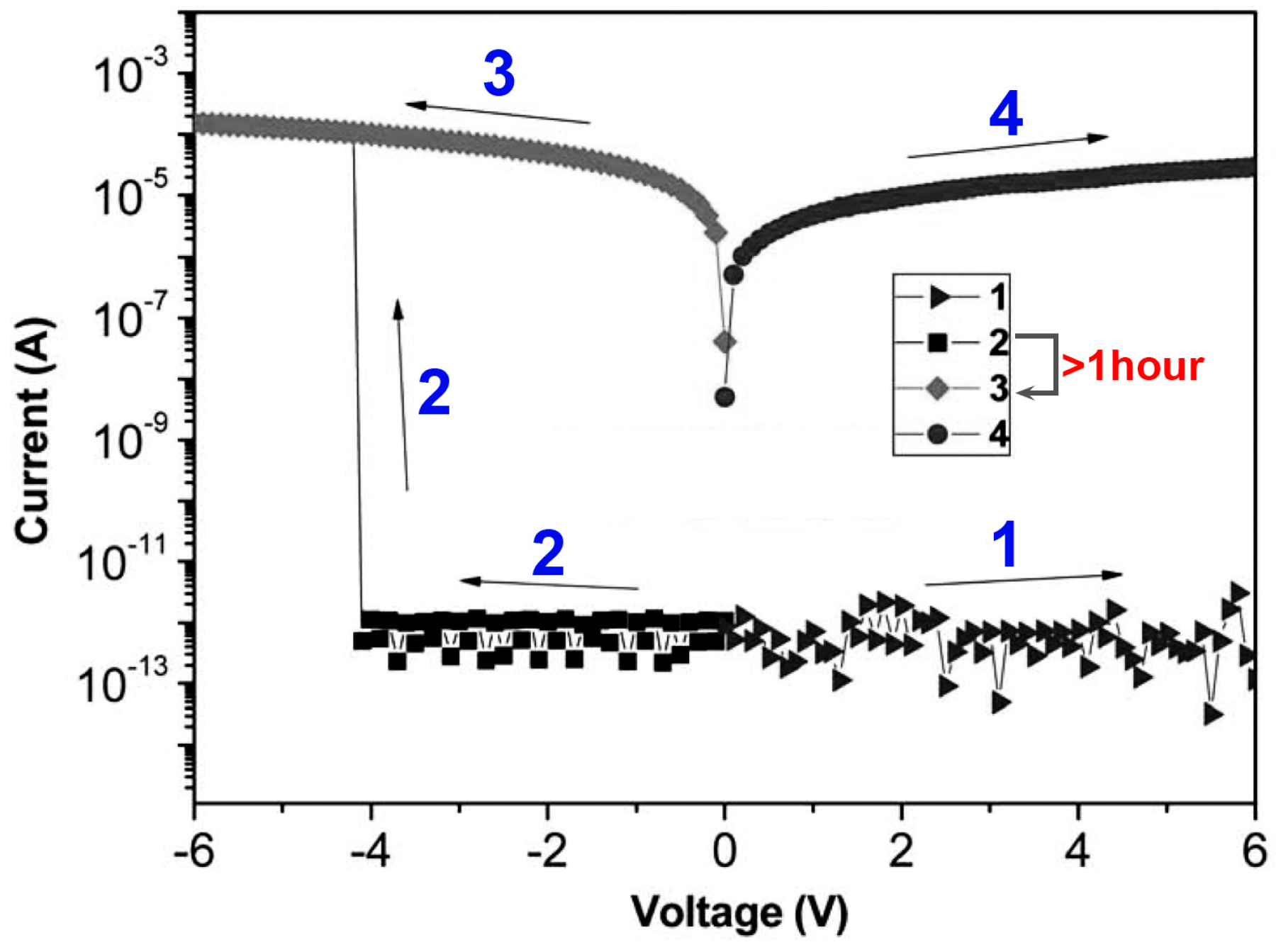

Figure 5. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of WORM characteristic. (The third sweep was conducted more than one hour after turning off the power).
Figure 5. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of WORM characteristic. (The third sweep was conducted more than one hour after turning off the power).
Polymers 09 00025 g005

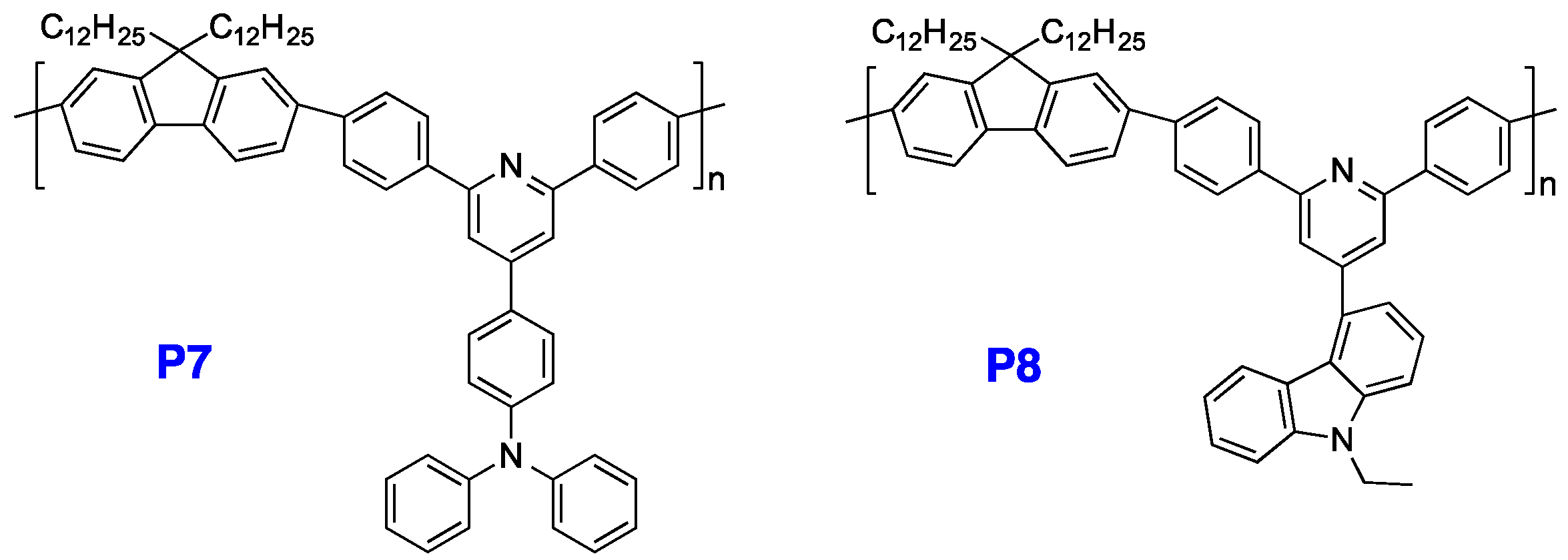

Scheme 6. Chemical structures of some polymers with WORM memory properties.
Scheme 6. Chemical structures of some polymers with WORM memory properties.
Polymers 09 00025 sch006

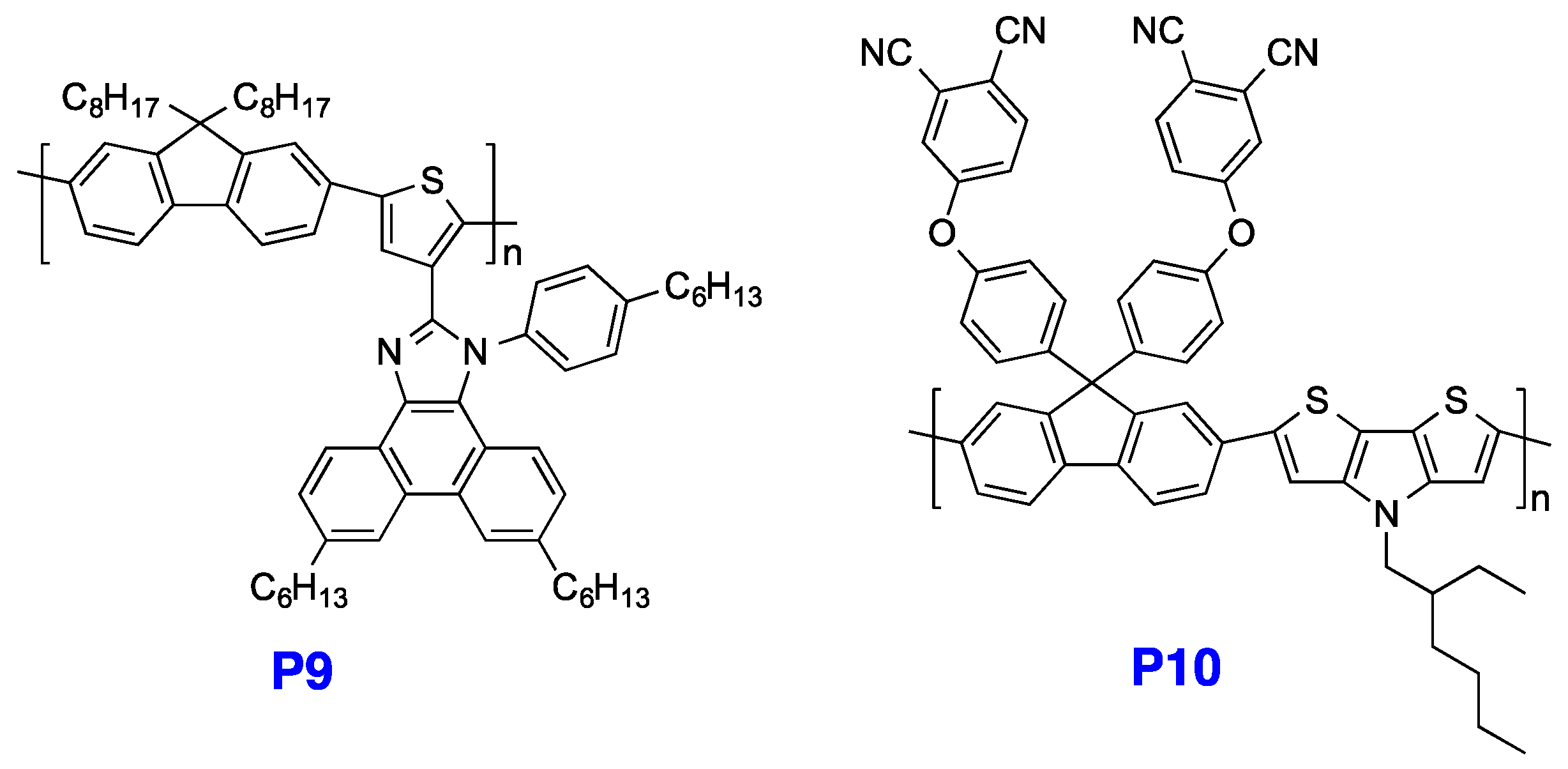

Scheme 7. Chemical structures of some polymers with Flash memory properties.
Scheme 7. Chemical structures of some polymers with Flash memory properties.
Polymers 09 00025 sch007

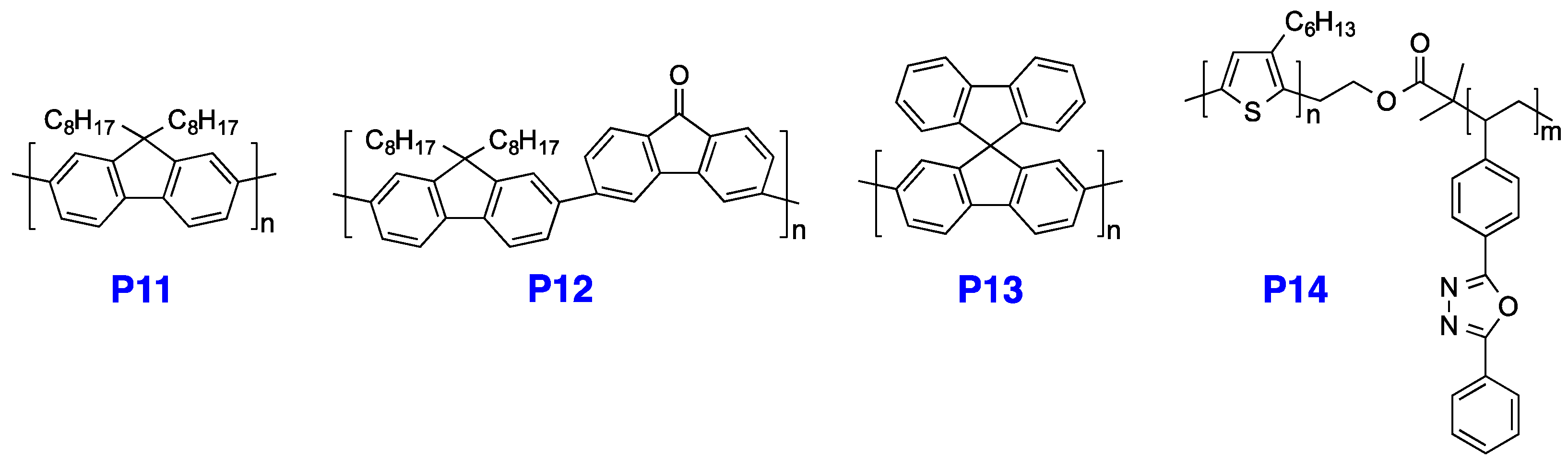

Scheme 8. Chemical structures of some polymers with negative differential resistance (NDR) memory properties.
Scheme 8. Chemical structures of some polymers with negative differential resistance (NDR) memory properties.
Polymers 09 00025 sch008

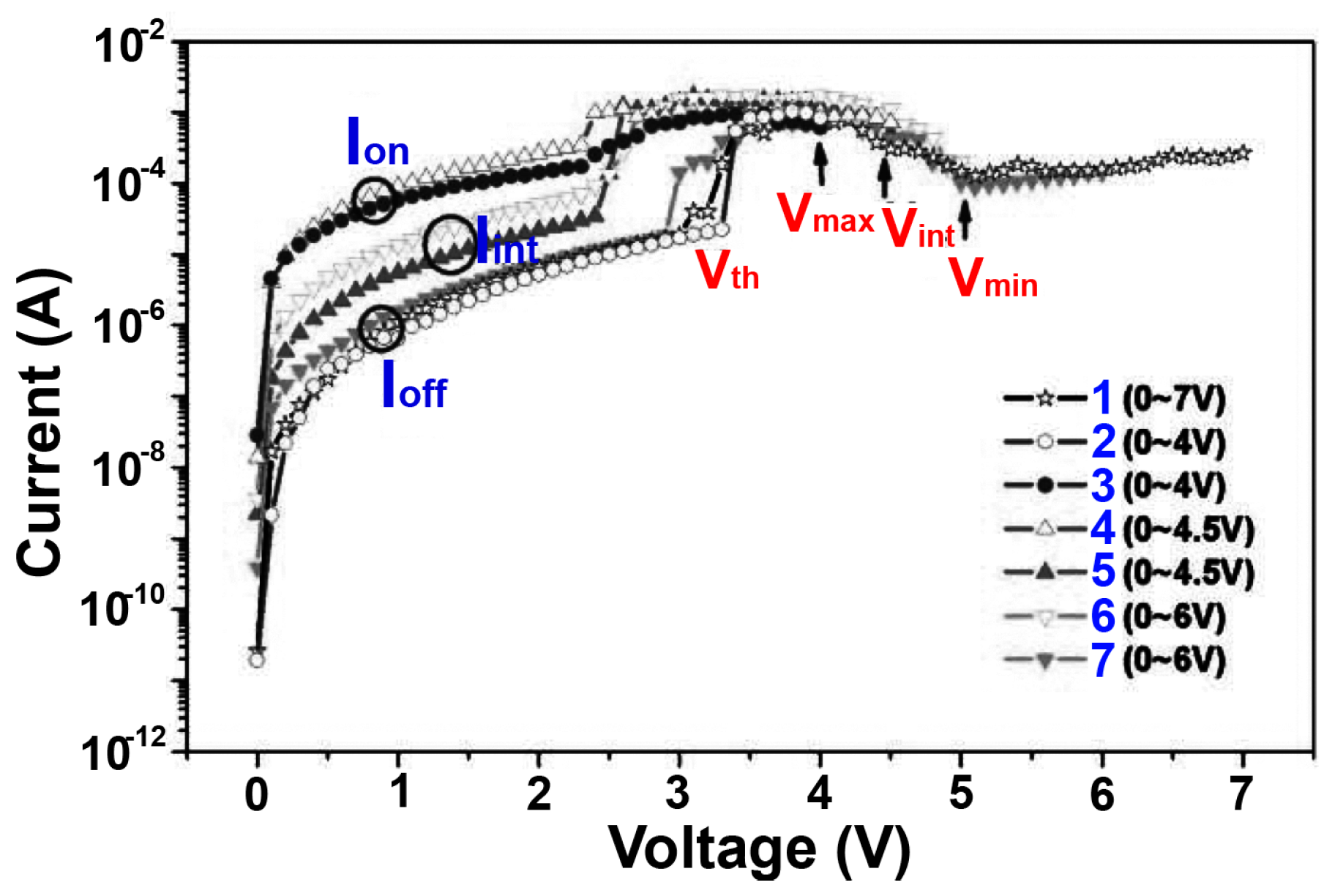

Figure 6. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of NDR characteristic.
Figure 6. Current-voltage (I–V) characteristics of the ITO/polymer/Al memory device as a representative of NDR characteristic.
Polymers 09 00025 g006
Scheme 9. Chemical structures of some polymers with donor effect.
Scheme 9. Chemical structures of some polymers with donor effect.
Polymers 09 00025 sch009
Scheme 10. Chemical structures of some polymers with acceptor effect.
Scheme 10. Chemical structures of some polymers with acceptor effect.
Polymers 09 00025 sch010
Scheme 11. Chemical structures of some polymers with thickness effect.
Scheme 11. Chemical structures of some polymers with thickness effect.
Polymers 09 00025 sch011
Scheme 12. Chemical structures of some polymers containing metal complexes.
Scheme 12. Chemical structures of some polymers containing metal complexes.
Polymers 09 00025 sch012

Share and Cite

MDPI and ACS Style

Yen, H.-J.; Shan, C.; Wang, L.; Xu, P.; Zhou, M.; Wang, H.-L. Development of Conjugated Polymers for Memory Device Applications. Polymers 2017, 9, 25. https://doi.org/10.3390/polym9010025

AMA Style

Yen H-J, Shan C, Wang L, Xu P, Zhou M, Wang H-L. Development of Conjugated Polymers for Memory Device Applications. Polymers. 2017; 9(1):25. https://doi.org/10.3390/polym9010025

Chicago/Turabian Style

Yen, Hung-Ju, Changsheng Shan, Leeyih Wang, Ping Xu, Ming Zhou, and Hsing-Lin Wang. 2017. "Development of Conjugated Polymers for Memory Device Applications" Polymers 9, no. 1: 25. https://doi.org/10.3390/polym9010025

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
