Article

Poly(tris(4-carbazoyl-9-ylphenyl)amine)/Three Poly(3,4-ethylenedioxythiophene) Derivatives in Complementary High-Contrast Electrochromic Devices

1
Department of Chemical and Materials Engineering, National Kaohsiung University of Applied Sciences, Kaohsiung 80778, Taiwan
2
Institute of Materials Science and Engineering, National Central University, Taoyuan 32001, Taiwan
3
Institute of Environmental Engineering, National Sun Yat-Sen University, Kaohsiung 80424, Taiwan
4
Department of Chemical Engineering and Materials Engineering, National Yunlin University of Science and Technology, Yunlin 64002, Taiwan
*
Author to whom correspondence should be addressed.
Polymers 2017, 9(10), 543; https://doi.org/10.3390/polym9100543
Submission received: 21 September 2017 / Revised: 11 October 2017 / Accepted: 17 October 2017 / Published: 23 October 2017
(This article belongs to the Special Issue Polymer Characterization)

Abstract

:
A carbazole-based polymer (poly(tris(4-carbazoyl-9-ylphenyl)amine) (PtCz)) is electrosynthesized on an indium tin oxide (ITO) electrode. PtCz film displays light yellow at 0.0 V, earthy yellow at 1.3 V, grey at 1.5 V, and dark grey at 1.8 V in 0.2 M LiClO4/ACN/DCM (ACN/DCM = 1:3, by volume) solution. The ΔT and coloration efficiency (η) of PtCz film are 30.5% and 54.8 cm2∙C−1, respectively, in a solution state. Three dual-type electrochromic devices (ECDs) are fabricated using the PtCz as the anodic layer, poly(3,4-ethylenedioxythiophene) (PEDOT), poly(3,3-dimethyl-3,4-dihydro-thieno[3,4-b][1,4]dioxepine) (PProDOT-Me2), and poly(3,4-(2,2-diethylpropylenedioxy)thiophene) (PProDOT-Et2) as the cathodic layers. PtCz/PProDOT-Me2 ECD shows high ΔTmax (36%), high ηmax (343.4 cm2·C−1), and fast switching speed (0.2 s) at 572 nm. In addition, PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs show satisfactory open circuit memory and long-term stability.

Graphical Abstract

1. Introduction

π-conjugated polymers (CPs) and oligomers have attracted a great deal of interest due to their suitability for potential applications in supercapacitors [1,2], catalysts [3,4,5], actuators [6], polymer light-emitting diodes [7,8,9], electrochromic devices (ECDs) [10,11,12], polymer solar cells [13], and sensors [14,15,16]. The most commonly studied classes of CPs are poly(phenylene vinylene)s (PPV) [17], polycarbazoles (PCz) [18,19], polythiophenes (PT) [20], polypyrroles (PPy) [21], poly(3,4-ethylenedioxythiophene) (PEDOT) [22], and polyanilines (PANI) [23]. Cz-based polymers have been widely used as hole transporting and host materials in optoelectronic devices due to the nitrogen atom of Cz ring shows good hole transporting ability, high thermal stability, and ease of formation of radical cations and dications [24]. Polythiophenes and polypyrroles have been extensively used as electrochromic materials due to the fact that they can be easily synthesized electrochemically or chemically with a wide range of electrochromic properties available through alkyl, alkoxy, and phenyl substitution on polythiophenes and polypyrroles. PEDOT and its derivatives poly(3,3-dimethyl-3,4-dihydro-thieno[3,4-b][1,4]dioxepine) (PProDOT-Me2) and poly(3,3-diethyl-3,4-dihydro-thieno[3,4-b][1,4]dioxepine) (PProDOT-Et2) were extensively investigated for many useful properties including low oxidation potential, electron-rich dioxy group, optical transparency in doped state, moderate band gap, and high stability [25,26].
There have been no reports for the applications of poly(tris(4-carbazoyl-9-ylphenyl)amine) as anodic polymer in electrochromic devices. In the present study, a carbazole-based monomer (tris(4-carbazoyl-9-ylphenyl)amine, tCz) was synthesized and its corresponding homopolymer (PtCz) was polymerized electrochemically. The spectroelectrochemistry, electrochromic photographs, optical contrast, and coloration efficiency of PtCz film in solution state were studied. Moreover, dual-type ECDs based on PtCz and PEDOT derivatives were fabricated, the electrochromic behaviors, open circuit memory, and long-term switching stability of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs were also investigated.

2. Materials and Methods

2.1. Materials

All chemicals were purchased from Sigma-Aldrich, Tokyo Chemical Industry Co., Ltd. (TCI, Tokyo, Japan), Acros (Geel, Belgium), Alfa-Aesar (Ward Hill, MA, USA), and used as received. Tris(4-carbazoyl-9-ylphenyl)amine, 3,3-dimethyl-3,4-dihydro-thieno[3,4-b][1,4]dioxepine (ProDOT-Me2) and 3,3-diethyl-3,4-dihydro-thieno[3,4-b][1,4]dioxepine (ProDOT-Et2) were synthesized following previously published procedures [27,28].

2.2. Synthesis of Tris(4-carbazoyl-9-ylphenyl)amine (tCz)

Carbazole (70.22 mg, 0.42 mmol), tris(4-iodophenyl)amine (68.53 mg, 0.11 mmol), K2CO3 (165.84 mg, 1.20 mmol), Cu bronze (69.58 mg, 1.095 mmol) and 18-crown-6 (8.72 mg, 0.033 mmol) were stirred in 45 mL 1,2-dichlorobenzene for two days at 190 °C. The crude product is vacuum distilled and the residue is purified by column chromatography using a mixture of hexane and dichloromethane (DCM) (2:1 by volume) as eluent. Yield: 41%. 1H-NMR (700 MHz, DMSO-d6): δ 8.26 (d, 6H, Ar-H), 7.69 (dd, 6H, Ar-H), 7.57 (dd, 6H, Ar-H), 7.50–7.46 (m, 12H, Ar-H), 7.32–7.30 (m, 6H, Ar-H). Elem. anal. calcd. for C54H36N4: C, 87.54%; H, 4.90%; N, 7.56%. Found: C, 87.32%; H, 4.82%; N, 7.57%.

2.3. Electrosynthesis of PtCz, PProDOT-Me2, and PProDOT-Et2 Films

The electrosynthesis of PtCz film in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4 as a supporting electrolyte was carried out by scanning the potential between 0.0 and 1.8 V (vs. Ag/AgCl) potentiodynamically at 100 mV·s−1 for 3 cycles. The electrochemically deposited PtCz film was rinsed with DI water for 5 min and then dried at 105 °C for 3 min. As shown in Table 1, the PEDOT, PProDOT-Me2, and PProDOT-Et2 films were deposited from 0.008 M EDOT, 0.010 M ProDOT-Me2, and 0.017 M ProDOT-Et2 in a 0.2 M LiClO4/acetonitrile (ACN) solution, respectively. Electrosynthesis of PEDOT, PProDOT-Me2, and PProDOT-Et2 films were performed potentiostatically at 1.7 V (vs. Ag/AgCl) for 50 mC. Polymer thicknesses at the electrode surface obtained from an Alpha-Step profilometer (KLA Tencor D-120, CA, USA) were about 200–300 nm.

2.4. Electrochromic Characterization

Electrochromic characterization of the polymer films and electrochromic devices were carried out using a CHI627D electrochemical analyzer (CH Instruments, Austin, TX, USA). Cyclic voltammetry (CV) studies were performed using in a three-component cell, which contained an ITO-coated glass plate (area: 1 cm × 1.5 cm) as the working electrode, a platinum wire as the counter electrode, and an Ag/AgCl as the reference electrode. The in situ spectroelectrochemical spectra were recorded using an Agilent Cary 60 UV-Visible spectrophotometer (Varian Inc., Walnut Creek, CA, USA) in time course mode.

2.5. Preparation of Electrochromic Electrolytes

The polymer electrolytes of the ECDs were prepared using the solution-cast method. To prepare the solution, poly(methyl methacrylate) (PMMA), propylene carbonate (PC), and LiClO4 were dissolved in acetone, and the mixture was stirred magnetically at room temperature for 36 h. The polymer electrolytes were prepared using PMMA:PC:LiClO4 in a weight ratio of 33:53:14. The final mixture was cast on glass petri dishes. After evaporating the solvent at room temperature for 2 h, the samples were vacuum-dried at 80 °C for 24 h to remove the remaining solvent completely. Finally, the self-standing polymer electrolytes were obtained. The ECDs were fabricated by sandwiching the polymer electrolytes between two electrodes to perform the electrochromic measurements.

2.6. Fabrication of the ECDs

The ECDs were constructed using two complementary polymer layers, PtCz as the anodically coloring layer, PEDOT, PProDOT-Me2, or PProDOT-Et2 as the cathodically coloring layer. PtCz, PEDOT, PProDOT-Me2, and PProDOT-Et2 films were deposited on ITO substrates (active area: 1 cm × 1.5 cm). The ECDs were fabricated by arranging the oxidized and reduced films to face each other, and they were separated by an electrolyte. The fabrication procedures of ECDs are shown in Figure 1.

3. Results and Discussion

3.1. Electrochemistry of tCz and Its Electrochemical Polymerization

The electrosynthesis of PtCz film was implemented using CV with a scan rate of 100 mV∙s−1. The electropolymerization scheme and mechanism of PtCz are shown in Figure 2 [29]. The successive cyclic voltammograms of 0.002 M neat tCz taken in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4 as a supporting electrolyte at a scanning rate of 100 mV·s−1 are shown in Figure 3. For the first scan of cyclic voltammogram, the onset potential of tCz is 0.86 V vs. Ag/AgCl, two oxidation peaks located at 0.95 and 1.18 V indicate the polaron and bipolaron formation of tCz, the reduction peaks of tCz locate at 1.1 and 0.7 V. The increase in the oxidation and reduction curves wave current densities indicates that the amount of polymer deposited on the ITO working electrode increases with increasing cycles. The polymerization of tCz shows two quasi-reversible oxidation and reduction processes in Figure 3.

3.2. Electrochemical Behavior of PtCz Films

The as-prepared PtCz film was swept between 0.0 to 1.8 V at various scan rates between 10 and 200 mV·s1 in 0.2 M LiClO4/ACN/DCM solution. As shown in Figure 4, the electrochemical behavior of the PtCz film shows a single well-defined redox process, the anodic and cathodic peak current densities are proportional to the scan rates, implying that PtCz film is electroactive and adheres well to the electrode, and the electrochemical processes of PtCz film are reversible and not dominated by diffusion effects [30].

3.3. Spectroelectrochemistry of PtCz and PProDOT-Me2 Films

Spectroelectrochemistry can be used to analyze the changes in the absorption spectra of ECDs at various potentials [31]. Optoelectrochemical spectra of PtCz and PProDOT-Me2 films are shown in Figure 5. The PtCz film shows a π-π* transition peak at around 360 nm at 0.0 V, and it is light yellow in undoped state. Upon stepwise oxidation, the peak intensity at 360 nm diminishes gradually and new absorption bands at around 800 nm emerge, the PtCz film displays earthy yellow at 1.3 V, grey at 1.5 V, and dark grey at 1.8 V. On the other hand, the PProDOT-Me2 film shows two significant peaks at 570 and 625 nm at −1.5 V and presents dark blue in its neutral state. Upon oxidation progressively, the peak intensity at 570 and 625 nm diminish gradually and new absorption bands at more than 1000 nm emerge, the PProDOT-Me2 film displays grey at −0.8 V and light blue at −1.5 V. The colorimetric values (L*, a*, and b*), CIE chromaticity values (x, y), and CIE chromaticity diagrams of the PtCz and PProDOT-Me2 films at various potentials were shown in Table 2.

3.4. Electrochemical Switching of PtCz Film

Double potential step techniques can be used to investigate the response time and stability of polymer films during consecutive scans [32]. The double potential step chronoamperometry coupled with spectrophotometer of PtCz film was performed by stepping potentials between 0.0 and 1.8 V with a residence time of 10 s, and the transmittance-time profile of PtCz film is displayed in Figure 6. The coloration switching time (τc) and bleaching switching time (τb) were defined as the period required for achieving 90% of the desired response [33,34,35,36]. The τc and τb of PtCz film estimated at the third cycle at 760 nm are 5.5 and 5.0 s, respectively. The optical contrast (ΔT%) is an important property of electrochromic polymer films, which denotes as the transmittance difference between bleaching and coloring states of polymer films in solution state. The optical density (ΔOD) can be calculated using the following formula:
Δ OD = log ( T ox T red )
where Tox is the transmittance of anodic material in coloration state and Tred is the transmittance of anodic material in bleaching state.
As shown in Table 3, the ΔTmax and ΔOD values of PtCz film are 30.5% and −0.28, respectively, at 760 nm in 0.2 M LiClO4/ACN/DCM (ACN/DCM = 1:3, by volume) solution. The ΔTmax of PtCz film is larger than those reported for poly(9H-carbazol-9-ylpyrene) (ΔTmax = 29% at 460 nm [37]) and poly(1,3-bis(carbazol-9-yl)benzene) (ΔTmax = 18.6% at 1050 nm [38]) (Table 4). However, the ΔT of PtCz film is smaller than those reported for poly(ethyl-4-(3,6-di(thiophen-2-yl)-9H-carbazole-9-yl)-benzoate) (ΔTmax = 36% at 1100 nm [39]), poly(2,5-bis(9-methyl-9H-carbazol-3-yl)-1,3,4-oxadiazole) (ΔTmax = 75% at 660 nm [40]), poly(3,6-di(carbazol-9-yl)-N-(4-nitrophenyl)carbazole) (ΔTmax = 52% at 710 nm [29]), and poly(4,4′-bis(N-carbazolyl)-1,1′-biphenyl) (ΔTmax = 44.1% at 800 nm) [41].
The coloration efficiency (η) of electrochromic materials can be estimated using the following equation [42]:
η = Δ OD Q d
where Qd is the charge density (injected/ejected charges per unit sample area). The η value of PtCz film is 54.8 cm2∙C−1 at 760 nm in 0.2 M LiClO4/ACN/DCM (ACN/DCM = 1:3, by volume) solution. The η of PtCz film is larger than that reported for poly(3,6-di(carbazol-9-yl)-N-(4-nitrophenyl)carbazole) (η = 35 cm2∙C−1 [29]). However, the ΔTmax of PtCz film is smaller than those reported for poly(4,4′-bis(N-carbazolyl)-1,1′-biphenyl (η = 98 cm2∙C−1 [41]) and poly(1,3-bis(carbazol-9-yl)benzene) (η = 180.3 cm2∙C−1 [38]).

3.5. Spectroelectrochemistry of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs

Figure 7 shows the UV-Visible spectra of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs at various voltages. At 0.0 V, the PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs show π-π* transition peaks of PtCz film at around 360 nm.
Upon increasing the potential gradually, the π-π* transition peak of PtCz film diminishes and new absorption band at around 580–650 nm emerges. At 1.7–1.8 V, PEDOT, PProDOT-Me2, and PProDOT-Et2 films exhibit distinct absorption band at around 500–700 nm, and PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs became dark blue at 1.7–1.8 V. The electrochromic photographs, colorimetric values (L*, a*, and b*), CIE chromaticity values (x, y), and CIE chromaticity diagram of the PtCz/PProDOT-Me2 ECD at various potentials are summarized in Table 5.
Figure 8 shows the transmittance-time profiles of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs by repeating potentials between 0.0 and 1.8 V with a time interval of 10 s. The τc and τb estimated at various cycles for PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs are listed in Table 3. The τc and τb of PtCz/PEDOT ECD at 600 nm were 0.2 and 0.2 s, respectively, at the 50th cycle. Under similar conditions, the τc values of PtCz/PProDOT-Me2 ECD at 572 nm and PtCz/PProDOT-Et2 ECD at 591 nm were 0.2 and 0.1 s at the 50th cycle, respectively, and the corresponding τb values were 0.2 and 0.1 s at the 50th cycle, respectively, indicating that PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs showed fast switching speed when PtCz, PEDOT, PProDOT-Me2, and PProDOT-Et2 are employed as electrochromic layers. The τc and τb values of PtCz/PEDOT ECD were 0.6 and 1.0 s, respectively, at the third cycle, and 0.2 and 0.2 s, respectively, at the 50th cycle, indicating that switching time shortened with the number of switching cycles. Under similar conditions, PtCz/PProDOT-Me2 and PtCz/PProDOT-Et2 ECDs showed fast switching speed at high switching cycles than those at low switching cycles.
As summarized in Table 3, the ΔT values of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs were 24.0, 36.0, and 28.0% at the 3rd cycle, respectively. The ΔT of PtCz/PProDOT-Me2 and PtCz/PProDOT-Et2 ECDs were larger than that of PtCz/PEDOT, indicating PProDOT derivatives facilitated to increase the transmittance disparity when we employed PProDOT derivatives as cathodic layers in ECDs. PtCz/PProDOT-Me2 ECD shows the highest ΔT among these ECDs, the ΔT of PtCz/PProDOT-Me2 ECD is higher than those reported for poly(4,4′-di(N-carbazolyl)biphenyl)/PEDOT [43], poly(9H-carbazol-9-ylpyrene)/PEDOT [37], poly(3,6-bis(2-(3,4-ethylenedioxy)thienyl)-N-methylcarbazole)/PEDOT [44], poly(carbazole-co-indole-6-carboxylic acid)/PProDOT-Me2 [45], poly(4,4′-di(N-carbazoyl)biphenyl-co-2,2′-bithiophene)/PEDOT [46] and poly(2,5-bis(9-methyl-9H-carbazol-3-yl)-1,3,4-oxadiazole)/PEDOT [40] ECDs (Table 6). However, PtCz/PProDOT-Me2 ECD shows lower ΔT than that reported for poly(4,4′-di(N-carbazoyl)biphenyl-co-4H-cyclopenta[2,1-b:3,4-b′]dithiophene)/PEDOT ECD [47].
The ΔT values of PtCz/PEDOT ECD were 24.0 and 22.2% at the 3rd and 50th cycles, respectively. The ΔT of PtCz/PEDOT ECD decreases 1.8% from the 3rd to 50th cycles. Under similar conditions, the ΔT values of PtCz/PProDOT-Me2 and PtCz/PProDOT-Et2 ECDs were 36.0 and 28.0% at the 3rd cycle, respectively, and 35.0 and 26.6% at the 50th cycle, respectively. The ΔT values of PtCz/PProDOT-Me2 and PtCz/PProDOT-Et2 ECDs decrease 1.0 and 1.4% from the 3rd to 50th cycles, respectively. This result indicates that the incorporation of PProDOT-Me2 and PProDOT-Et2 as cathodic polymers gives rise to better ΔT stability than that obtained using PEDOT as the cathodic polymer.
The η value is high when η of ECDs is larger than 300 cm2∙C−1. As summarized in Table 3, the ηmax values of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs were calculated as 256.5, 343.4, and 336.8 cm2·C−1, respectively, the ηmax value of PtCz/PProDOT-Me2 and PtCz/PProDOT-Et2 ECDs are larger than that of PtCz/PEDOT ECD, indicating that PProDOT derivatives-based cathodic polymer leads to higher η than that of PEDOT-based cathodic polymer. As shown in Table 6, PtCz/PProDOT-Me2 ECD shows higher ηmax than those reported for poly(9H-carbazol-9-ylpyrene)/PEDOT [37], poly(4,4′-di(N-carbazoyl)biphenyl-co-4H-cyclopenta[2,1-b:3,4-b′]dithiophene)/PEDOT [47], and poly(4,4′-di(N-carbazoyl)biphenyl-co-2,2′-bithiophene)/PEDOT [46] ECDs. However, PtCz/PProDOT-Me2 ECD shows lower ηmax than that reported for poly(carbazole-co-indole-6-carboxylic acid)/PProDOT-Me2 ECD [45].

3.6. Open Circuit Memory of ECDs

The optical memory of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs were monitored at 600, 572, and 591 nm, respectively, as a function of time at 0.0 and 1.8 V by applying the potential for 1 s at each 100 s time interval. As shown in Figure 9a–c, three ECDs show almost no change of transmittance in the bleached state, i.e., a durable memory effect. The transmittances of three ECDs in the colored state are less stable than in the bleached state, but the transmittance loss is less than 3%. Both the bleached and colored states were highly stable, and the ECDs kept their color without loss, demonstrating PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs reveal satisfied open circuit memory.

3.7. Long-Term Stability of ECDs

The stability of long-term switching between redox states is important for ECDs’ applications [48,49]. The long-term switching ability between redox states of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs were examined using CV at potentials between 0.0 and 1.5 V with a scan rate of 500 mV·s1 (Figure 10). From the observation of switching between bleaching and coloring states of the ECDs, 93%, 92%, and 93% of their electrical activities are retained after 500 cycles for PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs, respectively, and 87%, 87%, and 87% of their electrical activities are retained after 1000 cycles for PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs, respectively, the electrical activities of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs at 500th cycle are larger than those reported for P(BTN-co-BT)/PEDOT ECD (stability = 79% at 500th cycle) [50] and PBTBE/PEDOT ECD (stability = 80.2% at 500th cycle) [51], indicating they are good candidates for electrochromic applications.

4. Conclusions

A carbazole-based monomer (tCz) was synthesized, and its corresponding homopolymer (PtCz) was prepared using electrochemical polymerization. The electrochemical processes of PtCz film are reversible, and the PtCz film shows four color variations (light yellow, earthy yellow, grey, and dark grey) from an undoped state to a doped state. Three ECDs based on PtCz as anodic polymer and PEDOT, PProDOT-Me2, and PProDOT-Et2 as the cathodic polymers were constructed, and the spectroelectrochemical properties of ECDs were characterized. The colors of constructed PtCz/PProDOT-Me2 ECD switched from yellowish-grey, light grey, purple, and dark blue upon the application of potential between −0.8 and +1.5 V. Electrochromic switching studies showed that the ΔTmax values of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs were 24.0%, 36.0%, and 28.0%, respectively, and the ηmax values of PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs were calculated as 256.5, 343.4, and 336.8 cm2·C−1, respectively. Moreover, PtCz/PEDOT, PtCz/PProDOT-Me2, and PtCz/PProDOT-Et2 ECDs reveal satisfied open circuit memory and long-term switching ability between redox states. The results show that the PtCz film is a potential anodic material for electrochromic applications in rear-view mirrors and motorcycle helmet-visors.

Acknowledgments

The authors would like to thank the Ministry of Science and Technology (MOST) of the Republic of China for financially supporting this project.

Author Contributions

Chung-Wen Kuo conceived the research topic; Po-Ying Lee and Tzi-yi Wu carried out the experiments; and Po-Ying Lee, Chung-Wen Kuo, Jeng-Kuei Chang, Yuan-Chung Lin, Tzi-Yi Wu, and Tsung-Han Ho analyzed the electrochromic properties.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Mao, L.; Li, Y.; Chi, C.Y.; Chan, H.S.O.; Wu, J.S. Conjugated polyfluorene imidazolium ionic liquids intercalated reduced graphene oxide for high performance supercapacitor electrodes. Nano Energy 2014, 6, 119–128. [Google Scholar] [CrossRef]
  2. Fu, W.C.; Hsieh, Y.T.; Wu, T.Y.; Sun, I.W. Electrochemical preparation of porous poly(3,4-ethylenedioxythiophene) electrodes from room temperature ionic liquids for supercapacitors. J. Electrochem. Soc. 2016, 163, G61–G68. [Google Scholar] [CrossRef]
  3. Wu, T.Y.; Kuo, C.W.; Chen, Y.L.; Chang, J.K. Copolymers based on indole-6-carboxylic acid and 3,4-ethylenedioxythiophene as platinum catalyst support for methanol oxidation. Catalysts 2015, 5, 1657–1672. [Google Scholar] [CrossRef]
  4. Wu, T.Y.; Chen, B.K.; Chang, J.K.; Chen, P.R.; Kuo, C.W. Nanostructured poly(aniline-co-metanilic acid) as platinum catalyst support for electro-oxidation of methanol. Int. J. Hydrogen Energy 2015, 40, 2631–2640. [Google Scholar] [CrossRef]
  5. Kuo, C.W.; Kuo, Z.Y.; Jow, J.J.; Wu, T.Y.; Chen, J.Y.; Zhu, X.X. Enhanced electrocatalytic performance for methanol oxidation via insertion of ruthenium oxide particles into Pt and polyaniline-poly(acrylic acid-co-maleic acid) composite electrode. Int. J. Electrochem. Sci. 2012, 7, 4974–4987. [Google Scholar] [CrossRef]
  6. Smela, E. Conjugated polymer actuators for biomedical applications. Adv. Mater. 2003, 15, 481–494. [Google Scholar] [CrossRef]
  7. Wu, T.Y.; Lee, N.C.; Chen, Y. Synthesis and characterization of new poly(p-phenylenevinylene) derivative containing 5,5′-diphenyl-2,2-p-(2,5-bis-hexyloxyphenylene)-bis-1,3,4-oxadiazole and distyrylbenzene moieties. Synth. Met. 2003, 139, 263–269. [Google Scholar] [CrossRef]
  8. Al-Asbahi, B.A.; Haji Jumali, M.H.; AlSalhi, M.S. Enhanced optoelectronic properties of PFO/fluorol 7GA hybrid light emitting diodes via additions of TiO2 nanoparticles. Polymers 2016, 8, 334. [Google Scholar] [CrossRef]
  9. Wu, T.Y.; Chen, Y. Synthesis, optical and electrochemical properties of novel copolymers containing alternate 2,3-quinoxaline and hole-transporting units. J. Polym. Sci. Part A Polym. Chem. 2002, 40, 4570–4580. [Google Scholar] [CrossRef]
  10. Hsiao, S.H.; Chiu, Y.T. Electrosynthesis and electrochromic properties of poly(amide-triarylamine)s containing triptycene units. RSC Adv. 2015, 5, 90941–90951. [Google Scholar] [CrossRef]
  11. Triantou, D.; Soulis, S.; Asaftei, C.S.; Janietz, S. Effect of the acceptor moiety on the electrochemical and electrochromic properties of donor-acceptor-donor polymer films. Int. J. Electrochem. Sci. 2015, 10, 3458–3477. [Google Scholar]
  12. Hsiao, S.H.; Teng, C.Y.; Kung, Y.R. Synthesis and characterization of novel electrochromic poly(amide-imide)s with N,N′-di(4-methoxyphenyl)-N,N′-diphenyl-p-phenylenediamine units. RSC Adv. 2015, 5, 93591–93606. [Google Scholar] [CrossRef]
  13. Lam, K.T.; Hsiao, Y.J.; Ji, L.W.; Fang, T.H.; Shih, W.S.; Lin, J.N. Characteristics of polymer-fullerene solar cells with ZnS nanoparticles. Int. J. Electrochem. Sci. 2015, 10, 3914–3922. [Google Scholar]
  14. Wu, T.Y.; Sheu, R.B.; Chen, Y. Synthesis and optically acid-sensory and electrochemical properties of novel polyoxadiazole derivatives. Macromolecules 2004, 37, 725–733. [Google Scholar] [CrossRef]
  15. Choi, S.; Kim, Y. Gold nanoparticle-based fluorescent “turn-on” sensing system for the selective detection of mercury ions in aqueous solution. RSC Adv. 2015, 5, 95268–95272. [Google Scholar] [CrossRef]
  16. Wu, T.Y.; Chen, Y. Poly(phenylene vinylene)-based copolymers containing 3,7-phenothiazylene and 2,6-pyridylene chromophores: Fluorescence sensors for acids, metal ions, and oxidation. J. Polym. Sci. Part A Polym. Chem. 2004, 42, 1272–1284. [Google Scholar] [CrossRef]
  17. Wu, T.Y.; Chen, Y. Synthesis and characterization of novel luminescent polymers with alternate phenothiazine and divinylbenzene units. J. Polym. Sci. Part A Polym. Chem. 2002, 40, 4452–4462. [Google Scholar] [CrossRef]
  18. Hsiao, S.H.; Hsueh, J.C. Electrochemical synthesis and electrochromic properties of new conjugated polycarbazoles from di(carbazol-9-yl)-substituted triphenylamine and N-phenylcarbazole derivatives. J. Electroanal. Chem. 2015, 758, 100–110. [Google Scholar] [CrossRef]
  19. Hsiao, S.H.; Wu, L.C. Fluorescent and electrochromic polymers from 2,8-di(carbazol-9-yl)dibenzothiophene and its S,S-dioxide derivative. Dye Pigments 2016, 134, 51–63. [Google Scholar] [CrossRef]
  20. Liu, J.; Mi, S.; Xu, Z.; Wu, J.; Zheng, J.; Xu, C. Solution-processable thiophene-based electrochromic polymers bearing trifluoromethyl rather than long side chains. Org. Electron. 2016, 37, 169–177. [Google Scholar] [CrossRef]
  21. Ahmad, S.; Gursoy, S.S.; Kazim, S.; Uygun, A. Growth of N-substituted polypyrrole layers in ionic liquids: Synthesis and its electrochromic properties. Sol. Energy Mater. Sol. Cells 2012, 99, 95–100. [Google Scholar] [CrossRef]
  22. Hacioglu, S.O.; Yiğit, D.; Ermis, E.; Soylemez, S.; Güllü, M.; Toppare, L. Syntheses and electrochemical characterization of low oxidation potential nitrogen analogs of pedot as electrochromic materials. J. Electrochem. Soc. 2016, 163, E293–E299. [Google Scholar] [CrossRef]
  23. Wu, T.Y.; Chen, P.R.; Chen, H.R.; Kuo, C.W. Preparation of Pt/poly(aniline-co-orthanilic acid)s nanocomposites and their applications for electrocatalytic oxidation of methanol. J. Taiwan Inst. Chem. Eng. 2016, 58, 458–466. [Google Scholar] [CrossRef]
  24. Soyleyici, S.; Karakus, M.; Ak, M. Transparent-blue colored dual type electrochromic device: Switchable glass application of conducting organic-inorganic hybrid carbazole polymer. J. Electrochem. Soc. 2016, 163, H679–H683. [Google Scholar] [CrossRef]
  25. Cansu-Ergun, E.G.; Onal, A.M.; Cihaner, A. Propylenedioxy and benzimidazole based electrochromic polymers. J. Electrochem. Soc. 2016, 163, G53–G60. [Google Scholar] [CrossRef]
  26. Sassi, M.; Salamone, M.M.; Ruffo, R.; Patriarca, G.E.; Mari, C.M.; Pagani, G.A.; Posset, U.; Beverina, L. Organic electrochromic polymers: State-of-the-art neutral tint multichromophoric polymers for high-contrast see-through electrochromic devices. Adv. Funct. Mater. 2016, 26, 5240–5246. [Google Scholar] [CrossRef]
  27. Karon, K.; Lapkowski, M.; Dabuliene, A.; Tomkeviciene, A.; Kostiv, N.; Grazulevicius, J.V. Spectroelectrochemical characterization of conducting polymers from star-shaped carbazole-triphenylamine compounds. Electrochim. Acta 2015, 154, 119–127. [Google Scholar] [CrossRef]
  28. Welsh, D.M.; Kumar, A.; Meijer, E.W.; Reynolds, J.R. Enhanced contrast ratio and rapid switching in electrochromics based on poly(3,4-propylenedioxythiophene) derivatives. Adv. Mater. 1999, 11, 1379–1382. [Google Scholar] [CrossRef]
  29. Hsiao, S.H.; Lin, S.W. Electrochemical synthesis of electrochromic polycarbazole films from N-phenyl-3,6-bis(N-carbazolyl)carbazoles. Polym. Chem. 2016, 7, 198–211. [Google Scholar] [CrossRef]
  30. Wu, T.Y.; Su, Y.S. Electrochemical synthesis and characterization of 1,4-benzodioxan-based electrochromic polymer and its application in electrochromic devices. J. Electrochem. Soc. 2015, 162, G103–G112. [Google Scholar] [CrossRef]
  31. Chang, K.H.; Wang, H.P.; Wu, T.Y.; Sun, I.W. Optical and electrochromic characterizations of four 2,5-dithienylpyrrole-based conducting polymer films. Electrochim. Acta 2014, 119, 225–235. [Google Scholar] [CrossRef]
  32. Wu, T.Y.; Li, W.B.; Kuo, C.W.; Chou, C.F.; Liao, J.W.; Chen, H.R.; Tseng, C.G. Study of poly(methyl methacrylate)-based gel electrolyte for electrochromic device. Int. J. Electrochem. Sci. 2013, 8, 10720–10732. [Google Scholar]
  33. Wu, T.Y.; Chung, H.H. Applications of tris(4-(thiophen-2-yl)phenyl)amine- and dithienylpyrrole-based conjugated copolymers in high-contrast electrochromic devices. Polymers 2016, 8, 206. [Google Scholar] [CrossRef]
  34. Vernardou, D.; Paterakis, P.; Drosos, H.; Spanakis, E.; Povey, I.M.; Pemble, M.E.; Koudoumas, E.; Katsarakis, N. A study of the electrochemical performance of vanadium oxide thin films grown by atmospheric pressure chemical vapour deposition. Sol. Energy Mater. Sol. Cells 2011, 95, 2842–2847. [Google Scholar] [CrossRef]
  35. Vernardou, D.; Louloudakis, D.; Spanakis, E.; Katsarakis, N.; Koudoumas, E. Electrochemical properties of vanadium oxide coatings grown by hydrothermal synthesis on FTO substrates. New J. Chem. 2014, 38, 1959–1964. [Google Scholar] [CrossRef]
  36. Louloudakis, D.; Vernardou, D.; Spanakis, E.; Katsarakis, N.; Koudoumas, E. Electrochemical properties of vanadium oxide coatings grown by APCVD on glass substrates. Surf. Coat. Technol. 2013, 230, 186–189. [Google Scholar] [CrossRef]
  37. Wang, B.; Zhao, J.; Xiao, J.; Cui, C.; Liu, R. Synthesis and electropolymerization of 9H-carbazol-9-ylpyrene and its electrochromic properties and electrochromic device application. Int. J. Electrochem. Sci. 2012, 7, 2781–2795. [Google Scholar]
  38. Kuo, C.-W.; Wu, T.-L.; Lin, Y.-C.; Chang, J.-K.; Chen, H.-R.; Wu, T.-Y. Copolymers based on 1,3-bis(carbazol-9-yl)benzene and three 3,4-ethylenedioxythiophene derivatives as potential anodically coloring copolymers in high-contrast electrochromic devices. Polymers 2016, 8, 368. [Google Scholar] [CrossRef]
  39. Hu, B.; Lv, X.; Sun, J.; Bian, G.; Ouyang, M.; Fu, Z.; Wang, P.; Zhang, C. Effects on the electrochemical and electrochromic properties of 3,6 linked polycarbazole derivative by the introduction of different acceptor groups and copolymerization. Org. Electron. 2013, 14, 1521–1530. [Google Scholar] [CrossRef]
  40. Udum, Y.A.; Gündoğdu Hızlıateş, C.; Ergün, Y.; Toppare, L. Electrosynthesis and characterization of an electrochromic material containing biscarbazole–oxadiazole units and its application in an electrochromic device. Thin Solid Films 2015, 595, 61–67. [Google Scholar] [CrossRef]
  41. Kuo, C.W.; Wu, T.Y.; Huang, M.W. Electrochromic characterizations of copolymers based on 4,4′-bis(N-carbazolyl)-1,1′-biphenyl and indole-6-carboxylic acid and their applications in electrochromic devices. J. Taiwan Inst. Chem. Eng. 2016, 68, 481–488. [Google Scholar] [CrossRef]
  42. Kuo, C.W.; Chen, B.K.; Li, W.B.; Tseng, L.Y.; Wu, T.Y.; Tseng, C.G.; Chen, H.R.; Huang, Y.C. Effects of supporting electrolytes on spectroelectrochemical and electrochromic properties of polyaniline-poly(styrene sulfonic acid) and poly(ethylenedioxythiophene)-poly(styrene sulfonic acid)-based electrochromic device. J. Chin. Chem. Soc. 2014, 61, 563–570. [Google Scholar] [CrossRef]
  43. Koyuncu, S.; Gultekin, B.; Zafer, C.; Bilgili, H.; Can, M.; Demic, S.; Kaya, I.; Icli, S. Electrochemical and optical properties of biphenyl bridged-dicarbazole oligomer films: Electropolymerization and electrochromism. Electrochim. Acta 2009, 54, 5694–5702. [Google Scholar] [CrossRef]
  44. Seshadri, V.; Padilla, J.; Bircan, H.; Radmard, B.; Draper, R.; Wood, M.; Otero, T.F.; Sotzing, G.A. Optimization, preparation, and electrical short evaluation for 30 cm2 active area dual conjugated polymer electrochromic windows. Org. Electron. 2007, 8, 367–381. [Google Scholar] [CrossRef]
  45. Kuo, C.W.; Hsieh, T.H.; Hsieh, C.K.; Liao, J.W.; Wu, T.Y. Electrosynthesis and characterization of four electrochromic polymers based on carbazole and indole-6-carboxylic acid and their applications in high-contrast electrochromic devices. J. Electrochem. Soc. 2014, 161, D782–D790. [Google Scholar] [CrossRef]
  46. Wang, B.; Zhao, J.; Liu, R.; Liu, J.; He, Q. Electrosyntheses, characterizations and electrochromic properties of a copolymer based on 4,4′-di(N-carbazoyl)biphenyl and 2,2′-bithiophene. Sol. Energy Mater. Sol. Cells 2011, 95, 1867–1874. [Google Scholar] [CrossRef]
  47. Chen, S.; Gao, Q.; Zhao, J.; Cui, C.; Yang, W.; Zhang, X. Electrosyntheses, characterizations and electrochromic properties of a novel copolymer of 4,4′-di(N-carbazoyl)biphenyl with 4H-cyclopenta[2,1-b:3,4-b′]dithiophene. Int. J. Electrochem. Sci. 2012, 7, 5256–5272. [Google Scholar]
  48. Wu, T.Y.; Liao, J.W.; Chen, C.Y. Electrochemical synthesis, characterization and electrochromic properties of indan and 1,3-benzodioxole-based poly(2,5-dithienylpyrrole) derivatives. Electrochim. Acta 2014, 150, 245–262. [Google Scholar] [CrossRef]
  49. Soganci, T.; Soyleyici, H.C.; Ak, M.; Cetisli, H. An amide substituted dithienylpyrrole based copolymer: Its electrochromic properties physical and analytical electrochemistry, electrocatalysis, and photoelectrochemistry. J. Electrochem. Soc. 2016, 163, H59–H66. [Google Scholar] [CrossRef]
  50. Cui, C.; Xu, C.; Xu, L.; Zhao, J.; Liu, R.; Liu, J.; He, Q.; Wang, H. Electrosynthesis and characterization of a multielectrochromic copolymer of 1,4-bis(2-thienyl)-naphthalene with 2,2′-bithiophene. Opt. Mater. 2011, 33, 1792–1799. [Google Scholar] [CrossRef]
  51. Cui, C.; Xu, L.; Zhao, J.; He, Q.; Wang, B. Electrosynthesis and characterization of a new multielectrochromic copolymer of 1,4-bis(2-thienyl)benzene with 3,4-ethylenedioxythiophene. J. Appl. Polym. Sci. 2012, 125, 3591–3601. [Google Scholar] [CrossRef]

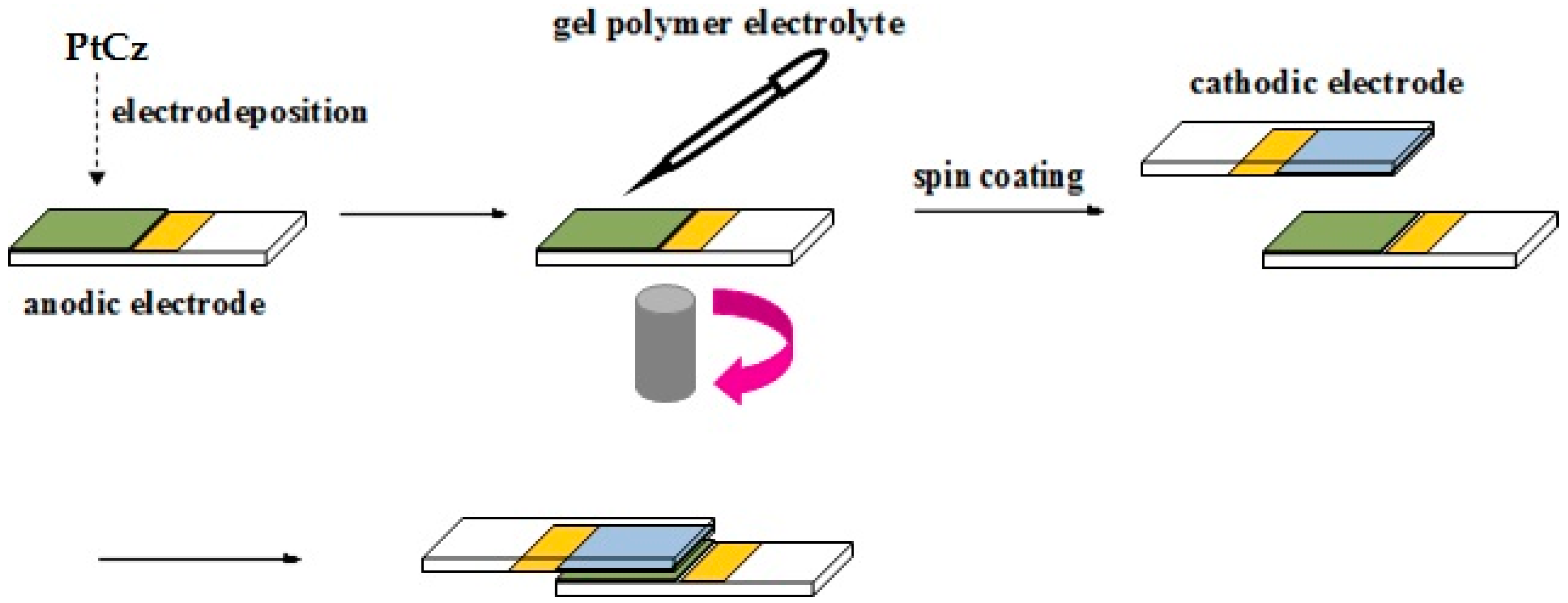

Figure 1. The fabrication procedures of electrochromic devices (ECDs).
Figure 1. The fabrication procedures of electrochromic devices (ECDs).
Polymers 09 00543 g001

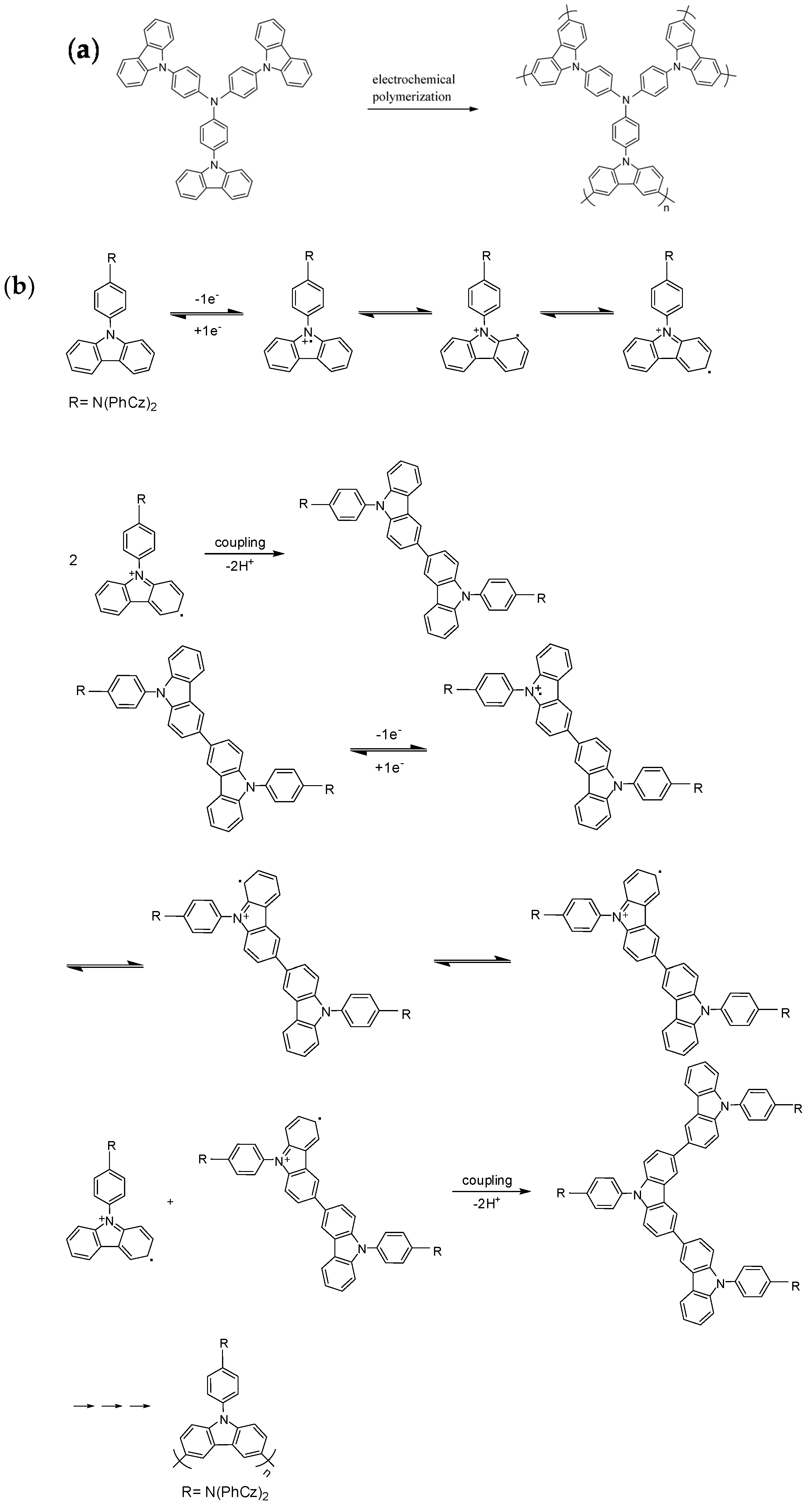

Figure 2. (a) The electrochemical polymerization scheme of the carbazole-based polymer (poly(tris(4-carbazoyl-9-ylphenyl)amine) (PtCz)); (b) the electropolymerization mechanism of PtCz.
Figure 2. (a) The electrochemical polymerization scheme of the carbazole-based polymer (poly(tris(4-carbazoyl-9-ylphenyl)amine) (PtCz)); (b) the electropolymerization mechanism of PtCz.
Polymers 09 00543 g002

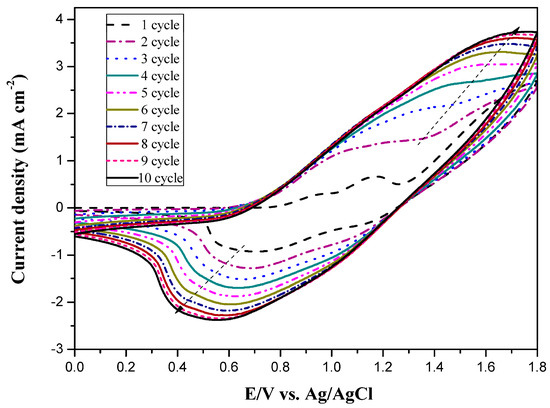

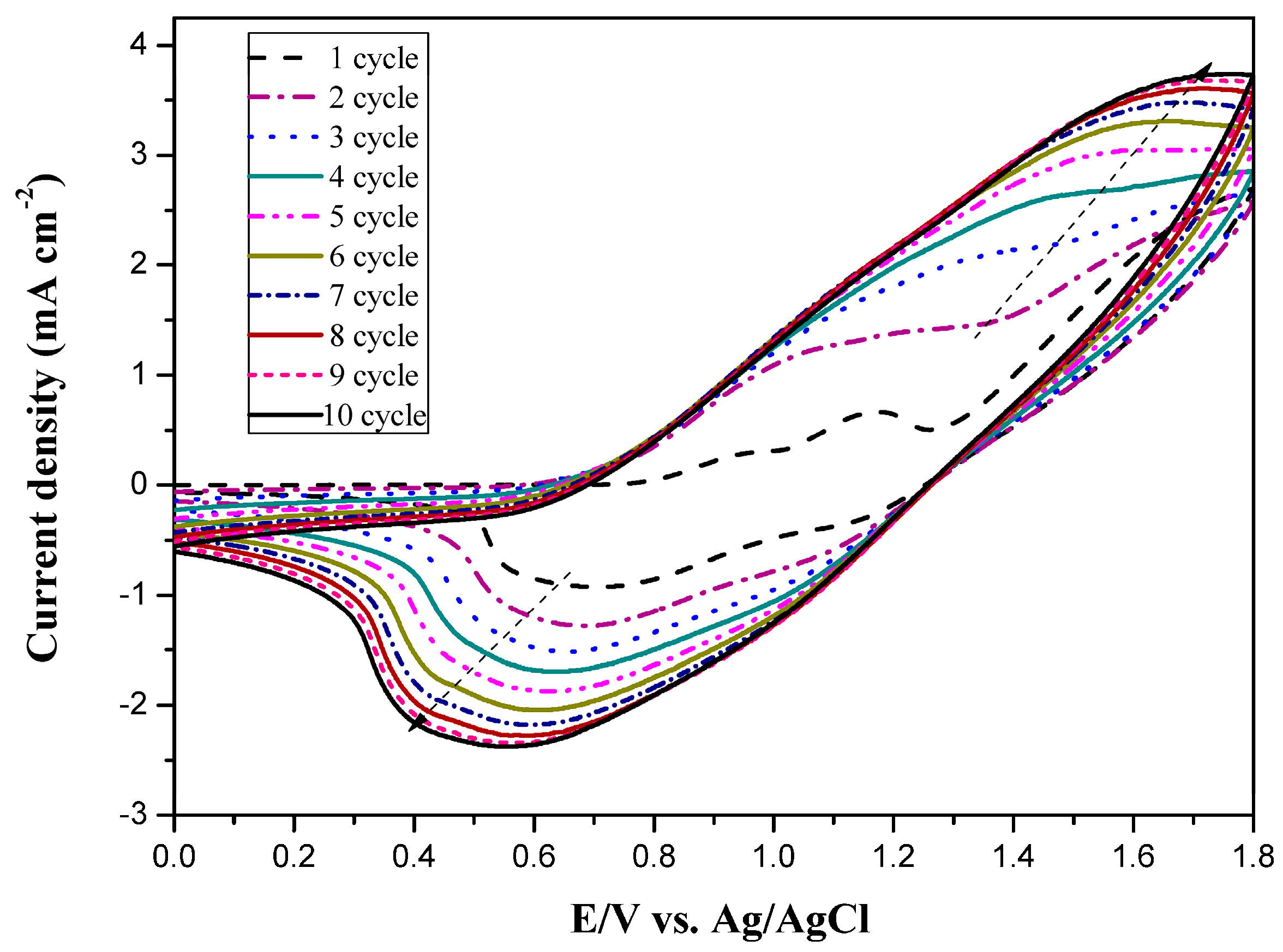

Figure 3. Electrochemical synthesis of PtCz in acetonitrile (ACN)/dichloromethane (DCM) (1:3, by volume) solution at 100 mV∙s−1 on indium tin oxide (ITO) working electrode.
Figure 3. Electrochemical synthesis of PtCz in acetonitrile (ACN)/dichloromethane (DCM) (1:3, by volume) solution at 100 mV∙s−1 on indium tin oxide (ITO) working electrode.
Polymers 09 00543 g003

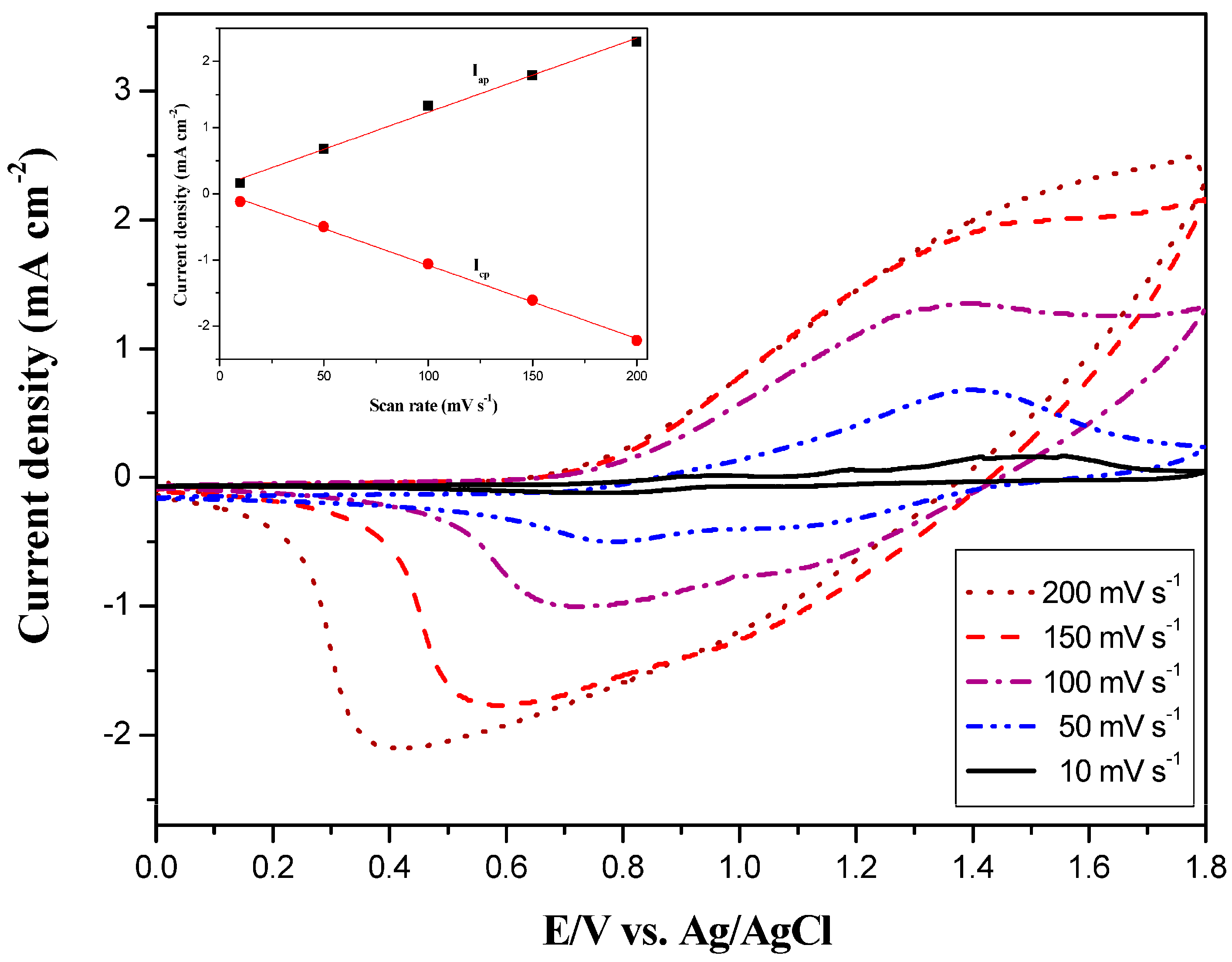

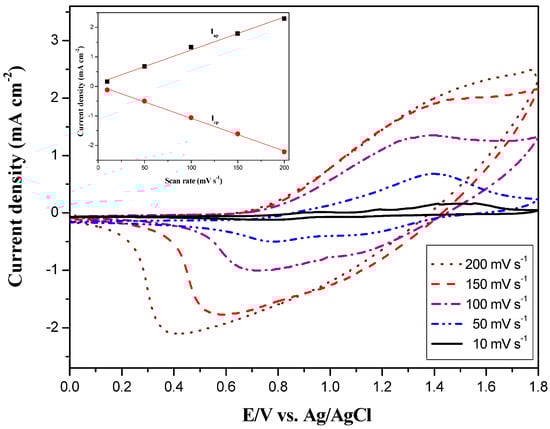

Figure 4. Cyclic voltammetry (CV) curves of the PtCz film-coated ITO working electrode at different scan rates between 10 and 200 mV∙s−1 in 0.2 M LiClO4/ACN/DCM solution. Inset: Scan rate dependence of the PtCz anodic and cathodic peak current densities, respectively.
Figure 4. Cyclic voltammetry (CV) curves of the PtCz film-coated ITO working electrode at different scan rates between 10 and 200 mV∙s−1 in 0.2 M LiClO4/ACN/DCM solution. Inset: Scan rate dependence of the PtCz anodic and cathodic peak current densities, respectively.
Polymers 09 00543 g004

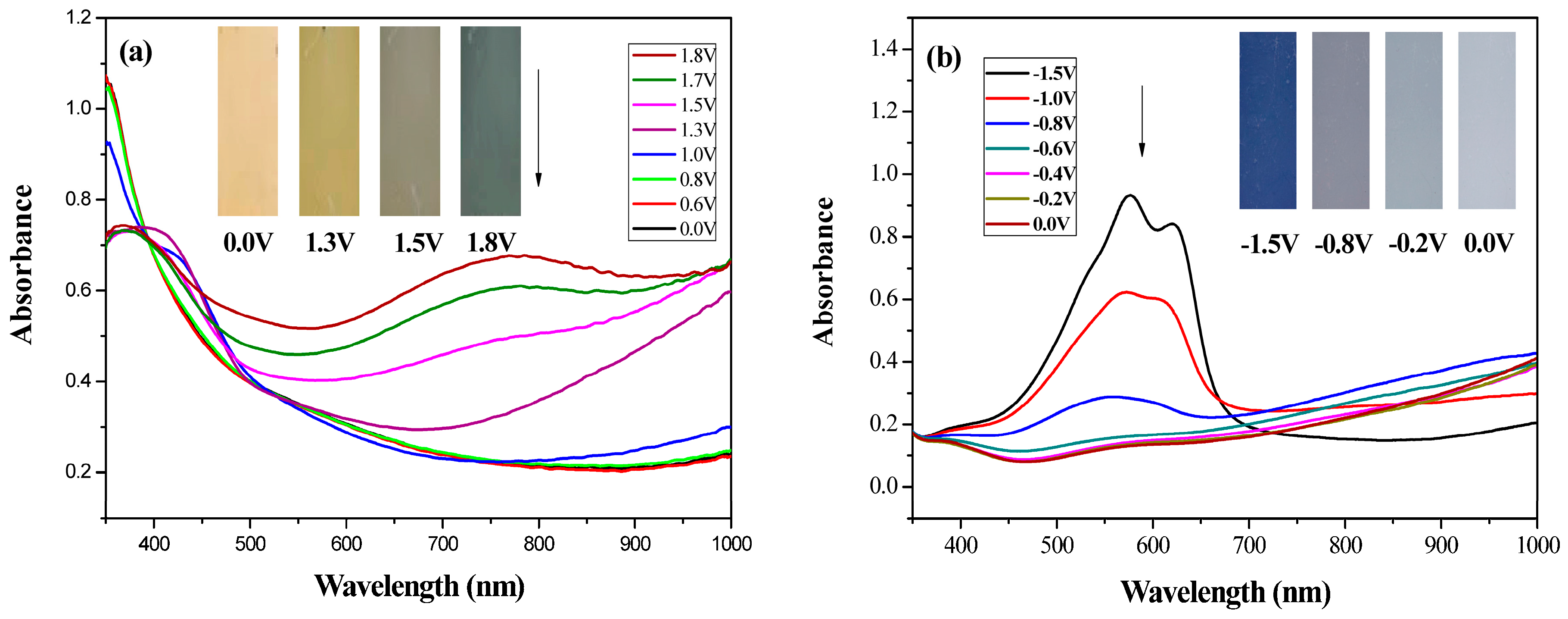

Figure 5. UV-Visible spectra of (a) PtCz and (b) PProDOT-Me2 on ITO in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4.
Figure 5. UV-Visible spectra of (a) PtCz and (b) PProDOT-Me2 on ITO in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4.
Polymers 09 00543 g005

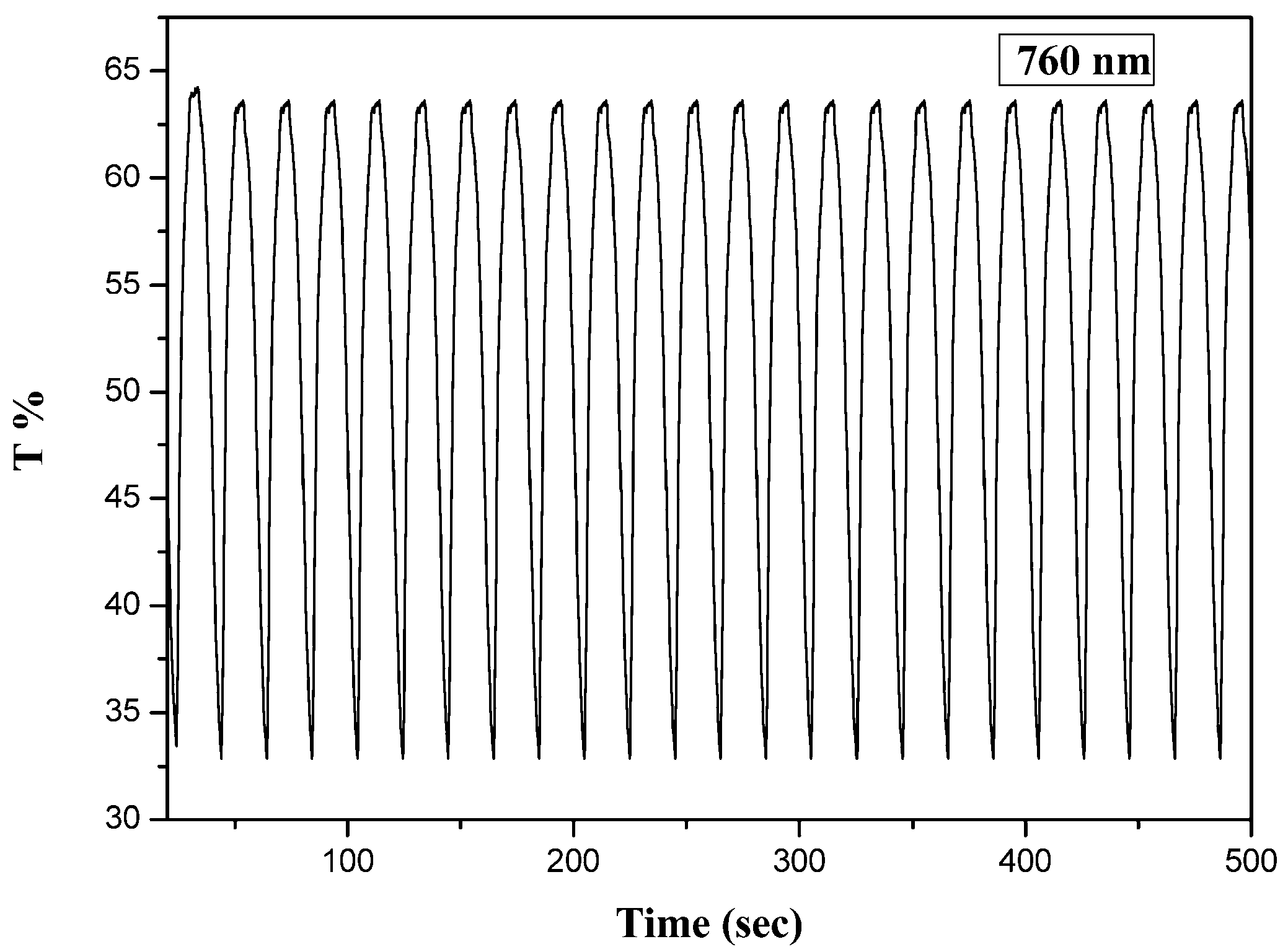

Figure 6. Optical contrast of PtCz electrode in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4 between 0.0 V and 1.8 V with a residence time of 10 s.
Figure 6. Optical contrast of PtCz electrode in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4 between 0.0 V and 1.8 V with a residence time of 10 s.
Polymers 09 00543 g006

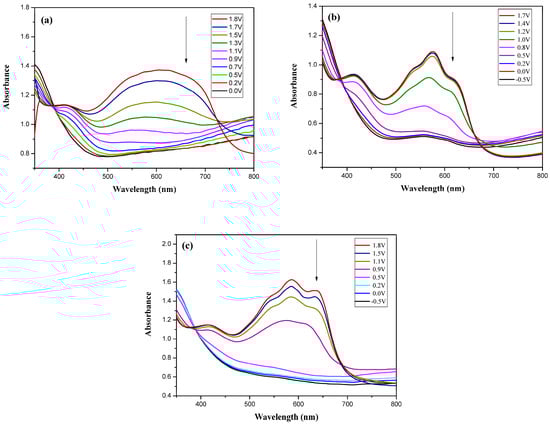

Figure 7. UV-visible spectra of (a) PtCz/PEDOT (b) PtCz/PProDOT-Me2, and (c) PtCz/PProDOT-Et2 ECDs.
Figure 7. UV-visible spectra of (a) PtCz/PEDOT (b) PtCz/PProDOT-Me2, and (c) PtCz/PProDOT-Et2 ECDs.
Polymers 09 00543 g007

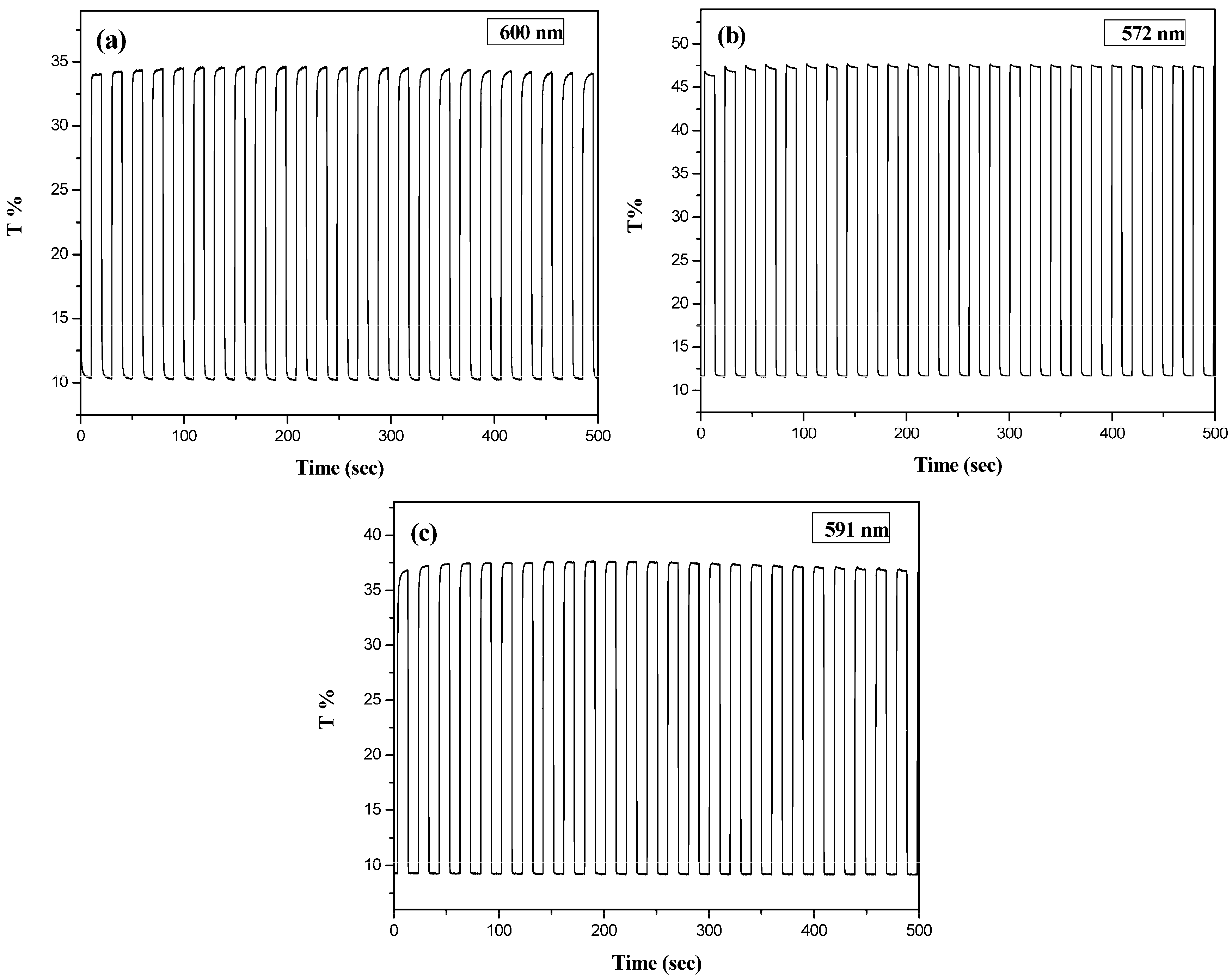

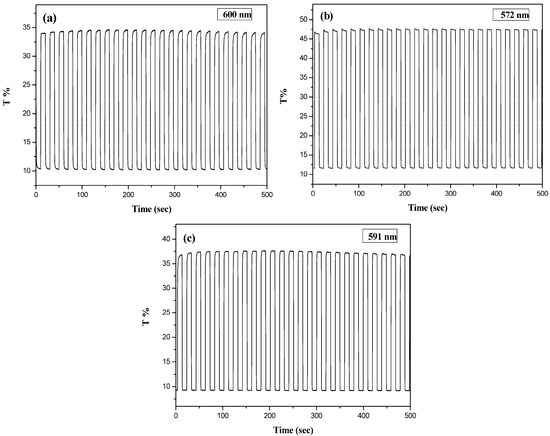

Figure 8. Optical contrast of (a) PtCz/PEDOT (b) PtCz/PProDOT-Me2, and (c) PtCz/PProDOT-Et2 ECDs in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4 between 0.0 V and 1.8 V with a residence time of 10 s.
Figure 8. Optical contrast of (a) PtCz/PEDOT (b) PtCz/PProDOT-Me2, and (c) PtCz/PProDOT-Et2 ECDs in an ACN/DCM (1:3, by volume) solution containing 0.2 M LiClO4 between 0.0 V and 1.8 V with a residence time of 10 s.
Polymers 09 00543 g008

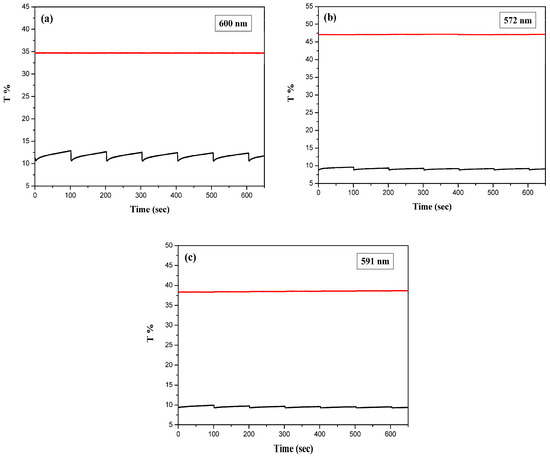

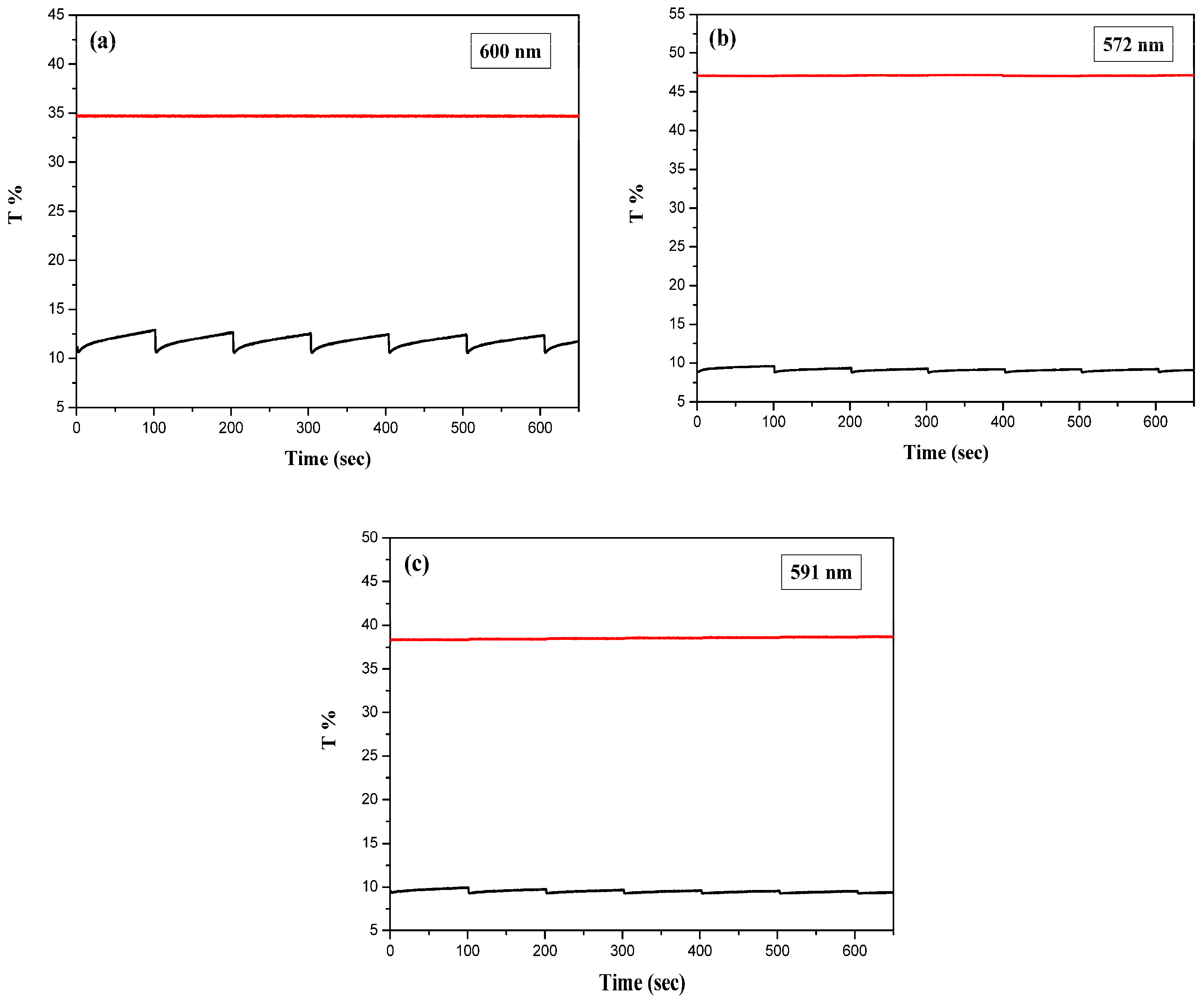

Figure 9. Open circuit stability of (a) PtCz/PEDOT (b) PtCz/PProDOT-Me2, and (c) PtCz/PProDOT-Et2 ECDs at 0.0 V and 1.8 V. The working electrode is PtCz film-coated ITO glass substrate.
Figure 9. Open circuit stability of (a) PtCz/PEDOT (b) PtCz/PProDOT-Me2, and (c) PtCz/PProDOT-Et2 ECDs at 0.0 V and 1.8 V. The working electrode is PtCz film-coated ITO glass substrate.
Polymers 09 00543 g009

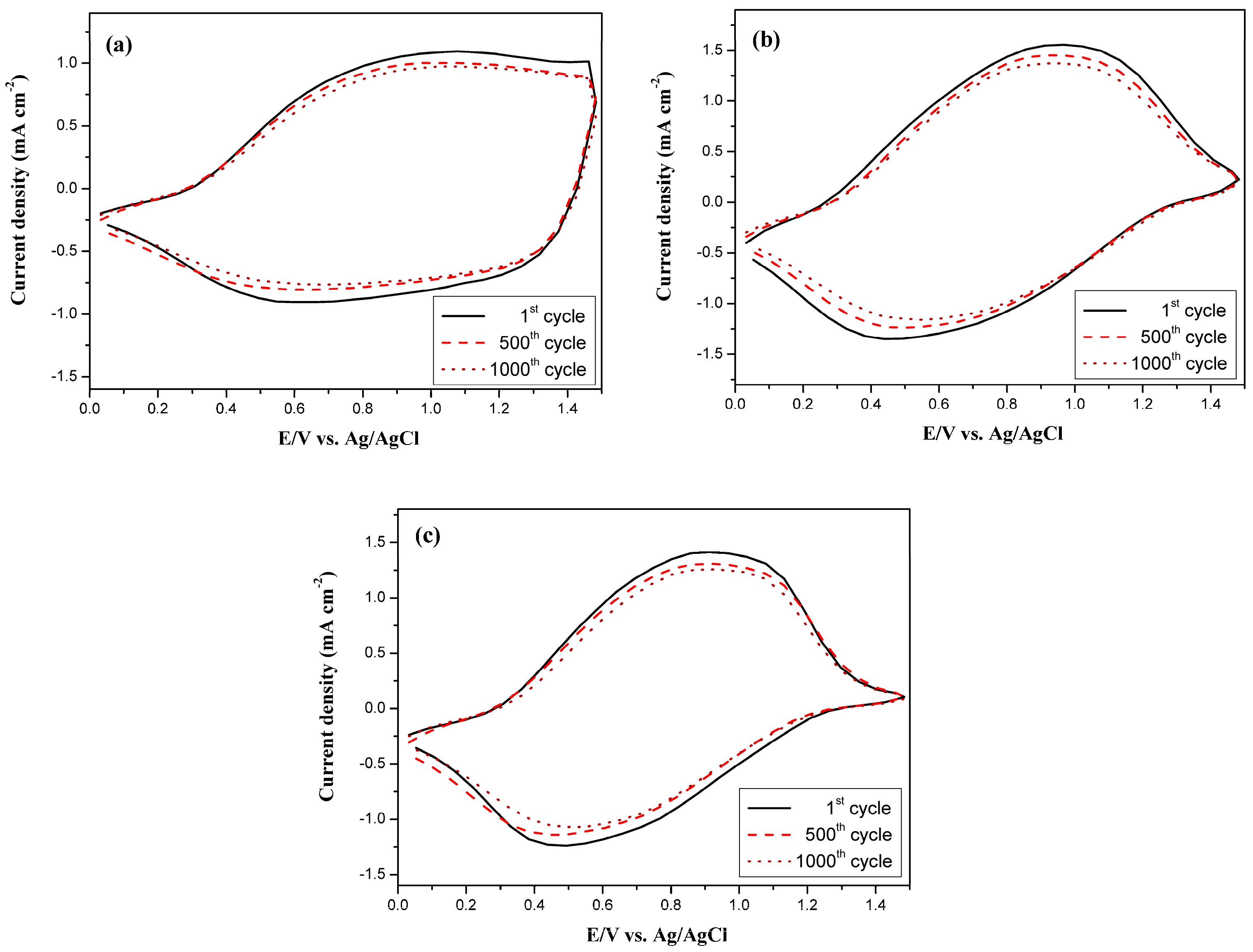

Figure 10. Cyclic voltammograms of (a) PtCz/PEDOT; (b) PtCz/PProDOT-Me2; and (c) PtCz/PProDOT-Et2 ECDs as a function of repeated with a scan rate of 500 mV∙s−1 between 1 and 1000 cycles. The working electrode is PtCz film-coated ITO glass substrate.
Figure 10. Cyclic voltammograms of (a) PtCz/PEDOT; (b) PtCz/PProDOT-Me2; and (c) PtCz/PProDOT-Et2 ECDs as a function of repeated with a scan rate of 500 mV∙s−1 between 1 and 1000 cycles. The working electrode is PtCz film-coated ITO glass substrate.
Polymers 09 00543 g010
Table 1. Feed species of cathodic polymer electrodes (a)–(c).
Table 1. Feed species of cathodic polymer electrodes (a)–(c).
ElectrodesCathodic polymerFeed speciesDeposition amount of cathode
(a)PEDOT8 mM EDOT50 mC
(b)PProDOT-Me210 mM ProDOT-Me250 mC
(c)PProDOT-Et217 mM ProDOT-Et250 mC
Table 2. Colorimetric values (L*, a*, and b*), CIE chromaticity values (x, y), and CIE chromaticity diagrams of the PtCz and PProDOT-Me2 at various applied potentials.
Table 2. Colorimetric values (L*, a*, and b*), CIE chromaticity values (x, y), and CIE chromaticity diagrams of the PtCz and PProDOT-Me2 at various applied potentials.
ElectrodesPotential (V)L*a*b*xyDiagrams
PtCz0.073.955.5915.850.47700.4159 Polymers 09 00543 i001
1.074.846.1324.130.48640.4226
1.373.463.0221.020.47780.4248
1.568.67−1.7811.720.45880.4239
1.764.66−3.546.650.44900.4215
1.861.15−3.025.170.44820.4193
PProDOT-Me2−1.549.736.28−46.010.37100.3162 Polymers 09 00543 i002
−1.060.605.54−31.570.40780.6232
−0.878.433.60−10.500.44110.3911
−0.488.43−2.94−5.890.43620.4050
−0.288.98−2.68−5.850.43680.4048
0.089.37−2.56−5.180.43780.4053
Table 3. Optical and electrochemical properties investigated at the selected applied wavelength for PtCz film and ECDs.
Table 3. Optical and electrochemical properties investigated at the selected applied wavelength for PtCz film and ECDs.
PtCz film and ECDsNTox (%)Tred (%)ΔT (%)ΔODη (cm2∙C−1)τc/sτb/s
PtCz (760 nm) a333.063.530.5−0.2854.85.55.0
PtCz/PEDOT310.434.424.0−0.52234.90.61.0
(600 nm) a5010.833.022.2−0.49256.50.20.2
Ptz/PProDOT-Me2311.647.636.0−0.61248.40.20.6
(572 nm) a5012.047.035.0−0.59343.40.20.2
PtCz/PProDOT-Et239.337.328.0−0.60336.80.40.3
(591 nm) a509.836.426.6−0.57330.70.10.1
a The selected applied wavelength for PtCz film and ECDs.
Table 4. Optical contrasts and coloration efficiencies of carbazole-based polymer films.
Table 4. Optical contrasts and coloration efficiencies of carbazole-based polymer films.
Carbazole-based polymer filmsΔTmax (%)η (cm2∙C−1)Ref.
poly(9H-carbazol-9-ylpyrene)29 (460 nm)---[37]
poly(1,3-bis(carbazol-9-yl)benzene)18.6 (1050 nm)180.3[38]
poly(ethyl-4-(3,6-di(thiophen-2-yl)-9H-carbazole-9-yl)-benzoate)36 (1100 nm)---[39]
poly(2,5-bis(9-methyl-9H-carbazol-3-yl)-1,3,4-oxadiazole)75 (660 nm)---[40]
poly(3,6-di(carbazol-9-yl)-N-(4-nitrophenyl)-carbazole)52 (710 nm)35[29]
poly(4,4′-bis(N-carbazolyl)-1,1′-biphenyl)44.1 (800 nm)98 [41]
PtCz30.5 (760 nm)54.8This work
Table 5. Electrochromic photographs, colorimetric values (L*, a*, and b*), CIE chromaticity values (x, y), and CIE chromaticity diagram of the PtCz/PProDOT-Me2 ECD at various applied potentials.
Table 5. Electrochromic photographs, colorimetric values (L*, a*, and b*), CIE chromaticity values (x, y), and CIE chromaticity diagram of the PtCz/PProDOT-Me2 ECD at various applied potentials.
ECDPotential (V)PhotographsL*a*b*xyDiagram
PtCz/PProDOT-Me2−0.8 Polymers 09 00543 i00385.06−1.4026.920.4720.434 Polymers 09 00543 i008
0.0 Polymers 09 00543 i00480.27−0.2819.040.4680.427
0.8 Polymers 09 00543 i00561.822.72−8.380.4410.392
1.2 Polymers 09 00543 i00656.304.46−17.660.4280.374
1.5 Polymers 09 00543 i00754.185.26−21.300.4230.366
Table 6. Optical contrast and coloration efficiencies of ECDs.
Table 6. Optical contrast and coloration efficiencies of ECDs.
ECD configurationΔTmax (%)ηmax (cm2∙C−1)Ref.
poly(4,4′-di(N-carbazolyl)biphenyl)/PEDOT19 (550 nm)---[43]
poly(9H-carbazol-9-ylpyrene)/PEDOT23 (623 nm)290[37]
poly(3,6-bis(2-(3,4-ethylenedioxy)thienyl)-N-methylcarbazole)/PEDOT ca. 30---[44]
poly(carbazole-co-indole-6-carboxylic acid)/PProDOT-Me232 (575 nm)372.7[45]
poly(4,4′-di(N-carbazoyl)biphenyl-co-2,2′-bithiophene)/PEDOT28.6 (700 nm)234[46]
poly(4,4′-di(N-carbazoyl)biphenyl-co-4H-cyclopenta[2,1-b:3,4-b′]dithiophene)/PEDOT39.8 (628 nm)319.98[47]
poly(2,5-bis(9-methyl-9H-carbazol-3-yl)-1,3,4-oxadiazole)/PEDOT35 (620 nm)---[40]
PtCz/PProDOT-Me236 (572 nm)343.4This work

Share and Cite

MDPI and ACS Style

Kuo, C.-W.; Chang, J.-K.; Lin, Y.-C.; Wu, T.-Y.; Lee, P.-Y.; Ho, T.-H. Poly(tris(4-carbazoyl-9-ylphenyl)amine)/Three Poly(3,4-ethylenedioxythiophene) Derivatives in Complementary High-Contrast Electrochromic Devices. Polymers 2017, 9, 543. https://doi.org/10.3390/polym9100543

AMA Style

Kuo C-W, Chang J-K, Lin Y-C, Wu T-Y, Lee P-Y, Ho T-H. Poly(tris(4-carbazoyl-9-ylphenyl)amine)/Three Poly(3,4-ethylenedioxythiophene) Derivatives in Complementary High-Contrast Electrochromic Devices. Polymers. 2017; 9(10):543. https://doi.org/10.3390/polym9100543

Chicago/Turabian Style

Kuo, Chung-Wen, Jeng-Kuei Chang, Yuan-Chung Lin, Tzi-Yi Wu, Po-Ying Lee, and Tsung-Han Ho. 2017. "Poly(tris(4-carbazoyl-9-ylphenyl)amine)/Three Poly(3,4-ethylenedioxythiophene) Derivatives in Complementary High-Contrast Electrochromic Devices" Polymers 9, no. 10: 543. https://doi.org/10.3390/polym9100543

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
