Review

Polymers in Carbon Dots: A Review

Department of Chemistry, University of Miami, Coral Gables, FL 33146, USA
*
Author to whom correspondence should be addressed.
Polymers 2017, 9(2), 67; https://doi.org/10.3390/polym9020067
Submission received: 28 December 2016 / Accepted: 9 February 2017 / Published: 16 February 2017
(This article belongs to the Special Issue Renewable Polymeric Adhesives)

Abstract

:
Carbon dots (CDs) have been widely studied since their discovery in 2004 as a green substitute of the traditional quantum dots due to their excellent photoluminescence (PL) and high biocompatibility. Meanwhile, polymers have increasingly become an important component for both synthesis and modification of CDs to provide polymeric matrix and enhance their PL property. Furthermore, critical analysis of composites of CDs and polymers has not been available. Herein, in this review, we summarized the use of polymers in the synthesis and functionalization of CDs, and the applications of these CDs in various fields.

Graphical Abstract

1. Introduction

Nanotechnology has become a popular topic since the start of the 21st century in a variety of fields including: drug synthesis and delivery [1], environmental protection [2], electronics manufacture [3], and astronomy [4], all of which can be attributed to the nano scale particles and their unique properties endowed by their nano scale size. Carbon dots (CDs) are based on the prior quantum dots (QDs) which had a promising background, as they exhibited excellent optical properties. However, due to the heavy metal elements such as Cd [5] involved in the QDs structure, attention has been switched to its green substitutes. Meanwhile, CDs were discovered when researchers tried to purify single-walled carbon nanotubes through preparative electrophoresis in 2004 [6]. Since then, numerous research projects have been developed on the synthetic approach of CDs including chemical ablation [7,8], electrochemical carbonization [9], laser ablation [10], microwave irradiation [11] and hydrothermal/solvothermal treatment [12,13,14]. Various characterization methods including UV/Vis, fluorescence, FTIR, Mass, NMR, atomic-force microscopy (AFM), transmission electron microscopy (TEM), scanning electron microscopy (SEM) and X-ray photoelectron spectroscopy (XPS) have been used for the analysis of CDs. According to these studies, it is generally concluded that CDs are a new type of fluorescent carbon based nanoparticles (1~10 nm) whose spectroscopic characteristics can be described as follows.
(1)
There are two characteristic peaks in their UV/Vis spectra which correspond to aromatic C=C π-π* transition (~263 nm) [13,15,16] and C=O n-π* transition (~332 nm) [16,17,18], respectively.
(2)
CDs are photoluminescent, which indicates CDs (especially the surface energy traps) after absorption of photons will generate excitons which will quickly recombine to release the energy in the form of light emission. CDs are commonly excitation wavelength dependent shown in various fluorescence spectra [18,19,20,21]. As for the mechanism of the photoluminescence (PL) of CDs, there exist two prevalent explanations from the viewpoints of surface state in CDs and quantum size effect, respectively [22].
(3)
From FTIR spectra, the functional groups of CDs include –OH, –COOH, –C=C– [23,24], and also –NH2 and –CONH– depending on the preparation methods and raw materials [25,26].
(4)
Based on XPS measurement, CDs basically consist of C, O [27] and other elements depending on raw materials as well [16,26,28].
The most important property of CDs is their PL and this feature is determined by their intrinsic nanostructure. Therefore, to enhance the PL properties of CDs, attention should be turned to the initial synthesis to control their structure. To this end, polymers have become preferred carbon precursors [29,30] for the preparation of CDs due to their known macromolecular structure, which would provide templates for synthesizing CDs with clear structure. This is quite significant for those who have made efforts to figure out the structure of CDs as well as their PL mechanism. In addition, surface passivation and functionalization are among the most effective ways to enhance the PL property of CDs by modifying their surficial structure. Polymers such as PEG have been widely used in both passivation [31,32] and functionalization process [33,34,35].
There are many review papers on polymers and CDs but very little work has been done in assimilating the CDs incorporated to the polymers. In this review paper, we describe the recent advances in CDs which are embedded in polymeric gel [36,37], molecularly imprinting polymers [38,39], and polymer composite films [40,41], and compare the efforts made so far to improve the PL. The polymer composites provide the polymeric matrix for CDs while the special PL properties of CDs make polymers more applicable in fields such as bioimaging, biosensing and drug delivery. Therefore, polymers have gradually widely permeated in every aspect of CDs.

2. Polymers as Precursors for CDs Preparation

2.1. Polymers as Direct Precursors for CDs Synthesis

Owing to their natural macromolecular structures, polymers are excellent candidates for the synthesis of CDs, providing matrix and template. Therefore, polymers or polymeric chemicals have gradually drawn increasing interest to be used as carbon source for the synthesis of CDs. In respect of the nature of the polymers used for synthesizing CDs, both natural polymers, such as lignin and chitosan [42,43,44,45], as well as synthetic polymers, such as polyethylene glycol (PEG) [46,47,48], have been reported.

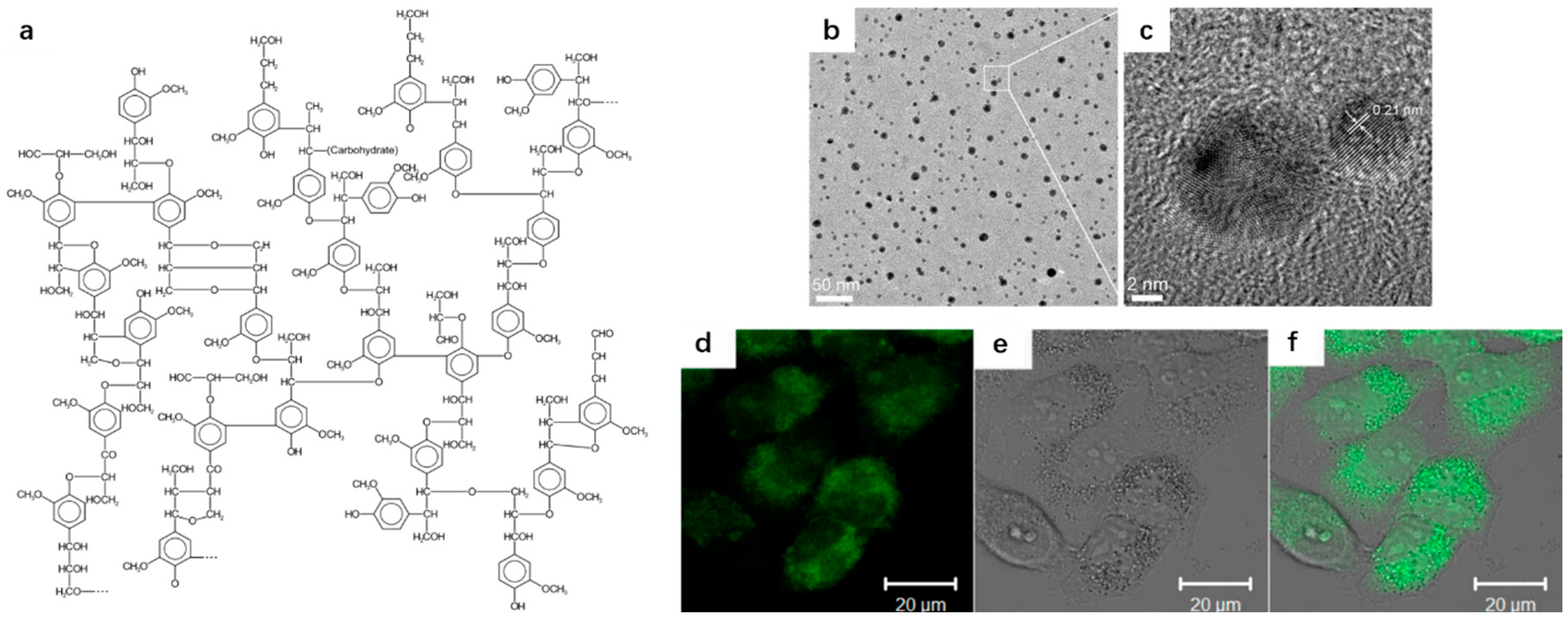

As for natural polymers as precursors, Chen et al. developed a rapid approach to produce CDs by hydrothermal treatment (pyrolysis) of lignin in the presence of H2O2 [42]. Lignin (Figure 1a) being an abundant natural cross-link phenolic polymer and an excellent source of carbon and H2O2 being one of the strongest oxidizing agents known in acidic condition (1.8 eV, oxidation potential); the latter can split into hydroxyl radicals (•OH), which are highly active, under the photo-assisted catalysis Fe3+/Fe2+ in water [49]. The resulting •OH can break the strong carbon–carbon linkage of lignin to form CDs. TEM and high-resolution TEM (HRTEM) were performed on the resulting CDs and the results (shown in Figure 1b,c) indicated the size of CDs ranged from 2 to 10 nm. In addition, from HRTEM image, it was also observed that the CDs owned crystalline structure and the lattice spacing distance was measured to be 0.21 nm. The resulting CDs have been introduced into the Hela cells and the PL spots have been observed in the cell membranes and cytoplasmic area, which indicate that CDs can penetrate the Hela cell. The confocal fluorescence microphotograph of the Hela cells labeled with CDs are demonstrated in Figure 1d–f.
Chitosan is a linear polysaccharide that can be easily acquired from the shells of shrimp and other sea crustaceans for commercial purposes [50]. Majumdar and coworkers synthesized fluorescent CDs by heating a chitosan hydrogel in a microwave [29]. It is claimed as the first report of synthesizing CDs by using chitosan gel as precursors. The chitosan gel is stable without degradation and at the same time it will increase the shelf life of starting materials to obtain CDs. Besides, it was also found that the PL properties of such CDs were affected by different pH conditions. For instance, when CDs were prepared at pH 3, the PL showed a sharp peak while at pH 1 or 5, they exhibited a broad emission peak in the PL spectra.
In addition, other natural polymeric products such as cellulose and sugarcane bagasse pulp have also been developed to synthesize highly photoluminescent CDs. Da Silva Souza et al. demonstrated CDs could be prepared from cellulose nanocrystals using different pyrolysis temperatures along with the discovery of different carbon structures determined by different cellulose nanocrystals arrangement [51]. The prepared CDs were composed of both graphitic and amorphous carbon with a size distributed between 4 and 8 nm. In addition, the PL covers the blue-to-green region. Shankaran et al. also mentioned a green synthesis of CDs using sugarcane pulp as the renewable carbon precursor [52]. The obtained CDs exhibited relatively high PL with a QY of 18.7%, and HRTEM and AFM indicated the CDs owned the size of around 4.1 nm and surface thickness of 5 nm. Besides, the CDs were highly crystalline with face centered cubic crystal structure by XRD and TEM analyses, which showed great prospect in the future application in drug-delivery.

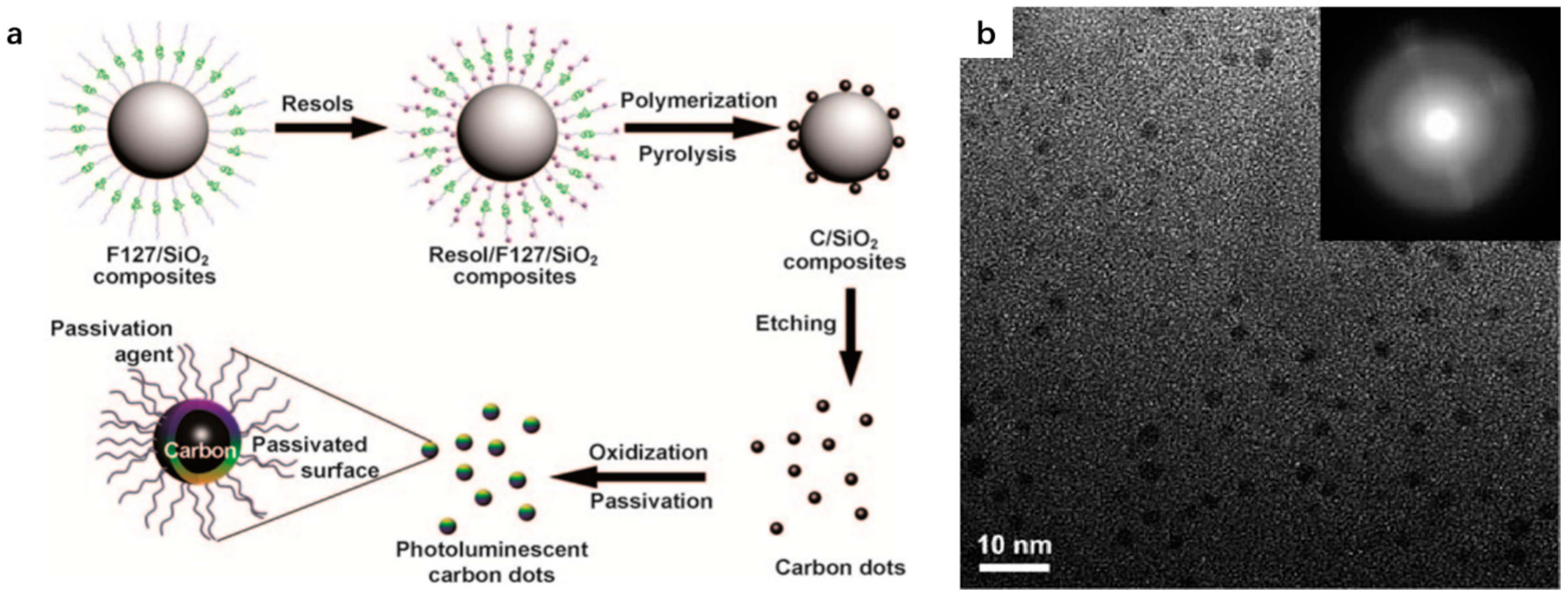

In terms of synthetic polymer precursors, resoles (phenol/formaldehyde resins, Mw < 500) have been reported by Liu et al. as carbon source to build up a type of CDs with amorphous structure by using surfactant-modified silica nanospheres as carriers [48]. The overall synthetic procedure is illustrated in Figure 2a. Here, silica colloid spheres were functionalized with amphiphilic triblock copolymer F127 (EO106PO70EO106, Mol. Wt. = 12,600; EO = ethylene oxide, PO = propylene oxide) to synthesize satellite-like F127/SiO2 composites, surfactant-modified silica nanospheres. Then resoles were further polymerized on the surface of silica nanospheres. The subsequent pyrolysis and etching assisted the formation of CDs and removal of carriers, respectively. The main point of the method is the silica nanosphere carriers do not only provide anchors for the polymerization of resoles but also inhibit the aggregation of CDs during pyrolysis. HRTEM spectroscopy was performed on the obtained CDs and the experimental result (Figure 2b) revealed the size of CDs was narrowly distributed in the range 1.5–2.5 nm. Besides, the lack of lattice structures and the diffuse ring pattern obtained by selected area electron diffraction (SAED; inset in Figure 2b) suggested the CDs are amorphous.
PEGs are another type of synthesized polymers that have been widely used as the precursors for the preparation of CDs. For example, Li et al. reported a low-cost electrolysis method to obtain high-PL CDs with PEG series compounds as the carbon source [53]. The resulting CDs were great electron donors/acceptors and had higher proton absorption ability than any other CDs due to their structure. Furthermore, in comparison, PEG200, PEG600 and PEG800 were employed to achieve high PL, among which CDs using PEG600 as the carbon precursor exhibited the highest PL intensity with a quantum yield (QY) of 38%. Due to their high PL intensity, the CDs were conjugated with tyrosinase to serve as a fast, sensitive, and accurate biosensor to detect L-DOPA with a detection limit of 9.0 × 10−8 mol·L−1.

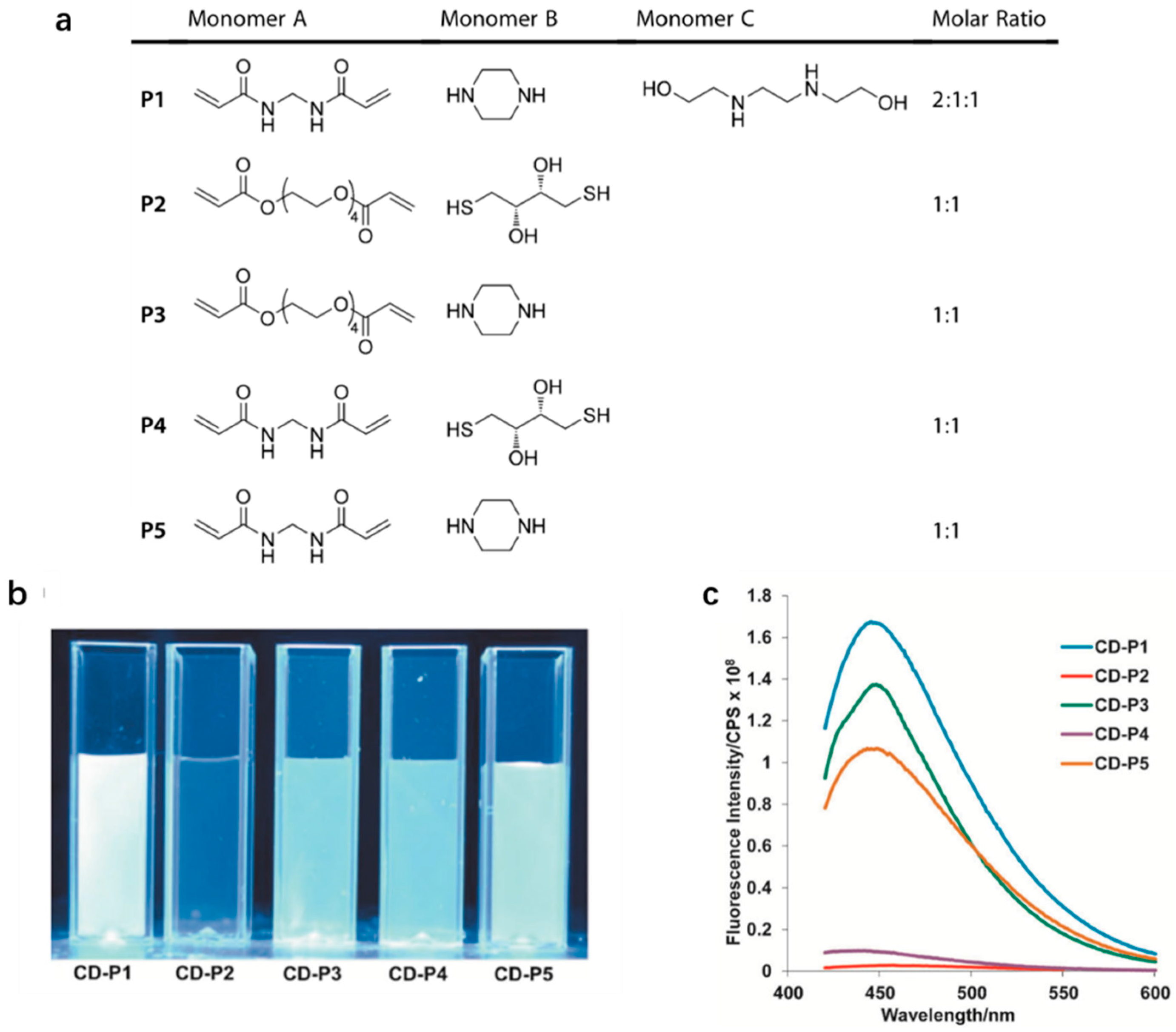

Jiang et al. performed synthesis work by a thermopyrolysis of five types of 1,4-addition polymers (P1–P5) which were selectively constructed from monomers including piperazine, dithiothreitol (DTT), N,N′-bis(2-hydroxyethyl) ethylenediamine (BHEEDA), N,N′-methylenebisacrylamide (MBA) and tetra (ethylene glycol) diacrylate (TEGDA) [54]. The specific monomers with certain molar ratios to synthesize each 1,4-addition polymers are shown in Figure 3a. In Figure 3a, we can observe all monomers A are α,β-unsaturated carbonyl compounds which are attacked by nucleophiles (monomers B and C) at the β carbon to occur 1,4-addition. Eventually, these 1,4-addition polymers theoretically provided templates to define the structures and properties of CDs, which was of great benefits to figure out the PL mechanism of CDs. Then thermopyrolysis of P1–P5 was carried out at 250 °C for 2 h to obtain five types of CDs (CD-P1, CD-P2, CD-P3, CD-P4 and CD-P5) (Figure 3b). These five types of CDs were prepared as aqueous solution with the same concentration and were excited at 400 nm. The result was shown in Figure 3c. Considering final QY, CDs made from P1 owns the highest QY (26%) and the PL results showed that the PL of nitrogen containing CDs were higher than that of those not containing nitrogen.
As a hard question to answer, PL mechanism is still under debate. Therefore, to clarify the PL mechanism of CDs, a novel bijective approach has been employed by Zhu et al. to fabricate CDs (17%, QY) from size-tunable single chain polymeric nanoparticles obtained by mixing diphenyl ether, PMA-EDY (EDY indicates 4-((2-(2-Trimethylsilyl)ethynyl)-phenyl)but-3-yn-1-ol) and ethyle acetate [47]. Figure 4 shows the detailed synthesis process of the CDs. Owing to the living free radical polymerization technique and Bergman cyclization, narrowly dispersed CDs were acquired and PL was explained by the consequence of electron-hole pair recombination in localized sp2 carbon clusters, which was generally considered as the luminescent center. Besides, CDs were divided into two classes viz with graphitized carbon core and with disordered carbon core, based on the presence of predominantly sp2 carbon in the core of CDs.

2.2. Polymers as Indirect Precursors for CDs Synthesis

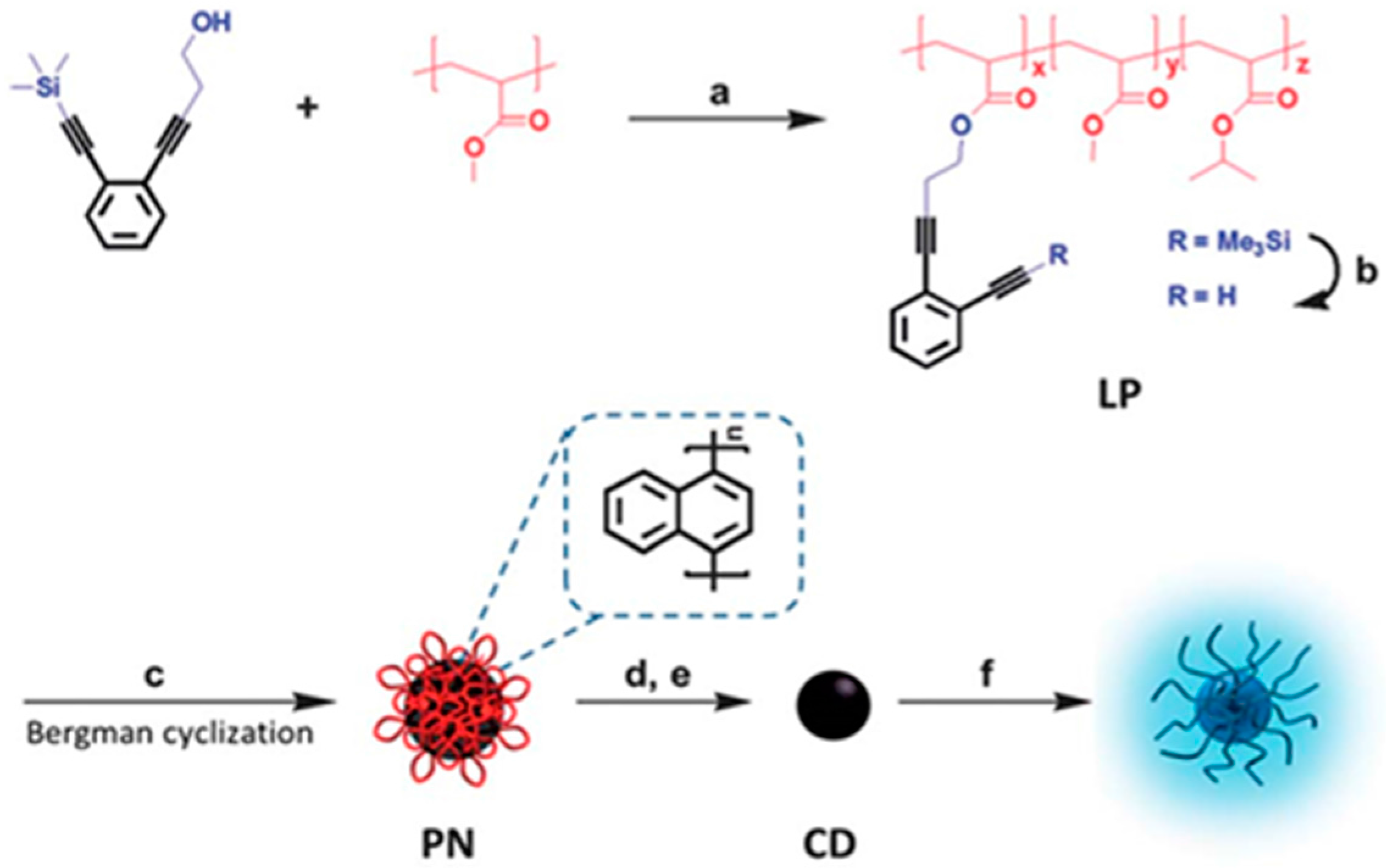

Besides, as most reports indicate, the formation of CDs needs to undergo polymerization and carbonization [55,56,57,58], which means most CDs own polymeric structures among which poly aromatic structure has often been mentioned [56,59,60,61] relying on UV/Vis absorption spectra as well as XPS data. Here, we summarize some compounds that have been mentioned to experience polymerization process to produce CDs. Since different functional groups own different energy traps, which results in the various PL behaviors of CDs [22], it is quite important to select proper monomers to participate in the formation of CDs.

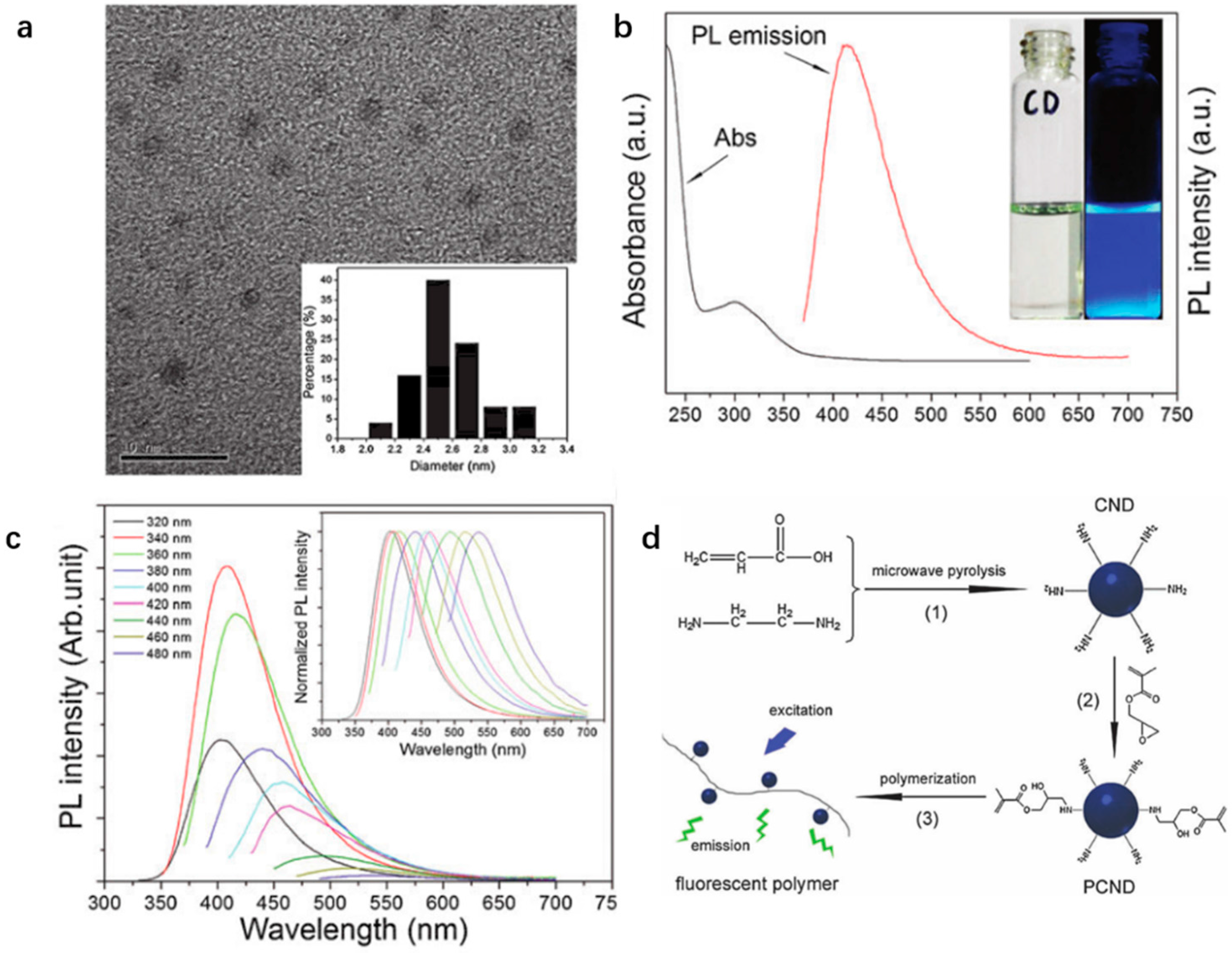

Zhang and coworkers used acrylic acid and 1,2-ethylenediamine (EDA) (1:1, molar ratio) as carbon source and passivation agent, respectively, to synthesize CDs (CNDs) [57] (Figure 5d). Since the CDs are enriched with amine surface groups, it allows further functionalization with glycidyl methacrylate (GMA) to produce polymerizable CDs (PCNDs) which is followed by the polymerization reaction to achieve fluorescent polymers. The authors claim it as the first ever report for the combination of CDs with other representative acrylamide and methacrylate type monomers to synthesize fluorescent polymers. The HRTEM image (Figure 5a) reveals the size of the CNDs is narrowly distributed within 2.0–3.2 nm in diameter which is close to that measured of CDs synthesized with polymers as direct precursors [44], revealing the uniformity of the size of CDs. Besides, the UV/Vis absorption and PL emission spectra (Figure 5b) are consistent with that characterized of most CDs [43]. However, the PL emission spectra under excitation with different wavelengths (Figure 5c) show a wide spectral width of PL of more than 350 nm which greatly broadens their application in bioimaging.

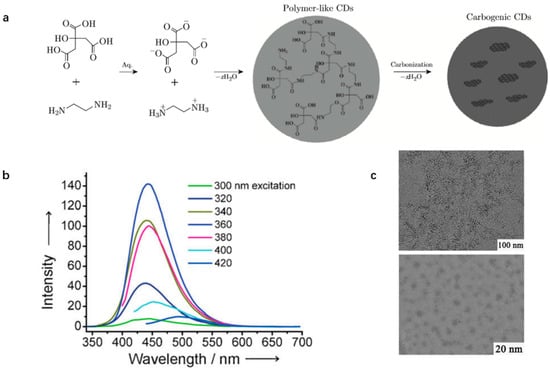

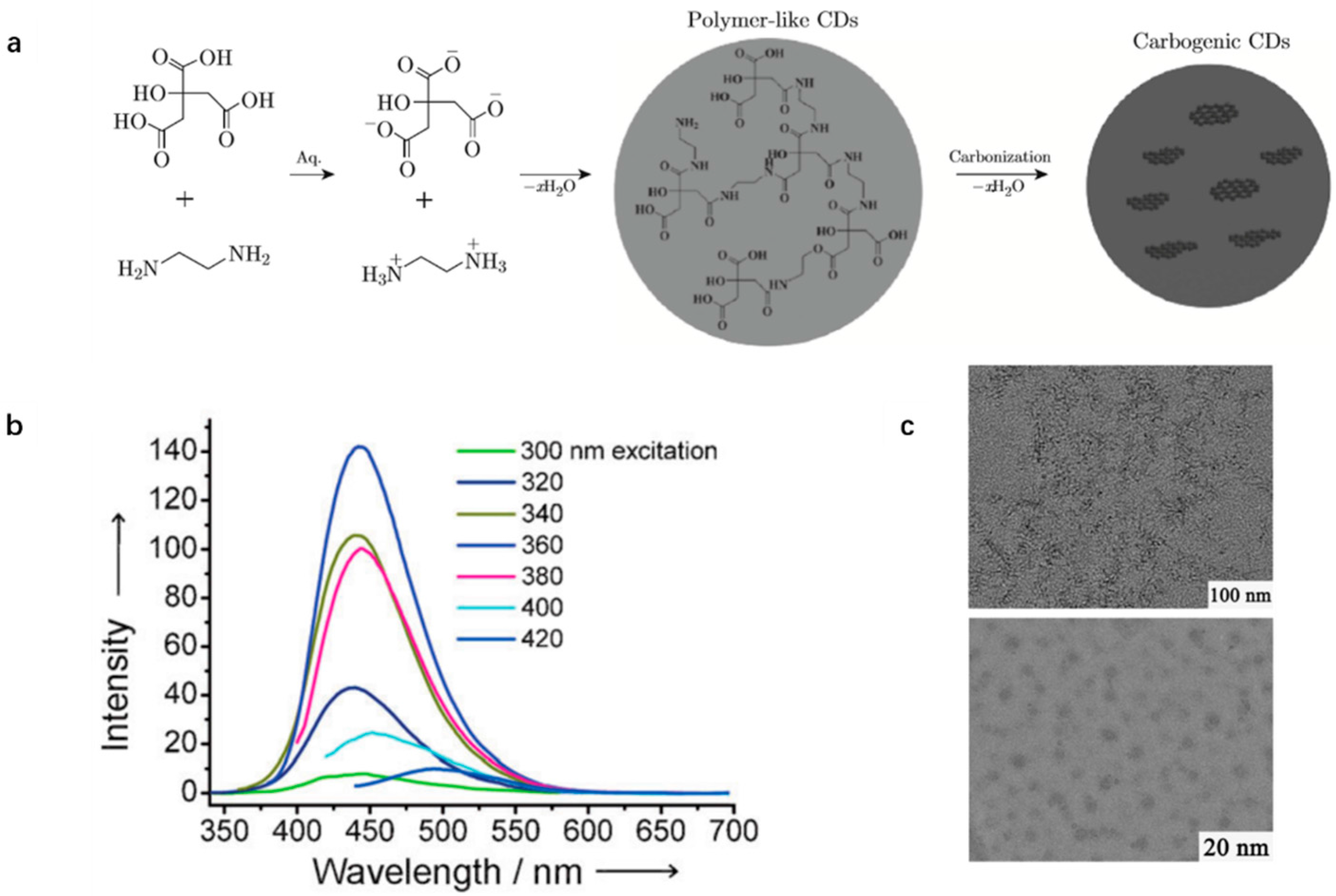

Zhu et al. obtained high photoluminescent CDs with a hydrothermal method with citric acid (CA) and EDA as the precursors and passivation agent, respectively [61]. The resulting CDs exhibited the highest QY (80%) up to now and were even comparable to fluorescent dyes. The high QY was analyzed by using a femtosecond broadband (350–800 nm) transient absorption (TA) spectroscopy excited at 400 nm. From the TA spectra, the decay is rather little in all wavelengths indicating the high stable excited-state of CDs which contributes to the high QY. CA and amine compounds due to their populated functional groups and flexible binding pattern have become classic constructive carbon precursors and passivation agent for the synthesis of CDs (Table 1). However, the mechanism (Figure 6a) and structure of such prepared CDs are more complicated than other CDs because of unclear bond patterns. In addition, the obtained CDs, though own high PL QY, own relatively narrow spectral width (250 nm) of PL when the size of CDs is aligned to be 2–6 nm shown in TEM (upper, Figure 6c) while the HRTEM image (lower, Figure 6c) reveals most CDs nanoparticles are amorphous without any lattices.

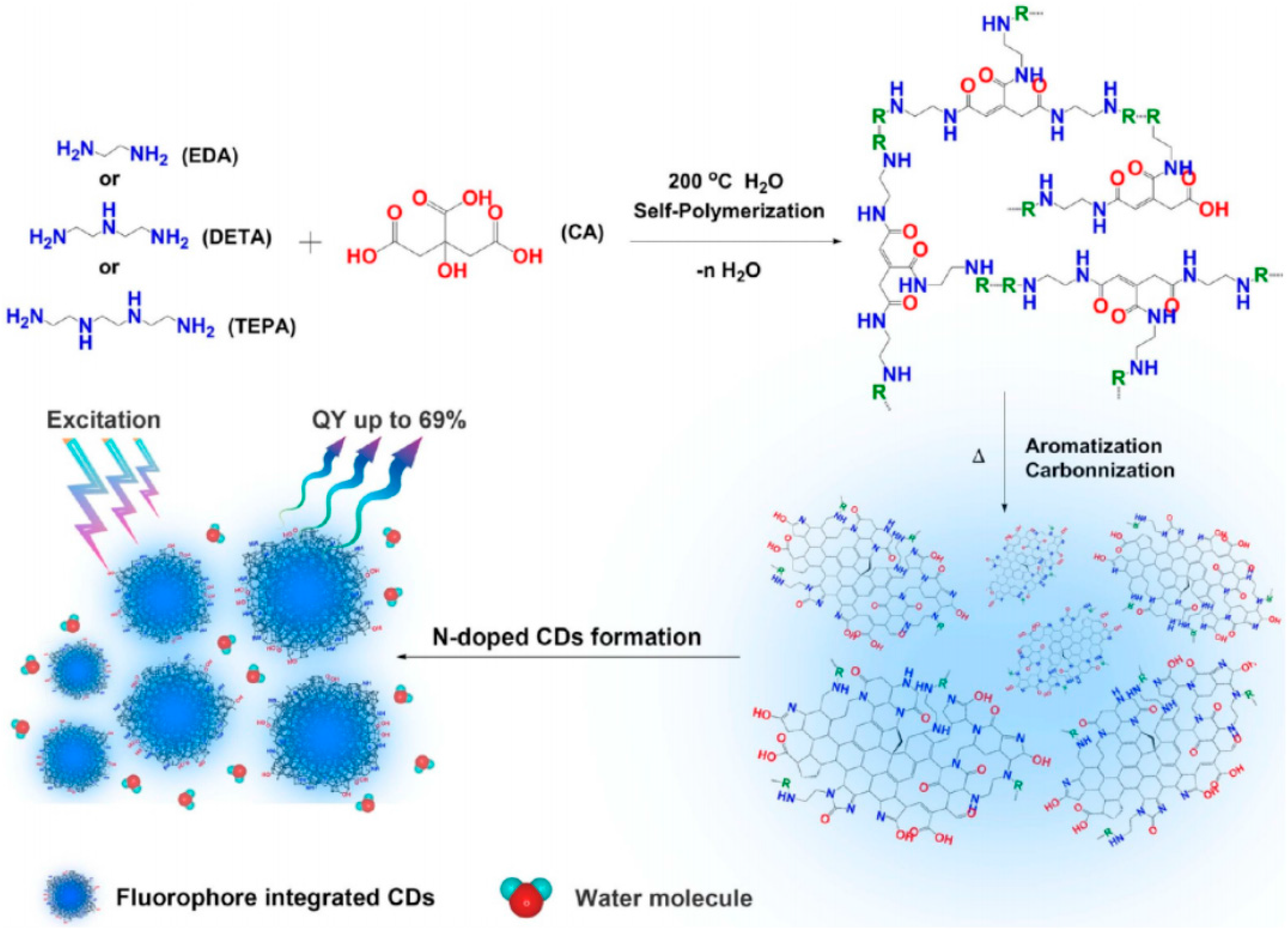

Besides, Wang et al. synthesized photoluminescent CDs by hydrothermal reaction of CA and three different linear polyethylenic amine (PEA) molecules i.e., EDA, diethylenetriamine (DETA), and triethylenetetramine (TEPA) with molar ratio of 2:1 (Figure 7) to investigate the structure effect on the enhanced PL of CDs [56]. The QY was calculated as 69.3%, 68% and 33.4%, and the PL lifetime (τ) was measured as 14, 13 and 10 ns for CD-EDA(2/1), CDs-DETA(2/1) and CDs-TEPA(2/1), respectively. The experimental results imply that either the structures or the molar ratio of PEA will influence the PL properties of these CDs, and the hybridization between the surface state and carbon backbone affected the chemical or physical properties of these CDs, for instance, the increasing of amine groups in the PEA molecules can also govern the molecular state of the CDs formation. Besides, the content of conjugated π-domains with C=N in the carbon backbone is in relation to their PL QY (up to 69%). In addition, the PL stabilities tests of CD-EDA(2/1), CDs-DETA(2/1) and CDs-TEPA(2/1) show the longer-chain PEA molecules is beneficial to keep long stability of CDs while shorter-chain PEA molecules, though own high QY, exhibit strong photobleaching behaviors similar to organic fluorophores.

3. Polymers for Surface Modification of CDs

Bare surface of CDs is rather defenseless due to the existence of many defect sites, such as dangling bonds, non-radiative states and radicals [71], which usually cause the low PL efficiency (QY) and impair of the optoelectronic properties of CDs. Surface passivation is the most effective technique to enhance the PL intensity and common polymer passivation agents include polyethylene glycol (PEG) [72,73], polyethyleneimine (PEI) [73,74], poly(ethylenimide)-co-poly(ethylene glycol)-co-poly(ethyl-enimide) (PPEI) [72] and 4,7,10-trioxa-1,13-tridecanediamine (TTDDA) [73,75]. The mechanism of surface passivation can be explained by cutting off other non-emitting ways to amplify the emission intensity caused by irradiation. After passivation with polymers or other organic molecules, the QY of CDs can increase dramatically [76].
Besides, functionalization usually occurs along with the passivation process and they are the same process when polymer passivation agents are doped. Functionalization is the process of adding new features and properties to a material by changing the surface chemistry of the material and is a useful technique to develop more tailoring work for CDs. After passivation, it can also modify the surface of CDs by bringing in or generating various functional groups such as carboxyl, carbonyl, and hydroxyl groups in the defect sites of their surface. The process is usually assisted by doping polymers or organic compounds. In terms of the category of doping, there are currently N-doping [28,77,78], S-doping [79,80], P-doping [81,82], and Si-doping [83,84], among which N-doping has proved to be the most effective and popular doping method.
Sun et al. in 2006 initiated diamine-terminated oligomeric poly (ethylene glycol) H2NCH2(CH2CH2O)nCH2CH2CH2NH2 (average n ~ 35, PEG1500N) as surface passivation agent [72]. When CDs were excited at 400 nm, the observed QY ranged from 4% to over 10% which varied due to the extent of surface passivation. The QY of CDs was comparable with those of traditionally prepared silicon nanocrystals after surface passivation. Mechanistically, the PL of CDs was attributed to the surface energy traps, which were caused by plenty of functional groups such as –NH2 on the surface of CDs that emitted light upon stabilization because of the surface passivation.
Wang et al. prepared CDs sample with an oligomeric PEG diamine (PEG1500N) as passivation agent [85], which was based on other previous reports [86] and later simply fractionalized CDs on an aqueous gel column. After separation, the most fluorescent fraction even achieved QY close to 60%, comparable to those of the best commercial CdSe/ZnS QDs in solution and brighter at the individual dot level. Furthermore, Goncalves and his coworkers synthesized CDs by laser ablation [34]. Then the CDs were capped with PEG200 and mercaptosuccinic acid. The CDs obtained from laser ablation were not fluorescent and the functionalization process with PEG200 endowed the CDs with PL.
In 2014, Liu et al. reported conjugating CA with a multifunctional ribonuclease A (RNase A) to prepare ribonuclease A-conjugated C-dot nanoclusters (RNase A@C-dots) for synchronous cancer imaging and therapy [31]. In the experiment, except the CDs obtained by conjugating CA and RNase A, in control experiment, CA without RNase was treated in the same condition and followed by the addition of PEG2000N (mass ration, CDs/PEG2000N = 1:20) to obtain C-dots-PEG2000N. It turned out that the PL of C-dots-PEG2000N (4.33%) is five times of that of the bare CDs (0.87%), which exhibited the eminent enhancement of PL properties of CDs by surface passivation of PEG series.

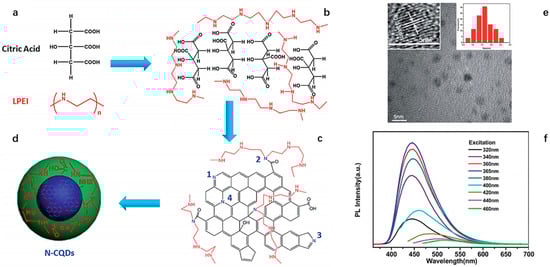

Except PEG series compounds, other polyamine compounds have also been used as passivation agent in the synthesis of CDs [61,63,69]. Liu et al. prepared nitrogen-doped CDs (N-CDs) by using CA and linear-structured polyethyleneimine (LPEI) polymer as initial materials [58]. The LPEI serves not only as a nitrogen source but also as a surface-passivation agent for surface modification. The QY of the resulting CDs is 37.4%. The proposed structural mechanism is intermolecular and/or intramolecular dehydration which occurs among the –COOH, –OH groups and –H in the CA and further polymerization, aromatization and carbonization processes follow to form aromatic sp2 carbon clusters [61,87]. At the same time, the LPEI with rich amine groups can also react with CA (e.g., formation of amide N–C=O), thus incorporating N atom into the final nitrogen-doped CDs (Figure 8a–d). The TEM and HRTEM images (Figure 8e) of the obtained N-CDs revealed the average diameter of CDs is about 1.67 nm with high crystallinity with a lattice spacing distance of 0.334 nm, which is comparable with that of (002) plane of graphitic carbon. In addition, the PL spectra of N-CDs (Figure 8f) suggest the N-CDs have a wide spectral width (over 250 nm) of PL over which N-CDs exhibit strong PL.

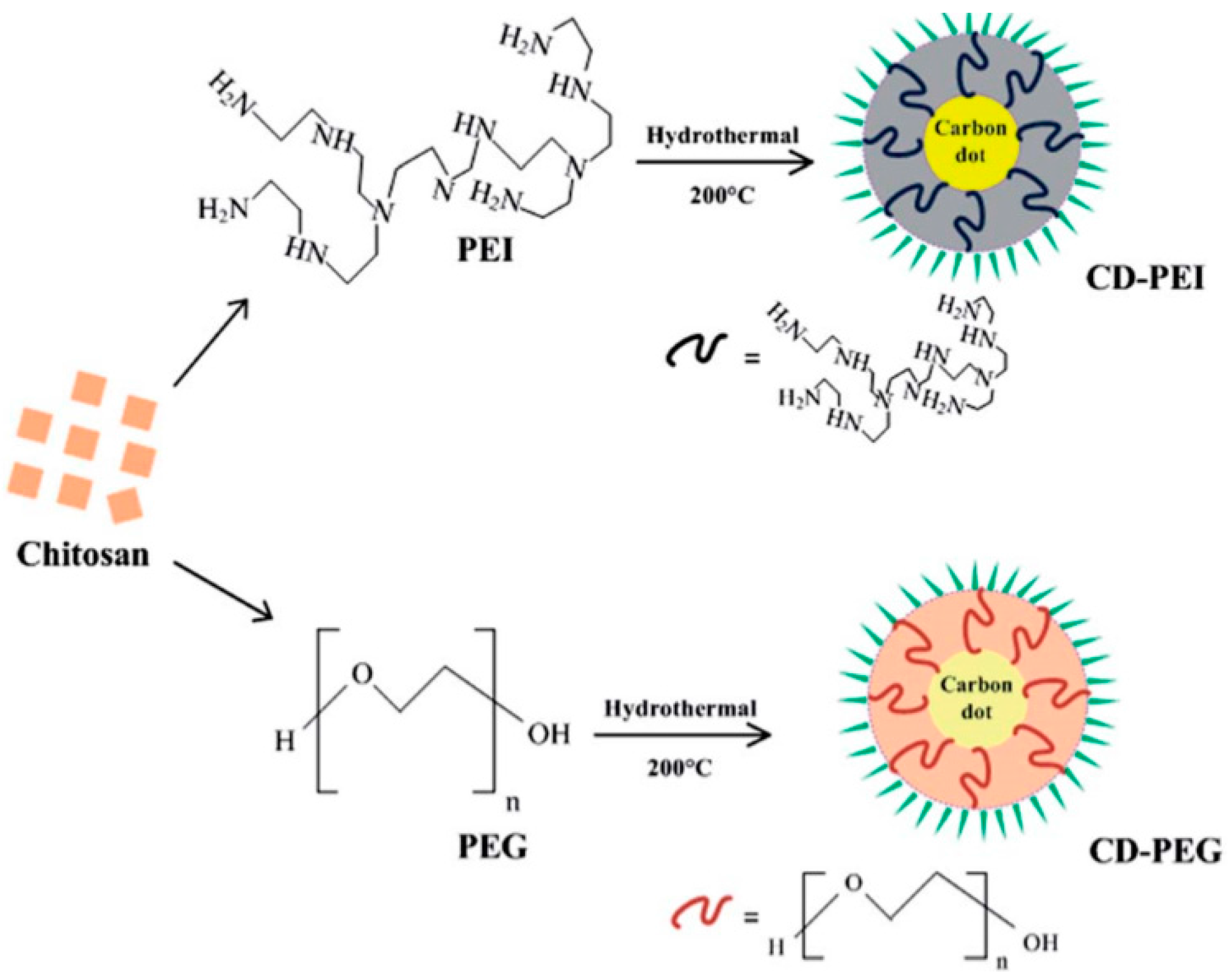

Gopinath and his colleagues prepared CDs using chitosan as starting carbon source and passivate the CDs by PEI and PEG (Figure 9), separately [88]. The QY of CD-PEI and CD-PEG was measured using quinine sulfate as a standard and found to be 13.15% and 7.01%, respectively, which was adequately bright for bioimaging as well as higher than their earlier report values [33]. In addition, the mean PL decay lifetime of CD-PEI and CD-PEG was 6.193 and 4.825 ns, respectively. Even though the carbon source remained the same, PL properties of CD-PEI were amazingly good compared to CD-PEG in terms of higher QY and longer PL decay lifetimes. Besides, fluorescence microscopic and spectroscopic analysis predict CD-PEI as a superior bioimaging agent compared to CD-PEG, owing to its efficient fluorescent characteristics and tunable emission from blue to red under cell culture conditions. Therefore, the surface of CDs, selection of right polymer groups for surface passivation can enhance its bioimaging efficiency.

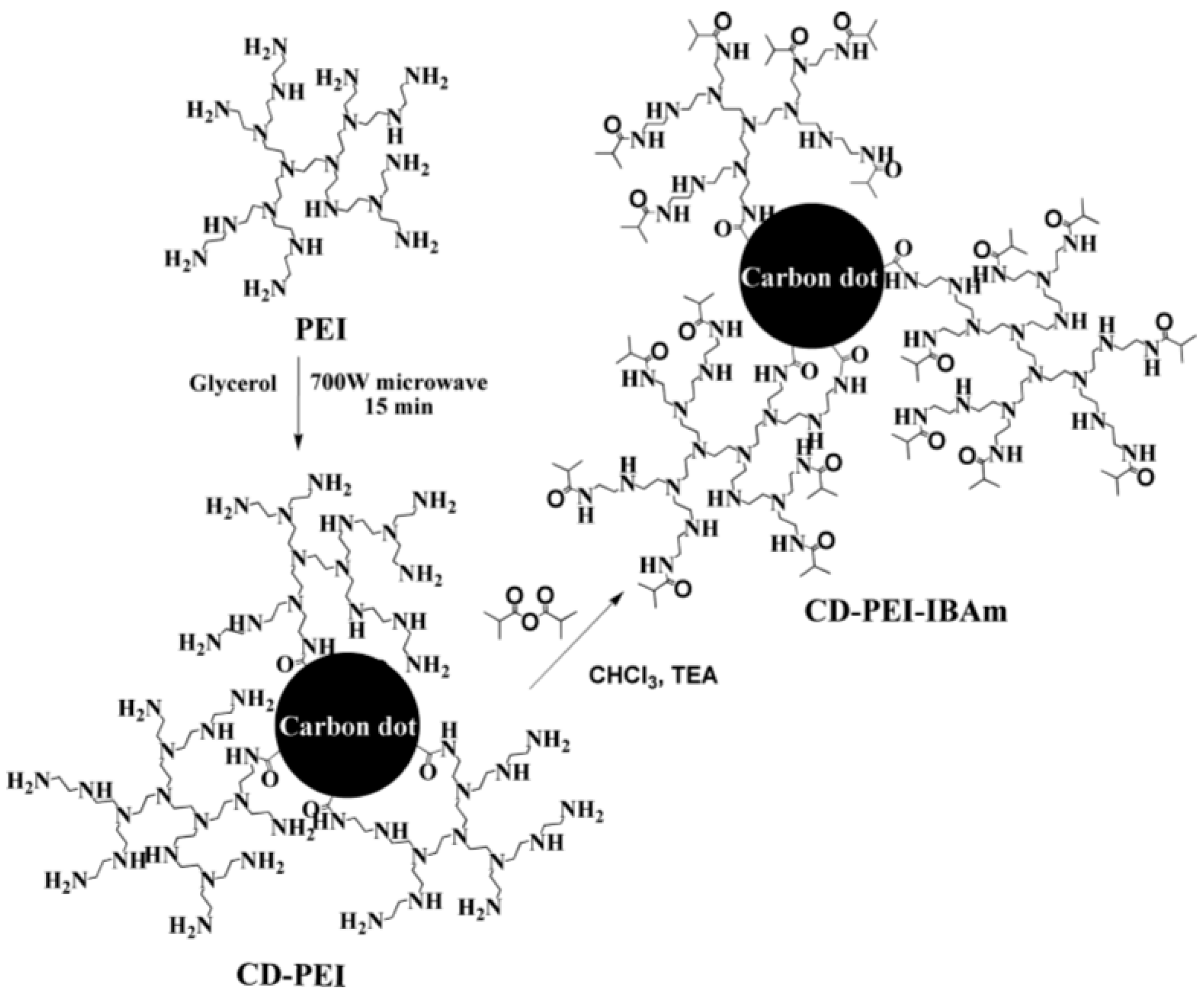

Yin et al. integrated thermoresponsive hyperbranched PEI with multistimuli-responsive CDs [89] (Figure 10), which results in photoluminescent CD-PEI. After the amidation reaction of isobutyric anhydride and the PEI moiety, isobutyric amide (IBAm) groups were attached to CD-PEI to fabricate CD-PEI-IBAms. The CD-PEI-IBAms were also photoluminescent and their PL was barely affected by pH, salts, and the organic guests encapsulated while the cloud point temperature (Tcp) of aqueous solution of CD-PEI-IBAms could be modulated by pH, salts and the organic guests encapsulated. Above all, CD-PEI-IBAms integrate the properties or functions such as multistimuli-response, nanocarrier for organic guest, and PL, which endows them as promising “smart” materials in the future application of biomedicine and biotechnology.

4. Polymer in Polymer–CDs Composite

4.1. CDs-Polymeric Gel Conjugation

When a three-dimensional polymeric network is loosely crosslinked, a hydrogel is formed [90]. They usually get swollen in water but do not dissolve in water. There have been many studies in the incorporation of nanomaterials in gel [91,92,93].
Gopinath and co-workers have made an intensive study on the incorporation of carbon dots in polymeric hydrogels loaded with an anticancer drug, 5-Fluorouracil (5-FU@CD-HY) [37]. In this work, they studied the multifunctional aspects of 5-FU@CD-HY using A549 (lung cancer) cell line as an in vitro model system and have found that 5-FU@CD-HY owned high PL, large surface area, strong mechanical strength and pH dependent behavior. All characteristics made 5-FU@CD-HY as a nanotheranostic system to monitor the cellular uptake and cytotoxic effects of anticancer drugs.
In another study, ion sensing applications of carbon dot–hydrogel hybrid nanomaterials using low molecular weight gelators (LMWGs) designed to provide a hydrophobic environment suitable for fluorescent ion sensing within an aqueous medium has been discussed [94]. It has been reported that the carbon dots showed an enhanced gelation properties and the hydrogel resulted an increased PL which was later employed as a useful sensor to detect heavy metals like Pb2+. Further work for colorimetric-optical sensing of heavy metals like Cr6+, Cu2+, Fe3+, Pb2+, Mn2+ by the use of carbon dots incorporated hydrogel has been reported by Gogoi et al. [95]. They have introduced chitosan based carbon dots rooted agarose hydrogel film as a hybrid solid sensing platform. It has been observed that the minimum detection limit was 1 pM for Cr6+, 0.5 nM for Fe3+, Pb2+, and Mn2+, and 0.5 μM for Cu2+. Beside metal ions, Baruah et al. have shown that Fluorescent carbon dots (CDs) prepared from chitosan gel can be used in the detection of anions like F [96].
Wang et al. have developed a biocompatible PEG-chitosan@CDs hybrid nanogels by integrating nonlinear poly(ethylene glycol) (PEG), chitosan, and graphitic carbon dots (CDs) [36]. They have employed the developed hybrid nanogel in two-photon fluorescence (TPF) bioimaging, pH and near-infrared (NIR) light dual-responsive drug release, and synergistic therapy.
Chowdhury and co-workers [97] have reported a method of preparation of stable, soft but tough chitosan–carbon dots nanocomposite hydrogel films which they claim that the carbon dots synthesized from tea by green approach improved the strength, thermostability and wettability of chitosan hydrogel films. They have not used the hydrogel for any purpose like bioimaging, separation of heavy ions but claim their findings on the basis of result from UV/Vis spectroscopy, X-ray diffraction (XRD), FTIR, SEM, fluorescent microscopy, thermogravimetric analysis (TGA) and contact angle analysis.
Zhou et al. have shown that light-emitting polymer nanocomposites with excellent optical performance can be easily fabricated by the incorporation of amphibious CDs into the polymer matrix of peach gum polysaccharide (PGP) [45]. They have observed that the addition of CDs favored strong PL properties to polymer film.

4.2. CDs-Molecularly Imprinting Polymers (MIP) Complex

Molecular imprinting is one promising application to mimic nature and its principle is to prepare substrate-selective recognition sites in a matrix with a molecular template in a casting procedure [98,99,100]. The interesting scope of molecularly imprinting polymers has been elucidated in a review paper [101]. Several works are ongoing in the field where CDs are embedded in MIP to broaden the scope of the MIP. CDs embedded in molecularly imprinted polymer have been used in the recognition of sterigmatocystin, a fungal secondary metabolite produced by many different Aspergillus species, in grains [102]. In this study, CDs were directly encapsulated in a silica MIP in a one-pot reaction and it was found that PL properties of the CDs were not restricted by the silica-based MIP layer. They have suggested the no restriction phenomenon was due to optically transparent and chemically inert nature of silica but they have not discussed about the size fluctuations due to the fabrication which directly affects the PL. Furthermore, they have shown one method of detection of sterigmatocystin on the basis of PL quenching method because sterigmatocystin quenches the PL of CDs embedded in MIP.
A thermo-sensitive receptor CDs/SiO2/MIP was fabricated based on CDs and epitope approach, which they claim as the first reported approach [103]. In this research work, they have observed that the CDs/SiO2/MIP with double templates exhibited higher imprinting effect. The direct application of CDs/SiO2/MIP was subjected in the detection of target protein in the urine. Zhou and his co-workers have discussed an eco-friendly molecularly imprinted fluorescence composite material based on carbon dots fabricated via sol–gel polymerization for selective fluorescence detection of 4-nitrophenol (4-NP) of Yangtze River water samples [38]. According to their research work, the relative fluorescence intensity (F0/F) of MIP/CDs showed a good linearity with 4-NP concentrations in the linear range of 0.2–50 μmol·L−1 with a detection limit (3σ/k) of 0.06 μmol·L−1 having the correlation coefficient, imprinting factor as 0.9978 and 2.76 respectively.
Zuo et al. have reported nicotinic acid (NA) fluorescent optosensing based on molecular imprint technique [39]. In their research work, NA as template molecules were mixed with silane groups coated with CDs. The SiNPs were fabricated by sol-gel method by taking ethanol as a cross-linker and the recognition specificity of SiNPs along with the effect of NA on PL intensity was studied. The linear regression analysis helped them to determine the relationship between NA concentration and PL response which ultimately led the SiNPs to act as fluorescent probe for the detection of NA in several biological samples.

4.3. CDs Conjugated in Polymer Composite Films

The development of efficient, low-cost, and environmentally-friendly light emitters have gradually drawn intense attention due to their wide application in the lighting industry and photonics. In recent years, due to the high quantum efficiency, CDs were increasingly conjugated in polymer composite films to make white light emitters [45,104,105].
Since 2011, Wang and his coworkers initiated the first white light-emitting device originating from single CDs components [106]. Chen et al. have reported a white-light-emitting polymer composite films were synthesized by conjugating CDs and lanthanide complexes such as Eu(DBM)3 and Tb(DBM)3 (DBM: dibenzoylmethide) into a poly(methyl methacrylate) (PMMA) matrix [41]. The synthesized CDs emitted blue PL while the lanthanide complexes exhibited red and green PL. By adjusting the molar ratio of CDs and lanthanide complexes in the PMMA matrix, the high transparent polymer composite films could emit pure white PL.

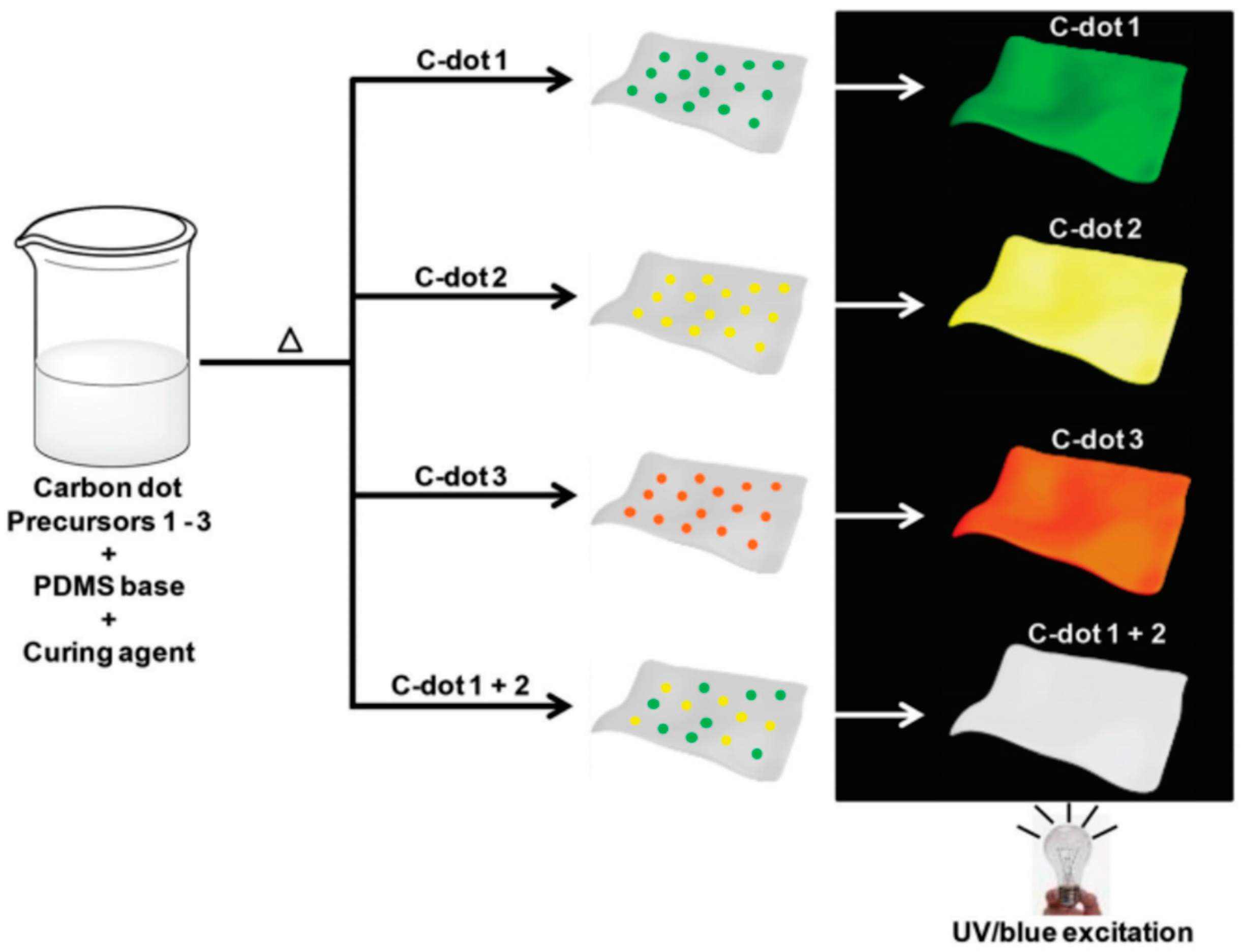

Bhunia and her coworkers reported the fabrication of transparent films which exhibited tunable light emission through one-pot synthesis of polymer matrixes with embedded CDs (C-dot) assembled simultaneously with the polymer matrix [40]. Interestingly, the films exhibit different distinct PL color based on different carbon precursors. Besides, by mixing carbon precursors, the CDs film exhibited different PL color including white color (Figure 11).
Zeng and Yan have prepared luminescent cellulose film by combination of cellulose and CDs in aqueous solution [30]. In doing so, they fabricated a biocompatible transparent material by green process with potential applications in optical devices, biomedicine and environmentally benign packaging. They studied the mechanical performance of the regenerated cellulose and composite cellulose/CDs films by stress-strain (σ–ε) curves. They reported that tensile strength and elongation at breaking of the pure cellulose film were 46.9 MPa and 4.1%, respectively. Furthermore, the elastic modulus and tensile strength were found to be 344 and 58.5 MPa, respectively. From these data, they confirmed that the composite was softer than that of the regenerated cellulose film.
Besides, the luminescent C-dots have been covalently attached in aqueous media to cellulose nanofibrils via N-(3Dimethylaminopropyl)-N′-ethylcarbodiimide hydrochloride/N-hydroxysuccinimide (EDC/NHS) coupling by Junka et al. [107]. In this study, they found that C-dots do not aggregate during drying while embedded in the carboxymethylated-cellulose nanofibrils (CM-CNF) matrix and there was increment in thermal stability due to the attachments of C-dots. Transparent, smooth, and fluorescent nanopaper was produced from CNF-C-dots. However, they have not demonstrated the potential of C-dots modified by CM-CNF in anticounterfeit and biosensing applications.

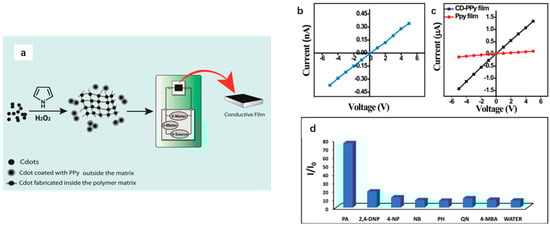

Except high PL efficiency, the high electrical conductivity is also attractive for CDs to work as a sensitive sensor. In 2016, Pal et al. synthesized a conducting nanocomposite consisting of CDs and polypyrrole (PPy) (a p-type semiconductor) and it is the first report on the sensing work based on conductivity of CDs (Figure 12a) [108]. The conductivity of the CDs film (Figure 12b) was explained by the presence of sp2 C=C bonds and the introduction of CDs into the polymer composite contribute to higher conductivity of the composite nanomaterial than PPy (Figure 12c), which was due to the enhancement of enrichment of electron acceptors of CDs. As is illustrated in Figure 12d, the response of the composite film was very strong toward picric acid which is widely used to produce explosives and considered as a pollutant to contaminate groundwater and soil. Therefore, the synthesized CDs films can work as a great biosensor to selectively and sensitively detect the presence of picric acid in aqueous phase as well as soil.

5. Conclusions

In this review, we tried to highlight and critically analyze the ongoing trends in CDs linked to polymers, focusing on the key role played by polymers in the formation of CDs and the fabrication of CDs–polymer composite with their actual applications. As a good template of CDs, polymers themselves own repeated monomer units which is beneficial for the analysis of the CDs structure. Besides, most CDs formation needs to experience polymerization while different monomers with different molar ration will vary the PL properties. Therefore, the selection of proper monomers is important. In addition, CDs passivation technique has been applied to improve the PL of CDs, which involves polymers such as PEG series compounds and PEI which render the PL of CDs. In terms of application, different kinds of composites ranging from molecularly imprinted polymers to drug free hybrid nanogels have promising characteristics in fields from bioimaging to drug delivery. The hydrogels and polymer composites revealed excellent features such as convenient synthesis, low cost, large surface area (relative to volume), enhanced PL, selectivity, stability, pH dependent drug release, etc.

Conflicts of interest

The authors declare no conflict of interest.

References

  1. Suri, S.S.; Fenniri, H.; Singh, B. Nanotechnology-based drug delivery systems. J. Occup. Med. Toxicol. 2007, 2, 16–21. [Google Scholar] [CrossRef] [PubMed]
  2. Schulte, J. Nanotechnology in environmental protection and pollution sustainable future, environmental cleanup and energy solutions. Sci. Technol. Adv. Mater. 2007, 8, 11. [Google Scholar] [CrossRef]
  3. Yang, Y.; Zheng, Y.; Cao, W.; Titov, A.; Hyvonen, J.; MandersJesse, R.; Xue, J.; Holloway, P.H.; Qian, L. High-efficiency light-emitting devices based on quantum dots with tailored nanostructures. Nat. Photonics 2015, 9, 259–266. [Google Scholar] [CrossRef]
  4. Prober, D.E. Instrumentation: Astronomers look to nanotechnology. Nat. Nanotechnol. 2008, 3, 459–460. [Google Scholar] [CrossRef] [PubMed]
  5. Mo, Y.-M.; Tang, Y.; Gao, F.; Yang, J.; Zhang, Y.-M. Synthesis of fluorescent CdS quantum dots of tunable light emission with a new in situ produced capping agent. Ind. Eng. Chem. Res. 2012, 51, 5995–6000. [Google Scholar] [CrossRef]
  6. Xu, X.; Ray, R.; Gu, Y.; Ploehn, H.J.; Gearheart, L.; Raker, K.; Scrivens, W.A. Electrophoretic analysis and purification of fluorescent single-walled carbon nanotube fragments. J. Am. Chem. Soc. 2004, 126, 12736–12737. [Google Scholar] [CrossRef] [PubMed]
  7. Peng, H.; Travas-Sejdic, J. Simple aqueous solution route to luminescent carbogenic dots from carbohydrates. Chem. Mater. 2009, 21, 5563–5565. [Google Scholar] [CrossRef]
  8. Li, S.; Wang, L.; Chusuei, C.C.; Suarez, V.M.; Blackwelder, P.L.; Micic, M.; Orbulescu, J.; Leblanc, R.M. Nontoxic carbon dots potently inhibit human insulin fibrillation. Chem. Mater. 2015, 27, 1764–1771. [Google Scholar] [CrossRef]
  9. Deng, J.; Lu, Q.; Mi, N.; Li, H.; Liu, M.; Xu, M.; Tan, L.; Xie, Q.; Zhang, Y.; Yao, S. Electrochemical synthesis of carbon nanodots directly from alcohols. Chem. Eur. J. 2014, 20, 4993–4999. [Google Scholar] [CrossRef] [PubMed]
  10. Reyes, D.; Camacho, M.; Camacho, M.; Mayorga, M.; Weathers, D.; Salamo, G.; Wang, Z.; Neogi, A. Laser Ablated Carbon Nanodots for Light Emission. Nanoscale Res. Lett. 2016, 11, 424–434. [Google Scholar] [CrossRef] [PubMed]
  11. Jiang, Y.; Wang, Y.; Meng, F.; Wang, B.; Cheng, Y.; Zhu, C. N-doped carbon dots synthesized by rapid microwave irradiation as highly fluorescent probes for Pb2+ detection. New J. Chem. 2015, 39, 3357–3360. [Google Scholar] [CrossRef]
  12. Liang, Y.; Zhang, H.; Zhang, Y.; Chen, F. Simple hydrothermal preparation of carbon nanodots and their application in colorimetric and fluorimetric detection of mercury ions. Anal. Methods 2015, 7, 7540–7547. [Google Scholar] [CrossRef]
  13. Mitra, S.; Chandra, S.; Pathan, S.H.; Sikdar, N.; Pramanik, P.; Goswami, A. Room temperature and solvothermal green synthesis of self-passivated carbon quantum dots. RSC Adv. 2013, 3, 3189–3193. [Google Scholar] [CrossRef]
  14. Zhou, Y.; Desserre, A.; Sharma, S.K.; Li, S.; Marksberry, M.; Chusuei, C.; Blackwelder, P.; Leblanc, R.M. Gel-like carbon dots, characterization, and their potential applications. ChemPhysChem 2017. [Google Scholar] [CrossRef] [PubMed]
  15. Zhou, J.; Booker, C.; Li, R.; Zhou, X.; Sham, T.-K.; Sun, X.; Ding, Z. An electrochemical avenue to blue luminescent nanocrystals from multiwalled carbon nanotubes (MWCNTs). J. Am. Chem. Soc. 2007, 129, 744–745. [Google Scholar] [CrossRef] [PubMed]
  16. Chandra, S.; Laha, D.; Pramanik, A.; Ray Chowdhuri, A.; Karmakar, P.; Sahu, S.K. Synthesis of highly fluorescent nitrogen and phosphorus doped carbon dots for the detection of Fe3+ ions in cancer cells. Luminescence 2016, 31, 81–87. [Google Scholar] [CrossRef] [PubMed]
  17. Mohapatra, S.; Sahu, S.; Sinha, N.; Bhutia, S.K. Synthesis of a carbon-dot-based photoluminescent probe for selective and ultrasensitive detection of Hg2+ in water and living cells. Analyst 2015, 140, 1221–1228. [Google Scholar] [CrossRef] [PubMed]
  18. Li, F.; Liu, C.; Yang, J.; Wang, Z.; Liu, W.; Tian, F. Mg/N double doping strategy to fabricate extremely high luminescent carbon dots for bioimaging. RSC Adv. 2014, 4, 3201–3205. [Google Scholar] [CrossRef]
  19. Lin, Z.; Dou, X.; Li, H.; Ma, Y.; Lin, J.-M. Nitrite sensing based on the carbon dots-enhanced chemiluminescence from peroxynitrous acid and carbonate. Talanta 2015, 132, 457–462. [Google Scholar] [CrossRef] [PubMed]
  20. Zhang, M.; Yao, Q.; Guan, W.; Lu, C.; Lin, J.-M. Layered double hydroxide-supported carbon dots as an efficient heterogeneous Fenton-like catalyst for generation of hydroxyl radicals. J. Phys. Chem. C 2014, 118, 10441–10447. [Google Scholar] [CrossRef]
  21. Xu, H.; Yang, X.; Li, G.; Zhao, C.; Liao, X. Green synthesis of fluorescent carbon dots for selective detection of tartrazine in food samples. J. Agric. Food. Chem. 2015, 63, 6707–6714. [Google Scholar] [CrossRef] [PubMed]
  22. Zhu, S.; Song, Y.; Zhao, X.; Shao, J.; Zhang, J.; Yang, B. The photoluminescence mechanism in carbon dots (graphene quantum dots, carbon nanodots, and polymer dots): Current state and future perspective. Nano Res. 2015, 8, 355–381. [Google Scholar] [CrossRef]
  23. Guo, Y.; Wang, D.; Liu, X.; Wang, X.; Liu, W.; Qin, W. Synthesis and characterization of the nickel@carbon dots hybrid material and its application in the reduction of Cr(vi). New J. Chem. 2014, 38, 5861–5867. [Google Scholar] [CrossRef]
  24. Zhao, L.; Di, F.; Wang, D.; Guo, L.-H.; Yang, Y.; Wan, B.; Zhang, H. Chemiluminescence of carbon dots under strong alkaline solutions: A novel insight into carbon dot optical properties. Nanoscale 2013, 5, 2655–2658. [Google Scholar] [CrossRef] [PubMed]
  25. De, B.; Voit, B.; Karak, N. Carbon dot reduced Cu2O nanohybrid/hyperbranched epoxy nanocomposite: Mechanical, thermal and photocatalytic activity. RSC Adv. 2014, 4, 58453–58459. [Google Scholar] [CrossRef]
  26. Niu, J.; Gao, H.; Wang, L.; Xin, S.; Zhang, G.; Wang, Q.; Guo, L.; Liu, W.; Gao, X.; Wang, Y. Facile synthesis and optical properties of nitrogen-doped carbon dots. New J. Chem. 2014, 38, 1522–1527. [Google Scholar] [CrossRef]
  27. Jia, X.; Li, J.; Wang, E. One-pot green synthesis of optically pH-sensitive carbon dots with upconversion luminescence. Nanoscale 2012, 4, 5572–5575. [Google Scholar] [CrossRef] [PubMed]
  28. Yang, Z.; Xu, M.; Liu, Y.; He, F.; Gao, F.; Su, Y.; Wei, H.; Zhang, Y. Nitrogen-doped, carbon-rich, highly photoluminescent carbon dots from ammonium citrate. Nanoscale 2014, 6, 1890–1895. [Google Scholar] [CrossRef] [PubMed]
  29. Chowdhury, D.; Gogoi, N.; Majumdar, G. Fluorescent carbon dots obtained from chitosan gel. RSC Adv. 2012, 2, 12156–12159. [Google Scholar] [CrossRef]
  30. Junka, K.; Guo, J.; Filpponen, I.; Laine, J.; Rojas, O.J. Modification of cellulose nanofibrils with luminescent carbon dots. Biomacromolecules 2014, 15, 876–881. [Google Scholar] [CrossRef] [PubMed]
  31. Liu, H.; Wang, Q.; Shen, G.; Zhang, C.; Li, C.; Ji, W.; Wang, C.; Cui, D. A multifunctional ribonuclease A-conjugated carbon dot cluster nanosystem for synchronous cancer imaging and therapy. Nanoscale Res. Lett. 2014, 9, 397–407. [Google Scholar] [CrossRef] [PubMed]
  32. Li, Q.; Ohulchanskyy, T.Y.; Liu, R.; Koynov, K.; Wu, D.; Best, A.; Kumar, R.; Bonoiu, A.; Prasad, P.N. Photoluminescent carbon dots as biocompatible nanoprobes for targeting cancer cells in vitro. J. Phys. Chem. C 2010, 114, 12062–12068. [Google Scholar] [CrossRef]
  33. Sachdev, A.; Matai, I.; Kumar, S.U.; Bhushan, B.; Dubey, P.; Gopinath, P. A novel one-step synthesis of PEG passivated multicolour fluorescent carbon dots for potential biolabeling application. RSC Adv. 2013, 3, 16958–16961. [Google Scholar] [CrossRef]
  34. Gonçalves, H.; Esteves da Silva, J.C.G. Fluorescent carbon dots capped with PEG200 and mercaptosuccinic acid. J. Fluorescence 2010, 20, 1023–1028. [Google Scholar]
  35. Feng, T.; Ai, X.; Ong, H.; Zhao, Y. Dual-responsive carbon dots for tumor extracellular microenvironment triggered targeting and enhanced anticancer drug delivery. ACS Appl. Mater. Interfaces 2016, 8, 18732–18740. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, H.; Di, J.; Sun, Y.; Fu, J.; Wei, Z.; Matsui, H.; del C. Alonso, A.; Zhou, S. Biocompatible PEG-chitosan@carbon dots hybrid nanogels for two-photon fluorescence imaging, near-infrared light/pH dual-responsive drug carrier, and synergistic therapy. Adv. Funct. Mater. 2015, 25, 5537–5547. [Google Scholar] [CrossRef]
  37. Sachdev, A.; Matai, I.; Gopinath, P. Carbon dots incorporated polymeric hydrogels as multifunctional platform for imaging and induction of apoptosis in lung cancer cells. Colloids Surf. B 2016, 141, 242–252. [Google Scholar] [CrossRef] [PubMed]
  38. Hao, T.; Wei, X.; Nie, Y.; Xu, Y.; Yan, Y.; Zhou, Z. An eco-friendly molecularly imprinted fluorescence composite material based on carbon dots for fluorescent detection of 4-nitrophenol. Microchim. Acta 2016, 183, 2197–2203. [Google Scholar] [CrossRef]
  39. Zuo, P.; Gao, J.; Peng, J.; Liu, J.; Zhao, M.; Zhao, J.; Zuo, P.; He, H. A sol-gel based molecular imprint incorporating carbon dots for fluorometric determination of nicotinic acid. Microchim. Acta 2016, 183, 329–336. [Google Scholar] [CrossRef]
  40. Bhunia, S.K.; Nandi, S.; Shikler, R.; Jelinek, R. Tuneable light-emitting carbon-dot/polymer flexible films prepared through one-pot synthesis. Nanoscale 2016, 8, 3400–3406. [Google Scholar] [CrossRef] [PubMed]
  41. Chen, B.; Feng, J. White-light-emitting polymer composite film based on carbon dots and lanthanide complexes. J. Phys. Chem. C 2015, 119, 7865–7872. [Google Scholar] [CrossRef]
  42. Chen, W.; Hu, C.; Yang, Y.; Cui, J.; Liu, Y. Rapid synthesis of carbon dots by hydrothermal treatment of lignin. Materials 2016, 9, 184–191. [Google Scholar] [CrossRef]
  43. Li, C.-L.; Ou, C.-M.; Huang, C.-C.; Wu, W.-C.; Chen, Y.-P.; Lin, T.-E.; Ho, L.-C.; Wang, C.-W.; Shih, C.-C.; Zhou, H.-C.; et al. Carbon dots prepared from ginger exhibiting efficient inhibition of human hepatocellular carcinoma cells. J. Mater. Chem. B 2014, 2, 4564–4571. [Google Scholar] [CrossRef]
  44. Sahu, S.; Behera, B.; Maiti, T.K.; Mohapatra, S. Simple one-step synthesis of highly luminescent carbon dots from orange juice: Application as excellent bio-imaging agents. Chem. Commun. 2012, 48, 8835–8837. [Google Scholar] [CrossRef] [PubMed]
  45. Zhou, L.; He, B.; Huang, J. Amphibious fluorescent carbon dots: One-step green synthesis and application for light-emitting polymer nanocomposites. Chem. Commun. 2013, 49, 8078–8080. [Google Scholar] [CrossRef] [PubMed]
  46. Guan, W.; Xiaoyong, P.; Liuqun, G.; Wei, R.; Weiren, C.; Jatin, N.K.; Ye, L. Fluorescent carbon dot (C-dot) nanoclusters. Nanotechnology 2014, 25, 375601–375606. [Google Scholar]
  47. Zhu, B.; Sun, S.; Wang, Y.; Deng, S.; Qian, G.; Wang, M.; Hu, A. Preparation of carbon nanodots from single chain polymeric nanoparticles and theoretical investigation of the photoluminescence mechanism. J. Mater. Chem. C 2013, 1, 580–586. [Google Scholar] [CrossRef]
  48. Liu, R.; Wu, D.; Liu, S.; Koynov, K.; Knoll, W.; Li, Q. An aqueous route to multicolor photoluminescent carbon dots using silica spheres as carriers. Angew. Chem. Int. Ed. 2009, 48, 4598–4601. [Google Scholar] [CrossRef] [PubMed]
  49. Zhou, X.; Zhang, Y.; Wang, C.; Wu, X.; Yang, Y.; Zheng, B.; Wu, H.; Guo, S.; Zhang, J. Photo-Fenton reaction of graphene oxide: A new strategy to prepare graphene quantum dots for DNA cleavage. ACS Nano 2012, 6, 6592–6599. [Google Scholar] [CrossRef] [PubMed]
  50. Younes, I.; Rinaudo, M. Chitin and chitosan preparation from marine sources. Structure, properties and applications. Mar. Drugs 2015, 13, 1133–1174. [Google Scholar] [CrossRef] [PubMed]
  51. Souza, D.R.; Mesquita, J.P.; Lago, R.M.; Caminhas, L.D.; Pereira, F.V. Cellulose nanocrystals: A versatile precursor for the preparation of different carbon structures and luminescent carbon dots. Ind. Crops Prod. 2016, 93, 121–128. [Google Scholar] [CrossRef]
  52. Thambiraj, S.; Ravi Shankaran, D. Green synthesis of highly fluorescent carbon quantum dots from sugarcane bagasse pulp. Appl. Surf. Sci. 2016, 390, 435–443. [Google Scholar]
  53. Li, H.; Liu, J.; Guo, S.; Zhang, Y.; Huang, H.; Liu, Y.; Kang, Z. Carbon dots from PEG for highly sensitive detection of levodopa. J. Mater. Chem. B 2015, 3, 2378–2387. [Google Scholar] [CrossRef]
  54. Jiang, Z.; Nolan, A.; Walton, J.G.A.; Lilienkampf, A.; Zhang, R.; Bradley, M. Photoluminescent carbon dots from 1,4-addition polymers. Chem. Eur. J. 2014, 20, 10926–10931. [Google Scholar] [CrossRef] [PubMed]
  55. Yang, Z.; Li, Z.; Xu, M.; Ma, Y.; Zhang, J.; Su, Y.; Gao, F.; Wei, H.; Zhang, L. Controllable synthesis of fluorescent carbon dots and their detection application as nanoprobes. Nano-Micro Lett. 2013, 5, 247–259. [Google Scholar] [CrossRef]
  56. Wang, J.; Zhang, P.; Huang, C.; Liu, G.; Leung, K.C.-F.; Wáng, Y.X.J. High performance photoluminescent carbon dots for in vitro and in vivo bioimaging: Effect of nitrogen doping ratios. Langmuir 2015, 31, 8063–8073. [Google Scholar] [CrossRef] [PubMed]
  57. Zhang, P.; Li, W.; Zhai, X.; Liu, C.; Dai, L.; Liu, W. A facile and versatile approach to biocompatible “fluorescent polymers” from polymerizable carbon nanodots. Chem. Commun. 2012, 48, 10431–10433. [Google Scholar] [CrossRef] [PubMed]
  58. Liu, J.; Liu, X.; Luo, H.; Gao, Y. One-step preparation of nitrogen-doped and surface-passivated carbon quantum dots with high quantum yield and excellent optical properties. RSC Adv. 2014, 4, 7648–7654. [Google Scholar] [CrossRef]
  59. Fu, M.; Ehrat, F.; Wang, Y.; Milowska, K.Z.; Reckmeier, C.; Rogach, A.L.; Stolarczyk, J.K.; Urban, A.S.; Feldmann, J. Carbon dots: A unique fluorescent cocktail of polycyclic aromatic hydrocarbons. Nano Lett. 2015, 15, 6030–6035. [Google Scholar] [CrossRef] [PubMed]
  60. Huang, P.; Lin, J.; Wang, X.; Wang, Z.; Zhang, C.; He, M.; Wang, K.; Chen, F.; Li, Z.; Shen, G.; Cui, D.; Chen, X. Light-triggered theranostics based on photosensitizer-conjugated carbon dots for simultaneous enhanced-fluorescence imaging and photodynamic therapy. Adv. Mater. 2012, 24, 5104–5110. [Google Scholar] [CrossRef] [PubMed]
  61. Zhu, S.; Meng, Q.; Wang, L.; Zhang, J.; Song, Y.; Jin, H.; Zhang, K.; Sun, H.; Wang, H.; Yang, B. Highly photoluminescent carbon dots for multicolor patterning, sensors, and bioimaging. Angew. Chem. Int. Ed. 2013, 52, 3953–3957. [Google Scholar] [CrossRef] [PubMed]
  62. Dhenadhayalan, N.; Lin, K.-C.; Suresh, R.; Ramamurthy, P. Unravelling the multiple emissive states in citric-acid-derived carbon dots. J. Phys. Chem. C 2016, 120, 1252–1261. [Google Scholar] [CrossRef]
  63. Zhou, M.; Zhou, Z.; Gong, A.; Zhang, Y.; Li, Q. Synthesis of highly photoluminescent carbon dots via citric acid and Tris for iron(III) ions sensors and bioimaging. Talanta 2015, 143, 107–113. [Google Scholar] [CrossRef] [PubMed]
  64. Simões, E.F.C.; Leitão, J.M.M.; da Silva, J.C.G.E. Carbon dots prepared from citric acid and urea as fluorescent probes for hypochlorite and peroxynitrite. Microchim. Acta 2016, 183, 1769–1777. [Google Scholar] [CrossRef]
  65. Wang, H.; Sun, P.; Cong, S.; Wu, J.; Gao, L.; Wang, Y.; Dai, X.; Yi, Q.; Zou, G. Nitrogen-doped carbon dots for “green” quantum dot solar cells. Nanoscale Res. Lett. 2016, 11, 27–32. [Google Scholar] [CrossRef] [PubMed]
  66. Wang, Q.; Zhang, C.; Shen, G.; Liu, H.; Fu, H.; Cui, D. Fluorescent carbon dots as an efficient siRNA nanocarrier for its interference therapy in gastric cancer cells. J. Nanobiotechnol. 2014, 12, 58–69. [Google Scholar] [CrossRef] [PubMed]
  67. Liu, S.; Liu, R.; Xing, X.; Yang, C.; Xu, Y.; Wu, D. Highly photoluminescent nitrogen-rich carbon dots from melamine and citric acid for the selective detection of iron(III) ion. RSC Adv. 2016, 6, 31884–31888. [Google Scholar] [CrossRef]
  68. Iqbal, A.; Tian, Y.; Wang, X.; Gong, D.; Guo, Y.; Iqbal, K.; Wang, Z.; Liu, W.; Qin, W. Carbon dots prepared by solid state method via citric acid and 1,10-phenanthroline for selective and sensing detection of Fe2+ and Fe3+. Sens. Actuator B Chem. 2016, 237, 408–415. [Google Scholar] [CrossRef]
  69. Bhaisare, M.L.; Talib, A.; Khan, M.S.; Pandey, S.; Wu, H.-F. Synthesis of fluorescent carbon dots via microwave carbonization of citric acid in presence of tetraoctylammonium ion, and their application to cellular bioimaging. Microchim. Acta 2015, 182, 2173–2181. [Google Scholar] [CrossRef]
  70. Wang, C.; Xu, Z.; Zhang, C. Polyethyleneimine-functionalized fluorescent carbon dots: Water stability, pH sensing, and cellular imaging. ChemNanoMat 2015, 1, 122–127. [Google Scholar] [CrossRef]
  71. Park, Y.; Yoo, J.; Lim, B.; Kwon, W.; Rhee, S.W. Improving the functionality of carbon nanodots: Doping and surface functionalization. J. Mater. Chem. A 2016, 4, 11582–11603. [Google Scholar] [CrossRef]
  72. Sun, Y.-P.; Zhou, B.; Lin, Y.; Wang, W.; Fernando, K.A.S.; Pathak, P.; Meziani, M.J.; Harruff, B.A.; Wang, X.; Wang, H.; et al. Quantum-sized carbon dots for bright and colorful photoluminescence. J. Am. Chem. Soc. 2006, 128, 7756–7757. [Google Scholar] [CrossRef] [PubMed]
  73. Ding, H.; Xiong, H.-M. Exploring the blue luminescence origin of nitrogen-doped carbon dots by controlling the water amount in synthesis. RSC Adv. 2015, 5, 66528–66533. [Google Scholar] [CrossRef]
  74. Wu, Y.-F.; Wu, H.-C.; Kuan, C.-H.; Lin, C.-J.; Wang, L.-W.; Chang, C.-W.; Wang, T.-W. Multi-functionalized carbon dots as theranostic nanoagent for gene delivery in lung cancer therapy. Sci. Rep. 2016, 6, 21170–21181. [Google Scholar] [CrossRef] [PubMed]
  75. Liu, C.; Zhang, P.; Tian, F.; Li, W.; Li, F.; Liu, W. One-step synthesis of surface passivated carbon nanodots by microwave assisted pyrolysis for enhanced multicolor photoluminescence and bioimaging. J. Mater. Chem. 2011, 21, 13163–13167. [Google Scholar] [CrossRef]
  76. Wang, W.; Cheng, L.; Liu, W. Biological applications of carbon dots. Sci. China Chem. 2014, 57, 522–539. [Google Scholar] [CrossRef]
  77. Sarkar, S.; Sudolská, M.; Dubecký, M.; Reckmeier, C.J.; Rogach, A.L.; Zbořil, R.; Otyepka, M. Graphitic nitrogen doping in carbon dots causes red-shifted absorption. J. Phys. Chem. C 2016, 120, 1303–1308. [Google Scholar] [CrossRef]
  78. Feng, J.; Wang, W.-J.; Hai, X.; Yu, Y.-L.; Wang, J.-H. Green preparation of nitrogen-doped carbon dots derived from silkworm chrysalis for cell imaging. J. Mater. Chem. B 2016, 4, 387–393. [Google Scholar] [CrossRef]
  79. Xu, Q.; Pu, P.; Zhao, J.; Dong, C.; Gao, C.; Chen, Y.; Chen, J.; Liu, Y.; Zhou, H. Preparation of highly photoluminescent sulfur-doped carbon dots for Fe(iii) detection. J. Mater. Chem. A 2015, 3, 542–546. [Google Scholar] [CrossRef]
  80. Ding, H.; Wei, J.-S.; Xiong, H.-M. Nitrogen and sulfur co-doped carbon dots with strong blue luminescence. Nanoscale 2014, 6, 13817–13823. [Google Scholar] [CrossRef] [PubMed]
  81. Shi, D.; Yan, F.; Zheng, T.; Wang, Y.; Zhou, X.; Chen, L. P-doped carbon dots act as a nanosensor for trace 2,4,6-trinitrophenol detection and a fluorescent reagent for biological imaging. RSC Adv. 2015, 5, 98492–98499. [Google Scholar] [CrossRef]
  82. Barman, M.K.; Jana, B.; Bhattacharyya, S.; Patra, A. Photophysical properties of doped carbon dots (N, P, and B) and their influence on electron/hole transfer in carbon dots–nickel (II) phthalocyanine conjugates. J. Phys. Chem. C 2014, 118, 20034–20041. [Google Scholar] [CrossRef]
  83. Qian, Z.; Shan, X.; Chai, L.; Ma, J.; Chen, J.; Feng, H. Si-doped carbon quantum dots: A facile and general preparation strategy, bioimaging application, and multifunctional sensor. ACS Appl. Mater. Interfaces 2014, 6, 6797–6805. [Google Scholar] [CrossRef] [PubMed]
  84. Jiang, Y.; Wang, Z.; Dai, Z. Preparation of silicon–carbon-based dots@dopamine and its application in intracellular Ag+ detection and cell imaging. ACS Appl. Mater. Interfaces 2016, 8, 3644–3650. [Google Scholar] [CrossRef] [PubMed]
  85. Wang, X.; Cao, L.; Yang, S.-T.; Lu, F.; Meziani, M.J.; Tian, L.; Sun, K.W.; Bloodgood, M.A.; Sun, Y.-P. Bandgap-like strong fluorescence in functionalized carbon nanoparticles. Angew. Chem. Int. Ed. Engl. 2010, 49, 5310–5314. [Google Scholar] [CrossRef] [PubMed]
  86. Yang, S.-T.; Wang, X.; Wang, H.; Lu, F.; Luo, P.G.; Cao, L.; Meziani, M.J.; Liu, J.-H.; Liu, Y.; Chen, M.; Huang, Y.; Sun, Y.-P. Carbon Dots as Nontoxic and High-Performance Fluorescence Imaging Agents. J. Phys. Chem. C 2009, 113, 18110–18114. [Google Scholar] [CrossRef] [PubMed]
  87. Sevilla, M.; Fuertes, A.B. Chemical and structural properties of carbonaceous products obtained by hydrothermal carbonization of saccharides. Chem. Eur. J. 2009, 15, 4195–4203. [Google Scholar] [CrossRef] [PubMed]
  88. Sachdev, A.; Matai, I.; Gopinath, P. Implications of surface passivation on physicochemical and bioimaging properties of carbon dots. RSC Adv. 2014, 4, 20915–20921. [Google Scholar] [CrossRef]
  89. Yin, J.-Y.; Liu, H.-J.; Jiang, S.; Chen, Y.; Yao, Y. Hyperbranched polymer functionalized carbon dots with multistimuli-responsive property. ACS Macro Lett. 2013, 2, 1033–1037. [Google Scholar] [CrossRef]
  90. Chaterji, S.; Kwon, I.K.; Park, K. Smart polymeric gels: Redefining the limits of biomedical devices. Prog. Polym. Sci. 2007, 32, 1083–1122. [Google Scholar] [CrossRef] [PubMed]
  91. Weiss, R.G. The past, present, and future of molecular gels. What is the status of the field, and where is it going? J. Am. Chem. Soc. 2014, 136, 7519–7530. [Google Scholar] [CrossRef] [PubMed]
  92. Cornwell, D.J.; Smith, D.K. Expanding the scope of gels–combining polymers with low-molecular-weight gelators to yield modified self-assembling smart materials with high-tech applications. Mater. Horiz. 2015, 2, 279–293. [Google Scholar] [CrossRef]
  93. Bhattacharjee, S.; Samanta, S.K.; Moitra, P.; Pramoda, K.; Kumar, R.; Bhattacharya, S.; Rao, C. Nanocomposite made of an oligo (p-phenylenevinylene)-based trihybrid thixotropic metallo (organo) gel comprising nanoscale metal–organic particles, carbon nanohorns, and silver nanoparticles. Chem. Eur. J. 2015, 21, 5467–5476. [Google Scholar] [CrossRef] [PubMed]
  94. Cayuela, A.; Kennedy, S.R.; Soriano, M.L.; Jones, C.D.; Valcárcel, M.; Steed, J.W. Fluorescent carbon dot–molecular salt hydrogels. Chem. Sci. 2015, 6, 6139–6146. [Google Scholar] [CrossRef] [Green Version]
  95. Gogoi, N.; Barooah, M.; Majumdar, G.; Chowdhury, D. Carbon dots rooted agarose hydrogel hybrid platform for optical detection and separation of heavy metal ions. ACS Appl. Mater. Interfaces 2015, 7, 3058–3067. [Google Scholar] [CrossRef] [PubMed]
  96. Baruah, U.; Gogoi, N.; Majumdar, G.; Chowdhury, D. β-Cyclodextrin and calix [4] arene-25,26,27,28-tetrol capped carbon dots for selective and sensitive detection of fluoride. Carbohydr. Polym. 2015, 117, 377–383. [Google Scholar] [CrossRef] [PubMed]
  97. Konwar, A.; Gogoi, N.; Majumdar, G.; Chowdhury, D. Green chitosan–carbon dots nanocomposite hydrogel film with superior properties. Carbohydr. Polym. 2015, 115, 238–245. [Google Scholar] [CrossRef] [PubMed]
  98. Yan, M. Molecularly Imprinted Materials: Science and Technology; CRC Press: Boca Raton, FL, USA, 2004. [Google Scholar]
  99. Haupt, K.; Mosbach, K. Molecularly imprinted polymers and their use in biomimetic sensors. Chem. Rev. 2000, 100, 2495–2504. [Google Scholar] [CrossRef] [PubMed]
  100. Haupt, K. Molecularly imprinted polymers in analytical chemistry. Analyst 2001, 126, 747–756. [Google Scholar] [CrossRef] [PubMed]
  101. Haupt, K. Peer reviewed: Molecularly imprinted polymers: The next generation. Anal. Chem. 2003, 75, 376 A–383 A. [Google Scholar] [CrossRef]
  102. Xu, L.; Fang, G.; Pan, M.; Wang, X.; Wang, S. One-pot synthesis of carbon dots-embedded molecularly imprinted polymer for specific recognition of sterigmatocystin in grains. Biosens. Bioelectron. 2016, 77, 950–956. [Google Scholar] [CrossRef] [PubMed]
  103. Li, D.-Y.; Zhang, X.-M.; Yan, Y.-J.; He, X.-W.; Li, W.-Y.; Zhang, Y.-K. Thermo-sensitive imprinted polymer embedded carbon dots using epitope approach. Biosens. Bioelectron. 2016, 79, 187–192. [Google Scholar] [CrossRef] [PubMed]
  104. Jiang, Z.C.; Lin, T.N.; Lin, H.T.; Talite, M.J.; Tzeng, T.T.; Hsu, C.L.; Chiu, K.P.; Lin, C.A.J.; Shen, J.L.; Yuan, C.T. A facile and low-cost method to enhance the internal quantum yield and external light-extraction efficiency for flexible light-emitting carbon-dot films. Sci. Rep. 2016, 6, 19991–19996. [Google Scholar] [CrossRef] [PubMed]
  105. Liu, Y.; Wang, P.; Shiral Fernando, K.A.; LeCroy, G.E.; Maimaiti, H.; Harruff-Miller, B.A.; Lewis, W.K.; Bunker, C.E.; Hou, Z.-L.; Sun, Y.-P. Enhanced fluorescence properties of carbon dots in polymer films. J. Mater. Chem. C 2016, 4, 6967–6974. [Google Scholar] [CrossRef] [PubMed]
  106. Wang, F.; Chen, Y.-H.; Liu, C.-Y.; Ma, D.-G. White light-emitting devices based on carbon dots’ electroluminescence. Chem. Commun. 2011, 47, 3502–3504. [Google Scholar] [CrossRef] [PubMed]
  107. Zeng, J.; Yan, L. Metal-free transparent luminescent cellulose films. Cellulose 2015, 22, 729–736. [Google Scholar] [CrossRef]
  108. Pal, A.; Sk, M.P.; Chattopadhyay, A. Conducting carbon dot–polypyrrole nanocomposite for sensitive detection of picric acid. ACS Appl. Mater. Interfaces 2016, 8, 5758–5762. [Google Scholar] [CrossRef] [PubMed]
Figure 1. (a) The molecular structure of lignin; (b) TEM and (c) HRTEM images of CDs; (d) a confocal fluorescence microphotograph of Hela cells labeled with the CDs (λ ex: 405 nm); (e) a bright field microphotograph of the cells; and (f) an overlay image of (d,e). Figure adapted from Ref. [42] with permissions from the publishers.
Figure 1. (a) The molecular structure of lignin; (b) TEM and (c) HRTEM images of CDs; (d) a confocal fluorescence microphotograph of Hela cells labeled with the CDs (λ ex: 405 nm); (e) a bright field microphotograph of the cells; and (f) an overlay image of (d,e). Figure adapted from Ref. [42] with permissions from the publishers.
Polymers 09 00067 g001
Figure 2. (a) Processing diagram for the synthesis of photoluminescent CDs; and (b) HRTEM image of CDs passivated with PEG1500N. The inset is the SAED pattern. Figure adapted from Ref. [48] with permissions from the publishers.
Figure 2. (a) Processing diagram for the synthesis of photoluminescent CDs; and (b) HRTEM image of CDs passivated with PEG1500N. The inset is the SAED pattern. Figure adapted from Ref. [48] with permissions from the publishers.
Polymers 09 00067 g002
Figure 3. (a) Monomers and the molar ratios used in the synthesis of P1–P5; (b) aqueous solutions of CDs CD-P1 to CD-P5 (0.1% w/v) excited at 365 nm; and (c) PL spectra of CD-P1 to CD-P5 (λ ex 400 nm). Figure adapted from Ref. [54] with permissions from the publishers.
Figure 3. (a) Monomers and the molar ratios used in the synthesis of P1–P5; (b) aqueous solutions of CDs CD-P1 to CD-P5 (0.1% w/v) excited at 365 nm; and (c) PL spectra of CD-P1 to CD-P5 (λ ex 400 nm). Figure adapted from Ref. [54] with permissions from the publishers.
Polymers 09 00067 g003
Figure 4. Illustration of the preparation of photoluminescent CDs: (a) indicates the synthesis of P(MA-r-EDY); (b) means deprotection of trimethylsilyl groups; (c) shows the formation of polymeric nanoparticles; (d) indicates the carbonization of the polymeric nanoparticles; (e) means the formation of CDs with passivated surface state; and (f) demonstrates functionalization of CDs surface. Figure adapted from Ref. [47] with permissions from the publishers.
Figure 4. Illustration of the preparation of photoluminescent CDs: (a) indicates the synthesis of P(MA-r-EDY); (b) means deprotection of trimethylsilyl groups; (c) shows the formation of polymeric nanoparticles; (d) indicates the carbonization of the polymeric nanoparticles; (e) means the formation of CDs with passivated surface state; and (f) demonstrates functionalization of CDs surface. Figure adapted from Ref. [47] with permissions from the publishers.
Polymers 09 00067 g004
Figure 5. (a) HRTEM image of CNDs (scale bar: 10 nm) with a narrow size distribution of 2.0–3.2 nm in diameter; (b) UV/Vis spectrum (λab = 300 nm) and PL emission spectrum (λex = 360 nm) of an aqueous solution of the CNDs (1 mg·mL−1) with an emission peak at 420 nm; (c) PL emission spectra of the CNDs aqueous solution under excitation with different wavelengths (inset is the normalized PL emission spectra); and (d) synthesis procedure of: CNDs (1); PCNDs (2); and fluorescent polymers (3). Figure adapted from Ref. [57] with permissions from the publishers.
Figure 5. (a) HRTEM image of CNDs (scale bar: 10 nm) with a narrow size distribution of 2.0–3.2 nm in diameter; (b) UV/Vis spectrum (λab = 300 nm) and PL emission spectrum (λex = 360 nm) of an aqueous solution of the CNDs (1 mg·mL−1) with an emission peak at 420 nm; (c) PL emission spectra of the CNDs aqueous solution under excitation with different wavelengths (inset is the normalized PL emission spectra); and (d) synthesis procedure of: CNDs (1); PCNDs (2); and fluorescent polymers (3). Figure adapted from Ref. [57] with permissions from the publishers.
Polymers 09 00067 g005
Figure 6. (a) Reaction mechanism of CDs synthesized by CA and EDA; (b) excitation-dependent PL spectra of CDs; and (c) TEM (upper) and HRTEM (lower) images of CDs. Figure adapted from Ref. [61] with permissions from the publishers.
Figure 6. (a) Reaction mechanism of CDs synthesized by CA and EDA; (b) excitation-dependent PL spectra of CDs; and (c) TEM (upper) and HRTEM (lower) images of CDs. Figure adapted from Ref. [61] with permissions from the publishers.
Polymers 09 00067 g006
Figure 7. Proposed formation pathway of N-doped CDs. Figure adapted from Ref. [56] with permissions from the publishers.
Figure 7. Proposed formation pathway of N-doped CDs. Figure adapted from Ref. [56] with permissions from the publishers.
Polymers 09 00067 g007
Figure 8. Proposed formation pathway, composition, and structures of as-obtained N-CDs: (a) polymerization of final N-CDs; (b,c) incorporation of N atom to final N-CDs (1, 3, and 4 indicate N atom existing in the aromatic framework and 2 shows LPEI linked to N-CDs by formation of amide groups); (d) surface passivation of N-CDs by –COOH, –OH, amine groups and LPEI chains; (e) TEM image of N-CDs (inset, HRTEM image and size distribution of 1–3 nm in diameter with 1.67 nm on average); and (f) PL spectra under excitation wavelength shorter than 500 nm. Figure adapted from Ref. [58] with permissions from the publishers.
Figure 8. Proposed formation pathway, composition, and structures of as-obtained N-CDs: (a) polymerization of final N-CDs; (b,c) incorporation of N atom to final N-CDs (1, 3, and 4 indicate N atom existing in the aromatic framework and 2 shows LPEI linked to N-CDs by formation of amide groups); (d) surface passivation of N-CDs by –COOH, –OH, amine groups and LPEI chains; (e) TEM image of N-CDs (inset, HRTEM image and size distribution of 1–3 nm in diameter with 1.67 nm on average); and (f) PL spectra under excitation wavelength shorter than 500 nm. Figure adapted from Ref. [58] with permissions from the publishers.
Polymers 09 00067 g008
Figure 9. Schematic diagram depicting one-pot hydrothermal synthesis of CD-PEI and CD-PEG. Figure adapted from Ref. [88] with permissions from the publishers.
Figure 9. Schematic diagram depicting one-pot hydrothermal synthesis of CD-PEI and CD-PEG. Figure adapted from Ref. [88] with permissions from the publishers.
Polymers 09 00067 g009
Figure 10. Preparation of Multi Stimuli-Responsive CDs. Figure adapted from Ref. [89] with permissions from the publishers.
Figure 10. Preparation of Multi Stimuli-Responsive CDs. Figure adapted from Ref. [89] with permissions from the publishers.
Polymers 09 00067 g010
Figure 11. Phtoluminescent C-dot/PDMS films. Scheme describing the preparation of the mixed films. Distinct-colored C-dots embedded in the films were prepared by using different precursors. C-dot 1–3 indicates the carbon precursor is 6-O-(O-O′-Di-lauroyl-tartaryl)-d-glucose, 6-O-(O-O′-Di-lauroyl-tartaryl)-l-ascorbic acid, and Vitamin B1 + oleic acid, respectively. Figure adapted from Ref. [40] with permissions from the publishers.
Figure 11. Phtoluminescent C-dot/PDMS films. Scheme describing the preparation of the mixed films. Distinct-colored C-dots embedded in the films were prepared by using different precursors. C-dot 1–3 indicates the carbon precursor is 6-O-(O-O′-Di-lauroyl-tartaryl)-d-glucose, 6-O-(O-O′-Di-lauroyl-tartaryl)-l-ascorbic acid, and Vitamin B1 + oleic acid, respectively. Figure adapted from Ref. [40] with permissions from the publishers.
Polymers 09 00067 g011
Figure 12. (a) Schematic representation of the synthesis of CDs-PPy composite and the primary set up for the conductivity experiment of the picric acid. Plot of IV characteristics of: (b) CDs film; and (c) CD-PPy film and PPy film. (d) The ratios of current flowing through the composite film after adding 2.0 μL 1.0 mM aqueous solution of different analytes to that of the film only. Here PA = picric acid, 2,4-DNP = 2,4-dinitrophenol, 4-NP = 4-nitrophenol, NB = nitrobenzene, PH = phenol, QN = 1,4-benzoquinone, 4-MBA = 4-methoxybenzoic acid. The measurements were made at +5 V. Figure adapted from Ref. [108] with permissions from the publishers.
Figure 12. (a) Schematic representation of the synthesis of CDs-PPy composite and the primary set up for the conductivity experiment of the picric acid. Plot of IV characteristics of: (b) CDs film; and (c) CD-PPy film and PPy film. (d) The ratios of current flowing through the composite film after adding 2.0 μL 1.0 mM aqueous solution of different analytes to that of the film only. Here PA = picric acid, 2,4-DNP = 2,4-dinitrophenol, 4-NP = 4-nitrophenol, NB = nitrobenzene, PH = phenol, QN = 1,4-benzoquinone, 4-MBA = 4-methoxybenzoic acid. The measurements were made at +5 V. Figure adapted from Ref. [108] with permissions from the publishers.
Polymers 09 00067 g012
Table 1. CDs obtained from CA coupled with amine compounds and their PL properties.
Table 1. CDs obtained from CA coupled with amine compounds and their PL properties.
Reaction ConditionCarbon SourcePassivation AgentUV/Vis (nm)PL Max Em (nm)QY (%)ApplicationRef.
200 °CCAEDA238
350
44569.3Bioimaging[56]
200 °CCAEDA34444580Printing
Fe3+ detection
[61]
120 °CCAEDA34044021.8N/A[62]
150 °CCALPEI249
355
44537.4N/A[58]
250 °CCATris238
330
41052Biosenser
Fe3+ detection
[63]
700 WCAUrea334
408
42012ClO and ONOO detection[64]
200 °CCAammonia33555036Solar cell[65]
700 WCAtryptophan28045020.6Bioimaging
Nanocarrier
[66]
240 °CCAmelamine270
320
39042Fe3+ detection[67]
180 °CCA1,10-phenanthroline271
310
44010Fe3+ and Fe2+ detection[68]
500 WCAtetraoctylammonium280
330
37511Bioimaging[69]
180 °CCAPEI247
357
47524.3Biosenser
Bioimaging
[70]

Share and Cite

MDPI and ACS Style

Zhou, Y.; Sharma, S.K.; Peng, Z.; Leblanc, R.M. Polymers in Carbon Dots: A Review. Polymers 2017, 9, 67. https://doi.org/10.3390/polym9020067

AMA Style

Zhou Y, Sharma SK, Peng Z, Leblanc RM. Polymers in Carbon Dots: A Review. Polymers. 2017; 9(2):67. https://doi.org/10.3390/polym9020067

Chicago/Turabian Style

Zhou, Yiqun, Shiv K. Sharma, Zhili Peng, and Roger M. Leblanc. 2017. "Polymers in Carbon Dots: A Review" Polymers 9, no. 2: 67. https://doi.org/10.3390/polym9020067

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
