Programming of One- and Two-Step Stress Recovery in a Poly(ester urethane)

by
Nikolaus Mirtschin
1 and
Thorsten Pretsch
2,*
1
BAM Federal Institute for Materials Research and Testing, Division 6.5, Polymers in Life Science and Nanotechnology, Unter den Eichen 87, 12205 Berlin, Germany
2
Fraunhofer Institute for Applied Polymer Research IAP, Synthesis and Polymer Technology, Potsdam-Golm, Geiselbergstraße 69, 14476 Potsdam-Golm, Germany
*
Author to whom correspondence should be addressed.
Polymers 2017, 9(3), 98; https://doi.org/10.3390/polym9030098
Submission received: 3 February 2017 / Revised: 6 March 2017 / Accepted: 6 March 2017 / Published: 10 March 2017
(This article belongs to the Special Issue Functionally Responsive Polymeric Materials)
Browse Figures
Versions Notes

Abstract

:
This work demonstrates that phase-segregated poly(ester urethane) (PEU) with switching segments of crystallizable poly(1,4-butylene adipate) (PBA) can be programmed to generate two separate stress recovery events upon heating under constant strain conditions. For programming, two elongations are applied at different temperatures, followed by unloading and cooling. During the adjacent heating, two-step stress recovery is triggered. The results indicate that the magnitude of the stress recovery signals corresponds to the recovery of the two deformation stresses in reverse order. As demonstrated by further experiments, twofold stress recovery can be detected as long as the elongation at higher temperature exceeds the strain level of the deformation at lower temperature. Another finding includes that varying the lower deformation temperature enables a control over the stress recovery temperature and thus the implementation of so-called “temperature-memory effects”. Moreover, exerting only one elongation during programming enables a heating-initiated one-step stress recovery close to the deformation temperature. Based on these findings, such polymers may offer new technological opportunities in the fields of active assembly when used as fastening elements and in functional clothing when utilized for compression stockings.

Graphical Abstract

1. Introduction

Some materials can be programmed to fix a temporary shape and either recover shape or build up mechanical stress in response to heating. This behavior is characteristic for shape-memory materials [1], like shape-memory alloys [2,3,4] and shape-memory polymers (SMPs) [5,6,7,8,9]. Regarding the latter, the ease of manufacturing, low density, wide range of switching temperatures and the ability to perform complex movements on demand offers a variety of design opportunities. Therefore, SMPs have attracted significant attention in actuation [10,11,12], deployable structures [13,14,15,16,17], temperature sensing devices [18,19,20,21,22,23] and switchable information carriers [24,25,26,27,28].
Shape-memory polymers like phase-segregated polyurethanes are able to fix strong elongations and recover strains of several hundred percent. The beneficial thermomechanical behavior derives from network structure and the separation of immiscible hard and soft segments at room temperature [29,30,31]. Basically, the shape-memory effect (SME) can be programmed at temperatures around the phase transition temperature Ttrans of the soft segment. Therefore, the polymer is heated from below to above Ttrans, elongated and cooled in the imposed shape below Ttrans. The fixation of the new shape is achieved by crystallization or vitrification of the soft segment, which stabilizes the entropically unfavorable state. When triggering the SME by heating, the soft segment serves as switching segment and entropy elasticity drives shape recovery. The polymer’s response to heating is commonly investigated under stress-free recovery conditions [29,32,33,34] or under constant strain recovery conditions [35,36,37,38,39]. The most relevant material parameters obtained from thermomechanical measurements are the strain fixity ratio, the strain recovery ratio and the maximum recovery stress. To date, high strain recovery ratios exceeding values of 85% are not unusual for thermoplastic SMPs [22,34,40], same as for thermoset SMPs [33,41,42]. However, the design of stress recovery behavior is in fact challenging. Concepts aiming at an increase in recovery stress include the incorporation of reinforcing nanofillers [35,37,43,44,45,46] and the adjustment of programming conditions. In terms of the latter, a raise in maximum strain [37,47,48], an extension in temperature holding time after deformation [49] and the selection of a deformation temperature below Ttrans [30,50,51] turned useful. Apart from that, control over stress recovery behavior in the sense of the implementation of the temperature-memory effect (TME) has been documented for amorphous polymers [35,52] and for semicrystalline polymers [22,53]. As is most characteristic for such temperature-memory polymers, a substantial mechanical response is generated when they are heated above that temperature, at which a previous deformation has been carried out.
For a couple of years, the knowledge about the programming of shape-memory polymers has been drastically extended. As a result, not only transitions from one shape into a second, but also from a second shape into a third one could be realized efficiently [54,55,56,57]. For switching processes, which are characterized by two or even more consecutive shape changes, the term “multiple-SME” had been coined [58]. A heating-initiated two-step strain release, for instance, could be witnessed after deforming a physically cross-linked poly(ester urethane) (PEU) at a temperature where the switching segment was first amorphous, before a second loading was applied in the semicrystalline state at a lower temperature, followed by further cooling, which led to the vitrification of the switching segment [59]. Later on, this triple-shape concept could be extended to chemically cross-linked PEU [60]. Alternatively, materials characterized by either a broad glass transition [61,62] or a wide melting/crystallization transition [63,64] have been used to program and trigger the SME. Intriguingly, the multiple-SME was not verified so far under constant strain recovery conditions. The only indication of coexisting stress signals was given by Grillard et al. for fibers made of polyamide 12 loaded with multiwall carbon nanotubes [52]. However, in this case the stress recovery behavior was characterized by a stress signal, which covered a broad temperature range of more than 100 °C.
To trigger two consecutive recovery events for the first time under constant strain conditions, the stress recovery behavior of a phase-segregated PEU containing crystallizable segments of poly(1,4-butylene adipate) (PBA) was investigated. For this purpose, a recently introduced programming route for temperature-memory effects [22] was extended by a second programming step. Against this background, it will be demonstrated in how far the variation of maximum strain is helpful to control stress recovery behavior and that the TME can be implemented in the stress recovery paths at lower temperatures.

2. Materials and Methods

2.1. Materials

The herein-investigated material was Desmopan 2795A SMP, which is a physically cross-linked poly(ester urethane) (PEU) from Covestro AG, Leverkusen, Germany. Samples were received as injection-molded plaques with a thickness of 2 mm. The hard segment was composed of 4,4′-methylenediphenyl diisocyanate (MDI) and of 1,4-butanediol (BD) used as chain extender. The soft segment was composed of poly(1,4-butylene adipate) (PBA), which was characterized by a molecular weight of 3500 g·mol−1. Detailed information regarding the thermal, mechanical and structural properties of the PEU was previously reported [22,49].

2.2. Characterization Methods

The phase transition behavior of the PEU was studied by differential scanning calorimetry (DSC) using an EXSTAR DSC7020 from Seiko Instruments Inc., Chiba, Japan. The sample weight was approximately 5 mg. In every measurement, the sample was first cooled to −90 °C, before it was heated to 90 °C. Cooling and heating were carried out with a rate of 10 °C·min−1.
Thermomechanical measurements were conducted with an electromechanical testing system (Z005 from Zwick GmbH & Co. KG, Ulm, Germany), which was equipped with a thermochamber (Zwick GmbH & Co. KG, Ulm, Germany) and a temperature controller (Eurotherm 2261e, Eurotherm Deutschland GmbH, Limburg, Germany). Test procedures were designed with the software testXpert® II (V 3.31, Zwick GmbH & Co. KG, Ulm, Germany). For specimen preparation, type 5B tensile bars (DIN EN ISO 527-2:1996) were punched out of the PEU plaques. Prior usage, specimens were annealed for 10 min at 60 °C and stored for at least one week at 23 °C and at an air humidity of 50%. Before starting a measurement, a tensile bar was clamped with a gauge length of 10 mm into the pneumatic grips of the electromechanical testing system. Typically, a clamping pressure of 5.2 bar was selected. During a measurement, changes in normal force were detected with a 100 N load cell. In parallel, the stress σ was determined by dividing the force through the initial cross-section of the specimen. Changes in strain ε were followed from crosshead displacement. Uniform heating and cooling rates of 3 °C·min−1 were used. After heating, cooling and deformation, a temperature holding step of 5 min was added.
In a first programming series, a PEU specimen was heated to the deformation temperature Td,high = 40 °C, elongated with a strain rate of 3 × 102% min−1 to a maximum strain εm,high of 400%, held at 40 °C for 5 min and unloaded with a rate of 1 × 103% min−1. Subsequently, the specimen was cooled to Td,low = 0, 10 or 20 °C and elongated with a strain rate of 3 × 102% min−1 to εm,low = 225%, 275%, 325%, 375% or 425%. After elongation, the imposed strain was maintained for 5 min and the residual stress was removed with a rate of 1 × 103% min−1. In another experiment, the first programming step was maintained, but the temperature holding time after the second deformation (Td,low = 0 °C, εm,low = 225%) was extended from 5 min to 15 h, before unloading was carried out. In any case, programming was finalized by cooling to −20 °C. The fixed strain was determined after unloading at Td,high and Td,low and was termed “εu,high” and “εu,low”, respectively.
The thermoresponsiveness of the PEU was adjacently studied under constant strain recovery conditions. Therefore, the specimen was heated from −20 to 80 °C with a rate of 3 °C·min−1. In those cases, in which the specimen responded with two separate stress recovery events, the stress recovery temperatures were determined by using a two-tangent intersection method. Therefore, tangent lines were drawn in the recovery curve of the stress-temperature test protocol and the temperatures corresponding to their intersection points at the beginning of the first and the second stress increase were defined as onset temperatures Tσ,low and Tσ,high. Apart from that, maximum recovery stresses were quantified and denominated as “σmax,low” and “σmax,high” in accordance with the corresponding temperatures Tσ,max,low and Tσ,max,high. In those cases, in which no local stress maximum could be detected, the inflection point between Tσ,low and Tσ,high was used to define the temperature Tσ,max,low and the associated stress σmax,low.
In a different scenario, a one-step programming approach was followed. In this case, a PEU specimen was heated to 40 °C, elongated with a rate of 3 × 102% min−1 to a maximum strain of 400%, held at 40 °C for 5 min and unloaded with a rate of 1 × 103% min−1. Programming was finalized by cooling to −20 °C. Subsequently, the specimen was heated to 80 °C under constant strain recovery conditions, using a rate of 3 °C·min−1.

3. Results and Discussion

The calorimetric properties of the poly(ester urethane) (PEU) were characterized by a melting transition between 33 and 54 °C, a crystallization transition spreading from 14 to −20 °C, and a glass transition at about −45 °C (Figure 1); all of these phase transitions could be assigned to poly(1,4-butylene adipate) (PBA), which later served as switching segment in the PEU [22].
Having these thermal properties in mind, two-step programming was applied at temperatures around the melting and crystallization transition of the PBA phase, and the resulting stress recovery behavior was investigated (Figure 2).
As an essential part of programming, the semicrystalline PEU was twofold elongated, first to a strain εm,high of 400% at 40 °C, and then to a strain εm,low of 225% at 0 °C. The specimen behavior during programming and the adjacent recovery behavior during heating under constant strain conditions are given in Figure 2a. In contrast to earlier two-step programming approaches [52,59,61,65], unloading was carried out at the end of every deformation step. In the course of first deformation, a strong increase in stress after the yield point occurred as can be clearly seen in the associated stress-strain diagram (Figure 2b). This observation speaks for the occurrence of strain-induced PBA crystallization [10]. A similar behavior had been witnessed by Tobushi et al. for polyurethanes with not specified polyester polyol segments [66]. After the adjacent unloading, a fixed strain εu,high of 176% was determined, suggesting that the freshly formed PBA crystals blocked the elastic recovering into the original shape. An additional strain-hardening seemed to occur during the second deformation. As a result of the ensuing unloading, the fixed strain εu,low could even be raised to 198%. Programming was finalized by cooling to −20 °C, where the specimen was kept for 5 min. The thermoresponsiveness was adjacently investigated (Figure 2c). In the early phase of heating, the polymer built up a slight amount of compressive stress. This behavior originated from thermal expansion of the specimen as earlier witnessed for the same material [49]. Further heating initiated stress recovery, which started at −1 °C and thus close to the second deformation temperature. At approximately 27 °C, a stress plateau emerged at about 0.7 MPa. Heating beyond 27 °C resulted in a second stress response, which started at 45 °C close to the first deformation temperature and culminated in an overall recovery stress of 1.7 MPa, which was reached at 64 °C. This way, a two-step stress release could be witnessed starting with a lower stress, as expected from the lower maximum stress applied during the second programming step, followed by a higher stress in line with the higher maximum stress applied during the first programming step. Although none of the applied stresses could be fully recovered, the order of stress recovery was taken as hint that the PEU exhibited stress-memory properties. However, it should be noted that the PEU specimen memorized only a small part of the stresses exerted during programming. Regarding the first recovery event, the maximum recovery stress reached 13% of the corresponding stress applied during deformation at Td,low. In the case of the second recovery event, 23% of the maximum stress exerted during deformation at Td,high could be regained.
To demonstrate that the twofold stress recovery behavior of the PEU can be controlled by the deformation conditions, the first programming step was left unchanged and the second programming step was modified. Against this background, deformation temperatures of 0, 10 and 20 °C and maximum strains of 225%, 275%, 325% and 375% were investigated. The results are provided in Figure 3 and in Table 1.
Most obviously, a twofold stress increase can be seen in all measurement protocols (Figure 3). Beyond that, it is noteworthy that those temperatures, at which the release of stress started, were close to the lower deformation temperatures. This way, the polymer exhibited time and again a “stress-related” temperature-memory effect (TME). For a more quantitative evaluation of the stress recovery behavior, the recovery temperatures and the recovery stresses were determined and processed into graphic form (Figure 4).
Figure 4a shows that the stress recovery temperature Tσ,low increased linearly with the lower deformation temperature Td,low, which impressively demonstrates that Tσ,low was independent from the strain applied during the second loading. As stated above, such a relationship satisfies the criterion of temperature-memory behavior [35]. On the other hand, the second stress recovery temperature Tσ,high consistently exceeded the higher deformation temperature Td,high of 40 °C and even increased steadily with the maximum strain applied, no matter which Td,low had been selected (Figure 4b). Since recovery stresses generally increased at stronger deformations (Figure 4c), the material stiffness must have increased as a result of the second loading. This probably affected the thermal stability of the PBA crystallites, leading to a shift in PBA melting temperature toward higher values, and thus to an increase in the associated stress recovery temperature Tσ,high (Figure 4b). Apart from that, the maximum strain applied during the low temperature deformation was found to be crucial for the first stress recovery event. For almost all stresses exerted at low temperature (Figure 4c), the associated recovery stresses decreased when raising the lower deformation temperature. This behavior was expected, since lower external loads were necessary in the preceding programming step, so that the amount of fixed strain after the second unloading εu,low was also reduced (Table 2).
Basically, a decreasing stiffness could be expected when specimens were deformed at higher temperatures, as such behavior applies to most polymers [67]. Unlike the first stress recovery, which could be controlled by the maximum strain exerted at lower temperature, the applied maximum strain did almost not affect the second stress recovery; in particular, its influence upon σmax,high seemed to be negligible (Figure 4d). For this reason, it can be concluded that the second stress recovery must have been strongly influenced by the initial programming step.
In order to gain a deeper understanding for the overall stress recovery behavior, one further thermo-mechanical measurement was carried out. This time, only a single programming step was applied by elongating a PEU specimen to a maximum strain of 400%, unloading it at 40 °C and cooling it to −20 °C. Subsequently, the stress response during heating to 70 °C was investigated. The associated stress-temperature diagram (Figure 5) shows that the PEU started to significantly build up stress at 42 °C, which is close to Td, and therefore proves that a stress-related temperature-memory effect could be programmed.
Upon further heating, a maximum recovery stress of 1.6 MPa was reached at 65 °C. In comparison with the stress recovery of the twofold programmed specimen presented in Figure 2c, a one-step stress release could be witnessed here. In both cases, programming presumably supported the occurrence of additional crystallization as facilitated by strong molecular chain alignment upon loading to high maximum strains. It is known from programming single TMEs in the same material that the crystalline PBA phase, which is thermally stable at temperatures above the deformation temperature, fixes the polymer chains in their elongated states [22]. Apparently, the same fundamentals apply to twofold programmed PEU: The melting of PBA crystals that were thermally stable at T ≥ Td,low affected the overall stress recovery behavior, including σmax,low and σmax,high.
Another experimental series was designed to find out in which way the thermoresponsiveness of the PEU can be influenced when applying a stronger deformation in the second programming step. Therefore, specimens were elongated to a strain of 400% at 40 °C before an absolute strain of 425% was applied at 0, 10 and 20 °C, respectively. The resulting stress-temperature responses are provided in Figure 6.
It can be clearly seen that the stress responses were no longer characterized by two individual stress maxima, but by one broad stress recovery signal, which in every single measurement emerged close to Td,low (Table 3).
Due to the high maximum strain applied in the second programming step, a strong alignment of polymer chains must have occurred. This could have supported the formation of PBA crystals whose melting temperature was above Td,low or corresponded to it. As a matter of fact, the overall stress recovery behavior was composed of one stress recovery event dominated by the programming at Td,low, while no second individual stress signal associated with the programming at Td,high could be witnessed. Similarly, the formation of a broad stress recovery signal was also observed by Grillard et al. for twofold deformed fully amorphous fibers of polyamide 12 loaded with carbon nanotubes [52]. Interestingly, the elongation at lower temperature was also selected to exceed the strain level of the deformation at higher temperature, so that no individual stress-recovery signal at Td,high could be detected.
Finally, it should be recognized that the recovery stress of polyurethanes can be designed by controlling the degree of crystallinity [50,68], as facilitated for instance by an extension of temperature holding time after deformation [49]. Therefore, a specimen was elongated to a strain of 225% at 0 °C and the time after elongation was exemplarily extended from 5 min to 15 h, before cooling was applied and the thermoresponsiveness was once more investigated (Figure 7).
As a result, twofold stress recovery could be witnessed and the maximum recovery stress σmax,low was doubled from 0.7 to 1.4 MPa. Remarkably, both the transition temperatures and the recovery stress at elevated temperature were not impaired by the modification of temperature holding time, which enhanced control over the twofold stress recovery behavior of semicrystalline PEU.

4. Conclusions

Various two-step programming approaches were developed to investigate the stress-recovery behavior of semicrystalline polyurethane. Commonly, twofold stress recovery could be detected and was widely influenced by the deformation conditions selected at the lower deformation temperature. For instance, weaker elongation favored two stress signals, which could be fine-tuned by maximum strain and temperature holding time; in turn, stronger deformation resulted in a single and broad stress recovery signal upon continuous heating. The order of stress recoveries implied that the material exhibited stress-memory properties. Regardless of whether a one- or two-step programming approach was followed, an accurate setting of stress recovery temperatures was possible, which proved the temperature-memory behavior of the PEU.
We anticipate that the witnessed control over stress recovery behavior is transferrable to other semicrystalline polymer systems. The results open new opportunities to design stress release through programming, which may broaden the field of vision for stress-memory polymers. Attractive applications may include active assembly and functional clothing.

Acknowledgments

The research has been carried out with the support of the German Federal Ministry of Education and Research (BMBF, project funding reference number 16V0043). The project was also supported by the European Regional Development Fund from the European Union (proposal number 85007031). N. M. thanks Manfred Wagner for fruitful discussions. The authors express their gratitude to Dietmar Neubert for conducting the DSC measurements and Maren Erdmann for carrying out thermomechanical measurements. The authors acknowledge Covestro AG for kindly providing the PEU.

Author Contributions

Nikolaus Mirtschin designed the experiments, analyzed the data and wrote the manuscript; Thorsten Pretsch conceived and wrote the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, L.; Huang, W.M.; Ding, Z.; Zhao, Y.; Wang, C.C.; Purnawali, H.; Tang, C. Stimulus-responsive shape memory materials: A review. Mater. Des. 2012, 33, 577–640. [Google Scholar] [CrossRef]
  2. Otsuka, K.; Ren, X. Physical metallurgy of Ti-Ni-based shape memory alloys. Prog. Mater. Sci. 2005, 50, 511–678. [Google Scholar] [CrossRef]
  3. Barbarino, S.; Saavedra Flores, E.I.; Ajaj, R.M.; Dayyani, I.; Friswell, M.I. A review on shape memory alloys with applications to morphing aircraft. Smart Mater. Struct. 2014, 23, 063001. [Google Scholar] [CrossRef]
  4. Mohd, J.; Leary, M.; Subic, A.; Gibson, M.A. A review of shape memory alloy research, applications and opportunities. Mater. Des. 2014, 56, 1078–1113. [Google Scholar] [CrossRef]
  5. Pretsch, T. Review on the functional determinants and durability of shape memory polymers. Polymers 2010, 2, 120–158. [Google Scholar] [CrossRef]
  6. Sun, L.; Huang, W.M.; Wang, C.C.; Ding, Z.; Zhao, Y.; Tang, C.; Gao, X.Y. Polymeric shape memory materials and actuators. Liq. Cryst. 2013, 41, 277–289. [Google Scholar] [CrossRef]
  7. Zhao, Q.; Qi, H.J.; Xie, T. Recent progress in shape memory polymer: New behavior, enabling materials, and mechanistic understanding. Prog. Polym. Sci. 2015, 49, 79–120. [Google Scholar] [CrossRef]
  8. Hasan, S.M.; Nash, L.D.; Maitland, D.J. Porous shape memory polymers: Design and applications. J. Polym. Sci. Part B Polym. Phys. 2016, 54, 1300–1318. [Google Scholar] [CrossRef]
  9. Li, G.; Wang, A. Cold, warm, and hot programming of shape memory polymers. J. Polym. Sci. Part B Polym. Phys. 2016, 54, 1319–1339. [Google Scholar] [CrossRef]
  10. Bothe, M.; Pretsch, T. Bidirectional actuation of a thermoplastic polyurethane elastomer. J. Mater. Chem. A 2013, 1, 14491–14497. [Google Scholar] [CrossRef]
  11. Zhou, J.; Turner, S.A.; Brosnan, S.M.; Li, Q.; Carrillo, J.-M.Y.; Nykypanchuk, D.; Gang, O.; Ashby, V.S.; Dobrynin, A.V.; Sheiko, S.S. Shapeshifting: Reversible shape memory in semicrystalline elastomers. Macromolecules 2014, 47, 1768–1776. [Google Scholar] [CrossRef]
  12. Li, Q.; Zhou, J.; Vatankhah-Varnoosfaderani, M.; Nykypanchuk, D.; Gang, O.; Sheiko, S.S. Advancing reversible shape memory by tuning the polymer network architecture. Macromolecules 2016, 49, 1383–1391. [Google Scholar] [CrossRef]
  13. Sokolowski, W.M.; Tan, S.C. Advanced self-deployable structures for space applications. J. Spacecr. Rockets 2007, 44, 750–754. [Google Scholar] [CrossRef]
  14. Lan, X.; Liu, Y.; Lv, H.; Wang, X.; Leng, J.; Du, S. Fiber reinforced shape-memory polymer composite and its application in a deployable hinge. Smart Mater. Struct. 2009, 18, 24–32. [Google Scholar] [CrossRef]
  15. Purnawali, H.; Xu, W.W.; Zhao, Y.; Ding, Z.; Wang, C.C.; Huang, W.M.; Fan, H. Poly(methyl methacrylate) for active disassembly. Smart Mater. Struct. 2012, 21, 075006. [Google Scholar] [CrossRef]
  16. Liu, Y.; Du, H.; Liu, L.; Leng, J. Shape memory polymers and their composites in aerospace applications: A review. Smart Mater. Struct. 2014, 23, 023001. [Google Scholar] [CrossRef]
  17. Mao, Y.; Yu, K.; Isakov, M.S.; Wu, J.; Dunn, M.L.; Jerry, H. Sequential Self-Folding Structures by 3D Printed Digital Shape Memory Polymers. Sci. Rep. 2015, 5, 13616. [Google Scholar] [CrossRef] [PubMed]
  18. Kunzelman, J.; Chung, T.; Mather, P.T.; Weder, C. Shape memory polymers with built-in threshold temperature sensors. J. Mater. Chem. 2008, 18, 1082–1086. [Google Scholar] [CrossRef]
  19. Bhattacharyya, R.; Leo, C.D.; Floerkemeier, C.; Sarma, S.; Anand, L. RFID tag antenna based temperature sensing using shape memory polymer actuation. IEEE Sens. Conf. Proc. 2010, 1, 2363–2368. [Google Scholar]
  20. Lu, H.; Yu, K.; Liu, Y.; Leng, J. Sensing and actuating capabilities of a shape memory polymer composite integrated with hybrid filler. Smart Mater. Struct. 2010, 19, 065014. [Google Scholar] [CrossRef]
  21. DiOrio, A.M.; Luo, X.; Lee, K.M.; Mather, P.T. A functionally graded shape memory polymer. Soft Matter 2011, 7, 68–74. [Google Scholar] [CrossRef]
  22. Fritzsche, N.; Pretsch, T. Programming of temperature-memory onsets in a semicrystalline polyurethane elastomer. Macromolecules 2014, 47, 5952–5959. [Google Scholar] [CrossRef]
  23. Luo, H.; Li, Z.; Yi, G.; Wang, Y.; Zu, X.; Wang, H.; Huang, H.; Liang, Z. Temperature sensing of conductive shape memory polymer composites. Mater. Lett. 2015, 140, 71–74. [Google Scholar] [CrossRef]
  24. Pretsch, T.; Ecker, M.; Schildhauer, M.; Maskos, M. Switchable information carriers based on shape memory polymer. J. Mater. Chem. 2012, 22, 7757–7766. [Google Scholar] [CrossRef]
  25. Fritzsche, N.; Pretsch, T. Miniaturization of QR code carriers based on shape memory polymer. ASME Conf. Smart Mater. 2012, 1, 81–88. [Google Scholar]
  26. Ecker, M.; Pretsch, T. Durability of switchable QR code carriers under hydrolytic and photolytic conditions. Smart Mater. Struct. 2013, 22, 094005. [Google Scholar] [CrossRef]
  27. Ecker, M.; Pretsch, T. Multifunctional poly(ester urethane) laminates with encoded information. RSC Adv. 2014, 4, 286–292. [Google Scholar] [CrossRef]
  28. Ecker, M.; Pretsch, T. Novel design approaches for multifunctional information carriers. RSC Adv. 2014, 4, 46680–46688. [Google Scholar] [CrossRef]
  29. Pretsch, T.; Jakob, I.; Müller, W. Hydrolytic degradation and functional stability of a segmented shape memory poly(ester urethane). Polym. Degrad. Stab. 2009, 94, 61–73. [Google Scholar] [CrossRef]
  30. Ji, F.L.; Hu, J.L.; Chui, S.S.-Y. Influences of phase composition and thermomechanical conditions on shape memory properties of segmented polyurethanes with amorphous reversible phase. Polym. Eng. Sci. 2012, 52, 1015–1026. [Google Scholar] [CrossRef]
  31. Zhang, L.; Jiang, Y.; Xiong, Z.; Liu, X.; Na, H.; Zhang, R.; Zhu, J. Highly recoverable rosin-based shape memory polyurethanes. J. Mater. Chem. A 2013, 1, 3263–3267. [Google Scholar] [CrossRef]
  32. Kim, B.K.; Lee, S.Y.; Xu, M. Polyurethanes having shape memory effects. Polymer 1996, 37, 5781–5793. [Google Scholar] [CrossRef]
  33. Xie, T.; Rousseau, I.A. Facile tailoring of thermal transition temperatures of epoxy shape memory polymers. Polymer 2009, 50, 1852–1856. [Google Scholar] [CrossRef]
  34. Gu, X.; Mather, P.T. Entanglement-based shape memory polyurethanes: Synthesis and characterization. Polymer 2012, 53, 5924–5934. [Google Scholar] [CrossRef]
  35. Miaudet, P.; Derré, A.; Maugey, M.; Zakri, C.; Piccione, P.M.; Inoubli, R.; Poulin, P. Shape and temperature memory of nanocomposites with broadened glass transition. Science 2007, 318, 1294–1296. [Google Scholar] [CrossRef] [PubMed]
  36. Yang, Q.; Li, G. Investigation into stress recovery behavior of shape memory polyurethane fiber. J. Polym. Sci. Part B Polym. Phys. 2014, 52, 1429–1440. [Google Scholar] [CrossRef]
  37. Hashmi, S.A.R.; Prasad, H.C.; Abishera, R.; Bhargaw, H.N.; Naik, A. Improved recovery stress in multi-walled-carbon-nanotubes reinforced polyurethane. Mater. Des. 2015, 67, 492–500. [Google Scholar] [CrossRef]
  38. Hu, J.; Kumar, B.; Narayana, H. Stress memory polymers. J. Polym. Sci. Part B Polym. Phys. 2015, 53, 893–898. [Google Scholar] [CrossRef]
  39. Wang, A.; Li, G. Stress memory of a thermoset shape memory polymer. J. Appl. Polym. Sci. 2015, 132, 42112. [Google Scholar] [CrossRef]
  40. Momtaz, M.; Razavi-Nouri, M.; Barikani, M. Effect of block ratio and strain amplitude on thermal, structural, and shape memory properties of segmented polycaprolactone-based polyurethanes. J. Mater. Sci. 2014, 49, 7575–7584. [Google Scholar] [CrossRef]
  41. Voit, W.; Ware, T.; Dasari, R.R.; Smith, P.; Danz, L.; Simon, D.; Barlow, S.; Marder, S.R.; Gall, K. High-strain shape-memory polymers. Adv. Funct. Mater. 2010, 20, 162–171. [Google Scholar] [CrossRef]
  42. Xie, T.; Page, K.A.; Eastman, S.A. Strain-based temperature memory effect for nafion and its molecular origins. Adv. Funct. Mater. 2011, 21, 2057–2066. [Google Scholar] [CrossRef]
  43. Koerner, H.; Price, G.; Pearce, N.A.; Alexander, M.; Vaia, R.A. Remotely actuated polymer nanocomposites—Stress-recovery of carbon-nanotube-filled thermoplastic elastomers. Nat. Mater. 2004, 3, 115–120. [Google Scholar] [CrossRef] [PubMed]
  44. Cao, F.; Jana, S.C. Nanoclay-tethered shape memory polyurethane nanocomposites. Polymer 2007, 48, 3790–3800. [Google Scholar] [CrossRef]
  45. Ponyrko, S.; Donato, R.K.; Matějka, L. Tailored high performance shape memory epoxy-silica nanocomposites: Structure design. Polym. Chem. 2016, 7, 560–572. [Google Scholar] [CrossRef]
  46. Gall, K.; Dunn, M.L.; Liu, Y.; Stefanic, G.; Balzar, D. Internal stress storage in shape memory polymer nanocomposites. Appl. Phys. Lett. 2004, 85, 290–292. [Google Scholar] [CrossRef]
  47. Atli, B.; Gandhi, F.; Karst, G. Thermomechanical characterization of shape memory polymers. J. Intell. Mater. Syst. Struct. 2008, 20, 87–95. [Google Scholar] [CrossRef]
  48. Cui, J.; Kratz, K.; Lendlein, A. Adjusting shape-memory properties of amorphous polyether urethanes and radio-opaque composites thereof by variation of physical parameters during programming. Smart Mater. Struct. 2010, 19, 065019. [Google Scholar] [CrossRef]
  49. Mirtschin, N.; Pretsch, T. Designing temperature-memory effects in semicrystalline polyurethane. RSC Adv. 2015, 5, 46307–46315. [Google Scholar] [CrossRef]
  50. Ping, P.; Wang, W.; Chen, X.; Jing, X. Poly(ε-caprolactone) polyurethane and its shape-memory property. Biomacromolecules 2005, 6, 587–592. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, W.; Ping, P.; Chen, X.; Jing, X. Polylactide-based polyurethane and its shape-memory behavior. Eur. Polym. J. 2006, 42, 1240–1249. [Google Scholar] [CrossRef]
  52. Grillard, F.; Zakri, C.; Gaillard, P.; Korzhenko, A.; Néri, W.; Poulin, P. How polymers lose memory with age. Soft Matter 2014, 10, 8985–8991. [Google Scholar] [CrossRef] [PubMed]
  53. Kratz, K.; Madbouly, S.A.; Wagermaier, W.; Lendlein, A. Temperature-memory polymer networks with crystallizable controlling units. Adv. Mater. 2011, 23, 4058–4062. [Google Scholar] [CrossRef] [PubMed]
  54. Langer, R.S.; Lendlein, A. Shape Memory Polymers. U.S. Patent 6,388,043, 14 May 2002. [Google Scholar]
  55. Li, J.; Xie, T. Significant impact of thermo-mechanical conditions on polymer triple-shape memory effect. Macromolecules 2011, 44, 175–180. [Google Scholar] [CrossRef]
  56. Ware, T.; Hearon, K.; Lonnecker, A.; Wooley, K.L.; Maitland, D.J.; Voit, W. Triple-shape memory polymers based on self-complementary hydrogen bonding. Macromolecules 2012, 45, 1062–1069. [Google Scholar] [CrossRef] [PubMed]
  57. Bai, Y.; Zhang, X.; Wang, Q.; Wang, T. A tough shape memory polymer with triple-shape memory and two-way shape memory properties. J. Mater. Chem. A 2014, 2, 4771–4778. [Google Scholar] [CrossRef]
  58. Kolesov, I.S.; Radusch, H.-J. Multiple shape-memory behavior and thermal-mechanical properties of peroxide cross-linked blends of linear and short-chain branched polyethylenes. Express Polym. Lett. 2008, 2, 461–473. [Google Scholar] [CrossRef]
  59. Pretsch, T. Triple-shape properties of a thermoresponsive poly(ester urethane). Smart Mater. Struct. 2010, 19, 015006. [Google Scholar] [CrossRef]
  60. Bothe, M.; Mya, K.Y.; Jie Lin, E.M.; Yeo, C.C.; Lu, X.; He, C.; Pretsch, T. Triple-shape properties of star-shaped POSS-polycaprolactone polyurethane networks. Soft Matter 2012, 8, 965–972. [Google Scholar] [CrossRef]
  61. Xie, T. Tunable polymer multi-shape memory effect. Nature 2010, 464, 267–270. [Google Scholar] [CrossRef] [PubMed]
  62. Li, J.; Liu, T.; Xia, S.; Pan, Y.; Zheng, Z.; Ding, X.; Peng, Y. A versatile approach to achieve quintuple-shape memory effect by semi-interpenetrating polymer networks containing broadened glass transition and crystalline segments. J. Mater. Chem. 2011, 21, 12213–12217. [Google Scholar] [CrossRef]
  63. Radusch, H.J.; Kolesov, I.; Gohs, U.; Heinrich, G. Multiple shape-memory behavior of polyethylene/polycyclooctene blends cross-linked by electron irradiation. Macromol. Mater. Eng. 2012, 297, 1225–1234. [Google Scholar] [CrossRef]
  64. Hoeher, R.; Raidt, T.; Krumm, C.; Meuris, M.; Katzenberg, F.; Tiller, J.C. Tunable multiple-shape memory polyethylene blends. Macromol. Chem. Phys. 2013, 214, 2725–2732. [Google Scholar] [CrossRef]
  65. Bellin, I.; Kelch, S.; Langer, R.; Lendlein, A. Polymeric triple-shape materials. Proc. Natl. Acad. Sci. USA 2006, 103, 18043–18047. [Google Scholar] [CrossRef] [PubMed]
  66. Tobushi, H.; Hara, H.; Yamada, E.; Hayashi, S. Thermomechanical properties in a thin film of shape memory polymer of polyurethane series. Smart Mater. Struct. 1996, 5, 483–491. [Google Scholar] [CrossRef]
  67. Sperling, L.H. Introduction to Physical Polymer Science, 4th ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2006; p. 356. [Google Scholar]
  68. Bothe, M.; Emmerling, F.; Pretsch, T. Poly(ester urethane) with varying polyester chain length: Polymorphism and shape-memory behavior. Macromol. Chem. Phys. 2013, 214, 2683–2693. [Google Scholar] [CrossRef]
Polymers 09 00098 g001 550
Figure 1. DSC thermogram of the studied poly(ester urethane) (PEU). The first heating scan (above) shows the glass transition and a signal associated with the melting of the poly(1,4-butylene adipate) (PBA) phase, while the ensuing cooling scan (below) exhibits a signal related to the crystallization of the PBA phase. For heating and cooling, rates of 10 °C·min−1 were selected.
Figure 1. DSC thermogram of the studied poly(ester urethane) (PEU). The first heating scan (above) shows the glass transition and a signal associated with the melting of the poly(1,4-butylene adipate) (PBA) phase, while the ensuing cooling scan (below) exhibits a signal related to the crystallization of the PBA phase. For heating and cooling, rates of 10 °C·min−1 were selected.
Polymers 09 00098 g001
Polymers 09 00098 g002 550

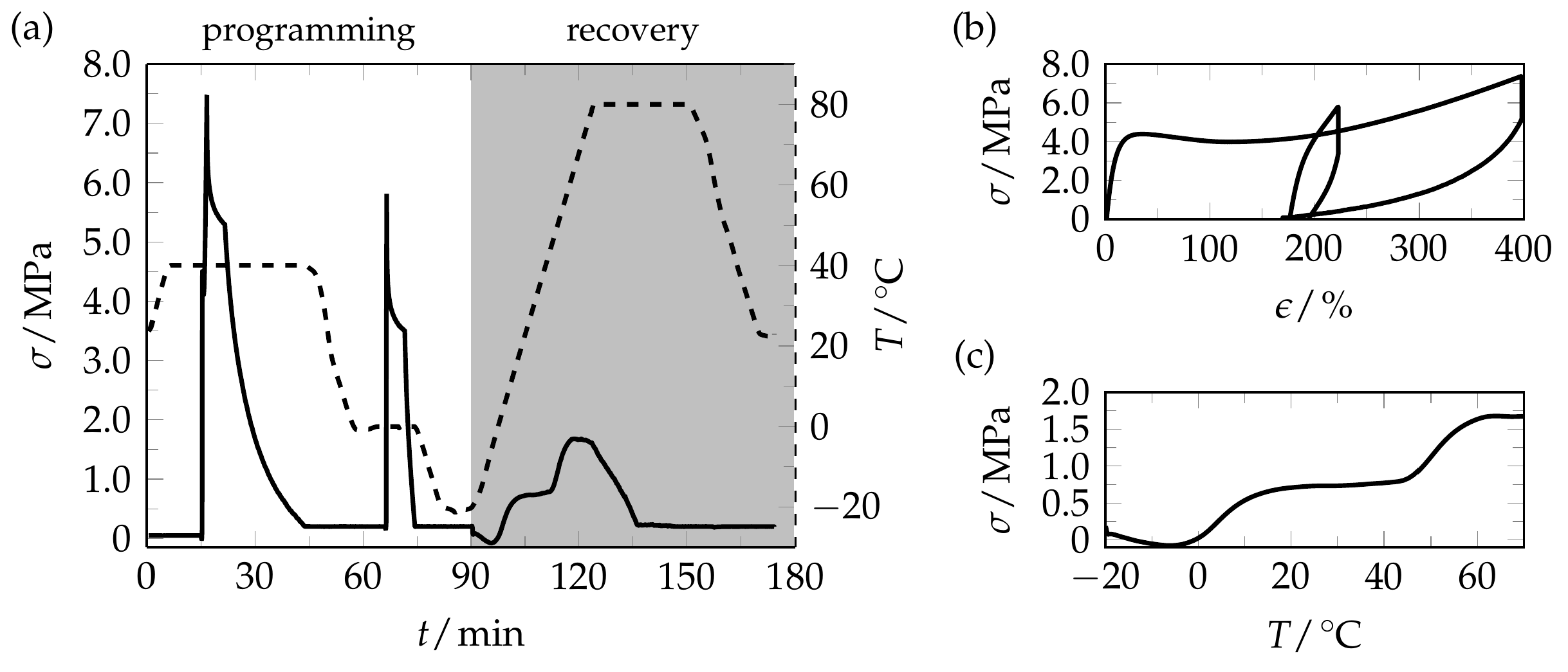

Figure 2. Twofold programming and stress recovery behavior of PEU. (a) Stress (solid line) and temperature (dashed line) vs. time protocols. Programming consisted of deformation and unloading both at 40 and 0 °C, followed by cooling to −20 °C. The stress recovery behavior was investigated during heating to 80 °C. Finally, the specimen was unloaded and cooled to 23 °C. Heating and cooling were accomplished with a rate of 3 °C·min−1. (b) Stress-strain relation when applying two-step programming, including an elongation to 400% at 40 °C and unloading, same as the application of an absolute maximum strain of 225% at 0 °C and unloading. The associated loading and unloading rates were 3 × 102 and 1 × 103% min−1, respectively. (c) Stress recovery behavior of twofold programmed PEU during heating from −20 to 70 °C.
Figure 2. Twofold programming and stress recovery behavior of PEU. (a) Stress (solid line) and temperature (dashed line) vs. time protocols. Programming consisted of deformation and unloading both at 40 and 0 °C, followed by cooling to −20 °C. The stress recovery behavior was investigated during heating to 80 °C. Finally, the specimen was unloaded and cooled to 23 °C. Heating and cooling were accomplished with a rate of 3 °C·min−1. (b) Stress-strain relation when applying two-step programming, including an elongation to 400% at 40 °C and unloading, same as the application of an absolute maximum strain of 225% at 0 °C and unloading. The associated loading and unloading rates were 3 × 102 and 1 × 103% min−1, respectively. (c) Stress recovery behavior of twofold programmed PEU during heating from −20 to 70 °C.
Polymers 09 00098 g002
Polymers 09 00098 g003 550

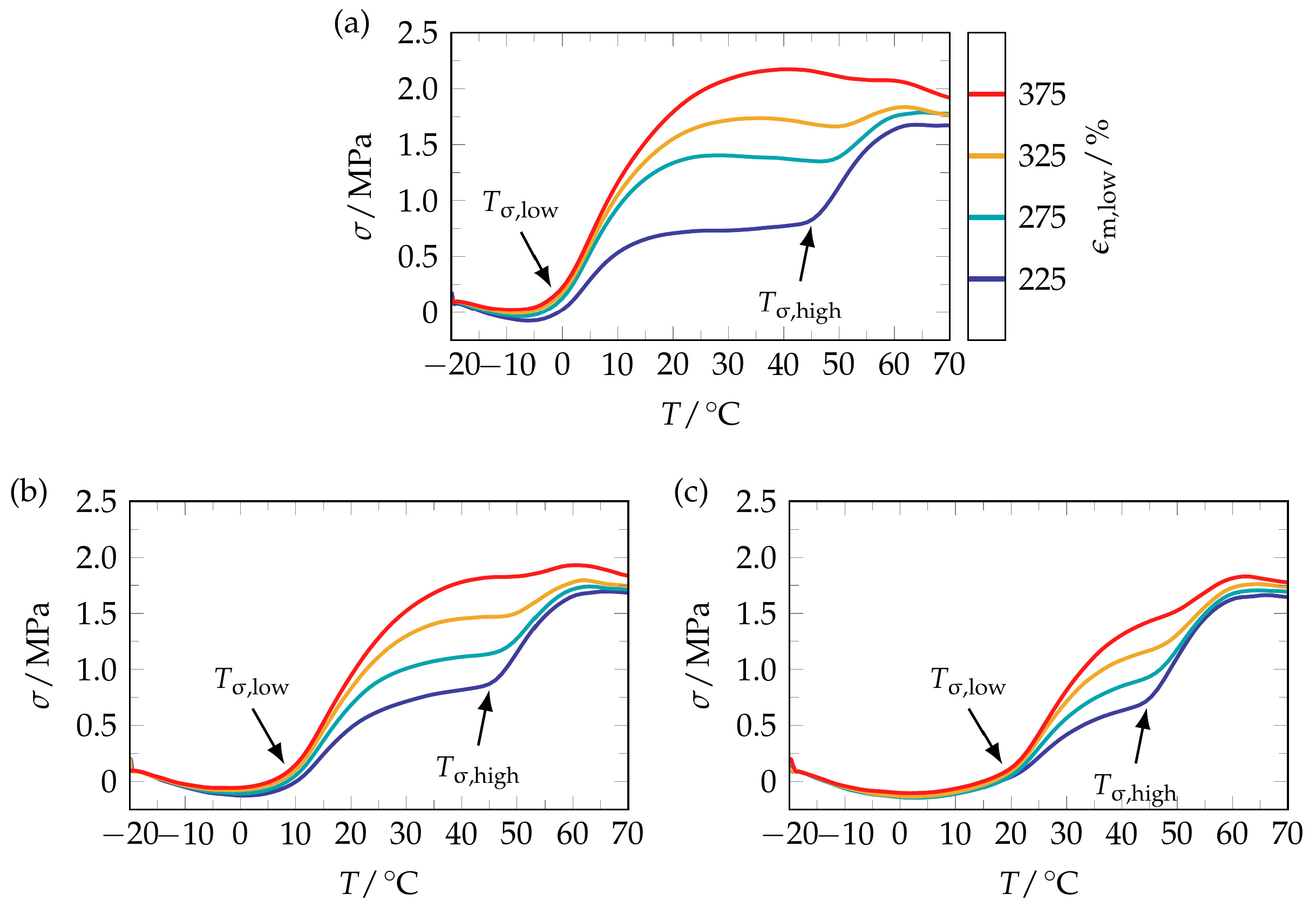

Figure 3. Stress recovery behavior of twofold programmed PEU when varying the deformation conditions in the second programming step (not shown here). In detail, first programming included the application of a maximum strain of 400% at Td,high = 40 °C, unloading and cooling to the second deformation temperature, while second programming consisted of different elongations εm,low (color coded) at 0 °C (a), 10 °C (b) and 20 °C (c). In all cases, the stress recovery temperatures Tσ,low and Tσ,high are drawn in.
Figure 3. Stress recovery behavior of twofold programmed PEU when varying the deformation conditions in the second programming step (not shown here). In detail, first programming included the application of a maximum strain of 400% at Td,high = 40 °C, unloading and cooling to the second deformation temperature, while second programming consisted of different elongations εm,low (color coded) at 0 °C (a), 10 °C (b) and 20 °C (c). In all cases, the stress recovery temperatures Tσ,low and Tσ,high are drawn in.
Polymers 09 00098 g003
Polymers 09 00098 g004 550
Figure 4. Evaluation of the two-step stress-recovery behavior of PEU: Influence of twofold programming when varying the lower deformation temperature Td,low and the maximum strain applied εm,low. Relation between Td,low and the stress recovery temperature Tσ,low ((a), with best fit line) and between Td,low and the stress recovery temperature Tσ,high (b). Impact of εm,low upon both maximum recovery stress σmax,low (c) and maximum recovery stress σmax,high (d). The errors in (c,d) were estimated from repeated measurements.
Figure 4. Evaluation of the two-step stress-recovery behavior of PEU: Influence of twofold programming when varying the lower deformation temperature Td,low and the maximum strain applied εm,low. Relation between Td,low and the stress recovery temperature Tσ,low ((a), with best fit line) and between Td,low and the stress recovery temperature Tσ,high (b). Impact of εm,low upon both maximum recovery stress σmax,low (c) and maximum recovery stress σmax,high (d). The errors in (c,d) were estimated from repeated measurements.
Polymers 09 00098 g004
Polymers 09 00098 g005 550

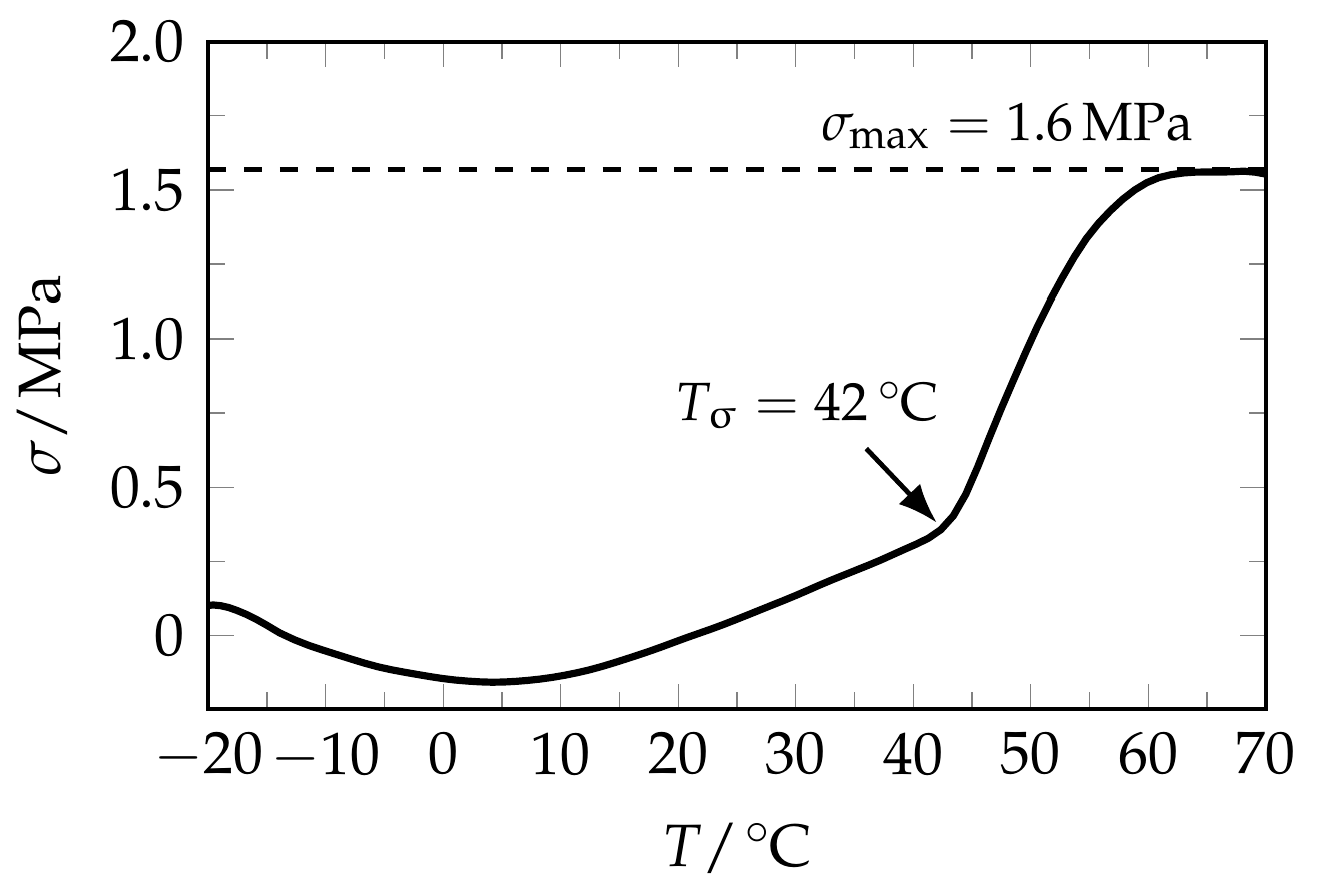

Figure 5. Stress recovery behavior of one-step programmed PEU. Programming included an elongation to a maximum strain of 400% at Td = 40 °C, unloading and cooling to −20 °C. The stress recovery temperature Tσ is marked. It was determined from the two-tangent intersection method. The maximum recovery stress σmax is also drawn in.
Figure 5. Stress recovery behavior of one-step programmed PEU. Programming included an elongation to a maximum strain of 400% at Td = 40 °C, unloading and cooling to −20 °C. The stress recovery temperature Tσ is marked. It was determined from the two-tangent intersection method. The maximum recovery stress σmax is also drawn in.
Polymers 09 00098 g005
Polymers 09 00098 g006 550

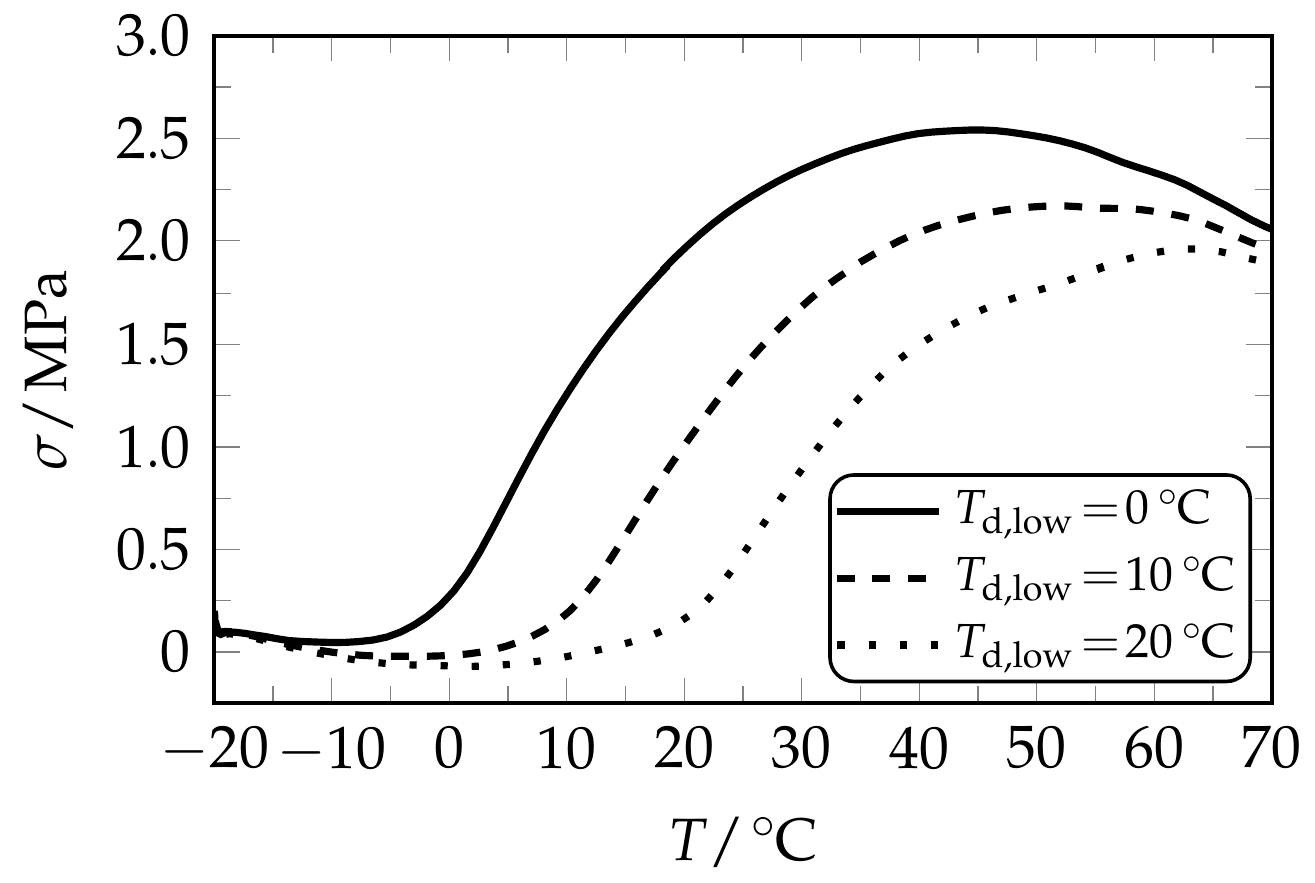

Figure 6. Stress recovery behavior of twofold programmed PEU. The second elongation was larger than the first one. Stress recovery is shown for those specimens, which were elongated to 400% at 40 °C and to an absolute strain of 425% at 0 °C (solid line), 10 °C (dashed line) and 20 °C (dotted line).
Figure 6. Stress recovery behavior of twofold programmed PEU. The second elongation was larger than the first one. Stress recovery is shown for those specimens, which were elongated to 400% at 40 °C and to an absolute strain of 425% at 0 °C (solid line), 10 °C (dashed line) and 20 °C (dotted line).
Polymers 09 00098 g006
Polymers 09 00098 g007 550
Figure 7. Stress recovery behavior of twofold programmed PEU when varying the temperature holding time after the second deformation. Twofold stress recovery is shown for those specimens, which were elongated to 400% at 40 °C and to 225% at 0 °C, whereupon the temperature holding time was extended from 5 min (solid line) to 15 h (dotted line).
Figure 7. Stress recovery behavior of twofold programmed PEU when varying the temperature holding time after the second deformation. Twofold stress recovery is shown for those specimens, which were elongated to 400% at 40 °C and to 225% at 0 °C, whereupon the temperature holding time was extended from 5 min (solid line) to 15 h (dotted line).
Polymers 09 00098 g007
Table
Table 1. Influence of the deformation conditions selected for the second programming step on the two-step stress recovery behavior of PEU. The deformation temperature Td,low and the maximum strain at low temperature elongation εm,low were varied. The first programming step consisted of an elongation to 400% at 40 °C, unloading and cooling to the second deformation temperature Td,low. Errors were estimated from repeated measurements.
Table 1. Influence of the deformation conditions selected for the second programming step on the two-step stress recovery behavior of PEU. The deformation temperature Td,low and the maximum strain at low temperature elongation εm,low were varied. The first programming step consisted of an elongation to 400% at 40 °C, unloading and cooling to the second deformation temperature Td,low. Errors were estimated from repeated measurements.
Td,lowεm,lowTσ,lowTσ,max,lowσmax,lowTσ,highTσ,max,highσmax,high
(°C)(%)(°C)(°C)(MPa)(°C)(°C)(MPa)
0225−1 ± 227 ± 20.7 ± 0.245 ± 264 ± 21.7 ± 0.2
0275−1 ± 228 ± 21.4 ± 0.249 ± 265 ± 21.8 ± 0.2
0325−2 ± 236 ± 21.7 ± 0.251 ± 262 ± 21.8 ± 0.2
0375−1 ± 240 ± 22.2 ± 0.253 ± 259 ± 22.1 ± 0.2
102259 ± 239 ± 20.8 ± 0.246 ± 266 ± 21.7 ± 0.2
102758 ± 241 ± 21.1 ± 0.247 ± 263 ± 21.8 ± 0.2
103258 ± 245 ± 21.5 ± 0.249 ± 262 ± 21.8 ± 0.2
103758 ± 247 ± 21.8 ± 0.251 ± 260 ± 21.9 ± 0.2
2022518 ± 240 ± 20.6 ± 0.245 ± 266 ± 21.7 ± 0.2
2027519 ± 242 ±20.9 ± 0.246 ± 265 ± 21.7 ± 0.2
2032519 ± 244 ± 21.2 ± 0.248 ± 264 ± 21.8 ± 0.2
2037518 ± 246 ± 21.5 ± 0.250 ± 262 ± 21.8 ± 0.2
Table
Table 2. Influence of the deformation conditions selected for the second programming of PEU on the deformation stress σm,low and on the amount of fixed strain εu,low. The deformation temperature Td,low and the maximum strain at low temperature elongation εm,low were varied. The first programming step consisted of an elongation to 400% at 40 °C, unloading and cooling to the second deformation temperature Td,low. Errors were estimated from repeated measurements.
Table 2. Influence of the deformation conditions selected for the second programming of PEU on the deformation stress σm,low and on the amount of fixed strain εu,low. The deformation temperature Td,low and the maximum strain at low temperature elongation εm,low were varied. The first programming step consisted of an elongation to 400% at 40 °C, unloading and cooling to the second deformation temperature Td,low. Errors were estimated from repeated measurements.
Td,low = 0 °CTd,low = 10 °CTd,low = 20 °C
εm,low (%)σm,low (MPa)εu,low (%)σm,low (MPa)εu,low (%)σm,low (MPa)εu,low (%)
2255.8 ± 0.2198 ± 54.7 ± 0.2187 ± 53.4 ± 0.2186 ± 5
2759.3 ± 0.2215 ± 56.8 ± 0.2212 ± 55.4 ± 0.2202 ± 5
32511.8 ± 0.2245 ± 59.3 ± 0.2235 ± 57.6 ± 0.2221 ± 5
37515.9 ± 0.2269 ± 512.4 ± 0.2256 ± 510.1 ± 0.2241 ± 5
Table
Table 3. Influence of the deformation temperature Td,low on the deformation stress σm,low, the amount of fixed strain εu,low and the stress recovery behavior of the PEU. Programming consisted of a first elongation to 400% at 40 °C, unloading, and an adjacent elongation to an absolute strain εm,low of 425% at Td,low, followed by unloading. Errors were estimated from repeated measurements.
Table 3. Influence of the deformation temperature Td,low on the deformation stress σm,low, the amount of fixed strain εu,low and the stress recovery behavior of the PEU. Programming consisted of a first elongation to 400% at 40 °C, unloading, and an adjacent elongation to an absolute strain εm,low of 425% at Td,low, followed by unloading. Errors were estimated from repeated measurements.
Td,low (°C)σm,low (MPa)εu,low (%)Tσ,on (°C)Tσ,max (°C)σmax (MPa)
019.5 ± 0.2300 ± 5−2 ± 245 ± 22.5 ± 0.2
1015.4 ± 0.2285 ± 58 ± 251 ± 22.2 ± 0.2
2012.9 ± 0.2266 ± 518 ± 263 ± 22.0 ± 0.2

Share and Cite

MDPI and ACS Style

Mirtschin, N.; Pretsch, T. Programming of One- and Two-Step Stress Recovery in a Poly(ester urethane). Polymers 2017, 9, 98. https://doi.org/10.3390/polym9030098

AMA Style

Mirtschin N, Pretsch T. Programming of One- and Two-Step Stress Recovery in a Poly(ester urethane). Polymers. 2017; 9(3):98. https://doi.org/10.3390/polym9030098

Chicago/Turabian Style

Mirtschin, Nikolaus, and Thorsten Pretsch. 2017. "Programming of One- and Two-Step Stress Recovery in a Poly(ester urethane)" Polymers 9, no. 3: 98. https://doi.org/10.3390/polym9030098

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
