Morphology Control of Ni(II)-NTA-End-Functionalized Block Copolymer and Bio-Conjugation through Metal-Ligand Complex

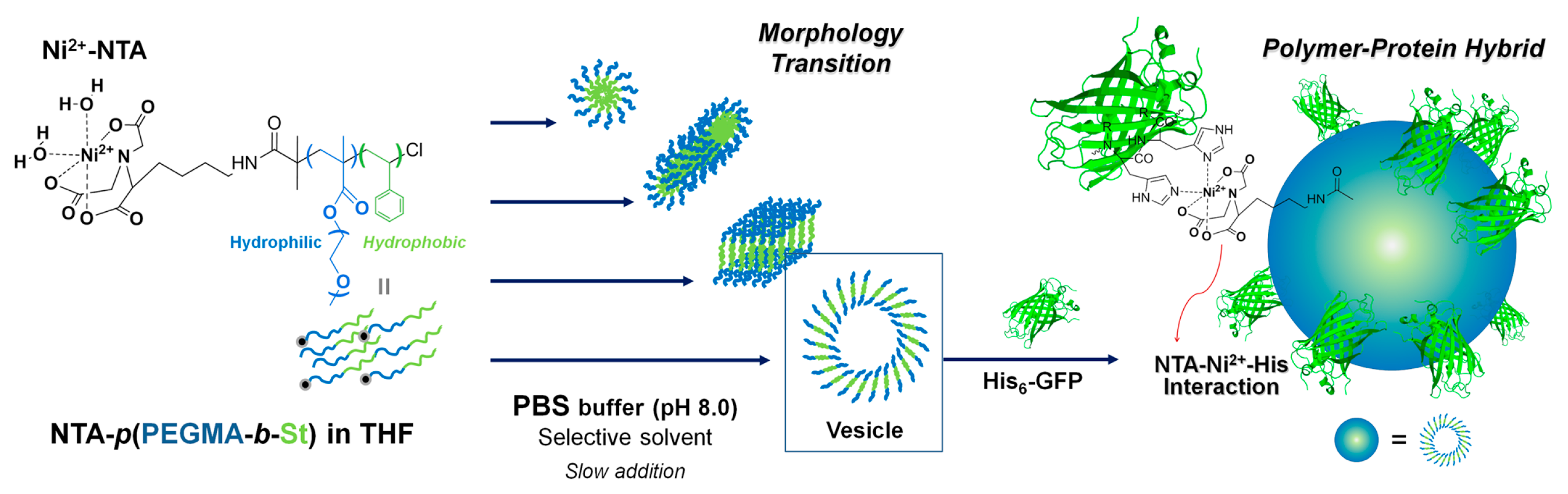

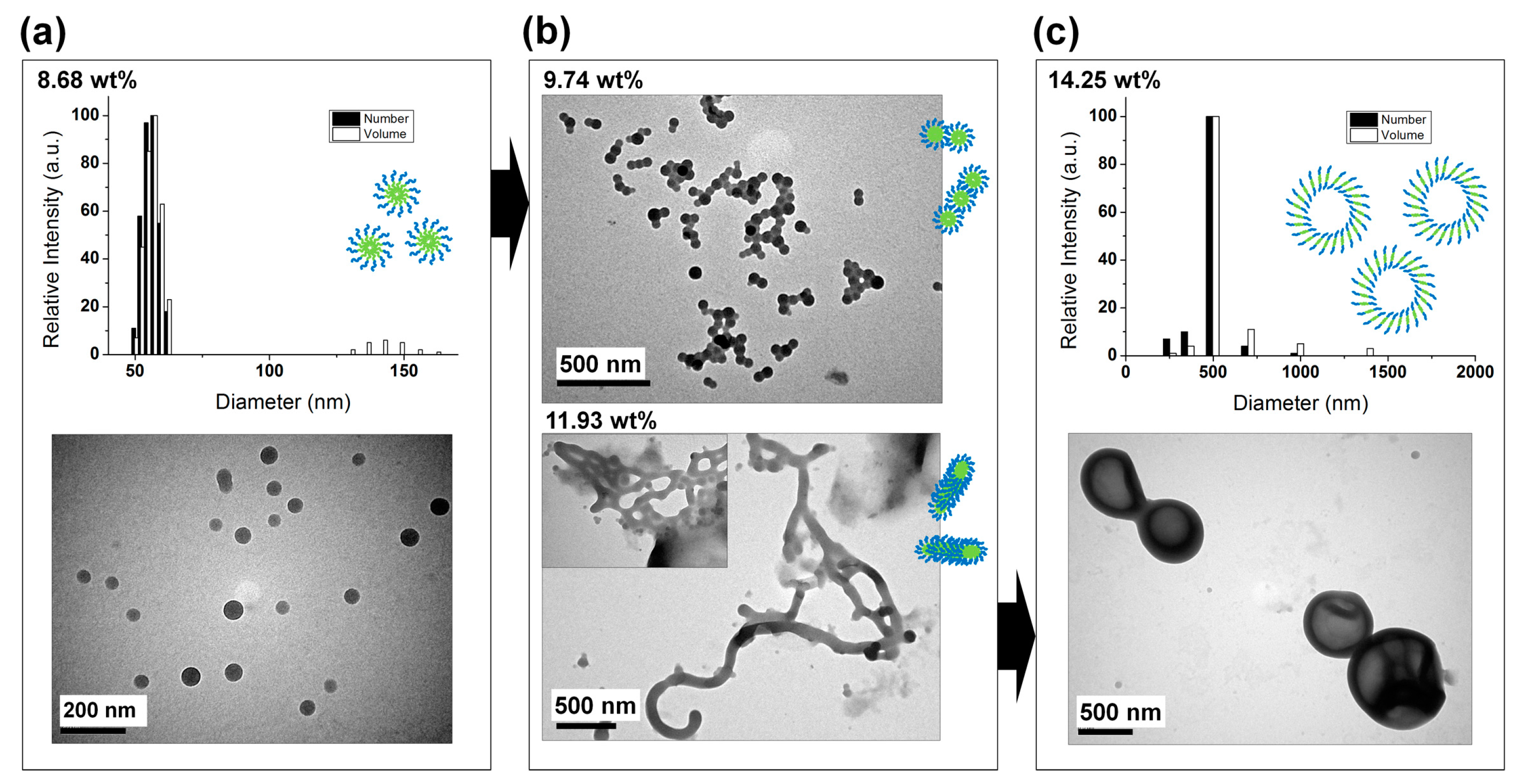

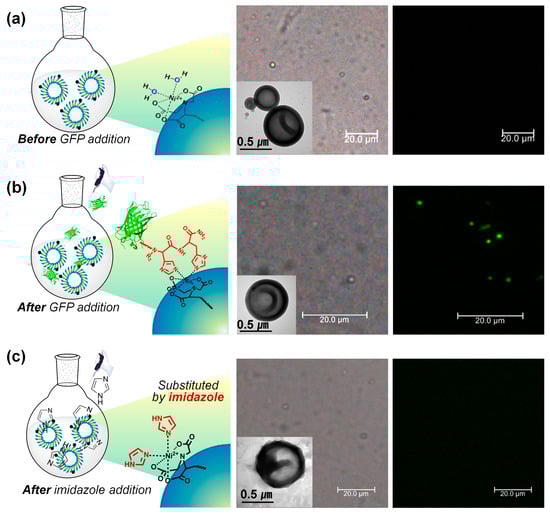

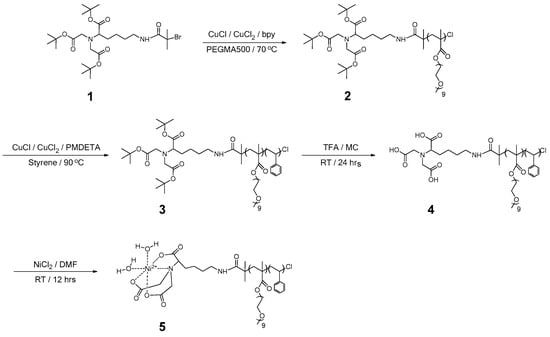

AbstractThis study demonstrates the synthesis of an amphiphilic block copolymer, Ni2+-nitrilotiracetic acid-end-functionalized-poly(poly(ethylene glycol)methyl ether methacrylate)-block-polystyrene (NTA-p(PEGMA-b-St)), morphology control via their self-assembly behavior and reversible bioconjugation of hexahistidine-tagged green fluorescent protein (His6-GFP) onto the surfaces of polymeric vesicles through nitrilotriacetic acid (NTA)-Ni2+-His interaction. First, the t-boc-protected-NTA-p(PEGMA-b-St) was synthesized by atom transfer radical polymerization. After the removal of the t-boc protecting group, the NTA group of the polymer was complexed with Ni2+. To induce self-assembly, water was added as a selective solvent to the solution of the copolymer in tetrahydrofuran (THF). Varying the water content of the solution resulted in various morphologies including spheres, lamellas and vesicles. Finally, polymeric vesicles decorated with green fluorescent protein (GFP) on their surfaces were prepared by the addition of His6-GFP into the vesicles solution. Reversibility of the binding between vesicles and His6-GFP was confirmed with a fluorescent microscope. View Full-Text
- Supplementary File 1:
PDF-Document (PDF, 2039 KB)
Share & Cite This Article
Park, D.; Lee, C.; Chae, M.; Kadir, M.A.; Choi, J.E.; Song, J.K.; Paik, H.-J. Morphology Control of Ni(II)-NTA-End-Functionalized Block Copolymer and Bio-Conjugation through Metal-Ligand Complex. Polymers 2017, 9, 144.
Park D, Lee C, Chae M, Kadir MA, Choi JE, Song JK, Paik H-J. Morphology Control of Ni(II)-NTA-End-Functionalized Block Copolymer and Bio-Conjugation through Metal-Ligand Complex. Polymers. 2017; 9(4):144.Chicago/Turabian Style
Park, Dasom; Lee, Chaeyeon; Chae, Minsu; Kadir, Mohammad A.; Choi, Ji E.; Song, Jae K.; Paik, Hyun-jong. 2017. "Morphology Control of Ni(II)-NTA-End-Functionalized Block Copolymer and Bio-Conjugation through Metal-Ligand Complex." Polymers 9, no. 4: 144.
