Functional Analysis of Two Flavanone-3-Hydroxylase Genes from Camellia sinensis: A Critical Role in Flavonoid Accumulation

1
State Key Laboratory of Tea Plant Biology and Utilization, Anhui Agricultural University, Hefei 230036, Anhui, China
2
School of Life Science, Anhui Agricultural University, Hefei 230036, Anhui, China
*
Authors to whom correspondence should be addressed.
Genes 2017, 8(11), 300; https://doi.org/10.3390/genes8110300
Submission received: 18 August 2017 / Revised: 19 October 2017 / Accepted: 25 October 2017 / Published: 31 October 2017

Abstract

:
Flavonoids are major secondary metabolites in Camellia sinensis. Flavanone-3-hydroxylase (F3H) is a key enzyme in flavonoid biosynthesis in plants. However, its role in the flavonoid metabolism in C. sinensis has not been well studied. In this study, we cloned two F3Hs from C. sinensis, named CsF3Ha and CsF3Hb, where CsF3Ha containing 1107 bases encoded 368 amino acids, and CsF3Hb containing 1071 bases encoded 357 amino acids. Enzymatic activity analysis showed both recombinant CsF3H enzymes in Escherichia coli could convert naringenin and eriodictyol into dihydrokaempferol (DHK) and dihydroquercetin (DHQ), respectively. The expression profiles showed that CsF3Ha and CsF3Hb were highly expressed in the tender leaves of tea plants. Under different abiotic stresses, the two CsF3Hs were induced remarkably by ultraviolet (UV) radiation, sucrose, and abscisic acid (ABA). In the seeds of CsF3Hs transgenic Arabidopsis thaliana, the concentration of most flavonol glycosides and oligomeric proanthocyanidins increased significantly, while the content of monocatechin derivatives decreased. The present study revealed that CsF3Hs played critical roles in flavonoid biosynthesis in tea plants.

1. Introduction

Flavonoids are widely distributed in plants, and have the medicinal functions of cerebral ischemia injury prevention, analgesia, and antineoplastic activity [1]. Therefore, they have been receiving more attention. In fresh tea leaves, 52 flavonoids have been isolated and identified [2], where catechins are the most abundant, accounting for 12–24% of the dry weight [3]. Flavonoids are synthesized through the phenylpropanoid pathway and the flavonoid biosynthesis pathway [4,5]. Flavanone 3-hydroxylase (F3H) (EC 1.14.11.9), which belongs to the 2-oxoglutarate-dependent dioxygenase (2-ODD) family, is the third enzyme of the central flavonoid biosynthetic pathway. F3H enzyme hydroxylates flavanones, such as naringenin, form 3-hydroxy flavonol, a common precursor of anthocyanins, flavanols, and proanthocyanidins [6,7]. F3H plays important roles in flavonoid biosynthesis [6,7]. In Artemisia annua, the F3H transcripts are found to be accumulated in the cultivar with higher level of flavonoids [8]. The high expression of CtF3H in quinochalcone-type safflower line is associated with the accumulation of flavonols [9]. Silencing F3H in Malus sieversii led to the accumulation of flavanone, the substrate of F3H [6]. In the seed coat, leaf, and stem of the Arabidopsis thaliana F3H mutant (tt6), the content of anthocyanin, the downstream product, was lower than that in the wild-type [10]. Furthermore, F3H also plays an important role in plant resistance to biotic and abiotic stresses [11,12]. Two F3H genes in Reaumuria trigyna were induced by drought, salt, cold, and abscisic acid (ABA) stresses [13]. Drought can induce F3H expression during potato growth [14], and F3H expression in Egyptian beans can provide resistance to the damage caused by fungus [15]. F3H in Lycium chinense played a role in drought tolerance, and its overexpression in tobacco enhanced tolerance to drought stress by improving the antioxidant system [16]. SlF3HL from Solanum lycopersicum conferred tolerance to chilling by stimulating flavonoid biosynthesis in transgenic tobacco [17]. PnF3H overexpression in A. thaliana improved tolerance to salt stress and ABA treatment by alleviating the inhibitory effects of naringenin on plant growth and changing the flavonoid components in transgenic plants [18]. In Reaumuria soongorica, the increases of RsF3H gene expression, RsF3H enzyme activity and the antioxidative ability of the metabolic end products in the flavonoid biosynthetic pathway enhanced the stress tolerance to ultraviolet (UV)-B radiation and drought [19].
The function of one F3H gene has been preliminarily studied in Camellia sinensis [20,21,22]; however, the total number of F3H members and their functions in flavonoid metabolism in tea plants remain unclear. According to current online databases of transcriptomes in the National Center for Biotechnology Information (NCBI) and genomes of the tea plant (www.plantkingdomgdb.com/tea_tree/) [23], two CsF3H transcripts were screened. In this study, a comprehensive analysis of these two CsF3Hs was conducted including multiple sequence alignment, phylogenetic analysis, gene function verification, and response to abiotic stresses.

2. Materials and Methods

2.1. Plant Materials

Samples of Camellia sinensis cv. ‘Shuchazao’ at six different developmental stages (bud, first leaf, second leaf, third leaf, fourth leaf, and old leaf), young stem, and young root were collected from the agricultural research base of Anhui Agricultural University (Hefei, Anhui, China), immediately frozen in liquid nitrogen, then stored at −80 °C.
For the UV treatment, the approximately 12 cm tender shoots were illuminated under UV-B (0.6 W cm−2) for 30 and 60 min. The control shoots were illuminated under white light.
With the abiotic stresses, shoots were treated under 90 mM/L sucrose, 200 mM/L mannitol, 50 mM/L NaCl, 10 μM/L jasmonic acid (JA), 0.74 μM/L indolebutyric acid (IBA), 100 μM/L ABA, and 20 mM/L salicylic acid (SA) for 12 and 48 h, respectively. All samples were treated at 22 °C with 150–200 μmol m−2 s−1 illumination intensity. The control shoots were cultivated in deionized water. For cold treatment, the shoots were treated at 4 °C for 3 and 6 h.
For genetic transformation, A. thaliana (Ecotype Columbia) were grown in a green house. The temperature, light intensity and photoperiod were 22 ± 2 °C, 50 μmol m−2 s−1 and 16/8 h (light/darkness), respectively.

2.2. Clone, Multiple Alignment, and Phylogenetic Analysis

Two CsF3H transcripts were screened out after removing redundancies from nine transcriptome databases in NCBI and one genome database (www.plantkingdomgdb.com/tea_tree/) [23]. The fragments of 5′- and 3′-rapid amplification of cDNA ends (RACE) were cloned with primers shown in Supplementary Table S1 using the SMART RACE cDNA amplification kit (Clontech, Mountain View, CA, USA). The open reading frames (ORF) of these two genes were obtained by end-to-end PCR using specific primers (Supplementary Table S2). These two genes were named CsF3Ha and CsF3Hb, and submitted to GenBank (accession numbers: KY615688 and KY615689).
Their theoretical molecular weight and isoelectric points were predicted using the ExPASy ProtParam tool [24]. By using ClustalW software (Kyoto University Bioinformatics Center, Kyoto, Japan) and the online server ESpript [25], an alignment of these two CsF3H proteins and F3H proteins from other species was implemented. Furthermore, a phylogenetic tree including these two CsF3H proteins and 2-ODD family members from other plants was constructed using MEGA 5.0 software (Mega, Raynham, MA, USA) through a neighbor-joining method.

2.3. Enzymatic Activity Assay of Recombinant CsF3H Proteins

The ORFs of CsF3Ha and CsF3Hb were respectively cloned into the expression vector pMAL-c2X (New England Biolabs, Ipswich, MA, USA) and transformed into E. coli BL21 expression strains (TransGen Biotech, Beijing, China). The expression strains grown in Luria–Bertani medium at 37 °C until the optical density (OD)600 reached 0.6 and 1.0 mM isopropyl β-d-1-thiogalactopyranoside (IPTG) was added to the medium and incubated for 5 h. The substrates, naringenin, and eriodictyol were then respectively added into the culture to a final concentration of 0.1 mM and incubated at 28 °C overnight. E. coli BL21 expression strains harboring the empty vector pMAL-c2X was used as a control. The culture was collected and centrifuged at 16,200× g for 10 min. The supernatant was filtered with a 0.22 μm membrane and analyzed by high-performance liquid chromatography (HPLC) at 280 nm. The chromatographic column was an Altima C18 analytical column (5 μm, 250 mm × 4.6 mm) (Agilent, Santa Clara, CA, USA). The moving phase was 1% acetic acid (A phase) and 100% acetonitrile (B phase). The flow velocity was 1.0 mL/min. The following linear elution gradient was employed: 0–5 min, B phase raised from 10 to 15%; 5–15 min, B phase raised from 15 to 40%; 15–20 min, B phase raised from 40 to 60%; and 20–22 min, B phase reduced from 60 to 10%. In addition, the ultra-performance liquid chromatography-tandem mass spectrometry (UPLC–MS/MS) system was utilized to identify the enzymatic products as previously described [2].

2.4. Expression Profile Analysis of CsF3Hs in Diverse Tissues and under Different Abiotic Stresses

To analyze the expression profiles of two CsF3Hs in diverse tissues of the tea plant, we performed semi-quantitative reverse transcription-polymerase chain reaction (RT-PCR) for the first leaf, second leaf, third leaf, fourth leaf, old leaf, stem, and root with glyceraldehyde-3-phosphate dehydrogenase (GAPDH) as the internal reference gene.
In addition, real-time quantitative polymerase chain reaction (qPCR) was performed to investigate the expression profiles of two CsF3Hs under abiotic stresses such as UV, ABA, SA, JA, IBA, NaCl, cold, sucrose, and mannitol. The second leaves were collected after treatment and stored at −80 °C. For qPCR, total RNA was extracted from the stored samples, and reverse transcription was performed using reverse transcriptase (TaKaRa). The gene-specific primers (Supplementary Table S3) were designed. Then, the cDNA was used as a template to perform qPCR on a Bio-Rad CFX96 Real-Time system (Bio-Rad, Hercules, CA, USA). GAPDH was used as the internal reference gene. The relative expression level of each gene was calculated using the 2−ΔΔCT method [26].
For prediction of the cis elements, 2000 bp promoter regions of the two CsF3Hs genes were analyzed using PlantCARE [27].

2.5. Analysis of Flavonoids in Transgenic Arabidopsis thaliana

The ORFs of CsF3Ha and CsF3Hb were respectively cloned into a binary vector using the Gateway Cloning System (Invitrogen, Carlsbad, CA, USA) [28]. The constructed binary expression vectors pCB2004-CsF3Ha and pCB2004-CsF3Hb were respectively introduced into the Agrobacterium tumefaciens strain C58C1 by electroporation. A. thaliana transformation was performed using the floral-dip method [29,30].
The weight of 0.1 g seeds of transgenic A. thaliana was ground into powder in liquid nitrogen. Flavonoids were extracted with 1 mL of methanol–HCl solution (80% methanol, 0.1% hydrochloric acid, and pure water). The extractive was intensively mixed with a methanol–HCl solution by ultrasonication. Finally, the mixture was centrifuged at 4000× g for 15 min, and the supernatant was moved into a clean microcentrifuge tube. The residues were re-extracted twice as above.
UPLC–MS/MS was used to analyze the flavonoids in the transgenic lines of CsF3Ha and CsF3Hb. The wild-type was used as a control. The methods of flavonoid identification and data analysis were derived from a previous study [2].

3. Results

3.1. Characterization of Two CsF3Hs

Two CsF3H transcripts (CsF3Ha and CsF3Hb) were screened out from the nine transcriptome databases and one genome database after removing redundancies. These two cDNAs of CsF3Hs were obtained from C. sinensis, with lengths of 1256 and 1334 bp and open reading frames encoding 369 and 357 amino acids, respectively. The predicted protein molecular weight (Mw) and isoelectric point (pI) values are listed in Table 1. Multiple alignment analysis was further performed with these two CsF3H proteins and F3Hs from other plants (Figure 1). The result indicated that amino acid sequences of F3Hs from different plants were highly conservative. Like F3Hs of other plants, these two CsF3H proteins contained the 2-ODD conserved domain, which is specific to 2-ODD superfamily (Figure 1). The ferrous iron binding sites HxDxnH (H218, D220, and H276) and 2-oxoglutarate binding sites RxS (R286 and S288) were highly conserved in the F3Hs of C. sinensis and other plants (Figure 1).
A phylogenetic tree containing the two CsF3Hs and 2-ODD family members from other plants were constructed using MEGA 5.0 software (Figure 2). Phylogenetic analysis showed that these 2-ODD family members were classified into four clusters: classes I–IV. Class I contained flavanone 3-hydroxylase (Class Ia) and flavone synthase (Class Ib). Class II included anthocyanidin synthase (Class IIa) and flavonol synthase (Class IIb). Class III contained hyoscyamine 6β-hydroxylase. Class IV contained 20-oxidase and 3-oxidase. F3Hs and flavone synthases (FNSs) sharing the same cluster indicated that the F3Hs had a close evolutionary relationship with FNSs in plants (Figure 2). This result was consistent with previous reports that FNS evolved from F3H through gene duplication [31,32].

3.2. Enzymatic Activity Assay

The CsF3Ha-maltose binding protein (MBP) and CsF3Hb-MBP recombinants were expressed in E. coli BL21 strains. No enzymatic activities were detected with purified proteins. Therefore, enzymatic activity assays were performed by feeding naringenin (N) and eriodictyol (E) as the substrate, respectively into the culture medium of the E. coli strains. The results showed that CsF3Ha and CsF3Hb were both able to catalyze N to form dihydrokaempferol (DHK) and E to form dihydroquercetin (DHQ) (Figure 3). Furthermore, UPLC–MS/MS analysis was used to identify the reaction products. The results confirmed that the products were DHK and DHQ, respectively (Figure 4).

3.3. Expression Profile Analysis

Semi-quantitative RT-PCR was used to analyze the expression profiles of CsF3Ha and CsF3Hb in various tissues. The results suggested that CsF3Ha and CsF3Hb exhibited high expression in the tender leaves such as the bud, first leaf, and second leaf, and low expression in the fourth and old leaves (Figure 5). Their expression profiles in leaves at different stages were consistent with flavonoid accumulation patterns in tea plants [2]. These results indicated that these two CsF3Hs most likely play important roles in flavonoid biosynthesis in tea plants.
The expression profiles of CsF3Ha and CsF3Hb under different abiotic stresses were detected using qPCR. The results showed that CsF3Ha and CsF3Hb were both significantly induced by UV at 60 min (Figure 6). CsF3Hb was induced by cold treatment, while CsF3Ha was downregulated under cold treatment. CsF3Ha and CsF3Hb were also highly expressed under sucrose and ABA treatment. These results indicated that flavonoid biosynthesis may be induced by abiotic stresses, including sucrose, ABA and UV. In addition, the cis elements of the promoter regions of CsF3Ha and CsF3Hb genes were analyzed (Supplementary Tables S4 and S5). Various light responsive elements were distributed in the promoter regions of both CsF3Ha and CsF3Hb genes, suggesting these two genes might be regulated by ultraviolet, which was consistent with our results. There were also some different cis elements between the promoter regions of CsF3Ha and CsF3Hb, which may lead to very different expression under the same stress conditions. There were MYB binding sites in the promoter region of CsF3Ha (Supplementary Tables S4 and S5), but not in that of CsF3Hb, which implied that CsF3Ha may be regulated by the MYB transcription factor, while CsF3Hb was not [33,34,35].

3.4. Overexpression of CsF3Ha and CsF3Hb Improved the Accumulation of Flavonoids in Arabidopsis thaliana

Flavonoids produced in transgenic A. thaliana lines were analyzed by UPLC–MS/MS. The results suggested that CsF3Ha and CsF3Hb overexpression significantly increased the production of most flavonol glycosides and oligomeric proanthocyanidins, such as Kaempferol 3-O-rhamnoside-7-O-glucoside (K-R-3-G-7), Kaempferol 3-O, 7-O-rhamnoside (K-3,7-di-O-R), quercetin 3-O-glucoside (Q-3-O-G), Kaempferol 3-O-rhamnoside (K-R-3), proanthocyanidin (PA) dimer, and PA trimer etc. (Figure 7 and Supplementary Table S6). Notably, flavonol glycosides K-R-3-G-7, Q-3-O-G, and K-R-3 in CsF3Ha Line11 OE were more than twice as much as that of the wild-type. However, the monocatechin derivatives, epicatechin and epicatechin 3'-O-glucoside (EC-3′-G) decreased in all the CsF3Ha and CsF3Hb transgenic A. thaliana lines. Therefore, CsF3Ha and CsF3Hb overexpression improved the accumulation of flavonoids in A. thaliana, except monocatechin derivatives.

4. Discussion

In flavonoid metabolic pathways, dihydroflavonols serve as intermediates for the biosynthesis of flavan-3-ols [36]. F3H, which converts flavanone into dihydroflavonol, is a key enzyme regulating plant flavonoid accumulation in vivo [37,38]. Numerous studies have reported that the F3H enzyme can catalyze naringenin to dihydrokaempferol [7,8,39], but the studies on its enzymatic activity for substrate E are rare. In this study, the enzymatic activity assay indicated that both the recombinant CsF3Ha and CsF3Hb in E. coli strains were able to catalyze N to form DHK, and E to form DHQ.
The two featured conserved motifs, namely ferrous iron binding sites HxDxnH (H218, D220, and H276) and 2-oxoglutarate binding sites RxS (R286 and S288), were highly conserved in these two CsF3Hs, which were consistent with the F3H protein from A. annua L. [8,40,41]. This indicated that these two CsF3H proteins belonged to the family of 2-ODD. Xiong et al. proposed that three strictly conserved prolines (Pro148, Pro204, and Pro207) played important roles in the protein-folding process [8]. The three prolines were also conserved in the two CsF3Hs, which may contribute to maintaining the functions of F3Hs during the evolutionary process of C. sinensis. In addition, phylogenetic analysis indicated that F3Hs had close evolutionary relationships with FNSs in plants, which was consistent with previous reports that FNS evolved from F3H by gene duplication [31,32]. Gebhardt et al. reported that several conserved differences between FNS and F3H proteins of parsley (Petroselinum crispum) were likely to determine divergent catalytic activity [42]. Both F3H and FNS withdrew the β-configured hydrogen from carbon-3 of naringenin, but then proceeded on different routes despite their high sequence similarity. F3H catalyzed 3β-hydroxylation through a rebound process, whereas FNS afforded the synelimination of hydrogen from carbon-2 in a cage-like setting without intermediate hydroxylation [42]. We examined the enzyme activity of CsF3Ha and CsF3Hb towards flavone, and the HPLC analysis showed that these two CsF3Hs did not exhibit enzyme activity of FNS (data not shown).
The expression of F3H gene contributes to the accumulation of downstream products, such as flavonols, catechins, PAs, and anthocyanins [6,7,9,10]. The transcript abundance of the flavonoid biosynthesis enzyme gene F3H was higher in the red petals than in the white petals of Magnolia sprengeri pamp [43]. In our work, many flavonoids including IR, IR-H-R, K-R-3-G-7, K-3,7-di-O-R, Q-3-O-G, and K-R-3 increased significantly in CsF3Ha/b transgenic Arabidopsis thaliana, which was consistent with previous report that SlF3HL overexpression induced flavonoid accumulation in tobacco [17]. This result may have been caused by the overexpression of CsF3Ha/b, which increased the metabolic flux toward flavonoid pathway. In transgenetic SlF3HL tobacco, CHS, and CHI in the upstream pathway and FLS in the downstream pathway were upregulated by SlF3HL overexpression [17].
Notably, oligomeric proanthocyanidins, such as PA dimer and PA trimer increased in CsF3Ha/b transgenic A. thaliana. However, the monocatechin types, epicatechin and EC-3’-G, were reduced in all the transgenic A. thaliana lines. These results were inconsistent with those of a previous report [20]. Monika Mahajan reported that the overexpression of CsF3H, equal to CsF3Ha in this study, increased the content of flavan-3-ols, including catechin, epicatechin (EC), and epigallocatechin (EGC) in tobacco [20]. These differences may come from the differences of the transgenic plants. The main types of flavan-3-ols present in the seeds of Arabidopsis are PAs (catechin polymer) instead of monocatechins. Epicatechin may polymerize to form PAs in transgenic A. thaliana. Due to the lack of an effective genetic transformation in tea plants, the functions of F3Hs for the biosynthesis of PAs and monocatechin in tea plants remains unclear. However, the present study revealed that the two CsF3Hs play critical roles in the flavonoid biosynthesis in tea plants.
Only one F3H gene was reported in most papers, while few papers reported more than two F3H genes, such as three F3H genes were found in rice and wheat. Their expression patterns in tissues may be different, implying functional difference. For instance, OsF3H-1 and -2 are expressed at much higher levels than OsF3H-3 in rice tissues producing high contents of anthocyanins [44]. For all three wheat F3H genes, F3H-A1, F3H-B1, and F3H-D1, there was a close relationship between their expression and tissue pigmentation, and they were highly activated in the red grains and coleoptiles [45]. In this study, a comparison with CsF3Ha and CsF3Hb showed that the transcript level of CsF3Ha was higher in the third and fourth leaves, while that of CsF3Hb was slightly higher in stems and roots, suggesting that CsF3Hb may contribute to polymeric catechins [2].
In plants, sucrose is an essential metabolite, not only playing an essential role in general metabolism and energy generation, but also acting as a signaling molecule to regulate processes, such as photosynthesis, nutrient mobilization and allocation, stimulating growth, and activating the flavonoid biosynthesis (sugar sensing and signaling in plants.). As a signaling molecule, sugar induced the expressions of genes specifically involved in anthocyanin biosynthesis in A. thaliana seedlings, such as PAL, C4H, 4CL, CHS, CHI, F3H, F3’H, DFR, LAR, ANS, ANR, UFGT, FLS, and PAP1 [46,47]. The amount of anthocyanin in Arabidopsis seedlings reached its maximum under the treated sucrose concentration of 60–90 mM [46]. In our previous work, sucrose also induced an increase in catechins in tea plant seedlings [48]. In this work, CsF3Ha and CsF3Hb were significantly induced, especially CsF3Ha under the treatment of 90 mM sucrose, suggesting CsF3Ha may contribute more to activating the flavonoid biosynthesis. F3H also plays an important role in the plant resistance to some abiotic stresses, such as drought, salt, cold, ABA, and UV stresses [13,14,17,18,19]. Combining previous reports [17,35,49,50] and pretreatments, 10 μM/L JA, 0.74 μM/L IBA, 100 μM/L ABA, and 20 mM/L SA were used to examine the ability of the two CsF3Hs to abiotic stresses in this paper. The results suggested that CsF3Ha and CsF3Hb were more strongly induced by ABA at 12 h after treatment than at 24 h, which was consistent with a previous study of RtF3H1 and RtF3H2 [13]. CsF3Ha was more highly induced than CsF3Hb under ABA. CsF3Ha was downregulated by NaCl and mannitol, while CsF3Hb expression exhibited no significant change under NaCl and mannitol. CsF3Hb was highly induced by cold at 3 h, suggesting that CsF3Hb may be involved in resistance to cold stress. By contrast, RtF3H1 and RtF3H2 could be induced by NaCl, polyethylene glycol (PEG), and cold [13]. Compared with CsF3Ha, CsF3Hb was more highly upregulated by UV. These phenomena may be caused by more cis-acting regulatory elements involved in light responsiveness in the promoter regions of CsF3Hb. These data suggested that these two CsF3H genes are involved in the abiotic stress of tea plants, A previous report has suggested that the increase of RsF3H gene expression, RsF3H enzyme activity and the antioxidative ability of the metabolic end products in the flavonoid biosynthetic pathway led to the stress tolerance of R. soongorica [19].

Supplementary Materials

The following are available online at www.mdpi.com/2073-4425/8/11/300/s1. Table S1: The specific-primers for RACE; Table S2: The specific-primers for ORFs; Table S3: The specific-primers for qPCR; Table S4: The cis elements of promoter regions of CsF3Ha; Table S5: The cis elements of promoter regions of CsF3Hb, Table S6: Levels of selected flavonoid compounds in seeds of wild-type and transgenic (CsF3Ha/b) Arabidopsis thaliana lines determined by UPLC-MS analysis.

Acknowledgments

This work was supported by the Natural Science Foundation of China (grant numbers: 31570694, 31700608, and 31470689), the Natural Science Foundation of Anhui Province (1708085QC51), the Collegiate Natural Science Foundation of Anhui Province (KJ2016A223), the Natural Science Foundation of Anhui Province, China (1708085MC58), the Natural Science Foundation for Higher Education of Anhui Province (KJ2017A441), and the Natural Science Foundation of Suzhou University (2016jb02). The institutions had no role in the study design, data collection and analysis, decision to publish, or preparation of the manuscript.

Author Contributions

Yahui Han conceived and designed the experiments; Keyi Huang, Tianming Jiao, and Guoliang Ma performed the experiments and analyzed the data; Yumei Qian, Peiqiang Wang, and Xinlong Dai contributed to the materials and analysis tools; and Yahui Han and Yajun Liu wrote the paper, Liping Gao and Tao Xia designed the experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Simons, A.L.; Renouf, M.; Hendrich, S.; Murphy, P.A. Human gut microbial degradation of flavonoids: Structure-function relationships. J. Agric. Food Chem. 2005, 53, 4258–4263. [Google Scholar] [CrossRef] [PubMed]
  2. Jiang, X.; Liu, Y.; Li, W.; Lei, Z.; Fei, M.; Wang, Y.; Tan, H.; Hua, Y.; Wei, C.; Wan, X. Tissue-specific, development-dependent phenolic compounds accumulation profile and gene expression pattern in tea plant (Camellia sinensis). PLoS ONE 2013, 8, e62315. [Google Scholar] [CrossRef] [PubMed]
  3. Dalluge, J.J.; Nelson, B.C. Determination of tea catechins. J. Chromatogr. A 2000, 881, 411. [Google Scholar] [CrossRef]
  4. Ferreyra, M.L.F.; Rius, S.P.; Casati, P. Flavonoids: Biosynthesis, biological functions, and biotechnological applications. Front. Plant Sci. 2012, 3, 222. [Google Scholar] [CrossRef]
  5. Li, J.; Lv, X.; Wang, L.; Qiu, Z.; Song, X.; Lin, J.; Chen, W. Transcriptome analysis reveals the accumulation mechanism of anthocyanins in ‘zijuan’ tea (Camellia sinensis var. asssamica (Masters) kitamura) leaves. Plant Growth Regul. 2017, 81, 1–11. [Google Scholar] [CrossRef]
  6. Flachowsky, H.; Halbwirth, H.; Treutter, D.; Richter, K.; Hanke, M.V.; Szankowski, I.; Gosch, C.; Stich, K.; Fischer, T.C. Silencing of flavanone-3-hydroxylase in apple (Malus × domestica Borkh.) leads to accumulation of flavanones, but not to reduced fire blight susceptibility. Plant Physiol. Biochem. 2012, 51, 18–25. [Google Scholar] [CrossRef] [PubMed]
  7. Owens, D.K.; Crosby, K.C.; Runac, J.; Howard, B.A.; Winkel, B.S. Biochemical and genetic characterization of Arabidopsis flavanone 3β-hydroxylase. Plant Physiol. Biochem. 2008, 46, 833–843. [Google Scholar] [CrossRef] [PubMed]
  8. Xiong, S.; Na, T.; Long, J.; Chen, Y.; Yu, Q.; Feng, J.; Xiao, W.; Liu, S. Molecular cloning and characterization of a flavanone 3-hydroxylase gene from Artemisia annua L. Plant Physiol. Biochem. 2016, 105, 29–36. [Google Scholar] [CrossRef] [PubMed]
  9. Tu, Y.; Liu, F.; Guo, D.; Fan, L.; Zhu, Z.; Xue, Y.; Gao, Y.; Guo, M. Molecular characterization of flavanone 3-hydroxylase gene and flavonoid accumulation in two chemotyped safflower lines in response to methyl jasmonate stimulation. BMC Plant Biol. 2016, 16, 132. [Google Scholar] [CrossRef] [PubMed]
  10. Zuker, A.; Tzfira, T.; Benmeir, H.; Ovadis, M.; Shklarman, E.; Itzhaki, H.; Forkmann, G.; Martens, S.; Netasharir, I.; Weiss, D. Modification of flower color and fragrance by antisense suppression of the flavanone 3-hydroxylase gene. Mol. Breed. 2002, 9, 33–41. [Google Scholar] [CrossRef]
  11. Shirley, B.W.; Kubasek, W.L.; Storz, G.; Bruggemann, E.; Koornneef, M.; Ausubel, F.M.; Goodman, H.M. Analysis of Arabidopsis mutants deficient in flavonoid biosynthesis. Plant J. 1995, 8, 659–671. [Google Scholar] [CrossRef] [PubMed]
  12. Jeong, S.T.; Goto-Yamamoto, N.; Kobayashi, S.; Esaka, M. Effects of plant hormones and shading on the accumulation of anthocyanins and the expression of anthocyanin biosynthetic genes in grape berry skins. Plant Sci. 2004, 167, 247–252. [Google Scholar] [CrossRef]
  13. Zhang, H.; Zhao, L.; Wang, J.; Zheng, L.; Dang, Z.; Wang, Y. Cloning and functional analysis of two flavanone-3-hydroxylase genes from Reaumuria trigyna. Acta Physiol. Plant. 2014, 36, 1221–1229. [Google Scholar] [CrossRef]
  14. Watkinson, J.I.; Hendricks, L.; Sioson, A.A.; Vasquezrobinet, C.; Stromberg, V.; Heath, L.S.; Schuler, M.; Bohnert, H.J.; Bonierbale, M.; Grene, R. Accessions of Solanum tuberosum ssp. Andigena show differences in photosynthetic recovery after drought stress as reflected in gene expression profiles. Plant Sci. 2006, 171, 745–758. [Google Scholar] [CrossRef]
  15. Cho, S.; Chen, W.; Muehlbauer, F.J. Constitutive expression of the flavanone 3-hydroxylase gene related to pathotype-specific ascochyta blight resistance in Cicer arietinum L. Physiol. Mol. Plant Pathol. 2005, 67, 100–107. [Google Scholar] [CrossRef]
  16. Song, X.; Diao, J.; Ji, J.; Wang, G.; Guan, C.; Jin, C.; Wang, Y. Molecular cloning and identification of a flavanone 3-hydroxylase gene from Lycium chinense, and its overexpression enhances drought stress in tobacco. Plant Physiol. Biochem. 2016, 98, 89–100. [Google Scholar] [CrossRef] [PubMed]
  17. Chen, M.; Song, Z.; Deng, Y.S.; Wang, G.D.; Kong, F.Y. Overexpression of a tomato flavanone 3-hydroxylase-like protein gene improves chilling tolerance in tobacco. Plant Physiol. Biochem. 2015, 96, 388–400. [Google Scholar]
  18. Li, C.; Liu, S.; Yao, X.; Wang, J.; Wang, T.; Zhang, Z.; Zhang, P.; Chen, K. PnF3H, a flavanone 3-hydroxylase from the Antarctic moss Pohlia nutans, confers tolerance to salt stress and aba treatment in transgenic arabidopsis. Plant Growth Regul. 2017, 1–12. [Google Scholar] [CrossRef]
  19. Liu, M.; Li, X.; Liu, Y.; Cao, B. Regulation of flavanone 3-hydroxylase gene involved in the flavonoid biosynthesis pathway in response to UV-B radiation and drought stress in the desert plant, Reaumuria soongorica. Plant Physiol. Biochem. 2013, 73, 161–167. [Google Scholar] [CrossRef] [PubMed]
  20. Mahajan, M.; Yadav, S.K. Overexpression of a tea flavanone 3-hydroxylase gene confers tolerance to salt stress and alternaria solani in transgenic tobacco. Plant Mol. Biol. 2014, 85, 551–573. [Google Scholar] [CrossRef] [PubMed]
  21. Singh, K.; Rani, A.; Kumar, S.; Sood, P.; Mahajan, M.; Yadav, S.K.; Singh, B.; Ahuja, P.S. An early gene of the flavonoid pathway, flavanone 3-hydroxylase, exhibits a positive relationship with the concentration of catechins in tea (Camellia sinensis). Tree Physiol. 2008, 28, 1349–1356. [Google Scholar] [CrossRef] [PubMed]
  22. Punyasiri, P.A.N.; Abeysinghe, I.S.B.; Kumar, V.; Treutter, D.; Duy, D.; Gosch, C.; Martens, S.; Forkmann, G.; Fischer, T.C. Flavonoid biosynthesis in the tea plant Camellia sinensis: Properties of enzymes of the prominent epicatechin and catechin pathways. Arch. Biochem. Biophys. 2004, 431, 22–30. [Google Scholar] [CrossRef] [PubMed]
  23. Tea tree Genome Database. Available online: www.plantkingdomgdb.com/tea_tree/ (accessed on 1 May 2017).
  24. Han, Y.; Cao, Y.; Jiang, H.; Ding, T. Genome-wide dissection of the chalcone synthase gene family in Oryza sativa. Mol. Breed. 2017, 37, 119. [Google Scholar] [CrossRef]
  25. Han, Y.; Ding, T.; Bo, S.; Jiang, H. Genome-wide identification, characterization and expression analysis of the chalcone synthase family in maize. Int. J. Mol. Sci. 2016, 17, 161. [Google Scholar] [CrossRef] [PubMed]
  26. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCT method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
  27. Song, H.; Wang, P.; Hou, L.; Zhao, S.; Zhao, C.; Han, X.; Li, P.; Zhang, Y.; Bian, X.; Wang, X. Global analysis of WRKY genes and their response to dehydration and salt stress in soybean. Front. Plant Sci. 2016, 7, 9. [Google Scholar] [CrossRef] [PubMed]
  28. Lei, Z.Y.; Zhao, P.; Cao, M.J.; Cui, R.; Chen, X.; Xiong, L.Z.; Zhang, Q.F.; Oliver, D.J.; Xiang, C.B. High-throughput binary vectors for plant gene function analysis. J. Integr. Plant Biol. 2007, 49, 556–567. [Google Scholar] [CrossRef]
  29. Cai, X.T.; Xu, P.; Zhao, P.X.; Liu, R.; Yu, L.H.; Xiang, C.B. Arabidopsis ERF109 mediates cross-talk between jasmonic acid and auxin biosynthesis during lateral root formation. Nat. Commun. 2014, 5, 5833. [Google Scholar] [CrossRef] [PubMed]
  30. Clough, S.J.; Bent, A.F. Floral dip: A simplified method for agrobacterium-mediated transformation of Arabidopsis thaliana. Plant J. 1998, 16, 735–743. [Google Scholar] [CrossRef] [PubMed]
  31. Martens, S.; Forkmann, G.; Britsch, L.; Wellmann, F.; Matern, U.; Lukacin, R. Divergent evolution of flavonoid 2-oxoglutarate-dependent dioxygenases in parsley. FEBS Lett. 2003, 544, 93–98. [Google Scholar] [CrossRef]
  32. Gebhardt, Y.; Witte, S.; Forkmann, G.; Lukacin, R.; Matern, U.; Martens, S. Molecular evolution of flavonoid dioxygenases in the family Apiaceae. Phytochemistry 2005, 66, 1273–1284. [Google Scholar] [CrossRef] [PubMed]
  33. Hartmann, U.; Sagasser, M.; Mehrtens, F.R.; Weisshaar, B. Differential combinatorial interactions of cis-acting elements recognized by R2R3-MYB, BZIP, and BHLH factors control light-responsive and tissue-specific activation of phenylpropanoid biosynthesis genes. Plant mol biol. Plant Mol. Biol. 2005, 57, 155–171. [Google Scholar] [CrossRef] [PubMed]
  34. Khlestkina, E.K.; Leonova, I.N.; Salina, E.A. Diversification of the duplicated genes in Triticeae. J. Mol. Evol. 2013, 76, 261–266. [Google Scholar] [CrossRef] [PubMed]
  35. Safrany, J.; Haasz, V.; Mate, Z.; Ciolfi, A.; Feher, B.; Oravecz, A.; Stec, A.; Dallmann, G.; Morelli, G.; Ulm, R. Identification of a novel cis-regulatory element for UV-B-induced transcription in Arabidopsis. Plant J. 2008, 54, 402–414. [Google Scholar] [CrossRef] [PubMed]
  36. Holton, T.A.; Cornish, E.C. Genetics and biochemistry of anthocyanin biosynthesis. Plant Cell 1995, 7, 1071–1083. [Google Scholar] [CrossRef] [PubMed]
  37. Jaakola, L.; Määttä, K.; Pirttilä, A.M.; Törrönen, R.; Kärenlampi, S.; Hohtola, A. Expression of genes involved in anthocyanin biosynthesis in relation to anthocyanin, proanthocyanidin, and flavonol levels during bilberry fruit development. Plant Physiol. 2002, 130, 729–739. [Google Scholar] [CrossRef] [PubMed]
  38. Mamati, G.E.; Liang, Y.; Lu, J. Expression of basic genes involved in tea polyphenol synthesis in relation to accumulation of catechins and total tea polyphenols. J. Sci. Food Agric. 2010, 86, 459–464. [Google Scholar] [CrossRef]
  39. Khumkarjorn, N.; Thanonkeo, S.; Yamada, M.; Thanonkeo, P. Cloning and expression analysis of a flavanone 3-hydroxylase gene in Ascocenda orchid. J. Plant Biochem. Biotechnol. 2016, 1–12. [Google Scholar] [CrossRef]
  40. Clifton, I.J.; Mcdonough, M.A.; Ehrismann, D.; Kershaw, N.J.; Granatino, N.; Schofield, C.J. Structural studies on 2-oxoglutarate oxygenases and related double-stranded beta-helix fold proteins. J. Inorg. Biochem. 2006, 100, 644–669. [Google Scholar] [CrossRef] [PubMed]
  41. Koehntop, K.D.; Emerson, J.P.; Que, L.J. The 2-His-1-carboxylate facial triad: A versatile platform for dioxygen activation by mononuclear non-heme iron(II) enzymes. JBIC J. Biol. Inorg. Chem. 2005, 10, 87–93. [Google Scholar] [CrossRef] [PubMed]
  42. Gebhardt, Y.H.; Witte, S.; Steuber, H.; Matern, U.; Martens, S. Evolution of flavone synthase I from parsley flavanone 3β-hydroxylase by site-directed mutagenesis. Plant Physiol. 2007, 144, 1442–1454. [Google Scholar] [CrossRef] [PubMed]
  43. Shi, S.G.; Yang, M.; Zhang, M.; Wang, P.; Kang, Y.X.; Liu, J.J. Genome-wide transcriptome analysis of genes involved in flavonoid biosynthesis between red and white strains of magnolia sprengeri pamp. BMC Genom. 2014, 15, 706. [Google Scholar] [CrossRef] [PubMed]
  44. Kim, J.H.; Lee, Y.J.; Kim, B.G.; Lim, Y.; Ahn, J.H. Flavanone 3β-hydroxylases from rice: Key enzymes for favonol and anthocyanin biosynthesis. Mol. Cells 2008, 25, 312–316. [Google Scholar] [PubMed]
  45. Himi, E.; Maekawa, M.; Noda, K. Differential expression of three flavanone 3-hydroxylase genes in grains and coleoptiles of wheat. Int. J. Plant Genom. 2011, 2011, 369460. [Google Scholar] [CrossRef] [PubMed]
  46. Solfanelli, C.; Perata, P. Sucrose-specific induction of the anthocyanin biosynthetic pathway in arabidopsis. Plant Physiol. 2006, 140, 637–646. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Teng, S.; Keurentjes, J.; Bentsink, L.; Koornneef, M.; Smeekens, S. Sucrose-specific induction of anthocyanin biosynthesis in Arabidopsis requires the MYB75/PAP1 gene. Plant Physiol. 2005, 139, 1840–1852. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, Y.; Wang, Z.; Sun, M.; Wang, Y.; Gao, L.; Xia, T. Effect of sucrose on catechins biosynthesis in Camellia sinensis (L.) O. Kuntze. J. Anhui Agric. Univ. 2014. [Google Scholar] [CrossRef]
  49. Bandurska, H.; Stroiński, A.; Kubiś, J. The effect of jasmonic acid on the accumulation of ABA, proline and spermidine and its influence on membrane injury under water deficit in two barley genotypes. Acta Physiol. Plant. 2003, 25, 279–285. [Google Scholar] [CrossRef]
  50. Xia, J.; Liu, Y.; Yao, S.; Li, M.; Zhu, M.; Huang, K.; Gao, L.; Xia, T. Characterization and expression profiling of Camellia sinensis cinnamate 4-hydroxylase genes in phenylpropanoid pathways. Genes 2017, 8, 193. [Google Scholar] [CrossRef] [PubMed]

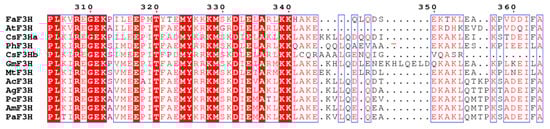

Figure 1. Multiple alignment of two CsF3H proteins with F3Hs from other plants. The blue and green symbols represent the iron binding sites and 2-oxoglutarate binding sites, respectively. The box represents the conserved area of the 2-oxoglutarate-dependent dioxygenase (2-ODD) family.
Figure 1. Multiple alignment of two CsF3H proteins with F3Hs from other plants. The blue and green symbols represent the iron binding sites and 2-oxoglutarate binding sites, respectively. The box represents the conserved area of the 2-oxoglutarate-dependent dioxygenase (2-ODD) family.
Genes 08 00300 g001aGenes 08 00300 g001b

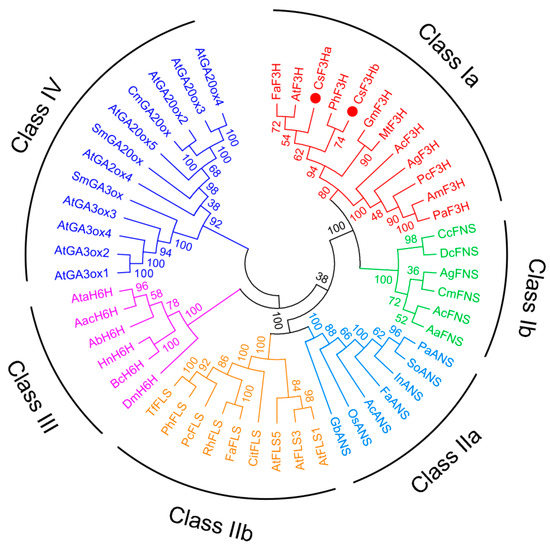

Figure 2. Phylogenetic relationship of CsF3Hs with 2-ODD family members from other plants. CsF3Hs are indicated by points (●). The following sequences were analyzed: FaF3H (Fragaria ananassa, AY691918.1), AtF3H (Arabidopsis thaliana, At3g51240), PhF3H (Petunia hybrida, AF022142), GmF3H (Glycine max flavanone, AY595420.1), MtF3H (Medicago truncatula, FJ529406.1), AcF3H (Aethusa cynapium, DQ683351.1), AgF3H (Anethum graveolens, AY817679.1), PcF3H (Petroselinum crispum, AY230248.1), AmF3H (Ammi majus, AY817678.1), PaF3H (Pimpinella anisum, AY817674.1), CcFNS (Cuminum cyminum, DQ683349.1), DcFNS (Daucus carota, AY817675.1), AgFNS (Apium graveolens, AY817676.1), CmFNS (Conium maculatum, AY817677.1), AcFNS (Aethusa cynapium, DQ683350.1), AaFNS (Angelica archangelica, DQ683352), PaANS (Phytolacca americana, AB198870.1), SoANS (Spinacia oleracea, AB198869.1), FaANS (Fragaria x ananassa, AY695817.1), InANS (Ipomoea nil, AB073925.1), AcANS (Allium cepa, EF192598.1), OsANS(Oryza sativa, Y07955.1), GbANS (Ginkgo biloba, ACC66092.1), AtFLS1 (A. thaliana, At5g08640), AtFLS3 (A. thaliana, At5g63590), AtFLS5 (A. thaliana, At5g63600), CitFLS (Citrus unshiu, AB011796), FaFLS (Fragaria x ananassa, DQ087252.1), RhFLS (Rosa hybrida, AB038247.1), PcFLS (Petroselinum crispum, AY230249.1), PhFLS (Petunia hybrida, Z22543.1), TfFLS (Torenia fournieri, AB078512.1), DmH6H (Datura metel, AF435417), BcH6H (Brugmansia candida, EU530633.1), HnH6H (Hyoscyamus niger, M62719), AbH6H (Atropa baetica, EF442802), AacH6H (Anisodus acutangulus, EF187826), AtaH6H (Anisodus tanguticus, AY356396.1), AtGA3ox1 (A.thaliana, At1g15550), AtGA3ox2 (A.thaliana, At1g80340), AtGA3ox4 (A.thaliana, At1g80330), AtGA3ox3 (A.thaliana, At4g21690), SmGA3ox (Selaginella moellendorffii, ABX10776.1), AtGA2ox4 (A.thaliana, At1g47990), SmGA20ox (Selaginella moellendorffii, ABX10768.1), AtGA20ox5 (A.thaliana, At1g44090), CmGA20ox (Cucurbita maxima, AAB64345), AtGA20ox2 (A.thaliana, At5g51810), AtGA20ox3 (A.thaliana, At5g07200), and AtGA20ox4 (A. thaliana, At1g60980).
Figure 2. Phylogenetic relationship of CsF3Hs with 2-ODD family members from other plants. CsF3Hs are indicated by points (●). The following sequences were analyzed: FaF3H (Fragaria ananassa, AY691918.1), AtF3H (Arabidopsis thaliana, At3g51240), PhF3H (Petunia hybrida, AF022142), GmF3H (Glycine max flavanone, AY595420.1), MtF3H (Medicago truncatula, FJ529406.1), AcF3H (Aethusa cynapium, DQ683351.1), AgF3H (Anethum graveolens, AY817679.1), PcF3H (Petroselinum crispum, AY230248.1), AmF3H (Ammi majus, AY817678.1), PaF3H (Pimpinella anisum, AY817674.1), CcFNS (Cuminum cyminum, DQ683349.1), DcFNS (Daucus carota, AY817675.1), AgFNS (Apium graveolens, AY817676.1), CmFNS (Conium maculatum, AY817677.1), AcFNS (Aethusa cynapium, DQ683350.1), AaFNS (Angelica archangelica, DQ683352), PaANS (Phytolacca americana, AB198870.1), SoANS (Spinacia oleracea, AB198869.1), FaANS (Fragaria x ananassa, AY695817.1), InANS (Ipomoea nil, AB073925.1), AcANS (Allium cepa, EF192598.1), OsANS(Oryza sativa, Y07955.1), GbANS (Ginkgo biloba, ACC66092.1), AtFLS1 (A. thaliana, At5g08640), AtFLS3 (A. thaliana, At5g63590), AtFLS5 (A. thaliana, At5g63600), CitFLS (Citrus unshiu, AB011796), FaFLS (Fragaria x ananassa, DQ087252.1), RhFLS (Rosa hybrida, AB038247.1), PcFLS (Petroselinum crispum, AY230249.1), PhFLS (Petunia hybrida, Z22543.1), TfFLS (Torenia fournieri, AB078512.1), DmH6H (Datura metel, AF435417), BcH6H (Brugmansia candida, EU530633.1), HnH6H (Hyoscyamus niger, M62719), AbH6H (Atropa baetica, EF442802), AacH6H (Anisodus acutangulus, EF187826), AtaH6H (Anisodus tanguticus, AY356396.1), AtGA3ox1 (A.thaliana, At1g15550), AtGA3ox2 (A.thaliana, At1g80340), AtGA3ox4 (A.thaliana, At1g80330), AtGA3ox3 (A.thaliana, At4g21690), SmGA3ox (Selaginella moellendorffii, ABX10776.1), AtGA2ox4 (A.thaliana, At1g47990), SmGA20ox (Selaginella moellendorffii, ABX10768.1), AtGA20ox5 (A.thaliana, At1g44090), CmGA20ox (Cucurbita maxima, AAB64345), AtGA20ox2 (A.thaliana, At5g51810), AtGA20ox3 (A.thaliana, At5g07200), and AtGA20ox4 (A. thaliana, At1g60980).
Genes 08 00300 g002

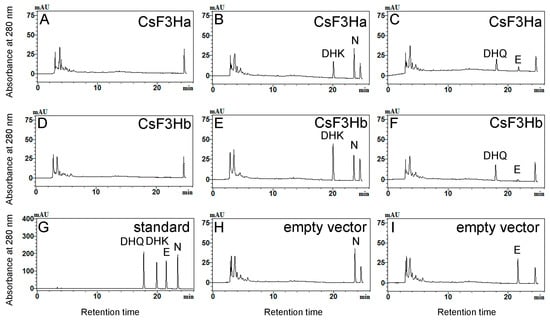

Figure 3. Enzymatic reaction products analysis of recombinant CsF3H proteins. (A) The control of (B) and (C) without substrate. (B,C) spectrums of reaction products from Escherichia coli strains harboring recombinant CsF3Ha-MBP with naringenin (N) and eriodictyol (E) as the substrate, respectively. (D) The control of (E) and (F) without substrate. (E,F) spectra of reaction products from E. coli strains harboring recombinant CsF3Hb-MBP with N and E as the substrate, respectively. (G) Mixed standard samples, including N, E, dihydrokaempferol (DHK), and dihydroquercetin (DHQ). (H,I) Control treatments with E. coli strains harboring empty vectors using N and E as substrate, respectively. mAU: 10−3 Absorbance unit.
Figure 3. Enzymatic reaction products analysis of recombinant CsF3H proteins. (A) The control of (B) and (C) without substrate. (B,C) spectrums of reaction products from Escherichia coli strains harboring recombinant CsF3Ha-MBP with naringenin (N) and eriodictyol (E) as the substrate, respectively. (D) The control of (E) and (F) without substrate. (E,F) spectra of reaction products from E. coli strains harboring recombinant CsF3Hb-MBP with N and E as the substrate, respectively. (G) Mixed standard samples, including N, E, dihydrokaempferol (DHK), and dihydroquercetin (DHQ). (H,I) Control treatments with E. coli strains harboring empty vectors using N and E as substrate, respectively. mAU: 10−3 Absorbance unit.
Genes 08 00300 g003

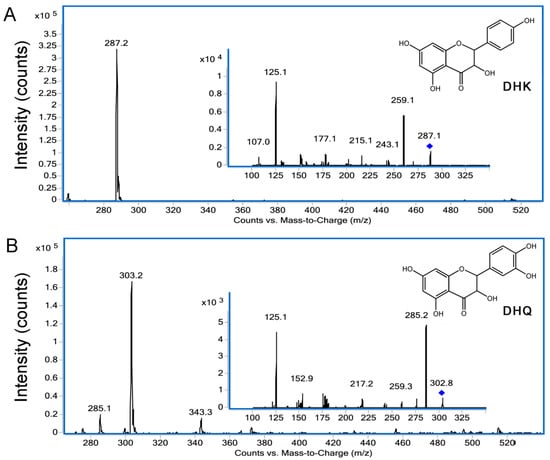

Figure 4. Identification of the enzymatic products by ultra-performance liquid chromatography-tandem mass spectrometry (UPLC–MS/MS) analysis. The products from E. coli strains harboring CsF3Ha/b in the pMAL-c2X vector with (A) N and (B) E as substrate, respectively. The diamond marks present precursor ions of DHK and DHQ respectively.
Figure 4. Identification of the enzymatic products by ultra-performance liquid chromatography-tandem mass spectrometry (UPLC–MS/MS) analysis. The products from E. coli strains harboring CsF3Ha/b in the pMAL-c2X vector with (A) N and (B) E as substrate, respectively. The diamond marks present precursor ions of DHK and DHQ respectively.
Genes 08 00300 g004

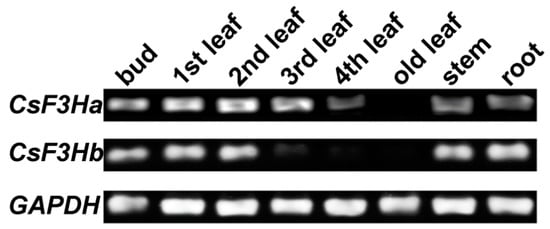

Figure 5. Semi-quantitative reverse transcription-polymerase chain reaction (RT-PCR) of CsF3Hs in diverse tissues of Camellia sinensis. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as the internal reference gene. The experiments were performed with three biological repeats.
Figure 5. Semi-quantitative reverse transcription-polymerase chain reaction (RT-PCR) of CsF3Hs in diverse tissues of Camellia sinensis. Glyceraldehyde-3-phosphate dehydrogenase (GAPDH) was used as the internal reference gene. The experiments were performed with three biological repeats.
Genes 08 00300 g005

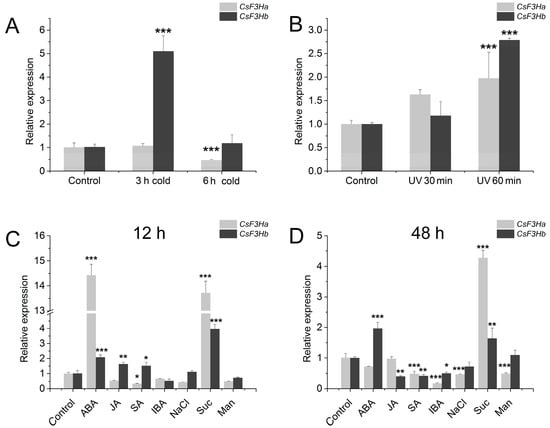

Figure 6. Relative expression patterns of two CsF3Hs under different abiotic stresses. (A) cold; (B) UV; (C,D) abscisic acid (ABA), jasmonic acid (JA), salicylic acid (SA), indolebutyric acid (IBA), NaCl, sucrose, and mannitol. All the data of real-time quantitative polymerase chain reaction (qPCR) were present based on three biological and technical repeats. Asterisk indicates significant difference compared with control samples (n = 3, * p < 0.05, ** p < 0.01, *** p < 0.001) based on a Tukey’s honestly significant difference test. Suc: Sucrose; Man: Mannitol.
Figure 6. Relative expression patterns of two CsF3Hs under different abiotic stresses. (A) cold; (B) UV; (C,D) abscisic acid (ABA), jasmonic acid (JA), salicylic acid (SA), indolebutyric acid (IBA), NaCl, sucrose, and mannitol. All the data of real-time quantitative polymerase chain reaction (qPCR) were present based on three biological and technical repeats. Asterisk indicates significant difference compared with control samples (n = 3, * p < 0.05, ** p < 0.01, *** p < 0.001) based on a Tukey’s honestly significant difference test. Suc: Sucrose; Man: Mannitol.
Genes 08 00300 g006

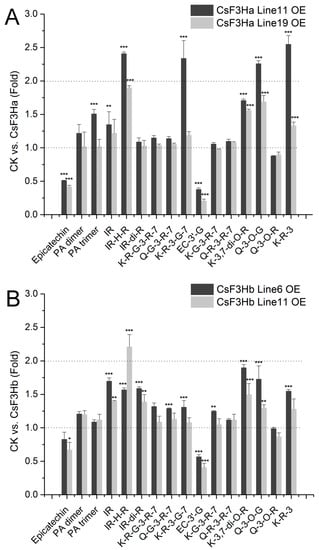

Figure 7. The accumulated flavonoid compounds in the seeds of transgenic (CsF3Ha/b) A.thaliana. Asterisk indicates significant difference compared with control samples (n = 3, * p < 0.05, ** p < 0.01, *** p < 0.001) based on a Tukey’s honestly significant difference test. G: Glucoside; H: Hexoside; I: Isorhamnetin; K: Kaempferol; Q: Quercetin; PA: Proanthocyanidin; R: Rhamnoside.
Figure 7. The accumulated flavonoid compounds in the seeds of transgenic (CsF3Ha/b) A.thaliana. Asterisk indicates significant difference compared with control samples (n = 3, * p < 0.05, ** p < 0.01, *** p < 0.001) based on a Tukey’s honestly significant difference test. G: Glucoside; H: Hexoside; I: Isorhamnetin; K: Kaempferol; Q: Quercetin; PA: Proanthocyanidin; R: Rhamnoside.
Genes 08 00300 g007
Table 1. The basic information of two CsF3H genes.
Table 1. The basic information of two CsF3H genes.
Gene NameAccession NumberMw (kD)cDNA Length (bp)ORF length (bp)5′-UTR Length (bp)3′-UTR Length (bp)Size (aa)pI
CsF3HaKY61568841.461256110754953695.61
CsF3HbKY61568939.9213341071841793575.23
aa: amino acids; Mw: Molecular weight; cDNA: complementary DNA; UTR: untranslated region; ORF: Open reading frame; pI: Isoelectric point.
