Article

Whole Exome Sequencing Identifies New Host Genomic Susceptibility Factors in Empyema Caused by Streptococcus pneumoniae in Children: A Pilot Study

1
Unidade de Xenética, Departamento de Anatomía Patolóxica e Ciencias Forenses, Instituto de Ciencias Forenses, Facultade de Medicina, Universidade de Santiago de Compostela, 15782 Santiago de Compostela, Spain
2
GenPoB Research Group, Instituto de Investigaciones Sanitarias (IDIS), 15706 Santiago de Compostela, Spain
3
Hospital Clínico Universitario de Santiago (SERGAS), 15706 Santiago de Compostela, Spain
4
Translational Pediatrics and Infectious Diseases, Hospital Clínico Universitario de Santiago, 15706 Santiago de Compostela, Spain
5
GENVIP Research Group (www.genvip.org), 15706 Santiago de Compostela, Spain
*
Author to whom correspondence should be addressed.
Membership of the GENDRES Network is provided in the Acknowledgments.
Genes 2018, 9(5), 240; https://doi.org/10.3390/genes9050240
Submission received: 14 March 2018 / Revised: 25 April 2018 / Accepted: 26 April 2018 / Published: 3 May 2018
(This article belongs to the Special Issue Complex Genetic Loci)

Abstract

:
Pneumonia is the leading cause of death amongst infectious diseases. Streptococcus pneumoniae is responsible for about 25% of pneumonia cases worldwide, and it is a major cause of childhood mortality. We carried out a whole exome sequencing (WES) study in eight patients with complicated cases of pneumococcal pneumonia (empyema). An initial assessment of statistical association of WES variation with pneumonia was carried out using data from the 1000 Genomes Project (1000G) for the Iberian Peninsula (IBS) as reference controls. Pseudo-replication statistical analyses were carried out using different European control groups. Association tests pointed to single nucleotide polymorphism (SNP) rs201967957 (gene MEIS1; chromosome 2; p-valueIBS = 3.71 × 10−13) and rs576099063 (gene TSPAN15; chromosome 10; p-valueIBS = 2.36 × 10−8) as the best candidate variants associated to pneumococcal pneumonia. A burden gene test of pathogenicity signaled four genes, namely, OR9G9, MUC6, MUC3A and APOB, which carry significantly increased pathogenic variation when compared to controls. By analyzing various transcriptomic data repositories, we found strong supportive evidence for the role of MEIS1, TSPAN15 and APOBR (encoding the receptor of the APOB protein) in pneumonia in mouse and human models. Furthermore, the association of the olfactory receptor gene OR9G9 has recently been related to some viral infectious diseases, while the role of mucin genes (MUC6 and MUC3A), encoding mucin glycoproteins, are well-known factors related to chronic obstructive airway disease. WES emerges as a promising technique to disentangle the genetic basis of host genome susceptibility to infectious respiratory diseases.

1. Introduction

Pneumonia is the seventh reason of death in the USA and the leading cause of all infectious diseases [1,2]. In the pre-antibiotic era, Streptococcus pneumoniae was responsible for approximately 95% of all cases of pneumonia, and it remains responsible for 25% of all cases worldwide [3]. Complications of pneumococcal pneumonia used to be relatively uncommon; however, over the last years an increased incidence of complicated community-acquired pneumonia in children (mainly due to S. pneumoniae) has been referred [4]. This rise has been specifically linked to pneumococcal strains not included in the—by then only available—pneumococcal conjugate vaccine, and thus, to a replacement phenomenon [4,5,6]. This trend is being reversed by the new conjugate pneumococcal vaccines that include the causing serotypes [7]. The clinical features and course of complicated forms of pneumococcal pneumonia in children are quite characteristic and homogeneous; and despite the course of the disease is slow and cumbersome, it typically has a favorable outcome [8,9]. The majority of these cases occur mainly in otherwise previously healthy children without any identifiable risk factor [4,10]. The pneumococcal serotypes responsible for complicated forms usually involve serotypes 1, 3, 7F, 14 and 19A.
We here hypothesize that complicated forms of pneumococcal pneumonia due to specific serotypes in certain children might be related—among others—to host genetic factors. There are only a few studies that have aimed to analyze the genomic predisposition of the host to infectious diseases in children [11,12,13], and only recently, there begins to emerge suggestive evidence indicating host genetic factors involved in predisposition to pneumonia. Some of these studies focused in host genetic susceptibility to the invasive pneumococcal infection, indicating that mutations in genes involved in interleukin-1 receptor/Toll-like receptor (IL-1R/TLR) signaling pathway could be associated with this phenotype. More specifically, mutations in genes IRAK4 and MYD88 act disrupting IL-1R/TLR receptor signaling seem to be linked with pyogenic encapsulated bacterial infection in childhood, and more particularly, with invasive pneumococcal disease [14]. In a recent meta-analysis by Patarčić et al. [15], the authors found a single nucleotide polymorphism (SNP) located in gene IL4 significantly associated to pooled respiratory infections, including pneumonia. By meta-analyzing genes related to host immune response in pneumonia development and progression, Smelaya et al. [16] reported the SNP rs5743708 (located in the proinflammatory cytokine gene IL6) as associated with severe sepsis/septic shock/severe systemic inflammatory response; while variation at rs18000896 (located in the anti-inflammatory cytokine gene IL10) was found to be a protector factor against the mentioned clinical phenotypes.
Several genomic strategies have been explored in the field of infectious diseases to investigate host genome susceptibility factors. Recently, whole exome sequencing (WES) has allowed to reveal new candidate SNPs and genes associated to respiratory syncytial virus (RSV) infections [13]. In contrast to other more popular genomic strategies strongly relying on linkage disequilibrium to capture candidate risk variation (e.g., genome wide association studies or GWAS; [11,12,17]), WES allows to discover new genome variation related to disease by focusing on protein-altering variants, which are supposed to be enriched for causal effects [18]. Then, variation observed in exomes of patients can be compared to variation observed in healthy controls. The focus on complicated forms of the disease contributes to increase the statistical power of the study under the assumption that these individuals most likely carry genetic variants that have higher effect, or their exomes are enriched with more pathogenic variation than expected in moderated or mild phenotypes. The burden of the pathogenic variation accumulated in the genomes of patients can be examined by using new statistical procedures employing algorithms that take into account theoretical predictions of pathogenicity [19,20,21].
We aimed at revealing host genetic factors involved in complicated forms of pneumonia, concretely with empyema caused by S. pneumoniae, using WES. The best candidate genes from WES data were further investigated in transcriptomic repositories to search for further evidence of their association with empyema.

2. Materials and Methods

2.1. Study Design and Inclusion Criteria

Patients were selected from the GENDRES network (Genetic, vitamin D and respiratory infections research network [22], which is a cohort prospectively recruited through an observational study run in Spain through a national hospital-based research network for pediatric respiratory research. The GENDRES network includes 13 Spanish tertiary hospitals (see also [13,23,24]). Selected patients from the GENDRES cohort have been used recently in other clinical and genomic studies on other pathogen-caused diseases [13].
Any patient from 1 month to 14 years of age admitted to any of the GENDRES network hospitals with confirmed pneumococcal empyema was eligible, provided that (i) written informed consent was available, (ii) at least a nasopharyngeal and DNA sample was collected, and (iii) the minimum mandatory demographic and clinical data set was recorded.
Pneumonia was defined as an inflammation of one or both lungs lobar or segmental or multi-lobar collapse/consolidation on chest X ray with clinical compatible symptoms [25,26]. Empyema was defined as the presence of grossly purulent fluid in the pleural cavity; in practice: (i) thoracentesis with microbial growth from pleural fluid; or (ii) thoracentesis with no growth on culture of pleural fluid but elevated protein, or cell count (normal and abnormal reference values as determined by the clinical laboratory at each center); (iii) ultrasound or other diagnostic imaging evidence of pleural fluid assessed by the radiologist as empyema, or (iv) diagnosis at time of thoracic surgery. Pneumococcal etiology was established through culture and/or polymerase chain reaction (PCR) identification in sterile specimens (i.e., blood or pleural fluid) [25,26].
For the present sub-study, eight children with confirmed diagnosis of pneumococcal pleural effusion were finally selected. A blood sample was collected from patients as early as possible during the patient’s assessment. DNA for WES analysis was extracted using Wizard Genomic DNA Purification Kit (Promega, Fitchburg, Wisconsin, United States) and following the recommended protocol.
The study was approved by the Ethical Committee of Clinical Investigation of Galicia (CEIC ref 2010/015) and by the regional ethics committees for each participating Spanish center. Written informed consent was obtained from a parent or legal guardian for each subject before study inclusion.
Genomic variation obtained from cases was contrasted against healthy controls. Ancestry European matched controls were collected from different genome reservoirs for genomic and statistic comparisons (see details below on data-mining).

2.2. Whole Exome Sequencing

Enrichment and library preparation of samples were carried out as done before [13]. Briefly, samples were initially prepared following the Agilent’s SureSelect Protocol v.1.2 (Agilent, Santa Clara, CA, USA), and enrichment according to Agilent SureSelect protocols. The Agilent’s QPCR NGS Library Quantification Kit (G4880A) was used to measure concentration of the libraries. Samples were pooled prior to sequencing with each sample at a final concentration of 10 nM. Sequencing was performed on the Illumina HiSeq2000 platform (Illumina, San Diego, CA, USA) using TruSeq v3 chemistry (Illumina, San Diego, CA, USA). Read files (Fastq) were generated from the sequencing platform using manufacturer’s proprietary software. Reads were mapped to the human genome hg19/b37 using the Burrows-Wheeler Aligner (BWA) package v.0.6.2 [27]. Local realignment of the mapped reads around potential insertion/deletion (indel) sites was carried out with the Genome Analysis Tool Kit (GATK) v.1.6 [28]. Duplicate reads were marked using Picard v.1.104. Samtools v.0.1.18 [29] was also used to work with BAM files and base quality (Phred scale) scores were recalibrated using GATK’s covariance. The average read length was 100 bp.
A minimum of 86% of the on-target regions were covered to a depth of at least 20 times. Exome sequencing was carried out in Oxford Gene Technology [30]. The raw data was entirely processed in the laboratory in Santiago de Compostela, Spain.
As a quality control of massive parallel sequence results we processed the same sample twice following the same steps as described in [13]. The two exome sequences were compared, and the coincidence of the sequencing results was 99.999%.

2.3. Annotation of Variants and Assessment of Their Pathogenicity

We followed the same methodological procedures described previously [13]. Briefly, GATK v3.4 [28] was used for variant detection for multi-sample calling. The HaplotypeCaller algorithm [28] was used to obtain the genomic VCF files algorithm, and the GenotypeGVCFs [28] algorithm to carry out joint genotyping. VQSR algorithm [28] was used to recalculate variant quality scores. Variants were annotated using ANNOVAR [31], and using gene and gene function data from Ensembl [32]
There exist different scoring systems for annotated variants that measure the pathogenicity/deleteriousness of SNPs, such as PolyPhen [19], SIFT [20], or GERP [21]. We used Combined Annotation Dependent Depletion (CADD) [33]. Compared to other scores, CADD integrates multiple annotations by contrasting variants that survived natural selection with simulated mutations [33]. This score quantitatively prioritizes functional, deleterious, and disease-causal variants across a wide range of functional categories, effect sizes and genetic architectures. The linear kernel support vector machine-based algorithm used in CADD analysis has been improved by using a deep neural network, which also considers nonlinear effects. This modified CADD algorithm is now known as deleterious annotation of genetic variants (DANN); it also provides a score [34].

2.4. Statistical Analysis of Whole Exon Sequencing Data

Several analyses were initially performed to investigate the population characteristics of patients in regard to their ancestry. The aim of these analyses is to detect possible genome outliers that could increase the false positive rate in association tests. PLINK software [35] was first used to compute IBS values from SNP data. A multidimensional scaling (MDS) analysis was built from a matrix of pairwise individual IBS values computed on patients and individuals from reference continental populations. MDS analysis was carried out using R [36] and its library stats (function cmdscale) [36]. In addition, admixture patterns were investigated in our patients by contrasting their variation against genome data from populations representing main continental regions.
We used data from the 1000 Genomes Project [37]; hereafter 1000G) as the main resource for reference European population and control individuals for association tests. Management of 1000G data was carried out using previous bioinformatics developments our group [38,39]. Potential familial relationships were also explored as done previously [40].
Two different association analyses were carried out. First, a Fisher’s exact test was computed on common variants, defining common as MAF > 5% in the 1000G Iberian sample set (1000G-IBS). These single-point association analyses were carried out considering the presence of population stratification using the inflation factor lambda (λ). Second, a burden test of pathogenicity by gene was undertaken by collapsing variants and using DANN score as covariant. In particular, we used the Weighted-Sum collapsing method by genes [41].
As controls, we used the 1000G-IBS for the discovery phase, and we performed pseudo-replication association tests using additional 1000G control groups of European ancestry [42,43], namely, Tuscany (1000G-TSI), Great Britain (1000G-GBR) and Europeans from Utah (1000G-CEU). Association tests were also carried out against all the 1000G controls merged into a single group (labelled as 1000G-ALL) in order to increase statistical power. In addition to the 1000G European controls, we also compared our cases with European controls from the Spanish exome control data (n = 267) of Dopazo et al. [44].
A conservative correction for multiple hypothesis tests was carried out using the Bonferroni adjustment for all association tests between cases and control groups, in both single-point association tests and burden tests of pathogenicity. Most of the computations were performed using in-house R and Perl scripts [45].
We used Haploview [46] to display linkage disequilibrium (LD) patterns between SNPs; in particular we used the D’ CI methods of Gabriel et al. [47] implemented in this software.

2.5. Statistical Analysis from Transcriptome Data

To identify transcript signatures in patients with differing pneumococcal diseases we interrogated the GEO repository [48] for the queries: ‘Streptococcus pneumoniae’ OR/AND ‘pneumococcus’. We filtered the results from these queries by selecting only those studies on humans and mice. We detected only six studies containing suitable data to validate our gene candidates, including three studies in mice (GEO accession numbers: GSE42464 [49], GSE49533 [50], and GSE45644 [51], all of them carried out in lung tissue), and three in humans (GSE49755 [52] in plasma, GSE6269 [53], in blood, and GSE58291 [54], in corneal tissue). Table S1 contains the microarray sample IDs of the datasets analyzed that passed all the quality filters and were publicly available (February 10, 2018). We did not find signals of differential expression of our candidate genes in the study by Ramilo et al. [53] (GSE6269), therefore this study did not receive further attention in our analyses. A brief summary of the five studies of interest is provided in Supplementary Text.
First the quality of the raw microarray data compiled from the five mentioned studies were analyzed using the R packages lumi [55] and oligo [56]. Next, to evaluate if our genes of interest were differentially expressed between patients with pneumococcal disease and controls, a linear model was fit, and moderated t-statistics was calculated for each transcript. Correction for multiple test was carried out using the false discovery rate method by Benjamini and Hochberg’s and employing the R package limma [57].
We found signals of altered expression in three genes of interest, MEIS1, TSPAN15, and APOBR. Their performance as potential biomarkers was evaluated using receiver operating characteristic (ROC) curves that represent the true positive rate (TPR) against the false positive rate (FPR) at different threshold cut-off points.

3. Results

3.1. Clinical Characteristics of Patients

Eight children with confirmed diagnosis of pneumococcal empyema were finally selected among the GENDRES cohort. The patients’ main characteristics are summarized in Table 1. The mean (SD) age of the subjects studied was 5.1 (3.1) years. All the patients had been vaccinated with at least one pneumococcal vaccine and two of them had asthma as co-morbidity. Prior to admission, five patients had been treated with antibiotics or antipyretics. Children were hospitalized a mean (SD) of 21.2 (16.4) days and were 8.0 (3.8) days at pediatric intensive care unit (PICU). Two of the patients were transferred twice to the PICU during the current episode due to worsening of the illness. In all included patients, pneumococcal etiology was confirmed by blood and/or pleural culture or PCR.

3.2. Population Genetic Characteristics of Empyema Patients

Analysis of identity by descent (IBD) patterns did not reveal the existence of close relationships among patients. In order to detect possible population outliers that could interfere with association tests, we undertook several population-based analyses by comparing our cases with reference populations representing the main continental groups.
We first performed a MDS to a continental context using 1000G reference populations representing sub-Saharan Africa, East Asia, and Europe (Figure 1A). As expected, all the populations display along the vertexes of a triangle, and our cohort of patients clearly fit with the European pole of this plot in the first and second dimensions. To confirm this scenario, a second MDS analysis was carried out for the European samples alone (Figure 1B); this plot confirms the genomic proximity of the pneumonia patients with the 1000G-IBS dataset.
The results of an admixture analysis [58] corroborate the results obtained from the MDS analysis (Figure 1C), indicating that all the pneumonia patients have virtually 100% European ancestry.
Overall, we found no evidence of population stratification in both cases and controls.

3.3. Single Nucleotide Polymorphism Association Test

Annotation of WES data yielded 118,690 sequence variants. A description of the functional characteristics of these variants is provided in Table 2. Single-point association tests were carried out for common variants (n = 44,941). A quantile-quantile (QQ)-plot of the p-values for this common variation indicates a good fit with expectations according to a uniform distribution (built on 1000 permutations), with the exception of two variants located at the top tail end of the plot, which yielded p-values below the expected values (Figure 2A). A Manhattan plot of all the WES common variation allows to visualize that these two SNPs have p-values well below the Bonferroni threshold when using 1000G-IBS as controls (Figure 2B). Additional association tests using other 1000G European control sets surpassed the Bonferroni statistical significance threshold (Table 3; Figure 3). The inflation factor was below 1 for these analyses, so correction for population stratification was not needed.
The SNP rs201967957 (G/A) located at gene MEIS1 was the most significant when compared against 1000G-IBS (p-valueIBS = 3.71 × 10−13; OR = 145.5). The second most significant SNP was rs576099063 (p-valueIBS = 2.36 × 10−8; OR = 26.6), located at gene TSPAN15. The two SNPs are located in the untranslated regions of the mentioned genes (5′-UTR and 3′-UTR, respectively). These gene regions are generally related to the regulation of the expression in eukaryotic organisms.
We also carried out association tests by collapsing all variants in genes and taking into account their accumulated pathogenicity. Three genes showed statistical significance when compared to 1000G-IBS (Table 4), namely, OR9G9 (p-valueIBS = 8.13 × 10−7), MUC3A (p-valueIBS = 1.27 × 10−6) and MUC6 (p-valueIBS = 3.16 × 10−6). Subsequently, we repeated the burden association test but focusing on rare variants exclusively. Gene APOB (p-valueIBS = 8.35 × 10−6) appeared as statistically associated on top of the other three genes (Table 4).
The burden test analyses were pseudo-replicated using the other European control groups from 1000G; and in all comparisons, the same genes appeared as statistically significant (Table 4). Furthermore, the same genes showed statistically significant values for the Spanish control group in Dopazo et al. [44].
Patterns of linkage disequilibrium (LD) for the candidate genes inferred from single SNP association test and burden test are displayed in Figures S1 and S2.

3.4. Transcription Signatures of Main Candidate Genes

Analysis of exome data raised six good candidate genes statistically associated with pneumonia. Data from large transcriptomic repositories were investigated for the six genes for which signals of statistical genomic association were observed between pneumonia patients and controls, namely, two genes in single-point association tests and four genes in burden tests.
The gene MEIS1 was found to be down-regulated in both corneal tissue from humans (GSE58291 [54]; Figure 4A) and lung tissue from mice (GSE45644 [51]; Figure 4B) suffering pneumonia caused by S. pneumoniae. In mice, the p-value is in the multiple-test correction limit, which could reflect the low sample size available for cases and controls. TSPAN15 shows a similar behavior as MEIS1. It seems to be down-regulated in humans (Figure 5A) and in mice (Figure 5B) when compared to their respective controls in the same studies (GSE58291 and GSE45644; respectively).

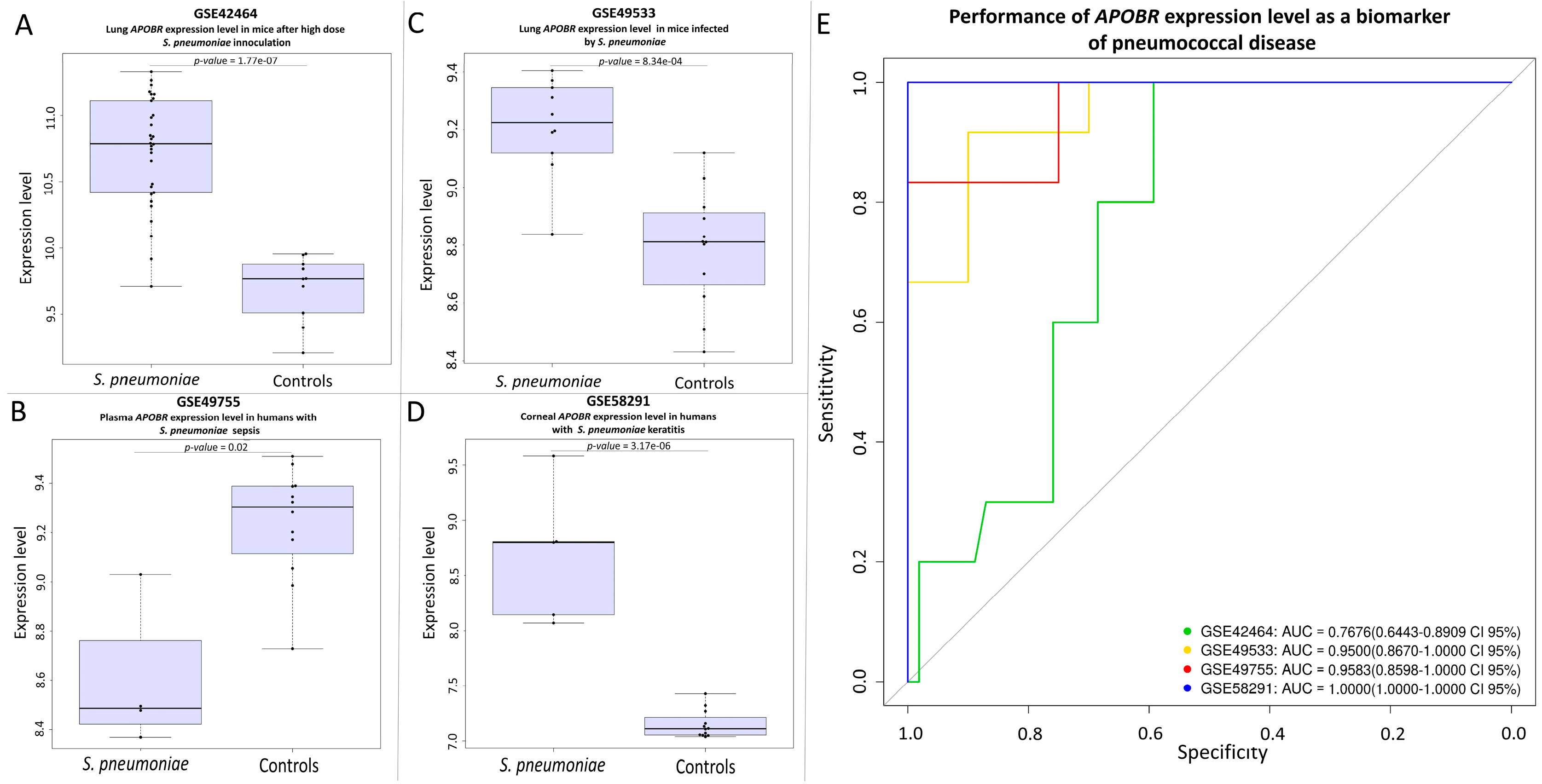

We found a significant result of association for the transcript of APOBR gene in four studies (GSE42464 [49], GSE49533 [50], GSE49755 [52], and GSE58291 [54]). The APOBR encodes the receptor of the APOB protein. The transcription signal observed is strong in both mice and humans (Figure 6). Interestingly, we found that APOBR appears as up-regulated when investigating cornea of infected patients and infected mice lung tissues, but down-regulated in plasma.
The performance of the genes as potential biomarkers was evaluated by generating ROC curves (Figure 4 to Figure 6). The area under the curve (AUC) was greater than 75% in all the studies examined.

4. Discussion

Pediatric pneumococcal pneumonia mostly occurs in otherwise healthy children [10,59]. Several factors have previously been pointed out to explain this clinical phenotype but not genetic predisposition [4,10,59,60]. According to the results of our WES-based approach in the setting of pneumococcal empyema in previously healthy children, host genetic factors might contribute to explain the complex pathophysiology of this important clinical phenotype.
Antibiotic resistance does not seem to be a key factor in the pathogenesis of complicated pneumococcal pneumonia. Curiously, pneumococcal empyema is less likely to be caused by penicillin-resistant pneumococci than uncomplicated pneumococcal pneumonia, showing that antibiotic sensitivity or resistance is not a major factor in the course of complicated pneumococcal pneumonia [4,6,61,62,63].
Results from WES indicate that there are two SNPs statistically associated in empyema patients. The two SNPs fall in strong blocks of LD (Figure S1), meaning that other SNPs located in the same genes (MEIS1 and TSPAN15) could be responsible for the association observed. In addition, WES data also revealed four candidate genes with unexpected amounts of accumulated pathogenicity in pneumonia patients. The six genes are particularly interesting because they code for proteins that have been previously linked to infectious diseases.
The nasopharynx, one of the natural entrances of S. pneumoniae to the host, is particularly rich in mucin proteins. Therefore, detection of MUC6 (mucin 6, oligomeric mucus/gel-forming) and MUC3A (mucin 3A, cell surface associated) as associated to pneumonia seems most relevant. Mucin encodes epithelial glycoproteins, and its expression related to airway diseases has been reported in the literature [64]. Mucin glycoproteins are secreted in large quantities by mucosal epithelia and they play important roles by limiting infectious gastrointestinal and respiratory diseases [65]. Yesilkaya et al. [64] showed results pointing to mucins as key factor in the virulence gene expression in S. pneumoniae. Furthermore, the association of MUC6 gene with pneumonia observed in our patients has recently been associated with RSV disease [13]. RSV and pneumococci may reciprocally and synergistically collaborate when infecting the host, contributing to disease severity [66,67]. Interestingly, this shared feature on gene MUC6 might also point to a common host genetic predisposition to both infections.
Some variants of TSPAN15 gene have been associated with lung damage [68]. The gene family of tetraspanins are involved in a variety of molecular processes including migration, adhesion, signaling and pathogen infections [69,70]. Tetraspanin CD9 negatively regulates lipopolisaccaride response in terms of macrophage activation and lung inflammation in mice models and statins might exert anti-inflammatory effects by unregulating tretraspanin CD9 [71,72].
The connection of apolipoprotein B (encoded by gene APOB) with respiratory disease has already been suggested in the literature. In addition, Peterson et al. [73] found that homeostatic levels in blood of the APOB protein represents an innate barrier against invasive Staphylococcus aureus infection.
The large repository of expression data GEO was explored for data related to pneumonia caused by S. pneumoniae. We were able to retrieve expression data of interest that focused in mice and humans. However, the fact that only five small studies were available denotes that the field is still very incipient. Interestingly, and despite the low sample sizes of the targeted studies, all of them indicate that S. pneumoniae modifies the transcriptome of the host. We were able to detect altered patterns of host expression for three out of our six candidate genes. Thus, MEIS1 and TSPAN15 genes were found to be down-regulated in humans and mice as a result of S. pneumoniae infections. With regard to gene APOB, we did not find an overrepresentation of its transcript in these transcriptomic studies, but we found overexpression signals of the transcript generated by the gene encoding the apolipoprotein B receptor (APOBR). The direct molecular link existing between APOB and APOBR is very suggestive of an association of pneumonia caused by S. pneumoniae and the APOB pathway. Furthermore, we have observed a tissue-dependent regulation in the data from different studies, three of them showing over-expression of APOBR in lung [49,50] and cornea [54], (two tissues that are directly exposed to the air and therefore a possible direct contact with the pathogen), while another study indicates a down-regulation of APOBR in plasma [52]. This result seems most promising for the understanding of the mechanisms of infection of S. pneumoniae, but it needs further validation in larger cohorts.
Last but not least, the transcription signals we identified for MEIS1, TSPAN15, and APOBR genes have been found in both mice and humans. This suggests a highly conservative evolutionary mechanism of infection in S. pneumoniae. In addition, the data suggest that the role of these genes is not tissue-dependent, since we have observed differential expression signals in plasma, lung, and corneal tissues. ROC curves also show that these genes can be reliable in clinical diagnostic applications; this however requires further validation and their potential utility would most likely result from their combination with more biomarkers.
There are several limitations in the present study. On the one hand, the cohort of patients analyzed is limited and therefore, the statistical genomic findings need further validation in independent cohorts. We have tried to overcome this limitation by analyzing extreme phenotypes of pneumonia and using several control groups for pseudo-replication, for which the results were consistent. Another limitation comes from the expression data available in the literature, which is also very limited in terms of number of studies and sample sizes. Moreover, some studies use different platforms or expression arrays. For instance, in the study [53], controls were analyzed with the Affymetrix Human Genome U133A Array, whereas the S. pneumoniae cases were analyzed with three different arrays (Affymetrix Human Genome U133A Array, Affymetrix Human Genome U133 Plus 2.0 Array, and the Sentrix Human-6 Expression BeadChip). The use of different platforms or arrays might limit our ability to explore the transcription signals of interest. Moreover, in the same study, the patients analyzed were treated with antibiotics before sample collection, which could most likely alter the transcriptomic of a patient infected by S. pneumoniae.
It is however relevant that, despite the small sample sizes and the other technical limitations, we observed supportive results for three out of the six WES candidate genes.
To the best of our knowledge this is the first study that uses next generation sequencing (NGS) techniques and WES in the context of pneumonia, and one of the very few in the wider area of infectious disease in childhood. By way of targeting severe phenotypes we were able to identify good gene candidates related to complicated forms of pneumococcal pneumonia. Furthermore, our findings provide new candidate biomarkers to be tested and validated in clinical settings.

Supplementary Materials

The following are available online at https://www.mdpi.com/2073-4425/9/5/240/s1, Table S1: ID and details of samples used for transcription analyses. Figure S1: LD patterns in gene MEIS1 and TSPAN15 for variants with MAF > 5%. The blue rectangles point to the best SNP candidates rs201967957 and rs576099063. Figure S2: LD patterns for all the SNPs observed in genes MUC3A, MUC6, OR9G1, and APOB.

Acknowledgments

This study received support from the Instituto de Salud Carlos III (Proyecto de Investigación en Salud, Acción Estratégica en Salud): project GePEM ISCIII/PI16/01478/Cofinanciado FEDER) (A.S.) and project ReSVinext ISCIII/PI16/01569/Cofinanciado FEDER (F.M.-T.); Consellería de Sanidade, Xunta de Galicia (RHI07/2-intensificación actividad investigadora, PS09749 and 10PXIB918184PR), Instituto de Salud Carlos III (Intensificación de la actividad investigadora 2007–2012, PI16/01569), Fondo de Investigación Sanitaria (FIS; PI070069/PI1000540) del Plan Nacional de I + D + I and ‘Fondos FEDER’ (F.M.-T.), and 2016-PG071 Consolidación e Estructuración REDES 2016GI-1344 G3VIP (Grupo Gallego de Genética Vacunas Infecciones y Pediatría, ED341D R2016/021) (A.S. and F.M.T). We would like to gratefully acknowledge the collaboration of the Translational Research Network in Pediatric Infectious Diseases (RITIP—www.ritip.org) and their members. We would like to extend our gratitude to the children and parents/guardians who participated in this study, and also to the nursery and laboratory services at the Hospital Clínico Universitario de Santiago de Compostela for their collaboration and effort, including C. Balo-Farto, A. Cotovad-Bellas, I. Iglesias-Gutiérrez, M.S. Porto-Silva, S. Serén-Fernández, and L García-Vicente. We would also like to acknowledge CESGA (Supercomputing Centre of Galicia, Santiago de Compostela, Spain) for the availability of supercomputing resources, web hosting, and support. GENDRES research group (Genetics, Vitamin D and Respiratory Infections Research Network): www.gendres.org. Further details may be found at www.gendres.org or www.genvip.eu. The following are members of GENDRES Network: Unidade de Xenética, Departamento de Anatomía Patolóxica e Ciencias Forenses, Instituto de Ciencias Forenses, Facultade de Medicina, Universidade de Santiago de Compostela, 15782 Santiago de Compostela, Spain: Ruth Barral-Arca, Sara Pischedda; GenPoB Research Group, Instituto de Investigaciones Sanitarias (IDIS), 15706 Santiago de Compostela, Spain: Antonio Justicia Grande, Beatriz Morillo, Lorenzo Redondo Collazo, Carmen Rodríguez-Tenreiro, Ruth Barral-Arca, Sara Pischedda, Nazareth Martinón-Torres, José María Martinón Sánchez; Área Asistencial Integrada de Pediatría, Hospital Clínico Universitario, Santiago de Compostela, Galicia, Spain: José Peña Guitián, Carmen Curros Novo, Miriam Puente Puig, Rosaura Leis Trabazo, Nazareth Martinón-Torres, José María Martinón Sánchez; Biobank, Servicio Anatomía Patológica, Hospital Clínico Universitario, Santiago de Compostela, Galicia, Spain: Máximo Francisco Fraga Rodríguez, José Ramón Antúnez; Servicio de Pediatría, Hospital Materno Infantil Virgen del Camino, Pamplona, Navarra, Spain: Enrique Bernaola Iturbe, Laura Moreno Galarraga, Jorge Álvarez; Departamento de Pediatría, Complejo Hospitalario Universitario de Orense, Galicia, Spain: Teresa González López, Delfina Suarez Vázquez, Ángela Vázquez Vázquez, Susana Rey García; Servicio de Pediatría, Hospital de la Inmaculada de Granada, Andalucía, Spain: Francisco Giménez Sánchez; Servicio de Pediatría, Hospital Torrecárdenas, Almería, Andalucía, Spain: Miguel Sánchez Forte; Servicio de Pediatría, Hospital La Paz, Madrid, Spain: Cristina Calvo Rey; Servicio de Pediatría, Hospital Severo Ochoa de Madrid, Spain: María Luz García García; Servicio de Pediatría, Complejo Asistencial Universitario de León, Castilla-León, Spain: Ignacio Oulego Erroz, David Naranjo Vivas, Santiago Lapeña, Paula Alonso Quintela, Jorge Martínez Sáenz de Jubera, Estibaliz Garrido García; Servicio de Pediatría, Hospital de Donostia, San Sebastián, País Vasco, Spain: Cristina Calvo Monge, Eider Oñate Vergara; Servicio de Pediatría, Complejo Hospitalario de Jaén, Andalucía, Spain: Jesús de la Cruz Moreno, Mª Carmen Martínez Padilla; Servicio de Pediatría, Hospital Quirón, Málaga, Andalucía, Spain: Manuel Baca Cots; Servicio de Pediatría, Hospital Carlos Haya, Málaga, Andalucía, Spain: David Moreno Pérez; Servicio de Pediatría, Hospital Virgen de la Arrixaca, Murcia, Spain: Susana Beatriz Reyes, María Cruz León León.

Author Contributions

A.S. and F.M.-T. conceived and designed the experiments; M.C.-L., A.G.-C., I.R.-C., S.P., M.-J.C.-T., and J.G.-R. performed the experiments; A.S., J.P.-S., J.A., and R.B.-A. analyzed the data; A.S. and F.M.-T. contributed reagents and materials and analysis tools; A.S. wrote the first draft of the article and all the authors contributed to the final version of the text.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. O’Brien, K.L.; Wolfson, L.J.; Watt, J.P.; Henkle, E.; Deloria-Knoll, M.; McCall, N.; Lee, E.; Mulholland, K.; Levine, O.S.; Cherian, T.; et al. Burden of disease caused by Streptococcus pneumoniae in children younger than 5 years: Global estimates. Lancet 2009, 374, 893–902. [Google Scholar] [CrossRef]
  2. Liu, L.; Oza, S.; Hogan, D.; Chu, Y.; Perin, J.; Zhu, J.; Lawn, J.E.; Cousens, S.; Mathers, C.; Black, R.E. Global, regional, and national causes of under-5 mortality in 2000–15: An updated systematic analysis with implications for the sustainable development goals. Lancet 2016, 388, 3027–3035. [Google Scholar] [CrossRef]
  3. Dion, C.F.; Ashurst, J.V. Pneumonia, Streptococcus Pneumoniae; StatPearls Publising: Treasure Island, FL, USA, 2018. [Google Scholar]
  4. Fletcher, M.A.; Schmitt, H.J.; Syrochkina, M.; Sylvester, G. Pneumococcal empyema and complicated pneumonias: Global trends in incidence, prevalence, and serotype epidemiology. Eur. J. Clin. Microbiol. Infect. Dis. 2014, 33, 879–910. [Google Scholar] [CrossRef] [PubMed]
  5. Martinón-Torres, F.; Dosil-Gallardo, S.; Pérez-del-Molino-Bernal, M.L.; Sánchez, F.P.; Tarrago, D.; Álvez, F.; Díaz, S.P.; Martinón-Torres, N.; Martinón-Sánchez, J.M. Pleural antigen assay in the diagnosis of pediatric pneumococcal empyema. J. Crit. Care 2012, 27, 321. [Google Scholar] [CrossRef] [PubMed]
  6. Obando, I.; Camacho-Lovillo, M.S.; Porras, A.; Gandia-Gonzalez, M.A.; Molinos, A.; Vazquez-Barba, I.; Morillo-Gutierrez, B.; Neth, O.W.; Tarrago, D. Sustained high prevalence of pneumococcal serotype 1 in paediatric parapneumonic empyema in southern Spain from 2005 to 2009. Clin. Microbiol. Infect. 2012, 18, 763–768. [Google Scholar] [CrossRef] [PubMed]
  7. Simonsen, L.; Taylor, R.J.; Schuck-Paim, C.; Lustig, R.; Haber, M.; Klugman, K.P. Effect of 13-valent pneumococcal conjugate vaccine on admissions to hospital 2 years after its introduction in the USA: A time series analysis. Lancet Respir. Med. 2014, 2, 387–394. [Google Scholar] [CrossRef]
  8. Bender, J.M.; Ampofo, K.; Korgenski, K.; Daly, J.; Pavia, A.T.; Mason, E.O.; Byington, C.L. Pneumococcal necrotizing pneumonia in Utah: Does serotype matter? Clin. Infect. Dis. 2008, 46, 1346–1352. [Google Scholar] [CrossRef] [PubMed]
  9. Kerem, E.; Bar Ziv, Y.; Rudenski, B.; Katz, S.; Kleid, D.; Branski, D. Bacteremic necrotizing pneumococcal pneumonia in children. Am. J. Respir. Crit. Care Med. 1994, 149, 242–244. [Google Scholar] [CrossRef] [PubMed]
  10. Martinón-Torres, F.; Bernaola Iturbe, E.; Giménez Sánchez, F.; Baca Cots, M.; de Juan Martín, F.; Diez Domingo, J.; Garces Sánchez, M.; Gómez Campdera, J.A.; Picazo, J.J.; Pineda Solas, V. Why are pediatric empyemas on the increase in Spain? An. Pediatr. 2008, 68, 158–164. [Google Scholar] [CrossRef]
  11. Davila, S.; Wright, V.J.; Khor, C.C.; Sim, K.S.; Binder, A.; Breunis, W.B.; Inwald, D.; Nadel, S.; Betts, H.; Carrol, E.D.; et al. Genome-wide association study identifies variants in the cfh region associated with host susceptibility to meningococcal disease. Nat. Genet. 2010, 42, 772–776. [Google Scholar] [CrossRef] [PubMed]
  12. Martinon-Torres, F.; Png, E.; Khor, C.C.; Davila, S.; Wright, V.J.; Sim, K.S.; Vega, A.; Fachal, L.; Inwald, D.; Nadel, S.; et al. Natural resistance to meningococcal disease related to cfh loci: Meta-analysis of genome-wide association studies. Sci. Rep. 2016, 6, 35842. [Google Scholar] [CrossRef] [PubMed]
  13. Salas, A.; Pardo-Seco, J.; Cebey-Lopez, M.; Gomez-Carballa, A.; Obando-Pacheco, P.; Rivero-Calle, I.; Curras-Tuala, M.J.; Amigo, J.; Gomez-Rial, J.; Martinon-Torres, F.; et al. Whole exome sequencing reveals new candidate genes in host genomic susceptibility to respiratory syncytial virus disease. Sci. Rep. 2017, 7, 15888. [Google Scholar] [CrossRef] [PubMed]
  14. Chapman, S.J.; Hill, A.V. Human genetic susceptibility to infectious disease. Nat. Rev. Genet. 2012, 13, 175–188. [Google Scholar] [CrossRef] [PubMed]
  15. Patarčić, I.; Gelemanovic, A.; Kirin, M.; Kolčić, I.; Theodoratou, E.; Baillie, K.J.; de Jong, M.D.; Rudan, I.; Campbell, H.; Polašek, O. The role of host genetic factors in respiratory tract infectious diseases: Systematic review, meta-analyses and field synopsis. Sci. Rep. 2015, 5, 16119. [Google Scholar] [CrossRef] [PubMed]
  16. Smelaya, T.V.; Belopolskaya, O.B.; Smirnova, S.V.; Kuzovlev, A.N.; Moroz, V.V.; Golubev, A.M.; Pabalan, N.A.; Salnikova, L.E. Genetic dissection of host immune response in pneumonia development and progression. Sci. Rep. 2016, 6, 35021. [Google Scholar] [CrossRef] [PubMed]
  17. Aung, T.; Ozaki, M.; Lee, M.C.; Schlotzer-Schrehardt, U.; Thorleifsson, G.; Mizoguchi, T.; Igo, R.P., Jr.; Haripriya, A.; Williams, S.E.; Astakhov, Y.S.; et al. Genetic association study of exfoliation syndrome identifies a protective rare variant at loxl1 and five new susceptibility loci. Nat. Genet. 2017, 49, 993–1004. [Google Scholar] [CrossRef] [PubMed]
  18. Ng, S.B.; Turner, E.H.; Robertson, P.D.; Flygare, S.D.; Bigham, A.W.; Lee, C.; Shaffer, T.; Wong, M.; Bhattacharjee, A.; Eichler, E.E.; et al. Targeted capture and massively parallel sequencing of 12 human exomes. Nature 2009, 461, 272–276. [Google Scholar] [CrossRef] [PubMed]
  19. Adzhubei, I.A.; Schmidt, S.; Peshkin, L.; Ramensky, V.E.; Gerasimova, A.; Bork, P.; Kondrashov, A.S.; Sunyaev, S.R. A method and server for predicting damaging missense mutations. Nat. Methods 2010, 7, 248–249. [Google Scholar] [CrossRef] [PubMed]
  20. Ng, P.C.; Henikoff, S. SIFT: Predicting amino acid changes that affect protein function. Nucleic Acids Res. 2003, 31, 3812–3814. [Google Scholar] [CrossRef] [PubMed]
  21. Cooper, G.M.; Stone, E.A.; Asimenos, G.; Program, N.C.S.; Green, E.D.; Batzoglou, S.; Sidow, A. Distribution and intensity of constraint in mammalian genomic sequence. Genome Res. 2005, 15, 901–913. [Google Scholar] [CrossRef] [PubMed]
  22. GENDRES: Genetic, Vitamin D and Respiratory Infections Research Network. Available online: http://www.gendres.org (accessed on 1 November 2017).
  23. Cebey-López, M.; Herberg, J.; Pardo-Seco, J.; Gómez-Carballa, A.; Martinon-Torres, N.; Salas, A.; Martinón-Sánchez, J.M.; Gormley, S.; Sumner, E.; Fink, C.; et al. Viral co-infections in pediatric patients hospitalized with lower tract acute respiratory infections. PLoS ONE 2015, 10, e0136526. [Google Scholar] [CrossRef] [PubMed]
  24. Cebey-López, M.; Pardo-Seco, J.; Gómez-Carballa, A.; Martinón-Torres, N.; Rivero-Calle, I.; Justicia, A.; Redondo, L.; Martinón-Sánchez, J.M.; Martinez-Padilla, M.D.; Giménez-Sánchez, F.; et al. Vitamin D role in hospitalized children with lower tract acute respiratory infections. J. Pediatr. Gastroenterol. Nutr. 2016, 62, 479–485. [Google Scholar] [CrossRef] [PubMed]
  25. Hansen, J.; Black, S.; Shinefield, H.; Cherian, T.; Benson, J.; Fireman, B.; Lewis, E.; Ray, P.; Lee, J. Effectiveness of heptavalent pneumococcal conjugate vaccine in children younger than 5 years of age for prevention of pneumonia: Updated analysis using world health organization standardized interpretation of chest radiographs. Pediatr. Infect. Dis. J. 2006, 25, 779–781. [Google Scholar] [CrossRef] [PubMed]
  26. Korppi, M. Diagnosis and treatment of community-acquired pneumonia in children. Acta Paediatr. 2012, 101, 702–704. [Google Scholar] [CrossRef] [PubMed]
  27. Li, H.; Durbin, R. Fast and accurate short read alignment with burrows-wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [PubMed]
  28. McKenna, A.; Hanna, M.; Banks, E.; Sivachenko, A.; Cibulskis, K.; Kernytsky, A.; Garimella, K.; Altshuler, D.; Gabriel, S.; Daly, M.; et al. The genome analysis toolkit: A mapreduce framework for analyzing next-generation DNA sequencing data. Genome Res. 2010, 20, 1297–1303. [Google Scholar] [CrossRef] [PubMed]
  29. Li, H. A statistical framework for SNP calling, mutation discovery, association mapping and population genetical parameter estimation from sequencing data. Bioinformatics 2011, 27, 2987–2993. [Google Scholar] [CrossRef] [PubMed]
  30. OGT: Oxford Gene Technology. Available online: http://www.ogt.co.uk (accessed on 1 November 2017).
  31. Wang, K.; Li, M.; Hakonarson, H. ANNOVAR: Functional annotation of genetic variants from high-throughput sequencing data. Nucleic Acids Res. 2010, 38, e164. [Google Scholar] [CrossRef] [PubMed]
  32. Ensembl. Available online: http://www.ensembl.org/index.html (accessed on 1 November 2017).
  33. Kircher, M.; Witten, D.M.; Jain, P.; O’Roak, B.J.; Cooper, G.M.; Shendure, J. A general framework for estimating the relative pathogenicity of human genetic variants. Nat. Genet. 2014, 46, 310–315. [Google Scholar] [CrossRef] [PubMed]
  34. Quang, D.; Chen, Y.; Xie, X. Dann: A deep learning approach for annotating the pathogenicity of genetic variants. Bioinformatics 2015, 31, 761–763. [Google Scholar] [CrossRef] [PubMed]
  35. Purcell, S.; Neale, B.; Todd-Brown, K.; Thomas, L.; Ferreira, M.A.; Bender, D.; Maller, J.; Sklar, P.; de Bakker, P.I.; Daly, M.J.; et al. PLINK: A tool set for whole-genome association and population-based linkage analyses. Am. J. Hum. Genet. 2007, 81, 559–575. [Google Scholar] [CrossRef] [PubMed]
  36. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Vienna, Austria, 2012; Available online: http://www.R-project.org/ISBN 3-900051-07-0.
  37. The 1000 Genomes Project Consortium. An integrated map of genetic variation from 1,092 human genomes. Nature 2012, 491, 56–65. [Google Scholar] [Green Version]
  38. Amigo, J.; Salas, A.; Phillips, C.; Carracedo, Á. Spsmart: Adapting population based SNP genotype databases for fast and comprehensive web access. BMC Bioinform. 2008, 9, 428. [Google Scholar] [CrossRef] [PubMed]
  39. Amigo, J.; Salas, A.; Phillips, C. Engines: Exploring single nucleotide variation in entire human genomes. BMC Bioinform. 2011, 12, 105. [Google Scholar] [CrossRef] [PubMed]
  40. Gómez-Carballa, A.; Pardo-Seco, J.; Fachal, L.; Vega, A.; Cebey, M.; Martinón-Torres, N.; Martinón-Torres, F.; Salas, A. Indian signatures in the westernmost edge of the European Romani diaspora: New insight from mitogenomes. PLoS ONE 2013, 8, e75397. [Google Scholar] [CrossRef] [PubMed]
  41. Dering, C.; Hemmelmann, C.; Pugh, E.; Ziegler, A. Statistical analysis of rare sequence variants: An overview of collapsing methods. Genet. Epidemiol. 2011, 35 (Suppl. 1), S12–S17. [Google Scholar] [CrossRef] [PubMed]
  42. Fachal, L.; Mosquera-Miguel, A.; Pastor, P.; Ortega-Cubero, S.; Lorenzo, E.; Oterino-Duran, A.; Toriello, M.; Quintans, B.; Camina-Tato, M.; Sesar, A.; et al. No evidence of association between common European mitochondrial DNA variants in Alzheimer, Parkinson, and migraine in the Spanish population. Am. J. Med. Genet. Part B 2015, 168B, 54–65. [Google Scholar] [CrossRef] [PubMed]
  43. Salas, A.; Fachal, L.; Marcos-Alonso, S.; Vega, A.; Martinón-Torres, F.; Grupo de Investigación ESIGEM. Investigating the role of mitochondrial haplogroups in genetic predisposition to meningococcal disease. PLoS ONE 2009, 4, e8347. [Google Scholar] [CrossRef] [PubMed]
  44. Dopazo, J.; Amadoz, A.; Bleda, M.; García-Alonso, L.; Alemán, A.; García-García, F.; Rodriguez, J.A.; Daub, J.T.; Muntané, G.; Rueda, A.; et al. 267 Spanish exomes reveal population-specific differences in disease-related genetic variation. Mol. Biol. Evol. 2016, 33, 1205–1218. [Google Scholar] [CrossRef] [PubMed]
  45. Perl. Available online: http://www.perl.org (accessed on 1 November 2017).
  46. Barrett, J.C.; Fry, B.; Maller, J.; Daly, M.J. Haploview: Analysis and visualization of LD and haplotype maps. Bioinformatics 2005, 21, 263–265. [Google Scholar] [CrossRef] [PubMed]
  47. Gabriel, S.B.; Schaffner, S.F.; Nguyen, H.; Moore, J.M.; Roy, J.; Blumenstiel, B.; Higgins, J.; DeFelice, M.; Lochner, A.; Faggart, M.; et al. The structure of haplotype blocks in the human genome. Science 2002, 296, 2225–2229. [Google Scholar] [CrossRef] [PubMed]
  48. GEO: Gene Expression Omnibus. Available online: https://www.ncbi.nlm.nih.gov/geo/ (accessed on 1 November 2017).
  49. Van Lieshout, M.H.; Scicluna, B.P.; Florquin, S.; Van der Poll, T. NLRP3 and ASC differentially affect the lung transcriptome during pneumococcal pneumonia. Am. J. Respir. Cell Mol. Biol. 2014, 50, 699–712. [Google Scholar] [CrossRef] [PubMed]
  50. Jonczyk, M.S.; Simon, M.; Kumar, S.; Fernandes, V.E.; Sylvius, N.; Mallon, A.M.; Denny, P.; Andrew, P.W. Genetic factors regulating lung vasculature and immune cell functions associate with resistance to pneumococcal infection. PLoS ONE 2014, 9, e89831. [Google Scholar] [CrossRef] [PubMed]
  51. Restori, K.H.; Kennett, M.J.; Ross, A.C. Immunization with pneumococcal polysaccharide serotype 3 and lipopolysaccharide modulates lung and liver inflammation during a virulent Streptococcus pneumoniae infection in mice. Clin. Vaccine Immunol. 2013, 20, 639–650. [Google Scholar] [CrossRef] [PubMed]
  52. Khaenam, P.; Rinchai, D.; Altman, M.C.; Chiche, L.; Buddhisa, S.; Kewcharoenwong, C.; Suwannasaen, D.; Mason, M.; Whalen, E.; Presnell, S.; et al. A transcriptomic reporter assay employing neutrophils to measure immunogenic activity of septic patients’ plasma. J. Transl. Med. 2014, 12, 65. [Google Scholar] [CrossRef] [PubMed]
  53. Ramilo, O.; Allman, W.; Chung, W.; Mejias, A.; Ardura, M.; Glaser, C.; Wittkowski, K.M.; Piqueras, B.; Banchereau, J.; Palucka, A.K.; et al. Gene expression patterns in blood leukocytes discriminate patients with acute infections. Blood 2007, 109, 2066–2077. [Google Scholar] [CrossRef] [PubMed]
  54. Chidambaram, J.D.; Kannambath, S.; Srikanthi, P.; Shah, M.; Lalitha, P.; Elakkiya, S.; Bauer, J.; Prajna, N.V.; Holland, M.J.; Burton, M.J. Persistence of innate immune pathways in late stage human bacterial and fungal keratitis: Results from a comparative transcriptome analysis. Front. Cell. Infect. Microbiol. 2017, 7, 193. [Google Scholar] [CrossRef] [PubMed]
  55. Du, P.; Kibbe, W.A.; Lin, S.M. Lumi: A pipeline for processing Illumina microarray. Bioinformatics 2008, 24, 1547–1548. [Google Scholar] [CrossRef] [PubMed]
  56. Carvalho, B.S.; Irizarry, R.A. A framework for oligonucleotide microarray preprocessing. Bioinformatics 2010, 26, 2363–2367. [Google Scholar] [CrossRef] [PubMed]
  57. Ritchie, M.E.; Phipson, B.; Wu, D.; Hu, Y.; Law, C.W.; Shi, W.; Smyth, G.K. Limma powers differential expression analyses for rna-sequencing and microarray studies. Nucleic Acids Res. 2015, 43, e47. [Google Scholar] [CrossRef] [PubMed]
  58. Alexander, D.H.; Novembre, J.; Lange, K. Fast model-based estimation of ancestry in unrelated individuals. Genome Res. 2009, 19, 1655–1664. [Google Scholar] [CrossRef] [PubMed]
  59. Yildirim, I.; Shea, K.M.; Pelton, S.I. Pneumococcal disease in the era of pneumococcal conjugate vaccine. Infect. Dis. Clin. N. Am. 2015, 29, 679–697. [Google Scholar] [CrossRef] [PubMed]
  60. Burgos, J.; Falco, V.; Pahissa, A. The increasing incidence of empyema. Curr. Opin. Pulm. Med. 2013, 19, 350–356. [Google Scholar] [CrossRef] [PubMed]
  61. Byington, C.L.; Hulten, K.G.; Ampofo, K.; Sheng, X.; Pavia, A.T.; Blaschke, A.J.; Pettigrew, M.; Korgenski, K.; Daly, J.; Mason, E.O. Molecular epidemiology of pediatric pneumococcal empyema from 2001 to 2007 in Utah. J. Clin. Microbiol. 2010, 48, 520–525. [Google Scholar] [CrossRef] [PubMed]
  62. Hsieh, Y.C.; Hsueh, P.R.; Lu, C.Y.; Lee, P.I.; Lee, C.Y.; Huang, L.M. Clinical manifestations and molecular epidemiology of necrotizing pneumonia and empyema caused by streptococcus pneumoniae in children in Taiwan. Clin. Infect. Dis. 2004, 38, 830–835. [Google Scholar] [CrossRef] [PubMed]
  63. Byington, C.L.; Korgenski, K.; Daly, J.; Ampofo, K.; Pavia, A.; Mason, E.O. Impact of the pneumococcal conjugate vaccine on pneumococcal parapneumonic empyema. Pediatr. Infect. Dis. J. 2006, 25, 250–254. [Google Scholar] [CrossRef] [PubMed]
  64. Rose, M.C.; Piazza, F.M.; Chen, Y.A.; Alimam, M.Z.; Bautista, M.V.; Letwin, N.; Rajput, B. Model systems for investigating mucin gene expression in airway diseases. J. Aerosol Med. 2000, 13, 245–261. [Google Scholar] [CrossRef] [PubMed]
  65. Linden, S.K.; Sutton, P.; Karlsson, N.G.; Korolik, V.; McGuckin, M.A. Mucins in the mucosal barrier to infection. Mucosal Immunol. 2008, 1, 183–197. [Google Scholar] [CrossRef] [PubMed]
  66. Weinberger, D.M.; Klugman, K.P.; Steiner, C.A.; Simonsen, L.; Viboud, C. Association between respiratory syncytial virus activity and pneumococcal disease in infants: A time series analysis of us hospitalization data. PLoS Med. 2015, 12, e1001776. [Google Scholar] [CrossRef] [PubMed]
  67. Cebey-López, M.; Herberg, J.; Pardo-Seco, J.; Gómez-Carballa, A.; Martinón-Torres, N.; Salas, A.; Martinón-Sánchez, J.M.; Justicia, A.; Rivero-Calle, I.; Sumner, E.; et al. Does viral co-infection influence the severity of acute respiratory infection in children? PLoS ONE 2016, 11, e0152481. [Google Scholar] [CrossRef] [PubMed]
  68. Germain, M.; Chasman, D.I.; de Haan, H.; Tang, W.; Lindstrom, S.; Weng, L.C.; de Andrade, M.; de Visser, M.C.; Wiggins, K.L.; Suchon, P.; et al. Meta-analysis of 65,734 individuals identifies tspan15 and slc44a2 as two susceptibility loci for venous thromboembolism. Am. J. Hum. Genet. 2015, 96, 532–542. [Google Scholar] [CrossRef] [PubMed]
  69. Seipold, L.; Saftig, P. The emerging role of tetraspanins in the proteolytic processing of the amyloid precursor protein. Front. Mol. Neurosci. 2016, 9, 149. [Google Scholar] [CrossRef] [PubMed]
  70. Charrin, S.; Jouannet, S.; Boucheix, C.; Rubinstein, E. Tetraspanins at a glance. J. Cell Sci. 2014, 127, 3641–3648. [Google Scholar] [CrossRef] [PubMed]
  71. Suzuki, M.; Tachibana, I.; Takeda, Y.; He, P.; Minami, S.; Iwasaki, T.; Kida, H.; Goya, S.; Kijima, T.; Yoshida, M.; et al. Tetraspanin cd9 negatively regulates lipopolysaccharide-induced macrophage activation and lung inflammation. J. Immunol. 2009, 182, 6485–6493. [Google Scholar] [CrossRef] [PubMed]
  72. Jin, Y.; Tachibana, I.; Takeda, Y.; He, P.; Kang, S.; Suzuki, M.; Kuhara, H.; Tetsumoto, S.; Tsujino, K.; Minami, T.; et al. Statins decrease lung inflammation in mice by upregulating tetraspanin cd9 in macrophages. PLoS ONE 2013, 8, e73706. [Google Scholar] [CrossRef] [PubMed]
  73. Peterson, M.M.; Mack, J.L.; Hall, P.R.; Alsup, A.A.; Alexander, S.M.; Sully, E.K.; Sawires, Y.S.; Cheung, A.L.; Otto, M.; Gresham, H.D. Apolipoprotein b is an innate barrier against invasive staphylococcus aureus infection. Cell Host Microbe 2008, 4, 555–566. [Google Scholar] [CrossRef] [PubMed]
Figure 1. (A) MDS plot of pair-wise individual identity by state (IBS) values between cases vs. reference continental populations from 1000G. (B) MDS plot of cases and European 1000G reference populations [37]. (C) Analysis of admixture for the samples analyzed in (A). GBR: British in England and Scotland; CEU: Utah Residents (CEPH) with Northern and Western European Ancestry; TSI: Tuscany in Italia; IBS: Iberian Population in Spain; GWD: Gambian in Western Divisions in the Gambia; MSL: Mende in Sierra Leone; YRI: Yoruba in Ibadan, Nigeria; ESN: Esan in Nigeria; LWK: Luhya in Webuye, Kenya; CDX: Chinese Dai in Xishuangbanna, China; KHV: Kinh in Ho Chi Minh City, Vietnam; CHS: Southern Han Chinese; CHB: Han Chinese in Bejing, China; JPT: Japanese in Tokyo, Japan; EMP: pneumococcal empyema cases.
Figure 1. (A) MDS plot of pair-wise individual identity by state (IBS) values between cases vs. reference continental populations from 1000G. (B) MDS plot of cases and European 1000G reference populations [37]. (C) Analysis of admixture for the samples analyzed in (A). GBR: British in England and Scotland; CEU: Utah Residents (CEPH) with Northern and Western European Ancestry; TSI: Tuscany in Italia; IBS: Iberian Population in Spain; GWD: Gambian in Western Divisions in the Gambia; MSL: Mende in Sierra Leone; YRI: Yoruba in Ibadan, Nigeria; ESN: Esan in Nigeria; LWK: Luhya in Webuye, Kenya; CDX: Chinese Dai in Xishuangbanna, China; KHV: Kinh in Ho Chi Minh City, Vietnam; CHS: Southern Han Chinese; CHB: Han Chinese in Bejing, China; JPT: Japanese in Tokyo, Japan; EMP: pneumococcal empyema cases.
Genes 09 00240 g001

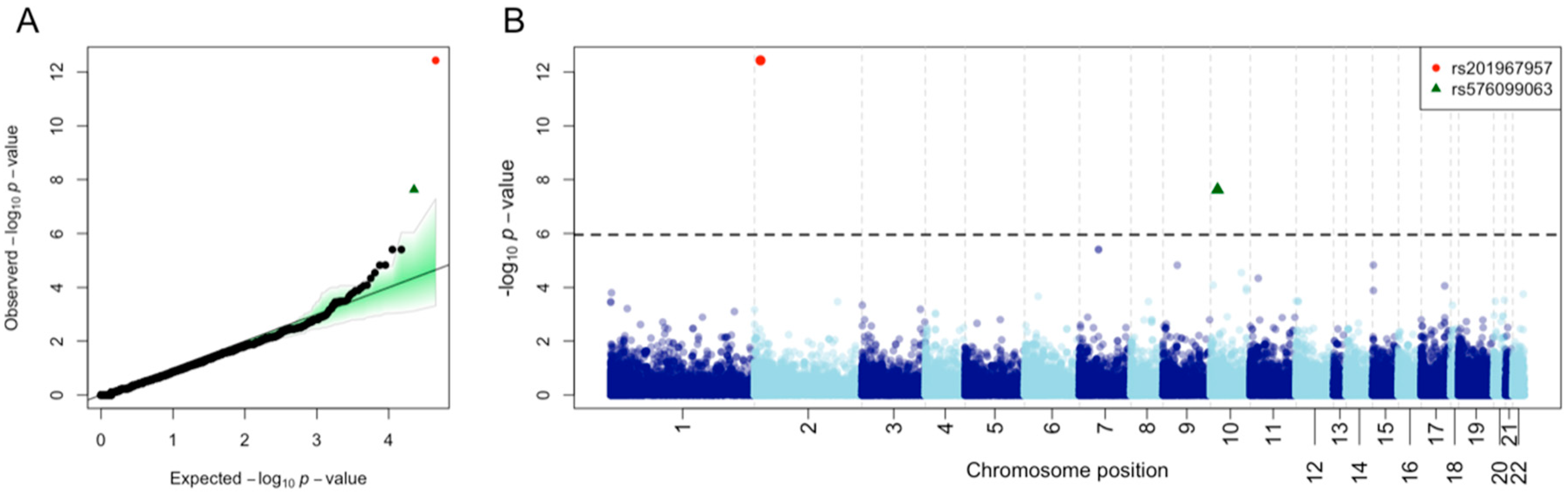

Figure 2. (A) Quantile-quantile (QQ)-plot of p-values for common variation observed in patients against 1000G-IBS controls. The green shadow indicates the p-values obtained under a permutation approach (1000 permutations). (B) Manhattan plot of common variants observed in patients against 1000G-IBS controls. The dotted line indicates the Bonferroni threshold.
Figure 2. (A) Quantile-quantile (QQ)-plot of p-values for common variation observed in patients against 1000G-IBS controls. The green shadow indicates the p-values obtained under a permutation approach (1000 permutations). (B) Manhattan plot of common variants observed in patients against 1000G-IBS controls. The dotted line indicates the Bonferroni threshold.
Genes 09 00240 g002

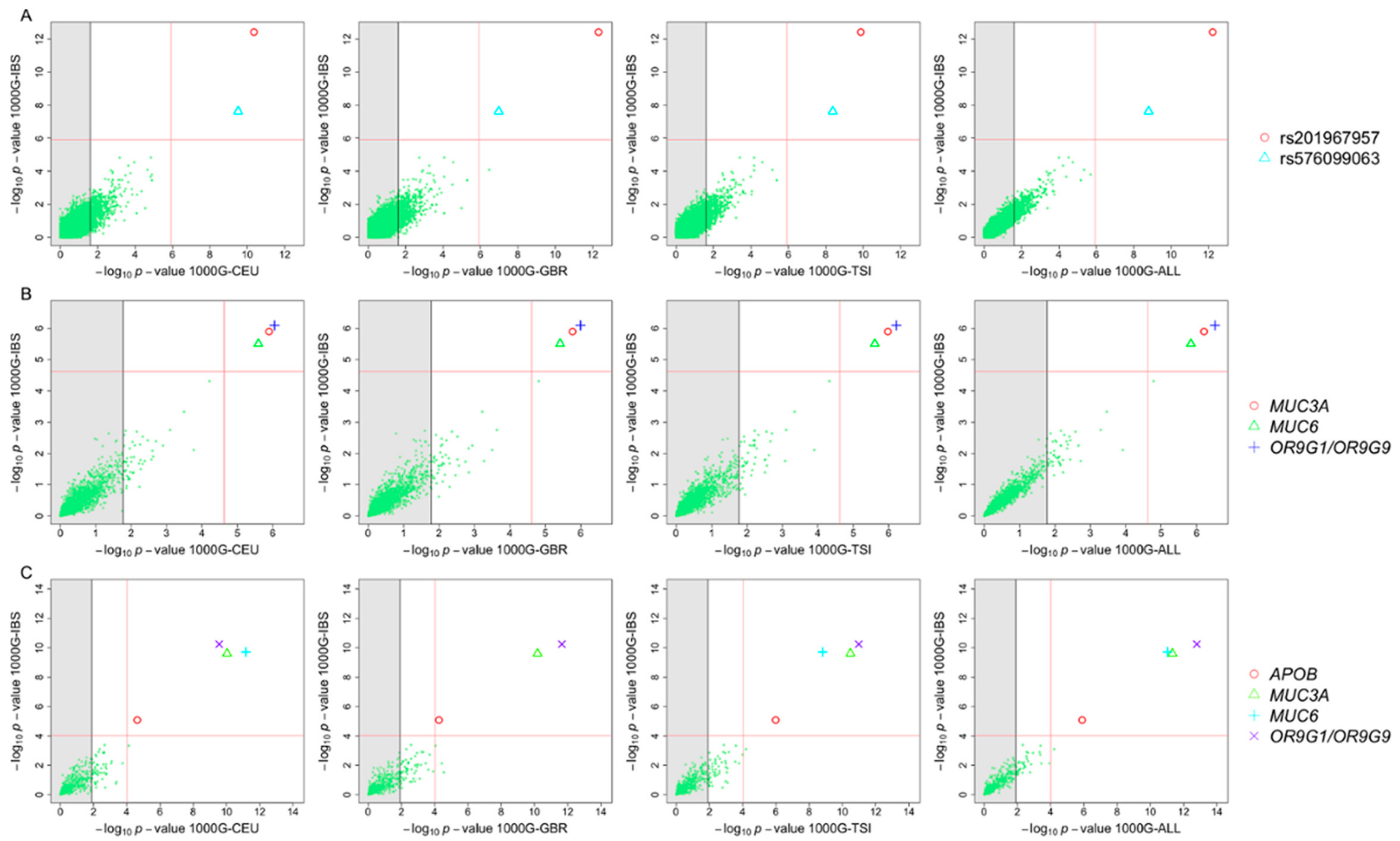

Figure 3. (A) p-values of association tests carried out between cases and different 1000G control groups computed on single nucleotide polymorphisms (SNPs). (B) p-values of gene burden association tests between patients and controls using common variants. (C) p-values of gene burden association tests between patients and controls using rare variants (minor allele frequency, MAF < 0.05 for the 1000G-IBS cohort). The grey shadow to the left of each individual graph indicates the threshold for the corresponding Bonferroni adjustments according to the number of candidate SNPs/genes. The red lines indicate the genomic Bonferroni threshold for the two control groups being compared in each graph. The legend on the right indicates the SNPs/genes surpassing the genomic Bonferroni’s thresholds.
Figure 3. (A) p-values of association tests carried out between cases and different 1000G control groups computed on single nucleotide polymorphisms (SNPs). (B) p-values of gene burden association tests between patients and controls using common variants. (C) p-values of gene burden association tests between patients and controls using rare variants (minor allele frequency, MAF < 0.05 for the 1000G-IBS cohort). The grey shadow to the left of each individual graph indicates the threshold for the corresponding Bonferroni adjustments according to the number of candidate SNPs/genes. The red lines indicate the genomic Bonferroni threshold for the two control groups being compared in each graph. The legend on the right indicates the SNPs/genes surpassing the genomic Bonferroni’s thresholds.
Genes 09 00240 g003
Figure 4. (A) Differential expression level of the MEIS1 gene between corneal tissue from corpses and corneal tissue from S. pneumoniae keratitis patients in the study GSE58291. (B) Differential lung expression level of MEIS1 gene between healthy mice and S. pneumoniae infected mice in the study GSE45644. (C) Receiver operating curve (ROC evaluating the potential of the gene MEIS1 as a biomarker in the studies GSE58291, and GSE45644. AUC: area under the curve.
Figure 4. (A) Differential expression level of the MEIS1 gene between corneal tissue from corpses and corneal tissue from S. pneumoniae keratitis patients in the study GSE58291. (B) Differential lung expression level of MEIS1 gene between healthy mice and S. pneumoniae infected mice in the study GSE45644. (C) Receiver operating curve (ROC evaluating the potential of the gene MEIS1 as a biomarker in the studies GSE58291, and GSE45644. AUC: area under the curve.
Genes 09 00240 g004
Figure 5. (A) Differential expression level of the TSPAN15 gene between corneal tissue from corpses and corneal tissue from S. pneumoniae keratitis patients in the study GSE58291. (B) Differential lung expression level of TSPAN15 gene between healthy mice and S. pneumoniae infected mice in the study GSE45644. (C) ROC evaluating the potential of the gene TSPAN15 as a biomarker in the studies GSE58291, and GSE45644.
Figure 5. (A) Differential expression level of the TSPAN15 gene between corneal tissue from corpses and corneal tissue from S. pneumoniae keratitis patients in the study GSE58291. (B) Differential lung expression level of TSPAN15 gene between healthy mice and S. pneumoniae infected mice in the study GSE45644. (C) ROC evaluating the potential of the gene TSPAN15 as a biomarker in the studies GSE58291, and GSE45644.
Genes 09 00240 g005
Figure 6. (A) Differential lung expression level of the APOBR gene between healthy mice and S. pneumoniae infected mice in the study GSE42464. (B) Plasma expression level of the APOBR gene between healthy human control and S. pneumoniae sepsis patients in the study GSE49755. (C) Lung expression level of the APOBR gene between healthy mice and S. pneumoniae infected mice in the study GSE49533. (D) Differential expression level of the APOBR gene between corneal tissue from corpses and S. pneumoniae keratitis patients in the study GSE58291. (E) ROC evaluating the potential of the APOBR gene as a biomarker in the studies GSE42464, GSE49755, GSE49533, and GSE58291.
Figure 6. (A) Differential lung expression level of the APOBR gene between healthy mice and S. pneumoniae infected mice in the study GSE42464. (B) Plasma expression level of the APOBR gene between healthy human control and S. pneumoniae sepsis patients in the study GSE49755. (C) Lung expression level of the APOBR gene between healthy mice and S. pneumoniae infected mice in the study GSE49533. (D) Differential expression level of the APOBR gene between corneal tissue from corpses and S. pneumoniae keratitis patients in the study GSE58291. (E) ROC evaluating the potential of the APOBR gene as a biomarker in the studies GSE42464, GSE49755, GSE49533, and GSE58291.
Genes 09 00240 g006
Table 1. Summary of demographic and clinical characteristics of the study cohort.
Table 1. Summary of demographic and clinical characteristics of the study cohort.
VariablesPneumococcal Empyema Patients
Demographic characteristics
Sex (male) a5/8 (62.5%)
Age (years) b5.1 (3.1)
Medical history
Asthma a2/8 (25.0%)
Pneumococcal vaccination status a
PCV6/8 (75.0%)
PCV 101/8 (12.5%)
PCV 131/8 (12.5%)
Clinical data
Treatment prior to admission a
Antibiotics3/8 (37.5%)
Antipyretic2/8 (25.0%)
Hospital length of stay (days) b21.2 (16.4)
PICU (days) b8.0 (3.8)
Respiratory support a2/8 (25.0%)
Oxygen a4/8 (50.0%)
Urokinase a5/8 (62.5%)
Blood test
Leukocytes (c/mm3) b17,971.2 (5751.5)
Procalcitonin (ng/mL) b253.5 (565.4)
Pleural fluid test
Glucose (mg/dL) b19.4 (25.2)
Proteins (g/dL) b5.0 (1.0)
Course and outcome
Course a
Necrotizing pneumonia4/8 (50.0%)
Sepsis1/8 (12.5%)
Sequelae a
Pneumatocele1/8 (12.5%)
Exitus1/8 (12.5%)
a number of patients (%). b mean (standard deviation, SD); PICU: paediatric intensive care unit; PCV: Pneumococcal conjugate vaccine.
Table 2. Description of sequence variants found in the exomes of our patients.
Table 2. Description of sequence variants found in the exomes of our patients.
Sequence Variationn
Downstream6
Exonic76,551
Exonic/splicing50
Intergenic37
Intronic349
ncRNA_exonic5728
ncRNA_exonic; splicing5
ncRNA_intronic483
ncRNA_splicing3
Splicing48
Upstream17
Upstream; Downstream2
3′-UTR10,687
5′-UTR7124
5′-UTR5/3′-UTR15
Non-synonymous SNV38,911
Stopgain368
Stoploss40
Synonymous SNV36,270
Unknown1012
ncRNA: noncoding RNA; UTR: untranslated region; SNV: single nucleotide variant.
Table 3. Association test of the best two single nucleotide polymorphism (SNP) candidates: rs201967957 (G/A) located in gene MEIS1 (chromosome 2) and rs576099063 (G/T) located in gene TSPAN15 (chromosome 10). The table shows results for comparisons of cases versus different control groups, namely, 1000G-IBS, 1000G-GBR, 1000G-TSI, all these 1000G controls merged in a single group (abbreviated as ‘1000G-ALL’).
Table 3. Association test of the best two single nucleotide polymorphism (SNP) candidates: rs201967957 (G/A) located in gene MEIS1 (chromosome 2) and rs576099063 (G/T) located in gene TSPAN15 (chromosome 10). The table shows results for comparisons of cases versus different control groups, namely, 1000G-IBS, 1000G-GBR, 1000G-TSI, all these 1000G controls merged in a single group (abbreviated as ‘1000G-ALL’).
CohortStatistical Valuesrs201967957 (G/A)rs576099063 (G/T)
CasesAF0.93750.8125
1000G-IBSMAF0.093460.1402
OR145.5026.58
p-value3.71 × 10−132.36 × 10−8
1000G-CEUMAF0.139200.08763
OR92.7845.12
p-value4.40 × 10−113.07 × 10−1
1000G-GBRMAF0.089890.15730
OR151.9023.21
p-value4.84 × 10−131.05 × 10−7
1000G-TSIMAF0.15570.1179
OR81.3632.41
p-value1.34 × 10−14.22 × 10−9
1000G-ALLMAF0.120.1262
OR109.9029.99
p-value6.05 × 10−131.60 × 10−9
AF: allele frequency in cases that is minor in controls; MAF: minor allele frequency; OR: odds ratio.
Table 4. Burden test of SNP considering all variants in genes and only those with low frequencies (MAF < 0.05 for the 1000G-IBS cohort). Average DANN per genes was used as covariant for the association test. The genes showing the lowest p-value against the 1000G-IBS control group were further tested in other control groups.
Table 4. Burden test of SNP considering all variants in genes and only those with low frequencies (MAF < 0.05 for the 1000G-IBS cohort). Average DANN per genes was used as covariant for the association test. The genes showing the lowest p-value against the 1000G-IBS control group were further tested in other control groups.
GenesChr.No. SNPp-ValueIBSp-ValueCEUp-ValueGBRp-ValueTSIp-ValueALLp-ValueEC
All variants
OR9G911178.13 × 10−78.94 × 10−71.02 × 10−66.04 × 10−73.05 × 10−7
MUC3A7451.27 × 10−61.27 × 10−61.70 × 10−61.05 × 10−66.15 × 10−78.94 × 10−6
MUC611343.16 × 10−62.56 × 10−63.83 × 10−62.47 × 10−61.45 × 10−61.92 × 10−6
Rare variants
OR9G911115.62 × 10−112.74 × 10−102.21 × 10−121.04 × 10−111.58 × 10−13
MUC611241.90 × 10−106.74 × 10−1201.52 × 10−99.17 × 10−121.22 × 10−8
MUC3A7212.42 × 10−109.23 × 10−116.48 × 10−113.28 × 10−114.65 × 10−124.69 × 10−9
APOB2368.35 × 10−62.37 × 10−55.56 × 10−51.03 × 10−61.28 × 10−61.07 × 10−6
EC: data from the exome sequencing data of the Spanish control group (n = 267) in Dopazo et al. [44]; Chr: chromosome.

Share and Cite

MDPI and ACS Style

Salas, A.; Pardo-Seco, J.; Barral-Arca, R.; Cebey-López, M.; Gómez-Carballa, A.; Rivero-Calle, I.; Pischedda, S.; Currás-Tuala, M.-J.; Amigo, J.; Gómez-Rial, J.; et al. Whole Exome Sequencing Identifies New Host Genomic Susceptibility Factors in Empyema Caused by Streptococcus pneumoniae in Children: A Pilot Study. Genes 2018, 9, 240. https://doi.org/10.3390/genes9050240

AMA Style

Salas A, Pardo-Seco J, Barral-Arca R, Cebey-López M, Gómez-Carballa A, Rivero-Calle I, Pischedda S, Currás-Tuala M-J, Amigo J, Gómez-Rial J, et al. Whole Exome Sequencing Identifies New Host Genomic Susceptibility Factors in Empyema Caused by Streptococcus pneumoniae in Children: A Pilot Study. Genes. 2018; 9(5):240. https://doi.org/10.3390/genes9050240

Chicago/Turabian Style

Salas, Antonio, Jacobo Pardo-Seco, Ruth Barral-Arca, Miriam Cebey-López, Alberto Gómez-Carballa, Irene Rivero-Calle, Sara Pischedda, María-José Currás-Tuala, Jorge Amigo, José Gómez-Rial, and et al. 2018. "Whole Exome Sequencing Identifies New Host Genomic Susceptibility Factors in Empyema Caused by Streptococcus pneumoniae in Children: A Pilot Study" Genes 9, no. 5: 240. https://doi.org/10.3390/genes9050240

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
