A Review of Tropospheric Atmospheric Chemistry and Gas-Phase Chemical Mechanisms for Air Quality Modeling

1
Department of Chemistry, Howard University, 525 College Street, NW, Washington, DC 20059, USA
2
Center for Environmental Research and Technology, University of California, Riverside, CA 92521, USA
*
Author to whom correspondence should be addressed.
Atmosphere 2012, 3(1), 1-32; https://doi.org/10.3390/atmos3010001
Submission received: 25 October 2011 / Revised: 24 November 2011 / Accepted: 12 December 2011 / Published: 21 December 2011
(This article belongs to the Special Issue Air Pollution Modeling: Reviews of Science Process Algorithms)

Abstract

:
Gas-phase chemical mechanisms are vital components of prognostic air quality models. The mechanisms are incorporated into modules that are used to calculate the chemical sources and sinks of ozone and the precursors of particulates. Fifty years ago essential atmospheric chemical processes, such as the importance of the hydroxyl radical, were unknown and crude air quality models incorporated only a few parameterized reactions obtained by fitting observations. Over the years, chemical mechanisms for air quality modeling improved and became more detailed as more experimental data and more powerful computers became available. However it will not be possible to incorporate a detailed treatment of the chemistry for all known chemical constituents because there are thousands of organic compounds emitted into the atmosphere. Some simplified method of treating atmospheric organic chemistry is required to make air quality modeling computationally possible. The majority of the significant differences between air quality mechanisms are due to the differing methods of treating this organic chemistry. The purpose of this review is to present an overview of atmospheric chemistry that is incorporated into air quality mechanisms and to suggest areas in which more research is needed.

Graphical Abstract

1. Introduction

The gas-phase chemistry of the polluted atmosphere determines the effect of emissions on the production of ozone (O3), particulate matter, acids and other air pollutants. The chemical mechanism is developed from laboratory and field measurement data and consists of chemical species, reactions, rate constants and photochemical data (used to calculate photolysis frequencies). Nitrogen oxides, organic compounds and sulfur compounds are the key chemical compounds treated by air quality chemical mechanisms for modeling the polluted troposphere. The mechanism is translated into differential equations. The differential equations are coded into computer models that include numerical solvers that are used to simulate the chemical fate of air pollutants. Therefore mechanism developers must consider both chemistry and the limitations of computational resources.
The first goal of this paper is to present a brief overview of the approaches to create chemical mechanisms for modeling the chemistry of the polluted troposphere. The most significant differences between these air quality mechanisms are due to the differing methods of treating atmospheric organic chemistry. The three major types are surrogate mechanisms, mechanisms that aggregate organic compounds by chemical moiety and mechanisms that aggregate organic compounds by chemical species.
The second goal is to present a discussion of the behavior of the chemical mechanisms that are used for air quality modeling. Although previous studies of mechanism behavior have been published (e.g., [1,2,3,4]), very substantial changes have been made to the mechanisms over the last forty years due to growth in the chemical knowledge [5,6,7,8].

2. Atmospheric Chemical Mechanisms for Modeling the Polluted Troposphere

2.1. Explicit Mechanisms

Explicit mechanisms consist of explicit reactions for individual compounds. Atmospheric chemistry mechanisms usually include explicit mechanisms for the reactions of inorganic compounds, O3, nitric oxide (NO), nitrogen dioxide (NO2), NOx (NO + NO2), hydroxyl radical (HO), the hydroperoxy radical (HO2) and sulfur dioxide (SO2). A typical mechanism for tropospheric inorganic chemistry consists of fewer than 20 species in about 45 inorganic reactions.
The organic chemistry of the troposphere is much more complicated. There are thousands of compounds emitted from biological sources [9] and from anthropogenic sources [10]. The NCAR (National Center for Atmospheric Research) Master Mechanism includes about 800 organic species and 2200 reactions [11] while the Master Chemical Mechanism (MCM) mechanism consists of 2400 species, 7100 reactions for 124 emitted organic compounds [12]. A completely explicit chemical mechanism for the troposphere with all the chemical reactions of every compound could contain millions of reactions [13].
It is impossible to construct an atmospheric gas-phase mechanism from only published laboratory chemical kinetics data because there are significant gaps [14]. Many assumptions and estimates are made to fill in the gaps in order to construct an explicit atmospheric chemistry mechanism (and any other atmospheric chemical mechanism). Some of the largest gaps exist with radical-radical reactions and the oxidation schemes for aromatic and biogenically emitted compounds. For example, the MCM includes detail that exceeds available laboratory data. Many of the mechanism’s organic degradation schemes were developed according to theoretical methodologies such as structure activity relationships (SARs). The MCM has been tested against environmental chamber experiments and field data. This testing has shown that the mechanism can simulate these measurements reasonably well.
Explicit mechanisms are mainly used in box models for chemical research. They are not very practical for 3-D air quality models because of their extensive computational requirements. A reduced version of the MCM has been developed and used for 3-D air quality modeling [15,16]. The practical problem is due to computational issues involving three-dimensional Eulerian regional air quality models. These models consist of 105 or more grid boxes [17]. Every chemical species that exists long enough to be transported by atmospheric motions is a prognostic variable that must be calculated explicitly. Each prognostic variable adds one ordinary differential equation that must be solved and an additional storage location for every grid box. Increasing the number of chemical species also increases significantly the computational demands for transport calculations [18]. A complete, explicit, gas-phase chemical mechanism in Eulerian regional air quality models is not practical with present computer technology. Therefore chemical mechanisms must be condensed to limit the size of the mechanism to no more than a few hundred reactions and near one hundred model chemical species [19]. Classes of simplified chemical mechanisms for air quality modeling include surrogate mechanisms and aggregated mechanisms as discussed in the next sections.

2.2. Surrogate Mechanisms

A surrogate mechanism is a mechanism that is somewhere between explicit and aggregated mechanisms. A surrogate mechanism uses the explicit chemistry of a few selected organic species to represent the atmospheric chemistry of all volatile organic compounds (VOC). One of the earliest was the Empirical Kinetics Modeling Approach (EKMA) developed by Dimitriades and Dodge [20]. The EKMA mechanism represented atmospheric organic chemistry with butane and propene as surrogate species. The combination of a less reactive alkane and a more reactive alkene allowed representation of a wide range of the overall reactivity of a mixture of VOCs.
The EKMA mechanism was implemented in a box model for most applications. The model was used to simulate the air quality of a particular site. An estimate of an appropriate mixture of butane and propene was determined from the site’s emissions inventory. Then the box model was used to make a series of simulations with various initial concentrations and/or emissions of NOx and VOC. Maximum O3 concentrations were plotted as contour diagrams as functions of the initial NOx and VOC concentrations; these diagrams are known as an ozone isopleths. The EKMA ozone isopleths were used for developing air quality control strategies and ozone isopleths calculated by more rigorous methods. Figure 1 shows a sample ozone isopleth generated with the RADM2 (Regional Acid Deposition Mechanism, version 2) mechanism [21]. For example, the figure shows that when NOx concentrations are below 50 ppb (ppbN) that further reductions in NOx would not be effective in reducing the O3 concentration. However at this level of NOx the O3 concentrations are very sensitive to the VOC concentration. The figure also shows that for greater NOx concentrations that reductions in either the initial NOx or VOC concentration may lead to less O3.

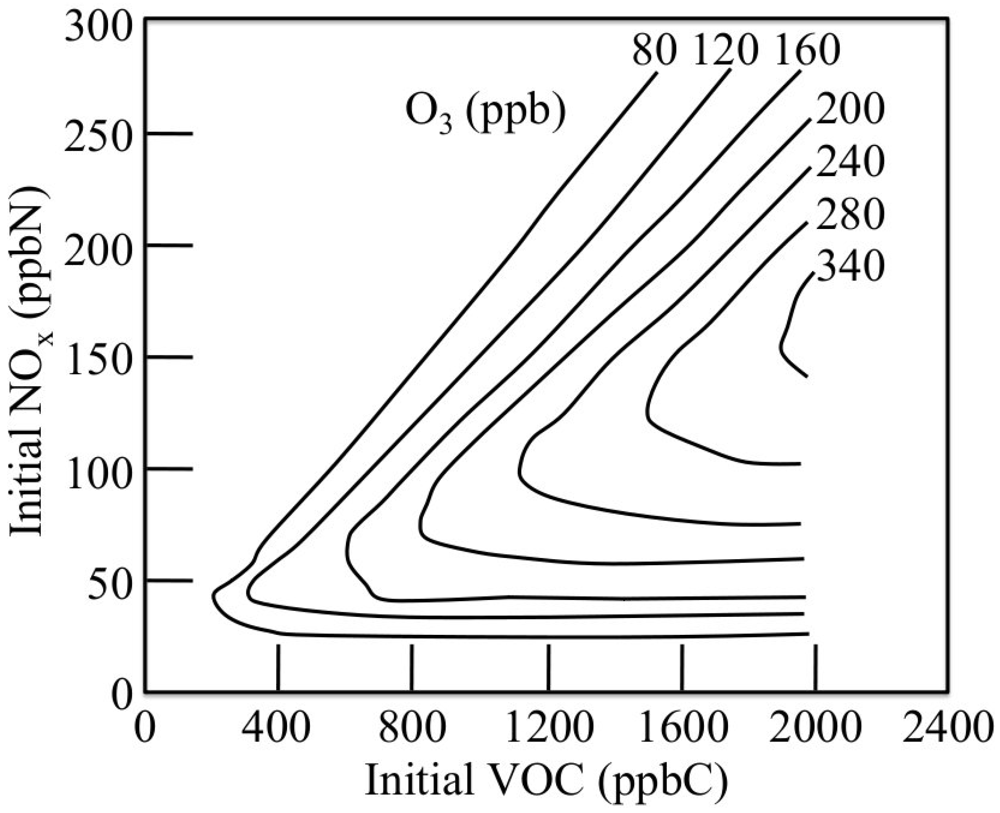

Figure 1. Typical ozone isopleth generated with the RADM mechanism [21].
Figure 1. Typical ozone isopleth generated with the RADM mechanism [21].
Atmosphere 03 00001 g001

2.3. Aggregated Chemical Mechanisms

Aggregated mechanisms use model species to represent the reactions of entire classes of organic compounds. One major method used for chemical aggregation is to aggregate by chemical moiety. The early Carbon Bond Mechanism was an extremely innovative approach to the atmospheric organic chemistry of the polluted urban atmosphere [22,23]. Carbon Bond is a mechanism that aggregates organic compounds into model species according to constituent molecular groups. In the Carbon Bond Mechanism the model species represent the concentrations of constituent groups regardless of the molecule to which they are attached. For example, the Carbon Bond mechanism included model species such as PAR (alkane carbon atoms), OLE (double bonded carbon atoms), ARO (aromatic rings) and CAR (carbonyl group). Suppose there was a mixture of 1.0 ppmV of butane (CH3CH2CH2CH3) and 1.0 ppmV of propene (CH3HC=CH2). These chemical species would be grouped as 4.0 ppmC PAR from the butane and additional 1.0 ppmC PAR and 1.0 ppmC OLE from the propene for a total of 5.0 ppmC PAR and 1.0 ppmC of OLE. A key advantage of the original Carbon Bond approach was its relative ease in grouping emissions into species, the conservation of carbon atoms and the relatively low number of chemical species required to represent organic chemistry.
The lower number of species and its relatively small size resulted in reduced the computational resources needed to run models with the mechanism. The original Carbon Bond approach has declined as the mechanism has been developed and the approach is increasingly the same as an aggregated molecule mechanism because constituent groups on the same molecule and the total molecular weight strongly affect atmospheric chemistry [24,25]. However it is surprising that relatively minor modifications to recent versions of the Carbon Bond Mechanism allow it to estimate secondary organic aerosol concentrations that are very similar to those of more complex mechanisms [26].
A more obvious method of aggregating chemical species into model species is aggregation by molecule. Moles of similar chemical compounds are aggregated into a grouped model species. For example, the model species “ALD” might represent all aldehydes while “PRO” might represent propane and all less reactive alkanes according to an aggregation by molecule approach. In some schemes weighting factors to account for chemical reactivity or carbon mass may be applied in the aggregation scheme (e.g., [27]). The series of mechanisms produced by the Statewide Air Pollution Research Center (SAPRC) at the University of California, Riverside, is an important example of aggregated chemical mechanisms. This series of mechanisms includes SAPRC-90, SAPRC-99 and SAPRC-07 air quality mechanisms [28,29,30]. Versions of SAPRC can represent about 400 categories of VOCs while condensed versions with less complexity in the VOC chemistry has been created for urban and regional air quality models. SAPRC was originally designed for the treatment of highly polluted urban atmospheres and it has evolved to treat regional chemistry as well.
Some mechanisms were developed originally for regional applications and therefore needed to account for a wider range of pollutant concentrations. Regional mechanisms are designed to provide predictions for urban regions and for the regional scale. The regional scale includes locations where NOx concentrations are lower and where the reactivity of more slowly reacting organic compounds is more important than in urban areas. One widely used example is the Regional Atmospheric Chemical Mechanism, version 1 (RACM1), the Regional Atmospheric Chemical Mechanism, version 2 (RACM2) and their predecessors aggregate organic compounds by molecule [21,27,31,32]. RACM2 currently has a total of 118 model chemical species with a total of 356 reactions.

3. The Chemistry of Air Pollution

3.1. Methods and Models

Simulations were made to illustrate important chemical processes relevant to air quality in this study. They were performed using a box modeling system described previously with the RACM2 mechanism [31,33]. All simulations were made with gas-phase chemistry for clear sky and constant meteorological conditions. Physical loss processes, such as deposition, were not included. The first set included simulations of simple mixtures without emissions. A second set of simulations were made for a polluted urban case was simulated that included emissions.
The rate of photolysis of O3 and any other compound is the product of the compound’s concentration and the reaction’s photolysis frequency, J. The photolysis frequency is the integral of the product of the wavelength dependent, λ, spherically integrated actinic flux, I(λ), the absorption cross-section, σ(λ), and the quantum yield, φ(λ), (probability that molecule will react after absorbing a photon of wavelength λ), Equation 1.
Atmosphere 03 00001 i001
The photolysis rate coefficients for the photochemical reactions were calculated using the delta-Eddington radiative transfer model [34]. The RACM2 mechanism includes 33 photolysis reactions. The absorption cross-sections and quantum yields have been revised to be consistent with recent recommendations [7,8]. Aldehydes that have photolysis reactions included in RACM2 are formaldehyde, acetaldehyde, a higher aldehyde, unsaturated aldehyde (formed from aromatic oxidation) and benzaldehyde. Two photolysis reactions are included for peroxyacetyl nitrate. The ketones with photolysis reactions in RACM2 are acetone, methethylketone, methylvinylketone and a higher ketone. The product yields glyoxal, methyl glyoxal and higher dicarbonyl species have been revised for RACM2 based on the recent data.
All simulations discussed below were made for the surface level with the conditions given in Table 1. Simulations were performed for an O3 only system, with variations upon the addition of NOx, and VOCs. Specific cases included adjusting the VOC to NOx ratio by doubling and halving ethene concentrations, Table 2. Simulations were made with the RACM2 mechanism with initial conditions and emissions for a polluted urban atmosphere, Table 1 and Table 3. Note that in Table 3 for temperatures of 298 K and pressures of 1 atmosphere, “Slow Alkanes” in RACM2 are defined to have HO rate constants less than 3.4 × 10−12 cm3 s−1, “Medium Alkanes” have HO rate constants between 3.4 × 10−12 and 6.8 × 10−12 cm3 s−1and “Fast Alkanes” have HO rate constants greater than 6.8 × 10−12 cm3 s−1. “Internal Alkenes” have double bond in an internal position and “Terminal Alkenes” have a double bond in the terminal position.
These simulations were repeated for a range of temperatures 296, 298 and 300 and these are discussed in section “3.8. The Effect of Temperature on Ozone Formation”.
Table 1. Conditions used for all simulations.
Table 1. Conditions used for all simulations.
Initial ConditionValue
Start-Time6:00
Duration48 h
Temperature298 K
Pressure1013.25 mbar
H2O Mixing Ratio15,500 ppm
H2 Mixing Ratio550 ppm
Date for photolysis calculation21 June
Latitude40°
Table 2. Simplified simulations made to illustrate atmospheric chemistry mechanisms.
Table 2. Simplified simulations made to illustrate atmospheric chemistry mechanisms.
CaseO3 (ppb)NO2 (ppb)Ethene (ppb)
O3 only3000
NO2 only0300
Ethene 4 *302.55
Ethene 8 *302.510
Ethene 16 *302.520
* VOC/NOx ratio.
Table 3. Initial concentrations and emissions used for the simulation of a polluted urban atmosphere. The initial VOC to NOx ratio is 19.
Table 3. Initial concentrations and emissions used for the simulation of a polluted urban atmosphere. The initial VOC to NOx ratio is 19.
SpeciesInitial Concentration (ppb)Emission Rate (ppb min−1)
Inorganic
Ozone30---
Nitric Oxide8.2.77 × 10−3
Nitrogen Dioxide25.43 × 10−4
Sulfur Dioxide302.94 × 10−3
Carbon Monoxide10004.53 × 10−3
Hydrogen550---
Organic
Methane1800
Ethane38.03 × 10−5
Slow Reacting Alkanes101.86 × 10−3
Medium Reacting Alkanes2.56.81 × 10−4
Fast Reacting Alkanes1.55.10 × 10−4
Ethene2.06.78 × 10−4
Internal Alkenes1.03.47 × 10−4
Terminal Alkenes2.06.94 × 10−4
Dienes0.51.74 × 10−4
Benzene0.91.06 × 10−4
Toluene2.06.05 × 10−4
Xylene2.06.94 × 10−4
o-Xylene1.03.44 × 10−4
Methanol0.1---
Ethanol0.1---
Higher Alcohols0.1---
Formaldehyde2.53.21 × 10−5
Acetylene2.01.58 × 10−4
Acetaldehyde1.03.15 × 10−5
Higher Aldehyde0.5---
Acetone0.3---
Methyl Ethyl Ketone2.0---
Higher Ketone2.0---
Ethylene Glycol0.2---
Methylglyoxal0.05---
Methacrolein0.1---
Methyl Vinyl Ketone0.1---
Isoprene3.41.18 × 10−3
α-Pinenes1.03.47 × 10−4
d-Limonene1.03.47 × 10−4

3.2. The Inorganic Chemistry of Ozone Production

Ozone is a constituent of the natural troposphere due primarily to its production in the stratosphere [35]. A fraction of stratospheric O3 passes to the troposphere (transported by folding events, for example). Some of the O3 is lost through photochemistry and other reactions and it is deposited to the Earth’s surface. Excited oxygen atoms, O(1D), are produced by the photolysis of O3.
O3 + hυ → O(1D) + O2
The majority of the O(1D) are quenched to yield ground state oxygen atoms (O(3P)).
O(1D) + N2 → O(3P) + N2
O(1D) + O2 → O(3P) + O2
The O(3P) react with oxygen molecules to form O3, Reaction 5.
O(3P) + O2 + M → O3 + M
In Reaction 5, M represents molecular nitrogen, oxygen or other gaseous species that transfers excess energy from the transition state to stabilize the potential O3 molecule. Almost all of the O(3P) in the troposphere react with oxygen molecules (except in highly polluted emission plumes) because Reaction 5 is very fast in the troposphere due to its high oxygen concentrations and high pressure.
Although most of the O(1D) are quenched to reform O(3P) a fraction of the O(1D) react with water vapor to form HO. The HO radical is the most important oxidant found in the troposphere.
O(1D) + H2O → 2HO
The effects of these reactions are illustrated by a simulation of a mixture of O3 in background air without NOx or reactive VOC. In the simulation O3 is photolyzed during the daytime to produce O(1D), Figure 2. Note the extremely low mixing ratios of the O(1D).

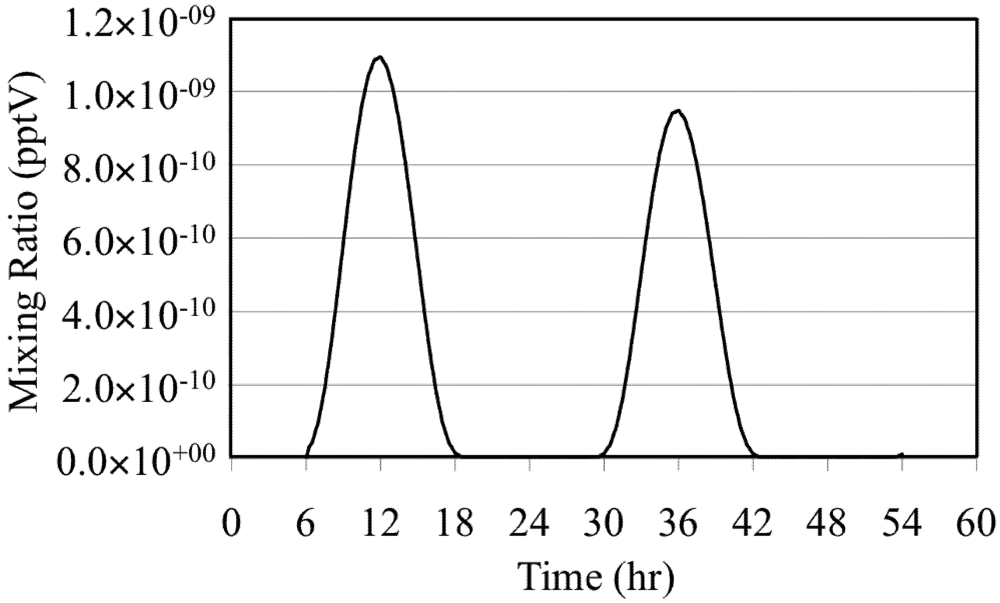

Figure 2. Excited oxygen atom (O(1D)) for the O3 only case.
Figure 2. Excited oxygen atom (O(1D)) for the O3 only case.
Atmosphere 03 00001 g002
The mixing ratio of the O(1D) follows the solar zenith angle with the peak mixing ratio occurring at the local solar noon due to its photochemical production. The HO reacts rapidly with O3 to produce HO2, Figure 3.
HO + O3 → HO2 + O2

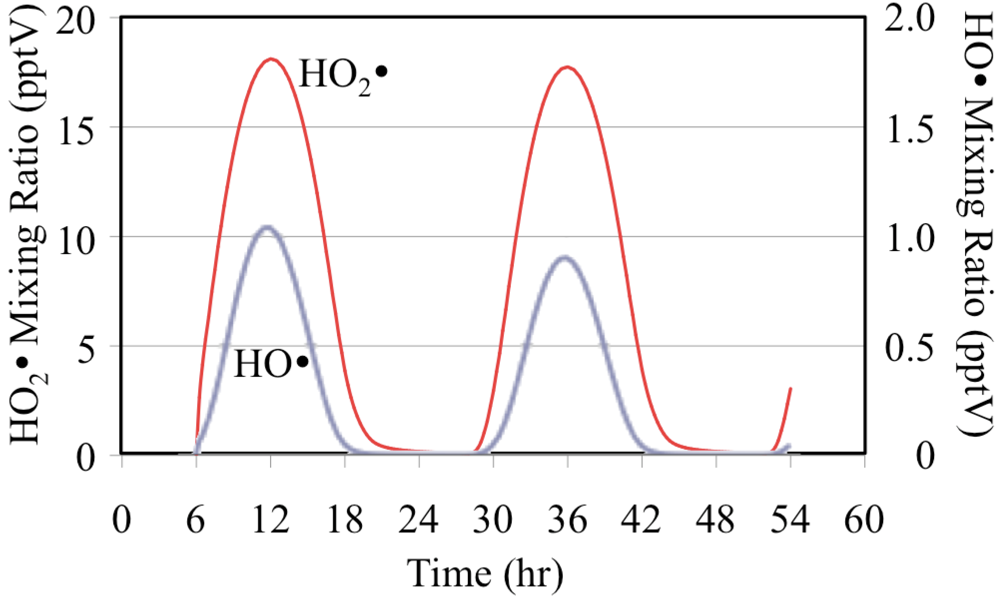

Figure 3. HO and HO2 radicals for the O3 only case.
Figure 3. HO and HO2 radicals for the O3 only case.
Atmosphere 03 00001 g003
The net effect of the photolysis of O3 and its reactions with HO and HO2 is to reduce O3 mixing ratios on the second day, Figure 4. On the second day the lower mixing ratios of O3 reduce the formation rate of O(1D) from photolysis and therefore the O(1D) mixing ratios are lower, Figure 2. The lower second day O(1D) mixing ratios reduce the mixing ratios of the HO radical, Figure 3. The HO2 mixing ratios are lower on the second day but the relative reduction is not as great for HO2 as it is for O(1D) and HO.
Figure 4. Ozone mixing ratios for the O3 only case.
Figure 4. Ozone mixing ratios for the O3 only case.
Atmosphere 03 00001 g004
The photolysis of NO2 is the major source of O(3P). These react to produce tropospheric O3 through Reaction 5.
NO2 + hν → NO + O(3P)
Reaction 9 is a major sink reaction for O3 and NO.
O3 + NO → NO2 + O2
Reactions 8 and 9 play a major role in controlling tropospheric O3 concentrations. As stated above, Reaction 5 is very fast in the troposphere so all of the O(3P) produced by NO2 photolysis can be assumed to react to produce O3. If Reactions 8 and 9 are in equilibrium then the O3 concentration is given by the O3 photostationary state approximation (PSSA), Equation 10 [36].
Atmosphere 03 00001 i002
The brackets indicate chemical concentrations for the respective species, JNO2 is the solar radiation dependant photolysis frequency of Reaction 8 and k is the rate constant of Reaction 9. The value of JNO2 depends on the intensity of solar radiation and for this reason JNO2 follows the solar diurnal cycle. According to t34he PSSA the O3 concentration follows the solar diurnal cycle if there is no carbon monoxide or reactive organic compounds present, Figure 5.

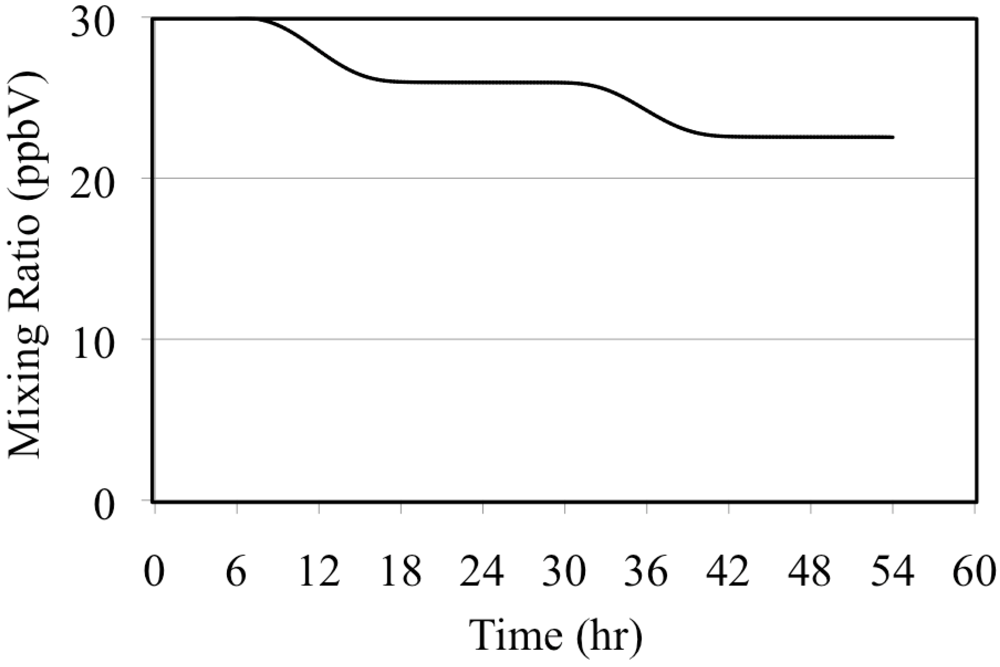

Figure 5. Ozone mixing ratios are shown for the NO2 only case.
Figure 5. Ozone mixing ratios are shown for the NO2 only case.
Atmosphere 03 00001 g005

3.3. The Effects of Hydrocarbons on Ozone Production

Real tropospheric O3 production occurs when additional reactions involving CO, VOC, nitrogen oxides, HO, HO2 and organic peroxy radicals (RO2 and RCO3), increase the NO2 to NO concentration ratio [3,36]. The reaction of HO radicals with CO and VOC produce peroxy radicals that convert NO to NO2. Reaction 11 illustrates the formation of the hydroperoxy radical.
HO + CO (+ O2) → HO2 + CO2
The formation of the hydroperoxy radical provides a key pathway to the “extra” conversions of NO to NO2 that are needed for O3 production.
HO2 + NO → HO + NO2
There are many VOC compounds that are important for atmospheric chemistry [3,35]. For example, alkanes are hydrocarbons (containing only hydrogen and carbon atoms) and the atoms are bonded together with only single bonds. Methane (CH4) is the simplest example of an alkane. Other examples include ethane (CH3CH3), propane (CH3CH2CH3), n-butane (CH3CH2CH2CH3) and tertiary-butane (CH3)3CH. The hydrogen atoms on the CH3, CH2 and CH groups are called primary, secondary and tertiary hydrogen atoms, respectively.
Alkanes react with HO through abstraction of a hydrogen atom, leading to the production of hydroperoxy radicals and organic peroxy radicals [3]. Methane reacts with HO and it abstracts a hydrogen atom to form a methyl radical and water.
HO + CH4 → CH3 + H2O
The methyl radical rapidly reacts with oxygen to produce a methyl peroxy radical.
CH3 + O2 → CH3O2
The methyl peroxy radical reacts with NO to convert it to NO2.
CH3O2 + NO → CH3O + NO2
The methoxy radical CH3O, reacts with oxygen to form formaldehyde and a hydroperoxy radical.
CH3O + O2 → CH2O + HO2
The HO2 radical reacts with NO to make one more NO to NO2 conversion through Reaction 12. The net effect of the initial reaction of the HO radical with an alkane is to produce several NO to NO2 conversions and these conversions increase the [NO2]/[NO] ratio by Equation 10, and so the concentration of O3 increases.
For alkanes with more complicated structures HO may abstract any of an alkane’s hydrogen atoms but both reactivity differences between the different kinds of hydrogen atoms and the number of the kinds of hydrogen atoms affect the quantity of the different possible products. For alkanes, tertiary hydrogen atoms are more reactive than secondary and secondary hydrogen atoms are more reactive than primary hydrogen atoms. Reactions 17 and 18 illustrate the two possible channels for the reaction of n-butane with HO.
Primary Hydrogen Abstraction
CH3CH2CH2CH3 + HO → CH3CH2CH2CH2 + H2O
Secondary Hydrogen Abstraction
CH3CH2CH2CH3 + HO → CH3(CH)CH2CH3 + H2O
The two different radicals react with molecular oxygen to produce a primary organic peroxy radical, Reaction 19 and a secondary organic peroxy radical, Reaction 20.
CH3CH2CH2CH2 + O2 → CH3CH2CH2CH2O2
CH3(CH)CH2CH3 + O2 → CH3CHO2CH2CH3
The primary organic peroxy radical reacts with NO to produce a primary alkoxy radical that reacts with oxygen to yield n-butanal, CH3CH2CH2CHO and a HO2 radical.
CH3CH2CH2CH2O2 + NO → CH3CH2CH2CH2O + NO2
CH3CH2CH2CH2O + O2 → CH3CH2CH2CHO + HO2
The secondary organic peroxy radical reacts with NO to produce a secondary alkoxy radical that reacts with oxygen to yield methyl ethyl ketone, CH3(CO)CH2CH3 and a HO2 radical.
CH3(CHO2)CH2CH3 + NO → CH3(CHO)CH2CH3 + NO2
CH3(CHO)CH2CH3 + O2 → CH3(CO)CH2CH3 + HO2
Alkenes are hydrocarbons with at least one double bond. Alkenes lead to greater O3 production than alkanes because of their higher rate constant for the reaction with HO. Ethene, CH2=CH2, is the simplest example of an alkene while propene, CH3CH=CH2, is the next higher compound in the series. An alkene’s rate constant for its reactions with HO, O3 and the resulting reaction products, depends very strongly on the location and number of double bonds in the alkene. For example, butene may have the double bond located at the end of the molecule, CH2=CHCH2CH3 (1-butene), or within the molecule, CH3CH=CHCH3 (2-butene). In this case the rate constant for the reaction of HO with 2-butene is greater than its reaction with 1-butene.
In contrast to alkanes, the HO reacts with alkenes through addition to either carbon atom of the double bond. For example, propene adds HO to produce a radical that adds an oxygen molecule to form a peroxy radical (CH3(HCOH)CH2O2), Reactions 25 and 26.
CH3HC=CH2 + HO → CH3(HCOH)CH2
CH3(HCOH)CH2 + O2 → CH3(HCOH)CH2O2
The CH3(HCOH)CH2O2 radical reacts with NO to produce NO2 and a hydroxy-carbonyl compound, Reactions 27 and 28.
CH3(HCOH)CH2O2 + NO → CH3(HCOH)CH2O + NO2
CH3(HCOH)CH2O + O2 → CH3(HCOH)CHO + HO2
The net effect is to convert NO to NO2 and this produces more O3 as discussed above.
The reaction of alkenes with O3 forms many products including carbonyl compounds and HO [4,37,38,39]. The reactions of alkenes with O3 are a small but dominant nighttime source of HO. For example, the O3 molecule inserts itself across the double bond of propene, Reaction 29.
CH3CH=CH2 + O3 → CH3CHOOOCH2
The CH3CH2OOOCH2product fragments through two different reactions to make acetaldehyde, formaldehyde, CH2O, and excited Criegee radicals, [CH2OO] and [CH3CHOO].
CH3CHOOOCH2 → CH3CHO + [CH2OO]
CH3CHOOOCH2 → CH2O + [CH3CHOO]
The excited Criegee radicals produce a wide variety of products, with one of the reactions producing HO radicals [37].
[CH2OO] → HCO + HO
The effect of reactive organic compounds on O3 formation is illustrated by three of simulations that initially contained O3, ethene and NO2. The VOC/NOx ratios were 4, 8 and 16 ppbC/ppbN. The production of ozone for the chosen initial concentration of NO2 was VOC limited because the ozone mixing ratio increased with increasing initial concentrations of ethene, Figure 6.

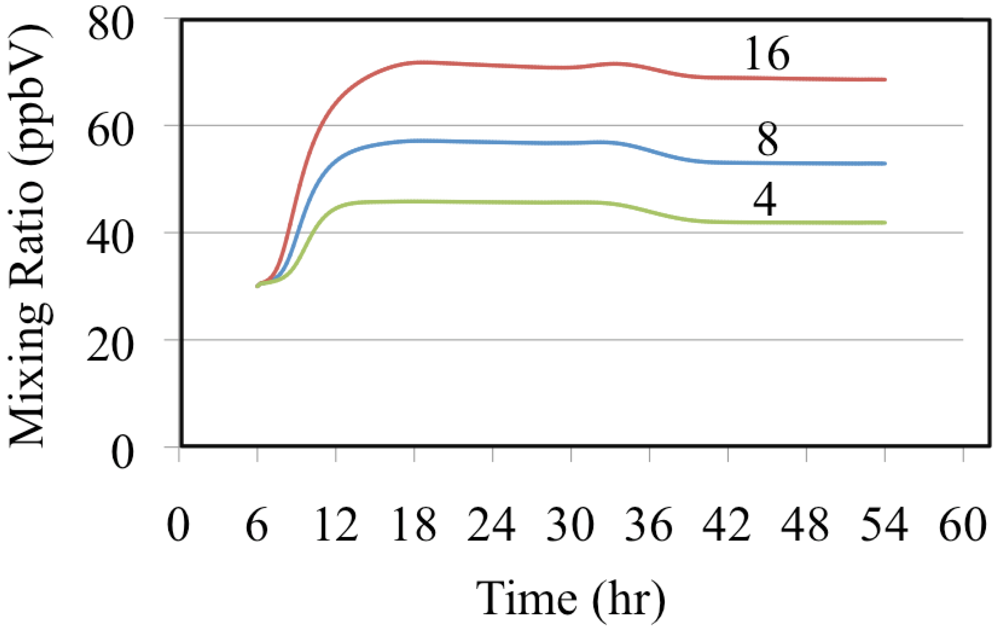

Figure 6. Ozone mixing ratios are shown for the ethene cases.
Figure 6. Ozone mixing ratios are shown for the ethene cases.
Atmosphere 03 00001 g006
Figure 6 shows that for these cases O3 was formed rapidly on the first day but on the second day the air was aged and there was a small loss of O3. Notice that the rate of O3 formation during the morning of the first day depends on the VOC/NOx ratio. The mixture with a VOC/NOx ratio of 16 ppbC/ppbN forms O3 between 8:00 and 10:00 at a rate of 9.2 ppb h−1 while for VOC/NOx ratios of 8 and 4 ppbC/PPbN the rates are 6.7 and 3.7 ppb h−1, respectively. The presence of ethene leads to the production of organic peroxy radicals (CH2OH-CH2O2, in this case), Figure 7 and HO2 radicals, Figure 8. Greater VOC/NOx ratios lead to higher mixing ratios of peroxy radicals, CH2OH-CH2O2 (in this case), and increased production of O3 due to more rapid conversion of NO to NO2.

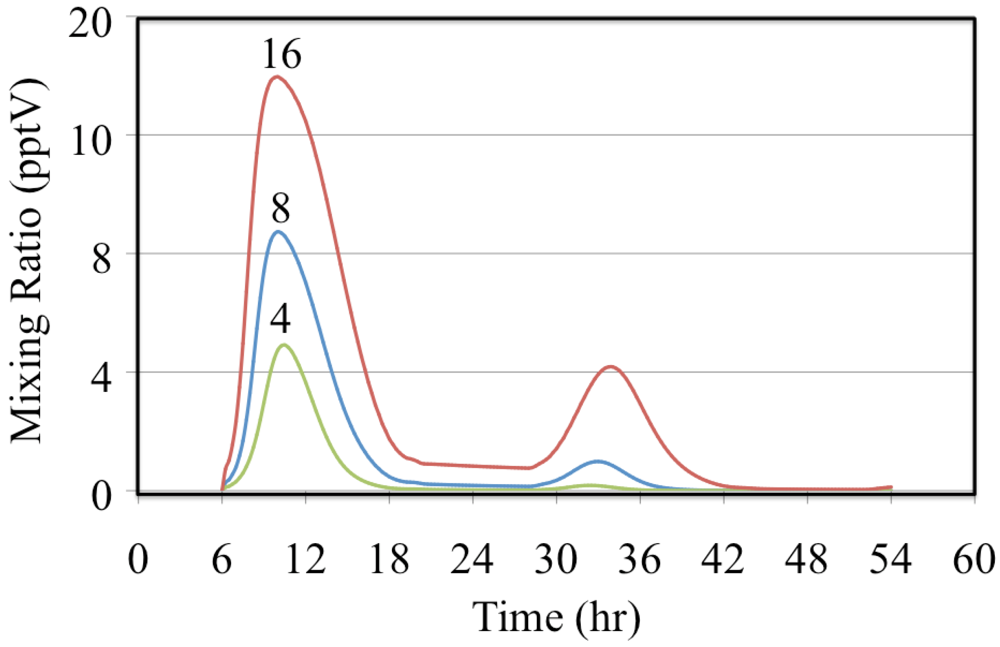

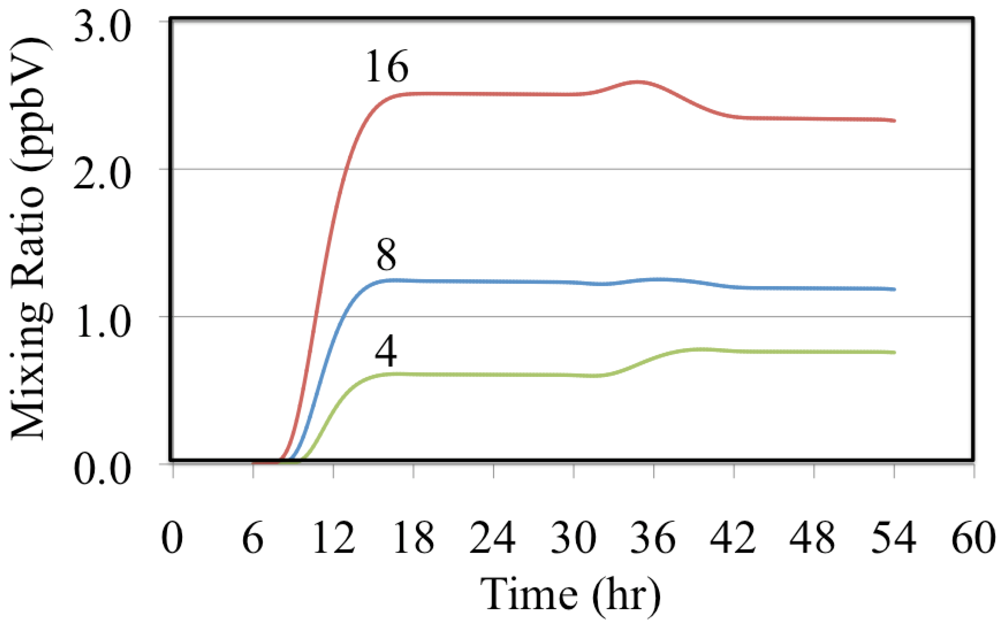

Figure 7. The CH2OH-CH2O2, radical mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 7. The CH2OH-CH2O2, radical mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g007

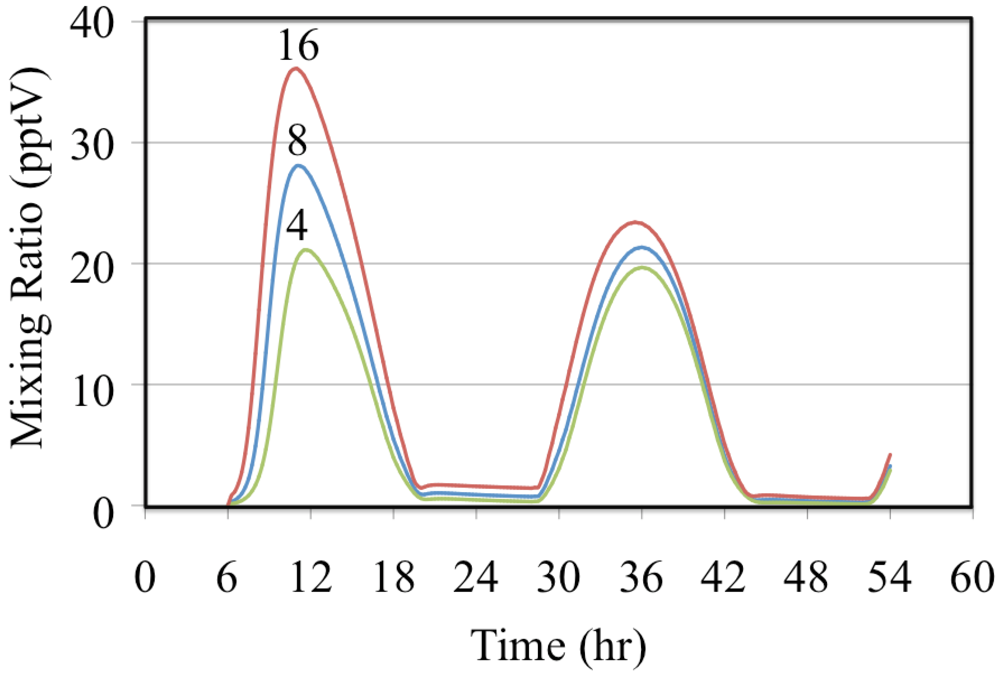

Figure 8. Hydroperoxy radical, HO2, mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 8. Hydroperoxy radical, HO2, mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g008
The formation of O3 occurs as a deviation from the PSSA, Equation 10. Equation 10 can be rearranged to give Equation 33.
Atmosphere 03 00001 i003
If a simulated atmosphere obeyed the PSSA, the left hand and right hand sides of Equation 33 would be equal. Since JNO2/k, time dependent ratio of the photolysis frequency of NO2 to the rate constant for the O3 + NO reaction, is fixed for a given set of conditions it can be used as a basis for comparison with the ratio, [O3] × [NO]/[NO2].These are plotted on Figure 9 for the three simulated ethene cases.

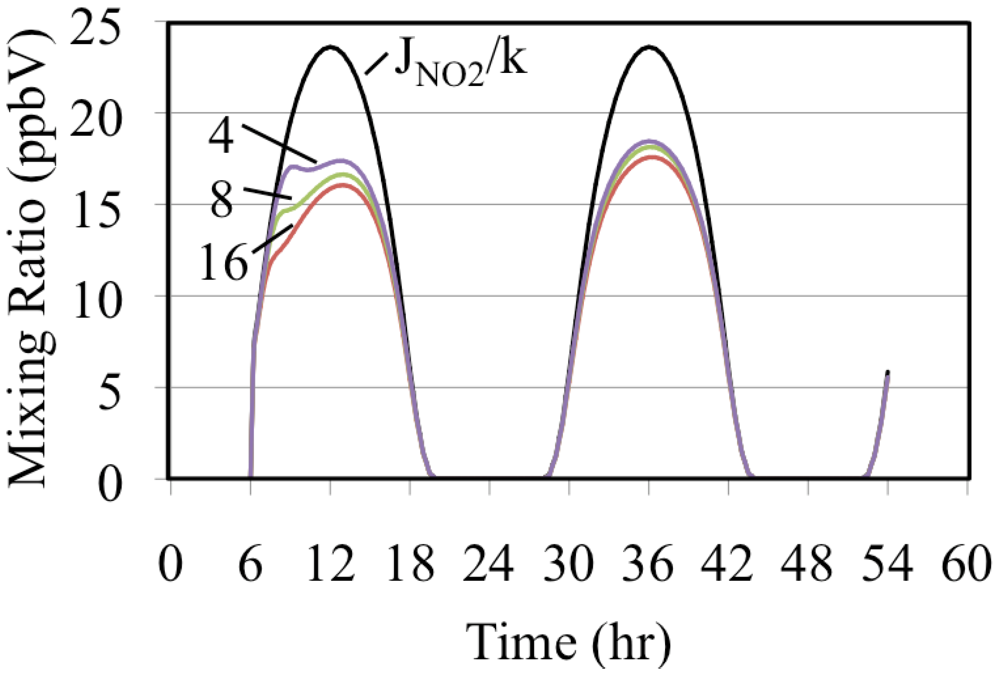

Figure 9. The uppermost curve is the time dependent NO2 photolysis frequency divided by the rate constant for the O3 + NO reaction. The lower plots are the ratio, [O3] × [NO]/[NO2], for the three ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 9. The uppermost curve is the time dependent NO2 photolysis frequency divided by the rate constant for the O3 + NO reaction. The lower plots are the ratio, [O3] × [NO]/[NO2], for the three ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g009
Figure 9 shows that the greater the initial mixing ratios of ethene the greater the deviation from the PSSA. Comparison of Figure 6 and Figure 9 show that the greater the deviation from the PSSA the greater the formation. This result is in accord with the higher mixing ratios of peroxy radicals that are associated with higher VOC/NOx ratios. Increased peroxy radical concentrations provide faster conversion of NO to NO2. This increases the production rate of O3 by the increasing the NO2 photolysis rate. The conversion of NO to NO2 reduces the O3 loss rate by reducing the rate of the O3 reaction with NO. Increasing the O3 production rate and decreasing its destruction rate at the same time has the net effect of increasing O3 mixing ratios. The greater the O3 production the greater the deviation from [O3] × [NO]/[NO2] for these reasons [36].
HO2 and HO radicals are in equilibrium and the partitioning between the concentrations of these two radicals depends on the NO concentration. In this case higher mixing ratios of HO2 are associated with lower mixing ratios of HO, Figure 8 and Figure 10.

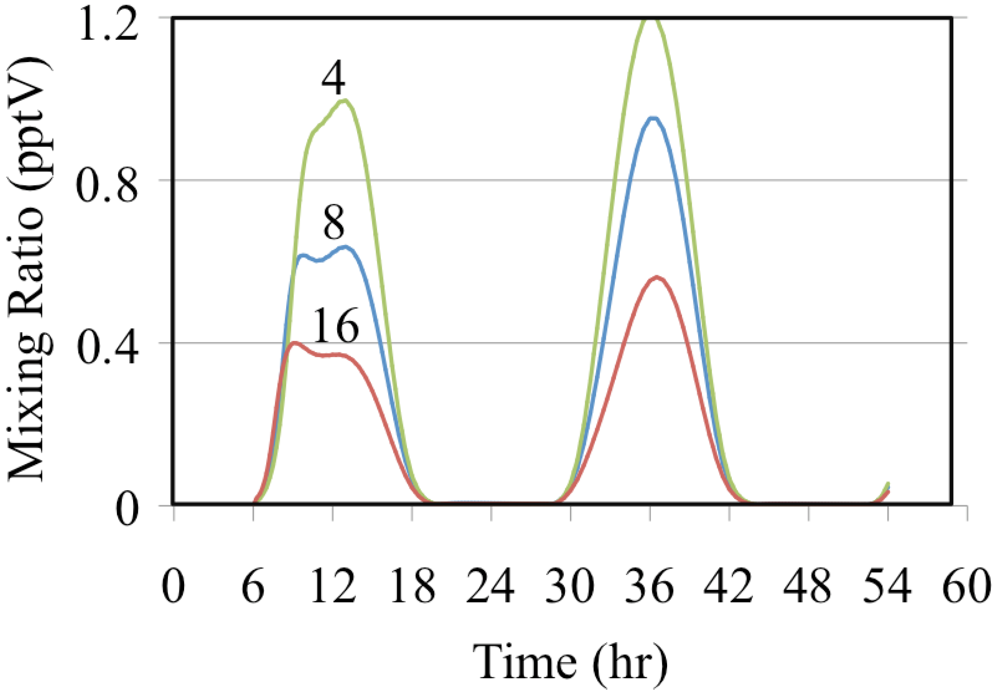

Figure 10. Hydroxyl radical, HO, mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 10. Hydroxyl radical, HO, mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g010
Aromatic compounds are the third type of hydrocarbon that is important for air pollution, and is the subject of ongoing research. The oxidation mechanism of aromatic compounds leads to the production of peroxy radicals and high molecular weight compounds that may condense to produce secondary organic aerosols. The chemistry of oxidation of aromatic compounds is very complicated and there are too many compounds and reactions to include in a mechanism to be routinely used for air quality modeling. There are at least several hundred reactions and products for a parent aromatic compound [40]. The chemistry of a reaction of the HO radical with an organic substituent attached to an aromatic ring is the easiest to describe. However, only about 10% of the hydroxy radicals abstract hydrogen atoms from an alkyl group, attached to an aromatic ring. In this case the chemical mechanism will be that of the substituent group. For example, when HO reacts with the methyl group of toluene, the subsequent chemistry is similar to alkanes. A hydrogen atom is abstracted and an oxygen molecule adds to the CH2 radical on the aromatic ring to make peroxy radical. The peroxy radical may react with NO to produce benzaldehyde.
The addition of HO to an aromatic ring is the dominant aromatic reaction [40]. The subsequent reactions that follow this addition reaction may lead to either the breaking of the aromatic ring or ring-retaining products. In the case of the simplest aromatic compound, benzene, phenol is a ring-retaining product that is produced in high yield. Bloss et al. [41] supports a phenol yield of 0.52 while Berndt and Böge [42] determined the yield of phenol to be 0.61 ± 0.07 in the presence and absence of NOx.
A very large number of highly reactive compounds result when the ring breaks. The reactive compounds include a large number of dicarbonyl compounds that contain two carbonyl groups (C=O), are produced. These dicarbonyl compounds have a complicated and relatively unknown chemistry. Studies regarding the ring-opening products of the HO-benzene reaction are sparse. The main aspects of their formation are uncertain due to lack of good experimental techniques for their quantification, a lack of commercially available standards, and their high reactivity.
For example, Gomez Alvarez et al. [43] confirmed the existence of dicarbonyl production and they found that the yields of dicarbonyls could be high. Fast ring-cleavage was observed, due to a peak in observed γ-dicarbonyls shortly after the chamber was opened to sunlight. Also, high yields of dicarbonyls (e.g., glyoxal) imply a high formation rate of HO into the system. They found that yields of glyoxal with values of 42 ± 3% and 36 ± 2% in two successive experiments. To be able to investigate the existence of higher molecular weight dicarbonyl compounds they had to synthesize cis- and trans-butenedial for calibration purposes. For one experiment they found total butenedial yields of 17 ± 9% with a breakdown of 8 ± 4% cis-butenedial and 9 ± 5% trans-butenedial. For a second experiment they found total butenedial yields of 15 ± 6%; the breakdown was 7 ± 3% and 7 ± 3% for the cis and trans isomers, respectively.

3.4. The Atmospheric Chemistry of Aldehydes, Ketones and Peroxyacetyl Nitrate

Aldehydes and ketones contain a carbonyl group, C=O. As presented above, aldehydes and ketones are oxidation products of VOC and many have biogenic and anthropogenic emission sources [9,35]. Formaldehyde is the simplest aldehyde. Higher molecular weight aldehydes follow the template RCHO; they have one hydrogen atom attached to the carbonyl and another organic functional group attached to it. Acetone, CH3(CO)CH3 is the simplest ketone. Higher molecular weight ketones follow the template R1(CO)R2; they have two organic functional groups attached to the carbonyl and these groups maybe the same or different.
Aldehydes and ketones react with HO by abstraction of a hydrogen atom. The overall scheme has some similarity to the alkane oxidation scheme with some exceptions. Reaction 34 shows formaldehyde as an example of one exception.
CH2O + HO → CHO + H2O
The carbonyl radical, CHO, does not add to oxygen to produce a peroxy radical but rather, it reacts with oxygen to produce the HO2 radical.
CHO + O2 → CO + HO2
The carbonyl group is a strong chromophore for ultraviolet radiation. The absorption of ultraviolet radiation causes photo-dissociation of these compounds and some of the reaction channels lead to the production of radicals. For example, formaldehyde has two photolysis reactions that occur in the lower troposphere. Reaction 36 yields molecular products while Reaction 37 yields radical products.
CH2O + hν → H2 + CO
CH2O + hν → H + CHO
The net effect of Reaction 37 is to produce two HO2 radicals because the CHO reacts according to Reaction 35 and the hydrogen atom reacts with oxygen to produce another HO2.
H + O2 → HO2
Under highly polluted urban conditions the photolysis of formaldehyde can be a source of HOx radicals that is as important as O3.
Acetaldehyde, CH3CHO, is the next higher molecular weight aldehyde. It reacts in the polluted atmosphere to produce peroxyacetyl nitrate, CH3(CO)O2NO2, (PAN) [3]. PAN is an important compound because it serves as a reservoir of acetyl radicals and NO2 and it is a strong lachrymator. The mechanism of PAN formation begins with HO abstracting the hydrogen atom that is attached to the carbonyl group in acetaldehyde. The addition of oxygen to the resulting CH3CO radical produces the acetyl peroxy radical.
CH3CHO + HO → CH3CO + H2O
CH3CO + O2 → CH3(CO)O2
CH3(CO)O2 + NO2 → CH3(CO)O2NO2
PAN decomposes thermally to reproduce acetyl peroxy radicals and NO2.
CH3(CO)O2NO2 → CH3(CO)O2 + NO2
PAN is in equilibrium with NO2 and the CH3(CO)O2 radical at temperatures near 25 °C. PAN is much more stable at lower temperatures and the lifetime of PAN becomes longer. PAN can be transported over long distances in the upper troposphere where the temperatures are colder and its photolysis becomes important. The photolysis of PAN proceeds by two pathways. The faster pathway forms the acetyl peroxy radical and NO2. The slower photolysis route involves the destruction of PAN by the formation of the methyl peroxy radical, CO2 and NO3. Higher molecular weight aldehydes form acyl peroxy radicals that may react to produce higher homologs of PAN [3,44].

3.5. The Nighttime Chemistry of the Nitrate Radical

The nitrate radical, NO3, is the nighttime analog of the hydroxyl radical and it is produced by the reaction of O3 with NO2.
O3 + NO2 → O2 + NO3
Daytime concentrations of NO3 are low due to its rapid photolysis reactions with photolysis frequencies that are several times greater than NO2. There are two photolysis reactions.
NO3 + hν → O2 + NO
NO3 + hν → O(3P) + NO2
The NO3 radical becomes much more important at night when its concentration increases, Figure 11.
Figure 11. Nitrate radical mixing ratios for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 11. Nitrate radical mixing ratios for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g011
The NO3 reacts with NO2 to produce dinitrogen pentoxide, N2O5, but this is not a stable compound and it is in equilibrium with NO3 and NO2.
NO3 + NO2 → N2O5
N2O5 → NO3 + NO2
What makes N2O5 significant is that it can react with water on aerosol and other surfaces to produce nitric acid, HNO3. This nighttime loss of reactive nitrogen may reduce the formation of O3 on subsequent days during the summer season.
The NO3 radical reacts with many organic compounds [45]. Alkanes and aromatic compounds react slowly with NO3 but the radical reacts rapidly with alkenes by addition. Possibly the most important organic reaction is the reaction of NO3 with aldehydes because it is a strong source of nighttime peroxy radicals [46,47]. For example, formaldehyde and NO3 react to produce HNO3 and CHO radicals. The reaction proceeds through the abstraction of a hydrogen attached to the carbonyl group.
NO3 + CH2O → HNO3 + CHO
The CHO radical reacts immediately with molecular oxygen to produce HO2 radicals as discussed above, Reaction 35. The reaction of NO3 with acetaldehyde can lead to the formation of PAN. The hydrogen attached to the carbonyl group is abstracted and then Reaction 49 is followed by Reactions 40 and 41 to produce PAN [47].
NO3 + CH3CHO → HNO3 + CH3CO
The reaction of NO3 with alkenes is similar to HO; it reacts by addition but this process is more prevalent during the nighttime due to the typical higher concentrations of NO3. The NO3 participates in radical termination reactions too and these are discussed below.

3.6. Radical Termination, the Production of Atmospheric Acids and Hydrogen Peroxides

Tropospheric chemistry involves many chain reactions as discussed above. At some point the chain reactions must terminate. The reaction of HO with NO2 to the form HNO3, Reaction 50, and the self-reaction of HO2 to form hydrogen peroxide, Reaction 51 are among the most important.
HO + NO2 → HNO3
HO2 + HO2 (+H2O, M) → H2O2 + O2
Note that the overall rate parameter for the self-reaction of HO2 depends on atmospheric pressure and the water vapor concentration [48]. Figure 12 shows the formation of HNO3 for the ethene cases where NO is relatively high.

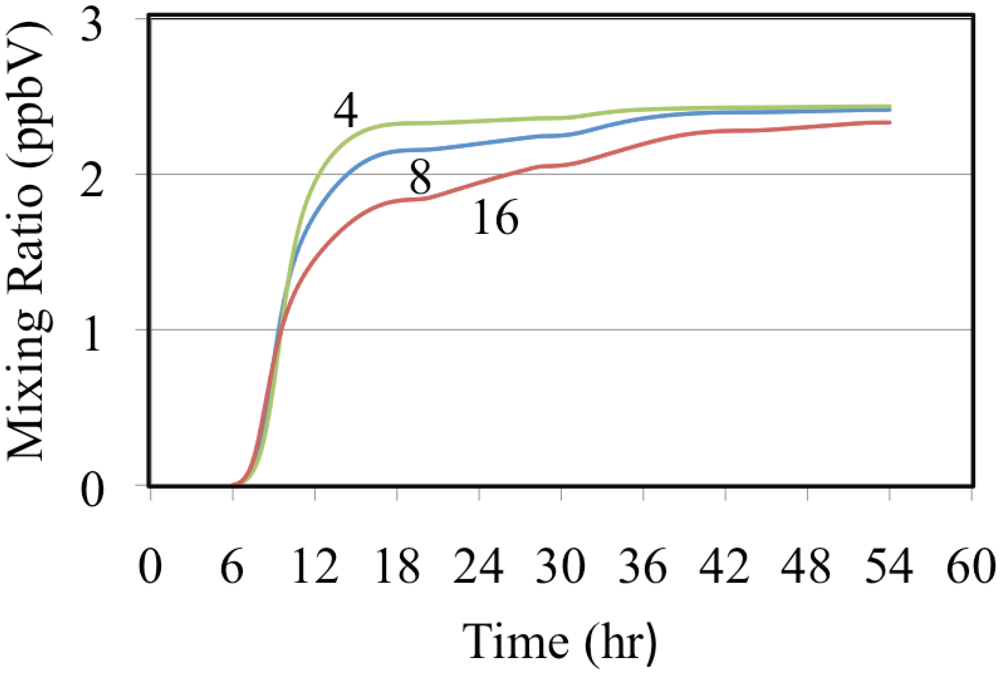

Figure 12. Nitric acid mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 12. Nitric acid mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g012
Figure 12 shows that the mixing ratios of HNO3 decrease as the VOC/NOx ratio increases for the ethene simulations. This is consistent with the decrease in the mixing ratio of HO shown in Figure 10. The reaction of HO with NO2 is more important for urban conditions where NO concentrations are high while the self-reaction of HO2 is more important for rural and remote conditions where NO concentrations are low. Figure 13 shows hydrogen peroxide formation for the ethene cases.
Figure 13 shows a typical trend with the mixing ratio of H2O2 depending on the VOC to NOx ratio. Higher VOC concentrations relative to the NO concentration lead to the production of greater concentrations of HO2. Higher concentrations of HO2 result in greater amounts of termination through the HO2 self reaction, Reaction 51, producing more H2O2.
Some termination of the radical chains occurs through the reactions of HO2 with other peroxy radicals at low NO concentrations. These reactions typically lead to the production of organic hydrogen peroxides. For example the methylperoxy radical reacts with the HO2 radical to produce methyl hydrogen peroxide, CH3OOH.
CH3O2 + HO2 → CH3OOH + O2
Figure 13. Hydrogen peroxide mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 13. Hydrogen peroxide mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g013
The reactions of organic peroxy radicals are more complicated. For many organic peroxy radicals there are two reactions that occur. The first is the disproportion reaction that yields oxygen and alkoxy radicals.
CH3O2 + CH3O2 → 2 CH3O + O2
The second type of organic peroxy radicals-radical reaction is the transfer of a hydrogen atom from a carbon atom that is adjacent to the peroxy oxygen atoms. The hydrogen atom is transferred to the oxygen atom that is adjacent to the other carbonyl group. For example, in the case of the self-reaction of the methylperoxy radical, formaldehyde and methanol are produced.
CH3O2 + CH3O2 → CH3OH + CH2O + O2
In the case of two different organic peroxy radicals there is the disproportion reaction and the transfer of the hydrogen atom that can go in both directions.
CH3O2 + CH3CH2O2 → CH3O + CH3CH2O + O2
CH3O2 + CH3CH2O2 → CH3OH + CH3CHO + O2
CH3O2 + CH3CH2O2 → CH2O + CH3CH2OH + O2
The transfer of a hydrogen atom can only go in one direction in the case of acyl organic peroxy radicals. For acyl organic peroxy radicals there is no adjacent hydrogen atom on the carbon atom adjacent to the peroxy oxygen atoms [49]. For example the reaction of the methylperoxy radical with the acetyl peroxy radical there are two major reactions.
CH3O2 + CH3CO3 → CH3O + CH3CO2 + O2
CH3O2 + CH3CO3 → CH2O + CH3COOH + O2
The CH3CO2 reacts with molecular oxygen to produce carbon dioxide and the methyl peroxy radical.
CH3CO2 + O2 → CH3O2 + CO2
Figure 14 shows the formation of organic peroxides from the reaction of methyl peroxy radical with organic peroxy radicals to form peroxides of the form CH3OOR.

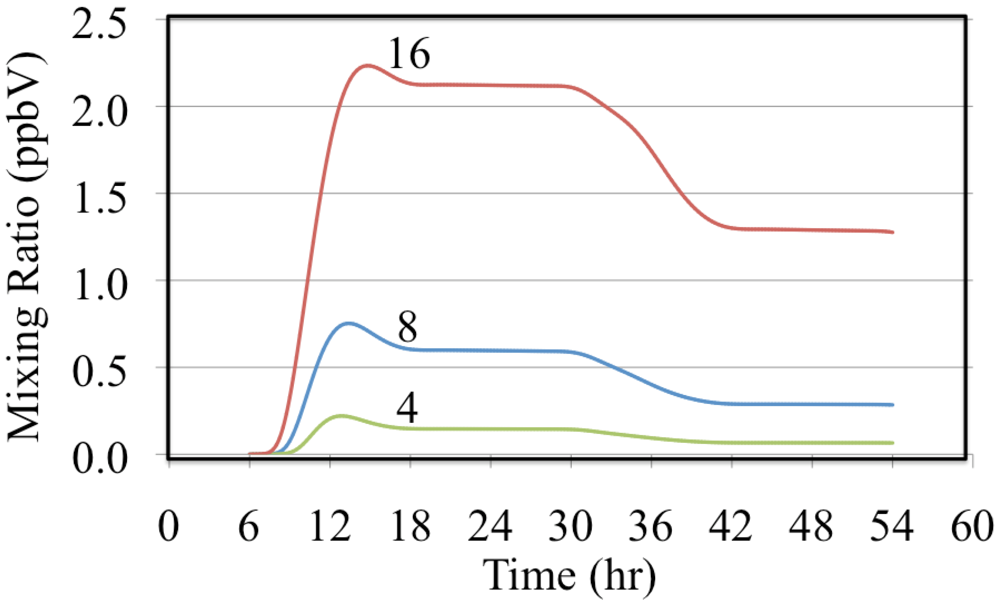

Figure 14. Organic peroxide mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Figure 14. Organic peroxide mixing ratios are shown for the ethene cases. The number indicates the initial VOC/NOx ratio in ppbC/ppbN.
Atmosphere 03 00001 g014
The reactions of organic peroxy radicals with NO3 radical may be highly important but there is relatively little data available as they are difficult to study in the laboratory. Organic peroxy radicals are expected to react with NO3 as shown in Reaction 61 [50].
RO2 + NO3 → RO + NO2 + O2
But the reaction is not chain terminating because the RO will react to produce additional radicals.
Another reaction that is not chain terminating is the reaction of HO with SO2, in contrast to its reaction with NO2. The reaction of HO with SO2 is an important source of sulfate and acid deposition but it does not greatly affect the atmospheric HOx concentration. The reaction follows the following mechanism [51].
HO + SO2 → HOSO2 + O2
HOSO2 + O2 → SO3 + HO2
SO3 + H2O → H2SO4

3.7. The Behavior of a Complex Atmospheric Chemistry System

The purpose of this section is to illustrate the chemistry discussed above and to show how it applies to a more complex mixture that is closer to the real polluted atmosphere. There are important interactions between atmospheric inorganic chemistry and organic chemistry that affect the production of O3, peroxy radicals, HNO3 organic peroxides and many other species. These interactions are examined through the simulation of the complex mixture described in Table 2 and Table 3. The simulated case is a relatively realistic mixture of air pollutants with their emissions based on measurements made at Howard University’s atmospheric field site near Beltsville, Maryland.

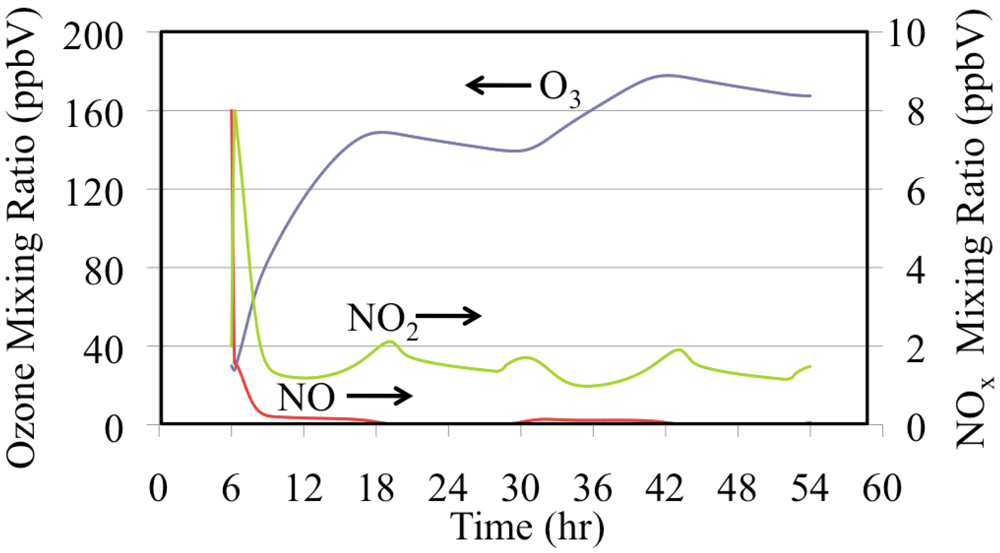

Figure 15 shows the production of O3 from NO and NO2. The mixing ratios of NO and O3 were initialized to high values for this box model simulation. Under polluted urban conditions NO may accumulate near the surface during the nighttime and during the early morning rush hours. The onset of convection mixes O3 from aloft to rapidly titrate the NO to produce NO2. The photolysis of NO2 produces O3. This increase in O3 drives down the NO mixing ratio further during the first few hours of the simulation. Emissions maintain a NO2 mixing ratio of a few parts per billion for the entire episode. The mixing ratios of O3 and NO2 decrease during the nighttime due to the reaction of NO2 with O3 to produce NO3 radical and N2O5. Nighttime chemistry converts NOx to HNO3, thereby removing reactive nitrogen from the atmosphere.
Figure 15. Ozone, NO and NO2 mixing ratios are shown for the polluted urban atmosphere case.
Figure 15. Ozone, NO and NO2 mixing ratios are shown for the polluted urban atmosphere case.
Atmosphere 03 00001 g015
Figure 16. Hydroxyl radical, nitrate radical and dinitrogen pentoxide mixing ratios are shown for the polluted urban atmosphere case.
Figure 16. Hydroxyl radical, nitrate radical and dinitrogen pentoxide mixing ratios are shown for the polluted urban atmosphere case.
Atmosphere 03 00001 g016
Figure 16 shows that after sunset the mixing ratios of N2O5 and NO3 increase rapidly. Later during the night the NO3 mixing ratios decrease due to the loss of NO3 through titration by NO emissions and, to a lesser extent, through the reactions of NO3 with aldehydes and alkenes. In addition N2O5 reacts with liquid water on aerosol and other surfaces although not included in this gas-phase simulation.
The time dependent profiles for the HO are more complicated than those in Figure 10. The HO mixing ratios are much lower during the nighttime but they do not fall to zero due to their production from the reaction of O3 with alkenes. Another feature is that on the first day there is a double peak due to changes between the major sources and sinks of HO. One change in the HO sink is due to a severe drop in the initial mixing ratios of biogenically emitted alkenes.
The major daytime sources of HO are the photolysis of formaldehyde and O3, Figure 17 and Figure 18. Figure 17 shows the production rates and Figure 18 shows the relative production rates. In these figures the formaldehyde HO production rate was calculated by multiplying production rate of HO2 from formaldehyde photolysis by the fraction of HO2 radicals that react with NO.

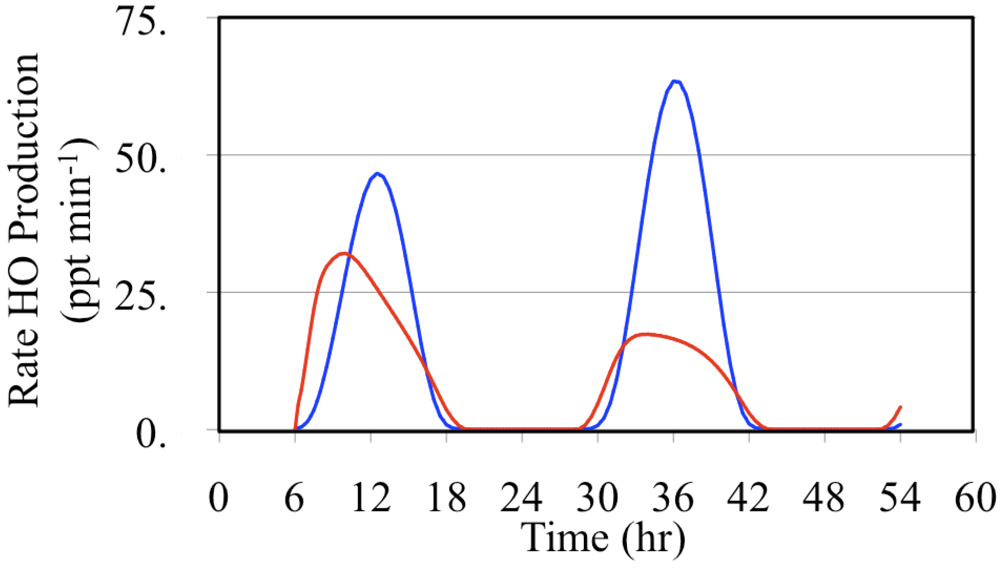

Figure 17. Production rates of HO initiated through the photolysis of formaldehyde (red line) and the photolysis of O3 (blue line) are shown for the polluted urban atmosphere case.
Figure 17. Production rates of HO initiated through the photolysis of formaldehyde (red line) and the photolysis of O3 (blue line) are shown for the polluted urban atmosphere case.
Atmosphere 03 00001 g017

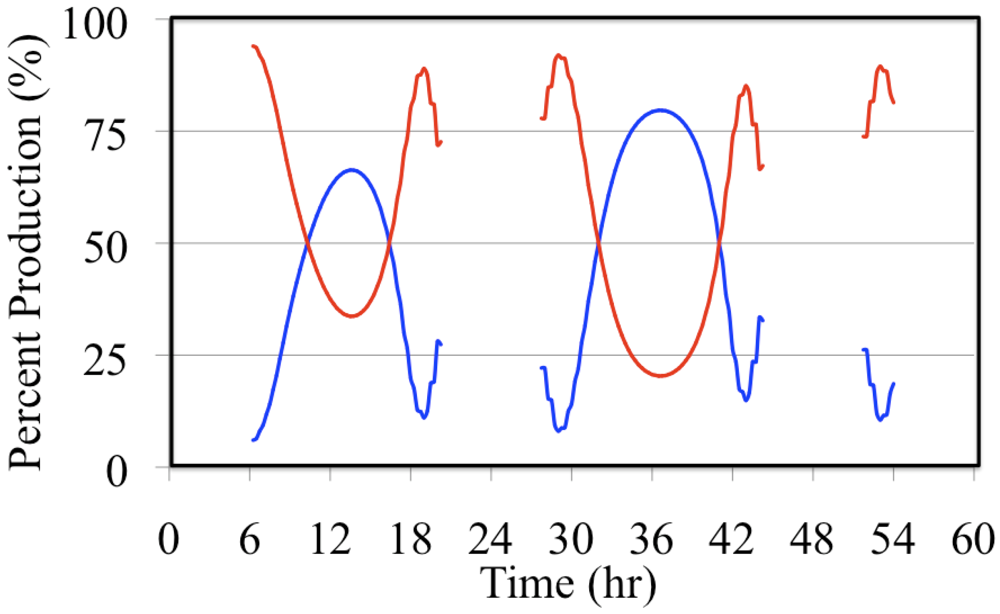

Figure 18. Daytime relative production rates of HO resulting from the photolysis of formaldehyde (red line) and the photolysis of O3 (blue line) are shown for the polluted urban atmosphere case.
Figure 18. Daytime relative production rates of HO resulting from the photolysis of formaldehyde (red line) and the photolysis of O3 (blue line) are shown for the polluted urban atmosphere case.
Atmosphere 03 00001 g018
Formaldehyde photolysis is the more important source during the early morning and late afternoon hours. The time dependent profile of the formaldehyde photolysis source is skewed toward the morning hours while the time dependent profile of the O3 photolysis source mirrors the O3 photolysis rate constant. However, when these two HO sources are examined on a percentage basis the profiles appear to be much more symmetrical, Figure 18.
Reaction of HO is almost equally divided between inorganic and organic species, Table 4. A very large fraction of HO reacts with CO. For VOC, the reaction of HO with aldehydes and other products of hydrocarbon oxidation were the second most important class of hydroxyl radical reactions while the reaction of HO with the hydrocarbons was the third.
Table 4. Relative percentages of HO radicals reacting with chemical species over the entire simulated period.
Table 4. Relative percentages of HO radicals reacting with chemical species over the entire simulated period.
SpeciesPercent (%)
Inorganic
CO35.12
SO24.33
NOx3.05
H2O22.17
O31.53
Radicals (HO2 + NO3)0.81
H20.60
HNOy0.15
Total Inorganic47.76
VOC
CH41.85
Hydrocarbons14.50
Aldehydes, and other hydrocarbon products35.89
Total Organic52.24
Different classes of VOC contribute differently to the loss of HO, Figure 19. Figure 19 shows the relative fraction of HO that react with each class of VOC at noon on the second simulated day. By the second day aldehydes and ketones are the most important organic sink of HO. They are among the first generation of oxidation products and highly reactive with respect to HO.

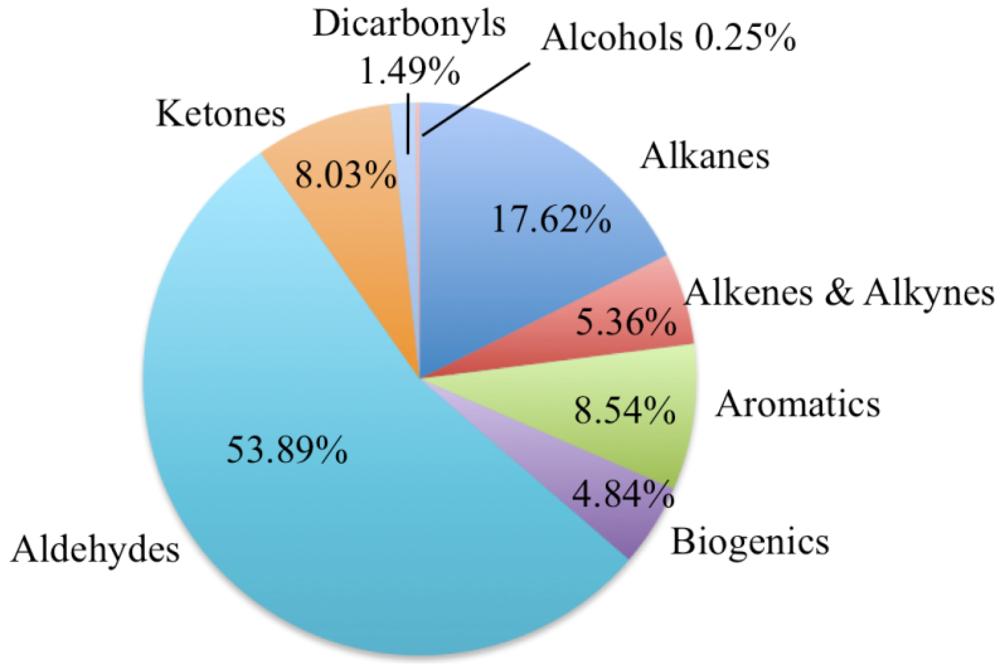

Figure 19. This figure shows the relative fraction of HO that react with each class of VOC for the polluted urban atmosphere case. The time for the plot is noon on the second simulated day.
Figure 19. This figure shows the relative fraction of HO that react with each class of VOC for the polluted urban atmosphere case. The time for the plot is noon on the second simulated day.
Atmosphere 03 00001 g019
The mixing ratios for the organic peroxy radicals produced from the oxidation of VOC are shown in Figure 20. In this case the peroxy radicals produced from alkenes was very high initially but their production dropped relatively quickly. For most of the simulation the peroxy radicals produced from alkanes, methyl peroxy radical (CH3O2) and acyl peroxy radicals (RCO3) had the highest mixing ratios.

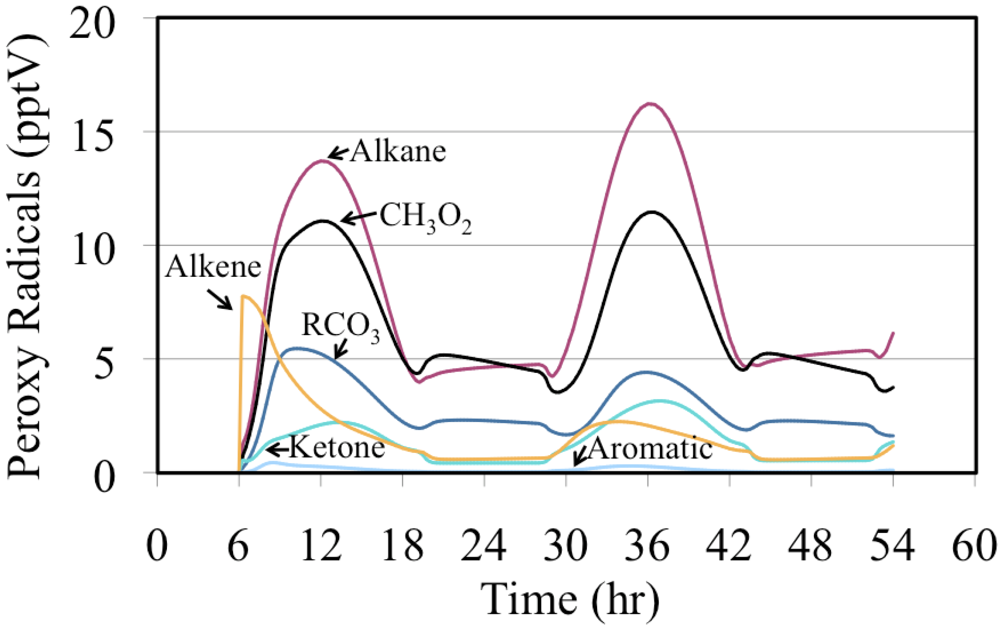

Figure 20. The mixing ratios of organic peroxy radicals by organic class are shown for the polluted urban atmosphere case.
Figure 20. The mixing ratios of organic peroxy radicals by organic class are shown for the polluted urban atmosphere case.
Atmosphere 03 00001 g020
The mixing ratios of HO2 radicals and the total mixing ratios of the organic peroxy radicals are shown in Figure 21. Both profiles peak near noon with the HO2 radicals having the highest daytime mixing ratios while the total mixing ratio of the organic peroxy radicals having the highest nighttime value. The high nighttime organic peroxy radical mixing ratios are produced through the reactions of O3 and NO3 with aldehydes and alkenes.

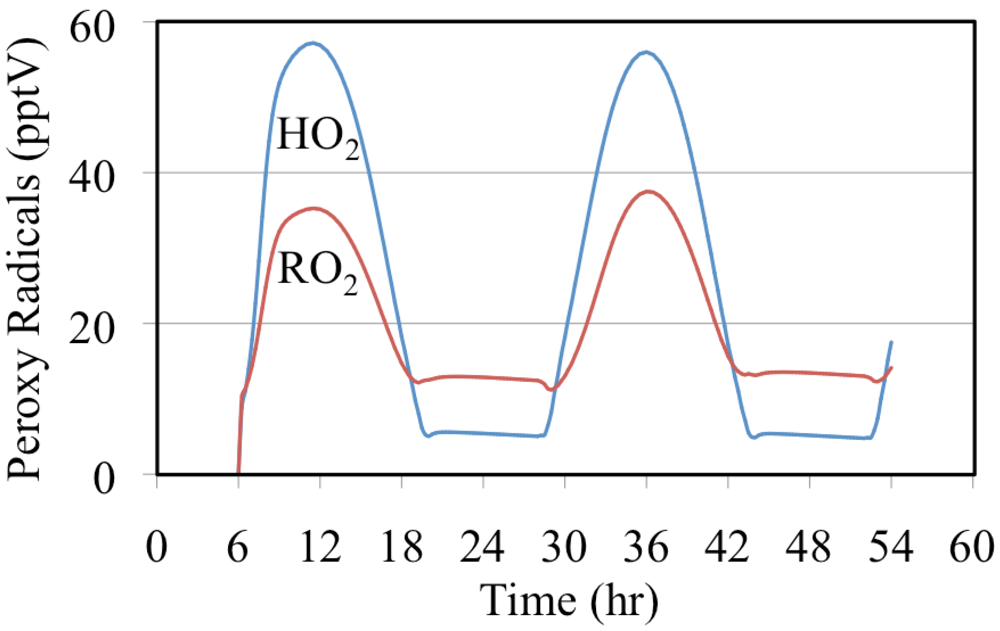

Figure 21. The mixing ratio of HO2 and the total mixing ratio of organic peroxy radicals are shown for the polluted urban atmosphere case.
Figure 21. The mixing ratio of HO2 and the total mixing ratio of organic peroxy radicals are shown for the polluted urban atmosphere case.
Atmosphere 03 00001 g021
The initial atmosphere was assumed to be NO2 and NO, Figure 22. These were rapidly converted to a mixture that also included organic nitrates, peroxyactyl nitrates and HNO3.

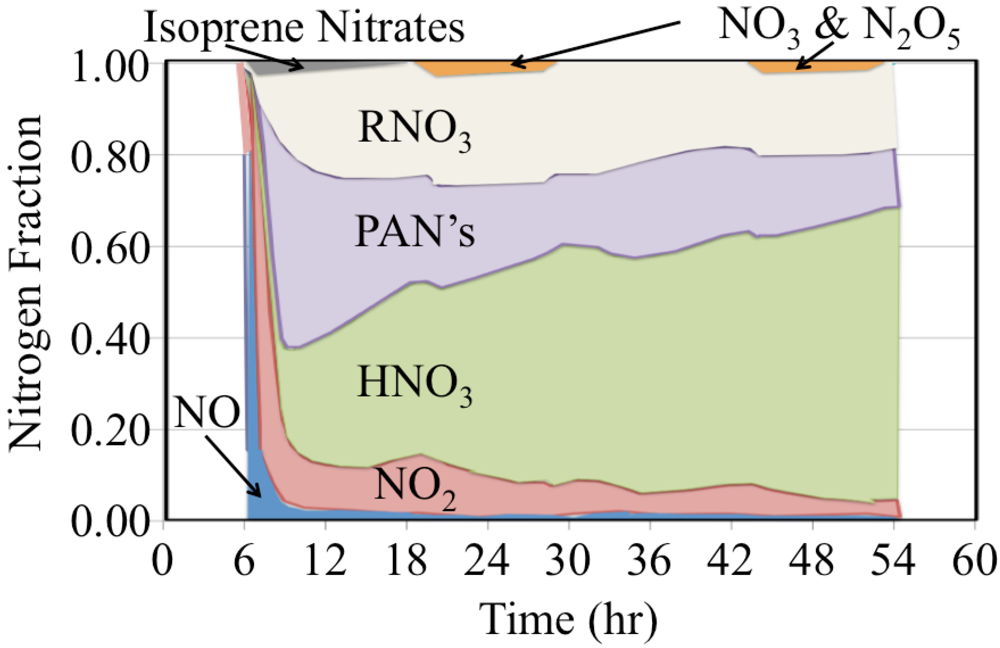

Figure 22. The time dependent fate of the nitrogen containing species is shown as a stack plot for the polluted urban atmosphere case.
Figure 22. The time dependent fate of the nitrogen containing species is shown as a stack plot for the polluted urban atmosphere case.
Atmosphere 03 00001 g022
Organic nitrates are produced from the reaction of organic peroxy radicals with NO, Reaction 65.
RO2 + NO → RNO3
The yield of organic nitrates tends to increase for higher molecular weight organic peroxy radicals [45]. The peroxyactyl nitrates were produced from the reaction of acetyl peroxy radicals with NO2. There is strong production of HNO3 during the day and nighttime. However the HNO3 production rate is somewhat slower at sunrise and sunset due to the lower concentrations of HO or NO3 radicals during these times. The figure shows that over the long term of the simulation that nitrogen oxide emissions are converted to HNO3 and organic nitrates.
In summary of this section, the polluted urban atmosphere simulation showed that there is a complex interplay between the daytime and nighttime chemistry induced by the HO and NO3 radicals, respectively. Both of these radicals react to convert NOx to HNO3 while oxidizing organic compounds. The nighttime reactions of O3 and NO3 with aldehydes and alkenes produced HO, HO2 and organic peroxy radical production during the night.
The loss of NOx reduces O3 formation because it is the photolysis of NO2 that leads to the production of O3. While the mixture began with NO and NO2 as the only reactive nitrogen containing species as the air aged these were converted to HNO3 and organic nitrates. The loss of NOx was somewhat underestimated in this gas-phase simulation because the heterogeneous conversion of N2O5 to HNO3 was not included. Dry and wet depositions of HNO3 are very significant sinks for atmospheric nitrogen but these were not included in our simulations. In addition, sulfate, hydrogen peroxide and organic peroxides are removed from the atmosphere through deposition.
The daytime formaldehyde photolysis was a more important source of HO radicals than O3 photolysis during the early morning and late afternoon hours and as the air aged aldehydes and ketones became the most important organic sink of HO radicals. The reaction of HO with VOC produced organic peroxy radicals, while peroxy radicals with the highest mixing ratios were radicals produced from alkanes, the methyl peroxy radical (CH3O2) and acyl peroxy radicals (RCO3).

3.8. The Effect of Temperature on Ozone Formation

High ozone pollution episodes are associated with stagnant high-pressure systems. Stagnant highs are associated with clear days and strong temperature inversions. These conditions lead to higher photolysis rates, low mixing heights and higher surface temperatures [52]. Higher temperatures increase evaporation rates increasing VOC emissions.
All of these cofactors increase the production of O3. Greater photolysis rates and increased emissions are likely to have the most significant effects that lead to increases in O3 production. However the effect of temperature on the rates of chemical reactions is not insignificant. Temperature has a strong effect on the rate constant of most reactions. For example, the Arrhenius Equation, 66, is one of the most important equations that characterize the temperature dependence for many reactions.
Atmosphere 03 00001 i004
In Equation 66, A is the pre-exponential factor, Ea is the activation energy per mole, R is the ideal gas constant and T is the temperature. For most reactions the activation energy is positive; if Ea is positive than the rate constant of the reaction increases with temperature. The polluted urban case was run for temperatures of 296, 298 and 300 K to explore the effect of temperature in the absence of other factors. Figure 23 shows the maximum O3 on the first day. For this case the response of the maximum O3 to temperature is very linear (R2 = 0.999) and the slope of the best-fit line for this case is 4.3 ppb K−1.

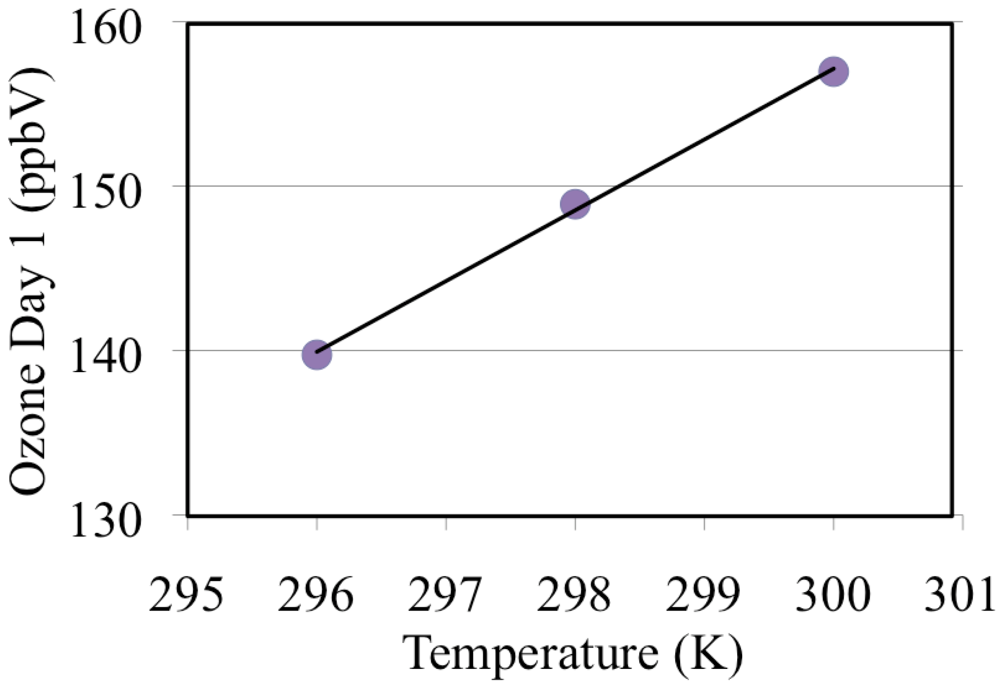

Figure 23. Maximum O3 mixing ratios on the first day as a function of temperature for the polluted urban atmosphere case.
Figure 23. Maximum O3 mixing ratios on the first day as a function of temperature for the polluted urban atmosphere case.
Atmosphere 03 00001 g023
Increasing temperatures due to climate change are likely to make the abatement of tropospheric O3 more difficult due to all of these factors.

4. Major Uncertainties and New Research Needs

The gas-phase production of O3 and particles is initiated by photolysis and involves a complex series of reactions. Some of the greatest uncertainties involve the temperature dependence of gas phase reactions for both inorganic and organic species. These uncertainties affect any model’s ability to predict upper tropospheric as well as nighttime chemistry and composition. Nighttime chemistry requires attention as it affects multi-day modeling scenarios, while upper tropospheric chemistry affects long range transport of pollutants such as PAN and O3 which are typically simulated using global models [53,54,55].
More specifically, knowledge of organic peroxy radical + HO2 rate constants is needed as well as their product information (not all of these reactions lead to peroxide formation). The reaction rates of peroxy radicals with NO and NO3 are largely estimated, and their temperature dependence is not known. The importance of peroxy-NO3 reactions grows during the nighttime hours. If the degree of oxidation by NO3 is not predicted correctly, than the VOC/NOx ratio at sunrise will be affected, which impacts multi-day modeling.
Other reactions for which the temperature dependence is not known are: glyoxal + NO3, methyl glyoxal + NO3, propanal + NO3 and formaldehyde + NO3. Another reaction which requires attention is the equilibrium reaction of PPN that is assumed currently to be the same as PAN.
The photolysis of higher organic peroxides (C2 and greater) is currently assumed to be the same as methyl hydroperoxide. Aromatic degradation schemes are largely parameterized, and knowledge of reactions of their second generation products is needed. Much remains to learn about the products of the oxidation of biologically emitted compounds, including isoprene [9,56]. Finally the relative importance of halogen chemistry in the production of troposphric ozone is an important topic that requires further investigation.

5. Conclusions

The gas-phase production of air pollutants is initiated by photolysis and involves a complicated series of free radical reactions. During the nighttime the reaction of O3 with alkenes and NO2 also leads to the production of free radicals. There are a very high number of chemical compounds emitted into the atmosphere. Tens of thousands of compounds react through millions of reactions. In comparison a relatively small number of reactions have been studied with their rate constants known (for room temperature) much better than their product yields. The knowledge base is very incomplete relative to the complex nature of atmospheric chemistry.
There are severe computational limitations on the size of a chemical mechanism that can be used for air quality modeling. Air quality models with high spatial resolution have tens of thousands of grid boxes and therefore each prognostic chemical species included in the model adds tens of thousands of differential equations to solve and much additional memory storage. The chemical mechanism used in a meteorological air quality model must be very simple in contrast to real atmospheric chemistry.
There are several chemical mechanisms that have been developed for air quality modeling. More data from the laboratory, environmental reaction chamber and field are required to improve atmospheric chemical mechanisms. It is very possible that there are major surprises to be discovered especially in the chemistry of HOx and other processes that control O3 and particle formation [57].

Acknowledgments

The authors thank the late Daewon Byun for helping to conceive this paper. The authors thank the National Science Foundation for grant number 0653997, “Collaborative Research: Nitrate (NO3) Induced Nighttime Air Chemistry” that partially funded this research. The authors thank the National Aeronautics and Space Administration for supporting Ms. Lawson under its grant “Howard University Beltsville Center for Climate System Observation”. Additional support was provided by the California Air Resources Board and the U.S. Environmental Protection Agency (through Oak Ridge Institute for Science and Engineering) and a grant from the National Oceanic and Atmospheric Administration to Howard University’s NOAA Center for Atmospheric Sciences. We thank the reviewers for many useful comments. The opinions expressed in this publication are those of the authors alone and do not reflect the policy of any governmental agency.

References

  1. Demerjian, K.L.; Kerr, J.A.; Calvert, J.G. The Mechanism of Photochemical Smog Formation. In Advances in Environmental Science and Technology; Wiley: New York, NY, USA, 1974; Volume 4. [Google Scholar]
  2. Calvert, J.G.; Stockwell, W.R. Acid generation in the troposphere by gas phase chemistry. Environ. Sci. Technol. 1983, 17, 428–443. [Google Scholar]
  3. Finlayson-Pitts, B.J.; Pitts, J.N., Jr. Chemistry of the Upper and Lower Atmosphere; Academic Press: San Diego, CA, USA, 1999. [Google Scholar]
  4. Seinfeld, J.H.; Pandis, S. Atmospheric Chemistry and Physics from Air Pollution to Climate Change; John Wiley & Sons: New York, NY, USA, 1998. [Google Scholar]
  5. Jenkin, M.E.; Saunders, S.M.; Pilling, M.J. The tropospheric degradation of volatile organic compounds: A protocol for mechanism development. Atmos. Environ. 1997, 31, 81–104. [Google Scholar] [CrossRef]
  6. Geiger, H.; Barnes, I.; Becker, K.H.; Bohn, B.; Brauers, T.; Donner, B.; Dorn, H.-P.; Elend, M.; Dinis, C.M.F.; Grossmann, D.; et al. Chemical mechanism development: Laboratory studies and model applications. J. Atmos. Chem. 2002, 42, 323–357. [Google Scholar]
  7. Sander, S.P.; Abbatt, J.; Barker, J.R.; Burkholder, J.B.; Friedl, R.R.; Golden, D.M.; Huie, R.E.; Kolb, C.E.; Kurylo, M.J.; Moortgat, G.K.; et al. Chemical Kinetics and Photochemical Data for Use in Atmospheric Studies, Evaluation Number 16, Supplement to Evaluation 15: Update of Key Reactions; NASA Jet Propulsion Laboratory: Pasadena, CA, USA, 2010. [Google Scholar]
  8. International Union of Pure and Applied Chemistry Subcommittee for Gas Kinetic Data Evaluation. Evaluated Kinetic Data. 2008. Available online: http://www.iupac-kinetic.ch.cam.ac.uk/ (accessed on 24 October 2011).
  9. Fuentes, J.D.; Lerdau, M.; Atkinson, R.; Baldocchi, D.; Botteneheim, J.W.; Ciccioli, P.; Lamb, B.; Geron, C.; Gu, L.; Guenther, A.; et al. Biogenic hydrocarbons in the atmospheric boundary layer: A review. Bull. Amer. Meteor. Soc. 2000, 81, 1537–1575. [Google Scholar] [CrossRef]
  10. Simon, H.; Beck, L.; Bhave, P.V.; Divita, F.; Hsu, Y.; Luecken, D.; Mobley, J.D.; Pouliot, G.A.; Reff, A.; Sarwar, G.; et al. The development and uses of EPA’s SPECIATE database. Atmos. Pollut. Res. 2010, 1, 196–206. [Google Scholar]
  11. Madronich, S.; Calvert, J.G. The NCAR Master Mechanism of the Gas Phase Chemistry—Version 2.0; NCAR/TN-333+SRT; NCAR: Boulder Colorado, CO, USA, 1990. [Google Scholar]
  12. Master Chemical Mechanism, version 3.1. Available online: http://www1.chem.leeds.ac.uk//Atmospheric/MCM/mcmproj.html (accessed on 24 October 2011).
  13. Szopa, S.; Aumont, B.; Madronich, S. Assessment of the reduction methods used to develop chemical schemes: Building of a new chemical scheme for VOC oxidation suited to three-dimensional multiscale HOx-NOx-VOC chemistry simulations. Atmos. Chem. Phys. 2005, 5, 2519–2538. [Google Scholar] [CrossRef]
  14. Crutzen, P.J. My Life with O3, NOx and Other YZOxs; Nobel Lecture; 8 December 1995. Available online: http://www.nobelprize.org/nobel_prizes/chemistry/laureates/1995/crutzen-lecture.html (accessed on 24 October 2011).
  15. Jenkin, M.E.; Watson, L.A.; Utembe, S.R.; Shallcross, D.E. A common representative intermediates (CRI) mechanism for VOC degradation. Part 1: Gas phase mechanism development. Atmos. Environ. 2008, 42, 7185–7195. [Google Scholar] [CrossRef]
  16. Watsona, L.A.; Shallcrossa, D.E.; Utembea, S.R.; Jenkinb, M.E. A Common Representative Intermediates (CRI) mechanism for VOC degradation. Part 2: Gas phase mechanism reduction. Atmos. Environ. 2008, 42, 7196–7204. [Google Scholar]
  17. Byun, Q.W.; Ching, J.K.S. Science Algorithms of the EPA Models-3 Community Multiscale Aie Quality (CMAQ) Modeling System; EPA Report EPA-600/R-89-030; U.S. Environmental Protection Agency: Washington, DC, USA, 1999.
  18. Jacobson, M.Z. Fundamentals of Atmospheric Modeling; Cambridge University Press: Cambridge, UK, 1999. [Google Scholar]
  19. Makar, P.A.; Stockwell, W.R.; Li, S.-M. Gas-phase chemistry mechanisms compression strategies: Treatment of reactants. Atmos. Environ. 1996, 30, 831–842. [Google Scholar] [CrossRef]
  20. Proceedings of the Empirical Kinetics Modeling Approach (EKMA) Validation Workshop; EPA Report EPA-600/9-83-014; Dimitriades, B.; Dodge, M. (Eds.) Environmental Sciences Research Lab: Research Triangle Park, NC, USA, 1983.
  21. Stockwell, W.R.; Middleton, P.; Chang, J.S.; Tang, X. The second generation regional acid deposition model chemical mechanism for regional air quality modeling. J. Geophys. Res. 1990, 95, 16343–16367. [Google Scholar] [CrossRef]
  22. Whitten, G.Z.; Hogo, H. Mathematical Modeling of Simulated Photochemical Smog; EPA Report EPA-600/3-77-011; Environmental Protection Agency: Washington, DC, USA, 1999.
  23. Whitten, G.Z.; Hogo, H.; Killus, J.P. The carbon-bond mechanism: A condensed kinetic mechanism for photochemical smog. Environ. Sci. Technol. 1980, 14, 690–700. [Google Scholar] [CrossRef]
  24. Yarwood, G.; Rao, S.; Yocke, M.; Whitten, G. Updates to the Carbon Bond Chemical Mechanism: CB05. Final Report to the US EPA; EPA Report RT-0400675. 2005. Available online: http://www.camx.com/publ/pdfs/CB05_Final_Report_120805.pdf (accessed on 24 October 2011).
  25. Gery, M.W.; Whitten, G.Z.; Killus, J.P.; Dodge, M.C. A photochemical mechanism for urban and regional scale computer modeling. J. Geophys. Res. 1989, 94, 12925–12956. [Google Scholar] [CrossRef]
  26. Kim, Y.; Sartelet, K.; Seigneur, C. Formation of secondary aerosols over Europe: Comparison of two gas-phase chemical mechanisms. Atmos. Chem. Phys. 2011, 11, 583–598. [Google Scholar] [CrossRef] [Green Version]
  27. Stockwell, W.R.; Kirchner, F.; Kuhn, M.; Seefeld, S. A new mechanism for regional atmospheric chemistry modeling. J. Geophys. Res. 1997, 102, 25847–25879. [Google Scholar] [CrossRef]
  28. Carter, W.P.L. Development of the SAPRC-07 chemical mechanism. Atmos. Environ. 2010, 44, 5324–5335. [Google Scholar] [CrossRef]
  29. Carter, W.P.L. A detailed mechanism for the gas-phase atmospheric reactions of organic compounds. Atmos. Environ. 1990, 24A, 481–518. [Google Scholar]
  30. Carter, W.P.L. Documentation of the SAPRC-99 Chemical Mechanism for VOC Reactivity Assessment. Final Report to California Air Resources Board Contract No. 92-329, and 95-308; California Environmental Protection Agency, Air Resources Board, Research Division: Sacramento, CA, USA, 2000. [Google Scholar]
  31. Goliff, W.S.; Stockwell, W.R. The Regional Atmospheric Chemistry Mechanism, Version 2, an Update. In Proceedings of the International Conference on Atmospheric Chemical Mechanisms, University of California, Davis, CA, USA, 8–10 December 2008; University of California: Davis, CA, USA, 2008. [Google Scholar]
  32. Middleton, P.; Stockwell, W.R.; Carter, W.P.L. Aggregation and analysis of volatile organic compound emissions for regional modeling. Atmos. Environ. 1990, 24A, 1107–1133. [Google Scholar]
  33. Seefeld, S.; Stockwell, W.R. First-order sensitivity analysis of models with time dependent parameters: An application to PAN and ozone. Atmos. Environ. 1999, 33, 2941–2953. [Google Scholar] [CrossRef]
  34. Madronich, S. Photodissociation in the atmosphere; 1. actinic flux and the effects on ground reflections and clouds. J. Geophys. Res. 1987, 92, 9740–9752. [Google Scholar] [CrossRef]
  35. Warneck, P. Chemistry of the Natural Atmosphere, 2nd ed; Academic Press: San Diego, CA, USA, 1999. [Google Scholar]
  36. Calvert, J.G.; Stockwell, W.R. Deviations from the O3-NO-NO2 photostationary state in tropospheric chemistry. Can. J. Chem. 1983, 61, 983–992. [Google Scholar] [CrossRef]
  37. Horie, O.; Moortgat, G.K. Decomposition pathways of the excited Criegee intermediates in the ozonolysis of simple alkenes. Atmos. Environ. 1991, 25A, 1881–1896. [Google Scholar]
  38. Atkinson, R.; Aschmann, S.M. OH radical production from the gas-phase reactions of O3 with a series of alkenes under atmospheric conditions. Environ. Sci. Technol. 1993, 27, 1357–1363. [Google Scholar] [CrossRef]
  39. Atkinson, R.; Tuazon, E.C.; Aschmann, S.M. Products of the gas-phase reactions of O3 with alkenes. Environ. Sci. Technol. 1995, 29, 1860–1866. [Google Scholar] [CrossRef]
  40. Calvert, J.G.; Atkinson, A.; Becker, K.H.; Kamens, R.M.; Seinfeld, J.H.; Wallington, T.J.; Yarwood, G. The Mechanisms of Atmospheric Oxidation of Aromatic Hydrocarbons; Oxford University Press: Oxford, UK, 2002. [Google Scholar]
  41. Bloss, C.; Wagner, V.; Bonzanini, A.; Jenkin, M.E.; Wirtz, K.; Martin-Reviejo, M.; Pilling, M.J. Evaluation of detailed aromatic mechanisms (MCMv3 and MCMv3.1) against environmental chamber data. Atmos. Chem. Phys. 2005, 5, 623–639. [Google Scholar] [CrossRef]
  42. Berndt, T.; Böge, O. Formation of phenol and carbonyls from the atmospheric reaction of OH radicals with benzene. Phys. Chem. Chem. Phys. 2006, 8, 1205–1214. [Google Scholar] [CrossRef]
  43. Gomez Alvarez, E.G.; Viidanoja, J.; Munoz, A.; Wirtz, K.; Hjorth, J. Experimental confirmation of the dicarbonyl route in the photo-oxidation of toluene and benzene. Environ. Sci. Technol. 2007, 41, 8362–8369. [Google Scholar]
  44. Atherton, C.; Penner, J. The effects of biogenic hydrocarbons on the transformation of nitrogen oxides in the troposphere. J. Geophys. Res. 1990, 95. [Google Scholar] [CrossRef]
  45. Atkinson, R. Atmospheric chemistry of VOCs and NOx. Atmos. Environ. 2000, 34, 2063–2101. [Google Scholar] [CrossRef]
  46. Stockwell, W.R.; Calvert, J.G. The mechanism of NO3 and HONO formation in the nighttime chemistry of the urban atmosphere. J. Geophy. Res. 1983, 88, 6673–6682. [Google Scholar] [CrossRef]
  47. Cantrell, C.A.; Stockwell, W.R.; Anderson, L.G.; Busarow, K.L.; Perner, D.; Schmeltekope, A.; Calvert, J.G.; Johnston, H.S. Kinetic study of the NO3-CH2O reaction and its possible role in nighttime tropospheric chemistry. J. Phys. Chem. 1985, 89, 139–146. [Google Scholar]
  48. Stockwell, W.R. On the HO2 + HO2 reaction: Its misapplication in atmospheric chemistry models. J. Geophys. Res. 1995, 100, 11695–11698. [Google Scholar] [CrossRef]
  49. Villenave, E.; Lesclaux, R.; Seefeld, S.; Stockwell, W.R. Kinetics and atmospheric implications of peroxy radical cross reactions involving CH3C(O)O2 radical. J. Geophys. Res. 1998, 103, 25273–25285. [Google Scholar]
  50. Kirchner, F.; Stockwell, W.R. Effect of peroxy radical reactions on the predicted concentrations of ozone, nitrogenous compounds and radicals. J. Geophys. Res. 1996, 101, 21007–21022. [Google Scholar] [CrossRef]
  51. Stockwell, W.R.; Calvert, J.G. The mechanism of the HO-SO2 reaction. Atmos. Environ. 1983, 17, 2231–2235. [Google Scholar] [CrossRef]
  52. Lu, R.; Turco, R.P.; Jacobson, M.Z. An integrated air pollution modeling system for urban and regional scales: 2. Simulations for SCACS 1987. J. Geophys. Res. 1997, 102, 6081–6098. [Google Scholar]
  53. Henderson, B.H.; Pinder, R.W.; Crooks, J.; Cohen, R.C.; Wennberg, P.O.; Hutzell, W.T.; Sarwar, G.; Goliff, W.S.; Stockwell, W.R.; Fahr, A.; et al. Evaluation of simulated photochemical partitioning of oxidized nitrogen in the upper troposphere. Atmos. Chem. Phys. 2011, 11, 275–291. [Google Scholar]
  54. Crowley, J.N.; Schuster, G.; Pouvesle, N.; Bonn, B.; Bingemer, H.; Parchatka, U.; Fischer, H.; Lelieveld, J. Nocturnal nitrogen oxides at a rural mountain-site in Southwestern Germany. Atmos. Chem. Phys. 2010, 10, 2795–2812. [Google Scholar]
  55. Emmerson, K.M.; Evans, M.J. Comparison of tropospheric gas-phase chemistry schemes for use within global models. Atmos. Chem. Phys. 2009, 9, 1831–1845. [Google Scholar] [CrossRef]
  56. Galloway, M.M.; Huisman, A.J.; Yee, L.D.; Chan, A.W.H.; Loza, C.L.; Seinfeld, J.H.; Keutsch, F.N. Yields of oxidized volatile organic compounds during the OH radical initiated oxidation of isoprene, methyl vinyl ketone, and methacrolein under high-NOx condition. Atmos. Chem. Phys. 2011, 11, 10779–10790. [Google Scholar] [CrossRef] [Green Version]
  57. Chen, S.; Ren, X.; Mao, J.; Chen, Z.; Brune, W.H.; Lefer, B.; Rappenglück, B.; Flynn, J.; Olson, J.; Crawford, J.H. A comparison of chemical mechanisms based on TRAMP-2006 field data. Atmos. Environ. 2010, 44, 4116–4125. [Google Scholar]

Share and Cite

MDPI and ACS Style

Stockwell, W.R.; Lawson, C.V.; Saunders, E.; Goliff, W.S. A Review of Tropospheric Atmospheric Chemistry and Gas-Phase Chemical Mechanisms for Air Quality Modeling. Atmosphere 2012, 3, 1-32. https://doi.org/10.3390/atmos3010001

AMA Style

Stockwell WR, Lawson CV, Saunders E, Goliff WS. A Review of Tropospheric Atmospheric Chemistry and Gas-Phase Chemical Mechanisms for Air Quality Modeling. Atmosphere. 2012; 3(1):1-32. https://doi.org/10.3390/atmos3010001

Chicago/Turabian Style

Stockwell, William R., Charlene V. Lawson, Emily Saunders, and Wendy S. Goliff. 2012. "A Review of Tropospheric Atmospheric Chemistry and Gas-Phase Chemical Mechanisms for Air Quality Modeling" Atmosphere 3, no. 1: 1-32. https://doi.org/10.3390/atmos3010001

Article Metrics

Back to TopTop
