Application of a Low Cost Ceramic Filter for Recycling Sand Filter Backwash Water

Department of Civil Engineering, College of Engineering, Qassim University, Buraidah 52571, Saudi Arabia
*
Author to whom correspondence should be addressed.
Water 2018, 10(2), 150; https://doi.org/10.3390/w10020150
Submission received: 17 December 2017 / Revised: 26 January 2018 / Accepted: 30 January 2018 / Published: 3 February 2018

Abstract

:
The aim of this study is to examine the application of a low cost ceramic filter for the treatment of sand filter backwash water (SFBW). The treatment process is comprised of pre-coagulation of SFBW with aluminum sulfate (Alum) followed by continuous filtration usinga low cost ceramic filter at different trans-membrane pressures (TMPs). Jar test results showed that 20 mg/L of alum is the optimum dose for maximum removal of turbidity, Fe, and Mn from SFBW. The filter can be operated at a TMP between 0.6 and 3 kPa as well as a corresponding flux of 480–2000 L/m2/d without any flux declination. Significant removal, up to 99%, was observed forturbidity, iron (Fe), and manganese (Mn). The flux started to decline at 4.5 kPa TMP (corresponding flux 3280 L/m2/d), thus indicated fouling of the filter. The complete pore blocking model was found as the most appropriate model to explain the insight mechanism of flux decline. The optimum operating pressure and the permeate flux were found to be 3 kPa and 2000 L/m2/d, respectively. Treated SFBW by a low cost ceramic filter was found to be suitable to recycle back to the water treatment plant. The ceramic filtration process would be a low cost and efficient option to recycle the SFBW.

1. Introduction

In current practice, ground water is being treated by conventional treatment processes including oxidation, coagulation, flocculation, sedimentation, and sand filtration. To maintain the efficient flux in filtration, it is essential to perform regular backwashing of the sand filter (one/twice a day). During this process, a large amount of wastewater is produced, particularly from the sand filter backwashing. It is estimated that, on average, approximately 2–10% of drinking water produced by conventional water treatment plant (WTP) is used for backwashing [1]. A backwash operation typically entails flushing the water in the reverse direction to that of normal flow. During the process, the accumulated contaminants are detached from the filter, and the resulting water is called sand filter backwash water (SFBW) that contains a high amount of suspended solid, colloidal materials, inorganic metals (Fe, Mn, and Al), natural organic matter, bacteria, viruses, invertebrates, and protozoa.
In many parts of the world, water-treatment plants are using a sedimentation basin to recycle the backwash water to the treatment plant [2,3]. In the Kingdom of Saudi Arabia (KSA), it is estimated that approximately 26 million m3/year of treated water is used during the backwashing processes of filtration plants. So far, most of WTPs in the KSA typically discharge their generated SFBW into evaporation ponds or municipal sewerage systems. The backwash water in the evaporation pond may cause contamination of groundwater through leaching of heavy metals from pond sediments. Additionally, growing urbanization and industrialization trends and limited groundwater resources are likely to lead to water scarcity in the KSA in the near future. As per recent legislation, municipalities in the KSA are required to improve their water conservation practices and reduce the cost of disposing backwash water by reducing its production. Thus, recycling the filter backwash water is of great interest, and instead of being disposed, the generated backwash water can be recycled back to the main plant by introducing a suitable treatment process.
Separation of solids and removal of inorganic metals such as Fe and Mn are required for reuse of SFBW. Membrane filtration is one of the most viable methods in treating SFBW. In recent years, several studies have been conducted on recycling the SFBW using potential methods such as ultra-filtration (UF) or microfiltration (MF) [3,4,5,6,7,8]. However, membrane fouling is one of the impediments as it can reduce the permeate flux and increase the frequency of membrane cleaning.
One of the key methods of reducing membrane fouling and improving the water quality is the pretreatment of SBFW by the coagulation and flocculation process [9,10,11,12,13]. Pretreatment is performed ahead of the membrane separation to enlarge the flocculants for fouling mitigation. Alum-based coagulants such as aluminum sulfate (Al2(SO4)3) are generally used as cost-effective coagulants in the coagulation and flocculation process. The consistency of the filtration flux largely depends on the size and structure of the flocculants formation, which eventually dependson the operating conditions such as pH and coagulant dosages [14,15,16]. For alum coagulation, size and structure of the flocculants are induced by various hydrolyzing Al species [17]. The application of an alum coagulant in a coagulation/microfiltration process has beeninvestigated in the recent past [18,19,20]. A previous study suggested that pre-coagulation of SFBW enhances the quantity and quality of filtrate water through enlarging submicron particles that eventually delay the clogging of membrane pores [20]. Therefore, pre-coagulation maybe one of the most suitable options for recycling theSFBW through membrane filtration.
Due to high initial cost and energy requirements, the application of MF or UF in treating SFBW is limited in most of the countries, including the KSA. Therefore, a low-cost and low-pressure ceramic filter, as a membrane process, is feasible for treating SFBW in this region. In our previous study, a low-cost and simple ceramic filter made with locally available cheap materials (clay soil and rice bran) was developed for the treatment of groundwater [21]. Eventually, the ceramic filter was applied to a membrane bioreactor (MBR) process for high-strength wastewater and greywater treatment [22,23]. This ceramic filter, with a pore size of 1–5 µm, was foundto be successful in separating activated sludge flocculants as a commercial polymeric membrane in wastewater treatment. Moreover, the low-pressure filter can be attributed to its low power consumption and low fouling.
The aim of the current study is to investigate the feasibility of using a simple ceramic-filter coupled with the coagulation and flocculation process to treat the SFBW and to produce high-quality recyclable water.

2. Materials and Methods

2.1. Backwashed Water Samples

SFBW samples were taken from the sand filter backwashed water drain of the Bruidah water treatment plant located in Buraidah city, KSA. Since turbidity as well as the compositions of Fe and Mn of the SFBW fluctuated during backwashing, all samples were collected with a 20 L Jar immediately after the start of sand filter backwash operation. Fresh backwash water samples were brought back to the laboratory and immediately analyzed or used for experiments without any pre-treatment.

2.2. Low Cost Ceramic Filter

A cylindrical shaped ceramic filter was made using locally available clay soil and rice bran in Bangladesh. The clay soil is also easily available in the KSA. However, saw dust can be used as a replacement of rice bran in the KSA. The manufacturing process of the ceramic filter used in this study was adapted from our previous study [21]. The clay soil sample was dried, ground with a hammer, and sieved through a 0.5-mm sieve. The rice bran was dried and sieved through a 1 mm sieve. Sieved soil and rice bran were then mixed at a ratio of 80:20 (by weight) followed by making dough by adding water. The dough was then casted in a cylindrical-shaped mold to make the filter. The resulting ceramic filters were cylindrical in shape and hollow with one side open and had a height of 10 cm and a thickness of 2 cm (Figure 1a). Finally, the filter was sun dried for 48–72 h followed by firing in a muffle furnace in a small-scale pottery kiln at 900 °C for 4–5 h (Figure 1b). The pore size of the filter was measured to be 1–5 µm. The pore size of the filter was estimated by comparing the particle size distribution of turbid water (water with clay mixture) before and after the filtration with the ceramic filter. Manufacturing cost was estimated to be $0.2–0.3 US with an active filter area of 0.039 m2 per filter [21].

2.3. Water Quality Analysis

Physical and chemical analysis of the water samples were conducted in the laboratory of Buraidah water treatment plant. Electrical conductivity (EC) and pH were measured with the help of an HMP6 (HACH, Loveland, CO, USA), while turbidity was measured using the turbidity meter (2100Q, HACH, Loveland, CO, USA). Total dissolved solids (TDS) were measured by an Ultra-meter II 6P (Myron L, Carlsbad, CA, USA) by immersing the electrode in the sample. Alkalinity was measured using the standard titrationmethod. Total Fe, total Mn, phosphate (PO4), silica (Si), fluoride (F), and sulfate (SO4) were measured by Spectrophotometer (HACH DH-5000, HACH, Loveland, CO, USA) using relevant reagents provided by HACH. Chloride (Cl) was measured by titration with potassium chromate and silver nitrate solutions. All the standard reagent solutions were purchased from the Fouz Chemical Company, Dammam, KSA. Total hardness, calcium (Ca), and magnesium (Mg) were measured by retraction methods using HACH test kits. Suspended solids (SS) were measured as perthe standard methods.

2.4. Alum as a Coagulant (Al2(SO4)3)

Powdered alum (Al2(SO4)3·12H2O) was purchased from a local laboratory in the city of Buraidah, KSA and used as the coagulant. Before each experiment, a fresh coagulant solution of 10 mg/mL concentration was prepared by mixing 10 g of Alum powder in 1 L of distilled water.

2.5. Coagulation and Flocculation Experiments

A standard jar test wascarried out at 20 °C to performcoagulation and flocculation experiments. All the jar tests were conducted using a four stirrer A&F jar test apparatus(JM4, Nvatech International). The jar test apparatus consists of four motors connected to four steel paddle stirrers with a speed control unit; the speed of the motors is adjustable to 200 RPM. Plastic beakers with 1000 mL SFBW were placed under the paddle stirrer and desired concentrations of alum solutions were then added to the beakers. All the jar tests were conducted by first rapidly mixing (coagulation at 100 RPM) for 2 min, slowly mixing (flocculation at 40 RPM) for 20 min, and then left to settle for 5 min. The procedure was adapted from the previous study [24]. After allowing the coagulant to settle with contaminants for 5 min, the suspension of the beaker was collected very carefully, and turbidity as well as Fe and Mn contents were measured. A total of eight jar tests with different doses of alum (5–100 mg/L) were carried out at neutral pH (7.2) to determine the optimum doses. Each jar test was carried out in triplicate to confirm reproducibility of the results.

2.6. Filtration Experiments

A lab-scale continuous filtration system coupled withcoagulation and flocculation processes was designed to investigate its potentiality to remove turbidity, Fe, and Mn. An optimal condition of the filtration system was identified based on the operational flux and the removal efficiency. Figure 2 presents a schematic view of the experimental setup. The filtration experiments were carried out in dead-end filtration mode. Two rectangular tanks made of a 12-mm thick thermoplastic glass were used as the coagulant tank and the filtration tank for each experimental stage. The dimension of each tank was 40 cm in length, 40 cm in width, and 60 cm in height. Inside the filtration tank, the ceramic filter was placed on the wooden boards to ensure the effective use of the entire filter’s surface area for filtration. The filter was connected to the final water tank through a pressure gauge and a suction pump. An air diffuser was placed under the filter, and continuous air supply was provided to defend the accumulation of the solid on the filter surface. Prior to each experiment, raw SFBW was pre-coagulated using an optimum alum dose (20 mg/L) which was establishedthrough the coagulation and flocculation tests. Pre-coagulation was performed simultaneously with the coagulation and flocculation experiments, except for the 5 min settling step. The pre-coagulated SFBW was manually transferred to the coagulation tank on a regular basis. The effluent of the coagulation tank was then transferred to the filtration tank using the feed pump. The permeate effluent (final water) was obtained by the suction pump through the filter.
A total of four experimental runs were conducted with different fixed trans-membrane pressure (TMP) values as presented in Table 1. All the filtration experiments were conducted at 20 °C temperature. The permeate flux (L/m2/d) was determined by measuring the daily flow rate (L/d) and dividing it by the total active surface area (m2) of the filter. Each experiment was operated continuously, and the daily flow rate was estimatedevery day by measuring the amount of filtered water in one minute by a stop watch and a measurement cylinder. Three water samples (raw SFBW, water from the coagulation tank, and permeate) were collected regularly to analyze turbidity as well as Fe and Mn concentrations.

2.7. Filter Fouling Mechanism

For porous membranes, most fouling mechanisms are related to the active pore of the membrane and the processes by which a number of active pore reductions happen. Based on this, four basic types of fouling mechanisms, i.e., complete pore blocking, intermediate pore blocking, standard pore blocking, and cake-layer formation, can be identified (Figure 3). Complete pore blocking occurs when the particles are larger than the membrane pore and are deposited on the membrane surface, which blocks the entrance of the membrane pores completely with no overlapping particles. Intermediate pore blocking occurs when the particle size is similar than the membrane pore size. The intermediate blocking is less restrictive over complete blocking because it considers thatsome particles may settle over others. That means that not every particle blocksapore. Standard blocking occurs inside the membrane pores and is caused by the particles size being smaller than the membrane pore. Cake layer forms on the membrane surface through accumulation of particles that are larger than the membrane pore size. The cake layer grows with time and does not penetrate inside the pore.
Based on constant pressure and dead-end filtration laws, empirical models (Equation (1)) were developed by Hermia [25] to describe the four types of basic fouling phenomena [26,27].
d 2 t d V 2 = k ( d t d V ) n
where t is filtration time, V is the permeate volume, k is constant, and n is a constant that depends on the fouling mechanism.
The linear expressions of Equation (1) are given in Table 2. In Table 2, the constants kcb, kib, ksb, and kcl are the system parameters relating to complete pore blocking, intermediate pore blocking, standard pore blocking, and cake-layer formation model, respectively. A plot of lnJ vs. t, 1/J vs. t, 1/J0.5 vs. t, and 1/J2 vs. t gives a straight line with a slope of kcb, kib, ksb, as well as kcl, and y-intercept of lnJ0, 1/J0, 1/J00.5, and 1/J02 for complete pore blocking, intermediate pore blocking, standard pore blocking, and cake-layer formation model, respectively. The appropriate applicability of these models can be confirmed by comparing the values of the coefficient of correlation (R2) obtained from the linear regression analysis as well as an error analysis between experimental and calculated flux data.

3. Results and Discussions

3.1. SFBW Quality of the Buraidah Water Treatment Plant

Backwash water from the sand filter of the Buraidah water treatment plant was collected and analyzed for physical and chemical quality. A total of 13 samples were collected at different times and analyzed in the laboratory. Table 3 presents the minimum, maximum, and average value of raw SFBW water quality. As presented in Table 3, the pH value was found to be neutral with an average value of 7.2. Turbidity in the samples ranged between 1250 NTU and 304 NTU with an average value of 516 NTU. The amount of TDS ranged from 763 to 797 mg/L, with an average of 773 mg/L. A relatively high value of hardness that ranged from 297 to 308 mg/L, with an average of 303 mg/L, was measured. Consequently, as expected, the concentrations of Ca and Mg were also high, with average values of 82 and 23 mg/L, respectively. Fe concentration ranged from 24 to 90 mg/L, with an average value of 60 mg/L. Manganese concentration ranged from 2.4–11 mg/L, with an average of 5.5 mg/L. A high concentration of silica was also measured in backwash water with an average value of 18 mg/L. Total suspended solids ranged from 145–190 mg/L, with an average of 165 mg/L. The pH value was also acceptable, and no further treatment was required. Total hardness was also found to be acceptable and within the limit of the World Health Organization (WHO) guideline for drinking water [28]. Analysis of SFBW revealed that the average concentrations of turbidity (516 NTU), Fe (60 mg/L), and Mn (5.5 mg/L) were significantly higher than the WHO standard values [28]. Accordingly, this study focused on the removal of turbidity, Fe, and Mn from SFBW to make it suitable for recycling purpose.

3.2. Coagulation and Flocculation of SFBW by Alum

Turbidity, Fe, and Mn removal form SFBW at various dosages of alum are presented in Figure 4. As illustrated in Figure 4, an average turbidity removal of around 14% (1250 NTU in raw water) was achieved at a 5 mg/L dose of alum. The average removal percentage increased up to 70% with increases in the alum dose up to 20 mg/L. No further increase in removal efficiency was observed at the alum dosesof 30, 40, 50, and 100 mg/L. Similarly, an average Fe removal of 13.2% (102.5 mg/L in raw water) was achieved at a 5 mg/L alum dose. The removal efficiency increased with the increase in the alum dose up to20 mg/L. The removal efficiency increased to 29% at a 10 mg/L alum dose, further increased to 56.7% at a 15 mg/L alum dose, and reached its maximum (70%) at a 20 mg/L alum dose. The average removal efficiency remained steady with further increases in alum doses of 30, 40, 50, and 100 mg/L. Average Mn removal of 39.9% (12.7 mg/L in raw water) was obtained at a 5 mg/L alum dose. The removal efficiency increased with the increase in alum doses up to 20 mg/L. The removal efficiency increased to 46.8% at a 10 mg/L alum dose, further increased to 68.4% at a 15 mg/L alum dose, and reached its maximum (74.9%) at a 20 mg/L alum dose. The average removal efficiency was almost steady for further increases of the alum dose to 30, 40, 50, and 100 mg/L.
From the results of coagulation and flocculation experiments, it was primarily observed that 20 mg/L or higher doses of alum are necessary for achieving the maximum removal of turbidity, Fe, and Mn from SFBW. t-test was conducted using the analytical tools in Microsoft Excel to establish the difference between the removal at a 20 mg/L alum dose and removals at the other alumdoses. The difference is considered to be statistically significant when the p-value is <0.05. When the p value is >0.05, the difference of removal is not considered to be significant. For turbidity removal, p-values of 0.00004, 0.0006, 0.018, and 0.04 correspond to 5, 10, 15, and 50 mg/L alum doses, respectively, and indicate significant difference in turbidity removal atthe 20 mg/L dose and at the 5, 10, 15, and 50 mg/L doses. High p-values of 0.72, 0.28, and 0.09 for 30, 40, and 100 mg/L, respectively, indicateno significant removal at these doses.
For Fe removal, p-values of 0.001, 0.003, and 0.03 correspond to 5, 10, and 15 mg/L alum doses, respectively, and indicate significant differences between Fe removal by 20 mg/L dose and those by 5, 10, and 15 mg/L doses. For 30, 40, 50, and 100 mg/L doses, the p-values of 0.45, 0.19, 0.06, and 0.36, respectively, show insignificant differences in removal efficiencies at these doses. For Mn removal, the p-values of 0.0008 and 0.0146 correspond to 5 and 10 mg/L alum doses, respectively, and indicate a significant difference in turbidity removal by the 20 mg/L dose and those by 5 and 10 mg/L doses. For 15, 30, 40, 50, and 100 mg/L doses, p-values were found to be 0.16, 0.63, 0.34, 0.20, and 0.91, respectively, which indicates insignificant variations in removal efficiencies with increased doses. Overall results suggest that significantly higher removals of turbidity, Fe, and Mn were achieved primarily at a minimum of a 20 mg/L alum dose. Therefore, the 20 mg/L alum dose was found to be optimum and recommended for further continuous experiments.

3.3. Lab Scale Filtration Experiments

3.3.1. FluxProfile with Different TMPs

The laboratory-scale continuous-ceramic filtration experiments coupled with coagulation (Run-1 to Run-4) were conducted continuously for 26 days by varying TMP (Table 1). SFBW was pre-coagulated with a 20 mg/L alum doseona daily basis for each run. The variations of fluxes with TMPs during Run-1 to Run-4 are presented in Figure 5a. Prior to each run, the filter was cleaned with a soft brush and washed with tap water to remove fouled materials accumulated on the filter. Therefore, initial conditions for all runs are considered to be the same. Run-1 was carried out continuously for 7 days with a fixed pressure of 0.6 kPa. Corresponding flux at this pressure was measured around 450 L/m2/d. It was observed that the flux remained almost constant as the days progressed until day 7. After 7 days, the TMP (Run-2) was increased to 1.5 kPa and the experiment was carried out continuously until day 14 (8 days). The initial flux at this pressure was measured to be approximately 1000 L/m2/d and remained constant until day 14. In Run-3, the TMP was further increased to 3.0 kPa and operated continuously for 5 days (days 15–19). The initial flux at this pressure was measured around 2000 L/m2/d, which remained constant until day 19. The TMP in Run-4 was further increased to 4.5 kPa, and filtration was carried out continuously for 7 days (days 20–26). The initial flux at this pressure was measured to be approximately 3000 L/m2/d at day 20 and slightly increased to 3280 and 3200 L/m2/d on days 22 and 23, respectively. On day 24, the flux rapidly decreased to 2400 L/m2/d and then continuouslydecreased as the day progressed. The flux was reduced to 1100 L/m2/d on day 27, thus indicating fouling of the filter that needed to be backwashed or cleaned at this stage. The fouling mechanism of the ceramic filter at a TMP of 4.5 kPa was further analyzed using a different pore blocking model in Section 3.3.4.

3.3.2. Removal of Turbidity, Fe, and Mn

Removal performance of turbidity, Fe, and Mn of Run-1 through Run-4 are presented in Figure 5b–d respectively. In Run-1, feed water turbidity, Fe, and Mn were measured as 319–1160 NTU, 45–89.5 mg/L, and 5.15–17 mg/L, respectively. The concentrations in permeate were reduced to <5 NTU (except day 1), <0.3 mg/L (except day 2 and 3), and <0.1 mg/L (except day 2), respectively, which were approximately 99.4% of the average removal from the raw SFBW. In Run-2, feed water turbidity, Fe, and Mn were measured as 319–770 NTU, 14–78.5 mg/L, and 2.4–10.15 mg/L, respectively. After filtration, concentrations of turbidity, Fe, and Mn were reduced to <2 NTU, <0.1 mg/L, and <0.05 mg/L, respectively, which was equivalent to an average of 99% removal from the raw SFBW. In Run-3, feed water turbidity, Fe, and Mn were measured as 350–610 NTU, 22–55 mg/L, and 3.2–6.1 mg/L, respectively. The concentrations were reduced to <0.5 NTU, <0.05 mg/L, and <0.05 mg/L, respectively, at the permeate water, which was approximately 99.97% of the average removal from the raw SFBW. In Run-4, feed water turbidity, Fe, and Mn were measured as 365–915 NTU, 32.5–91 mg/L, and 3.6–19.6 mg/L, respectively. The concentrations were reduced to <1 NTU, <0.03 mg/L, and <0.05 mg/L, respectively, at the final water, which was approximately 99% of the average removal from the raw SFBW. Results demonstrated that the concentrations of turbidity, Fe, and Mn in the final water (permeate) of all runs were acceptable and less than the WHO standard guideline [28]. Thus, the low cost ceramic filtration coupled with a coagulation process is proved to be a highly efficient method for the treatment of SFBW.

3.3.3. OptimumFiltration Conditions

Based on the significant influence of TMP, it is important to operate the submerged filter at an optimum pressure to minimize membrane fouling. In addition, optimum removal efficiency of contaminants at the optimum pressure is another key factor to be considered in the design of the filtration system. In the present study, concentrations of turbidity, Fe, and Mn in permeates after filtration for all runs were below the standard limit of the WHO guideline fordrinking water, indicating that the permeate quality was not affected by the operating TMP. Therefore, the optimum operating condition would be calculated based on the flux decline at different TMP values. The following equation (Equation (2)) can be used to describe the relation between the flux and TMP in membrane filtration:
J = Δ P μ ( R m + R f )
where J is the permeate flux, ∆P is TMP, µ is viscosity, Rm is intrinsic membrane resistance, and Rf is resistance due to the fouling effect.
In this research, the intrinsic membrane resistance and theviscosity of SFBW are assumed to be constant. Since the ∆P and the Rf are the only variables in the filtration, there will be no decrease in the flux with time if there is no or negligible membrane fouling. Conversely, the decrease in flux implies that the cake layer or pore blocking by deposited particles caused significant resistance to permeate flow (the fouling effect). Therefore, the experimental results of the current study suggest that ceramic filtration can be operated at the optimum pressure of 3.0 kPa (corresponding to a flux of 2000 L/m2/d) with modest fouling effect.

3.3.4. Analysis of Fouling Mechanism of Ceramic Filter

Despite the negligible fouling of the ceramic filter that occurred at low TMPs (0.61−3.0 kPa), decline in the flux at a higher TMP (4.5 kPa) confirmed the fouling of the filter. In the present study, Hermia’s models [25] were used to interpret the fouling phenomenon that occurs in the continuous filtration experiments in Run-4. Fitting the models with the experimental data indicates whether cake-layer formation (or pore blocking) controlled the flux decline or filter clogging in the filtration system. Figure 6a–d illustrate the different models’ fitting of the experimental data obtained from the continuous filtration in Run-4.
The parameters of the linear regression analysis of each model are given in Table 4. From the table, it was observed that the intercept (1/J02) for the cake-layer model gives a negative value of the initial flux. Therefore, this model is not appropriate and cannot be applied for the interpretation of the flux decline mechanism and should be ignored for the further analysis of flux declination.
Based on the linear plots of other pore-blocking models and the correlation coefficients R2 shown in Figure 6a–c, it can be observed that the complete pore-blocking model (Figure 6a and Table 4) has the best linear fitting with the highest R2 value of 0.86. It can also be observed from Table 4 that the R2 values of the intermediate and standard pore-blocking models are also reasonable, i.e., 0.81 and 0.84, respectively. However, analysis of the percentage error of the experimental flux and the calculated flux shows that the complete pore-blocking model gives the lowest error (5–25%) compared to the other two models (7–60%). Therefore, the complete pore-blocking model most appropriately describes the mechanism of flux decline in the present study. Huang et al. [16] studied various resistances to filtration in a coagulation/filtration process. They observed that cake resistance (due to filtration cake formation) plays an important role in membrane filtration if coupled with coagulation, and pore blocking is negligible as the majority of particles are larger than a nominal size of membrane. However, in this study, a continuous air flow was provided on the surface of the filter, which would prevent the formation of any cake layer on the surface of the filter. Therefore, the fouling mechanism in the current study differed from the previous study.

3.3.5. Filter Cleaning

A simple washing technique using a soft brush was applied to the ceramic filter clogged in Run-4. The filter was gently brushed with the soft nylon brush then rinsed with tap water. The filtration flux was measured at the same pressure as that in Run-4 (4.5 kPa) using pure water after washing the filter. The recovery of the filtration flux is presented in Figure 7. More than 85% flux recovery was achieved without the conventional chemical cleaning procedure. Thus, the low-cost ceramic filter used in the current study would reduce the backwash operational cost of the filtration system.

3.3.6. Filtered Water Characteristics and Recycle Options of SFBW

The quality of the water obtained from the filtration system under the established optimal condition is presented in Table 5. Turbidity, Fe, and Mn removal were highly effective at the optimal flux conditions. The ceramic filter removed almost 99.9% of the turbidity, Fe, and Mn from the raw SFBW. The total suspended solid (TSS) was reduced to 0 mg/L from 1650 mg/L. The pH value of the filtered water did not change and was the same as that of the raw SFBW (7.2). The TDS concentration was 783 mg/L and not removed by the ceramic filter (raw water TDS = 773 mg/L). Hardness, calcium, magnesium, alkalinity, chloride, and silica were also not removed by the ceramic filter. Concentrations of calcium (99 mg/L) and chloride (335 mg/L) in final water were found to be higher than the WHO standard limit. Fluoride was effectively reduced from 0.3 mg/L to 0.03 mg/L (i.e., 90% removal).
In the present study, the analysis of microbiological parameters (coli-forms and E. coli) was not performed as the previous study showed that the ceramic filter of this study is comparatively weak in terms of removal of coli forms and E. coli [21]. Therefore, after a disinfection process, it is recommended that the SFBW treated by low a cost ceramic filter be recycled back to the water treatment plant. The treated SFBW can also be sent to the reverse osmosis (RO) process for further advanced treatment to reduce the TDS and hardness (Calcium and Magnesium).

4. Conclusions

Very high and unappreciable values of turbidity (516 NTU), Fe (62 mg/L), and Mn (5.5 mg/L) were found in the SFBW at a groundwater treatment plant in Buraydah, Qassim, KSA. A low cost ceramic filter is evaluated for its suitability to treat the SFBW to make it suitable for recycling.
In the coagulation and flocculation tests, average percentages (%) of turbidity, Fe, and Mn removals increased with increasing alum dose from 5 up to 20 mg/L. Further increases in the alum dose to 30, 40, 50, and 100 mg/L did not significantly affect the removal efficiency (p < 0.05). Therefore, a 20 mg/L alum dose has been found as the optimum dose. In the filtration experiments, flux declination was not observed at a TMP between 0.6 to 3.0 kPa until 19 days of continuous filtration.
Average concentrations of turbidity, Fe, and Mn at the filter permeate were measured to be <0.5 NTU, <0.05 mg/L, and <0.05 mg/L, respectively, which are approximately 99% of the average removal from the raw SFBW. At 4.5 kPa TMP, the flux was decreasedfrom 3000 to 1100 L/m2/d on day-27, thus indicating fouling of the filter. Based on linear plots for four different fouling models, it was observed that the complete pore-blocking model gave the best linear fitting with the highest R2 value of 0.86. Therefore, complete pore blocking occurred at 4.5 kPa and the flux consequently declined. The optimum operating pressure and permeate flux were found to be 3 kPa and 2000 L/m2/d, respectively.
It is recommended that SFBW treated by low a cost ceramic filter be recycled back to the water treatment plant after a disinfection process. The low-cost ceramic filter coupled with the coagulation and flocculation process is likely to have low-cost, low-energy consumption, and be a highly efficient option for recycling SFBW. The analysis of performance indicates that a low-cost ceramic filter could be employed successfully in large-scale applications. However, further studies are needed to determine the role of long-term pilot scale operation on the properties and performance of this filter.

Acknowledgments

This work was supported by Deanship of Scientific Research at Qaussim University (1868-qec-2016-1-12-S). Assistance from Engineer Abdullah Al-Ghonaim and Engineer Abdul Kareem for their cooperation in completion of water analysis and laboratory experiments are acknowledged gratefully.

Author Contributions

Md Shafiquzaman, Saleem S. AlSaleem, and Abdullah Al-Mahmud conceived and designed the experiments; Abdullah Al-Mahmud performed the experiments; Md Shafiquzzaman and Husnain Haidar analyzed the data; Md Shafiquzzaman and Abdullah Al-Mahmud wrote the paper.

Conflicts of Interest

We hereby declare no conflict of interest.

References

  1. Walsh, M.E.; Gagnon, G.A.; Alam, Z.; Andrews, R.C. Bio-stability and disinfectant by-product formation in drinking water blended with UF-treated filter backwash water. Water Res. 2008, 42, 2135–2145. [Google Scholar] [CrossRef] [PubMed]
  2. Kim, Y.H.; Eom, J.Y.; Kim, K.Y.; Lee, Y.S.; Kim, H.S.; Hwang, S.J. Applicability study of backwash water treatment using tubular membrane system with dead-end filtration operation mode. Desalination 2010, 261, 104–110. [Google Scholar] [CrossRef]
  3. Weiying, L.; Yuasa, A.; Bingzhi, D.; Naiyun, G. Study on backwash wastewater from rapid sand-filter by monolith ceramic membrane. Desalination 2010, 250, 712–715. [Google Scholar] [CrossRef]
  4. Vigneswaran, S.; Boonthanonb, S.; Prasanthia, H. Filter backwash water recycling using crossflowmicrofiltration. Desalination 1996, 106, 31–38. [Google Scholar] [CrossRef]
  5. Willemse, R.J.N.; Brekvoort, Y. Full-scale recycling of backwash water from sand filters using dead-end membrane filtration. Water Res. 1999, 33, 3379–3385. [Google Scholar] [CrossRef]
  6. Li, S.; Heijman, S.G.J.; Verberk, J.Q.J.C.; Verliefde, A.R.D.; Kemperman, A.J.B.; VanDijk, J.C.; Amya, G. Impact of backwash water composition on ultrafiltration fouling control. J. Membr. Sci. 2009, 344, 17–25. [Google Scholar] [CrossRef]
  7. Reissmann, F.G.; Uhl, W. Ultrafiltration for the reuse of spent filter backwash water from drinking water treatment. Desalination 2006, 198, 225–235. [Google Scholar] [CrossRef]
  8. Ling, Z.L.; Dong, Y.; Zi-Jie, Z.; Ping, G. Application of hybrid coagulation–microfiltration process for treatment of membrane backwash water from water works. Sep. Purif. Technol. 2008, 62, 415–422. [Google Scholar]
  9. Choi, K.Y.J.; Dempsey, B.A. In-line coagulation with low-pressure membrane filtration. Water Res. 2004, 38, 4271–4281. [Google Scholar] [CrossRef] [PubMed]
  10. Howe, K.J.; Marwah, A.; Chiu, K.P.; Adham, S.S. Effect of coagulation on the Size of MF and UF membrane foulants. Environ. Sci. Technol. 2006, 40, 7908–7913. [Google Scholar] [CrossRef] [PubMed]
  11. Chen, Y.; Dong, B.Z.; Gao, N.Y.; Fan, J.C. Effect of coagulation pretreatment on fouling of an ultra-filtration membrane. Desalination 2007, 204, 181–188. [Google Scholar] [CrossRef]
  12. Liu, T.; Lian, Y.; Graham, N.; Yu, W.; Rooney, D.; Sun, K. Application of polyacrylamide flocculation with and without alum coagulation for mitigating ultrafiltration membrane fouling: Role of floc structure and bacterial activity. Chem. Eng. J. 2017, 307, 41–48. [Google Scholar] [CrossRef]
  13. Moon, J.; Kang, M.S.; Lim, J.L.; Kim, C.H.; Park, H.D. Evaluation of a low-pressure membrane filtration for drinking water treatment: Pretreatment by coagulation/sedimentation for the MF membrane. Desalination 2009, 247, 271–284. [Google Scholar] [CrossRef]
  14. Lee, J.D.; Lee, S.H.; Jo, M.H.; Park, P.K.; Lee, C.H.; Kwak, J.W. Effect of coagulation conditions on membrane filtration characteristics in coagulation-microfiltration process for water treatment. Environ. Sci. Technol. 2000, 34, 3780–3788. [Google Scholar] [CrossRef]
  15. Wang, J.; Guan, J.; Santiwong, S.R.; Waite, T.D. Characterization of floc size and structure under different monomer and polymer coagulants on microfiltration membrane fouling. J. Membr. Sci. 2008, 321, 132–138. [Google Scholar] [CrossRef]
  16. Huang, C.; Lina, J.L.; Leea, W.S.; Panb, J.R.; Zhaoc, B. Effect of coagulation mechanism on membrane permeability in coagulation-assisted microfiltration for spent filter backwash water recycling. Colloids Surf. A Physicochem. Eng. Asp. 2011, 378, 72–78. [Google Scholar] [CrossRef]
  17. Lin, J.L.; Huang, C.P.; Pan, J.R.; Wang, D.S. Effect of Al (III) speciation on coagulation of highly turbid water. Chemosphere 2008, 72, 189–196. [Google Scholar] [CrossRef] [PubMed]
  18. Song, H.; Fan, X.; Zhang, Y.; Wang, T.; Feng, Y. Application of microfiltration for reuse of backwash water in a conventional water treatment plant—A case study. Water Supply 2001, 1, 199–206. [Google Scholar]
  19. Nasser, A.; Huberman, Z.; Dean, L.; Bonner, F.; Adin, A. Coagulation as a pretreatment of SFBW for membrane filtration. Water Supply 2002, 2, 301–306. [Google Scholar]
  20. Huang, C.P.; Lin, J.L.; Wu, C.L.; Chu, C.P. Recycling of spent filter backwash water using coagulation-assisted membrane filtration: Effects of submicron particles on membrane flux. Water Sci. Technol. 2010, 61, 1923–1929. [Google Scholar] [CrossRef] [PubMed]
  21. Shafiquzzaman, M.; Hasan, M.M.; Nakajima, J.; Mishima, I. Development of a simple and effective arsenic removal filter based on ceramic filtration. J. Water Environ. Technol. 2011, 9, 333–347. [Google Scholar] [CrossRef]
  22. Hasan, M.M.; Shafiquzzaman, M.; Azam, M.S.; Nakajima, J. Application of a simple ceramic filter to membrane bioreactor. Desalination 2011, 276, 272–277. [Google Scholar] [CrossRef]
  23. Hasan, M.M.; Shafiquzzaman, M.; Nakajima, J.; Ahmed, A.T.K.; Azam, M.S. Application of low cost ceramic filter to Membrane Bioreactor for grey water Treatment. Water Environ. Res. 2015, 87, 233–241. [Google Scholar] [PubMed]
  24. Zheng, W.Y.; Nigel, G.; Hui-juan, L.; Jiu-hui, Q. Comparison of FeCl3 and alum pre-treatment on UF membrane fouling. Chem. Eng. J. 2013, 234, 158–165. [Google Scholar]
  25. Hermia, J. Constant pressure blocking filtration laws—Application to power-law non-newtonian fluids. Trans. Inst. Chem. Eng. 1982, 60, 183–187. [Google Scholar]
  26. Lim, A.L.; Bai, R. Membrane fouling and cleaning in microfiltration of activated sludge wastewater. J. Membr. Sci. 2003, 216, 279–290. [Google Scholar] [CrossRef]
  27. Nandi, B.K.; Uppaluri, R.; Purkait, M.K. Treatment of Oily Waste Water Using Low-Cost Ceramic Membrane: Flux Decline Mechanism and Economic Feasibility. Sep. Sci. Technol. 2009, 44, 2840–2869. [Google Scholar] [CrossRef]
  28. World Health Organization (WHO). WHO Guideline for Drinking Water Quality, 4th ed.; World Health Organization: Geneva, Switzerland, 2004. [Google Scholar]
Figure 1. (a) Schematic presentation of ceramic filter; (b) Ceramic filter after burning.
Figure 1. (a) Schematic presentation of ceramic filter; (b) Ceramic filter after burning.
Water 10 00150 g001

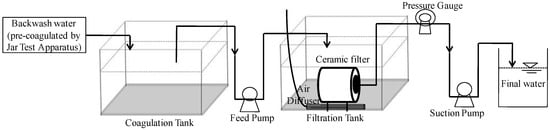

Figure 2. Schematic diagram of filtration experiments.
Figure 2. Schematic diagram of filtration experiments.
Water 10 00150 g002

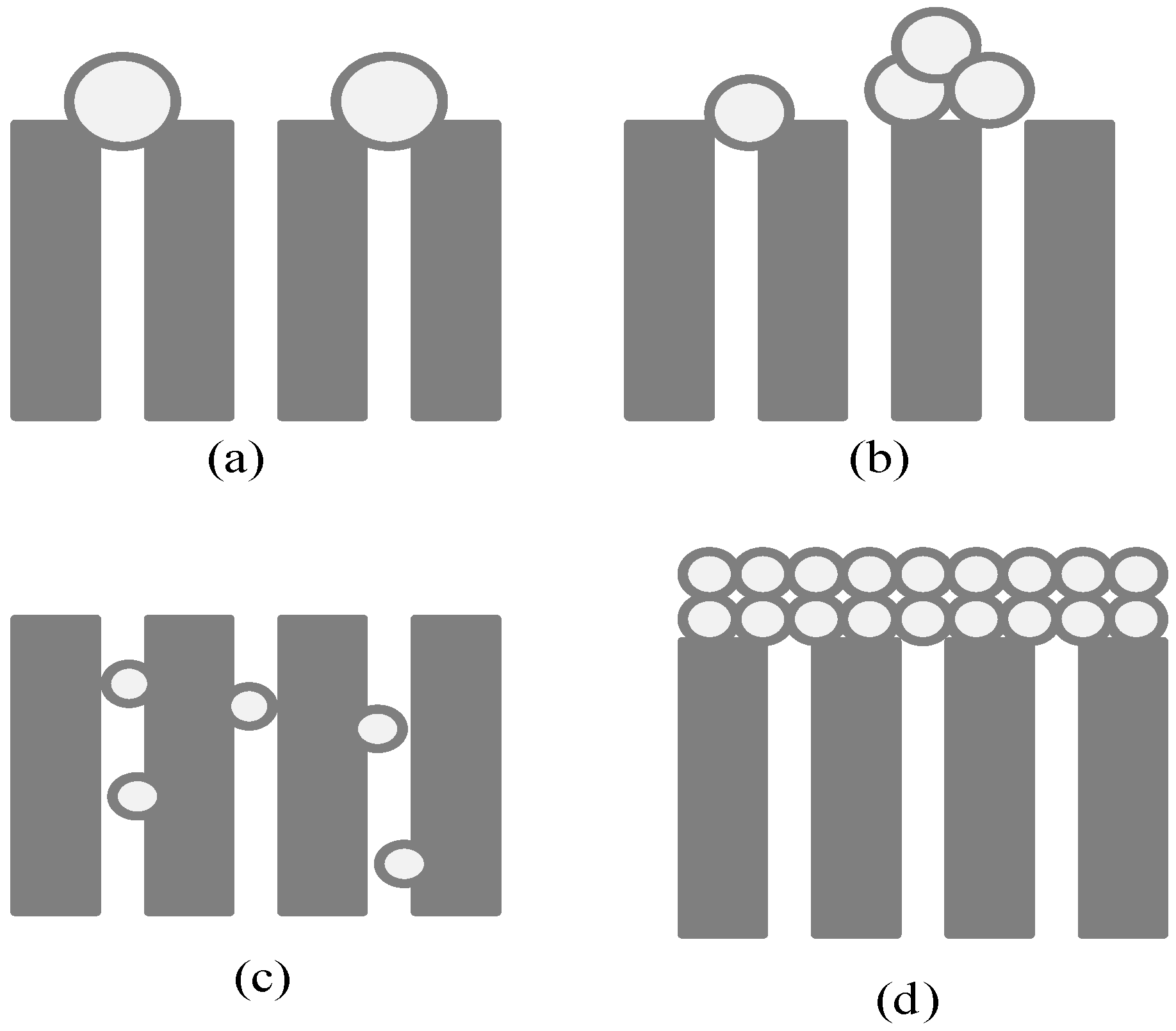

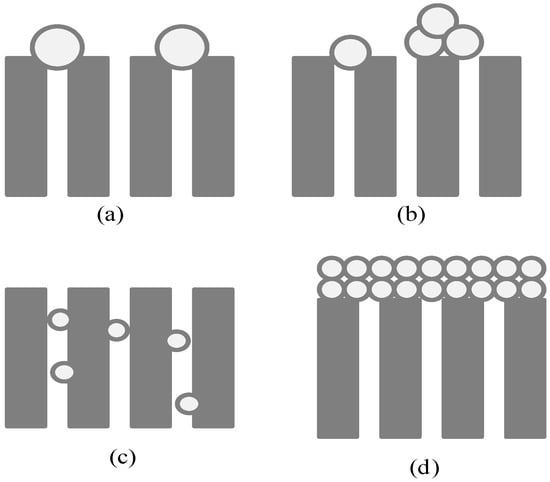

Figure 3. Schematic representation of different pore fouling mechanisms considered by the Hermia’s model: (a) complete pore blocking; (b) intermediate pore blocking; (c) standard pore blocking, and (d) cake layer formation.
Figure 3. Schematic representation of different pore fouling mechanisms considered by the Hermia’s model: (a) complete pore blocking; (b) intermediate pore blocking; (c) standard pore blocking, and (d) cake layer formation.
Water 10 00150 g003

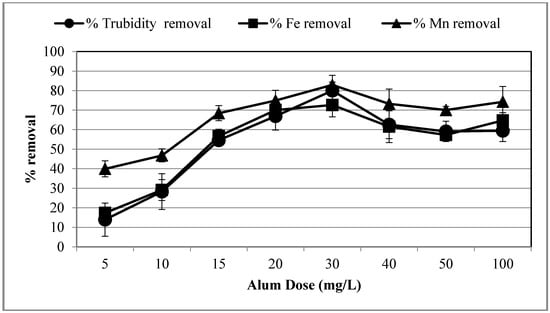

Figure 4. Variation of percent removal of turbidity, total Fe, and total Mn with alum doses. Raw water: turbidity = 1250 NTU, total Fe = 102 mg/L, and total Mn = 12.7 mg/L. Error bar shows the standard deviation of triplicate experiments.
Figure 4. Variation of percent removal of turbidity, total Fe, and total Mn with alum doses. Raw water: turbidity = 1250 NTU, total Fe = 102 mg/L, and total Mn = 12.7 mg/L. Error bar shows the standard deviation of triplicate experiments.
Water 10 00150 g004

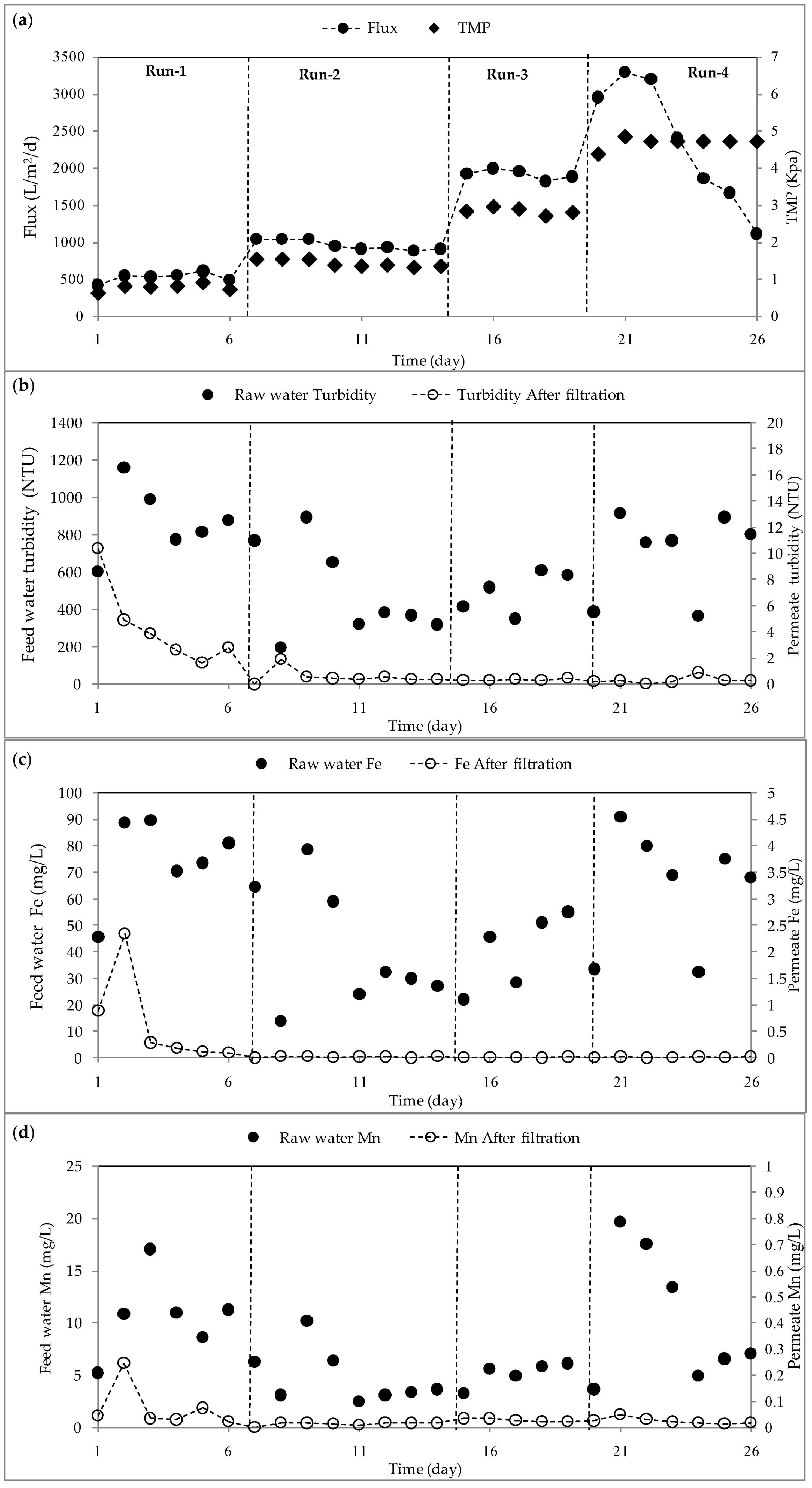

Figure 5. Continuous filtration experiments of 4 runs at different TMP: (a) variation of flux with TMP; (b) Turbidity in feed water and in thepermeate; (c) Fe in feed water and in the permeate, and (d) Mn in feed water and in the permeate.
Figure 5. Continuous filtration experiments of 4 runs at different TMP: (a) variation of flux with TMP; (b) Turbidity in feed water and in thepermeate; (c) Fe in feed water and in the permeate, and (d) Mn in feed water and in the permeate.
Water 10 00150 g005

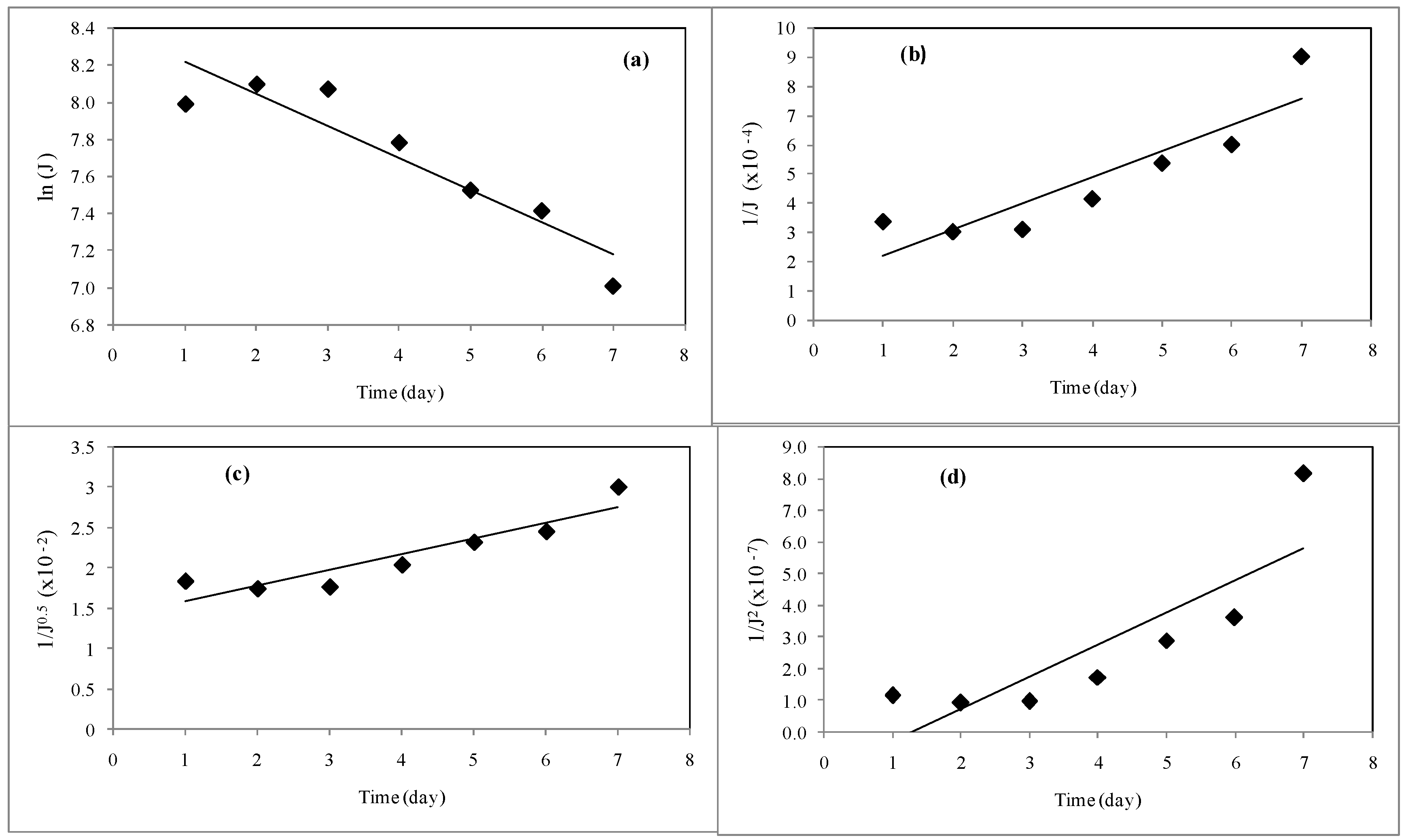

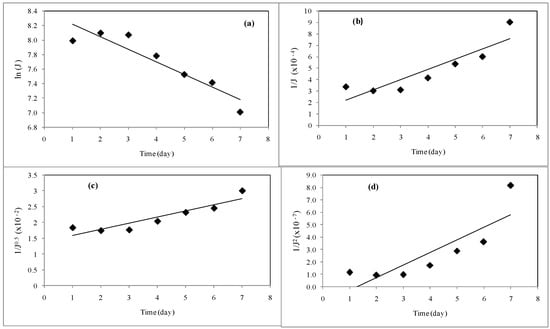

Figure 6. Linear plot of flux vs. time for different pore blocking models at 4.5 kPa: (a) complete pore blocking model (ln(J) vs. t) ; (b) intermediate pore blocking model (1/J vs. t); (c) standard pore blocking model (1/J0.5 vs. t), and (d) cake layer formation model (1/J2 vs. t) as given in.
Figure 6. Linear plot of flux vs. time for different pore blocking models at 4.5 kPa: (a) complete pore blocking model (ln(J) vs. t) ; (b) intermediate pore blocking model (1/J vs. t); (c) standard pore blocking model (1/J0.5 vs. t), and (d) cake layer formation model (1/J2 vs. t) as given in.
Water 10 00150 g006

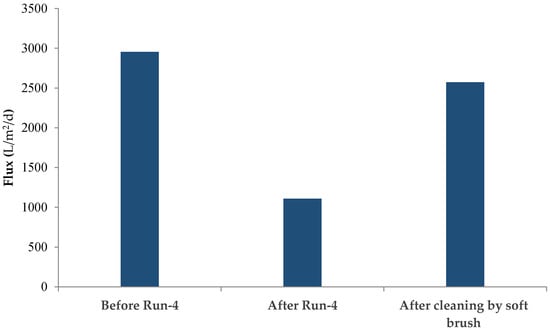

Figure 7. Recovery of pure water filtration flux by simple washing using soft brush in Run-4 at 4.5 kPa.
Figure 7. Recovery of pure water filtration flux by simple washing using soft brush in Run-4 at 4.5 kPa.
Water 10 00150 g007
Table 1. The detailed specifications of the filtration experiments. TMP = trans-membrane pressure.
Table 1. The detailed specifications of the filtration experiments. TMP = trans-membrane pressure.
Experimental RunTMP (kPa)Flux (L/m2/d)Experiment Duration (Day)Alum Dose for Pre-Coagulation (mg/L)
Run-10.64501–620
Run-21.510507–1420
Run-33200015–1920
Run-44.5300020–2620
Table 2. Equations in Hermia’s model equations for four type of fouling mechanisms.
Table 2. Equations in Hermia’s model equations for four type of fouling mechanisms.
Fouling MechanismEquationsConstant
Complete pore blocking (n = 2)Basic equation: J = J 0 exp ( k c b t ) k c b
Linear form: ln J = ln J 0 + k c b t
Intermediate pore blocking (n = 1)Basic equation: J = J 0 ( 1 + K i b A J 0 t ) k i b = K i b A
Linear form: 1 J = 1 J 0 + k i b t
Standard pore blocking (n = 1.5)Basic equation: J = J 0 ( 1 + 0.5 K s b ( A J 0 ) 1 / 2 t ) 2 k s b = 0.5 K s b A 1 / 2
Linear form: 1 J 1 / 2 = 1 J 0 1 / 2 + k s b t
Cake layer formation (n = 0.5)Basic equation: J = J 0 ( 1 + 2 K c l ( A J 0 ) 2 t ) 2 k c b = 2 K c b A 2
Linear form: 1 J 2 = 1 J 0 2 + k c l t
Table 3. Sand filter backwash water (SFBW) quality of the Buraidah water treatment plant.
Table 3. Sand filter backwash water (SFBW) quality of the Buraidah water treatment plant.
ParameterUnitMin (n = 13)Average (n = 13)Max (n = 13)
pH-7.17.27.7
TurbidityNTU3045161250
Total dissolved solids (TDS)mg/L763773797
Conductivityµs/cm153315511598
Total Hardnessmg/L297303308
Calciummg/L808385
Magnesiummg/L222324
Alkalinitymg/L124132134
Manganesemg/L2.45.511
(Fe) Ironmg/L246090
Fluoridesmg/L0.00.30.4
Chloridesmg/L319326331
Sulfatesmg/L100144170
Silicamg/L161822
Total suspended solids (TSS)mg/L145165190
Table 4. Hermia’s model parameters obtained from the linear regression analysis for the ceramic filter.
Table 4. Hermia’s model parameters obtained from the linear regression analysis for the ceramic filter.
Complete Pore BlockingIntermediate Pore BlockingStandard Pore BlockingCake Layer Formation
kcb−1.7 × 10−1kib9.0 × 10−5Ksb2.0 × 10−3Kcl1.0 × 10−7
R20.86R20.81R20.84R20.73
ln (J0)8.41/J01.3 × 10−41/J00.51.4 × 10−21/J02−1.3 × 10−7
J04413J07768J05201J0-
Table 5. Comparison of filtered water characteristics with World Health Organization (WHO) standard limit for drinking.
Table 5. Comparison of filtered water characteristics with World Health Organization (WHO) standard limit for drinking.
ParameterUnitRaw SFBWPermeate(after Filtration)WHO Standard Limit for Drinking WaterSatisfy the WHO Standard?
pH 7.27.26.5–8.5Yes
TurbidityNTU5160.40.1–5Yes
TDSmg/L773783600–1000Yes
Conductivityµs/cm155115672000Yes
Hardnessmg/L303312500Yes
Calciummg/L839940–80Yes
Magnesiummg/L231520–30Yes
Alkalinitymg/L132138600Yes
Manganesemg/L5.50.020.1Yes
(Fe) Ironmg/L600.010.3Yes
Fluoridesmg/L0.30.031.5Yes
Chloridesmg/L326335200Yes
Sulfatesmg/L14494150–400Yes
Silicamg/L1816-Yes
TSSmg/L16500Yes
Total ColiformMPN/mlnmnm0No
Fecal ColiformMPN/mlnmnm0No
E-coliMPN/mlnmnm0No
nm = Not measured.
