Article

Previous Land Use Affects the Recovery of Soil Hydraulic Properties after Forest Restoration

1
Laboratory of Ecology and Forest Restoration (LERF), Department of Forest Sciences, “Luiz de Queiroz” College of Agriculture, University of São Paulo, Av. Pádua Dias 11, Piracicaba SP 13418-900, Brazil
2
Department of Soil Science, “Luiz de Queiroz” College of Agriculture, University of São Paulo, Piracicaba SP 13418-900, Brazil
3
Forest Hydrology Laboratory, “Luiz de Queiroz” College of Agriculture, University of São Paulo, Piracicaba SP 13418-900, Brazil
4
Department of Biological Sciences, “Luiz de Queiroz” College of Agriculture, University of São Paulo, Piracicaba SP 13418-900, Brazil
5
Agricultural Department, University of Sassari, Viale Italia, 39, 07100 Sassari, Italy
*
Author to whom correspondence should be addressed.
Water 2018, 10(4), 453; https://doi.org/10.3390/w10040453
Submission received: 27 February 2018 / Revised: 3 April 2018 / Accepted: 6 April 2018 / Published: 9 April 2018
(This article belongs to the Special Issue Soil Water Conservation: Dynamics and Impact)

Abstract

:
Knowledge of soil hydraulic properties after forest restoration is essential for understanding the recovery of hydrological processes, such as water infiltration. An increase of forest cover may improve water infiltration and soil hydraulic properties, but little is known about the response and extent to which forest restoration can affect these properties. The purpose of this study was to investigate the effect of forest restoration on surface-saturated soil hydraulic conductivity (Ks), and to verify the Ks recovery to the pre-disturbance soil conditions. We sampled field Ks at the surface in Campinas municipality, São Paulo State, Brazil, at 18 plots under three land-cover types: (i) a pasture; (ii) a restored forest using a high-diversity mix of plantings (85 regional native species) of 9 years of age; and (iii) a remnant forest patch. We used the Beerkan method for soil hydraulic characterization. Bulk density (ρb), soil organic carbon content (OC), soil porosity and particle size data were also sampled. We found considerable differences in soil hydraulic properties between land-cover classes. The highest Ks were observed in remnant forest sites and the lowest Ks were associated with pasture sites. The Ks recovery differs markedly between restored forests. Our results strongly suggest that soil attributes and Ks recovery are influenced by the duration and intensity of land use prior to forest restoration. Attention needs to be given to management activities before, during and after forest restoration, especially where the soil is still compacted and Ks is low.

1. Introduction

The global forest restoration movement based on natural regeneration and tree plantations has increased tropical forest cover [1,2]. Nevertheless, soil hydraulic property responses in these restored forests are virtually unknown [3,4]. Soil water infiltration is a key hydrological process which, among others, influences groundwater recharge, soil erosion and surface runoff. Indeed, one of the best parameters for understanding and studying soil infiltration is the saturated soil hydraulic conductivity (Ks) [4,5]. The Ks is a soil property with the greatest spatial and temporal variability among soil properties. The Ks variability depends on many factors, such as soil types, land uses, soil depths, landscape positions, methods of measurement and physical and chemical soil attributes [6]. Despite this variation, the Ks is a useful and sensitive indicator of the effect of land-cover change on soil hydro-physical dynamics [7], which exerts a dominating influence on the partitioning of rainfall in vertical and lateral flow paths. Therefore, estimates of Ks are essential for describing and modelling hydrological processes [8].
The Atlantic Forest is one of the most important forest biomes of Brazil that has suffered intense pressure from human occupation, with approximately 12% of the original area remaining [9]. Recently, the Atlantic Forest Restoration Pact has emerged to restore large areas of degraded land. This is the largest forest-restoration initiative in Latin America with a target of restoring 15 million hectares of forest by 2050 [10]. These efforts have a substantial impact on soil hydraulic properties and can be expected to affect the hydrological processes in the restored ecosystems. However, these hydrological implications are rarely considered in studies of forest restoration [11]. Current literature reviews in tropical landscapes suggest that forest restoration can enhance surface Ks [12,13]. However, most studies on Ks recovery after forest restoration in tropical soils emphasize areas with natural regeneration or secondary succession [4,7,14,15,16,17,18,19].
Zimmerman et al. [17] found non-significant Ks recovery at surface and near-surface (12.5 and 20 cm soil depth) levels in Brazilian Amazônia during seven years of secondary succession after pasture abandonment. Recently, Leite et al. [19] by examining four sites of different ages in the Brazilian Caatinga—an abandoned pasture, a young forest (7 years), an intermediate forest (35 years), and an older forest (more than 55 years)—observed that forest regrowth promotes surface Ks recovery, increasing progressively over time. On the other hand, the effect of active restoration on Ks has been much less studied [20]. Zwartendijk et al. [11] compared surface Ks recovery between degraded lands, semi-mature forest, 2–10-year-old naturally regenerating vegetation and fallows that were actively reforested 6–9 years ago with 120 native species in Madagascar. They found higher Ks values in the semi-mature forest, followed by the active reforested sites, suggesting that active restoration may decrease the time it takes for the soil to recover hydraulic properties. Also, the impact of afforestation on Ks has been studied in teak (Tectona grandis) plantations at surface and near-surface (12.5 and 20 cm soil depth) levels in Brazilian Amazônia, where after 10 years the teak plantation shows Ks recovery from pasture conditions for all soil depths, but Ks values are still distant from pre-disturbance conditions [4]. Similarly, an increase in Ks after afforestation practices has been reported by several other tropical studies [21,22,23].
Tree planting to restore degraded lands is conducted in the expectation that soil hydraulic properties will be improved [13]. In order to understand the effect of forest restoration on Ks, we investigated the Ks recovery by field estimation under three land covers, namely pasture, 9-year-old restored forest, and remnant forest. To the best of our knowledge, no studies have investigated the Ks recovery after planting native mixed-species in the Brazilian Atlantic Forest and compared the results with pasture and remnant forest. We hypothesized that forest restoration can recover the surface Ks to the pre-disturbance soil conditions. The following questions were addressed: (1) Does forest restoration recover top-soil Ks values that characterize the remnant forest? (2) Are the measured soil attributes between the land covers similar?

2. Materials and Methods

2.1. Field Site

This research was carried out in the county of Campinas, São Paulo State, Brazil (22°54′ S, 46°54′ W). The area is located inside the sub-basin of Atibaia River (2800 km2), which belongs to the Piracicaba River basin. This region has suffered over 200 years of historical landscape changes. In the Atibaia sub-basin, the main land covers are: native vegetation (33%), pasture lands (30%), and crops (17%), and the forest cover increased 5.7% in the last decade [24]. The mean annual precipitation is 1700 mm and the mean annual temperature is 20 °C, with rainy months generally concentrated between October and March. The native vegetation in the area is classified as seasonal semi-deciduous forest [25]. The two soil types found in the study sites are Ultisols and Entisols [26], related to the diverse geomorphology of the region, which is located at the transition between the Atlantic Plateau and the Peripheral Depression geomorphological provinces. The rocks in the Atalntic Plateau are mainly composed of granites and gneises, while the Peripheral Depression is characterized by sedimentary rocks. The elevation ranges from 600 m to 900 m with an undulating topography and the presence of slopes higher than 20% [27].

2.2. Experimental Design

The sites were selected to capture variation in soil attributes. Also, the sites’ accessibility was taken into account in this selection. We examined the following land-cover classes: pasture, restored forest, and remnant forest. In each class we selected two sites or toposequences (Figure 1), under pasture (P1 and P2), under restored forest (R3 and R4), and under remnant forest (F5 and F6).
The length of each toposequence was constrained by topography and varied between 100 m and 150 m. Each site was divided into three landscape positions (upslope (U), midslope (M) and downslope (D)). Within each landscape position, we located one plot (7 × 7 m in size), resulting in 18 plots altogether. Detailed characteristcs of the three land-cover classes are as follows.
The pasture site P1 (22°49′24″ S, 46°54′39″ W) and P2 (22°54′38″ S, 46°53′26″ W) was characterised by a dense cover of grass. The dominant grass species is Urochloa brizantha. Information obtained from landholders revealed that the pasture sites have been heavily grazed for more than 20 years and have a stocking rate between 1 to 1.5 animal units ha−1. The measurements at these sites represent the Ks and soil attributes before forest restoration actions.
The restored forest sites (R3 and R4) were 9 years old when sampled and located in Fazenda Guariroba (22°53′48″ S, 46°54′28″ W). The forest-restoration process of an area of 300 ha began in 2007. The mixed plantation with a high-diversity mix of seedlings (85 regional native species), aimed to provide economical insurance and ensure successional processes for landowners [28,29]. Site preparation included grass control through herbicide applications and control of leaf-cutter ants by the distribution of insecticide baits. Direct seedling planting (3 × 2 m spacing) took place after conventional tillage. The mixed plantation also used fertilizer and irrigation at the time of planting and during the first year [28,30]. Aerial photographs and interviews with local peoples showed that land-use history differs between the restored forest sites. Both restored forests were originally deforested more than 100 years ago and planted with coffee (Coffea arabica) during the first decades of the 20th century. After the coffee plantation, the restored forest R3 was planted with eucalyptus (Eucalyptus sp.); this abandoned forest existed until 2006 without a commercial purpose, although a frequent grazing of cattle occurred, then it was harvested and grazing continued one year before the forest restoration. The eucalyptus harvest was made by motor–manual operations and a farm tractor forwarded the logs. The vegetation in the restored forest R3 prior to restoration activities consisted of low shrub and grasses. On the other hand, the restored forest R4 after the coffee plantation was used as pasture for livestock breeding until 1986, was subsequently planted again to coffee (C. arabica), and agricultural terraces were created with heavy track machinery. Then, the coffee plantation was replaced by pasture in 1996, which was similar to the pastures sites (P1 and P2), dominated by the grass species U. brizantha, and without natural regeneration.
The forest sites (F5 and F6), used as a reference for soil attributes, were located in Ribeirão Cachoeira forest (22°50′13″ S, 46°55′58″ W), the second largest natural remnant forest of 245 ha in the county of Campinas. The forest presents a high tree species diversity, with an average canopy stature of 15 m and emergent trees reaching up to 35 m tall [31].

2.3. Soil Sampling and Measurements

The first field campaign started in February and ended in March 2017. A total of four disturbed soil samples were collected per plot to determine the soil particle size distribution (PSD) and the soil organic carbon content (OC). The PSD was determined by the hydrometer method and soil texture was classified according to the US Department of Agriculture (USDA) standards [32]. The OC was determined by the Walkley–Black method [33]. In addition, four undisturbed soil cores (0.05 m in height and 0.05 m in diameter) were also collected per plot at the depth of 0–0.05 m to determine soil macroporosity (Mac) and microporosity (Mic), using the Richards pressure chamber with the application of 6 kPa suction [34].
Soil infiltration measurements were taken in a second field campaign during the month of June 2017 (dry season). We conducted a Ks characterization using the Beerkan method [35], referred to as BEST. We chose the BEST test because it is a simple, fast and inexpensive method [36,37,38]. At each plot, we carried out seven infiltration runs using a steel ring with an inner diameter of 0.16 m inserted approximately 0.01 m into the soil surface, with a minimum distance between measurements of 2 m. Before the ring’s insertion, the litter was removed and, if necessary, the grass and ground cover were cut in order to expose the soil surface. Sampling-point selection was influenced by suitable ground conditions for measurment and constraints such as tree roots, rocks and variations in microtopography. For each infiltration run, we collected one undisturbed soil core (0.05 m in height and 0.05 m in diameter) at the 0–0.05 m depth. We used the undisturbed soil cores to determine the initial volumetric soil water content (θi), the soil bulk density (ρb) and total soil porosity (Pt) assuming a particle density of 2.65 g cm−3 [39]. In each measurement, a known volume (150 mL) was repeatedly poured into the cylinder and the time needed for the complete infiltration of this volume was logged. We repeated the procedure until the difference in infiltration time between two or three consecutives trials became negligible. At the end of each infiltration test, we collected a disturbed soil sample inside the ring area to determine the saturated gravimetric water content, and thus the satured volumetric water content (θs) was calculated using the ρb. A total of 126 experimental cumulative infiltrations, I(t) (L), versus time, t (T), were then deduced, 42 for each land cover, 21 for each site, and 7 for each plot.

2.4. Estimating and Selecting the BEST Algorithm

The BEST-steady algorithm by Bagarello et al. [40] was used to obtain the Ks (KsB, the subscript B is used to indicate BEST-steady). This choice was made since it allows a higher success percentage of the infiltration runs to be obtained compared with other possible algorithms, such as BEST-slope [41] and BEST-intercept [42], whose data require fitting to the transient stage of the infiltration run. Another expected advantage of the BEST-steady algorithm is that the possible problems associated with the use of the transient infiltration data are avoided. The BEST-steady expresses the KsB with the following equation [43]:
K s B = C i s A b s + C
where is (L T−1) and bs (L) are, respectively, the slope and the intercept of the regression line fitted to the data describing steady-state conditions on the cumulative infiltration I (L) versus t (T) plot. Taking into account that BEST focuses on the Brooks and Corey relationship for hydraulic conductivity [44], the A (L−1) and C constants are defined as follows [35]:
A = γ r ( θ s θ i )
C = 1 2 [ 1 ( θ i θ s ) η ] ( 1 β ) ln ( 1 β )
where γ and β are infiltration coefficients commonly set at 0.75 and 0.6 as explained by Lassabatere et al. [3,7,16,19], r (L) is the radius of the disk source, η is a shape parameter that is estimated from the capillary models [45], and θi and θs are the initial and final water contents, respectively. Note that θi should not exceed 0.25 θs; however, Di Prima et al. [43] showed that BEST-steady can be applied in initially wetter soil conditions (θi > 0.25 θs) without an appreciable loss of accuracy in the predictions of Ks. Therefore, as suggested by Cullotta et al. [46], the θi was not considered to affect the reliability of the predicted Ks. On the other hand, the BEST-steady algorithm failed in some sampling points, providing negative Ks values and affecting the reliability of measured Ks. For this reason, we also estimated Ks for the whole data set by the near steady-state phase of a Beerkan infiltration run (SSBI—KsS, the subscript S is used to indicate steady-state) [47]. This method is attractive for a simple soil hydraulic characterization, but testing the ability of this procedure to estimate Ks is necessary. Indeed, in scientific literature there is no exhaustive testing of the performances of the SSBI method, notwithstanding that this method has a noticeable practical interest. This method estimates Ks through a simple Beerkan infiltration test and an estimate of the so-called sorptive parameter, α* (L−1), expressing the relative importance of gravity and capillary forces during a ponding infiltration process [48,49]. With this method KsS is estimated by the following equation [47]:
K s S = i s γ γ w r α * + 1
where γw is a dimensionless constant related to the shape of the infiltration front and is set at 1.818 [50]. In this investigation, we considered α* as a constant and equal to 0.012 mm−1, since it was found to be usable in tropical soils [47,51]. The reasons for this choice was that we did not find in the literature other specific support for using a different α* value for tropical soils. Following Bagarello et al. [47], the BEST-steady algorithm was chosen to check the SSBI method by comparing KsB and KsS in terms of factors of difference (FoD), calculated as the highest value between KsB and KsS divided by the lowest value between KsB and KsS. Differences between KsB and KsS not exceeding a factor of two were considered indicative of similar estimates [49].

2.5. Data Analysis

Data sets were summarized by calculating the mean and the associated coefficient of variation (CV). Following similar investigations [37,52], unique values of clay, silt, sand, OC, ρb, total porosity, macroporosity, microporosity and θi were determined for each plot by averaging the measured values, considering the small size of the sampled areas [52]. The hypothesis of normal distribution of both the untransformed and the log-transformed Ks data were tested by the Lilliefors test [53]. The other parameters were assumed to be normally distributed and, thus, no transformation was performed on these data before statistical analysis [54,55]. Treatment means were calculated according to the statistical distribution of the data, i.e., geometric means for Ks (log-normal distribution) and arithmetic means for all other parameters (normal distribution) [56]. According to Lee et al. [55], the appropriate CV expression for a log-normal distribution was calculated for the geometric means, and the usual CV was calculated for the arithmetic means. Statistical comparison was conducted using two-tailed t-tests, whereas the Tukey honestly significant difference test was applied to compare the data sets. The ln-transformed KsS was used in the statistical comparison. A probability level, p = 0.05, was used for all statistical analyses. All analyses were carried out in the statistical programming software R [57].

3. Results

3.1. Differences in Soil Attributes among Study Sites

The PSD showed considerable differences among the soils. Most of the sampled plots presented sandy loam (P1U, P1M, P1D, R3U, R3M, RD, F5U and F5D) and sandy clay loam textures (R4U, R4M, R4D and F5M), and the rest clay loam (P2M, F6U and F6M) and loamy textures (P2U, P2D and F6D). The OC ranged from 14.76–35.37 g Kg−1 under pastures (P1 and P2), from 10.46–24.60 g Kg−1 under restored forests (R3 and R4), and from 17.53–48.59 g Kg−1 under remnant forests (F5 and F6). The ρb values ranged between 1.12–1.40 g cm−3 in the pastures, for the restored forests the values ranged from 1.09–1.52 g cm−3, while in the remnant forests the values ranged from 0.88–1.25 g cm−3. The Pt varied from 0.47–0.58 cm3 cm−3 in the pastures, from 0.43–0.59 cm3 cm−3 in the restored forests, and from 0.53–0.67 cm3 cm−3 in the remnant forests. In general, the highest soil Mac values were observed in the remnant forests, the intermediate values in restored forests, and the lowest values in the pastures. In contrast, the soil Mic was greater in the pastures, intermediate in the restored forests, and lower in the remnant forests. The mean θi at the time of the Beerkan infiltration run varied between 0.16–0.37 cm3 cm−3 and the soil was significantly wetter in plots P2M, R4U and R4M (Table 1).

3.2. Estimating and Selecting the BEST Algorithm

Overall, the Beerkan method used in this study was found to be robust for measuring the Ks in the field. However, the BEST-steady algorithm yielded physically plausible estimates (i.e., positive Ks values) in 108 of 126 infiltration runs (85.7% of the cases). The percentage of successful runs was 95.2% (40 of 42 runs) both in the pasture sites and restored forest. With reference to the remnant forest (F5 and F6), BEST-steady led to a failure rate value of 33.3%, leading to a lack of estimates in 14 of 42 infiltration runs. In these cases, convex cumulative infiltration-shaped data always produced a negative intercept of the straight line fitted to the data describing steady-state conditions, which yielded negative Ks values (Figure 2). On the other hand, the SSBI method always yielded physically plausible estimates (i.e., positive Ks values) and small differences were found between the KsB and KsS estimates (Figure 3). The means of KsS differed from the corresponding values of KsB, by a factor not exceeding 1.81. The individual determination (i.e., point by point) of the factors of difference, FoD, did not exceed 2.37 (mean of FoD is equal to 1.51) and they were less than 2 and 1.5 in 90% and 53% of the cases, respectively. Therefore, it can be argued that the BEST-steady and SSBI method led to similar estimates, given that the individual FoD values were lower than two in almost all cases.
The failure in the BEST-steady algorithm is reported by several studies in subtropical soils, where OC exceeds 5%. This failure is normally related to the occurrence of hydrophobic conditions [43,46,58]. Nevertheless, our soils showed lower OC values (less than 5%). In addition, the soil hydrophobicity is a complex property and poorly studied in tropical soils [59,60]. Other factors that probably contributed to the BEST-steady algorithm failure are the heterogeneous soil structure, changes in soil structure during measurement, initial soil moisture, and temperature [61,62]. For these reasons, the failure of the BEST-steady algorithm should be addressed in detail by future studies, considering detailed physical, chemical and mineralogical analyses. Hereafter, for the sake of reliable Ks values and comparison across study sites, only the KsS values estimated using the SSBI method were considered. This choice was supported by the fact that the SSBI method allowed us to maintain the integrity of the dataset. In addition, the KsS values ranged between 3 mm h−1 and 934 mm h−1, with a high variability inside all study sites.

3.3. Saturated Soil Hydraulic Conductivity (Ks) Characterization

Evaluating the surface Ks values by soil texture, greater Ks variation was found in soils with higher clay content, contrasting with lower variation in soils with higher sand content. Also, soils with higher sand content did not show the higher Ks. In general, the lowest Ks values occurred in pasture plots, for example, in pasture P1 the Ks ranged from 10–320 mm h−1, and in pasture P2 Ks ranged from 4–37 mm h−1, whereas the highest Ks values were observed in most remnant forest plots. The sandy loam texture highlighted the large differences between Ks in the restored forest R3 and pasture plots (P1U and P1M). In this case, the Ks in the restored forest R3 varied from 49–267 mm h−1, with the higher Ks evidenced at the restored forest plot R3D (average of 180 mm h−1); moreover, the Ks was similar to the pasture plot P1D (average of 110 mm h−1) and most remnant forest plots. For the remnant forest F5, the Ks varied from 18–660 mm h−1, showing the higher Ks at remnant forest plot F5U (average of 247 mm h−1), which differs from pasture plots (P1U and P1M) but not from restored forest R3. In contrast, the Ks at remnant forest plot F5D (average of 68 mm h−1) exhibited a similar Ks in relation to pasture and restored forest plots. For the sandy clay loam texture, the Ks in the restored forest R4 (from 6–256 mm h−1) was significantly different from the remnant forest plot F5M (average of 68 mm h−1); furthermore, all the plots in the restored forest R4 had low Ks variability, similar to the pasture land cover. Finally, clay loam and loam textures showed the same comparison among land covers, characterized by marked differences between lower Ks in pasture 2 and higher Ks in the remnant forest F6. In particular, the remnant forest F6 evidenced the higher Ks variability (from 33–934 mm) in the study sites (Figure 4).
Statistical comparision of KsS revealed no significant differences between the restored forest (R3) and the remnant forest (F5 and F6). However, significant differences between the restored forest (R4) and remnant forest were detected, indicating similarity with the pastures (P1 and P2) (Table 2).

4. Discussion

4.1. Effects of Land Use on Soil Attributes and Ks

Although the soils in the study area showed some variability, this was overcome by choosing sites and landscape positions within the different land uses that presented similar soil textural classes in the surface horizon. This approach allowed us to group and compare the soil attributes and Ks (Figure 4). In general, important differences were observed in the soil attributes and Ks between land-cover classes. These differences could be related to many factors such as intensity of past land use [4,23], spatial and topographic variations in soil types along the toposequences [63,64], density and diversity of plants, root system, vegetation type, canopy cover and soil faunal activity, among others [19]. Unfortunately, the influence of these factors on soil attributes and Ks after forest restoration is poorly understood and needs to be included in future studies.
Pasture. As expected, Ks was significantly lower under pasture plots than restored forest and remnant forest plots. This result was directly related to the highest ρb found in the study pastures, which influences the higher soil Mic and lower soil Mac values [65]. Similar findings have been reported be several authors [13,14,15]. An exception to this was related to pasture plot P1D, which showed similar Ks values compared to the restored forest and remnant forest in the sandy loam texture, suggesting lower soil compaction, and consequently higher soil Mac. Also, the highest sand content found in this plot could help to explain this result. Moreover, the present results illustrate the Ks spatial variability in two different pasture sites, characterized by a low variation in Ks values. This could be due to the soil compaction [4,13], and the duration of pasture use in the land-use history, which is one of the most important factors for Ks variability over time [15,17], as well as the cattle-grazing intensity that could have influenced the Ks variability in the pasture plots [7]. Moreover, the lower soil faunal activity and organic matter in pasture land covers are important factors when analyzing the soil attributes [15,56]. Notably, the pasture plots P1U, P2U and P2M, had OC similar to the remnant forest. These similarities are closely linked to carbon inputs in pastures sites where the root system of grasses, the animal-derived organic matter and the application of fertilizers might have increased the organic substrate [20,65]. In contrast, pasture plots P1M, P1D and P2D showed the lowest OC values in the pasture plots, which could be attributed in part to the higher sand content in these plots.
Restored forest. The soil texture, understory vegetation (Figure 1) and intensity of past land use were different in the restored forest sites (R3 and R4), and these are the most likely reasons for the differences in soil attributes and Ks values between both restored forests [23,66]. Also, it is important to underscore that this result could have been influenced by possible soil compaction during mechanized soil preparation during the forest restoration [67]. The most important soil attributes of the Ks differentiation between restored forest sites was the ρb and OC. For example, the higher Ks in the restored forest plot R3D was associated to the lowest ρb and higher OC values. Overall, the restored forest R3 with higher sand content (sandy loam texture) exhibited lower OC, lower soil Mic, lower ρb, higher soil Mac and higher Ks than restored forest R4. The higher Ks in restored forest 3, relative to pasture plots with similar soil texture (P1U and P1M), is consistent with the results under teak plantation in Brazilian Amazônia [4] and pine plantation in Nepal [23]. Furthermore, plots in the restored forest R3 showed no significant differences in Ks from most remnant forest plots. These results can be linked to the land-use history in the restored forest R3, where the presence of an abandoned eucalyptus forest with a canopy structure of more than 50 years influenced the low trampling pressure and machinery traffic intensities, suggesting a litter accumulation that could have protected the soil surface during this period [68,69].
In the second situation, the restored forest R4 with higher clay content (sandy clay loam texture) exhibited higher OC, higher ρb and lower Ks than restored forest R3. In particular, the lower Ks compared to the remnant forest plot (F5M) with a similar soil texture clearly indicates that the full return to pre-disturbance conditions is still far off [22]. On the other hand, the sandy clay loam texture did not include pasture plots; however, pasture Ks in this soil texture could be assumed to be similar to the pasture sites (P1 and P2), considering the low spatial Ks variability observed in the pasture land cover. Thus, the restored forest R4 showed no significant differences in Ks with the pasture sites. This result can be related to past land-use intensity in the restored forest R4, in which the combination of coffee plantation and pastures led to greater soil exposure, and also trampling pressure and the construction of agricultural terraces could have caused erosion and soil compaction before the forest restoration. The present results agree with several studies [4,16,23], which suggest that Ks decreases with increasing land-use intensity, and that Ks recovery will be longer in view of the intensive land use. Filoso et al. [13] argued that in some cases the recovery of soil infiltration after forest restoration may be extremely difficult, because of the absence of natural understory vegetation. This research did not directly quantify the herbaceous cover, but in the field we observed that natural regeneration in the restored forest R4 is impeded by the dominance of an invasive grass species (U. brizantha), which is also associated with the open canopy conditions. Conversely, restored forest R3 presented visually a canopy structure with greater understory vegetation. Indeed, the canopy cover determines the interception rainfall, reducing raindrop impact and surface sealing, which could enhance the Ks [19]. Additionally, the higher ρb values in restored forest R4 are an indication of lower root and soil organism presence [70]; this may reduce plant seed germination, reduce root growth and decrease soil oxygen availability, becoming an ecological filter in the natural regeneration processes [71,72]. Zimmerman et al. [17] reported that invasive species could delay the Ks recovery in Brazilian Amazônia after a decade of pasture abandonment.
Remnant forest. Comparing remnant forest plots and pasture plots in the sandy loam, clay loam and loam textures allowed the detection of significantly higher Ks in remnant forest plots. In the case of the sandy clay loam texture, the remnant forest plot F5M showed significantly higher Ks than plots in the restored forest R4. In contrast, the sandy loam texture showed no significant differences between plots of restored forest 3 and remnant forest plot F5U. These results are related to the lowest ρb and higher Mac values that favor the Ks, suggesting a higher soil pore connectivity. In the specific case of remnant forest plot F5D in the sandy loam texture, no significant differences were found in relation to pasture plots (P1U and P1M). This result can be associated with the high ρb and a consequent increase in the soil Mic that was noted in the remnant forest plot F5D. The soil attributes and Ks values in remnant forest sites could be explained by the longer time that these forests have remained undisturbed, which allows a better soil structure to develop and the storage of more soil carbon [19,66]. These findings are in agreement with those reported by several other studies in the Atlantic Forest [63,65]. Additionally, the Ks spatial variability observed in both remnant forests is in line with previous work by Hassler et al. [7], who attributed the Ks variability in Panama forest soils to overland flows that result in erosion [19]. Other factors that might have caused the Ks spatial variability in remnant forest plots were the steepness of the sample plots and the soil distribution in the landscape positions (U, M, D) influenced by contrasting slope and topography.

4.2. Management Implications

The fact that restored forests R3 and R4 showed clear differences in Ks recovery and soil attributes may provide evidence that, in some cases, simply planting trees is not, in itself, enough to recover the soil attributes to the pre-disturbance soil conditions [23]. Attention needs to be given to management activities before, during and after forest restoration, especially where the soil is still compacted and Ks is low. From this point of view, it is therefore important that monitoring forest restoration programs includes collection of soil compaction and Ks data to understand the initial compaction degree and soil infiltration, reinforcing the need to compare these values with the pre-disturbance soil conditions. After assessing soil compaction and soil infiltration at the restored forests, management practices could be implemented to alleviate soil compaction, such as mechanical loosening techniques (i.e., deep ripping and subsoiling), which may improve plant growth [73,74]. In addition, some technical methods in forest restoration that have been shown to aid natural regeneration and soil recovery are the suppression of weedy vegetation and maintenance and enrichment planting [28].
If the pasture sites (P1 and P2) presented here represent the planted pastures of the Atlantic Forest, we could observe that water infiltration is drastically affected in most cases, regardless of the soil texture. This result and the negative effects of pastures that have been heavily grazed are well documented [4,15,17] and have also been confirmed in the present research. Indeed, according to Martínez and Zinck [15] pasture degradation can be improved by rotational grazing and the introduction of silvopastoral systems during pasture management. Moreover, there is an increasing number of reports regarding different tropical land covers, suggesting that lower Ks may lead to less groundwater recharge and increases in overland flow frequency [3,7,16,19]. Thus, our results reinforce the need for better management practices in pastures and restored forests to avoid soil erosion, conserve water and create opportunities to enhance water infiltration [75].

5. Conclusions

In this study, the hypothesis that forest restoration can recover the surface Ks to the pre-disturbance soil conditions was not supported for both restored forest sites (R3 and R4). We found two different situations with marked differences in soil attributes and Ks recovery between restored forest sites. Our results strongly suggest that soil attributes and surface Ks recovery are influenced by the duration and intensity of land use prior to forest restoration: while the restored forest R3 with a previous lower intensity of land use showed similar Ks to the remnant forest sites, the Ks recovery in restored forest R4 is still far-off from these remnant forest sites due to greater exposure of the soil and trampling pressure during the land-use history.
The present results further illustrate that the measured soil attributes were different between land-cover classes: pasture, restored forest and remnant forest. They also bring out the inverse relationship between Ks and ρb, where the Ks increases as a result of a decrease in ρb, and, consequently, the dominance of macropores over micropores, which facilitate soil water infiltration.

Acknowledgments

This research was supported by the Fundação de Amparo à Pesquisa do Estado de São Paulo (BIOTA/FAPESP Program: 2013/50718-5 and 1999/09635-0) and Conselho Nacional de Desenvolvimento Cintífico e Tecnológico (CNPq 561897/2010-7).

Author Contributions

Sergio Esteban Lozano-Baez carried out the data collection and wrote the initial draft. The other authors revised, modified and supplemented the ideas for the final draft.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Suding, K.; Higgs, E.; Palmer, M.; Callicott, J.B.; Anderson, C.B.; Baker, M.; Gutrich, J.J.; Hondula, K.L.; LaFevor, M.C.; Larson, B.M. Committing to ecological restoration. Science 2015, 348, 638–640. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Chazdon, R.L.; Brancalion, P.H.S.; Lamb, D.; Laestadius, L.; Calmon, M.; Kumar, C. A Policy-Driven Knowledge Agenda for Global Forest and Landscape Restoration: A policy-driven agenda for restoration. Conserv. Lett. 2017, 10, 125–132. [Google Scholar] [CrossRef]
  3. Bruijnzeel, L.A. Hydrological functions of tropical forests: Not seeing the soil for the trees? Agric. Ecosyst. Environ. 2004, 104, 185–228. [Google Scholar] [CrossRef]
  4. Zimmermann, B.; Elsenbeer, H.; De Moraes, J.M. The influence of land-use changes on soil hydraulic properties: Implications for runoff generation. For. Ecol. Manag. 2006, 222, 29–38. [Google Scholar] [CrossRef]
  5. Neary, D.G.; Ice, G.G.; Jackson, C.R. Linkages between forest soils and water quality and quantity. For. Ecol. Manag. 2009, 258, 2269–2281. [Google Scholar] [CrossRef]
  6. Deb, S.K.; Shukla, M.K. Variability of hydraulic conductivity due to multiple factors. Am. J. Environ. Sci. 2012, 8, 489–502. [Google Scholar] [CrossRef]
  7. Hassler, S.K.; Zimmermann, B.; van Breugel, M.; Hall, J.S.; Elsenbeer, H. Recovery of saturated hydraulic conductivity under secondary succession on former pasture in the humid tropics. For. Ecol. Manag. 2011, 261, 1634–1642. [Google Scholar] [CrossRef]
  8. Zimmermann, A.; Schinn, D.S.; Francke, T.; Elsenbeer, H.; Zimmermann, B. Uncovering patterns of near-surface saturated hydraulic conductivity in an overland flow-controlled landscape. Geoderma 2013, 195–196, 1–11. [Google Scholar] [CrossRef]
  9. Soares-Filho, B.; Rajão, R.; Macedo, M.; Carneiro, A.; Costa, W.; Coe, M.; Rodrigues, H.; Alencar, A. Cracking Brazil’s forest code. Science 2014, 344, 363–364. [Google Scholar] [CrossRef] [PubMed]
  10. Pinto, S.; Melo, F.; Tabarelli, M.; Padovesi, A.; Mesquita, C.; de Mattos Scaramuzza, C.; Castro, P.; Carrascosa, H.; Calmon, M.; Rodrigues, R.; et al. Governing and Delivering a Biome-Wide Restoration Initiative: The Case of Atlantic Forest Restoration Pact in Brazil. Forests 2014, 5, 2212–2229. [Google Scholar] [CrossRef]
  11. Zwartendijk, B.W.; van Meerveld, H.J.; Ghimire, C.P.; Bruijnzeel, L.A.; Ravelona, M.; Jones, J.P.G. Rebuilding soil hydrological functioning after swidden agriculture in eastern Madagascar. Agric. Ecosyst. Environ. 2017, 239, 101–111. [Google Scholar] [CrossRef]
  12. Ilstedt, U.; Malmer, A.; Verbeeten, E.; Murdiyarso, D. The effect of afforestation on water infiltration in the tropics: A systematic review and meta-analysis. For. Ecol. Manag. 2007, 251, 45–51. [Google Scholar] [CrossRef]
  13. Filoso, S.; Bezerra, M.O.; Weiss, K.C.; Palmer, M.A. Impacts of forest restoration on water yield: A systematic review. PLoS ONE 2017, 12, e0183210. [Google Scholar] [CrossRef] [PubMed]
  14. Godsey, S.; Elsenbeer, H. The soil hydrologic response to forest regrowth: A case study from southwestern Amazonia. Hydrol. Process. 2002, 16, 1519–1522. [Google Scholar] [CrossRef]
  15. Martı́nez, L.; Zinck, J. Temporal variation of soil compaction and deterioration of soil quality in pasture areas of Colombian Amazonia. Soil Tillage Res. 2004, 75, 3–18. [Google Scholar] [CrossRef]
  16. Ziegler, A.D.; Giambelluca, T.W.; Tran, L.T.; Vana, T.T.; Nullet, M.A.; Fox, J.; Vien, T.D.; Pinthong, J.; Maxwell, J.; Evett, S. Hydrological consequences of landscape fragmentation in mountainous northern Vietnam: Evidence of accelerated overland flow generation. J. Hydrol. 2004, 287, 124–146. [Google Scholar] [CrossRef]
  17. Zimmermann, B.; Papritz, A.; Elsenbeer, H. Asymmetric response to disturbance and recovery: Changes of soil permeability under forest–pasture–forest transitions. Geoderma 2010, 159, 209–215. [Google Scholar] [CrossRef]
  18. Nyberg, G.; Bargués Tobella, A.; Kinyangi, J.; Ilstedt, U. Soil property changes over a 120-yr chronosequence from forest to agriculture in western Kenya. Hydrol. Earth Syst. Sci. 2012, 16, 2085–2094. [Google Scholar] [CrossRef]
  19. Leite, P.A.M.; de Souza, E.S.; dos Santos, E.S.; Gomes, R.J.; Cantalice, J.R.; Wilcox, B.P. The influence of forest regrowth on soil hydraulic properties and erosion in a semiarid region of Brazil. Ecohydrology 2017. [Google Scholar] [CrossRef]
  20. Paul, M.; Catterall, C.P.; Pollard, P.C.; Kanowski, J. Recovery of soil properties and functions in different rainforest restoration pathways. For. Ecol. Manag. 2010, 259, 2083–2092. [Google Scholar] [CrossRef]
  21. Mapa, R.B. Effect of reforestation using Tectona grandis on infiltration and soil water retention. For. Ecol. Manag. 1995, 77, 119–125. [Google Scholar] [CrossRef]
  22. Bonell, M.; Purandara, B.K.; Venkatesh, B.; Krishnaswamy, J.; Acharya, H.A.K.; Singh, U.V.; Jayakumar, R.; Chappell, N. The impact of forest use and reforestation on soil hydraulic conductivity in the Western Ghats of India: Implications for surface and sub-surface hydrology. J. Hydrol. 2010, 391, 47–62. [Google Scholar] [CrossRef]
  23. Ghimire, C.P.; Bruijnzeel, L.A.; Bonell, M.; Coles, N.; Lubczynski, M.W.; Gilmour, D.A. The effects of sustained forest use on hillslope soil hydraulic conductivity in the Middle Mountains of Central Nepal: Sustained forest use and soil hydraulic conductivity. Ecohydrology 2014, 7, 478–495. [Google Scholar] [CrossRef]
  24. Molin, P.G.; Gergel, S.E.; Soares-Filho, B.S.; Ferraz, S.F.B. Spatial determinants of Atlantic Forest loss and recovery in Brazil. Landsc. Ecol. 2017, 32, 857–870. [Google Scholar] [CrossRef]
  25. Mello, M.H.; Pedro Junior, M.J.; Ortolani, A.A.; Alfonsi, R.R. Chuva e Temperatura: Cem Anos de Observações em Campinas; Boletim Tecnico; IAC: Campinas, Brazil, 1994. [Google Scholar]
  26. Soil Survey Staff. Keys to Soil Taxonomy, 12th ed.; USDA-Natural Resources Conservation Service: Washington, DC, USA, 2014.
  27. De Oliveira, L.H.D.S.; Valladares, G.S.; Coelho, R.M.; Criscuolo, C. Soil vulnerability to degradation at Campinas municipality, SP. Geogr. Londrina 2014, 22, 65–79. [Google Scholar]
  28. Rodrigues, R.R.; Lima, R.A.F.; Gandolfi, S.; Nave, A.G. On the restoration of high diversity forests: 30 years of experience in the Brazilian Atlantic Forest. Biol. Conserv. 2009, 142, 1242–1251. [Google Scholar] [CrossRef]
  29. Rodrigues, R.R.; Gandolfi, S.; Nave, A.G.; Aronson, J.; Barreto, T.E.; Vidal, C.Y.; Brancalion, P.H.S. Large-scale ecological restoration of high-diversity tropical forests in SE Brazil. For. Ecol. Manag. 2011, 261, 1605–1613. [Google Scholar] [CrossRef]
  30. Preiskorn, G.M.; Pimenta, D.; Amazonas, N.T.; Nave, A.G.; Gandolfi, S.; Rodrigues, R.R.; Belloto, A.; Cunha, M.C.S. Metodologia de restauração para fins de aproveitamento econômico (reservas legais e áreas agrícolas). In Pacto Pela Restauração da Mata Atlântica—Referencial dos Conceitos e Ações de Restauração Florestal; Rodrigues, R.R., Brancalion, P.H.S., Eds.; LERF/ESALQ: Instituto BioAtlântica: São Paulo, Brazil, 2009; pp. 158–175. ISBN 978-85-60840-02-1. [Google Scholar]
  31. Santos, K.D.; Kinoshita, L.S.; Rezende, A.A. Species composition of climbers in seasonal semideciduous forest fragments of Southeastern Brazil. Biota Neotropica 2009, 9, 175–188. [Google Scholar] [CrossRef]
  32. Gee, G.; Or, D. Particle-size analysis. In Methods of Soil Analysis: Physical Methods; Dane, J.H., Topp, C., Eds.; Soil Science Society of America: Madison, WI, USA, 2002; pp. 255–293. ISBN 978-0-89118-841-4. [Google Scholar]
  33. Walkley, A.; Black, I.A. An examination of the degtjareff method for determining soil organic matter, and a proposed modification of the chromic acid titration method. Soil Sci. 1934, 37. [Google Scholar] [CrossRef]
  34. Dane, J.H.; Hopmans, J.W. Pressure plate extractor. In Methods of Soil Analysis: Physical Methods; Dane, J., Topp, C., Eds.; Soil Science Society of America: Madison, WI, USA, 2002; pp. 688–690. ISBN 978-0-89118-841-4. [Google Scholar]
  35. Haverkamp, R.; Ross, P.J.; Smettem, K.R.J.; Parlange, J.Y. Three-dimensional analysis of infiltration from the disc infiltrometer: 2. Physically based infiltration equation. Water Resour. Res. 1994, 30, 2931–2935. [Google Scholar] [CrossRef]
  36. Alagna, V.; Bagarello, V.; Di Prima, S.; Giordano, G.; Iovino, M. A simple field method to measure the hydrodynamic properties of soil surface crust. J. Agric. Eng. 2013, 44, 74–79. [Google Scholar] [CrossRef]
  37. Alagna, V.; Bagarello, V.; Di Prima, S.; Iovino, M. Determining hydraulic properties of a loam soil by alternative infiltrometer techniques: Hydraulic Properties of a Loam Soil by Infiltrometer Techniques. Hydrol. Process. 2016, 30, 263–275. [Google Scholar] [CrossRef]
  38. Castellini, M.; Di Prima, S.; Iovino, M. An assessment of the BEST procedure to estimate the soil water retention curve: A comparison with the evaporation method. Geoderma 2018, 320, 82–94. [Google Scholar] [CrossRef]
  39. Danielson, R.E.; Sutherland, P.L. Porosity. In Methods of Soil Analysis. Part I. Physical and Mineralogical Methods. Agronomy Monograph No. 9; Klute, A., Ed.; American Society of Agronomy, Soil Science Society of America: Madison, WI, USA, 1986; pp. 443–461. [Google Scholar]
  40. Bagarello, V.; Di Prima, S.; Iovino, M. Comparing Alternative Algorithms to Analyze the Beerkan Infiltration Experiment. Soil Sci. Soc. Am. J. 2014, 78, 724–726. [Google Scholar] [CrossRef]
  41. Lassabatere, L.; Angulo-Jaramillo, R.; Soria Ugalde, J.M.; Cuenca, R.; Braud, I.; Haverkamp, R. Beerkan estimation of soil transfer parameters through infiltration experiments—BEST. Soil Sci. Soc. Am. J. 2006, 70, 521–532. [Google Scholar] [CrossRef]
  42. Yilmaz, D.; Lassabatere, L.; Angulo-Jaramillo, R.; Deneele, D.; Legret, M. Hydrodynamic Characterization of Basic Oxygen Furnace Slag through an Adapted BEST Method. Vadose Zone J. 2010, 9, 107–116. [Google Scholar] [CrossRef]
  43. Di Prima, S.; Lassabatere, L.; Bagarello, V.; Iovino, M.; Angulo-Jaramillo, R. Testing a new automated single ring infiltrometer for Beerkan infiltration experiments. Geoderma 2016, 262, 20–34. [Google Scholar] [CrossRef]
  44. Brooks, R.; Corey, T. Hydraulic Properties of Porous Media; Colorado State University: Fort Collins, CO, USA, 1964; Volume 24. [Google Scholar]
  45. Haverkamp, R.; Debionne, S.; Angulo-Jaramillo, R.; Condappa, D. Soil Properties and Moisture Movement in the Unsaturated Zone. In Groundwater Engineering; Cushman, J.H., Tartakovsky, D.M., Eds.; CRS Press: Boca Raton, FL, USA, 1999. [Google Scholar]
  46. Cullotta, S.; Bagarello, V.; Baiamonte, G.; Gugliuzza, G.; Iovino, M.; La Mela Veca, D.S.; Maetzke, F.; Palmeri, V.; Sferlazza, S. Comparing Different Methods to Determine Soil Physical Quality in a Mediterranean Forest and Pasture Land. Soil Sci. Soc. Am. J. 2016, 80, 1038–1056. [Google Scholar] [CrossRef]
  47. Bagarello, V.; Di Prima, S.; Iovino, M. Estimating saturated soil hydraulic conductivity by the near steady-state phase of a Beerkan infiltration test. Geoderma 2017, 303, 70–77. [Google Scholar] [CrossRef]
  48. Reynolds, W.D.; Elrick, D.E. Ponded infiltration from a single ring: I. Analysis of steady flow. Soil Sci. Soc. Am. J. 1990, 54, 1233–1241. [Google Scholar] [CrossRef]
  49. Elrick, D.E.; Reynolds, W.D. Methods for analyzing constant-head well permeameter data. Soil Sci. Soc. Am. J. 1992, 56, 320–323. [Google Scholar] [CrossRef]
  50. Reynolds, W.D.; Elrick, D.E. Pressure infiltrometer. In Methods of Soil Analysis, Part 4; Dane, J.H., Topp, G.C., Eds.; Soil Science Society of America: Madison, WI, USA, 2002; pp. 826–836. [Google Scholar]
  51. Bagarello, V.; Di Prima, S.; Iovino, M.; Provenzano, G. Estimating field-saturated soil hydraulic conductivity by a simplified Beerkan infiltration experiment: Simplified determination of soil hydraulic conductivity. Hydrol. Process. 2014, 28, 1095–1103. [Google Scholar] [CrossRef]
  52. Castellini, M.; Iovino, M.; Pirastru, M.; Niedda, M.; Bagarello, V. Use of BEST Procedure to Assess Soil Physical Quality in the Baratz Lake Catchment (Sardinia, Italy). Soil Sci. Soc. Am. J. 2016, 80, 742–755. [Google Scholar] [CrossRef]
  53. Lilliefors, H.W. On the Kolmogorov-Smirnov test for normality with mean and variance unknown. J. Am. Stat. Assoc. 1967, 62, 399–402. [Google Scholar] [CrossRef]
  54. Warrick, A.W. Spatial variability. In Environmental Soil Physics; Hillel, D., Ed.; Academic Press: San Diego, CA, USA, 1998; pp. 655–675. [Google Scholar]
  55. Lee, D.M.; Elrick, D.E.; Reynolds, W.D.; Clothier, B.E. A comparison of three field methods for measuring saturated hydraulic conductivity. Can. J. Soil Sci. 1985, 65, 563–573. [Google Scholar] [CrossRef]
  56. Reynolds, W.D.; Drury, C.F.; Yang, X.M.; Tan, C.S. Optimal soil physical quality inferred through structural regression and parameter interactions. Geoderma 2008, 146, 466–474. [Google Scholar] [CrossRef]
  57. R Core Team. R: A Language and Environment for Statistical Computing; R Foundation for Statistical Computing: Viena, Austria, 2014. [Google Scholar]
  58. Lichner, L.; Hallett, P.D.; Drongová, Z.; Czachor, H.; Kovacik, L.; Mataix-Solera, J.; Homolák, M. Algae influence the hydrophysical parameters of a sandy soil. Catena 2013, 108, 58–68. [Google Scholar] [CrossRef]
  59. Doerr, S.H.; Shakesby, R.A.; Walsh, R.P.D. Soil water repellency: Its causes, characteristics and hydro-geomorphological significance. Earth-Sci. Rev. 2000, 51, 33–65. [Google Scholar] [CrossRef]
  60. Müller, K.; Deurer, M. Review of the remediation strategies for soil water repellency. Agric. Ecosyst. Environ. 2011, 144, 208–221. [Google Scholar] [CrossRef]
  61. Logsdon, S.D. Transient variation in the infiltration rate during measurement with tension infiltrometers. Soil Sci. 1997, 162, 233–241. [Google Scholar] [CrossRef]
  62. Kacimov, A.R.; Al-Ismaily, S.; Al-Maktoumi, A. Green-Ampt one-dimensional infiltration from a ponded surface into a heterogeneous soil. J. Irrig. Drain. Eng. 2009, 136, 68–72. [Google Scholar] [CrossRef]
  63. Cooper, M.; Medeiros, J.C.; Rosa, J.D.; Soria, J.E.; Toma, R.S. Soil functioning in a toposequence under rainforest in São Paulo, Brazil. Rev. Bras. Cienc. Solo 2013, 37, 392–399. [Google Scholar] [CrossRef]
  64. Zenero, M.D.O.; Silva, L.F.S.D.; Castilho, S.C.D.P.; Vidal, A.; Grimaldi, M.; Cooper, M. Characterization and Classification of Soils under Forest and Pasture in an Agroextractivist Project in Eastern Amazonia. Rev. Bras. Cienc. Solo 2016, 40. [Google Scholar] [CrossRef]
  65. Nogueira, L.R.; Silva, C.F.D.; Pereira, M.G.; Gaia-Gomes, J.H.; Silva, E.M.R.D. Biological Properties and Organic Matter Dynamics of Soil in Pasture and Natural Regeneration Areas in the Atlantic Forest Biome. Rev. Bras. Cienc. Solo 2016, 40. [Google Scholar] [CrossRef]
  66. Cooper, M.; Rosa, J.D.; Medeiros, J.C.; Oliveira, T.C.D.; Toma, R.S.; Juhász, C.E.P. Hydro-physical characterization of soils under tropical semi-deciduous forest. Sci. Agric. 2012, 69, 152–159. [Google Scholar] [CrossRef] [Green Version]
  67. Löf, M.; Dey, D.C.; Navarro, R.M.; Jacobs, D.F. Mechanical site preparation for forest restoration. New For. 2012, 43, 825–848. [Google Scholar] [CrossRef]
  68. Ferraz, S.F.B.; Lima, W.D.P.; Rodrigues, C.B. Managing forest plantation landscapes for water conservation. For. Ecol. Manag. 2013, 301, 58–66. [Google Scholar] [CrossRef]
  69. Brockerhoff, E.G.; Jactel, H.; Parrotta, J.A.; Ferraz, S.F.B. Role of eucalypt and other planted forests in biodiversity conservation and the provision of biodiversity-related ecosystem services. For. Ecol. Manag. 2013, 301, 43–50. [Google Scholar] [CrossRef]
  70. Gageler, R.; Bonner, M.; Kirchhof, G.; Amos, M.; Robinson, N.; Schmidt, S.; Shoo, L.P. Early Response of Soil Properties and Function to Riparian Rainforest Restoration. PLoS ONE 2014, 9, e104198. [Google Scholar] [CrossRef] [PubMed]
  71. Holl, K.D. Factors Limiting Tropical Rain Forest Regeneration in Abandoned Pasture: Seed Rain, Seed Germination, Microclimate, and Soil. Biotropica 1999, 31, 229–242. [Google Scholar] [CrossRef]
  72. Zahawi, R.A.; Augspurger, C.K. Tropical forest restoration: Tree islands as recruitment foci in degraded lands of Honduras. Ecol. Appl. 2006, 16, 464–478. [Google Scholar] [CrossRef]
  73. Bassett, I.E.; Simcock, R.C.; Mitchell, N.D. Consequences of soil compaction for seedling establishment: Implications for natural regeneration and restoration. Austral Ecol. 2005, 30, 827–833. [Google Scholar] [CrossRef]
  74. Hamza, M.A.; Anderson, W.K. Soil compaction in cropping systems. Soil Tillage Res. 2005, 82, 121–145. [Google Scholar] [CrossRef]
  75. Latawiec, A.E.; Strassburg, B.B.; Brancalion, P.H.; Rodrigues, R.R.; Gardner, T. Creating space for large-scale restoration in tropical agricultural landscapes. Front. Ecol. Environ. 2015, 13, 211–218. [Google Scholar] [CrossRef]

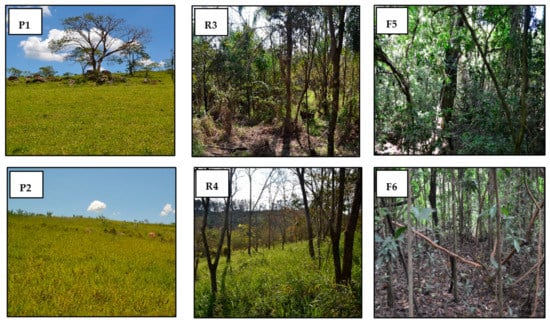

Figure 1. Pictures that represent the study sites in the seasonal semi-deciduous forest in Campinas, Brazil. Study sites are abbreviated with P1 and P2 for pasture, R3 and R4 for restored forest, and F5 and F6 for remnant forest.
Figure 1. Pictures that represent the study sites in the seasonal semi-deciduous forest in Campinas, Brazil. Study sites are abbreviated with P1 and P2 for pasture, R3 and R4 for restored forest, and F5 and F6 for remnant forest.
Water 10 00453 g001

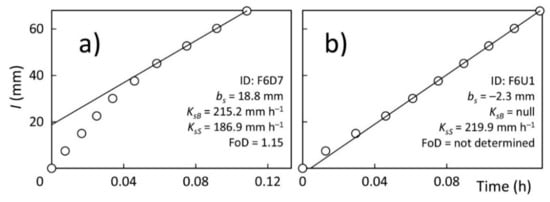

Figure 2. Illustrative examples of the influence of the shape of the cumulative infiltrations on the discrepancies occurring between the Beerkan method (BEST-steady) and the steady-state phase of a Beerkan infiltration (SSBI) method. (a) Concave-shaped cumulative infiltration curve in which the intercept, bs (mm), of the straight line interpolating the last I vs. t data points is positive and the FoD between the saturated soil hydraulic conductivity values estimated with BEST-steady (KsB) and the SSBI method (KsS) is small. (b) Convex-shaped cumulative infiltration curve with a negative intercept yielding null KsB.
Figure 2. Illustrative examples of the influence of the shape of the cumulative infiltrations on the discrepancies occurring between the Beerkan method (BEST-steady) and the steady-state phase of a Beerkan infiltration (SSBI) method. (a) Concave-shaped cumulative infiltration curve in which the intercept, bs (mm), of the straight line interpolating the last I vs. t data points is positive and the FoD between the saturated soil hydraulic conductivity values estimated with BEST-steady (KsB) and the SSBI method (KsS) is small. (b) Convex-shaped cumulative infiltration curve with a negative intercept yielding null KsB.
Water 10 00453 g002

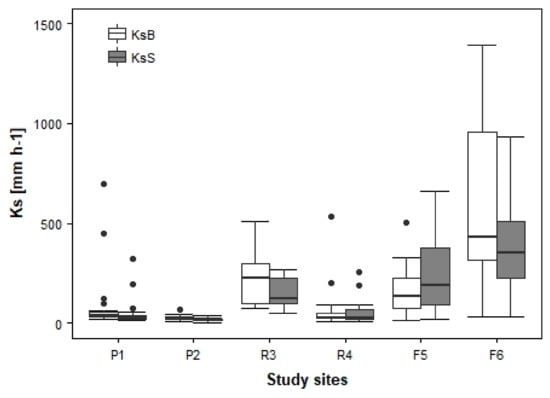

Figure 3. Comparison between Ks estimated with BEST-steady, KsB, and the SSBI method, KsS. Study sites are abbreviated with P1 and P2 for pasture, R3 and R4 for restored forest, and F5 and F6 for remnant forest.
Figure 3. Comparison between Ks estimated with BEST-steady, KsB, and the SSBI method, KsS. Study sites are abbreviated with P1 and P2 for pasture, R3 and R4 for restored forest, and F5 and F6 for remnant forest.
Water 10 00453 g003

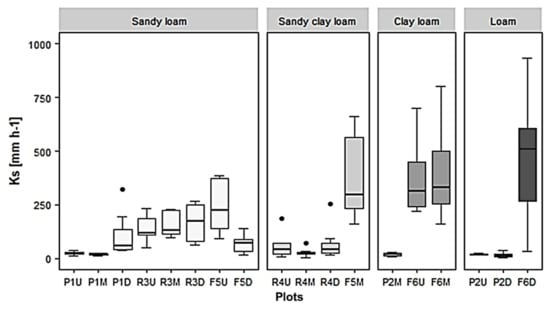

Figure 4. Ks estimated with SSBI method, KsS, per plots and grouping by soil texture (US Department of Agriculture (USDA) classification system). Study sites are abbreviated with P1 and P2 for pasture, R3 and R4 for restored forest, and F5 and F6 for remnant forest. The subscript letter refers to the landscape position (Upslope, Middleslope and Downslope) in each site.
Figure 4. Ks estimated with SSBI method, KsS, per plots and grouping by soil texture (US Department of Agriculture (USDA) classification system). Study sites are abbreviated with P1 and P2 for pasture, R3 and R4 for restored forest, and F5 and F6 for remnant forest. The subscript letter refers to the landscape position (Upslope, Middleslope and Downslope) in each site.
Water 10 00453 g004
Table 1. Comparison between the mean and coefficient of variation (CV) of the clay (%), silt (%), sand (%), soil organic carbon content (OC in g Kg−1), soil bulk density (ρb in g cm−3), total porosity (Pt in cm3 cm−3), macroporosity (Mac in cm3 cm−3), microporosity (Mic in cm3 cm−3) and initial volumetric soil water content (θi in cm3 cm−3), values for the 18 sampled plots in the landscape positions upslope (U), midslope (M) and downslope (D).
Table 1. Comparison between the mean and coefficient of variation (CV) of the clay (%), silt (%), sand (%), soil organic carbon content (OC in g Kg−1), soil bulk density (ρb in g cm−3), total porosity (Pt in cm3 cm−3), macroporosity (Mac in cm3 cm−3), microporosity (Mic in cm3 cm−3) and initial volumetric soil water content (θi in cm3 cm−3), values for the 18 sampled plots in the landscape positions upslope (U), midslope (M) and downslope (D).
VariableStatisticPlots
Pasture 1Pasture 2Restored Forest 3Restored Forest 4Remnant Forest 5Remnant Forest 6
UMDUMDUMDUMDUMDUMD
ClayMean19.6a10.2b9.5b25.0b31.7a21.6b11.2b12.1b19.0a26.1a21.0b21.9b18.3b23.3a19.0b30.2a31.0a24.4b
CV7.92.812.95.63.913.117.311.74.35.13.92.914.42.05.73.64.42.0
SiltMean27.4a20.2b22.3b30.7a32.5a29.9a20.7b21.2b27.7a22.7a19.4b19.9b25.4a26.3a26.7a34.3b33.9b39.7a
CV6.66.86.57.16.411.614.612.86.82.12.56.510.28.58.65.82.51.2
SandMean53.0a69.6a68.3a44.4a35.8a48.5a68.1b66.8b53.3a51.2a59.7b58.3b56.3b50.4a54.3b35.6a35.2a35.9b
CV4.11.73.83.52.513.06.84.64.93.32.12.08.05.16.28.31.72.3
OCMean30.0a20.1b17.8b32.1a32.1a25.6b14.5a17.3a21.3a22.0a19.0a17.4a30.9a34.8a33.8a31.1a34.2a27.8a
CV5.92.418.611.74.912.722.633.79.812.214.817.041.418.512.612.311.025.4
ρbMean1.27a1.24a1.22a1.29a1.18b1.33a1.23a1.29a1.22a1.33a1.34a1.42a1.05b1.03b1.15a1.02a1.05a0.99a
CV5.75.13.85.84.95.07.13.35.93.46.05.35.47.17.19.77.68.3
PtMean0.53a0.53a0.54a0.51a0.55a0.50a0.54a0.51a0.54a0.50a0.50a0.47a0.60b0.61b0.57b0.61b0.60b0.63b
CV4.84.63.56.14.54.76.03.35.44.16.46.03.14.45.06.45.34.6
MacMean0.12b0.18a0.21a0.11a0.07b0.06b0.20a0.19a0.16b0.18a0.14b0.16a0.24a0.26a0.15b0.19b0.22a0.18b
CV5.012.015.525.215.440.810.24.328.112.037.028.615.93.118.113.313.925.5
MicMean0.36a0.32b0.32b0.50a0.51a0.50a0.28b0.29b0.34a0.35a0.33a0.31b0.31b0.29b0.37a0.37a0.35a0.37a
CV16.85.716.53.71.14.812.18.412.37.711.45.93.15.17.86.52.38.0
θiMean0.32a0.19b0.16b0.25b0.37a0.25b0.19a0.19a0.19a0.37ab0.34a0.23b0.15a0.17b0.32a0.21a0.23a0.17b
CV12.829.328.423.25.223.614.917.011.215.914.014.112.89.026.99.94.514.7
For a given variable and site (i.e., P1, P2, R3, R4, F5 and F6), means that do not share a letter are significantly different according to the Tukey test (p = 0.05).
Table 2. Results of the Tukey honestly significant difference test (p = 0.05) for the ln-transformed saturated hydraulic conductivity values estimated with the SSBI method (KsS). The grouping information highlights the significant and not significant comparisons.
Table 2. Results of the Tukey honestly significant difference test (p = 0.05) for the ln-transformed saturated hydraulic conductivity values estimated with the SSBI method (KsS). The grouping information highlights the significant and not significant comparisons.
VariableGrouping Information (Plots)
KsSF6MF6UF5MF6DF5UR3DR3MR3UP1DF5DR4DR4UR4MP1UP1MP2UP2MP2D
aaaaaaaa
bbbbb
cccccc
dddddd
eeeeee
ffffffff
ggggggg

Share and Cite

MDPI and ACS Style

Lozano-Baez, S.E.; Cooper, M.; Ferraz, S.F.B.; Ribeiro Rodrigues, R.; Pirastru, M.; Di Prima, S. Previous Land Use Affects the Recovery of Soil Hydraulic Properties after Forest Restoration. Water 2018, 10, 453. https://doi.org/10.3390/w10040453

AMA Style

Lozano-Baez SE, Cooper M, Ferraz SFB, Ribeiro Rodrigues R, Pirastru M, Di Prima S. Previous Land Use Affects the Recovery of Soil Hydraulic Properties after Forest Restoration. Water. 2018; 10(4):453. https://doi.org/10.3390/w10040453

Chicago/Turabian Style

Lozano-Baez, Sergio E., Miguel Cooper, Silvio F. B. Ferraz, Ricardo Ribeiro Rodrigues, Mario Pirastru, and Simone Di Prima. 2018. "Previous Land Use Affects the Recovery of Soil Hydraulic Properties after Forest Restoration" Water 10, no. 4: 453. https://doi.org/10.3390/w10040453

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
