Article

Climate Trends Impact on the Snowfall Regime in Mediterranean Mountain Areas: Future Scenario Assessment in Sierra Nevada (Spain)

1
Fluvial Dynamics and Hydrology Research Group—Andalusian Institute for Earth System Research (IISTA), University of Córdoba, Campus Rabanales, Edificio Leonardo da Vinci, Área Ingeniería Hidráulica, 14071 Córdoba, Spain
2
Hydrology Research Unit, Swedish Meteorological and Hydrological Institute (SMHI), Folkborgsvägen 17, 601 76 Norrköping, Sweden
*
Author to whom correspondence should be addressed.
Water 2018, 10(6), 720; https://doi.org/10.3390/w10060720
Submission received: 1 March 2018 / Revised: 25 May 2018 / Accepted: 30 May 2018 / Published: 1 June 2018

Abstract

:
Snow constitutes a key component of the water cycle, which is directly affected by changes in climate. Mountainous regions, especially those located in semiarid environments, are highly vulnerable to shifts from snowfall to rainfall. This study evaluates the influence of future climate scenarios on the snowfall regime in the Sierra Nevada Mountains, an Alpine/Mediterranean climate region in southern Spain. Precipitation and temperature projections from two future climate scenarios representative concentration pathway (RCP) 4.5 and RCP 8.5, Fifth Assessment Report of the Intergovernmental Panel for Climate Change (AR5 IPCC)) were used to estimate the projected evolution of the snowfall regime on both annual and decadal scales during the period of 2006–2100. Specific snowfall descriptors of torrentiality are also analyzed. A general decrease of the annual snowfall was estimated, with a significant trend that ranged from 0.21 to 0.55 (mm·year−1)·year−1. These changes are dependent on the scenario and region in the study area. However, the major impact of future climate scenarios on the snowfall regime relates to an increased torrentiality of snowfall occurrence, with a decreased trend of the annual number of snowfall days (RCP 4.5: −0.068 (days·year−1)·year−1 and RCP 8.5: −0.111 (days·year−1)·year−1) and an increased trend in the annual mean snowfall intensity (RCP 4.5: 0.006 (mm·days−1)·year−1 and RCP8.5: 0.01 (mm·days−1)·year−1)) under both scenarios. This enhanced torrentiality is heterogeneously distributed, with the most semiarid region, which is currently the one least influenced by snow, being the region most affected within the study area.

1. Introduction

Snow is a basic component of the Earth’s surface energy balance [1]. Climate trends, especially short-term and long-term precipitation and temperature variations, condition the snow regime and the hydrological evolution of the river flow response at the basin and sub-basin scales. The link between both climate and flow trends is crucial in mountainous areas, where small variations in temperature, among others, can produce significant impacts on precipitation (which occur as either rainfall or snowfall), snowmelt, and sublimation/evaporation. This can consequently result in very different flow signatures [2,3,4].
In recent years, different authors have concluded that rainfall patterns are changing all over the globe as a result of global warming [5,6,7,8]. Moreover, the analysis of precipitation events shows an increase in their spatiotemporal variability during the last decades [9,10,11]. These variations, together with the increase in temperature, affect both the amount and distribution of snowfall, especially in semiarid regions [12]. The impacts of this climate variability on the snow and hydrological regime are more evident over semiarid high mountain regions (i.e., areas higher than 1500 m a.s.l.) due their particularly extreme conditions [13,14], in which the high variability of the annual and seasonal climate regimes is usually propagated to and amplified by the river flow. This is the case in the Mediterranean mountain areas, where alpine and semiarid conditions coexist [15].
The impact of climatic variability in the medium and long term (i.e., 20- and 100-year time horizons, respectively) hydrological regimes in such areas is being assessed from different approaches on different spatiotemporal scales [14,16,17]. The development of local climate indicators from both climate and hydrological variables are key to addressing the economic impacts of the expected changes and to assessing decision-making processes [18,19,20,21].
This work assesses the influence of future climate scenarios on the snow regime in the Sierra Nevada Mountains, an alpine climate region in South Spain, during the 21st century. The Sierra Nevada area is a national park and a biosphere reservoir, with altitudes ranging from 2000 to 3500 m a.s.l. The park is a representative example of snow regions in semiarid environments and is characterized by a high inter- and intra-annual climate variability that influences most of the hydrological processes on different time and spatial scales [22,23]. For this reason, Sierra Nevada (Spain) is part of the global climate change observatories network [24]. The future evolution of climate and its impact on snow occurrence and persistence not only affects the hydrological regime [23,25] in the area but also poses a risk for the ecosystems associated with the snow domain and the numerous endemic species identified in the park [26,27].
For this assessment, precipitation and temperature projections in this area from two future climate scenarios derived from a Global Circulation Model (CGM) were used to estimate the evolution of the snowfall regime on both annual and decadal scales in the 2006–2100 period. Additionally, specific torrentiality indicators, which are defined in Section 2, were analyzed together with the spatial distribution of the resulting impacts.

2. Materials and Methods

2.1. Study Area

Sierra Nevada (Figure 1) is a mountainous range located in southeastern Spain (37°6’0” N; 3°5’24” W), approximately 80 km long in the east–west direction and 27 km wide in the north–south direction. It runs parallel to the Mediterranean Sea coastline, approximately 40 km from its highest peaks (3479 m a.s.l.). The area has a characteristic steep topography, with strong altitudinal gradients and a large variety of associated ecosystems. The annual precipitation regime is highly variable and ranges between values close to 1000 mm in wet years and 200 mm in dry years [12]. Snow recurrently appears in the mountain range in altitudes higher than 1000 m a.s.l. and is mostly persistent over 2000 m a.s.l. from November to May, undergoing several cycles of accumulation-ablation during the snow season. This results in a very heterogeneous spatial distribution over the years. The mean annual fractional snow cover area for the period 2000–2013 was 0.21 m2·m−2, ranging from 0.9 to 0.16 m2·m−2 in wet/cold and dry/warm years, respectively, with a mean standard deviation of 0.23 m2·m−2 [28]. This behavior makes Sierra Nevada a relevant biodiversity enclave [26,29,30].
For this study, the area is divided into five regions belonging to the headwaters of the main river basins in Sierra Nevada: Adra (R1), Andarax (R2), Fardes (R3), Genil (R4), and Guadalfeo (R5). These regions are representative of the N–S/W–E gradients in the area, with R5, R1, and R2 being influenced by the sea and the decreasing precipitation regime during the last two decades. R4 and R3 correspond, respectively, to the most continental and semiarid regions in the area, which have a more stable precipitation regime. Table 1 shows some relevant climate descriptors of these regions during the reference period (1961–2000) [12,31], as well as the associated regional annual trends.

2.2. Overall Study Design

Figure 2 shows the scheme followed in assessing the impacts of future climate scenarios on the snow regime. Information was available regarding the reference values of the climate variables analyzed in this study during the reference period 1961–2000 from previous works [12,31], on both annual and decadal scales.

2.3. Data Sources

Precipitation and temperature data series were provided by the Spanish Meteorological Agency (AEMET) in specific locations across the study area for the reference (1961–2000) and future (2006–2100) periods. Four different representative concentration pathways (RCPs) were available in the framework of the Fifth Assessment Report of the Intergovernmental Panel for Climate Change [14], which assesses different levels of greenhouse gas emissions in future years. For this study, two of these scenarios were chosen: an intermediate mitigation scenario (RCP 4.5), which assumes an emission reduction from 2050 onwards, and a high emission trajectory (RCP 8.5), which contemplates the possibility of not reducing emissions.
Datasets obtained from different global circulation models (GCM4, MPI-ESM-LR, ECHO, GFDL, GISS-AOM, GISS-ER, INM-CM4, MIR-GCM2-0, and MIR-GCM2-1) were available from two downscaling techniques each (analog and statistical downscaling methods system (SDMS)). Although the use of the multi-model ensemble mean (MMEM) of climate model runs is generalized in climate change impact studies, some authors have pointed out that there is no reason to expect that the MMEM always provides the best estimate of climate change signals [32]. Even if it is somewhat obvious that an ensemble of models should provide more information than a single one, it is not necessarily clear how to optimally use that information in practice [33]. Different authors [32,34,35] have proposed the use of metrics to choose among climate models in performing impact studies when the use of the MMEM is not likely to improve future climate assessments. In this context, metrics refer to quantitative indicators of model performance during past or present-day climate simulations against the available observations, under the assumption that this metric is expected to also be informative on the likelihood that the model will correctly simulate the target variable under a future climate scenario.
Taking into account the extension and steep topography of the study area and the spatial resolution of climate models, a first assessment of the available downscaled modeled projections was conducted prior to the impact analysis. Two metrics were defined after the analysis of the historical data series at the local scale: (1) the annual mean of the daily minimum temperature (Tmin) and (2) the annual precipitation (P). Each combination of model and downscaling was evaluated in each weather station in the area during the reference period, and the root squared mean error (RMSE) was computed. The analog method resulted in lower RMSE values for Tmin in all cases. However, in only two from the whole set of models, these values were lower than one degree (one of them was close to this value, however), which is a constraint for snowfall estimation. Regarding P, similar RMSE values were found between analog and statistical methods of downscaling, but differences were observed up to 50% among models. Focusing on the two models selected by Tmin RMSE, the difference of the P RMSE value was close to 20%. From these results, it was clear that among the 18 different combinations of modeling and downscaling, the Max Planck Institute Earth system model in low resolution (MPI-ESM-LR) [36] downscaled using the analog method [37] was the combination that best performed in the study area (RMSE = 0.8 C and RMSE = 201 mm for Tmin and P, respectively). Thus, this combination was selected for the present work. The global model selected, MPI-ESM-LR, is a coupling between the ECHAM6 [38] for the atmosphere and the MPI Ocean Model (MPI-OM) [39] for the oceans [40,41,42,43] at low resolution. The selected analog downscaling method regionalizes the GCM results based on the use of synoptic analogs for each day in the time series [44,45]. From this combination, daily data were obtained from a total of 44 precipitation and four temperature weather stations in the Sierra Nevada area (Figure 1).

2.4. Interpolation of Meteorological Variables

Specific spatial interpolation algorithms that include the effects of topography [46] were used to distribute the point meteorological daily information throughout the study area [47].
For each variable (i.e., precipitation and temperature) a linear gradient with elevation was locally defined from the historical datasets using a least square error method. Afterwards, the residuals between each station value that were obtained using the linear gradient were calculated. These residuals were interpolated by square inverse distance weighting (IDW2) by using the three closest stations [48,49] and added to the theoretical value calculated using the linear gradient [50,51]. This procedure had been previously used in the Sierra Nevada area for other climate studies [12,52,53,54]. The spatial resolution for the gridded resulting map series is 30 m.

2.5. Snowfall Analysis and Snow Climate Indicators

Although the constant threshold temperature approach is a simple method, with snowfall occurrence being a more complex process depending on several atmospheric variables [55] and the density and size of snow particles [56], the available dataset did not allow a different approach to be performed, as other works have addressed [57,58,59]. However, the fixed threshold temperature approach has been and is still used in many works [60,61,62], including in the study area [54,63], and it has proven to be appropriate on a daily scale, especially for hydrological applications [64].
Snowfall occurrence and amount was determined on a daily basis from the use of a threshold temperature, TSN, over which all precipitation is considered rainfall, following Equation (1). In this equation, “Snowfall” is the daily amount of snowfall, P the daily amount of total precipitation occurring below TSN, and T is the temperature during the day. For each day, the temperature datasets include maximum, minimum, and mean temperature values. A triangular shape was assumed for sub-daily variations and the fraction of time with T below TSN was adopted as the snowfall fraction of the daily precipitation. In this work, a constant value of 0.5 °C was assumed for TSN, which has been proven to perform satisfactorily in previous studies [28,53,63].
S n o w f a l l = { P i f T T S N 0   i f T > T S N
From the resulting daily series of snowfall following this approach, two climate impacts on snow indicators (CIIs) were used to quantify the mean intensity of snowfall events and their torrentiality:
  • Snowfall days indicator (Dsnowfall): number of days each year in which snowfall is higher than 0.5 mm.
  • Snowfall intensity (Isnowfall): relationship between the annual snowfall and the snowfall days indicator, as outlined by Equation (2).
I S n o w f a l l = S n o w f a l l D S n o w f a l l

2.6. Long-Term Data Analysis

From the resulting projected 30 × 30 m maps of the downscaled daily weather and snowfall variables in Sierra Nevada during the 2006–2100 period, the analysis on the annual and decadal scales was carried out by aggregation of the daily data associated with the selected scenarios, RCP 4.5 and RCP 8.5. The results were also averaged over both the whole study area and each of the five regions identified in this work. These results were annual precipitation (P); annual mean values of the mean, maximum, and minimum daily temperature (Tmean, Tmax, Tmin); and annual snowfall (Snowfall). Additionally, the defined CIIs were also assessed for each region and time scale from the snowfall map time series, Dsnowfall and Isnowfall, in order to identify the regions which will likely be the most influenced by the estimated shifts of the snowfall regime.
Trend analysis was performed on both the resulting annual and decadal time series of the different variables for the future time study period, which was expressed as absolute anomalies from the respective mean value during the reference period (Table 1), with significance assessment following the Mann-Kendall test [65]. Autocorrelation testing [66] was previously performed to guarantee consistency in the results.

3. Results

3.1. Long-Term Precipitation and Temperature Analysis for Future Scenarios

Figure 3 represents the annual evolution of the average daily mean, maximum, and minimum temperature in the Sierra Nevada area for the future projections during 2006–2100, expressed as absolute anomalies from the mean value during the reference period (Table 1). On an annual basis, an increasing trend can be observed in all variables for both scenarios analyzed. RCP 8.5 was the most adverse scenario in terms of warming, as expected. The mean temperature anomaly follows a slightly variable regime during the future period in both scenarios, being positive in all cases. The maximum and minimum temperature anomalies exhibit a highly variable regime, with negative values in both scenarios. This can also be observed in the decadal regime. The resulting trends are significant on a high level of confidence (99%) in all cases. Autocorrelation was found only in the case of the annual mean values of the daily minimum and mean temperature under RCP 8.5 scenario. Therefore, the resulting significance in the trend of these variables can be affected by this fact.
Negative anomalies for both the annual and decadal mean values of the daily maximum and minimum temperature can be found under the RCP 4.5 scenario, and they expand over the whole future study period, with some apparent stabilization of the decadal mean daily maximum and mean temperature during the last part of the period. This is not observed under the severe scenario of RCP 8.5, with anomalies close to 6° in both variables, on both the annual and decadal scales, at the end of the study period.
The annual and decadal mean daily minimum temperature anomalies show the highest variability in all cases. Under the RCP 8.5 scenario, this variable follows a trend towards prevailing positive values during the last decades of the study period.

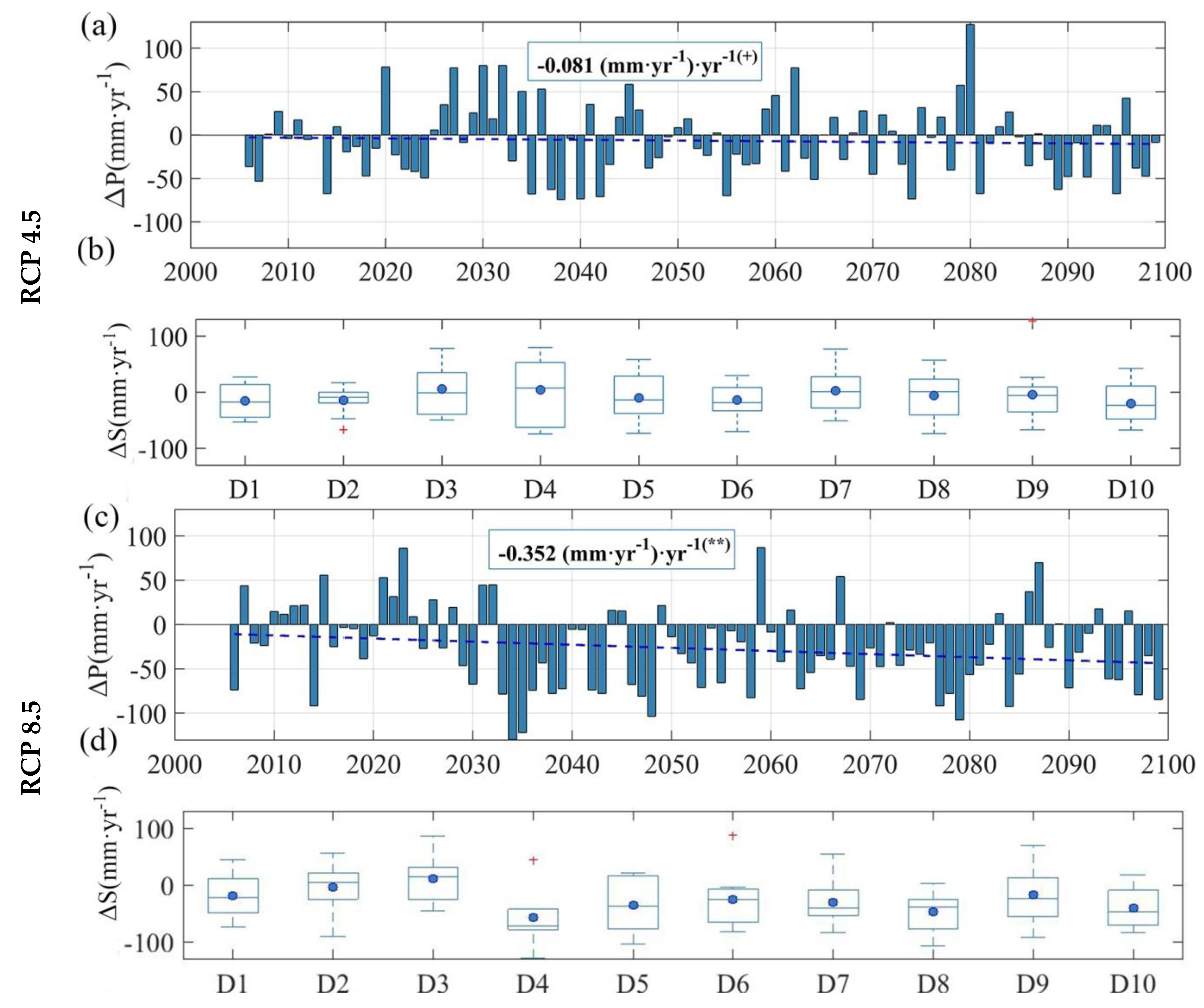

Figure 4 shows the annual and decadal evolution of the average annual precipitation in the Sierra Nevada area for future projections during the study period from 2006 to 2100 expressed as absolute anomalies from the mean value during the reference period (Table 1). As opposed to temperature trends, a decreasing evolution is observed in both scenarios. However, on a significant level, an annual trend is found only for the RCP 8.5 scenario, the decreased trend in precipitation of which is four-fold that found in the RCP 4.5 scenario. It must be noted that the mean annual precipitation in the period differs 4% between both scenarios, being 503 and 482 mm·year−1 for RCP 4.5 and RCP 8.5, respectively. However, a large difference is found for the associated standard deviation (i.e., 44.11 and 47.37 mm·year−1 for RCPs 4.5 and 8.5, respectively).
Decadal trends are not significant, however. In fact, the first three decades of RCP 8.5 and the first four of RCP 4.5 reflect an increasing evolution, which results in a non-significant trend (i.e., no trend) in RCP 4.5. Decadal anomalies are larger and more fluctuating in the case of RCP 8.5.
These results have a clear impact on the snowfall occurrence distribution, as described in the next section. This is particularly relevant in the highest areas, as Figure 5 shows, where both increased temperature and decreased precipitation mean values for the whole study period can be observed.

3.2. Long-Term Snowfall Analysis for Future Scenarios

Based on the previous results, daily snowfall occurrence was estimated for each scenario on a 30 × 30 m grid, as described in Section 2. In this work, the results were aggregated on the annual and decadal scales and averaged over the different spatial units in this work. Figure 6 shows the spatial distribution of the anomalies of the mean annual snowfall in the study area during the future period under both climate scenarios in this work, together with the mean annual trends during the study period. The largest impacts can be found in the highest areas (i.e., mostly negative anomalies), being both larger and more extended in RCP 8.5, as expected. Only under RCP 4.5 did some areas in the west side of the Sierra Nevada basins exhibit positive anomalies, although these were much lower in absolute values than the negative ones. Trends are negative in all cases, and they are higher in the snow domain area.
Table 2 shows the mean values of the variables under analysis during the study period, averaged over each region in Sierra Nevada and the whole study area (SN) under both future climate scenarios, together with the results of the trend analysis performed for the whole study period.

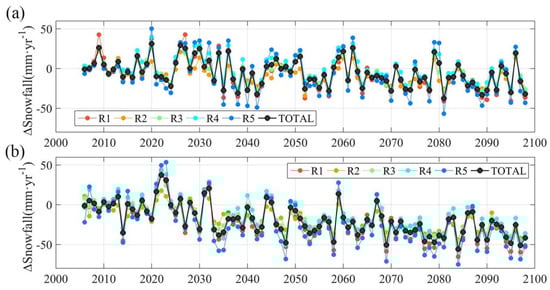

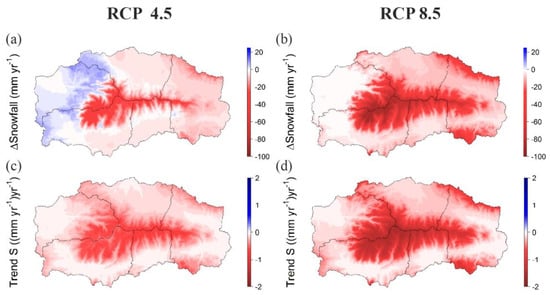

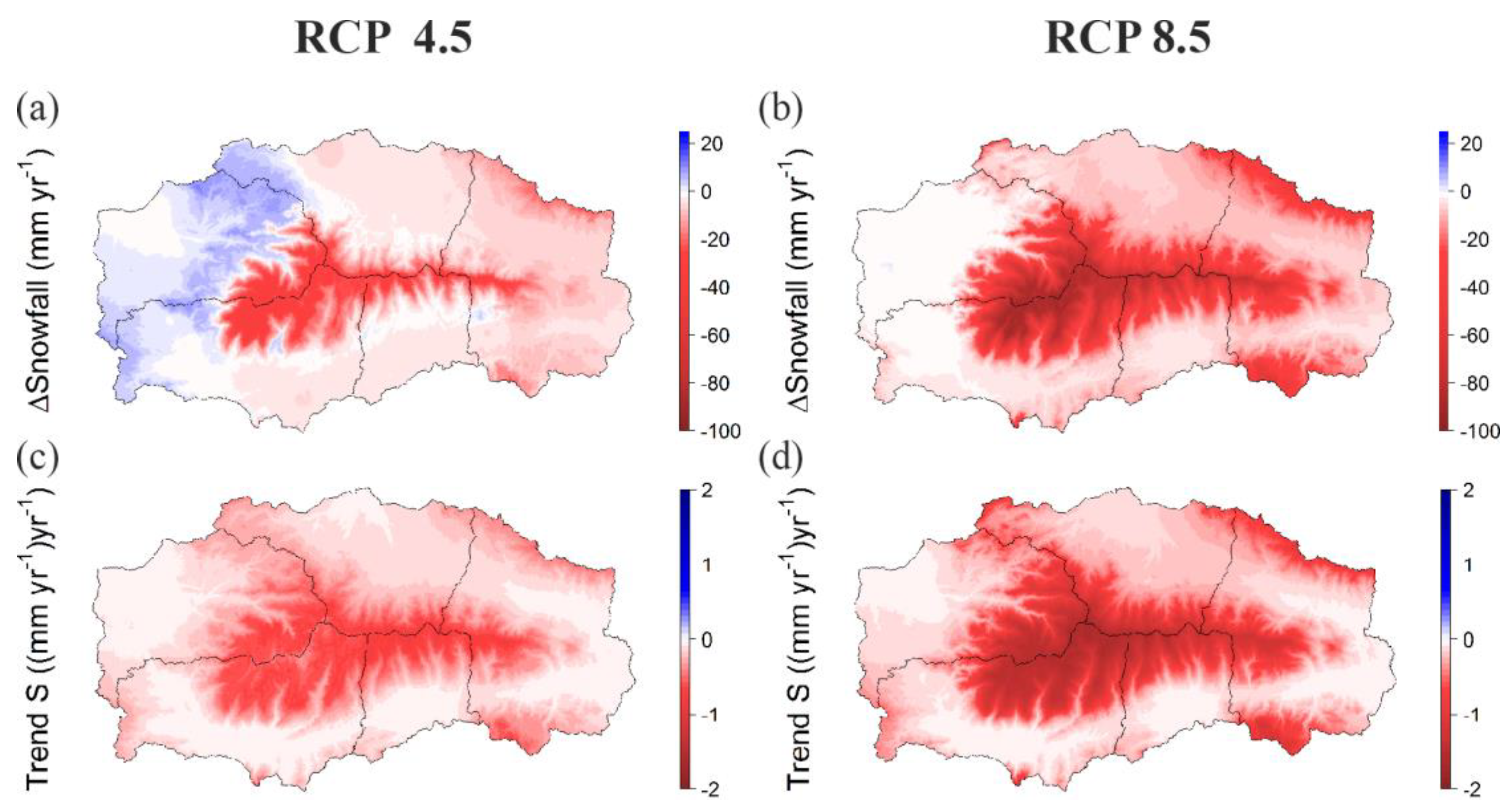

The average mean annual snowfall in the study period exhibits a large variation depending on the region and scenario under analysis. These average values range between 153 mm·year−1, in Region 5 under the RCP 4.5 scenario, and 25 mm·year−1, in Region 2 under the RCP 8.5 scenario. Figure 7 shows the evolution of the annual snowfall anomalies averaged over each region in Sierra Nevada (Figure 1) and the whole study area during the 2006–2100 future period under both future climate scenarios. Decreasing trend values are found in all cases, with RCP 8.5 being the most impacting scenario on both the annual and decadal scales, as expected. Trends in the different regions in Sierra Nevada show similar values in a given scenario. However, these were more pronounced in R5, the most snow-influenced region in this area. Only the snowfall evolution under RCP 8.5 showed autocorrelation on an annual basis, with a 0.05 degree of confidence. Hence, the significance of this trend can be influenced by this fact. Nevertheless, the annual scale reveals a high variability of snowfall during the future period in all of the regions under both scenarios.

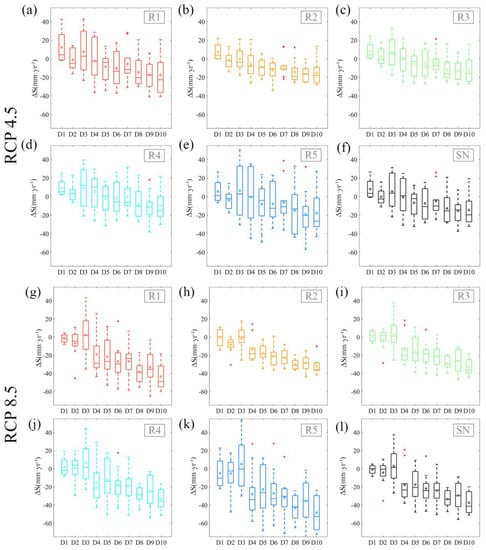

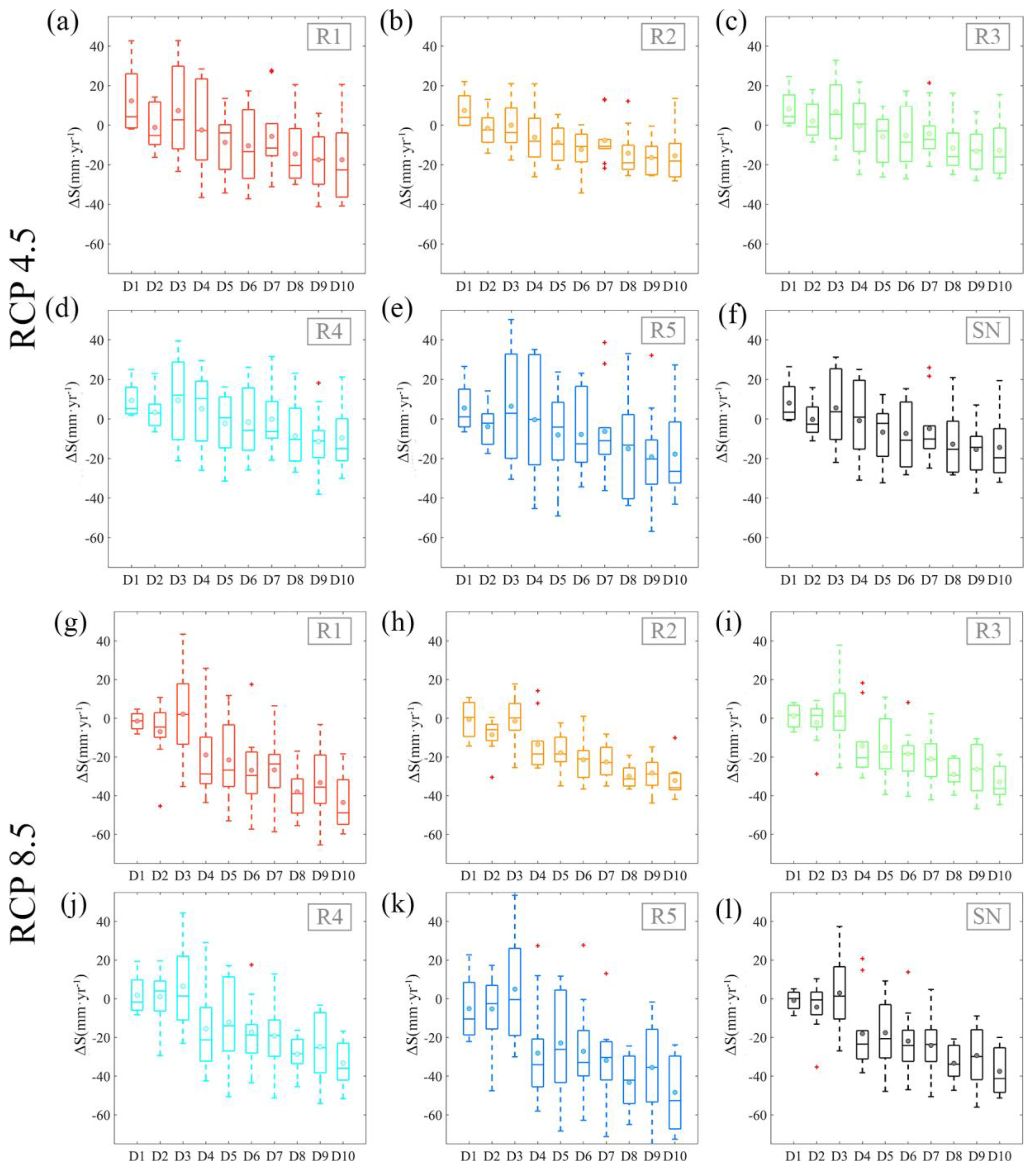

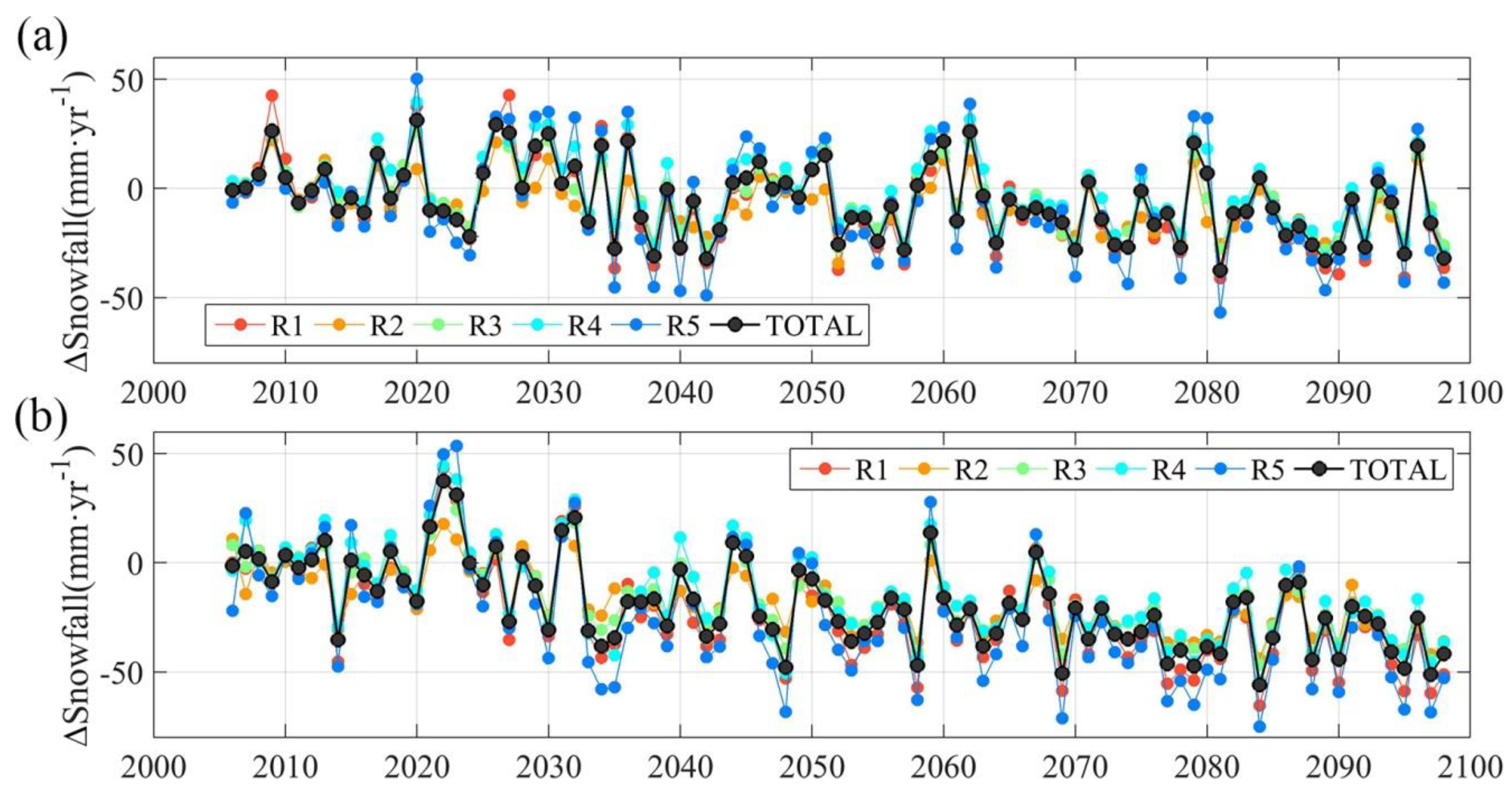

The decadal evolution of the mean annual snowfall for the future period under each scenario can be observed in Figure 8 as anomalies, averaged for each region in Sierra Nevada and the whole study area. The decadal regime more efficiently shows the decrease of snowfall associated with both scenarios in all regions, with the RCP 8.5 scenario (being the most severe) causing the highest impact in snowfall occurrence in all cases. Annual variability is large in all projected decades, with the anomalies in R2 being lower than those in the rest of the regions. However, this region is also the most semiarid area in Sierra Nevada, with an average mean annual snowfall of 44 mm·year−1 during the 1961−2000 reference period, which makes the impact of future climate scenarios highly relevant for all ecotypes associated with snow occurrence in this region.
Anomalies are positive in most regions for the first half of the future period under the RCP 4.5 scenario; however, they drop to negative values in all regions after three decades under the RCP 8.5 scenario.

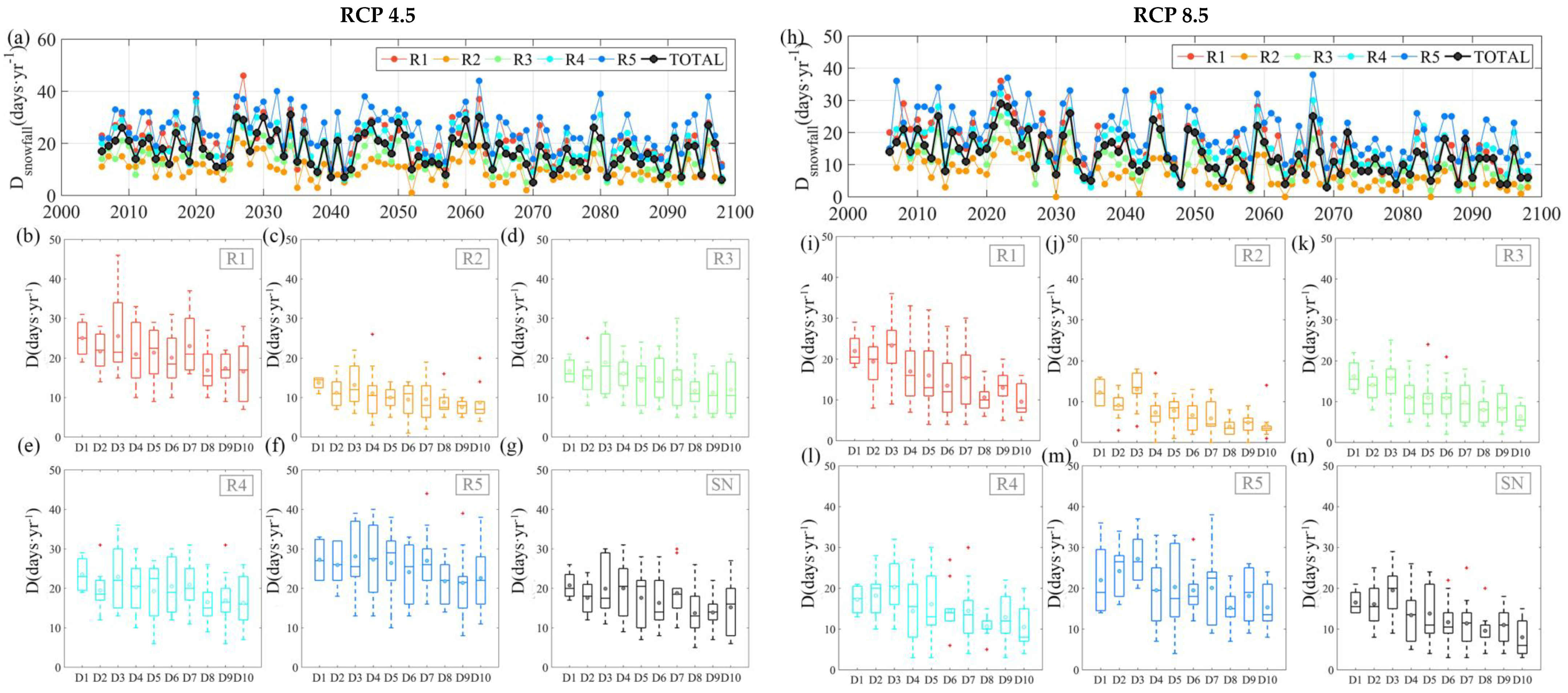

Figure 9 shows the annual evolution of the Dsnowfall indicator defined in Section 2.5 during the 2006–2100 period for each region in Sierra Nevada (Figure1) and the whole study area. This variable is also related to the annual mean intensity of snowfall (Isnowfall) that is shown in Figure 10. Again, it is illustrated that R5, with higher Dsnowfall values (ranging between 44 and 8 days/year under the RCP 4.5 scenario and between 38 and 4 days/year under the RCP 8.5 scenario), is the most snow-influenced domain in Sierra Nevada. The semiarid character of R2 is also highlighted (ranging between 26 and 1 days/year under the RCP 4.5 scenario and 18 and 0 days/year under the RCP 8.5 scenario). Significant decreasing trends (99%) are found for both scenarios in all cases; however, relevant differences are found between scenarios.

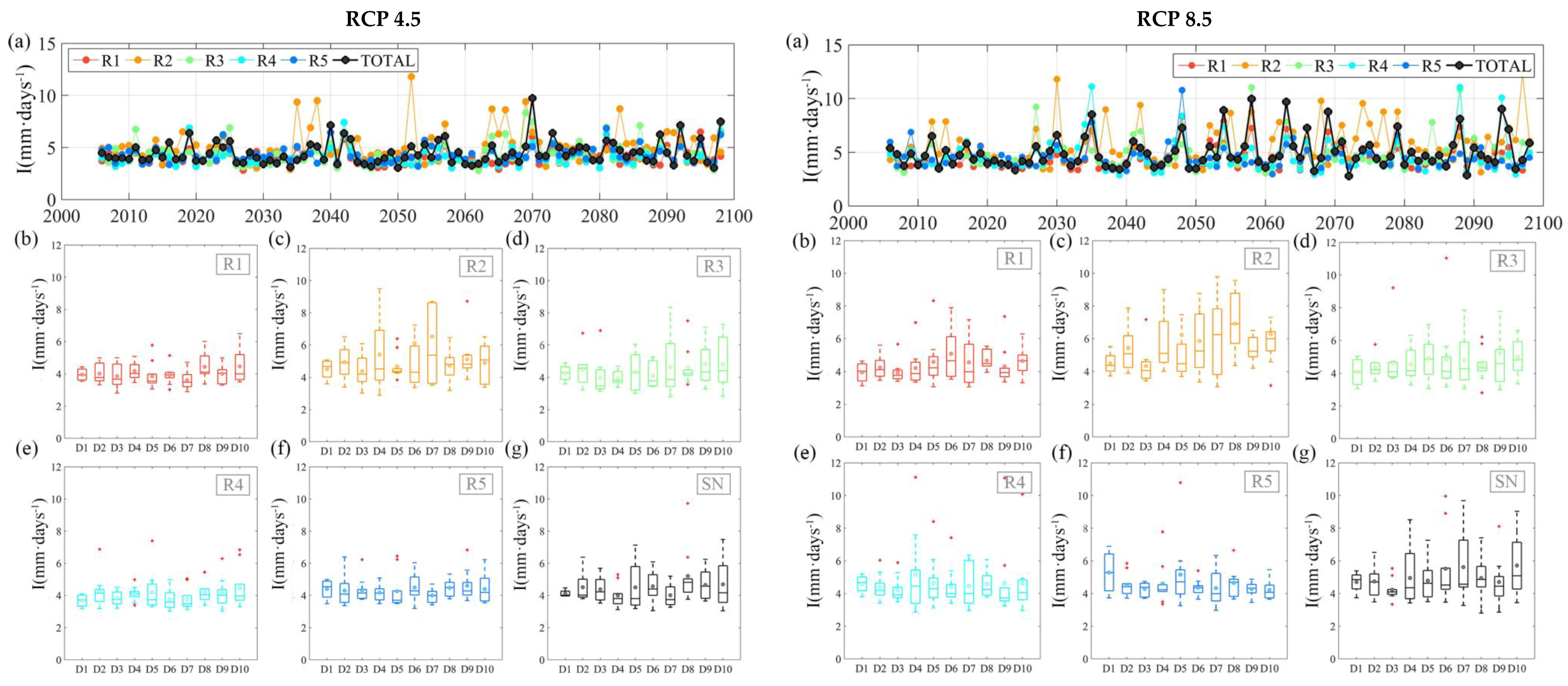

Regarding Isnowfall (Figure10), this indicator shows similar values in most of the identified regions in Sierra Nevada, with the exception of R2 and R3, which exhibit more torrential behavior. As previously stated, these regions represent the semiarid conditions in Sierra Nevada, and their features tend to be enhanced in the future climate scenarios, especially under RCP 8.5, as expected. All resulting trends are positive (RCP 4.5: 0.006 (mm·days−1)·year−1 and RCP 8.5: 0.01 (mm·days−1)·year−1), although quite moderate under RCP 4.5. The decadal scale more clearly confirms the semiarid character of R2, with high variability, as well as the snow-dominated regime in R5.

4. Discussion

The analysis performed in the Sierra Nevada area provides an estimate of the long-term effects of climate evolution under two different emission scenarios in a mountain area representative of Mediterranean conditions. The results highlight how climate impacts on snow in Mediterranean regions can be significantly variable in short scale spatial domains [67,68,69] and quantify the estimated anomalies in snowfall on both an annual and decadal basis.
The two scenarios chosen for the analysis largely differ in the extent of the estimated impacts of climate on snowfall occurrence and amount on an annual and decadal basis. As expected, the more severe scenario, RCP 8.5, results in larger impacts in terms of anomalies of snowfall. This has also been reported from similar analyses in different studies across the world [14,70,71,72]. Despite the fact that the decreasing evolution of precipitation on an annual basis shows no significant trends, the resulting snowfall regime for each scenario follows a significant decreasing trend associated with the long-term increasing trend for temperature.
This general significant increasing trend of temperature in future climate scenarios has been reported in climate impact analyses in other high mountain regions, like the Alps and the Himalayas [73,74,75,76], as well as in other semiarid mountain areas in Chile (the Andes) and in California (the Sierra Nevada) [77,78,79]. Similar values of the estimated trends for mean temperature have been found for the Alps (0.22 and 0.58 °C·decade−1 for RCPs 4.5 and 8.5, respectively), Sierra Nevada (0.18 and 0.46 °C·decade−1 for RCPs 4.5 and 8.5, respectively), and Chile (where an increase of 3 to 4 °C for the 21st century has been shown) [77,78]. The resulting trends in minimum temperature are lower, however, than those found in these other regions (e.g., 0.3 and 1.1 °C·decade−1 for RCPs 4.5 and 8.5, respectively, in the Himalayas and 0.08 and 0.26 °C·decade−1 for RCPs 4.5 and 8.5, respectively, in Sierra Nevada). This lower value is likely due to the different ranges of altitude between both sites, but scale effects associated with the downscaling in Sierra Nevada could also influence the results. In addition, maximum temperature trends show different behaviors between both areas (e.g., 0.20 and 0.30 °C·decade−1 for RCPs 4.5 and 8.5, respectively, in the Himalayas and 0.21 and 0.66 °C·decade−1 for RCPs 4.5 and 8.5, respectively, in Sierra Nevada).
The lack of significance in the trend analysis of precipitation has also been reported in these studies [80,81,82,83,84], with higher decreasing trend values observed during the 21st century under semiarid conditions (e.g., −9% and −19% for RCPs 4.5 and 8.5, respectively, in the Chilean Andes and −1.5% and −5.5% for RCPs 4.5 and 8.5, respectively, in Sierra Nevada). These results also show how apparent decreases of snowfall are expected in all future scenarios [74,76,80,81,85,86,87], with a higher loss of snowfall amount in areas above 1500 m a.s.l. but a larger impact in lower areas were snowfall might not even occur in the future [74,76,86]. The resulting impacts on snowfall differs largely among sites. For example, decreasing trends of 32 and 65 mm·decade−1 were found in the Alps for each scenario [75], which were larger than those found in Sierra Nevada. However, in relative values, these results are closer to the decadal decrease of snowfall estimated in Canada [85], which are 5 and 10% of the current decadal values for RCPs 4.5 and 8.5, respectively. This is in line with the 2.8 and 6.1% obtained for the same scenarios in Sierra Nevada. A key result from this analysis is the likely impact of climate scenarios on the torrentiality of snowfall. Despite the mean annual trend being a decrease (with high significance) during the study period, the extreme annual values of snowfall within each decade show an extremely high variability, with large amplitudes under both scenarios in most regions. From Table 1 and Table 2, it can be observed how the number of snowfall events in the future period is lower than that during the reference period, while the mean duration of each event is also lower. This behavior has also been reported in the Alps [76], with the mean value of the number of days of snowfall in future scenarios being 50% that of the reference period. That is in the range of the 33% and 76% found in Sierra Nevada under scenarios RCP 4.5 and RCP 8.5, respectively.
This impact is highlighted by the resulting Isnowfall (Figure 9), which increases during the second half of the study period and reaches the highest values in regions R1 and R2, which represent the semiarid environments in Sierra Nevada. This can also be observed from the results in Table 3, which shows the proportion between the mean values for each variable over the whole future time period under scenarios RCP 8.5 and RCP 4.5 for each region in Sierra Nevada and the whole study area. Whereas the ratios of the maximum and mean temperature and precipitation are very similar among regions, the ratio of the minimum temperature shows clear differences that are associated with the frequency of snowfall in each region. This greatly impacts the snowfall under each scenario, with ratios that differ among regions for both the maximum and minimum snowfall and the associated trend, which is amplified in the more severe scenario. This is especially true for the most snow-influenced regions (R5, R4). The apparent stabilization of the snowfall anomalies during the last decades of the 21st century under RCP 4.5, compared to the continuous fall estimated under RCP 8.5, stresses the importance of mitigation actions against the adaptation actions in the climate impacts simulated by the model.

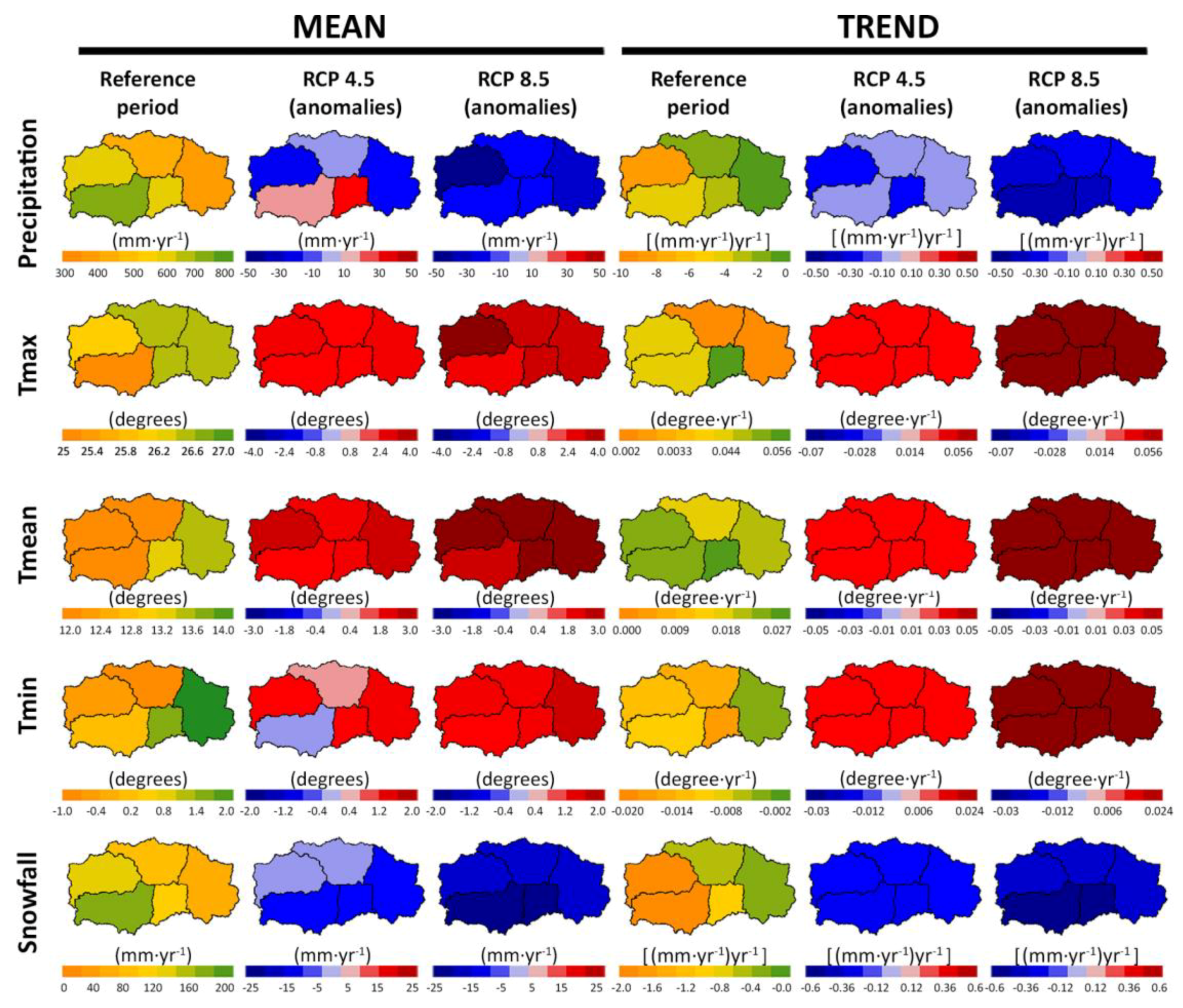

Figure 11 sums up the regional differences found in the study area for both the mean annual values of the targeted variables and their mean annual trends. It can be easily observed how temperature trends are spatially similar despite the fact that the mean original values are not homogeneous in space, whereas the precipitation pattern is variable both for the mean values and their trends. The resulting snowfall distribution is hence variable, both as mean and trend values.
The limitations of the results discussed above are mainly associated with the skill of the downscaled data and with the simplifying hypothesis in the snowfall/rainfall partition algorithm applied in this work. Additionally, new weather stations in the higher areas are required to further validate the spatial interpolation of both temperature and precipitation. Nevertheless, the results are aligned with those projected during the 21st century in other high mountain regions and provide the first distributed assessment of future climate scenario impacts on snowfall in Sierra Nevada, which has similarities with other semiarid mountain regions that allow some transferability to other less-monitored areas.

5. Conclusions

This work assessed climate impacts on the snowfall regime in a Mediterranean mountain area in southern Spain (i.e., the Sierra Nevada range) under two different future scenarios (RCP 4.5 and RCP 8.5). The results indicate a global decrease of annual snowfall, with a significant trend that ranges from 0.21 to 0.55 (mm·year−1)·year−1 and changes depending on the scenario and region in the area. However, the major impact of climate on the snowfall regime is reflected in the torrential character of snowfall occurrence, with a decrease in the number of days with snowfall and a significant increase in the global mean snowfall intensity under both scenarios. This torrentiality is more extremely increased in the semiarid region of Andarax in Sierra Nevada, the area currently less influenced by snow. This may have a relevant impact on the fluvial regime, which is currently characterized by non-perennial flows, with the occurrence of flash-flood events.
Climate projections are not forecasts, but rather likely long-term pathways that climate variables may follow as they are driven by the long-term dynamics of the global circulation system in the Earth under different emission scenarios. The uncertainties associated with the estimation of snowfall occurrence from the assumptions made in this work add up to uncertainties in the global models, the downscaling techniques, the spatial interpolation algorithms, and the observational datasets. Nevertheless, the thus-projected trends of snowfall in the Sierra Nevada area show how climate impacts on the snow regime in Mediterranean and other semiarid regions are highly dependent on the trend towards torrentiality observed in the precipitation regime in these areas. These trends focus on the extreme value regimes of both precipitation and temperature variables, rather than on the mean value regime. Moreover, the spatial analysis’ results highlight the large heterogeneity of these impacts on the local scale and point out the need for high resolution modeling to derive further information linked to the snow regime, such as runoff and river flow, soil wetness, vegetation distribution patterns, erosion rates, water temperature, and groundwater recharge.

Author Contributions

M.J.P.-P. and R.P. were responsible for processing the data. M.J.P.-P was responsible for analyzing the data and communicating with the journal. R.P. contributed technical details and analysis support and M.J.P. was responsible for overseeing the research and providing critical insight and recommendations regarding the focus, structure, and content of the paper. All authors participated in writing and proofreading throughout the publication process.

Acknowledgments

This work was funded by the Spanish Ministry of Economy and Competitiveness—MINECO (Research Project CGL2014-58508R, “Global monitoring system for snow areas in Mediterranean regions: trends analysis and implications for water resource management in Sierra Nevada”) and co-financed by the European Regional Development Fund (ERFD). Also, this work was funded by the Spanish Ministry of Agriculture, Food, and Environment (Biodiversity Foundation, Project “Torrentiality and aridity indices relate to snow in the Sierra Nevada National Park and its border areas in a context of global change: implications for the management of natural resources”). Moreover, this research was partially developed within the framework of the Panta Rhei Research Initiative of the International Association of Hydrological Science (IAHS) in the Working Group on Water and Energy Fluxes in a Changing Environment. Finally, we are thankful for the support provided by the National and Natural Park of Sierra Nevada and by the Spanish Meteorological Agency.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Barnett, T.P.; Adam, J.C.; Lettenmaier, D.P. Potential impacts of a warming climate on water availability in snow-dominated regions. Nature 2005, 438, 303. [Google Scholar] [CrossRef] [PubMed]
  2. Mote, P.W. Trends in snow water equivalent in the Pacific Northwest and their climatic causes. Geophys. Res. Lett. 2003, 30. [Google Scholar] [CrossRef] [Green Version]
  3. Hamlet, A.F.; Mote, P.W.; Clark, M.P.; Lettenmaier, D.P.; Hamlet, A.F.; Mote, P.W.; Clark, M.P.; Lettenmaier, D.P. Effects of Temperature and Precipitation Variability on Snowpack Trends in the Western United States. J. Clim. 2015, 48, 4545–4561. [Google Scholar] [CrossRef]
  4. Berghuijs, W.R.; Woods, R.A.; Hrachowitz, M. A precipitation shift from snow towards rain leads to a decrease in streamflow. Nat. Clim. Chang. 2014, 4, 583. [Google Scholar] [CrossRef]
  5. Kevin, E. Trenberth Changes in precipitation with climate change. Clim. Res. Clim Res. 2011, 47, 123–138. [Google Scholar] [CrossRef]
  6. Chou, C.; Lan, C.-W.; Chou, C.; Lan, C.-W. Changes in the Annual Range of Precipitation under Global Warming. J. Clim. 2012, 25, 222–235. [Google Scholar] [CrossRef]
  7. Solomon, S.; Quin, D.; Manning, M.; Chen, Z.; Marquis, M.; Averyt, K.; Tignort, M.; Miller, H. Climate Change: The Physical Science Basis. Contribution of Working Group I to the Fourth Assessment Report of the Intergovernmental Panel on Climate Change; Cambridge University Press: Cambridge, UK; New York, NY, USA, 2017. [Google Scholar]
  8. Groisman, P.Y.; Knight, R.W.; Easterling, D.R.; Karl, T.R.; Hegerl, G.C.; Razuvaev, V.N. Trends in Intense Precipitation in the Climate Record. J. Clim. 2005, 18, 1326–1350. [Google Scholar] [CrossRef]
  9. Norrant, C.; Douguédroit, A. Monthly and daily precipitation trends in the Mediterranean (1950–2000). Theor. Appl. Climatol. 2006, 83, 89–106. [Google Scholar] [CrossRef]
  10. Klein Tank, A.M.G.; Wijngaard, J.B.; Können, G.P.; Böhm, R.; Demarée, G.; Gocheva, A.; Mileta, M.; Pashiardis, S.; Hejkrlik, L.; Kern-Hansen, C.; et al. Daily dataset of 20th-century surface air temperature and precipitation series for the European Climate Assessment. Int. J. Climatol. 2002, 22, 1441–1453. [Google Scholar] [CrossRef] [Green Version]
  11. New, M.; Todd, M.; Hulme, M.; Jones, P. Precipitation measurements and trends in the twentieth century. Int. J. Climatol. 2001, 21, 1889–1922. [Google Scholar] [CrossRef] [Green Version]
  12. Pérez-Palazón, M.J.; Pimentel, R.; Herrero, J.; Aguilar, C.; Perales, J.M.; Polo, M.J. Extreme values of snow-related variables in Mediterranean regions: Trends and long-term forecasting in Sierra Nevada (Spain). Proc. Int. Assoc. Hydrol. Sci. 2015, 369, 157–162. [Google Scholar] [CrossRef]
  13. Beniston, M. Climatic Change in Mountain Regions: A Review of Possible Impacts. Clim. Chang. 2003, 59, 5–31. [Google Scholar] [CrossRef]
  14. IPCC. Climate Change 2014: Synthesis Report. Contribution of Working Groups I, II and III to the Fifth Assessment Report of the Intergovernmental Panel on Climate Change; Core Writing Team, Pachauri, R.K., Meyer, L.A., Eds.; IPCC: Geneva, Switzerland, 2014; p. 151. [Google Scholar]
  15. Giorgi, F. Climate change hot-spots. Geophys. Res. Lett. 2006, 33, L08707. [Google Scholar] [CrossRef]
  16. Gelfan, A.; Gustafsson, D.; Motovilov, Y.; Arheimer, B.; Kalugin, A.; Krylenko, I.; Lavrenov, A. Climate change impact on the water regime of two great Arctic rivers: Modeling and uncertainty issues. Clim. Chang. 2017, 141, 499–515. [Google Scholar] [CrossRef]
  17. Eisner, S.; Flörke, M.; Chamorro, A.; Daggupati, P.; Donnelly, C.; Huang, J.; Hundecha, Y.; Koch, H.; Kalugin, A.; Krylenko, I.; et al. An ensemble analysis of climate change impacts on streamflow seasonality across 11 large river basins. Clim. Chang. 2017, 141, 401–417. [Google Scholar] [CrossRef]
  18. Soares, M.B.; Alexander, M.; Dessai, S. Sectoral use of climate information in Europe: A synoptic overview. Clim. Serv. 2018, 9, 5–20. [Google Scholar] [CrossRef]
  19. Damm, A.; Greuell, W.; Landgren, O.; Prettenthaler, F. Impacts of +2 °C global warming on winter tourism demand in Europe. Clim. Serv. 2017, 7, 31–46. [Google Scholar] [CrossRef]
  20. Donnelly, C.; Greuell, W.; Andersson, J.; Gerten, D.; Pisacane, G.; Roudier, P.; Ludwig, F. Impacts of climate change on European hydrology at 1.5, 2 and 3 degrees mean global warming above preindustrial level. Clim. Chang. 2017, 143, 13–26. [Google Scholar] [CrossRef]
  21. Steininger, K.W.; Bednar-Friedl, B.; Formayer, H.; König, M. Consistent economic cross-sectoral climate change impact scenario analysis: Method and application to Austria. Clim. Serv. 2016, 1, 39–52. [Google Scholar] [CrossRef]
  22. Fayad, A.; Gascoin, S.; Faour, G.; López-Moreno, J.I.; Drapeau, L.; Page, M.L.; Escadafal, R. Snow hydrology in Mediterranean mountain regions: A review. J. Hydrol. 2017, 551, 374–396. [Google Scholar] [CrossRef]
  23. López-Moreno, J.I.; Gascoin, S.; Herrero, J.; Sproles, E.A.; Pons, M.; Alonso-González, E.; Hanich, L.; Boudhar, A.; Musselman, K.N.; Molotch, N.P.; et al. Different sensitivities of snowpacks to warming in Mediterranean climate mountain areas. Environ. Res. Lett. 2017, 12, 074006. [Google Scholar] [CrossRef]
  24. Möller, L.; Hanke, B.; Lubinski, L.; Kollig, C. For Life, for the Future. Biosphere Reserves and Climate Change; German Commission for UNESCO (DUK): Bonn, Germany; ISBN 978-3-940785-27-5.
  25. Danco, J.F.; DeAngelis, A.M.; Raney, B.K.; Broccoli, A.J. Effects of a Warming Climate on Daily Snowfall Events in the Northern Hemisphere. J. Clim. 2016, 29, 6295–6318. [Google Scholar] [CrossRef]
  26. Blanca, G.; Cueto, M.; Martínez-Lirola, M.J.; Molero-Mesa, J. Threatened vascular flora of Sierra Nevada (Southern Spain). Biol. Conserv. 1998, 85, 269–285. [Google Scholar] [CrossRef]
  27. Heywood, V. Endemism and biodiversity of the flora and vegetation of Sierra Nevada: Environmental consequences. In Sierra Nevada. Conservaci6n y Desarrollo Sostenible; University of Granada: Granada, Spain, 1996; pp. 191–201. [Google Scholar]
  28. Pimentel, R.; Herrero, J.; Polo, M.J. Subgrid parameterization of snow distribution at a Mediterranean site using terrestrial photography. Hydrol. Earth Syst. Sci. 2017, 21, 805–820. [Google Scholar] [CrossRef] [Green Version]
  29. Lorite, J.; Navarro, F.B.; Valle, F. Estimation of threatened orophytic flora and priority of its conservation in the Baetic range (S. Spain). Plant Biosyst. 2007, 141, 1–14. [Google Scholar] [CrossRef]
  30. Myers, N.; Mittermeier, R.A.; Mittermeier, C.G.; da Fonseca, G.A.B.; Kent, J. Biodiversity hotspots for conservation priorities. Nature 2000, 403, 853–858. [Google Scholar] [CrossRef] [PubMed]
  31. Pérez-Palazon, M.J.; Pimentel, R.; Herrero, J.; Polo, M.J. Modelado el régimen de humedad media del suelo en el área de Sierra Nevada a diferentes escalas temporales. In Estudios de la Zona no Saturada; Martinez Perez, S., Merlín, A.S., Eds.; Universidad de Alcalá, Servicio de Publicaciones: Madrid, Spain, 2015; Volumen XII, pp. 221–226. [Google Scholar]
  32. Boé, J.; Terray, L. Can metric-based approaches really improve multi-model climate projections? The case of summer temperature change in France. Clim. Dyn. 2015, 45, 1913–1928. [Google Scholar] [CrossRef]
  33. Knutti, R.; Furrer, R.; Tebaldi, C.; Cermak, J.; Meehl, G.A.; Knutti, R.; Furrer, R.; Tebaldi, C.; Cermak, J.; Meehl, G.A. Challenges in Combining Projections from Multiple Climate Models. J. Clim. 2010, 23, 2739–2758. [Google Scholar] [CrossRef] [Green Version]
  34. Giorgi, F.; Mearns, L.O.; Giorgi, F.; Mearns, L.O. Calculation of Average, Uncertainty Range, and Reliability of Regional Climate Changes from AOGCM Simulations via the “Reliability Ensemble Averaging” (REA) Method. J. Clim. 2002, 15, 1141–1158. [Google Scholar] [CrossRef]
  35. Tebaldi, C.; Smith, R.L.; Nychka, D.; Mearns, L.O.; Tebaldi, C.; Smith, R.L.; Nychka, D.; Mearns, L.O. Quantifying Uncertainty in Projections of Regional Climate Change: A Bayesian Approach to the Analysis of Multimodel Ensembles. J. Clim. 2005, 18, 1524–1540. [Google Scholar] [CrossRef] [Green Version]
  36. Block, K.; Mauritsen, T. Forcing and feedback in the MPI-ESM-LR coupled model under abruptly quadrupled CO2. J. Adv. Model. Earth Syst. 2013, 5, 676–691. [Google Scholar] [CrossRef]
  37. Zorita, E.; von Storch, H.; Zorita, E.; von Storch, H. The Analog Method as a Simple Statistical Downscaling Technique: Comparison with More Complicated Methods. J. Clim. 1999, 12, 2474–2489. [Google Scholar] [CrossRef]
  38. Stevens, B.; Giorgetta, M.; Esch, M.; Mauritsen, T.; Crueger, T.; Rast, S.; Salzmann, M.; Schmidt, H.; Bader, J.; Block, K.; et al. Atmospheric component of the MPI-M Earth System Model: ECHAM6. J. Adv. Model. Earth Syst. 2013, 5, 146–172. [Google Scholar] [CrossRef] [Green Version]
  39. Jungclaus, J.H.; Fischer, N.; Haak, H.; Lohmann, K.; Marotzke, J.; Matei, D.; Mikolajewicz, U.; Notz, D.; von Storch, J.S. Characteristics of the ocean simulations in the Max Planck Institute Ocean Model (MPIOM) the ocean component of the MPI-Earth system model. J. Adv. Model. Earth Syst. 2013, 5, 422–446. [Google Scholar] [CrossRef] [Green Version]
  40. Jones, C.; Robertson, E.; Arora, V.; Friedlingstein, P.; Shevliakova, E.; Bopp, L.; Brovkin, V.; Hajima, T.; Kato, E.; Kawamiya, M.; et al. Twenty-First-Century Compatible CO2 Emissions and Airborne Fraction Simulated by CMIP5 Earth System Models under Four Representative Concentration Pathways. J. Clim. 2013, 26, 4398–4413. [Google Scholar] [CrossRef]
  41. Maier-Reimer, E.; Kriest, I.; Segschneider, J.; Wetzel, P. The HAMburg Ocean Carbon Cycle Model HAMOCC5.1-Technical Description Release 1.1; Max-Planck-Inst. für Meteorologie: Hamburg, Germany, 2005. [Google Scholar] [CrossRef]
  42. Kaminski, T.; Knorr, W.; Schürmann, G.; Scholze, M.; Rayner, P.J.; Zaehle, S.; Blessing, S.; Dorigo, W.; Gayler, V.; Giering, R.; et al. The BETHY/JSBACH Carbon Cycle Data Assimilation System: Experiences and challenges. J. Geophys. Res. Biogeosci. 2013, 118, 1414–1426. [Google Scholar] [CrossRef]
  43. Kalnay, E.; Kanamitsu, M.; Kistler, R.; Collins, W.; Deaven, D.; Gandin, L.; Iredell, M.; Saha, S.; White, G.; Woollen, J.; et al. The NCEP/NCAR 40-Year Reanalysis Project. Bull. Am. Meteorol. Soc. 1996, 77, 437–471. [Google Scholar] [CrossRef] [Green Version]
  44. Petisco, S.E.; Martín, J.; Gel, D. Método de estima de precipitación mediante “downscaling”. In Nota técnica n.o 11 del Servicio de Variabilidad y Predicción del Clima; INM: Madrid, Spain, 2005. [Google Scholar]
  45. Petisco, S.E.; Martín, J.M. Escenarios de temperatura y precipitación para la España peninsular y Baleares durante el período 2001–2100 basados en “downscaling” estadístico mediante métodos de análogos. In Proceedings of the XXIX Jornadas Científicas de la Asociación Meteorológica Española, Pamplona, Spain, 24–26 April 2006. [Google Scholar]
  46. Agnew, M.; Palutikof, J. GIS-based construction of baseline climatologies for the Mediterranean using terrain variables. Clim. Res. 2000, 14, 115–127. [Google Scholar] [CrossRef] [Green Version]
  47. Herrero, J.; Aguilar, C.; Polo, M.J.; Losada, M.A. Mapping of meteorological variables for runoff generation forecast in distributed hydrological modeling. In Proceedings of the Hydraulic Measurements & Experimental Methods Conference, Lake Placid, NY, USA, 10–12 September 2007; pp. 606–611. [Google Scholar]
  48. Creutin, J.D.; Obled, C. Objective analyses and mapping techniques for rainfall fields: An objective comparison. Water Resour. Res. 1982, 18, 413–431. [Google Scholar] [CrossRef]
  49. Buytaert, W.; Celleri, R.; Willems, P.; De Bièvre, B.; Wyseure, G. Spatial and temporal rainfall variability in mountainous areas: A case study from the south Ecuadorian Andes. J. Hydrol. 2006, 329, 413–421. [Google Scholar] [CrossRef] [Green Version]
  50. Susong, D.; Marks, D.; Garen, D. Methods for developing time-series climate surfaces to drive topographically distributed energy- and water-balance models. Hydrol. Process. 1999, 13, 2003–2021. [Google Scholar] [CrossRef]
  51. Garen, D.C.; Marks, D. Spatially distributed energy balance snowmelt modelling in a mountainous river basin: Estimation of meteorological inputs and verification of model results. J. Hydrol. 2005, 315, 126–153. [Google Scholar] [CrossRef]
  52. Aguilar, C.; Herrero, J.; Polo, M.J. Topographic effects on solar radiation distribution in mountainous watersheds and their influence on reference evapotranspiration estimates at watershed scale. Hydrol. Earth Syst. Sci. 2010, 14, 2479–2494. [Google Scholar] [CrossRef] [Green Version]
  53. Herrero, J.; Polo, M.J. Evaposublimation from the snow in the Mediterranean mountains of Sierra Nevada (Spain). Cryosphere 2016, 10, 2981–2998. [Google Scholar] [CrossRef] [Green Version]
  54. Pimentel, R.; Herrero, J.; Polo, M. Quantifying Snow Cover Distribution in Semiarid Regions Combining Satellite and Terrestrial Imagery. Remote Sens. 2017, 9, 995. [Google Scholar] [CrossRef]
  55. Dai, A. Temperature and Pressure Dependence of the Rain-Snow Phase Transition over Land and Ocean. Geophys. Res. Lett. 2008, 10. [Google Scholar] [CrossRef]
  56. Lundquist, J.D.; Neiman, P.J.; Martner, B.; White, A.B.; Gottas, D.J.; Ralph, F.M.; Lundquist, J.D.; Neiman, P.J.; Martner, B.; White, A.B.; et al. Rain versus Snow in the Sierra Nevada, California: Comparing Doppler Profiling Radar and Surface Observations of Melting Level. J. Hydrometeorol. 2008, 9, 194–211. [Google Scholar] [CrossRef] [Green Version]
  57. Klos, P.Z.; Link, T.E.; Abatzoglou, J.T. Extent of the rain-snow transition zone in the western U.S. under historic and projected climate. Geophys. Res. Lett. 2014, 41, 4560–4568. [Google Scholar] [CrossRef] [Green Version]
  58. Rajagopal, S.; Harpold, A.A. Testing and Improving Temperature Thresholds for Snow and Rain Prediction in the Western United States. JAWRA J. Am. Water Resour. Assoc. 2016, 52, 1142–1154. [Google Scholar] [CrossRef]
  59. Hatchett, B.; Daudert, B.; Garner, C.; Oakley, N.; Putnam, A.; White, A. Winter Snow Level Rise in the Northern Sierra Nevada from 2008 to 2017. Water 2017, 9, 899. [Google Scholar] [CrossRef]
  60. Motoyama, H.; Motoyama, H. Simulation of Seasonal Snowcover Based on Air Temperature and Precipitation. J. Appl. Meteorol. 1990, 29, 1104–1110. [Google Scholar] [CrossRef] [Green Version]
  61. Lynch-Stieglitz, M. The Development and Validation of a Simple Snow Model for the GISS GCM. J. Clim. 1994, 7, 1842–1855. [Google Scholar] [CrossRef] [Green Version]
  62. Marks, D.; Winstral, A.; Reba, M.; Pomeroy, J.; Kumar, M. An evaluation of methods for determining during-storm precipitation phase and the rain/snow transition elevation at the surface in a mountain basin. Adv. Water Resour. 2013, 55, 98–110. [Google Scholar] [CrossRef]
  63. Herrero, J.; Polo, M.J.; Moñino, A.; Losada, M.A. An energy balance snowmelt model in a Mediterranean site. J. Hydrol. 2009, 371, 98–107. [Google Scholar] [CrossRef]
  64. Yang, Z.-L.; Dickinson, R.E.; Robock, A.; Vinnikov, K.Y.; Yang, Z.-L.; Dickinson, R.E.; Robock, A.; Vinnikov, K.Y. Validation of the Snow Submodel of the Biosphere–Atmosphere Transfer Scheme with Russian Snow Cover and Meteorological Observational Data. J. Clim. 1997, 10, 353–373. [Google Scholar] [CrossRef] [Green Version]
  65. Gibbons, J.D.; Chakraborti, S. Nonparametric Statistical Inference; Chapman & Hall/CRC Edition: London, UK, 2011; ISBN 9781420077612. [Google Scholar]
  66. Venables, W.N.; Ripley, B.D. Modern Applied Statistics with S-PLUS; Springer Science & Business Media: Berlin, Germany, 2013; ISBN 9781441930088. [Google Scholar]
  67. Esteban-Parra, M.J.; Rodrigo, F.S.; Castro-Diez, Y. Spatial and temporal patterns of precipitation in Spain for the period 1880–1992. Int. J. Climatol. 1998, 18, 1557–1574. [Google Scholar] [CrossRef] [Green Version]
  68. Shuttleworth, W.J. The challenges of developing a changing world. Eos Trans. Am. Geophys. Union 1996, 77, 347. [Google Scholar] [CrossRef]
  69. Maheras, P.; Balafoutis, C.; Vafiadis, M. Precipitation in the Central Mediterranean during the last century. Theor. Appl. Climatol. 1992, 45, 209–216. [Google Scholar] [CrossRef]
  70. Gampe, D.; Nikulin, G.; Ludwig, R. Using an ensemble of regional climate models to assess climate change impacts on water scarcity in European river basins. Sci. Total Environ. 2016, 573, 1503–1518. [Google Scholar] [CrossRef] [PubMed]
  71. Molina-Navarro, E.; Andersen, H.E.; Nielsen, A.; Thodsen, H.; Trolle, D. Quantifying the combined effects of land use and climate changes on stream flow and nutrient loads: A modelling approach in the Odense Fjord catchment (Denmark). Sci. Total Environ. 2018, 621, 253–264. [Google Scholar] [CrossRef] [PubMed]
  72. Tan, M.L.; Ibrahim, A.L.; Yusop, Z.; Chua, V.P.; Chan, N.W. Climate change impacts under CMIP5 RCP scenarios on water resources of the Kelantan River Basin, Malaysia. Atmos. Res. 2017, 189, 1–10. [Google Scholar] [CrossRef]
  73. Dimri, A.P.; Kumar, D.; Choudhary, A.; Maharana, P. Future changes over the Himalayas: Maximum and minimum temperature. Glob. Planet. Chang. 2018, 162, 212–234. [Google Scholar] [CrossRef]
  74. Diffenbaugh, N.S.; Scherer, M.; Ashfaq, M. Response of snow-dependent hydrologic extremes to continued global warming. Nat. Clim. Chang. 2013, 3, 379–384. [Google Scholar] [CrossRef] [PubMed]
  75. Verfaillie, D.; Lafaysse, M.; Déqué, M.; Eckert, N.; Lejeune, Y.; Morin, S. Multi-component ensembles of future meteorological and natural snow conditions for 1500 m altitude in the Chartreuse mountain range, Northern French Alps. Cryosphere 2018, 125194, 1249–1271. [Google Scholar] [CrossRef]
  76. Marty, C.; Schlögl, S.; Bavay, M.; Lehning, M. How much can we save? Impact of different emission scenarios on future snow cover in the Alps. Cryosphere 2017, 11, 517–529. [Google Scholar] [CrossRef]
  77. Meza, F.J.; Wilks, D.S.; Gurovich, L.; Bambach, N. Impacts of Climate Change on Irrigated Agriculture in the Maipo Basin, Chile: Reliability of Water Rights and Changes in the Demand for Irrigation. J. Water Resour. Plan. Manag. 2012, 138, 421–430. [Google Scholar] [CrossRef]
  78. Vicuña, S.; Garreaud, R.D.; McPhee, J. Climate change impacts on the hydrology of a snowmelt driven basin in semiarid Chile. Clim. Chang. 2011, 105, 469–488. [Google Scholar] [CrossRef]
  79. Cayan, D.; Tyree, M.; Kunkel, K.E.; Castro, C.; Gershunov, A.; Barsugli, J.; Ray, A.J.; Overpeck, J.; Anderson, M.; Russell, J.; et al. Future Climate: Projected Average. In Assessment of Climate Change in the Southwest United States: A Report Prepared for the National Climate Assessment; A Report by the Southwest Climate Alliance; Garfin, G., Jardine, A., Merideth, R., Black, M., LeRoy, S., Eds.; Island Press: Washington, DC, USA, 2013; pp. 101–125. [Google Scholar]
  80. Kay, A.L. A review of snow in Britain: The historical picture and future projections. Prog. Phys. Geog. 2016, 40, 676–698. [Google Scholar] [CrossRef] [Green Version]
  81. Monaghan, A.J.; Bromwich, D.H.; Schneider, D.P. Twentieth century Antarctic air temperature and snowfall simulations by IPCC climate models. Geophys. Res. Lett. 2008, 35. [Google Scholar] [CrossRef] [Green Version]
  82. Polade, S.D.; Gershunov, A.; Cayan, D.R.; Dettinger, M.D.; Pierce, D.W. Precipitation in a warming world: Assessing projected hydro-climate changes in California and other Mediterranean climate regions. Sci. Rep. 2017, 7, 10783. [Google Scholar] [CrossRef] [PubMed]
  83. Berg, N.; Hall, A. Increased Interannual Precipitation Extremes over California under Climate Change. J. Clim. 2015, 28, 6324–6334. [Google Scholar] [CrossRef]
  84. Valdés-Pineda, R.; Pizarro, R.; García-Chevesich, P.; Valdés, J.B.; Olivares, C.; Vera, M.; Balocchi, F.; Pérez, F.; Vallejos, C.; Fuentes, R.; et al. Water governance in Chile: Availability, management and climate change. J. Hydrol. 2014, 519, 2538–2567. [Google Scholar] [CrossRef]
  85. Mudryk, L.R.; Derksen, C.; Howell, S.; Laliberté, F.; Thackeray, C.; Sospedra-Alfonso, R.; Vionnet, V.; Kushner, P.J.; Brown, R. Canadian snow and sea ice: Historical trends and projections. Cryosphere 2018, 12, 1157–1176. [Google Scholar] [CrossRef]
  86. Demaria, E.M.C.; Maurer, E.P.; Thrasher, B.; Vicuña, S.; Meza, F.J. Climate changes impacts on an alpine watershed in Chile: Do new model projections change the story? J. Hydrol. 2013, 502, 128–138. [Google Scholar] [CrossRef]
  87. Sun, F.; Hall, A.; Schwartz, M.; Walton, D.B.; Berg, N. Twenty-First-Century Snowfall and Snowpack Changes over the Southern California Mountains. J. Clim. 2016, 29, 91–110. [Google Scholar] [CrossRef]
Figure 1. Location of the Sierra Nevada Mountain Range in Spain. The weather station network used in this study for measuring precipitation (yellow circle) and temperature (yellow square), and the limits of the five regions into which the study area was divided for the spatial analysis: Adra (R1), Andarax (R2), Fardes (R3), Genil (R4), and Guadalfeo (R5).
Figure 1. Location of the Sierra Nevada Mountain Range in Spain. The weather station network used in this study for measuring precipitation (yellow circle) and temperature (yellow square), and the limits of the five regions into which the study area was divided for the spatial analysis: Adra (R1), Andarax (R2), Fardes (R3), Genil (R4), and Guadalfeo (R5).
Water 10 00720 g001

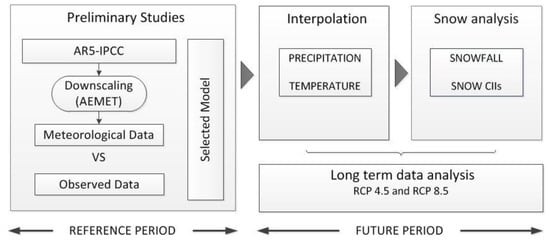

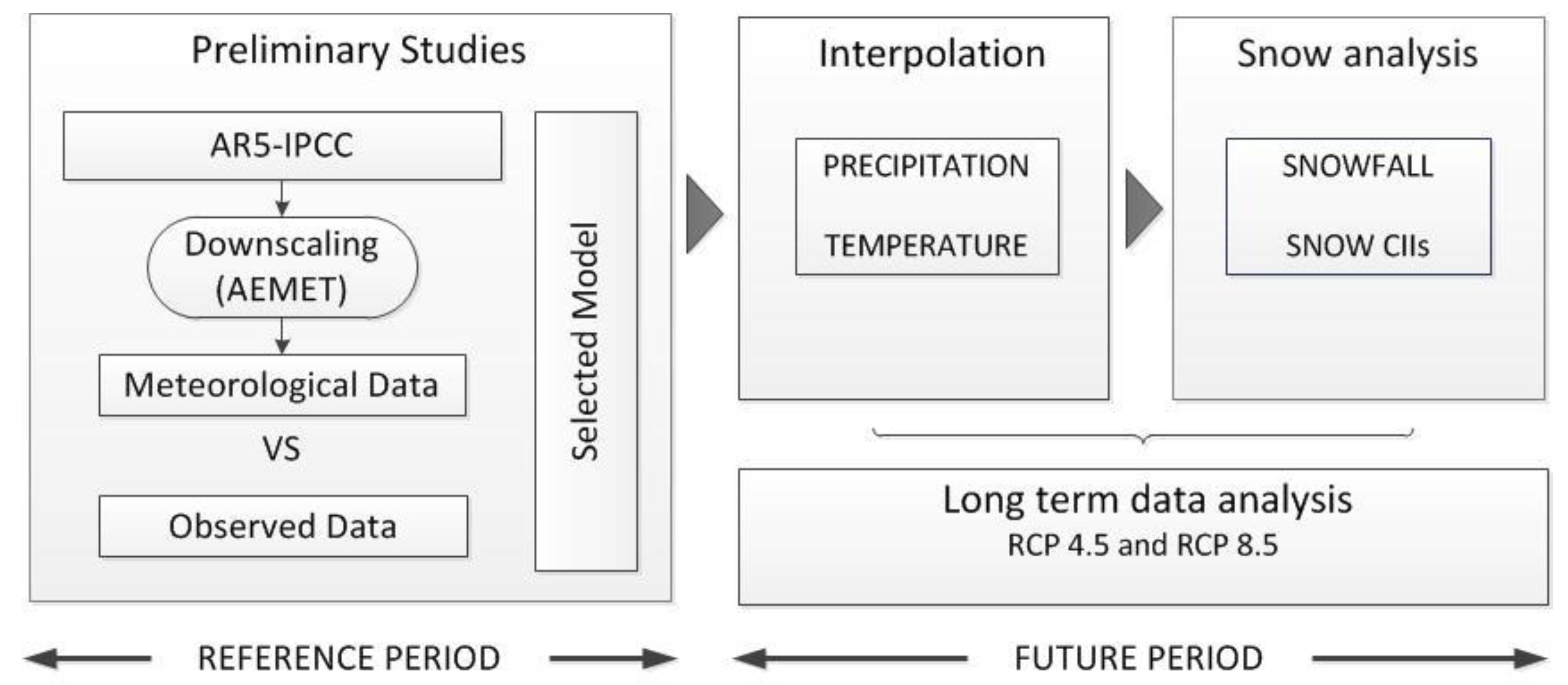

Figure 2. The overall research design and work flow chart for this study. AEMET is the Spanish Meteorological Agency, which is the data source of the historical and projected climate variables for future scenarios RCPs4.5 and 8.5 in the Fifth Assessment Report of the Intergovernmental Panel for Climate Change (AR5 IPCC)) [14]. CIIs are the climate impact indicators defined for torrentiality assessment.
Figure 2. The overall research design and work flow chart for this study. AEMET is the Spanish Meteorological Agency, which is the data source of the historical and projected climate variables for future scenarios RCPs4.5 and 8.5 in the Fifth Assessment Report of the Intergovernmental Panel for Climate Change (AR5 IPCC)) [14]. CIIs are the climate impact indicators defined for torrentiality assessment.
Water 10 00720 g002

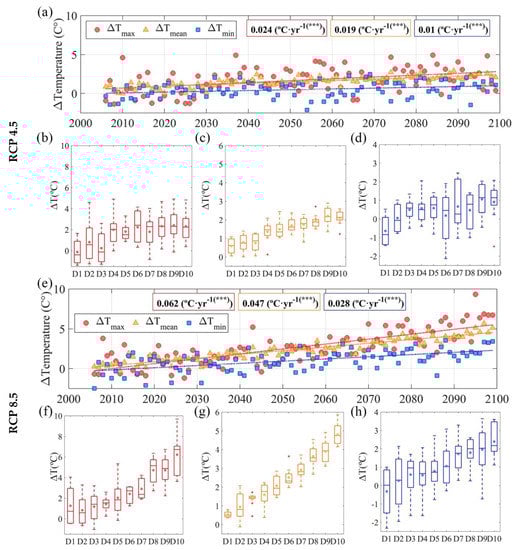

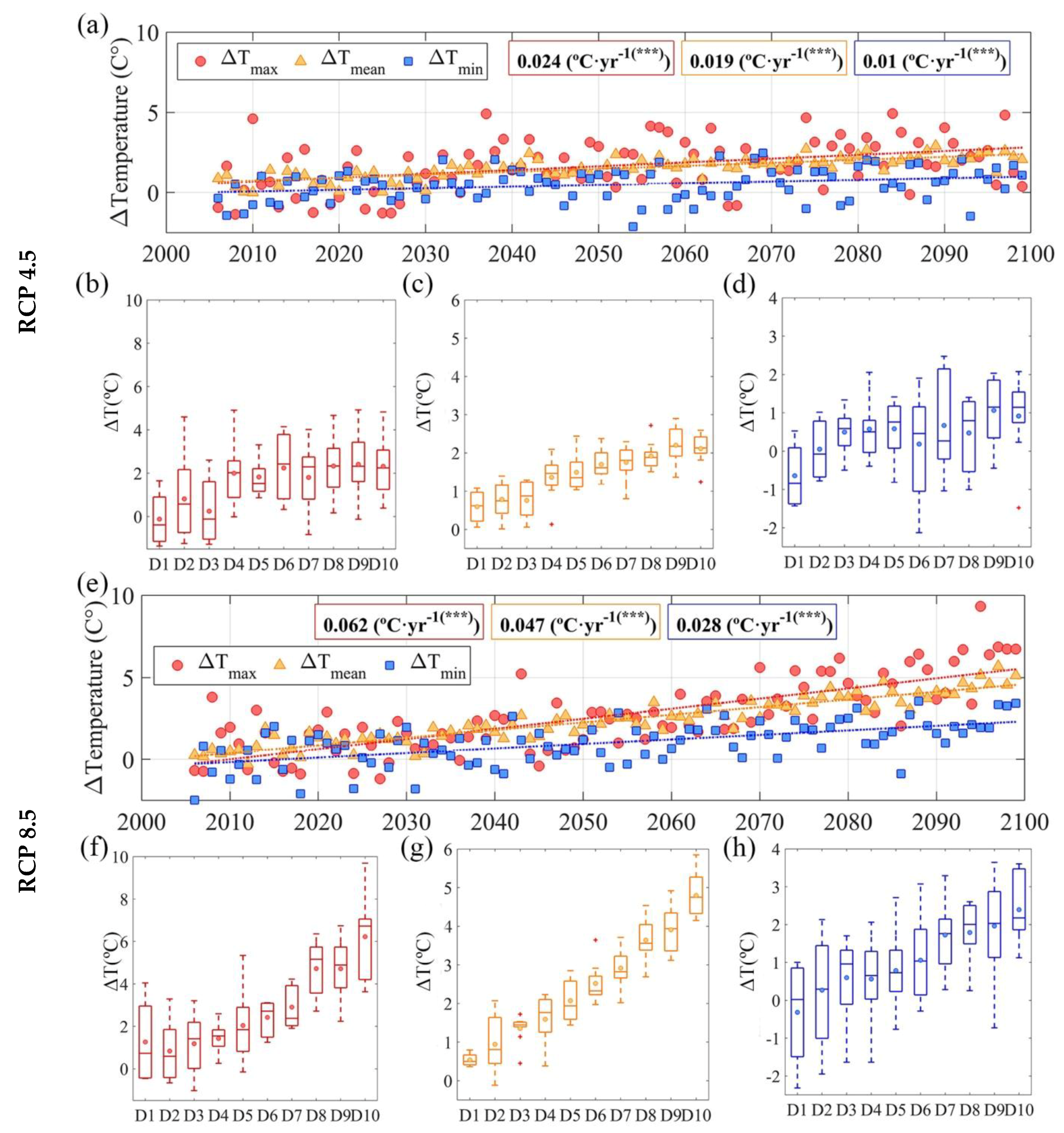

Figure 3. Evolution of the (a,e) annual mean, maximum, and minimum daily temperature anomalies and decadal (b,f) maximum, (c,g) mean, and (d,h) minimum temperature anomalies for the two climate change scenarios analyzed, respectively, during the period of 2006–2100. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); and (4) no significance, less than 90% (+).
Figure 3. Evolution of the (a,e) annual mean, maximum, and minimum daily temperature anomalies and decadal (b,f) maximum, (c,g) mean, and (d,h) minimum temperature anomalies for the two climate change scenarios analyzed, respectively, during the period of 2006–2100. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); and (4) no significance, less than 90% (+).
Water 10 00720 g003
Figure 4. Evolution of the (a,c) annual and (b,d) decadal mean annual precipitation anomalies for the two global change scenarios analyzed for RCPs 4.5 and 8.5, respectively, during the 2006–2010 period. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); and (4) no significance, less than 90% (+).
Figure 4. Evolution of the (a,c) annual and (b,d) decadal mean annual precipitation anomalies for the two global change scenarios analyzed for RCPs 4.5 and 8.5, respectively, during the 2006–2010 period. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); and (4) no significance, less than 90% (+).
Water 10 00720 g004

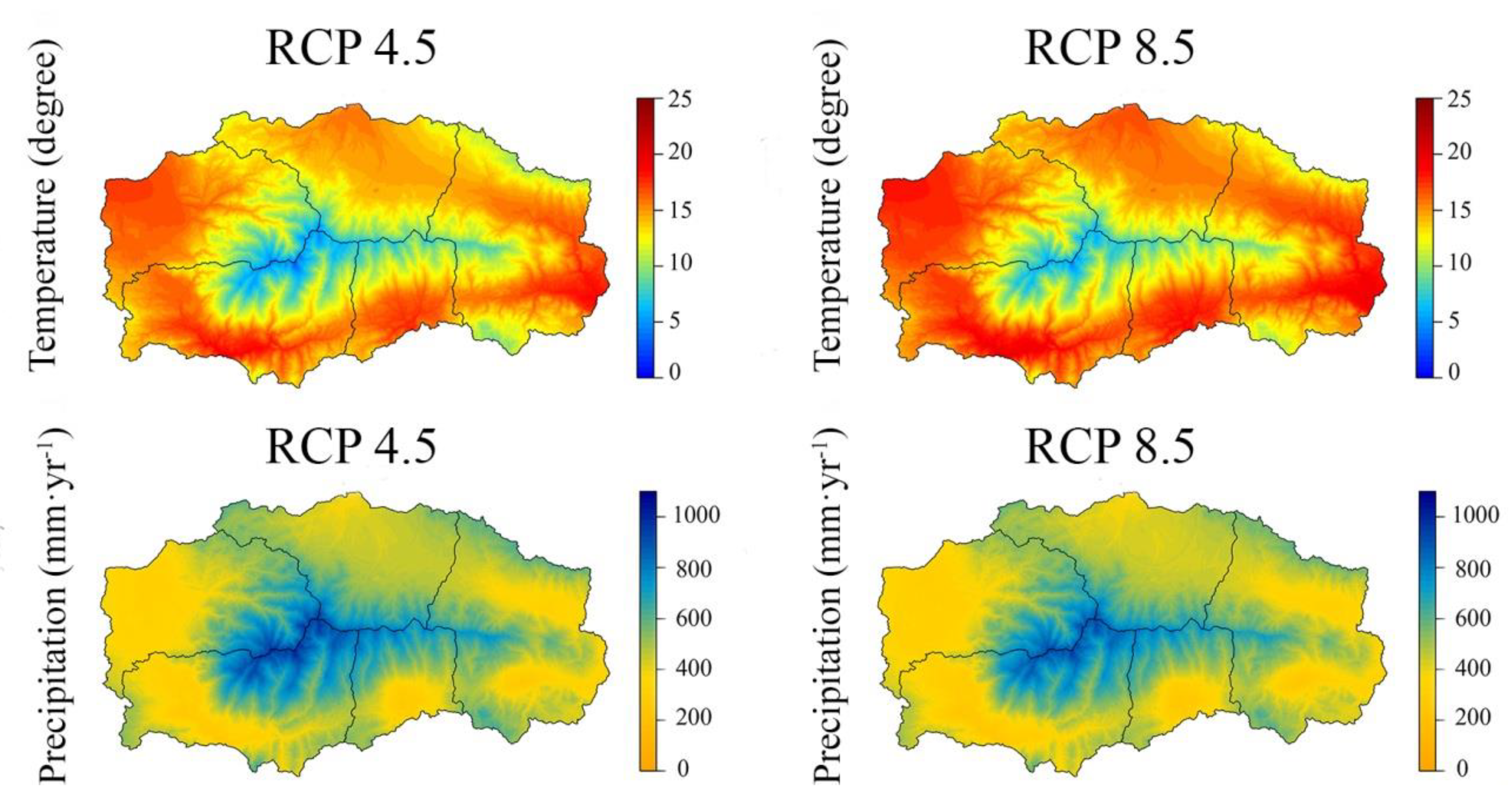

Figure 5. Spatial distribution of the mean daily temperature and the mean annual precipitation for the two global change scenarios analyzed during the 2006–2010 period in the study area.
Figure 5. Spatial distribution of the mean daily temperature and the mean annual precipitation for the two global change scenarios analyzed during the 2006–2010 period in the study area.
Water 10 00720 g005
Figure 6. Spatial distribution of the (a,b) mean annual snowfall anomalies and (c,d) snowfall trends of the two global change scenarios analyzed, respectively, during the 2006–2010 period in the study area.
Figure 6. Spatial distribution of the (a,b) mean annual snowfall anomalies and (c,d) snowfall trends of the two global change scenarios analyzed, respectively, during the 2006–2010 period in the study area.
Water 10 00720 g006
Figure 7. Annual evolution of the annual snowfall anomalies during the future study period of 2000–2100 for (a) RCP 4.5 and (b) RCP 8.5, averaged over each region in Sierra Nevada (Figure 1) and the whole study area.
Figure 7. Annual evolution of the annual snowfall anomalies during the future study period of 2000–2100 for (a) RCP 4.5 and (b) RCP 8.5, averaged over each region in Sierra Nevada (Figure 1) and the whole study area.
Water 10 00720 g007
Figure 8. Decadal evolution of the mean annual snowfall anomalies during the study period in Sierra Nevada for RCP 4.5: (a) Region 1, (b) Region 2, (c) Region 3, (d) Region 4, (e) Region 5, and (f) the total study area, and the decadal evolution for RCP 8.5: (g) Region 1, (h) Region 2, (i) Region 3, (j) Region 4, (k) Region 5, and (l) the total study area.
Figure 8. Decadal evolution of the mean annual snowfall anomalies during the study period in Sierra Nevada for RCP 4.5: (a) Region 1, (b) Region 2, (c) Region 3, (d) Region 4, (e) Region 5, and (f) the total study area, and the decadal evolution for RCP 8.5: (g) Region 1, (h) Region 2, (i) Region 3, (j) Region 4, (k) Region 5, and (l) the total study area.
Water 10 00720 g008
Figure 9. Annual evolution of the annual snowfall days indicator (Dsnowfall) during the 2006–2100 future study period for (a) RCP 4.5 and (h) RCP 8.5, averaged over each region in Sierra Nevada (Figure 1) and the whole study area. Decadal evolution of the mean annual snowfall anomalies during the study period in Sierra Nevada for RCP 4.5: (b) Region 1, (c) Region 2, (d) Region 3, (e) Region 4, (f) Region 5, and (g) the total study area, and the decadal evolution for RCP 8.5: (i) Region 1, (j) Region 2, (k) Region 3,(l) Region 4, (m) Region 5, and (n) the total study area.
Figure 9. Annual evolution of the annual snowfall days indicator (Dsnowfall) during the 2006–2100 future study period for (a) RCP 4.5 and (h) RCP 8.5, averaged over each region in Sierra Nevada (Figure 1) and the whole study area. Decadal evolution of the mean annual snowfall anomalies during the study period in Sierra Nevada for RCP 4.5: (b) Region 1, (c) Region 2, (d) Region 3, (e) Region 4, (f) Region 5, and (g) the total study area, and the decadal evolution for RCP 8.5: (i) Region 1, (j) Region 2, (k) Region 3,(l) Region 4, (m) Region 5, and (n) the total study area.
Water 10 00720 g009
Figure 10. Annual evolution of the annual snowfall intensity (Isnowfall) during the 2006–2100 future study period for (a) RCP 4.5 and (h) RCP 8.5, averaged over each region in Sierra Nevada (Figure 1) and the whole study area. Decadal evolution of the mean annual snowfall anomalies during the study period in Sierra Nevada for RCP 4.5: (b) Region 1, (c) Region 2, (d) Region 3, (e) Region 4, (f) Region 5, and (g) the total study area, and the decadal evolution for RCP 8.5: (i) Region 1, (j) Region 2, (k) Region 3, (l) Region 4, (m) Region 5, and (n) the total study area.
Figure 10. Annual evolution of the annual snowfall intensity (Isnowfall) during the 2006–2100 future study period for (a) RCP 4.5 and (h) RCP 8.5, averaged over each region in Sierra Nevada (Figure 1) and the whole study area. Decadal evolution of the mean annual snowfall anomalies during the study period in Sierra Nevada for RCP 4.5: (b) Region 1, (c) Region 2, (d) Region 3, (e) Region 4, (f) Region 5, and (g) the total study area, and the decadal evolution for RCP 8.5: (i) Region 1, (j) Region 2, (k) Region 3, (l) Region 4, (m) Region 5, and (n) the total study area.
Water 10 00720 g010
Figure 11. Regional distribution in Sierra Nevada of the mean annual values of the targeted variables in the study, together with their global mean trend during the 2006–2100 future study period for both RCP 4.5 and RCP 8.5 scenarios.
Figure 11. Regional distribution in Sierra Nevada of the mean annual values of the targeted variables in the study, together with their global mean trend during the 2006–2100 future study period for both RCP 4.5 and RCP 8.5 scenarios.
Water 10 00720 g011
Table 1. Summary of the selected characteristics of each region (see Figure 1) in the study area (SN), together with the observed mean annual trends for the climate variables during the reference period 1961–2000. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); or (4) no significance, less than 90% (+) [12,31].
Table 1. Summary of the selected characteristics of each region (see Figure 1) in the study area (SN), together with the observed mean annual trends for the climate variables during the reference period 1961–2000. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); or (4) no significance, less than 90% (+) [12,31].
R1R2R3R4R5Total SN
Area (km2)459.131169.00914.43983.161058.004583.72
Average altitude (m)1330.61235.01350.01270.61418.51320.9
Tmean (°C)13.213.412.212.112.012.6
Tmax (°C)26.326.426.326.025.126.0
Tmin (°C)1.41.8−0.7−0.60.00.4
P (mm·year−1)579373427557658510
S (mm·year−1)85446810716093
E (events·year−1)303232302931
De (days·year−1)334344
Trend Tmean (°C·year−1)0.052 (**)0.022 (+)0.023 (+)0.043 (**)0.044 (**)0.034 (*)
Trend Tmax (°C·year−1)0.053 (**)0.022 (+)0.024 (+)0.043 (**)0.044 (**)0.035 (*)
Trend Tmin (°C·year−1)−0.017 (+)−0.004 (+)−0.015 (+)−0.012 (+)−0.011 (+)−0.010 (+)
Trend P ((mm·year−1)·year−1)−3.099 (*)−1.832 (*)−2.946 (+)−8.043 (***)−4.529 (**)−4.135 (**)
Trend S ((mm·year−1)·year−1)−1.107 (**)−0.427 (+)−0.684 (**)−1.923 (***)−2.085 (***)−1.250 (***)
Trend E ((nºev·year−1)·year−1−0.116 (+)−0.061 (+)−0.001 (+)0.038 (+)−0.047 (+)0.012 (+)
Trend D((day·year−1)·year−1)−0.025 (+)−0.025 (+)−0.157 (+)−0.194 (+)−0.074 (+)−0.039 (+)
DecTrend Tmean (°C·dec−1)0.2604 (+)0.2109 (+)0.1989 (+)0.2381 (+)0.2403 (+)0.2261 (+)
DecTrend Tmax (°C·dec−1)0.5927 (+)0.2689 (+)0.2698 (+)0.4667 (+)0.4639 (+)0.3847 (+)
DecTrend Tmin (°C·dec−1)−0.1678 (+)−0.0195 (+)−0.1139 (+)−0.0787 (+)−0.0787 (+)−0.0665 (+)
DecTrend P((mm·year−1)·dec−1)−35.24 (+)−19.63 (+)−30.40 (+)−80.75 (+)−50.16 (+)−43.49 (+)
DecTrend S ((mm·year−1)·dec−1)−11.45 (+)−4.39 (+)−6.99 (+)−19.29 (+)−21.97 (+)−12.87 (+)
T: temperature, P: total precipitation (rainfall and snowfall), S: snowfall, E: number of snowfall events per year, and D: annual mean duration of snowfall events.
Table 2. Summary of the mean values of the study variables during the 2006–2100 study period under each scenario, averaged over each region (see Figure 1) in Sierra Nevada (R1 to R5) and the whole study area (SN), together with the associated mean annual trends. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); and (4) no significance, less than 90% (+).
Table 2. Summary of the mean values of the study variables during the 2006–2100 study period under each scenario, averaged over each region (see Figure 1) in Sierra Nevada (R1 to R5) and the whole study area (SN), together with the associated mean annual trends. The trend analysis results are defined according to the Mann-Kendall test as having either (1) excellent significance, 99% (***); (2) good significance, 95% (**); (3) acceptable significance, >90% (*); and (4) no significance, less than 90% (+).
RCP 4.5
R1R2R3R4R5TOTAL (SN)
Tmax (°C)28.028.128.027.726.727.7
Tmin (°C)−8.6−8.2−10.7−10.8−10.0−9.7
Tmean (°C)25.225.424.224.524.024.7
P (mm·year−1)573367421549652503
S (mm·year−1)78366410615387
E (nºev.·year−1)403234384837
D (days·year−1)323333
Trend Tmax (°C·year−1)0.024 (***)0.024 (***)0.024 (***)0.025 (***)0.023 (***)0.024 (***)
Trend Tmin (°C·year−1)0.010 (***)0.010 (***)0.010 (***)0.011 (***)0.010 (***)0.010 (***)
Trend Tmean (°C·year−1)0.019 (***)0.019 (***)0.019 (***)0.019 (***)0.019 (***)0.019 (***)
Trend P ((mm·year−1)·year−1)−0.109 (+)−0.060 (+)−0.068 (+)−0.119 (+)−0.070 (+)−0.081 (+)
Trend S ((mm·year−1)·year−1)−0.289 (***)−0.215 (***)−0.236 (***)−0.232 (***)−0.271 (***)0.243 (***)
Trend E ((nºev.·year−1)·year−1)−0.068 (+)−0.076 (+)−0.061 (+)−0.042 (+)−0.027 (+)−0.056 (+)
Trend D ((day·year−1)·year−1)−0.003 (+)−0.003 (+)−0.004 (+)−0.004 (+)−0.005 (+)−0.044 (+)
DecTrend Tmean (°C·dec−1)0.1826 (**)0.1820 (**)0.1837 (**)0.1868 (**)0.1838 (**)0.1838 (**)
DecTrend Tmax (°C·dec−1)0.2242 (***)0.2246 (***)0.2201 (***)0.2207 (***)0.2104 (***)0.2193 (***)
DecTrend Tmin (°C·dec−1)0.0838 (**)0.0859 (**)0.0829 (**)0.0915 (**)0.0808 (**)0.0838 (**)
DecTrend((mm·year−1)·dec−1)−1.0118 (+)−0.6906 (+)−0.9842 (+)−1.6084 (+)−0.8593 (+)−1.0129 (+)
DecTrend ((mm·year−1)·dec−1)−2.6852 (+)−1.9920 (+)−2.3388 (+)−2.3325 (+)−2.6641 (+)−2.3597 (+)
RCP 8.5
R2R3R4R5TOTAL(SN)
Temp max (°C)29.229.329.228.927.928.8
Tmin (°C)−7.9−7.5−10.1−10.2−9.4−9.0
Tmean (°C)26.226.425.225.525.025.7
P (mm·year−1)548352403528625482
S (mm· year−1)6225519213574
E (nºev.·year−1)393032374636
De(days·year−1)222232
Trend Tmax (°C·year−1)0.061 (***)0.062 (***)0.062 (***)0.064 (***)0.062 (***)0.062 (***)
Trend Tmin (°C·year−1)0.028 (***)0.028 (***)0.028 (***)0.028 (***)0.028 (***)0.028 (***)
Trend Tmean (°C·year−1)0.047 (***)0.046 (***)0.047 (***)0.047 (***)0.047 (***)0.047 (***)
Trend P ((mm·year−1)·year−1)−0.408 (**)−0.290 (**)−0.286 (*)−0.370 (+)−0.436 (*)−0.352 (**)
Trend S ((mm·year−1)·year−1)−0.408 (***)−0.362 (***)−0.416 (***)−0.442 (***)−0.553 (***)−0.448 (***)
Trend E ((nºev·year−1)·year−1)−0.161 (+)−0.151 (+)−0.148 (+)−0.135 (+)−0.142 (+)−0.124 (+)
Trend D ((day·year−1)·year−1)−0.016 (+)−0.008 (+)−0.008 (+)−0.008 (+)−0.008 (+)−0.008 (+)
DecTrend Tmean (°C·dec−1)0.465 (***)0.463 (***)0.467 (***)0.472 (***)0.467 (***)0.467 (***)
DecTrend Tmax (°C·dec−1)0.653 (***)0.655 (***)0.657 (***)0.682 (***)0.660 (***)0.659 (***)
DecTrend Tmin (°C·dec−1)0.270 (***)0.269 (***)0.267 (***)0.271 (***)0.266 (***)0.266 (***)
DecTrend P((mm·year−1)·dec−1)−4.121 (+)−2.975 (+)−2.704 (+)−3.564 (+)−4.372 (+)−3.483 (+)
DecTrend S ((mm·year−1)·dec−1)−4.937 (+)−3.546 (+)−4.123 (+)−4.407 (+)−5.555 (+)−4.449 (+)
T: temperature, P: total precipitation (rainfall and snowfall), S: snowfall, E: number of snowfall events per year, and D: annual mean duration of snowfall events.
Table 3. Ratio between the average absolute values of the target variables under both RCPs throughout the future period (RCP 8.5/RCP 4.5).
Table 3. Ratio between the average absolute values of the target variables under both RCPs throughout the future period (RCP 8.5/RCP 4.5).
TmaxTminTmeanPSmaxSminSmeanStrend
R11.0451.6191.0810.9241.0050.4620.8001.724
R21.0441.4131.0780.9480.9440.5160.7751.681
R31.0461.7091.0820.9441.0520.4530.7901.760
R41.0491.4801.0800.9281.0420.5760.8141.908
R51.0452.0511.0840.9191.0200.6660.8272.042
Total SN1.0461.5901.0810.9331.0570.5290.8061.840

Share and Cite

MDPI and ACS Style

Pérez-Palazón, M.J.; Pimentel, R.; Polo, M.J. Climate Trends Impact on the Snowfall Regime in Mediterranean Mountain Areas: Future Scenario Assessment in Sierra Nevada (Spain). Water 2018, 10, 720. https://doi.org/10.3390/w10060720

AMA Style

Pérez-Palazón MJ, Pimentel R, Polo MJ. Climate Trends Impact on the Snowfall Regime in Mediterranean Mountain Areas: Future Scenario Assessment in Sierra Nevada (Spain). Water. 2018; 10(6):720. https://doi.org/10.3390/w10060720

Chicago/Turabian Style

Pérez-Palazón, María José, Rafael Pimentel, and María José Polo. 2018. "Climate Trends Impact on the Snowfall Regime in Mediterranean Mountain Areas: Future Scenario Assessment in Sierra Nevada (Spain)" Water 10, no. 6: 720. https://doi.org/10.3390/w10060720

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
