Article

Lignin Biodegradation in Pulp-and-Paper Mill Wastewater by Selected White Rot Fungi

1
Department of Life Science and Biotechnology, University of Ferrara, Via L. Borsari, 44121 Ferrara, Italy
2
NCR-Biochemical SpA, Via dei Carpentieri, 40050 Castello d’Argile (BO), Italy
*
Author to whom correspondence should be addressed.
Water 2017, 9(12), 935; https://doi.org/10.3390/w9120935
Submission received: 20 October 2017 / Revised: 27 November 2017 / Accepted: 29 November 2017 / Published: 2 December 2017
(This article belongs to the Special Issue Recent Advances in Water Management: Saving, Treatment and Reuse)

Abstract

:
An investigation has been carried out to explore the lignin-degrading ability of white rot fungi, as B. adusta and P. crysosporium, grown in different media containing (i) glucose and mineral salts; (ii) a dairy residue; (iii) a dairy residue and mineral salts. Both fungi were then used as inoculum to treat synthetic and industrial pulp-and-paper mill wastewater. On synthetic wastewater, up to 97% and 74% of lignin degradation by B. adusta and P. crysosporium, respectively, have been reached. On industrial wastewater, both fungal strains were able to accomplish 100% delignification in 8–10 days, independent from pH control, with a significant reduction of total organic carbon (TOC) of the solution. Results have confirmed the great biotechnological potential of both B. adusta and P. crysosporium for complete lignin removal in industrial wastewater, and can open the way to next industrial applications on large scale.

1. Introduction

The pulp and paper industry in Europe accounts for about a quarter of world manufacturing, producing more than 90 million tons of paper and board, and more than 36 million tons of pulp annually [1]. The manufacture of paper generates significant quantities of wastewater, as high as 60 m3/ton of paper produced [2]. These raw wastewaters—sometimes called black liquor—can be potentially very polluting [3]. Pulp-and-paper mill wastewater contains a considerable amount of pollutants characterized by high biochemical oxygen demand (BOD), chemical oxygen demand (COD), and high dissolved solids, mainly due to alkali–lignin and polysaccharide degradation residues [4]. The environmental impact of pulp-and-paper mill wastewater depends not only on its chemical nature, but also on its dark coloration that negatively affects aquatic fauna and flora [5]. The primary contributors to the color and toxicity of wastewater are high-molecular-weight lignin and its derivatives. Lignin is the generic term for a large group of aromatic rigid and impervious polymers resulting from the oxidative coupling of 4-hydroxyphenylpropanoids, present predominantly in woody plants [6]. The chemical or biological degradation of lignin is very difficult due to the presence of recalcitrant and not-hydrolysable carbon-carbon linkages and aryl ether bonds [7]. Notwithstanding, pulp-and-paper mills are now facing challenges to comply with stringent environmental regulations [8]. For years, various methods have been developed and attempted for wastewater treatment and organic pollutants removal, including incineration [9], photochemical UV/TiO2 oxidation [10], adsorption of organic compounds on activated carbon and polymer resin [11], chemical coagulation/flocculation of lignin using synthetic or natural coagulants [12], and catalytic wet air oxidation [13]. However, all these processes are expensive, environmentally overburdening, and often not very efficient [14]. Furthermore, in these processes lignin is not really degraded, but transferred from a water-suspended state into a solid or absorbed state, only moving the problem [15]. A valid alternative to remove organic pollutants from pulp-and-paper wastewater is now represented by biological treatments. In nature, various ligninolytic organisms and enzymes including fungi, actinomycetes, and bacteria are implicated in lignin biodegradation, and can have potential application in wastewater treatments [16]. Several studies have been carried out on biological delignification of pulp-and-paper mill wastewater using pure bacterial strains [17]: about 70–80% of lignin degradation and COD removal have been achieved with Pseudomonas putida and Acinetobacter calcoaceticus [18], Aeromonas formicans [19], and Bacillus sp. [20]. In this field, white-rot fungi have also received increasing attention due to their powerful lignin-degrading enzyme system [21]. White-rot wood fungi use the cellulose fraction as a carbon source and are able to completely degrade the lignin in order to have access to the cellulose. Basidiomycetes species are extensively studied due to the high degradation ability of the extracellular oxidative enzymes (i.e., laccase, peroxidase) that need low-molecular weight cofactors [22]. Recent developments of new technologies and/or improvements of existing ones for the treatment of effluents from the pulp and paper industries include the use of the white rot fungi Aspergillus foetidus, Phanerochaete chrysosporium, and Trametes versicolor [23], but scarce industrial experience is available concerning the degradation of highly-contaminated pulp-and-paper mill wastewater by fungi. In particular, Phanerochaete chrysosporium is a well-known white-rot fungus and a strong degrader of various xenobiotics [24]. It has been extensively investigated as a model organism for fungal lignin and organopollutant degradation, since it was the first fungus found to produce lignin peroxidase and manganese peroxidase [25]. Bjerkandera adusta is a wood-rotting basidiomycete belonging to the white-rot fungi commonly found in Europe. Its capability to degrade aromatic xenobiotics [26] and extractives [27] has progressively increased its biotechnological interest in wastewater treatments for lignin degradation [28]. Due to its laccase and manganese peroxidase activity [29,30], applications of B. adusta to the biomineralization of lignin in soils [31] and to the decoloration of industrial dye effluents [32] has been already attempted, but to date not at an industrial level. This study reports the lignin removal capability and effectiveness of B. adusta and P. crysosporium, grown in different culture media containing lignin, on synthetic and industrial pulp-and-paper mill wastewater.

2. Materials and Methods

2.1. Fungal Strain Master Cell Bank and Working Cell Bank

Bierkandera adusta and Phenarochete crysosporium were purchased from Leibniz Institute DSMZ–German Collection of Microorganisms and Cell Cultures (Braunschweig, Germany). The strains have been stored as a master cell bank (MCB), maintained at −20 °C in 3% malt extract and 3% peptone cryovials (1 mL) with added glycerol (0.5 mL). Cells from the MCB were expanded to form the working cell bank (WCB), using an identical procedure. Prior to being used in the process, the fungal strains from WCB were maintained for 7 days in 3% malt extract agar Petri dishes.

2.2. Standard Media and Pulp-and-Paper Mill Wastewater

Three growth media have been prepared for this study: (i) a medium (standard glucose medium, SGM) containing glucose (10 g/L), KH2PO4 (1 g/L), yeast extract (0.5 g/L), MgSO47H2O (0.5 g/L), and KCl (0.5 g/L) was adjusted to pH 5.5 with 1 M HCl and autoclaved; (ii) a medium (standard lactose medium, SLM) where glucose has been replaced with 50 mL of a dairy residue from cheese processing containing 50 g/L lactose, supplied by Granarolo S.p.A. (Bologna, Italy) (Table 1); (iii) a medium made up with the sole dairy by-product (standard dairy medium, SDM). Before inoculation, SGM medium was added with 5 g/L of standard lignin. Spore and mycelium suspensions obtained from agar Petri dishes were used to inoculate a 250 mL Erlenmeyer flask containing 100 mL of SGM. Cell cultures were all incubated at 24 °C without pH control for 10 days under mild stirring rate (60 rpm) and samples were withdrawn at 1–3 day intervals for residual lignin content analysis.
A synthetic pulp-and-paper mill wastewater was prepared by dissolving 5 g/L of standard lignin in distilled water. Three 1-L Erlenmeyer flasks containing 500 mL of the synthetic wastewater were inoculated with 50 mL of cell cultures grown in the SGM, SLM, and SDM media, respectively, all added with standard lignin (5 g/L) and incubated for 10 days at 24 °C and mild agitation (60 rpm).
The industrial pulp-and-paper mill wastewater utilized for this study was supplied by a local pulp-and-paper firm, collected in a closed container and stored in darkness at 4 °C until use. The concentration of soluble and insoluble lignin was determined, as well as total organic carbon (TOC), as described in Section 2.3.
Two 1-L Erlenmeyer flasks containing 500 mL of wastewater were inoculated with 50 mL of cell cultures grown in the SLM added with lignin (5 g/L), and incubated for 10 days at 24 °C and mild agitation (60 rpm). In one flask, pH was adjusted to 5.5 with 1 M HCl, in the other pH was left at the original value measured for industrial wastewater of 6.5 without control.
All of the above experiments were conducted in triplicate. The data in subsequent sections are based on the average and standard deviation of the three measurements.

2.3. Chemicals and Analysis

All chemicals were reagent grade or better. Unless specified otherwise, they were obtained from Sigma-Aldrich Chemical Co (Saint Louis, MO, USA). The concentration of lignin was measured using the INNVENTIA—Biorefinery Test Methods L 2:2016 [33], specific for the determination of lignin isolated from a Kraft pulping process. The procedure is based on the sulphuric acid hydrolysis of the samples. This method makes it possible to determine concentrations of total lignin content, measured as the sum of the amount of acid-insoluble matter (AIM) and acid-soluble matter (ASM) after sulphuric acid hydrolysis, down to 10 mg/g oven-dry sample.
TOC was determined with a Carbon Analyzer TOC-V-CSM (Shimadzu, Tokio, Japan) after acidification with 2 M HCl to remove dissolved carbonate [34]. The instrument has a detection limit of 5 μg/L and a measurement accuracy expressed as coefficient of variation (CV) 1.5%. Biomass concentration (dry weight, DW) was determined gravimetrically after drying overnight at 105 °C on a pre-weighed 0.2 μm filter.

3. Results

3.1. B. adusta and P. crysosporium Growth on SGM

Lignin was added to the standard medium SGM before inoculation of B. adusta and P. crysosporium because several studies describe that the presence of lignin in the liquid medium exerts an influence on the expression profile of lignin peroxidase, manganese peroxidase, and laccase—all enzymes held responsible for the lignin degradation of natural lignocellulosic residue [35,36]. Under the condition maintained on 100 mL-scale, in 10 days B. adusta was able to uptake and metabolize lignin up to 67%, while P. crysosporium only 30% (Figure 1).
As described by Girard et al. [37], in both cases the expression of delignifying enzymes only initiated after 2–3 days from inoculation, corresponding to complete glucose depletion (data not shown).

3.2. Lignin Removal Efficiency on Synthetic Pulp-and-Paper Mill Wastewater

The addition of agro-food by-products to fungal cultures may reflect complex growth conditions close to nature, and could stimulate the secretion of various enzymes required for degradation or detoxification processes [38]. This, in addition to the evidence that the production of lignin peroxidase and manganese peroxidase in B. adusta is stimulated by the presence of organic nitrogen (N) source (unlike P. chrysosporium, which produces ligninolytic peroxidases in response to N limitation [39]), has driven the study towards the possibility of integrating the growth medium with a dairy by-product, usually rich in protein and amino acids, apart from sugar. Furthermore, in view of industrial application, the use of a by-product instead of pure substrates could permit the considerable reduction of operational investments, among which chemicals required for fungal growth are the most relevant. The use of cheese whey has been previously proposed by Feijoo et al. [40] as an inexpensive substrate for fungal growth. B. adusta and P. chrysosporium have been incubated in SGM, SLM, and only dairy residue with no addition of other nutrients or mineral salts (SDM). The largest amount of fungal biomass was obtained when dairy residue was present in the media (Table 2).
In both cases, the results seem to confirm the correlation between organic N source and fungal cell growth. Identical amounts of cells of B. adusta and P. crysosporium grown in the three media were used as inoculum for synthetic wastewater, in order to verify if cell cultures developed in different media would express different enzymatic patterns or different enzyme activities. Figure 2a shows that B. adusta grown in the SGM medium was able to remove 73% of lignin, whilst B. adusta grown in the presence of a source of protein and amino acids in both cases reached delignification yields of 97% with SLM and 86% with SDM. On the other hand, P. crysosporium in all three cases obtained yields not higher than 74% when grown in SLM (54% in SGM and 69% in SDM, respectively).
The time courses of delignification in 10 days were quite similar in all three cases for B. adusta, having a 1-day reduced lag phase cell culture grown in SLM. The interesting point is that the slopes of the three curves are similar in the 3–8 days’ interval, but from day-8 on, cell culture grown in SGM seemed to miss the lignin removal capacity, even though residual lignin was still present in the fermentation broth. This could be due to the decline of lignin peroxidase activity caused by the appearance of extracellular protease activity that has been observed after day 6–10 in cultures of P. chrysosporium grown on glucose [41]. This also confirmed what was reported by Nakamura et al. [42], whereby in glucose-based media, enzymes produced by B. adusta can only degrade part of the chemical structure of lignin. Otherwise, in order to maximize peroxidase activity, lactose has already been identified as a good carbon source for Bierkandera spp. when the nitrogen source was organic [43], as in SLM and SDM media. P. crysosporium was found to be surprisingly less active than B. adusta in lignin removal effectiveness in all three growth conditions (Figure 2b). Moreover, it showed a longer lag phase before starting to degrade lignin. According to Keyser et al. [44], lignin metabolism in P. crysosporium did not reflect the depletion of glucose, as in B. adusta, but instead appeared to be a response to nitrogen starvation. The prolonged lag phase could be induced by the need to wait for the partial or complete depletion of the N source transferred with inoculum.

3.3. Lignin Removal Efficiency on Industrial Pulp-and-Paper Mill Wastewater

B. adusta grown on SLM with lignin 5 g/L added has demonstrated to be effective for almost complete lignin biodegradation in synthetic wastewater. Based on these promising results, an application on industrial wastewater has been attempted, in comparison with P. crysosporium grown in the same conditions. The industrial wastewater supplied by the local pulp-and-paper mill for these tests (pH 6.5 and with a 100 g/L lignin content on dry weight basis) was diluted (12% dry weight). The ability of both fungal strains to biodegrade lignin has been tested, verifying the effect of pH on their enzymatic activities. In one case, the pH of wastewater was adjusted to the optimum value for fungi cell growth (pH 5.5), and in the other the process was allowed to proceed without correction (pH 6.5). From the perspective of industrial application, the possibility of avoiding costs deriving from the use of acids as correction agent could be very relevant. The results of the tests carried out using an inoculum of B. adusta and P. crysosporium grown on SLM medium on industrial wastewater with and without pH correction are reported in Figure 3.
As expected, at optimum pH condition B. adusta started to biodegrade lignin without any lag phase and maintained an almost constant biodegradation rate of about 1 g/L of lignin per day over the entire test course. In contrast, without pH control fungal cells needed 1–2 days for adapting, before starting biodegradation. This leads to a variable delignification rate during the process—slower at the beginning (0.9 g/L × day) and higher from five days on (1.7 g/L × day). The final result in both cases was complete lignin removal, with an efficiency of 100%. One hundred percent delignification was also obtained when treating the pulp-and-paper mill wastewater with P. crysosporium, almost complete in 8 days. At a first glance, the time courses seemed to confirm the previous results obtained on synthetic pulp-and-paper mill wastewater, regarding the need of a longer lag phase compared with B. adusta. Otherwise, a sharp decline of residual lignin was observed from day 6. These results appeared to be particularly promising, compared with an average delignification yield of 70–80% reported for white rot fungi: both P. crysosporium and B. adusta were competitive against the 71% delignification yield on pulp-and-paper mill residues obtained by Pseudomonas putida [45], 78% by Aeromonas formicans [19], and 80% by Acinetobacter calcoaceticus [46].
To confirm the overall organic C removal, TOC analysis of samples was carried out. It is usually reported that lignin represents about 30–45% of the total organics in pulp-and-paper mill wastewater [47], so a corresponding decrease of TOC was expected (Figure 4). In both cases, an overall reduction of about 35% of organic charge of wastewater was obtained, reasonably due to lignin uptake for fungal metabolism.

4. Conclusions

This study opens new perspectives for the bioremediation of industrial effluents such as pulp-and-paper mill wastewater using white rot fungi. In particular both B. adusta and P. crysosporium were found able to growth on non-conventional media, better than on glucose as sole carbon source, and to improve the delignifying activity in the presence of organic N and mineral salts. Moreover, they can survive on synthetic wastewater and proved to be effective for the complete degradation of lignin. The biotechnological potential of these strains was also confirmed on industrial wastewater, being active up to the total depletion of lignin. No operational problem was detected at 500 mL scale, as a first confirmation of the robustness and applicability of this system. The results obtained lay the ground for further scaling up to pilot plant level.

Author Contributions

Davide Gavino Dedola, Riccardo Blo and Irene Rugiero performed all the experiments and carried out all the analytical assays, also giving a great contribution to the discussion. Simone Pellizzari conceived and designed the experiments, together with Stefania Costa and Elena Tamburini, who wrote the manuscript. As supervisor of the research group, Paola Pedrini defined the general research statement.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Key Statistics 2015. CEPI-Confederation of European Paper Industries. Available online: http://www.cepi.org/statistics/keystatistics2015 (accessed on 9 October 2017).
  2. Pokhrel, D.; Viraraghavan, T. Treatment of pulp and paper mill wastewater—A review. Sci. Total Environ. 2004, 333, 37–58. [Google Scholar] [CrossRef] [PubMed]
  3. Thompson, G.; Swain, J.; Kay, M.; Forster, C.F. The treatment of pulp and paper mill effluent: A review. Bioresour. Technol. 2011, 77, 275–286. [Google Scholar] [CrossRef]
  4. Lara, M.A.; Rodríguez-Malaver, A.J.; Rojas, O.J.; Holmquist, O.; González, A.M.; Bullón, J.; Araujo, E. Black liquor lignin biodegradation by Trametes elegans. Int. Biodeterior. Biodegrad. 2003, 52, 167–173. [Google Scholar] [CrossRef]
  5. Ali, M.; Sreekrishnan, T.R. Aquatic toxicity from pulp and paper mill effluents: A review. Adv. Environ. Res. 2001, 5, 175–196. [Google Scholar] [CrossRef]
  6. Vanholme, R.; Demedts, B.; Morreel, K.; Ralph, J.; Boerjan, W. Lignin biosynthesis and structure. Plant Physiol. 2010, 153, 895–905. [Google Scholar] [CrossRef] [PubMed]
  7. Minu, K.; Jiby, K.K.; Kishore, V.V.N. Isolation and purification of lignin and silica from the black liquor generated during the production of bioethanol from rice straw. Biomass Bioenergy 2012, 39, 210–217. [Google Scholar] [CrossRef]
  8. Kamali, M.; Khodaparast, Z. Review on recent developments on pulp and paper mill wastewater treatment. Ecotoxicol. Environ. Saf. 2015, 114, 326–342. [Google Scholar] [CrossRef] [PubMed]
  9. Harila, P.; Kivilinna, V.A. Biosludge incineration in a recovery boiler. Water Sci. Technol 1999, 40, 195–200. [Google Scholar]
  10. Chang, C.N.; Ma, Y.S.; Fang, G.C.; Chao, A.C.; Tsai, M.C.; Sung, H.F. Decolorizing of lignin wastewater using the photochemical UV/TiO2 process. Chemosphere 2004, 56, 1011–1017. [Google Scholar] [CrossRef] [PubMed]
  11. Zhang, Q.; Chuang, K.T. Adsorption of organic pollutants from effluents of a Kraft pulp mill on activated carbon and polymer resin. Adv. Environ. Res. 2001, 5, 251–258. [Google Scholar] [CrossRef]
  12. Wang, J.P.; Chen, Y.Z.; Wang, Y.; Yuan, S.J.; Yu, H.Q. Optimization of the coagulation-flocculation process for pulp mill wastewater treatment using a combination of uniform design and response surface methodology. Water Res. 2011, 45, 5633–5640. [Google Scholar] [CrossRef] [PubMed]
  13. Sales, F.G.; Abreu, C.A.M.; Pereira, J.A.F.R. Catalytic wet-air oxidation of lignin in a three-phase reactor with aromatic aldehyde production. Braz. J. Chem. Eng. 2004, 21, 211–218. [Google Scholar] [CrossRef]
  14. Wu, J.; Xiao, Y.Z.; Yu, H.Q. Degradation of lignin in pulp mill wastewaters by white-rot fungi on biofilm. Bioresour. Technol. 2005, 96, 1357–1363. [Google Scholar] [CrossRef] [PubMed]
  15. Puyol, D.; Batstone, D.J. Resource Recovery from wastewater by biological technologies. Front. Microbiol. 2017, 8. [Google Scholar] [CrossRef] [PubMed]
  16. Ruiz-Dueñas, F.J.; Martínez, Á.T. Microbial degradation of lignin: How a bulky recalcitrant polymer is efficiently recycled in nature and how we can take advantage of this. Microb. Biotechnol. 2009, 2, 164–177. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Brown, M.E.; Chang, M.C. Exploring bacterial lignin degradation. Curr. Opin. Chem. Biol. 2014, 19, 1–7. [Google Scholar] [CrossRef] [PubMed]
  18. Jain, N.; Shrivastava, A.K.; Srivastava, S.K. Treatment of black liquor by Pseudomonas putida and Acinetobacter calcoaceticus in continuous reactor. Environ. Technol. 1996, 17, 903–907. [Google Scholar] [CrossRef]
  19. Gupta, V.K.; Minocha, A.K.; Jain, N. Batch and continuous studies on treatment of pulp mill wastewater by Aeromonas formicans. J. Chem. Technol. Biotechnol. 2001, 76, 547–552. [Google Scholar] [CrossRef]
  20. Raj, A.; Reddy, M.K.; Chandra, R. Identification of low molecular weight aromatic compounds by gas chromatography–mass spectrometry (GC–MS) from kraft lignin degradation by three Bacillus sp. Int. Biodeterior. Biodegrad. 2007, 59, 292–296. [Google Scholar] [CrossRef]
  21. Leonowicz, A.; Matuszewska, A.; Luterek, J.; Ziegenhagen, D.; Wojtaś-Wasilewska, M.; Cho, N.S.; Rogalski, J. Biodegradation of lignin by white rot fungi. Fungal Genet. Biol. 1999, 27, 175–185. [Google Scholar] [CrossRef] [PubMed]
  22. Kirk, T.K.; Farrell, R.L. Enzymatic “combustion”: The microbial degradation of lignin. Ann. Rev. Microbiol. 1987, 41, 465–501. [Google Scholar] [CrossRef] [PubMed]
  23. Fu, Y.; Viraraghavan, T. Fungal decolorization of dye wastewaters: A review. Bioresour. Technol. 2001, 79, 251–262. [Google Scholar] [CrossRef]
  24. Sağlam, N.; Say, R.; Denizli, A.; Patır, S.; Arıca, M.Y. Biosorption of inorganic mercury and alkylmercury species on to Phanerochaete chrysosporium mycelium. Proc. Biochem. 1999, 34, 725–730. [Google Scholar] [CrossRef]
  25. Faison, B.D.; Kirk, T.K. Factors involved in the regulation of a ligninase activity in Phanerochaete chrysosporium. App. Environ. Microbiol. 1985, 49, 299–304. [Google Scholar]
  26. Sodaneath, H.; Lee, J.I.; Yang, S.O.; Jung, H.; Ryu, H.W.; Cho, K.S. Decolorization of textile dyes in an air-lift bioreactor inoculated with Bjerkandera adusta OBR105. J. Environ. Sci. Health Part A 2017, 52, 1099–1111. [Google Scholar] [CrossRef] [PubMed]
  27. Kinnunen, A.; Maijala, P.; JArvinen, P.; Hatakka, A. Improved efficiency in screening for lignin-modifying peroxidases and laccases of basidiomycetes. Curr. Biotechnol. 2017, 6, 105–115. [Google Scholar] [CrossRef]
  28. Peláez, F.; Martínez, M.J.; Martinez, A.T. Screening of 68 species of basidiomycetes for enzymes involved in lignin degradation. Mycol. Res. 1995, 99, 37–42. [Google Scholar] [CrossRef]
  29. Rodriguez, E.; Pickard, M.A.; Vazquez-Duhalt, R. Industrial dye decolorization by laccases from ligninolytic fungi. Curr. Microbiol. 1999, 38, 27–32. [Google Scholar] [CrossRef] [PubMed]
  30. Wang, Y.; Vazquez-Duhalt, R.; Pickard, M.A. Purification, characterization, and chemical modification of manganese peroxidase from Bjerkandera adusta UAMH 8258. Curr. Microbiol. 2002, 45, 77–87. [Google Scholar] [CrossRef] [PubMed]
  31. Tuomela, M.; Oivanen, P.; Hatakka, A. Degradation of synthetic 14 C-lignin by various white-rot fungi in soil. Soil Biol. Biochem. 2002, 34, 1613–1620. [Google Scholar] [CrossRef]
  32. Anastasi, A.; Spina, F.; Prigione, V.; Tigini, V.; Giansanti, P.; Varese, G.C. Scale-up of a bioprocess for textile wastewater treatment using Bjerkandera adusta. Bioresour. Technol. 2010, 101, 3067–3075. [Google Scholar] [CrossRef] [PubMed]
  33. Kraft Lignins—Lignin and Carbohydrate Content—Acid Hydrolysis Method. Available online: http://www.innventia.com (accessed on 12 October 2017).
  34. Potter, B.B.; Wimsatt, J.C. Method 415.3. Determination of Total Organic Carbon and Specific UV Absorbance at 254 nm in Source Water and Drinking Water; EPA/600/R-05/055; US Environmental Protection Agency: Cincinnati, OH, USA, 2005.
  35. Reina, R.; Kellner, H.; Jehmlich, N.; Ullrich, R.; García-Romera, I.; Aranda, E.; Liers, C. Differences in the secretion pattern of oxidoreductases from Bjerkandera adusta induced by a phenolic olive mill extract. Fungal Genet. Biol. 2014, 72, 99–105. [Google Scholar] [CrossRef] [PubMed]
  36. Arora, D.S.; Chander, M.; Gill, P.K. Involvement of lignin peroxidase, manganese peroxidase and laccase in degradation and selective ligninolysis of wheat straw. Int. Biodeterior. Biodegrad. 2002, 50, 115–120. [Google Scholar] [CrossRef]
  37. Girard, V.; Dieryckx, C.; Job, C.; Job, D. Secretomes: The fungal strike force. Proteomics 2013, 13, 597–608. [Google Scholar] [CrossRef] [PubMed]
  38. Schützendübel, A.; Majcherczyk, A.; Johannes, C.; Hüttermann, A. Degradation of fluorene, anthracene, phenanthrene, fluoranthene, and pyrene lacks connection to the production of extracellular enzymes by Pleurotus ostreatus and Bjerkandera adusta. Int. Biodeterior. Biodegrad. 1999, 43, 93–100. [Google Scholar] [CrossRef]
  39. Bonnarme, P.; Asther, M.; Asther, M. Influence of primary and secondary proteases produced by free or immobilized cells of the white-rot fungus Phanerochaete chrysosporium on lignin peroxidase activity. J. Biotechnol. 1993, 30, 271–282. [Google Scholar] [CrossRef]
  40. Feijoo, G.; Moreira, M.T.; Roca, E.; Lema, J.M. Use of cheese whey as a substrate to produce manganese peroxidase by Bjerkandera sp. BOS55. J. Ind. Microbiol. Biotechnol. 1999, 23, 86–90. [Google Scholar] [CrossRef] [PubMed]
  41. Dosoretz, C.G.; Chen, H.C.; Grethlein, H.E. Effect of environmental conditions on extracellular protease activity in lignolytic cultures of Phanerochaete chrysosporium. Appl. Environ. Microbiol. 1990, 56, 395–400. [Google Scholar] [PubMed]
  42. Nakamura, Y.; Sungusia, M.G.; Sawada, T.; Kuwahara, M. Lignin-degrading enzyme production by Bjerkandera adusta immobilized on polyurethane foam. J. Biosci. Bioeng. 1999, 88, 41–47. [Google Scholar] [CrossRef]
  43. Taboada-Puig, R.; Lú-Chau, T.; Moreira, M.T.; Feijoo, G.; Martínez, M.J.; Lema, J.M. A new strain of Bjerkandera sp. production, purification and characterization of versatile peroxidase. World J. Microbiol. Biotechnol. 2011, 27, 115–122. [Google Scholar] [CrossRef]
  44. Keyser, P.; Kirk, T.K.; Zeikus, J.G. Ligninolytic enzyme system of Phanaerochaete chrysosporium: Synthesized in the absence of lignin in response to nitrogen starvation. J. Bacteriol. 1978, 135, 790–797. [Google Scholar] [PubMed]
  45. Srivastava, S.K.; Shrivastava, A.K.; Jain, N. Degradation of black liquor, a pulp mill effluent by bacterial strain Pseudomonas putida. Ind. J. Exp. Biol. 1995, 33, 962–966. [Google Scholar]
  46. Jain, N.; Shrivastava, A.K.; Srivastava, S.K. Degradation of black liquor, a pulp mill effluent by bacterial strain Acinetobacter calcoaceticus. Ind. J. Exp. Biol. 1997, 35, 139–143. [Google Scholar]
  47. Alekhina, M.; Ershova, O.; Ebert, A.; Heikkinen, S.; Sixta, H. Softwood kraft lignin for value-added applications: Fractionation and structural characterization. Ind. Crops Prod. 2015, 66, 220–228. [Google Scholar] [CrossRef]

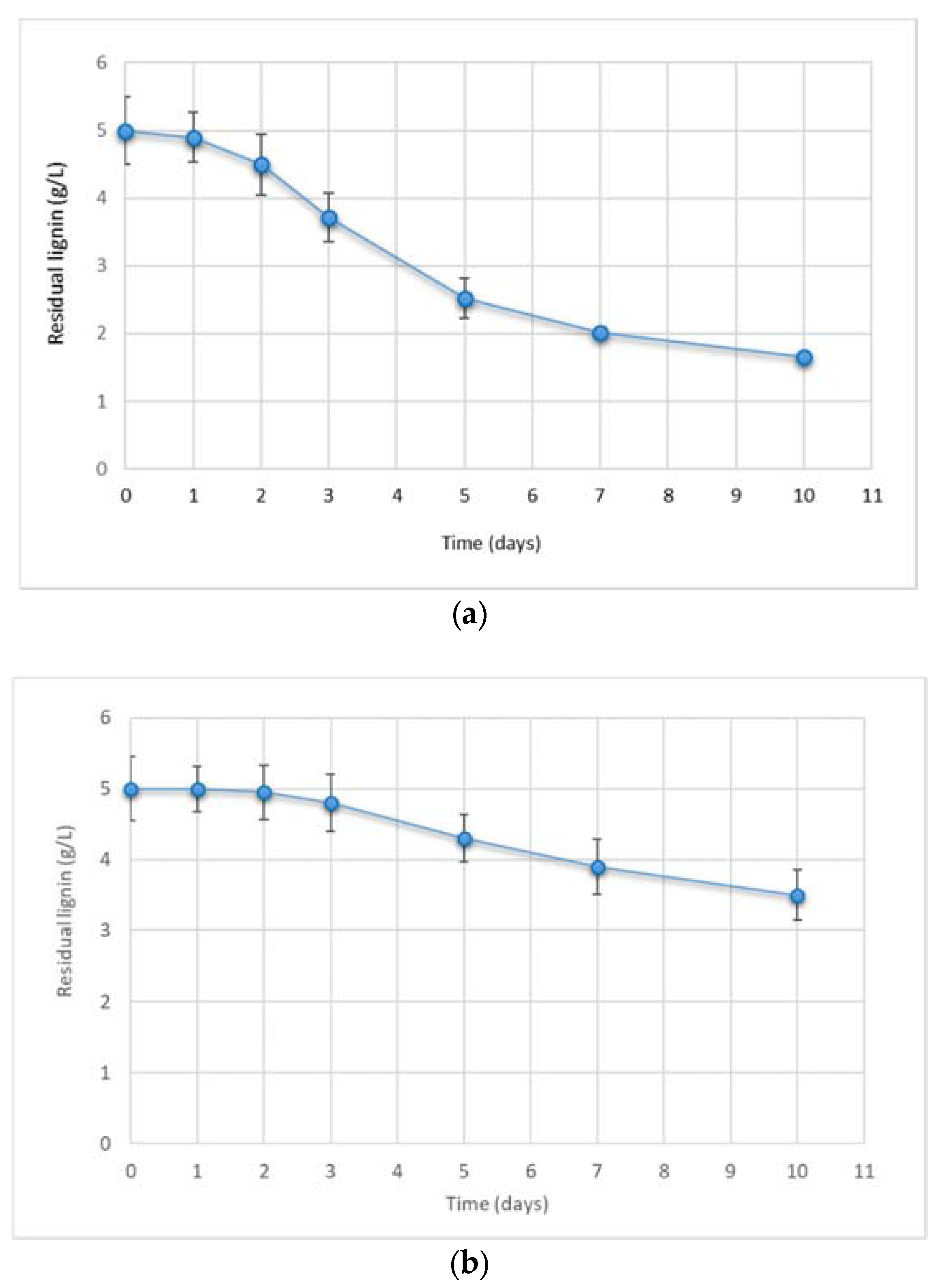

Figure 1. Lignin removal from 100 mL of standard glucose medium (SGM) with lignin 5 g/L added by (a) B. adusta and (b) P. crysosporium.
Figure 1. Lignin removal from 100 mL of standard glucose medium (SGM) with lignin 5 g/L added by (a) B. adusta and (b) P. crysosporium.
Water 09 00935 g001

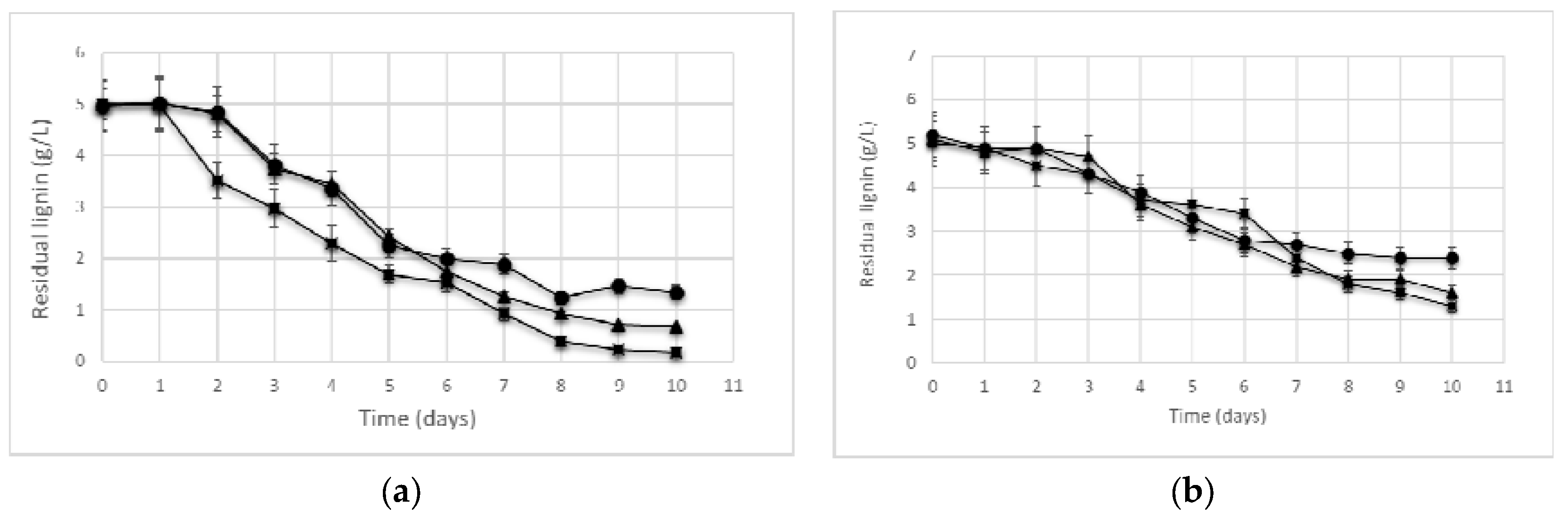

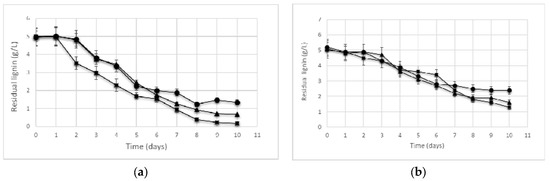

Figure 2. Lignin removal from synthetic pulp-and-paper mill wastewater during 10 days by (a) B. adusta and (b) P. crysosporium grown in SGM (dots), SDM (triangles), and SLM (squares) media, all with the addition of 5 g/L lignin.
Figure 2. Lignin removal from synthetic pulp-and-paper mill wastewater during 10 days by (a) B. adusta and (b) P. crysosporium grown in SGM (dots), SDM (triangles), and SLM (squares) media, all with the addition of 5 g/L lignin.
Water 09 00935 g002

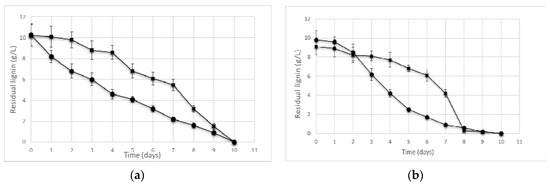

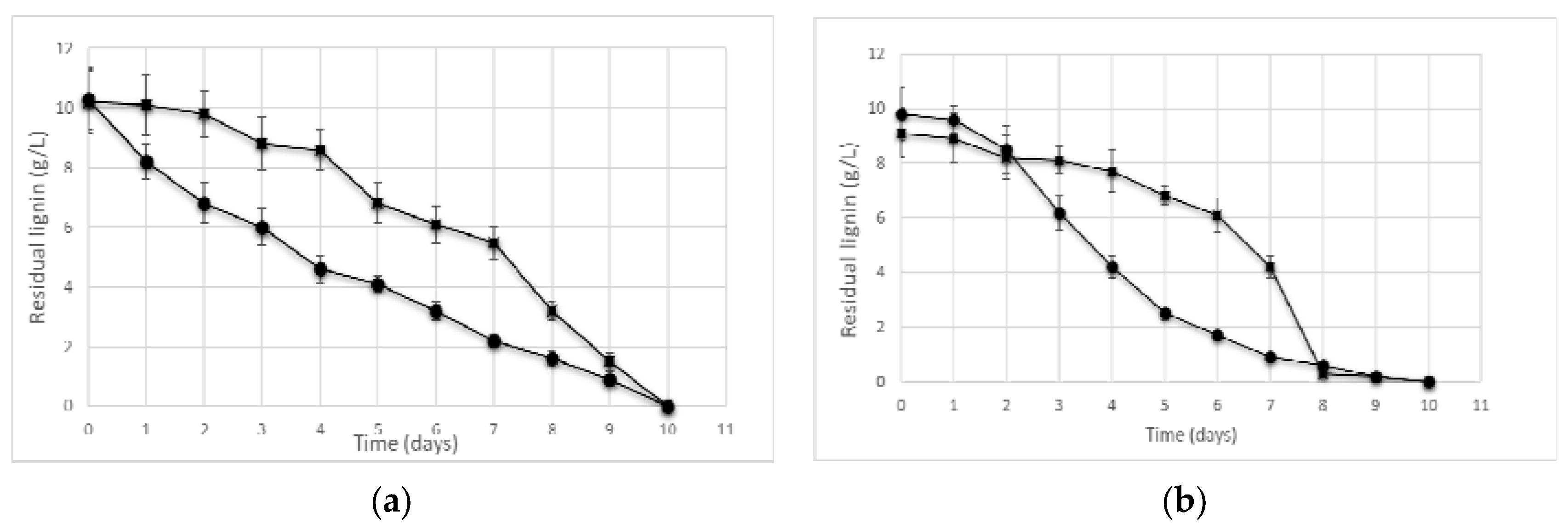

Figure 3. Lignin removal from industrial pulp-and-paper mill wastewater with pH correction (dots) and without pH correction (squares) during 10 days by (a) B. adusta and (b) P. crysosporium, grown in SLM medium added with lignin 5 g/L.
Figure 3. Lignin removal from industrial pulp-and-paper mill wastewater with pH correction (dots) and without pH correction (squares) during 10 days by (a) B. adusta and (b) P. crysosporium, grown in SLM medium added with lignin 5 g/L.
Water 09 00935 g003

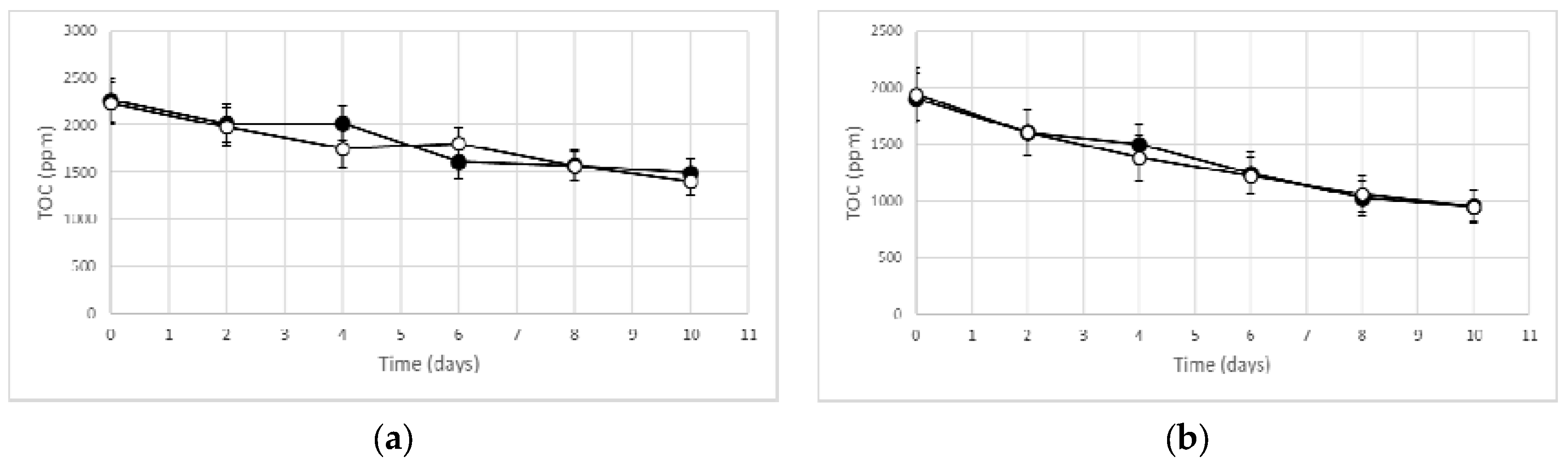

Figure 4. Total organic carbon (TOC) decrease of industrial pulp-and-paper mill wastewater with pH correction (white dots) and without pH correction (black dots) during 10 days by (a) B. adusta and (b) P. crysosporium grown in SLM medium with 5 g/L lignin added.
Figure 4. Total organic carbon (TOC) decrease of industrial pulp-and-paper mill wastewater with pH correction (white dots) and without pH correction (black dots) during 10 days by (a) B. adusta and (b) P. crysosporium grown in SLM medium with 5 g/L lignin added.
Water 09 00935 g004
Table 1. Dairy residue chemical composition.
Table 1. Dairy residue chemical composition.
Constituent%
Total solids6.0
Lactose5.0
Proteins0.6
Non-protein N *0.2
Lipids0.05
Ash0.5
Note: * N = Nitrogen.
Table 2. Fungal cells dry weight (g/L) obtained from growth in SGM, standard lactose medium (SLM), and standard dairy medium (SDM) media.
Table 2. Fungal cells dry weight (g/L) obtained from growth in SGM, standard lactose medium (SLM), and standard dairy medium (SDM) media.
StrainSGMSLMSDM
B. adusta2.5 ± 0.43.6 ± 0.53.5 ± 0.4
P. crysosporium2.7 ± 0.34.3 ± 0.53.8 ± 0.6
