Article

Flooding in Delta Areas under Changing Climate: Response of Design Flood Level to Non-Stationarity in Both Inflow Floods and High Tides in South China

1
Center for Water Resources and Environment, Sun Yat-sen University, Guangzhou 510275, China
2
Department of Civil and Environmental Engineering, Rutgers, The State University of New Jersey, Piscataway, NJ 08854, USA
3
Guangdong Engineering Technology Research Center of Water Security Regulation and Control for Southern China, Sun Yat-sen University, Guangzhou 510275, China
*
Author to whom correspondence should be addressed.
Water 2017, 9(7), 471; https://doi.org/10.3390/w9070471
Submission received: 30 March 2017 / Revised: 21 June 2017 / Accepted: 22 June 2017 / Published: 11 July 2017
(This article belongs to the Special Issue Hillslope and Watershed Hydrology)

Abstract

:
Climate change has led to non-stationarity in recorded floods all over the world. Although previous studies have widely discussed the design error caused by non-stationarity, most of them explored basins with closed catchment areas. The response of flood level to nonstationary inflow floods and high tidal levels in deltas with a dense river network has hardly been mentioned. Delta areas are extremely vulnerable to floods. To establish reliable standards for flood protection in delta areas, it is crucial to investigate the response of flood level to nonstationary inflow floods and high tidal levels. Pearl River Delta (PRD), the largest delta in South China, was selected as the study area. A theoretical framework was developed to quantify the response of flood level to nonstationary inflow floods and the tidal level. When the non-stationarity was ignored, error up to 18% was found in 100-year design inflow floods and up to 14% in 100-year design tidal level. Meanwhile, flood level in areas that were ≤22 km away from the outlets mainly responded to the nonstationary tidal level, and that ≥45 km to the nonstationary inflow floods. This study will support research on the non-stationarity of floods in delta areas.

1. Introduction

Since the early twentieth century, climate change has altered hydrological cycles all over the world. Flood records are no longer stationary [1,2,3,4,5]. In particular, delta areas have experienced intensified flooding due to the combined impacts of the inflow floods from the upstream watershed and the rising high tidal level induced by sea-level rise (SLR). Meanwhile, livable climate and convenient sea transportation have contributed to increasing population and economy in delta areas around the world [6,7]. Thus, delta zones have become extremely vulnerable to floods. It is important to understand the response of flood level to nonstationary inflow floods and high tidal levels in delta areas, especially ones with a dense river network.
There were some previous studies discussing the variation in design tidal levels under the impact of SLR. Trends in recording series, as well as the correlation between these trends and other climate factors, were explored using sophisticated extreme value analysis methodology [8]. To calculate reliable at-site frequency of the increasing tidal level, many previous researchers generated a stationary series before carrying out frequency analysis. Some restored the stationary time series by removing the increment caused by SLR [9,10,11], while some tried to generate stationary samples by duplicating the characteristics of historical tidal processes, which were assumed to be stationary [12]. Other researchers assumed that the rate of high tidal levels was time-dependent, and conducted frequency analysis on the recorded series with a time-correlated variable [8,9,10,11,12,13].
Design flood levels in delta areas were also analyzed by statistical methods in past studies. Joint distribution was the most widely used approach to statistically estimate flood levels in delta areas, which was simultaneously affected by multiple forcing factors like rainstorms, storm surges, upstream floods, and high tides. To take non-stationarity caused by environmental changes into concern, joint distribution incorporated the nonstationary characteristics of changing factors into marginal distribution functions. However, in this way, both the difficulty of parameter estimation and the uncertainty of results were significantly increased [14]. Another commonly used method for delta flood protection is to first calculate two design flood levels, under the impact of either the inflow floods or the high tidal level, and choose the higher one as the design value [15]. This method is simple and convenient, but it neglects the interconnection between inflow floods and high tides.
This research aims to estimate the response of flood level to the impact of inflow floods and downstream tidal level, when the time series of these two factors are both nonstationary. To achieve this purpose, Pearl River Delta (PRD) in South China was selected as the study area. This paper is arranged as follows. In Section 2, a brief introduction of the study area, dataset and methodology is provided. In Section 3, the response of the flood level to the nonstationary inflow floods and the high tidal level is estimated, and its spatial pattern is discussed. Conclusions are made in Section 4. The investigation in PRD can be used as reference for estimations of the flood level response in other delta areas with similarly complicated environmental conditions.

2. Study Area and Methods

2.1. Study Area and Dataset

Pearl River Delta, which covers an area of 39,380 km2, is the largest delta in South China (Figure 1). It has a humid subtropical climate. The monsoon period in this area lasts from April to September. Due to the terrain altitude, the dense river network develops from the northwest to the southeast. Water flow in PRD comes from West River and North River, and all the water in the delta flows into Pearl River Estuary through multiple outlets. Based on its source of inflow floods water, PRD area can be further divided into a West River sub-delta, and a North River sub-delta. Floods in two upstream river basins mainly occur between June and August. Meanwhile, extreme tides in the estuary, induced by typhoons or storm surges, mainly occur around September [16].
PRD is the megaregion where Macao is located [17]. In 2014, the population of cities in PRD surpassed that of Chicago and it was ranked in the top 30 in the world [18]. In 2015, the total income of only two cities in PRD, i.e., Guangzhou and Foshan, reached $20.6 million [19]. With its fast growth in economy and population, PRD is extremely vulnerable to flood risk.
In this research, recorded peak flood volumes in the flood season, i.e., from June to August, in Wuzhou and Shijiao were used. So were the high tidal levels in seven outlet stations (Figure 1, Table 1). All the data were collected during the period from 1958 to 2011.

2.2. Methodology

In this research, a methodology was developed to estimate the impact of the nonstationary inflow floods and the high tidal level on flood level. First, a time-varying moments (TVM) model was applied to evaluate the design inflow floods from the upstream river basins and the high tidal levels around the delta estuaries. Then, the influence of the nonstationary inflow floods and the high tidal level on flood level was estimated through a one-dimensional hydrodynamic model using the TVM-estimated design inflow floods and the high tidal level as its inputs. Four scenarios were created by combining the nonstationary inflow floods and the high tidal level, and then the nonstationary water level in PRD was estimated under these scenarios. The whole schedule of this combined methodology is shown in the flowchart presented in Figure 2. All the parts that are considered nonstationary are highlighted in blue.

2.2.1. Time-Varying Moments Estimating Nonstationary Inflow Floods and High Tidal Levels

The time-varying moments method, which has been widely applied in the statistical estimation of nonstationary peak flood volume, was used in this investigation to calculate the nonstationary design value of inflow floods and high tidal level [20]. In this method, to incorporate the non-stationarity, the first two moments of the time series were initially assumed to have trends that are either linear (L) or parabolic (P) [21,22].
Four conditions were generated by assembling the L or P trend in the first two moments, labeled A to D [22]: (1) when only the first moment, i.e., the mean of the time series, is time-dependent, whether the trend is L or P, the condition is named A; (2) when only the second moment, i.e., the standard deviation of the time series, is time-dependent, whether the trend is L or P, the condition is named B; (3) when both the mean and the standard deviation have time-dependent trends in, and the standard deviation is a product of, the mean and a constant value, i.e., the coefficient of variation (Cv), the condition is named C; (4) when both the first two moments have trends, but they are not directly correlated, the condition is named D. By combining Scenarios A–D and two types of trends, i.e., L and P, eight time-trend models were generated. All models are listed in Table 2, where m′ represents the mean of the nonstationary time series that is defined in relation to both the mean of a stationary time series, m, and time, t. Likewise, σ′ denotes the nonstationary standard deviation and is considered to be associated with both the stationary standard deviation σ and time, t. In all functions, am, aσ, bm, and bσ denote the constants.
According to studies carried out in the 1990s, Pearson type III performs the best among all commonly used probability distribution functions for either the flood flow or the high tidal level in PRD [23,24,25,26,27,28,29,30]. Therefore, Pearson type III was selected as the probability density function (PDF) used in design value estimation in this research. Based on the eight time trend models, parameters of Pearson type III were all defined to be time-dependent variables. All these parameters were estimated by the maximum likelihood method, where t was used as a variable. The goodness of fit of PDFs, i.e., Pearson type III with parameters of different time trend models, was tested by the Akaike Information Criterion (AIC).

2.2.2. One-Dimensional River Network Hydrodynamic Model

The one-dimensional hydrodynamic model has been widely used in flood level estimation. It is comparatively more accurate in representing the cross-sectional area of channels and requires only a small amount of field data to set up the model. Also, it can be quickly set up, and the computation is fast [31]. Therefore, the one-dimensional hydrodynamic model was chosen as the basic tool to estimate the flood level in this research.
1. Model Setup and Input Data
The one-dimensional hydrodynamic model used in the present study was developed from the one created by the Center for Water Resources and Environment (2015), and the whole model was set up in Fortran [32]. This model adopted the Saint-Venant continuity equation and the longitudinal momentum balance equation as the governing equations. The implicitly weighted four-point Preissmann scheme [33] was used to solve these governing equations.
The model set the time-step as 10 min, and a space lag from 500 to 2500 m. In all, the model included 196 channels and 144 nodes (Figure 3). The upstream inflow from Gaoyao (West River) and Shijiao (North River), as well as the tidal levels in seven outlets (Figure 1, Table 1), were set as its boundaries, and the recorded data in these stations were used as the input to run the model.
Conducting simultaneous field survey over a large basin like PRD region is extremely time-consuming and expensive. Meanwhile, although large-scale field measurement has been carried out by the Guangdong Hydraulic Bureau every five years, the data are beyond our access. Owing to the limitations of survey data, this research applied the topographic data collected in the flood season of 1998 to develop a 1D model. All topographic maps were obtained from the Guangdong Hydraulic Bureau, in a measuring scale of 1:5000. The hourly flood flow and water level were simultaneously detected at 40 stations during a typical flood in PRD. Data collected from 12:00 p.m. on 25 June 1998 to 12:00 p.m. on 28 June 1998 at hydrological stations in Gaoyao and Shijiao were used to drive the model and calibrate the parameters. The fluvial water level at each sampling frequency was linearly interpolated to the model time-step.
2. Model Validation
The hydrodynamic model was validated before estimating the flood level at PRD stations. The coefficient of riverbed roughness was first set between 0.016 and 0.035 [33]. Next, after the model had been running for 30 days, the parameters were updated by the results obtained on day 30. The aforementioned procedures were repeated more than 10 times before the simulation results stabilized. The model parameters were finally set when the difference between the simulation results of day 1 and day 30 remained within 1%.
To assess the performance of the model, measured and model-estimated amplitudes for eight constituents were compared in six stations, i.e., Makou, Sanshui, Tianhe, Baijiao, Xiaheng, and Shaluowei, and the result was shown in Figure 4. Difference bands were both plotted at ±0.025 and ±0.05 m, with an overall RMSE of 6.87 cm. For each of these six stations, recorded and estimated flood levels were also compared. The average absolute errors in the six stations were below 0.05 m, with a minimum of 0.001 m at Baijiao. To further measure the model efficiency, an index (α) was applied, was calculated by the following equations:
r i = Z Z 0 Z 0 × 100 %   ( i   =   1 ,   2 ,   3 ,   ,   72 )
A i = { 0                   ( 5 r i ) 1                   ( r i < 5 )
α = i = 1 72 A i 72 × 100 % ,
where Z is the estimated flood level; Z 0 , the recorded flood level; and i, the number of hours. When α     75 % , the simulation of the model was predicted to be valid. The value of α is 95% in Makou, 83% in Sanshui, 90% in Tianhe, 92% in Baijiao, 81% in Xiaheng, and 92% in Shaluowei. All α s are above 80%, and the model has been proved to be valid.

3. Results and Discussion

3.1. Non-Stationarity in the Inflow Floods and the Downstream Tidal Level

3.1.1. Increasing Inflow Floods

Trends in the inflow floods of PRD were estimated by Mann–Kendall method [34,35]. As is shown in Table 1, inflow floods from West River had significantly increased since 1958. Since 1950, global warming and atmosphere circulation abnormities have led to fewer but more intense tropical cyclones in West River [36,37,38]. Meanwhile, the extreme precipitations (over 99 percentile) in West River have increased by more than 45 mm since 1959 [39]. As a result, the flood flow in lower West River became significantly higher in the flood season [40].
Based on the trend test results, design flood in West River was estimated by TVM, and CL was detected to be the best-fit time-trend model for the increasing inflow floods (Table 2). Thirty-year simple moving mean and standard deviation of annual peak flood flow series in West River was analyzed and displayed in Figure 5. Since the first two moments of the flood series both had linear trends, the results of AIC test were proven to be reliable.
The 100-, 50-, and 20-year design flood flow in West River in 2050 were then estimated. To compare the design volumes with and without taking non-stationarity into consideration, the relative difference E was calculated as follows:
E = X T X 0 X 0 × 100 % ,
where XT denotes the nonstationary design value, and X0 denotes the stationary one. The gap between a 100-year and a 20-year XT is Δ X T , and the difference between a 100-year and a 20-year X0 is Δ X 0 . Both Δ X T and Δ X 0 were calculated and compared. The greater the value of Δ X T or Δ X 0 , the steeper the slope of the upper tail (and the greater the pressure in flood protection. (The “upper tail” here specifically refers to the part of the flood frequency curve with an exceedance probability lying between 1% and 5%.)
Results showed that by ignoring the increasing tendency, the 100-year peak flood flow was underestimated by 17.51% (9825 m3/s) (Table 3). Meanwhile, the relative underestimation (E) was augmented when the exceeding probability reached 5%, i.e., by 17.91% (9417 m3/s) for the 50-year flood, and by 18.52% (8809 m3/s) for the 20-year flood. In addition, Δ X T (9553 m3/s) was larger than Δ X 0 (8537 m3/s), indicating that non-stationarity in the flood had contributed to a steeper upper tail.

3.1.2. Varied High Tidal Level

High tidal levels in seven outlets were tested, and tidal levels in all outlets but Nansha had upward tendencies. Somehow, only the tendencies in Hengmen, Denglongshan, Huangjin, and Xipaotai reached a significance of 90% (Table 1). Rising sea-level rise at the Pearl River Estuary pushed up the high tidal levels, and severe sand excavation and channel regulation from the 1980s to the early 21st century around the upstream of Nansha neutralized the rising trend [41].
Nonstationary estimations were carried out in the six outlets that had significant trends. In each station, best-fit models was detected, and the nonstationary design value was compared with the stationary one (Table 2 and Table 3). Results showed that, whether the return period was 100, 50, or 20 years, design levels were all underestimated in Hengmen, Denglongshan, and Huangjin, and the increase in the return period had led to a greater underestimation, which was displayed in the value of E. Meanwhile, the 100-, 50-, and 20-year Es ranged from 9.33% (0.25 m) to 11.16% (0.27 m) in Hengmen, 14.07% (0.37 m) to 16.88% (0.39 m) in Denglongshan, and 14.06% (0.45 m) to 20.15% (0.55 m) in Huangjin. Both XT and Es decreased along the coastline from the southwest to the northeast, i.e., from Huangjin and Denglongshan to Hengmen. Furthermore, since Δ X T reached 0.24 m in Hengmen, 0.30 m in Denglongshan, and 0.37 m in Huangjin, it is easy to conclude that the slope of upper tail was steeper in the southwest (Huangjin) than in the northeast (Hengmen).
The direction of the ocean current affected the impact of SLR on the tidal level. Based on this criteria, Wu [42] divided the PRD outlets into three groups. In the first group, to which Huangjin belonged, high tides in outlet were mainly influenced by the current from the Indian Ocean. In the second group, to which Denglongshan belonged, high tidal levels were affected by a substantial impact of ocean currents from both the Pacific Ocean and the Indian Ocean. In the third group, to which Hengmen belonged, high tidal levels were solely influenced by the Pacific Ocean current.
The surrounding environment of all these outlet stations affected the ocean current impact as well. Take Huangjin as an example: since it was located in a bay surrounded by tiny islands, the tidal vibration affected by the current impact was amplified. In Hengmen, conversely, the tidal vibration induced by the current effect was reduced, due to the land lying to the east of Pearl River Estuary [42,43].

3.2. Response of the Design Flood Level to Nonstationary Inflow Floods and the High Tidal Level

Design flood levels in 22 stations were estimated under six scenarios, combining nonstationary inflow floods and nonstationary high tidal level (Table 4, Figure 6). The design flood level estimated with these nonstationary inputs was called the nonstationary flood level, whereas the one without considering non-stationarity was named the stationary flood level. For all 22 stations, nonstationary and the stationary flood levels were compared under Scenarios 1 and 4.

3.2.1. Response of Flood Level at a Single Spot

In 21 out of 22 stations, the nonstationary flood level was higher than the stationary. Only in Hengshan was the stationary flood level higher. This is because Hengshan was located just 18 km away from the outlet at Xipaotai, and its flood level was highly affected by the nonstationary design tidal level in Xipaotai. Due to the result in Table 1, the nonstationary design tidal level in Xipaotai was lower than the stationary one. Therefore, the stationary flood level in Hengshan was higher than the nonstationary one.
To further assess the response of flood level to the nonstationary inflow floods and high tidal level in PRD, the 22 stations were divided into three groups by the K-means clustering method, based on the absolute difference between their nonstationary and stationary flood levels (Table 5). Among the three groups, Group 1 had the highest mean value, and Group 3 the lowest. If a station belonged to the same group under both scenarios, it was marked in blue (Table 5).
Under both scenarios, five stations, i.e., Baiqing, Da’ao, Lianyao, Zhuyin, and Zhuzhou, belonged to the first group. These five stations were located between 25 and 42 km away from the delta outlets, and their flood levels were similarly affected by the high tidal levels. Meanwhile, the responses in Banshawei, Sanshanjiao, and Fengmamiao stations were the lowest under both scenarios. The distance between these stations and their outlets was within the area of 15–33 km. Outlets of these stations, i.e., Wanqingshaxi and Sanshanjiao, exhibited no significant trend in the high tidal level.
When the scenario changed from 1 to 4, stations located in the West River sub-delta, i.e., Makou, Baijiao, Jiangmen, Nanhua, and Tianhe, fell from groups with higher mean values to ones with lower mean values. Meanwile, the stations in the North River sub-delta, i.e., Zidong and Sanduo stations, jumped from the group with lower mean (Group 2) to the group with a higher one (Group 1). Alteration in geometries in the upstream river channel increased the flood flow distribution ratio in the North River sub-delta. Under Scenario 1, the flow distribution ratio in Sanshui, i.e., the income of the North River sub-delta, was 0.7% (300 m3/s), higher than under Scenario 4 (Table 3). In other words, the increase in the upstream flood flow in the North River sub-delta was greater under Scenario 4, while the increment of income flood flow in the West River sub-delta dropped by 300 m3/s.

3.2.2. Response of the Flood Level along the River Channel

The flood level in each station along the same river channel was connected into a flood line, and the 100-year nonstationary flood line was compared with the stationary one in two representative river channels (Figure 6 and Figure 7). Makou–Zhuyin channel was located in the West River sub-delta, where there were five stations along the way, i.e., Makou, Tianhe, Jiangmen, Da’ao, and Zhuyin. Sanshui–Sanshanjiao channel was located in the North River sub-delta, and Sanshui, Sanduo, and Sanshanjiao were located along the river channel from the delta income to the outlet.
In either channel, the nonstationary flood line was higher than the stationary one, and the absolute gap between two flood lines gradually narrowed from the delta incomes to the outlets (Figure 7a,b). The relative difference E in the two channels varied dramatically in the spot 60 km away from the outlet (Figure 7c,d). When it came around the area that was 60 km away from the outlet, E kept dropping along the Sanshui–Sanshanjiao channel, while it increased sharply in Makou–Zhuyin channel. In Sanshui–Sanshanjiao channel, since the high tidal level in the outlet displayed no significant upward trend (Table 1), the increase in the design flood line mainly responded to the upstream floods’ increment. Thus, the impact of the nonstationary inflow floods decreased smoothly along the channel solely due to the reduction in the elevation. On the contrary, however, the increment of the 100-year tidal level reached 14.07% in the outlet of Makou–Zhuyin channel (Table 3). Affected by the interactive impact of increasing inflow floods and high tidal level, the relative difference between flood lines increased in the area that was 60 km away from the outlet.
Both the absolute and the relative difference between the nonstationary and stationary flood line declined sharply in Jiangmen, caused by the flow distribution ratio variation in its upstream, i.e., the node where Tianhe and Nanhua parted. A large portion of the flood flow (45.53%) from Makou went through Tianhe, located 13 km away from Jiangmen. However, the width–depth ratio in Tianhe was only half that in Makou [44]. Therefore, the relative gap between nonstationary and stationary flood level in Tianhe increased. Nevertheless, the width–depth ratio in Jiangmen is 2.4 times that in Tianhe [44]. Thus, the relative gap between the nonstationary and the stationary design level in Jiangmen was narrowed abruptly from Tianhe.

3.3. Leading Factors of Non-Stationarity and the Flood Level Response

Nonstationary flood levels under different scenarios were further calculated and compared. To compare the response of the flood level to nonstationary inflow floods and that to the nonstationary tidal level, index X was developed and calculated by the following equation:
X = | Z 1 Z 3 | / Z 1 | Z 1 Z 2 | / Z 1 = | Z 1 Z 3 | | Z 1 Z 2 | ,
where Z i (i = 1, 2, 3) is the nonstationary design flood level simulated under scenario i. When X 0.5 , the flood level in PRD mainly responded to the nonstationary high tide, whereas when X     5 , the flood level mainly responded to the nonstationary inflow floods.
In general, X in each station was positively correlated to the distance between this station and the delta outlet (Figure 8). Xs of stations that were less than 22 km away from the PRD outlet were all below 0.5. Meanwhile, when the distances between stations and the delta outlet were more than 45 km, all Xs were above 5. It can be deducted that in PRD, in stations that are more than 45 km away from the outlets, the flood level was mainly influenced by the nonstationary inflow floods. Furthermore, flood levels in stations that are located within 22 km of the delta outlets were strongly affected by the nonstationary high tidal level.
As for the flood level in stations lying between 22–45 km from delta outlets, their response to either nonstationary inflow floods did not increase when they became farther away from the delta outlets. Take Zhuzhou, for example; though it is located 39 km away from the outlet, its X was the same as that of Banshawei, which was 33 km away from the outlet. Since the impact of extreme tides decreased when the distance between the station and delta outlets increased, X in Zhuzhou was supposed to be higher than that in Banshawei. On the other hand, however, Zhuzhou was much farther away from the entrance of PRD than Banshawei (Figure 8). Therefore, the impact of upstream change decreased to a greater extent in Zhuzhou than in Banshawei. Moreover, the outlet of Zhuzhou had a more severe upward tendency than Banshawei (Table 1). Thus, the non-stationarity of the high tidal level in the outlet of Zhuzhou exerted a more severe impact on the flood level in Zhuzhou.
Although Rongqi was located 2 km farther from the delta outlet than Xiaolan [44], X in Rongqi was the same as in Xiaolan (Figure 8). Simply according to the distance between stations and the delta outlets, X in Rongqi was supposed to be higher than in Xiaolan. However, the estimated X was inconsistent with our assumption. This was due to the impact of a dense river network and the directions of the development of river channels [37,44]. Rongqi was located on a river way almost parallel to the latitude. Since the channel was in accordance with the direction of the reduction of the elevation, flow speed in this channel slowed down. Meanwhile, the region where Rongqi was located had a higher density of river networks than other spots in PRD, and the complexity of river channels further weakened the impact of nonstationary high tidal levels, whose effect decreased from the outlets to the incomes. Based on Xs in Zhuyin and Sanshanjiao, it was concluded that the estimated water level in Sanshanjiao was more affected by non-stationarity in the upstream flood flow. Somehow, their distance to the delta outlets was almost the same, i.e., 25 km for Zhuyin and 24 km for Sanshanjiao. As was mentioned in Section 3.1.1, there was an increase in the upstream flow in the North River sub-delta with the rising input flood flow in the West River. Meanwhile, Sanshanjiao was closer to the income station than Zhuyin. The impact of nonstationary inflow floods was thus maintained. Likewise, although the distances from Lanshi and Ma’an to their outlets were both 27 km, Lanshi had an X much higher than that of Ma’an. Since Ma’an was located at the downstream of a node where the flood from both Makou and Sanshui joined, the variance in the upstream flood change exerted little impact. The distance between the station and the income station was the main cause.

4. Conclusions

Here, the response of flood level in a dense river network to nonstationary inflow floods and high tidal level was studied. Pearl River Delta (PRD) in South China was selected as the study area. Non-stationarity in inflow floods and tidal level was first evaluated by statistical methods such as that of Mann–Kendall, and the design value was further calculated by the time-varying moment method. The flood level estimated with nonstationary input was calculated under six scenarios in a one-dimensional hydrodynamic network model. The flood level estimated with nonstationary inputs was compared with that with stationary inputs, and the response of the flood level to non-stationarity was studied. The methodology utilized in this research for estimating the flood level response to non-stationarity can be used as a reference to investigate the design flood level change in other deltas with a dense river network. It was found that the flood level response was highly affected by nonstationary inflow floods and the high tidal level induced by environmental changes.
In PRD, not considering the non-stationarity in incoming flood flow would have resulted in an 18% underestimation of the 100-year flood level, and an underestimation up to 14% (0.37 m) in the 100-year tidal levels among the multiple outlets. The underestimation of incoming flood flow or downstream high tidal level would have further caused underestimation of flood level along river channels. This situation will not only challenge the existing standard for the local flood protection but also lead to a higher degree of loss in both economy and life. For deltas that have endured intense environmental changes just like PRD, the design flood level needs to be updated by taking the non-stationarity of hydrological inputs into account.
In this paper, the spatial pattern of the flood level response was discovered. The flood level in places located 25–42 km away from the outlets in the West River sub-delta responded the most to the non-stationarity in both inflow floods and high tidal level. Meanwhile, in the North River sub-delta, places lying 15–33 km away from delta outlets had the minimum response to the nonstationary inflow floods and the high tidal level. Due to the change in the geometries of upstream river channel, the North River sub-delta had a greater distribution ratio of inflow floods. This resulted in a greater increase in the flood level in the North River sub-delta, with a rise in the nonstationary flood and tidal level of a smaller return period. The site in the West River sub-delta situated 60 km away from the outlet was an anomalous spot since the at-site flood level merely responded to the non-stationarity.
Based on the leading factor that the flood level responded to, PRD was divided into three regions. In general, regions within 22 km of delta outlets responded the most to the increasing tidal level induced by sea level rise, and spots that were located more than 45 km away from outlets were more affected by increasing inflow floods than by increasing high tidal levels. Stations that were located 22–45 km away from the delta outlets were influenced by both the sea level rise and the inflow increase. As for these stations, distance to the income stations, river network density, and the directions of river channels could all affect the extent of flood level response to the mutual impact of the nonstationary inflow floods and high tidal level. How these factors affect the water levels and their extents at different stations remains to be studied further. Meanwhile, the boundary of the incoming flood impact or that of the tidal level in other deltas can be detected in the same way.

Acknowledgments

The research was financially supported by the National Natural Science Foundation of China (Grant No. 91547202, 51210013, 51479216, 51379223, 51479217), the Chinese Academy of Engineering Consulting Project (2015-DA-07-04-03), the Public Welfare Project of Ministry of Water Resources (Grant No. 200901043-03), and the Project for Creative Research from Guangdong Water Resources Department (Grant No. 2016-07, 2016-01).

Author Contributions

Yihan Tang and Xiaohong Chen conceived and designed the experiments; Chengjia Su performed the experiments; Yihan Tang analyzed the data with the help of Qizhong Guo; Yihan Tang, Xiaohong Chen and Chengjia Su contributed data and analysis tools; Yihan Tang wrote the paper with the help of Qizhong Guo and Xiaohong Chen.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Trenberth, K.E. Conceptual Framework for Changes of Extremes of the Hydrological Cycle with Climate Change. In Weather and Climate Extremes; Springer: Dordrecht, The Netherlands, 1999; pp. 327–339. [Google Scholar]
  2. Groisman, P.Y.; Knight, R.W.; Karl, T.R.; Easterling, D.R.; Sun, B.; Lawrimore, J.H. Contemporary Changes of the Hydrological Cycle over the Contiguous United States: Trends Derived from In Situ Observations. J. Hydrometeorol. 2004, 5, 64–85. [Google Scholar] [CrossRef]
  3. Foley, J.A.; DeFries, R.; Asner, G.P.; Barford, C.; Bonan, G.; Carpenter, S.R.; Chapin, F.S.; Coe, M.T.; Daily, G.C.; Gibbs, H.K.; et al. Global Consequences of Land Use. Science 2005, 309, 570–574. [Google Scholar] [CrossRef] [PubMed]
  4. Piao, S.; Ciais, P.; Huang, Y.; Shen, Z.; Peng, S.; Li, J.; Zhou, L.; Liu, H.; Ma, Y.; Ding, Y.; et al. The impacts of climate change on water resources and agriculture in China. Nature 2010, 467, 43–51. [Google Scholar] [CrossRef] [PubMed]
  5. Schaller, N.; Kay, A.L.; Lamb, R.; Massey, N.R.; Van Oldenborgh, G.J.; Otto, F.E.; Sparrow, S.N.; Vautard, R.; Yiou, P.; Ashpole, I.; et al. Human Influence on Climate in the 2014 Southern England Winter Floods and Their Impacts. Nat. Clim. Chang. 2016, 6, 627–634. [Google Scholar] [CrossRef]
  6. Nicholls, R.J.; Cazenave, A. Sea-Level Rise and Its Impact on Coastal Zones. Science 2010, 328, 1517–1520. [Google Scholar] [CrossRef] [PubMed]
  7. Neumann, B.; Vafeidis, A.T.; Zimmermann, J.; Nicholls, R.J. Future Coastal Population Growth and Exposure to Sea-Level Rise and Coastal Flooding—A Global Assessment. PLoS ONE 2015, 10, 1–34. [Google Scholar] [CrossRef] [PubMed]
  8. Menéndez, M.; Woodworth, P.L. Changes in extreme high water levels based on a quasi-globaltide-gauge data set. J. Geophys. Res. 2010, 115, 234–244. [Google Scholar] [CrossRef]
  9. Xu, S.; Huang, W. Frequency Analysis for Predicting 1% Annual Maximum Water Levels in Florida Coast. Hydrol. Process. 2008, 22, 4507–4518. [Google Scholar] [CrossRef]
  10. Xu, S.; Huang, W. Effects of sea level rise on frequency analysis of 1% annual maximum water levels in the coast of Florida. Ocean Eng. 2013, 71, 96–102. [Google Scholar] [CrossRef]
  11. Chen, Y.M.; Huang, W.R.; Xu, S.D. Frequency Analysis of Extreme Water Levels Affected by Sea-Level Rise in East and Southeast Coasts of China. J. Coast. Res. 2014, 68, 105–112. [Google Scholar] [CrossRef]
  12. Zhong, H.; van Gelder, P.H.A.J.M.; van Overloop, P.J.A.T.M.; Wang, W. Application of a fast stochastic storm surge model on estimating the high water level frequency in the Lower Rhine Delta. Nat. Hazards 2014, 73, 743–759. [Google Scholar] [CrossRef]
  13. Méndez, F.J.; Menéndez, M.; Luceño, A.; Losada, I.J. Analyzing monthly extreme sea levels with a time-dependent GEV model. J. Atmos. Ocean. Technol. 2007, 24, 894–911. [Google Scholar] [CrossRef]
  14. Zheng, F.; Leonard, M.; Westra, S. Application of the design variable method to estimate coastal flood risk. J. Flood Risk Manag. 2015. [Google Scholar] [CrossRef]
  15. U.S. Army Corps of Engineers. Flood Risk Management Planning Workshop; Ocean County Community College: Toms River, NJ, USA, 2016. [Google Scholar]
  16. Hydrology Bureau of Guangdong Province. Report of Flood Control Planning in Pearl River Basin; Zhujiang River Commission: Guangzhou, China, 2007. [Google Scholar]
  17. Vidal, J. UN Report: World’s Biggest Cities Merging into ‘Mega-Regions’. Available online: guardian.co.uk (accessed on 13 March 2010).
  18. United Nations, Department of Economic and Social Affairs, Population Division. World Urbanization Prospects: The 2014 Revision; United Nations: New York, NY, USA, 2014. [Google Scholar]
  19. Cox, W. The World’s Ten Largest Megacities. The Huffington Post, 2016. Available online: http://www.huffingtonpost.com/wendell-cox/the-worlds-ten-largest-me_b_6684694.html (accessed on 19 Feburary 2016).
  20. Khaliq, M.N.; Ouarda, T.B.M.J.; Ondo, J.C.; Gachon, P.; Bobée, B. Frequency analysis of a sequence of dependentand/ornon-stationary hydro-meteorological observations: A review. J. Hydrol. 2006, 329, 534–552. [Google Scholar] [CrossRef]
  21. Strupczewski, W.G.; Singh, V.P.; Mitosek, H.T. Non-stationary approach to at-site flood frequency modelling. III. Flood analysis of Polish rivers. J. Hydrol. 2001, 248, 152–167. [Google Scholar] [CrossRef]
  22. Strupczewski, W.G.; Singh, V.P.; Feluch, W. Non-stationary approach to at-site flood frequency modelling. I: Maximum likelihood estimation. J. Hydrol. 2001, 248, 123–142. [Google Scholar]
  23. Hydrology Bureau of Guangdong Province (HBGP). Report on the Flood Control Plan of Pearl River Basin; HBGP: Guangzhou, China, 1998. [Google Scholar]
  24. Li, K.; Li, G.S. Calculation of return period for storm surge in the Pearl River Delta Region. Prog. Geogr. 2010, 29, 433–438. [Google Scholar]
  25. Chen, Z.S.; Liu, Z.M.; Lu, J.F. Flood Joint Probability Distribution of the Xijiang River and Beijiang River in Guangdong Province. Acta Sci. Nat. Univ. Sunyatseni 2011, 50, 110–115. (In Chinese) [Google Scholar]
  26. Wu, Z.Y.; Lu, G.H.; Liu, Z.Y. Trends of Extreme Flood Events in the Pearl River Basin under Climate Change. Prog. Inquisitiones Mutat. Clim. 2012, 8, 403–408. (In Chinese) [Google Scholar]
  27. Liu, Z.M.; Qin, G.H.; Chen, Z.S. Study on the correlation of the water level of the tidal river with upstream flood and estuary tide level. Shuili Xuebao 2013, 44, 1278–1285. (In Chinese) [Google Scholar]
  28. Liu, Y.; Guan, S. Study on the Characteristic of Multiply Events of Drought and Flood Probability in the Pearl River Basin based on Copula Function. Pearl River 2017, 38, 12–17. (In Chinese) [Google Scholar]
  29. Liu, J.; Chen, H.; Wang, J.X. Comparison among Theoretical Frequency Distributions of P-Ш, Log P-Ш and GL. J. China Hydrol. 2013, 33, 1–4. (In Chinese) [Google Scholar]
  30. Guan, S.; Zha, X.N.; Ding, B. Wetness-Dryness Encountering of Runoff of the Pearl River Basin Based on Copula Functions. Trop. Geogr. 2015, 35, 208–217. (In Chinese) [Google Scholar]
  31. Degond, P.; Markowich, P.A. On a one-dimensional steady-state hydrodynamic model for semiconductors. Appl. Math. Lett. 1990, 3, 25–29. [Google Scholar] [CrossRef]
  32. Preissmann, A. Propagation of translatory waves in channels and rivers (original in French “Propagation des intume scences dans les canaux et rivières”). In Proceedings of the first Congress of the French Association for Computation (AFCALTI) September, Grenoble, France, 14–16 September 1961; pp. 433–442. [Google Scholar]
  33. Center for Water Resources and Environment. One-Dimensional Hydrodynamic Model of the Pearl River Delta, Project Report (Part B); Sun Yat-sen University: Guangzhou, Guangdong, China, 2015; pp. 20–25. [Google Scholar]
  34. Kendall, M.G. (Ed.) Rank Correlation Methods; Hafner: New York, NY, USA, 1975. [Google Scholar]
  35. Mann, H.B. Non-parametric test against trend. Econometrica 1945, 13, 245–259. [Google Scholar] [CrossRef]
  36. Tang, Y.H.; Xi, S.F.; Chen, X.H.; Lian, Y.Q. Quantification of Multiple Climate Change and Human Activity Impact Factors on Flood Regimes in the Pearl River Delta of China. Adv. Meteorol. 2016. [Google Scholar] [CrossRef]
  37. Zhang, Q.; Gu, X.H.; Singh, V.P.; Xiao, M.Z. Flood frequency analysis with consideration of hydrological alterations: Changing properties, causes and implications. J. Hydrol. 2014, 519, 803–813. [Google Scholar] [CrossRef]
  38. Zhao, Y.F.; Zou, X.Q.; Cao, L.G.; Xu, X. Changes in precipitation extremes over the Pearl River Basin, southern China, during 1960–2012. Quat. Int. 2014, 333, 26–39. [Google Scholar] [CrossRef]
  39. Gemmer, M.; Fischer, T.; Jiang, T.; Su, B.; Liu, L.L. Trends in Precipitation Extremes in the Zhujiang River Basin, South China. J. Clim. 2010, 24, 750–761. [Google Scholar] [CrossRef]
  40. Zhang, S.R.; Lu, X.X. Hydrological responses to precipitation variation and diverse human activities in a mountainous tributary of the lower Xijiang, China. Catena 2009, 77, 130–142. [Google Scholar] [CrossRef]
  41. Wu, X.M.; Deng, J.Q.; Cheng, R.L.; Wu, T.S. A super-large tidal physical model for the Pearl River Estuary. Presented at International Conference on Estuaries and Coasts, Hangzhou, Zhejiang, China, 9–11 November 2003. [Google Scholar]
  42. He, H.J. Analysis of the Storms and Typhoons in the Pearl River Estuary. Ren Min Zhujiang 1981, 4, 34–51. (In Chinese) [Google Scholar]
  43. Ni, P. Project Report: Water and Sediment Characteristics and the Riverbed Evolution in the Pearl River Delta, 2.1.2; Institute of Water Resources and Hydropower Research of Guangdong Province (IWRHG): Guangzhou, Guangdong, China, 2014. (In Chinese) [Google Scholar]
  44. Chen, X.H.; Zhang, L.; Shi, Z. Study on spatial variability of water levels in rivernet of Pearl River delta. J. Hydraul. Eng. 2004, 10, 36–42. (In Chinese) [Google Scholar]

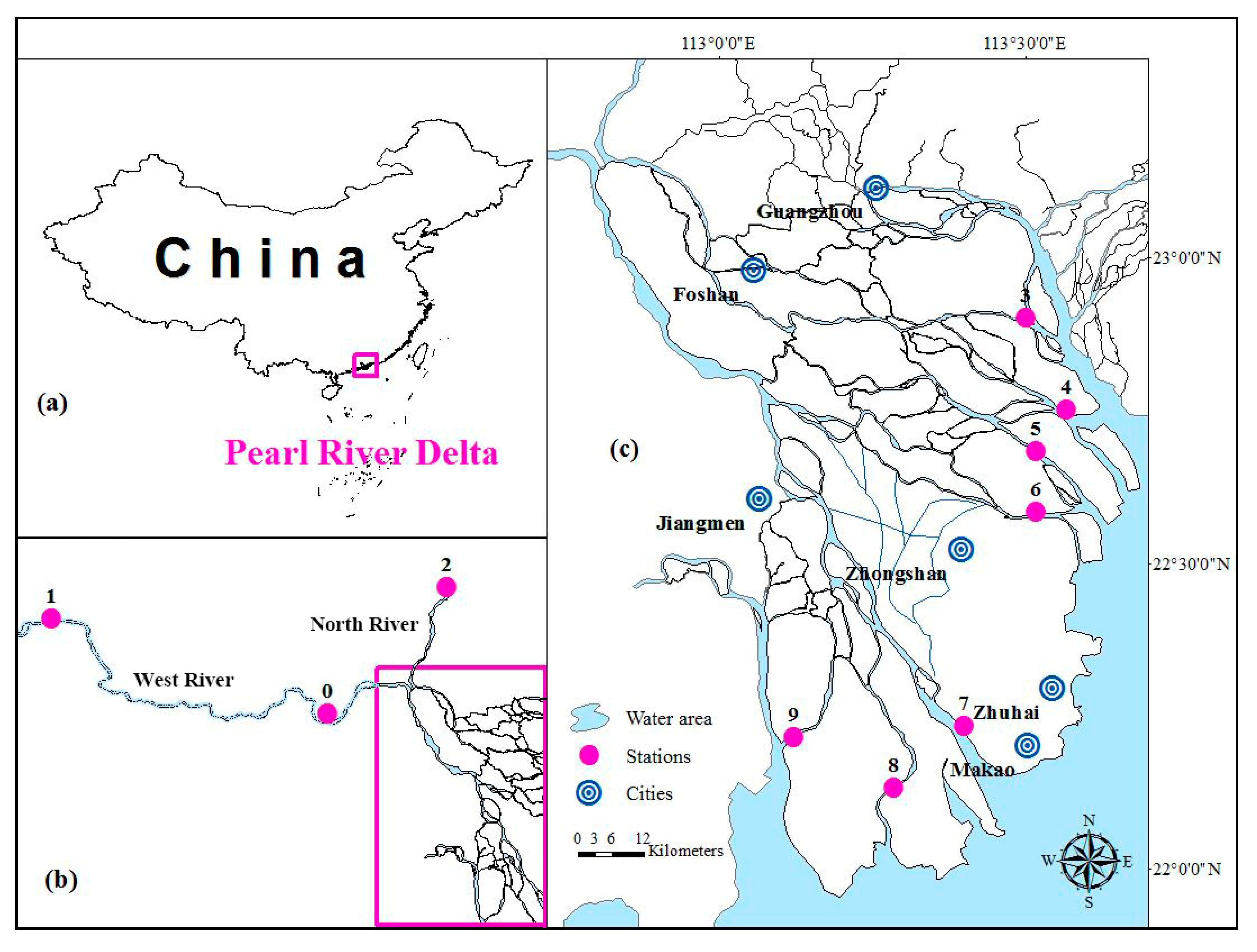

Figure 1. Map of Pearl River Delta and locations of gauge stations: (a) location of Pearl River Delta on the map of China; (b) gauge stations of upstream rivers; (c) a closer view of Pearl River Delta.
Figure 1. Map of Pearl River Delta and locations of gauge stations: (a) location of Pearl River Delta on the map of China; (b) gauge stations of upstream rivers; (c) a closer view of Pearl River Delta.
Water 09 00471 g001

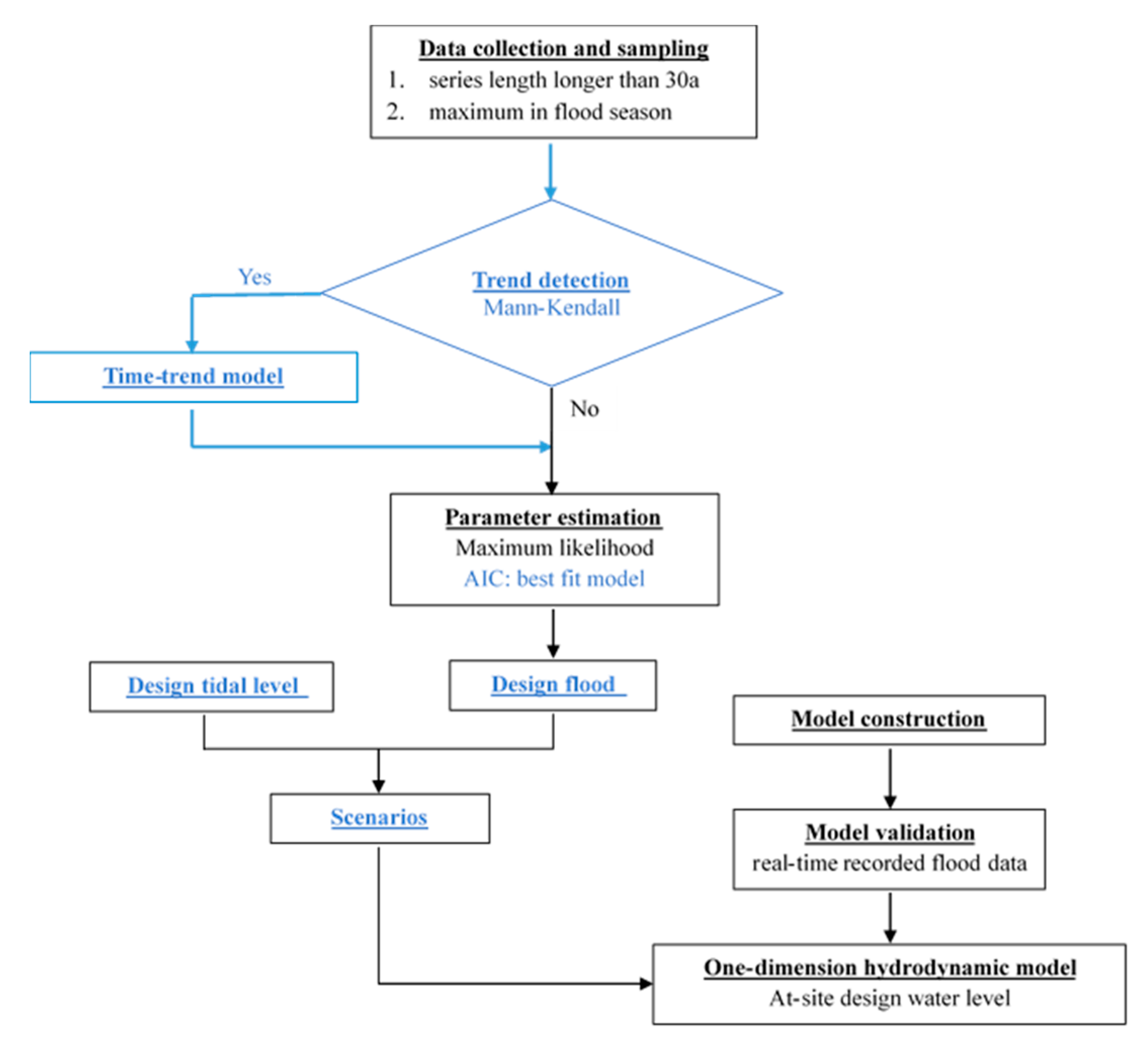

Figure 2. Flow chart of the methodology. Parts highlighted in blue considered non-stationarity in time series.
Figure 2. Flow chart of the methodology. Parts highlighted in blue considered non-stationarity in time series.
Water 09 00471 g002

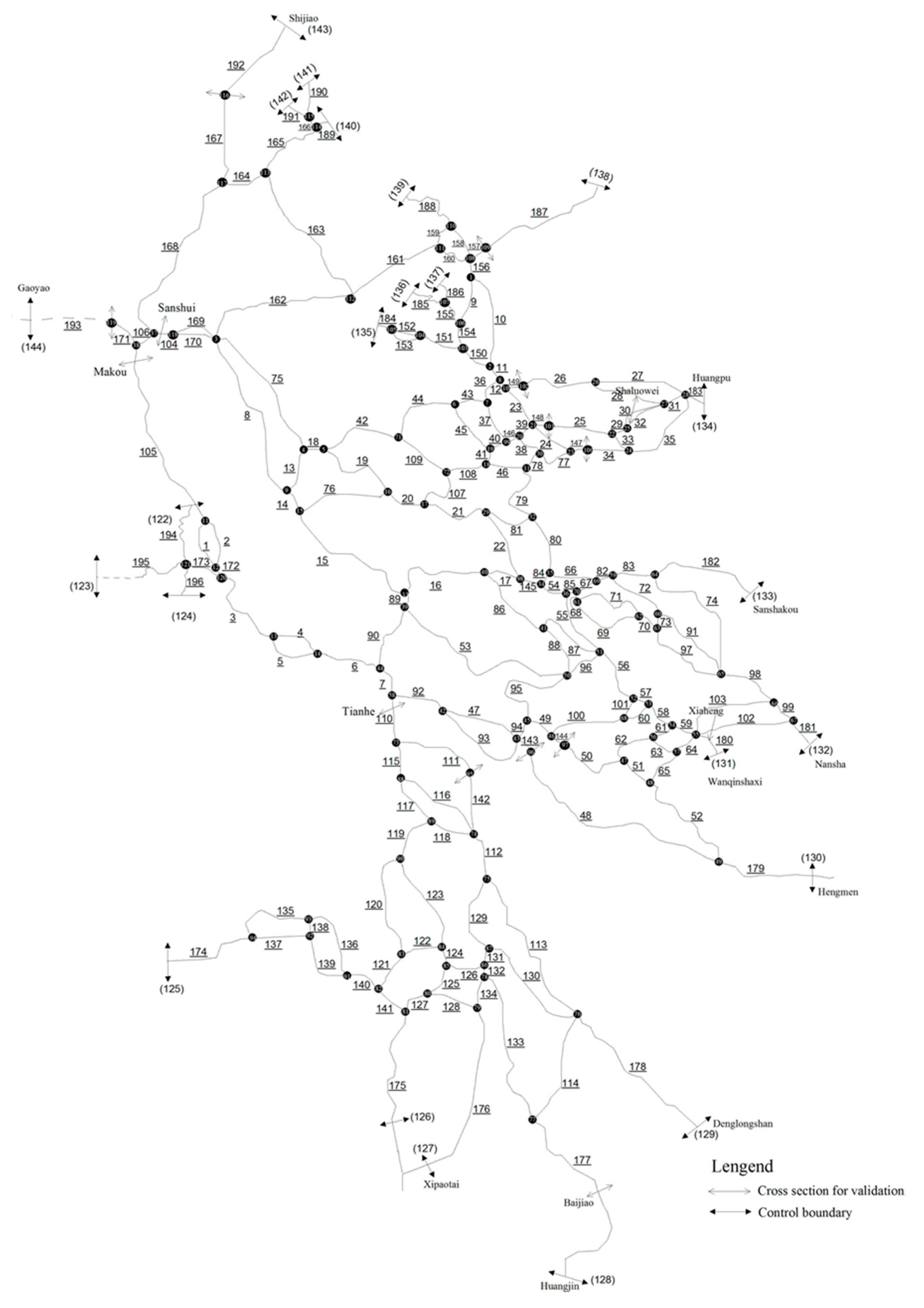

Figure 3. Overview of the simplified one-dimensional hydrodynamic model of PRD.
Figure 3. Overview of the simplified one-dimensional hydrodynamic model of PRD.
Water 09 00471 g003

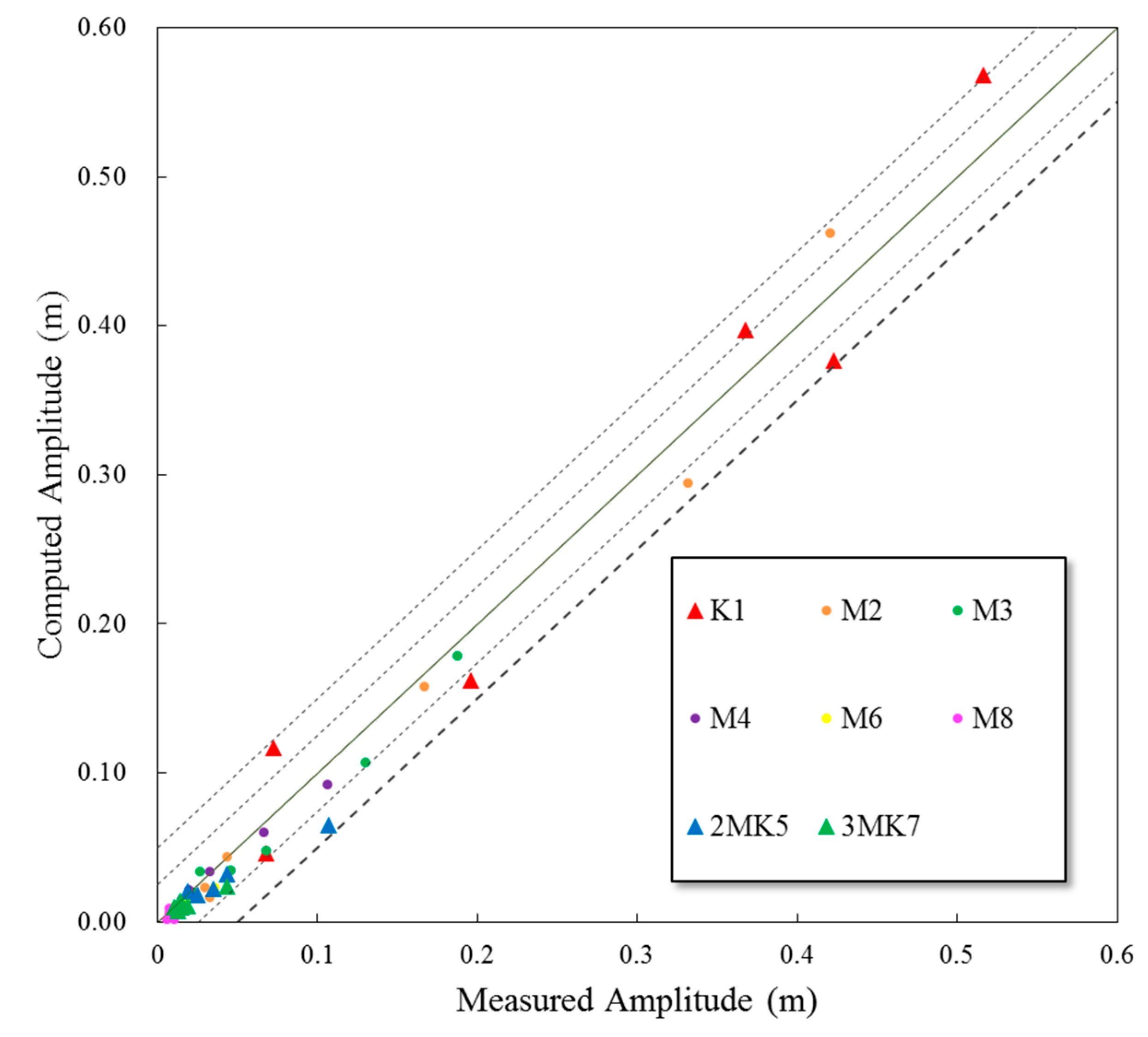

Figure 4. Comparison of harmonic constituent amplitudes, with difference bands located at 0.025 and 0.05 m.
Figure 4. Comparison of harmonic constituent amplitudes, with difference bands located at 0.025 and 0.05 m.
Water 09 00471 g004

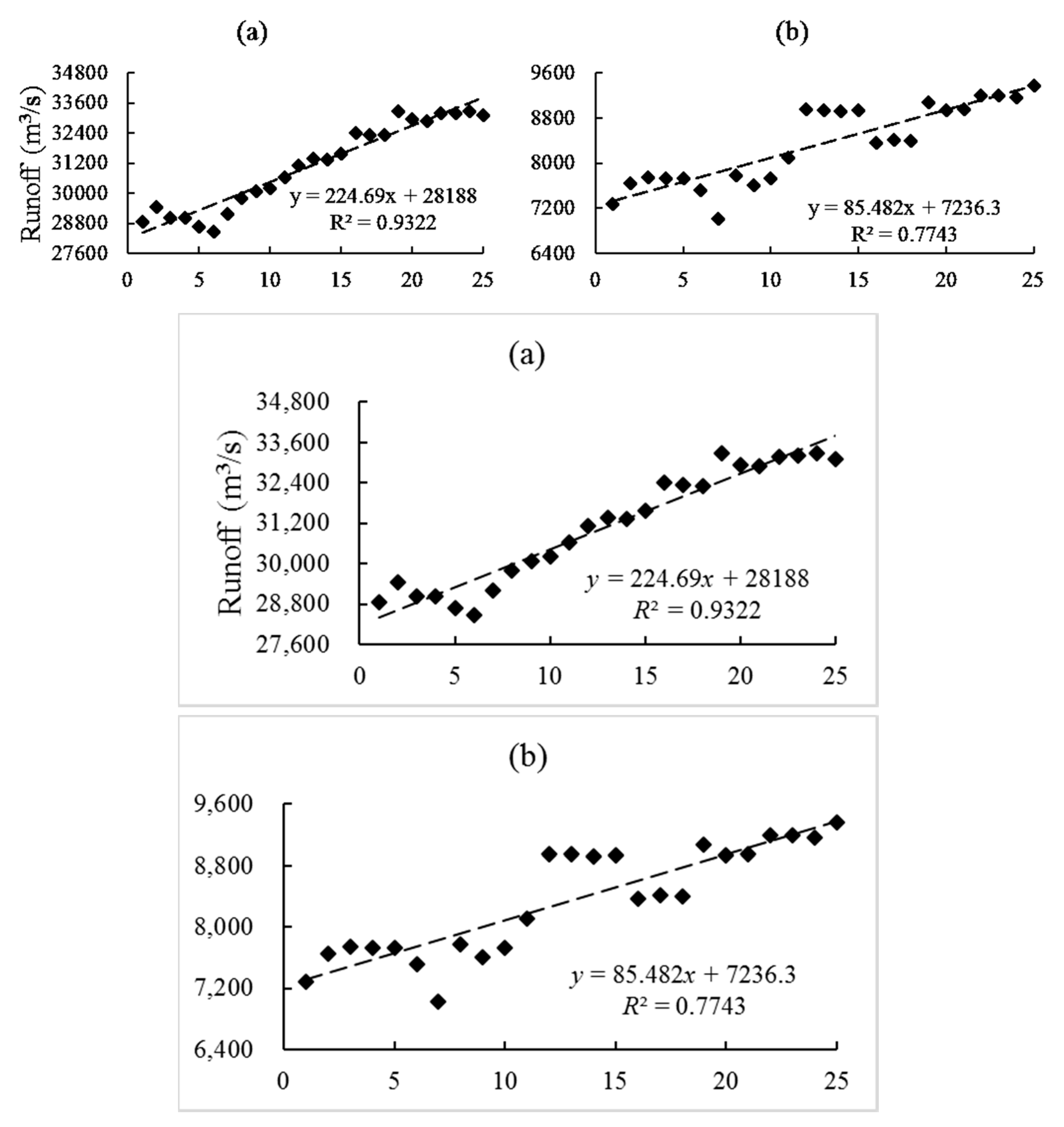

Figure 5. Trends in the first two moments of Wuzhou: (a) simple moving mean; (b) simple moving standard deviation.
Figure 5. Trends in the first two moments of Wuzhou: (a) simple moving mean; (b) simple moving standard deviation.
Water 09 00471 g005

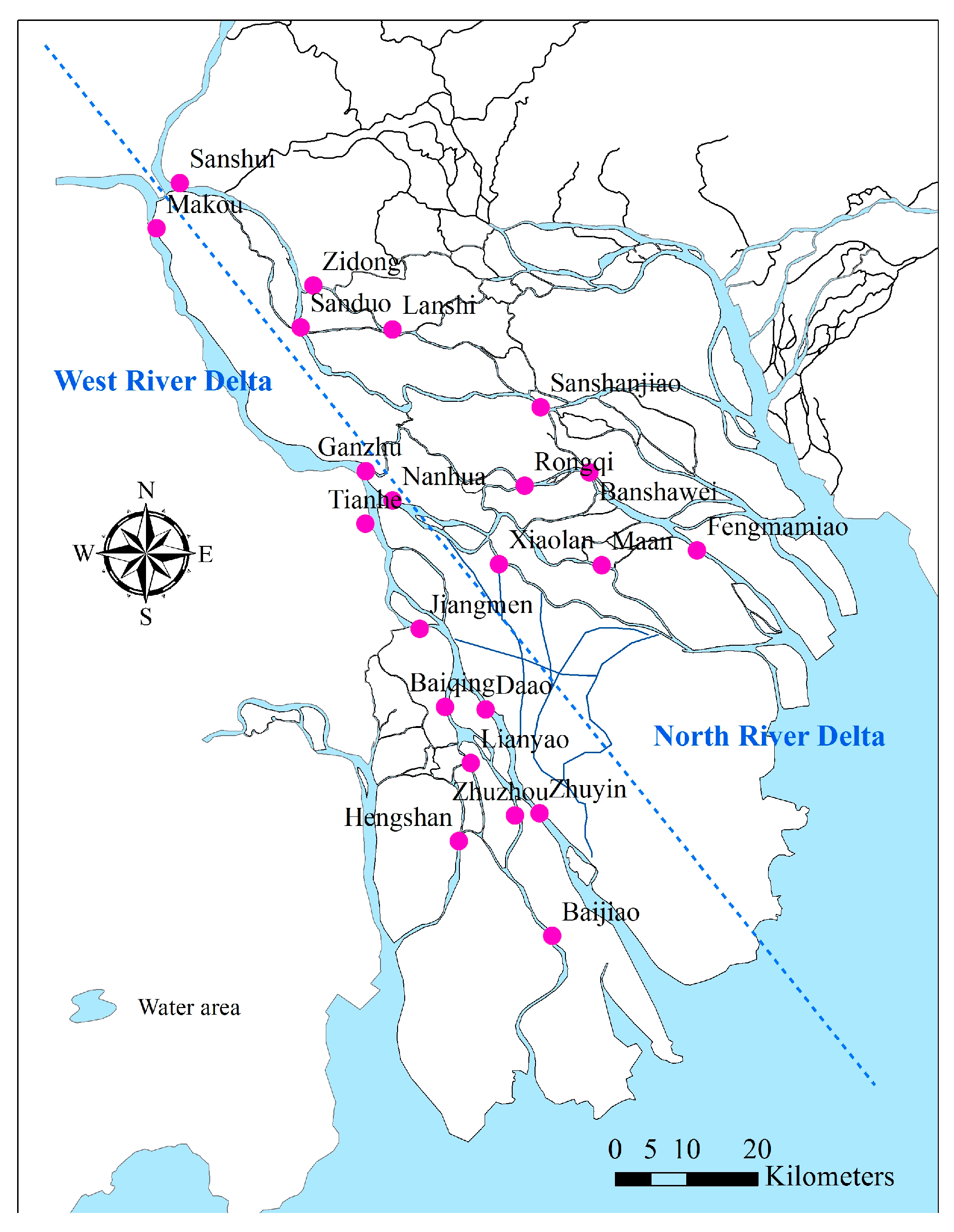

Figure 6. Locations of the 22 gauging stations in Pearl River Delta.
Figure 6. Locations of the 22 gauging stations in Pearl River Delta.
Water 09 00471 g006

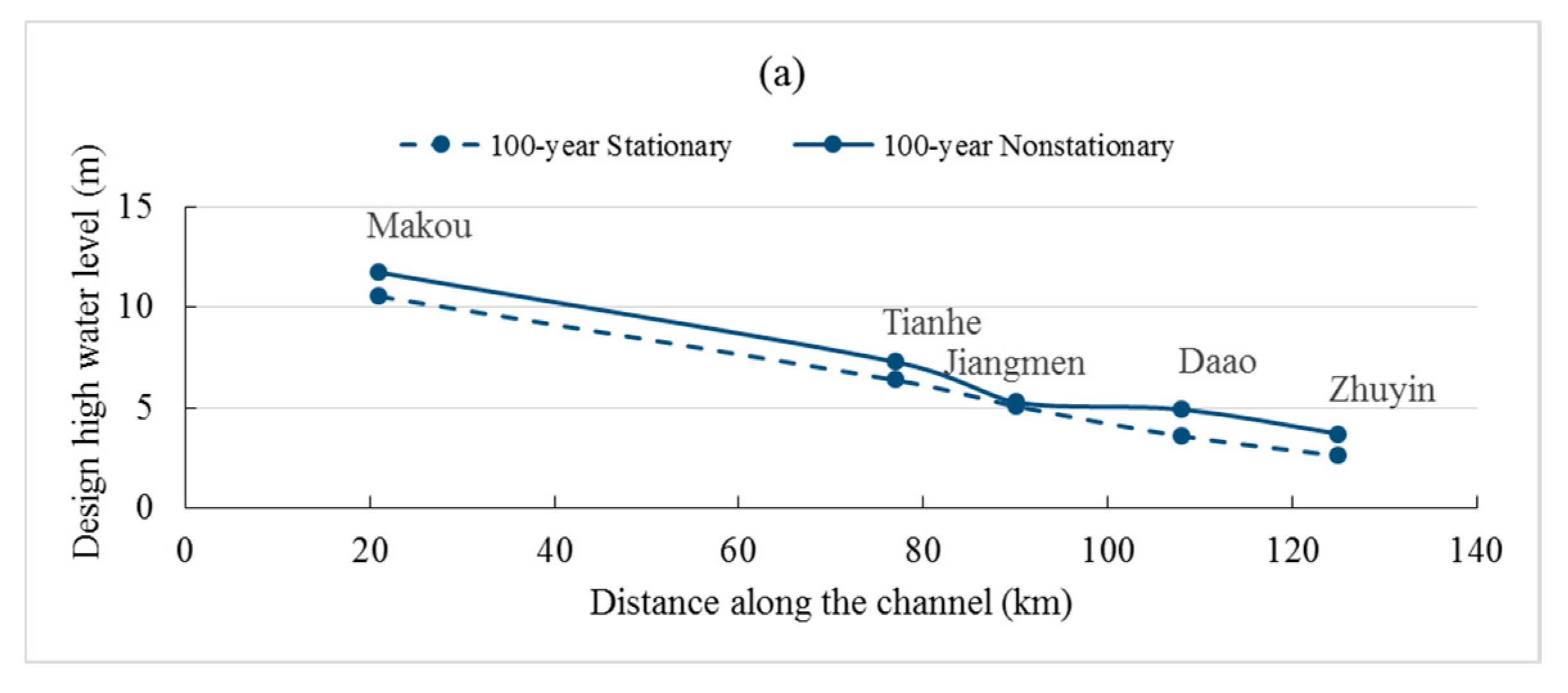

Figure 7. Flood line difference in river channels: (a) difference in Makou–Zhuyin Channel; (b) relative difference in Makou–Zhuyin Channel; (c) difference in Sanshui–Sanshanjiao Channel; (d) relative difference in Sanshui–Sanshanjiao Channel.
Figure 7. Flood line difference in river channels: (a) difference in Makou–Zhuyin Channel; (b) relative difference in Makou–Zhuyin Channel; (c) difference in Sanshui–Sanshanjiao Channel; (d) relative difference in Sanshui–Sanshanjiao Channel.
Water 09 00471 g007aWater 09 00471 g007b

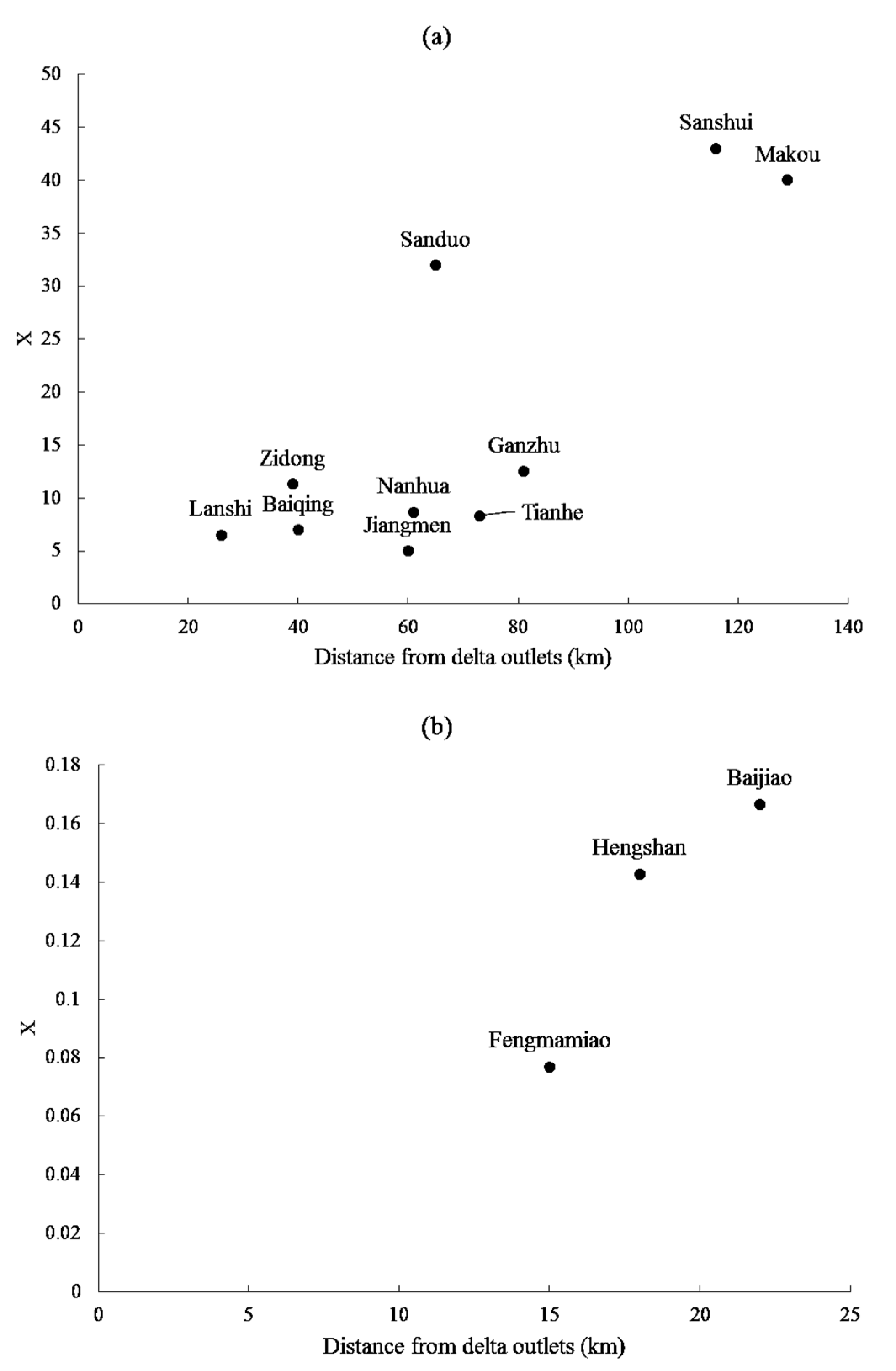

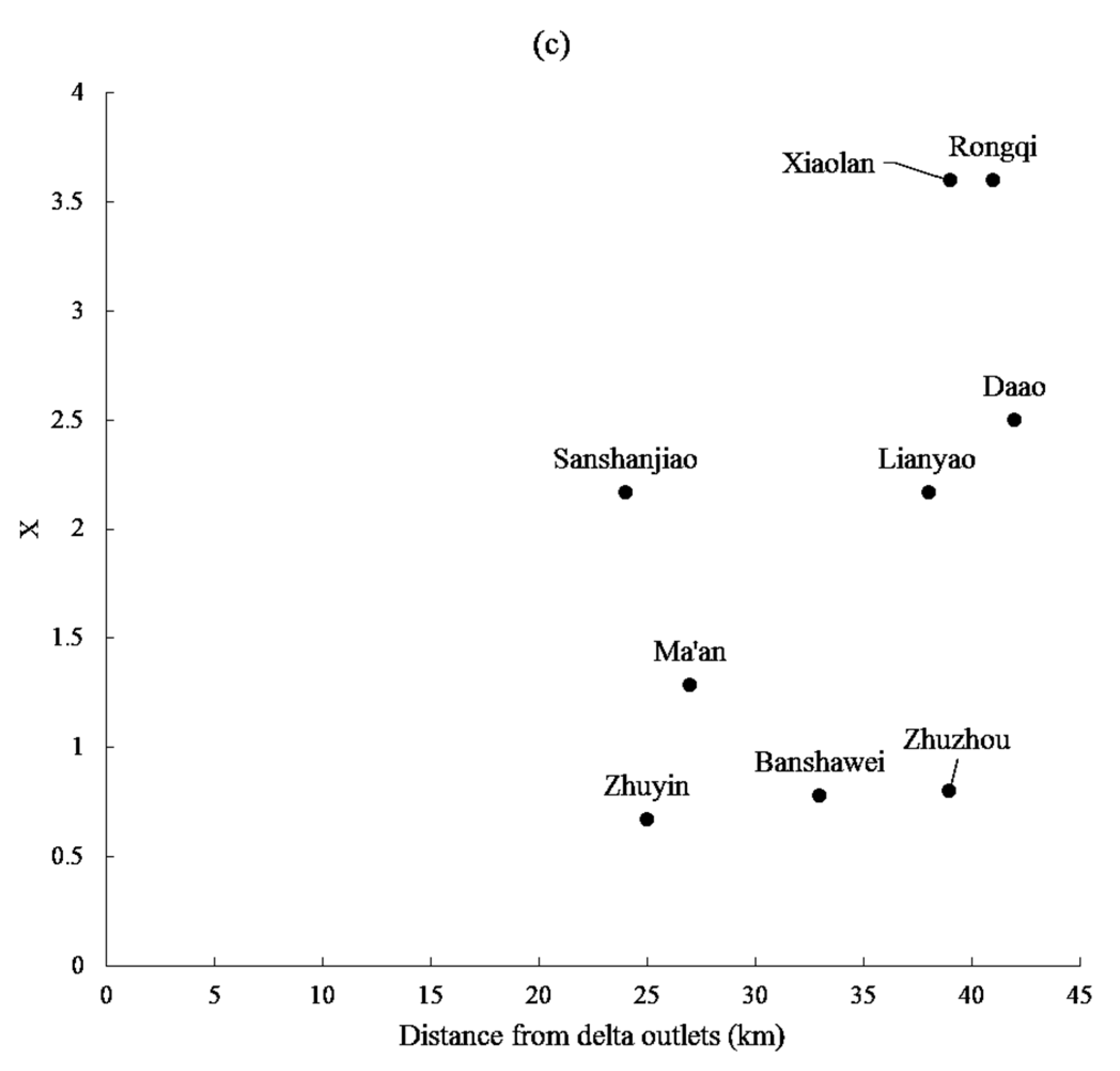

Figure 8. Xs of stations in Pearl River Delta: (a) stations with X ≥ 5; (b) stations with X 0.5; (c) stations with 0.5 < X < 5 .
Figure 8. Xs of stations in Pearl River Delta: (a) stations with X ≥ 5; (b) stations with X 0.5; (c) stations with 0.5 < X < 5 .
Water 09 00471 g008aWater 09 00471 g008b
Table 1. Gauge stations and trend detection.
Table 1. Gauge stations and trend detection.
River BasinNo.Gauge StationChannel NameMann–Kendall
West River0Gaoyao--
1Wuzhou-Upward (z = 1.66)
North River2Shijiao-No (z = 0.38)
Pearl River Delta Outlets3SanshakouHumenNo (z = 1.43)
4NanshaJiaomenNo (z = −0.37)
5WanqinshaxiHongqimenNo (z = 1.57)
6HengmenHengmenUpward (z = 2.96)
7DenglongshanModaomenUpward (z = 1.96)
8HuangjinJitimenUpward (z = 2.65)
9XipaotaiHutiaomenUpward (z = 2.44)
Note: When | Z | > 1.65 , the trend is 90% significant.
Table 2. Time trend models of the first two moments.
Table 2. Time trend models of the first two moments.
Probability Distribution FunctionTime Trend ModelTime-Varying Modelmσ
P3ALP3-AL m = m + a m t σ = σ
BLP3-BL m = m σ = σ + a σ t
CLP3-CL m = m + a m t σ = C v · m
DLP3-DL m = m + a m t σ = σ + a σ t
APP3-AP m = m + a m t + b m t 2 σ = σ
BPP3-BP m = m σ = σ + a σ t + b σ t 2
CPP3-CP m = m + a m t + b m t 2 σ = C v · m
DPP3-DP m = m + a m t + b m t 2 σ = σ + a σ t + b σ t 2
Note: P3 denotes the Pearson type Ш.
Table 3. Comparison of design flood.
Table 3. Comparison of design flood.
StationUnitT = 100T = 50T = 20
XTX0E (%)XTX0E (%)XTX0E (%)
Wu-zhoum3/s65,92656,10117.5161,99052,57317.9156,37347,56418.52
Heng-menm2.932.689.332.832.5710.122.692.4211.16
Denglong-shan3.002.6314.072.882.5015.202.702.3116.88
Huang-jin3.653.2014.063.503.0016.673.282.7320.15
Xipao-tai3.183.34−4.793.063.12−1.922.902.832.47
Note: T is the return period.
Table 4. Scenarios employed.
Table 4. Scenarios employed.
ScenarioReturn Period
Flood FlowExtreme Tidal Level
1100a100a
2100a50a
350a100a
450a50a
Table 5. K-means clustering results.
Table 5. K-means clustering results.
Scenario NumberGroup 1Group 2Group 3
1Baiqing, Da’ao, Lianyao, Makou, Sanshui, Zhuyin, ZhuzhouBaijiao, Ganzhu, Lanshi, Nanhua, Rongqi, Sanduo, Tianhe, Xiaolan, ZidongBanshawei, Fengmamiao, Hengshan, Jiangmen, Ma’an, Sanshanjiao
4Baijiao, Baiqing, Da’ao, Lianyao, Sanduo, Sanshui, Zhuzhou, Zhuyin, ZidongGanzhu, Lanshi, Makou, Ma’an, Rongqi, XiaolanBanshawei, Fengmamiao, Jiangmen, Hengshan, Nanhua, Sanshanjiao, Tianhe

Share and Cite

MDPI and ACS Style

Tang, Y.; Guo, Q.; Su, C.; Chen, X. Flooding in Delta Areas under Changing Climate: Response of Design Flood Level to Non-Stationarity in Both Inflow Floods and High Tides in South China. Water 2017, 9, 471. https://doi.org/10.3390/w9070471

AMA Style

Tang Y, Guo Q, Su C, Chen X. Flooding in Delta Areas under Changing Climate: Response of Design Flood Level to Non-Stationarity in Both Inflow Floods and High Tides in South China. Water. 2017; 9(7):471. https://doi.org/10.3390/w9070471

Chicago/Turabian Style

Tang, Yihan, Qizhong Guo, Chengjia Su, and Xiaohong Chen. 2017. "Flooding in Delta Areas under Changing Climate: Response of Design Flood Level to Non-Stationarity in Both Inflow Floods and High Tides in South China" Water 9, no. 7: 471. https://doi.org/10.3390/w9070471

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
