Article

Improved Modeling of the Grinding Process through the Combined Use of Matrix and Population Balance Models

Technical University of Crete, School of Mineral Resources Engineering, University Campus, Kounoupidiana, Chania 73100, Greece
*
Author to whom correspondence should be addressed.
Minerals 2017, 7(5), 67; https://doi.org/10.3390/min7050067
Submission received: 22 March 2017 / Revised: 26 April 2017 / Accepted: 27 April 2017 / Published: 29 April 2017

Abstract

:
The mechanistic approach has proven so far to be flexible and successful for simulation of the grinding process. The basic idea underlying mechanistic models, namely the matrix and population balance models, is based on the identification of natural events during grinding. Since each model has its own capabilities and limitations, their combined use may offer additional advantages on this aspect. In this study, the matrix model and the selection function, namely the probability of breakage of the population balance model, were combined through a MATLAB code to predict the size distribution of the grinding products of quartz, marble, quartzite and metasandstone. The modeling results were in very good agreement with the particle size distributions obtained after grinding the feeds in a ball mill.

1. Introduction

Comminution is one of the most important processes of the mining industry and, more specifically, of the materials processing industry. However, it is an energy intensive process, especially at the stage of grinding, and consumes 3–4% of the electricity generated worldwide [1]. In addition, a large share of this energy is absorbed by the device and only a small fraction, given that the efficiency of Semi-Autogenous Grinding (SAG) mill is about 15%, is used for comminution [2]. Considering these factors, it is deduced that a slight increase in process efficiency may have a large impact on the operating cost of the mill, the environment and the conservation of resources.
Scientific research, which resulted in an increase of the grinding efficiency, started with the empirical relationships of Rittinger [3], Kick [4], Bond [5] and Walker and Show [6], which described the energy-particle size relationship. Then, theories which incorporated the concept of particle size distribution were developed [7,8], while in recent years research focused on the use of the mechanistic approach that was based on the recognition of physical events taking place during grinding [9]. The mechanistic approach includes the matrix model, which considers grinding as a series of breakage events and the kinetic model, namely the population balance model, which considers grinding as a continuous process. Other researchers focused their efforts on the advantages of the Attainable Region (AR) approach [10,11,12], while recently Shi and Xie used the t10 procedure to simulate batch [13] and continuous [14] grinding in a ball mill.
Mechanistic models consider that breakage of particles in a machine is a complex process, which cannot be analyzed by a single breakage event. Thus, it is necessary to split the process of comminution into individual sections and define the operations involved in each one. First, Epstein [15] considered that the process involves repetitive steps and each step can be described by a probability function, namely a selection or breakage rate function and a distribution function. Based on the concept of Epstein, first Broadbent and Callcott [16] considered the process of comminution in matrix form. In the matrix model, comminution involves a series of single breakage events, where the feed to each event is the product of the previous one [17]. The longer the period of grinding, the greater the number of breakage events. The particle size distributions of the feed and products of such a process can be determined by dividing the material into predetermined n size classes. The particles in all size classes have a probability of being broken and this probability may change as the size of the particle changes. With this model, after a number of u breakage events, the comminution process can be described by the following Equation (1),
p = ( B S + I S ) u f
where p and f are the product and the feed size distributions (1 × N vectors), B is the breakage function (N × N lower triangular matrix), S is the selection function (N × N diagonal matrix) and I is the identity matrix. The notation of the breakage function, the selection function and the identity matrix is shown in Figure 1, where bi,j is the mass fraction of the breakage product of size j that reports to a finer size i [18,19].
Broadbent and Callcott proposed a modified form of the Rosin-Rammler (RR) distribution [20] which can be used to describe the particle size distribution of the comminution products (Equation (2)),
B i , j = ( 1 e i / j ) / ( 1 e 1 )
where Bi,j is the mass fraction of the breakage product of size j which falls below size i.
The perfect mixing model, which can be considered as a special case of the population balance model, has also been used to optimize and scale up several different grinding circuits [21,22]. The basic concept of this model was developed by Whiten [23] and is the simplest case of multi-segment models, which consider only one segment [17]. The Julius Kruttschnitt Mineral Center (JKMRC) used this model to simulate industrial autogenous (AG) and semi-autogenous (SAG) mills for over 30 years and attempts were made to empirically correlate the breakage rate with the operating conditions and design characteristics of the mills [24].
In recent decades, emphasis was given to the optimization of energy consumption in grinding mills using phenomenological kinetic models based on population balance considerations. The population balance model is a discrete-size, continuous-time model which is based on first order kinetics and uses two functions, namely the breakage rate (or selection function) Si and the breakage function bi,j [18,25]. These functions define the fundamental size-mass balance equation for fully mixed batch grinding operations. Many researchers have underlined the advantages of these functions [26,27,28], while the scale-up from laboratory to industrial mills has also been discussed in a number of recent studies [1,29,30,31,32]. Furthermore, several studies investigated the effect of the variation of kinetic model parameters, when different mill operating conditions were used. These conditions include ball size [33,34,35,36], media shape [37,38], mill speed [28,39] and powder loading [40].
As far as the breakage rate Si (min−1) is concerned, Austin et al. [13] have proposed an empirical relationship (Equation (3)), which has been widely accepted [41,42,43],
S i = α Τ ( x i x 0 ) α Q i
where xi (mm) is the upper size of class i, x0 is the standard size (1 mm), αT is a parameter depending on milling conditions and α is a characteristic parameter depending on the material properties. More specifically, αT is the breakage rate for size xi = 1 mm and has the same units as Si (min−1). Qi is a correction factor, which is 1 for small particles (normal breakage) and less than 1 for large particles that need to be nipped and fractured by the grinding media (abnormal breakage). Qi is calculated by Equation (4),
Q i = ( 1 1 + ( x i / μ ) Λ )
where μ is a parameter that depends on milling conditions and denotes the particle size when the correction factor is 0.5. Λ is a positive number that depends on the material type and shows how rapidly the breakage rate decreases as size increases (Λ ≥ 0). In addition, the particle size xm for which the breakage rate takes the maximum value is related with the parameter μ as follows [34,44],
x m = μ ( α Λ α ) 1 / Λ
Equation (5) states that xm is directly proportional to μ considering that, for the same material, Λ and α are constants.
Kinetic and perfect mixing models received much more attention than the matrix model for simulating purposes. A noteworthy exception is the study of Deniz [45], in which a computer simulation of a matrix notation of the Broadbent and Callcott model was carried out and the obtained particle size distributions were compared with the experimental ones. Unlike the matrix model, the population balance model takes into consideration the abnormal breakage of large particles. In a kinetic model of this type there is an optimum size for which the breakage rate takes the maximum value, while above this size it decreases sharply (Equations (3) and (4)). Furthermore, it is mentioned that the matrix model is not directly related to the material type and the operating conditions (e.g., mill diameter, ball filling volume and mill speed). Thus, it is believed that the combined use of the matrix and population balance models will overcome a number of limitations of the traditional matrix model and result in a more realistic simulation of the grinding process.
The present study, through batch grinding experiments using quartz, marble, quartzite and metasandstone as test materials, aims to predict the particle size distributions of the products under different operating conditions. A MATLAB code was used to determine the kinetic parameters that minimize the error between the experimental Rosin-Rammler (RR) distributions and the model, for three different grinding times. Then, the same parameters were used to estimate the size distributions of different feed sizes.

2. Materials and Methods

The materials used in the present experimental study obtained from three different Greek sites, namely quartz from Assiros, near Thessaloniki, marble from west Crete, Chania area, and quartzite and metasandstone from west Crete, Kissamos area. The mineralogical analysis shows that marble mainly consists of calcite, while quartzite and metasandstone of quartz and some mica. Therefore, the chemical analysis shows that marble mainly consists of CaO present in calcite and dolomite, while quartzite and metasandstone of SiO2 present in quartz. The quartz samples used were of high purity white quartz. Porosity measurements of the raw materials, obtained with the use of Archimedes method [46], indicated that quartz has near zero porosity, marble and quartzite less than 1%, and metasandstone almost 8%. Also, the density of metasandstone is significantly lower than that of the other materials (Table 1).
The experiments were performed in a laboratory ball mill with a constant speed of n = 66 rpm (1.1 Hz) which is 70% of its critical speed. The mill charge consisted of stainless steel balls with density ρb = 7.85 g/cm3. The parameters that describe the mass of grinding media J and material fc, respectively, are calculated from Equations (6) and (7). J is the ball filling ratio, which is the fraction of the mill filled by the media bed, while fc is the filling ratio of the material fed in the mill.
J = ( V o l u m e   o f   s o l i d   b a l l s m i l l   v o l u m e ) 1 1 Φ
f c = ( V o l u m e   o f   s o l i d   m a t e r i a l m i l l   v o l u m e ) 1 1 Φ
where Φ is the bed porosity of balls and material (assumed to be 40%) [18].
The fraction of space between the balls at rest, U, that is filled with material bed (interstitial filling) can be calculated from Equation (8),
U = f c 0.4 J
The effect of two operating conditions, namely the interstitial filling U and the ball diameter d, were investigated by carrying out two series of tests (Table 2). In the first series three different U values (50%, 100% or 150%) were investigated, with fc constant at 4%, corresponding to 345 g of quartz or 351 g of marble. In the second series, balls with constant weight of almost 5.1 kg and three different diameters (40 mm, 25.4 mm or 12.7 mm) were used independently.
The samples were homogenized by the cone and quarter method and 6 kg of each material type was used for the tests. Each material was crushed with the use of a jaw crusher to a size of −4 mm. The product of the crusher was wet screened at 150 μm, while the +150 μm fraction was dried and screened using a series of screens, with an aperture ratio 2 to obtain the feed fractions. As a result, five mono-sized fractions for each material (−3.35 + 2.36 mm, −1.7 + 1.18 mm, −0.850 + 0.600 mm, −0.425 + 0.300 mm and −0.212 + 0.150 mm) were obtained, while the natural products obtained after 0.5 min of grinding were considered as initial feed. Then, grinding tests were performed at various grinding times t (0.5, 1.5, and 3.5 min) corresponding to three different grinding events (1, 3 and 7), with a step of 0.5 min. The obtained products were wet sieved using a series of screens with an aperture ratio of 2 for the determination of particle size distributions.
For the determination of the kinetic parameters and for modeling the process, a MATLAB code was developed using the following steps:
  • Determination of the capacity at each grinding event (1, 3 and 7), assuming that the product (mill feed rate) × (number of grinding steps) is a constant.
  • Determination of the breakage function proposed by Broadbent and Callcott (Equation (2)), after dividing the material into predetermined size classes with an aperture ratio 2 .
  • Determination of the ( B S + I S ) matrix. S is the selection function (N × N diagonal matrix), which is related to the feed size since its elements are expressed by the kinetic model (Equations (3) and (4)). Given that the selection function elements of the matrix model are pure numbers, the determined Si (min−1) values multiplied by the time interval dt of each individual event are assumed to be 0.5 min.
  • Determination of the product p size distribution after u breakage events, with the use of Equation (1).
  • Non-linear optimization of the objective function F through the “fmincon” function of the MATLAB software, and determination of the optimum αΤ, α, μ and Λ values that minimize the error between experimental size distributions RR and the model, for three different grinding times. The objective function F is defined with the use of Equation (9),
    F = u = 1 3 i = 1 n ( Q u i M o d Q u i E x p )
    where Q = loglog(100/(100 − P)) and P is the cumulative mass % finer than size x, as defined by the RR distribution [15]. The exponents Mod and Exp refer to the experimental data and the estimated results of the model, respectively, while u and i are indicators that refer to the grinding steps and sizes classes, respectively. A flowchart of the MATLAB code is shown in Figure 2.
  • After the estimation of the optimal kinetic parameters for a given feed size of a raw material, the next steps are (i) to verify whether these parameters can be used for different feeds of the same material; and (ii) to assess the fits between the experimental and estimated size distributions. The same MATLAB code was used to evaluate the effects of the material type and different milling conditions on the estimated parameters. Screen views of the code and optimization results (experimental and estimated RR size distributions) are presented in Figure 3 and Figure 4.

3. Results and discussion

3.1. First Series of Tests – Effect of Different Interstitial Filling Values

The investigation of the effect of different interstitial fillings U on the simulation of the grinding process focused on the study of marble and quartz as test materials under the conditions given in Table 2. According to the experimental order, the −0.850 + 0.600 mm feed was used for the optimization of the objective function F and the estimation of the kinetic parameters αΤ, α, μ and Λ of the selection function. Then, the values of parameters were used for the estimation of the particle size distributions of the −3.35 + 2.36 mm, −1.7 + 1.18 mm and −0.425 + 0.300 mm feed fractions. Figure 5, Figure 6 and Figure 7 show, as an example, the experimental and estimated size distributions of marble for each initial feed size and different interstitial filling values U (50%, 100% and 150%). From the results obtained it is seen that a very good agreement between experimental and estimated values, within the limits of experimental error, can be observed. The accuracy of the estimated distributions was determined by using the correlation coefficient R, as seen in Table 3, Table 4, Table 5 and Table 6 for marble for each initial feed and U = 50%. The same conclusions can be drawn for quartz using different U values.
The estimated parameters αΤ, α, μ and Λ of the selection function for marble and quartz for different U are shown in Table 7. These parameters enable the assessment of the relation of the matrix model with the material type and the change of interstitial filling U value. As far as the parameter αT (min−1) is concerned, it is seen that the corresponding values for marble are much higher than those for quartz indicating that marble is ground with a higher rate. Also, from the same table, it is seen that for the same material the value of αΤ increases when U decreases and this suggests that grinding is more effective at lower U values. However, a recent study has shown that there is an optimum value of U for which the breakage rate obtains the maximum value and grinding becomes more efficient [30].

3.2. Second Series of Tests—Effect of Different Ball Diameter

The investigation of the effect of ball diameter on the simulation of the grinding process focused on quartzite and metasandstone as test materials under the conditions given in Table 2. Following the procedure described previously, the optimum values αΤ, α, μ and Λ of the −0.850 + 0.600 mm initial feed fraction were used for the prediction of the particle size distributions of the −3.35 + 2.36 mm, −1.7 + 1.18 mm and −0.425 + 0.300 mm initial feeds. Figure 8, Figure 9 and Figure 10 present as an example, the experimental and estimated size distributions of quartzite for each initial feed size and different ball diameter d (12.7 mm, 25.4 mm and 40 mm). From the results obtained it is seen that in general a very good agreement between experimental and estimated values, within the limits of experimental error, can be observed. However, poorer fit of the experimental data can be seen when the coarse size, −3.35 + 2.36 mm, was used as feed. This may be due to the abnormal grinding behavior of large particles that need to be nipped and fractured by the grinding media, as also reported by other researchers [18,26,47]. The experimental and estimated size distributions for quartzite at each step are shown in Table 8, Table 9, Table 10 and Table 11. The accuracy of the estimated distributions was determined by using the correlation coefficient R. The same conclusions can be drawn for metasandstone when balls of different diameter d are used.
The estimated parameters αΤ, α, μ and Λ of the selection function are shown in Table 12, for quartzite and metasandstone and for different balls diameter d. As far as the parameter αT (min−1) is concerned, it is seen that the corresponding values for metasandstone are much higher than the ones for quartzite indicating that metasandstone is ground with a higher rate. Also, from Table 12 it is seen that for the same material the value of αT increases when d decreases and this suggests that grinding becomes more effective when smaller balls are used. Regarding the effect of ball diameter d on μ parameter it is revealed that the value of μ increases when d increases as well. Since μ is directly proportional to the optimum size xm (Equation (4)), these findings indicate that small balls are more effective for grinding fine particles, whereas large balls are required to break the coarser ones [18,35].

4. Conclusions

In this study, the grinding of quartz, marble, quartzite and metasandstone was simulated under different operating conditions, through the combined use of Broadbent and Callcott matrix and population balance models. Also, with the use of a MATLAB code, the breakage rate parameters (αT, α, μ, Λ) of an initial feed that minimize the error between the experimental Rosin-Rammler (RR) and the model distributions were determined for three different grinding times. Then, the same parameters were used to estimate the size distribution of other feed sizes under the same operating conditions. The results showed a very good agreement between experimental and estimated particle size distributions.
In light of the results obtained from the study of the breakage rate parameters for different interstitial filling U values, it can be concluded that for different αT values marble is ground with a higher rate when compared with quartz. On the other hand, the value of μ parameter seems to remain constant when U changes and this suggests that the optimum size xm at which the breakage rate obtains the maximum value is independent of U. Regarding the study of the effect of different ball diameter d on the grinding process simulation, it is shown that the value of αΤ increases with decreasing d and this suggests that grinding is more effective when smaller balls are used. Also, the findings of this study support the general concept that small balls are more efficient for grinding finer particles, whereas large balls are required to break coarser ones. Under the same grinding conditions (U = 50% and d = 25.4 mm) the breakage rate of the examined raw minerals follows the order: metasandstone > marble > quartzite > quartz.
Finally, it is deduced that the proposed approach offers the following advantages:
  • Reduces the number of tests required and therefore reduces the cost of grinding.
  • Predicts more accurately the distribution of grinding products by taking into account the effect of the type of the feed and the grinding conditions used.
  • It can be also applied to feeds with broader size distribution, in contrast with the population balance model, which is mainly applied for mono-sized fractions.
  • Can be easily applied to full-scale operations.

Author Contributions

Evangelos Petrakis conceived, designed and performed the experiments, analyzed the data and wrote the paper; Konstantinos Komnitsas critically reviewed the experimental design, the analysis of the results and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Deniz, V. Comparisons of dry grinding kinetics of lignite, bituminous coal and petroleum coke. Energy Sources Part A 2013, 35, 913–920. [Google Scholar] [CrossRef]
  2. Djordjevic, N. Improvement of energy efficiency of rock comminution through reduction of thermal losses. Miner. Eng. 2010, 23, 1237–1244. [Google Scholar] [CrossRef]
  3. Rittinger, P.R. Lehrbuch der Aufbereitungskunde; Ernst and Korn: Berlin, Germany, 1867. [Google Scholar]
  4. Kick, F. Das Gesetz der Proportionalen Widerstände Und Seine Anwendungen; Felix: Leipzig, Germany, 1885. [Google Scholar]
  5. Bond, F.C. The third theory of comminution. Trans. AIME 1952, 193, 484–494. [Google Scholar]
  6. Walker, D.R.; Shaw, M.C. A physical explanation of the empirical laws of comminution. Trans. AIME 1954, 199, 313–320. [Google Scholar]
  7. Charles, R.J. Energy—size reduction relationships in comminution. Trans. AIME 1957, 208, 80–88. [Google Scholar]
  8. Stamboliadis, E. A contribution to the relationship of energy and particle size in the comminution of brittle particulate materials. Miner. Eng. 2002, 15, 707–713. [Google Scholar] [CrossRef]
  9. Fuerstenau, D.W.; Phatak, P.B.; Kapur, P.C.; Abouzeid, A.-Z.M. Simulation of the grinding of coarse/fine (heterogeneous) systems in a ball mill. Int. J. Miner. Process. 2011, 99, 32–38. [Google Scholar] [CrossRef]
  10. Khumalo, N.; Glasser, D.; Hildebrandt, D.; Hausberger, B. Improving comminution efficiency using classification: An attainable region approach. Powder Technol. 2008, 187, 252–259. [Google Scholar] [CrossRef]
  11. Katubilwa, F.M.; Moys, M.; Michael, H.; Glasser, D.; Hildebrandt, D. An attainable region analysis of the effect of ball size on milling. Powder Technol. 2011, 210, 36–46. [Google Scholar] [CrossRef]
  12. Danha, G.; Hildebrandt, D.; Glasser, D.; Bhondayi, C. A laboratory scale application of the attainable region technique on a platinum ore. Powder Technol. 2015, 274, 14–19. [Google Scholar] [CrossRef]
  13. Shi, F.; Xie, W. A specific energy-based size reduction model for batch grinding ball mill. Miner. Eng. 2015, 70, 130–140. [Google Scholar] [CrossRef]
  14. Shi, F.; Xie, W. A specific energy-based ball mill model: From batch grinding to continuous operation. Miner. Eng. 2016, 86, 66–74. [Google Scholar] [CrossRef]
  15. Epstein, B. Logaritmico-normal distributions in breakage of solids. Ind. Eng. Chem. 1948, 40, 2289–2291. [Google Scholar] [CrossRef]
  16. Broadbent, S.R.; Callcott, T.G. A Matrix Analysis of Processes Involving Particle Assemblies. Philos. Trans. R. Soc. A Math. Phys. Eng. Sci. 1956, 249, 99–123. [Google Scholar] [CrossRef]
  17. Lynch, A.J. Mineral Crushing and Grinding Circuit—Their Simulation, Optimisation, Design and Control; Elsevier: Amsterdam, The Netherlands, 1977. [Google Scholar]
  18. Austin, L.G.; Klimpel, R.R.; Luckie, P.T. Process Engineering of Size Reduction: Ball Milling; SME/AIME: New York, NY, USA, 1984. [Google Scholar]
  19. Deniz, V. The effects of moisture content and coal mixtures on the grinding behavior of two different coals. Energy Sources Part A 2014, 36, 292–300. [Google Scholar] [CrossRef]
  20. Allen, T. Powder Sampling and Particle Size Determination; Elsevier: Amsterdam, The Netherlands, 2003. [Google Scholar]
  21. Napier-Munn, T.J.; Morrell, S.; Morrison, R.D.; Kojovic, T. Mineral Comminution Circuits: Their Operation and Optimization; Julius Kruttschnitt Mineral Research Centre: Indooroopilly, Australia, 1996. [Google Scholar]
  22. Erdem, A.S.; Ergun, S.L. The effect of ball size on breakage rate parameter in a pilot scale ball mill. Miner. Eng. 2009, 22, 660–664. [Google Scholar] [CrossRef]
  23. Whiten, W.J. A matrix theory of comminution machines. Chem. Eng. Sci. 1974, 29, 589–599. [Google Scholar] [CrossRef]
  24. Delboni, H.J.; Morrell, S. A load-interactive model for predicting the performance of autogenous and semi-autogenous mills. KONA Powder Part. J. 2002, 20, 208–222. [Google Scholar] [CrossRef]
  25. Herbst, J.A.; Fuerstenau, D.W. Scale-up procedure for continuous grinding mill design using population balance models. Int. J. Miner. Process. 1980, 7, 1–31. [Google Scholar] [CrossRef]
  26. Ipek, H.; Göktepe, F. Determination of grindability characteristics of zeolite. Physicochem. Probl. Miner. Process. 2011, 47, 183–192. [Google Scholar]
  27. Wang, X.; Gui, W.; Yang, C.; Wang, Y. Wet grindability of an industrial ore and its breakage parameters estimation using population balances. Int. J. Miner. Process. 2011, 98, 113–117. [Google Scholar] [CrossRef]
  28. Gupta, V.K.; Sharma, S. Analysis of ball mill grinding operation using mill power specific kinetic parameters. Adv. Powder Technol. 2014, 25, 625–634. [Google Scholar] [CrossRef]
  29. Fuerstenau, D.W.; Kapur, P.C.; De, A. Modelling Breakage Kinetics in Various Dry Comminution Systems. KONA Powder Part. J. 2003, 21, 121–132. [Google Scholar] [CrossRef]
  30. Petrakis, E.; Stamboliadis, E.; Komnitsas, K. Identification of Optimal Mill Operating Parameters during Grinding of Quartz with the Use of Population Balance Modeling. KONA Powder Part. J. 2017, 34, 213–223. [Google Scholar] [CrossRef]
  31. Mulenga, F.K. Sensitivity analysis of Austin’s scale-up model for tumbling ball mills—Part 1. Effects of batch grinding parameters. Powder Technol. 2017, 311, 398–407. [Google Scholar] [CrossRef]
  32. Mulenga, F.K. Sensitivity analysis of Austin’s scale-up model for tumbling ball mills—Part 2. Effects of full-scale milling parameters. Powder Technol. 2017, 317, 6–12. [Google Scholar] [CrossRef]
  33. Katubilwa, F.M. Effect of Ball Size Distribution on Milling Parameters. Master of Science Dissertation, University of the Witwatersrand, Johannesburg, South Africa, 2008. [Google Scholar]
  34. Katubilwa, F.M.; Moys, M.H. Effect of ball size distribution on milling rate. Miner. Eng. 2009, 22, 1283–1288. [Google Scholar] [CrossRef]
  35. Deniz, V. The effects of ball filling and ball diameter on kinetic breakage parameters of barite powder. Adv. Powder Technol. 2012, 23, 640–646. [Google Scholar] [CrossRef]
  36. Olejnik, T.P. Selected mineral materials grinding rate and its effect on product granulometric composition. Physicochem. Probl. Miner. Process. 2013, 49, 407–418. [Google Scholar]
  37. Qian, H.Y.; Kong, Q.G.; Zhang, B.L. The effects of grinding media shapes on the grinding kinetics of cement clinker in ball mill. Powder Technol. 2013, 235, 422–425. [Google Scholar] [CrossRef]
  38. Umucu, Y.; Altıniğne, M.Y.; Deniz, V. The effects of ball types on breakage parameters of barite. J. Pol. Miner. Eng. Soc. 2014, 15, 113–117. [Google Scholar]
  39. Carvalho, R.M.; Tavares, M. Predicting the effect of operating and design variables on breakage rates using the mechanistic ball mill model. Miner. Eng. 2013, 43–44, 91–101. [Google Scholar] [CrossRef]
  40. Shin, H.; Lee, S.; Jung, H.S.; Kim, J.-B. Effect of ball size and powder loading on the milling efficiency of a laboratory-scale wet ball mill. Ceram. Int. 2013, 39, 8963–8968. [Google Scholar] [CrossRef]
  41. Mokokha, A.B.; Moys, M.H. Towards optimizing ball-milling capacity: Effect of lifter design. Miner. Eng. 2006, 19, 1439–1445. [Google Scholar] [CrossRef]
  42. Ipek, H. The effects of grinding media shape on breakage rate. Miner. Eng. 2006, 19, 91–93. [Google Scholar] [CrossRef]
  43. Samanli, S.; Cuhadaroglu, D.; Ipek, H.; Ucbas, Y. The investigation of grinding kinetics of power plant solid fossil fuel in ball mill. Fuel 2010, 89, 703–707. [Google Scholar] [CrossRef]
  44. Simba, K.P.; Moys, M.H. Effects of mixtures of grinding media of different shapes on milling kinetics. Miner. Eng. 2014, 61, 40–46. [Google Scholar] [CrossRef]
  45. Deniz, V. Computer simulation of product size distribution of a laboratory ball mill. Part. Sci. Technol. 2011, 29, 541–553. [Google Scholar] [CrossRef]
  46. British Standards Institution. Natural Stone Test Methods. Determination of Real Density and Apparent Density, and of Total and Open Porosity. BS EN 1936:2006; British Standards Institution: London, UK, 2017. [Google Scholar]
  47. Chimwani, N.; Glasser, D.; Hildebrandt, D.; Metzger, M.J.; Mulenga, F.K. Determination of the milling parameters of a platinum group minerals ore to optimize product size distribution for flotation purposes. Miner. Eng. 2013, 43–44, 67–78. [Google Scholar] [CrossRef]

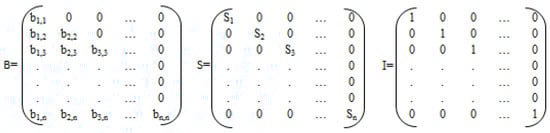

Figure 1. Notation of the breakage function, the selection function and the identity matrix.
Figure 1. Notation of the breakage function, the selection function and the identity matrix.
Minerals 07 00067 g001

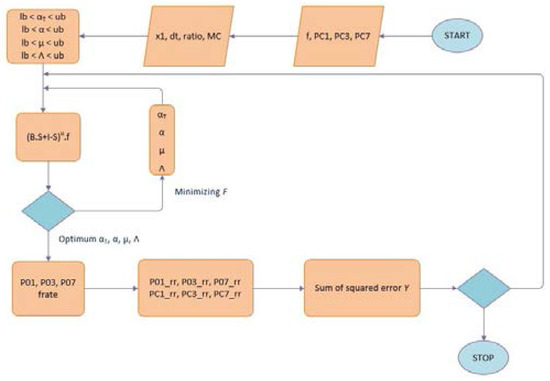

Figure 2. Flowchart of the MATLAB code.
Figure 2. Flowchart of the MATLAB code.
Minerals 07 00067 g002

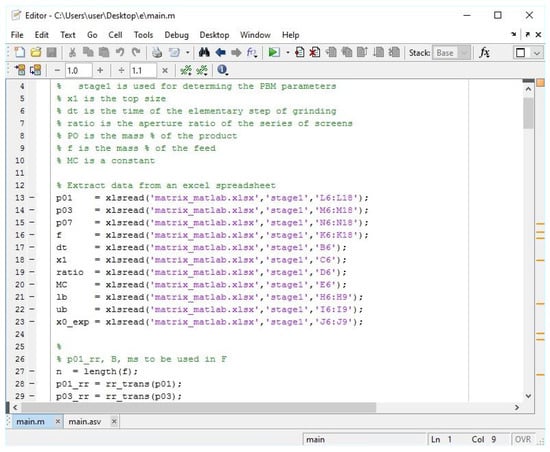

Figure 3. Screen view of the MATLAB code.
Figure 3. Screen view of the MATLAB code.
Minerals 07 00067 g003

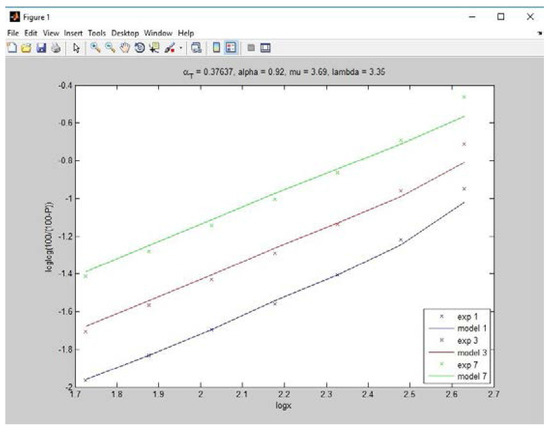

Figure 4. Screen view of experimental and estimated RR particle size distributions.
Figure 4. Screen view of experimental and estimated RR particle size distributions.
Minerals 07 00067 g004

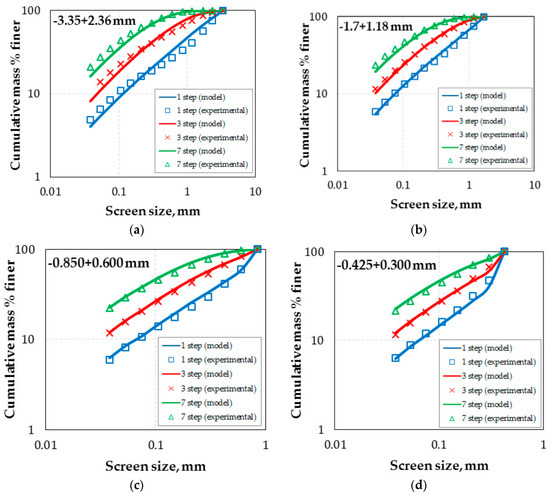

Figure 5. Experimental and estimated particle size distributions of marble for each initial feed (U = 50%). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Figure 5. Experimental and estimated particle size distributions of marble for each initial feed (U = 50%). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Minerals 07 00067 g005

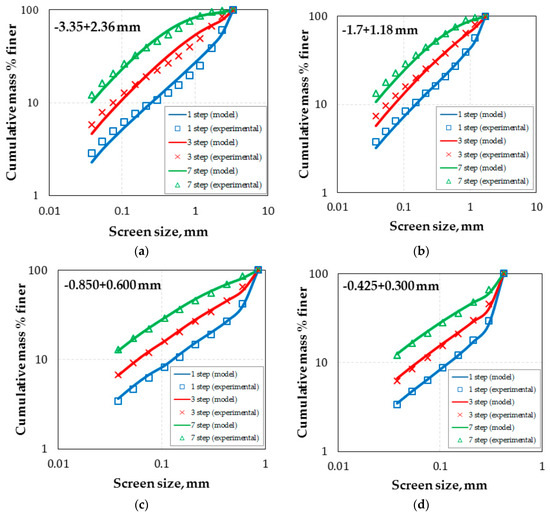

Figure 6. Experimental and estimated particle size distributions of marble for each initial feed (U = 100%). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Figure 6. Experimental and estimated particle size distributions of marble for each initial feed (U = 100%). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Minerals 07 00067 g006

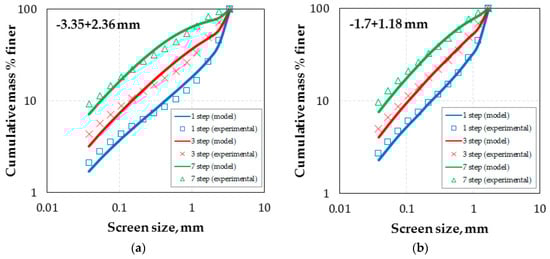

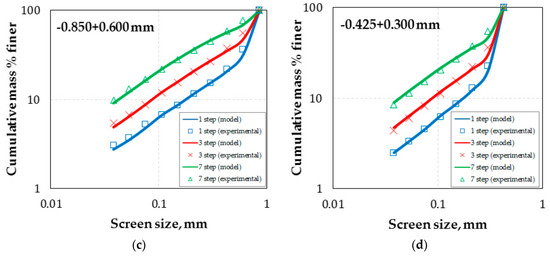

Figure 7. Experimental and estimated particle size distributions of marble for each initial feed (U = 150%). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Figure 7. Experimental and estimated particle size distributions of marble for each initial feed (U = 150%). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Minerals 07 00067 g007aMinerals 07 00067 g007b

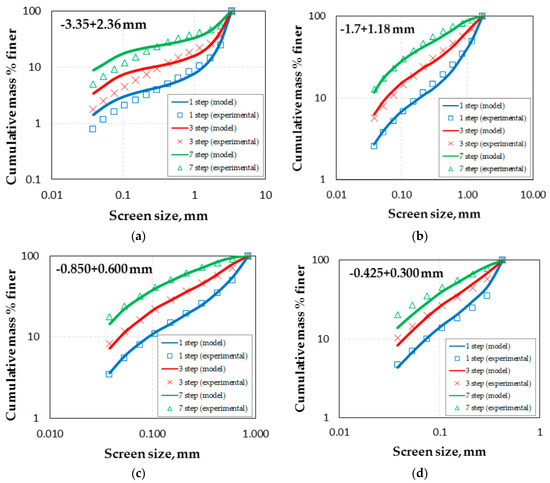

Figure 8. Experimental and estimated particle size distributions of quartzite for each initial feed (d = 12.7 mm). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Figure 8. Experimental and estimated particle size distributions of quartzite for each initial feed (d = 12.7 mm). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Minerals 07 00067 g008

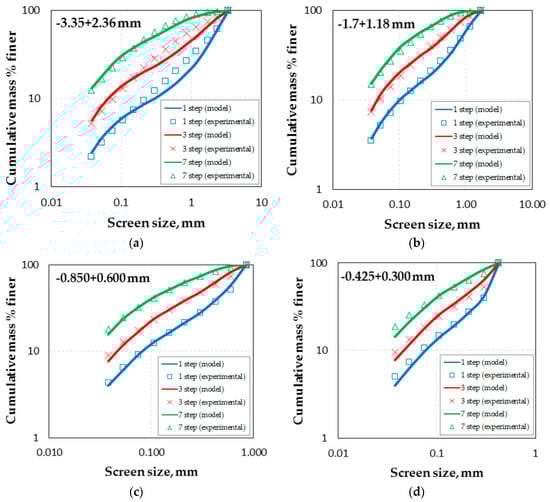

Figure 9. Experimental and estimated particle size distributions of quartzite for each initial feed (d = 25.4 mm). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Figure 9. Experimental and estimated particle size distributions of quartzite for each initial feed (d = 25.4 mm). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Minerals 07 00067 g009

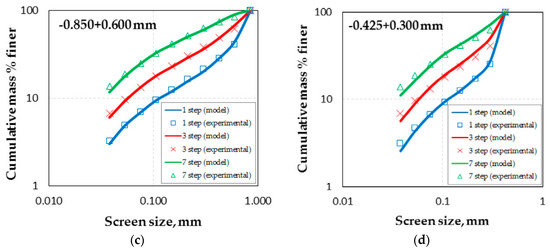

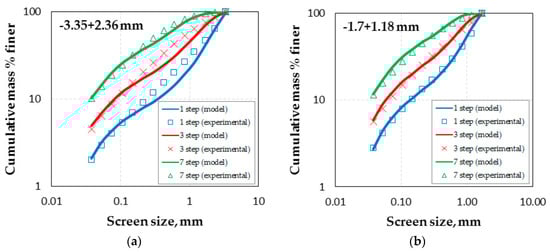

Figure 10. Experimental and estimated particle size distributions of quartzite for each initial feed (d = 40 mm). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Figure 10. Experimental and estimated particle size distributions of quartzite for each initial feed (d = 40 mm). Feed size (a) −3.35 + 2.36 mm; (b) −1.7 + 1.18 mm; (c) −0.850 + 0.600 mm; (d) −0.425 + 0.300 mm.
Minerals 07 00067 g010aMinerals 07 00067 g010b
Table 1. Porosity and density of the raw materials used.
Table 1. Porosity and density of the raw materials used.
MaterialPorosity (%)Density (g/cm3)
quartz0.022.65
marble0.32.7
quartzite0.92.6
metasandstone8.02.1
Table 2. Grinding conditions used in the first and second series of tests.
Table 2. Grinding conditions used in the first and second series of tests.
ItemDescriptionFirst SeriesSecond Series
milldiameter, D (cm)20.420.4
length, L (cm)16.616.6
volume, V (cm3)54235423
operational speed, Ν (rpm)6666
critical speed, Νc (rpm)93.793.7
ballsdiameter, d (mm)25.440, 25.4, 12.7
number77, 38, 2620, 77, 613
weight (g)5149, 2540, 17385298, 5149, 5149
density (g/cm3)7.857.85
porosity (%)4040
ball filling volume, J (%)20, 10, 6.720
materialdensity (g/cm3)quartz (2.65)marble (2.7)
marble (2.7)quartzite (2.6)
-metasandstone (2.61)
material filling volume, fc (%)44
interstitial filling, U (%)50, 100, 15050
Table 3. Cumulative mass % finer for −3.35 + 2.36 mm feed and U = 50% (marble).
Table 3. Cumulative mass % finer for −3.35 + 2.36 mm feed and U = 50% (marble).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
3.35100100100100100100100
2.3651.481.775.897.494.999.999.9
1.7032.267.157.092.787.399.799.7
1.1820.752.941.284.575.698.598.6
0.85016.142.233.574.166.195.196.1
0.60012.633.026.862.655.588.790.0
0.42510.526.022.551.447.479.681.3
0.3008.820.419.041.340.168.771.3
0.2127.416.016.332.634.557.462.6
0.1506.012.313.325.228.146.552.6
0.1064.99.510.919.322.836.843.6
0.0753.87.18.514.517.928.434.8
0.0533.05.46.510.913.821.727.7
0.0382.34.04.98.110.516.321.0
Correlation0.9900.9950.999
Coefficient, R
Table 4. Cumulative mass % finer for −1.7 + 1.18 mm feed and U = 50% (marble).
Table 4. Cumulative mass % finer for −1.7 + 1.18 mm feed and U = 50% (marble).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
1.70100100100100100100100
1.1849.775.674.794.294.499.799.8
0.85034.060.457.485.685.398.098.9
0.60023.747.142.774.271.293.794.8
0.42518.037.033.362.459.186.286.7
0.30014.128.926.351.048.676.376.1
0.21211.522.621.640.940.965.167.7
0.1508.917.316.831.932.553.656.7
0.1067.113.313.424.625.843.047.2
0.0755.410.010.218.620.033.738.2
0.0534.17.47.813.915.525.830.7
0.0383.05.55.810.311.619.523.7
Correlation0.9980.9990.999
Coefficient, R
Table 5. Cumulative mass % finer for −0.850 + 0.600 mm feed and U = 50% (marble).
Table 5. Cumulative mass % finer for −0.850 + 0.600 mm feed and U = 50% (marble).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
0.850100100100100100100100
0.60037.458.560.081.784.196.597.2
0.42523.443.541.369.067.490.589.7
0.30016.433.129.856.953.281.777.9
0.21212.625.723.146.043.171.066.9
0.1509.419.417.636.133.659.355.2
0.1067.214.714.027.926.548.245.8
0.0755.410.910.621.120.438.036.7
0.0534.48.58.116.215.829.629.1
0.0383.36.36.012.011.822.522.5
Correlation0.9990.9980.998
Coefficient, R
Table 6. Cumulative mass % finer for −0.425 + 0.300 mm feed and U = 50% (marble).
Table 6. Cumulative mass % finer for −0.425 + 0.300 mm feed and U = 50% (marble).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
0.425100100100100100100100
0.30026.840.147.259.967.282.085.6
0.21216.228.131.747.049.471.070.2
0.15011.120.721.936.836.359.655.9
0.1068.015.516.128.527.748.645.2
0.0755.811.512.021.720.738.535.6
0.0534.48.68.916.415.729.927.5
0.0383.26.36.412.111.522.721.7
Correlation0.9970.9960.998
Coefficient, R
Table 7. Selection function parameter values for different U.
Table 7. Selection function parameter values for different U.
U (%)MarbleQuartz
αΤ (min−1)α (°)μ (mm)Λ (°)αΤ (min−1)α (°)μ (mm)Λ (°)
500.870.903.723.360.461.132.113.15
1000.460.923.693.350.231.152.113.15
1500.320.923.693.350.151.152.113.15
Table 8. Cumulative mass % finer for the −3.35 + 2.36 mm feed and d = 12.7 mm (quartzite).
Table 8. Cumulative mass % finer for the −3.35 + 2.36 mm feed and d = 12.7 mm (quartzite).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
3.35100100100100100100100
2.3617.524.228.235.943.254.363.8
1.707.914.613.726.724.946.444.6
1.184.610.58.721.817.641.535.4
0.8503.48.16.818.114.837.131.2
0.6002.66.35.614.812.732.728.0
0.4252.15.04.811.911.428.025.8
0.3001.84.04.39.510.423.423.8
0.2121.63.23.97.59.619.022.3
0.1501.42.63.55.88.715.120.3
0.1061.22.13.04.57.711.918.0
0.0751.01.62.53.46.39.114.7
0.0530.71.21.92.54.66.811.3
0.0380.50.81.41.83.45.08.8
Correlation0.9990.9930.981
coefficient, R
Table 9. Cumulative mass % finer for the −1.7 + 1.18 mm feed and d = 12.7 mm (quartzite).
Table 9. Cumulative mass % finer for the −1.7 + 1.18 mm feed and d = 12.7 mm (quartzite).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
1.70100100100100100100100
1.1834.248.651.368.774.688.392.2
0.85019.334.333.156.956.781.982.2
0.60012.025.222.146.942.374.567.7
0.4258.519.216.338.233.465.857.2
0.3006.514.712.830.527.256.248.3
0.2125.311.510.724.023.246.741.9
0.1504.38.98.718.719.137.735.2
0.1063.56.97.114.315.829.829.2
0.0752.75.25.510.812.323.023.1
0.0532.03.84.07.99.117.417.5
0.0381.22.52.75.66.212.911.7
Correlation0.9980.9950.992
coefficient, R
Table 10. Cumulative mass % finer for the −0.850 + 0.600 mm feed and d = 12.7 mm (quartzite).
Table 10. Cumulative mass % finer for the −0.850 + 0.600 mm feed and d = 12.7 mm (quartzite).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
0.850100100100100100100100
0.60033.449.355.170.779.390.295.2
0.42519.534.835.657.459.482.084.3
0.30012.725.624.946.145.072.170.8
0.2129.419.619.236.836.061.560.0
0.1507.014.714.728.728.350.749.0
0.1065.311.111.522.022.440.739.6
0.0753.67.98.516.316.231.730.2
0.0532.35.55.911.811.324.022.1
0.0381.13.53.78.27.217.714.4
Correlation0.9980.9960.999
coefficient, R
Table 11. Cumulative mass % finer for the −0.425 + 0.300 mm feed and d = 12.7 mm (quartzite).
Table 11. Cumulative mass % finer for the −0.425 + 0.300 mm feed and d = 12.7 mm (quartzite).
Screen Size (mm)FeedStep 1Step 3Step 7
ExperimentalModelExperimentalModelExperimentalModel
0.425100100100100100100100
0.30029.040.146.557.569.378.584.7
0.21217.527.730.144.349.967.067.5
0.15011.519.820.634.236.455.652.0
0.1068.314.814.926.427.345.140.1
0.0755.710.710.319.819.035.428.7
0.0533.87.56.714.512.627.120.1
0.0382.35.14.410.48.320.313.8
Correlation0.9970.9900.996
coefficient, R
Table 12. Selection function parameter values for different ball diameter.
Table 12. Selection function parameter values for different ball diameter.
Balls Diameter (mm)QuartziteMetasandstone
αΤ (min−1)α (°)μ (mm)Λ (°)αΤ (min−1)α (°)μ (mm)Λ (°)
400.500.843.843.150.821.124.213.46
25.40.670.842.763.150.911.122.883.46
12.70.730.841.413.151.041.121.643.46

Share and Cite

MDPI and ACS Style

Petrakis, E.; Komnitsas, K. Improved Modeling of the Grinding Process through the Combined Use of Matrix and Population Balance Models. Minerals 2017, 7, 67. https://doi.org/10.3390/min7050067

AMA Style

Petrakis E, Komnitsas K. Improved Modeling of the Grinding Process through the Combined Use of Matrix and Population Balance Models. Minerals. 2017; 7(5):67. https://doi.org/10.3390/min7050067

Chicago/Turabian Style

Petrakis, Evangelos, and Konstantinos Komnitsas. 2017. "Improved Modeling of the Grinding Process through the Combined Use of Matrix and Population Balance Models" Minerals 7, no. 5: 67. https://doi.org/10.3390/min7050067

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
