Article

Mineralogical and Geochemical Compositions of the Lopingian Coals and Carbonaceous Rocks in the Shugentian Coalfield, Yunnan, China: with Emphasis on Fe-Bearing Minerals in a Continental-Marine Transitional Environment

1
State Key Laboratory of Coal Resources and Safe Mining, China University of Mining and Technology, Beijing 100083, China
2
College of Geoscience and Survey Engineering, China University of Mining and Technology (Beijing), Beijing 100083, China
3
Shandong Provincial Key Laboratory of Depositional Mineralization & Sedimentary Mineral, Shandong University of Science and Technology, Qingdao 266590, China
*
Author to whom correspondence should be addressed.
Minerals 2017, 7(9), 170; https://doi.org/10.3390/min7090170
Submission received: 28 July 2017 / Revised: 31 August 2017 / Accepted: 9 September 2017 / Published: 14 September 2017
(This article belongs to the Special Issue Toxic Mineral Matter in Coal and Coal Combustion Products)

Abstract

:
This paper presents the mineralogical and geochemical compositions of coal benches and non-coal (carbonaceous rock benches, parting, roof and floor) samples from the No. 1 Coal in the Longtan Formation of the Permian-Lopingian epoch from the Shugentian Coalfield, eastern Yunnan Province, southwestern China. The coal is rich in Nb, Ta, Zr, and Hf, which were derived from the Kangdian Upland with the dominant compositions of the Emeishan basalt. The minerals identified in the samples include mixed-layer illite-smectite, kaolinite, quartz, siderite, and minor calcite, pyrite, anatase and ankerite. Albite and chamosite occur in the roof and floor samples. The parting sample (SGT1-2p) is characterized by abundant siderite (64.9%) and calcite (20.1%), and one carbonaceous rock sample SGT1-11 contained a large amount of pyrite (26.1%). Four factors were responsible for the geochemical and mineralogical compositions in the samples; namely, the terrigenous detrital materials transported from the Kangdian Upland, direct volcanic ash inputs, multi-stage inputs of hydrothermal fluids, and marine influences. The co-existence of siderite and pyrite was attributed to a continental-marine transitional environment.

1. Introduction

The mineralogical and geochemical compositions of coal seams are influenced by many factors and geological processes that may have taken place over several periods [1,2,3,4,5,6,7]. Ren et al. [8] proposed five genetic types of enrichment for trace elements in Chinese coals, including source rock controlled, sedimentation-organism controlled, magma hydrothermalism controlled, deep and large fault-hydrothermalism controlled, and groundwater controlled types. Later, Ren et al. [9] and Dai et al. [10] suggested that volcanic activity and submarine exhalation are also factors affecting coal geochemistry and mineralogy. Subsequently, Dai et al. [11] reviewed the geochemistry of Chinese coals and proposed five types of genetic controls: source rock, marine environment, volcanic ash, hydrothermal fluids (including magmatic hydrothermal fluid, low temperature hydrothermal fluid, and submarine exhalation), and groundwater.
A number of studies have investigated the mineralogical and geochemical compositions of Lopingian coals and coal-bearing strata in southwestern China [12,13,14,15,16,17,18,19,20], which are dominantly controlled by Emeishan Large Igneous Province (ELIP) [21], as well as associated intense and frequent active volcanism [22,23,24,25] and related hydrothermal processes [10,26,27,28,29,30,31,32]. A number of the Lopingian coals in southwestern China are consequently rich not only in toxic elements [33,34], but also in critical metals that have potentially great economic significance [35,36,37,38,39,40]. ELIP was resulted from mantle plume activity between Guadalupian and Lopingian [41,42,43,44,45]. It is considered to be a potential cause of global climate change and bio-extinction events (end-Guadalupian mass extinction) [37,46]. After the uplift of the Emeishan mantle plume, a large-scale basalt erupted and overflowed, and ultimately formed the Kangdian Upland in the middle of ELIP [42], which is the dominant sediment-source region for the Lopingian coal-bearing strata in eastern Yunnan, western Guizhou, and southern Sichuan provinces (Figure 1) [21,23,47,48,49].
The Shugentian Coalfield is the one of the major coal producers in eastern Yunnan Province and No. 1 Coal is the major minable coal seam in the coalfield, although its thickness is generally 0.3 m, as revealed by the 201 drill-hoe. The strata overlying and underlying the No. 1 Coal contains high organic matter, and thus they are mined together with the coal as feed coals for local power plants, although the ash yield in these strata are over than 50% (from 54% to 72% and 64.5% on average) and are not generally considered to be coal. These strata are named as carbonaceous rock in this study. The elemental and mineralogical compositions in these strata, and their comparison with those in the coal, have not been addressed in detail in the Shugentian Coalfield.
This paper presents new data and discusses the mineralogical and geochemical compositions in No. 1 Coal, and in its underlying and overlying strata (carbonaceous rocks) in the Shugentian Coalfield. Particularly, we emphasized the formation of pyrite and siderite that co-exists in the samples, as well as factors responsible for mineralogical and elemental compositions.

2. Geological Setting

The Shugentian Coalfield is located in the Luoping County of eastern Yunnan Province, southwestern China (Figure 1). The sedimentary sequences in the Shugentian Coalfield include Devonian, Carboniferous, Permian, Triassic, Paleogene, Neogene, and Quaternary. The Carboniferous, Permian, and Triassic strata are widely distributed in the coalfield. No. 201 drill hole covers the Lopingian Longtan and Changxing formations, the Lower Triassic Kayitou and Feixianguan formations, and the Quaternary as well.
The coal-bearing sequences in the Shugentian Coalfield are the Lopingian Longtan Formation and the overlying Changxing Formation, containing seven to 12 coal seams (include four minable seams). The Longtan Formation, with a thickness of 124 to 209 m (average 166 m), is distributed in the western coalfield and is mainly composed of sandstone and mudstone, interbedded with thin layers of limestone (in 201 drill-hole, limestone is in the bottom of Longtan Formation, with a depth of ~650 m) and coal seams [23]. This formation was deposited in a continental-marine transitional environment [23] (Figure 1).

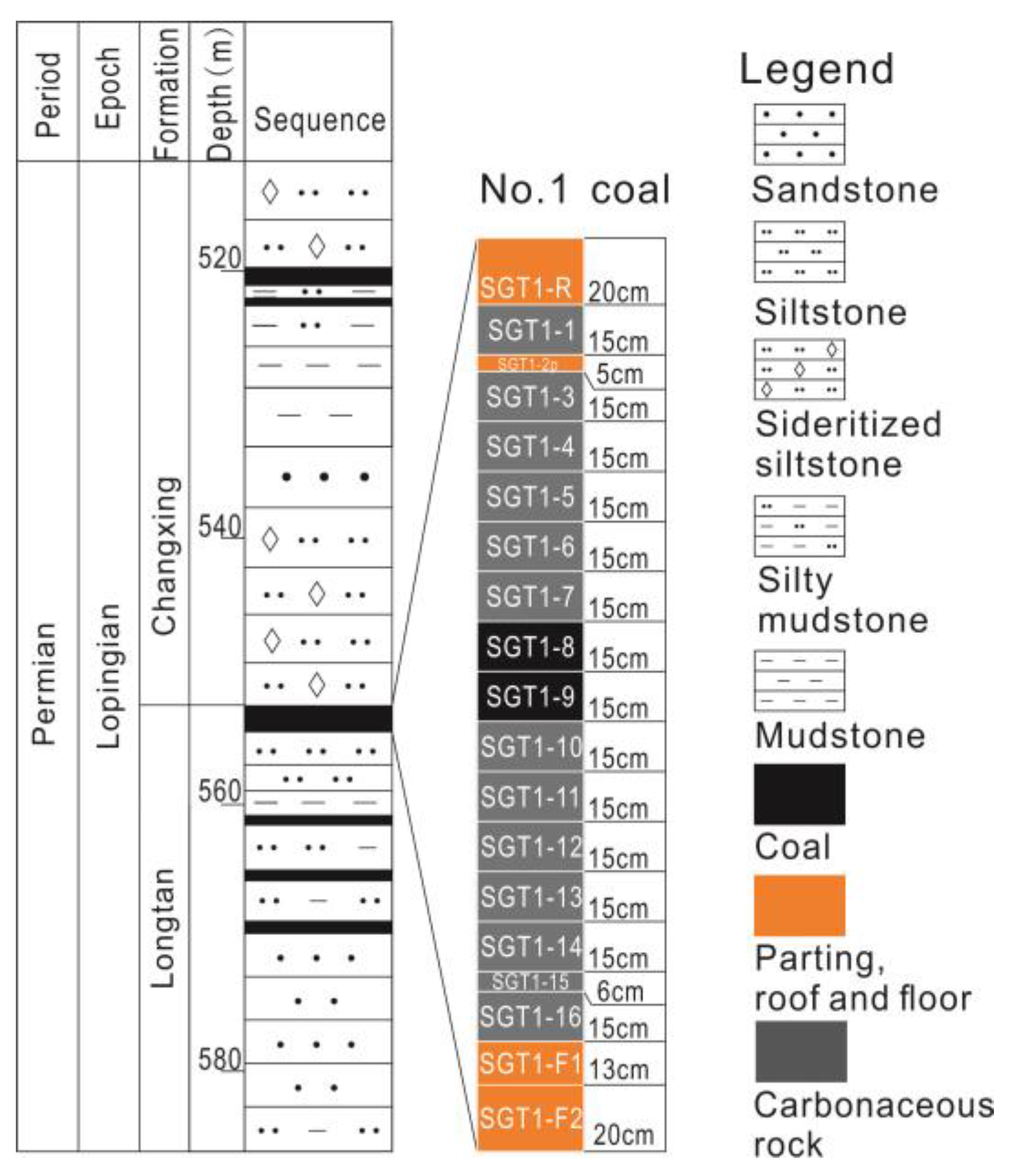

No. 1 Coal, the major minable coal seam in the coalfield, is located in the uppermost portion of the Longtan Formation (Figure 2) and has a thickness ranging from 0.47 to 3.94 m (2.02 m on average). The carbonaceous rock (ash yields vary from 50% to 72%, on air-dry basis), with macroscopic characteristics similar to coal, is calculated in the coal thickness. The roof strata of No. 1 Coal is sideritized siltstone and muddy siltstone, and the floor strata is dominated by mudstone.
The source region of the sediments in the Shugentian Coalfield is the Kangdian Upland, which is located to the west of the coalfield, and is major part of the Emeishan Large Igneous Province (ELIP) [21]. The ELIP is the only Large Igneous Province discovered in China, and has been widely investigated [44,50,51,52,53,54]. Also, the topography of the area to the east of the ELIP (high in west and low in east) that resulted from the ELIP, provided favorable sites for the peat development of eastern Yunnan, western Guizhou, and southern Sichuan Provinces [21].

3. Samples and Analytical Methods

A total of 18 drill core bench samples including coal, carbonaceous rock, and host rocks (roof and floor) were collected from the No. 1 Coal in the 201 drill-hole in the Shugentian Coalfield. The samples were at a depth ranging from 552.75 to 555.49 m. The roof and floor samples were numbered as SGT1-R and SGT1-F1, SGT1-F2 respectively, while other coal and carbonaceous rock samples were named SGT1-1 to SGT1-16 from top to bottom (Figure 2). Sample SGT1-16 was not able to be collected in the present study because it has all been used for gas testing. The thickness of the collected floor sample is 20 cm, and that of the two roof samples, SGT1-F1 and SGT1-F2, are 13 and 20 cm, respectively. The thicknesses of samples SGT1-2p and SGT1-15 are 5 cm and 6 cm, respectively; the thicknesses of other bench samples are all 15 cm.
All the samples were crushed and ground to pass 200-mesh for geochemical analysis. Proximate analysis was conducted following ASTM (American Society for Testing and Materials) Standards D3173-11 [55], D3175-11 [56], and D3174-11 [57]. The total sulfur and forms of sulfur in each coal were analyzed according to ASTM Standards D3177-02 [58] and ASTM Standard D2492-02 [59], respectively. Percentages of C, H, and N in coal benches were determined by an elemental analyzer (Vario MACRO, Elementar, Langenselbold, Germany). Mean random reflectance of vitrinite (percent Ro) in coal was determined according to ASTM Standard D2798-11a [60], using a Leica DM4500P microscope (at a magnification of 500×) equipped with a Craic QDI 302™ spectrophotometer (Leica Inc., Wetzlar, Germany).
The mineral composition was determined by X-ray powder diffraction (XRD). Low-temperature ashing of the coal benches was performed using an EMITECH K1050X plasma asher (Quorum Inc., Lewes, UK), prior to XRD analysis. XRD analysis of the low-temperature ashes (LTAs), as well as the non-coal samples, was performed on a powder diffractometer (D/max-2500/PC XRD, 40 kV, 100 mA) with Ni-filtered Cu-Kα radiation and a scintillation detector (Rigaku, Tokyo, Japan). X-ray diffractograms of the LTAs and non-coal samples were subjected to quantitative mineralogical analysis using the Siroquant™ software system.
Modes of occurrence and some selected elements in some minerals in samples are determined by a field emission scanning electron microscope (SEM), equipped with an energy dispersive spectroscopy (EDS) (FE SEM-EDS). Samples were carbon-coated using a Quorum Q150T ES sputtering coater(Quorum Inc., Lewes, UK), or were not coated for low-vacuum SEM working conditions (60 bar), and were then mounted on standard aluminum SEM stubs using sticky conductive carbon tabs. The working distance of the FE SEM–EDS was 10 mm, beam voltage 20.0 kV, aperture 6, and spot size 5. The images were captured via a retractable solid state back-scattered electron detector.
The oxides of major elements, including SiO2, TiO2, Al2O3, Fe2O3, MgO, CaO, MnO, Na2O, K2O, and P2O5, were determined by X-ray fluorescence spectrometry (XRF; ARL ADVANT′XP+). Prior to XRF analysis, samples were ashed at a temperature of 815 °C, and the loss on ignition (LOI) was also determined at this temperature.
The concentrations of trace elements, except for Hg and F, were determined by inductively coupled plasma mass spectrometry (ICP-MS, Thermo Fisher (Waltham, MA, USA), X series II). The preparation of samples for ICP-MS was as follows: ~Fifty mg of the powdered samples (without ashing) of all coal and non-coal samples were digested using an UltraClave Microwave High Pressure Reactor (Milestone, Sorisole, BG, Italy). The digestion reagents were 5 mL 65% HNO3, and 2 mL 40% HF for coal samples and 2 mL 65% HNO3 and 5 mL 40% HF for carbonaceous rock and host rock samples. The HNO3 and HF for sample digestion were further purified through sub-boiling distillation before use. Inorganic Ventures standard references (CCS-1, CCS-4, CCS-5, and CCS-6) were used for calibration of trace element concentrations. In order to avoid interference by polyatomic ions, the collision/reaction cell technology of ICP-MS was performed to determine concentrations of As and Se in the samples, as outlined by Li et al. [61].
The concentration of Hg was determined on ~100 mg fresh samples (not ashed) in a Milestone DMA-80 analyzer (Milestone, Sorisole, BG, Italy), with a detection limit of 0.005 ng, and the linearity of the calibration was in the range 0–1000 ng. The concentration of fluorine was determined on ~500 mg raw samples (not ashed) by pyrohydrolysis using an ion selective electrode according to the method of ASTM D5987-96 [62].

4. Results

4.1. Proximate and Ultimate Analyses and Coal Rank

The proximate and ultimate analyses of coal and carbonaceous rock benches from No. 1 Coal are listed in Table 1. The ash yield in air dry basis was 34.1% on average, indicating media-high ash coal according to Chinese standard GB/T 15224.1-2010 [63]. The total sulfur content of the coal benches was below 1%, and thus the coal could be classified as a low-sulfur coal [64].The carbonaceous rock benches had ash yields ranging from 54.9% to 72.0% (64.5% on average, on air dry basis), volatile matter from 30.3% to 67.50% (44.4% on average, on air dry basis), and total sulfur content from 0.42% to 12.12% (2.83% on average).
The vitrinite reflectance values of two coal benches (1.8% for SGT1-8; 1.9% for SGT1-9), and the weighted average volatile matter (23.1%, dry and ash free basis) indicated a medium volatile bituminous coal according to the ASTM D 388-12 Standard [65].

4.2. Geochemistry

4.2.1. Major-Element Oxides

The percentage of major-element oxides in the coal and carbonaceous rock benches of No. 1 Coal are listed in Table 2. Compared to average values for Chinese coals [11], TiO2 was significantly enriched (concentration coefficient CC = 10.2; CC was the ratio of percentage of major-element oxides in the samples investigated vs. averages for Chinese coals); MnO was enriched (CC = 7.54); SiO2, Al2O3, K2O and P2O5 were slightly enriched (CC = 2.34–3.31); and others were in the normal range (CC = 1–1.97).
The parting sample SGT1-2p was extremely enriched in MnO, CaO, and Fe2O3, but was depleted in SiO2, Al2O3, TiO2, K2O, P2O5, and Na2O (Table 2). The roof and floor samples were significantly enriched in MnO, and to a lesser extent, Fe2O3, and had higher content of CaO and MgO than coal and carbonaceous rock benches.

4.2.2. Trace Elements

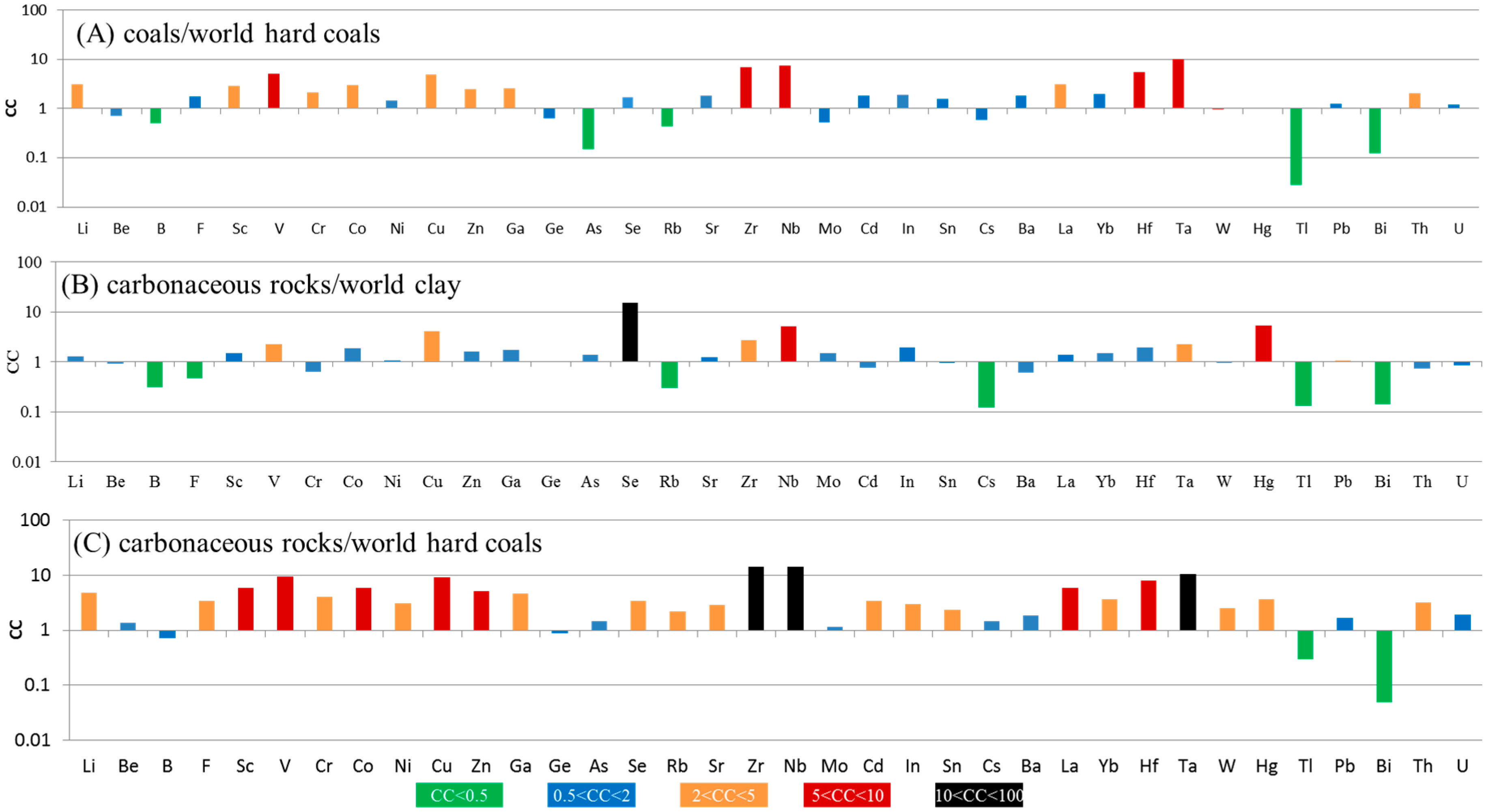

The concentrations of trace elements in the coal benches and the averages for the world hard coals [66] are listed in Table 3. Compared with the averages for world hard coals, tantalum in the coal benches in this study is significantly enriched (CC = 10.2), while other lithophile elements including V, Zr, Nb, and Hf are enriched (CC = 5.2–7.4). Lithium, Sc, Cr, Co, Cu, Zn, Ga, and Th are also slightly enriched in the studied samples. Arsenic, Rb, Tl, and Bi are depleted (CC < 0.5), and the concentrations of the rest of the elements are close to those of the global average values for the world hard coals (Figure 3A).
The concentrations of trace elements in the carbonaceous rock benches are listed in Table 3. Compared to world clay and shale values [67], selenium is significantly enriched; elements V, Cu, Zr, Nb, Ta, and Hg were slightly enriched; B, Rb, Cs, Bi were depleted; other elements were close to the average of world clay and shale values in abundance (Figure 3B). Compared with the averages for world hard coals [66], tantalum, Nb and Zr in the carbonaceous rock benches in this study were significantly enriched (CC > 10); Sc, V, Co, Cu, Zn, La and Hf were enriched (5 < CC ≤ 10); Be, B, Ge, As, Cs, Pb and U were in a normal range; Tl and Bi were depleted; other trace elements were slightly enriched (Figure 3C).

4.2.3. Rare Earth Elements and Yttrium

Based on the classifications by Seredin and Dai [68], the rare earth elements and Yttrium (REY, or REE if Y is not included) are divided into three groups: light rare earth elements and yttrium (LREY: La, Ce, Pr, Nd, and Sm), medium REY (MREY: Eu, Gd, Tb, Dy, and Y), and heavy REY (HREY: Ho, Er, Tm, Yb, and Lu). Compared to the upper continental crust [69], three REY enrichment types were identified: L-type (LaN/LuN > 1), M-type (LaN/SmN < 1, GdN/LuN > 1), and H-type (LaN/LuN < 1) Seredin and Dai [68].
The average concentration of REY in coal benches was 199 μg/g, higher than the global average values of hard coals (68.6 μg/g, [66]). The average concentration of REY in the carbonaceous rock benches was 391 μg/g, higher than that of the global average value for clay and shale values (226 μg/g, [67]). The REY in coal benches had L-(LaN/LuN > 1) and M-type enrichment (LaN/SmN < 1, GdN/LuN > 1) and were characterized by positive Eu anomalies (Figure 4B). Samples SGT1-R and SGT1-2p were characterized by H-(LaN/LuN < 1) and M-types (LaN/SmN < 1, GdN/LuN > 1), and had distinct positive Eu anomalies (Figure 4A). Sample SGT1-11 was characterized by L-type (LaN/LuN > 1) and a strongly negative Eu anomaly (Figure 4C). The Eu anomaly is calculated as [70]:
EuN/EuN* = EuN/[(SmN × 0.67) + (TbN × 0.33)]
EuN is the ratio of Eu concentration in the investigated samples vs. the Eu concentration in the UCC [70]. Floor and other carbonaceous rock benches are of L-type (LaN/LuN > 1) and M-type (LaN/SmN < 1, GdN/LuN > 1), and are characterized by positive Eu anomalies (Figure 4A,C).

4.3. Mineralogy

4.3.1. Mineral Composition

The minerals in the coal LTAs of SGT1-8 and SGT1-9 were composed of mixed-layer illite/smectite (I/S) (24.6% and 37%, respectively), kaolinite (35.8% and 16%, respectively), and quartz (15.9% and 26%, respectively). Other minerals were at a low percentage, e.g., siderite (9.1% and 9.7%, respectively), pyrite (4.8% and 5.3%), anatase (5.1% and 4.5%), calcite (3% and 0.5%), and ankerite (1.7% and 1%) (Table 4).
The mineral assemblages of carbonaceous rock benches were dominated by kaolinite (7.2%–35.8%), mixed-layer I/S (17.1%–35%), siderite (3.3%–64.9%), quartz (9.9%–19.8%) and pyrite (2%–26.1%), and minor amounts of calcite (0.8%–9.3%, no calcite was identified in SGT1-4 and SGT1-6 by XRD). In all carbonaceous rock benches, ankerite was only identified by XRD in SGT1-11 (Table 4).
The most abundant mineral in the parting sample SGT1-2p was siderite (64.9%), and to a lesser extent, calcite (20.1%), with a minor contribution of quartz (7.8%) and kaolinite (7.2%). Chamosite occurred only in the floor samples (Figure 5) (7.7% and 19.3%). Albite was found at only a trace level in the roof and floor samples (1.1%–2.9%).

4.3.2. Comparison between the Mineralogical and Chemical Compositions

The comparison between the percentages of major element oxides (SiO2, Fe2O3, Al2O3, CaO, MgO, and TiO2) calculated from the XRD-Siroquant, and XRF results are presented as X-Y plots (Figure 6), based on the methods based on Ward et al. [72] and Dai et al. [73,74]. Both coal benches and non-coal samples data sets were calculated on a SO3-free basis. The points for SiO2, Fe2O3, Al2O3 and CaO in the plots were close to the equal lines. This indicates that XRD-Siroquant produced reliable results for the major minerals (kaolinite, quartz, siderite and calcite) in coal benches and non-coal samples. However, the majority of the points in the plots of SiO2 and Fe2O3 fell slightly above the equality line, indicating an over-estimation of SiO2 and Fe2O3 calculated from XRD-Siroquant relative to XRF results. The majority of the points for the plots of Al2O3 and CaO fell slightly below the equality line, indicating an under-estimation of Al2O3 and CaO as calculated from XRD-Siroquant, relative to XRF results. The SEM-EDS data, the Si/Al ratio of kaolinite in the No. 1 Coal of Longtan Formation coal benches and non-coal samples higher than the standard values (1.18) (Figure 7), agree with this; The siderite in the coal benches and non-coal samples of the present study contained some Ca (Figure 8); however, the present study calculated siderite as FeCO3. Most of the points in the plot for MgO fell below the equality line, this was because Mg occurs in siderite as indicated by SEM-EDS data (Figure 8).

4.3.3. Modes of Occurrence of Minerals in Coal and Carbonaceous Rock Benches

The minerals in the coal LTAs of SGT1-8 and SGT1-9 were composed of mixed-layer illite/smectite (I/S) (24.6% and 37%, respectively), kaolinite (35.8% and 16%, respectively), and quartz (15.9% and 26%, respectively). Other minerals were present at a low percentage, e.g., siderite (9.1% and 9.7%, respectively), pyrite (4.8% and 5.3%), anatase (5.1% and 4.5%), calcite (3% and 0.5%), and ankerite (1.7% and 1%) (Table 4).
Carbonate minerals identified in almost all the samples investigated in this study (Table 4) included siderite, calcite, and ankerite. Siderite was present in all samples, with the highest content in SGT1-2p. Siderite mainly occurs as massive, syngenetic nodules, cell-infillings, and epigenetic cleat-infillings (Figure 9). The cleat-infilling siderite cuts across the cell-infilling kaolinite, indicating that the former formed later than the latter. Siderite contains traces of Ca, Mn, and Mg (Figure 8), which substitutes for Fe. Calcite mainly occurs as vein-fillings (Figure 9A,B and Figure 10A,C), and massive aggregates of crystals together with pyrite (Figure 11C). The euhedral calcite crystals show two groups of approximately orthogonal cleavages (Figure 10D). Ankerite was identified in several samples (SGT1-R, 1-8, 1-9, 1-11, 1-F1, 1-F2) under SEM-EDS and by XRD, and co-exists with siderite in the cavities of the organic matter (Figure 9E,F).

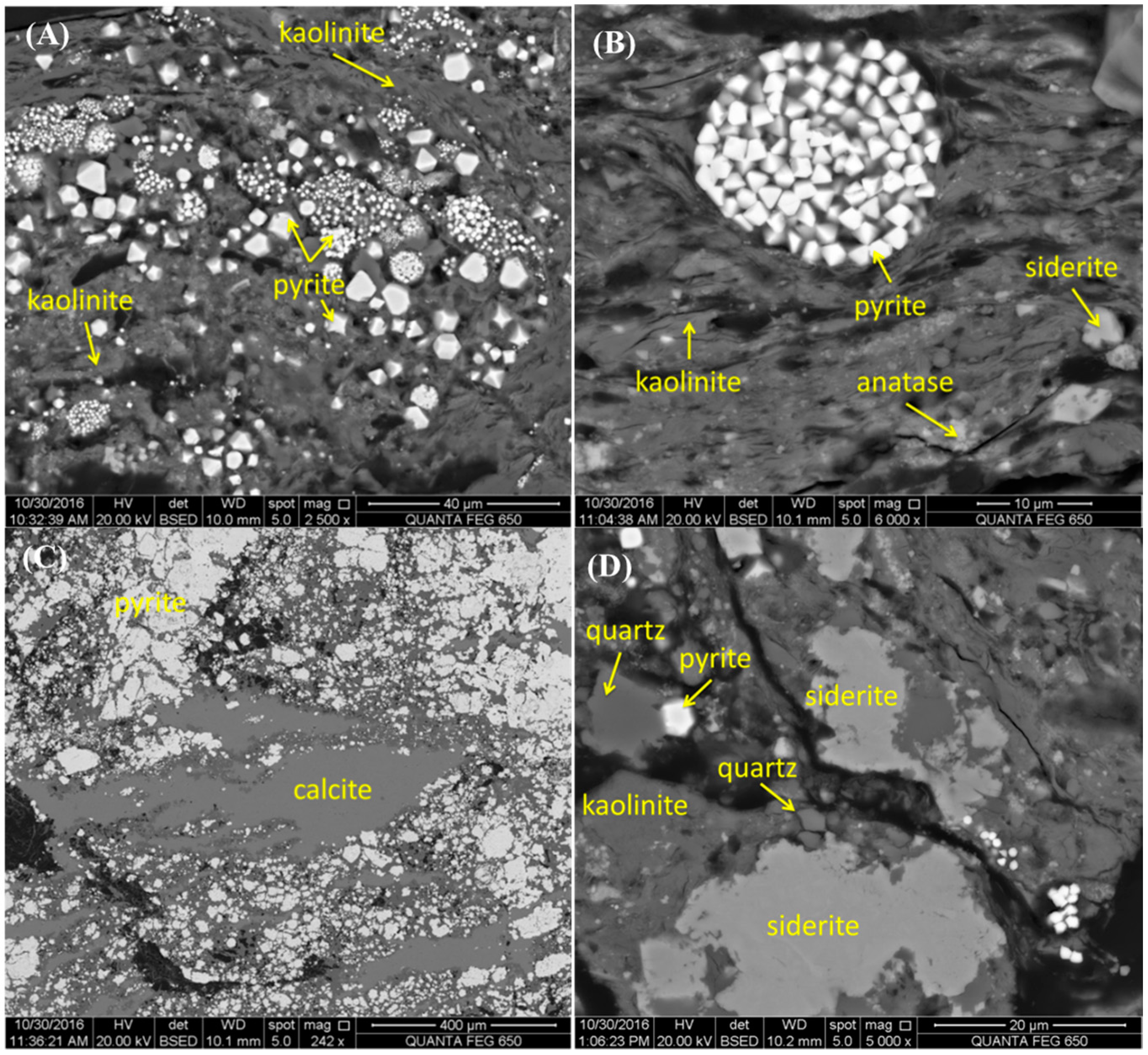

The content of pyrite varied greatly in different bench samples of No. 1 Coal, and the highest pyrite content occurred in carbonaceous rock bench SGT1-11 (26.1%). It occurred as framboidal, massive, and euhedral crystal forms (Figure 11). The spherical framboids were aggregates of euhedral discrete crystals, which were uniformly distributed within the framboids (Figure 11B).

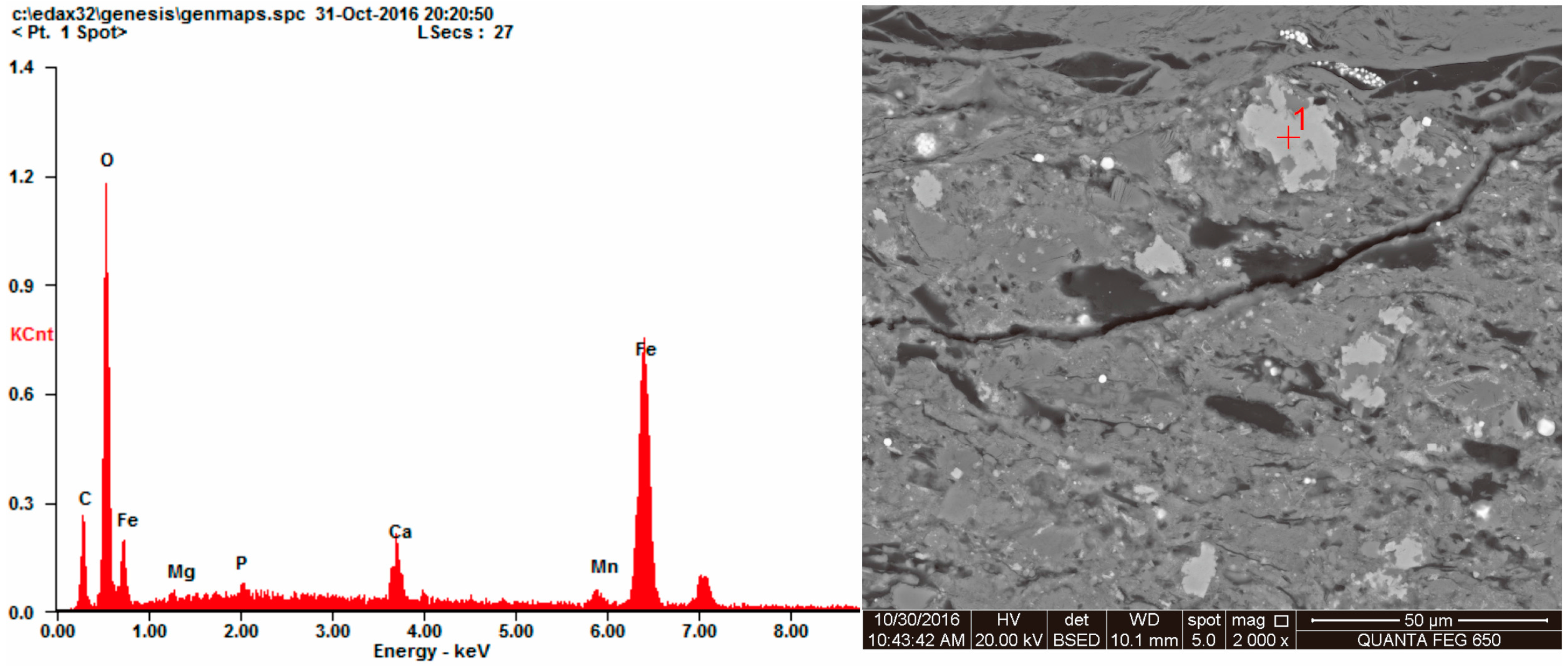

The framboidal pyrite in the present study, which is associated with clay minerals and euhedral pyrite, was of inorganic origin, and had a similar formation mechanism with euhedral pyrite [75]. The framboidal pyrite was formed during peat development or in early diagenesis [31,64,75,76,77]. Rickard et al. [78] and Luther [79] suggested that the single crystal pyrite of framboids formed at low temperature (25 °C).
Quartz was identified in all coal and carbonaceous rock benches in the present study, and its amount seemed to be similar in all samples. Massive quartz and/or clay mineral distributes in organic matter (Figure 12A,B). To a lesser extent, quartz occurred as individual rounded grains, with the major axis being longer than 100 μm, surrounded by syngenetic clay minerals, indicating a detrital origin (Figure 12C,D).

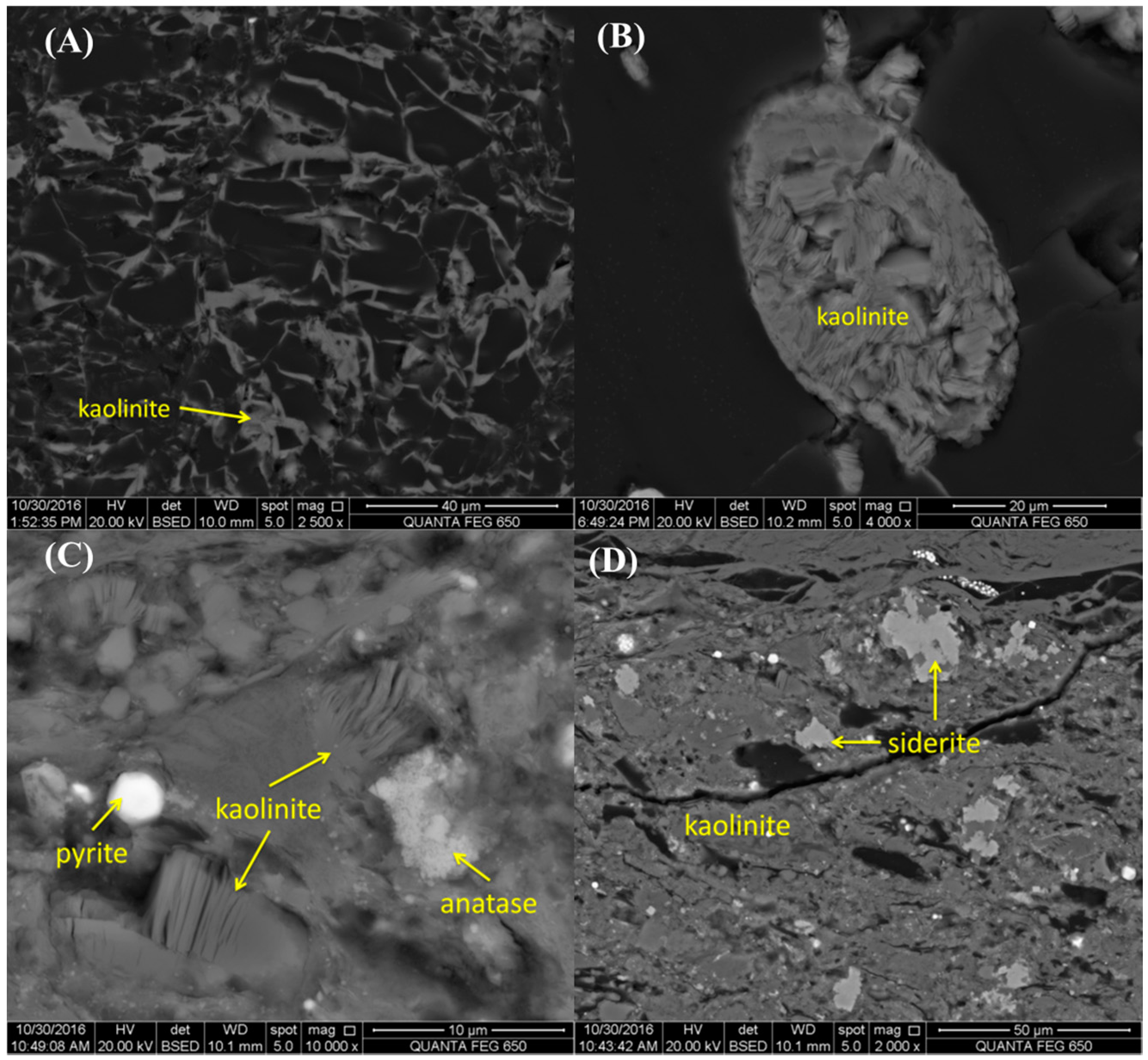

Clay minerals in the present study included kaolinite, mixed-layer illite and smectite (I/S), and chamosite. Kaolinite was the most common clay mineral, and occurred as cell-infillings and fissure-infillings (Figure 13A,B), a book-like form, and as a matrix of other minerals (Figure 13C,D). Mixed-layer I/S clay was identified by XRD in most samples while chamosite was found only in the floor samples (SGT1-F1 and SGT1-F2) (Figure 5).

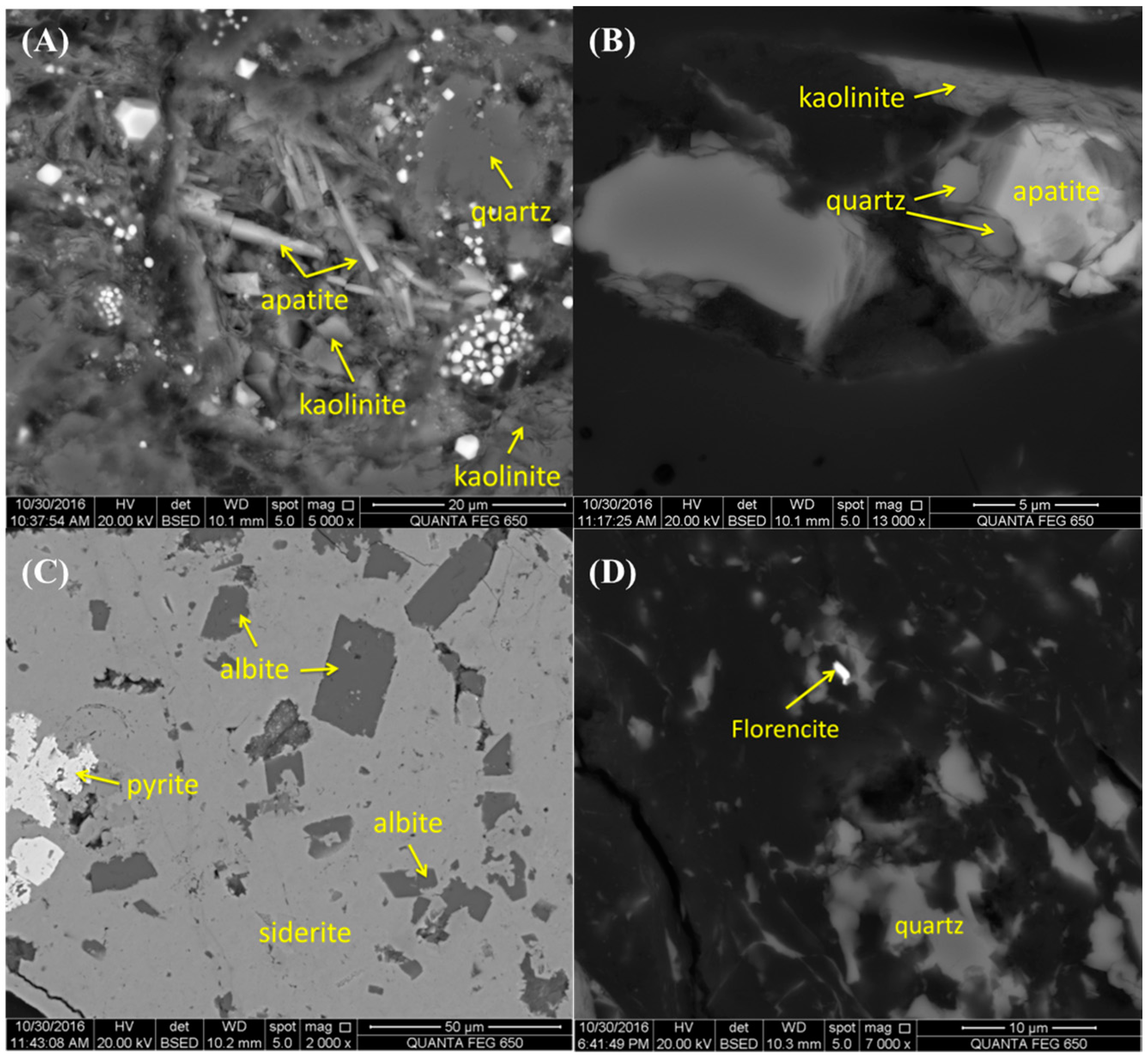

Anatase occurs as fine crystal grains and is scattered in the kaolinite matrix (Figure 9C, Figure 11B and Figure 13C). Apatite occurred as a detrital form and as fine grains, both of which were coated by kaolinite (Figure 14A,B). Detrital apatite was derived from terrestrial sources or volcanic ash [22,76,80,81,82]. Albite occurred as euhedral crystals, and was distributed in the matrix of siderite (Figure 14C). Florencite was found in the matrix of organic matter (Figure 14D).

5. Discussion

5.1. Influencing Factors on Geological and Mineralogical Compositions

The geochemical and mineralogical characteristics of No. 1 Coal in the Longtan Formation indicated that they were probably influenced by four factors: input from the sediment-source region, sea water influence, volcanic ash input, and injection of hydrothermal fluids.

5.1.1. Sediment-Source Region

As with other Lopingian coalfields in western Guizhou, eastern Yunnan, southern Sichuan, and Chongqing [11,21,23], the sediment-source region for the Shugentian Coalfield was the Kangdian Upland, based on the following evidence:
  • The elevated concentrations of Sc, V, Cr, Co, Ni and Zn in the No. 1 Coal and carbonaceous rocks (Figure 3A,B), which were derived from basalts in the Kangdian Upland.

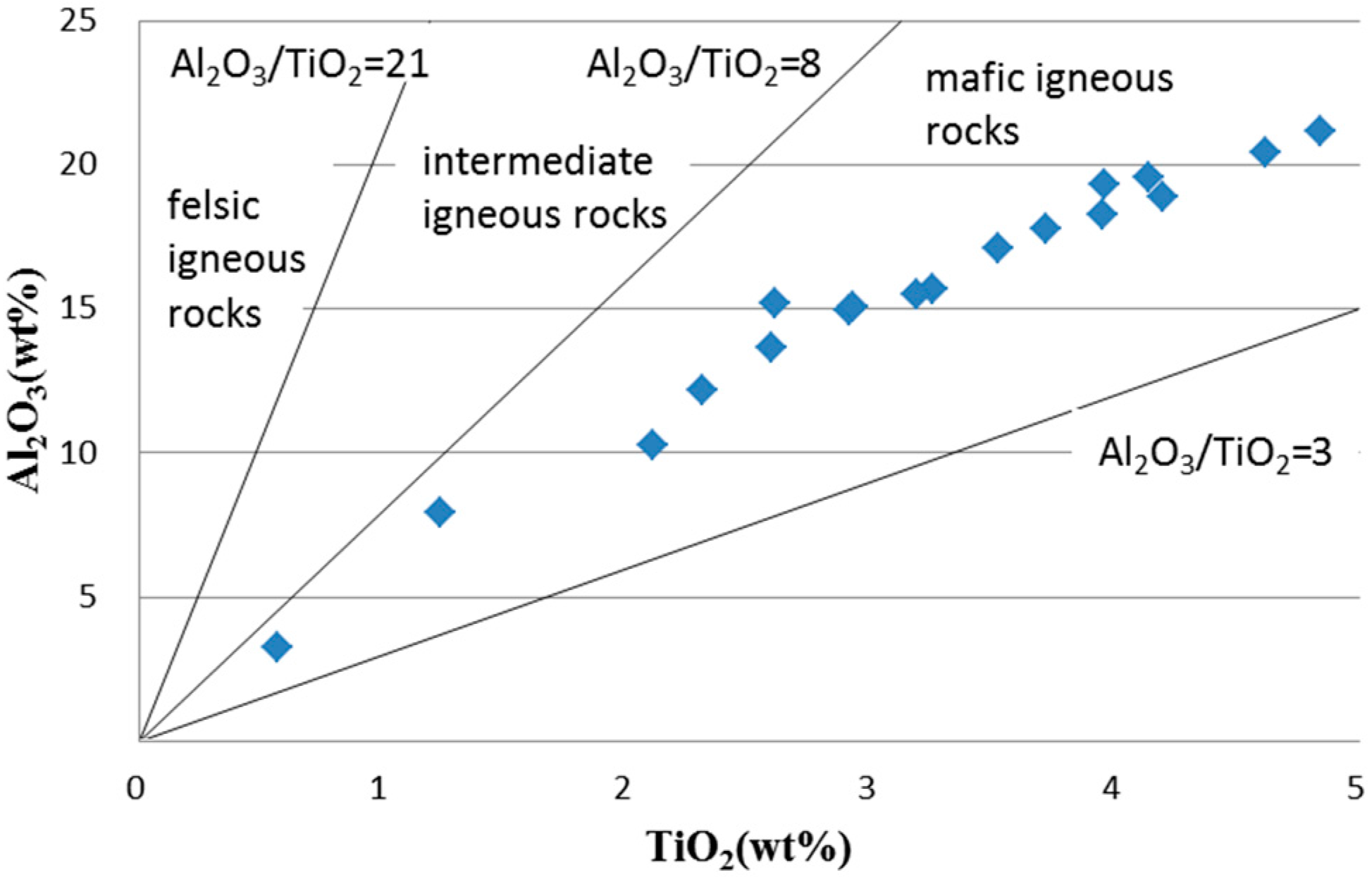

  • The ratios of Al2O3/TiO2 of the coal and carbonaceous rock benches exclusively fall in the area between 3 to 8 (Figure 15), indicating that the terrigenous source of the studied samples is of mafic composition [83]. A number of studies showed that the ratio Al2O3/TiO2 is a reliable indicator for identifying the sediment-source regions not only for normal sediments but also for coal [32,80,83,84,85,86,87].
  • It has been reported that quartz derived from the Kangdian Upland is abundant in the Lopingian coals in southwestern China [16]. The high authigenic quartz identified in the coal and carbonaceous rock benches (Figure 12A,B) was probably deposited from silica-bearing solutions originating from the weathering of basaltic rocks in the Kangdian Upland [48].
  • All coal benches and non-coal samples (carbonaceous rock benches, parting, and roof and floor samples) have strong positive Eu anomalies (1.37 on average), except SGT1-11 (Figure 4). Eu anomalies require both high-temperature (>250 °C) and extreme reducing conditions [70,88,89]. For coals, Eu anomalies inherited from rocks within the sediment source region or affected by high-temperature hydrothermal fluids [70]. In Shugentian Coalfield, with no evidence indicating high temperature hydrothermals, the positive Eu anomalies are derived from tholeiitic basalts of the Kangdian Upland. Furthermore, The REY distribution patterns of coal, carbonaceous rock (except SGT1-11), parting, and roof and floor in the Shugentian Coalfield, characterized by M-type enrichment and positive Eu anomalies (Figure 15), are similar to those for low-Ti and high-Ti basalts from the western Emeishan Large Igneous Province as reported by Xiao et al. [71].

5.1.2. Volcanic Ash Input

Elemental and mineralogical compositions in carbonaceous rock bench SGT1-11 are distinctive in comparison with other coal and carbonaceous rock benches. The depleted concentrations of Sc, V, Cr, and Co in sample SGT1-11 (Table 3) indicate that sediments in this bench were not derived from the Kangdian Upland, which however is rich in these elements. The sample was characterized by a strong negative Eu anomaly (δEu = 0.5) (Figure 4D), quite different to those in other coal and carbonaceous rock benches. Although sediments derived from the Emeishan intermediate-felsic rocks, which are located on the top of the Emeishan mantle plume, have strong negative Eu anomalies [86], these sediments are always in the lowermost portions of the Longtan Formation [21,49,86]. The coal and carbonaceous rock horizons in this study, however, were in the uppermost portion of the Longtan Formation. Apatite, euhedral albite, and sharp-edged quartz (Figure 14A–C), kaolinite associated with quartz, and apatite and anatase (Figure 13C and Figure 14A,B), can also be indicators for volcanic ash inputs into palaeomire and/or detrital inputs from the ELIP. [39,76,90,91,92].

5.1.3. Injection of Multi-Stage Hydrothermal Fluids

A number of studies showed that hydrothermal fluids have significantly influenced the geochemical and mineralogical composition of Lopingian coals in southwestern China (e.g., [26,48,86,93,94,95]). The evidence for the No. 1 Coal and carbonaceous rock benches subjected to hydrothermal fluids includes: (1) Chamosite identified in samples SGT1-F1 and SGT1-F2 by XRD. Previously studies [29,30,48] showed that the formation of chamosite in eastern Yunnan coals was related to hydrothermal fluids, either deposited from Fe-rich hydrothermal fluids [29] or formed via interaction between kaolinite and Fe-Mg-rich fluids during early diagenesis [30]; (2) Florencite identified in the samples (Figure 14C). This is a secondary REE-bearing mineral related to hydrothermal fluid [38,86,96]; (3) Fracture-filling siderite (Figure 9C,D) and fracture-filling calcite in the samples. These carbonate minerals indicate epigenetic solution precipitation; (4) Abundant siderite (65%) and calcite (20%) in sample SGT1-2p. Their occurrence may indicate Ca- and Fe-rich solutions injected into the coal. This horizon had a low REY value, while its underlying SGT1-3 had a higher REY concentration compared to its adjacent seams, indicating a hydrothermal leaching occurred to the parting, and the leached REY was ultimately deposited in the underlying horizons; (5) SGT1-11 showed a Gd-maximum, which may have resulted from the injections of acid solutions, including high pCO2-water in coal basin [97].

5.1.4. Sea Water

Previous studies indicated that the Longtan Formation in eastern Yunnan and western Guizhou was deposited in a continental-marine transitional environment [4,15,20,85,86,98,99]. The high concentration of some elements (e.g., K, Mg, Li, F, Sr) in the samples, which were higher in seawater than in freshwater [100], may also indicate a marine influence. In addition, the high S and pyrite content of the carbonaceous rock (Table 1) also suggests an influence by seawater, sulfate-rich lake waters, or groundwater [63,101,102,103].
The high ratio of Sr/Ba in carbonaceous rocks also indicates the influence of seawater. Sr/Ba < 1 usually represents continental sediments while Sr/Ba > 1 usually suggest marine sediments [104]. Coal benches in No. 1 Coal in the coalfield had a ratio of Sr/Ba < 1, and most carbonaceous rock benches, however, had Sr/Ba > 1, indicating that coal benches of the coalfield were deposited during the regression stage. It should be noted that the roof, parting and floor samples (SGT1-R, SGT1-2p, SGT1-F1, SGT1-F2) contained abundant calcite, which in most cases is of epigenetic origin and may contain Sr as an isomorphism with Ca, and thus, the ratio of Sr/Ba could not be used as an indicator of marine influence.
Gadolinium in common Chinese coals generally shows very weak negative anomalies [70]. However, all the studied coal benches and non-coal samples had positive Gd anomalies (from 1.16 to 1.26, with an average of 1.19). In addition to low-Ti and high-Ti basalt of the Kangdian Upland, which have an average Gd anomaly of 1.07 [71], seawater and/or hydrothermal fluids also be responsible for positive Gd anomalies [70]. It was reported that seawater generally shows positive Gd anomalies [105,106].

5.2. Major Fe-Bearing Minerals

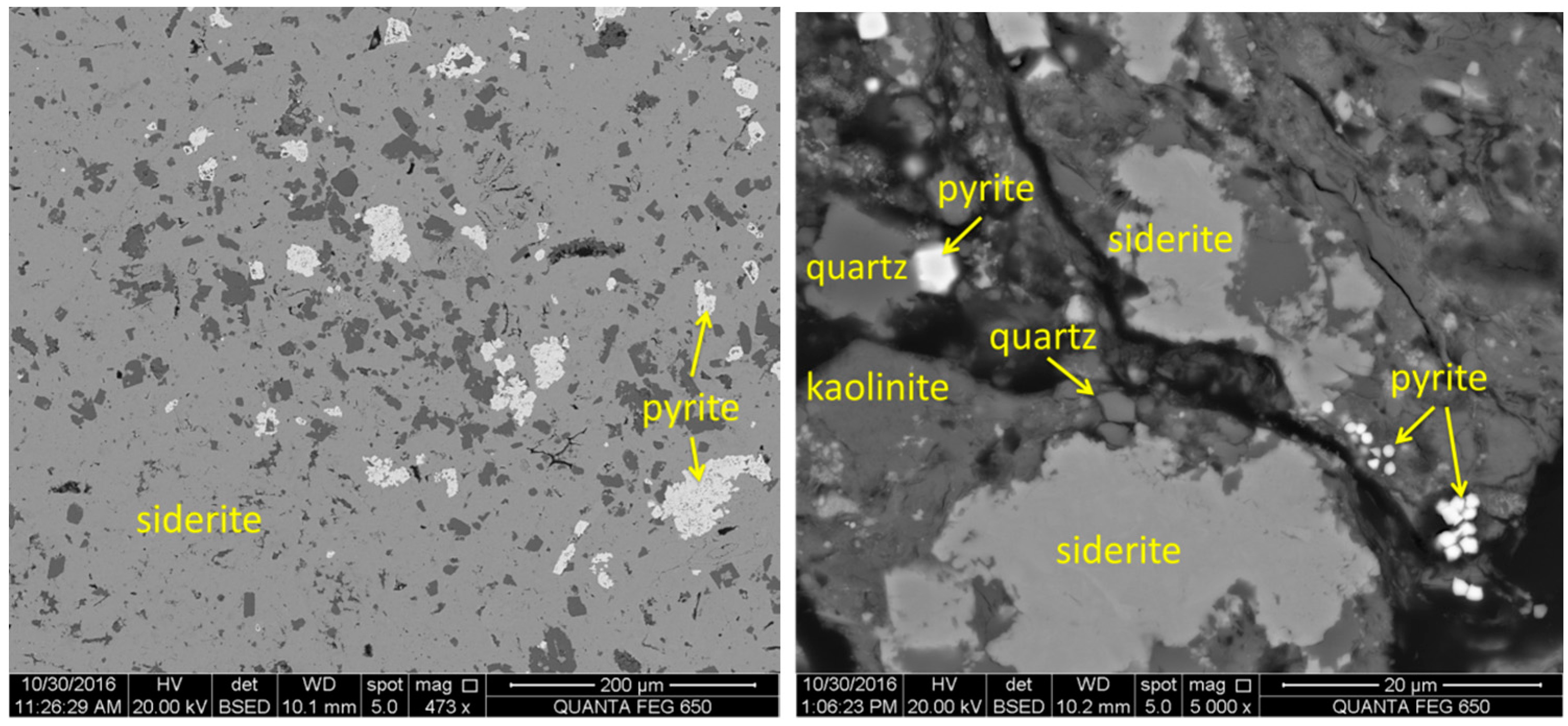

The major Fe-bearing minerals in No. 1 Coal are pyrite and siderite, both of which coexist in all coal and carbonaceous rock benches (Table 4). Framboidal pyrite, which generally indicate a reducing condition and an authigenic origin [64,75,107,108,109,110,111], was identified in some samples investigated in this study (Figure 11A,B).The pyrite with irregular shape was scattered in the matrix of siderite (Figure 16). Syngenetic pyrite is generally indicative of deposition in marine influenced environment or sulfate-rich lake waters or groundwaters [63,101,102,103], and abundant siderite indicates non-marine, at least waters with a low sulfate content [103]. However, siderite has been observed in many cases to coexist with syngenetic pyrite [72,103,112]. When SO42− is totally reduced to S2−, and iron occurs in surplus, minor siderite will be formed in marine-influenced environments. In sulfate-containing freshwater, pyrite can form together with siderite in a reductive condition [113]. Pyrite and siderite could also form sequentially in freshwater environments due to the change of from neutral to acidic conditions. In neutral to slightly alkaline environments, siderite can form, whereas pyrite is typical for slightly acidic settings (which are optimal for the sulfate-reducing bacteria) [76,114].
Contents of siderite and pyrite showed a negative correlation in No. 1 coal and carbonaceous rock. The abundant pyrite and less abundant siderite formed when sea water was injected into the coalfield, and vice versa.

6. Conclusions

Minerals in the Shugentian coal and carbonaceous rock samples consisted of carbonates (siderite and calcite), kaolinite, mixed layer I/S, quartz, pyrite, and minor amounts of anatase, ankerite, albite, and chamosite. The coal benches were significantly enriched in Nb, Ta, Zr, Hf, and V (CC > 5), and slightly enriched in REY.
The sediment-source region (the Kangdian Upland), volcanic ash inputs, multi-stage hydrothermal fluid activities, and marine influence were responsible for the geochemical and mineralogical anomalies in the Shugentian coal and carbonaceous rock samples.
Minerals in sample SGT1-2p were dominated by carbonates (64.9% siderite and 15.9% calcite) that may have originated from hydrothermal fluid, which was enriched in iron and calcium. SGT1-11 had a high total sulfur content (12.03%) and a high organic sulfur content (6.79%), as well as a strong negative δEu value (0.46), probably due to the input of felsic volcanic ash to peat swamp during peat accumulation.
The common occurrence of both siderite and pyrite in the same sample is attributed to the continental-marine transitional environment. Furthermore, sufficient iron in a marine environment and changing acidity in a freshwater environment are also essential.

Acknowledgments

This research was supported by the National Natural Science Foundation of China (No. 41420104001), the National Key Basic Research Program of China (No. 2014CB238902), and the “111” Project (No. B17042). This work is also in part supported by Liu Baojun Geological Science Foundation for Young Scholars (No. DMSM2017079). Special thanks are given to Xiaolin Song from Yunnan Institute of Coal Geology Prospection (China) and Peipei Wang and Hongjian Song from China University of Mining and Technology (Beijing) for their great help with sample collection. We are grateful to Shifeng Dai and Baruch Spiro for their valuable comments and suggestions during the manuscript preparation. We are indebted to two anonymous reviewers for their useful suggestions, which greatly improved the quality of the paper.

Author Contributions

Xue Zheng and Jingjing Liu conceived and designed the experiments; Zhen Wang, Yaguang Xu, Lei Wang and Xue Zheng performed the experiments; Xue Zheng and Jingjing Liu analyzed the data; Xue Zheng wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dai, S.; Zeng, R.; Sun, Y. Enrichment of arsenic, antimony, mercury, and thallium in a late Permian anthracite from Xingren, Guizhou, southwest China. Int. J. Coal Geol. 2006, 66, 217–226. [Google Scholar] [CrossRef]
  2. Dai, S.; Ren, D.; Chou, C.-L.; Li, S.; Jiang, Y. Mineralogy and geochemistry of the No. 6 coal (Pennsylvanian) in the Junger Coalfield, Ordos Basin, China. Int. J. Coal Geol. 2006, 66, 253–270. [Google Scholar] [CrossRef]
  3. Hower, J.C.; Ruppert, L.F.; Eble, C.F. Lanthanide, yttrium, and zirconium anomalies in the fire clay coal bed, eastern Kentucky. Int. J. Coal Geol. 1999, 39, 141–153. [Google Scholar] [CrossRef]
  4. Zhao, L.; Ward, C.R.; French, D.; Graham, I.T. Mineralogical composition of late Permian coal seams in the Songzao Coalfield, southwestern China. Int. J. Coal Geol. 2013, 116, 208–226. [Google Scholar] [CrossRef]
  5. Yudovich, Y.E.; Ketris, M.P. Arsenic in coal: A review. Int. J. Coal Geol. 2005, 61, 141–196. [Google Scholar] [CrossRef]
  6. Karayiğit, A.I.; Spears, D.A.; Booth, C.A. Antimony and arsenic anomalies in the coal seams from the Gokler coalfield, Gediz, Turkey. Int. J. Coal Geol. 2000, 44, 1–17. [Google Scholar] [CrossRef]
  7. Karayiğit, A.I.; Bircan, C.; Mastalerz, M.; Oskay, R.G.; Querol, X.; Lieberman, N.R.; Türkmen, İ. Coal characteristics, elemental composition and modes of occurrence of some elements in the İsaalan coal (Balıkesir, NW Turkey). Int. J. Coal Geol. 2017, 172, 43–59. [Google Scholar] [CrossRef]
  8. Ren, D.; Zhao, F.; Wang, Y.; Yang, S. Distributions of minor and trace elements in Chinese coals. Int. J. Coal Geol. 1999, 40, 109–118. [Google Scholar] [CrossRef]
  9. Ren, D.; Zhao, F.; Dai, S.; Zhang, J.; Luo, K. Geochemistry of Trace Elements in Coal; Science Press: Beijing, China, 2006; p. 556. (In Chinese) [Google Scholar]
  10. Dai, S.; Ren, D.; Zhou, Y.; Chou, C.-L.; Wang, X.; Zhao, L.; Zhu, X. Mineralogy and geochemistry of a superhigh-organic-sulfur coal, Yanshan Coalfield, Yunnan, China: Evidence for a volcanic ash component and influence by submarine exhalation. Chem. Geol. 2008, 255, 182–194. [Google Scholar] [CrossRef]
  11. Dai, S.; Ren, D.; Chou, C.-L.; Finkelman, R.B.; Seredin, V.V.; Zhou, Y. Geochemistry of trace elements in chinese coals: A review of abundances, genetic types, impacts on human health, and industrial utilization. Int. J. Coal Geol. 2012, 94, 3–21. [Google Scholar] [CrossRef]
  12. Dai, S.; Chou, C.-L.; Yue, M.; Luo, K.; Ren, D. Mineralogy and geochemistry of a late Permian coal in the Dafang Coalfield, Guizhou, China: Influence from siliceous and iron-rich calcic hydrothermal fluids. Int. J. Coal Geol. 2005, 61, 241–258. [Google Scholar] [CrossRef]
  13. Dai, S.; Ren, D.; Tang, Y.; Yue, M.; Hao, L. Concentration and distribution of elements in late Permian coals from western Guizhou Province, China. Int. J. Coal Geol. 2005, 61, 119–137. [Google Scholar] [CrossRef]
  14. Dai, S.; Zhou, Y.; Ren, D.; Wang, X.; Li, D.; Zhao, L. Geochemistry and mineralogy of the late Permian coals from the Songzao Coalfield, Chongqing, southwestern China. Sci. China Ser. D Earth Sci. 2007, 50, 678–688. [Google Scholar] [CrossRef]
  15. Dai, S.; Wang, X.; Chen, W.; Li, D.; Chou, C.-L.; Zhou, Y.; Zhu, C.; Li, H.; Zhu, X.; Xing, Y.; et al. A high-pyrite semianthracite of late Permian age in the Songzao Coalfield, southwestern China: Mineralogical and geochemical relations with underlying mafic tuffs. Int. J. Coal Geol. 2010, 83, 430–445. [Google Scholar] [CrossRef]
  16. Ren, D. Mineral matters in coal. In Coal Petrology of China; Han, D., Ed.; Publishing House of China University of Mining and Technology: Xuzhou, China, 1996; pp. 67–77, (In Chinese with English Abstract). [Google Scholar]
  17. Wang, X. Geochemistry of late Triassic coals in the Changhe Mine, Sichuan Basin, southwestern China: Evidence for authigenic lanthanide enrichment. Int. J. Coal Geol. 2009, 80, 167–174. [Google Scholar] [CrossRef]
  18. Zhang, J.; Ren, D.; Zheng, C.; Zeng, R.; Chou, C.-L.; Liu, J. Trace element abundances in major minerals of late Permian coals from southwestern Guizhou Province, China. Int. J. Coal Geol. 2002, 53, 55–64. [Google Scholar] [CrossRef]
  19. Zhang, J.; Ren, D.; Zhu, Y.; Chou, C.-L.; Zeng, R.; Zheng, B. Mineral matter and potentially hazardous trace elements in coals from Qianxi fault depression area in southwestern Guizhou, China. Int. J. Coal Geol. 2004, 57, 49–61. [Google Scholar] [CrossRef]
  20. Li, B.; Zhuang, X.; Li, J.; Querol, X.; Font, O.; Moreno, N. Enrichment and distribution of elements in the late permian coals from the zhina coalfield, guizhou province, southwest China. Int. J. Coal Geol. 2017, 171, 111–129. [Google Scholar] [CrossRef]
  21. Dai, S.; Chekryzhov, I.Y.; Seredin, V.V.; Nechaev, V.P.; Graham, I.T.; Hower, J.C.; Ward, C.R.; Ren, D.; Wang, X. Metalliferous coal deposits in East Asia (primorye of Russia and South China): A review of geodynamic controls and styles of mineralization. Gondwana Res. 2016, 29, 60–82. [Google Scholar] [CrossRef]
  22. Zhou, Y.; Ren, Y.; Bohor, B.F. Origin and distribution of tonsteins in late Permian coal seams of southwestern China. Int. J. Coal Geol. 1982, 2, 49–77. [Google Scholar] [CrossRef]
  23. China Coal Geology Bureau. Sedimentary Environments and Coal Accumulation of Late Permian Coal Formation in Western Guizhou, Southern Sichuan, and Eastern Yunnan, China; Chongqing University Press: Chongqing, China, 1996; p. 216. [Google Scholar]
  24. Zhou, Y.; Bohor, B.F.; Ren, Y. Trace element geochemistry of altered volcanic ash layers (tonsteins) in Late Permian coal-bearing formations of eastern Yunnan and western Guizhou Province, China. Int. J. Coal Geol. 2000, 44, 305–324. [Google Scholar] [CrossRef]
  25. Dai, S.; Wang, X.; Zhou, Y.; Hower, J.C.; Li, D.; Chen, W.; Zhu, X. Chemical and mineralogical compositions of silicic, mafic, and alkali tonsteins in the late Permian coals from the Songzao Coalfield, Chongqing. Southwest China. Chem. Geol. 2011, 282, 29–44. [Google Scholar] [CrossRef]
  26. Zhou, Y.; Ren, Y. Distribution of arsenic in coals of Yunnan Province, China, and its controlling factors. Int. J. Coal Geol. 1992, 20, 85–98. [Google Scholar] [CrossRef]
  27. Ding, Z.; Zheng, B.; Zhang, J.; Long, J.; Belkin, H.E.; Finkelman, R.B.; Zhao, F.; Chen, C.; Zhou, D.; Zhou, Y. Geological and geochemical characteristics of high arsenic coals from endemic arsenosis areas in southwestern Guizhou Province, China. Appl. Geochem. 2001, 16, 1353–1360. [Google Scholar] [CrossRef]
  28. Dai, S.; Tian, L.; Chou, C.-L.; Zhou, Y.; Zhang, M.; Zhao, L.; Wang, J.; Yang, Z.; Cao, H.; Ren, D. Mineralogical and compositional characteristics of late Permian coals from an area of high lung cancer rate in Xuanwei, Yunnan, China: Occurrence and origin of quartz and chamosite. Int. J. Coal Geol. 2008, 76, 318–327. [Google Scholar] [CrossRef]
  29. Dai, S.; Chou, C.L. Occurrence and origin of minerals in a chamosite-bearing coal of late Permian age, Zhaotong, Yunnan, China. Am. Mineral. 2007, 92, 1253–1261. [Google Scholar] [CrossRef]
  30. Li, Z.; Wang, D.; Lv, D.; Li, Y.; Liu, H.; Wang, P.; Liu, Y.; Liu, J.; Li, D. The geologic settings of Chinese coal deposits. Int. Geol. Rev. 2017, 1–13. [Google Scholar] [CrossRef]
  31. Dai, S.; Zhang, W.; Ward, C.R.; Seredin, V.V.; Hower, J.C.; Li, X.; Song, W.; Wang, X.; Kang, H.; Zheng, L.; et al. Mineralogical and geochemical anomalies of late Permian coals from the Fusui Coalfield, Guangxi Province, southern China: Influences of terrigenous materials and hydrothermal fluids. Int. J. Coal Geol. 2013, 105, 60–84. [Google Scholar] [CrossRef]
  32. Dai, S.; Zhang, W.; Seredin, V.V.; Ward, C.R.; Hower, J.C.; Wang, X.; Li, X.; Song, W.; Zhao, L.; Kang, H.; et al. Factors controlling geochemical and mineralogical compositions of coals preserved within marine carbonate successions: A case study from the Heshan Coalfield, southern China. Int. J. Coal Geol. 2013, 109, 77–100. [Google Scholar] [CrossRef]
  33. Dai, S.; Ren, D.; Ma, S. The cause of endemic fluorosis in western Guizhou Province, Southwest China. Fuel 2004, 83, 2095–2098. [Google Scholar] [CrossRef]
  34. Dai, S.; Ren, D. Fluorine concentration of coals in China—An estimation considering coal reserves. Fuel 2006, 85, 929–935. [Google Scholar] [CrossRef]
  35. Dai, S.; Finkelman, R.B. Coal as a promising source of critical elements: Progress and future prospects. Int. J. Coal Geol. 2017, in press. [Google Scholar] [CrossRef]
  36. Dai, S.; Yan, X.; Ward, C.R.; Hower, J.C.; Zhao, L.; Wang, X.; Zhao, L.; Ren, D.; Finkelman, R.B. Valuable elements in Chinese coals: A review. Int. Geol. Rev. 2016. [Google Scholar] [CrossRef]
  37. Zhao, L.; Dai, S.; Graham, I.T.; Li, X.; Zhang, B. New insights into the lowest Xuanwei Formation in eastern Yunnan Province, SW China: Implications for emeishan large igneous province felsic tuff deposition and the cause of the end-guadalupian mass extinction. Lithos 2016, 264, 375–391. [Google Scholar] [CrossRef]
  38. Zhao, L.; Dai, S.; Graham, I.T.; Wang, P. Clay mineralogy of coal-hosted Nb-Zr-REE-Ga mineralized beds from Late Permian strata, eastern Yunnan, SW China: Implications for paleotemperature and origin of the micro-quartz. Minerals 2016, 6, 45. [Google Scholar] [CrossRef]
  39. Zhao, L.; Dai, S.; Graham, I.T.; Li, X.; Liu, H.; Song, X.; Hower, J.C.; Zhou, Y. Cryptic sediment-hosted critical element mineralization from eastern Yunnan Province, southwestern China: Mineralogy, geochemistry, relationship to emeishan alkaline magmatism and possible origin. Ore Geol. Rev. 2017, 80, 116–140. [Google Scholar] [CrossRef]
  40. Zou, J.; Tian, H.; Wang, Z. Leaching process of Rare Earth Elements, gallium and niobium in a coal-bearing strata-hosted rare metal deposit—A case study from the lLate Permian tuff in the ZhongliangshanMine, Chongqing. Metals 2017, 7, 174. [Google Scholar] [CrossRef]
  41. Ali, J.R.; Fitton, J.G.; Herzberg, C. Emeishan large igneous province (SW China) and the mantle-plume up-doming hypothesis. J. Geol. Soc. 2010, 167, 953–959. [Google Scholar] [CrossRef]
  42. He, B.; Xu, Y.; Chung, S.; Xiao, L.; Wang, Y. Sedimentary evidence for a rapid, kilometer-scale crustal doming prior to the eruption of the Emeishan flood basalts. Earth Planet. Sci. Lett. 2003, 213, 391–405. [Google Scholar] [CrossRef]
  43. Shellnutt, J.G. The Emeishan large igneous province: A synthesis. Geosci. Front. 2014, 5, 369–394. [Google Scholar] [CrossRef]
  44. Xu, Y.; Chung, S.-L.; Jahn, B.-M.; Wu, G. Petrologic and geochemical constraints on the petrogenesis of Permian Triassic Emeishan flood basalts in southwestern China. Lithos 2001, 58, 145–168. [Google Scholar] [CrossRef]
  45. He, B.; Xu, Y.; Huang, X.; Luo, Z.; Shi, Y.; Yang, Q.; Yu, S. Age and duration of the Emeishan flood volcanism, SW China: Geochemistry and SHRIMP zircon U–Pb dating of silicic ignimbrites, post-volcanic Xuanwei Formation and clay tuff at the Chaotian section. Earth Planet. Sci. Lett. 2007, 255, 306–323. [Google Scholar] [CrossRef]
  46. Wignall, P.B. Large igneous provinces and mass extinctions. Earth-Sci. Rev. 2001, 53, 1–33. [Google Scholar] [CrossRef]
  47. Dai, S.; Seredin, V.V.; Ward, C.R.; Hower, J.C.; Xing, Y.; Zhang, W.; Song, W.; Wang, P. Enrichment of U–Se–Mo–Re–V in coals preserved within marine carbonate successions: Geochemical and mineralogical data from the late Permian Guiding Coalfield, Guizhou, China. Miner. Deposita 2014, 50, 159–186. [Google Scholar] [CrossRef]
  48. Dai, S.; Li, T.; Seredin, V.; Ward, C.R.; Hower, J.C.; Zhou, Y.; Zhang, M.; Song, X.; Song, W.; Zhao, C. Origin of minerals and elements in the Late Permian coals, tonsteins, and host rocks of the Xinde Mine, Xuanwei, eastern Yunnan, China. Int. J. Coal Geol. 2014, 121, 53–78. [Google Scholar] [CrossRef]
  49. Dai, S.; Xie, P.; Jia, S.; Ward, C.R.; Hower, J.C.; Yan, X.; French, D. Enrichment of U-Re-V-Cr-Se and rare earth elements in the late Permian coals of the Moxinpo Coalfield, Chongqing, China: Genetic implications from geochemical and mineralogical data. Ore Geol. Rev. 2017, 80, 1–17. [Google Scholar] [CrossRef]
  50. Mahoney, J.J.; Coffin, M.F. Large Igneous Provinces: Continental, Oceanic, and Planetary Flood Volcanism; American Geophysical Union: Washington, DC, USA, 1997; ISBN 0-87590-082-8. [Google Scholar]
  51. Courtillot, V.; Jaupart, C.; Manighetti, I.; Tapponnier, P.; Besse, J. On causal links between flood basalts and continental breakup. Earth Planet. Sci. Lett. 1999, 166, 177–195. [Google Scholar] [CrossRef]
  52. Xu, Y. Evidence for crustal components in the mantle and constraints on crustal recycling mechanisms pyroxenite xenoliths from Hannuoba North China. Chem. Geol. 2002, 182, 301–322. [Google Scholar] [CrossRef]
  53. Chung, S.-L.; Jahn, B.-M. Plume-lithosphere interaction in generation of the Emeishan flood basalts at the Permian-Triassic boundary. Geology 1995, 23, 889–892. [Google Scholar] [CrossRef]
  54. Chung, S.L.; Jahn, B.M.; Genyao, W.; Lo, C.H.; Bolin, C. The Emeishan flood basalt in sw China: A mantle plume initiation model and its connection with continental breakup and mass extinction at the Permian-Triassic boundary. Geodynamics 1998, 47–58. [Google Scholar] [CrossRef]
  55. ASTM International. Test Method for Moisture in the Analysis Sample of Coal and Coke; ASTM D3173-11; ASTM International: West Conshohocken, PA, USA, 2011. [Google Scholar]
  56. ASTM International. Test Method for Volatile Matter in the Analysis Sample of Coal and Coke; ASTM D3175-11; ASTM International: West Conshohocken, PA, USA, 2011. [Google Scholar]
  57. ASTM International. Test Method for Ash in the Analysis Sample of Coal and Coke from Coal; ASTM D3174-11; ASTM International: West Conshohocken, PA, USA, 2011. [Google Scholar]
  58. ASTM International. Test Methods for Total Sulfur in the Analysis Sample of Coal and Coke; ASTM D3177-02; ASTM International: West Conshohocken, PA, USA, 2011. [Google Scholar]
  59. ASTM International. Test Methods for Forms of Sulfur in the Analysis Sample of Coal and Coke; ASTM D2492-02; ASTM International: West Conshohocken, PA, USA, 2007. [Google Scholar]
  60. ASTM International. Standard Test Method for Microscopical Determination of the Vitrinite Reflectance of Coal; ASTM Standard D2798-11a; ASTM International: West Conshohocken, PA, USA, 2011. [Google Scholar]
  61. Li, X.; Dai, S.; Zhang, W.; Li, T.; Zheng, X.; Chen, W. Determination of As and Se in coal and coal combustion products using closed vessel microwave digestion and collision/reaction cell technology (CCT) of inductively coupled plasma mass spectrometry(ICP-MS). Int. J. Coal Geol. 2014, 124, 1–4. [Google Scholar] [CrossRef]
  62. ASTM International. Standard Practice for Total Fluorine in Coal and Coke by Pyrohydrolytic Extraction and Ion Selective Electrode or Ion Chromatograph Methods; ASTM Standard D5987-96; ASTM International: West Conshohocken, PA, USA, 2007. [Google Scholar]
  63. Coal Analysis Laboratory of China Coal Research Institute. Chinese Standard Method GB/T 15224.1-2010, Classification for Quality of Coal. Part 1: Ash; Standardization Administration of China: Beijing, China, 2010. (In Chinese) [Google Scholar]
  64. Chou, C.-L. Sulfur in coals: A review of geochemistry and origins. Int. J. Coal Geol. 2012, 100, 1–13. [Google Scholar] [CrossRef]
  65. ASTM International. Standard Classification of Coals by Rank; ASTM D388-12; ASTM International: West Conshohocken, PA, USA, 2012. [Google Scholar]
  66. Ketris, M.P.; Yudovich, Y.E. Estimations of clarkes for carbonaceous biolithes: World averages for trace element contents in black shales and coals. Int. J. Coal Geol. 2009, 78, 135–148. [Google Scholar] [CrossRef]
  67. Grigoriev, N. Chemical Element Distribution in the Upper Continental Crust; UB RAS: Ekaterinburg, Russia, 2009; Volume 382, p. 383. [Google Scholar]
  68. Seredin, V.V.; Dai, S. Coal deposits as potential alternative sources for lanthanidesand yttrium. Int. J. Coal Geol. 2012, 94, 67–93. [Google Scholar] [CrossRef]
  69. Taylor, S.R.; McLennan, S.M. The Continental Crust: Its Composition and Evolution; Blackwell: Oxford, UK, 1985; p. 312. [Google Scholar]
  70. Dai, S.; Graham, I.T.; Ward, C.R. A review of anomalous rare earth elements and yttrium in coal. Int. J. Coal Geol. 2016, 159, 82–95. [Google Scholar] [CrossRef]
  71. Xiao, L.; Xu, Y.; Mei, H.; Zheng, Y.; He, B.; Pirajno, F. Distinct mantle sources of low-Ti and high-Ti basalts from the western Emeishan large igneous province, SW China: Implications for plume–lithosphere interaction. Earth Planet. Sci. Lett. 2004, 228, 525–546. [Google Scholar] [CrossRef]
  72. Ward, C.R.; Spears, D.; Booth, C.A.; Staton, I.; Gurba, L.W. Mineral matter and trace elements in coals of the Gunnedah Basin, New South Wales, Australia. Int. J. Coal Geol. 1999, 40, 281–308. [Google Scholar] [CrossRef]
  73. Dai, S.; Wang, X.; Seredin, V.V.; Hower, J.C.; Ward, C.R.; O’Keefe, J.M.K.; Huang, W.; Li, T.; Li, X.; Liu, H.; et al. Petrology, mineralogy, and geochemistry of the ge-rich coal from the Wulantuga ge ore deposit, Inner Mongolia, China: New data and genetic implications. Int. J. Coal Geol. 2012, 90–91, 72–99. [Google Scholar] [CrossRef]
  74. Dai, S.; Wang, P.; Ward, C.R.; Tang, Y.; Song, X.; Jiang, J.; Hower, J.C.; Li, T.; Seredin, V.V.; Wagner, N.J.; et al. Elemental and mineralogical anomalies in the coal-hosted ge ore deposit of Lincang, Yunnan, southwestern China: Key role of N2–CO2-mixed hydrothermal solutions. Int. J. Coal Geol. 2015, 152, 19–46. [Google Scholar] [CrossRef]
  75. Kortenski, J.; Kostova, I. Occurrence and morphology of pyrite in Bulgarian coals. Int. J. Coal Geol. 1996, 29, 273–290. [Google Scholar] [CrossRef]
  76. Karayiğit, A.I.; Littke, R.; Querol, X.; Jones, T.; Oskay, R.G.; Christanis, K. The Miocene coal seams in the Soma Basin (W. Turkey): Insights from coal petrography, mineralogy and geochemistry. Int. J. Coal Geol. 2017, 173, 110–128. [Google Scholar] [CrossRef]
  77. Querol, X.; Chinenon, S.; Lopez-Soler, A. Iron sulphide precipitation sequence in Albian coals from the Maestrazgo basin, southeastern Iberean range, northeastern Spain. Int. J. Coal Geol. 1989, 11, 171–189. [Google Scholar] [CrossRef]
  78. Rickard, D.; Schoonen, M.A.; Luther, G., III. Chemistry of iron sulfides in sedimentary environments. In Geochemical Transformations of Sedimentary Sulfur; Vairavamurthy, M.A., Schoonen, M.A.A., Eglinton, T.I., Luther, G.W., Manowitz, B., Eds.; ACS Publications: Washington DC, USA, 1995; ISBN 13: 9780841233287. [Google Scholar]
  79. Luther, G.W., III. Pyrite synthesis via polysulfide compounds. Geochim. Cosmochim. Acta 1991, 55, 2839–2849. [Google Scholar] [CrossRef]
  80. Dai, S.; Hower, J.C.; Ward, C.R.; Guo, W.; Song, H.; O’Keefe, J.M.K.; Xie, P.; Hood, M.M.; Yan, X. Elements and phosphorus minerals in the middle Jurassic inertinite-rich coals of the Muli Coalfield on the Tibetan Plateau. Int. J. Coal Geol. 2015, 144–145, 23–47. [Google Scholar] [CrossRef]
  81. Arbuzov, S.I.; Mezhibor, A.M.; Spears, D.A.; Ilenok, S.S.; Shaldybin, M.V.; Belaya, E.V. Nature of tonsteins in the Azeisk deposit of the Irkutsk Coal Basin (Siberia, Russia). Int. J. Coal Geol. 2016, 153, 99–111. [Google Scholar] [CrossRef]
  82. Spears, D.A. The origin of tonsteins, an overview, and links with seatearths, fireclays and fragmental clay rocks. Int. J. Coal Geol. 2012, 94, 22–31. [Google Scholar] [CrossRef]
  83. Hayashi, K.-I.; Fujisawa, H.; Holland, H.D.; Ohmoto, H. Geochemistry of ~1.9 ga sedimentary rocks from northeastern Labrador, Canada. Geochim. Cosmochim. Acta 1997, 61, 4115–4137. [Google Scholar] [CrossRef]
  84. He, B.; Xu, Y.; Zhong, Y.; Guan, J. The Guadalupian–Lopingian boundary mudstones at Chaotian (SW China) are clastic rocks rather than acidic tuffs: Implication for a temporal coincidence between the end-Guadalupian mass extinction and the Emeishan volcanism. Lithos 2010, 119, 10–19. [Google Scholar] [CrossRef]
  85. Dai, S.; Luo, Y.; Seredin, V.V.; Ward, C.R.; Hower, J.C.; Zhao, L.; Liu, S.; Zhao, C.; Tian, H.; Zou, J. Revisiting the late permian coal from the Huayingshan, Sichuan, southwestern China: Enrichment and occurrence modes of minerals and trace elements. Int. J. Coal Geol. 2014, 122, 110–128. [Google Scholar] [CrossRef]
  86. Dai, S.; Liu, J.; Ward, C.R.; Hower, J.C.; French, D.; Jia, S.; Hood, M.M.; Garrison, T.M. Mineralogical and geochemical compositions of late Permian coals and host rocks from the Guxu Coalfield, Sichuan Province, China, with emphasis on enrichment of rare metals. Int. J. Coal Geol. 2016, 166, 71–95. [Google Scholar] [CrossRef]
  87. Dai, S.; Li, T.; Jiang, Y.; Ward, C.R.; Hower, J.C.; Sun, J.; Liu, J.; Song, H.; Wei, J.; Li, Q.; et al. Mineralogical and geochemical compositions of the Pennsylvanian coal in the Hailiushu Mine, Daqingshan Coalfield, Inner Mongolia, China: Implications of sediment-source region and acid hydrothermal solutions. Int. J. Coal Geol. 2015, 137, 92–110. [Google Scholar] [CrossRef]
  88. Sverjensky, D.A. Europium redox equilibria in aqueous solution. Earth Planet. Sci. Lett. 1984, 67, 70–78. [Google Scholar] [CrossRef]
  89. Bau, M. Rare-earth element mobility during hydrothermal and metamorphic fluid-rock interaction and the significance of the oxidation state of europium. Chem. Geol. 1991, 93, 219–230. [Google Scholar] [CrossRef]
  90. Zhou, Y.; Ren, Y. Origin and geological significanceof tonsteins in the late Permian coals from eastern Yunnan, China. Yunnan Geol. 1983, 2, 38–46. (In Chinese) [Google Scholar]
  91. Bohor, B.F.; Triplehorn, D.M. Tonstein: Altered volcanic ash layers in coal-bearingsequences; Special Papers; Geological Society of America: Boulder, CO, USA, 1993; Volume 285, p. 40. [Google Scholar]
  92. Burger, K.; Bandelow, F.K.; Bieg, G. Pyroclastic kaolin coal–tonsteins of the UpperCarboniferous of Zonguldak and Amasra, Turkey. Int. J. Coal Geol. 2000, 45, 39–53. [Google Scholar] [CrossRef]
  93. Xie, P.; Song, H.; Wei, J.; Li, Q. Mineralogical characteristics of Late Permian coals from the Yueliangtian coal mine, Guizhou, southwestern China. Minerals 2016, 6, 29. [Google Scholar] [CrossRef]
  94. Liu, J.; Yang, Z.; Yan, X.; Ji, D.; Yang, Y.; Hu, L. Modes of occurrence of highly-elevated trace elements in superhigh-organic-sulfur coals. Fuel 2015, 156, 190–197. [Google Scholar] [CrossRef]
  95. Zhao, L.; Zhu, Q.; Jia, S.; Zou, J.; Nechaev, V.; Dai, S. Origin of Minerals and Critical Metals in an Argillized Tuff from the Huayingshan Coalfield, Southwestern China. Minerals 2017, 7, 92. [Google Scholar] [CrossRef]
  96. Ward, C.R.; Corcoran, J.F.; Saxby, J.D.; Read, H.W. Occurrence of phosphorus minerals in Australian coal seams. Int. J. Coal Geol. 1996, 30, 185–210. [Google Scholar] [CrossRef]
  97. Shand, P.; Johannesson, K.H.; Chudaev, O.; Chudaeva, V.; Edmunds, W.M. Rare earth element contents of high pCO2 groundwaters of Primorye, Russia: Mineral stability and complexation controls. Water Trans. 2005, 51, 161–186. [Google Scholar]
  98. Zhuang, X.; Su, S.; Xiao, M.; Li, J.; Alastuey, A.; Querol, X. Mineralogy and geochemistry of the Late Permian coals in the Huayingshan coal-bearing area, Sichuan Province, China. Int. J. Coal Geol. 2012, 94, 271–282. [Google Scholar] [CrossRef]
  99. Wang, X.; Dai, S.; Chou, C.L.; Zhang, M.; Wang, J.; Song, X.; Wang, W.; Jiang, Y.; Zhou, Y.; Ren, D. Mineralogy and geochemistry of Late Permian coals from the Taoshuping Mine, Yunnan Province, China: Evidences for the sources of minerals. Int. J. Coal Geol. 2012, 96, 49–59. [Google Scholar] [CrossRef]
  100. Reimann, C.; De Caritat, P. Chemical Elements in the Environment: Factsheets for the Geochemist and Environmental Scientist, 1st ed.; Springer Science & Business Media: New York, NY, USA, 1998; p. 397. ISBN 978-3-642-72018-5. [Google Scholar]
  101. Dai, S.; Hou, X.; Ren, D.; Tang, Y. Surface analysis of pyrite in the No. 9 coal seam, Wuda Coalfield, Inner Mongolia, China, using high-resolution time-of-flight secondary ion mass-spectrometry. Int. J. Coal Geol. 2003, 55, 139–150. [Google Scholar] [CrossRef]
  102. Dai, S.; Ren, D.; Tang, Y.; Shao, L.; Li, S. Distribution, isotopic variation and origin of sulfur in coals in the Wuda Coalfield, Inner Mongolia, China. Int. J. Coal Geol. 2002, 51, 237–250. [Google Scholar] [CrossRef]
  103. Ward, C.R. Analysis and significance of mineral matter in coal seams. Int. J. Coal Geol. 2002, 50, 135–168. [Google Scholar] [CrossRef]
  104. Wang, Y.; Guo, W.; Zhang, G. Application of Some Geochemical Indicators in Determining of Sedimentary Environment of the Funing Group (Paleogene), Jin-Hu Depression, Kiangsu Province. J. Tongji Univ. 1979, 2, 51–60. [Google Scholar]
  105. Elderfield, H.; Greaves, M.J. The rare earth elements in seawater. Nature 1982, 296, 214–219. [Google Scholar] [CrossRef]
  106. Bau, M.; Dulski, P. Distribution of yttrium and rare-earth elements in the Penge and Kuruman iron-formations, Transvaal Supergroup, South Africa. Precambrian Res. 1996, 79, 37–55. [Google Scholar] [CrossRef]
  107. Karayiğit, A.I.; Oskay, R.G.; Christanis, K.; Tunoğlu, C.; Tuncer, A.; Bulut, Y. Palaeoenvironmental reconstruction of the Çardak coal seam, SW Turkey. Int. J. Coal Geol. 2015, 139, 3–16. [Google Scholar] [CrossRef]
  108. Karayiğit, A.I.; Oskay, R.G.; Tuncer, A.; Mastalerz, M.; Gümüş, B.A.; Şengüler, I.; Yaradılmış, H.; Tunolğu, C. A multidisciplinary study of the Gölbaşı–Harmanlı coal seam, SE Turkey. Int. J. Coal Geol. 2016, 167, 31–47. [Google Scholar] [CrossRef]
  109. Markic, M.; Sachsenhofer, R.F. Petrographic composition and depositional environments of the Pliocene Velenje lignite seam (Slovenia). Int. J. Coal Geol. 1997, 33, 229–254. [Google Scholar] [CrossRef]
  110. Oskay, R.G.; Christanis, K.; İnaner, H.; Salman, M.; Taka, M. Palaeoenvironmental reconstruction of the eastern part of the Karapınar-Ayrancı coal deposit (Central Turkey). Int. J. Coal Geol. 2016, 163, 100–111. [Google Scholar] [CrossRef]
  111. Siavalas, G.; Linou, M.; Chatziapostolou, A.; Kalaitzidis, S.; Papaefthymiou, H.; Christanis, K. Palaeoenvironment of Seam I in the Marathousa Lignite Mine, Megalopolis Basin (Southern Greece). Int. J. Coal Geol. 2009, 78, 233–248. [Google Scholar] [CrossRef]
  112. Ward, C.R. Minerals in bituminous coals of the Sydney Basin (Australia) and the iIllinois Basin (USA). Int. J. Coal Geol. 1989, 13, 455–479. [Google Scholar] [CrossRef]
  113. Postma, D.J. Pyrite and siderite formation in brackish and freshwater swamp sediments. Am. J. Sci. 1982, 282, 1151–1183. [Google Scholar] [CrossRef]
  114. Kortenski, J. Carbonate minerals in Bulgarian coals with different degrees of coalification. Int. J. Coal Geol. 1992, 20, 225–242. [Google Scholar] [CrossRef]

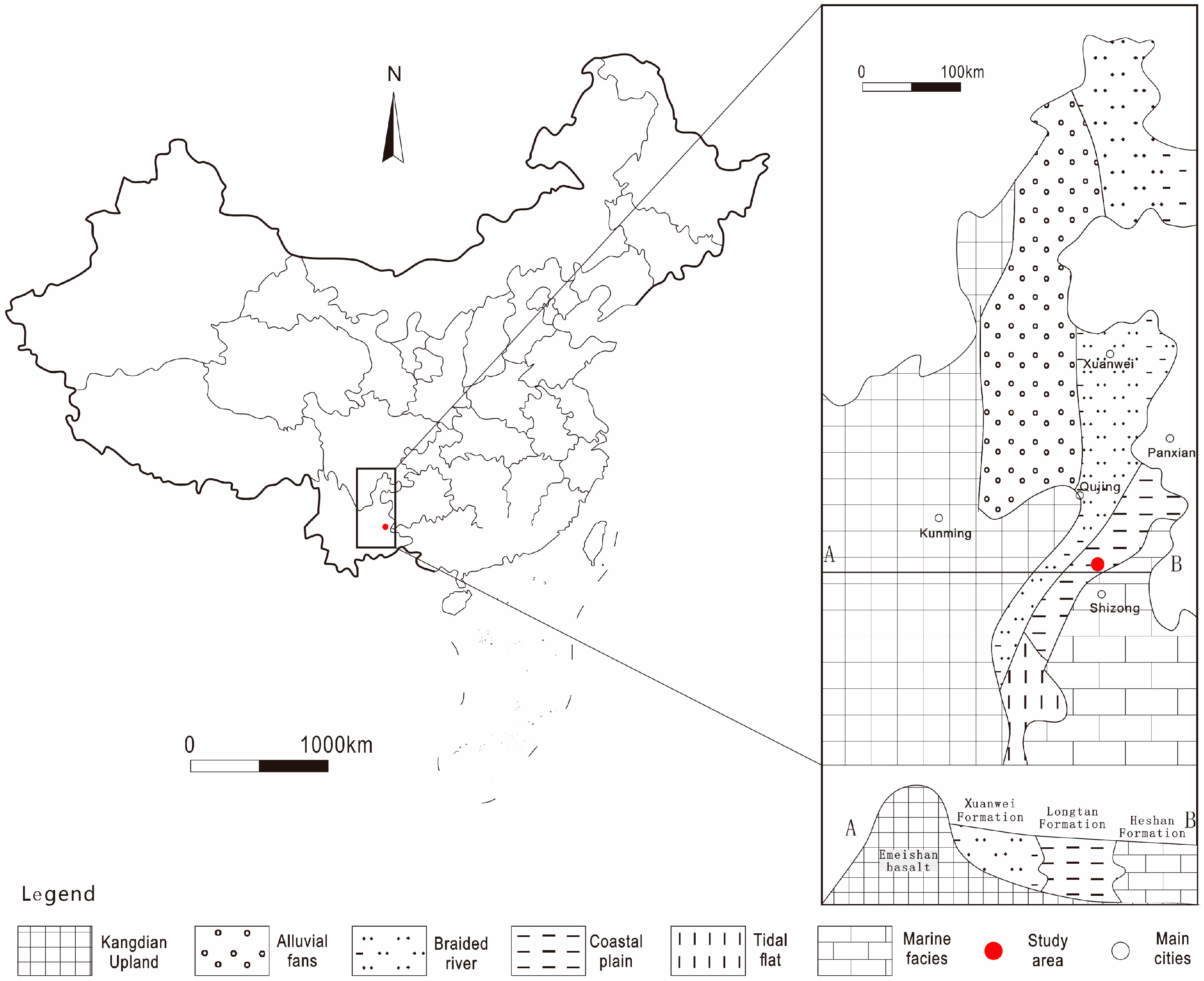

Figure 1. Location and sedimentary environments of the Lopingian Longtan Formation in the Shugentian Coalfield (modified from China Coal Geology Bureau, [23]).
Figure 1. Location and sedimentary environments of the Lopingian Longtan Formation in the Shugentian Coalfield (modified from China Coal Geology Bureau, [23]).
Minerals 07 00170 g001
Figure 2. Sedimentary sequences of the 201 drill-hole in Shugentian Coalfield.
Figure 2. Sedimentary sequences of the 201 drill-hole in Shugentian Coalfield.
Minerals 07 00170 g002
Figure 3. Concentration coefficient (CC) of trace elements in average Shugentian coal (A) and carbonaceous rock benches (B,C), Normalized by trace element concentrations in the world hard coals [66] and world clay [67].
Figure 3. Concentration coefficient (CC) of trace elements in average Shugentian coal (A) and carbonaceous rock benches (B,C), Normalized by trace element concentrations in the world hard coals [66] and world clay [67].
Minerals 07 00170 g003
Figure 4. Distribution patterns of rare earth elements and yttrium (REY) of samples in Shugentian coalfield (AC). REY are normalized by the Upper Continental Crust (UCC) [67]. Data for high- and low-Ti alkali basalts (D) are from Xiao et al. [71].
Figure 4. Distribution patterns of rare earth elements and yttrium (REY) of samples in Shugentian coalfield (AC). REY are normalized by the Upper Continental Crust (UCC) [67]. Data for high- and low-Ti alkali basalts (D) are from Xiao et al. [71].
Minerals 07 00170 g004

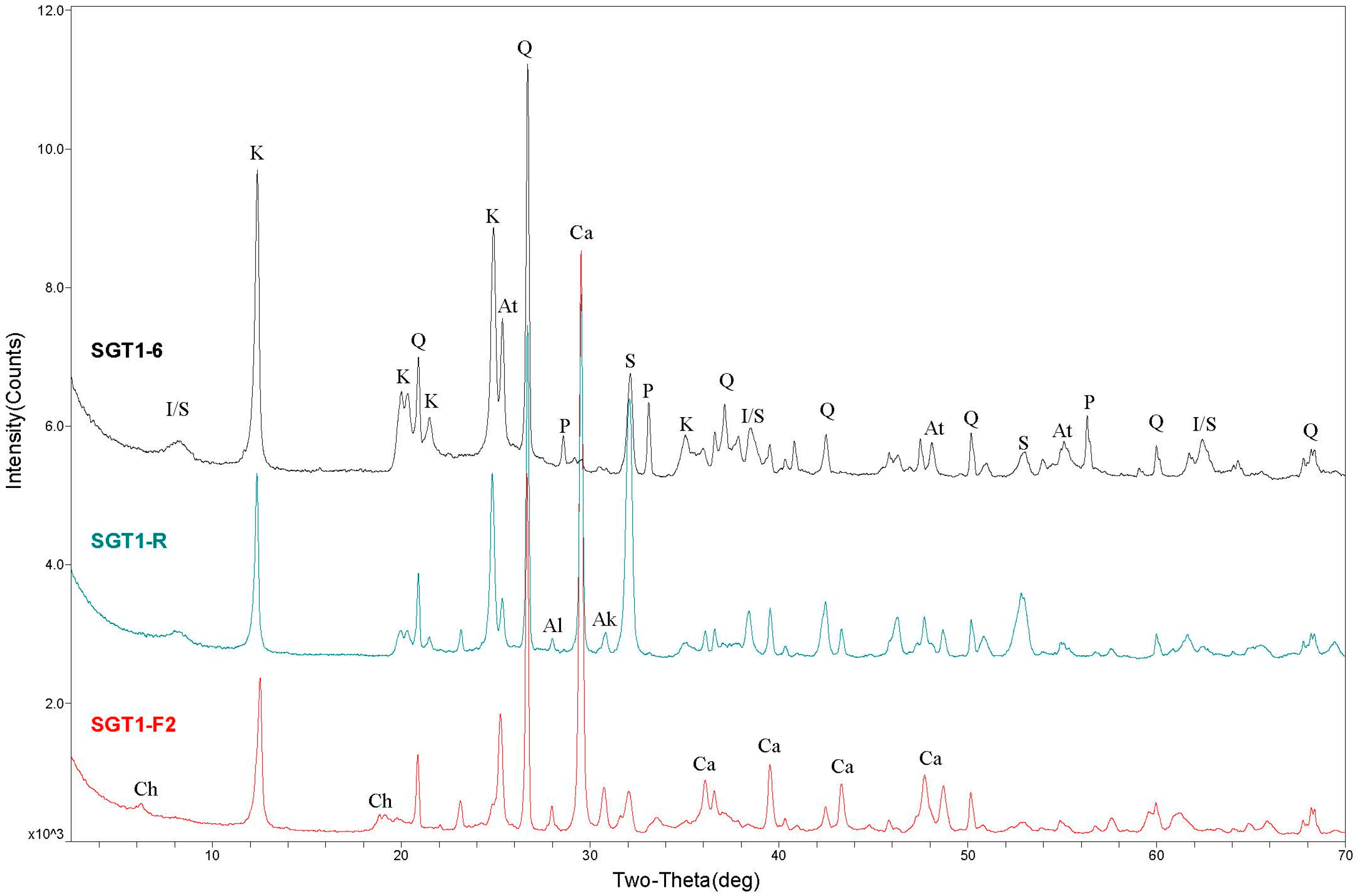

Figure 5. X-ray powder diffraction (XRD) patterns showing minerals in sample SGT1-6 (carbonaceous rock), SGT1-R (roof) andSGT1-F2 (floor). I/S: mixed layers illite/smectite, K: kaolinite, Q: quartz, At: anatase, P: pyrite, Ca: calcite, S: siderite, Al: albite, Ak: ankerite, Ch: chamosite.
Figure 5. X-ray powder diffraction (XRD) patterns showing minerals in sample SGT1-6 (carbonaceous rock), SGT1-R (roof) andSGT1-F2 (floor). I/S: mixed layers illite/smectite, K: kaolinite, Q: quartz, At: anatase, P: pyrite, Ca: calcite, S: siderite, Al: albite, Ak: ankerite, Ch: chamosite.
Minerals 07 00170 g005
Figure 6. Comparison of observed normalized oxide percentages from chemical analysis (x-axis) to oxide percentages for sample ash inferred from XRD analysis data (y-axis). The diagonal line represents equality in each plot.
Figure 6. Comparison of observed normalized oxide percentages from chemical analysis (x-axis) to oxide percentages for sample ash inferred from XRD analysis data (y-axis). The diagonal line represents equality in each plot.
Minerals 07 00170 g006
Figure 7. Scanning electron microscopy (SEM) backscattered electron image of minerals and EDS spectrum of spot 1 (SGT1-11).
Figure 7. Scanning electron microscopy (SEM) backscattered electron image of minerals and EDS spectrum of spot 1 (SGT1-11).
Minerals 07 00170 g007

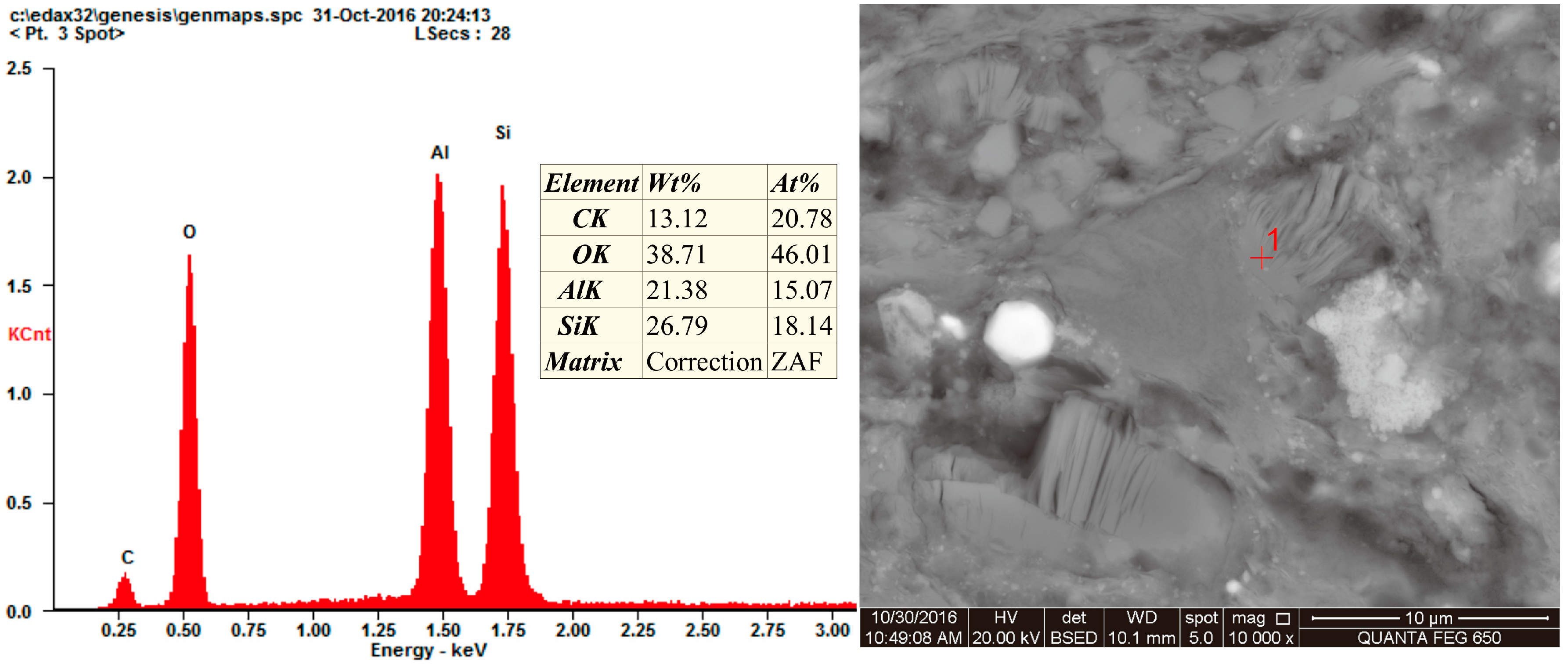

Figure 8. SEM backscattered electron image of minerals and EDS spectrum of spot 1 (SGT1-11).
Figure 8. SEM backscattered electron image of minerals and EDS spectrum of spot 1 (SGT1-11).
Minerals 07 00170 g008
Figure 9. Carbonate minerals and kaolinite in samples investigated. (A,B) Massive siderite and vein like calcite, optical microscope, reflected light; (C) syngenetic nodules siderite in SGT1-9 sample; (D) rod-like siderite; (E,F)organic matter-bound siderite and ankerite; (G) vein infilling siderite and cell infilling kaolinite; (H) Cell infilling siderite and kaolinite; (DH) are SEM back-scattered images of SGT1-11 sample.
Figure 9. Carbonate minerals and kaolinite in samples investigated. (A,B) Massive siderite and vein like calcite, optical microscope, reflected light; (C) syngenetic nodules siderite in SGT1-9 sample; (D) rod-like siderite; (E,F)organic matter-bound siderite and ankerite; (G) vein infilling siderite and cell infilling kaolinite; (H) Cell infilling siderite and kaolinite; (DH) are SEM back-scattered images of SGT1-11 sample.
Minerals 07 00170 g009
Figure 10. (A) Vein-like calcite; (B) massive carbonate mineral and pyrite; (C) vein like calcite and massive siderite; (D) euhedral calcite.
Figure 10. (A) Vein-like calcite; (B) massive carbonate mineral and pyrite; (C) vein like calcite and massive siderite; (D) euhedral calcite.
Minerals 07 00170 g010
Figure 11. Pyrite in the SGT1-11 sample. (A) Framboidal and euhedral pyrite in kaolinite matrix; (B) framboid with euhedral pyrite crystals; (C) massive pyrite connected with calcite; (D) single euhedral pyrite. SEM back-scattering images.
Figure 11. Pyrite in the SGT1-11 sample. (A) Framboidal and euhedral pyrite in kaolinite matrix; (B) framboid with euhedral pyrite crystals; (C) massive pyrite connected with calcite; (D) single euhedral pyrite. SEM back-scattering images.
Minerals 07 00170 g011
Figure 12. Quartz in the coal and non-coal samples. (A,B) Massive quartz in SGT1-9 and SGT1-3 samples; (C,D) detrital quartz coated by clay mineral in SGT1-3 and SGT1-1 samples; (A) is a SEM back-scattering image; (BD) are under optical microscopy (reflected light).
Figure 12. Quartz in the coal and non-coal samples. (A,B) Massive quartz in SGT1-9 and SGT1-3 samples; (C,D) detrital quartz coated by clay mineral in SGT1-3 and SGT1-1 samples; (A) is a SEM back-scattering image; (BD) are under optical microscopy (reflected light).
Minerals 07 00170 g012
Figure 13. Kaolinite in Shugentian coal and non-coal samples, (A,B) Fissure-infilling and cell-infilling kaolinite in SGT1-9 sample; (C) book-like kaolinite in SGT1-11 sample; (D) kaolinite occurs as matrix of other minerals (siderite, pyrite and anatase) in SGT1-11 sample. SEM back-scattering images.
Figure 13. Kaolinite in Shugentian coal and non-coal samples, (A,B) Fissure-infilling and cell-infilling kaolinite in SGT1-9 sample; (C) book-like kaolinite in SGT1-11 sample; (D) kaolinite occurs as matrix of other minerals (siderite, pyrite and anatase) in SGT1-11 sample. SEM back-scattering images.
Minerals 07 00170 g013
Figure 14. (A) Apatite, kaolinite, quartz and pyrite; (B) apatite coated by kaolinite; (C) albite in siderite matrix; (D) florencite (REE-bearing mineral) in organic matter matrix. SEM back-scattering images, (AC) are from SGT1-11 sample; (D) is from SGT1-9 sample.
Figure 14. (A) Apatite, kaolinite, quartz and pyrite; (B) apatite coated by kaolinite; (C) albite in siderite matrix; (D) florencite (REE-bearing mineral) in organic matter matrix. SEM back-scattering images, (AC) are from SGT1-11 sample; (D) is from SGT1-9 sample.
Minerals 07 00170 g014
Figure 15. Bivariate plot for Al2O3 and TiO2 in No. 1 coal seam of the Shugentian coalfield.
Figure 15. Bivariate plot for Al2O3 and TiO2 in No. 1 coal seam of the Shugentian coalfield.
Minerals 07 00170 g015
Figure 16. Pyrite and siderite coexisted in SGT1-11, SEM back-scattering images.
Figure 16. Pyrite and siderite coexisted in SGT1-11, SEM back-scattering images.
Minerals 07 00170 g016
Table 1. Proximate analysis (%), ultimate analysis (%), contents of total sulfur and forms of sulfur (%) of coal, carbonaceous rock, parting, roof and floor samples from 201 drillhole in Shugentian Coalfield.
Table 1. Proximate analysis (%), ultimate analysis (%), contents of total sulfur and forms of sulfur (%) of coal, carbonaceous rock, parting, roof and floor samples from 201 drillhole in Shugentian Coalfield.
SampleTypeThicknessMadAadVdafCdafHdafNdafSt,adSs,adSp,adSo,ad
SGT1-RRoof5cmnd78.10ndndndnd0.04ndndnd
SGT1-1C R15 cm0.5460.99ndndndnd0.83ndndnd
SGT1-2pParting20 cmnd72.16ndndndnd0.08ndndnd
SGT1-3C R15 cm0.6269.43ndndndnd1.590.041.550.02
SGT1-4C R15 cm0.7868.41ndndndnd1.240.021.42bdl
SGT1-5C R15 cm0.7766.21ndndndnd2.010.032.13bdl
SGT1-6C R15 cm0.7071.99ndndndnd2.520.022.360.15
SGT1-7C R15 cm0.5658.15ndndndnd2.600.012.380.23
SGT1-8Coal15 cm0.5142.0526.6084.94.551.620.96ndndnd
SGT1-9Coal15 cm0.5725.7719.6989.14.411.680.94ndndnd
SGT1-10C R15 cm0.6557.78ndndndnd1.820.051.80bdl
SGT1-11C R15 cm0.7466.71ndndndnd12.030.085.256.79
SGT1-12C R15 cm0.7854.87ndndndnd5.640.043.961.68
SGT1-13C R15 cm0.5366.19ndndndnd1.020.040.920.07
SGT1-14C R15 cm0.6366.61ndndndnd0.58ndndnd
SGT1-15C R6 cm0.7570.48ndndndnd0.42ndndnd
SGT1-F1Floor13 cm1.0278.80ndndndnd0.40ndndnd
SGT1-F2Floor20 cmnd82.90ndndndnd0.11ndndnd
C R-wa 0.6764.52 2.81
C R, carbonaceous rock benches; M, moisture; A, ash yield; V, volatile matter; St, total sulfur; Ss, sulfate sulfur; Sp, pyritic sulfur; So, organic sulfur; ad, as-received basis; daf, dry and ash-free basis. C R-Wa, weighted average for carbonaceous rock, based on thickness of bench interval; nd, not dot detected; bdl, below detect limit.
Table 2. Major-element oxides (%) in the Shugentian coal, carbonaceous rock, roof and floor strata.
Table 2. Major-element oxides (%) in the Shugentian coal, carbonaceous rock, roof and floor strata.
SampleTypeLOI/%SiO2TiO2Al2O3Fe2O3MnOMgOCaONa2OK2OP2O5
SGT1-RRoof21.9026.732.4612.9620.870.331.398.250.300.490.29
SGT1-1C R39.0130.123.6717.506.700.130.380.850.140.420.23
SGT1-2pParting27.8410.180.532.9937.610.651.2113.60.060.070.14
SGT1-3C R30.5733.534.7820.886.760.090.420.900.190.630.26
SGT1-4C R31.5932.873.8717.889.620.140.670.980.200.570.27
SGT1-5C R33.7932.364.1218.587.350.090.421.170.180.590.26
SGT1-6C R28.0135.294.5720.228.620.110.490.810.190.620.31
SGT1-7C R41.8527.973.1915.368.010.110.451.150.170.450.22
SGT1-8Coal57.9520.042.2611.955.050.080.330.950.110.280.15
SGT1-9Coal74.2312.931.237.862.600.030.170.350.070.150.11
SGT1-10C R42.2226.923.0714.887.050.100.402.280.180.500.21
SGT1-11C R33.2927.402.5114.6916.690.120.441.810.180.400.17
SGT1-12C R45.1325.462.8614.678.780.050.310.970.160.420.16
SGT1-13C R33.8129.003.3616.319.740.190.543.220.170.400.23
SGT1-14C R33.3930.194.0619.179.290.180.511.160.160.390.23
SGT1-15C R29.5229.073.8618.8113.400.260.731.680.140.360.29
SGT1-F1Floor21.2030.922.7914.3216.670.251.597.070.360.770.27
SGT1-F2Floor17.1025.622.019.8118.350.482.4119.30.240.310.48
C-Wa 30.073.6517.349.120.120.471.400.170.480.23
Chinese 8.470.335.984.850.0150.221.230.160.190.09
The rows with gray shading are of carbonaceous rock (C R) benches. LOI, loss on ignition; C-Wa, weighted average for coal and carbonaceous rock, based on thickness of bench interval; Chinese coals, date from Dai et al. [11].
Table 3. Trace elements (ppm) in the Shugentian coal, carbonaceous rock, roof and floor strata.
Table 3. Trace elements (ppm) in the Shugentian coal, carbonaceous rock, roof and floor strata.
SampleLiBeBFScVCrCoNiCuZnGaGeAsSeRbSrZrNb
SGT1-R342.172723132241603247123108181.62.01.71452531740
SGT1-1742.453528322258693341145139272.13.53.91627449656
SGT1-2p121.42131187.160157.11125884.00.941.30.653.0501949.3
SGT1-3883.163831829386925267195176352.57.93.92432866175
SGT1-4742.884534126299764155182163292.25.23.92228454562
SGT1-5782.823829926322864662173165322.26.75.42334856065
SGT1-6903.265028328396894763199184342.49.14.12431764473
SGT1-7662.462728421248653249148133252.05.74.91628446051
SGT1-8511.7526170141724523319693191.71.83.11023832437
SGT1-9351.13201197.91192813186048131.30.872.35.212518422
SGT1-10562.23228119228613547129113241.96.25.81935143048
SGT1-11134.13252054.82.55.21.8631292221.571142634043732
SGT1-12561.992421419227643147133109231.8278.11624842447
SGT1-13672.342626722248683244139139242.13.93.31541646352
SGT1-14862.633229126314793644166150302.22.73.31431958765
SGT1-15852.693635925310803441166161292.12.92.91737357465
SGT1-F1342.5327350202471013958136120231.94.92.62869139045
SGT1-F2281.781556429188146377476107221.72.00.751674827512
C-wa431.4423144111463618257870161.51.32.77.718125429
CR-wa592.583130223253763553136134172.0104.53438146550
Coal14247823.72817617162862.491.618100364
Clay54311061015120110194936891629.30.3613324019011
CC13.10.70.51.82.95.22.13.01.44.92.52.60.60.11.70.41.877.4
CC21.090.860.280.501.542.110.691.831.093.781.511.080.981.1212.350.261.592.454.55
CC34.91.380.723.435.969.564.055.873.089.255.104.620.871.453.412.232.9414.4714.31
SampleMoCdInSnSbCsBaLaYbHfTaWHgTlPbBiThU
SGT1-R1.60.460.082.2bdl0.93232463.56.83.44.5180.0010bdl101.8
SGT1-11.70.650.123.2bdl1.3211593.89.23.62.3980.029.30.08104.2
SGT1-2p0.290.180.020.52bdl0.31136111.42.11.92.415bdl3.2bdl1.20.61
SGT1-33.10.890.154.3bdl1.8374814.7134.72.81750.06120.06124.9
SGT1-42.00.660.133.4bdl1.6259654.09.63.31.91140.029.40.08104.1
SGT1-52.70.750.143.8bdl1.7267683.9113.63.01780.05160.05104.1
SGT1-62.80.800.154.1bdl1.8259754.1134.52.42310.12130.05114.5
SGT1-72.50.590.112.9bdl1.3246553.38.32.73.52160.13150.088.53.3
SGT1-81.60.430.092.5bdl0.80338412.48.24.31.51060.03120.146.52.5
SGT1-90.600.300.062.0bdl0.47201281.64.91.80.34940.01100.136.62.1
SGT1-101.90.600.112.8bdl1.4355523.07.82.42.21670.08170.087.73.0
SGT1-112.10.560.073.0bdl3.3508844.29.70.90.0219870.9236bdl214.0
SGT1-124.40.640.102.7bdl1.3247502.97.32.43.08010.48220.076.62.7
SGT1-131.70.610.112.9bdl1.2208573.38.22.94.41180.08110.047.12.7
SGT1-141.70.730.133.6bdl1.2199703.8113.71.7810.018.60.048.73.4
SGT1-151.50.760.133.4bdl1.3208693.89.83.32.6740.03100.038.73.3
SGT1-F11.30.580.102.4bdl1.4248492.86.62.32.9560.0618bdl5.01.4
SGT1-F20.390.440.06bdlbdl0.63122603.05.2bdl0.5417bdl6.9bdl7.10.83
C-wa1.10.360.072.2bdl0.64270342.06.53.10.941000.02110.136.62.3
C R-wa2.00.620.112.8bdl1.4259653.78.82.82.52810.13140.039.43.1
Coal2.10.20.041.411.11501111.20.30.991000.5891.13.21.9
Clay1.60.910.063.51.313460482.551.42.6681.3140.38144.3
CC10.51.81.91.6bdl0.61.83.12.05.410.20.91.00.01.20.12.11.2
CC21.270.691.730.81bdl0.110.561.361.491.752.010.974.140.100.990.080.670.72
CC31.143.413.052.38bdl1.461.885.943.738.1510.482.503.680.301.680.053.181.95
C-wa: weighted average for coal, based on thickness of coal bench interval; Coal: the world hard coals, data from Ketris and Youdovich [66]. CC1: C-wa/Coal. C R-wa, weighted average for carbonaceous rock(C R) benches, based on thickness of coal bench interval; clay, the world clay, date from Grigoriev [67]. CC2: C R-wa/Clay; CC3: C R-wa/Coal.
Table 4. Minerals in coal low-temperature ashes (LTAs) and carbonaceous rock, roof and floor of the Shugentian Coalfield (%).
Table 4. Minerals in coal low-temperature ashes (LTAs) and carbonaceous rock, roof and floor of the Shugentian Coalfield (%).
SampleTypeLTAQuaKaoMixAnaSidPyrCalAnkAlbCha
SGT1-RRoof78.10 *16.511.113.32.337.3 15.92.51.1
SGT1-1C R60.99 *16.828.928.36.114.94.20.8
SGT1-2pParting72.16 *7.87.2 64.9 20.1
SGT1-3C R69.43 *9.935.8355.294.20.9
SGT1-4C R68.41 *16.925.625.96.619.75.3
SGT1-5C R66.21 *15.126.731.67.210.47.41.6
SGT1-6C R71.99 *15.933.430.15.66.48.5
SGT1-7C R58.15 *18.825264.913.99.71.5
SGT1-8Coal48.957.817.5122.54.52.41.50.8
SGT1-9Coal33.808.81612.51.53.31.80.20.3
SGT1-10C R57.78 *16.823.227.75.912.88.74.8
SGT1-11C R66.71 *14.420.221.74.88.826.13.50.4
SGT1-12C R54.87 *15.128.429.533.517.62.8
SGT1-13C R66.19 *19.819.919.35.323.13.49.3
SGT1-14C R66.61 *12.228.924.67.32322
SGT1-15C R70.48 *10.62917.15.9342.31.1
SGT1-F1Floor78.80 *2425.4 5.122.91.510.51.71.37.7
SGT1-F2Floor82.90 *21.710.9 2.66.9 30.25.42.919.3
The rows with gray shading are of carbonaceous rock (CR) benches. Coal samples are in coal-based. * high temperature ash yield; Qua: quartz, Kao: kaolinite, Mix: mixed layers illite/smectite, Ana: anatase, Sid: siderite, Pyr: pyrite, Cal: calcite, Ank: ankerite, Alb: albite, Cha: chamosite.

Share and Cite

MDPI and ACS Style

Zheng, X.; Wang, Z.; Wang, L.; Xu, Y.; Liu, J. Mineralogical and Geochemical Compositions of the Lopingian Coals and Carbonaceous Rocks in the Shugentian Coalfield, Yunnan, China: with Emphasis on Fe-Bearing Minerals in a Continental-Marine Transitional Environment. Minerals 2017, 7, 170. https://doi.org/10.3390/min7090170

AMA Style

Zheng X, Wang Z, Wang L, Xu Y, Liu J. Mineralogical and Geochemical Compositions of the Lopingian Coals and Carbonaceous Rocks in the Shugentian Coalfield, Yunnan, China: with Emphasis on Fe-Bearing Minerals in a Continental-Marine Transitional Environment. Minerals. 2017; 7(9):170. https://doi.org/10.3390/min7090170

Chicago/Turabian Style

Zheng, Xue, Zhen Wang, Lei Wang, Yaguang Xu, and Jingjing Liu. 2017. "Mineralogical and Geochemical Compositions of the Lopingian Coals and Carbonaceous Rocks in the Shugentian Coalfield, Yunnan, China: with Emphasis on Fe-Bearing Minerals in a Continental-Marine Transitional Environment" Minerals 7, no. 9: 170. https://doi.org/10.3390/min7090170

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
