Article

Origins and Geochemistry of Dolomites and Their Dissolution in the Middle Triassic Leikoupo Formation, Western Sichuan Basin, China

1
State Key Laboratory of Oil-Gas Reservoirs Geology and Exploitation, Chengdu University of Technology, Chengdu 610059, China
2
College of Energy Resources, Chengdu University of Technology, Chengdu 610059, China
*
Author to whom correspondence should be addressed.
Minerals 2018, 8(7), 289; https://doi.org/10.3390/min8070289
Submission received: 18 May 2018 / Revised: 29 June 2018 / Accepted: 30 June 2018 / Published: 6 July 2018

Abstract

:
Triassic dolomites occur pervasively in the Western Sichuan Basin. Although these strata have been deeply buried and affected by multiple phases of dolomitization and dissolution, some intervals in the upper part of the Leikoupo Formation have developed high porosity. Based on their petrographic and geochemical features, three major types of dolomite fabrics are recognized, namely, dolomicrite, fabric-retentive dolomite, and fabric-destructive dolomite. Geochemical evidence indicates that the dolomicrite formed following the Sabkha model in a low-temperature hypersaline environment, as these rocks exhibit abnormally high Sr and Na contents, lower Fe and Mn contents, δ18O values generally ranging from −1.70‰ to −1.67‰ (with an average value of −1.69‰), and higher Mg/Ca ratios. The fabric-retentive dolomite formed following the seepage-reflux model in a shallow burial environment, and these rocks exhibit the highest 87Sr/86Sr ratios, δ18O values generally ranging from −6.10‰ to −2.50‰ (with an average value of −3.98‰), and a wide range of Fe and Mn contents, indicating that they may have been altered by meteoric water. The fabric-destructive dolomite formed following the burial model at elevated temperatures; these rocks exhibit the lowest Sr and Na contents, δ18O values generally ranging from −7.01‰ to −6.62‰ (with an average value of −6.79‰), relatively higher Mg/Ca values, and lower 87Sr/86Sr ratios. The early Sabkha, seepage-reflux dolomitization and penecontemporaneous periodic meteoric freshwater selective dissolution processes formed multi-period, overlapping moldic pores, algal framework pores, and intragranular dissolution pores. The superposition of organic acid dissolution during the burial period is the main controlling factor of the formation of deeply buried, high-quality dolomite reservoirs in the Leikoupo Formation.

1. Introduction

With the continuous innovation of science and technology, the degree of exploration in oil and gas with middle and shallow layers has been comprehensive. Deep and ultra-deep reservoirs have gradually become important new fields for the development of oil and gas resources, while deep reservoirs often exhibit poor porosity due to having undergone intense compaction and destructive diagenesis. Some carbonate reservoirs that have undergone different stages of dissolution, dolomitization, structural fractures, abnormally high pressures, and early hydrocarbon charging can still maintain good reservoir space even at burial depths of more than 5000 m, such as the Ordovician dolomite reservoirs in the Mills Ranch Field (7663–8103 m), the Madden Formation dolomite reservoirs in the Wind River Basin (7000 m), the Smackover Formation dolomite reservoirs in the Black Creeks field (≥6000 m), the Permian Reef and shoal-facies reservoir in the Sichuan Basin (5027 m–6000 m), and the Ordovician karst fracture reservoir in the Tarim Basin (6400 m) [1,2,3]. The research hotspots of carbonates have mainly focused on carbonate deposition patterns, microbial carbonates, and dolomitization methods, as well as their relationships with the sequence stratigraphic framework, sea-level change, and paleoclimate [4,5,6]. However, few studies have focused on the formation mechanism of deep-buried, high-quality carbonate reservoirs.
The burial depth of the carbonate reservoirs of the Leikoupo Formation in the Western Sichuan Basin is greater than 5500 m, but they maintain relatively good porosity. The mechanism for the formation of deep-buried, high-quality carbonate reservoirs seems to be controlled by various factors. Some authors have emphasized the role of Sabkha dolomitization in the upper tidal zone and the dissolution of aragonite, high-magnesium calcite and gypsum by periodical meteoric freshwater [4,6,7]. It is well known that dolomitization can preserve, reduce, or improve the porosity of carbonate rocks, depending on the type of dolomite, the timing of dolomitization relative to burial, the size of dolomite crystals, and the kind of cement (gypsum, calcite, and quartz), and the percentage of dolomite in carbonate rock [8,9]. However, some authors believe that burial dissolution is the key to high-quality reservoirs, as this process mainly includes the dissolution of organic acids, CO2 dissolution, hydrothermal dissolution, and TSR sulfate thermal reduction [10,11]. However, it remains unclear whether the TSR reaction can improve porosity [12]. Petroleum geologists believe that the pores in carbonate reservoirs are related to the sedimentary environment (which controls the rock composition and structure), diagenesis, burial history, thermal history, and microbial activity [13,14].

2. Geological Background

The Sichuan Basin is a large oil-bearing superimposed basin. The study area is located in front of the Longmenshan Orogenic Belt, which represents the boundary between the western edge of the Yangtze plate and the Songpan-Ganzi fold; it is also the eastern boundary of the Tibetan Plateau and the western edge of the Sichuan Basin (Figure 1). Two complete anticline structures have developed in the study area, the Jingma-Yazihe and Shiyangchang anticlines, which are located in the thrust nappe structure between the Anxian-Guanxian fault and the Pengxian fault (Figure 1) [15,16,17]. There are also some inter-layer small faults that form the network transmission system, especially the Pengxian fault, which not only controls the formation of the Longmenshan Orogenic Belt, but also facilitates the communication of the underlying ultra-deep marine source rock. The Pengxian fault is an important channel for oil and gas migration [16,17].
The study area has mainly experienced two tectonic evolution stages: the Sinian-Middle Triassic passive continental margin tectonic evolution stage, which was characterized by the deposition of thick marine carbonate rocks, and the Late Triassic-Eocene Foreland Basin evolution stage, which was characterized by the deposition of thick terrestrial clastic rocks [17,18]. During the Triassic, the development of the Feixianguan Formation, Jialinjiang Formation, Leikoupo Formation, Xujiahe Formation, and Leikoupo Formation represented the final evolutionary stage of marine carbonates in the Sichuan Basin. The sedimentary facies of the basin are characterized by restricted to evaporitic platform facies. The rocks of the Leikoupo Formation are characterized by multiple cycles of marine carbonates and evaporites, including limestones, dolomites, gypsum, and salt rocks; the thicknesses of these deposits range from 200 m to 1000 m (Figure 1) [16,17,18,19,20]. During the Indosinian period, the paleo-Tethys was subducted beneath the western margin of the Yangtze craton, causing the Leikoupo Formation to be unconformably overlain by the Upper Triassic Xujiahe Formation. The Leikoupo Formation can be divided into four members based on lithology; its high-quality reservoirs are mainly located in the Lei 4 Member [18,19,20].

3. Materials and Methods

A total of 102 samples were collected from the three wells of the Triassic Leikoupo Formation, in the western region of the Sichuan Basin, with burial depths ranging from 5500 m to 6500 m. A total of 86 samples were selected for thin section observation. The sections were prepared for multi-purpose analysis with blue-dyed epoxy impregnation and double-sided polishing. Geochemical and sedimentary environmental information were obtained using cathodoluminescence images obtained using a CL8200 MK5 system with an acceleration voltage of 30 kV, a beam current of 2 nA and a working distance of 5 mm.
In situ carbon and oxygen isotope analyses were performed using a Nd:YAG laser microprobe in the Geological Laboratory of Research Institute of Exploration and Development, Southwest Oil and Gas Field Company, Chengdu, China. The laser probe micro-sampling of C and O from dolomite for isotopic analysis was achieved by focusing a laser beam with a wavelength of 1064 nm and a diameter of 20 μm onto a sample situated in a vacuum chamber to ablate a small area on the sample and liberate CO2 gas. After purification, the CO2 gas was led directly into a Finnigan MAT 252 mass spectrometer (Thermo Electron Corporation, Waltham, MA, USA) for isotopic analysis. The carbon and oxygen isotopic compositions herein were recorded using conventional δ13C and δ18O notations with respect to the Vienna Peedee belemnite (VPDB) standard, respectively. The precision and reproducibility of both isotopic analyses are at least ±0.2‰.
87Sr/86Sr ratios were measured on a MAT262 solid isotope mass spectrometer (Thermo Electron Corporation, Waltham, MA, USA) in the State Key Laboratory of Oil and Gas Reservoir Geology and Exploitation. Carbonate samples (70 mg passed through a 200-mesh sieve) were dissolved for 2 h in 0.8 mol/L hydrochloric acid in a Teflon vessel prior to the analysis of their strontium isotope ratios. Pure strontium for isotopic analysis was separated from the centrifuged dissolved samples using an AG50W × 8(H+) cation exchange column and hydrochloric acid leaching. The blank values for all steps are approximately from 2 × 10−10 to 5 × 10−10 g. The error is expressed by 2σ(±).
Major/trace elements analysis were measured on an inductively coupled plasma optical emission spectrometer (ICP-OES) housed at the Key Laboratory of Petroleum Resources Research, Institute of Geology and Geophysics, Chinese Academy of Sciences, Lanzhou, China. The instrument model was Elan DRC-e (PerkinElmer corporation, Waltham, MA, USA). The detection limit was from 0.01 to 0.2 μg/g. The analysis error is less than 3%.

4. Results

4.1. Petrography

The lithologies in the study area of the Leikoupo Formation comprise dolomite and limestone carbonate, as well as evaporites. Based on petrographic observations, the major diagenetic processes that have affected this rock unit include microbial micritization, calcite cementation, mechanical and chemical compaction, neomorphism, dolomitization, and anhydritization. Three dolomite types can be distinguished in the Leikoupo Formation carbonates: (1) dolomicrite; (2) fabric-retentive dolomite; and (3) fabric-destructive dolomite.

4.1.1. Dolomicrite

This type of dolomite is microcrystalline to finely crystalline and comprises subhedral to anhedral crystals (Figure 2a). These dolomites are mostly dense and lack algal layers and bioclastic dolomite. This type of dolomite primarily forms in low-energy sedimentary environments and is partially to completely dolomitized. Fine-scale depositional structures (i.e., laminations, birds-eye structures and bioturbation structures) are well-preserved. This type of dolomite is associated with anhydrite nodules and calcite cementation.

4.1.2. Fabric-Retentive Dolomite

These dolomites are euhedral to semi-euhedral crystalline rocks. The original sedimentary structures (i.e., laminations and birds-eye structures) are well-preserved and mainly include algal framework dolomite (Figure 2b) and dolomite with precursor carbonate grain textures (Figure 2c). These dolomites are produced in high-energy environments and are partially to completely dolomitized. The boundaries of the grain textures and algae skeletons are clear. The intergranular pores are dominantly filled with dolomite cement, and anhydrite and calcite cements are occasionally visible. The occurrence of slightly compacted contacts between dolomitized grains suggests that dolomitization took place before significant burial occurred. The dissolution of gypsum or calcite can be seen under the microscope.

4.1.3. Fabric-Destructive Dolomite

These dolomites are finely crystalline; such dolomites are commonly present as euhedral crystals that may almost completely obliterate the pre-existing limestone textures (Figure 2d). Intercrystalline pores and intercrystalline dissolution pores are developed. These dolomite crystals show cloudy (inclusion-rich) cores and relatively clear outer rims. The identification of original depositional features and facies is difficult.

4.2. Pore Types

Two pore types can be distinguished in the Leikoupo Formation carbonates: (1) dissolution pores, such as algal framework pores (Figure 2b), moldic pores (Figure 2e), and intergranular dissolution pores (Figure 2e,f), which mainly include the selective dissolution of early gypsum, calcite and aragonitic minerals. (2) Intercrystalline pores (Figure 2d), which mainly occur in the fine crystalline dolomites formed by dolomitization. The most important pore types are the algal framework pores, intergranular dissolved pores, and moldic pores, which account for 70% of all pores. These pores vary in shape and are mainly developed in the fabric-retentive algal framework dolomite.

4.3. Cathodoluminescence (CL) Analysis

Luminescence in carbonates is mostly controlled by the relative abundances of Mn2+ and Fe2+ in the crystal lattice [21]. Mn2+ is considered to be an activator and Fe2+ is considered to be a quencher, meaning that higher amounts of Mn2+ lead to bright luminescence and high amounts of Fe2+ cause dull luminescence or non-luminescence [22]. Most dolomites in the Leikoupo Formation exhibit dull luminescence or non-luminescence, which is related to their lower Mn contents. The fabric-retentive algal framework dolomite and dolomite with precursor carbonate grain textures display bright red luminescence (Figure 3c–f). The fabric-destructive dolomite that has undergone strong diagenesis shows moderately bright luminescence, while the dolomicrite shows dull luminescence (Figure 3a,b).

4.4. Geochemistry

4.4.1. δ13C and δ18O Isotopes

The δ13C and δ18O isotopic compositions of 19 carbonate samples (dolomicrite, fabric-retentive dolomite, fabric-destructive dolomite and calcite) are presented here (Figure 4, Table 1). The δ18O values of the dolomite range from −7.01‰ to −1.67‰ (with an average value of −4.34‰). The distribution characteristics of the δ18O values in different types of rocks indicate that the δ18O values in the dolomicrite, fabric-retentive dolomite, fabric-destructive dolomite, and pore-filling calcite gradually become more depleted. The δ18O values in the dolomicrite range from −1.70‰ to −1.67‰ (with an average value of −1.69‰), those of the fabric-retentive dolomite range from −6.10‰ to −2.50‰ (with an average value of −4.14‰), and those of the fabric-destructive dolomite range from −7.01‰ to −6.62‰ (with an average value of −6.79‰). The δ18O values of the pore-filling calcite are more depleted, as they range from −8.54‰ to −7.25‰ (with an average value of −7.96‰).
The carbon isotopic compositions of carbonates are indicators of the carbon sources incorporated during carbonate formation. The δ13C values of dolomites are mainly dependent on the relative amount of CO2 supplied from pore water carbonate ions, the dissolution of biogenic carbonate precursors, and the degradation of organic matter [23]. The δ13C values of the dolomites and pore-filling calcite range from 1.95‰ to 6.1‰ and 0.31‰ to 2.13‰, respectively.
The salinity index Z and paleo temperature T are two indicators that can be used to determine the salinity and temperature of dolomitization using C-O isotopes [24]. These two indicators are calculated as follows: Z = 2.048(δ13Cd + 50) + 0.498(δ18Od + 50) [25,26] and T = 31.9 − 5.55(δ18Od − δ18Ow) + 0.17(δ18Od − δ18Ow)2 [27,28], where δ13Cd, δ18Od and δ18Ow are the isotopic compositions of dolomite (VPDB) and seawater (SMOW). The results show that most dolomite samples have Z values of >130 (Table 1), which indicates that these dolomites were formed in a high-salinity saltwater environment. The dolomicrite could have formed at temperatures between 40 and 45 °C, whereas the fabric-retentive dolomites, fabric-destructive dolomites and pore-filling calcite could have formed between 50 and 75 °C, 75 and 80 °C, and 85 and 95 °C, respectively (Table 1). Thus, the results of oxygen isotope thermometry indicate that the fabric-destructive dolomites and pore-filling calcite formed at relatively higher temperatures.

4.4.2. Strontium Isotopes

The Sr isotope compositions of these samples are shown in Figure 5 and Table 1. The 87Sr/86Sr ratios of the Leikoupo Formation vary from 0.707669 to 0.708605. The dolomicrite has the lowest 87Sr/86Sr ratios, which range from 0.707680 to 0.707778 (with an average value of 0.707729). The 87Sr/86Sr ratios of the fabric-retentive algal framework dolomite and dolomite with precursor carbonate grain textures have similar values of 0.707694 to 0.708103 (with an average value of 0.708071) and 0.707969 to 0.708246 (with an average value of 0.708065), respectively. The 87Sr/86Sr ratios of the fabric-destructive dolomite range from 0.707669 to 0.708103 (with an average value of 0.707956), indicating that the fabric-destructive dolomites have lighter oxygen isotope values and strontium isotopic ratios compared to the fabric-retentive dolomite.

4.4.3. Major Elements

Calcium and Magnesium

The dolomites of the Leikoupo Formation show a wide range of CaO and MgO values, which range from 28.3% to 32.4% (with an average value of 30.4%) and 19.0% to 23.0% (with an average value of 21.2%), respectively (Figure 6a, Table 1). Both of these ranges are lower than the theoretical values of CaO (30.41%) and MgO (21.86%) in stoichiometric dolomite. The fabric-destructive dolomite has lower Mg/Ca ratios and exhibits a negative correlation between MgO and CaO, which indicates that the recrystallization of dolomite occurred after the burial stages. The dolomicrite has higher Mg/Ca ratios, with a positive correlation that reflects the rapid crystallization of dolomite in a penecontemporaneous evaporation background [29,30].

4.4.4. Trace Elements

Strontium

Sr is one of the most important trace elements associated with dolomite. The concentration of Sr depends on the crystalline habit of dolomite, the properties of the diagenetic fluid (such as salinity) and the precursors of dolomite, which include many factors [6,31]. Primary dolomites contain higher Sr contents than secondary (diagenetic) dolomites [32]. The dolomicrite records the highest Sr contents, ranging from 1122 μg/g to 3968.9 μg/g (with an average value of 2545.5 μg/g), which are higher than those of the dolomites that precipitated from normal seawater, i.e., 470–570 µg/g [33,34]. The fabric-retentive dolomite record a wide range of Sr contents ranging from 83.3 μg/g to 126.2 μg/g (with an average value of 101.3 µg/g), which indicates that their associated dolomitization was affected by multiple factors. The fabric-destructive dolomite has the lowest Sr content, ranging from 59.6 μg/g to 91.5 μg/g (with an average value of 72.5 µg/g), possibly reflecting recrystallization during late burial diagenesis (Figure 6b, Table 1) [35].

Sodium

Sodium is the most abundant cation in seawater, and it has been recognized as a paleosalinity indicator in ancient fluids [36]. The dolomicrite has the highest Na content (with an average value of 980 µg/g) compared to the other types of dolomites, which indicates that this dolomite was related to the dolomitization of high-salinity pore-water fluids in the penecontemporaneous stage. The Na contents vary relatively widely in the fabric-retentive algal framework dolomite (with an average value of 863.0 μg/g) and dolomite with precursor carbonate grain textures (with an average value of 879 μg/g), and the fabric-destructive dolomite has the lowest Na content (with an average value of 800 µg/g) (Figure 6c, Table 1). These data reflect obvious differences in the diagenetic fluid involved in the dolomitization process.

Iron and Manganese

Since the contents of Fe and Mn in seawater are much lower than those in formation water, a reducing environment makes it favorable for Fe and Mn to replace the Ca and Mg ions in the dolomite lattice [37]. In contrast to strontium and sodium, the contents of Fe and Mn in diagenetic dolomites are higher than those in early dolomites. The Fe and Mn concentrations in the dolomites of the Leikoupo Formation range from 80 µg/g to 560 µg/g (with an average value of 371 µg/g) and 10 µg/g to 32 µg/g (with an average value of 24 µg/g), respectively (Figure 6d, Table 1). The dolomicrite has the lowest contents of Fe and Mn. The fabric-retentive dolomite and fabric-destructive dolomite have relatively higher Fe and Mn contents, which are consistent with their bright red luminescence. Some algal framework dolomites have abnormally high Fe content, which may be related to the influence of Fe-rich fluids in an open environment during the early diagenetic stage [30,38].

5. Discussion

5.1. Dolomitization Models

Petrologic and geochemical data reveal that the Leikoupo Formation carbonates have undergone Sabkha model, seepage-reflux model, and burial model processes and experienced multiple dolomitization processes during their deposition and burial stages [16,20]. The schematic model for the dolomitization of the Leikoupo Formation in the study area is shown in Figure 7.

5.1.1. Sabkha Model

The Leikoupo Formation was deposited in an evaporative intertidal-supratidal flat environment [16,20], and its calculated Z values of ancient salinity are generally higher than 130, thus reflecting a relatively limited-evaporation background. The dolomicrite records relatively positive δ18O values, higher Mg/Ca ratios and abnormally high Sr and Na contents, indicating that these dolomites formed in a low-temperature, hypersaline environment [29,39]. The dolomicrite with lower Fe and Mn contents and dull luminescence formed in a near-surface oxidative diagenetic environment [6,40]. Detailed petrographic and geochemical analyses indicate that this dolomicrite could be explained by the Sabkha model. This dolomite formed in a high-salinity, shallow burial environment with relatively fast nucleation and crystallization rates, and its dolomitizing fluids may have been recharged by seawater flowing through the shallow subsurface (i.e., driven by tidal pumping or storms) [41]. In the sabkha capillary zone, dolomitization is closely associated with the growth of nodular anhydrite due to an increase in the Mg:Ca ratio caused by the precipitation of calcium sulphates [42,43].

5.1.2. Seepage-Reflux Model

The δ18O values in the fabric-retentive dolomite gradually become more depleted compared to the dolomicrite; its formation temperature is higher, and its Sr and Na contents are relatively low. The wide range of Fe and Mn contents and corresponding bright red luminescence of the fabric-retentive dolomite indicate that dolomitization occurred in the shallow burial stage and that the fluid used for dolomitization was affected by meteoric freshwater [38,44]. The fabric-retentive dolomite records the highest 87Sr/86Sr ratio, which indicates that the influx of radiogenic Sr occurred during diagenesis [43,45]. Geochemical analyses indicate that the fabric-retentive dolomite could be explained by the seepage-reflux model during the shallow burial stage and the influence of meteoric water and recrystallization during diagenesis [44,46]. In restricted lagoons or platforms, seawater may become concentrated due to evaporation (particularly in arid climates), forming dense dolomitizing brines that infiltrate downwards through the underlying sediments [30,43]. The original structures of the algal framework and carbonate grain textures retain their good initial porosity with shallow burial. The abundance of evaporitic minerals in these dolomites, such as anhydrite, supports the movement of saline brines through these strata [47].

5.1.3. Burial Model

The fabric-destructive dolomite has the highest MgO and CaO contents; the negative linear correlation between CaO and MgO reflects the metasomatism of the dolomite after the deposition and burial stage [29,39]. This dolomite records the lowest Sr and Na contents, higher Fe and Mn contents, and the lowest 87Sr/86Sr values, which indicate that the diagenetic fluids are likely mainly related to trapped seawater and diagenetic alteration in a closed environment [6,48,49]. The depleted δ18O values (down to −6.79‰) yield thermometry results indicating that the dolomite precipitated at relatively higher temperatures (75 to 80 °C) [48]. Geochemical analyses indicate that the fabric-destructive dolomite could be explained by the burial model. The hypersaline seawater preserved in these pores was released under the compaction of the overlying strata and migrated along the pores and diagenetic fractures; the early dolomicrite and fabric-retentive dolomite underwent recrystallization to form the fabric-destructive dolomite.

5.2. Dissolution Models

The observations of cores and thin sections indicate that the dissolution of dolomite in the Leikoupo Formation is very well developed. Based on the characteristics of filling minerals in the dissolved pores and geochemical evidence, the carbonate rocks in the Leikoupo Formation have experienced contemporaneous and burial dissolution (Figure 8).

5.2.1. Contemporaneous Dissolution

During the sedimentary period of the Leikoupo Formation, the strongly evaporating tidal flat environment formed a large amount of gypsum and salt. Although these minerals occupy many of the early primary pores, they also provide soluble substances for subsequent dissolution. The fluctuations in sea level controlled by multiple high-frequency sequences can cause the entire evaporating platform to be exposed and modified by meteoric freshwater [4,50]. The wide variation in δ13C values, wide range of Fe and Mn contents (Figure 6), bright red luminescence, and the highest 87Sr/86Sr ratios of the fabric-retentive dolomite indicate that this dolomite is likely closely related to meteoric water [38,48,51]. A large number of algal framework pores, moldic pores, and intergranular dissolution pores are visible in thin sections (Figure 2b,c,e). These pores often have clean edges, and a small amount of gypsum dissolution residue is visible (Figure 2f). The high-quality reservoir exhibits a multi-stage superimposed and horizontally layered distribution, with most layers ranging in thickness from 5 m to 10 m; the thickness is mainly related to the time of exposure under multiple high-frequency sequences.

5.2.2. Burial Dissolution

After entering the burial stage, the source rocks gradually enter the mature stage; organic acid fluids occur along the structural fractures and stylolite in the pre-pore system, preferentially dissolving authigenic minerals (i.e., residual gypsum, calcite). This process is also sometimes expressed as the dissolution of dolomite wall rocks. Residual bitumen can be seen in intercrystalline pores and large dissolved pores (Figure 2c,e). Fillings of parry calcite can be seen in the partial dissolution pores, with lower δ18C values indicating the presence of organic acids [51]. The most negative observed δ18O values indicate that the calcite formed at relatively higher temperatures during further burial.

6. Conclusions

Petrographic observations indicate there are three main types of dolomite fabric in the Leikoupo Formation, i.e., dolomicrite, fabric-retentive dolomite, and fabric-destructive dolomite. The most important pore types are the algal framework pores, intergranular dissolved pores, and moldic pores, which account for 70% of all pores.
Geochemical analyses indicate that the δ18O values of the dolomicrite are relatively positive; these rocks exhibit higher Mg/Ca ratios, abnormally higher Sr and Na contents, and dull luminescence. The δ18O values of the fabric-retentive dolomite gradually become more depleted compared to the dolomicrite, with a wider range of Fe and Mn contents, bright luminescence, and the highest 87Sr/86Sr ratios. The fabric-destructive dolomite has lower Mg/Ca ratios, the lowest Sr and Na contents, higher Fe and Mn contents, and the lowest 87Sr/86Sr values, as well as extremely depleted δ18O values reflecting higher precipitation temperatures.
The dolomicrite precipitated from hypersaline seawater near the surface following the Sabkha model. The fabric-retentive dolomite could be explained by the seepage-reflux model as having formed in a shallow-burial environment before being altered by meteoric water. The fabric-destructive dolomite can be explained by the burial model.
This formation has undergone multistage dissolution. The first phase of penecontemporaneous meteoric dissolution occurred under high-frequency sequences. This phase mainly comprised the dissolution of gypsum, rock salt and calcite, which form the algal framework pores, moldic pores, and intergranular dissolution pores. The second phase mainly involved organic acid dissolution during the burial period, which mainly resulted in the redistribution of the early dissolution pores.

Author Contributions

Conceptualization: Z.L.; formal analysis: Y.W.; data curation: Y.W.; writing—original draft preparation: S.Z.; and writing—review and editing: S.Z., S.L., Z.L. All authors read and approved the manuscript.

Funding

This research was supported by the Southeast Branch Company of SINOPEC (34450000-15-ZC0607-0014).

Acknowledgments

We thank the anonymous reviewers for their valuable suggestions and kind help in improving the quality of the manuscript, and the Southeast Branch Company of SINOPEC for sample collection and technical support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cao, B.F.; Bai, G.P.; Wang, Y.F. More attention recommended for global deep reservoirs. Oil Gas J. 2013, 111, 78–85. [Google Scholar]
  2. Ma, Y.S.; Cai, X.Y.; Zhao, P.R. The research status and advances in porosity evolution and diagenesis of deep carbonate reservoir. Earth Sci. Front. 2011, 18, 181–192, (In Chinese with English Abstract). [Google Scholar]
  3. Zhao, W.Z.; Wang, Z.C.; Zhang, S.C.; Wang, H.J. Analysis on forming conditions of deep marine reservoirs and their concentration belts in superimposed basins in China. Chin. Sci. Bull. 2007, 52, 12–27. [Google Scholar] [CrossRef]
  4. Moore, C.H. Carbonate Reservoirs: Porosity, Evolution and Diagenesis in a Sequence Stratigraphic Framework; Elsevier Science: Amsterdam, The Netherlands, 2001. [Google Scholar]
  5. Lucia, F.J. Carbonate Reservoir Characterization; Springer: Berlin/Heidelberg, Springer, 2007. [Google Scholar]
  6. Tucker, M.E.; Wright, V.P. Carbonate Sedimentology; Blackwell Scientific Publications: Oxford, UK, 1990. [Google Scholar]
  7. Scholle, P.A.; Ulmer-Scholle, D.S. A color guide to the petrography of carbonate rocks: Grains, textures, porosity, diagenesis. AAPG Mem. 2003, 77, 1–486. [Google Scholar]
  8. Aqrawi, A.M.; Keramati, M.; Ehrenberg, S.N.; Pickard, N.; Moallemi, A.; Svånå, T.; Darke, G.; Dickson, J.A.D.; Oxtoby, N.H. The origin of dolomite in the Asmari Formation (Oligocene-lower Miocene), Dezful Embayment, SW Iran. J. Pet. Geol. 2006, 29, 381–402. [Google Scholar] [CrossRef]
  9. Purser, B.; Tucker, M.; Zenger, D. Dolomites: A Volume in Honour of Dolomieu; Blackwell Scientific Publications: Oxford, UK, 1994. [Google Scholar]
  10. Heydari, E.; Moore, C.H. Burial diagensis and thermochemical sulfate reduction, Smackover Formation, southeastern Mississippi salt basin. Geology 1989, 17, 1080–1084. [Google Scholar] [CrossRef]
  11. Huang, S.J.; Gong, Y.C.; Huang, K.K.; Tong, H.P. The influence of burial history on Carbonate Dissolution and Precipitation—A case study from Feixianguan Formation of Triassic, NE Sichuan and Ordovician Carbonate of Northern Tarim Basin. Adv. Earth Sci. 2010, 25, 381–390, (In Chinese with English Abstract). [Google Scholar]
  12. Machel, H.G. Bacterial and thermochemical sulfate reduction in diagenetic settings-old and new insights. Sediment. Geol. 2001, 140, 143–175. [Google Scholar] [CrossRef]
  13. Amel, H.; Jafarian, A.; Husinec, A.; Koeshidayatullah, A.; Swennen, R. Microfacies, depositional environment and diagenetic evolution controls on the reservoir quality of the Permian Upper Dalan Formation, Kish Gas Field, Zagros Basin. Mar. Pet. Geol. 2015, 67, 57–71. [Google Scholar] [CrossRef]
  14. Ehrenberg, S.N.; Eberli, G.P.; Keramati, M.; Moallemi, S.A. Porosity-permeability relationships in interlayered limestone-dolostone reservoirs. AAPG Bull. 2006, 90, 91–144. [Google Scholar] [CrossRef]
  15. Li, H.T.; Hu, X.Y.; Shi, Y.Q.; Xiao, K.H.; Jia, Y.W.; Wei, X.P.; Feng, Q. Sequence division and controlling factors of reservoir development of the 4th Member of Leikoupo Formation in foreland of Longmen Mountains in the Western Sichuan Depression, Sichuan Basin. Oil Gas Geol. 2017, 38, 753–763, (In Chinese with English Abstract). [Google Scholar]
  16. Li, S.B.; Xu, G.M.; Song, X.B. Forming conditions of Pengzhou large gas field of Leikoupo Formation in Longmenshan piedmont tectonic belt, western Sichuan Basin. China Pet. Explor. 2016, 3, 74–82, (In Chinese with English Abstract). [Google Scholar]
  17. Wu, S.X.; Li, H.T.; Long, S.X.; Liu, Z.L.; Wang, C.L.; Zhang, J.T. A study on characteristics and diagenesis of carbonate reservoirs in the Middle Triassic Leikoupo Formation in western Sichuan Depression. Oil Gas Geol. 2011, 32, 542–550, (In Chinese with English Abstract). [Google Scholar]
  18. Wu, X.; Chen, Y.; Liu, G.; Zeng, H.; Wang, Y.; Hu, Y.; Liu, W. Geochemical characteristics and origin of natural gas reservoir the natural gas reservoir in the 4th Member of the Middle Triassic Leikoupo Formation in the Western Sichuan Depression, Sichuan Basin, China. J. Nat. Gas Geosci. 2017, 2, 99–108. [Google Scholar] [CrossRef]
  19. Ding, X.; Wang, B.; Wang, X.; Liu, H.; Zeng, D.; Feng, M. The three different types of paleokarstification and reservoir distribution of Leikoupo Formation, Middle Triassic in the Northern Sichuan Basin, China. Carbonates Evaporites 2017, 5, 1–12. [Google Scholar] [CrossRef]
  20. Li, L.; Tan, X.; Cao, J.; Zou, C.; Ding, X.; Yang, G.; Ying, D. Origins of evaporites in the Middle Triassic Leikoupo Formation of the Sichuan Basin, southwest China and their geological implications. Carbonates Evaporites 2014, 29, 55–63. [Google Scholar] [CrossRef]
  21. Savard, M.M.; Veizer, J.; Hinton, R. Cathodoluminescene at low Fe and Mn concentrations: A SIMS study of zones in natural calcites. J. Sediment. Res. 1995, 65, 208–213. [Google Scholar] [CrossRef]
  22. Machel, H.G. Concepts and models of dolomitization: A critical reappraisal. Geol. Soc. Lond. Spec. Publ. 2004, 235, 7–63. [Google Scholar] [CrossRef]
  23. Montanez, I.P.; Read, J.F. Fluid-rock interaction history during stabilization of early dolomites, Upper Knox Group (Lower Ordovician), US Appalachians. J. Sediment. Res. 1992, 62, 753–778. [Google Scholar]
  24. El-Shazly, S.H. Stable isotope of some selected Egyptian pectinids and their paleoenvironmental implications. J. Afr. Earth Sci. 2011, 59, 283–294. [Google Scholar] [CrossRef]
  25. Keith, M.L.; Weber, J.N. Carbon and oxygen isotopic composition of selected limestones and fossils. Geochim. Cosmochim. Acta 1964, 28, 1787–1816. [Google Scholar] [CrossRef]
  26. Wang, C.; Deng, J.; Zhang, S.; Zhang, D.; Yang, L. Carbon and oxygen isotope relations and its significance. Geochim. Cosmochim. Acta. 2009, 73, A1407. [Google Scholar]
  27. Fritz, P.; Smith, D.G.W. The isotopic composition of secondary dolomite. Geochim. Cosmochim. Acta 1970, 34, 1161–1173. [Google Scholar] [CrossRef]
  28. Dickson, J.A.D.; Coleman, M.L. Changes in carbon and oxygen isotope composition during limestone diagenesis. Sedimentology 1980, 27, 107–118. [Google Scholar] [CrossRef]
  29. Shen, A.; Zheng, J.; Chen, Y.; Xinfeng, N.I.; Huang, L. Characteristics, origin and distribution of dolomite reservoirs in lower-middle cambrian, tarim basin, NW China. Pet. Explor. Dev. 2016, 43, 375–385. [Google Scholar] [CrossRef]
  30. Ren, Y.; Zhong, D.; Gao, C.; Sun, H.; Peng, H.; Zheng, X.; Qiu, C. Origin of dolomite of the lower Cambrian Longwangmiao Formation, eastern Sichuan Basin, China. Carbonates Evaporites 2017, 1, 1–20. [Google Scholar] [CrossRef]
  31. Ye, Q.; Mazzullo, S.J. Dolomitization of lower permian platform facies, Wichita Formation, north platform, Midland basin, Texas. Carbonates Evaporites 1993, 8, 55–70. [Google Scholar] [CrossRef]
  32. Warren, J. Dolomite: Occurrence, evolution and economically important associations. Earth-Sci. Rev. 2000, 52, 1–81. [Google Scholar] [CrossRef]
  33. Baker, P.A.; Burns, S.J. Occurrence and formation of dolomite in organic rich continental margin sediments. AAPG Bull. 1985, 9, 1917–1930. [Google Scholar]
  34. Qing, H.; Mountjoy, E.W. Multistage dolomitization in rainbow buildups, middle devonian keg river formation, Alberta, Canada. J. Sediment. Res. 1989, 59, 114–126. [Google Scholar]
  35. Modarres, M.H.; Adabi, M.H.; Fayazi, F.; Ghobishavi, A.; Moradpour, M. Petrography and geochemical composition of the middle Eocene, the Shahabazan Formation at Kialu Section, Zagros Basin, Southwestern Iran. Carbonates Evaporites 2018, 1, 1–13. [Google Scholar] [CrossRef]
  36. Veizer, J.; Lemieux, J.; Jones, B.; Gibling, M.R.; Savelle, J. Paleosalinity and dolomitization of a lower paleozoic carbonate sequen. Can. J. Earth Sci. 1978, 15, 1448–1461. [Google Scholar] [CrossRef]
  37. Allan, J.R.; Wiggins, W.D. Dolomite reservoirs: Geochemical techniques for evaluating origin and distribution. J. Pet. Sci. Eng. 1993, 14, 262–263. [Google Scholar]
  38. Budd, D.A. Cenozoic dolomites of carbonate islands: Their attributes and origin. Earth-Sci. Rev. 1997, 42, 1–47. [Google Scholar] [CrossRef]
  39. Lu, X.; Shi, J.; Zhang, S.; Zou, N.; Sun, G.; Zhang, S. The origin and formation model of Permian dolostones on the northwestern margin of Junggar Basin, China. J. Asian Earth Sci. 2015, 105, 456–467. [Google Scholar] [CrossRef]
  40. Azmy, K.; Veizer, J.; Misi, A.; Oliveira, T.F.D.; Sanches, A.L.; Dardenne, M.A. Dolomitization and isotope stratigraphy of the Vazante Formation, Sao Francisco Basin, Brazil. Precambr. Res. 2001, 112, 303–329. [Google Scholar] [CrossRef]
  41. Chan, M.Y.; Yong, I.L. Origin and modification of early dolomites in cyclic shallow platform carbonates, Yeongheung Formation (middle Ordovician), Korea. Sediment. Geol. 1998, 118, 141–157. [Google Scholar]
  42. Alsharhan, A.S.; Whittle, G.L. Sedimentary-diagenetic interpretation and reservoir characteristics of the Middle Jurassic (Araej Formation) in the southern Arabian Gulf. Mar. Pet. Geol. 1995, 12, 615–628. [Google Scholar] [CrossRef]
  43. Rahimpour-Bonab, H.; Esrafili-Dizaji, B.; Tavakoli, V. Dolomitization and anhydrite precipitation in Permo-Triassic carbonates at the south pars gas field, offshore Iran: Controls on reservoir quality. J. Pet. Geol. 2010, 33, 43–66. [Google Scholar] [CrossRef]
  44. Huang, S.J.; Huang, K.K.; Lu, J.; Lan, Y.F. The relationship between dolomite textures and their formation temperature: A case study from the Permian Triassic of the Sichuan Basin and the lower Paleozoic of the Tarim Basin. Pet. Sci. 2014, 11, 39–51. [Google Scholar] [CrossRef]
  45. Moore, C.H.; Chowdhury, A. Upper Jurassic Smackover Platform Dolomitization, Northwestern Gulf of Mexico: A Tale of Two Waters. In Sedimentology and Geochemistry of Dolostones; Shukla, V., Baker, P.A., Eds.; Society of Economic Paleontologists and Mineralogists (SEMP): Tulsa, OK, USA, 1988; pp. 175–189. [Google Scholar]
  46. Zhang, L.; Jiao, Y.; Rong, H.; Li, R.; Wang, R. Origins and Geochemistry of Oolitic Dolomite of the Feixianguan Formation from the Yudongzi Outcrop, Northwest Sichuan Basin, China. Minerals 2017, 7, 120. [Google Scholar] [CrossRef]
  47. Mansour, A.S.; Abd-Ellatif, M.T. Dolomitization of the Miocene carbonates in Gebel Abu Shaar El Qiblie and Salum area, Egypt: A petrographical and geochemical comparative study. Carbonates Evaporites 2013, 28, 347–363. [Google Scholar] [CrossRef]
  48. Armstrong-Altrin, J.S.; Verma, S.P.; Lee, Y.I.; Worden, R.H. Carbon, oxygen, and strontium isotope geochemistry of carbonate rocks of the upper Miocene Kudankulam Formation, southern India: Implications for paleoenvironment and diagenesis. Chem. Erde Geochem. 2009, 69, 45–60. [Google Scholar] [CrossRef]
  49. Rahimi, A.; Adabi, M.H.; Aghanabati, A.; Majidifard, M.R.; Jamali, A.M. Dolomitization Mechanism Based on Petrography and Geochemistry in the Shotori Formation (Middle Triassic), Central Iran. Open J. Geol. 2016, 6, 1149–1168. [Google Scholar] [CrossRef]
  50. Zhao, W.Z.; Luo, P.; Chen, G.; Cao, H.; Zhang, B. Origin and reservoir rock characteristics of dolostones in the early triassic Feixianguan formation, NE Sichuan basin, China: Significance for future gas exploration. J. Pet. Geol. 2010, 28, 83–100. [Google Scholar] [CrossRef]
  51. Khalaf, F.I.; Abdullah, F.A.; Gharib, I.M. Petrography, diagenesis and isotope geochemistry of dolostones and dolocretes in the Eocene Dammam Formation, Kuwait, Arabian Gulf. Carbonates Evaporites 2017, 1–3, 1–19. [Google Scholar] [CrossRef]

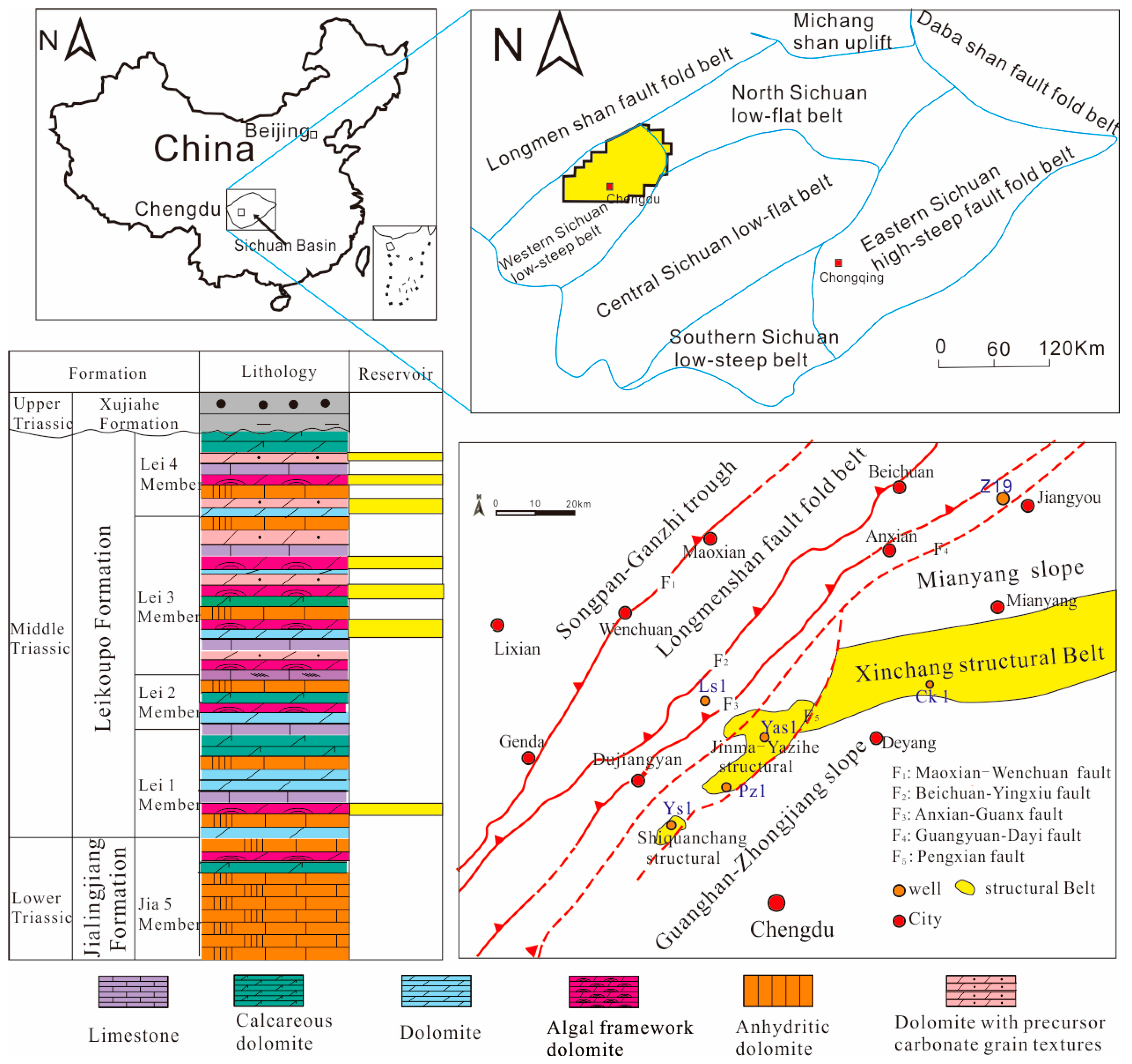

Figure 1. The location and tectonic characteristics of the study area, and the Middle Triassic stratigraphic column for the Western Sichuan Basin.
Figure 1. The location and tectonic characteristics of the study area, and the Middle Triassic stratigraphic column for the Western Sichuan Basin.
Minerals 08 00289 g001
Figure 2. Photomicrographs of the Leikoupo Formation dolomites. (a) Well Yas1, 5774.42 m, dolomicrite; (b) Well Ys1, 6200.39 m, algal framework dolomite, algal framework pores; (c) Well Ys1, 6223.63 m, dolomite with precursor carbonate grain textures, intergranular dissolution pores; (d) Well Ys1, 6197.21 m, fabric-destructive dolomite, intercrystalline pores; (e) Well Ys1, 6219.66 m, moldic pores, residual bitumen; and (f) Well Ys1, 6215.38 m, residual gypsum, moldic pores, intergranular dissolution pores.
Figure 2. Photomicrographs of the Leikoupo Formation dolomites. (a) Well Yas1, 5774.42 m, dolomicrite; (b) Well Ys1, 6200.39 m, algal framework dolomite, algal framework pores; (c) Well Ys1, 6223.63 m, dolomite with precursor carbonate grain textures, intergranular dissolution pores; (d) Well Ys1, 6197.21 m, fabric-destructive dolomite, intercrystalline pores; (e) Well Ys1, 6219.66 m, moldic pores, residual bitumen; and (f) Well Ys1, 6215.38 m, residual gypsum, moldic pores, intergranular dissolution pores.
Minerals 08 00289 g002
Figure 3. Cathodoluminescence micrograph of the Leikoupo Formation dolomites. (a,b) Well Yas1, 5738.8 m, dolomicrite, dull luminescence; (c,d) Well Ys1, 6196.27 m, algal framework dolomite, bright red luminescence; and (e,f) Well Ys1, 6223.63 m, dolomite with precursor carbonate grain textures, bright red luminescence.
Figure 3. Cathodoluminescence micrograph of the Leikoupo Formation dolomites. (a,b) Well Yas1, 5738.8 m, dolomicrite, dull luminescence; (c,d) Well Ys1, 6196.27 m, algal framework dolomite, bright red luminescence; and (e,f) Well Ys1, 6223.63 m, dolomite with precursor carbonate grain textures, bright red luminescence.
Minerals 08 00289 g003

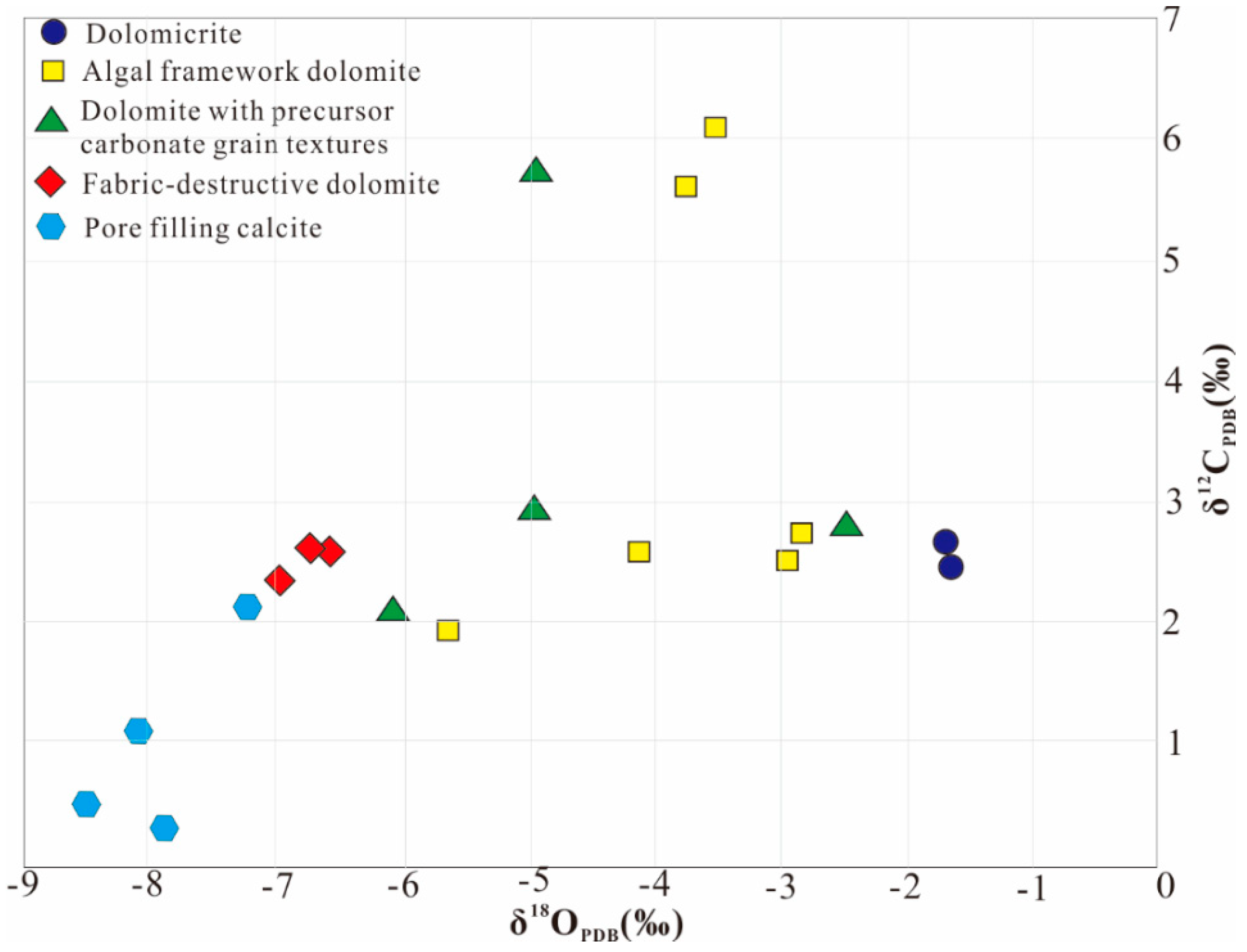

Figure 4. Plot of δ13C and δ18O values of the dolomicrite, fabric-retentive dolomite, fabric-destructive dolomite, and calcite of the Leikoupo Formation, Western Sichuan Basin.
Figure 4. Plot of δ13C and δ18O values of the dolomicrite, fabric-retentive dolomite, fabric-destructive dolomite, and calcite of the Leikoupo Formation, Western Sichuan Basin.
Minerals 08 00289 g004

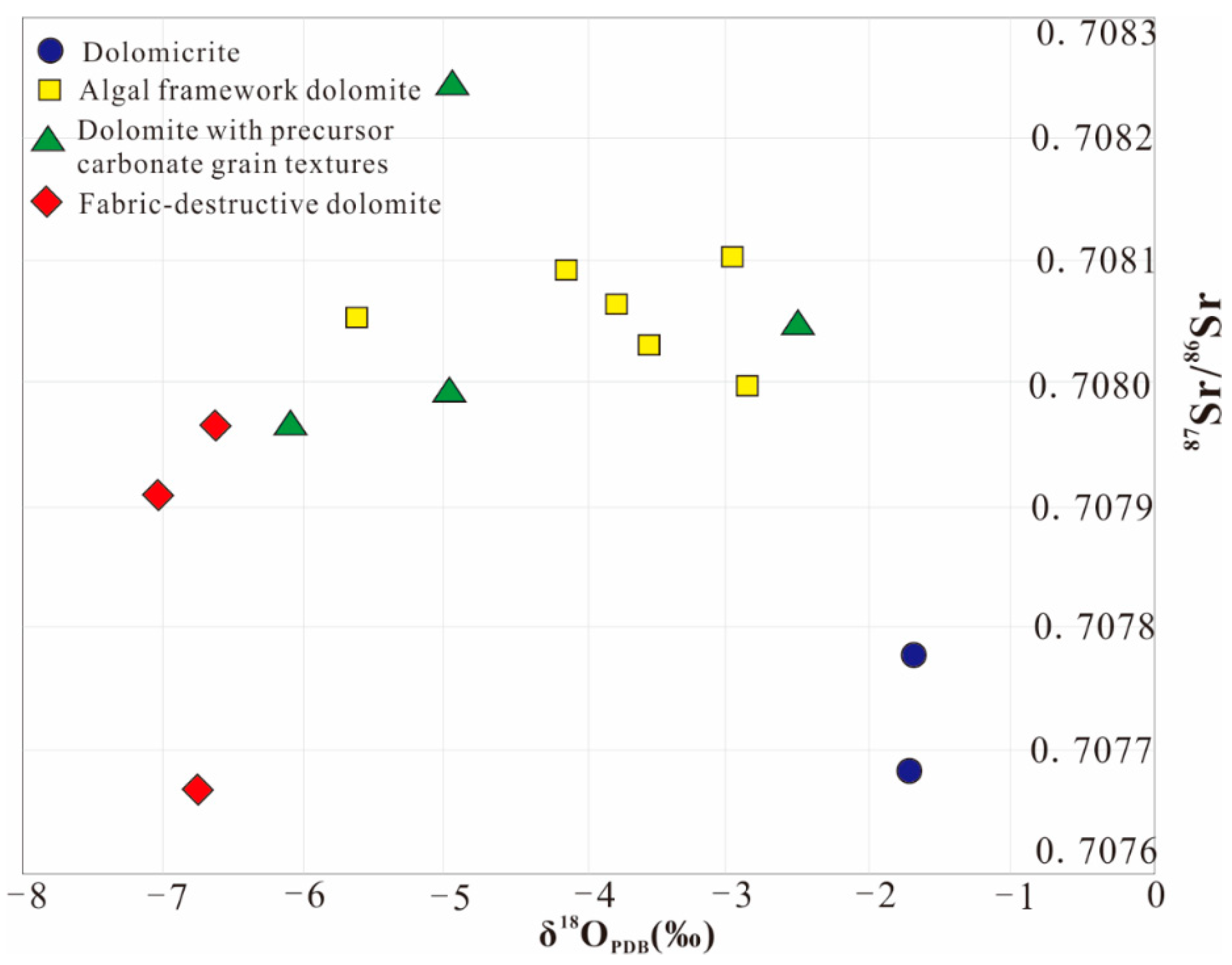

Figure 5. Plot of 87Sr/86Sr ratios and δ18O values of the dolomicrite, fabric-retentive dolomite, and fabric-destructive dolomite of the Leikoupo Formation, Western Sichuan Basin.
Figure 5. Plot of 87Sr/86Sr ratios and δ18O values of the dolomicrite, fabric-retentive dolomite, and fabric-destructive dolomite of the Leikoupo Formation, Western Sichuan Basin.
Minerals 08 00289 g005

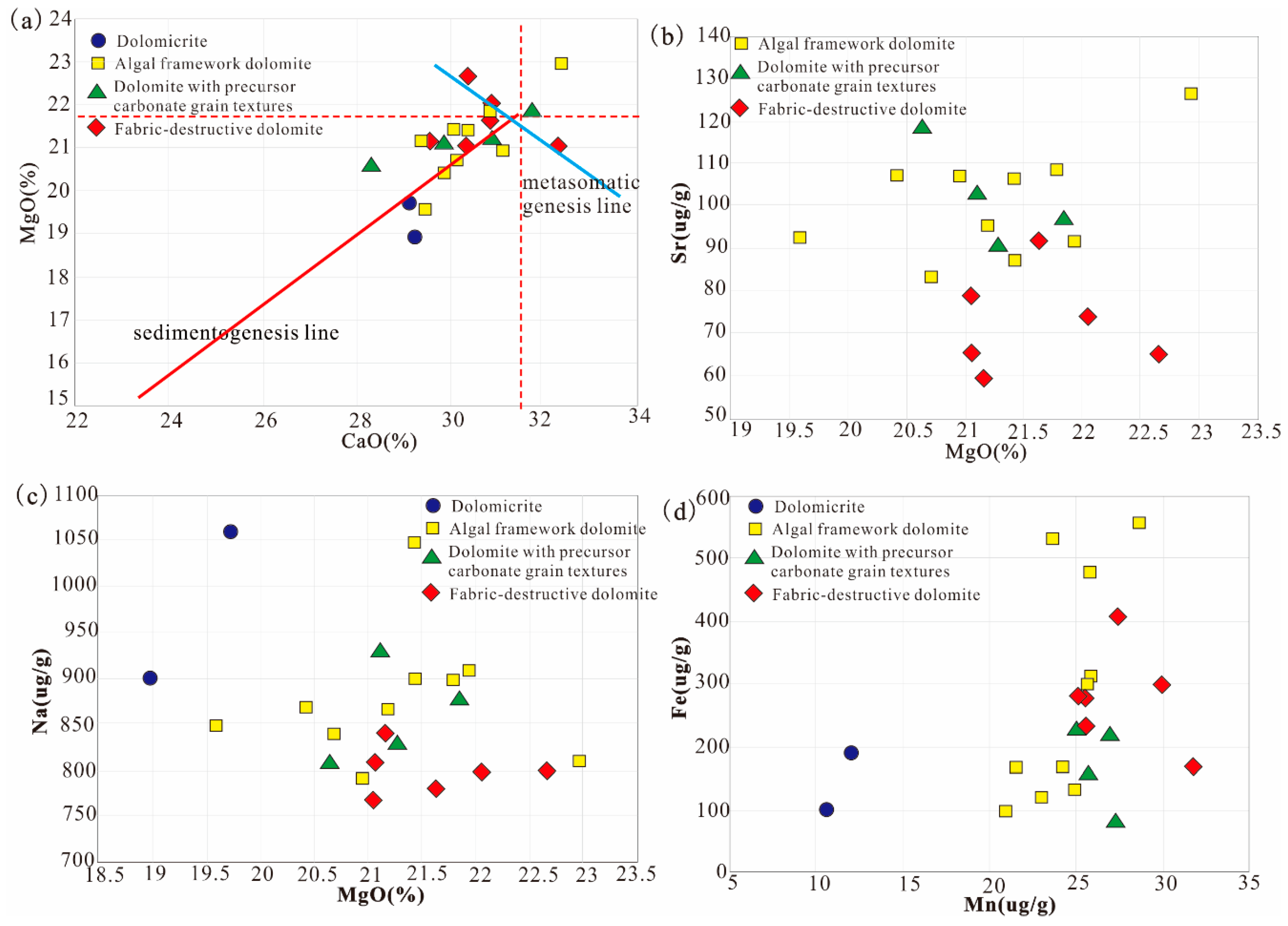

Figure 6. Cross plot of MgO/CaO (a), Sr/MgO (b), Na/MgO (c), and Fe/Me (d) for Leikoupo Formation dolomite, Western Sichuan Basin.
Figure 6. Cross plot of MgO/CaO (a), Sr/MgO (b), Na/MgO (c), and Fe/Me (d) for Leikoupo Formation dolomite, Western Sichuan Basin.
Minerals 08 00289 g006

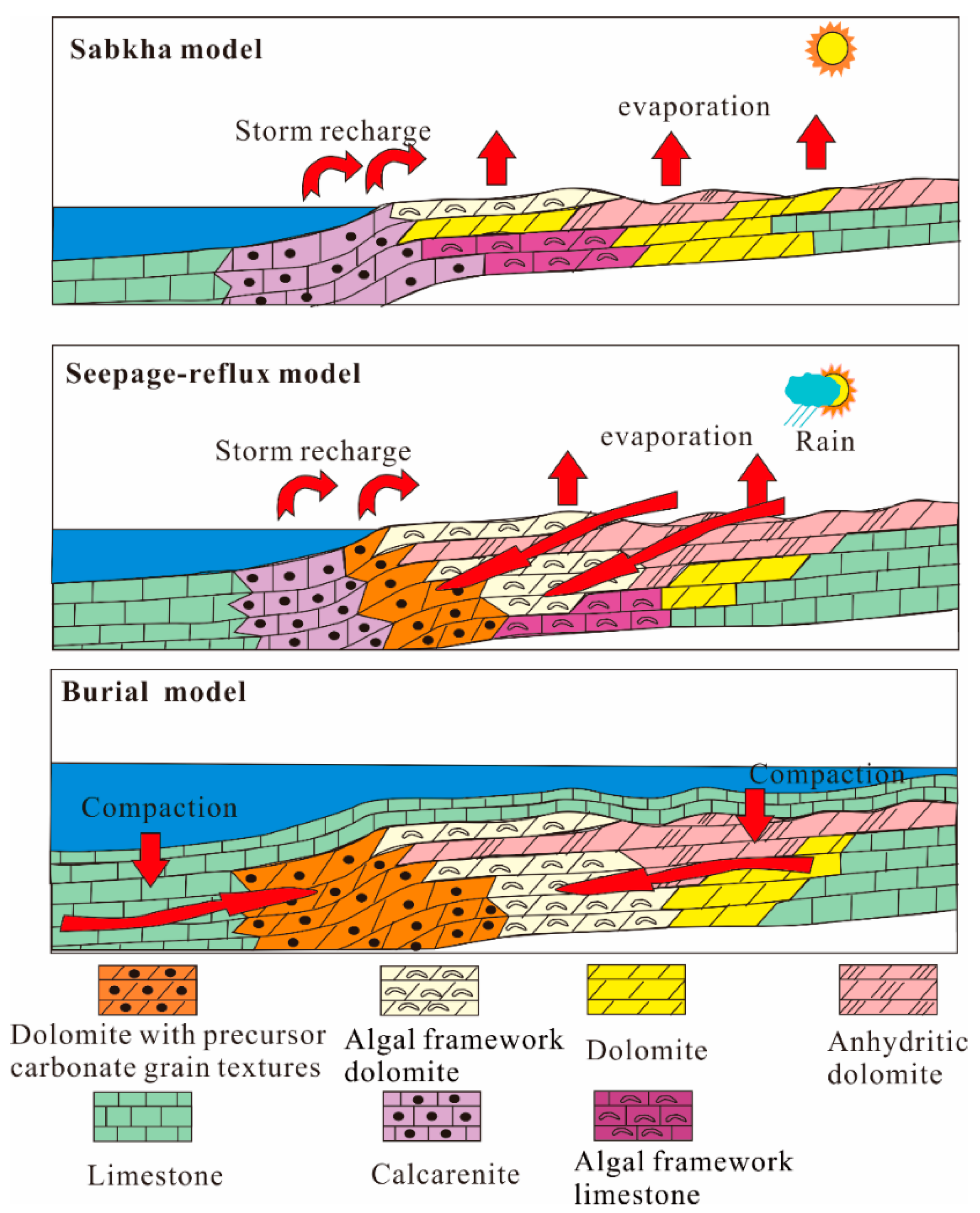

Figure 7. Dolomitization models of the Leikoupo Formation in the Western Sichuan Basin.
Figure 7. Dolomitization models of the Leikoupo Formation in the Western Sichuan Basin.
Minerals 08 00289 g007

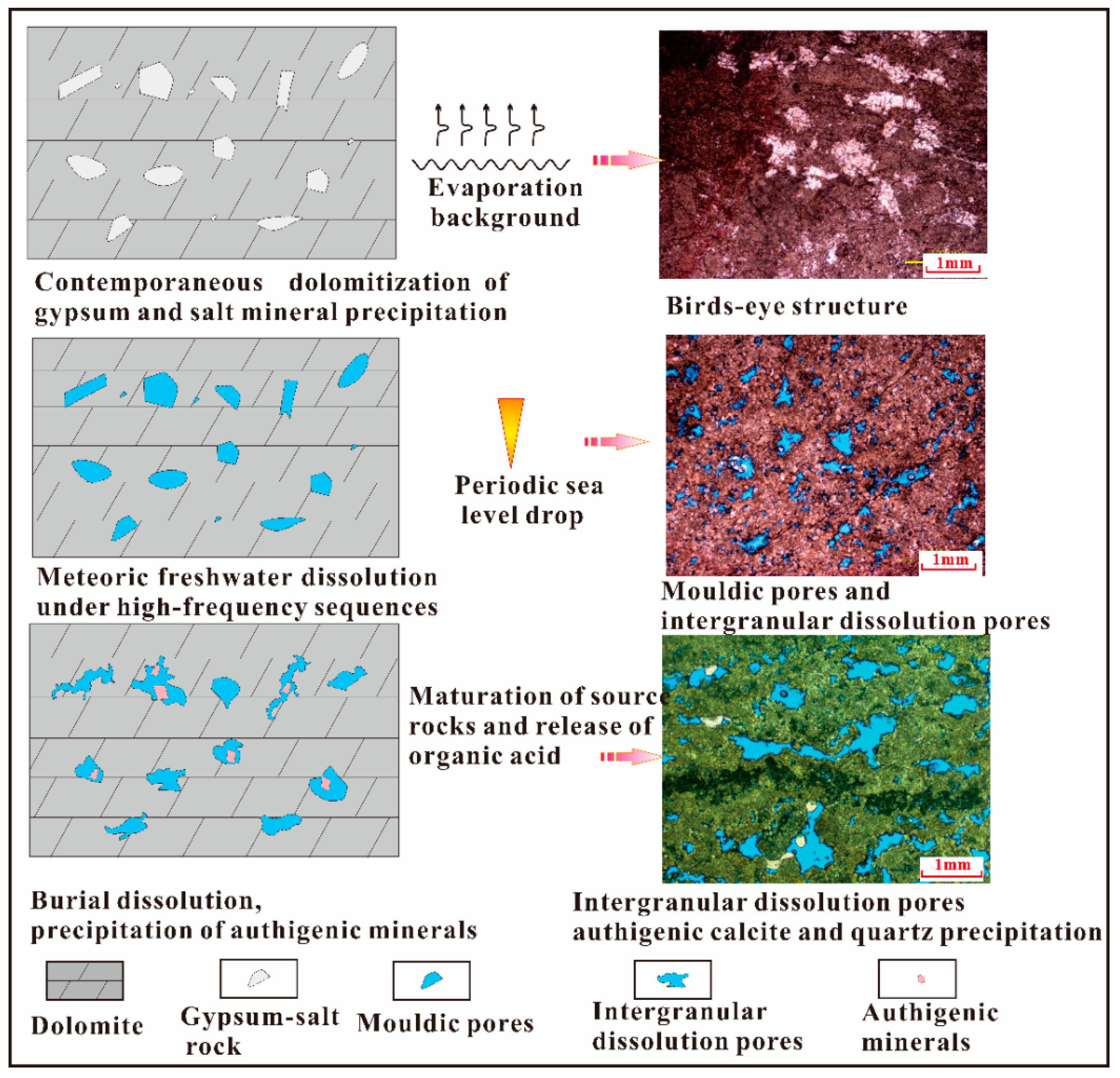

Figure 8. Dissolution models of the Leikoupo Formation dolomite in the Western Sichuan Basin.
Figure 8. Dissolution models of the Leikoupo Formation dolomite in the Western Sichuan Basin.
Minerals 08 00289 g008
Table 1. Stable isotope compositions, major and trace elemental concentrations of dolomite samples in the Leikoupo Formation, Western Sichuan Basin.
Table 1. Stable isotope compositions, major and trace elemental concentrations of dolomite samples in the Leikoupo Formation, Western Sichuan Basin.
WellDepth (m)LithologyMgO%CaO%Sr (μg/g)Na (μg/g)Fe (μg/g)Mn (μg/g)δ13C PDBδ18O PDBSr isotope RatioSalinity Index ZPaleo Temperature (°C)
87Sr/86Sr2σ(±)
Ys16238.9Dolomicrite19.729.13968.91060.0190.011.92.64−1.700.7076800.000010131.941.8
Ys16243.4Dolomicrite19.029.21122.0900.0100.010.52.48−1.670.7077780.000014131.541.6
Yas15779.4Algal framework dolomite21.830.8108.7900.0560.028.6--0.7086050.000011--
Yas16220.0Algal framework dolomite20.429.9107.7870.0170.024.32.52−2.960.7081040.000013131.049.8
Yas15793.9Algal framework dolomite21.430.4106.6900.0300.025.75.62−3.770.7080670.000010136.955.2
Ys16213.8Algal framework dolomite21.430.187.31050.0170.021.52.77−2.850.7079980.000012131.649.1
Yas15775.8Algal framework dolomite20.730.183.3840.0130.025.02.58−4.130.7080940.000012130.557.7
Yas15787.8Algal framework dolomite21.229.495.5870.0310.025.91.95−5.640.7080530.000013128.568.6
Ys16196.3Algal framework dolomite21.031.1107.3790.0120.023.06.10−3.550.7080330.000014138.053.7
Yas15759.0Algal framework dolomite19.629.592.5850.0480.025.9--0.7076940.000010--
Yas15770.5Algal framework dolomite23.032.4126.2810.0540.023.6--0.7081540.000011--
Ys16197.9Algal framework dolomite21.930.991.7910.0100.020.9--0.7079120.000011--
Ys16205.7Dolomite with precursor carbonate grain textures21.129.9103.1930.080.027.22.14−6.100.7079690.000012128.672.1
Yas15762.4Dolomite with precursor carbonate grain textures21.330.991.1830.0160.025.62.97−4.970.7079940.000010130.963.7
Yas15791.7Dolomite with precursor carbonate grain textures21.931.897.8880.0230.025.05.73−4.950.7082460.000011136.663.5
Ys16216.2Dolomite with precursor carbonate grain textures20.628.3119.1810.0220.026.92.83−2.500.7080500.000012131.946.8
Yas15788.8Fabric-destructive dolomite22.730.465.2800.0280.025.2--0.7080490.000013--
Yas15722.1Fabric-destructive dolomite22.130.974.2800.0170.031.7--0.7081030.000012--
Yas15774.4Fabric-destructive dolomite21.130.365.4770.0300.029.82.36−7.010.7079090.000009128.679.2
Yas15781.0Fabric-destructive dolomite21.630.991.5780.0410.027.32.60−6.620.7079650.000013129.376.1
Ys16183.9Fabric-destructive dolomite21.132.378.8810.0230.025.4--0.7080390.000011--
Yas15782.3Fabric-destructive dolomite21.229.559.6840.0280.025.32.63−6.750.7076690.000012129.377.1
Ys15735.0Pore-filling calcite------0.50−8.54- -91.7
Ys15735.0Pore-filling calcite------0.31−7.92- -86.5
Ys15769.7Pore-filling calcite------1.11−8.11- -88.1
Ys16199.8Pore-filling calcite------2.13−7.25- -81.1
Note: Z = 2.048(δ13Cd + 50) + 0.498(δ18Od + 50), T (°C) = 31.9 − 5.55(δ18Od − δ18Ow) + 0.17(δ18Od − δ18Ow)2.

Share and Cite

MDPI and ACS Style

Zhang, S.; Lv, Z.; Wen, Y.; Liu, S. Origins and Geochemistry of Dolomites and Their Dissolution in the Middle Triassic Leikoupo Formation, Western Sichuan Basin, China. Minerals 2018, 8, 289. https://doi.org/10.3390/min8070289

AMA Style

Zhang S, Lv Z, Wen Y, Liu S. Origins and Geochemistry of Dolomites and Their Dissolution in the Middle Triassic Leikoupo Formation, Western Sichuan Basin, China. Minerals. 2018; 8(7):289. https://doi.org/10.3390/min8070289

Chicago/Turabian Style

Zhang, Shunli, Zhengxiang Lv, Yi Wen, and Sibing Liu. 2018. "Origins and Geochemistry of Dolomites and Their Dissolution in the Middle Triassic Leikoupo Formation, Western Sichuan Basin, China" Minerals 8, no. 7: 289. https://doi.org/10.3390/min8070289

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
