Next Article in Journal
Mechanical, In Vitro Corrosion Resistance and Biological Compatibility of Cast and Annealed Ti25Nb10Zr Alloy
Previous Article in Journal
Erratum: Liu, Z.; Ji, F.; Wang, M.; Zhu, T. One-Dimensional Constitutive Model for Porous Titanium Alloy at Various Strain Rates and Temperatures. Metals 2017, 7, 24
Article Menu
Issue 3 (March) cover image

Export Article

Open AccessArticle
Metals 2017, 7(3), 85; doi:10.3390/met7030085

Mechanical Properties Improvement of Laser Tailor Welded Blanks of DP600 Steel by Magnetic Treatment

1
Hubei Key Laboratory of Advanced Technology of Automotive Parts, Wuhan University of Technology, Wuhan 430070, China
2
Hubei Collaborative Innovation Center for Automotive Components Technology, Wuhan University of Technology, Wuhan 430070, China
3
School of Automotive Engineering, Wuhan University of Technology, Wuhan 430070, China
*
Author to whom correspondence should be addressed.
Academic Editor: Ian Baker
Received: 6 February 2017 / Revised: 25 February 2017 / Accepted: 28 February 2017 / Published: 8 March 2017
View Full-Text   |   Download PDF [6052 KB, uploaded 8 March 2017]   |

Abstract

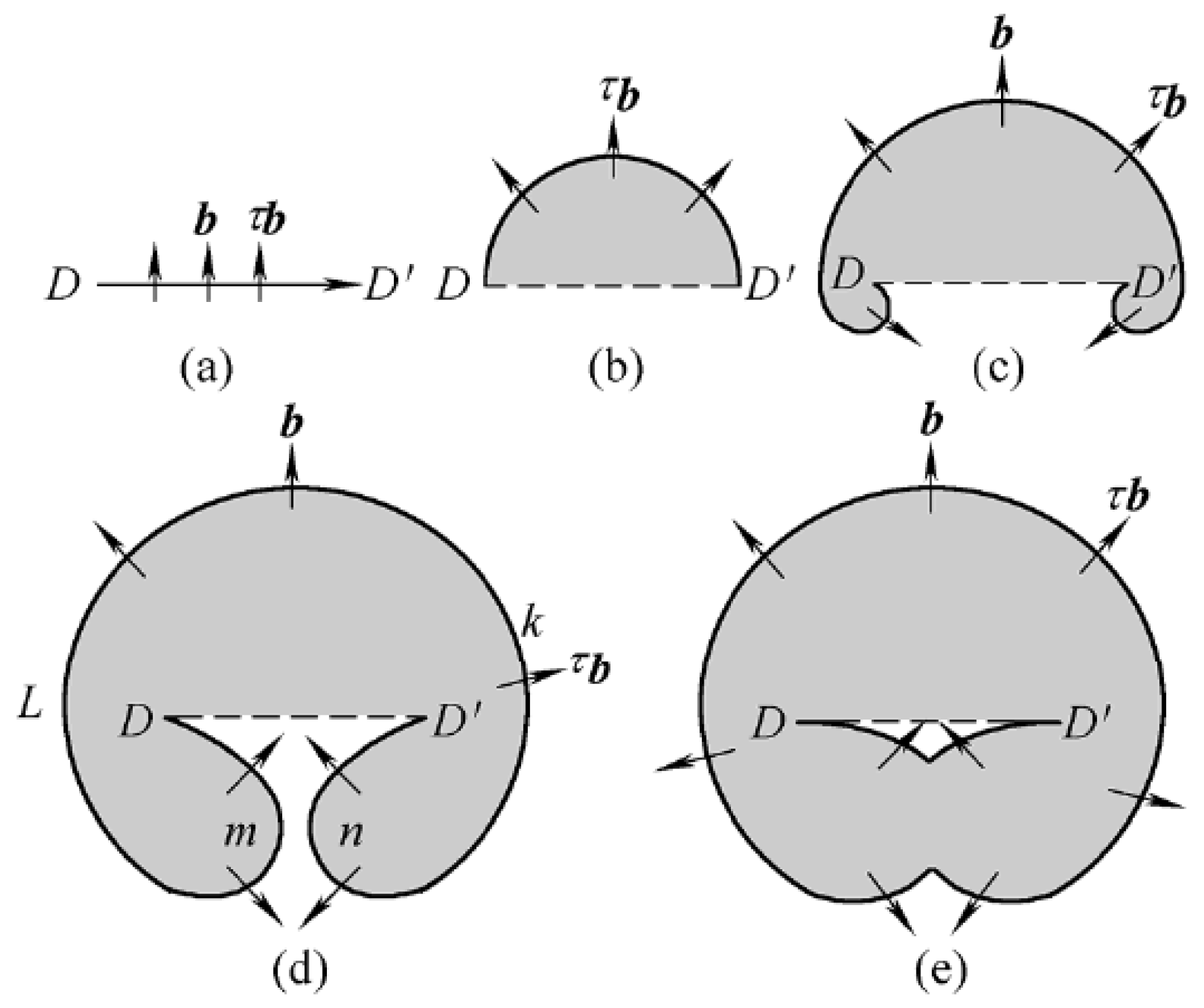

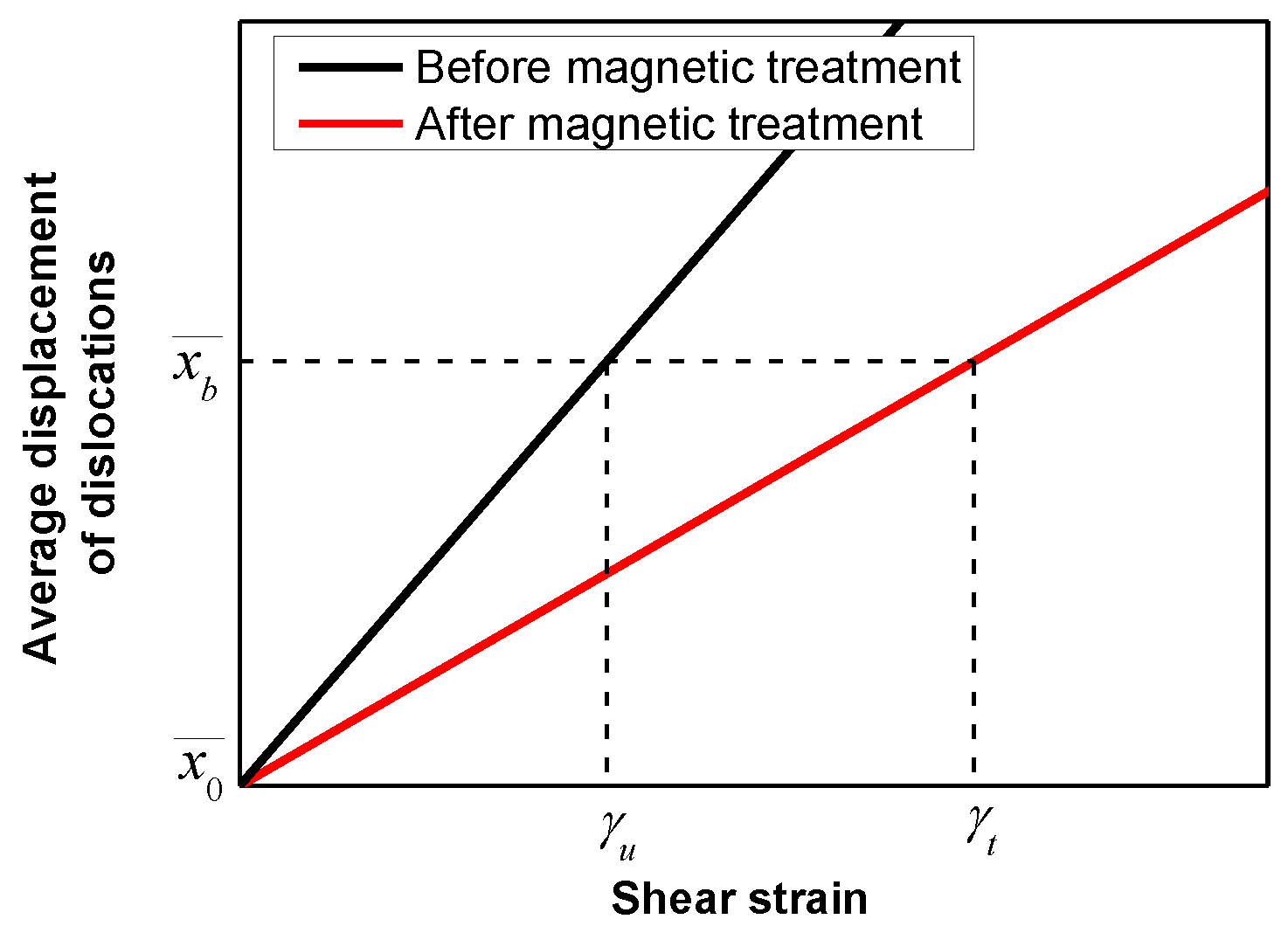

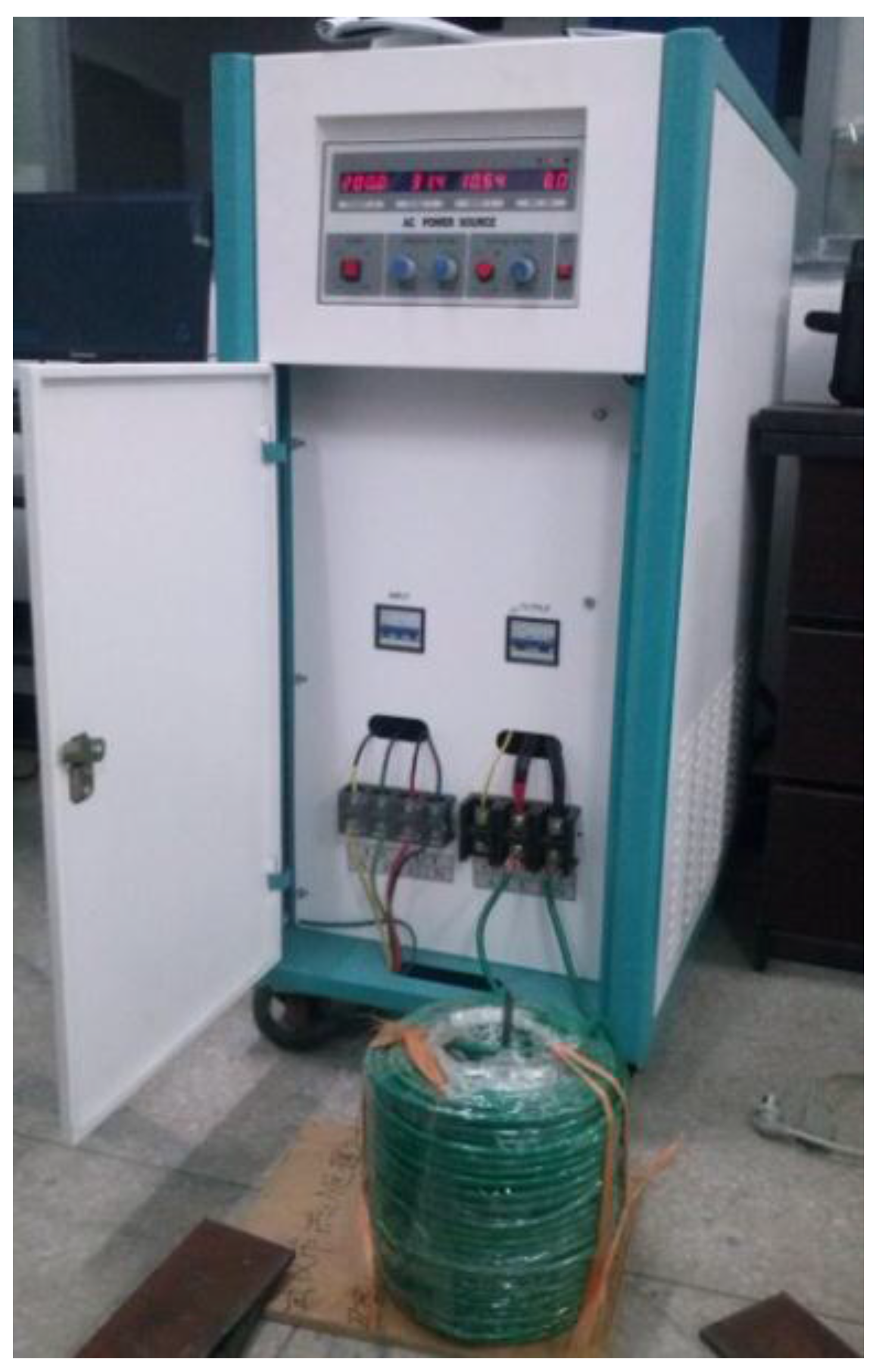

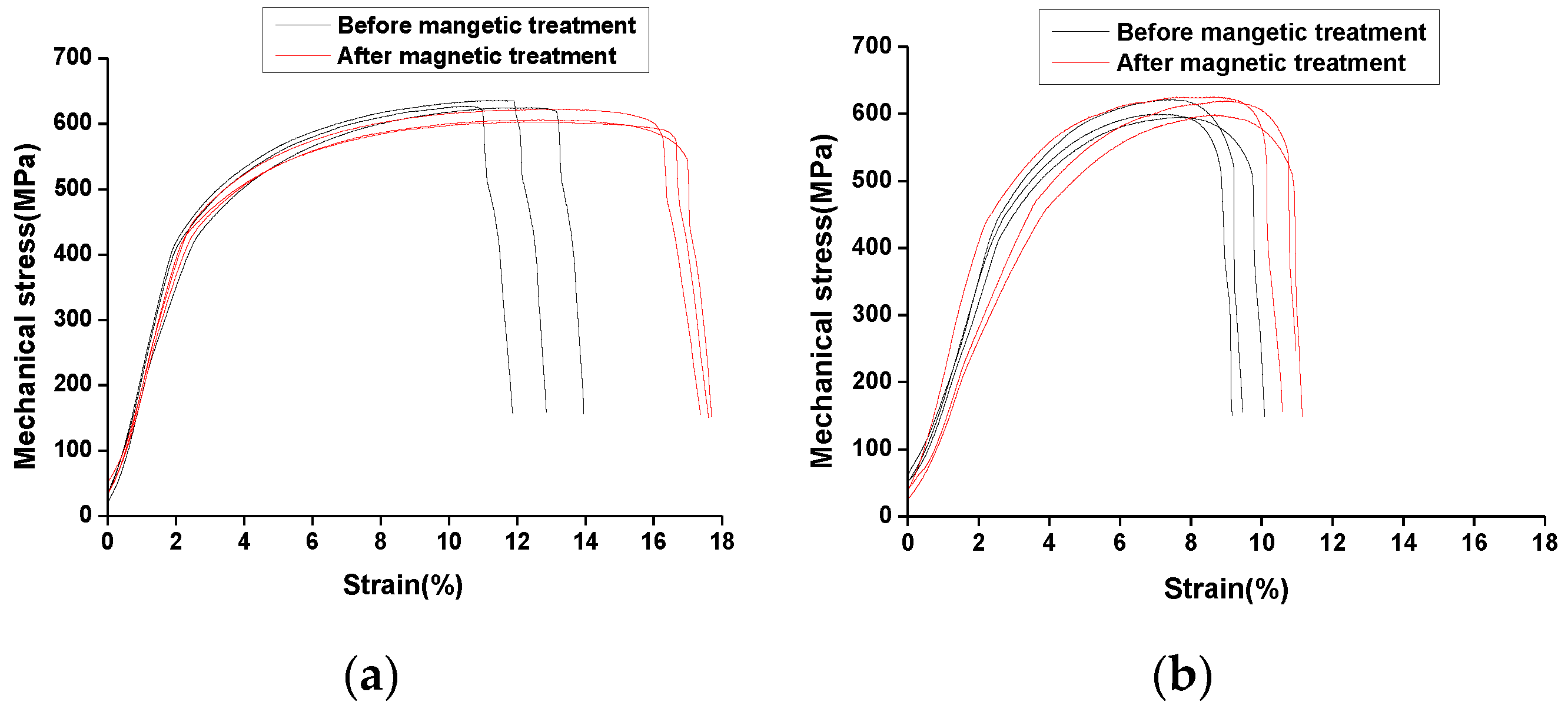

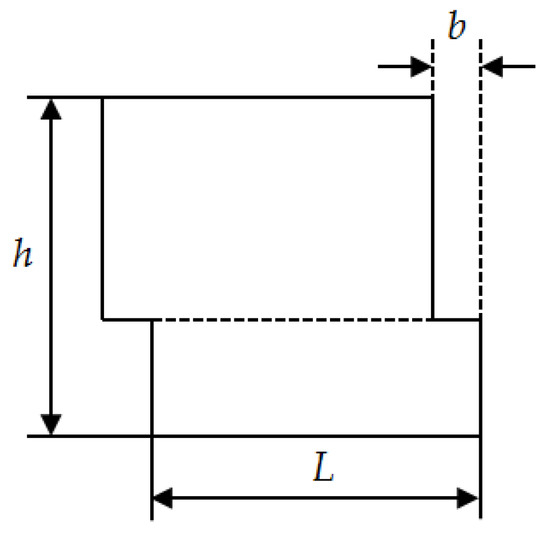

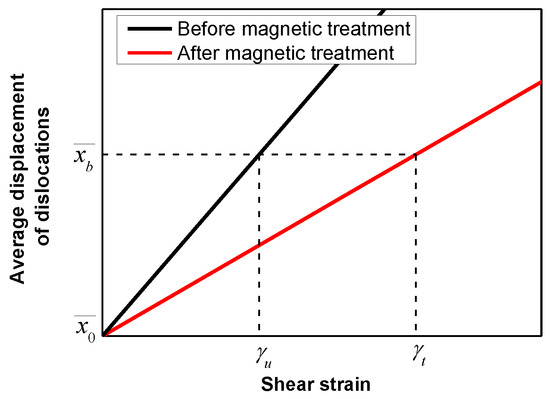

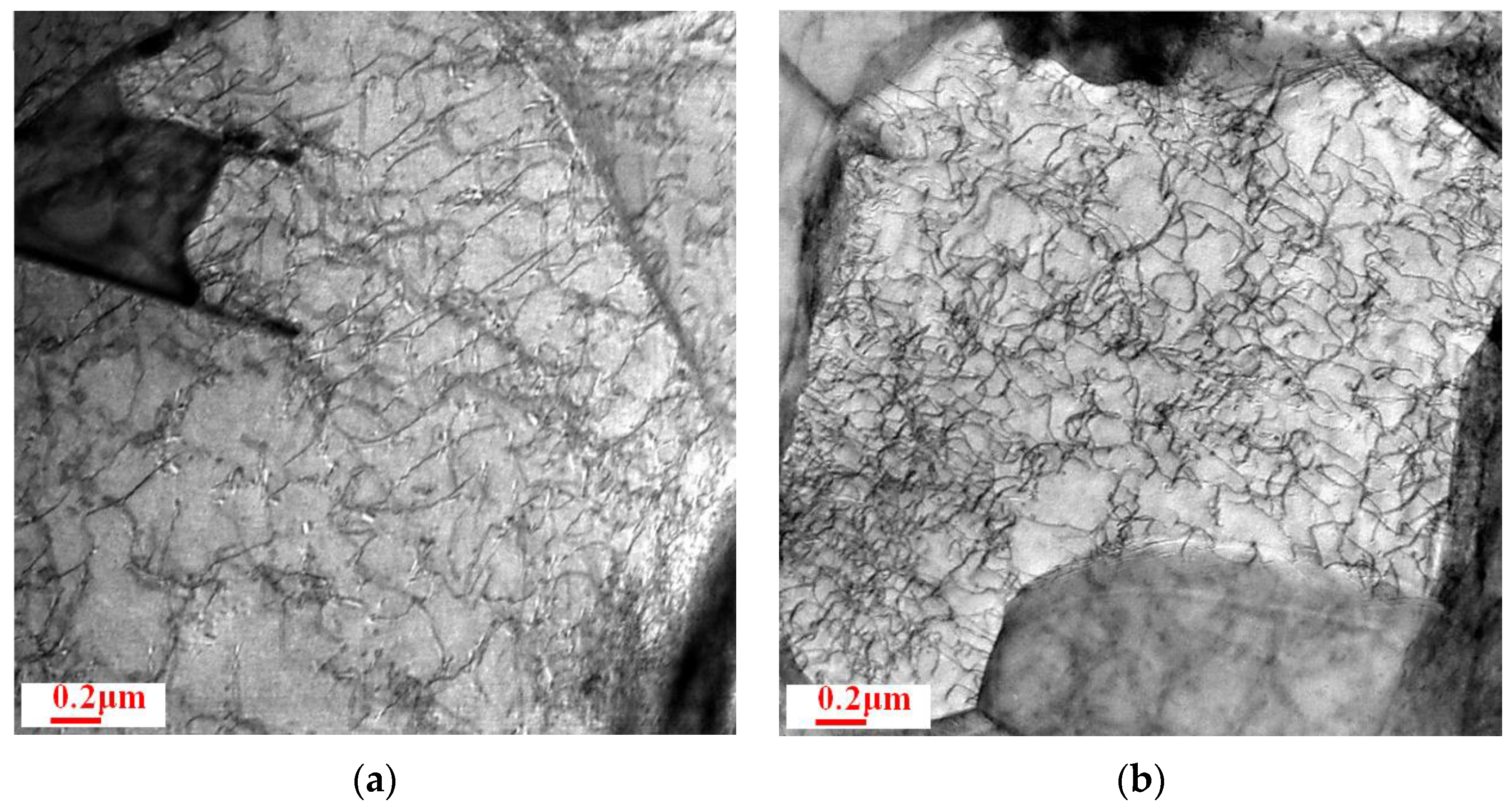

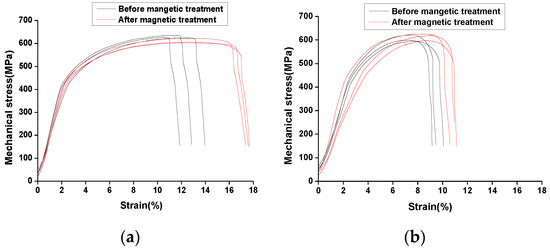

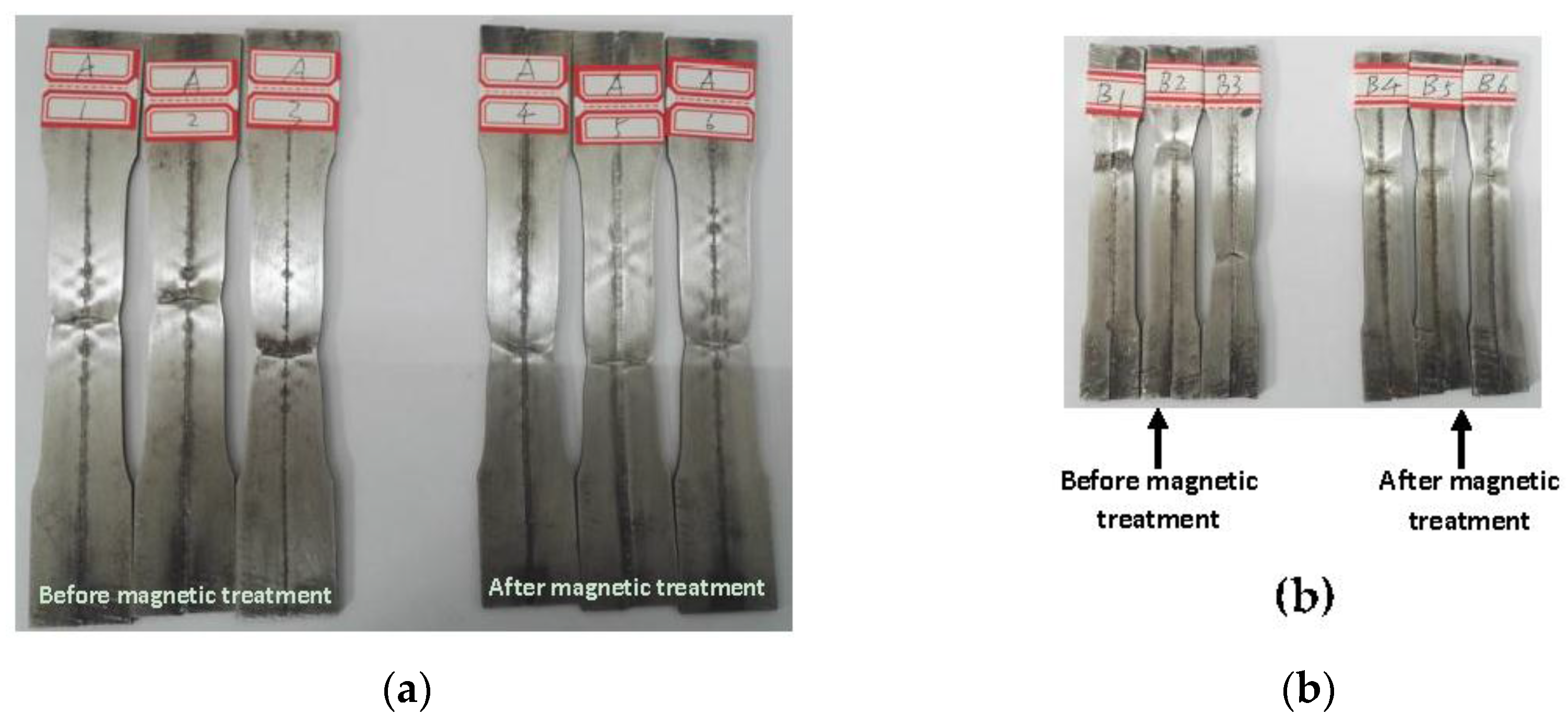

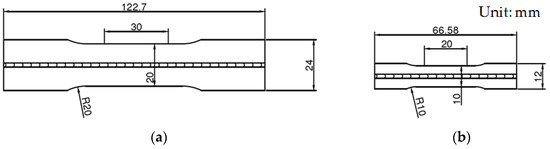

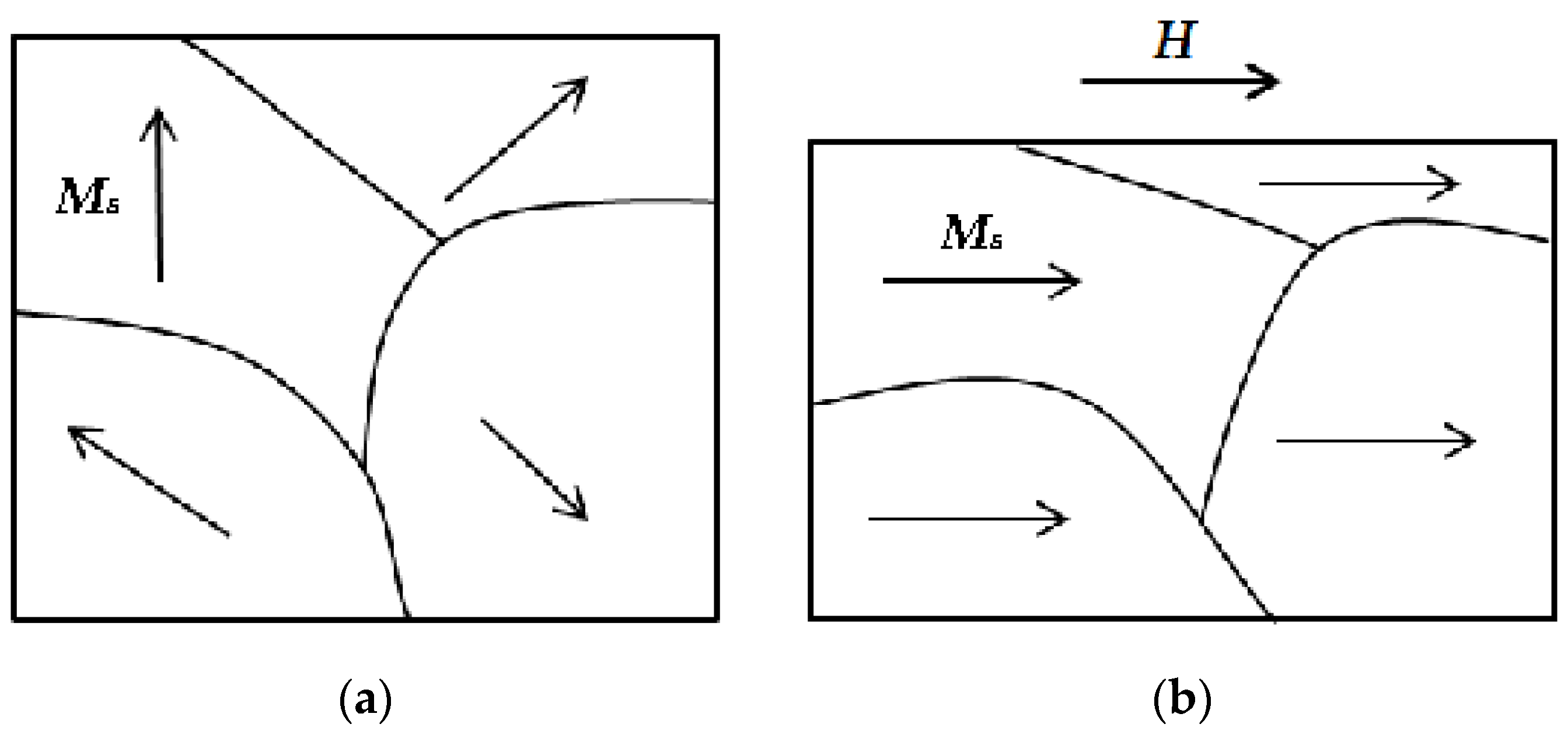

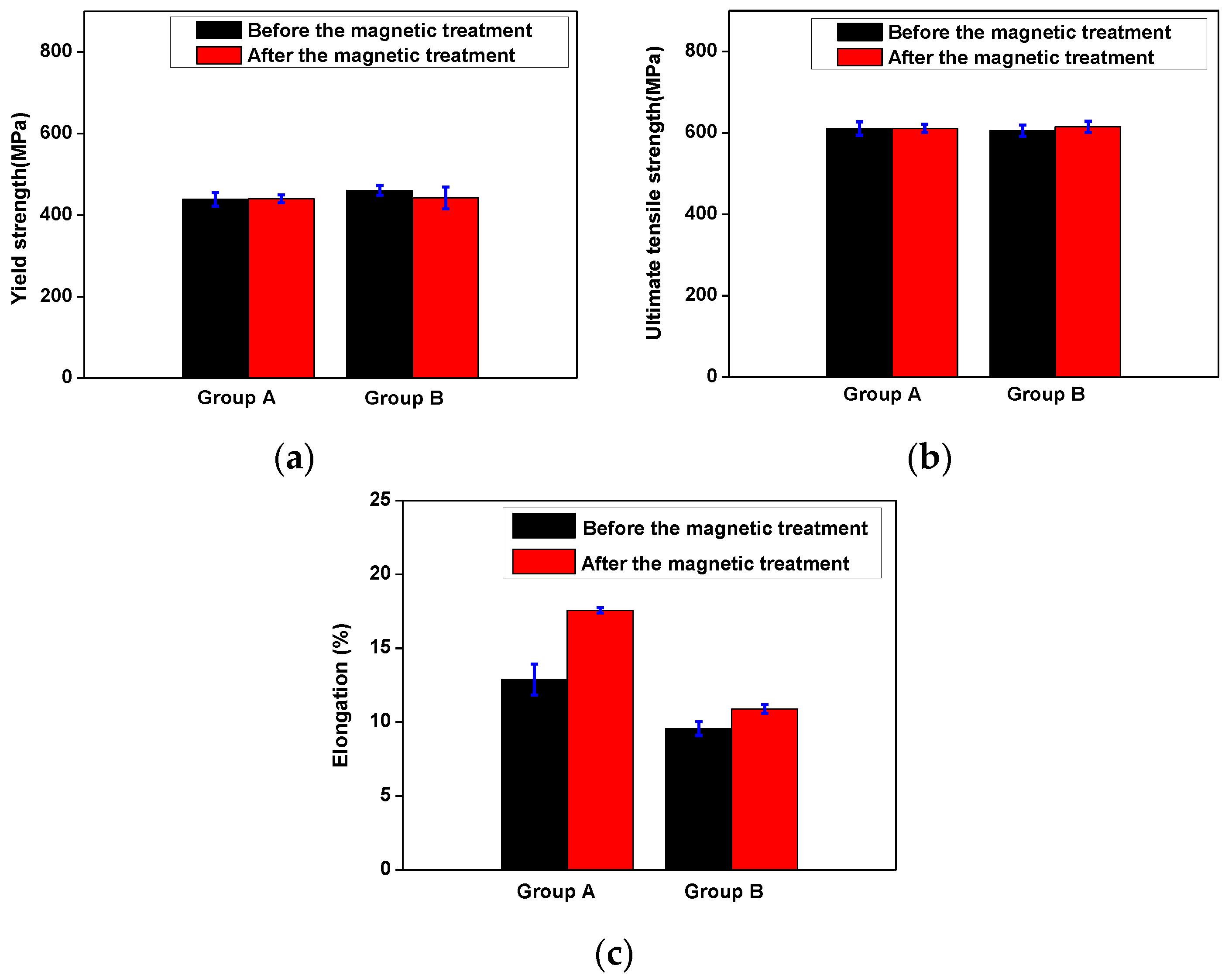

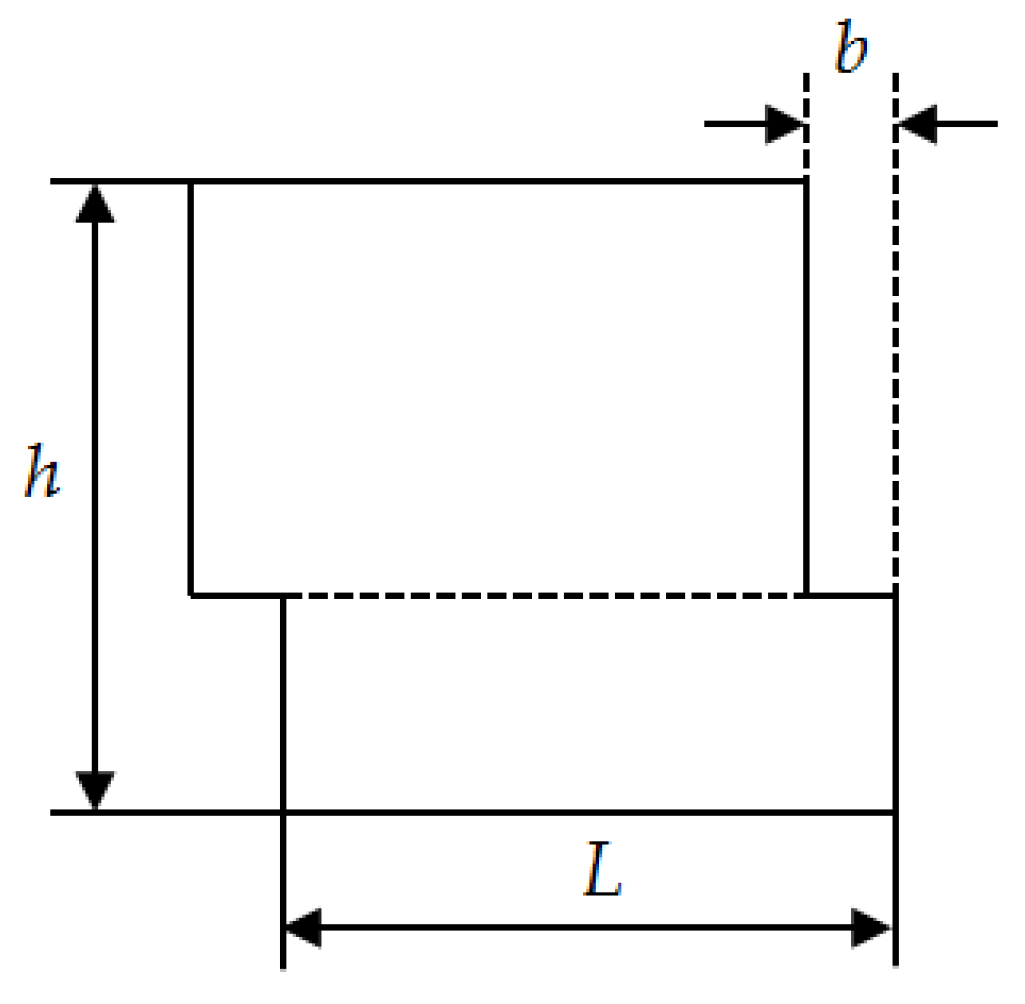

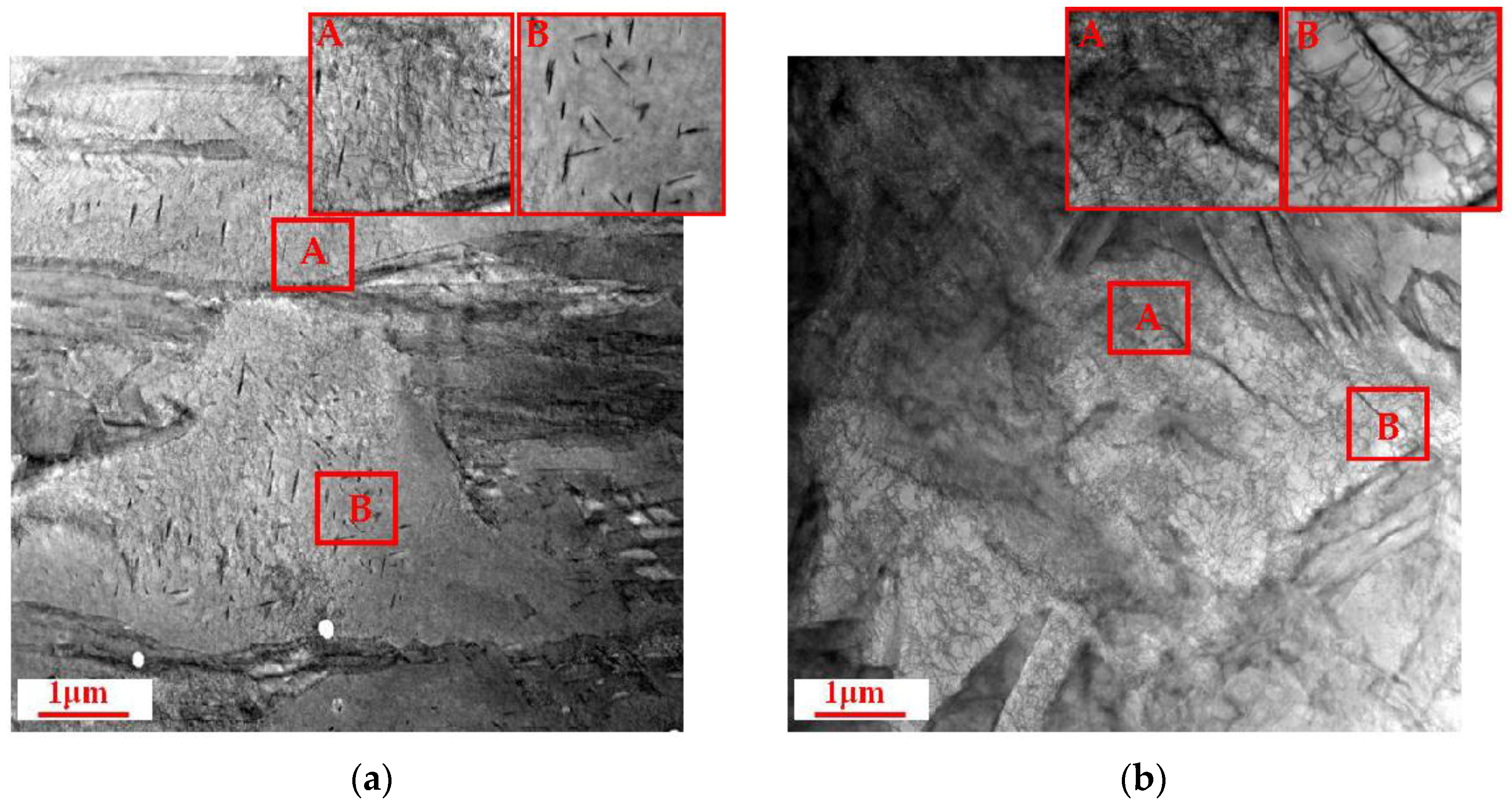

The influence of magnetic treatment on the yield strength, the ultimate tensile strength and the elongation of laser tailor welded blanks (TWBs) of DP600 steel was investigated by uniaxial tensile tests. The experimental results showed that the yield strength and the ultimate tensile strength of the TWBs had only a slight change, but the elongation increased by 13.90%–36.23% after the magnetic treatment. The dislocation distributions in the fusion zone (FZ) and the heat-affected zone (HAZ) were observed respectively by transmission electron microscopy (TEM). It was found that after magnetic treatment, the dislocations in both the FZ and the HAZ of the TWBs increased and showed a relatively uniform distribution. The mechanism of the mechanical property improvement of the TWBs by the magnetic treatment was then revealed on the basis of the relationship model between the dislocation and shear strain, considering the evolution of magnetic domains and Frank-Read dislocation multiplication in a magnetic field. View Full-Text
Keywords: mechanical properties; magnetic treatment; laser tailor welded blanks; dislocations mechanical properties; magnetic treatment; laser tailor welded blanks; dislocations
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited. (CC BY 4.0).

Scifeed alert for new publications

Never miss any articles matching your research from any publisher
  • Get alerts for new papers matching your research
  • Find out the new papers from selected authors
  • Updated daily for 49'000+ journals and 6000+ publishers
  • Define your Scifeed now

SciFeed Share & Cite This Article

MDPI and ACS Style

Song, Y.; Yu, C.; Yu, H.; Zhao, C. Mechanical Properties Improvement of Laser Tailor Welded Blanks of DP600 Steel by Magnetic Treatment. Metals 2017, 7, 85.

Show more citation formats Show less citations formats

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Related Articles

Article Metrics

Article Access Statistics

1

Comments

[Return to top]
Metals EISSN 2075-4701 Published by MDPI AG, Basel, Switzerland RSS E-Mail Table of Contents Alert
Back to Top
