Synthesis of Metastable Au-Fe Alloy Using Ordered Nanoporous Silica as a Hard Template

Abstract

Nanoporous Au-Fe alloy was synthesized via a wet chemistry route using ordered nanoporous silica as a hard template. The nanoporous Au-Fe consisted of aligned arrays of nanopores that were uniform in composition and ordered in hexagonal lattice, whereas Au-Fe nanoparticles synthesized without templates exhibited broad dispersions in the chemical composition and/or particle size. Nanoporous Au-Fe has potential for applications as catalysts and/or adsorbents because of the large specific surface area of 81.2 m²·g⁻¹ and high pore volume of 0.56 cm³·g⁻¹.

1. Introduction

Alloy materials are widely used for day-to-day life. Copper-zinc alloys for corrosion-tolerant piping, gold-silver alloys for hardened jewelry wires, and titanium-aluminum alloys for biocompatible implants. Important infrastructures including bridges and railways are supported by hardened steels consisting of iron, chromium, and different metal additives. In the past few decades, alloy materials having nanometer pores and/or particle sizes, namely alloy nanomaterials, have been attracting attention because of their prominent performance as plasmonic sensors and catalysts for a broad range of energy/environmental applications [1].

Alloy nanomaterials are produced via either dry processes such as sputtering of alloy targets or wet chemistry routes including co-reduction of soluble metal precursors such as organometallic compounds and/or metal halides [2]. The wet chemistry routes are superior to the dry processes in terms of the ability to precisely control the pore-size- and/or particle-size distribution [3]. Monodispersed Au-Ag nanoparticles were prepared by co-reduction of Gold [1] chloride trihydrate and silver acetate in aqueous solution containing oleylamine as a surfactant, of which particle-size distribution was within 6 nm to 13 nm [4]. Nanoporous Pd-Pt alloy materials were synthesized in aqueous solution by soft-template methods, where self-assembled micelles served as a soft template to realize a monodispersed pore diameter [5].

However, current wet chemistry routes face a challenge of low chemical homogeneity of the targeted alloy nanomaterials. The wet chemistry synthesized alloy nanomaterials are prone to phase segregation especially when the constituent metals are much different in reduction potentials: one of the metal precursors with a low reduction potential readily forms a core, on which the other metal precursor with a high reduction potential precipitates to develop core-shell structures [6]. Post-annealing of such as-prepared alloy nanomaterials can improve the compositional uniformity because of promoted atomic interdiffusion but often lead to uncontrollable broadening in the particle/pore-size distribution due to particle agglomeration [7,8]. Moreover, nanomaterials of thermodynamically unstable (metastable) alloys are hardly materialized by post-annealing because phase separations can be promoted more than atomic interdiffusion at elevated temperatures.

Herein, we report that ordered nanoporous silica materials (SBA15) can serve as an efficient hard template for the synthesis of metastable alloy nanomaterials consisting of metal elements with widely different reduction potentials (Scheme 1) [9]. The nanoporous template absorbs and disperses different metal precursors on the pore surface. The dispersed metal precursors are then reduced with chemical reagents to precipitate uniform alloy layers over the template. The nanoporous template is finally dissolved in solution to yield the desired alloy with a skeletal porous structure replicated from the template.

We demonstrate that this hard-template synthesis is successfully applicable to the gold (Au)-iron [10] alloy system although it is acknowledged that Au_1−xFe_x (0.5 < x < 0.9) is a thermodynamically metastable alloy that exhibits a phase separation at 750 °C or higher temperatures in ambient condition [11,12]. Gold chloride (AuCl₃, Sigma-Aldrich Japan, Tokyo, Japan) and iron acetylacetonate (Fe(II)acac) (Sigma-Aldrich Japan, Tokyo, Japan) were first dissolved in aprotic solvent containing SBA15 powder. Superhydride (Lithium Triethylborohydride in tetrahydrofuran) (Sigma-Aldrich Japan, Tokyo, Japan) was then added to the solution to reduce the Au(III)-and Fe(II) precursors and precipitate nanometer-thick Au-Fe alloy layers over the pore surface of the template. The template was finally dissolved in hydrofluoric acid solution (Sigma-Aldrich Japan, Tokyo, Japan) to obtain the targeted Au-Fe nanomaterials having a nanoporous structure and large specific surface area. Powder X-ray diffractometry (pXRD) (Malvern PANalytical, Tokyo, Japan), hard X-ray photoemission spectroscopy (HAXPES) (Scienta Omicron, Tokyo, Japan), Brunauer-Emmett-Teller (BET) (Micromeritics Kashiwa, Japan) physisorption and scanning transmission electron microscopy (STEM) (JEOL, Tokyo, Japan) demonstrated that the obtained Au-Fe alloy nanomaterials had a uniform composition and an ordered nanoporous structure, which was inherited from the SBA15 hard template.

2. Materials and Methods

2.1. Sample Preparation

An aliquot of 200 mg of SBA-15 was added to 35 mL of diethyleneglycol dimethyl (Sigma-Aldrich Japan, Tokyo, Japan) ether (diglyme) (Sigma-Aldrich Japan, Tokyo, Japan) and continuously stirred for 6 h, then 50 mg of AuCl₃ and 106 mg of Fe(II)acac were added to the solution and stirred for 1 h more. An aliquot of 2.2 mL of super hydride (1 M in tetrahydrofuran) (Sigma-Aldrich Japan, Tokyo, Japan) was finally added to the solution. The color of the solution turned from dark brown to turbid black upon addition of super hydride. The solution was allowed for stirring overnight and centrifuged to collect black powder as the final product. All of these procedures were carried out in dry Ar atmosphere in a glove box (mBraun, Garching, Germany). The collected black powder was exposed to air, washed with diglyme (Sigma-Aldrich Japan, Tokyo, Japan) and hexane (Sigma-Aldrich Japan, Tokyo, Japan), and finally heated at 700 °C in a vacuum-sealed quartz tube for 6.5 h. The sample was immersed in 5% aqueous HF solution (Sigma-Aldrich Japan, Tokyo, Japan) for 20 min to dissolve SBA15, washed with ethanol (Sigma-Aldrich Japan, Tokyo, Japan), and dried in air at 60 °C for 12 h.

2.2. Characterization

The prepared sample was examined using a powder X-ray diffractometer (X’Pert-PRO, Malvern PANalytical, Tokyo, Japan) with Cu Kα radiation (λ = 0.154060 nm). A non-reflection Si plate was used as a sample holder to reduce the background. Hitachi SU8200 scanning electron microscope equipped with an X-ray energy-dispersive spectrometer (Hitachi, Tokyo, Japan) was used for microscopic characterization and elemental compositions at an accelerating voltage of 5 kV and 15 kV, respectively. High-resolution transmission electron microscopic (HRTEM) images were obtained with a JEOL 2100-F2 microscope (JEOL, Tokyo, Japan).

3. Results and Discussions

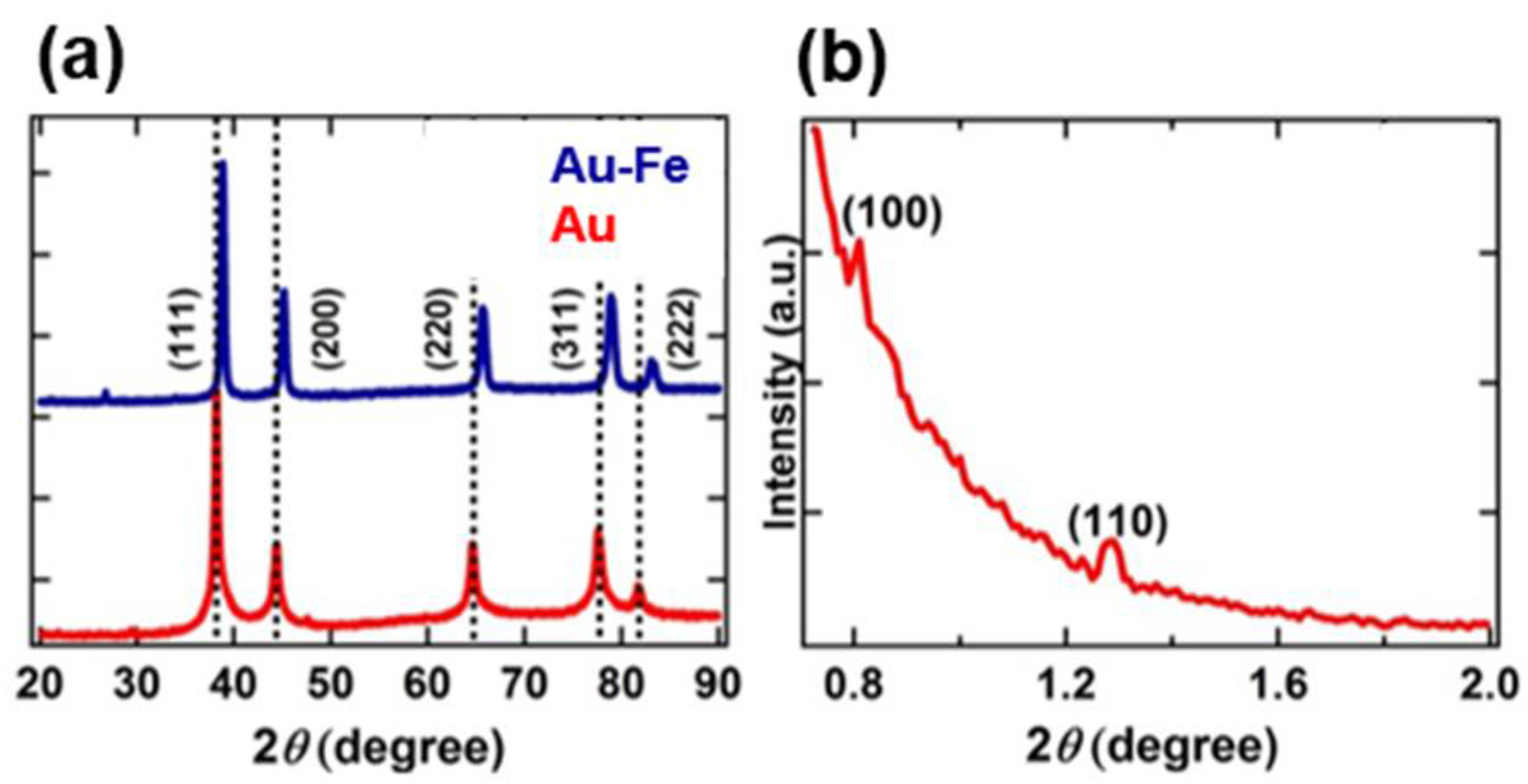

Figure 1a shows the pXRD profiles of the prepared nanoporous Au-Fe alloy (20 < 2θ < 90 degrees). The major reflection peaks were positioned at 2θ = 38.80, 45.10, 65.60, 78.90, and 83.06 degrees, which corresponded to the (111)-, (200)-, (220)-, (311)-, and (222) of the face-centered cubic structure (a = 0.3980 ± 0.0002 nm), respectively. The chemical composition of the Au-Fe alloy was estimated as Au_0.75Fe_0.25 because the calculated lattice parameter was consistent with the reported value of an atomically ordered Au₃Fe alloy [10]. The peak positions were shifted toward the higher reflection angles with respect to the corresponding peaks from pure Au at 38.10, 44.30, 64.50, 77.50, and 81.60 degrees (a = 0.4070 ± 0.0002 nm), showing that the crystal lattice of the nanoporous Au-Fe was 2.2% smaller than that of pure Au due to the incorporation of Fe atoms in the Au matrix [10]. The low-angle pXRD profile of the nanoporous Au-Fe (0.70 < 2θ < 2.0 degrees) is presented in Figure 1b. There are two peaks observed at 2θ = 0.80 and 1.30 degrees, corresponding to the (100)- and (110) reflections of a hexagonally ordered nanopores replicated from SBA15, of which lattice parameter along the hexagonal edge was calculated as 13.20 ± 0.02 nm [13,14].

Figure 2 presents the nitrogen (N₂) adsorption-desorption isotherms of the nanoporous Au-Fe. An aliquot of 100 mg of sample was degassed at 150 °C for 3 h, then the N₂-adsorption/desorption isotherm was carried out using Micrometrics ASAP 2020 (National Institute for Materials Science (NIMS), Tsukuba, Japan). The specific surface area of the nanoporous Au-Fe was calculated as 81.2 m²·g⁻¹ from the N₂ adsorption-desorption isotherms. The pore-size distribution curve (inset in Figure 2) had a maximum at 18 nm, which was consistent with the lattice constant (13.2 nm) of the ordered nanopores that was determined by low-angle pXRD (Figure 1b). The mean value of the pore diameter was calculated from the N₂ adsorption data as 24 ± 2 nm.

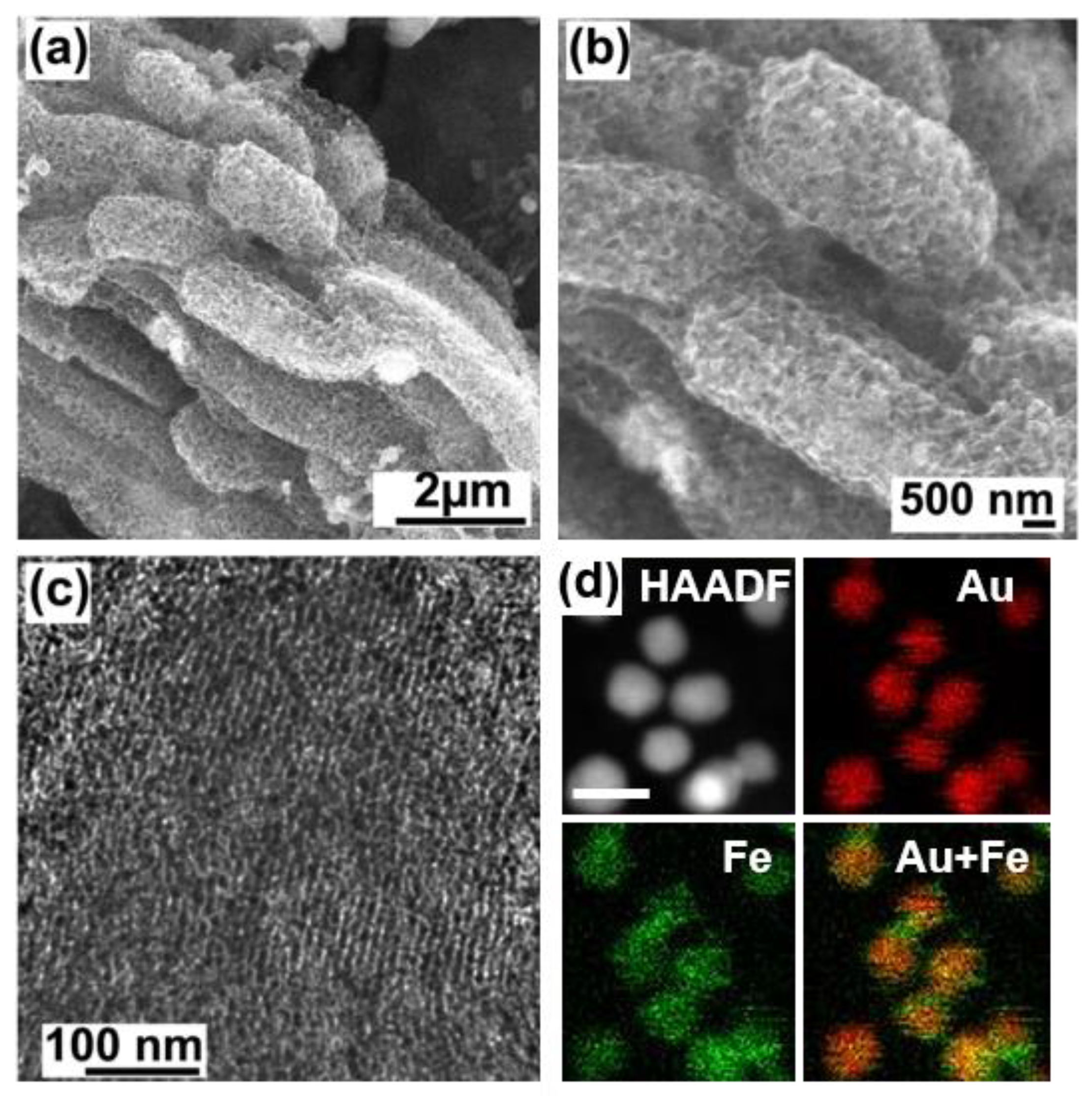

The successful replication of the nanoporous structure of the SBA15 template to the nanoporous Au-Fe was confirmed by microscopic characterizations including SEM and TEM (Figure S1). Figure 3a shows that the prepared nanoporous Au-Fe had a rod-like shape with an average thickness of 1 ± 0.1 μm, having a number of pores over the surface (Figure 3b). High-resolution TEM observation demonstrated that the porous structure was developed not only over the surface but also in the bulk, of which pore diameter was 10–20 nm (Figure 3c). Compositional mapping showed that Au and Fe were uniformly distributed in the nanoporous Au-Fe (the sample was finely pulverized by sonication in ethanol to improve electron-beam transmission for quantitative analysis). Based on the results of pXRD, SEM (JEOL, Tokyo, Japan) and TEM (JEOL, Tokyo, Japan) characterizations, we conclude that the nanoporous Au-Fe comprised hexagonally ordered nanopore arrays of Au_0.75Fe_0.25 alloy (see Figures S2–S5, Table 1 for HAXPES and EDS data). We further estimated the composition of the Au-Fe nanomaterials from the HAXPES peak intensities of metallic Au 4f- and Fe 2p emissions (Figures S2–S4). The calculated Au/Fe ratio was 2.42 ± 0.24 (see supporting information), which is fairly consistent with the value estimated from pXRD: Au/Fe = 0.75/0.25 = 3.

To verify how the hard template contributed to the homogeneity and porous nature of the nanoporous Au-Fe, free-standing Au-Fe nanoparticles were synthesized without SBA15 by co-reduction of the same precursors in the same condition as for the nanoporous Au-Fe. AuCl₃ and Fe(II)acac were dissolved in diglyme containing no SBA15 and reduced with superhydride to yield black, fine powder of Au-Fe nanoparticles. The Au-Fe nanoparticles were post-annealed in vacuum at 700 °C as was the nanoporous Au-Fe. The obtained nanoparticles were widely distributed in size from 20 nm to 100 nm (Figure 4a). Moreover, the chemical composition of the prepared nanoparticles was not uniform: each of the individual alloy nanoparticles had different Au and Fe contents (Figure 4b).

The low homogeneity in size and composition of the Au-Fe nanoparticles most likely resulted from the uncontrolled reduction kinetics of the precursors. The Au(III)- and Fe(II) precursors were reduced by Super-Hydride to randomly form alloy embryos of different sizes and compositions in solvent. The post-annealing processes improved neither the compositional homogeneity nor the size distribution of the individual nanoparticles. Unlike the free-standing nanoparticles, the nanoporous Au-Fe alloy exhibited a highly uniform pore distribution and homogenous composition because the nanoporous SBA15 acted as a scaffold that absorbed the different precursors. The Au(III)- and Fe(II) precursor molecules were, as depicted in Scheme 1, atomically dispersed over the nanopore surface of SBA15. The adsorbed precursor molecules were then chemically reduced and vacuum-annealed below the phase-separation temperature to form skeletal, nanoporous Au-Fe alloy materials that were uniform in pore size and chemical composition.

Different nanoporous metals are efficiently used for catalysis, energy conversions, and sensors because of the large specific surface areas (>100 m²·g⁻¹) and high pore volumes (>1 cm³·g⁻¹) [15,16]. Most of the nanoporous metals materialized consisted of almost pure precious metals such as gold (Au). Nanoporous Au can be materialized through different pathways including dealloying, sputtering, and implanting. However, the title material of our paper, Au-Fe nanomaterials, are hardly materialized through traditional processes because of the large difference in reduction potential of the constituent Au and Fe. Fe is readily oxidized to form iron oxides, whereas Au always retains the inherent metallic nature.

In conclusion, metastable Au-Fe alloy was successfully synthesized in the form of nanoporous materials (nanoporous Au-Fe) via a wet chemistry route using SBA15 as a hard template. The nanoporous Au-Fe comprised hexagonally ordered arrays of nanopores that were uniform in pore diameter (10–20 nm in diameter) and chemical composition (Au_0.75Fe_0.25). The effectiveness of the hard template was demonstrated by a control synthesis of free-standing Au-Fe nanoparticles, which were widely dispersed in size and composition. The successful hard-template synthesis of the nanoporous Au-Fe can be applied to a broad range of alloy systems and will open up unexplored research fields on functional alloy nanomaterials such as high-performance catalysts and adsorbents, which will have high specific surface areas, controllable surface-atom arrangements, and uniformly distributed nanoporous structures.
